Improving Dialogue Smoothing with A-priori State Pruning

Manex Serras

1 a

, Mar

ıa In

es Torres

and Arantza del Pozo

Speech and Natural Language Technologies, Vicomtech, Paseo Mikeletegi 57, Donostia-San Sebastian, Spain

Speech Interactive Research Group, Universidad del Pa

ıs Vasco UPV/EHU, Campus of Leioa, Leioa, Spain

Keywords:

Dialogue State Pruning, Dialogue Breakdown, Attributed Probabilistic Finite State Bi-Automata, Dialogue

Systems.

Abstract:

When Dialogue Systems (DS) face real usage, a challenge to solve is managing unforeseen situations without

breaking the coherence of the dialogue. One way to achieve this is by redirecting the interaction to known

dialogue states in a transparent way. This work proposes a simple a-priori pruning method to rule out in-

valid candidates when searching for similar dialogue states in unexpected scenarios. The proposed method

is evaluated on a User Model (UM) based on Attributed Probabilistic Finite State Bi-Automata (A-PFSBA),

trained on the Dialogue State Tracking Challenge 2 (DSTC2) corpus. Results show that the proposed tech-

nique improves response times and achieves higher F1 scores than previous A-PFSBA implementations and

deep learning models.

1 INTRODUCTION

During the last years, technological advances in

telecommunications have brought and normalized

new digital communication channels. This along with

the advances in Natural Language Processing, Speech

Recognition, Decision Making and other Artiﬁcial In-

telligence ﬁelds enabled the creation of Dialogue Sys-

tems (DS), more commonly known as Voice Assis-

tants or Chatbots.

Dialogue Systems usually employ voice or text for

engaging conversations with users whether the ob-

jective is to fulﬁll a task or entertain (Chen et al.,

2017). As DS can automatize low-level tasks in a dis-

tributed way and allow a natural and frictionless chan-

nel to communicate with the users, it is not surpris-

ing that they have been used in multiple tasks such as

bus schedule information systems (Raux et al., 2005),

post-sales management (Serras et al., 2017a), coach-

ing for elderly people (Montenegro et al., 2019; Tor-

res et al., 2019), general entertainment (Curry et al.,

2018) etc.

Every DS has to understand what it’s being told,

plan a coherent response strategy to fulﬁll the task and

give an adequate response. The Dialogue Manager

(DM) is the module that plans the interaction strat-

egy according to the context and the tasks to com-

plete. The dialogue planning can be treated as a

https://orcid.org/0000-0000-0000-0000

pattern matching, classiﬁcation problem or even as

a generative process, due to this, the technological

stack available to build DMs employs handcrafted

rules or automata (Cole, 1999; Schefﬂer and Young,

2000), Support Vector Machines (SVM) (Griol et al.,

2008) stochastic discrete probabilistic models such as

Markov Decision Process (MDP) (Zhao, 2016; Es-

hghi et al., 2017) and Partially Observable MDPs,

Attributed Probabilistic Finite State Bi-Automata (A-

PFSBA) (Torres, 2013; Serras et al., 2017b), Bayesian

Networks (Pietquin and Dutoit, 2006) and more

recently, both discriminative Sequence-to-Sequence

Neural Networks and Generative Adversarial Net-

works (Agarwal et al., 2018; Lipton et al., 2018;

opez Zorrilla et al., 2019).

Once the DS is deployed and faces new interac-

tions, it is common to encounter circumstances where

the dialogue is led to unexpected scenarios. In these

situations, the main objective of every DM is to give

an appropriate response that does not induce to a di-

alogue breakdown (Higashinaka et al., 2016; Bohus

and Rudnicky, 2005).

In the circumstance of a dialogue breakdown, it

is common for the DM to employ error handling

techniques such as pre-deﬁned fallback actions (e.g.

”Sorry, could you rephrase that?”) (Milhorat et al.,

2019; Paek and Pieraccini, 2008) or error recovery

strategies that narrows down the user responses to ex-

pected options (e.g. ”Select the Bus route A or B”)

Serras, M., Torres, M. and Pozo, A.

Improving Dialogue Smoothing with A-priori State Pruning.

DOI: 10.5220/0009184206070614

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 607-614

ISBN: 978-989-758-397-1; ISSN: 2184-4313

607

(Bohus and Rudnicky, 2005). When it comes to Deep

Learning (DL) approaches, every dialogue sequence

is approximated by the networks’ internal weights so

the model is able to give response to any situation, be-

ing this correct or not. To detect and avoid these pos-

sible breakdowns, the Dialogue Breakdown Detection

challenge has been created (Higashinaka et al., 2017),

where the breakdown detection –i.e. when the system

is giving an inappropriate response– is treated as a

prediction problem where different algorithms such as

Bi-LSTMs (Xie and Ling, 2017) and SVMs (Lopes,

2017) were used.

To avoid dialogue breakdown when an unseen in-

teraction is reached, the A-PFSBA framework uses

a dialogue smoothing strategy (Orozko and Torres,

2015; Serras et al., 2017b; Serras. et al., 2019). This

strategy consists on a two step procedure where ﬁrst

the most similar known dialogue states to the un-

known dialogue state are sampled and then, the ac-

tions of these known states are used to keep on with

the dialogue, trying to transparently avoid any poten-

tial breakdown.

Unfortunately, when performing a spatial approx-

imation of an unknown dialogue state it is imperative

to correctly sample the most similar states so the given

response keeps being coherent, as an incoherent re-

sponse could be worse in terms of dialogue break-

down than a fallback action. Focusing on this as-

pect of the problem, this paper presents a simple-yet-

effective a-priori state pruning methodology to im-

prove the generalization of stochastic dialogue sys-

tem when facing unknown situations. The proposed

method is both applicable for DS and User Models

(UM), that are Dialogue Systems that emulate real

users, and are often used for data augmentation and

automated testing (Schatzmann et al., 2006). Even

they differ in name, the technological stack that they

require is identical with the difference that the UMs

have to model the ﬁnal user behavior. In both sce-

narios the DM is a critical component to ensure the

coherence of the interaction and, thus, the same dia-

logue state pruning method can be applied.

The proposed methodology is tested over the Di-

alogue State Tracking Challenge 2 (DSTC2) corpus

using the A-PFSBA framework. The achieved re-

sults are compared using previous A-PFSBA models

as baseline and other DL UM as a hard baseline.

The paper is structured as follows: Section 2

brieﬂy introduces the A-PFSBA framework, how the

dialogues are modelled and the dialogue smoothing

strategy; Section 3 presents the dialogue a-priori state

pruning method; Section 4 describes the experimen-

tal framework and the evaluations performed over

the DSTC2 corpus; ﬁnally, Section 5 summarizes the

conclusions of the paper with a brief discussion and

sets the guidelines for future work.

2 DIALOGUE MODELLING

WITH ATTRIBUTED

PROBABILISTIC FINITE STATE

Bi-Automata

The Attributed Probabilistic Finite State Bi-Automata

framework (Torres, 2013) models the interaction be-

tween an user and an agent as a composition of two

alphabets, the alphabet of user actions d ∈ Σ and sys-

tem actions a ∈ ∆. This bi-language Γ = ∆ × Σ is

enhanced with the attribute alphabet Ω, which en-

codes the transitive information of the dialogue –i.e

the dialogue memory or the pieces of information that

should be kept turn by turn– which is inferred directly

from the dialogue interaction. Then each combination

of the Γ and Ω alphabets render a dialogue state q ∈ Q

of the A-PFSBA model, which are connected by the

set of transition actions δ of the form (d

: ε) for user

actions and (ε : a

) for the system actions. Each tran-

sition is fully determined by the initial and ﬁnal state.

As the bi-language models both user and system ac-

tions, the state set is composed by user and system

states Q = Q

, depending on who has to answer.

Note that all the dialogues start from the empty state

∈ Q which is composed by ε, the empty symbol.

The A-PFSBA model is built from a sample of

dialogues z ∈ Z, where the principal objective is to

maximize the probability of the model

M to generate

those dialogue samples.

M = arg max

(Z) = arg max

∏

z∈Z

(z)

One of the key aspects of the A-PFSBA frame-

work is that this formulation separates the structural

learning of the dialogue samples Z and its exploita-

tion for dialogue management. Once the model graph

structure is learned, this is used to track the dialogue

states through an interaction, using a policy function

Π to select the response to be given by the DM ac-

cording to the available transition edges (Ghigi and

Torres, 2015; Serras et al., 2019b).

2.1 Dialogue Smoothing Strategy

When using the A-PFSBA model

M as DM, variances

on the dialogue interactions may lead to an unknown

dialogue state q

6∈ Q. In this situation the policy Π

cannot select a transition edge, as q

is not part of the

model.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

608

To keep on with the dialogue without any break-

down, a two step dialogue smoothing strategy is used:

ﬁrst, the most similar known dialogue states are found

using a G spatial function –which can be the Eu-

clidean distance or cosine similarity–; then, the next

action is selected using these known dialogue states

(Orozko and Torres, 2015; Ghigi and Torres, 2015;

Serras. et al., 2019). This allows to recover from the

unknown state q

transparently, keeping on with the

dialogue without interruption. This strategy is illus-

trated at Figure 1. As the ﬁrst step of the smoothing



1) Find most similar dialogue

state

2) Select a transition action

from this state

Figure 1: Dialogue smoothing procedure from the unknown

dialogue state q

to select the systems’ next action without

breakdown.

is about sampling the nearest dialogue states using a

spatial relation function G, their spatial representation

is crucial. Early works on A-PFSBA employed string

based state representations (Orozko and Torres, 2015;

Ghigi and Torres, 2015), more recently a vectorial

representation was proposed in (Serras. et al., 2019),

allowing to operate in R

. Nevertheless, represent-

ing the A-PFSBA dialogue states q ∈ Q as vectors ~q

has some drawbacks, as the semantic relationships be-

tween each dimension of the vector will be ignored by

common spatial relations such as Euclidean distance

and cosine similarity. As an example, let us have these

three actions:

1. Request(address). ”Give me the address”

2. Request(telephone). ”Give me the phone.”

3. Inform(area=city center). ”I want some restaurant

at the city center”

Let us suppose that binary vector representation of

these user dialogue actions are [1, 0, 0], [0, 1, 0] and

[0, 0, 1]. In this scenario, we can observe that the Eu-

clidean distance between these representations is the

same, but their semantic meaning is completely dif-

ferent, and so, the response to give by a DS to each

user action should be different.

Afterwards, when the ﬁrst step of the dialogue

smoothing strategy is performed, the closest dialogue

states are selected, but without taking into account

the semantic information that is encoded in each dia-

logue state. This may lead to sampling spatially close

but semantically unrelated dialogue states when se-

lecting the next response, thus returning an incoherent

response that causes a dialogue breakdown.

3 A-PRIORI STATE PRUNING

To improve the dialogue state sampling when per-

forming the dialogue smoothing procedure, a simple

a-priori dialogue state pruning method is presented

in this section. The principal objective of the pro-

posed method is to remove semantically unrelated di-

alogue states to the unknown state q

before the di-

alogue smoothing is applied. To achieve so, a func-

tion that captures the semantic relations of the vec-

torized dialogue-state representations ~q ∈

Q, is built,

which is used afterwards for the dialogue-state prun-

ing. The principal assumption of this method is that

semantically similar dialogue states will return simi-

lar actions.

Generally, we can deﬁne a Pruning Model (PM) as

a function that receives the vector form of a dialogue

state (known or unknown) ~q and gives a score for each

item of the alphabet a ∈ ∆.

PM(~q) → {score(a

) ∀a

∈ ∆}

The building of this PM can be done using off-the-

shelf Machine Learning (ML) algorithms. The ML

model is trained with each dialogue state vector ~q us-

ing its output actions δ(q) as labels, so the model is

learning the discriminative patterns of the dialogue

state vector and its output actions.

Using the PM and a threshold θ

prune

, when some

unknown state q

is reached during the conversa-

tion, the action-score distribution is predicted PM(

Next, for each action a

∈ ∆, if the score received is

lower than the deﬁned θ

prune

threshold, all the dia-

logue states that include a

in their possible transi-

tions q

∈ Q : a

∈ δ(q

) are excluded from the dia-

logue smoothing sampling process. Note that δ(q

) is

the set of transitions that depart from q

and can be

used as the next system response.

As the proposed pruning method is applied to the

dialogue management, it can be used by both DS and

UM just by changing the dialogue state set to the user

states Q

and the action set to the user actions d ∈ Σ.

Improving Dialogue Smoothing with A-priori State Pruning

609

Table 1: Act/Slot level global evaluation metrics over the DSTC2 corpus for different pruning methods.

Development set Test set

Pruning Model Best θ

prune

Precision Recall F1 Score Precision Recall F1 Score

baseline: BAUM – 0.690/0.566 0.731/0.591 0.710/0.578 0.699/0.556 0.728/0.577 0.712/0.566

BAUM - MNB 0.1 0.717/0.590 0.746/0.605 0.731/0.598 0.747/0.594 0.744/0.586 0.746/0.590

BAUM - SVM 0.2 0.766/0.654 0.750/0.630 0.758/0.642 0.790/0.662 0.756/0.625 0.772/0.643

BAUM - PA -1.6 0.733/0.610 0.739/0.605 0.736/0.607 0.749/0.607 0.742/0.595 0.745/0.600

BAUM - MLP 0.2 0.752/0.638 0.753/0.626 0.752/0.631 0.774/0.638 0.761/0.618 0.768/0.628

BAUM - RF 0.3 0.757/0.630 0.705/0.579 0.730/0.603 0.770/0.630 0.703/0.570 0.735/0.599

Reg. Bi-LSTM – 0.70/0.60 0.72/0.63 0.71/0.62 0.71/0.60 0.73/0.64 0.72/0.62

Table 2: Results achieved by selecting the next action with different ML algorithms.

Predicting the Next Action Development set Test set

Prediction Algorithm Precision Recall F1 Score Precision Recall F1 Score

MNB 0.649/0.515 0.706/0.556 0.676/0.535 0.700/0.489 0.730/0.500 0.715/0.490

SVM 0.732/0.609 0.711/0.582 0.721/0.595 0.767/0.631 0.721/0.586 0.743/0.607

PA 0.698/0.546 0.689/0.527 0.694/0.537 0.725/0.531 0.701/0.502 0.713/0.516

MLP 0.730/0.611 0.732/0.604 0.731/0.607 0.770/0.613 0.752/0.590 0.760/0.60

RF 0.703/0.570 0.701/0.562 0.702/0.566 0.704/0.551 0.693/0.542 0.699/0.547

BAUM - SVM 0.766/0.654 0.750/0.630 0.758/0.642 0.790/0.662 0.756/0.625 0.772/0.643

4 EXPERIMENTATION

FRAMEWORK

This section performs the experiments over the

DSTC2 corpus to test the proposed dialogue state

pruning method. To compare with previous results,

the pruning is applied to the A-PFSBA User Model

(BAUM) presented at (Serras. et al., 2019) which uses

cosine similarity as spatial function G and Maximum

Likelihood as policy Π. Several ML algorithms are

used to perform the state pruning and the obtained

results are compared with the results achieved by a

Deep Learning Bi-LSTM ensemble UM presented at

(Serras et al., 2019a). During the experimental sec-

tion, three main hypotheses are tested:

1. Dialogue state pruning before the dialogue

smoothing sampling improves the generalization

of the Dialogue Management module.

2. The presented methodology can be applied using

a wide-range of ML methods, thus the PM can

be adjusted to domains that may have different

constraints and features (e.g. hardware/scalability

constraints, decoding time constraints, different

data distributions, and so on).

3. The use of ML algorithms is better suited for

state-pruning than for decision making, i.e. using

the same ML algorithm to predict the next action

when an unknown state q

is reached.

4.1 Dialogue State Tracking Challenge

2 Corpus

The Dialogue State Tracking Challenge 2 (DSTC2)

corpus was released in the second edition of the

DSTC series (Henderson et al., 2014), which was fo-

cused on tracking the dialogue state of a SDS in the

Cambridge restaurant domain. For such purpose, a

corpus with a total of 3235 dialogues was released

Amazon Mechanical Turk was used to recruit users

who would interact with a spoken dialogue system.

Previous to each dialogue, each user was given a goal

to fulﬁll, which had to be completed interacting with

the system. The goals deﬁned in this corpus followed

the agenda approach of (Schatzmann et al., 2007a;

Schatzmann et al., 2007b), where the user was given

some restaurant related constraints such as food type

and price range and some information to request to

the system, as the venue address. More information

about this corpus can be found at (Henderson et al.,

2013). As this corpus is already partitioned in train,

development and test sets, such splits have been used

in this section.

4.2 Impact on User Modeling

Following the evaluation procedure used by (El Asri

et al., 2016; Serras et al., 2019a; Serras. et al., 2019),

http://camdial.org/∼ mh521/dstc/

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

610

the UMs are evaluated in direct comparison, i.e. com-

paring the output given by the UM with the real users’

output. The evaluation is measured in terms of preci-

sion, recall and F1 score. The BAUM used as base-

line selects just the nearest dialogue state when per-

forming the dialogue smoothing strategy, (BAUM)

using the cosine similarity and the maximum likeli-

hood to select the next action. This initial baseline

is enhanced with the proposed dialogue state pruning

method using ﬁve well-known off-the-shelf ML algo-

rithms. The PM is trained using the A-PFSBA model

M inferred from the DSTC2 training set. The θ

prune

threshold is selected using the development set and

performing a grid search with step size of 0.1 to opti-

mize the F1 score.

The ML algorithms employed in this section are

the Multinomial Naive Bayes (MNB) (Sch

utze et al.,

2008), Support Vector Machines with linear kernel

function (SVM) (Platt, 1999), Passive Aggressive

Classiﬁer (PA) (Crammer et al., 2006), Multi-Layer

Perceptron (Hinton, 1990) (MLP) and Random For-

est Classiﬁer (RF) (Breiman, 2001). All these al-

gorithms were implemented using scikit-learn (Pe-

dregosa et al., 2011) and for the sake of simplicity,

given that the goal is to prove the ease of use of

the state pruning, no hiperparameter tuning was per-

formed. As a hard baseline, one of the latest DL user

modelling approach based on an ensemble of regular-

ized Bi-LSTM (Serras et al., 2019a) is also included

(Reg. Bi-LSTM).

Table 1 shows the achieved scores for each

method, evaluated at intent level –higher level,

coarser granularity– and slot-value level –ﬁner granu-

larity and more challenging–. As it is clearly seen, the

inclusion of a pruning mechanism improves the base-

line regardless of the ML algorithm used to build the

PM. The best suited ML algorithms for the DSTC2

case happened to be the SVM and the MLP, where

the results obtained with the BAUM - SVM/MLP

achieved higher scores than the Deep Learning Bi-

LSTM ensemble in most of the metrics. Finally, Fig-

ure 2 compares the relative decoding times achieved

by the different BAUM versions in the development

and test sets of the corpus. The development set de-

coding time of the baseline BAUM, which uses no

PM at all, is used as reference. The results clearly

indicate that using the proposed dialogue state prun-

ing method before performing the dialogue smooth-

ing procedure reduces the decoding time. This is a

critical feature for any DS, as they have to provide a

real-time service.

4.3 Predicting the Next Action

In the following experiment the third hypothesis pre-

sented in Section 4 is tested. As previous works on

DS used ML algorithms to perform the dialogue man-

agement (Griol et al., 2008), one of the questions that

arises when using one of these algorithms to prune

possible dialogue states is ”Why not use the ML al-

gorithm as predictor for the next action when an un-

known state q

is reached?”. To justify the use of

these ML methods as state pruners instead of predic-

tors, Table 2 displays the results achieved by using the

same algorithms as next user action predictors when

an unknown state is reached.

As it can be seen, the overall results when us-

ing a ML algorithm to predict the next action are

worse than using it for state pruning. In addition,

the achieved results are less robust as the selection

of the ML algorithm strongly conditions the results

obtained.

5 CONCLUSIONS AND FUTURE

WORK

In this paper a dialogue state pruning method was pre-

sented to prune semantically unrelated dialogue states

when performing the dialogue smoothing procedure

to avoid dialogue breakdown when an unknown dia-

logue state is reached during interaction. Using the

DSTC2 corpus and the user modelling task for evalu-

ation, the presented pruning method has proven to be

a robust way to improve the generalization of the DM

when some unknown state is reached in a dialogue in-

teraction. In addition, the decoding time of the system

is improved, mainly due because the amount of valid

dialogue states is highly reduced in comparison to the

original dialogue smoothing sampling method, which

takes into account all the system/user dialogue states

to compute the spatial similarity function G.

When using the same ML algorithms for predict-

ing the next action –instead for state pruning– when

an unknown dialogue state is met, despite some al-

gorithms such as SVM and MLP achieve competitive

results, the overall result is worse and the achieved

results show a high variance depending on which al-

gorithm is used. On the other hand, when using these

algorithms for pruning, the overall score of the base-

line UM is always improved. Anyways, with the pre-

sented experiments we cannot discard that the use of

more complex and resource-demanding prediction al-

gorithms and/or performing some exhaustive hyper-

parameter tuning on them could not match the results

achieved by the PMs (note that the same effort could

Improving Dialogue Smoothing with A-priori State Pruning

611

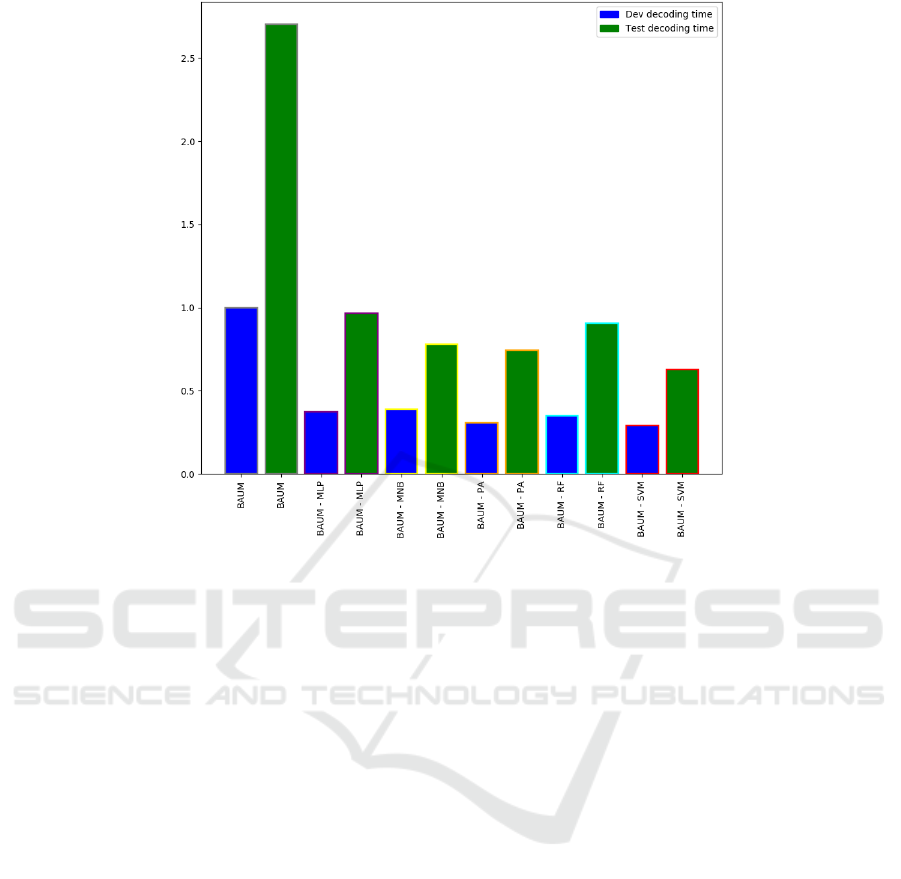

Figure 2: Relative time comparison between using different algorithms as PM in the A-PFSBA User Model.

improve the results of the dialogue state pruning), but

this was not the goal of the experimental section, as

one of the main points of the proposed method is its

simplicity and ease of use. That is the reason why no

complex algorithms were used nor hyper-parameter

ﬁne-tuning was performed.

Yet it is true that the proposed method has no

direct application within the ﬁeld of DL-based di-

alogue management, it can be used in any discrete

state based DMs such as MDPs, POMDPs, HMMs

and A-PFSBA. These approaches are more popular to

build DS in environments where the amount of data is

scarce.

Future work will be focused on performing an in-

direct evaluation using the proposed methodology, i.e.

evaluating the Task Completion or Dialogue Success

rate between dialogues generated by a UM and DM

talking to each other. In addition, as dialogue state

pruning reduces the number of times that the spatial

function G needs to be computed when the smoothing

is performed, the construction of more complex spa-

tial relation functions –rather than using the Euclidean

distance or cosine similarity– will be researched. Fi-

nally, the development of a method that decides when

to select an explicit fallback action ”I don’t under-

stand what you mean, could you rephrase that?” in-

stead of performing the dialogue smoothing strategy

(because there is no adequate response given by the

sampled dialogue states), is an open question that

would require an experimental setup with real users.

REFERENCES

Agarwal, S., Du

sek, O., Konstas, I., and Rieser, V. (2018).

Improving context modelling in multimodal dialogue

generation. In Proceedings of the 11th International

Conference on Natural Language Generation, pages

129–134.

Bohus, D. and Rudnicky, A. I. (2005). Error handling in

the ravenclaw dialog management framework. In Pro-

ceedings of the conference on Human Language Tech-

nology and Empirical Methods in Natural Language

Processing, pages 225–232. Association for Compu-

tational Linguistics.

Breiman, L. (2001). Random forests. Machine learning,

45(1):5–32.

Chen, H., Liu, X., Yin, D., and Tang, J. (2017). A survey on

dialogue systems: Recent advances and new frontiers.

Acm Sigkdd Explorations Newsletter, 19(2):25–35.

Cole, R. (1999). Tools for research and education in speech

science. In Proceedings of the International Confer-

ence of Phonetic Sciences, volume 1, pages 277–1.

Citeseer.

Crammer, K., Dekel, O., Keshet, J., Shalev-Shwartz, S.,

and Singer, Y. (2006). Online passive-aggressive al-

gorithms. Journal of Machine Learning Research,

7(Mar):551–585.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

612

Curry, A. C., Papaioannou, I., Suglia, A., Agarwal, S., Sha-

lyminov, I., Xu, X., Du

sek, O., Eshghi, A., Konstas,

I., Rieser, V., et al. (2018). Alana v2: Entertaining

and informative open-domain social dialogue using

ontologies and entity linking. Alexa Prize Proceed-

ings.

El Asri, L., He, J., and Suleman, K. (2016). A sequence-

to-sequence model for user simulation in spoken dia-

logue systems. Interspeech 2016, pages 1151–1155.

Eshghi, A., Shalyminov, I., and Lemon, O. (2017). Boot-

strapping incremental dialogue systems from minimal

data: the generalisation power of dialogue grammars.

In Proceedings of the 2017 Conference on Empiri-

cal Methods in Natural Language Processing, pages

2220–2230.

Ghigi, F. and Torres, M. I. (2015). Decision making strate-

gies for ﬁnite-state bi-automaton in dialog manage-

ment. In Natural Language Dialog Systems and In-

telligent Assistants, pages 209–221. Springer.

Griol, D., Hurtado, L. F., Segarra, E., and Sanchis, E.

(2008). A statistical approach to spoken dialog sys-

tems design and evaluation. Speech Communication,

50(8-9):666–682.

Henderson, M., Thomson, B., and Williams, J. (2013). Di-

alog state tracking challenge 2 & 3.

Henderson, M., Thomson, B., and Williams, J. D. (2014).

The second dialog state tracking challenge. In Pro-

ceedings of the 15th Annual Meeting of the Special In-

terest Group on Discourse and Dialogue (SIGDIAL),

pages 263–272.

Higashinaka, R., Funakoshi, K., Inaba, M., Tsunomori, Y.,

Takahashi, T., and Kaji, N. (2017). Overview of dia-

logue breakdown detection challenge 3. Proceedings

of Dialog System Technology Challenge, 6.

Higashinaka, R., Funakoshi, K., Kobayashi, Y., and In-

aba, M. (2016). The dialogue breakdown detection

challenge: Task description, datasets, and evaluation

metrics. In Proceedings of the Tenth International

Conference on Language Resources and Evaluation

(LREC’16), pages 3146–3150.

Hinton, G. E. (1990). Connectionist learning procedures. In

Machine learning, pages 555–610. Elsevier.

Lipton, Z., Li, X., Gao, J., Li, L., Ahmed, F., and Deng, L.

(2018). Bbq-networks: Efﬁcient exploration in deep

reinforcement learning for task-oriented dialogue sys-

tems. In Thirty-Second AAAI Conference on Artiﬁcial

Intelligence.

Lopes, J. (2017). How generic can dialogue breakdown de-

tection be? the kth entry to dbdc3. Proceedings of

Dialog System Technology Challenge, 6.

opez Zorrilla, A., De Velasco V

azquez, M., and Tor-

res Bara

nano, M. I. (2019). A differentiable generative

adversarial network for open domain dialogue.

Milhorat, P., Lala, D., Inoue, K., Zhao, T., Ishida, M.,

Takanashi, K., Nakamura, S., and Kawahara, T.

(2019). A conversational dialogue manager for the

humanoid robot erica. In Advanced Social Interaction

with Agents, pages 119–131. Springer.

Montenegro, C., Lpez Zorrilla, A., Mikel Olaso, J., San-

tana, R., Justo, R., Lozano, J. A., and Torres, M. I.

(2019). A dialogue-act taxonomy for a virtual coach

designed to improve the life of elderly. Multimodal

Technologies and Interaction, 3(3):52.

Orozko, O. R. and Torres, M. I. (2015). Online learning

of stochastic bi-automaton to model dialogues. In

Iberian Conference on Pattern Recognition and Image

Analysis, pages 441–451. Springer.

Paek, T. and Pieraccini, R. (2008). Automating spoken

dialogue management design using machine learn-

ing: An industry perspective. Speech communication,

50(8-9):716–729.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Pietquin, O. and Dutoit, T. (2006). A probabilistic frame-

work for dialog simulation and optimal strategy learn-

ing. IEEE Transactions on Audio, Speech, and Lan-

guage Processing, 14(2):589–599.

Platt, J. C. (1999). Probabilistic outputs for support vector

machines and comparisons to regularized likelihood

methods. In ADVANCES IN LARGE MARGIN CLAS-

SIFIERS, pages 61–74. MIT Press.

Raux, A., Langner, B., Bohus, D., Black, A. W., and Es-

kenazi, M. (2005). Let’s go public! taking a spoken

dialog system to the real world. In Ninth European

conference on speech communication and technology.

Schatzmann, J., Thomson, B., Weilhammer, K., Ye, H., and

Young, S. (2007a). Agenda-based user simulation for

bootstrapping a pomdp dialogue system. In Human

Language Technologies 2007: The Conference of the

North American Chapter of the Association for Com-

putational Linguistics; Companion Volume, Short Pa-

pers, pages 149–152. Association for Computational

Linguistics.

Schatzmann, J., Thomson, B., and Young, S. (2007b). Sta-

tistical user simulation with a hidden agenda. Proc

SIGDial, Antwerp, 273282(9).

Schatzmann, J., Weilhammer, K., Stuttle, M., and Young,

S. (2006). A survey of statistical user simulation tech-

niques for reinforcement-learning of dialogue man-

agement strategies. The knowledge engineering re-

view, 21(2):97–126.

Schefﬂer, K. and Young, S. (2000). Probabilistic simulation

of human-machine dialogues. In 2000 IEEE Interna-

tional Conference on Acoustics, Speech, and Signal

Processing. Proceedings (Cat. No. 00CH37100), vol-

ume 2, pages II1217–II1220. IEEE.

Sch

utze, H., Manning, C. D., and Raghavan, P. (2008). In-

troduction to information retrieval. In Proceedings

of the international communication of association for

computing machinery conference, page 260.

Serras, M., Perez, N., Torres, M. I., and Del Pozo, A.

(2017a). Entropy-driven dialog for topic classiﬁca-

tion: detecting and tackling uncertainty. In Dialogues

with Social Robots, pages 171–182. Springer.

Improving Dialogue Smoothing with A-priori State Pruning

613

Serras, M., Torres, M. I., and Del Pozo, A. (2017b). Online

learning of attributed bi-automata for dialogue man-

agement in spoken dialogue systems. In Iberian Con-

ference on Pattern Recognition and Image Analysis,

pages 22–31. Springer.

Serras., M., Torres., M. I., and del Pozo., A. (2019). Goal-

conditioned user modeling for dialogue systems us-

ing stochastic bi-automata. In Proceedings of the 8th

International Conference on Pattern Recognition Ap-

plications and Methods - Volume 1: ICPRAM,, pages

128–134. INSTICC, SciTePress.

Serras, M., Torres, M. I., and Del Pozo, A. (2019a). Regu-

larized neural user model for goal-oriented spoken di-

alogue systems. In Advanced Social Interaction with

Agents, pages 235–245. Springer.

Serras, M., Torres, M. I., and Del Pozo, A. (2019b).

User-aware dialogue management policies over at-

tributed bi-automata. Pattern Analysis and Applica-

tions, 22(4):1319–1330.

Torres, M. I. (2013). Stochastic bi-languages to model di-

alogs. In Proceedings of the 11th international con-

ference on ﬁnite state methods and natural language

processing, pages 9–17.

Torres, M. I., Olaso, J. M., Glackin, N., Justo, R., and Chol-

let, G. (2019). A spoken dialogue system for the em-

pathic virtual coach. In 9th International Workshop on

Spoken Dialogue System Technology, pages 259–265.

Springer.

Xie, Z. and Ling, G. (2017). Dialogue breakdown detec-

tion using hierarchical bi-directional lstms. In Pro-

ceedings of the Dialog System Technology Challenges

Workshop (DSTC6).

Zhao, T. (2016). Reinforest: Multi-domain dialogue man-

agement using hierarchical policies and knowledge

ontology.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

614
