The Design and Implementation of

Secure Program Design Education Tool

Qinrui Yu, Jinsheng Xu, Huiming Yu and Xiaohong Yuan

Department of Computer Science, North Carolina A&T State University, Greensboro, U.S.A.

Keywords: Secure Program Design, Education Tool.

Abstract: Designing and implementing secure software is becoming very critical because various types of attacks take

advantage of software vulnerabilities. In order to effectively teach students how to develop secure

applications, we developed a Secure Program Design Education Tool to assist students in learning how to

design and implement secure programs. This tool consists of three sections to help students understand what

input flaws and buffer overflow are and how to prevent them. This tool is designed and implemented with a

user friendly environment and uses examples to demonstrate the results of unsecure code and the purpose of

secure program design. This tool has been used for an undergraduate Data Structures class fall 2019 in the

Department of Computer Science at North Carolina A&T State University. Our experience exhibits that using

this tool helped students not only better understand the concepts of input flaws and buffer overflow, but also

gained significant skills to develop secure software. Students’ survey and feedback reflected this tool is very

valuable in their education experience. This tool could also be used in other sophomore level related courses.

1 INTRODUCTION

Software applications are widely used everywhere in

today’s modern society. Companies have information

assets that they need to keep protected. It is critical

to keep these assets safe from threats in order to avoid

potential financial loss, trade secrets from being

stolen, possible loss of customers, and gaining an

overall negative reputation. How to design and

implement secure software becomes a critical issue.

In the Software Development Life Cycle, the design

phase is the segment of development where the

resources needed for hardware and software are

recognized and the logical methods that will be used

are determined. Software engineers must keep secure

practices throughout the entire development (Yu,

Jones, 2014). A good example of a secure design

practice includes that everyone is thoroughly familiar

with the design, its ins and outs, and captures possible

threats identified by others (Williams, Yuan, Yu,

Bryant, 2014, Yuan, Yang, Jones, Yu, Chu, 2015).

Since malicious software can attack unsecure

programs computer science students must be trained

to keep security in mind when designing and

implementing software to anticipate all possible

threats and prevent attacks (Frej, 2002, IEEE, 2017).

Education is a very powerful tool in promoting

secure program design. By understanding software

vulnerabilities and possible threats, developers can

save valuable time and create secure applications.

Many education tools have been developed to aid

students learning related topics. Martin Quinson and

Gerald Oster of the University of Lorraine developed

an education tool titled “A Teaching System to Learn

Programming: the Programmer’s Learning Machine”

(Quinson, Gerald, 2015). The Programmer’s

Learning Machine is an interactive exerciser for

students with little to no experience to learn

programming and algorithms. This tool assists

students on their program skills by proving a random

programming exercise that is explained and demoed

simultaneously for the student’s understanding.

 A.

Abuzaid, H. Yu, X. Yuan and B. Chu have developed

a cryptographic education tool to help students

understand cryptographic theory and implementation

techniques (Abuzaid, Yu, Yuan, Chu, 2011).

In this paper, we present a new Secure Program

Design Education Tool, and discuss the teaching

experience of using this tool. The rest of the paper is

organized as follows. In the next section, Data

Structures course related information will be

discussed. Objective and goals will be discussed in

section III. In section IV design considerations of this

tool will be presented. In section V implementation

Yu, Q., Xu, J., Yu, H. and Yuan, X.

The Design and Implementation of Secure Program Design Education Tool.

DOI: 10.5220/0009184003190324

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 1, pages 319-324

ISBN: 978-989-758-417-6

319

of the Secure Program Design Education Tool will be

discussed. Experimental results will be given in

section VI and conclusions will be presented in

section VII.

2 COMP 280 DATA

STRUCTURES

Comp 280 Data Structures is a required course for

undergraduate students who’s major is computer

science. This course takes students that have

completed, as a prerequisite, a foundational

programming class to the next level of learning data

structures. The course examines essential data

structures (linked lists, stacks, queues, trees, balanced

search trees, hash tables, and binary heap). It analyzes

and implements techniques such as sorting,

searching, and use of STL data structures (set, map,

priority queue, stack, queue, vector, list) to solve

general problems. The emphasis of the course is on

building computer programs that implement essential

data structures, and more importantly learn how and

when to use them. The students journey through the

thought process of programming efficiency and

effectiveness in order to handle problems like the

speed of data retrieval, storage and management.

Further, they gain experience with performing the

presentation and discussion of their design logic; and

handle questions and feedback from their peers. In

order to enhance a students’ knowledge in secure

programming developement, we taught the

Introduction to Secure Program Design module in

COMP 280 Data Structures class. We also developed

a Secure Program Design Education Tool to help

students understand related topics.

3 OBJECTIVE AND GOALS

Designing and implementing secure software is a

very critical issue in today’s society. This results in

many new requirements for software developers. In

order to prepare our students for the expectations of

the Cybersecurity workforce and for them to

effectively learn secure software design, we

developed a Secure Program Design Education Tool

for the Data Structures computer science class to

achieve this goal. Objectively this tool will provide

students a visual interactive tutorial, step by step

demonstrations on how input flaws and buffer

overflow occur, and how to prevent them, to help

students grasp an improves understanding of related

topics and developing secure software. This tool was

designed for undergraduate Data Structures course

and can be used by another courses or lectures

involved with security topics. After utilizing this tool,

students should understand how input flaws and

buffer overflow occur, and how to prevent them by

writing secure code.

4 DESIGN CONSIDERATIONS

The design considerations of Secure Program Design

Education Tool are visually simplistic, user friendly

and interactive, consistent and platform

independence. It is implemented with JavaFX.

4.1 Visually Simplistic

Visualization is an effective technique to help

students understand a subject matter of importance.

Visually simplistic is necessary for an education tool

because it can provide an easy way to help students

understand the effects of these vulnerabilities. In this

tool Java swing GUI widget toolkit is used to allow

students to input data and display results. In this way,

students can immediately see the results of inputting

invalid data or writing data over a boundary, and learn

input flaws and buffer overflow.

4.2 User Friendly and Interactive

User friendly and interactive is another important

consideration to design the tool and make it easy for

students to use it. On the input flaws demonstration

page, there are several demo buttons to allow students

to learn the different results of correct input, incorrect

input and invalid input as shown in Figure 1. Students

can click buttons to move to the next page or go back

to the previous page.

Students can try to input various data by

themselves in unsecure program and secure program.

The tool will generate different results based on their

inputs. Figure 2 is the screen that shows how unsecure

program leads to input flaws. Although a correct input

is a positive integer, a user can input a character, or

negative number in a unsecure program. In these

pages, users can still move to other pages at any time.

Once a user inputs data the result will be displayed on

the screen.

4.3 Consistent

Consistent means that after the users have explored

one page of the application, they can quickly know

CSEDU 2020 - 12th International Conference on Computer Supported Education

320

how to use other parts of the application. A consistent

user interface will help students learn how to use it in

an easy way. After the introduction, there is a

selection page which let users select a topic of

interest. Each section has two parts: demonstration

and hands-on practice. In the demonstration part,

students can click on the “demo” button then the

results will be displayed. Green background means

the input is correct, red background means the input

is incorrect, yellow background means that although

the input is not correct, the unsecure program treats it

as a correct input that will cause input flaws. These

shown in figure 1.

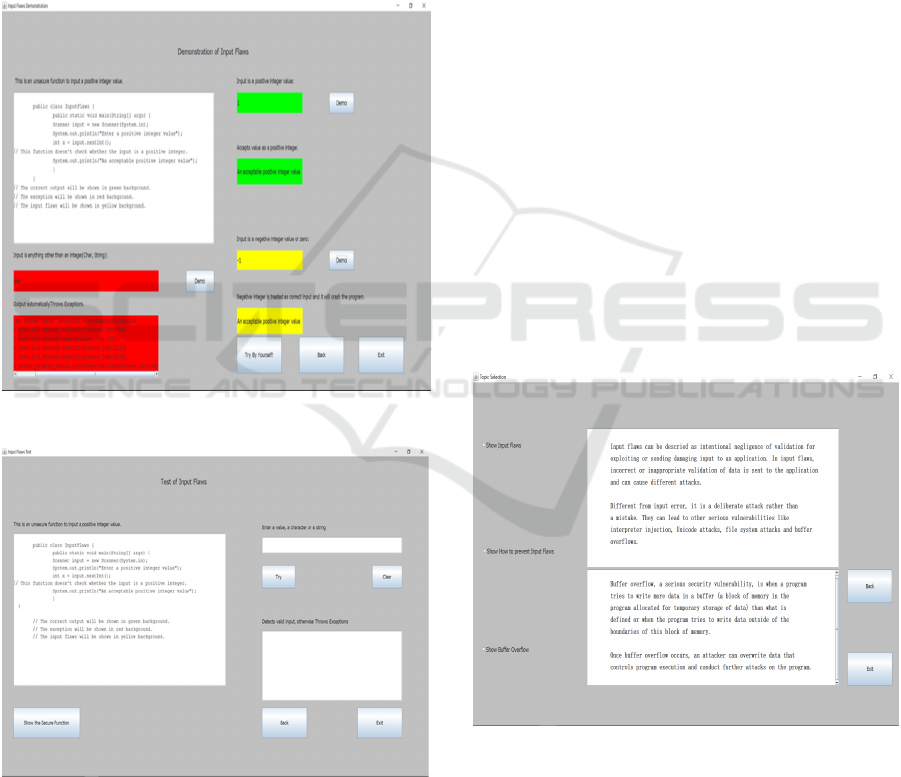

Figure 1: Demonstration screen for input flaws.

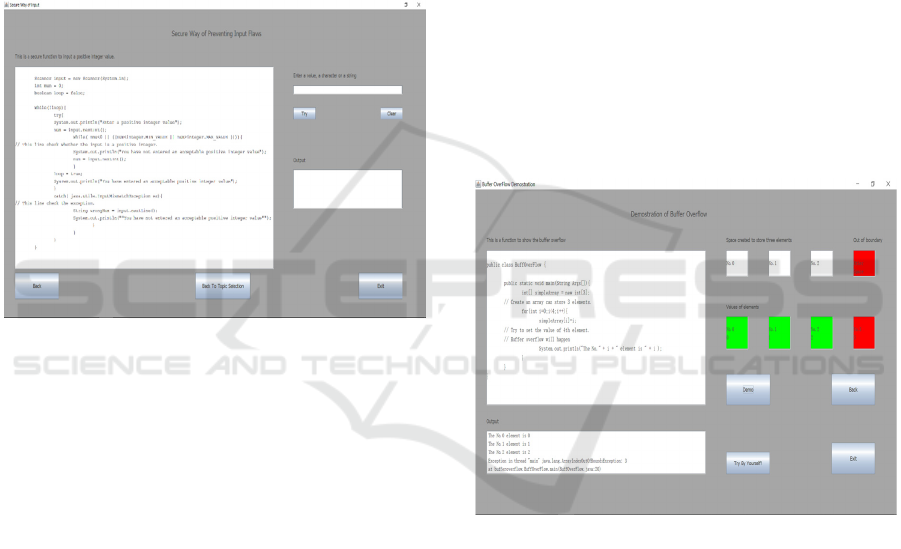

Figure 2: Unsecure program leading to input flaws.

After demonstration, students can choose to try it

by themselves. They can test different inputs, learn

where the vulnerability is and how to prevent it. They

can also move to a different pages to see how the

secure program works and prevents these

vulnerabilities.

In every page, a “back” button allows students to

go back to the previous page. At the end of each

section, a button allows the user to select a different

topic. In this way, students can select a different topic

easily and find out the difference between secure and

unsecure programs.

4.4 Platform Independence

The Secure Program Design Education Tool is

platform independent. It is implemented by Java

language with JavaFX. The .jar file can run on any

platform that has Java runtime environment.

5 IMPLEMENTATION OF THE

SECURE PROGRAM DESIGN

EDUCATION TOOL

The Secure Program Design Education Tool includes

three sections that are input flaws, buffer overflow

and how to prevent them. As seen in figure 3, the

introduction screen features three buttons on the left

side that lead to each of the section mentioned.

The

right parts contain brief introductions to input flaws

and buffer overflow.

Figure 3: Introduction Page.

5.1 Input Flaws

Input flaws results from failing to check whether the

input data satisfies given requirement. Java language

checks some invalid inputs such as input a string

when required input is an integer. In this case an

exception will occur. Java cannot check the input that

The Design and Implementation of Secure Program Design Education Tool

321

is required type but does not meet certain specific

requirement. For example, a program requires to

input a positive integer while input is a negative

integer. Once these incorrect inputs are sent to an

application, they can be used by hackers to create

attacks. Different from input error, input flaw is a

deliberate vulnerability and can lead to serious attacks

such as interpreter injection, Unicode attacks and file

system attacks, etc. (Morana, Nusbaum, 2008)

This tool shows students how to modify unsecure

code into secure. One way to prevent input flaws is

checking all possible input types and giving out error

message besides the “Throwing and Catching

Exceptions” like the program in Figure 4.

Figure 4: Secure Program.

5.2 Buffer Overflow

One type of buffer overflow is over boundary. When

a program tries to write more data into a buffer (a

block of memory in the program allocated for

temporary storage of data) than what is defined or

when the program tries to write data outside of the

boundaries of this block of memory (Wikipedia,

2011). Once it happens, buffer overflow will occur

like the result in Figure 5. An attacker can use it to

control program execution. In Java language,

complier will display a

“java.lang.IndexOutOfBoundsException” error

message for data structures like array and linked list

to stop execution when a program tries to write out of

boundary. However, this will also happen when using

the functions about stack and heap, which has been

used as a famous kind of attack: Morris Worm.

In this education tool, an obvious type of buffer

overflow is displayed. Students can learn how the

misunderstanding of element number in an array

causes buffer overflow, the relationship between size

of the array and number of the elements to be stored

in the array.

6 TEACHING EXPERIMENTAL

RESULTS

The Secure Programming Design Education Tool has

been used in COMP 280 Date Structures class Fall

2019 in the Department of Computer Science at NC

A&T SU and shown successful results. Forty-four

students attended the survey. Before distributing the

tool to the students two lectures was given to

introduce Secure Program Design that include

Introduction, Secure Program Design Considerations,

Insecure Programs, How modifying insecure code

into secure program and Safe Program Design.

Students used learned knowledge with the assistance

of the Secure Program Design Education Tool to

modify unsecure codes to prevent input errors and

buffer overflow.

Figure 5: Demonstration of buffer overflow.

After students utilizes the tool, a survey was

conducted to measure the successfulness of the

education tool gad in helping the students with

knowledge study and project implementation. The

survey consists of seven questions and students can

add any additional comments to help best evaluate the

Secure Program Design Education Tool. These

questions fall under three different categories which

are 1) user friendly, 2) the helpfulness and

effectiveness of helping students learning related

topics, and 3) open-ended questions. The first set of

questions evaluated that the graphic user interface is

user friendly or not. The second set of questions

evaluated the students on how well their knowledge

and skills improved after using the tool. We ask

CSEDU 2020 - 12th International Conference on Computer Supported Education

322

students to use Strongly agree, Agree, Neither Agree

or Disagree, Disagree, and Strongly Disagree to

evaluate the tool. These questions are: 1) the graphic

interface is user friendly, 2) the demonstration

examples help to understand input flaws, 3) the

demonstration examples help to understand buffer

overflow, 4) the tool is practical and helps to

understand input validation strategies, and 5) the tool

is practical and helps to understand buffer overflow

prevention. The survey results are shown in figure 6.

The dark blue shows percentage of strongly agree,

light blue shows percentage of agree, green shows

percentage of neither agree or disagree, yellow shows

disagree and light yellow shows strongly disagree.

For all questions most students gave strongly agree or

agree, no student gives strongly disagree for any

question.

The section asking students to express their level

of agreement to how helpful and effective the tool

was has yielded positive results with a majority of

students agreeing that the tool was helpful, effective,

and motivating.

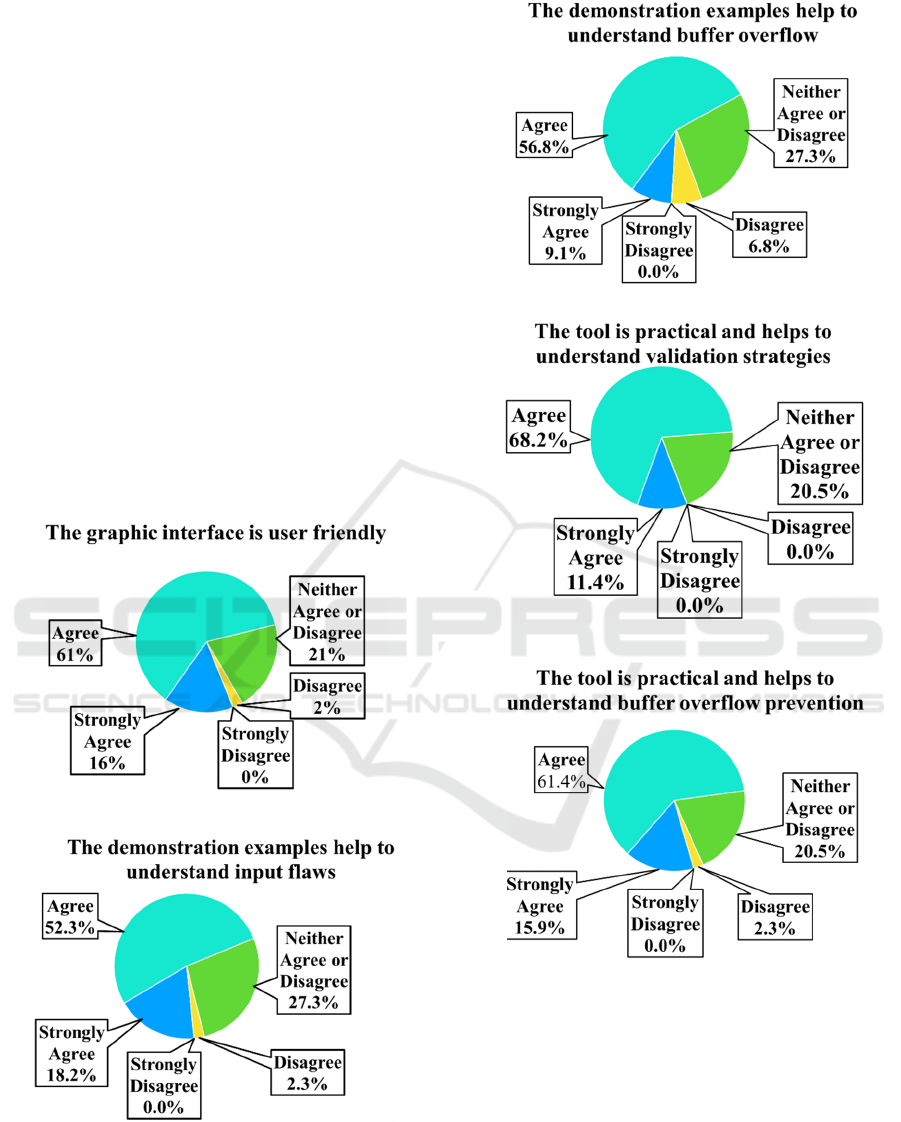

Figure 6: Survey Results of the Education Tool.

Lastly, the students were asked opened questions

which were 1) What did you like best about this tool,

2) What did you like least about this tool and 3) any

additional comments. Students are sure this tool is a

significant resource to them. The student’s

appreciated the step by step instructions and

demonstrations finding that they were helpful and

clear. Student found that the Secure Program Design

Education Tool was very friendly and very

The Design and Implementation of Secure Program Design Education Tool

323

educational saying that it was a great tool to teach

students how to design and implement secure

applications.

7 CONCLUSIONS

The Secure Programming Design Education Tool was

designed and implemented to provide a visual

interactive tutorial and step-by-step demonstrations

on how input flaws and buffer overflow occur in

unsecure software and how to prevent them by

modifying unsecure code. The goal of this tool is to

help students to better understand the difference of

input errors and input flaws, how buffer overflow

occurs, how they impact software secure, and how

preventing them. This tool also aids students to

analyze various cases and modify the code to avoid

input flaws. It demonstrates buffer overflow and lets

students to change the code to prevent buffer

overflow. These step-by-step demonstrations show

students various vulnerabilities and give them a

chance to modify the codes.

The Secure Program Design Education Tool has

been used in COMP 280 Data Structures class Fall

2019. Students’ survey results exhibit that the tool

assists them in learning input flaws, buffer overflow

and how preventing them by hands-on experiences,

greatly helps them understand the topics and

increases their knowledge level. They really

appreciated the step-by-step demonstrations. The

results of students' survey are very positive and show

that the tool is effective for the course.

ACKNOWLEDGEMENT

This work is supported by National Science

Foundation under the award number 1662469.

REFERENCES

Frej, M. O. P., 2002. Analysis of Buffer Overflow Attacks.

http://techgenix.com/analysis_of_buffer_overflow_att

acks/.

IEEE, 2017. Avoiding the top 10 software security design

flaws. http://cybersecurity.ieee.org/center-for-secure-

design.

Quinson, M., Gérald, O., 2015. A Teaching System to

Learn Programming: the Programmer's Learning

Machine. Proceedings of the 2015 ACM Conference on

Innovation and Technology in Computer Science

Education.

Williams, K., Yuan, X., Yu, H., Bryant, K., 2014. Teaching

Secure Coding for Beginning Programmers. Journal of

Computing Sciences in Colleges (CCSC:MS), Volume

29, Issue 5.

Wikipedia, 2011. Buffer Overflow. 2011. http://en.

wikipedia.org/wiki/Buffer_overflow.

Yuan, X., Yang, L., Jones, B., Yu, H., Chu, B., 2015. Secure

Software Engineering Education: Knowledge Area,

Curriculum and Resources. Information Security

Education Journal.

Yu, H., Jones, N., 2014. Secure Software Programming.

Journal of American Business Review, Vol. 3, Num. 1.

Abuzaid, A., Yu, H., Yuan, H., Chu, B., 2011. The design

and implementation of a cryptographic education tool.

Proceedings of the International Conference on

Computer Supported Education.

Morana, M., Nusbaum, S., 2008. Input Validation

Vulnerabilities, Encoded Attack Vectors and

Mitigations. https://www.owasp.org/images/6/6c/

Encoded_Attacks_Threats_Countermeasures_9_30_08

.pdf.

CSEDU 2020 - 12th International Conference on Computer Supported Education

324
