Frame Detection and Text Line Segmentation for Early Japanese Books

Understanding

Lyu Bing

1 a

, Hiroyuki Tomiyama

2 b

and Lin Meng

2 c

Graduate School of Science and Engineering, Ritsumeikan University, 1-1-1 Noji-higashi, Kusatsu, Shiga 525-8577, Japan

College of Science and Engineering, Ritsumeikan University, 1-1-1 Noji-higashi, Kusatsu, Shiga 525-8577, Japan

Keywords:

Text Line Segmentation, Early Japanese Books Understanding, Deep Learning, Image Processing.

Abstract:

Early Japanese books record a lot of information, and deciphering these pieces of ancient literature is very use-

ful for researching history, politics, and culture. However, there are many early Japanese books that have not

been deciphered. In recent years, with the rapid development of artiﬁcial intelligence technology, researchers

are aiming to recognize characters in the early Japanese books through deep learning in order to decipher the

information recorded in the books. However, these ancient literature are written in Kuzushi characters which

is difﬁcult to be recognized automatically for the reason for a large number of variation and joined-up style.

Furthermore, the frame of article and the text line tilt increase the difﬁcult recognition. This paper introduces

a deep learning method for recognizing the characters, and proposal frame deletion and text line segmentation

for helping Early Japanese Books understanding.

1 INTRODUCTION

Since early Japanese books have recorded a lot of

information as cultural heritage, organizing early

Japanese books are useful for research on politics, his-

tory, culture, and so on. There are many unregistered

pieces of ancient literature in Japan, and there is an ur-

gent need to reorganize the early Japanese books for

further researching and understanding of the Japanese

culture. However, many early Japanese books are

written in Kuzushi characters which is a typeface that

can be simpliﬁed and written quickly, and is also

called Cursive. Currently, most of the characters are

not used, and only a few experts can decipher them,

so deciphering early Japanese Books is very time con-

suming and difﬁcult. In recent years, artiﬁcial in-

telligence technology has progressed (A. Krizhevsky,

2012; C. Szegedy, 2015; Simonyan and Zisserman,

2015; K. He, 2016), and researchers are aiming

at automatic recognition of Kuzushi characters and

other ancient literature using deep learning (L. Meng,

2018). However, in these studies, since each charac-

ter must be manually cut out before being recognized,

automatic recognition of all sentences has not been re-

https://orcid.org/0000-0000-0000-0000

https://orcid.org/0000-0003-4351-6923

alized yet. In addition, there are many cases in which

text and images are mixed in early Japanese books,

and it is necessary to separate the text and images in

advance to automatically decode the text. However,

images are drawn by hand, just like letters, increasing

the difﬁculty of automatically decoding all sentences.

And the difﬁculty of automatic deciphering of early

Japanese books is increasing due to the joined-up

style which lets the characters are connected charac-

ters, the characters are very blurred, and dirt, worms,

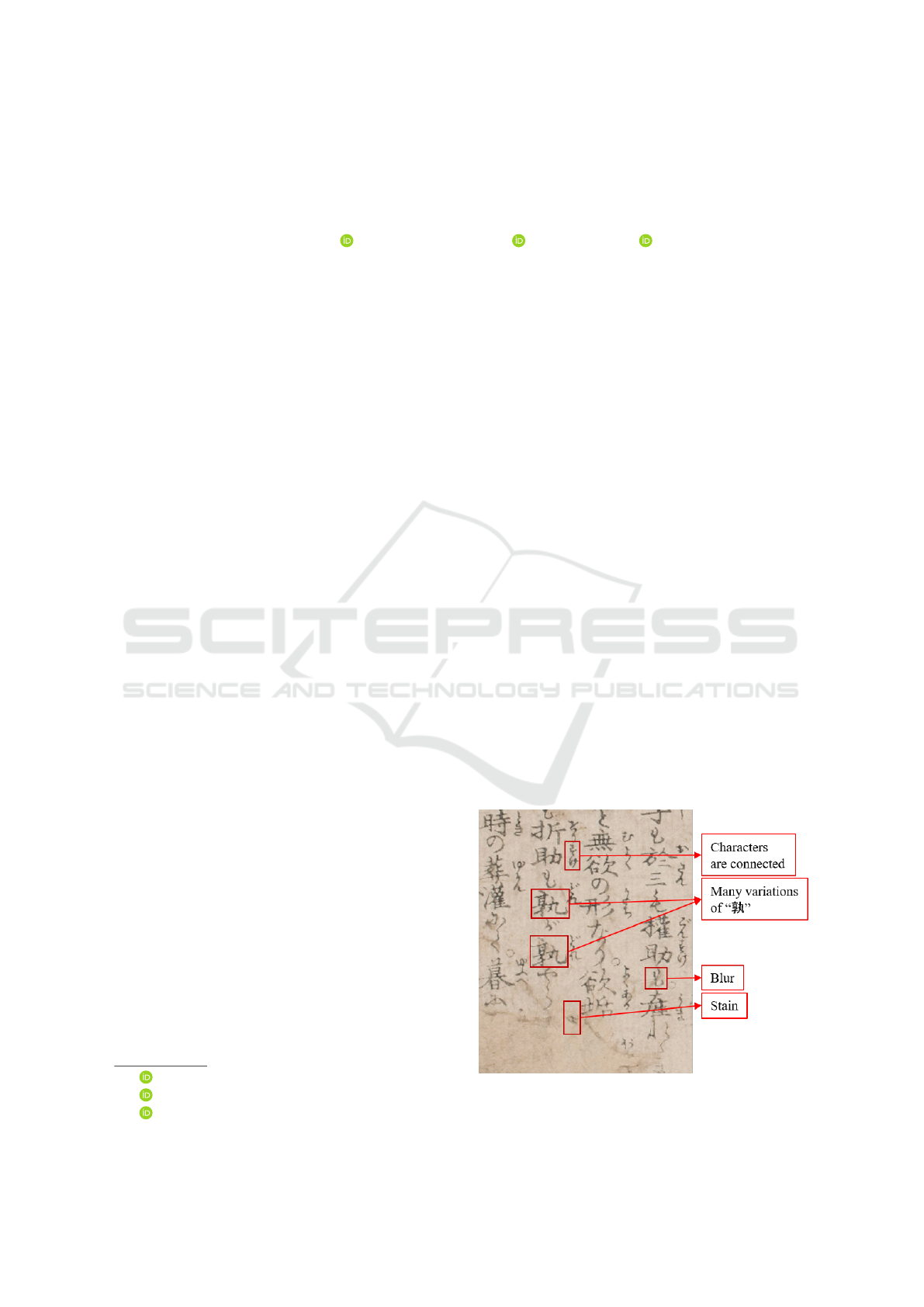

Figure 1: Kuzushi character and a scanned page of the early

Japanese book.

600

Bing, L., Tomiyama, H. and Meng, L.

Frame Detection and Text Line Segmentation for Early Japanese Books Understanding.

DOI: 10.5220/0009179306000606

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 600-606

ISBN: 978-989-758-397-1; ISSN: 2184-4313

etc.. Furthermore, the frame of article and the text line

tilt increase the difﬁcult recognition. Figure 1 shows

an example of the early Japanese books register and

its problems.

This paper aims to use image processing and deep

learning combined method to automatically under-

standing early Japanese books. At ﬁrst, the frame

deletion method and text line segmentation method

are proposed to extract the text line. About the frame

deletion, conventional image processing methods are

used, and ARU-Net, a deep learning method is ap-

plied for line segmentation. Then, the character size is

estimated for the segmented sentence line and cut out

the character candidates. Finally, AlexNet is applied

for character recognition which selected the high reli-

ability from the candidate characters.

Section 2 describes the difference between

Kuzushi character documents and current characters

documents and introduce some modern ancient doc-

uments recognition method including image process-

ing and deep learning. Section 3 goes over the re-

search ﬂow of our proposal. Section 4 shows the

frame detection by ARU-Net. Section 5 shows the

experimentation. Section 6 concludes the paper with

a brief summary and mention of future work.

2 RELATED WORK

2.1 The Difference between Kuzushi

Character Documents and Current

Character Documents

The kuzushi character in early Japanese books is very

different from the current characters.

Figure 2 (a) shows an image of kuzushi charac-

ter, and Fig. 2 (e) shows a handwritten English im-

age. It can be seen that compared with the alphabet,

kuzushi is more complicated and illegible. For the

reason of that the alphabet is only 26, and simple to

write, Hence the alphabet can be easily recognized.

Figure 2 (b) is a printed version of Japanese char-

acters, as you can see Japanese characters include

kanji, hiragana, katakana and so on, which makes it

difﬁcult to identify the characters in early Japanese

books. Figure 2 (c)(d) show hiragana and katakana

in Japanese characters. We found the character is not

connected with neighboring characters. It is a major

between current documents and early Japanese books

which were written by Kuzushi characters. Also, the

characters in Figure 2 (b)(c)(d) are uniformed, other-

wise, Kuzushi characters are un-uniformed and have

larger number of variation. These two major prob-

lems let the Kuzushi characters recognition is more

difﬁcult than kanji, hiragana, katakana.

About Chinese characters (Kan ji) recognition as

shown in Fig. 2 (f), these character like Kuzhishi

characters which have several variation and un-

uniformed. However, these character are not con-

nected with neighboring characters. Hence, the

Kuzushi characters recognition is more difﬁcult than

the Chinese characters recognition.

Figure 2: Character examples.

2.2 Deep Learning and Image

Processing based Characters

Recognition

Researchers have proposed several method for the

characters recognition. The software of OCR (Opti-

cal Character Recognition) has been developed which

is a very popular research for recognizing the charac-

ters from documents in 1980’s. The documents are

scanned, and the layout of the documents are analy-

zed which indlucdes the characters segmentation and

character segmentation. Then the segmented charac-

ters are normalized and searched from the template by

image processing method (C.C. Tappert, 1990).

Frame Detection and Text Line Segmentation for Early Japanese Books Understanding

601

In the detail of recognition method for ancient

characters, There are several methods for recogniz-

ing OBIs by using template matching and by using

the Hough transform (L. Meng, 2016; L. Meng and

Oyanagi, 2016; Meng, 2017). However, the template

matching in (L. Meng and Oyanagi, 2016) was weak

when the original character was tilted, and the tilt was

also not properly processed. About (L. Meng and Oy-

anagi, 2016; Meng, 2017), the Hough transform and

clustering combined method is proposed for extract-

ing the extracting of charactes. However, this method

is only ﬁt for the feature is clear and the kinds of

feature are not so many. However, the Kuzushi char-

acters have a larger number of variation and the fea-

ture of characters are not easy to be deﬁned. Further-

more, we found the deep learning method achieved a

beter performance than the current image processing

method.

Currently, larger number of deep learning mod-

els are proposed. LeNet (L. Yann and Haffner,

1998), AlexNet (A. Krizhevsky, 2012), GoogLeNet

(C. Szegedy, 2015), VGG (Simonyan and Zisserman,

2015) etc. are the model which only have the func-

tion of recogntion. It means the character should be

prepared in the pre-processing stage. Sometimes, the

data should be cut man-made.

SSD (W. Liu and Berg, 2016), YoLo (Redmon

and Farhadi, 2018), CenterNet (Zhou et al., 2019) are

model which have the function of character detection

and character recognition. For the reason the these

model are designed by detecting and recognizing the

bigger object. Hence in the case of the smaller char-

acters detection and recognition, the performance can

not be realized directly.

In this paper we try to use image processing

and deep learning combined method for the kuzushi

characters recognition. The deep learning method

is applied for characters detection and deep learn-

ing method of AlexNet is applied for the characters

recogntion.

3 OVERVIEW OF CHARACTER

RECOGNITION

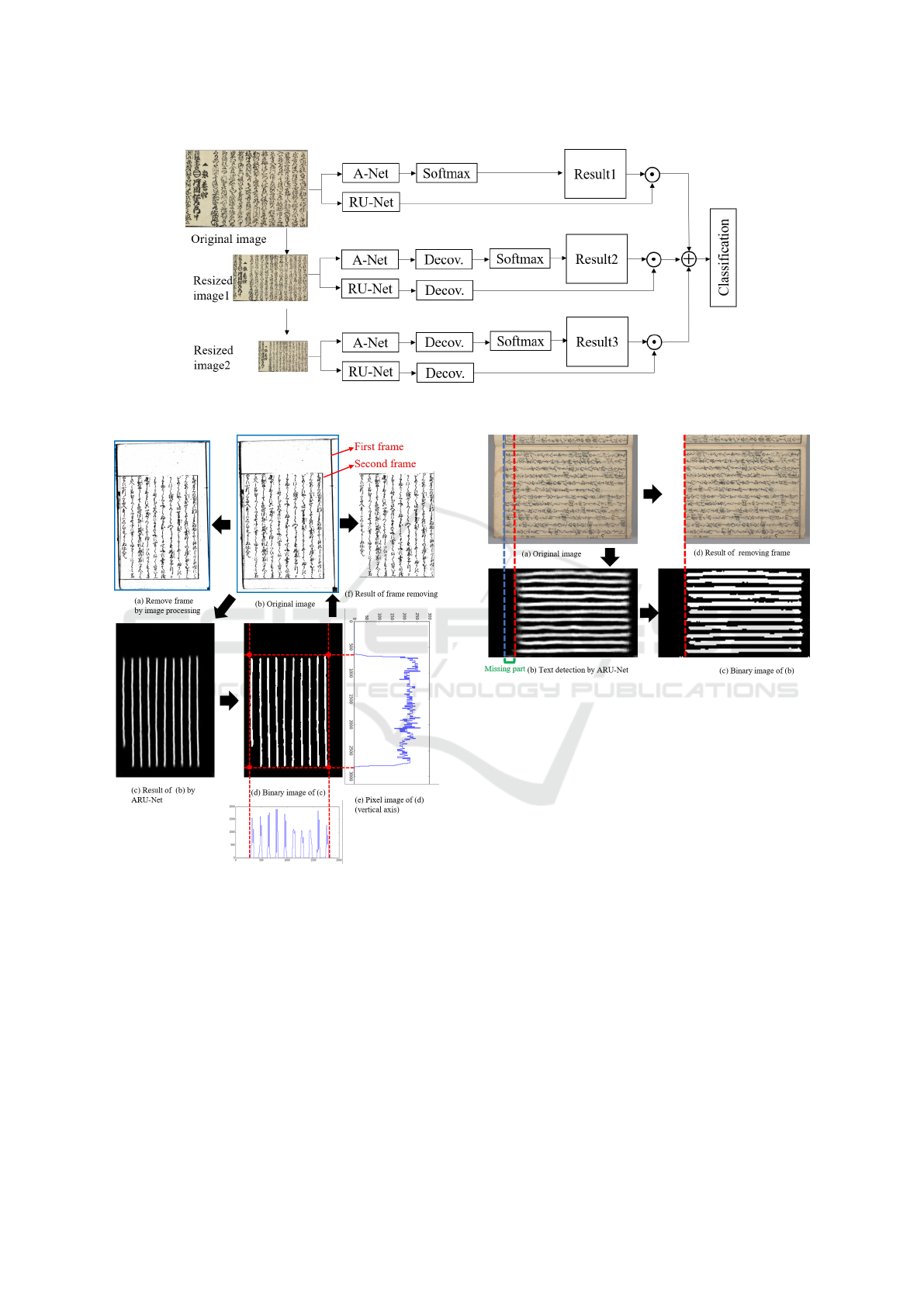

Figure 4 shows the overview of character recognition

for Early Japanese Book understanding.

First of all, the image preprocessing, including the

image frame detection and deletion of the book im-

ages. Then, ARU-Net (T. Grning and Labahn, 2018)is

applied to detect the text area, then the detection re-

sults are used to segment the text line in the image.

Finally, AlexNet (A. Krizhevsky, 2012) was used for

character recognition.

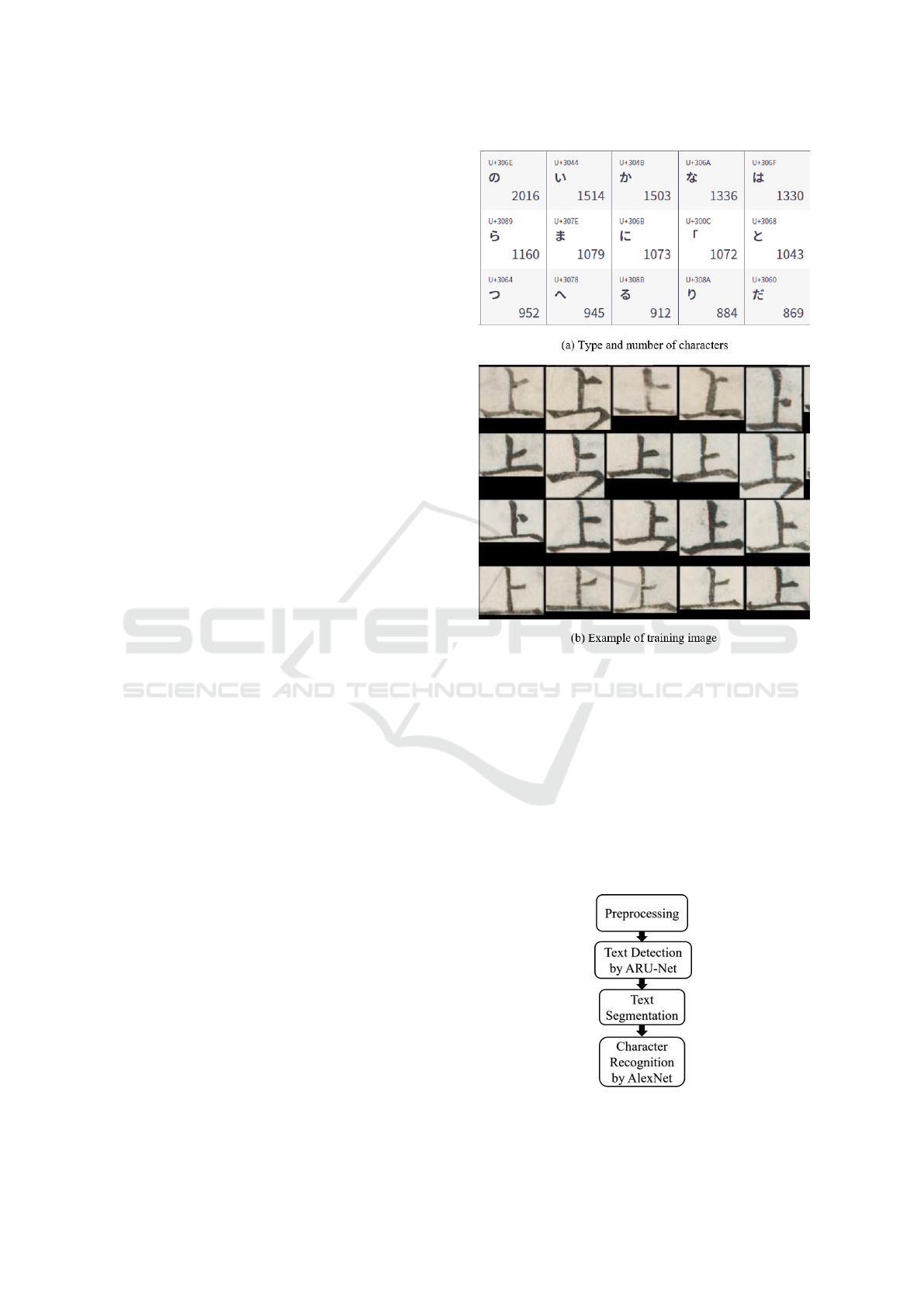

Figure 3: Example of training data.

In term of text line segmentation, the method has

been proposed by us in (Bing Lyu and Meng, 2019)

Figure 5 shows the segmentation ﬂow and text line

segmentation result by using ARU-Net. Figure 5 (a)

shows a frame noise removed image, the text line was

detected by ARU-Net and the result is shown in Fig. 5

(b). In the same time, Fig. 5 (a) is rotated by 180 de-

grees and the text line extracted image is obtained by

ARU-Net, which is shown in Fig. 5 (c). Then, the text

line extracted images of Fig. 5 (b) (c) are binarized,

and binarization image of Fig. 5 (e) (f) is obtained

Figure 4: Overview of Character Recognition System.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

602

Figure 5: Detailed text segmentation ﬂow.

respectively. Finally, the sentence line between them

is cut out using the leftmost coordinate (blue line) for

each white line in Fig. 5 (e) and the rightmost co-

ordinate (red line) for each white line in Fig. 5 (f).

As shown in Fig. 5 (g), the sentence line is obtained

correctly.

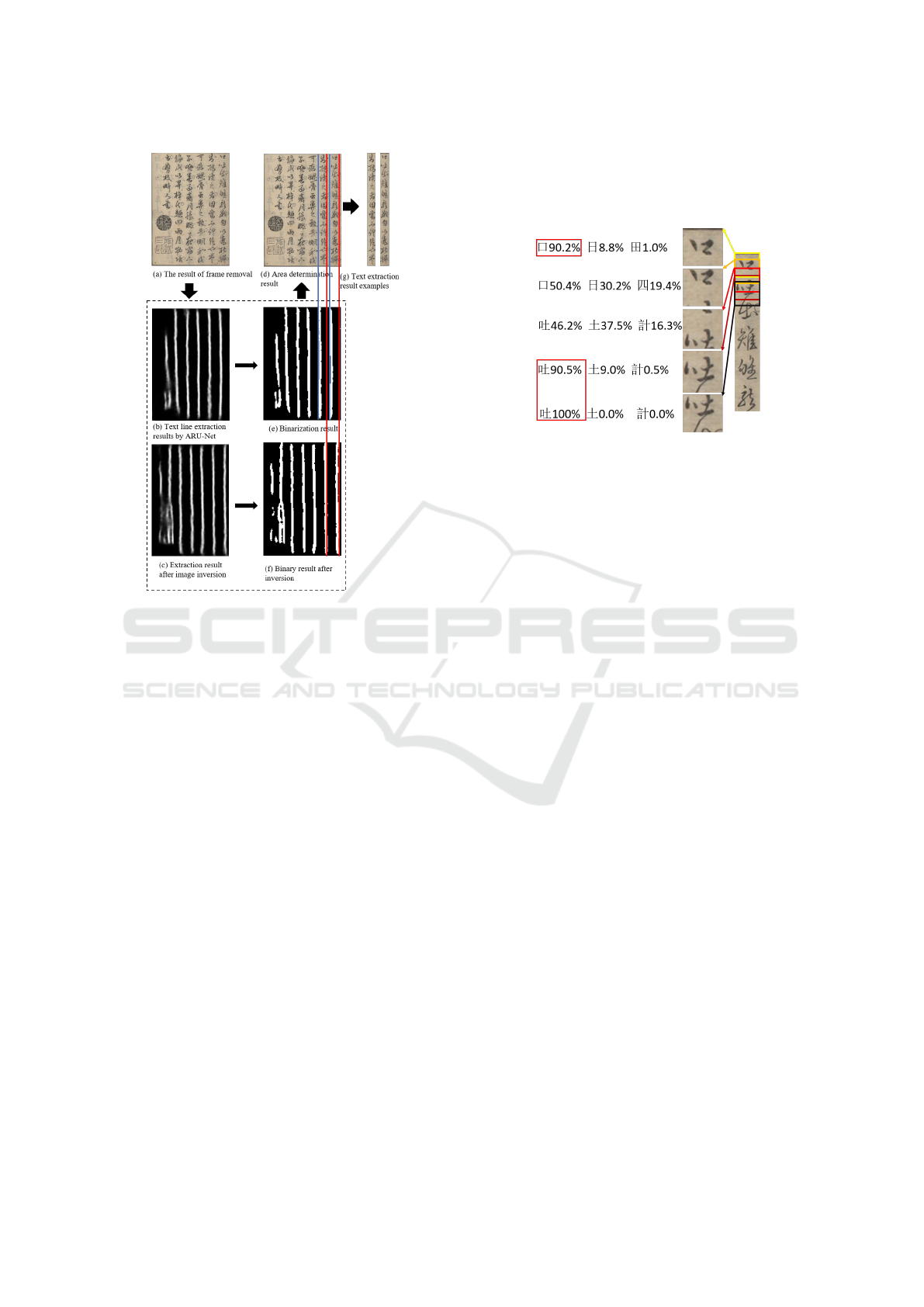

In terms of character recognition, AlexNet is ap-

plied and Fig. 6 shows an example of character recog-

nition by LeNet using the segmented text lines. Since

the character is assumed to be a square, the size of the

vertical and horizontal axes of the character is the dis-

tance between the red line and blue line of the char-

acter area shown in Fig. 5. The squares in Fig. 6

indicate the segmented characters. Then, from the

beginning of the segmented character string (yellow

square), 1/5 of the character string width is segmented

as the stride length. Next, LeNet recognizes the seg-

mented characters. Here, the sentence line is sliced,

and the upper two letters become three-letter candi-

dates. The conﬁdence threshold is deﬁned as 90%.

Characters with the reliability of 90% or higher are

recognized. In Fig. 6, the ﬁrst candidates recog-

nized by LeNet are 90.2%, 50.4%, 46.2%, 90.5%, and

100%, respectively, so high conﬁdence characters of

90.2%, 90.5%, and 100% Recognition result.

However, by analyzing the experimental results,

we found the proposed method can not segment the

text line correctly in some cases. As known, the accu-

racy of character recognition depends on the correct

segmented text line, the AlexNet cannot predict the

characters in the mis-segmented text line.

Figure 6: Character recognition example.

4 FRAME DELETION

Peak calculation method has been proposed for pro-

posed and achieves a good performance in the case

of that documents only have one frame (Bing Lyu

and Meng, 2019). However, some pages have sev-

eral frames or the frame numbers are difﬁcult to be

judged. The example is shown in Fig. 8 (a) which has

two frames and can not achieve better performance by

method (Bing Lyu and Meng, 2019).

4.1 Frame Deletion by ARU-Net

Here, we propose several methods for overcoming

the problem of peak calculation method and detecting

frames. ARU-Net is a two-step deep learning model

for detecting sentence lines of old books. As shown

in Fig. 7, the result processed by A-Net and soft-

max is merged with the result processed by RU-Net.

Similarly, the resized two original images were also

processed in the same way, but each processing was

deconvolved, and ﬁnally, the three fused results were

used for classiﬁcation.

Detecting frame by image processing is a useful

method for some images (Bing Lyu and Meng, 2019),

however, some failure cases still exist. As shown in

Fig. 8 (b) which has two frames in the scanned liter-

ature. The result of frame deletion using image pro-

cessing is shown in Fig. 8 (a). Only the blank part

outside the ﬁrst frame can be deleted and a large part

of the frame still exists which causing that the text line

can not be segmented correctly.

Therefore, we use ARU-Net to carry out text de-

tection in Fig. 8 (b), and the result was shown in Fig.

8 (c). Then the detected results were binarized, as

shown in Fig. 8 (d). The processing results are calcu-

Frame Detection and Text Line Segmentation for Early Japanese Books Understanding

603

Figure 7: Overview of ARU-Net.

Figure 8: Remove the Frame using ARU-Net.

lated in pixels on the horizontal and vertical axes, as

shown in Fig. 8 (e). Find the four coordinates of the

place where the pixel starts to rise in the pixel graph.

The four red dots in Fig. 8 (d) are the four coordinates

of the image frame. Finally, according to the four co-

ordinates, the part beyond the frame of the image was

cut off, and the result as shown in Fig. 8 (f).

However, due to the low accuracy of ARU-Net’s

judgment on the beginning and end of sentences, the

situation in Fig. 9 also occurred. As shown in Fig. 9

(b), part of the text is missing due to the inaccuracy of

ARU-Net detection text.

Figure 9: Problems with using ARU-Net to remove frame.

4.2 Two Stages Frame Deletion

By analyzing the experimental results, we found

that the peak calculation method and the ARU-Net

method still has some disadvantages. Here, we pro-

pose a method that combines the two methods and

uses two stages for overcoming the problems. Speciﬁ-

cally, in the ﬁrst image processing, a part of the image

frame is deleted,and then we use ARU-Net to delete

the frame again.

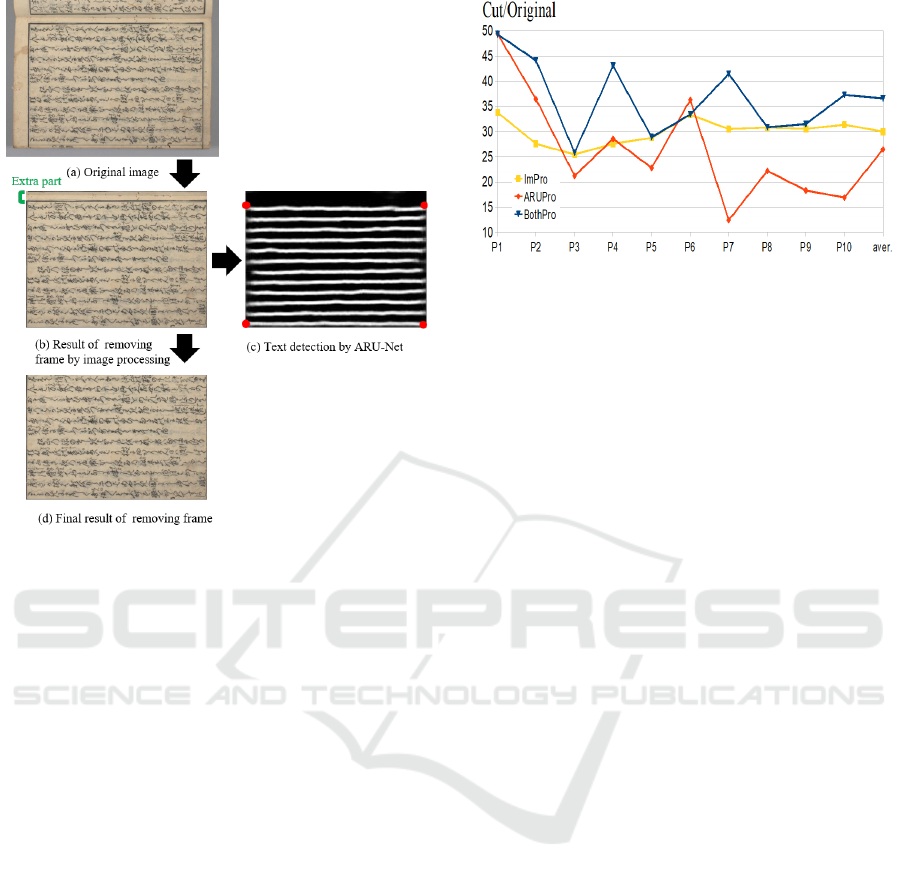

The effect is shown in Fig. 10. The original image

is ﬁrst removed by image processing, and the result is

shown in Fig. 9 (b). However, there is still some prob-

lem like an extra part. Therefore, ARU-Net is used in

text detection in Fig. 9 (b) to obtain four coordinate.

Finally, these four coordinates were used to remove

the frame again in Fig. 9 (c), and the ﬁnal result is

shown in Fig. 9 (d). As can be seen, the effect of

removing the frame is very good, which proved the

effectiveness of our method.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

604

Figure 10: Remove frame by two stage.

5 EXPERIMENTATION

In order to verify the validity of our method for differ-

ent early Japanese books, we conducted experiments.

5.1 Experimental Conditions

We select 10 pages from early Japanese books col-

lected in Center for Open Data in the Humanities

(CODH), for measuring the proportion of the cut part

in the whole image.

The OS is ubuntu16.04 LTS and the programming

language is Python.

5.2 Experimental Result of Frame

Deletion

The experimental results are shown in Fig. 11. We

compare different methods to remove the blank part

outside the frame. The yellow line is the ratio of the

area removed only through image processing to the

area of the original image, the red line is the ratio of

the area removed only through ARU-Net to the area

of the original image, and the blue line is the ratio of

the area removed only through our proposed method

to the area of the original image.

It is obvious from Fig. 11 that the area removed

Figure 11: Experimental Result.

by our proposed method is larger than that removed

by image processing or ARU-Net alone. On average,

36.6% of the blank parts of the original image were

removed by our proposed method, while 30.0% and

26.5% were removed by image processing and ARU-

Net, respectively. The amount of blank parts removed

increased by 6.6% and 10.1%.

5.3 Experimental Result of Characters

Recognition

After text line segmentation, we cut the character for

character recognition. The LeNet is applied for char-

acter recognition. Currently, we only use a slight

training dataset and testing dataset for measuring the

performance of character recognition.

Table 1 shows the detail of the dataset and the

character recognition accuracy. The results show that

the recognition accuracy achieved at about 90%, and

proved the effectiveness of our proposal.

5.4 Discussion

Although it can be seen from the experiment that our

method produces good results for most images, there

are some problems. As shown in Fig. 11, it is obvi-

ously better for P4 to process only using ARU-Net.

For P3 and P8, the results obtained by our proposed

method and image processing are roughly the same.

Another problem is that just increasing the removal

area is easy to cut out some of the text in the frame

when we cut out the blank part, as shown in Fig. 12.

And should not only calculate the removal area, but

also verify the correctness of the calculation of the re-

moval area.

6 CONCLUSIONS

In this paper, we introduce several methods to delete

the frame of scanned literature of early Japanese

Frame Detection and Text Line Segmentation for Early Japanese Books Understanding

605

Table 1: Results of character recognition accuracy.

class training image numbers testing image numbers epoch time accuracy

10 19323 1000 200 0:10:35 0.930

20 28412 2000 300 0:32:28 0.884

30 35165 3000 400 1:06:44 0.899

40 41425 4000 500 1:49:01 0.890

Figure 12: Problems of processed image.

books to help automatic understanding. the proposal

includes ARU-Net based method and the two-step

method. In the experiment, the frame deletion of our

proposed method is greatly improved, which veriﬁes

the correctness of our method. But the correctness of

the cut out blank part has not been veriﬁed, which will

be our future work. Moreover, our purpose is to real-

ize the automatic recognition of early Japanese books,

so the automatic extraction of text lines and automatic

character recognition are also our future work.

ACKNOWLEDGEMENTS

This research is supported by the Art Research Cen-

ter of Ritsumeikan University. In addition, We would

like to thank Prof. Akama Ryo Prof.Takaaki Kaneko

for his advice.

REFERENCES

A. Krizhevsky, I. Sutskever, G. H. (2012). Imagenetclassi-

ﬁcation with deep convolutional neural networks. Ad-

vances in Neural Information Processing System Sys-

tems 25.

Bing Lyu, Ryo Akama, H. T. and Meng, L. (2019). The

early japanese books text line segmentation base on

image processing and deep learning. In The 2019

International Conference on Advanced Mechatronic

Systems (ICAMechS 2019).

C. Szegedy, W. Liu, Y. J. P. S. S. R. D. A. D. E. V. V. A. R.

(2015). Goingdeeper with convolutions. 2015 IEEE

Conference on Computer Vision and Pattern Recogni-

tion.

C.C. Tappert, C.Y. Suen, T. W. (1990). U-net: Convolu-

tional networks for biomedical image segmentation.

In IEEE Transactions on Pattern Analysis and Ma-

chine Intelligence.

K. He, X. Zhang, S. R. J. S. (2016). Deep residual learn-

ing for image recognition. 2016 IEEE Conference on

Computer Vision and Pattern Recognition.

L. Meng, C.V. Aravinda, K. R. U. K. R. e. a. (2018). An-

cient asian character recognition for literature preser-

vation and understanding. In Euromed 2018 Interna-

tional Conference on Digital Heritage. Springer Na-

ture.

L. Meng, T. I. and Oyanagi, S. (2016). Recognition of orac-

ular bone inscriptions by clustering and matching on

the hough space. J. of the Institute of Image Electron-

ics Engineers of Japan, 44(4):627–636.

L. Meng, Y. F. e. a. (2016). Recognition of oracular bone

inscriptions using template matching. Int. J. of Com-

puters Theory and Engineering, 8(1):53–57.

L. Yann, L. Bottou, Y. B. and Haffner, P. (1998). Gradient-

based learning applied to document recognition. In

Proceeding of the IEEE.

Meng, L. (2017). Recognition of oracle bone inscriptions by

extracting line features on image processing. In Pro. of

the 6th Int. Conf. on Pattern Recognition Applications

and Methods (ICPRAM2017).

Redmon and Farhadi, A. (2018). Yolov3: An incremental

improvement. In Computer Vision and Pattern Recog-

nition (ECCV 2018).

Simonyan, K. and Zisserman, A. (2015). Very deep convo-

lutional networks for large-scale image recognition. In

Advances in Neural Information Processing Systems

28 (NIPS 2015).

T. Grning, G. Leifert, T. S. and Labahn, R. (2018). A two-

stage method for text line detection in historical doc-

uments. In Computer Vision and Pattern Recognition.

W. Liu, D. Anguelov, D. C. S. S. R. C. F. and Berg, A. C.

(2016). Ssd: Single shot multibox detector. In Com-

puter Vision and Pattern Recognition (ECCV 2016).

Zhou, X., Wang, D., and Kr

ahenb

uhl, P. (2019). Objects as

points. In arXiv preprint arXiv:1904.07850.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

606
