Tracking Handball Players with the DeepSORT Algorithm

Kristina Host

, Marina Ivašić-Kos

and Miran Pobar

Department of Informatics, University of Rijeka, Rijeka, Croatia

Keywords: Object Detection, YOLO, Sport, Handball, Tracking, DeepSORT.

Abstract: In team sports scenes, such as in handball, it is common to have many players on the field performing different

actions according to the rules of the game. During practice, each player has their own ball, and sequentially

repeats a particular technique in order to adopt it and use it. In this paper, the focus is to detect and track all

players on the handball court, so that the performance of a particular athlete, and the adoption of a particular

technique can be analyzed. This is a very demanding task of multiple object tracking because players move

fast, often change direction, and are often occluded or out of the camera field view. We propose a DeepSort

algorithm for player tracking after the players have been detected with YOLOv3 object detector. The

effectiveness of the proposed methods is evaluated on a custom set of handball scenes using standard multiple

object tracking metrics. Also, common detection problems that have been observed are discussed.

1 INTRODUCTION

Handball, along with football and basketball, is one

of the most represented team sports in Europe. For

that reason, it would be useful to develop a system

that performs a complete analysis of players’

movements and actions. The performance of players

can be greatly enhanced by tracking their movements.

Therefore, object detection and tracking in a sports

environment are rapidly gaining importance.

Just by looking at an image or a video, humans

can instinctively detect and track an object in it and

differentiate between them. Computers, on the other

hand, need human guidance in order to learn to do so

themselves. For that reason, numerous algorithms for

detection and tracking objects have been created.

For the analysis of player activities, a player must

be located concerning its environment and other

players, as well as tracked in time. For detecting the

players, an object detection algorithm such as YOLO

(Redmon & Farhadi, 2018) can be used on each

frame. After having been detected, a player can be

tracked and labeled with a corresponding ID.

Many approaches for object tracking have been

proposed, but lately, due to advances in object

detection, tracking-by-detection has become more

prevalent (Ciaparrone et al., 2019). One of such

https://orcid.org/0000-0002-1829-8023

https://orcid.org/0000-0002-1940-5089

https://orcid.org/0000-0001-5604-2128

algorithms, The Simple Online and Realtime

Tracking (SORT) was proposed by Bewley, Ge, Ott,

Ramos, & Upcroft (2016), which performed

favorably in comparison with other tracking

algorithms such as TDAM(Yang, & Jia, 2016),

MDP(Xiang, Alahi & Savarese, 2015), SMOT (Dicle,

Camps & Sznaier, 2013). An extension of that

algorithm, SORT with deep association metric (Deep

SORT) was proposed in (Wojke, Bewley & Paulus,

2017) and tuned for pedestrian detection. In Burić,

Ivašić-Kos & Pobar (2019), a preliminary qualitative

evaluation of these algorithms on the sports domain

was considered. The DeepSORT achieved the most

stable tracking results, so it is tested here using

different metrics on the task of tracking handball

players.

The paper is organized as follows: in the next

section, the tracking of players is elaborated, and the

Deep SORT algorithm is described. In Section 3, the

experimental setup and the prepared dataset are

presented. The results of the experiment and the

discussion of different problems that were noticed are

given in Section 4, followed by the conclusion and

future research directions in Section 5.

Host, K., Ivaši

c-Kos, M. and Pobar, M.

Tracking Handball Players with the DeepSORT Algorithm.

DOI: 10.5220/0009177605930599

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 593-599

ISBN: 978-989-758-397-1; ISSN: 2184-4313

593

2 TRACKING PLAYERS

Handball is played by two teams of seven players,

using hands to pass the ball to each other in order to

score a goal. This causes multiple players to be

involved in the scene at the same time, which makes

it difficult to detect and track them the whole time.

In the handball footages, depending on whether it

is a match or a practice, approximately 14 to 25

players need to be tracked. For that reason, an

algorithm for multiple object tracking (MOT) must be

used (Burić et al. 2019).

In the Deep SORT algorithm, which is used here,

the detections

obtained with an object detector, are

used to steer the tracking process. The goal of the

tracker itself is then to associate the obtained

bounding boxes in different frames together so that

the same unique ID is assigned to those boxes that

contain the same target. To this end, the tracker may

use the information it can obtain from the detected

bounding boxes, e.g. the locations of box centroid,

their dimensions, the relative position from the boxes

in previous frames, or some visual features extracted

from the image.

2.1 Detection Algorithm - YOLOv3

In order to track an object, it must first be detected.

When it comes to object detection, there are many

algorithms such as Mask R CNN (He, Gkioxari,

Dollár & Girshick, 2017), Faster R CNN (Girshick,

2015), SSD (Liu et al. 2016), YOLO (Redmon,

Divvala, Girshick, & Farhadi, 2016), etc. Following

the results of (Burić, Pobar & Ivašić-Kos 2019), in the

course of which various algorithms were tested,

YOLOv3 (Redmon & Farhadi, 2018) was chosen

because it gave the best results for detecting persons.

Yolo is an algorithm based on a single

Convolutional neural network (CNN) and can detect

objects in real-time. It predicts bounding boxes and

confidence values for grid cells into which an image

or frame is divided. In the cases when an object is

spread across more than one grid cell, the holder of

its prediction will be the center cell.

In this particular research, it was important to

track the handball players. In consequence of that, for

the detection of those players (Burić, Pobar & Ivašić-

Kos 2018), the bounding boxes for the objects

corresponding to the class “person” were taken into

consideration, but only if the confidence for that class

was higher than 70%.

2.2 Tracking Algorithm - DeepSORT

DeepSORT (Wojke et al., 2017) is a tracking-by-

detection algorithm that considers both the bounding

box parameters of the detection results, and the

information about appearance of the tracked objects

to associate the detections in a new frame with

previously tracked objects. It is an online tracking

algorithm. Therefore it only considers information

about the current and previous frames to make

predictions about the current frame without the need

to process the whole video at once.

At the beginning of the footage, i.e., in the first

frame, a unique track ID is assigned to each bounding

box that represents a player and has a confidence

value higher than a set threshold. The Hungarian

algorithm is used to assign the detections in a new

frame to existing tracks so that the assignment cost

function reaches the global minimum.

The cost function involves the spatial

(Mahalanobis) distance 𝑑







of the detected bounding

box from the position predicted according to

previously known position of that object, and a visual

distance 𝑑







that considers the appearance of the

detected object and the history of appearance of the

tracked object. The cost function of assigning a

detected object 𝑗 to a track 𝑖 is given by the

expression:

𝑐

,

=𝜆𝑑









𝑖,

𝑗





1−𝜆



𝑑









𝑖,

𝑗



(1)

where λ is a parameter that can be set to determine the

influence of the spatial distance 𝑑







and the visual

distance 𝑑







The spatial distance 𝑑







is given by the

expression:

𝑑









𝑖,

𝑗



=𝑑



−𝑦







𝑆





𝑑



−𝑦





(2)

where 𝑦



and 𝑆



represent the mean and the

covariance matrix bounding box observations for the

i-th track, and 𝑑



represents the j-th detected

bounding box.

The visual distance 𝑑







relies on appearance

feature descriptors and is given by the expression:

𝑑









𝑖,

𝑗



=min1−𝑟





𝑟









|𝑟









∈ℛ



, (3)

where 𝑟



is the appearance descriptor extracted from

the part of the image within the j-th detected bounding

box, and ℛ



is the set of last 100 appearance

descriptors 𝑟





associated with the track i.

The 𝑑







measure uses the cosine distance

between the j-th detection and i-th track to select the

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

594

track where visually the most similar detection was

previously found to the current detection.

The appearance descriptors are extracted using a

wide residual neural network comprising two

convolutional layers followed by six residual blocks

that output a 128-element vector. The network was

pre-trained on a person re-identification dataset of

more than a million images of 1261 pedestrians

(Wojke et al., 2017). The feature vectors are

normalized to fit within a unit hypersphere so that the

cosine distance can be used.

New track IDs are generated whenever there are

more detections in a frame than already tracked

players, i.e., when a new player is detected in a frame.

A new track is also created when a detection cannot

be assigned to any track, because the detection is too

far from any track, or not visually similar to any

previous detection. This is controlled by thresholds

that set the maximum 𝑑







and 𝑑







when an

assignment is still possible. A track may be

abandoned if no assignment has been made to it for n

consecutive frames. In that case, a new track ID will

be assigned if the same object re-appears later in the

video.

The appearance information is used in particular

to assist in re-identification and prevent new IDs

generation for objects that have not been tracked for

some time, either because they were under occlusion,

have temporarily left the scene, or were not detected

because of detector error.

3 EXPERIMENT

The goal of the experiment is to test the performance

of the Deep SORT tracker on the handball player

tracking task.

In order to evaluate the tracking results, a dataset

from the handball domain, containing ground truth

tracking annotations had to be prepared first, which is

described below in more detail.

The tracking results were then evaluated using

multiple common object tracking performance

measures. No single performance measure exists that

can uniquely describe the complex behavior of

trackers, so different measures have been designed

for specific applications in mind. Here, the number of

identity switches (ID) (Milan et al., 2016),

identification precision (IDP), identification recall

(IDR) and the identification F1 (IDF1) measures

(Ristani et al., 2016) are used.

An identity switch happens if a ground truth target

is matched to a track 𝑗 and the last known assignment

was to a track 𝑘≠𝑗.

In contrast, the set of IDP, IDR, and IDF1

measures focus on how long a target is correctly

identified, regardless of the number of mismatches.

Identification precision (IDP) is the fraction of

computed detections that are correctly identified in all

frames, while identification recall (IDR) is the

fraction of ground truth detections that are correctly

identified. The IDF1 measure is the ratio of correctly

identified detections over the average number of

ground-truth and computed detections.

Both the number of identity switches and the

IDP/R/F1, measures can be useful for gaining insight

about the performance of the tracker in the handball

domain, however, being able to re-identify a player

after the tracker lost him for a while may be more

important than the number of mismatches. Other

commonly used measures, the multiple objects

tracking precision (MOTP), and the multiple objects

tracking accuracies (MOTA) (Bernardin &

Stiefelhagen, 2008) are also reported here, but since

they heavily award detection performance, they are

less relevant here since the same detector was used to

generate the ground truth detections and the

detections for the tracker.

3.1 Dataset

The dataset contains a subset of high-quality video

recordings of handball practice and matches recorded

indoors during a handball school (Ivasic-Kos &

Pobar, 2018). The recordings were made using a

stationary Nikon D7500 DSLR camera, with a Nikon

18-200mm VR lens, in full HD resolution

(1920x1080) at 60 frames per second. The camera

was positioned on the border of the playing field, on

a tripod at 1.5m height. From the spectators’ point of

view, the height of the camera, which was 10m away

from the border, was at 3.5m.

The participants were young handball players and

their coaches.

To obtain the ground truth annotation data, the

videos were first automatically processed using the

YOLOv3 object detector and the DeepSORT tracker

to bootstrap the annotation process, and then

manually corrected. Since the object detection

already performed satisfactory (Pobar & Ivašić-Kos,

2019), the focus of the work was to evaluate the

tracking performance, i.e. the ability of the tracker to

assign the correct IDs to detections, and not the object

detection performance. For this reason, object

detection errors such as a missed detection of a player

in a frame were not corrected in the ground truth files,

but only incorrect assignments of detections to tracks.

Tracking Handball Players with the DeepSORT Algorithm

595

To facilitate manual correction and annotation, a

custom tool was made using Python and OpenCV.

The tool allows easy swapping of IDs of two

tracks, which is a common tracker error when a player

moves in front of the other. For example, to correct

the error of swapping players, the first player is

selected with the left mouse click, and the second one

with the right and their IDs would be swapped from

that frame forward. An incorrect ID, which often

happens in case of occlusion, or when previously

tracked players re-enter the frame, can also be edited

by right-clicking the bounding box which ID needs

changing. Since a single incorrect ID in a frame

usually corresponds to a wrongly created new track,

it would repeat in the next frames, so correcting a

tracking ID in a frame also changes the ID in the

following frames. Given that the IDs in a frame must

be unique, the program does not allow accidental

duplication of an already existing ID. Furthermore, if

the swapped IDs need to be changed, but the

bounding boxes for both players were not detected at

some time later, the user enters the desired value, and

the corrections of the IDs occur only until both of the

bounding boxes appear again.

The total duration of the annotated dataset is 6min

and 18s. The Fig. 1 shows the distribution of the

number of detected players on each frame in the

tested videos. Most frames in the video contained 10-

11 players.

Figure 1: Histogram of the number of players per frame.

4 RESULTS AND DISCUSSION

The quantitative evaluation results are presented in

Table 1.

Table 1: Quantitative evaluation results.

Measure Value

#tracks in the ground truth 279

#tracks 1554

Identity switches 1483

IDF1 24.7%

IDP 24.7%

IDR 24.7%

MOTA 99.3%

MOTP 99%

The results show that for each player that should

be tracked, the identity switches caused the creation

of, on average, 5-6 additional tracks by the Deep

SORT algorithm, so there are 5 times more tracks

than in ground-truth data. Due to the relatively large

number of players in the video, frequently changed

positions, and occlusion, a large number of identity

switchers are present (1483). Also, the number of

players simultaneously present in the frame obviously

affects the tracking performance so that the players

can be correctly identified for 24,7% of the time,

according to the IDF1 measure. Player identifications

that are correctly identified in frames (IDP) are

balanced to identification recall (IDR).

Measures MOTA and MOTP show high accuracy

and precision results of 99% but are not relevant here

since the same detector was used to generate the

ground truth detections and the detections for the

tracker.

Tracking mistakes can be attributed to several

factors. As in all tracking-by-detection algorithms,

the accuracy of tracking is greatly influenced by the

accuracy of the object detector. If a player is

inaccurately detected, the tracking will be inaccurate

as well. For example, false positives of the detector,

i.e. the bounding boxes that are detected where there

are no objects to detect, can confuse the tracker to

assign an ID to that box that would otherwise have

been assigned to a correct detection.

In other cases, the false positive will produce

spurious object IDs with short track durations. In

Figure 2, the left shows an example of detecting a

player where there is not one, and assigning the ID

with the value 31 to it. Furthermore, when the players

are at a significant distance, the detector may not

recognize them, and in such cases they cannot be

tracked. In Figure 2, the middle shows an example of

a player not being detected due to the distance from

the camera. Another problem regarding the detector

is the occlusion, e.g. when a player is covered by

another player or by the goal frame.

10%

15%

20%

25%

30%

1 3 5 7 9 11 13 15 17

Percent of Frames

Number of Players

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

596

An example of that is shown in Figure 2, right,

where a player was not detected because she was

occluded by another player with the ID 5.

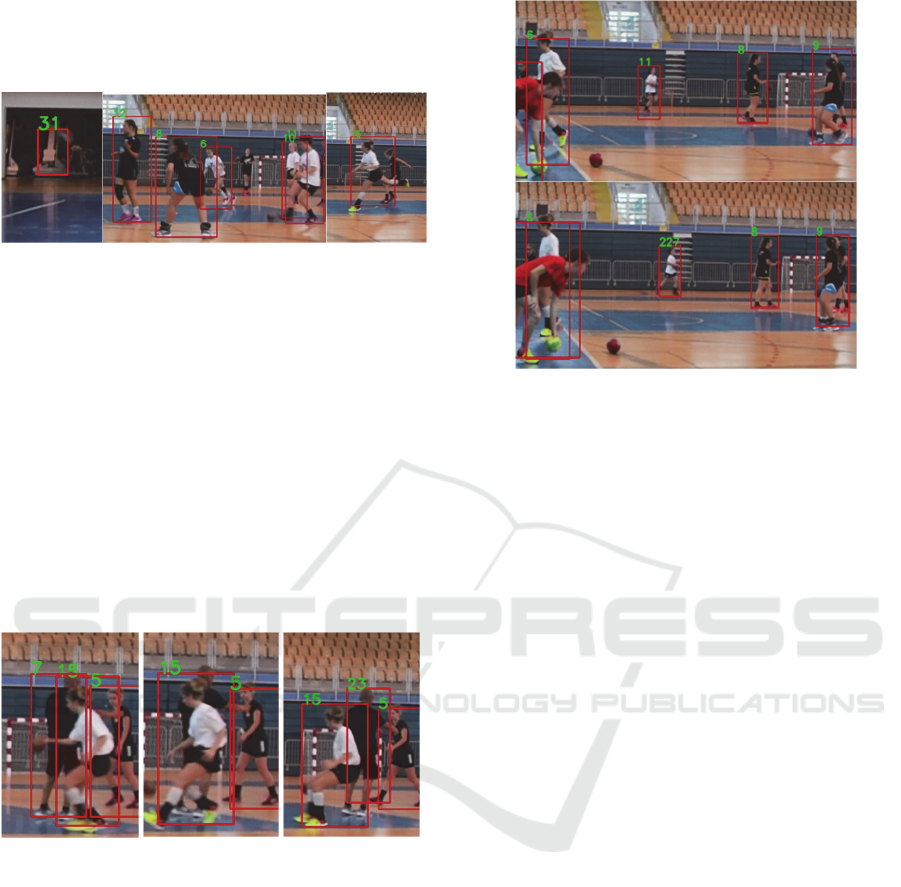

Figure 2: Example of false-positive detection (left), missed

detection (middle) and missed detection due to occlusion

(right).

Partial occlusion can also make re-identification

based on appearance more difficult as it can change

the seeming appearance of a player. In these cases,

the player will be recognized as a new player and

assigned a new ID, which means that the previous

data about tracking will not be accessible. Figure 3

shows one such example in three consecutive frames.

On the left, there are three players with the IDs 5,7,

and 15 in the frame, in the middle the player with the

ID 7 is occluded and not detected, and on the right the

tracker didn’t re-identify the player with the ID 7, but

it assigned to it a new ID with the value 22.

Figure 3: The problem of re-identification after occlusion.

The small scale of some objects in the distance

can also be a problem. Although the detector can

detect a player in the distance, a different ID may be

assigned by the tracker in subsequent frames due to

the similarity between the clothes of the player and

the background, which makes it difficult for the

tracker to recognize that the player is the same as in

the previous frames. Figure 4 shows an example of

that situation, where the distant player with ID 11 is

being detected and tracked, but when it comes to the

background with similar color, the tracker recognizes

it as a new player.

Figure 4: Identity switch due to small scale and similar

colors.

Players entering and exiting the frame pose

similar problems like occlusion. When a player has

left the frame at one moment and returns after some

time, the tracker often assigns him a new ID. In some

cases, this has been overcome thanks to the

information of appearance, but in others the issue is

still present. Moreover, when a player exits a frame,

and a different player enters, the previous player’s ID

is often assigned to the new player, when in fact a new

ID should be assigned. Another example is when one

player is leaving the frame, and the second one is

situated on the edge of the frame. In this case when

the first player leaves the second one takes its ID.

The IDs can also be swapped between two

similarly dressed players, between whom the tracker

does not differentiate, or when their movements

coincide.

Figure 5 shows two problems of ID swapping due

to exiting the frame and occlusions. The player with

ID 9 exits the frame (Fig. 5 left), while at the same

time the player with ID 3 occupies his position and

his ID value (Fig. 5 right). On the same frame, a third

player who was not previously detected on the left

frame due to occlusion, takes the ID of second player

(becames 3), which is probably due to the same color

of clothes and similar position on the frame. The

coach and the player with ID 10 are well detected on

both frames, although large occlusions exist. A player

with ID 5 (Fig. 5 left) has left the frame and his ID is

correctly excluded from the frame on the right (Fig. 5

right).

Tracking Handball Players with the DeepSORT Algorithm

597

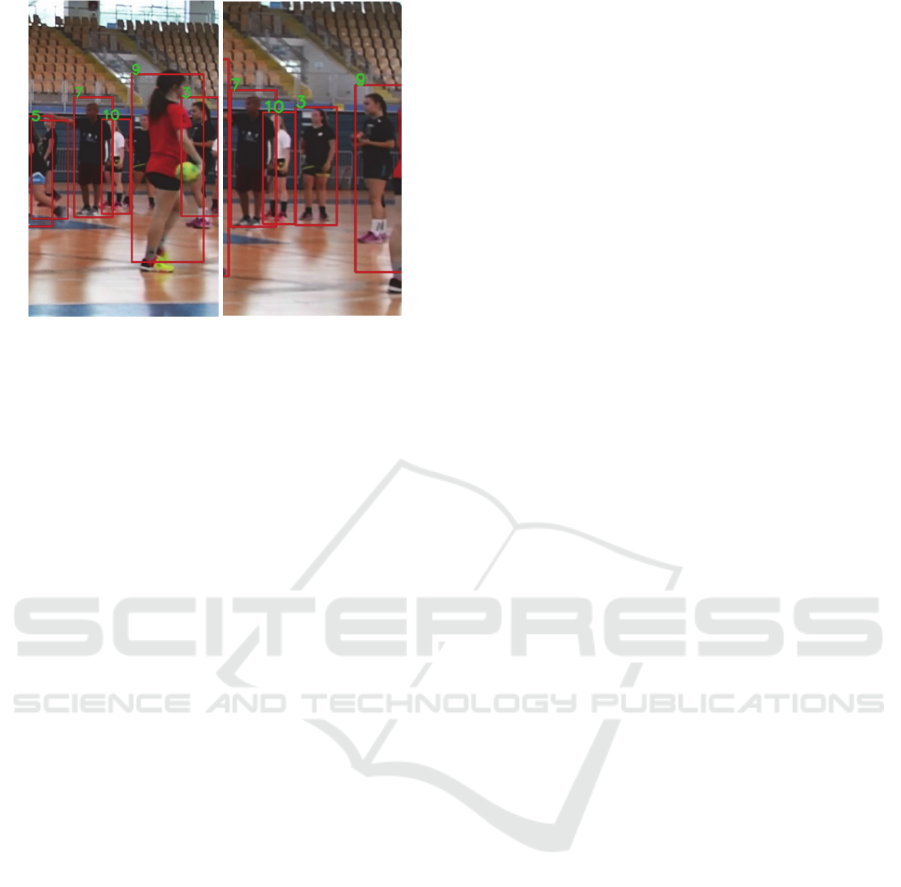

Figure 5: Identity switches due to exiting the frame.

5 CONCLUSIONS

This paper deals with the tracking of young handball

players during handball practice. The goal was to

detect and track all players on the handball court so

that the performance of a particular athlete and the

adoption of a particular technique can be analyzed.

This is a very demanding task of multiple object

tracking since players move fast, often change

direction, and are very often occluded and out of the

camera field view. For detection of player the

YOLOv3 detector was used and DeepSORT

algorithm for player tracking. The results were

evaluated on custom dataset that contains handball

videos with marked player ID-s. The performances of

the algorithm were tested according to common

multiple object tracking measures: IDF1, IDP, IDR,

MOTA, MOTP. The results of MOTA and MOTP are

excellent but not relevant because the same detector

was used for ground truth detections and in tracking.

Due to the relatively large number of players on the

field that are often occluded, and the demanding

scenario, players were correctly identified 24.7% of

the time, according to the IDF1 measure.

A detailed analysis of the results showed that the

scale of an object, occlusion, swapping IDs, and the

similar color of the players’ clothes with the

background, many times appear as problems. Those

issues are challenging even for people familiar with

players and the rule of the game, so in the future, we

will consider different methods to focus monitoring

only on players who are active, perform a given

action, or are carriers of the game.

Also, we will consider defining an appropriate

multiplayer tracking metric that would appropriately

evaluate those elements of athlete tracking that are

relevant to the task of monitoring and analyzing

athlete activity, and performing a particular action.

ACKNOWLEDGMENTS

This research was fully supported by the Croatian

Science Foundation under the project IP-2016-06-

8345 “Automatic recognition of actions and activities

in multimedia content from the sports domain”

(RAASS) and by the University of Rijeka under the

project number uniri-drustv-18-222.

REFERENCES

Bernardin, K., & Stiefelhagen, R. (2008). Evaluating

multiple object tracking performance: the CLEAR

MOT metrics. Journal on Image and Video Processing,

2008, 1.

Bewley, A., Ge, Z., Ott, L., Ramos, F., & Upcroft, B. (2016,

September). Simple online and realtime tracking. In

2016 IEEE International Conference on Image

Processing (ICIP) (pp. 3464-3468). IEEE.

Burić, M., Ivašić-Kos, M. & Pobar, M. (2019) (in press)

Player Tracking in Sports Videos. In 19th IEEE

International Conference on Computer and

Information Technology (CIT 2019)

Burić, M., Pobar, M., & Ivašić-Kos, M. (2019, January).

Adapting YOLO network for ball and player detection.

In Proceedings of the 8th International Conference on

Pattern Recognition Applications and Methods

(ICPRAM 2019) (pp. 845-851).

Burić, M., Pobar, M., & Ivašić-Kos, M. (2018, January).

Ball detection using YOLO and Mask R-CNN. In 2018

International Conference on Computational Science

and Computational Intelligence (CSCI).

Ciaparrone, G., Sánchez, F. L., Tabik, S., Troiano, L.,

Tagliaferri, R., & Herrera, F. (2019). Deep Learning in

Video Multi-Object Tracking: A Survey. arXiv preprint

arXiv:1907.12740.

Dicle, C., Camps, O. I., & Sznaier, M. (2013). The way they

move: Tracking multiple targets with similar

appearance. In Proceedings of the IEEE international

conference on computer vision (pp. 2304-2311).

Girshick, R. (2015). Fast r-CNN. In Proceedings of the

IEEE international conference on computer vision (pp.

1440-1448).

He, K., Gkioxari, G., Dollár, P., & Girshick, R. (2017).

Mask r-CNN. In Proceedings of the IEEE international

conference on computer vision (pp. 2961-2969).

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C. Y., & Berg, A. C. (2016, October). SSD: Single

shot multibox detector. In European conference on

computer vision (pp. 21-37). Springer, Cham.

Ivasic-Kos, M., Pobar, M. (2018). “Building a labeled

dataset for recognition of handball actions using mask

R-CNN and STIPS,” in 7th IEEE European Workshop

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

598

on Visual Information Processing (EUVIP), Tampere,

Finland, pp. 1-6

Milan, A., Leal-Taixé, L., Reid, I., Roth, S., & Schindler,

K. (2016). MOT16: A benchmark for multi-object

tracking. arXiv preprint arXiv:1603.00831.

Pobar, M., & Ivašić-Kos, M. (2019, March). Detection of

the leading player in handball scenes using Mask R-

CNN and STIPS. In Eleventh International Conference

on Machine Vision (ICMV 2018) (Vol. 11041, p.

110411V). International Society for Optics and

Photonics.

Redmon, J., Divvala, S., Girshick, R., & Farhadi, A. (2016).

You only look once: Unified, real-time object detection.

In Proceedings of the IEEE conference on computer

vision and pattern recognition (pp. 779-788).

Redmon, J., & Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Ristani, E., Solera, F., Zou, R., Cucchiara, R., & Tomasi, C.

(2016, October). Performance measures and a data set

for multi-target, multi-camera tracking. In European

Conference on Computer Vision (pp. 17-35). Springer,

Cham.

Wojke, N., Bewley, A., & Paulus, D. (2017, September).

Simple online and realtime tracking with a deep

association metric. In 2017 IEEE International

Conference on Image Processing (ICIP) (pp. 3645-

3649). IEEE.

Xiang, Y., Alahi, A., & Savarese, S. (2015). Learning to

track: Online multi-object tracking by decision making.

In Proceedings of the IEEE international conference on

computer vision (pp. 4705-4713).

Yang, M., & Jia, Y. (2016). Temporal dynamic appearance

modeling for online multi-person tracking. Computer

Vision and Image Understanding, 153, 16-28.

Tracking Handball Players with the DeepSORT Algorithm

599
