Objects Detection from Digitized Herbarium Specimen based on

Improved YOLO V3

Abdelaziz Triki

, Bassem Bouaziz

, Walid Mahdi

1,2

and Jitendra Gaikwad

MIRACL/CRNS, University of Sfax, Sfax, Tunisia

College of Computers and Information Technology, Taif University, Saudi Arabia

Friedrich Schiller University Jena, German Centre for Integrative Biodiversity Research (iDiv) Halle-Jena-Leipzig,

Leipzig, Germany

Keywords:

Functional Traits, Digitized Plant Specimens, Deep Learning, Improved YOLO V3, Object Detection,

Herbarium Haussknecht.

Abstract:

Automatic measurement of functional trait data from digitized herbarium specimen images is of great interest

as traditionally, scientists extract such information manually, which is time-consuming and prone to errors.

One challenging task in the automated measurement process of functional traits from specimen images is the

existence of other objects such as scale-bar, color pallet, specimen label, envelopes, bar-code and stamp, which

are mostly placed at different locations on the herbarium-mounting sheet and require special detection method.

To detect automatically all these objects, we train a model based on an improved YOLO V3 full-regression

deep neural network architecture, which has gained obvious advantages in both speed and accuracy through

capturing deep and high-level features. We made some improvements to adjust YOLO V3 for detecting object

from digitized herbarium specimen images. A new scale of feature map is added to the existing scales to

improve the detection effect on small targets. At the same time, we adopted the fourth detection layer by a

4* up-sampled layer instead of 2* to get a feature map with higher resolution deeper level. The experimental

results indicate that our model performed better with mAP-50 of 93.2% compared to 90.1% mean IoU trained

by original YOLO V3 model on the test set.

1 INTRODUCTION

Most of the worldwide herbaria are subscribed in

the initiative of the digitization. This process

aims at transforming all physical mounted specimens

into digital ones. Recent initiative as herbarium

Haussknecht of Jena (HHJ) in Germany has started

the digitization process and provides access to 30k

herbarium images. Each digitized herbarium speci-

men (DHS) image includes seven classes of objects:

plant specimen, scale bar, stamp, color pallet, speci-

men label, envelope, and bar-code. One challenging

task in automated object detection is due to speciﬁc

issues like occlusions and variations in scale and ran-

dom placement on herbarium-mounting sheet. Sev-

eral papers of object detections were built based on

handcrafted approaches, which have existed before

deep learning era like Haar-like features (Vondrick

et al., 2015) (Heisele, 2003) (Viola and Jones, 2004),

integrogram (Viola and Jones, 2001), histogram of

oriented gradient (HOG) (Felzenszwalb et al., 2010)

(Lowe et al., 1999) (Lowe, 2004) (Belongie et al.,

2002), Hough Transform (Hussin et al., 2012) and

Deformable Part-based Model (DPM) (Felzenszwalb

et al., 2008) (Felzenszwalb et al., 2010). These ap-

proaches have adopted for various ﬁelds of object

detection and they are still being used in practice.

However, they are time-consuming and not reliable

enough for automatic object detection. At present,

with the continuous development of computer hard-

ware, modern deep learning models have made in-

credible progress in computer vision tasks. They are

widely used for object detection tasks by detecting

objects in complex scenarios. Furthermore, these ap-

proaches can be grouped into two categories: two-

stage detection and one-stage detection. R-CNN (Gir-

shick et al., 2014) (Regions with CNN features) de-

veloped by Ross Girshick in 2014 is one of the ﬁrst

breakthroughs of the use of CNNs in an object detec-

tion system which made signiﬁcant progress in the ef-

ﬁciency of object detection. The proposed algorithm

is composed of three main steps: region proposals ex-

Triki, A., Bouaziz, B., Mahdi, W. and Gaikwad, J.

Objects Detection from Digitized Herbar ium Specimen based on Improved YOLO V3.

DOI: 10.5220/0009170005230529

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages

523-529

ISBN: 978-989-758-402-2; ISSN: 2184-4321

523

traction, CNN (Convolutional Neural Networks) fea-

ture computation and bounding-box regression. The

proposed RCNN uses a selective search algorithm

(van de Sande et al., 2011) to extract 2000 region pro-

posals from the input image. Each candidate region

proposal fed into CNN to produce features as output.

Consider that a large number of overlapping regions

take a huge amount of time to train the network, re-

sulting in a waste of computing resources and leads

to an extremely slow detection speed. Furthermore,

RCNN could lead to the generation of bad candidate

region proposals since it uses the selective search al-

gorithm which is a slow and time-consuming process

affecting the performance of the network. Hence,

to solve some of R-CNN drawbacks, Spatial Pyra-

mid Pooling Networks (SPPNet) (He et al., 2014)

was proposed by k. He et al. Unlike the previous

CNN models involving a ﬁxed-size of the input im-

age, SPPNet uses a Spatial Pyramid Pooling (SPP)

layer allowing a CNN to produce a ﬁxed-length rep-

resentation where any image sizes can be inputted. In

spite of its improvements over RCNN model, there

are sitll some disadvantages: (1) the training stage

is too slow, (2) SPPNet focuses only on ﬁne-tuning

its fully connected layers whereas all previous lay-

ers are neglected. In 2015, Ross took into considera-

tion these limitations and has proposed Fast-RCNN

(Girshick, 2015), which makes the class classiﬁca-

tion faster. The input image feeds into a CNN to

generate a convolutional feature map. The region of

proposals are determined directly from the convolu-

tional feature map where Fast-RCNN integrates a RoI

pooling layer to reshape the identiﬁed region proposal

into a ﬁxed size making the classiﬁcation faster but it

still relies on selective search which can take around

2 seconds per image to generate bounding box pro-

posals. Thus, it has high mAP but it can’t meet real-

time detection. Faster-RCNN (Ren et al., 2015) re-

places a selective search algorithm and integrates an

RPN branch networks to predict the region proposals.

These solutions have improved the speed of Faster-

RCNN but it is still difﬁcult to meet the real-time

engineering requirements. Compared with the two-

stage detection approaches, the one-stage detection

approaches often involves ﬁnding the right trade-off

between accuracy and computational efﬁciency. The

SSD (Liu et al., 2015) is a common object detection

algorithm which performs a single forward pass of

the network to locate and identify multiple objects

within the input image. Therefore, it achieves good

speed efﬁciency compared with two-shot RPN-based

approaches. After continuous iterative improvement

of YOLO, Joseph Redmon proposed YOLO V3 (Red-

mon and Farhadi, 2018) which is three times faster

than SSD. For 320x320 images, the detection speed of

YOLO V3 can reach 22ms. Considering the variabil-

ity in size and position of objects within the digitized

herbarium specimens images, it is more appropriate

to use YOLO V3 as the target detection network be-

cause it offers a very fast operation speed with good

accuracy to predict the objects within the DHS im-

ages. However, YOLO V3 often struggled with small

and occluded objects. To address this issue, we pro-

posed an automatic object detection method based on

an improved YOLO V3 deep neural network, which

is developed, based on the Darknet framework. The

proposed approach uses the last four scales of feature

maps, which are rich in detail localization informa-

tion to detect small and occluded objects from the

DHS (ﬁgure 2). Furthermore, we adopted the fourth

detection layer by a 4* up-sampled layer instead of

2* to get a feature map with higher resolution and

lower level. The improved YOLO V3 was trained on

data provided by the herbarium Haussknecht in Ger-

many. The experimental results show very high de-

tection speed and accuracy under the same detection

time.

2 PROPOSED APPROACH

YOLO V3 is the third generation of You Only Look

Once (YOLO). YOLO was originally proposed by

Joseph Redmon of Washington University where the

algorithm uses the Google LeNet model designed by

Google to realize end-to-end object detection. The

core idea of YOLO is to divide the input image into

grid cells of the same size. If the center point of

the object’s ground truth falls within a certain grid,

the grid is responsible for detecting the target. Note

that each grid generates K anchor boxes of differ-

ent scales and outputs B prediction bounding boxes,

including position information of the bounding box

(center point coordinates x, y, width w, height h), and

prediction conﬁdence. To alleviate the defect of the

previous generation of YOLO, YOLO V3 integrates

residual network and adds batch normalization (BN)

layer and Leaky ReLU layer after each convolution

layer. At the same time, YOLO V3 adopts a multi-

scale prediction method similar to FPN (Lin et al.,

2016) (Feature Pyramid Networks) network to have

a better detection effect for large, medium and small

targets. As presented in ﬁgure 1, it uses three scales

of prediction (13 x 13, 26 x 26 and 52 x 52) in order

to output different sizes of feature maps. On the other

hand, YOLO V3 borrows the idea of using dimension

clusters as anchor boxes (Ren et al., 2015) for predict-

ing bounding boxes of the system. It uses nine cluster

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

524

centers (three for each scale), which can better cover

the characteristics of the ground truth of the train set.

Each bounding box is represented by a quintuple: x,

y, w, h, and a conﬁdence score. Conﬁdence scores

represent the precision of the predicted bounding box

when the grid contains an object. Note that the con-

ﬁdence score is equal to 1 if the bounding box prior

overlaps a ground truth object by more than any other

bounding box prior. Else, it will ignore the prediction

when the conﬁdence score of detection is lower than

the threshold. YOLO V3 uses Darknet53 network as

the backbone (Figure 1) which originally composed

of 53-layer network trained on ImageNet (Deng et al.,

2009). For the task of detection, 53 more layers are

stacked onto it. This is the reason behind the slow-

ness of YOLO v3 compared to YOLO v2. Regarding

the performance, it has been proved to be more ef-

fective than Darknet-19, 1.5 times more efﬁcient than

ResNet-101 and 2 times much better than ResNet-152

(Redmon and Farhadi, 2018).

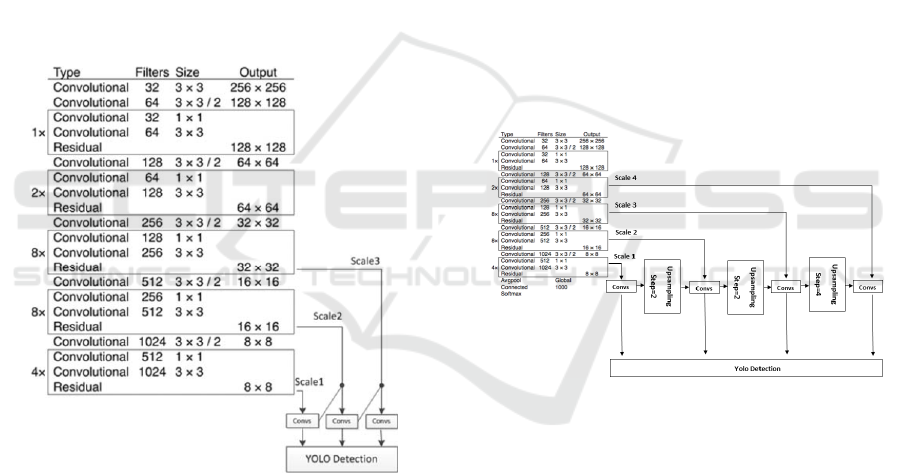

Figure 1: YOLO V3 network structure.

Furthermore, the structure of YOLO V3 is simi-

lar to ResNet (He et al., 2015); both use the resid-

ual to make the network deeper. To preserve the tar-

get characteristics and facilitate the calculation of loss

function, YOLO V3 adds a large number of convo-

lution layers of 1x1 and 3x3. YOLO V3 makes de-

tection at three different scales (13x13, 26x26 and

52x52) where the up-sampled layers concatenated

with the previous layers preserve the ﬁne-grained fea-

tures, which help in detecting small objects. The

ﬁrst detection is made by few convolutional layers,

which detect the high-resolution and low-level fea-

tures. For the second detection layer, layers are up-

sampled by a factor of 2 and concatenated with the

features maps from the earlier network having iden-

tical feature map sizes. Another detection is now

made at the third detection layer with stride 16 where

the same up-sampling procedure is repeated between

2* up-sampled features from the second detection

layer and the much earlier network to detect the low-

resolution and high-level features. After conducting

experiments, the detection performance of the origi-

nal YOLO V3 is poor for small and occluded objects.

That is because the feature maps used for prediction

in YOLO v3 network only have three scales and lack

of ﬁne-grained information of small objects like plant

specimens with small leaves. As shown in ﬁgure 2,

we added a new scale of feature map to the existing

scales. As a result, four scales of feature maps are

adopted to detect small and occluded objects. Be-

sides, we changed the fourth detection layer which

is rich in detail localization information by a 4* up-

sampled layer instead of 2* to get a feature map. As

a result, the improved YOLO V3 can detect all ob-

jects within the DHS with accurate and stable bound-

ing boxes.

Figure 2: Improved YOLO V3 network structure.

3 EXPERIMENTAL SETUP

During the experiment step, we have used the free

cloud service provided by Google, which is based on

Jupyter Notebooks that support free GPUs. Google

Colaboratory is a free cloud service for machine

learning education and research with 12 GB of RAM

and NVIDIA Tesla T4. Furthermore, the performance

evaluation of the involved system is tested on data

provided by the herbarium Haussknecht of FSU Jena.

3.1 Database

We train our CNN model on data provided by the

herbarium Haussknecht in Germany, which gave ac-

cess to more than 30k scanned specimen images to

Objects Detection from Digitized Herbarium Specimen based on Improved YOLO V3

525

researchers and the public. The collected data con-

tain objects with a high degree of variability in scale

and occlusion, making it one of the most challenging

data sets. Among them, we annotated manually 4000

images having specimen images with distorted leaves

(leaves with missed part) or overlapping leaves, not

only specimens containing perfect leaves and some

samples are shown in Figure 5. Herbarium specimen

images contain seven main regions of scale-bar, bar-

code, stamp, annotation label, color pallet, envelope,

and the plant specimen. Every region is represented

by a bounding box described by x, y, width and height

within the XML ﬁle (Figure 3). We emphasize that

the bounding box is dedicated by annotating all ob-

jects within the digitized specimen images except the

plant specimen region. Otherwise, because of its ir-

regular shape, we describe the plant specimen region

by a bounding polygon.

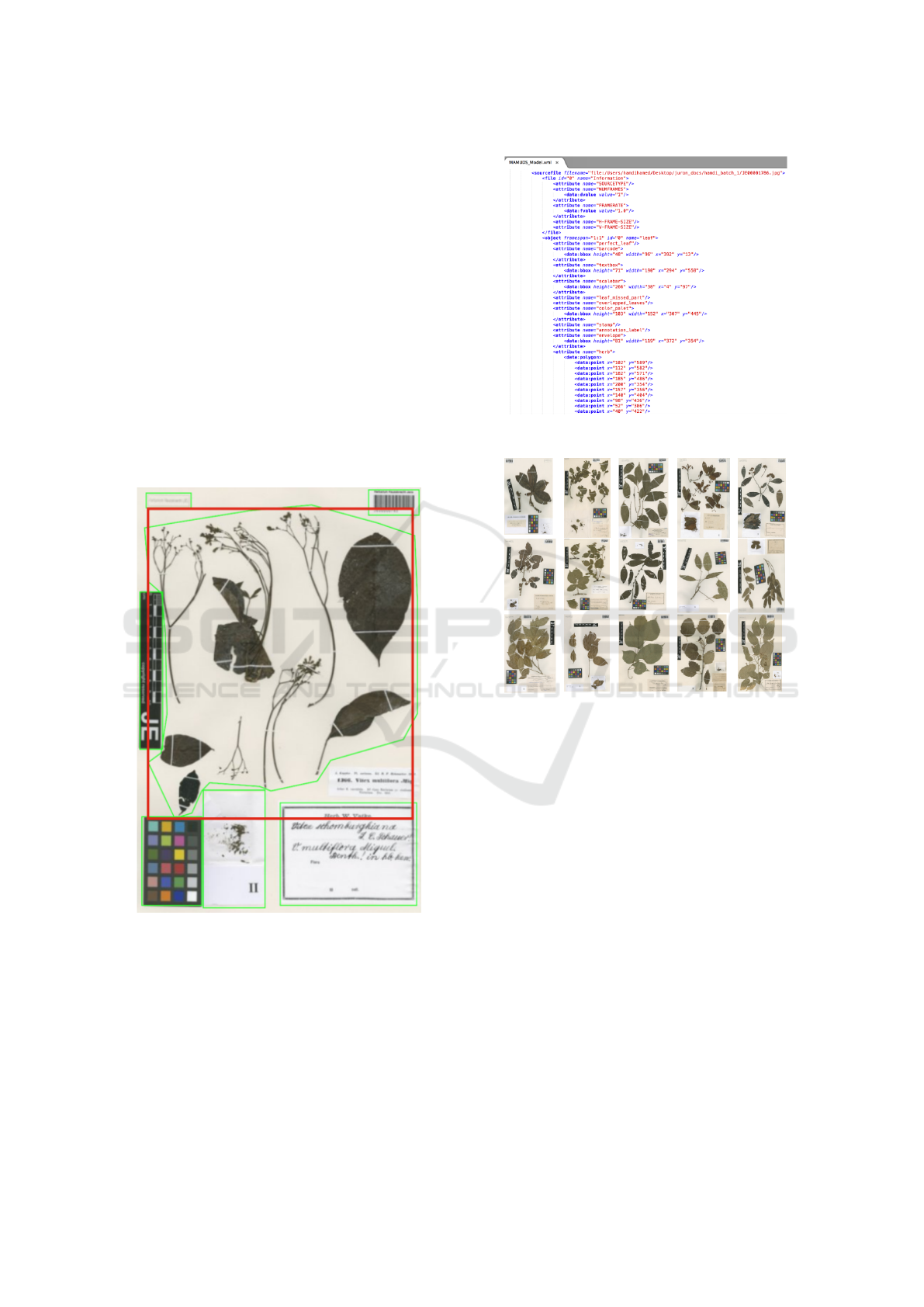

Figure 3: Annotation process of a digitized specimen im-

age.

Consequently, the associated element within the

XML annotation ﬁle is described by a set of coordi-

nates x, y attributes (Figure 4). To avoid over-ﬁtting

problems, we used data augmentation techniques by

applying some simple transformations such as hori-

zontal and vertical ﬂipping, rotation and color space

to increase the number of samples in our network

(Zhang et al., 2016).

Figure 4: Example of the XML annotation ﬁle.

Figure 5: Examples of herbarium Haussknecht dataset.

The dataset was divided into 80% training set,

10% validation set and 10% test set. We trained the

original YOLO V3 and improved YOLO V3 models

on DHS database. In both networks, the parameters

are set as follows: the initial learning rate is reduced

to 0.0001 and batch size is 6. Furthermore, all net-

works were trained for 10000 iterations and we got

the avg loss curve as presented in Figure 7.

4 RESULTS AND EVALUATION

We test our object detection model based on improved

YOLO V3 on the HHJ database. We selected 400

testing samples as input to the network. Currently,

the evaluating metrics commonly used in object de-

tection include mean Intersection Over Union (IoU),

recall, precision, mean Average Precision (mAP) and

so on. As shown in Table 1, when thresh is set to 0.25,

it is veriﬁed that the precision accuracy of our pro-

posed approach is increased by more than 3% com-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

526

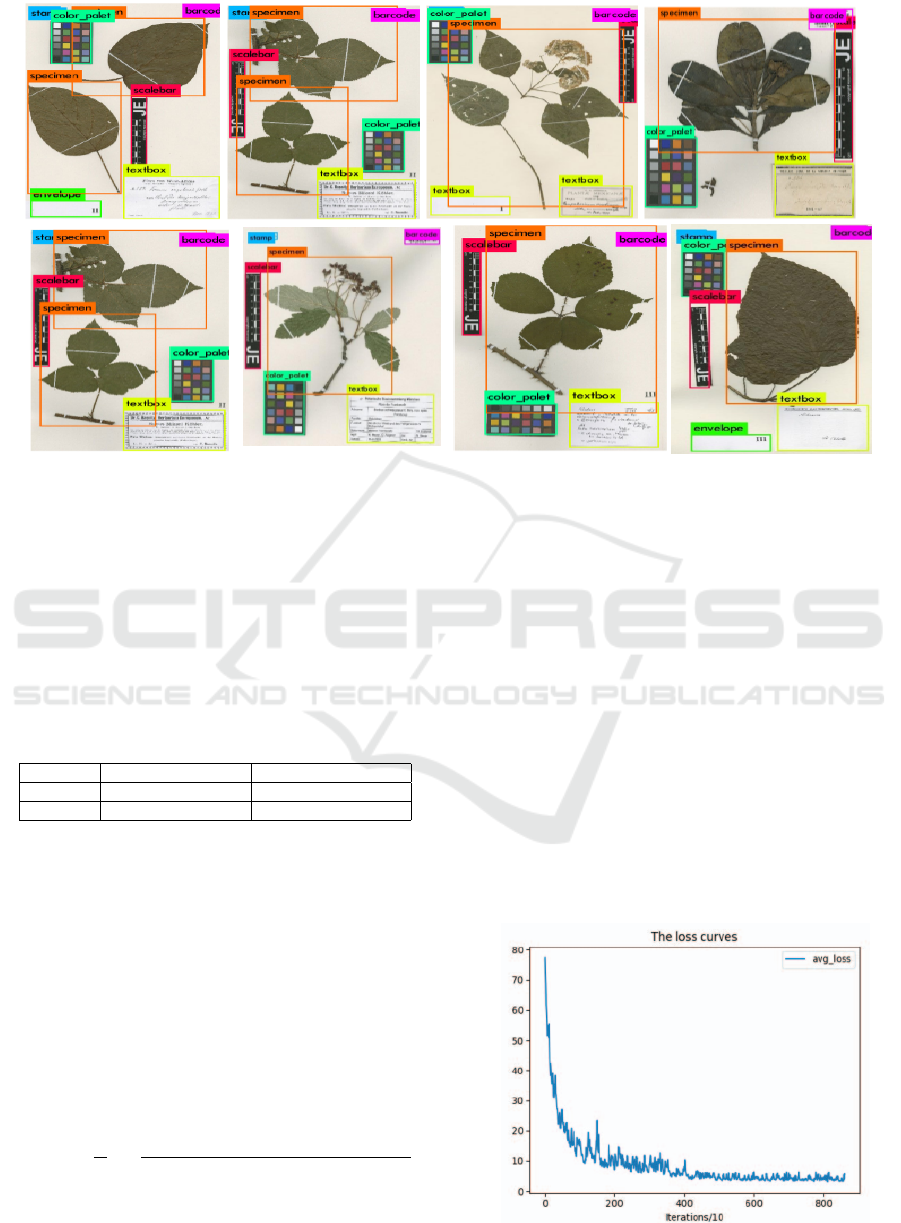

Figure 6: Object detection results by improved YOLO V3 on HHJ dataset.

pared with the original YOLO V3. Whereas the recall

reaches 94%, improving 5%. It can be seen that our

object detection model has good adaptability and ro-

bustness to objects with a high degree of variability in

scale and occlusion. Regarding the calculation time,

improved YOLO V3 takes more time compared to the

original YOLO V3. This is due mainly to the bigger

scale of the feature map, which increases the calcula-

tion time.

Table 1: Precision / Recall Accuracy.

Index Original YOLO V3 Improved YOLO V3

Precision 88% 91%

Recall 89% 94%

Numerous metrics have been used by different ap-

proaches for evaluating the object detection models

(Lateef and Ruichek, 2019). One of the most impor-

tant evaluation metrics is the Intersection over Union

(IoU). This metric quantiﬁes the similarity between

the ground truth and the predicted bounding boxes for

each class and provides a mean IoU which is calcu-

lated by taking the IoU of each class and averaging

them. As shown in Equation 1, MIoU calculates the

ratio of true positives over the sum of true positive,

false positive and false negative.

MIoU =

∑

x=1

T P

∑

y=1

∑

y=1

− T P

(1)

Where C is the total number of classes, TPxx rep-

resents the true positives samples, FPxy represents the

false positive samples and FNyx represents the false

negative samples.

As shown in Table 2, both the original and im-

proved YOLO V3 models performed well on valida-

tion and test sets where the proposed model can detect

small objects with a MIoU of 94% for stamp object

while the performance is slightly better with both val-

idation and test MIoU of 96% for specimen object.

To verify the efﬁciency of our model, the loss

curves of improved YOLO V3 is shown in ﬁgure 7.

The loss curve shows a gradual decrease in the loss as

the training progress. This behavior is observed un-

til iteration 9000 where the loss no longer decreases,

which indicates that the training is sufﬁcient and the

network can be tested. Furthermore, our proposed

approach progressively improved and eventually pro-

duced better results.

Figure 7: Loss curve.

Objects Detection from Digitized Herbarium Specimen based on Improved YOLO V3

527

Table 2: Mean Intersection over Union Measurements.

Objects Original YOLO V3 Improved YOLO V3

Stamp 88% 94%

bar-code 86% 93%

Scale Bar 88% 91%

Color Pallet 92% 93%

Specimen Label 91% 94%

Envelope 92% 91%

Specimen 94% 96%

Time(s) 0.1 0.4

From the experimental results, the improved

YOLO V3 performances were evaluated using mAP-

50 metric which is an extension of average precision

where we take the average of all AP’s to get the mAP

and the model score threshold is set at 50%. The

mAP-50 of the proposed method is increased by 2.1%

compared to the original YOLO V3 (Table 3). This

shows that the proposed method achieves good accu-

racy without a signiﬁcant speed-up drop.

Besides, the detection results in Figure 6 demon-

strate that our method is effective to detect multiple

small objects within the digitized herbarium speci-

mens such as a stamp, bar-code and plant specimens

with small leaves.

Table 3: mAP.

Original YOLO V3 Improved YOLO V3

mAP 90.1% 93.2%

5 CONCLUSION AND FUTURE

WORK

In this paper, we proposed an improved YOLO V3

based method for detecting objects of different sizes

and locations from DHS images. In the prediction

process, we added a new scale of feature map to the

existing scales to detect smaller objects. At the same

time, we adopted the fourth detection layer by a 4*

up-sampled layer instead of 2* to get a feature map

with a higher resolution level. In terms of efﬁciency,

the proposed algorithm improves the detection ac-

curacy compared to the original YOLO V3. In fu-

ture work, we intend to extend this work by utiliz-

ing our proposed method in building an identiﬁcation

system for herbarium collected specimens by consid-

ering the detected plant bounding box as input to a

leaves species classiﬁer and serve as a base for leaves

species measurements.

ACKNOWLEDGEMENTS

This work is part of the MAMUDS project (Man-

agement Multimedia Data for Science) which is

funded by the German ministry of education and

research (BMBF Project No. 01D16009) and

Tunisian ministry of higher education and research in-

cluding herbarium Haussknecht, University of Sfax

and Friedrich-Schiller University, Jena. Authors

would like to thank Prof.dr. Birgitta K

onig-Ries,

Prof.Dr.Frank Hellwig, and Dr. J

orn Hentschel for

supporting this project.

REFERENCES

Belongie, S., Malik, J., and Puzicha, J. (2002). Shape

matching and object recognition using shape contexts.

IEEE Trans. Pattern Anal. Mach. Intell., 24(4):509–

522.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). ImageNet: A Large-Scale Hierarchical

Image Database. In CVPR09.

Felzenszwalb, P., Mcallester, D., and Ramanan, D. (2008).

A discriminatively trained, multiscale, deformable

part model. Computer Vision and Pattern Recogni-

tion, 2008. CVPR 2008. IEEE Conference on.

Felzenszwalb, P. F., Girshick, R. B., and McAllester, D.

(2010). Cascade object detection with deformable part

models. In 2010 IEEE Computer Society Conference

on Computer Vision and Pattern Recognition, pages

2241–2248.

Felzenszwalb, P. F., Girshick, R. B., McAllester, D., and

Ramanan, D. (2010). Object detection with discrimi-

natively trained part-based models. IEEE Trans. Pat-

tern Anal. Mach. Intell., 32(9):1627–1645.

Girshick, R. (2015). Fast r-cnn. In Proceedings of the 2015

IEEE International Conference on Computer Vision

(ICCV), ICCV ’15, pages 1440–1448, Washington,

DC, USA. IEEE Computer Society.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In Proceedings of the

2014 IEEE Conference on Computer Vision and Pat-

tern Recognition, CVPR ’14, pages 580–587, Wash-

ington, DC, USA. IEEE Computer Society.

He, K., Zhang, X., Ren, S., and Sun, J. (2014). Spatial

pyramid pooling in deep convolutional networks for

visual recognition. CoRR, abs/1406.4729.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep

residual learning for image recognition. CoRR,

abs/1512.03385.

Heisele, B. (2003). Visual object recognition with super-

vised learning. IEEE Intelligent Systems, 18(3):38–

42.

Hussin, R., Juhari, M. R., Kang, N. W., Ismail, R., and Ka-

marudin, A. (2012). Digital image processing tech-

niques for object detection from complex background

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

528

image. Procedia Engineering, 41:340 – 344. Interna-

tional Symposium on Robotics and Intelligent Sensors

2012 (IRIS 2012).

Lateef, F. and Ruichek, Y. (2019). Survey on semantic seg-

mentation using deep learning techniques. Neurocom-

puting, 338:321 – 348.

Lin, T., Doll

ar, P., Girshick, R. B., He, K., Hariharan, B.,

and Belongie, S. J. (2016). Feature pyramid networks

for object detection. CoRR, abs/1612.03144.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S. E.,

Fu, C., and Berg, A. C. (2015). SSD: single shot multi-

box detector. CoRR, abs/1512.02325.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. Int. J. Comput. Vision, 60(2):91–

110.

Lowe, D. G., Lowe, D. G., and Lowe, D. G. (1999). Ob-

ject recognition from local scale-invariant features. In

Proceedings of the International Conference on Com-

puter Vision-Volume 2 - Volume 2, ICCV ’99, pages

1150–, Washington, DC, USA. IEEE Computer Soci-

ety.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. CoRR, abs/1804.02767.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. In Proceedings of the 28th Inter-

national Conference on Neural Information Process-

ing Systems - Volume 1, NIPS’15, pages 91–99, Cam-

bridge, MA, USA. MIT Press.

van de Sande, K. E. A., Uijlings, J. R. R., Gevers, T., and

Smeulders, A. W. M. (2011). Segmentation as selec-

tive search for object recognition. In 2011 Interna-

tional Conference on Computer Vision, pages 1879–

1886.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. pages 511–518.

Viola, P. and Jones, M. J. (2004). Robust real-time face

detection. Int. J. Comput. Vision, 57(2):137–154.

Vondrick, C., Khosla, A., Pirsiavash, H., Malisiewicz, T.,

and Torralba, A. (2015). Visualizing object detection

features. CoRR, abs/1502.05461.

Zhang, C., Bengio, S., Hardt, M., Recht, B., and Vinyals,

O. (2016). Understanding deep learning requires re-

thinking generalization. CoRR, abs/1611.03530.

Objects Detection from Digitized Herbarium Specimen based on Improved YOLO V3

529
