Towards Visual Loop Detection in Underwater Robotics using a

Deep Neural Network

Antoni Burguera

and Francisco Bonin-Font

Universitat de les Illes Balears, Ctra. Valldemossa Km. 7.5, Palma (Illes Balears), 07122, Spain

Keywords:

Underwater Robotics, Loop Closing, Neural Network, SLAM.

Abstract:

This paper constitutes a ﬁrst step towards the use of Deep Neural Networks to fast and robustly detect under-

water visual loops. The proposed architecture is based on an autoencoder, replacing the decoder part by a set

of fully connected layers. Thanks to that it is possible to guide the training process by means of a global image

descriptor built upon clusters of local SIFT features. After training, the NN builds two different descriptors

of the input image. Both descriptors can be compared among different images to decide if they are likely

to close a loop. The experiments, performed in coastal areas of Mallorca (Spain), evaluate both descriptors,

show the ability of the presented approach to detect loop candidates and favourably compare our proposal to a

previously existing method.

1 INTRODUCTION

One of the most important requirements to perform

Simultaneous Localization and Mapping (SLAM)

(Durrant-Whyte and Bailey, 2006) is the so called

loop detection. This task, aimed at deciding if an area

observed by the robot was previously visited, makes

it possible to improve both the robot pose estimates

and the map of the environment.

Since the use of cameras to perform SLAM has

gained popularity in the last years (Taketomi et al.,

2017), visual loop detection is nowadays one of the

most proliﬁc research ﬁelds in mobile robotics (Mur-

Artal and Tardos, 2017). In this context, loop detec-

tion consists in deciding if two images depict overlap-

ping parts of the environment.

The existing approaches to visual loop detection

can be divided in three categories. The ﬁrst one is

based on matching local descriptors by means of ro-

bust techniques. For example, (Burguera et al., 2015)

performs detection and matching of Scale Invariant

Feature Transform (SIFT) between two images and

searches for a sufﬁcient number of consistent matches

using Random Sample Consensus (RANSAC) to de-

cide if they close a loop.

The second category relies on global image de-

scriptors. These approaches build image descriptors

https://orcid.org/0000-0003-2784-2307

https://orcid.org/0000-0003-1425-6907

that can be easily compared to decide if they depict

overlapping regions or not. As an example, (Negre-

Carrasco et al., 2016) builds hash-based descriptors.

The images whose descriptors are close in the Eu-

clidean sense are more likely to close a loop. Other

global descriptors, such as Vector of Locally Aggre-

gated Descriptors (VLAD) (J

egou et al., 2010) or Bag

of Words (BoW) (Ciarfuglia et al., 2012) have also

proved to successfully detect visual loops.

The third category makes use of Neural Networks

(NN). Some of these approaches (Merril and Huang,

2018) rely on the ability of Convolutional Neural Net-

works (CNN) to learn features thus removing the need

for pre-engineered features such as SIFT. Other ap-

proaches propose a Deep Neural Network (DNN) to

learn the parameters of a pre-engineered global de-

scriptor (Arandjelovic et al., 2018).

Even though the aforementioned studies lead to

high detection rates, they still have some impor-

tant ﬂaws. For example, methods relying on pre-

engineered descriptors, either global or local, are

usually constrained to certain types of environments

since the used descriptors have been designed to de-

tect some particularities that may not be present in all

scenarios. Methods relying on DNN are more general

in the sense that they can be trained for every spe-

ciﬁc environment where the robot has to be deployed.

However, DNN require large amounts of data to be

properly trained. They also need considerably high

training times, and ﬁnally, even the loop detection

Burguera, A. and Bonin-Font, F.

Towards Visual Loop Detection in Underwater Robotics using a Deep Neural Network.

DOI: 10.5220/0009162806670673

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

667-673

ISBN: 978-989-758-402-2; ISSN: 2184-4321

667

process can be long enough to be hardly affordable

for real time operation. These problems are magni-

ﬁed in underwater robotics for the following reasons:

a) Underwater imagery (Bonin-Font et al., 2013)

is affected by several problems such as reduced range,

ﬂickering, blur, haze, refraction, reﬂection or lack of

illumination, among many others, that can be usually

neglected in aerial or terrestrial robotics. This renders

most of the existing methods based on pre-engineered

descriptors less robust.

b) Even though DNN are good candidates to re-

duce the mentioned problem, the lack of NN pre-

trained with underwater imagery and the technical

difﬁculty to gather large underwater datasets makes

it difﬁcult to use them. Moreover, Autonomous Un-

derwater Vehicles (AUV) tend to have limited com-

putational power in order to reduce the payload and

the battery usage and, so, on-line loop detection using

DNN is usually too computationally expensive.

c) AUVs usually perform visual SLAM by nav-

igating close to sea ﬂoor and using bottom-looking

cameras. This conﬁguration is not common in terres-

trial robotics and most of the existing place recogni-

tion studies rely on forward-looking cameras. These

differences pose additional problems if they are not

properly taken into account. For example, two images

closing a loop gathered by a bottom looking camera

are likely to be signiﬁcantly rotated one with respect

to the other whilst rotation in the image plane is ex-

tremely unusual when using forward looking cam-

eras. This complicates taking proﬁt of terrestrial

datasets to train these NN and jeopardizes the use of

transfer learning from other NN trained with terres-

trial data.

d) Performing large scale missions with an AUV is

especially problematic mainly because of their strict

dependence on batteries that cannot be recharged dur-

ing the mission unless an expensive infrastructure,

such as a support ship, is available. The common ap-

proach to deal with these scenarios is to divide the

large mission in a set of smaller missions called ses-

sions. In this context, called Multi-Session SLAM

(Burguera and Bonin-Font, 2019), the AUV must de-

tect loops not only within each session but also among

sessions. Since the time between sessions can be ar-

bitrarily large, ranging from a hours to months, the

visual conditions and even the environment itself can

be signiﬁcantly different, thus requiring particularly

robust methods.

This paper constitutes a ﬁrst step towards visual

loop detection in underwater scenarios dealing with

the aforementioned problems and assuming an AUV

with a bottom-looking camera. To this end, we ex-

plore the use of a NN simple enough to be easily train-

able with a small amount of images and fast enough

to be used on-line in an AUV with low computa-

tional capabilities. We also explore the use of a pre-

engineered global image descriptor to guide the train-

ing process. More speciﬁcally, our proposal is based

on an autoencoder architecture with the decoder part

changed to fully connected layers providing an output

compatible with the mentioned global descriptor.

The NN is trained to output, for a given image, a

descriptor that is similar to the descriptor of another

image that closes a loop with the former image. After

training, both the learnt descriptor and the latent rep-

resentation in the inner convolutional layers can be

used to fast and reliably compare images and detect

loops.

The experimental results, performed in coastal ar-

eas of Mallorca (Spain), show the ability of this pro-

posal to detect loops, compares it favourably to a pre-

viously existing method and also shows the superior-

ity of the NN with respect to the raw use of the pre-

engineered descriptor.

2 OVERVIEW

Image autoencoders (Rezende et al., 2014) are NN

aimed at providing an output identical to the input im-

age. These NN operate in two main steps. The ﬁrst

one, performed by the so called encoder, is in charge

of mapping the input image into a latent space of

smaller dimensionality. The second step, performed

by the decoder, maps the latent space back to the orig-

inal image space, thus increasing the dimensionality.

Even though the output of an autoencoder is not

particularly useful, since it mimics the input, the

learned latent representation is said to contain use-

ful image features. Some implementations, such as

the Variational Autoencoders (VAE), are aimed at

learning semantically meaningful latent representa-

tions (Kingma and Welling, 2014).

Our proposal is to take advantage of these ideas

to learn the features that deﬁne loop closings instead

of those that deﬁne the images individually. Once

learned, these features can be used to compare two

images and decide if they depict overlapping areas or

not. Accordingly, our proposal is similar to the use of

global image descriptors, though the descriptor itself

is learned instead of pre-engineered, thus providing a

more general solution adaptable to different environ-

ments.

Since the goal is to learn loop closings, instead

of using the same image as input and target our pro-

posal is that input and target come from two different

loop closing images. Contrarily to standard autoen-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

668

coders, the image space is not a good choice for the

NN output since it is not invariant to rotation or scal-

ing, and barely robust in front of shifting. These trans-

formations being the most relevant in visual loops us-

ing bottom-looking cameras an alternative space is re-

quired. In consequence, it is necessary to deﬁne a way

to represent an image that is robust in front of these

transformations. The proposed representation, called

Global Image Descriptor (GID) is described in Sec-

tion 3.

Using the GID makes it necessary to change the

standard autoencoder architecture to be usable with

it. Overall, the idea is to deﬁne an autoencoder based

architecture able to learn the latent representation of

loops by using one image as input and targeting the

GID of another image that closes a loop with it, thus

input and output spaces being different. This archi-

tecture is described in Section 4.

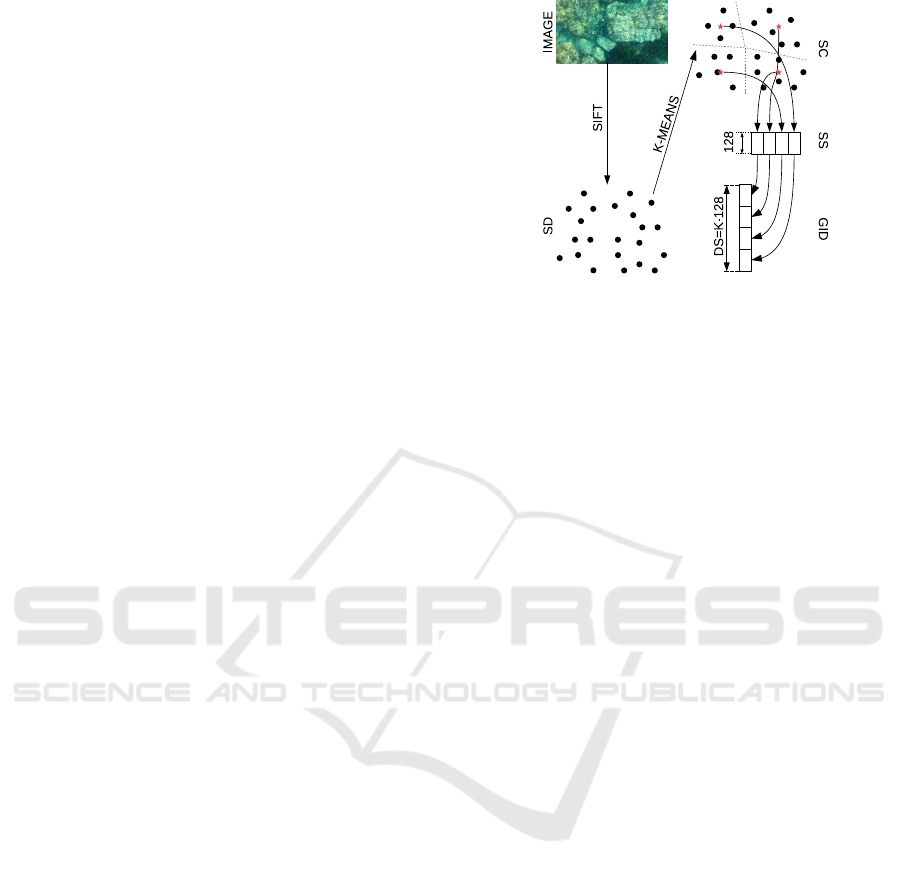

3 THE GLOBAL IMAGE

DESCRIPTOR

The GID is not aimed at robust loop detection. In-

stead, its goal is to provide an appropriate space where

two loop closing images can be projected so that both

projections are comparable. This space is necessary,

since, as it has been mentioned before, the image

space used by standard autoencoders is not useful to

perform loop detection.

In this way, the NN will be trained to mimic the

GID of one image using another image that closes a

loop with it as input. By targeting the GID, the NN

will learn useful features of loop closing images sim-

ilarly to autoencoders which learn useful features of

the images themselves. Thus, the GID is only com-

puted to train the system and is not required after

training.

For a GID to be useful in this context, it has to

meet two main requirements. On the one hand, it must

have a ﬁxed length for images of the same size, since

it will be targeted by a NN. On the other hand, it must

be comparable between images, so that a loss function

can be deﬁned to train the network. The Histogram of

Oriented Gradients (HOG) meets these two require-

ments and that is why it has been successfully used to

perform place recognition (Merril and Huang, 2018).

However, when it comes to underwater imagery

using a bottom-looking camera, an additional require-

ment arises: the GID must be invariant to large ro-

tations and translations, signiﬁcant scaling and, in

case of Multi-Session SLAM, to changes in the envi-

ronmental conditions. Unfortunately, HOG does not

meet these requirements and a different GID has to be

Figure 1: Summary of the GID building process.

used. Our proposal is to build the GID upon SIFT,

which has shown to be invariant to all these changes.

Directly using SIFT is not possible since the two

aforementioned main requirements are not met. For

example, even though a SIFT descriptor has a ﬁxed

length, the number of descriptors can change from

one image to another, being thus difﬁcult to create a

ﬁxed length vector. Also, SIFT detectors do not ﬁnd

the features in any particular order. Because of that,

although individual descriptors can be compared us-

ing Euclidean distance, an arbitrary ensemble of de-

scriptors is not. Accordingly, a method to deal with

these two issues is required.

Several approaches (Perronnin and Dance, 2007;

egou et al., 2010), mostly of them based on the Fisher

kernel (Jaakkola and Haussler, 1999), exist to achieve

this goal. Our proposal is to aggregate the SIFT de-

scriptors based on a distance criterion and sort the

clusters depending on the number of corresponding

descriptors. This process, summarized in Figure 1, is

detailed next.

Given one image, the ﬁrst step is to compute the

SIFT descriptors SD = {d

, d

, ··· , d

}. Each d

is a

vector of ﬁxed size (128) but the number of descrip-

tors n changes from one image to another. These de-

scriptors can be compared using the L2-norm so that,

ideally, ||d

−d

|| ' 0 if and only if the regions around

features i and j depict a visually similar region of the

environment.

Afterwards, a codebook SC = {c

, c

, ··· , c

} of

K visual words is built by applying K-Means to SD.

Each c

is the centroid of the i-th cluster found by K-

Means, which constitutes a representative of the vi-

sual appearance shared between the descriptors be-

longing to the cluster

Since each cluster contains descriptors corre-

sponding to visually similar regions, the number of

features assigned to the cluster represents the visual

importance of the corresponding centroid. Because

of that, our proposal is to sort the centroids in SC ac-

Towards Visual Loop Detection in Underwater Robotics using a Deep Neural Network

669

cording to the number of descriptors assigned to the

corresponding cluster. Let SS denote the sorted SC.

In this way, similar images will lead similarly sorted

centroids. Let the GID be the result of ﬂattening SS

into a 1D tensor of size DS = K · 128. In this way,

since each descriptor and thus each centroid can be

compared using the L2-norm, two GID coming from

two different images can also be compared using the

Euclidean distance.

4 THE NEURAL NETWORK

The proposed architecture, which is based on an

autoencoder and follows the ideas by (Merril and

Huang, 2018), is summarized in Figure 2-a. As it can

be observed, our proposal has a set of convolutional

and pooling layers that deﬁne the encoder aimed at re-

ducing the data dimensionality. In particular, we use

sets of convolutional layers with sigmoid activation

functions and maxpooling.

The decoder signiﬁcantly differs from the ones in

autoencoders. Since the NN output is not an image

but a GID, the decoder does not perform transposed

convolutions and pooling. Instead, it goes from the

latent representation to the GID space through a set

of dense layers with sigmoid activation functions, the

last one having the size of the GID.

The process of training the NN is summarized in

Figure 2-b. The ground truth is composed of couples

of underwater images closing loops between them.

One of these two images is randomly chosen to be the

NN input. Let this image be named I

. The other

image, named I

GID

, is used to compute the GID. This

random selection prevents training biases and reduce

overﬁtting since the training sets will slightly differ

between epochs.

The training is aimed at reconstructing the GID

corresponding to I

GID

given I

. Let the GID recon-

structed by the NN be referred to as the Learned GID

(LGID). The L2 loss function is used to compare the

GID and the LGID since the Euclidean distance is a

good metric to compare two GID.

Once the system is trained, it can be used to build

either the LGID or the Learned Features (LF). The

LF is the output of the encoder part and constitutes

the latent space, as shown in Figure 2-a. To ease no-

tation, let D

denote the LGID or the LF, indistinctly,

obtained from image I

. The effects of using the for-

mer or the latter will be experimentally assessed in

Section 5.

The Euclidean distance between D

and D

pro-

vides information about how likely is for I

and I

to close a loop. When using LF as descriptor, the

Table 1: Number of database images, query images and

loops each dataset.

Database Query Loops

Dataset 1 183 24 34

Dataset 2 177 25 26

Dataset 3 244 24 26

Euclidean distance is computed by ﬁrst ﬂattening

LF into a 1D tensor. Deciding loop closings solely

with this information would require the existence of a

threshold δ so that I

and I

close a loop if and only

if ||D

− D

|| ≤ δ. Instead of using such threshold,

our proposal takes advantage of how loop closings are

used in visual SLAM.

Basically, when performing visual SLAM, the

most recent image is matched against all the previ-

ously gathered images. Our proposal is, thus, to se-

lect a subset of the previously gathered images as loop

candidates and conﬁrm these loops in a posterior step.

The loop conﬁrmation step is out of the scope of this

paper.

The whole process is divided in two steps. The

ﬁrst step, called description, builds D

for all the

gathered images. We distinguish between D

, which

comes from the most recent image or query image,

and D

0:t−1

which come from the remaining images

or database images. Due to the incremental nature

of SLAM, the query image will become a database

image in further steps. Thus, our proposal only re-

quires computing D

, since D

0:t−1

are already com-

puted from previous steps.

Afterwards, the candidate selection process is per-

formed. During this step, the query image is com-

pared to all the database images by computing the

Euclidean distance between D

and all the D

0:t−1

The N database images leading to smaller Euclidean

distances are selected and constitute the set C

, C

N−1

} of loop candidates. That is, C

con-

tains the N images that are more likely to close a loop

with I

5 EXPERIMENTAL RESULTS

Three datasets of RGB images have been gathered in

coastal areas of Mallorca (Spain) using an AUV with

a bottom looking camera. Each dataset is divided in

two parts: database images and query images. There

are no loop closing images within each of these parts,

but each query image closes a loop with at least one

database image. The loop closings have been manu-

ally identiﬁed and constitute the ground truth. Table 1

shows the number of images and loop closings in each

dataset. All the images are resized to a resolution of

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

670

240x320x3

119x159x128

59x79x128

57x77x64

28x38x64

26x36x4

3744

512

1024

conv3x3, 128

stride (2, 2)

maxpool3x3

stride (2, 2)

conv3x3, 64

stride (1, 1)

maxpool3x3

stride (2, 2)

conv3x3, 4

stride (1, 1)

flatten

dense

ENCODER DECODER

LGID

(a) (b)

Figure 2: (a) The Neural Network architecture (b) The training process.

320×240 pixels prior to their use.

The two different NN outputs, namely LF and

LGID as shown in Figure 2-a, have been tested and

evaluated. Our proposal has been compared to the

Deep Loop Closure (DLC) approach by (Merril and

Huang, 2018) and to the direct use of the GID pro-

posed in Section 3. In this case, loop candidates

are obtained by directly computing distances between

GIDs without using the NN.

As for the DLC, the original algorithm has been

slightly modiﬁed to get better results in front of un-

derwater images and, thus, to provide a fair compari-

son. In particular, the DLC synthetic loop generation

has been changed to the same supervised approach

used with our methods so that it can be trained us-

ing exactly the same data than our proposal. Taking

into account that the DLC is also autoencoder based,

these changes make it possible to also test LF and

LGID. Let DLC-LF and DLC-LGID to refer to these

two cases.

The system has been trained, validated and tested

using all the valid combinations of the three datasets.

The only hyperparameter that has been tuned during

validation is the number of epochs. Let the notation

TxVySz denote a system trained with dataset x, vali-

dated with dataset y and tested with dataset z. Only

the combinations where x, y and z are different are

considered valid.

In order to evaluate the quality of the loop candi-

dates we proceeded as follows. For each query im-

age I

in each dataset the set of loop candidates C

has been computed using the two variations of our

approach (LGID and LF), the two variations of DLC

(DLC-LGID and DLC-LF) and GID as described be-

fore.

As an example, Figure 3 shows some of the can-

didate loops in each dataset. The ﬁrst row shows

a query image of each dataset whilst the remaining

rows depict the ﬁrst three candidates found by our

approach. In this example, the LF has been used to

select the candidates and, in each case, the NN was

Dataset 1 Dataset 2 Dataset 3

Figure 3: Examples of candidate loops in each dataset.

trained and validated using datasets other than the one

being tested. As it can be observed, actual loops are

within the candidate sets in all cases.

To quantify the quality of the loop candidates, the

number N of items in C

has been set to values ranging

from 1% to 100% of the number of database images

in the dataset. In each case the percentage of query

images for which at least one actual loop was in the

candidate set has been computed. Let this percentage

be referred to as the hit ratio.

Figure 4 shows some of the obtained hit ratios as

a function of the percentage of database images used

to size C

. The labels in the examples corresponding

to our proposal and to DLC specify the training, vali-

dation and test sets using the aforementioned TxVySz

notation. The examples corresponding to GID do not

use that notation since GID is not trained nor vali-

dated, and thus only the tested dataset is speciﬁed as

Sx, x being the dataset number. Results using GID are

signiﬁcantly worse than those using the deep learn-

ing approaches. This suggests that even though GID

Towards Visual Loop Detection in Underwater Robotics using a Deep Neural Network

671

0 20 40 60 80 100

Percentage of dat abase (%)

100

Hit ratio (%)

LGID-T3V2S1-AUC= 7 5.96%

0 20 40 60 80 100

Percentage of dat abase (%)

100

Hit ratio (%)

DLC- LGID-T3V2S1-AUC= 69.79%

0 20 40 60 80 100

Percentage of dat abase (%)

100

Hit ratio (%)

LF-T2V1S3 -AUC= 91 .83%

(a) (b) (c)

0 20 40 60 80 100

Percentage of dat abase (%)

100

Hit ratio (%)

DLC- LF-T2V1S3-AUC= 8 7.88%

0 20 40 60 80 100

Percentage of dat abase (%)

100

Hit ratio (%)

GID-S1-AUC= 61.17%

0 20 40 60 80 100

Percentage of database (%)

100

Hit ratio (%)

GID-S2-AUC= 39.00%

(d) (e) (f)

Figure 4: Examples of hit ratio evolution of (a) our proposal using LGID, (b) DLC using LGID, (c) our proposal using LF,

(d) DLC using LF, (e)-(f) direct use of GID.

Table 2: AUC values of our proposal for all the tested con-

ﬁgurations. The gray cells correspond to the cases in which

our approach surpasses DLC.

LGID DLC-LGID LF DLC-LF

T1V2S3 88.75% 88.08% 88.08% 90.46%

T1V3S2 83.60% 80.84% 86.16% 87.56%

T2V1S3 88.17% 86.54% 91.83% 87.88%

T2V3S1 73.58% 78.71% 73.79% 77.21%

T3V1S2 88.24% 84.60% 88.44% 87.56%

T3V2S1 75.96% 69.79% 75.88% 69.92%

Average 83.05% 81.43% 84.03% 83.43%

is not well suited to ﬁnd loops, it is to provide useful

information to train a NN to achieve this goal.

Let us deﬁne the Area Under the Curve (AUC) as

the percentage of the whole space of possibilities be-

low the hit ratio curves. In the previous examples,

the AUC is shown on the top of each graph. Since

the hit ratio always increases with the size of the can-

didate set, approaches with large hit ratios for small

candidate sets will be responsible for large AUC val-

ues. Having large hit ratios within small candidate

sets means that the candidate set has been accurately

constructed. Accordingly, the AUC is a good way to

measure the quality of the candidate set.

Table 2 shows the AUC corresponding to our pro-

posal and to DLC for each valid combination of train-

ing, validation and testing. Overall, our proposal sur-

passes DLC in average, being the improvements more

clear when using LGID. Also, it can be observed that

LF, both using our proposal and DLC, leads to better

results than LGID. This suggests that the NN itself is

Table 3: AUC values of the tested approaches. The gray

cells emphasize the best result for each dataset.

Dataset 1 Dataset 2 Dataset 3 Average

LGID 75.77% 85.92% 88.46% 83.38%

LF 74.84% 87.30% 89.96% 84.03%

DLC-LGID 74.25% 82.72% 87.31% 81.43%

DLC-LF 73.57% 87.56% 89.17% 83.43%

GID 61.17% 39.00% 45.75% 48.64%

more important than the speciﬁc GID used to train it.

By aggregating the previous results per dataset, it

is possible to compare them to the AUC correspond-

ing to the direct use of the GID. Table 3 summarizes

these results. As it can be observed, LF is the best

method in average and the GID alone leads to poor

results, thus being useless to search loops by itself.

6 CONCLUSION AND FUTURE

WORK

This paper constitutes a ﬁrst step towards the use of

Deep Neural Networks to fast and robustly detect un-

derwater visual loops. The proposed approach fol-

lows the structure of an autoencoder and replaces

the decoder by a set of fully connected layers. This

change makes it possible to use a global image de-

scriptor, built upon clusters of local SIFT features, to

guide the training process.

Once trained, the NN builds two different de-

scriptors of the input image. One of these descrip-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

672

tors, called LF, is the encoder output whilst the other,

called LGID, is the decoder output. Both descriptors

can be compared among different images to decide

if they are likely to close a loop. The experimental

results show the ability of the presented approach to

detect loop candidates and compare favourably to a

previously existing method.

Since our proposal has shown to be trainable with

a small set of images and the architecture is simple

enough to provide on-line sets of loop candidates,

it constitutes a promising approach to be embedded

into a full underwater visual SLAM system. Even

though it cannot replace a full SLAM loop closing

layer, since it does not compute the relative motion

between images, it can strongly reduce the compu-

tational load of such module by feeding it only with

images that most likely will close a loop.

Accordingly, our lines of future research are as

follows. First, we are now working on a strategy

to conﬁrm or deny the loop candidates as well as to

compute the relative motion between the conﬁrmed

loops. In this way, our proposal could be embedded

into a full SLAM system. Second, even though small

datasets have shown to be sufﬁcient to reach good

results, larger datasets would probably lead to better

candidate sets. For this reason, we are also working

on a method to synthetically generate loops from un-

derwater imagery. This would constitute a weakly su-

pervised approach and would allow training the NN

with arbitrarily large datasets. Our ﬁnal goal would

be to integrate the whole loop detection not only into

a SLAM system but also into a Multi-Session SLAM

system, which will deﬁnitely prove the ability of our

proposal to detect loops in a really challenging sce-

nario.

ACKNOWLEDGEMENTS

This work is partially supported by the Spanish Min-

istry of Economy and Competitiveness under contract

DPI2017-86372-C3-3-R (AEI,FEDER,UE).

REFERENCES

Arandjelovic, R., Gronat, P., Torii, A., Pajdla, T., and

Sivic, J. (2018). NetVLAD: CNN Architecture for

Weakly Supervised Place Recognition. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

40(6):1437–1451.

Bonin-Font, F., Burguera, A., and Oliver, G. (2013). New

solutions in underwater imaging and vision systems.

In Imaging Marine Life: Macrophotography and Mi-

croscopy Approaches for Marine Biology, pages 23–

47.

Burguera, A. and Bonin-Font, F. (2019). A trajectory-based

approach to multi-session underwater visual slam us-

ing global image signatures. MDPI Journal of Marine

Science and Engineering, 7(8).

Burguera, A., Bonin-Font, F., and Oliver, G. (2015).

Trajectory-based visual localization in underwa-

ter surveying missions. Sensors (Switzerland),

15(1):1708–1735.

Ciarfuglia, T. A., Costante, G., Valigi, P., and Ricci, E.

(2012). A discriminative approach for appearance

based loop closing. In IEEE International Conference

on Intelligent Robots and Systems, pages 3837–3843.

Durrant-Whyte, H. and Bailey, T. (2006). Simultaneous lo-

calization and mapping (SLAM): part I The Essential

Algorithms. Robotics & Automation Magazine, 2:99–

110.

Jaakkola, T. S. and Haussler, D. (1999). Exploiting gener-

ative models in discriminative classiﬁers. In Proceed-

ings of the Conference on Advances in Neural Infor-

mation Processing Systems, pages 487—-493.

egou, H., Douze, M., Schmid, C., and P

erez, P. (2010).

Aggregating local descriptors into a compact image

representation. In Proceedings of the IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition, pages 3304–3311.

Kingma, D. P. and Welling, M. (2014). Auto-Encoding

Variational Bayes (VAE, reparameterization trick).

ICLR 2014, (Ml):1–14.

Merril, N. and Huang, G. (2018). Lightweight Unsuper-

vised Deep Loop Closure. In Robotics: Science and

Systems.

Mur-Artal, R. and Tardos, J. D. (2017). ORB-SLAM2:

An Open-Source SLAM System for Monocular,

Stereo, and RGB-D Cameras. IEEE Transactions on

Robotics, 33(5):1255–1262.

Negre-Carrasco, P. L., Bonin-Font, F., and Oliver-Codina,

G. (2016). Global image signature for visual loop-

closure detection. Autonomous Robots, 40(8):1403–

1417.

Perronnin, F. and Dance, C. (2007). Fisher kernels on visual

vocabularies for image categorization. In Proceedings

of the IEEE Computer Society Conference on Com-

puter Vision and Pattern Recognition.

Rezende, D. J., Mohamed, S., and Wierstra, D. (2014).

Stochastic Back-propagation and Variational Infer-

ence in Deep Latent Gaussian Models. Proceedings

of The 31st . . . , 32:1278–1286.

Taketomi, T., Uchiyama, H., and Ikeda, S. (2017). Visual

SLAM algorithms: a survey from 2010 to 2016. IPSJ

Transactions on Computer Vision and Applications,

9(1).

Towards Visual Loop Detection in Underwater Robotics using a Deep Neural Network

673
