Secure Audit in Support of an Adrenal Cancer Registry

Anthony Stell, Vedant Chauhan and Richard Sinnott

School of Computing and Information Systems, University of Melbourne, Melbourne, Victoria, Australia

Keywords: Adrenal Cancer Registry, Clinical Process Audit, Blockchain.

Abstract: This paper describes the use of blockchain technology to ensure the integrity of data logs for a clinical registry,

providing a technological means for a secure audit of that registry. The characteristics of a secure audit –

tamper-resistance, verifiability, searchability and privacy – are described in their application to this registry,

then an evaluation is performed detailing the use of blockchain to achieve these audit goals. The clinical

registry tested – supporting ENSAT (the European Network for the Study of Adrenal Tumors) – is a

production repository of clinical, phenotypic and genetic information about patients with adrenal cancer, a

rare but often serious condition that affects approximately 1 in 600,000 of the world population. The registry

is implemented using a standard n-tier web application, with a MySQL database back-end, and Java/JSP

business logic and user interface. The information contributing to the full audit of data and usage of the

registry, is captured in the application log-files, which are stored in two “mirrored” formats: ASCII text files

compiled through the Java log4j project and in a MongoDB NoSQL database. Following a discussion of the

relevant supporting features, the fully implemented solution – a private blockchain known as “ensatChain” –

is evaluated for overall security, using the Microsoft “STRIDE” threat model.

1 INTRODUCTION

Due to the increasing sophistication and influence of

digital technologies, online disease registries are a

growing source of clinical and research endeavour.

Many are established as web-accessible applications,

built upon cloud infrastructures, for instance with

web servers, databases and operating systems running

on virtual machines. Often capturing phenotypic and

genotypic information, such resources allow

information on patients and their conditions to be

shared by clinicians with wider research communities

outside of a given clinical setting, and also potentially

with patients and their advisory groups.

Such registries are particularly useful when the

condition is serious but rare. In recent decades,

research into the diagnosis and treatment of rare

diseases has started to attract larger-scale

international funding such as the European Union

FP7 (FP7, 2019) and Horizon 2020 (Horizon 2020,

2019) programs. One of the main goals of such

initiatives has been to overcome the lack of data

which impedes the development of knowledge about

the conditions, and their causes and potential

treatments. Due to the nature of these rare conditions,

multi-centre, international studies have nearly always

been necessary to move the clinical science forward,

and this is one of the primary drivers of the utility of

online registries.

Such registries are now widespread, and as is

common with maturing generations of technologies,

the focus of their development is now more often on

the quality of the data they contain. Key aspects to

ensuring high quality of data include understanding

the mechanisms that provide assurances about the

provenance and security of that data. A fundamental

feature therefore is the establishment of an effective

audit of the registry.

The ENSAT (European Network for the Study of

Adrenal Tumours) (ENSAT, 2019) registry is a

production repository of data and information about

adrenal cancer in Europe and requires just such tools

and methods for audit. The registry itself was

designed and released in 2009, has gone through three

version upgrades, and is currently operational with

over 400 clinical users, and over 16,000 unique

patient records (a very high number for a condition as

rare as adrenal cancer). The registry collects

phenotypic, genetic and biomaterial information,

with almost 100,000 distinct clinical annotations. It is

housed at the University of Melbourne in Australia, is

used for multiple full-phase clinical trials and studies,

and has global data interconnections, in particular to

Stell, A., Chauhan, V. and Sinnott, R.

Secure Audit in Support of an Adrenal Cancer Registry.

DOI: 10.5220/0009160402370248

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 5: HEALTHINF, pages 237-248

ISBN: 978-989-758-398-8; ISSN: 2184-4305

237

the American Asian Australasian Adrenal Alliance

(Else, 2019).

In this project, we propose a technique using

blockchain technology (Nakamoto, 2008) to ensure

the required aspects of audit meta-data in log files

generated by a clinical registry using both ASCII text

files (captured using the Apache log4j (Apache log4j,

2012) project) and the same log information stored in

a NoSQL database (MongoDB (MongoDB, 2019) ).

The rest of this paper is structured with a

discussion on the clinical and technical motivation,

related literature, the implementation of this solution

applied to the ENSAT adrenal cancer registry, an

evaluation of the solution security when applied to the

Microsoft STRIDE threat model (Potter, 2009), and a

final discussion on the strengths and weaknesses of

the solution.

2 MOTIVATION

Two considerations motivated this work: the

increasing need for close and accurate audit of digital

assets, especially in the clinical sphere, and the

emergence of “one-way” trust establishment

technologies such as blockchain.

2.1 Clinical Audit Requirements

In the clinical and healthcare industry, there are many

requirements to maintain compliance with

regulations and organizational policies. At a technical

(“low”) level, a successful audit requires the

comprehensive documentation of all transactions

within a process. In a clinical context, transactions

can be defined as a sequence of activities that have a

source and destination. Building upon this history of

transactions, an organisation/process should have a

complete audit log (or “trail”) detailing the start and

completion of every single transaction in

chronological order.

In common with the use-cases of audit generally,

there are four well-defined characteristics of a

successful audit: tamper-resistance, verifiability,

searchability and privacy (Waters, 2004). To make

these abstract concepts more concrete, consider the

following two examples of inconsistent data:

1) An administrative error, where a clinical

organization have modified a patient’s details,

only discovered in post-hoc analysis. This

incident could be handled more swiftly and

accurately if there was an easily-accessible audit

trail.

2) A clinician deliberately modifies a piece of

patient information without authorization, such

as the chemotherapy dosage of the patient. An

audit check of information only would not pick

up such an edit, but if a tamper-proof solution

was engaged, the inconsistency of provenance

would be highlighted, helping to identify

modifications after-the-fact.

In both of these examples tamper-resistance and

verifiability are clear requirements. Possibly less

obviously, searchability (the ability to find and

identify the issues) and privacy (the ability to protect

a patient’s details from outside/undue influence) are

also key to ensuring both issues are fixed correctly.

Applying these considerations to an online

disease registry, the question then becomes how

technology can be applied to establish these four

characteristics, ensuring that the information in

permanent (e.g. in a database or logfiles) or volatile

(e.g. rendered through business logic) memory are

transparent, consistent and secure (i.e. have not been

tampered with).

Blockchain technology (Nakamoto, 2008) is

known for its ability to provide tamper-resistance,

and therefore allows a metric of trust to be defined.

This would appear to be an appropriate solution to

establish the tamper-resistance and verifiability

requirements described above. Within blockchain, a

chain of blocks is created and if one of them has been

tampered with, then the chain is inconsistent, and the

details of these inconsistencies are readily available

as notifications of potential modifications. In this

project, we propose the use of MongoDB to provide

searchability and PKI-style authentication and

authorization methods to implement privacy.

2.2 Trust-establishment Technology

Developed to maturity in the late 00’s and given

public prominence by its use in cryptocurrencies such

as Bitcoin (Bitcoin, 2019), blockchain is a

decentralized distributed ledger which has a key

characteristic of immutability, allowing the integrity

of the entities within it to be asserted (or not).

Conceptually it is described as a chain of blocks, with

attributes made from the previous hash, the root hash,

a timestamp, a nonce (seeding “number once”), and

data. Each subsequent hash is derived from the root

hash through the hyper-repetitive process of

“mining”.

A technique that underlies the properties of

Blockchain are Merkle Trees – tree data structures

where the child nodes produce a hash of each non-leaf

node. As idempotent information is retained

HEALTHINF 2020 - 13th International Conference on Health Informatics

238

throughout the hash information within the nodes (i.e.

information about the tree root can be inferred from

isolated node information), Merkle Trees enable

scaling with reliable data integrity.

Transactions – identified as critical to both

clinical audit processes and to the development of a

ledger technology – are atomic events that are

authenticated, validated, and tracked. Security of

transactions is established using cryptographic

techniques and their integrity are determined using

consensus algorithms, which is the process of

decision-making by a network (one of the major

unique strengths of blockchain and the source of the

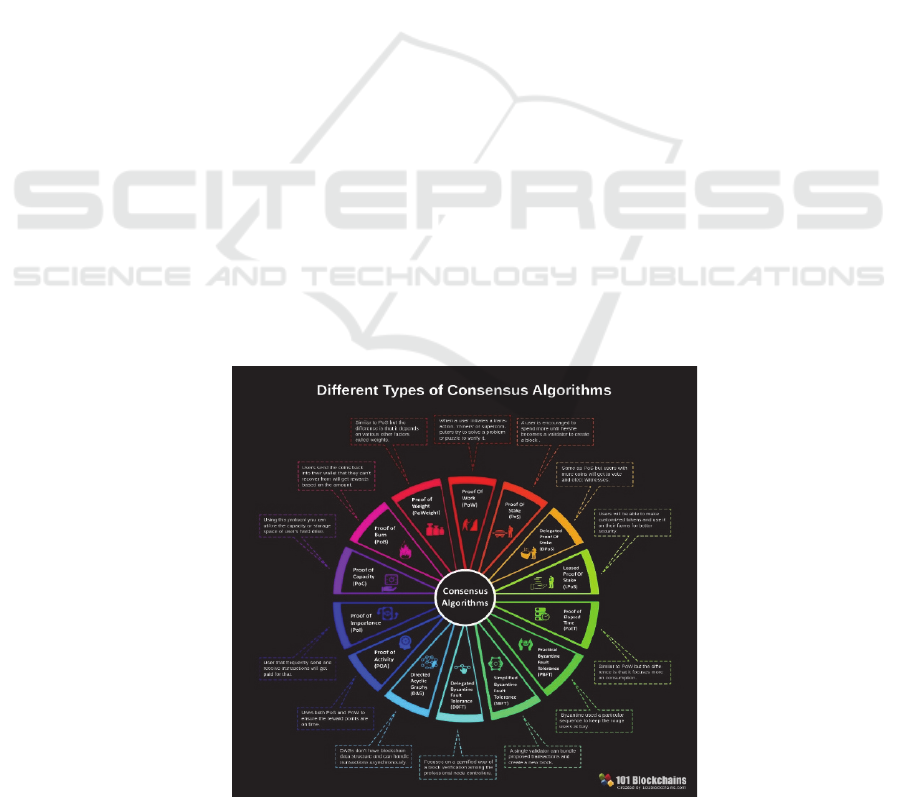

“mining” process). Examples of consensus

algorithms determining a transactions authenticity are

the use of Proof of Work or Proof of Stake

(101Blockchains, 2018).

Access to a blockchain determines its access

“type” (or visibility), which has ramifications for its

effectiveness. A public blockchain (with no access

restrictions) provides high integrity, but completely

open transparency to its content. A private blockchain

(with access control strictly enforced) conversely

provides high privacy – only a small group of selected

individuals can view the content – but low integrity

as verification is similarly restricted to that small

group of individuals. A combination of these two

access types (“consortium”) attempts to find a

reasonable compromise between the two.

Whilst blockchain still has underlying challenges,

such as a heavy reliance on one-way cryptographic

protocols, the similarity to the requirements and

structure of a typical audit, clinical or otherwise, is

apparent. With the emergence of this technology, the

opportunities for verifiability of transactions, the

immutability of records and transparency in the entire

audit process, are many.

3 RELATED LITERATURE

Studying the related literature in this space broadly

falls into two categories: the history of trust-

establishment technologies leading to the

development of blockchain, and current solutions

providing secure audit.

3.1 Historically-relevant Technology

Traditionally, data protection in logs were maintained

by writing once and reading multiple times on an

optical drive (Bellare and Yee, 1997). In the early

days of the Internet, the (reasonable) assumption was

that a single computer was not likely to be

compromised. If an attack happened then the local log

data could be sent over the network to a remote

logging site. Replicating the log data over multiple

locations was the only solution if any site was

compromised, providing a disaster recovery strategy,

but poor privacy of potentially sensitive

organisational data.

(Schneier and Kelsey, 1999) made a significant

improvement to this problem by creating log files,

which were in an encrypted format. The proposal was

to share a secret authentication key from an untrusted

machine, with a trusted machine. To add another log

entry required computing an encryption key to create

encrypted log entries. These encrypted log entries

would make it difficult for the attacker to decrypt the

file without the correct key. However, under this

system, if the network contained an insecure machine,

then it could be compromised by an attacker by

creating new log entries without changing other

existing entries (i.e. an undetected insertion attack).

Snodgrass et al. (Snodgrass, Yao, and Collberg,

2004) focused on the integrity of audit logs, using

SHA1 signatures on database management systems.

Their system contained a separate audit log validator

which was set up to provide diagnostic information if

the system was compromised. This generated files

very similar to a ledger maintaining the overall state

of the system, a clear precursor to blockchain.

(Waters et al., 2004) proposed a system similar to

that created by Snodgrass et al, but used additional

hash functions to maintain the integrity of the

database system, and to aid in searching the encrypted

log. Two complementary techniques based on

symmetric and asymmetric key encryption were used,

allowing the shared secret challenge of symmetric

encryption to be solved. The practical advantage of

this approach is the ability to search encrypted data

results over many applications. However, the

technique results in a significant overhead of identity-

based encryption leading to performance limitations

(in common with many public-key cryptography

solutions).

3.2 Current Solutions

The closest contemporary solution attempting to

achieve similar audit security as proposed here, is a

commercial application known as LogSentinel

(White Paper - SentinelTrails Documentation, 2019).

It provides a secure audit log service that is “simple

to integrate and guarantees the integrity of all your

audit data”. The system addresses the challenges of

being tamper-proof and searchable with a solution

that uses a hash chain mechanism (similar to, but

Secure Audit in Support of an Adrenal Cancer Registry

239

distinct from, blockchain) to audit log entries. As of

the current date of publication, the application runs as

an alpha (non-production) version on an Ethereum

blockchain. The most significant limitation of this

appears to be the confidentiality of the data, which is

open to all as it is implemented on a public

blockchain. This was a defining reason why this

solution was not chosen to implement an audit on the

ENSAT registry.

Whilst the technologies reviewed here provide

aspects of the functionality required, none are

comprehensive. There also exist other techniques

such as remote logging and replication, but these have

been deemed outside the current scope of this project.

4 REQUIREMENTS AND

SOLUTION

Each of the approaches listed so far in this section

provide additional concepts to the notion of auditing

log files. In nearly all cases, the applications are

improving the security, but also have to compromise

in terms of performance or the confidentiality of data.

It has been identified, therefore, that a solution is

required to assure all four characteristics of secure

audit, mentioned previously: tamper-resistance,

verifiability, searchability and privacy.

4.1 Tamper-resistance

The primary nature of tamper-resistance is that there

should be a guarantee that only a specified user with

appropriate privileges can create and alter valid log

entries. If a system is compromised (e.g. a bad actor

gains root access to a machine) it is very difficult to

prevent modifications of a log, either through editing,

deletion or modifying the mechanism for future

outputs. Therefore, a mechanism for preventing such

modifications must be inherently resistant to even

high-privilege system access. An ideal extra function

would be the ability to "checkpoint" the log creator's

status periodically - either through copies of the

actual log data or through another function (e.g. a

signature) of it's log data to another owner, to ensure

credibility via a trusted third party.

4.2 Verifiability

There must be a mechanism to definitively verify the

integrity of a log, for a secure audit. Audit logs can

either be verified publicly - i.e. validated by anyone

with properly-authenticated public information, such

as a public key of the log systems server, or an

authenticated hash of all existing audit entries. Or,

they can be verified in a private manner, using a

trusted verifier, such as a designated party holding

one or more secrets, such as a message authentication

code (MAC) key.

4.3 Searchability

Given that the data in an audit log may be sensitive,

it can be encrypted or secured privately for authorized

parties. However, for secure - but functional - audit,

legitimate search access should be allowed to an

appropriate subset of all audit log entries (e.g., all

valid entries that match the "Smith" keyword).

Therefore, capability delegation is essential to allow

an investigator to search and view a narrow scope of

log entries. For instance, if Alice Smith wanted to

investigate all records related to her, the audit escrow

agent could give her the ability to search for all

records that match the "Smith" keyword, but not give

her anything more. The alternative is to provide

searchability for authorized peers to access the system

and data.

As an aside, with the development of the

European General Data Protection Regulation

(GDPR) legislation in 2017, an interesting paradox

has developed in this regard: how to make

information immutable and resistant to modification,

whilst simultaneously maintaining the “right to be

forgotten” of data subjects (van Humbeeck, 2017).

Research into this issue will likely be the subject of

the next iterations of this work.

4.4 Privacy

A final consideration is the type of data contained in

an audit log-file. Generally, this is not considered

when discussing functional audits, but is critical to the

provision of a secure audit, as the content type

potentially relates to privacy/confidentiality of data,

especially in a clinical context. To provide this, each

application should provide access to data to

authorized users only and data should not be available

to outside entities.

5 SYSTEM ARCHITECTURE

Given the discussion above, the solution presented in

this paper has been designed to provide tamper-proof

and verifiable integrity of a set of log data (either in

file or database format), which is also searchable,

whilst maintaining appropriate levels of privacy.

HEALTHINF 2020 - 13th International Conference on Health Informatics

240

The base technology for this solution is the use of

a private blockchain with a secure block and

transaction structure, and a “proof-of-work”

consensus algorithm. This private blockchain has

been called “ensatChain” and has been developed

keeping the four fundamental aspects of secure audit

in mind. The ENSAT registry environment is

described first, followed by the detail of ensatChain,

which covers three of the secure audit aspects:

tamper-resistance, verifiability and privacy. The

searchability aspect is described across two contexts:

the searchability of the ensatChain ledger, and the

searchability of the log information content itself (in

both Apache log4j and MongoDB NoSQL format).

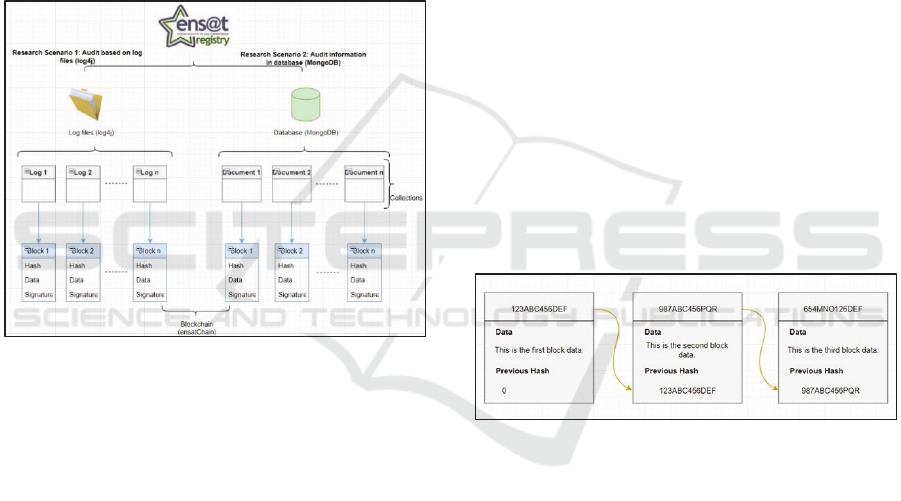

Figure 1 outlines a schematic of the log information

output and its translation into a blockchain.

Figure 1: Hierarchical architecture of log information and

their translation into blocks, using both Apache log4j and

MongoDB formats.

5.1 Registry Environment

ENSAT (European Network for the Study of Adrenal

Tumours) is an online adrenal cancer registry

detailing associated phenotypic, genetic and bio-

sample information. Though pseudonymously de-

identified, it nevertheless holds sensitive information

about patients and clinical trials/studies. It is

implemented as an online web application, holding

data in a MySQL database, controlled through

business logic and user interfaces coded in Java and

JSP (Java Server Page).

The registry log information is generated through

outputs from the application to Apache log4j files,

which are parsed and input into a MongoDB

(NoSQL) database. Notifications about the status of

the registry, the log-files, and the disaster recovery

functions (nightly database dumps, zipped, encrypted

and archived off-site) are sent to a small group of

privileged administrators.

The web container itself is Apache Tomcat (v8)

running on Ubuntu OS (v16), on a dedicated virtual

machine, hosted at the University of Melbourne,

through the NeCTAR cloud infrastructure program

(National eResearch Collaboration Tools and

Resources). The log information is stored on a virtual

machine with similar underlying infrastructure, and

the MongoDB database primarily accessed through a

Robo3T viewer (Robomongo, 2019).

5.2 ensatChain

ensatChain is a Java-based blockchain application,

utilising an AMD Radeon RX 500 Series processor

for mining.

5.2.1 Blocks, Hashes and Cryptographic

Protocols (Tamper-resistance)

Each block (whether an “actual” block or “virtual” –

discussed further in section 5.3) in the ensatChain has

its hash, data, time-stamp, nonce (number once), and

the hash of the previous block as outlined in figure 2.

This means that each block contains a hash of the

previous block as well as its own hash, which is

mathematically derived from that prior hash.

Figure 2: Chained block structure.

Therefore, if the last block’s data is modified then this

block’s hash will also vary from what is expected and

this will, in turn, affect all of the hashes of the

subsequent blocks. This calculation helps to decide

whether the block’s signature has been altered, and

therefore whether the ledger has been tampered with.

A strong cryptographic algorithm is desirable to

generate a reliable hash, so ensatChain utilizes the

SHA3-256 algorithm. SHA3 (Secure Hash Algorithm

3) practices sponge construction to make the

randomness generation flexible. Sponge construction

uses random permutation to “absorb” (or input) any

size of data and to “squeeze” (or output) any volume of

data whilst acting as a pseudo-random function with

regard to all previous inputs (Wikipedia, 2019d).

It is a more modern, and notably stronger protocol,

particularly when protecting against “length

Secure Audit in Support of an Adrenal Cancer Registry

241

extension” attacks (where the size of an encrypted

value is used for an attack), than previous successors

(e.g. SHA1 and SHA2), and in terms of performance,

can run at similar speeds with the same accuracy, to

SHA2-256 and SHA2-512, by cutting the “pre-image

resistance” (a known encrypted value) in half. For any

size of string input, SHA-3 generates a 256-bit output

size. This predictable size of output makes the

algorithm ideal for calculating the hash for the block

using the previous hash, time-stamp, data, and nonce.

5.2.2 Proof of Work (Verifiability)

Proof of Work (PoW) is a consensus algorithm that

supports the flat architecture of the network of nodes

that run ensatChain. Each node is equivalent to others

with no elected leaders and promotes direct

communication between nodes on the network.

“Mining” is the process by which proofs for block

addition to the blockchain are generated, with each

participant in the mining process called a “miner”.

PoW expects miners to add a block to the blockchain

by solving complicated mathematical puzzles. These

puzzles require massive computational power — for

instance, hash functions or integer factorization, or

finding the output to other challenges without knowing

the input. The complexity of the puzzle is very difficult

to guess and usually depends on the maximum number

of users, minimum power and total load on the

network. A new block is created and added once a

miner solves the puzzle, and the transaction is

confirmed by the other network nodes.

Due to this high barrier of complexity, this

consensus process imbues trust and reliability to the

network by producing a portion of the information that

is hard to break by external malefactors. The difficulty

level of the PoW determines the overall chain’s level

of difficulty, and hence is a useful measure of strength

of resistance to external attack.

The reason that PoW was chosen for ensatChain (a

public blockchain feature applied to a private one) is to

maintain the decentralized nature of ensatChain (i.e. as

mentioned above, none of the nodes are “leaders”)

compared to consensus algorithms more typically

found in private blockchains, such as Proof of

Authority (PoA) (101Blockchains, 2018), which tend

towards a more centralised nature.

A major drawback of PoW is that it suffers from

slow throughput if the number of nodes is large and

there is a correspondingly high energy consumption for

the mining process. For future developments of

ensatChain, other approaches may be explored such as

Proof of Stake (PoS) or Practical Byzantine Fault

Tolerance (pBFT) (101Blockchains, 2018). Figure 3

(at the end of the paper) gives a pictorial summary of

the strengths, weaknesses, and other features of

different consensus algorithms (101Blockchains,

2018).

Finally, the actual individual validation process in

ensatChain is similar to most blockchain solutions.

ensatChain compares the hashes by checking through

all blocks in the chain. If a peer wants to verify that,

say block 101, has not been tampered with, then the

peer will compute the appropriate hash, check it with

the hash stored on block 101 on ensatChain and repeat

the same process for the previous block’s hash (also

stored in block 101). If all comparisons result in

Figure 3: Variants of consensus algorithms (101Blockchains, 2018).

HEALTHINF 2020 - 13th International Conference on Health Informatics

242

equality, then the chain is valid and unbroken.

However, if the comparison is false, then the ledger

has been altered.

5.2.3 Structure and Access (Privacy)

ensatChain is a hybrid development using features

from both private blockchains (permissioned access

control) and public blockchains (a consensus

algorithm to establish integrity).

The private blockchain feature is the role-based

application access which controls the privileges

assigned to authorized individuals, providing limits

of privacy to the network and data. This is obviously

desirable in an environment such as ENSAT, where

confidential clinical information should be handled

with clear privacy bounds.

Additional benefits are that it is faster and cheaper

compared to public blockchains because of the lower

number of nodes on the network, which in turn

requires significantly less energy and resources to

reach a consensus.

5.2.4 Transaction Structure and

Implementation (Searchability)

A transaction in ensatChain is a collection of meta-

data log information. In common with most public-

key cryptographic systems, for signing and verifying

the transaction, each user must have a public and

(secret) private key. The public key acts as the

recipient's address while the private key signs the

transaction as a method of authentication. The public

key is utilized to verify that the signature in the

transaction is authentic, and that the information has

not been tampered with. ensatChain uses an ECDSA

elliptic curve algorithm (Wikipedia, 2019a) to

generate these key-pairs.

To facilitate the secure audit, every transaction

has the following structure:

• The sender’s address

• The receiver’s public key (as address)

• The log meta-data to be stored on the ledger

• A reference to the previous transactions, i.e.

outputs.

• The sender’s private key signing the transaction

with an ECDSA signature

ensatChain uses MongoDB as a distributed database

for storage of the current state of the ledger (not to be

confused with the use of MongoDB to store the actual

log-file data content). This implementation provides

decentralization and transparency within the (private)

network.

5.3 Performing the Log Audit

The ENSAT registry generates a vast amount of log

information reflecting the application-level usage and

user behaviour. It also makes connections to the lower

levels of infrastructure, such as web container,

database, and even in some cases, the underlying

operating system. This allows the log to form an audit

trail that can aid with diagnosing system or

application issues, disaster recovery, and to monitor

user behaviour. As described previously, there is a

large motivation to make this audit trail secure and to

develop a deep understanding of the activities within

a complex system.

Currently the ENSAT registry is set up to generate

and store log information in two ways: 1) ASCII text

files generated by the Apache log4j project, and 2) a

searchable MongoDB NoSQL database. The content

of each mirrors the other. It should be noted that the

reason for the two formats is due to production

migration of one format (Apache log4j) to the other

(MongoDB), which has been a necessary feature of

system maintenance, but has also provided an

opportunity to compare the efficacy of each format

against the other.

Conceptually, the log4j method lends itself to the

notion of a “chain of blocks” more naturally, as

distinct files are generated on a daily basis. Therefore,

the insertion of a hash into the already-delimited

blocks (the individual files) is somewhat intuitive.

In the MongoDB implementation a further step of

outlining what constitutes a block is required. In this

case the delimiter is the date, as this then matches the

natural delimiters of the log4j method. The storage

implementation for MongoDB is a collection of

documents, bound together using standard NoSQL

methods, and a natural side-effect of database storage

is the improvement in efficiency of scalability and

storage space.

5.3.1 Hash Generation

Vast amounts of data are contained in a single day’s

log information, therefore an efficient way of

generating and storing a hash is to convert it into a

segment of a hash chain, which provides a stripped-

down version of a blockchain, but with the same

properties of immutability (Wikipedia, 2019b). These

segments are then stored in ensatChain, rather than

the entirety of the day’s log information itself. This

hash is generated in the same way as the hash of a

block (see section 5.2.1) using the SHA3-256

cryptographic algorithm on the same set of data

outlined in section 5.2.4.

Secure Audit in Support of an Adrenal Cancer Registry

243

Once the hash of a day’s log file is generated, it is

added to the log file itself with an ECDSA digital

signature of the created owner. This creates a segment

of a hash chain and a full chain is created by

appending the corresponding log files to each

segment.

For the Apache Log4j project, these

considerations of generated hashes are represented

using standard ASCII text. In MongoDB the data

records are stored as binary representations of JSON

objects, known as BSON (JSON and BSON 2019).

Therefore, the hashes are generated, used to create

hash chains as above, but then are converted into

BSON format, and attached to the document

collection within the database.

5.4 Threat Models (STRIDE)

To perform a basic evaluation of the responsiveness

and resilience of this system, a threat model was used

to attempt to obtain definitive metrics of the security

of the overall system, as well as considering the four

characteristics identified. In general, a threat is a

potential or actual adverse situation that can be

accidental, such as a storage device failure, or

malicious such as a Denial of Service (DoS) attack.

Threat modelling improves security by clearly

defining vulnerabilities and describing

countermeasures to prevent or mitigate the impact of

threats to the system.

The central aim of threat modelling is to allow an

informed decision to be made about the commitment

of resources and effort in order to keep a system safe,

to whatever level of risk is deemed acceptable. This

variable changes as technology, and the associated

threat landscape, evolves. Therefore, threat modelling

can be considered an iterative process of determining

a security profile for every asset within an

organisation.

Developed at Microsoft, the STRIDE threat

model (Potter, 2009) is used here to assist in that

process of understanding the vulnerabilities of the

ensatChain system with regard to the overall security,

but also with particular focus on the four

characteristics of a secure audit.

The component vulnerabilities of the STRIDE model

are defined as follows:

• Identity Spoofing: this is the act of illicitly

accessing and using another entity’s authentication

information. For example, obtaining the username

and password of doctor to modify chemotherapy

dosage data.

• Data Tampering: this is the unauthorized

alteration of information. For instance, the

modification of data by an unauthorized party,

whether in storage in a database, or in flow across a

network.

• Repudiation: this vulnerability occurs when

parties deny executing an action, and the alleging

other party does not have a piece of compelling

evidence otherwise. Non-repudiation is a technique to

counteract such repudiation threats. For instance, if a

doctor updates a patient’s medicine in the system,

with his signed digital credentials, then bad

consequences occur and the doctor attempts to

(falsely) repudiate the action, an administrator can

show the doctor’s timestamp digital signature as

evidence (i.e. non-repudiation).

• Disclosure of Information: this is a

vulnerability where protected information is exposed

to unauthorized parties.

• Denial of Service (DoS): this vulnerability is

where valid users are denied access to a service. For

instance, temporarily disabling access to a web

server, or a dedicated attack on a server to disrupt its

function availability to a large user base.

• Privilege Elevation: this vulnerability is where

an unprivileged entity obtains access to a restricted

system.

The overall system is evaluated against this specific

list of vulnerabilities, with the relevance to the four

characteristics of secure audit highlighted.

6 EVALUATION

The evaluation relates to the four characteristics of

secure audit and to the overall security of the system

as evaluated through the STRIDE threat model. This

section outlines the conclusions reached about each.

6.1 Secure Audit Feature Evaluation

Evaluating the four characteristics of secure audit, the

following conclusions were drawn:

Privacy: ensatChain correctly hides protected

information from external parties and exclusively

provides data access to authorized users. The

mechanism for this is a password file combined with

identity key. However, complete public key-pair

access would be a more secure and hence desirable

solution.

Tamper-resistance: integrity is maintained in the log

information by comparing the hashes computed and

stored in ensatChain against those in the log4j files or

MongoDB document collections.

HEALTHINF 2020 - 13th International Conference on Health Informatics

244

Searchability: this aspect depends on the storage

mechanism of the log information. In log4j the

searchability was very limited (string matching

within bulk text files). However, in either the ledger

chain or the MongoDB log storage, searchability is

facilitated through the document query tools, and is

much more flexible and powerful.

Verifiability: by sustaining the transaction history in

the ensatChain, all the entries are accessible to

authorized users, and can be validated individually

and retrospectively through the consensus algorithm

driven by all the network nodes.

6.2 STRIDE Threat Model

Evaluating the overall system security against the

STRIDE model, the following conclusions were

drawn:

6.2.1 Spoofing

The ENSAT registry log information is stored on a

central server, with replicated backups on separate

servers and archived copies off-site. ensatChain is

implemented to operate at each server (on both log4j

and MongoDB formats), each being designated as a

“peer node”. Each peer node has the same view as the

others, every new transaction modifies the state of the

system overall and is replicated at each node using

MongoDB as the distributed blockchain database.

User authorization is maintained using a protected

password file, and associated identity key for all

authorized peers (users), though as mentioned in 6.1,

a full public key-pair mechanism would be

preferable. Only these peers will be able to access the

network. If these measures are breached, then a

further layer of protection is that the network must

still confirm any modifications by this breached node

as valid.

ensatChain currently does not provide any device

authorization. Any device would be able to connect to

the distributed ledger as long as they produce the

correct credentials. There is also currently an inability

to distinguish clearly between remote and local

commands issued over the peer network.

6.2.2 Tampering of Data

ensatChain introduces immutability through the

blockchain mechanisms described in section 5.

Immutability in this sense indicates that an entity can

still modify the records, but that these modifications

will be tracked and notified to the appropriate

administrative authorities. Related to this, is that the

validation process of ensatChain allows the integrity

of log information in the registry to be maintained.

To protect information over the network (c.f. at

rest in storage) secure channel protocols (TLS, SSH,

etc.) allow message integrity to be ensured. In this

context, the “message” is the transfer of log

information from the central ENSAT server to the

distributed nodes, and the publishing of block

contents to the rest of the ensatChain ledger. The

message packets are encrypted with the digital

signature of the owner and can only be decrypted by

authorized parties.

6.2.3 Repudiation

A transaction in ensatChain is digitally signed and

time-stamped to a particular date and time, with the

same signature applied to the content of the log files

(in both log4j and MongoDB formats). The use of the

time-stamp information in hash generation allows the

property of non-repudiation to be enforced. If a user

logs into the ensatChain network, their activities are

tracked, and all access to all information is also

tracked. If any deviation or discrepancy is noticed, an

alert to the administrator is issued.

6.2.4 Information Disclosure

ensatChain is a permissioned blockchain with strictly

enforced access control. Similar to that described in

section 6.2.1, the enforcement of this is through an

identity key and password file, which in turn enforces

privacy/confidentiality to authorized entities only.

These authentication barriers are implemented “in

depth” at many layers - for instance, even if an

attacker manages to access the entire the ensatChain

network, the binary data of the log files is encrypted,

and the secure channels used on network traffic

ensure privacy on those exchanged messages.

6.2.5 Denial of Service (DoS)

These attacks are amongst the most commonly

encountered on blockchain networks. The disruption of

service provision and the creation of an unresponsive

environment are the most significant effects of such an

attack (i.e. service availability).

As ensatChain is a distributed blockchain network,

it is similarly susceptible to such attacks. The

decentralised nature does mitigate somewhat against a

DoS attack, as remaining uncompromised nodes could

continue to operate whilst others are down, and no

central hub acts as a single point of failure. Similarly,

the use of a Proof of Work algorithm would mitigate

Secure Audit in Support of an Adrenal Cancer Registry

245

against a DoS attack as it requires an attacker to

exhaust a larger amount of resource than otherwise.

However, as ensatChain is a private blockchain, the

number of peers will be limited, and this would also

amplify the effects of a DoS attack.

6.2.6 Elevation of Privilege

Similar to “insider attacks”, this is one of the most

challenging vulnerabilities to protect against. A well-

secured application can be protected with multiple

internal security layers like virtual private networks,

firewalls, etc. and still an insider attack could penetrate

all these layers of defence. The authentication and

authorization mechanisms provided by ensatChain are

unlikely to be enough to withstand such an attack. The

only guaranteed defence in this case is the tamper-

resistance property of blockchain to track

modifications, though this would be unlikely to be a

sufficient full defence (as it can only act

retrospectively).

Table 1 gives an overview of the threats evaluated

with this threat model.

Table 1: The STRIDE evaluation of ensatChain.

Type of threat

Security

property

Evaluation

Spoofing Device authz No

User authz Yes

Tampering Data integrity Yes

Message integrity Yes

Repudiation Non-repudiation Yes

Information

disclosure

Message integrity Yes

Message

confidentialit

Yes

Denial of

service

Availability

Yes (with

caveats)

Privilege

elevation

Authorization No

According to the table, “No” means the technique

is still susceptible to the threat, while “Yes” means a

technique can be used to counter or mitigate the

attack. The use of binary “Yes”/“No” responses gives

a broad sense of the security for simplicity, but within

those responses are further grades of subtlety (e.g.

there are mitigations against DoS attacks, but their

effectiveness depends on the scale of the attack).

7 DISCUSSION

The system described in this paper attempts to

provide the mechanism for a secure audit of an online

clinical registry. This chapter discusses the relative

strengths and weaknesses of the system developed to

date, both in terms of general security and design and

implementation choices.

7.1 Strengths

The main strength of this project is that the

implementation of ensatChain is believed to achieve

the four significant characteristics of a secure audit:

– Tamper-resistance: with the integration of

ensatChain into the ENSAT registry, it is now

possible for administrators to be notified about

unauthorized modifications of the log information in

the system.

– Privacy: with the use of private blockchain

features in ensatChain, such as authorized access

control, the benefits of other blockchain features such

as tamper-resistance are realised, whilst maintaining

the privacy of system and user information.

– Searchability: the use of MongoDB to support

both the log information and the ensatChain ledger,

allows for searchable stored log and hash data.

– Verifiability: the use of blockchain consensus

algorithms, allows the ensatChain transactions to be

verified by the network of users and nodes.

From a security perspective, the system strengths

include protection against immediate threats such as

user authorization, data integrity, message integrity,

confidentiality, non-repudiation, and availability.

In the context of performance, strengths include

the use of the AMD Radeon RX 500 series Graphical

Processing Unit (GPU), which has a better cost to

profitability ratio than the nearest alternative, which

is the Antminer S9 Hydro. Also the overall

performance (accuracy at set speed) is high, due to the

low number of nodes in the ensatChain network

(currently five), requiring a small amount of time to

process and mine. However, as the system scales,

block generation time would increase non-linearly

and this would become a weakness.

7.2 Weaknesses

The main weaknesses of this project include the use

of the Proof of Work (PoW) consensus algorithm

which is often inefficient and can consume a high

amount of energy and resources. The functionality of

the system is not currently hindered by this

HEALTHINF 2020 - 13th International Conference on Health Informatics

246

inefficiency due to the low number of nodes in the

network. However, as mentioned in section 7.1, as the

system scales this will likely become an issue. The

solution in this case will be to use a faster and more

efficient consensus algorithm, such as Proof of Stake

(PoS) or Practical Byzantine Fault Tolerance (pBFT).

Related to this is the fact that PoW provides a

weaker difficulty level of hash generation, therefore

making the mining process less resilient to external

attack. Choosing a different consensus algorithm,

such as pBFT, would also have the effect of

increasing this difficulty level.

The ensatChain implementation overcomes most

threats as outlined in the STRIDE model. However,

threats like device authorization and elevation of

privilege are still potential vulnerabilities.

It is also vulnerable, as are most closed systems,

to internal or insider attacks, which are the most

dangerous yet difficult to protect against. The most

ensatChain can do to counter such a threat is to assert

authorization challenges using a “defence in depth”

modality, but these are mitigations, not complete

prevention.

Similarly, there are a family of blockchain-

specific attacks (e.g. 51% attack (51% Attack, 2014),

or Sybil attacks (Wikipedia, 2019c)) which are

difficult to protect against. ensatChain suffers from

these vulnerabilities as well. Developing further

mitigations against these attacks either within

ensatChain or at a higher application level will be the

focus of future work.

8 CONCLUSIONS

This paper has presented a description of an

implemented technology that attempts to provide

secure audit of the meta-data generated by an adrenal

cancer registry, where “secure” is defined by the four

characteristics of tamper-resistance, verifiability,

searchability and privacy. The potential applications

of such audit security are many and are particularly

relevant to the clinical and health domains, where vast

amounts of sensitive and important data are stored

and transmitted on a daily basis.

The use of blockchain technology has allowed an

exploration of the benefits of public features (e.g. a

Proof-of-Work consensus algorithm) versus private

features (e.g. permissioned access control) to attempt

to gain the benefits of both. Additionally, the

application was implemented on both log files

generated as ASCII text, and those stored in a NoSQL

database.

The overall system was tested against the

Microsoft STRIDE threat model and was found to

perform well on many of the aspects of security and

secure audit previously discussed but still had overall

security weaknesses when addressing device

authorization or privilege elevation vulnerabilities.

The implementation is now operating in

production on the ENSAT adrenal cancer registry and

with some improvements, will be applied to other

clinical registries developed by the Melbourne

eResearch Group (MeG) in the near future.

ACKNOWLEDGEMENTS

The work leading to this solution has received

funding from the European Union Seventh

Framework Programme (FP7/2007-2013) under grant

agreement n° 259735 and from the European Science

Foundation (ESF).

REFERENCES

ENSAT (2019), http://www.ensat.org/ [Online; accessed

19-May-2019]

FP7 (2019), https://ec.europa.eu/research/fp7/index_en.

cfm [Online (archived); accessed 22-Nov-2019]

Horizon 2020 (2019), https://ec.europa.eu/programmes/

horizon2020/en [Online; accessed 22-Nov-2019]

Nakamoto, Satoshi et al. (2008), “Bitcoin: A peer-to-peer

electronic cash system”, In: Working Paper

Else, Tobias (2019), “Providing Evidence: Step by Step – a

letter from associate editor, Tobias Else, MD”, In:

Hormones and Cancer, Feb 2019, vol 1:10, pp 1-2

Apache Log4j (2012), http://logging.apache.org/log4j/1.2/

manual.html, [Online; accessed 19-May-2019],

[Page updated; 13-May-2012]

MongoDB (2019), https://www.mongodb.com/, [Online;

accessed 19-May-2019]

Potter, Bruce (2009), “Microsoft SDL Threat Modelling

Tool”, In: Network Security, vol 1:2009, pp 15-18

Waters, Brent R et al. (2004), “Building an Encrypted and

Searchable Audit Log.”, In: NDSS. Vol. 4, pp. 5–6

Bitcoin (2019), “What’s the Difference Between Bitcoin

(BTC) and Ethereum (ETH)?”,

https://www.cryptocompare.com/coins/guides/what-s-

the-difference-betweenbitcoin-btc-and-ethereum-eth/

[Online; accessed 20-May-2019]

Bellare, Mihir and Bennet Yee (1997), “Forward integrity

for secure audit logs”, Technical report, Computer

Science and Engineering Department, University of

California at San Diego

Schneier, Bruce and John Kelsey (1999), “Secure audit

logs to support computer forensics”, In: ACM

Transactions on Information and System Security

(TISSEC) 2.2, pp. 159–176

Secure Audit in Support of an Adrenal Cancer Registry

247

Snodgrass, Richard T, Shilong Stanley Yao, and Christian

Collberg (2004), “Tamper detection in audit logs”, In:

Proceedings of the Thirtieth international conference on

Very large data bases-Volume 30. VLDB Endowment,

pp. 504–515

White Paper - SentinelTrails Documentation (2019),

https://docs.logsentinel.com/en/latest/whitepaper.html,

[Online; accessed 20-May-2019]

Van Humbeeck, Andries (2017), “The Blockchain- GDPR

Paradox”, https://medium.com/wearetheledger/the-

blockchain-gdpr-paradox-fc51e663d047

Robomongo (2019), https://robomongo.org/ [Online;

accessed 22-Nov-2019]

101blockchains.com (2018), “Different Types of

Consensus Algorithms Infographic”, [Online; accessed

20-May-2019] [Online; accessed 22-Nov-2019]

(2019a), Elliptic-curve cryptography — Wikipedia, The

Free Encyclopedia. https://en.wikipedia.org/w/index.

php?title=Elliptic curve_cryptography&oldid

=895042492,

[Online; accessed 20-May-2019]2019b), Hash-chain –

Wikipedia, The Free Encyclopedia,

https://en.wikipedia.org/wiki/Hash_chain, [Online;

accessed 22-Nov-2019]

JSON and BSON (2019), https://www.

mongodb.com/json-and-bson, [Online; accessed 20-

May-2019]

51% attack (2014), https://en.bitcoinwiki.org/

wiki/51%25_attack [Online; accessed 19-May-2019]

(2019c), Sybil attack — Wikipedia, The Free Encyclopedia.

https://en.wikipedia.org/w/index.php?title=Sybil_attac

k&oldid=893108975, [Online; accessed 20-May-2019]

(2019d), SHA3 – Wikipedia, The Free Encyclopedia,

https://en.wikipedia.org/wiki/SHA-3 [Online; accessed 22-

Nov-2019]

HEALTHINF 2020 - 13th International Conference on Health Informatics

248
