Single Sketch Image based 3D Car Shape Reconstruction with Deep

Learning and Lazy Learning

Naoki Nozawa

, Hubert P. H. Shum

2,∗ a

, Edmond S. L. Ho

2 b

and Shigeo Morishima

Department of Pure and Applied Physics, Waseda University, Tokyo, Japan

Department of Computer and Information Sciences, Northumbria University, Newcastle upon Tyne, U.K.

Waseda Research Institute for Science and Engineering, Waseda University, Tokyo, Japan

Keywords:

Deep Learning, Lazy Learning, 3D Reconstruction, Sketch-based Interface, Car.

Abstract:

Efﬁcient car shape design is a challenging problem in both the automotive industry and the computer anima-

tion/games industry. In this paper, we present a system to reconstruct the 3D car shape from a single 2D sketch

image. To learn the correlation between 2D sketches and 3D cars, we propose a Variational Autoencoder deep

neural network that takes a 2D sketch and generates a set of multi-view depth and mask images, which form

a more effective representation comparing to 3D meshes, and can be effectively fused to generate a 3D car

shape. Since global models like deep learning have limited capacity to reconstruct ﬁne-detail features, we

propose a local lazy learning approach that constructs a small subspace based on a few relevant car samples in

the database. Due to the small size of such a subspace, ﬁne details can be represented effectively with a small

number of parameters. With a low-cost optimization process, a high-quality car shape with detailed features

is created. Experimental results show that the system performs consistently to create highly realistic cars of

substantially different shape and topology.

1 INTRODUCTION

Car shape design is a common area in automo-

tive manufacturing, computer animation and games.

The design process is time-consuming and labour-

intensive, as it is a combination of arts and engineer-

ing. In the automotive manufacturing industry, con-

cept arts of the car surface, which are typically rep-

resented as sketches on predeﬁned viewpoints, are

designed ﬁrst. Such concept arts are then converted

into 3D for engineering design. However, there is no

guarantee that such a design can be ﬁnalized until the

engineers conﬁrmed the interior ﬁtting of mechani-

cal parts. Sometimes, it may take several iterations to

fulﬁl the requirements of both design and engineering

aspects. In the animation and games industry, while

there is no real-world engineering constraint, often

the artists need to build a large number of cars that re-

semble similar features from the real-world ones. We

believe that with an automatic system that can gen-

erate realistic 3D cars based on simple 2D sketches,

https://orcid.org/0000-0001-5651-6039

https://orcid.org/0000-0001-5862-106X

∗

Corresponding author

the design of cars, especially in the initial stages of

concept designs, can be a lot more efﬁcient.

There are two major challenges of reconstructing

3D cars from 2D sketches. First, to improve the ef-

ﬁciency of car design, artists want to minimize the

number of sketches required to design each car. As a

result, there is not enough information to fully deﬁne

the 3D features of a car. Second, cars modelling is a

distinct problem as cars have common features such

as where to place the wheels, but also distinctive parts

such as the shape of rear wings and roofs. Past re-

search (Umetani, 2017) shows that it is challenging to

learn a diverse car subspace that represents both com-

mon and distinctive car features well.

In this paper, we propose a new 3D car design

interface that is based on a single 2D sketch, which

contains only the outline information on the car’s

shape. Since a single outline sketch cannot provide

enough information on 3D car reconstruction, our

framework estimates such missing information from

a 3D car shape database. Collecting pairwise sam-

ples of sketches and 3D car shapes is costly, which

hinders the use of powerful data-driven methods such

as deep learning for learning the reconstruction. We

propose to synthesize sketches from 3D car models

Nozawa, N., Shum, H., Ho, E. and Morishima, S.

Single Sketch Image based 3D Car Shape Reconstruction with Deep Learning and Lazy Learning.

DOI: 10.5220/0009157001790190

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 1: GRAPP, pages

179-190

ISBN: 978-989-758-402-2; ISSN: 2184-4321

179

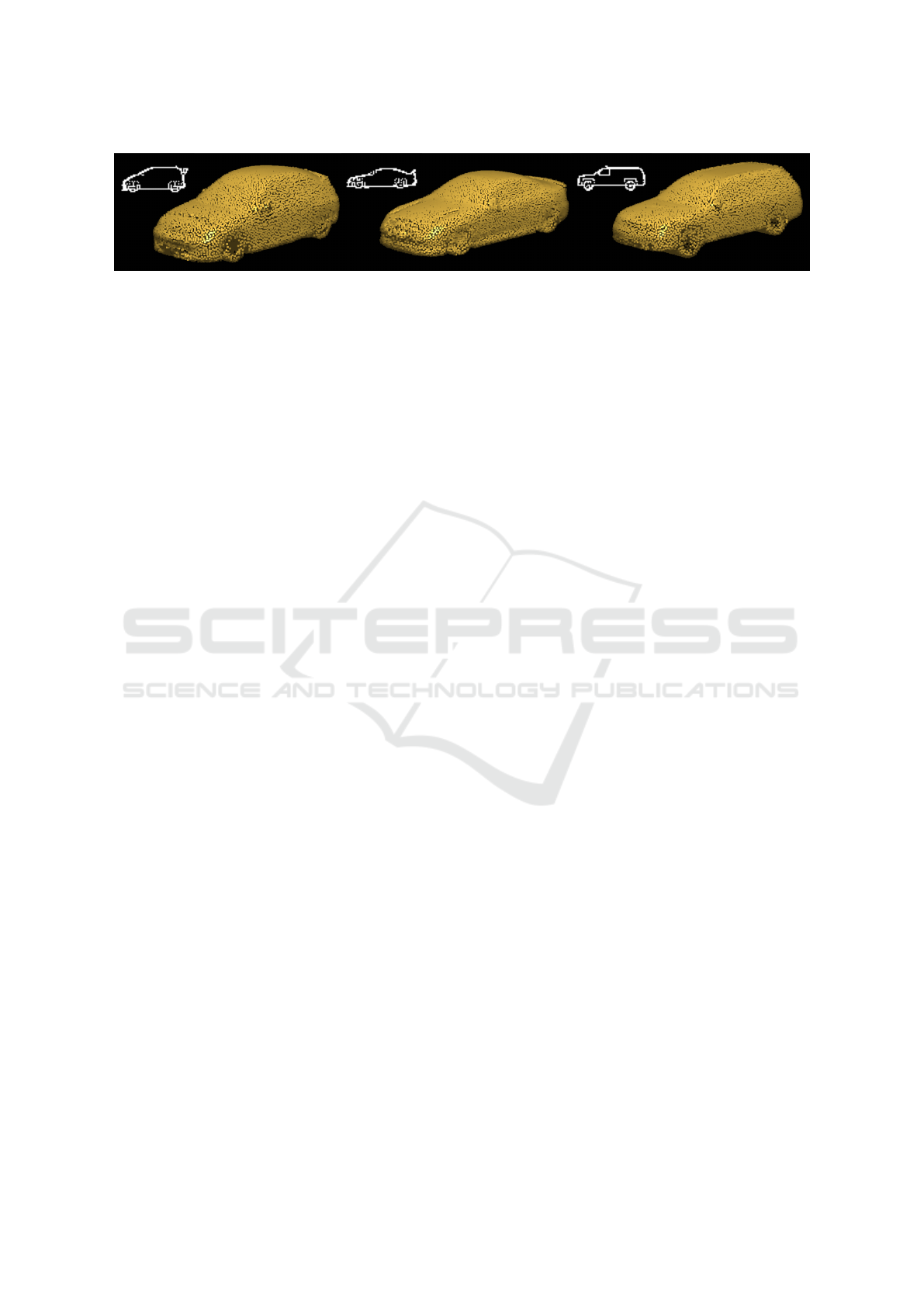

Figure 1: Examples of 3D car shapes generated by out system with side-view sketches.

obtained from ShapeNet (Chang et al., 2015). We fur-

ther propose a feature-preserving car mesh augmenta-

tion pipeline to increase the size of the database.

To tackle the challenge of modelling 3D car

shapes, we propose a novel 2-stage framework. The

ﬁrst stage adapts the Variational Autoencoder (VAE)

(Kingma et al., 2014) deep learning network for cor-

relating a 2D sketch with the respective 3D mesh.

Since it is inefﬁcient to learn the mesh in 3D, and 2D

to 3D correlation is not trivial, we propose to learn

an intermediate representation of multiple depth and

mask images instead, and reconstruct the 3D car mesh

as a post-processing step. Global systems like deep

learning have limited capability in representing ﬁne

details (Umetani, 2017; G

uler et al., 2018). As a so-

lution, we introduce a second processing stage that

adapts a lazy learning framework to learn a local sub-

space from the relevant samples in the database. Such

a subspace enables a low-cost optimization process to

generate a 3D car shape with ﬁne details.

Experimental results show that high-quality car

shapes of substantially different shapes and topolo-

gies can be generated with rough 2D sketch images

(Figure 1). Apart from resembling the overall shape

in the 2D sketches, the generated car shapes contain

ﬁne-detail features such as rear wings. The process

takes around 15 seconds to generate a shape using a

low-end computer.

The major contributions of this paper are summa-

rized as follows:

• We propose a Variational Autoencoder (VAE)

(Kingma et al., 2014) deep learning network to

learn the correlation between a 2D sketch and the

corresponding 3D shape. Instead of learning the

3D shape directly, we propose to learn an inter-

mediate multi-view depth and mask images rep-

resentation, which are then combined to form the

3D shape, for better training performance.

• We propose a lazy learning algorithm to learn a

local subspace to reconstruct the ﬁne detail fea-

tures of the car. Such a subspace bases only on

the relevant car shapes in the database, and there-

fore facilitates effective training and robust usage.

• To facilitate the training processes, we propose a

feature-preserving mesh augmentation framework

to construct a large car database with pairwise 3D

mesh and 2D sketch, based on the small number

of car meshes in ShapeNet (Chang et al., 2015).

The rest of the paper is organized as follows. We

review previous work in Section 2. We explain the

construction of our car database in Section 3. We

present our Variational Autoencoder for generating

3D car shapes from 2D sketches in Section 4. We

present our lazy learning for constructing ﬁne details

for the car in Section 5. We show the results of our

system in Section 6. We conclude the paper and dis-

cuss possible future directions in Section 7.

2 RELATED WORK

In this section, we review related work in the areas

of sketch-based interfaces for 3D design and machine

learning for 3D shape reconstruction.

2.1 Sketch-based Interfaces for 3D

Design

Contrary to professional computer-aided design soft-

ware that requires professional training and has an en-

gineering focus, sketch-based interfaces (Olsen et al.,

2009) are more designer-friendly. Existing research

has used sketches for a variety of applications such

as image retrieval (Eitz et al., 2011), motion synthesis

(Thorne et al., 2004), clothes design (Turquin et al.,

2007) and crowd control (Henry et al., 2012).

In particular, we are interested in utilizing

sketches to create 3D meshes. Igarashi et al. (Igarashi

et al., 2007) propose a 3D modelling system via a

sketch drawing interface that can reconstruct 3D poly-

gon surfaces by specifying contours. They further ex-

tend the method such that it construct smooth mesh

surfaces (Igarashi et al., 2006) and the internal struc-

ture of meshes (Owada et al., 2006). Nealen et al.

(Nealen et al., 2007) also extend this method to sup-

port ridge and valley area, while Gingold et al. (Gin-

gold et al., 2009) focus the extension on specifying

extra annotations such as angles and symmetrical in-

formation for generating the more detailed surface.

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

180

Joshi et al. (Joshi and Carr, 2008) generate a 3D

inﬂating surface that interpolates input curves from a

sketch image while using mean curvature at bound-

ary vertices. Shtof et al. (Shtof et al., 2013) propose

a 3d modelling method that ﬁts predeﬁned 3D primi-

tives to the speciﬁed sketched curves. Schmidt et al.

(Schmidt et al., 2009) present a modelling interface

that constrains 3D lines and curves from single-view

sketches to generate surfaces in the right spatial loca-

tion. Shao et al. (Shao et al., 2012) infer the normal

map in an outline sketch with cross-sections to gener-

ate a 3D shape.

The focus of these works is to enable a user to

specify the important information of a mesh, while

utilizing artiﬁcial intelligence to estimate the unspec-

iﬁed information. Since the big data of 3D shapes

has become more available, we are more interested in

machine learning-based approaches for shape recon-

struction.

In recent years, machine learning approaches

based on big data has shown to be effective in

modelling the relationship between sketches and 3D

meshes. Han et al. (Han et al., 2017) propose a

convolutional neural network (CNN) based system to

generate 3D faces from input sketches. Nishida et al.

(Nishida et al., 2016) adapt a CNN to generate build-

ing models by adding surface curve information as a

style of sketching. We also utilize deep learning for

constructing the sketch-based interface, but we adapt

the Variational Autoencoder (VAE) (Kingma et al.,

2014) for correlating the 2D sketch and the output

represented as depth and mask images. This is be-

cause such a generative model has shown promising

results in the translation of image style.

2.2 Machine Learning for 3D Shape

Reconstruction

The core of the problem of 3D shape reconstruction

is an effective representation of shapes. With the in-

troduction of comprehensive 3D shape databases such

as (Chang et al., 2015) and PASCAL3D (Xiang et al.,

2014), it has become possible to learn a more repre-

sentative latent space to represent and reconstruct 3D

shapes. In general, shapes can be represented as point

clouds, voxel and depth maps.

The point cloud representation has been used by

Fan et al. (Fan et al., 2017), in which they reconstruct

a 3D mesh with a single real-world image. Charles

et al. (Charles et al., 2017) presented PointNet,

which directly consume unstructured point clouds for

a range of applications such as 3D classiﬁcation and

segmentation. They further extend the method into

PointNet++ (Qi et al., 2017) to capture local struc-

tures such that the network can recognize ﬁne-grained

patterns. Groueix et al. (Groueix et al., 2018) uti-

lize point cloud or an image as an input to reconstruct

3D surfaces, but they infer a surface representation

directly for the output shape utilizing the UV coor-

dinate. There has been little work on reconstructing

point clouds with sketches, as it is more difﬁcult to

ﬁnd a good correlation between the 2D sketches and

the unstructured 3D point clouds.

The voxel representation has been used by De-

lanoy et al. (Delanoy et al., 2018). They take a sketch

as an input, and construct a CNN to predicts occu-

pancy of a 3D voxel grid that represents the output

mesh. Choy et al. (Choy et al., 2016) follow the

idea of using CNN to generate a volumetric occu-

pancy map for 3D reconstruction, and their method

does not require 2D image annotations or 3D object

classes. To enhance memory efﬁciency, Tatarchenko

et al. (Tatarchenko et al., 2017) propose to learn both

the structure of an octree and its corresponding occu-

pancy values of individual cells. Wang et al. (Wang

et al., 2017) also propose an octree-based CNN for

shape analysis. Despite this optimization, voxel meth-

ods are still a memory and computational cost con-

suming due to the need to model a 3D space.

The depth map representation has been used by

Lun et al. (Lun et al., 2017) to reconstruct 3D sur-

face form sketches. They use both depth and normal

maps to represent the shape, causing the use of ex-

tra memory. Due to the use of the U-net structure

(Ronneberger et al., 2015) like pix2pix (Isola et al.,

2017), the input sketch structure is over-preserved

and sketches that do not look like the objects in the

database cannot be effectively reconstructed. Li et

al. (Li et al., 2018a) propose a method to gener-

ate a detailed surface with considering curvature ﬂow.

They construct multiple decoders for depth, mask and

curvature ﬂow, and therefore the system requires ex-

tra memory. We also utilize depth maps as our net-

work output to model the 3D shape; however, our sys-

tem only needs to generate depth images and binary

masks, without the need for normal maps or curvature

ﬂow. We propose a Laplacian-based loss function to

compensate for the lack of normal maps, allowing a

more memory efﬁcient system.

As a global model, deep learning has shown to

have difﬁculties in representing ﬁne details of the

shapes that are speciﬁc to a small cluster of samples

(Umetani, 2017). In the area of car reconstruction,

different categories of cars have different speciﬁc de-

tails such as side mirrors and rear wings. Past research

has shown that local models utilizing lazy learning

can help to preserve ﬁne details in different problems.

Chai et al. (Chai and Hodgins, 2005) generate a hu-

Single Sketch Image based 3D Car Shape Reconstruction with Deep Learning and Lazy Learning

181

man surface from a sparse input with a large motion

database. Shen et al. (Shen et al., 2018) map complex

gestures to crowd movement for gesture-based crowd

control. Shum et al. (Shum et al., 2013) reconstruct

noisy human motion captured by Kinect. The main

idea is to extract relevant data based on a run-time

query and construct a local model during run-time. In

this work, we adapt lazy learning to generate the ﬁne

details of a car based on the output generated by a

deep learning network.

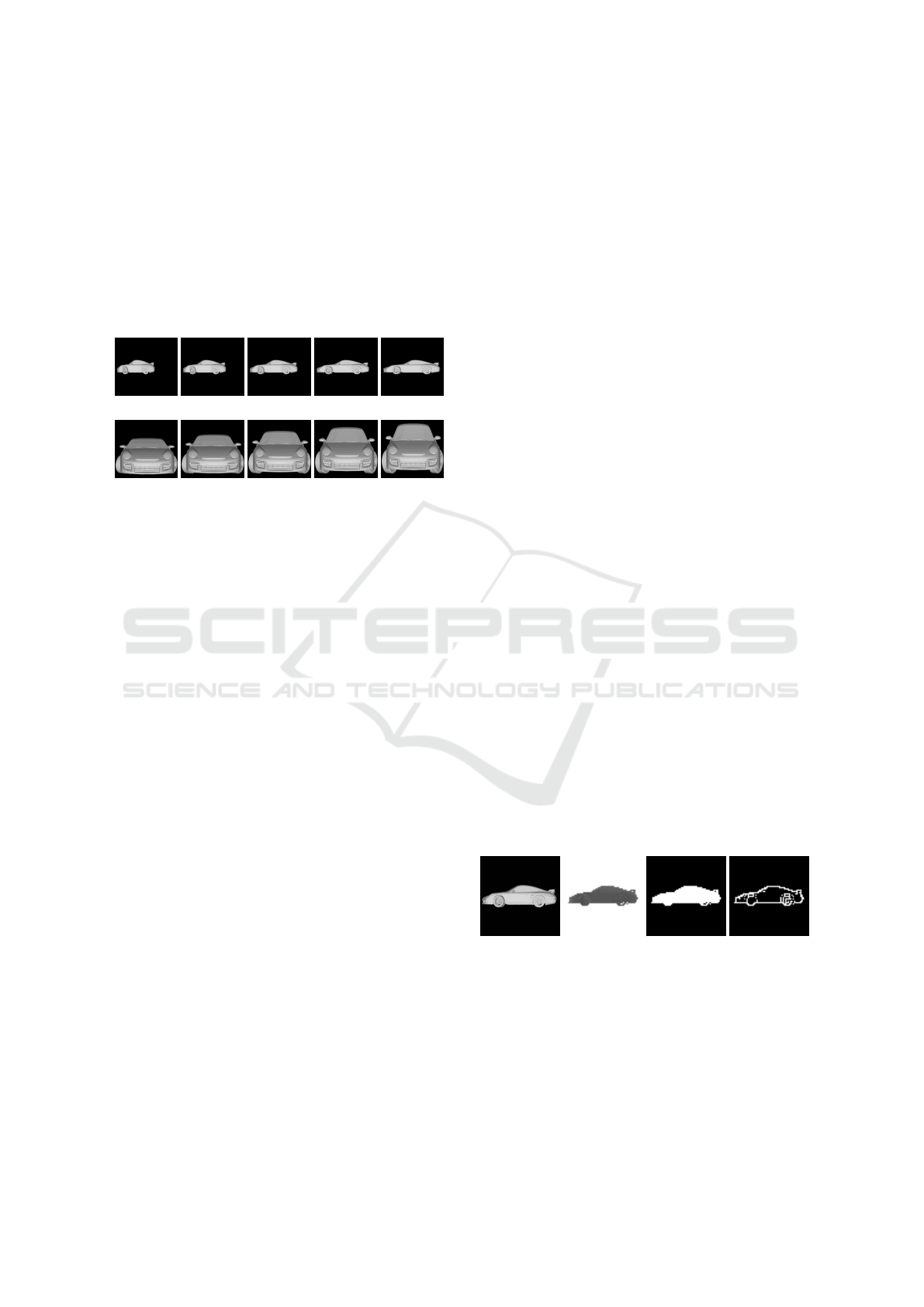

Z-axis -20% Z-axis -10% Original Z-axis +10% Z-axis +20%

Y-axis -20% Y-axis 10% Original Y-axis +10% Y-axis +20%

Figure 2: Examples of 3D car meshes synthesized with our

feature-preserving data augmentation method.

3 DATABASE CREATION

As a data-driven approach, the diversity and quality

of the database is key to our system. We present

a robust and efﬁcient process to construct a 3D car

mesh database. With a novel feature-preserving data

augmentation techniques, we create a large variety of

logically correct car meshes. They are converted into

two sets of representations: (1) 2D sketch, depth and

mask images for shape reconstruction, and (2) regis-

tered 3D point clouds for details synthesis.

3.1 Feature-preserving Car Mesh

Augmentation

We create our 3D car mesh by adapting data argu-

mentation process, which enhances the diversity and

size of our car model database by synthesizing high-

quality data.

While there are plenty of car images available on-

line, training a reliable 2D to 3D neural networks

would require pairwise 2D and 3D training samples.

Such pairwise data is challenging to obtain in the real-

world. Therefore, we propose to synthesize training

data from 3D car models, which are of high-quality

and can be used to produce different types of 2D im-

ages via projections.

We ﬁrst gather car models from the ShapeNet

(Chang et al., 2015), which is one of the most compre-

hensive 3D shapes databases. However, the number

of car models is not enough for training a deep neu-

ral network. To solve the problem, we employ data

argumentation to synthesize more data samples.

Traditional linear scaling such as (Sela et al.,

2017) does not work well for car meshes because dif-

ferent parts of the car have to be handled in different

ways. For example, simply scaling the height of the

car would make a taller car body, but the wheels will

become ovals, which is logically incorrect.

As a solution, we adapt Kraevoy et al.’s method

(Kraevoy et al., 2008) for data argumentation, which

can resize the car shape while preserving important

features. The method utilizes a voxel grid that is re-

sized non-homogeneously according to vulnerability

of each voxel, and interpolate mesh vertices based on

the edited voxel grid. It then calculates the curvature

of contained vertices in each cell with the consid-

eration of neighbourhood vulnerability, and perform

mesh scaling while maintaining local features.

In our implementation, we set the resolution of the

voxel as 5 × 10 × 15 in the x, y, and z axes respec-

tively, and use Akenine-M

ollser’s method (Akenine-

ollser, 2001) to detect the intersection between ver-

tices and voxel. Finally, we resize the voxel grid along

with the height (i.e., y-axis) and length (i.e., z-axis)

directions only. This scaling in height and length only

is because the width direction is restricted by that of

the road, which is a constraint also applied in existing

car design processes. We set the resizing parameter

as ±20%, ±15%, ±10% and ±5% of each scalable

direction, and interpolate mesh vertices based on the

resized voxel grid using radial basis function (RBF)

interpolation.

With the original data of 7,028 cars, we synthe-

sized 56,224 cars using the aforementioned data aug-

mentation method. Figure 2 shows some examples

of the resized 3D models, in which features like the

wheels and the headlight are largely preserved.

(a) 3D mesh (b) Depth (c) Mask (d) Sketch

Figure 3: An example of converting a 3D car model into

different types of images.

3.2 The 2D Sketch, Depth and Mask

Images Representation

With the 3D meshes created, we produce the 2D

sketch, depth and mask images representation for

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

182

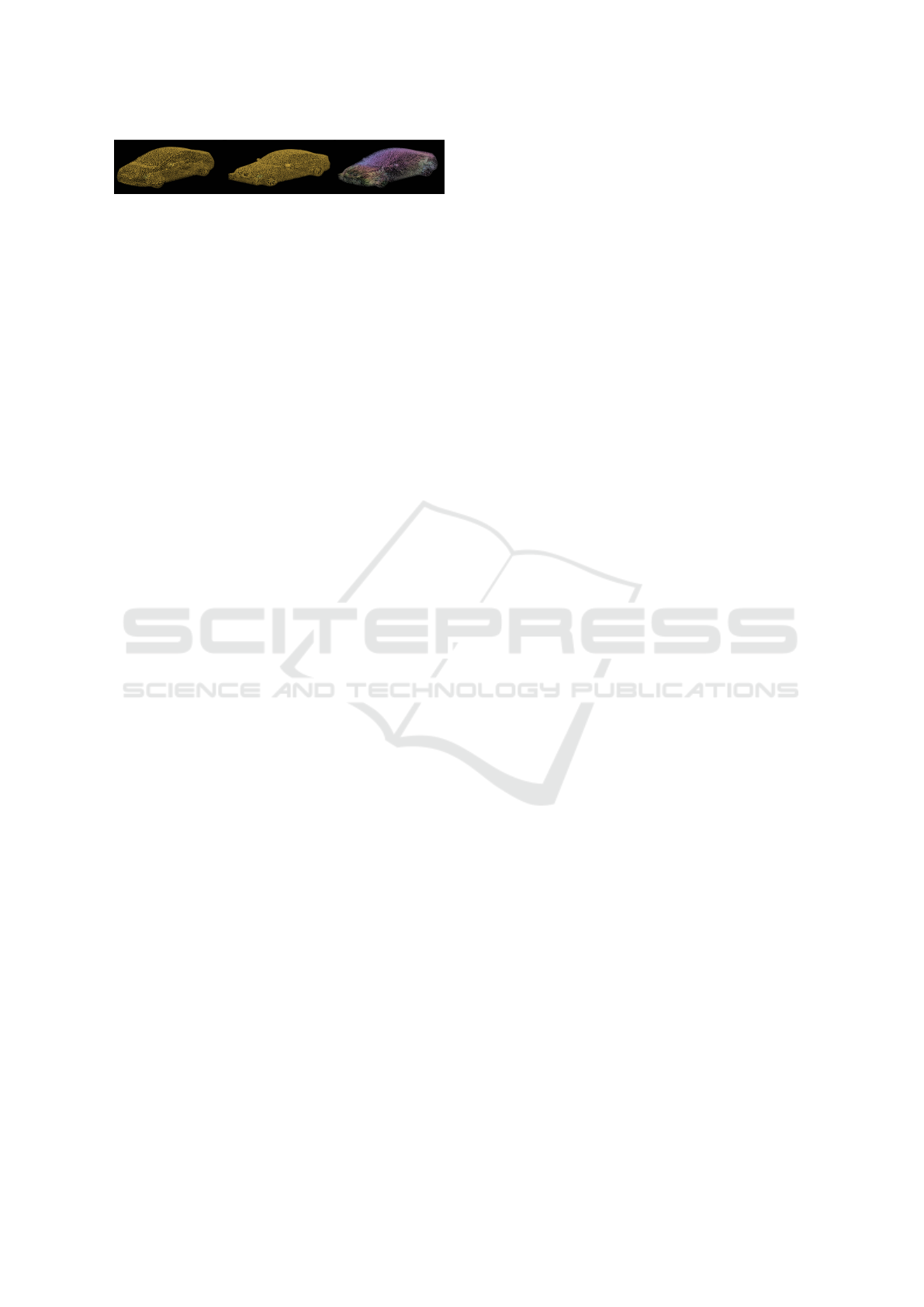

Figure 4: From left to right: the template, a car shape, and

the ﬂow for mapping them.

training our deep learning system on car shape recon-

struction. Figure 3 shows an example of converting a

3D car mesh into different types of images.

To create the depth and mask images, we set up a

bounding box that contains the whole car. Then, we

emit rays from each face of the bounding box and ob-

tain the nearest intersection points with the car mesh.

We ignore the bottom face of the car and do not pro-

duce the corresponding depth and mask images. This

is because the bottom of the car typically consists

of highly complicated geometry involving holes and

complex shapes for mechanical gears.

We synthesize sketch images by employing a

Laplacian ﬁlter on the projected images of the car

meshes from the sides (i.e., x-axis), which can gener-

ate reliable sketch-like images that convey the outline

of the car meshes. This method works robustly and

does not require human intervention.

3.3 The Registered 3D Point Cloud

Representation

We also create a point cloud representation from the

3D meshes for the system to learn how to add details

to the car shapes. Since the focus of the research is the

outer shape of the cars, we remove internal vertices

inside the car body and generate a ﬂat bottom plane

for each car. These allow us to obtain a set of clean

car shape point clouds that can be robustly registered

to discover the correspondence among car shapes.

We convert the mesh into a point cloud by sam-

pling the mesh surface uniformly using Corsini et al.’s

method (Corsini et al., 2012). The major challenge is

that the method is controlled based on sampling den-

sity, which is fed into a Poisson disk sampling pro-

cess, instead of the total number of points. Because

of this, cars of different size have a dramatically dif-

ferent number of sample points, which posts unneces-

sary complexity and unpredictable computational cost

in the later on processes. Therefore, we implement

an iterative function to ﬁnd out the required sampling

density of each car that can produce the point num-

ber within a predeﬁned range. To further enforce the

same number of points among cars, we randomly re-

move points sampled until the number reach the tar-

get. We found that point number of 10,000 has a good

balance of visual quality and computational cost.

Finally, we propose a registration process to align

the point clouds of different cars. Motivated by

(Henry et al., 2014; Shen et al., 2019), we formulate

the problem as an optimal transportation problem. We

ﬁrst pick a random point cloud of a car as a template,

and then evaluate the Earth Mover’s Distance (EMD)

between the template and the rest of the cars. We uti-

lize squared Euclidean cost as suggested by (Li et al.,

2018b). Since we have the same number of points

for all point clouds, the optimal ﬂow from the tem-

plate to the target point cloud of a car has a 1-to-1

correspondence, which therefore is considered as the

registration result. Comparing to deformation-based

methods (Amberg et al., 2007; Li et al., 2008) that ﬁt

a template to the target shape, our method is more

robust to cars that have different mesh topologies.

Comparing to feature point-based methods (Rusu and

Cousins, 2011) that calculate the mapping between

the template and the target shape directly using fea-

ture points, our method generates a much denser cor-

respondence.

4 VARIATIONAL

AUTOENCODER FOR CAR

SHAPE RECONSTRUCTION

In this section, we present a deep neural network to

reconstruct 3D car shapes from 2D sketches.

Following the advice and design culture of the car

manufacturing industry, we take a single side view

sketch as the input of our system. However, our sys-

tem is expandable to supporting sketches from multi-

ple views by duplicating the network architecture.

Instead of directly outputting the 3D point cloud

(Fan et al., 2017; Charles et al., 2017) or the vox-

els (Delanoy et al., 2018; Choy et al., 2016) of a car,

we propose to output a set of depth and mask images

from the side, top, front and rear views, and recon-

struct the 3D vertices by combining them. This is

mainly due to the high complexity and memory cost

for a network to maintain a smooth surface while pre-

serving the volume for complicated 3D shapes.

We adapt Variational Autoencoder (VAE)

(Kingma et al., 2014) for getting the depth and

mask images, as such a generative model has shown

promising results in image translation by altering the

output with a different style. While VAE is inferior to

Generative Adversarial Network (GAN) (Isola et al.,

2017; Chen and Koltun, 2017; Wang et al., 2018) in

terms of the appearance of the output, it is difﬁcult to

control the image synthesis process in GAN to create

multiple outputs. Also, it takes much longer to train

GAN and to guarantee network convergence. In our

situation, we prefer VAE as it produces results with

Single Sketch Image based 3D Car Shape Reconstruction with Deep Learning and Lazy Learning

183

high enough quality to generate a car shape, and the

details of the car are introduced as a second stage

process.

4.1 Network Design

We adapt an encoder-decoder network structure for

generating the depth and mask images, as shown in

Figure 5. The decoder needs to generate both images

in multiple predeﬁned views. Existing research typ-

ically prepares multiple decoders, with one decoder

generating one output view (Li et al., 2018a; Lun

et al., 2017). However, such an approach increases

computational cost and memory requirement signiﬁ-

cantly, considering that we need to generate four dif-

ferent views (i.e., front, rear, side, and top).

As a solution, our network shares the decoder

among multiple views at the ﬁrst layer, in which we

have an independent ﬁnal layer for each view. Each

output from the last layer has two channels, which are

the depth and mask images respectively. This design

is driven by the observation that there is shared in-

formation across different views. By sharing the ﬁrst

layer in the decoder, such information can be discov-

ered. Apart from the massive reduction in memory

usage and training time, such a setup allows the differ-

ent output views to be more coherence and produces

higher quality results. We justify our choice in the de-

coder network design by conducting an ablation test

in Section 6.3.

4.2 The Loss Function

VAE typically involves two types of the loss function,

which are the cross-entropy loss (i.e., reconstruction

loss) and the Kullback-Leibler (KL) divergence loss.

In the following, we explain our design of loss func-

tions.

For the mask image, we use binary cross-entropy

loss between the generated images and the ground

truths. Such a loss is effective for data that follow

the Bernoulli distribution like the mask images. Each

mask image is normalized from [-1, 1] to [0, 1] to fa-

cilitate the binary cross-entropy. The loss has the ef-

fect of detecting the area where the car shape should

exist in the world coordinate.

For the depth images, in order to ignore pixels that

do not belong to the car, we mask the estimate depth

images with the estimated mask images when calcu-

lating the loss. We implement two loss functions - the

mean absolute error (MAE, L1 loss) on the masked

depth images, and another MAE on their Laplacian

representations.

We implement MAE between the generated depth

images and the ground truths. MAE is used because

depth images do not follow the Bernoulli distribution

and therefore is not suitable for binary cross-entropy

loss. While it is possible to apply cross-entropy loss

or mean square error (L2 loss) by assuming Gaussian

data distribution, such losses are known to be too sen-

sitive to outlier and are less robust in deep learning.

On the contrary, L1 loss considers neighbourhood in-

formation in image generation (Isola et al., 2017) and

is suitable for depth estimation whose output tends to

have a lower frequency than natural images.

We apply a second MAE loss on the Laplacian

representation of the generated depth images and the

ground truths. We apply a second MAE loss because

while the ﬁrst loss can represent the shape and posi-

tion of the car, this ﬁrst loss is too weak to represent

surface appearance. The Laplacian representation is

computed by applying the following Laplacian ﬁlter

to the depth image:





−1





(1)

The Laplacian representation is comparable to a

normal representation, but it can be directly deduced

from the depth images. Some may consider training a

multi-task network with ground-truth normal images

(Li et al., 2018a; Lun et al., 2017), but such an ap-

proach is memory consuming and difﬁcult for hyper-

parameters tuning (e.g. the relative weight between

tasks). Our Laplacian MAE loss can represent the sur-

face appearance with no impact on the network size.

Finally, a standard KL divergence loss added to

the VAE network structure that encodes the latent vec-

tor. We assume that the latent vector follows a Gaus-

sian distribution and can be expressed using mean and

standard deviation.

The ﬁnal loss function is expressed as:

E =



re f

− D

rec

) ◦ M

re f





re f

− M

rec



BCE

+ (



∆D

re f

− ∆D

rec

) ◦ M

re f

)



+ KLLoss

(2)

where D

re f

and M

re f

are Depth and Mask images of

the ground truths, D

rec

and M

rec

are those of recon-

structed images, the subscripts L1 and BCE(binary

cross-entropy) represent the calculation metrics, ∆

means Laplacian ﬁltering and ◦ is the Hadamard

product, KLLoss is the standard KL loss function.

4.3 Surface Reconstruction

Having generated the depth and mask images in dif-

ferent views as the output of our proposed deep learn-

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

184

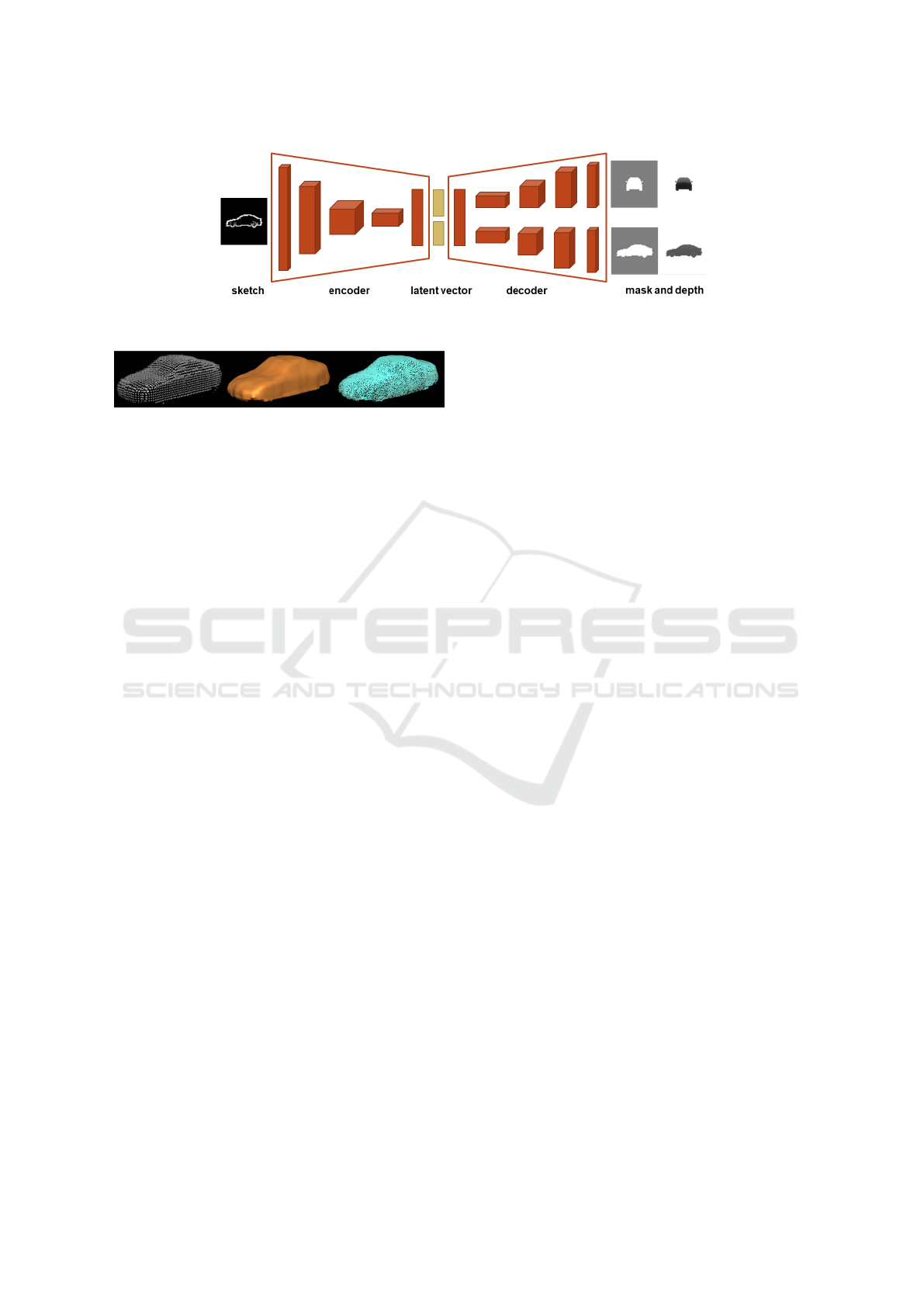

Figure 5: The encoder-decoder network structure.

Figure 6: From left to right: the reconstructed shape by the

network, the reconstructed surface, and the registered point

cloud.

ing framework, a rough 3D point cloud is recon-

structed as a post-processing steping step. Speciﬁ-

cally, a point cloud that represents part of the car can

be computed from the mask and depth image pair in

each view. The shape of the whole vehicle can be re-

constructed by combining the point clouds extracted

from all views (Figure 6 (left)). Next, Poisson surface

reconstruction is applied to the point cloud to recon-

struct the entire surface of the car (Figure 6 (middle)).

The surface of the car enables us to sample points uni-

formly, which facilitates the point cloud registration

process. This step is equivalent to the point cloud

standardization process as in the database creation

(Section 3.3). Finally, the registered point cloud (Fig-

ure 6 (right)) computed from the output of our pro-

posed deep learning framework can be compared with

our car database in the lazy learning stage in Section

4.4 Implementation

The system is implemented in Tensorﬂow. For opti-

mization, we use Adam solver with a learning rate 1e-

5. The decoder has a dropout ratio of 0.5 except for

the last layer. We use ReLU as the activation func-

tion for the hidden layers in the encoder, and Leaky

ReLU for that in the decoder, as in pix2pix (Isola

et al., 2017). We use tanh as the activation function

for output layers. To speed up the system, the resolu-

tion of the input images in VAE is only 64 × 64. We

train the system using the data generated by data aug-

mentation, and test the system with the original data

from ShapeNet (Chang et al., 2015). This ensures that

accurate testings are done with unaltered data.

5 LAZY LEARNING FOR FINE

DETAILS

While the main bodies of cars share a lot of common

geometric similarities, the ﬁne details such as side

mirrors and rear wings can be different. Learning a

global model from all cars for ﬁne details is there-

fore highly ineffective. Motivated by the success of

lazy learning in mesh processing (Chai and Hodgins,

2005; Shen et al., 2018; Ho et al., 2013), we propose

to adapt lazy learning to reconstructed the details of

the car shape.

Unlike traditional machine learning approaches

that generalize data in the whole database as a pre-

process, lazy learning postpones the generalization

to run-time (Chai and Hodgins, 2005). As a result,

lazy learning can utilize run-time information to limit

the scale of learning. In particular, given a run-time

query, relevant data in the database can be extracted

and a small scale learning process can be performed.

Due to the consideration of the most relevant data,

the common features can be represented, even though

those features may be insigniﬁcant on a global scale.

Also, the similarity of relevant data allows lazy learn-

ing to use a much lower dimensional latent space

comparing to traditional methods.

5.1 Relevant Data Search

Here, we explain how we search for relevant data

from the database to perform lazy learning. Given a

car shape generated in Section 4, we search for the k

nearest samples from the database. As the point cloud

is registered (i.e., it aligns with a pre-deﬁned template

car shape), we can effectively calculate the distance

using the sum of Euclidean distances from all points

between two point clouds. However, such a search

may focus too much on ﬁne details, which the gener-

ated car shape does not have, and is slow due to the

high dimensionality of the point clouds.

As a solution, we propose to apply Principal Com-

ponent Analysis (PCA) onto the position of the point

Single Sketch Image based 3D Car Shape Reconstruction with Deep Learning and Lazy Learning

185

clouds to generate a search space, instead of using

the Cartesian space. Searching with the more impor-

tant components of PCA allows a faster search with

less focus of ﬁne details. From the experiments, we

found that the ﬁrst 40 components can represent the

point cloud with 10, 000 3D points reasonably well,

with around 90% of accumulated variance ratio. We,

therefore, perform a database search by considering

the root mean square distances of the 40 PCA com-

ponents to ﬁnd k nearest neighbours. Empirically, we

found that setting k = 5 produces good results.

5.2 Learning and Optimization in Local

Space

With the k nearest neighbours selected from the

database, we can then learn a small subspace with

PCA. Since these neighbours are similar to each other,

the details of the shape can be well preserved with a

smaller number of components. In such a subspace,

we optimize a set of eigenvalues to construct a car

shape that is as similar as possible to the one gen-

erated by deep learning. We then back project the

eigenvalues to formulate a car shape with shape de-

tails such as the headlight, which is served as our ﬁnal

output.

We utilize the 3D Morphable Model (Blanz and

Vetter, 1999) to optimize the eigenvalues of the con-

sidered components with a non-linear optimization

process. To evaluate the distance between the opti-

mizing shape and target shape, we utilize the Carte-

sian space. Since the point clouds are registered, a

simple point-to-point Euclidean distance works well.

Obtaining the Cartesian representation of the optimiz-

ing shape is simple - we back-project the optimized

eigenvalues to the Cartesian space.

To further improve the optimization process, we

ﬁnd that a simple pre-process can help to construct an

even more representative local PCA space with the k

nearest neighbours. The idea is based on the observa-

tion that there are still small variations in car shapes

within the k nearest neighbours, which distracts the

system from the main objective of obtaining the de-

tailed shape features. As a solution, we pre-optimize

each of these shape using the same 3D Morphable

Model-based optimization process described above,

such that they all have a similar car shape with the

target one, before we construct the local PCA space.

This way, the signiﬁcant components of the local PCA

space can represent more on the detailed shape fea-

tures.

6 EXPERIMENTAL RESULTS

In this section, we will ﬁrst present the experimen-

tal results on reconstructing 3D car shape from input

sketches. Next, we quantitatively analyze the training

loss during the training process to show the conver-

gence of the proposed framework. Finally, an abla-

tion test will be presented to demonstrate the results

obtained from different decoder network architectures

and justify our choice.

The training of the deep learning system is per-

formed with an NVIDIA TITAN X Pascal GPU that

has 12GB VRAM. With the batch size of 32, the train-

ing ﬁnishes within a day. The run-time system is per-

formed on a lower-end computer with an NVIDIA

GeForce 1060 GPU that has 3GB VRAM, an Intel

Core i7-6700K CPU and 16GB of RAM. The recon-

struction of a car takes around 15 seconds to ﬁnish,

with 5 seconds on car shape reconstruction (i.e., deep

learning) and 10 seconds on reconstruction detail fea-

tures (i.e., lazy learning).

6.1 Reconstructing 3D Shape from

Input Sketches

Since different users may have different drawing

styles (e.g. more cartoon-like), real-world sketches

are not objective to evaluate the performance of the

proposed system. As a result, we utilize the synthetic

sketch images for testing.

Figure 8 shows the system output during each of

the processing steps, including the input sketches, the

meshes constructed from depth images (i.e., the out-

put of deep learning), registered point clouds from

those meshes and detailed added point clouds (i.e.,

the output of lazy learning). It can be observed that

the car shapes constructed by deep learning already

have similar car body with the input sketch. The ﬁnal

results with the detailed added by the lazy learning

are highly realistic, with side mirrors and rear wings.

More results can be found in Figure 1. However, de-

tails like grilles or wheels are not encoded well for

practical use of games or movies. The EMD registra-

tion process can cause such low-quality appearances

because EMD is based on optimal transportation with

global distribution, which can ignore small features.

Also, the converting process into point clouds can

reduce mesh resolution that is closely related to de-

tails. We will consider landmarks on 3D mesh in

the sampling and registration process. Furthermore,

the input sketches can affect appearance because of

sparse information comparing with photorealistic im-

ages. Feature extraction from sketches is still an open

problem in the ﬁeld of deep learning, so we will up-

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

186

(a) Depth Loss (b) Mask Loss (c) Laplacian Loss (d) KL Loss (e) Total Loss

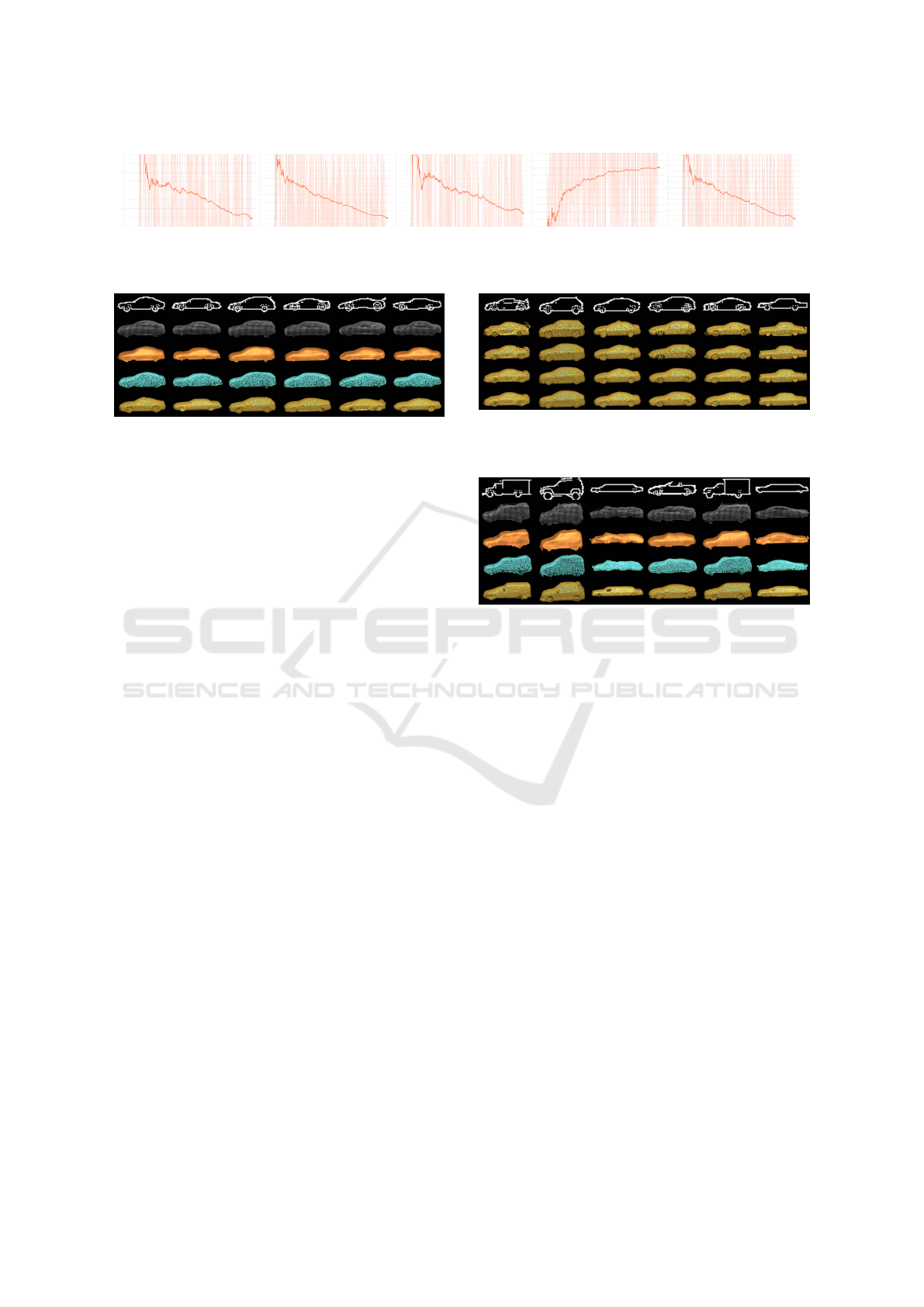

Figure 7: Losses across epoch during the training stage.

Figure 8: Intermediate outputs. From top to bottom:

sketches, meshes from generated depth images, recon-

structed surfaces, sampled point clouds on surfaces, and

point clouds with details.

date our network structure. An interactive sketch-

based system will improve appearance as well.

We found that while the point clouds generated

closely resemble real cars, the generated mesh may

have artefacts around sharp edges. This is due to a

well-known point sampling problem in which the sys-

tem samples points around sharp edges instead of the

edges themselves. When performing triangulation to

obtain the mesh from the point cloud, there can be

some zigzag pattern around those edges. We ignore

the problem here since sampling is not a major focus

of our paper, but more advanced sampling methods

such as (Gauthier and Poulin, 2009) can be employed

if needed.

Figure 9 shows the effect of k in lazy learning.

Figure 9 shows that our system can reconstruct the

car details, and the choice of k = 5 generates good

quality of point clouds with a high level of detail. In

general, a higher k produces smoother results, while

a smaller k results in less power to reconstruct shape

that ﬁts the target. We also show some failure cases

in Figure 10, in which the generated point clouds are

either too noisy or not similar to the input sketches.

We deduce that this is likely because the car styles

related to these input sketches are not common in the

database, and the deep learning system does not learn

a stable manifold for such samples.

6.2 Training Loss

To quantitatively evaluate the effectiveness of the pro-

posed framework, the plot of different training losses

during the training process is illustrated in Figure 7.

It indicates that the training process is stable, and the

depth, mask and Laplacian losses are small when the

Figure 9: Results generated with different k. From top to

bottom: sketches, point clouds with k = 1, k = 3, k = 5 and

k = 7.

Figure 10: Lower-quality results for sketches that has few

similar samples in the database.

system converges. Notice that the KL loss works as a

constraint and thus the converging direction is upside-

down.

6.3 Ablation Tests on Different Decoder

Network Architectures

As explained in Section 4.1, decoders are used for

generating depth and mask images in different views

for reconstructing the 3D shape of the car from the

input sketches. While the images in different views

have a different appearance, they are associated with

the same underlying 3D shape. This motivated us to

share a common layer among the decoders in the net-

work design to preserve the underlying structure and

improve the consistency among all synthesized views.

In our proposed encoder-decoder network structure

(see Figure 5), each decoder consists of ﬁve layers. In

the ablation test, we vary the number of shared layers

in the decoder from 0 (i.e., not sharing any layer) to

4. The different decoder architectures are illustrated

in Figure 11.

A wide range of 3D car shapes are reconstructed

using different decoder network architectures and the

results are illustrated in Figure 12. It can be seen that

Single Sketch Image based 3D Car Shape Reconstruction with Deep Learning and Lazy Learning

187

(a) No shared layer (b) A one-layer shared (c) Two layers shared (d) Three layers shared (e) Four layers shared

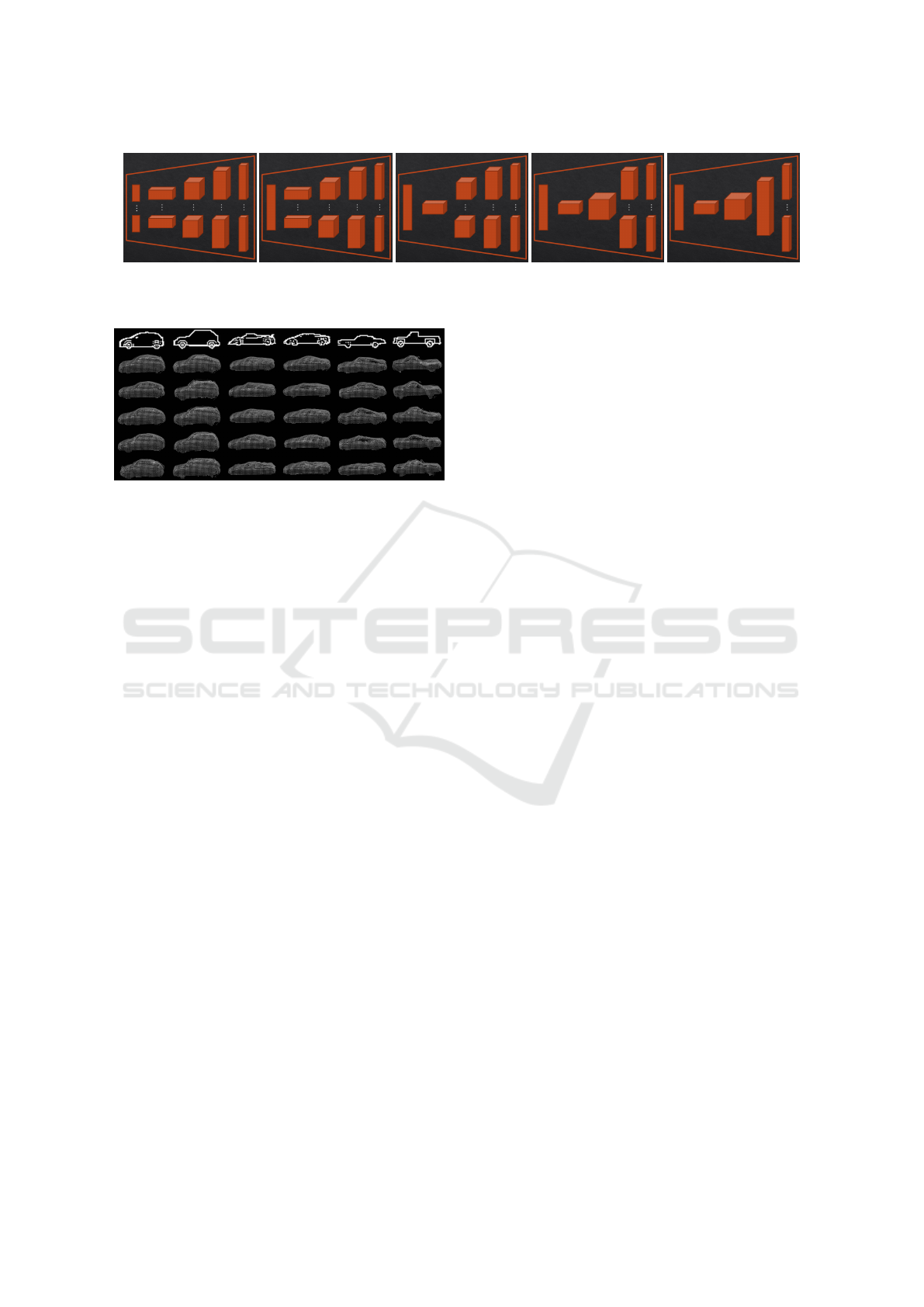

Figure 11: Different decoder network architectures for the ablation test.

Figure 12: The 3D point clouds reconstructed with different

decoder architectures. From top to bottom: input sketches,

results of the decoder with no shared layer, sharing the ﬁrst

layer, sharing the ﬁrst two layers, sharing the ﬁrst three lay-

ers, and sharing ﬁrst four layers.

our proposed decoder architecture with sharing only

the ﬁrst layer (3rd row in Figure 12) produces the best

results in terms of reproducing the car shape with a

smooth surface. On the other hand, sharing too many

layers (5th and 6th rows in Figure 12) and not shar-

ing any layer (2nd row in Figure 12) result in nois-

ier 3D point clouds, which can be caused the loss of

balance between preserving the underlying structure

among decoders and reﬁning each view. Sharing the

ﬁrst two layers (3rd row in Figure 12) also produces

results with good visual quality, however, the recon-

structed 3D shape is less similar to the input sketches

when compare with the results obtained from our pro-

posed network. This highlights the optimally of our

proposed network design.

7 SUMMARY AND FUTURE

DIRECTIONS

In this paper, we present a system to reconstruct de-

tailed 3D car shapes with a single 2D sketch im-

age. To effectively learn the correlation between

2D sketches and 3D cars, we propose a Variational

Autoencoder (VAE) with an intermediate multi-view

depth image representation as to the output, and con-

struct the 3D cars as a post-processing step. To en-

sure the volume and diversity of the training data, we

propose a feature-preserving augmentation pipeline to

synthesize more car meshes while keeping the shape

of important features such as the wheels (Figure 2).

Finally, since deep learning has limited capability in

representing ﬁne details, we propose a lazy learning

algorithm to construct a small subspace-based only

on a few relevant database samples for optimizing a

car shape with ﬁne-detail features. We show that the

system performs robustly in creating cars of substan-

tially different shape and topology, with realistic de-

tailed features included.

Since we are mainly interested in the artistic part

of car design, we focus on the exterior shape instead

of the internal mechanical parts. In fact, we remove

internal vertices when we construct the car database

for a more efﬁcient training process. In the future, we

would like to research on the engineering aspect of

car design, by considering the necessary space to ﬁt

in different mechanical parts such as different models

of engines.

One future direction is to look into the gap be-

tween synthetic and real-world sketches. We utilize

a Laplacian ﬁlter to synthesize sketch images. While

that is an effective method to generate sketches, we

observe that real-world images could be different de-

pendent on the users. For example, some users may

not draw straight lines or perfect circles. Also, real-

world sketches have variations in pen stroke, paper,

and colour. We are interested in transfer learning tech-

niques to bridge the gap between synthetic and real-

world sketches. We also look forward to fully evalu-

ate the system by introducing different drawing styles

of real-world sketch images.

We use multi-view depth images as an intermedi-

ate representation in the VAE network. The two ma-

jor advantages are that we do not need to deal with 3D

deep learning, which is memory hungry and compli-

cated to train, as well as we can have more explicit 2D

to 2D correlation in the VAE network. Right now, we

combine the depth images as a post-processing step.

However, it is possible to consider them as a mean of

rectifying the output space, and construct extra layers

to learn the regression between multi-view depth im-

ages and 3D shapes. One future direction is to explore

network architectures for this purpose, and introduce

more views of depth images in a middle layer of the

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

188

network for supervision.

We employ lazy learning in reconstructing the de-

tails of the cars. Such an approach is robust and

effective, but it requires a run-time search on a k-

nearest neighbour, which could be time-consuming

if the database is large. In the future, we will con-

sider advanced data structures such as k-d trees or

landmark-based k-mean clustering to speed up the

searching process.

ACKNOWLEDGEMENTS

This project was supported in part by the Royal So-

ciety (Ref: IES\R2\181024 and IES\R1\191147)

and the Defence and Security Accelerator (Ref:

ACC6007422) and JST ACCEL (JPMJAC1602) and

JST-Mirai Program (JPMJMI19B2) and JSPS KAK-

ENHI (JP19H01129).

REFERENCES

Akenine-M

ollser, T. (2001). Fast 3d triangle-box overlap

testing. Journal of Graphics Tools, 6(1):29–33.

Amberg, B., Romdhani, S., and Vetter, T. (2007). Opti-

mal step nonrigid icp algorithms for surface registra-

tion. In 2007 IEEE Conference on Computer Vision

and Pattern Recognition, pages 1–8.

Blanz, V. and Vetter, T. (1999). A morphable model for

the synthesis of 3d faces. In Proceedings of the 26th

Annual Conference on Computer Graphics and Inter-

active Techniques, SIGGRAPH ’99, pages 187–194,

New York, NY, USA. ACM Press/Addison-Wesley

Publishing Co.

Chai, J. and Hodgins, J. K. (2005). Performance animation

from low-dimensional control signals. ACM Trans.

Graph., 24(3):686–696.

Chang, A. X., Funkhouser, T., Guibas, L., Hanrahan, P.,

Huang, Q., Li, Z., Savarese, S., Savva, M., Song, S.,

Su, H., Xiao, J., Yi, L., and Yu, F. (2015). ShapeNet:

An Information-Rich 3D Model Repository. Techni-

cal Report arXiv:1512.03012 [cs.GR], Stanford Uni-

versity — Princeton University — Toyota Technolog-

ical Institute at Chicago.

Charles, R. Q., Su, H., Kaichun, M., and Guibas, L. J.

(2017). Pointnet: Deep learning on point sets for 3d

classiﬁcation and segmentation. In 2017 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 77–85.

Chen, Q. and Koltun, V. (2017). Photographic image syn-

thesis with cascaded reﬁnement networks. In Proceed-

ings of the IEEE International Conference on Com-

puter Vision, pages 1511–1520.

Choy, C. B., Xu, D., Gwak, J., Chen, K., and Savarese, S.

(2016). 3d-r2n2: A uniﬁed approach for single and

multi-view 3d object reconstruction. In The European

conference on computer vision (ECCV). Springer.

Corsini, M., Cignoni, P., and Scopigno, R. (2012). Efﬁ-

cient and ﬂexible sampling with blue noise properties

of triangular meshes. IEEE Trans. on Visualization

and Computer Graphics, 18(6):914–924.

Delanoy, J., Aubry, M., Isola, P., Efros, A., and Bousseau,

A. (2018). 3d sketching using multi-view deep volu-

metric prediction. Proceedings of the ACM on Com-

puter Graphics and Interactive Techniques, 1(21).

Eitz, M., Hildebrand, K., Boubekeur, T., and Alexa, M.

(2011). Sketch-based image retrieval: Benchmark and

bag-of-features descriptors. IEEE Trans. on Visualiza-

tion and Computer Graphics, 17(11):1624–1636.

Fan, H., Su, H., and Guibas, L. J. (2017). A point set gener-

ation network for 3d object reconstruction from a sin-

gle image. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 605–

613.

Gauthier, M. and Poulin, P. (2009). Preserving sharp edges

in geometry images. In Proceedings of Graphics

Interface 2009, GI ’09, pages 1–6, Toronto, Ont.,

Canada, Canada. Canadian Information Processing

Society.

Gingold, Y., Igarashi, T., and Zorin, D. (2009). Struc-

tured annotations for 2d-to-3d modeling. ACM Trans.

Graph., 28(5):148:1–148:9.

uler, R. A., Neverova, N., and Kokkinos, I. (2018). Dense-

pose: Dense human pose estimation in the wild. In

2018 IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 7297–7306.

Groueix, T., Fisher, M., Kim, V. G., Russell, B. C., and

Aubry, M. (2018). Atlasnet: A papier-m\ˆ ach\’e

approach to learning 3d surface generation. arXiv

preprint arXiv:1802.05384.

Han, X., Gao, C., and Yu, Y. (2017). Deepsketch2face:

a deep learning based sketching system for 3d face

and caricature modeling. ACM Trans. Graph. (TOG),

36(4):126.

Henry, J., Shum, H. P. H., and Komura, T. (2012).

Environment-aware real-time crowd control. In Pro-

ceedings of the ACM SIGGRAPH/Eurographics Sym-

posium on Computer Animation, SCA ’12, pages 193–

200, Aire-la-Ville, Switzerland. Eurographics Associ-

ation.

Henry, J., Shum, H. P. H., and Komura, T. (2014). In-

teractive formation control in complex environments.

IEEE Trans. on Visualization and Computer Graph-

ics, 20(2):211–222.

Ho, E. S. L., Shum, H. P. H., Cheung, Y.-m., and Yuen, P. C.

(2013). Topology aware data-driven inverse kinemat-

ics. Computer Graphics Forum, 32(7):61–70.

Igarashi, T., Igarashi, T., and Hughes, J. F. (2006). Smooth

meshes for sketch-based freeform modeling. In ACM

SIGGRAPH 2006 Courses, SIGGRAPH ’06, New

York, NY, USA. ACM.

Igarashi, T., Igarashi, T., Matsuoka, S., and Tanaka, H.

(2007). Teddy: A sketching interface for 3d freeform

design. In ACM SIGGRAPH 2007 Courses, SIG-

GRAPH ’07, New York, NY, USA. ACM.

Single Sketch Image based 3D Car Shape Reconstruction with Deep Learning and Lazy Learning

189

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2017).

Image-to-image translation with conditional adversar-

ial networks. In Proceedings of the IEEE conference

on computer vision and pattern recognition, pages

1125–1134.

Joshi, P. and Carr, N. A. (2008). Repouss

e: Automatic in-

ﬂation of 2d artwork. In SBM, pages 49–55. Citeseer.

Kingma, D. P., Mohamed, S., Rezende, D. J., and Welling,

M. (2014). Semi-supervised learning with deep gener-

ative models. In Advances in neural information pro-

cessing systems, pages 3581–3589.

Kraevoy, V., Sheffer, A., Shamir, A., and Cohen-Or, D.

(2008). Non-homogeneous resizing of complex mod-

els. In ACM SIGGRAPH Asia 2008 Papers, SIG-

GRAPH Asia ’08, pages 111:1–111:9, New York, NY,

USA. ACM.

Li, C., Pan, H., Liu, Y., Tong, X., Sheffer, A., and Wang,

W. (2018a). Robust ﬂow-guided neural prediction

for sketch-based freeform surface modeling. In SIG-

GRAPH Asia 2018 Technical Papers, page 238. ACM.

Li, C., Pan, H., Liu, Y., Tong, X., Sheffer, A., and Wang,

W. (2018b). Robust ﬂow-guided neural prediction for

sketch-based freeform surface modeling. ACM Trans.

Graph., 37(6):238:1–238:12.

Li, H., Sumner, R. W., and Pauly, M. (2008). Global cor-

respondence optimization for non-rigid registration of

depth scans. Computer Graphics Forum, 27(5):1421–

1430.

Lun, Z., Gadelha, M., Kalogerakis, E., Maji, S., and Wang,

R. (2017). 3d shape reconstruction from sketches via

multi-view convolutional networks. In 2017 Interna-

tional Conference on 3D Vision (3DV), pages 67–77.

IEEE.

Nealen, A., Igarashi, T., Sorkine, O., and Alexa, M.

(2007). Fibermesh: Designing freeform surfaces with

3d curves. ACM Trans. Graph., 26(3).

Nishida, G., Garcia-Dorado, I., Aliaga, D. G., Benes, B.,

and Bousseau, A. (2016). Interactive sketching of ur-

ban procedural models. ACM Trans. Graph. (TOG),

35(4):130.

Olsen, L., Samavati, F. F., Sousa, M. C., and Jorge, J. A.

(2009). Sketch-based modeling: A survey. Computers

& Graphics, 33(1):85 – 103.

Owada, S., Nielsen, F., Nakazawa, K., Igarashi, T., and

Igarashi, T. (2006). A sketching interface for model-

ing the internal structures of 3d shapes. In ACM SIG-

GRAPH 2006 Courses, SIGGRAPH ’06, New York,

NY, USA. ACM.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017). Point-

net++: Deep hierarchical feature learning on point sets

in a metric space. In Proceedings of the 31st Interna-

tional Conference on Neural Information Processing

Systems, NIPS’17, pages 5105–5114, USA. Curran

Associates Inc.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Rusu, R. B. and Cousins, S. (2011). 3d is here: Point cloud

library (pcl). In 2011 IEEE International Conference

on Robotics and Automation, pages 1–4.

Schmidt, R., Khan, A., Singh, K., and Kurtenbach, G.

(2009). Analytic drawing of 3d scaffolds. ACM Trans.

Graph. (TOG), 28(5):149.

Sela, M., Richardson, E., and Kimmel, R. (2017). Unre-

stricted facial geometry reconstruction using image-

to-image translation. In 2017 IEEE International

Conference on Computer Vision (ICCV), pages 1585–

1594.

Shao, C., Bousseau, A., Sheffer, A., and Singh, K. (2012).

Crossshade: Shading concept sketches using cross-

section curves. ACM Trans. Graph. (SIGGRAPH Con-

ference Proceedings), 31(4).

Shen, Y., Henry, J., Wang, H., Ho, E. S. L., Komura, T.,

and Shum, H. P. H. (2018). Data-driven crowd motion

control with multi-touch gestures. Computer Graph-

ics Forum, 37(6):382–394.

Shen, Y., Yang, L., Ho, E. S. L., and Shum, H. P. H. (2019).

Interaction-based human activity comparison. IEEE

Trans. on Visualization and Computer Graphics.

Shtof, A., Agathos, A., Gingold, Y., Shamir, A., and

Cohen-Or, D. (2013). Geosemantic snapping for

sketch-based modeling. Computer Graphics Forum,

32(2pt2):245–253.

Shum, H. P. H., Ho, E. S. L., Jiang, Y., and Tak-

agi, S. (2013). Real-time posture reconstruction

for microsoft kinect. IEEE Trans. on Cybernetics,

43(5):1357–1369.

Tatarchenko, M., Dosovitskiy, A., and Brox, T. (2017). Oc-

tree generating networks: Efﬁcient convolutional ar-

chitectures for high-resolution 3d outputs. In The

IEEE International Conference on Computer Vision

(ICCV).

Thorne, M., Burke, D., and van de Panne, M. (2004). Mo-

tion doodles: An interface for sketching character mo-

tion. ACM Trans. Graph., 23(3):424–431.

Turquin, E., Wither, J., Boissieux, L., Cani, M., and

Hughes, J. F. (2007). A sketch-based interface for

clothing virtual characters. IEEE Computer Graphics

and Applications, 27(1):72–81.

Umetani, N. (2017). Exploring generative 3d shapes us-

ing autoencoder networks. In SIGGRAPH Asia 2017

Technical Briefs, SA ’17, pages 24:1–24:4, New York,

NY, USA. ACM.

Wang, P.-S., Liu, Y., Guo, Y.-X., Sun, C.-Y., and Tong,

X. (2017). O-cnn: Octree-based convolutional neural

networks for 3d shape analysis. ACM Trans. Graph.,

36(4):72:1–72:11.

Wang, T., Liu, M., Zhu, J., Tao, A., Kautz, J., and Catan-

zaro, B. (2018). High-resolution image synthesis and

semantic manipulation with conditional gans. In 2018

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 8798–8807.

Xiang, Y., Mottaghi, R., and Savarese, S. (2014). Beyond

pascal: A benchmark for 3d object detection in the

wild. In IEEE Winter Conference on Applications of

Computer Vision, pages 75–82.

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

190
