A Multi-purpose RGB-D Dataset for Understanding Everyday Objects

Shuichi Akizuki and Manabu Hashimoto

Department of Engineering, Chukyo University, Nagoya, Aichi, Japan

Keywords:

Dataset Generation, Semantic Segmentation, Affordance, 6DoF Pose Estimation.

Abstract:

This paper introduces our ongoing work which is a project of establishing a novel dataset for the benchmarking

of multiple robot vision tasks that aims to handle everyday objects. Our dataset is composed of 3D models,

RGB-D input scenes and multi-type annotations. The 3D models are full-3D scan data of 100 everyday

objects. Input scenes are over 54k RGB-D images that capture the table-top environment, including randomly

placed everyday objects. Our dataset also provides four types of annotation: bounding boxes, affordance

labels, object class labels, and 6 degrees of freedom (6DoF) poses. These are labeled for all objects in an

image. These annotations are easily assigned to images via an original 6DoF annotation tool that has a simple

graphical interface. We also report benchmarking results for modern object recognition algorithms.

1 INTRODUCTION

Achieving human-like tool use using robotic arms is

one of the important goals for intelligent robotics.

Object detection, segmentation and 6 degrees of free-

dom (6DoF) pose estimation are an effective way to

reach this goal. Recent state-of-the-arts deep-learning

techniques have been enabled robot arms to accu-

rately recognize and grasp target objects. For exam-

ple, Single shot multibox detector (SSD) (Liu et al.,

2016) can detect multiple objects in real time from

RGB images. Dex-Net 4.0 (Mahler et al., 2019) can

detect the suitable grasping regions for picking up

randomly stacked objects with a reliability greater

than 95%.

However, these methods are not enough for

human-like tool use. They dont understand the ap-

propriate regions that carry out the speciﬁc tasks for

tool use. In the case of the object detection, a robot

can understand the position of a mug as a bounding

box, but it cannot provide information about the re-

gion that could contain liquid.

Understanding the affordance (the functionality of

a parts shape) is also an effective way to achieve

human-like tool use (Do et al., 2018). In the case

of a hammer, the grip part can be used to grasp and

the head part can be used to pound another object.

These parts are used to apply the tasks of grasping and

pounding. Affordance estimation is generally treated

as the semantic segmentation. However, preparing the

training data needs a large amount of time and labor.

In order to solve this problem, we propose a low-

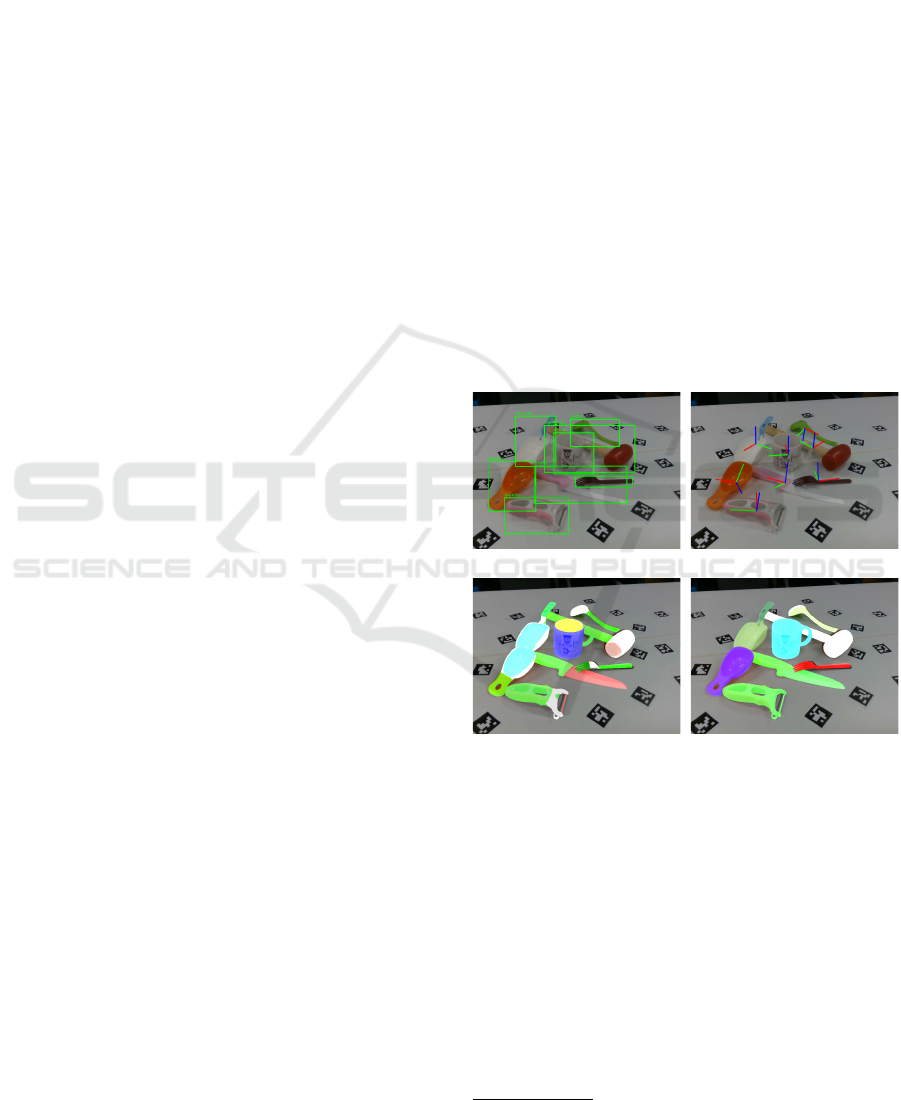

(a) Bounding box (b) 6DoF pose

Figure 1: Multiple annotations provided by proposed

dataset.

cost annotation procedure for multiple tasks includ-

ing affordance segmentation. And we have devel-

oped a novel dataset by using the proposed method.

The proposed method enables the annotation of four

kinds of information: bounding boxes, 6DoF poses

for each object, pixel-wise object class labels, and the

affordance label shown in ﬁgure 2. To the best of

our knowledge, our dataset is the largest that can be

evaluated for multiple tasks including affordance seg-

mentation. The dataset can be downloaded from our

website

. In this paper, we report the benchmark-

http://isl.sist.chukyo-u.ac.jp/archives/nedopro/

470

Akizuki, S. and Hashimoto, M.

A Multi-purpose RGB-D Dataset for Understanding Everyday Objects.

DOI: 10.5220/0009142504700475

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

470-475

ISBN: 978-989-758-402-2; ISSN: 2184-4321

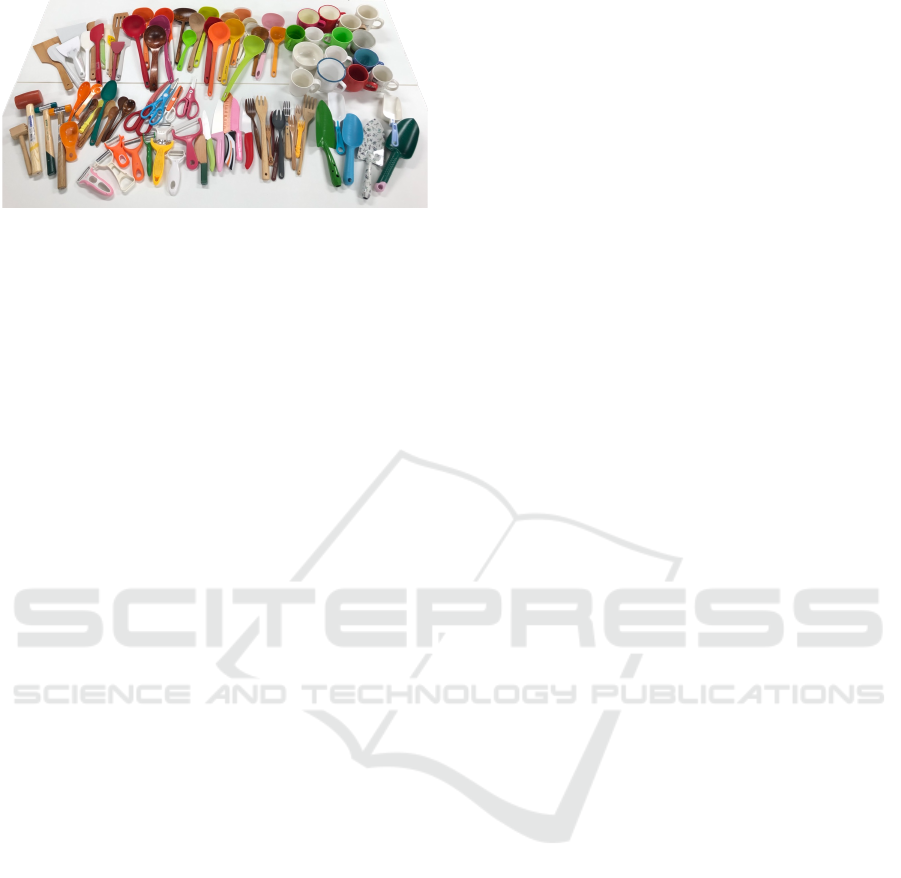

Figure 2: Kitchen and DIY tools.

ing results for object detection and segmentation us-

ing modern deep-learning architectures.

Table 1 summarizes the contents of RGB-D

datasets that can be used for evaluating multiple tasks.

RGB-D Part Affordance Dataset(Myers et al., 2015),

IIT-AFF(Do et al., 2018) and NEDO-v1(Akizuki and

Hashimoto, 2019) are the datasets for the affordance

estimation of tools. They provide pixel-wise affor-

dance labels in each image. IIT-AFF also provides

the bounding box of each tool, and NEDO-v1 pro-

vides accurate 3D models of the tools. However,

these datasets do not have annotations about the 6DoF

poses and the object class labels of each image. There

are many datasets that provide the 6DoF poses of each

object. The LINEMOD dataset(Hinterstoisser et al.,

2012), and the T-LESS dataset(Hoda

n et al., 2017)

are famous datasets used for this purpose, but they

dont have affordance information. There is no dataset

that has annotations of multiple tasks, including affor-

dance estimation.

2 PROPOSED DATASET

Our dataset is composed of 3D models of each tool,

input scenes, and annotations.

2.1 Contents

3D Models: Our dataset provides 100 full 3D ob-

ject models which captured actual objects. Table 2

shows the target objects. 10 kinds of kitchen and DIY

tools with 100 instances (see Figure 2) were precisely

modeled using a 3D scanner. The Solutionix C500 3D

scanner from Medit Inc. was used for modeling, and

mesh data comprises of roughly 500,000 vertices for

each object.

Input Scene: Input scenes are the 54,867 RGB-D

images of table-top situations which contain between

5 and 9 (average 6.67) target objects. Image resolu-

tion is 640×480. We randomly chosen and put ob-

jects on the table, and about 550 images of them were

captured by an in-hand RGB-D camera. This proce-

dure were repeated 100 times. We used an Intel Re-

alsense SR305 for capturing all images. Of the im-

ages, 43,831 were for training and the rest were for

testing.

Annotations: Our dataset provides four types of

annotation: bounding boxes, affordance labels, ob-

ject class labels, and 6DoF poses. These are labeled

for all objects in the image. Bounding boxes are pro-

vided as rectangles that tightly surround the objects.

Affordance labels are pixel-wise information that rep-

resent functionally of partial region on the object sur-

face. Table 3 shows the deﬁnition of 10 labels (9

classes + background). This deﬁnition is same as that

of the paper (Akizuki and Hashimoto, 2019). Object

class labels are pixel-wise information that represent

the object category. Eleven labels (10 classes in Ta-

ble 2 + background) were prepared. A 6DoF pose,

T = [R, t;0, 1], represents the object pose in the input

image. R is a 3 × 3 rotation matrix, and t is a 3 × 1

translation vector. 6DoF pose of all target objects are

provided.

Affordance label 3D model of each target object

are also assigned as color of mesh.

2.2 Statistics

Figure 3 shows the statistics of our dataset. Figure

3(a) shows the number of appearances of each object

class in the scene, which is composed of 100 object

layouts in total. The most frequently appeared object

class, ladle, appeared 93 times, and the least frequent,

hammer, appeared 40 times. The number of frequen-

cies is in proportion to the number of objects for each

class, which is explained in Table 2.

Figure 3(a) and (b) shows the distribution of af-

fordance labels and object class labels. Note that the

label background, which is assigned to other regions

in the image, is ignored in this ﬁgure because the fre-

quency is too higher compared to other classes. In

ﬁgure 3(b), frequency of the label grasp is relatively

higher than that of others because this label is com-

mon for all objects. The label pound is the least fre-

quent because it is only assigned to the head part of

the hammer. The distribution of the object class label

shown in ﬁgure 3(c) represents the area of each ob-

ject class. Therefore, the frequency of large objects

became higher.

A Multi-purpose RGB-D Dataset for Understanding Everyday Objects

471

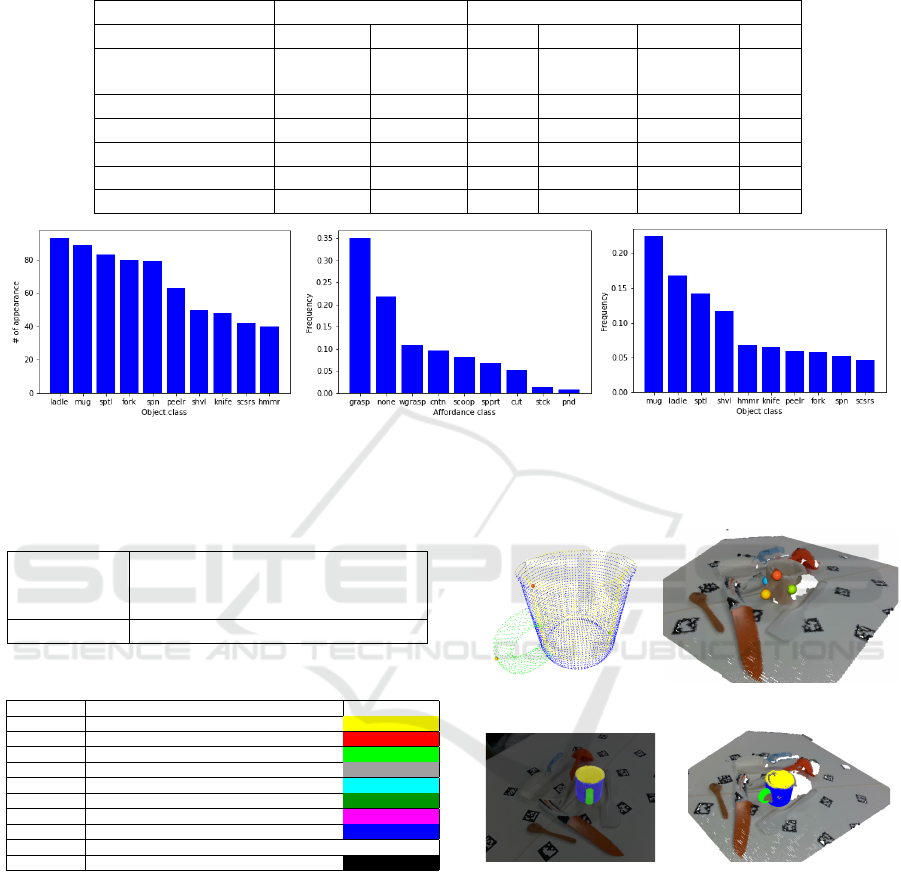

Table 1: List of RGB-D datasets that can be used for evaluating multiple tasks. Due to space limitation, some following

abbreviations are used. (BBox: Bounding box, Aff mask: Affordance mask, Obj mask: Object class mask, Pose: 6DoF pose)

Data Annotation

# images # models BBox Aff mask Obj mask Pose

RGB-D Part

Affordance Dataset

31k – – X – –

IIT-AFF 9k – X X – –

NEDO-v1 10k 72 – X – –

LINEMOD 18k 15 – – – X

T-LESS 49k 30 – – – X

Ours 54k 100 X X X X

(a) Object class wise number of appearances (b) Affordance label distribution (c) Object class label distribution

Figure 3: Dataset statistics. Some class names are abbreviated. (sptl: spatula, spn: spoon, peelr: peeler, shvl: shovel, scsrs:

scissors, hmmr: hammer, wgrasp: wrap-grasp, cntn: contain, spprt: support, stck: stick, pnd: pound.)

Table 2: Object class and the number of 3D models.

Kitchen tool

Fork(11), Knife(6), Ladle(20),

Mug(15), Peeler(9), Spatula(13),

Spoon(12)

DIY tool Hammer(4), Scissors(4), Shovel(6)

Table 3: Affordance labels and corresponding colors.

Affordance Functionality Color

Contain With deep cavities to hold liquid. (255,255,0)

Cut Used for separating another object. (255,0,0)

Grasp Can be enclosed by a hand. (0,255,0)

Pound Used for striking other objects. (160, 160, 160)

Scoop

A curved surface that gathers soft material.

(0, 255, 255)

Stick Sharp parts that can be pushed into something. (0,150,0)

Support Flat parts that can hold loose material. (255,0,255)

Wrap-grasp Can be held with the hand and palm. (0,0,255)

None Other region on objects. (255,255,255)

Background Other region outside of objects. (0,0,0)

3 ANNOTATION PROCEDURE

We used a low-cost annotation procedure (Akizuki

and Hashimoto, 2019) and enhanced it to generate

multi-type annotations for preparing our dataset. This

method allows a semi-automatic process to generate

ground-truth images with pixel-wise annotations for

input images taken from multiple viewpoints. The al-

gorithm consists of three steps, as explained below.

1. 6DoF pose annotation

2. Camera pose estimation using ArUco(Garrido-

Jurado et al., 2014)

(a) Common point picking

(b) Pose refinement by ICP (c) Annotation result

Figure 4: The annotation procedure for 6DoF pose by the

developed software.

3. Ground truth image rendering

In Step 1, the pose of each object in a reference im-

age is manually estimated. We have developed a soft-

ware that enables rapid annotation compared to that

proposed by (Akizuki and Hashimoto, 2019). Fig-

ure 4 shows an interactive annotation procedure using

our software. At ﬁrst, a user picks more than three

corresponding points from an object model M

, i =

{1, ..., n} and a reference image I; these are displayed

on screen by point cloud representation. The picked

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

472

points are shown in 4(a) as colored small spheres.

The software calculates the rigid transformation that

aligns the object model to the input scene by align-

ing the picked points and renders a transformed ob-

ject model on to the input scene as an image repre-

sentation. Users reﬁnes the transformation using an

ICP algorithm (Besl and McKay, 1992) by pressing

the key, as shown in 4(b). The ﬁnal transformation

= [R, t; 0, 1] can be checked via the 3D point cloud

viewer as shown in ﬁgure 4(c).

In Step 2, relative camera poses T

between

the reference image I and the rest of the frames

, j = {1, ..., n} are calculated by using ArUco li-

brary, which can accurately compute the pose of the

Augmented Reality (AR) markers.

Finally, in Step 3, multiple ground-truth annota-

tions (including bounding boxes, 6DoF poses, affor-

dance labels, and object class labels) are generated

based on the pose data computed in Steps 1 and 2. Ac-

cording to the results of Steps 1 and 2, the pose of the

object M

in I

can be denoted by T

. However,

the two transformations may include slight errors that

should be corrected. The object models appearing in

the scene M

are merged into a point cloud after ap-

plying the transformation T

. A transformation

for correction T

that minimizes errors between the

merged point cloud and the scene I

is calculated by

an ICP algorithm. Therefore, the ﬁnal transformation

is denoted by T

, and is applied for all object

models M

Annotations are generated by rendering them to

the images of I

. As for the affordance and object

class labels, an assigned label of each point of M

rendered. Bounding boxes are calculated from the

silhouettes of each model. The 6DoF poses of each

model M

in an image I

is T

4 EXPERIMENTS

4.1 Annotation Cost

This section discusses the annotation cost of the

proposed annotation software. One importance dif-

ference from the previous method (Akizuki and

Hashimoto, 2019) is Step 1, the 6DoF annotation

shown in ﬁgure 4(a). The previous method incremen-

tally transformed the object model via keyboard and

mouse operation. Our method only needs a few cor-

responding points to be picked from an object model

and input scene. It is conﬁrmed that the annotation

cost of this process improved from 15–20 min to 8

min.

4.2 Object Recognition Task: Setting

We have conducted the benchmarking for our dataset

using modern object recognition algorithms. Three

tasks–affordance segmentation, object class segmen-

tation and object detection–were tested. The dataset

was split into a training set and a testing set. Of the

100 layouts, 80 were used as a training set and 20

were used as a testing set. Each set has 43831 and

11036 images, respectively.

4.3 Task 1: Affordance Segmentation

In this experiment, we employed the following seg-

mentation models for comparison.

1. Fully convolutional networks (FCN-8s) (Long

et al., 2015)

2. SegNet(Badrinarayanan et al., 2017)

3. Full-resolution residual networks (FRRN-A

(Pohlen et al., 2017)

We trained each model for 150k iterations at a batch

size of 1. To evaluate recognition performance, we

used intersection over union (IoU), which is widely

used as an index for segmentation tasks. IoU scores

of each method are shown in Table 4. Figure5 shows

the result of affordance segmentation.

Mean IoU score of FRRN-A achieved a higher

score than that of others. IoU scores of affordance

class that have high frequency in ﬁgure 3(b) are rela-

tively higher compared with that of the other class.

This was the common tendency of three network

models.

4.4 Task 2: Object Class Segmentation

In this experiment, we used the same algorithms that

were used for Task 1. IoU scores of each method

are shown in Table 5. The classes mug and shovel

were composed of the affordances contain, grasp, and

wrap-grasp, and the IoU scores of these affordance la-

bels were relatively higher in the Task 1 experiment.

Therefore, it seems that the recognition performance

of two kinds of label have a correlation.

4.5 Task 3: Object Detection

In this experiment, we evaluated the performance of

object-detection tasks by comparing mean average

precision (mAP) scores for each object class. We

used SSD (Liu et al., 2016) for this experiment. mAP

scores of each object class are shown in Table 6.

A Multi-purpose RGB-D Dataset for Understanding Everyday Objects

473

Table 4: IoU score of each affordance segmentation.

Cntain Cut Grasp Pound Scoop Stick Support Wrap-grasp None BG Mean

FCN-8s 0.86 0.47 0.62 0.62 0.55 0.40 0.50 0.77 0.50 0.96 0.63

SegNet 0.62 0.42 0.62 0.33 0.47 0.31 0.00 0.76 0.44 0.96 0.49

FRRN-A 0.88 0.60 0.68 0.67 0.65 0.43 0.54 0.83 0.54 0.96 0.68

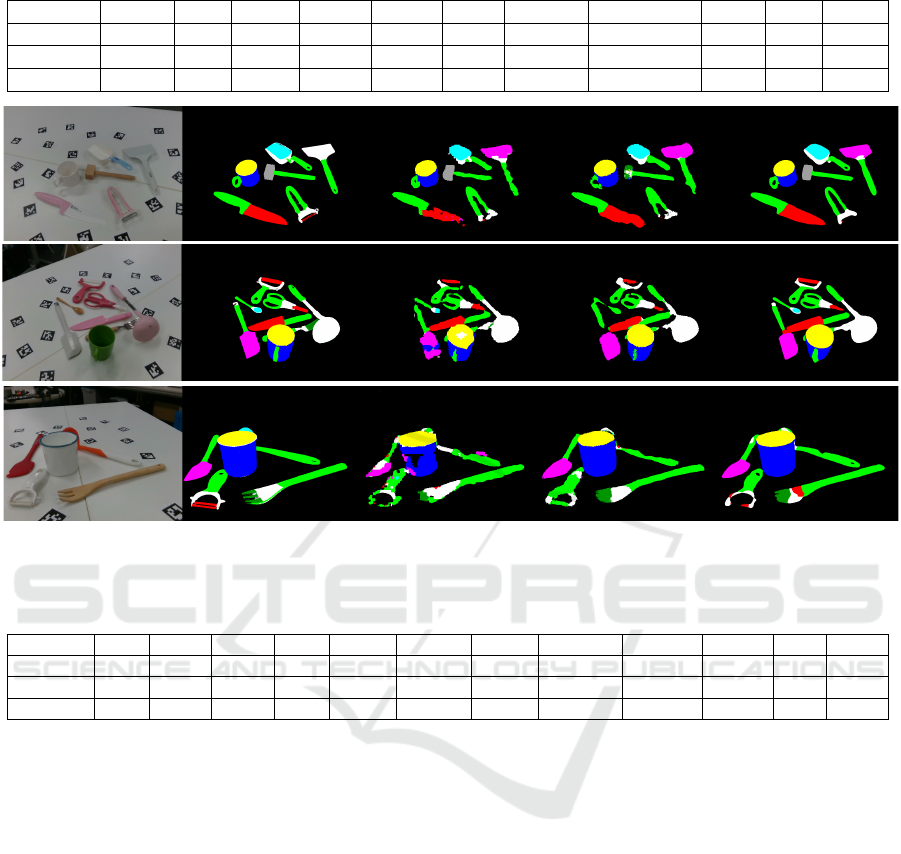

(a) Input image (b) Ground truth (c) FCN-8s (d) SegNet (e) FRRN-A

Figure 5: Result of affordance segmentation.

Table 5: IoU scores of object class segmentation.

Fork Knife Ladle Mug Peeler Spatula Spoon Hammer Scissors Shovel BG Mean

FCN-8s 0.49 0.61 0.67 0.87 0.56 0.64 0.65 0.60 0.62 0.77 0.96 0.68

SegNet 0.00 0.58 0.66 0.88 0.00 0.64 0.00 0.00 0.00 0.76 0.93 0.40

FRRN-A 0.41 0.61 0.53 0.90 0.52 0.63 0.50 0.49 0.50 0.77 0.96 0.62

Figure6 shows the result of object class segmen-

tation. It was conﬁrmed that mAP scores of the slen-

der objects (spoon, fork and hammer) were relatively

lower than that of other objects.

5 CONCLUSION

We have proposed a novel dataset for evaluating mul-

tiple robot vision tasks including object detection,

affordance segmentation, object class segmentation,

and 6DoF pose estimation. The dataset contained full

3D scans of 100 object models, 54k RGB-D scenes

and annotation for four kinds of tasks. Our dataset

is the largest that can be evaluated for multiple tasks,

including affordance segmentation, and it is enabled

to train the deep-learning architectures. We have re-

ported the benchmarking results of affordance seg-

mentation, object class segmentation, and object de-

tection. In the near future, we will expand the number

of deep-learning architectures for benchmarking and

will perform the benchmarking of 6DoF pose estima-

tion.

REFERENCES

Akizuki, S. and Hashimoto, M. (2019). Semi-automatic

training data generation for semantic segmentation us-

ing 6dof pose estimation. In International Joint Con-

ference on Computer Vision, Imaging and Computer

Graphics Theory and Applications(VISAPP).

Badrinarayanan, V., Kendall, A., and Cipolla, R. (2017).

Segnet: A deep convolutional encoder-decoder archi-

tecture for image segmentation. IEEE Transactions on

Pattern Analysis and Machine Intelligence.

Besl, P. and McKay, N. (1992). A Method for Registration

of 3-D Shapes. IEEE Transactions on Pattern Analysis

and Machine Intelligence (PAMI), 14(2):239–256.

Do, T.-T., Nguyen, A., and Reid, I. (2018). Affordancenet:

An end-to-end deep learning approach for object af-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

474

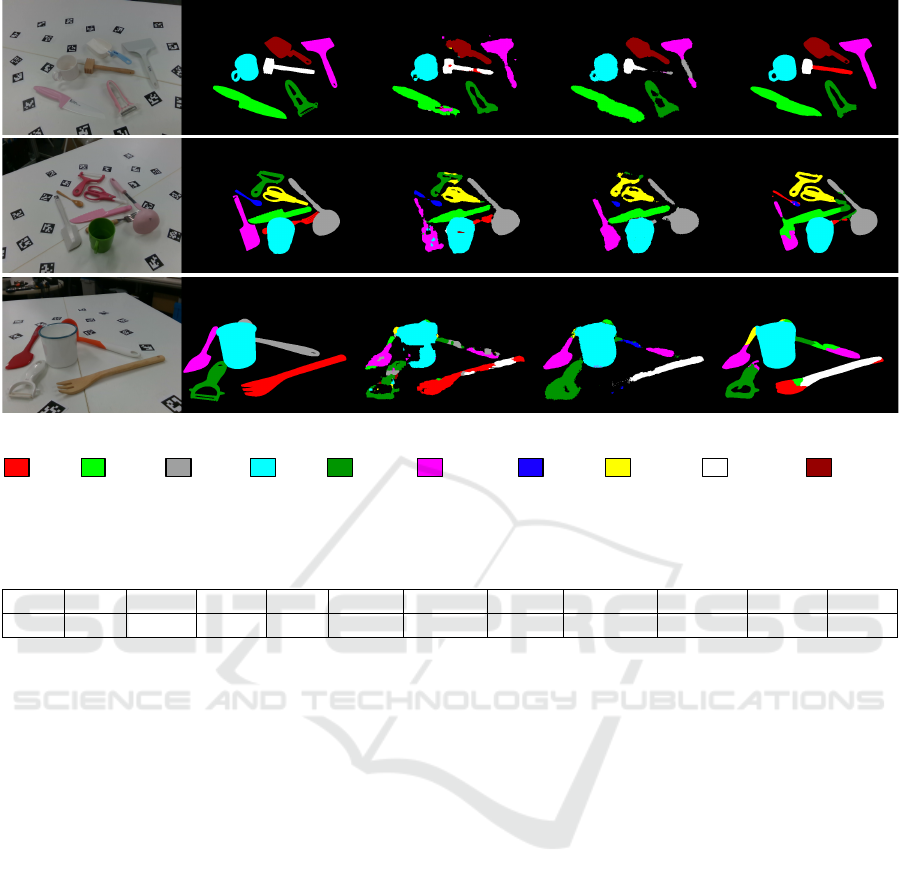

(a) Input image (b) Ground truth (c) FCN-8s (d) SegNet (e) FRRN-A

Fork Knife Ladle Mug Peeler Spatula Spoon Scissors Hammer Shovel

(f) Object class label

Figure 6: Result of object class segmentation.

Table 6: mAP scores of object detection.

Fork Knife Ladle Mug Peeler Spatula Spoon Hammer Scissors Shovel Mean

SSD 0.75 0.84 0.88 0.91 0.88 0.85 0.78 0.79 0.89 0.88 0.84

fordance detection. In International Conference on

Robotics and Automation (ICRA).

Garrido-Jurado, S., Mu

noz Salinas, R., Madrid-Cuevas, F.,

and Mar

ın-Jim

enez, M. (2014). Automatic generation

and detection of highly reliable ﬁducial markers under

occlusion. Pattern Recognition, 47(6):2280–2292.

Hinterstoisser, S., Cagniart, C., Ilic, S., Sturm, P., Navab,

N., Fua, P., and Lepetit, V. (2012). Gradient response

maps for real-time detection of texture-less objects.

IEEE Transactions on Pattern Analysis and Machine

Intelligence.

Hoda

n, T., Haluza, P., Obdr

alek,

S., Matas, J., Lourakis,

M., and Zabulis, X. (2017). T-LESS: An RGB-D

dataset for 6D pose estimation of texture-less objects.

IEEE Winter Conference on Applications of Computer

Vision (WACV).

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In European conference on com-

puter vision (ECCV), pages 21–37. Springer.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Mahler, J., Matl, M., Satish, V., Danielczuk, M., DeRose,

B., McKinley, S., and Goldberg, K. (2019). Learn-

ing ambidextrous robot grasping policies. Science

Robotics, 4(26):eaau4984.

Myers, A., Teo, C. L., Ferm

uller, C., and Aloimonos,

Y. (2015). Affordance detection of tool parts from

geometric features. In International Conference on

Robotics and Automation (ICRA), pages 1374–1381.

Pohlen, T., Hermans, A., Mathias, M., and Leibe, B. (2017).

Full-resolution residual networks for semantic seg-

mentation in street scenes. In IEEE Conference on

Computer Vision and Pattern Recognition (CVPR).

A Multi-purpose RGB-D Dataset for Understanding Everyday Objects

475
