Elements of Hybrid Opto-superconducting

Convolutional Neural Networks

A. E. Schegolev

1,2,3 a

, N. V. Klenov

1,2,3,4 b

, M. V. Tereshonok

and S. S. Adjemov

Faculty of Physics, Lomonosov Moscow State University, 119991, Moscow, Russia

Moscow Technical University of Communication and Informatics, 111024, Moscow, Russia

Skobeltsyn Institute of Nuclear Physics, Lomonosov Moscow State University, 119234, Moscow, Russia

Moscow Institute of Physics and Technology, Dolgoprudny, 141701, Russia

Keywords: Artificial Intelligent, Integrated Photonics, Convolutional Neural Network, Neuron, Superconductor, ReLU.

Abstract: In this paper authors proposed the concepts and principals of operating of basic nonlinear elements for hybrid

opto–superconducting convolutional neural network. Optical elements in computing systems are usually

designed to produce only linear mathematical operations. This is insufficient for complete neural network

realization on chip, where non-linear operations like activation function calculations in neuron or transfer

function of rectifier linear unit are needed. We have shown the opportunity of realization of elemental base

for the hybrid neural network consists of optical and superconducting parts.

1 INTRODUCTION

The creation of the hybrid architecture of neural

networks for physical and mathematical calculations

is an intriguing area of research for today. In this area,

further strengthening of the positions of alternative

element bases for computing systems is observed. In

particular, an attempt to combine optical and

superconducting physical processes in a hybrid neural

network was provided in 1990 by Harold H. Szu (Szu,

1990). He has developed a neural architecture in the

form of lattice of superconducting wires, in which

local currents (and magnetic fields) in

superconductive matrix was governed by

electromagnetic (optical) radiation. This invention

was proposed as “switching” mechanism in digital or

analog applications in a superconducting

computation. In this paper, we propose updating the

concept of hybrid opto-superconducting neural

networks with a magnetic representation of

information. Particular attention will be given below

to nonlinear network elements optimized for the

currently used version of neural networks.

https://orcid.org/0000-0002-5381-3297

https://orcid.org/0000-0001-6265-3670

2 CONVOLUTIONAL NEURAL

NETWORK

The widely used architecture of artificial neural

networks is convolutional neural networks, was

proposed by Yann LeCun in 1988. The main purpose

of these networks are the recognition and analysis of

images, by identifying important key features and

screening of insignificant ones. The idea of

convolutional networks as well as conventional

ANNs appeared thanks to the analysis of the structure

of the visual cortex of the animals’ brain. Individual

cortical neurons respond to stimuli only in a limited

area of the visual field known as receptive field

(Matsugu, 2003). The receptive fields of different

neurons partially overlap thus it leads to the covering

of the entire field of view. This feature tried to

implement in artificial convolutional neural networks

(CNN).

The advantages of CNN over the conventional

ANN architectures is that they use relatively little pre-

processing compared to other image classification

algorithms. It means that the network learns to use

some filters, for which usual networks are manually

configured. The ability of CNN to create filters itself

Schegolev, A., Klenov, N., Tereshonok, M. and Adjemov, S.

Elements of Hybrid Opto-superconducting Convolutional Neural Networks.

DOI: 10.5220/0009100101350139

In Proceedings of the 8th International Conference on Photonics, Optics and Laser Technology (PHOTOPTICS 2020), pages 135-139

ISBN: 978-989-758-401-5; ISSN: 2184-4364

135

that separate the key features of the image is its key

advantage.

The general architecture of CNN is not a secret

and mainly consists of convolutional layers, an

activating layer, a downsampling layer or pooling

layer and a fully connected neural network layer

(usually a perceptron type is used). We will mainly be

interested in the activating layer the distinctive

feature of which is a presence of some function,

filtering coming to the input scalar coefficients of the

convolutional layer. Rectifier linear unit (ReLU) is

exactly that element of CNN performing the role of

this feature (Hahnloser, 2000), which can be

mathematically expressed as f(x)=max{0, x}. ReLU is

a filter of negative values, which allows one to

increase the nonlinear properties of the decision

function and the network as a whole. It doesn’t affect

the receptive fields of the convolutional layer itself

(Glorot, Bordes, Bengio, 2011). In addition, ReLU

allows to train CNN in several times faster than the

other functions (hyperbolic tangent function, sigmoid

function) without compromising of the generalizing

features of the network (Nair, Hinton, 2010).

Moreover, this function and its modifications (Noisy

ReLU, Leaky ReLU) are the most often used

activation functions in deep learning networks, in

particular, convolutional neural networks.

ReLU is an inherent element of the CNN and its

implementation on a superconducting base will allow

the creation of a hybrid opto-superconducting CNN.

As a rule, the so-called softmax function or leaky

ReLU (which allows for a small, non-zero gradient

when the unit is saturated and not active) are used,

which show the best network performance (Maas et

al, 2013).

For superconducting ReLU realization we present

in the paper superconducting neuron scheme, that was

developed in (Schegolev et al, 2016; Soloviev et al,

2018; Klenov et al, 2018). The main idea of the

proposed scheme is shown in the Figure 1a. Here l,

out

and l

are inductances normalized as l=2πLI

/Φ

where I

– critical Josephson junction, Φ

– magnetic

flux quantum, and all φ like phases normalized (

φ=Φ/Φ

et cetera). The neuron activation function is

a nonlinear sigmoid function (Figure 1b), and its part

can be used as transfer function of leaky ReLU (red

line in Figure 1b), which consists of two linear parts

and one nonlinear section. Study of this non-linear

part will be devoted to this paper.

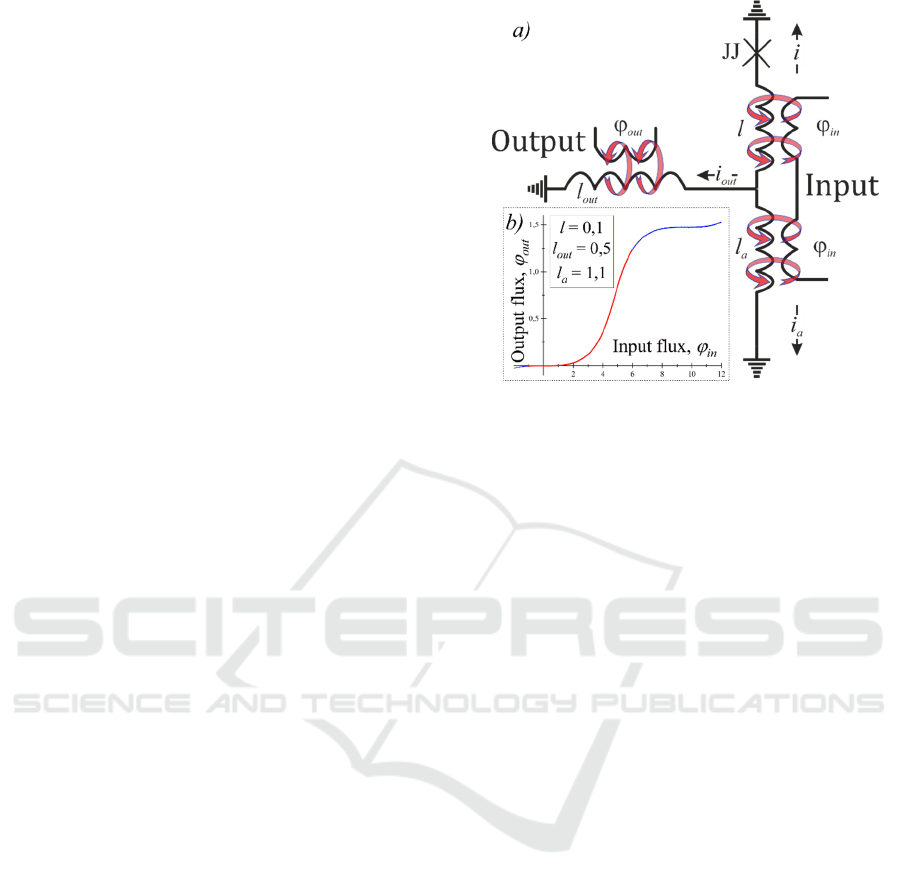

Figure 1: a) Principal scheme of superconducting neuron.

b) Transfer function of neuron (blue line) and softmax

function or leaky ReLU (red line) for l=0.1, l

out

=0.5 and

=1.1.

3 ReLU TRANSFER FUNCTION

Before we begin to analyze the functioning of

superconducting ReLU, it is necessary to determine

the operating point of the transfer characteristic

function with which we are going to work. To begin

with, we should shift the transfer function so that the

first linear section falls on the negative values of the

external input flux, while the rest – on the positive

part thus expected ReLU’s characteristic should

filtering almost all negative input meanings. For this,

it is necessary to apply some additional constant

magnetic signal into the input flux, the absolute value

of which will shift transfer function of neuron to the

left or right depending of the sign.

3.1 Mathematical ReLU

To study the opportunities of ReLU on filtering input

signals, we have applied a harmonic, time-dependent

signal s(t)=A×sin(ω

×t)+shift, where A – amplitude

of the external flux and ω

– its frequency, to the input

of this element, as shown in Figure 2. Such a choice

of circuit’s parameters is dictated by the type of

transfer characteristic, which has significant linear

sections and minimal non-linear transition between

them.

PHOTOPTICS 2020 - 8th International Conference on Photonics, Optics and Laser Technology

136

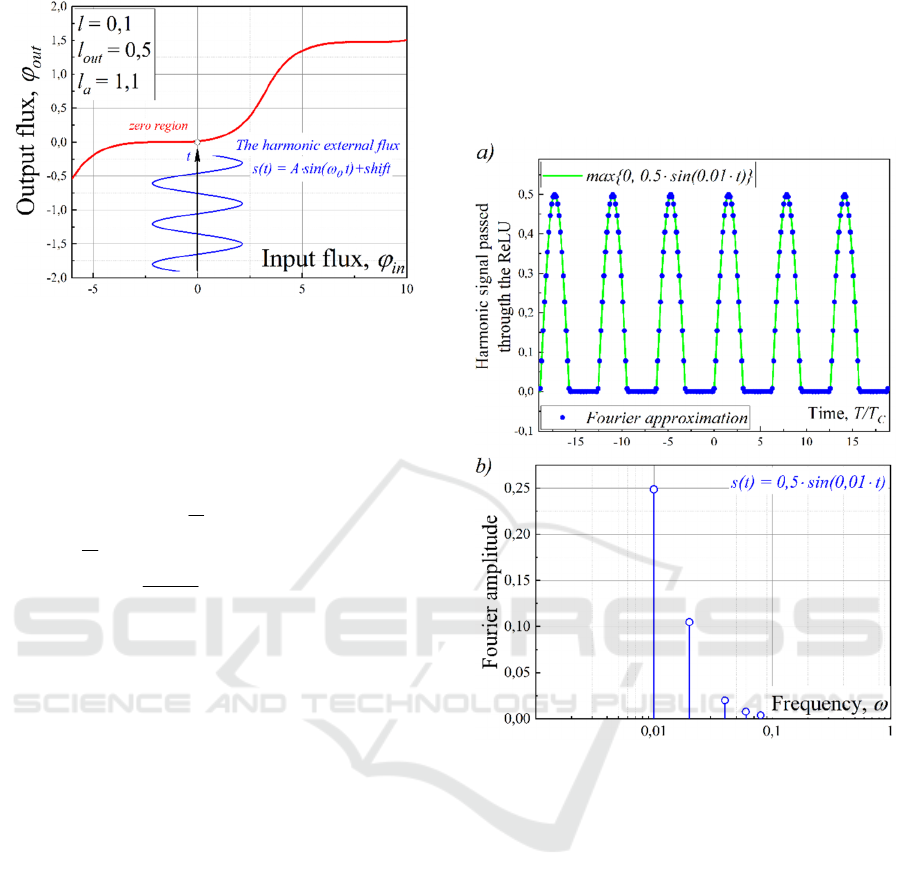

Figure 2: Illustration of applying a simple harmonic signal

to the input of ReLU scheme after selection of an operating

point at the end of the zero section.

It is in common knowledge that ideal filtering of

such signal in the form of f(x)=max{0, s(t)} have the

following Fourier spectrum:



 





 

















 













 



































(1)

where δ(ω) – is a Dirac delta-function. The filtering

signal and its Fourier spectrum showed in the

Figure 3a) and b).

It is seen that ReLU skips half the period of the

harmonic signal and the spectrum of the output signal

has the main and the next even harmonics.

3.2 Real ReLU

3.2.1 Zero Region

The transfer characteristic and spectrum of the “real”

ReLU was analyzed for “zero region”, when the

average meaning of external signal is equal to zero,

and showed in the Figure 4, with amplitude A of

external signal equal to 2 (this choice is explained by

the requirement to stay within the working range of

the transfer characteristic of real ReLU) and

frequency ω

is equal to 0.01 (for ease of

consideration). Also we should note that the value of

the shift flux φ

shift

=0.5π. It is clearly seen that the

“real” ReLU filters the external signal a little worse

than the mathematical ReLU, however, since the

“real” ReLU has a nonlinear transfer characteristic,

additional harmonics - odd ones - are present in the

output signal spectrum. In addition, since initially the

characteristic of the “real” ReLU was taken from the

periodic activation function of the neuron, a

limitation is placed on the amplitude of the incoming

harmonic signal - when a certain value is exceeded,

the signal “climbs” beyond the operating range and

additional distortions appear in the output signal.

Figure 3: The result of passing through a mathematical

ReLU a simple harmonic signal and its approximation using

the Fourier series (a) and the Fourier spectrum of the output

signal (b).

3.2.2. Linear Region

For completeness of the analysis of the proposed

solution for the implementation of ReLU, it is also

necessary to evaluate the degree of linearity of the

second linear section, for which the operating point

will be shifted so that the doubled amplitude of the

input signal fits completely within. In this case the

value of the shift flux φ

shift

=1.5π, other parameters of

the external signal stay the same (see Figure 5).

The result of transmitting the external harmonic

signal through ReLU with an operating point lying on

a linear section is shown below on the Figure 6. At

the first sight, the signal is passed through without

distortion and only multiplied by the corresponding

weight of the rectifier. However, Fourier analysis

shows that in the spectrum of the output signal, even

Elements of Hybrid Opto-superconducting Convolutional Neural Networks

137

with small amplitudes of the external signal, higher

harmonics are still present and it is obvious that with

an increase in the amplitude of the signal, their total

contribution to the nonlinearity of the output signal

also increases.

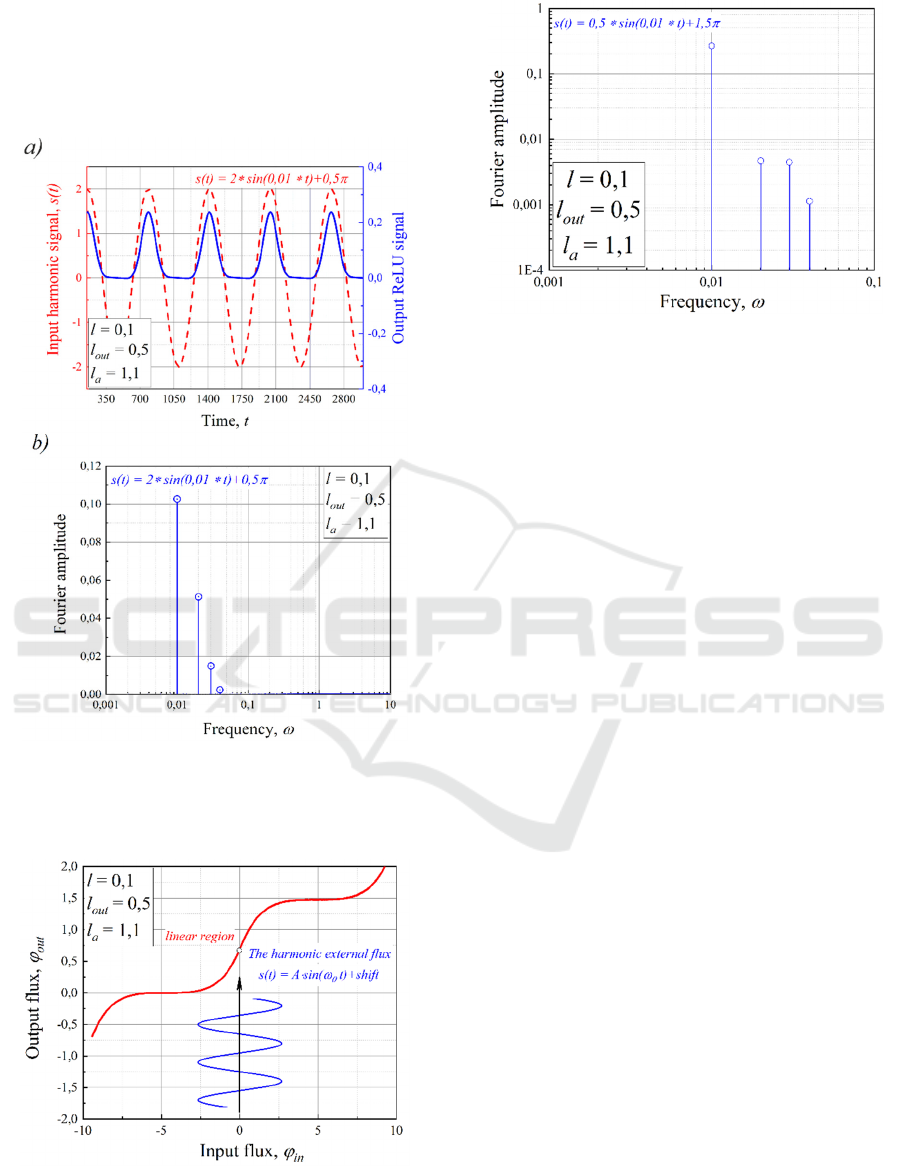

Figure 4: An example of transmitting a harmonic signal

through the real ReLU when selecting an operating point at

the zero part of the transfer characteristic (a) and the Fourier

spectrum of the output signal (b).

Figure 5: Illustration of applying a simple harmonic signal

to the input of ReLU scheme when selecting an operating

point in the middle of the linear section.

Figure 6: Fourier spectrum of the output signal from real

ReLU transfer function during of transmitting a harmonic

signal for the case of an operating point at the linear part of

the transfer characteristic.

4 CONCLUSIONS

In conclusion, this article was devoted to the inherent

element of convolutional neural networks – rectifier

linear unit (ReLU) with single-clock “calculation” of

transfer function as a non-linear part of hybrid opto-

superconducting neural networks. The functionality

of this cell was based on the superconducting neuron,

investigated earlier (Schegolev et al, 2016; Soloviev

et al, 2018), and the parameters of which were

selected so that the transfer characteristic could be

approximated as accurately as possible by a

mathematical form of ReLU over a fairly wide range

of changes in the external magnetic flux. Due to the

physical features of the implementation of this

element, it is not possible to accurately repeat the

transfer characteristic of mathematical ReLU,

however, it is not so necessary, while leaky ReLU

copes with its task. The degree of suitability of the

developed element was evaluated using the Fourier

analysis apparatus. The numerical simulation

methods were used and the spectrum of the output

signal from “real” ReLU was obtained. A comparison

was performed for the results obtained for

mathematical and real ReLU, which showed a good

correlation of its transfer characteristics.

How it was mentioned above, the developed cell

should be considered from the perspective of using it

as a leaky ReLU, performed a role of basic element

in a complex of hybrid opto-superconducting neural

networks, which does not cut off all the negative

values of the input signal. The linear optical part of

the computing system should be implemented as a

network of waveguides on a chip (Shainline, 2017;

PHOTOPTICS 2020 - 8th International Conference on Photonics, Optics and Laser Technology

138

Shainline, 2019). Bidirectional optoelectronic

interfaces can be made on the basis of

superconducting single-photon detectors and

cryogenic n-Trons (Buckley, 2017; Bogatskaya,

2018; Zheng, 2019).

The obtained characteristics of the “real” ReLU

give reason to believe that the developed scheme can

be suitable for the physical implementation of

convolutional opto-superconducting neural networks.

ACKNOWLEDGEMENTS

The analytical study of the proposed concept was

supported by RFBR (19-37-90020, 19-02-00981) and

President Grant (MD-186.2020.8). Numerical

calculations were done with support of Russian

Science Foundation (18-72-10118). Also Schegolev

is appreciative for the support to the Foundation for

the advancement of theoretical physics and

mathematics “BASIS”.

REFERENCES

Soloviev, I. I., Schegolev, A. E., Klenov, N. V., Bakurskiy,

S. V., Kupriyanov, M. Y., Tereshonok, M. V., Golubov,

A. A. (2018). Adiabatic superconducting artificial

neural network: Basic cells. Journal of applied physics,

124(15), 152113.

Klenov, N. V., Schegolev, A. E., Soloviev, I. I., Bakurskiy,

S. V., Tereshonok, M. V. (2018). Energy Efficient

Superconducting Neural Networks for High-Speed

Intellectual Data Processing Systems. IEEE

Transactions on Applied Superconductivity, 28(7), 1-6.

Schegolev, A. E., Klenov, N. V., Soloviev, I. I.,

Tereshonok, M. V. (2016). Adiabatic superconducting

cells for ultra-low-power artificial neural networks.

Beilstein journal of nanotechnology, 7(1), 1397-1403.

Szu H. H. (1990). Superconducting neural network

computer and sensor array. U.S. Patent documents,

US4943556A.

Matsugu, M., Mori, K., Mitari, Y., Kaneda, Y. (2003).

Subject independent facial expression recognition with

robust face detection using a convolutional neural

network. Neural Networks, 16(5-6), 555-559.

Hahnloser, R. H., Sarpeshkar, R., Mahowald, M. A.,

Douglas, R. J., Seung, H. S. (2000). Digital selection

and analogue amplification coexist in a cortex-inspired

silicon circuit. Nature, 405(6789), 947.

Glorot, X., Bordes, A., Bengio, Y. (2011, June). Deep

sparse rectifier neural networks. In Proceedings of the

fourteenth international conference on artificial

intelligence and statistics (pp. 315-323).

Nair, V., Hinton, G. E. (2010). Rectified linear units

improve restricted boltzmann machines. In Proceedings

of the 27th international conference on machine

learning (ICML-10) (pp. 807-814).

Maas, A. L., Hannun, A. Y., Ng, A. Y. (2013, June).

Rectifier nonlinearities improve neural network

acoustic models. In Proc. icml (Vol. 30, No. 1, p. 3).

Shainline, J. M., Buckley, S. M., Mirin, R. P. and

Nam S. W. (2017). Superconducting Optoelectronic

Circuits for Neuromorphic Computing. Phys. Rev.

Applied 7, 034013.

Shainline, J. M., Buckley, S. M., Nader, N., Gentry, C. M.,

Cossel, K. C., Cleary, J. W., Popović, M.,

Newbury, N. R., Nam, S. W. and Mirin, R. P. (2017).

Room-temperature-deposited dielectrics and

superconductors for integrated photonics. Optics

Express 25(9), pp. 10322-10334.

Shainline, J. M., Buckley, S. M., McCaughan, A. N.,

Chiles, J. T., Salim, A. J., Beltran, M. C., Donnelly, C.

A., Schneider, M. L., Mirin, R. P. and Nam S. W.

(2019). Superconducting optoelectronic loop neurons.

Journal of Applied Physics 126, 044902.

Buckley, S., Chiles, J., McCaughan, A. N., Moody, G.,

Silverman, K. L., Stevens, M. J., Mirin, R. P., Nam, S.

W. and Shainline J. M. (2017). All-silicon light-

emitting diodes waveguide-integrated with

superconducting single-photon detectors. Appl. Phys.

Lett. 111, 141101.

Bogatskaya, A. V., Klenov, N. V., Popov, A. M. and

Tereshonok, M. V. (2018). Resonance tunneling of

electromagnetic waves for enhancing the efficiency of

bolometric photodetectors. Technical Physics Letters,

44(8):667–670.

Zheng, K., Zhao, Q.-Y., Kong, L.-D., Chen, S., Lu, H.-Y.-

Bo, Tu, X.-C., Zhang, L.-B., Jia, X.-Q., Chen, J.,

Kang L. and Wu, P.-H. (2019). Characterize the

switching performance of a superconducting nanowire

cryotron for reading superconducting nanowire single

photon detectors. Scientific Reports volume 9, Article

number: 16345.

Elements of Hybrid Opto-superconducting Convolutional Neural Networks

139
