Are Sensors and Data Processing Paving the Way to Completely
Non-invasive and Not-painful Medical Tests for Widespread
Screening and Diagnosis Purposes?
Giovanni Saggio
a
Dept. of Electronic Engineering, University of Rome “Tor Vergata”, via del Politecnico 1, Rome, Italy
Keywords: Body Contact Sensors, Body Contactless Sensors, Machine Learning, Diagnosis.
Abstract: Effective medical tests are essential in supporting correct clinical decisions by medical doctors. But, have
medical tests to be necessarily invasive and painful to be effective? During last decades, new developments
of sensors and improvements of data analysis algorithms seem to paying the way to a (more or less near)
future with completely non-invasive and not painful medical tests. This work aims to furnish a survey on what
is going on within this frame, with an eye to new possibilities.
1 INTRODUCTION
Validated medical tests are essential for medical
doctors’ decision-making processes effectiveness.
Medical tests can be highly, moderately, minimally,
or completely non-invasive. The invasiveness is due
to instruments and energy that physically enter or
interact with the patient’s body, and can be not
painful, relatively painful (e.g. blood sample taking),
painful (e.g. biopsy), and potentially dangerous (e.g.
x-ray radiation exposure).
Of course, ideally we look forward only to
medical tests which are effective, non-invasive and
not painful. In addition, the market demands also
affordability, safety, in-vivo monitoring, etc.
Answers can come from the rapid evolution of
electronics and data processing.
The electronics mainly rely on sensors (such as
inertial measurement units, optical sensors, electronic
nose, etc.), while data processing mainly rely on
pattern recognition (such as Principal Components
Analysis, Cluster Analysis, Support Vector Machine,
Artificial Neural Networks, etc.).
In this work, we aim at investigating the sensors
in supporting completely non-invasive and not-
painful medical diagnosis and screening, underlining
their advantages and their limits. Sensors can be of
two main categories: body contact and body
contactless ones.
a
https://orcid.org/0000-0002-9034-9921
2 CONTACT SENSORS
Body contact sensors can be touch, clip, bandage,
adhesive patch, tattoo, wearable or a mix of them, for
a short-term or a long-term usage, and needle-free to
avoid pain and discomfort.
2.1 Touch, Clip, Bandage, Patch,
Tattoo
Let us start considering body contact sensors for
diabetes, which represents a global challenge disease
for more than 400 million people worldwide, and
requires as-frequently-as possible checks of blood
sugar levels. Current clinical/personal practice to
measure glycaemia is mainly by the discomfort finger
pricking. Conveniently, new non-invasive techniques
are ongoing based on touch, patch and clip adopting
solutions. An example comes from the DMT (by
DiaMonTech, Germany), which detects glucose
molecules by using a mid-infrared scanning of the
interstitial skin fluids. The shoebox-sized version has
the same accuracy as tests strips in preclinical tests, a
pocket-sized version will be available at the end of
2020, and a watch-like device will be presumably
available in 2024. GlucoWise™ (by MediWise, UK),
an under-developing non-invasive glucose monitor
solution, is based on low-power high-frequency radio
waves transmission through a thin body part (between
Saggio, G.
Are Sensors and Data Processing Paving the Way to Completely Non-invasive and Not-painful Medical Tests for Widespread Screening and Diagnosis Purposes?.
DOI: 10.5220/0009098002070214
In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020), pages 207-214
ISBN: 978-989-758-398-8
Copyright
c
2020 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
207
the thumb and forefinger, or earlobe). FreeStyle Libre
(by Abbott Diabetes Care, UK) is a sensor patch
useful to measures glucose levels in the interstitial
fluid between the cells under the subject’s skin.
GlucoTrack (by Integrity Applications, Israel) is a
blood sugar level sensor used with an ear clip, based
on a combination of ultrasonic, electromagnetic and
thermal waves.
Body contact-skin sensors can measure different
bio-parameters, such as pressure, heart-pulse,
respiration-quality, sweat and local body part
temperature too. As an example, a touch-type system
named SensoSCAN® (by Sensogram, USA) has a
built-in alerting system triggering blood pressure,
heart rate, and oxygen saturation. A Kapton-based
flexible sensor can be stuck over the face skin for
monitoring inhalations/exhalations moistures, aimed
at evidencing breath anomalies (Caccami et al.,
2018).
We can continuously measure pH-values from the
sweat by a tattoo potentiometric sensor (Dang et al.,
2018), or sodium concentration by a sensor belt
(Schazmann et al., 2010). Chloride amount measured
by an adhesive patch sensor can lead to an early cystic
fibrosis diagnosis (Gonzalo-Ruiz et al., 2009).
New adhesive patches provide a continuous and
point-to-point body temperature mapping by means
of a radio-frequency identification (RFID) module,
thanks to a loop antenna and a transponder that
change their electromagnetic performance according
to the local skin temperature (Miozzi et al., 2017).
From an unusual point of view, we can consider
the smartphone as a sensor, for touch and “wearable”
passive health sensing (Cornet and Holden, 2018).
The digital phenotyping with the smartphone can be
used, for instance, to define mental health behavioural
patterns, which can be analysed with the purpose to
enhancing behaviour and mental health (Onnela and
Rauch, 2016).
2.2 Wearables
Wearable electronic sensors (wearables, hereafter)
can include sensor(s) embedded in wristbands,
headband/headwear, necklaces, gloves, rings and
bracelets, chest belts, stretchable clothing, elastic
bands, kneepads and socks, all complying with the
natural gestures and motions of the wearer.
Some well-known sensory wristbands, such as
Fitbit Flex, Mi Band, Garmin Vivoactive, for
instance, and are useful for activity recognition, step
detection, and distance estimation.
The sensory headwear (Piscitelli et al., 2019) can
monitor neck motion handicaps and help in
evaluating neck functionality rehabilitation.
Equipped with sensors, the sensory glove can
measure fingers’ movements (Saggio and Bizzarri,
2014). The sensors can be of different types,
including optical fibers (Wise et al., 1990), Hall-
effect based sensors (Portillo-Rodriguez et al., 2007),
inertial measurement units (IMUs) (G. Saggio et al.,
1995) (Hsiao et al., 2015), piezoelectric (Cha et al.,
2017), stretch (Sbernini et al., 2016), and resistive
flex sensors (Saggio et al., 2016). The sensory glove
has been adopted for the analysis of hand tremor in
Parkinson’s disease patients (Cavallo et al., 2013), for
determining the fingers’ range-of-motion and the
fingers’ deformity of arthritic patients (Condell et al.,
2011), for measuring handgrip capabilities (Grandez
et al., 2010), and for assessing rehabilitation in
surgery patients (O’Flynn et al., 2013). Moreover, the
sensory glove has been useful in evaluating hand
movement capabilities (Hsiao et al., 2015) (Saggio et
al., 2015), finger muscle therapy effectiveness
(Hidayat et al., 2015), functional recovery
improvements after stroke (Merians et al., 2006), and
hand rehabilitation after traumas (Hsiao et al., 2015).
SensoRing® (by Sensogram, USA) is a ring with
built-in biosensors and wireless connectivity, to
measure (among others) blood pressure, heart rate,
respiration rate, perfusion index, and oxygen
saturation.
The stretchable sensory clothing can non-
invasively measure the 3D trunk movements for
biomedical applications (Saggio and Sbernini, 2011)
with an accuracy of the order of one degree
(Mokhlespour et al., 2017).
The sensory elastic band system equipped with
IMUs can be located in whichever human body
segments. This is to evaluate postural deficit in
vestibular failure (Alessandrini et al., 2017), enhance
body standing balance recovery (Costantini et al.,
2018), determine children’s motor impairments
(Ricci et al., 2019a), assess dyskinesia (Ricci et al.,
2018) and transcranial direct current stimulation
effectiveness (Ricci et al., 2019b) in Parkinson’s
disease patients, and gait harmony during walking
(Gnucci et al., 2018).
The sensory kneepad (Saggio et al., 2014)
furnishes useful data of knee motion capabilities to
trace on-going patients’ motor rehabilitation.
The Sensory Socks (by SensoRia, USA) can
provide ongoing monitoring of plantar pressure in
diabetic foot complications, so to early evidence
diabetic foot ulcers, aiming at reducing part of the
over 15 million of amputations in the world.
BIODEVICES 2020 - 13th International Conference on Biomedical Electronics and Devices
208
Gyrocardiography (GCG) is a new term coined
for recordings of electrocardiography (ECG) based
on heart motion assessment through a gyroscope.
This allows obtaining reliable information on systolic
and diastolic time intervals (Jafari et al., 2017).
3 CONTACTLESS SENSORS
As body contactless sensors, we refer to proximity
sensors and interacting with body’s fluids sensors.
3.1 Image Processing
Image acquisition and processing has been allowing
the development of non-contact and non-invasive
devices, for the evaluation of different health statuses
and the assessment of different clinical conditions.
We can start mentioning a work devoted to 2D
image acquisition for monitoring and evaluating
sleeping behavioural patterns (Papakostas et al.,
2015).
Imagine techniques, such as hyperspectral, plantar
and photographic ones, and data analysis, allow
detection of early developing feet and legs’ ulcers
(Toledo et al., 2014).
The image gathered by a webcam in front of a
subject during typing can be useful to extract
physiological signs of face-skin colour changes to
determine the heart rate (Ariyanti et al., 2016).
Heart and respiratory rates can be measured by
time-lapse imaging acquired from a camera, and data
processing of the images can result with rates with an
accuracy higher than 90% (Takano and Ohta, 2007).
Imaging methods were usefully exploited to
evidence the melanin pigment concentration
distribution map of a specific area of the subjects’
skin (Stamatas et al., 2004). Malignant melanoma can
be detected by smartphone-captured images: Lubax
(lubax.com) send pictures to a data lake for visual
inspection of dermatologists; an automatic solution is
based on algorithms for evaluation of colour variation
and border irregularity (Thanh-Toan et al., 2014).
Chronic fatigue syndrome can be revealed, 98%
in accuracy, by means of hybrid facial features
gathered from face pictures acquired by a camera
(Chen et al., 2015).
A non-invasive detection modality for breast
tumour relies on thermography, able to reveal heat
patterns and blood flow in tissues (Ng, 2009).
Camera-smartphone based picture acquisitions
can estimate wounds conditions considering sizes
and tissue classifications. Apps related to the wound
size are Wound Tracker, Wound Analysis, and
WoundMAP. Apps related to the assessment of
wound conditions are WoundMAP, MOWA, Wound
Analyzer, and AWAMS.
Elaboration of data gathered from digital photos
were used to quantifying conjunctival pallor useful as
screening test for anaemia (Collings et al., 2016)
The image processing can be related not only to
visible light-waves, but to microwaves too. So, a non-
invasive microwave head imaging system was
adopted to detect and localize intracranial
haemorrhage (Mobashsher et al., 2016). Microwave
Doppler radar images were useful for rapid detection
of fall events, so to alarm for interventions (Mercuri
et al., 2013).
3.2 e-nose and e-tongue
As bio-inspired sensors, the electronic nose (e-nose)
and the electronic tongue (e-tongue) sense the aroma
and the taste of different compounds. When those
compounds are related to human, e-nose and e-tongue
sensing combined with pattern recognition have been
used to assess pathologies.
Human skin emanations (odour, sweat) and
excreted materials (breath, saliva, urine, seminal
fluids, faeces), are the result of complex volatile
organic compounds (VOCs), which offer unique
insights into ongoing biochemical processes. VOCs
can be successfully analysed through spectroscopy,
chromatography and spectrometry, such as the gas
chromatography-mass spectrometry (gold reference),
the proton transfer reaction-mass spectrometry, the
selected ion flow tube-mass spectrometry, the ion
mobility spectrometry, and the laser spectrometry.
Inconveniently, those techniques are quite expensive,
time-consuming, cumbersome, and requires
specialized personnel, so that cannot represent
widespread procedures. Conversely, the e-nose joints
the non-invasive approach to an easy handling, low-
cost, rapid and mass procedure, well suited for its
high sensitivity, specificity, repeatability and
reproducibility (Wojnowski et al., 2019). The term e-
nose, coined in 1994 (Gardner and Bartlett, 1994),
refers to an array or a matrix of sensors, individually
sensitive to different VOCs thus providing multiple
detection, for a sort of “smell-signature”. The e-nose
can be made using different approaches, surface
acoustic wave (SAW) (Wang et al., 2008), chemi-
resistor (Peng et al., 2009), organically functionalized
gold nanoparticles (GNPs) (Peng et al., 2010), and
quartz microbalances (D’Amico et al., 2010), among
others. Then, pattern recognition algorithms relate the
“smell-signature” to a particular pathology.
Are Sensors and Data Processing Paving the Way to Completely Non-invasive and Not-painful Medical Tests for Widespread Screening and
Diagnosis Purposes?
209
Some commercially available e-noses are (Fig. 1)
the Cyranose® 320 (by Sensigent LLC, USA), the
Aeonose™ (by The eNose Company, The
Netherlands), the PEN (Portable Electronic Nose, by
Airsense Analytics, Germany), the Lonestar VOC
Analyzer (by Owlstone, UK), the zNose® (by
Electronic Sensor Technology, USA).
(a) (b) (c)

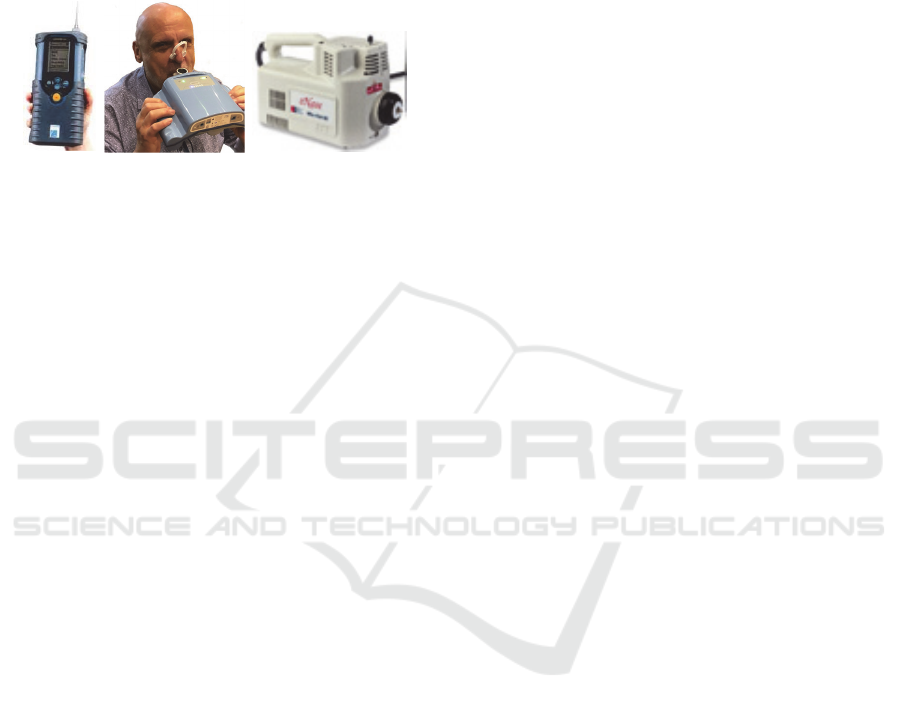

Figure 1: (a) Cyranose® 320 by Sensigent LLC; (b)
Aeonose™ by The eNose Company; (c) zNose by
Electronic Sensor Technilogy Inc. Pictures are reprinted
with kind permissions.
The first work reporting breath analysis dates
1972 by the double Nobel Prize winner Linus
Pauling. Since then, the e-nose applied to the exhaled
breath has been discriminating a number of
pathologies. We can start mentioning the lung cancer,
which causes more than 1 million deaths per year
worldwide (Saalberg and Wolff, 2016), invasively
revealed by bronchoscopy or by spectrometry, with
the aforementioned drawbacks. The usage of the e-
nose allows discriminating 90% of patients from
controls (Dragonieri et al., 2009), a classification
accuracy as high as 80% (McWilliams et al., 2015), a
91% of specificity, and a sensitivity up to 92.8%
(D’Amico et al., 2010). Other e-nose applications
about tumour revelations were breast cancer (Peng et
al., 2010), skin cancer (Kwak et al., 2013), thyroid
cancer (Guo et al., 2015), ovarian cancer (Amal et al.,
2015), head-and-neck cancer (Hakim et al., 2011),
and bronchogenic carcinoma (Machado et al., 2005).
Colorectal cancer is a leading cause of cancer
death worldwide. Current gold standard test method
is the colonoscopy, but it is time consuming,
expensive and does not allow mass screening.
Another method is the faecal immunochemical blood
testing, but presents a high variation in sensitivity.
The e-nose was successfully adopted to reveal VOC
content of urine obtaining 78% of sensitivity
(Westenbrink et al., 2015), and promising results are
reported in a work reviewing analysis of VOC in the
faecal headspace (Di Lena et al., 2016). In addition,
e-nose has been successfully adopted for revealing
fungal infections (Acharige et al., 2018), tuberculosis
(Saktiawati et al., 2019), sclerosis multiplex (Ionescu
et al., 2011), allergic rhinitis (Saidi et al., 2015), and
wound odour quantification (Akhmetova et al., 2016).
The e-tongue operates in liquid mediums to
recognize a particular sample tasting it, similarly as it
occurs for the human taste buds. The first work
reporting a sensor matrix in liquid media dates 1985
(Otto and Thomas, 1985). Currently, the e-tongue is
mainly used in food industry for determining types,
quality, and freshness of olive, apples, spices, sauces,
honeys, water, wine, vinegar, tea, milk, oil, etc. More
rarely, the e-tongue is used for healthcare, for
obtaining the “taste fingerprint” of urine, or for
assessing prostate cancer “sensing” prostatic or
seminal fluids (Bax et al., 2018), or for the evaluation
of saliva metabolome for providing a sort of measure
of stress and anxiety (Fitzgerald and Fenniri, 2017).
3.3 Voice
It has been largely demonstrated that, if we purge the
voice sound from emotions, confidence and feelings,
what we get are parameters linked to the health
conditions of the speaker. The voice production
depends on four main parts: the lungs that provide air
with energy content; the vocal chords that produce
sound vibrating accordingly to the amount of air; the
cavities (mouth, nose, chest, ear) that produce
resonations; the articulators (lips, tongue, teeth) that
shape the sound. In turn, these parts depend on the
brain that coordinates. When one or more of these
parts are subjected to alterations or infections, the
resulting disease affects the voice production system
to a significant and measurable extent.
We can report how voice features were correlated
to upper respiratory diseases (Bothe, 2017), lung
tuberculosis (Saggio and Bothe, 2016) and chronic
obstructive pulmonary disease (Mohamed et al.,
2014). Benign thyroid disease (Pernambuco et al.,
2015) and level of asthma (Walia and Sharma, 2016)
were found to be related to some voice parameters.
For brain related diseases, data analysis of the
voice can lead to around 90% in accuracy for
Parkinson’s disease in early stages (Bocklet et al.,
2011) and in overt conditions too (Jeancolas et al.,
2017). Vocal parameters can be translated into
markers of Alzheimer's disease (Meilan et al., 2018),
and bipolar disease (Guidi et al., 2015).
Some voice features were related to diabetes
(Chitkara and Sharma, 2016), and some others
exceeded 97% of correlation with blood pressure
values (Sakai, 2015). From speech analysis, it was
observed the presence and severity of amyotrophic
lateral sclerosis with an accuracy of 92% in (Suhas et
al., 2019). By reflecting the loss of articulatory
BIODEVICES 2020 - 13th International Conference on Biomedical Electronics and Devices
210
processing, children with Down syndrome speak with
less distinction between vowels with respect to
individuals without (Moura et al., 2008). The work
(Alves et al, 2019) reviews at which extent the
dehydration conditions affect the voice performances.
According to (Manfredi et al., 2017), in a near
future, the possibilities of early detection of an
amount of pathologies via voice analysis can be
obtained directly via smartphones’ microphones,
leading to new tele-health-check possibilities.
Currently, Sonde Health Inc. (sondehealth.com) is
developing a voice-based technology platform to
monitoring and diagnosing physical health;
BeyondVerbal (beyondverbal.com) is developing
voice-enabled artificial intelligence to create vocal
biomarkers for healthcare screening; VoiceWise
(voicewise.eu) processes voice samples by means of
machine learning algorithms for medical diagnosis
and health screening purposes.
Apart from the voice, the “sound” of the breath
furnishes elements too. SpiroSmart is a smartphone
app by which the user has to forceful exhaling the
breath in the direction of the phone’s microphone.
Audio data are analysed to calculate the exhaled flow
rate, with a mean error of 5.1% in comparison to
measure of lung functionality (Larson et al., 2013).
4 CONCLUSIONS
Data gathered by body contact and body contactless
sensors represent a more and more evolving tool for
non-invasive and not-painful medical tests. Data
analysis by means of machine learning algorithms
furnish a new paradigm for personalized medicine.
Since it is not possible to represent all the
pathologies and because more and more possibilities
enhance rapidly, this work cannot represent the entire
picture of the status-of-art of the completely non-
invasive medical tests, however a meaningful survey
was provided underlying the profitable aspects.
Nevertheless, the advantages have to be balanced
by issues due to confounding factors due to different
physiological aspects such as gender, age-range,
ethnicity, smoke-habits, diet, motor exercises, sleep
habits, taking medication, comorbidities, pregnancy,
etc. Considering the e-nose applications, for instance,
men have higher isoprene levels in breath with
respect to women (Lechner et al., 2006). Volatile
alkanes contents of the human breath (Phillips et al.,
2000) and lung cancer breath-print (Bikov et al.,
2014) differ for different age, as well as exhaled air
of healthy subjects with asthma depends on age
(Dragonieri et al., 2007). A gluten-free diet changes
the values of 12 volatile compounds excreted in
exhaled breath (Baranska et al., 2013). The exhaled
pentane levels differs after sleep in patients with
obstructive sleep apnoea (Olopade et al., 1997). The
tobacco smoking alters the breath VOC profile
(Gordon et al., 2002). Physiological hormonal
changes due to the ovarian cycle can alter the exhaled
VOCs (Dragonieri et al., 2018).
All considered, to date, data acquisition by
sensors and data analysis by machine learning
algorithms represent a new frontier for non-invasive
not-painful but accurate disease screening and
diagnosis, with all the credentials to become routinely
applied in medical practice.
REFERENCES
Acharige, M. J. T., Koshy, S., et al. (2018). Breath-based
diagnosis of fungal infections. Journal of Breath
Research, 12(2), 027108.
Akhmetova, A., Saliev, et al. (2016). A Comprehensive
Review of Topical Odor-Controlling Treatment
Options for Chronic Wounds: Journal of Wound,
Ostomy and Continence Nursing, 43(6), 598–609.
Alessandrini, M., Micarelli, et al. (2017). Body-worn
triaxial accelerometer coherence and reliability related
to static posturography in unilateral vestibular failure.
Acta Otorhinolaryngologica Italica, 37(3), 231–236.
Alves, M., Krüger, E., Pillay, et al. (2019). The Effect of
Hydration on Voice Quality in Adults: A Systematic
Review. Journal of Voice, 33(1), 125.e13-125.e28.
Amal, H., Shi, D.-Y., Ionescu et al. (2015). Assessment of
ovarian cancer conditions from exhaled breath: A
Breath Test for Ovarian Cancer. International Journal
of Cancer, 136(6), E614–E622.
Ariyanti, S. W., Prihatmanto, et al. (2016). A development
of non-invasive optical technique to investigate the
feasibility of fatigue using skin color extraction (pp.
11–16). IEEE.
Baranska, A., Tigchelaar, E., et al. (2013). Profile of
volatile organic compounds in exhaled breath changes
as a result of gluten-free diet. Journal of Breath
Research, 7(3), 037104.
Bax, C., Taverna, G., et al. (2018). Innovative Diagnostic
Methods for Early Prostate Cancer Detection through
Urine Analysis: A Review. Cancers, 10(4), 123.
Bikov, A., Hernadi, M., et al. (2014). Expiratory flow rate,
breath hold and anatomic dead space influence
electronic nose ability to detect lung cancer. BMC
Pulmonary Medicine, 14(1).
Bocklet, T., Noth, E., et al. (2011). Detection of persons
with Parkinson’s disease by acoustic, vocal, and
prosodic analysis (pp. 478–483). IEEE. Nov. 8, 2019
Bothe, S. (2017). Screening Upper Respiratory Diseases
Using Acoustics Parameter Analysis of Speaking
Voice. International Journal of Biosensors &
Bioelectronics, 3(4). Nov. 8, 2019
Are Sensors and Data Processing Paving the Way to Completely Non-invasive and Not-painful Medical Tests for Widespread Screening and
Diagnosis Purposes?
211
Brekelmans, M. P., Fens, N., et al. (2016). Smelling the
Diagnosis: The Electronic Nose as Diagnostic Tool in
Inflammatory Arthritis. A Case-Reference Study. (F.
d’Acquisto, Ed.) PLOS ONE, 11(3), e0151715.
Brinkman, P., Wagener, A. H. et al. (2019). Identification
and prospective stability of electronic nose (eNose)–
derived inflammatory phenotypes in patients with
severe asthma. J. of Allergy and Clinical Immunology,
143(5), 1811-1820.e7.
Caccami, M. C., Mulla, M. Y. S. et al. (2018). Design and
Experimentation of a Batteryless On-Skin RFID
Graphene-Oxide Sensor for the Monitoring and
Discrimination of Breath Anomalies. IEEE Sensors
Journal, 18(21), 8893–8901.
Cai, X., Chen, L., et al. (2017). A Prediction Model with a
Combination of Variables for Diagnosis of Lung
Cancer. Medical Science Monitor, 23, 5620–5629.
Cavallo, F., Esposito, D. et al. (2013). Preliminary
evaluation of SensHand V1 in assessing motor skills
performance in Parkinson disease (pp. 1–6). IEEE.
Cha, Y., Seo, J., Kim, J.-S. et al. (2017). Human–computer
interface glove using flexible piezoelectric sensors.
Smart Materials and Structures, 26(5), 057002.
Chan, D. K., Zakko, L., et al. (2017). Breath Testing for
Barrett’s Esophagus Using Exhaled Volatile Organic
Compound Profiling With an Electronic Nose Device.
Gastroenterology, 152(1), 24–26.
Chen, Y., Liu, W. et al. (2015). Hybrid facial image feature
extraction and recognition for non-invasive chronic
fatigue syndrome diagnosis. Computers in Biology and
Medicine, 64, 30–39.
Chitkara, D., & Sharma, R. K. (2016). Voice based
detection of type 2 diabetes mellitus (pp. 83–87). IEEE.
Collings, S., Thompson, O. et al. (2016). Non-Invasive
Detection of Anaemia Using Digital Photographs of the
Conjunctiva. (K. Metze, Ed.)PLOS ONE, 11(4)
Condell, J., Curran, K., et al. (2011). Finger movement
measurements in arthritic patients using wearable
sensor enabled gloves. International Journal of Human
Factors Modelling and Simulation, 2(4), 276.
Cornet, V. P., Holden, R. J. (2018). Systematic review of
smartphone-based passive sensing for health and
wellbeing. J. of Biomedical Informatics, 77, 120–132.
Costantini, G., Casali, D. et al (2018). Towards the
enhancement of body standing balance recovery by
means of a wireless audio-biofeedback system. Medical
Engineering & Physics, 54, 74–81.
D’Amico, A., Pennazza, G. et al. (2010). An investigation
on electronic nose diagnosis of lung cancer. Lung
Cancer, 68(2), 170–176.
Dang, W., Manjakkal, L. et al. (2018). Stretchable wireless
system for sweat pH monitoring. Biosensors and
Bioelectronics, 107, 192–202.
Di Lena, M., Porcelli, F., Altomare, D. F. (2016). Volatile
organic compounds as new biomarkers for colorectal
cancer: A review. Colorectal Disease, 18(7), 654–663.
Dragonieri, S, Annema, JT et al (2009). Electronic nose in
the discrimination of patients with non-small cell lung
cancer & COPD. Lung Cancer, 64(2),166–170.
Dragonieri, S., Brinkman, P. et al. (2013). An electronic
nose discriminates exhaled breath of patients with
untreated pulmonary sarcoidosis from controls.
Respiratory Medicine, 107(7), 1073–1078.
Dragonieri, S. , Porcelli, F. et al. (2015). An electronic nose
in the discrimination of obese patients with and without
obstructive sleep apnoea. Journal of Breath Research,
9(2), 026005.
Dragonieri, S., Quaranta, V. N. et al. (2016). An electronic
nose may sniff out amyotrophic lateral sclerosis.
Respiratory Physiology & Neurobiology, 232, 22–25.
Dragonieri, S., Quaranta, V. N. et al. (2018). The ovarian
cycle may influence the exhaled volatile organic
compound profile analyzed by an electronic nose.
Journal of Breath Research, 12(2), 021002.
Dragonieri, S., Schot, R. et al. (2007). An electronic nose in
the discrimination of patients with asthma and controls.
J. of Allergy & Clinical Imm.,120(4), 856–62
Fitzgerald, J., Fenniri, H. (2017). Cutting Edge Methods for
Non-Invasive Disease Diagnosis Using E-Tongue and
E-Nose Devices. Biosensors, 7(4), 59.
Gardner, JW, Bartlett, PN (1994). A brief history of
electronic noses. Sensors & Actuators B: 18(1), 210.
Gnucci, M., Flemma, M. et al. (2018). Assessment of Gait
Harmony in Older and Young People: (pp. 155–160).
SCITEPRESS - Science and Technology Publications.
Gonzalo-Ruiz, J., Mas, R. et al. (2009). Early determination
of cystic fibrosis by electrochemical chloride
quantification in sweat. Biosensors and Bioelectronics,
24(6), 1788–1791.
Goor, RMG., Hardy, JCA. et al. (2019). Detecting recurrent
head and neck cancer using electronic nose technology:
A feasibility study. Head & Neck, 41(9), 2983–2990.
van de Goor, R., van Hooren, M., etal. (2018). Training and
Validating a Portable Electronic Nose for Lung Cancer
Screening. J. of Thoracic Oncology, 13(5), 676–681.
Gordon, S. M., Wallace, L. A. et al. (2002). Volatile organic
compounds as breath biomarkers for active and passive
smoking. Env. Health Perspectives, 110(7), 689–698.
Grandez, K., Solas, G. et al. (2010). Sensor device for
testing activities in Parkinson and ALS patients. IEEE.
Guidi, A., Schoentgen, J. et al. (2015). Voice quality in
patients suffering from bipolar disease (pp. 6106–
6109). IEEE.
Guo, L., Wang, C. et al. (2015). Exhaled breath volatile
biomarker analysis for thyroid cancer. Translational
Research: The Journal of Laboratory and Clinical
Medicine, 166(2), 188–195.
Hakim, M., Billan, S. et al. (2011). Diagnosis of head-and-
neck cancer from exhaled breath. British Journal of
Cancer, 104(10), 1649–1655.
Hidayat, A. A., Arief, Z. et al. (2015). Mobile application
with simple moving average filtering for monit. finger
muscles therapy of post-stroke people (pp. 1–6). IEEE.
Hsiao, PC., Yang, SY. et al. (2015). Data glove embedded
with 9-axis IMU and force sensing sensors for
evaluation of hand function (pp. 4631–4634). IEEE.
Ionescu, R., Broza, Y. et al. (2011). Detection of Multiple
Sclerosis from Exhaled Breath Using Bilayers of
Polycyclic Aromatic Hydrocarbons and Single-Wall
BIODEVICES 2020 - 13th International Conference on Biomedical Electronics and Devices
212
Carbon Nanotubes. ACS Chemical Neuroscience,
2(12), 687–693.
Jafari T.M, Lehtonen, E et al. (2017). Gyrocardiography: A
New Non-invasive Monitoring Method for the
Assessment of Cardiac Mechanics and the Estimation
of Hemodynamic Variables. Scientific Reports, 7(1).
Jeancolas, L., Benali, H. et al. (2017). Automatic detection
of early stages of Parkinson’s disease through acoustic
voice analysis with mel-frequency cepstral coefficients
(pp. 1–6). IEEE
Kwak, J., Gallagher, M. et al. (2013). Volatile biomarkers
from human melanoma cells. Journal of
Chromatography B, 931, 90–96.
Lamote, K., Brinkman, P. et al. (2017). Breath analysis by
gas chromatography-mass spectrometry and electronic
nose to screen for pleural mesothelioma: A cross-
sectional case-control study. Oncotarget, 8(53).
Larson, E. C., Goel, M. et al. (2013). Tracking lung function
on any phone (p. 1). ACM Press
Lechner, M, Moser, B et al. (2006). Gender and age specific
differences in exhaled isoprene levels. Respiratory
Physiology & Neurobiol., 154(3), 478–83.
Machado, R. F., Laskowski, D. et al. (2005). Detection of
Lung Cancer by Sensor Array Analyses of Exhaled
Breath. American Journal of Respiratory and Critical
Care Medicine, 171(11), 1286–1291.
Manfredi, C., Lebacq, J. et al. (2017). Smartphones Offer
New Opportunities in Clinical Voice Research. Journal
of Voice, 31(1), 111.e1-111.e7.
McWilliams, A., Beigi, P. et al. (2015). Sex and Smoking
Status Effects on the Early Detection of Early Lung
Cancer in High-Risk Smokers Using an Electronic
Nose. IEEE Trans. on Biomed. Eng., 62(8), 2044–2054.
Meilan, J. J. G., Martinez-Sanchez, F. et al. (2018). Voice
Markers of Lexical Access in Mild Cognitive
Impairment and Alzheimer’s Disease. Current
Alzheimer Research, 15(2).
Mercuri, M., Soh, P. J., et al. (2013). Analysis of an Indoor
Biomedical Radar-Based System for Health
Monitoring. IEEE Transactions on Microwave Theory
and Techniques, 61(5), 2061–2068.
Merians, A. S., Poizner, H. et al. (2006). Sensorimotor
Training in a Virtual Reality Environment: Does It
Improve Functional Recovery Poststroke?
Neurorehabilitation & Neural Repair, 20(2), 252–267.
Miozzi, C., Amendola, S. et al. (2017). Reliability of a re-
usable wireless Epidermal temperature sensor in real
conditions (pp. 95–98). IEEE
Mobashsher, A. T., Bialkowski, K. S. et al. (2016). Design
and Experimental Evaluation of a Non-Invasive
Microwave Head Imaging System for Intracranial
Haemorrhage Detection. (X. Zhang, Ed.)PLOS ONE,
11(4), e0152351.
Mohamed, E. E., El maghraby, R. A. (2014). Voice changes
in patients with chronic obstructive pulmonary disease.
Egyptian Journal of Chest Diseases and Tuberculosis,
63(3), 561–567.
Mokhlespour Esfahani, M., Zobeiri, O. et al. (2017). Trunk
Motion System (TMS) Using Printed Body Worn
Sensor (BWS) via Data Fusion Approach. Sensors,
17(12), 112.
Moura, C. P., Cunha, L. M. et al. (2008). Voice Parameters
in Children With Down Syndrome. Journal of Voice,
22(1), 34–42.
Nakhleh, M. K., Badarny, S. et al. (2015). Distinguishing
idiopathic Parkinson’s disease from other parkinsonian
syndromes by breath test. Parkinsonism & Related
Disorders, 21(2), 150–153.
Ng, E. Y.-K. (2009). A review of thermography as
promising non-invasive detection modality for breast
tumor. Int. J. of Thermal Sciences, 48(5), 849–859.
O’Flynn, B., Torres, J. et al. (2013). Novel smart sensor
glove for arthritis rehabiliation (pp. 1–6). IEEE
Olopade, C. O., Christon, J. A. et al. (1997). Exhaled
Pentane and Nitric Oxide Levels in Patients With
Obstructive Sleep Apnea. Chest, 111(6), 1500–1504.
Onnela, J.-P., & Rauch, S. L. (2016). Harnessing
Smartphone-Based Digital Phenotyping to Enhance
Behavioral and Mental Health.
Neuropsychopharmacology, 41(7), 1691–1696.
Otto, Matthias., Thomas, J. D. R. (1985). Model studies on
multiple channel analysis of free magnesium, calcium,
sodium, and potassium at physiological concentration
levels with ion-selective electrodes. Analytical
Chemistry, 57(13), 2647–2651.
Papakostas, M., Staud, J. et al. (2015). Monitoring
breathing activity and sleep patterns using multimodal
non-invasive technologies (pp. 1–4). ACM Press.
Peng, G, Hakim, M. et al. (2010). Detection of lung, breast,
colorectal, and prostate cancers from exhaled breath
using a single array of nanosensors. British Journal of
Cancer, 103(4), 542–551.
Peng, Gang, Tisch, U. et al. (2009). Diagnosing lung cancer
in exhaled breath using gold nanoparticles. Nature
Nanotechnology, 4(10), 669–673.
Pernambuco, L de A, Almeida, MN. et al. (2015). Voice
Assessment and Voice-related Quality of Life in
Patients with Benign Thyroid Disease.
Otolaryngology–Head & Neck Surgery, 152(1), 116.
Phillips, M., Greenberg, J. et al. (2000). Effect of age on the
profile of alkanes in normal human breath. Free Radical
Research, 33(1), 57–63.
Piscitelli, G et al. (2019). A low-cost energy-harvesting
sensory headwear useful for tetraplegic people to drive
home automation. AEU - International Journal of
Electronics and Communications, 107, 9–14.
Portillo-Rodriguez, O., Avizzano, C. A. et al. (2007). A
wireless Bluetooth Dataglove based on a novel
goniometric sensors (pp. 1185–1190). IEEE
Ricci, M., Giannini, F. et al. (2018). A novel analytical
approach to assess dyskinesia in patients with
Parkinson disease. IEEE International Symposium on
Medical Measurements and Applications (pp. 1-5).
Ricci, M., Terribili, M. et al. (2019a). Wearable-based
electronics to objectively support diagnosis of motor
impairments in school-aged children. Journal of
Biomechanics, 83, 243–252.
Ricci, M., Di Lazzaro, G., et al. (2019b). Wearable
Electronics Assess the Effectiveness of Transcranial
Are Sensors and Data Processing Paving the Way to Completely Non-invasive and Not-painful Medical Tests for Widespread Screening and
Diagnosis Purposes?
213
Direct Current Stimulation on Balance and Gait in
Parkinson’s Disease Patients. Sensors, 19(24), 5465.
Saalberg, Y., Wolff, M. (2016). VOC breath biomarkers in
lung cancer. Clinica Chimica Acta, 459, 5–9.
Saggio, G., Bothe, S. (2016). Tuberculosis Screening by
Means of Speech Analysis. Journal of Communication,
Navigation, Sensing and Services, 2016(1), 45–56.
Saggio, G., Verona, E. et al. (1995). Reactive ion etching
characterization of a-SiC: H in CF4/O2 plasma.
Materials Science and Engineering: B, 29(1–3), 176–
180.
Saggio, G., Bizzarri, M. (2014). Feasibility of
teleoperations with multi-fingered robotic hand for safe
extravehicular manipulations. Aerospace Science and
Technology, 39, 666–674.
Saggio, G., Quitadamo, L. R., Albero, L. (2014).
Development and evaluation of a novel low-cost
sensor-based knee flexion angle measurement system.
The Knee, 21(5), 896–901.
Saggio, G., Lazzaro, Al., et al. (2015). Objective surgical
skill assessment: An initial experience by means of a
sensory glove paving the way to open surgery
simulation?. Journal of Surgical Education, 72(5), 910-
917.
Saggio, G., Riillo, F., Sbernini, L., & Quitadamo, L. R.
(2016). Resistive flex sensors: A survey. Smart
Materials and Structures, 25(1), 013001.
Saggio, G., & Sbernini, L. (2011). New scenarios in human
trunk posture measurements for clinical applications.
IEEE International Symposium on Medical
Measurements and Applications (pp. 13-17)
Saidi, T., Tahri, K. et al. (2015). Detection of seasonal
allergic rhinitis from exhaled breath VOCs using an
electronic nose based on an array of chemical sensors
(pp. 1–4). IEEE
Sakai, M. (2015). Feasibility Study on Blood Pressure
Estimations from Voice Spectrum Analysis.
International Journal of Computer Applications,
109(7), 39–43.
Saktiawati, A. M. I., Putera, D. D. et al. (2019). Diagnosis
of tuberculosis through breath test: A systematic
review. EBioMedicine, 46, 202–214.
Saviauk, T., Kiiski, J. P. et al. (2018). Electronic Nose in
the Detection of Wound Infection Bacteria from
Bacterial Cultures: A Proof-of-Principle Study.
European Surgical Research, 59(1–2), 1–11.
Sbernini, L., Pallotti, A., Saggio, G. (2016). Evaluation of
a Stretch Sensor for its inedited application in tracking
hand finger movements. IEEE International
Symposium on Medical Measurements and
Applications (MeMeA) (pp. 1-6)
Scarlata, S., Pennazza, G. et al. (2017). Screening of
Obstructive Sleep Apnea Syndrome by Electronic-Nose
Analysis of Volatile Organic Compounds. Scientific
Reports, 7(1).
Schazmann, B., Morris, D. et al. (2010). A wearable
electrochemical sensor for the real-time measurement
of sweat sodium concentration. Anal. Meth., 2(4), 342.
Schuermans, V. N. E., Li, Z. et al. (2018). Pilot Study:
Detection of Gastric Cancer From Exhaled Air
Analyzed With an Electronic Nose in Chinese Patients.
Surgical Innovation, 25(5), 429–434.
Stamatas, G. N., Zmudzka, B. Z. et al. (2004). Non-Invasive
Measurements of Skin Pigmentation In Situ. Pigment
Cell Research, 17(6), 618–626.
Suhas, B. N., Deep, P., Nithin, R. et al. (2019). Comparison
of Speech Tasks and Recording Devices for Voice
Based Automatic Classification of Healthy Subjects
and Patients with Amyotrophic Lateral Sclerosis (pp.
4564–4568). ISCA
Takano, C., Ohta, Y. (2007). Heart rate measurement based
on a time-lapse image. Medical Engineering & Physics,
29(8), 853–857.
Thanh-Toan Do, Yiren Z. et al. (2014). Early melanoma
diagnosis with mobile imaging (pp. 6752–6757). IEEE
Tirzīte, M., Bukovskis, M. et al. (2017). Detection of lung
cancer in exhaled breath with an electronic nose using
support vector machine analysis. Journal of Breath
Research, 11(3), 036009.
Tisch, U., Schlesinger, I. et al. (2013). Detection of
Alzheimer’s and Parkinson’s disease from exhaled
breath using nanomaterial-based sensors.
Nanomedicine, 8(1), 43–56.
Toledo, C., Ramos, F. J. et al. (2014). Non-invasive
imaging techniques to assess diabetic foot ulcers: A
state of the art review (pp. 1–4). IEEE
Walia, G. S., Sharma, R. K. (2016). Level of asthma:
Mathematical formulation based on acoustic
parameters (pp. 24–27). IEEE
Waltman, CG., Marcelissen, TAT. et al. (2018). Exhaled-
breath Testing for Prostate Cancer Based on Volatile
Organic Compound Profiling Using an Electronic Nose
Device (AeonoseTM): A Preliminary Report. European
Urology Focus
Wang, P., Chen, X. et al. (2008). Development of
electronic nose for diagnosis of lung cancer at early
atage (pp. 588–591). IEEE
Westenbrink, E., Arasaradnam, R. P. et al. (2015).
Development and application of a new electronic nose
instrument for the detection of colorectal cancer.
Biosensors & Bioelectronics, 67, 733–738.
Wise, S., Gardner, W. et al. (1990). Evaluation of a fiber
optic glove for semi-automated goniometric
measurements. The Journal of Rehabilitation Research
and Development, 27(4), 411.
Wojnowski, W., Dymerski, T. et al. (2019). Electronic
Noses in Medical Diagnostics. Current Medicinal
Chemistry, 26(1), 197–21
BIODEVICES 2020 - 13th International Conference on Biomedical Electronics and Devices
214
