Guarded Deep Learning using Scenario-based Modeling

Guy Katz

The Hebrew University of Jerusalem, Jerusalem, Israel

Keywords:

Scenario-based Modeling, Behavioral Programming, Machine Learning, Deep Neural Networks.

Abstract:

Deep neural networks (DNNs) are becoming prevalent, often outperforming manually-created systems. Un-

fortunately, DNN models are opaque to humans, and may behave in unexpected ways when deployed. One

approach for allowing safer deployment of DNN models calls for augmenting them with hand-crafted over-

ride rules, which serve to override decisions made by the DNN model when certain criteria are met. Here, we

propose to bring together DNNs and the well-studied scenario-based modeling paradigm, by expressing these

override rules as simple and intuitive scenarios. This approach can lead to override rules that are comprehensi-

ble to humans, but are also sufﬁciently expressive and powerful to increase the overall safety of the model. We

describe how to extend and apply scenario-based modeling to this new setting, and demonstrate our proposed

technique on multiple DNN models.

1 INTRODUCTION

Deep machine learning (Goodfellow et al., 2016) is

dramatically changing our world, by allowing en-

gineers to create complex models using automated

learning algorithms (Gottschlich et al., 2018). These

learning algorithms generalize examples of how the

desired system should behave into an artifact called

a deep neural network (DNN), capable of correctly

handling new inputs — even if it had not encoun-

tered them previously. In many instances, DNNs

have been shown to greatly outperform manually-

crafted software. Examples of note include Al-

phaGO (Silver et al., 2016), which defeated some of

the world’s strongest human Go players; DNN-based

systems for image recognition with super-human pre-

cision (Simonyan and Zisserman, 2014); and sys-

tems in many other domains such as natural lan-

guage processing (Collobert et al., 2011), recom-

mender systems (Elkahky et al., 2015) and bioinfor-

matics (Chicco et al., 2014). As DNNs are prov-

ing more accurate and easier to create than manually-

crafted systems, their use is expected to continue and

intensify in the coming decades. Indeed, there is now

even a trend of using DNNs in highly critical systems,

such as autonomous cars and unmanned aircraft (Bo-

jarski et al., 2016; Julian et al., 2016).

DNNs have been demonstrating extraordi-

nary performance, but they also pose new chal-

lenges (Amodei et al., 2016). A key difﬁculty is

that DNNs are extremely opaque: because they are

generated by computers and not by humans, we can

empirically see that they perform well, but we do

not fully understand their internal decision making.

Consequently, it is nearly impossible for humans to

reason about the correctness of DNNs. For instance,

it has been observed that many state-of-the-art DNNs

for image recognition, which at ﬁrst glance seemed

to perform spectacularly, could be fooled by slight

perturbations to their inputs (Szegedy et al., 2013).

This raises serious concerns about these networks’

safety and reliability. Initial attempts are being made

to automatically reason about DNNs using formal

methods (Katz et al., 2017; Huang et al., 2017; Gehr

et al., 2018; Wang et al., 2018; Katz et al., 2019a), but

these approaches are currently of limited scalability.

Further, these approaches do not specify how to

correct an undesirable behavior in a DNN after it has

been discovered, which is also a difﬁcult task.

Consider, for example, the case of the DeepRM

system (Mao et al., 2016a). The goal of this sys-

tem is to perform resource allocation: the system has

available resources (e.g., CPUs and memory), and a

queue of pending jobs; and it needs to either schedule

a pending job and assign some of the resources to it,

or perform a “pass” action, in which no new jobs are

assigned resources and the system waits for executing

jobs to terminate and free up their assigned resources.

The goal is to schedule jobs in a way that maximizes

throughput. DeepRM achieves this by maintaining a

model of the system (resources, incoming jobs), and

using a pre-trained DNN to choose which action to

126

Katz, G.

Guarded Deep Learning using Scenario-based Modeling.

DOI: 10.5220/0009097601260136

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 126-136

ISBN: 978-989-758-400-8; ISSN: 2184-4348

perform. DeepRM performs very well when com-

pared to state-of-the-art, manually created software

that tackles the same problem (Mao et al., 2016a).

Despite its overall satisfactory performance, the

authors of DeepRM report that the system may some-

times behave in undesirable ways. For example, the

controller might request that job x be allocated re-

sources, although no job x exists in the job queue.

In their implementation (Mao et al., 2016b), the au-

thors address this situation by introducing an over-

ride rule: a piece of code that examines the current

state of the system, and overrides the DNN’s decision

when this particular case is detected. Here, the over-

ride rule changes the controller’s selection to “pass”

whenever the controller requests to allocate resources

to a non-existent job. There are additional override

rules included in DeepRM (Mao et al., 2016b), and

also in other systems (e.g., the Pensieve system (Mao

et al., 2017)). Moreover, since DeepRM’s release,

additional undesirable behaviors have been discov-

ered (Kazak et al., 2019), and addressing these might

require augmenting the system with yet additional

override rules in the future.

These cases, and others, indicate that override

rules are becoming an integral component of DNN-

based models. As erroneous behaviors may be dis-

covered after the initial deployment phase, override

rules may need to be added, extended, enhanced and

refactored throughout the system’s lifetime. We argue

that this situation calls for leveraging suitable model-

ing techniques, in a way that will facilitate creating

and maintaining override rules — leading to overall

increased system reliability.

In this paper we advocate the use of the scenario-

based modeling (SBM) framework (Harel et al.,

2012b; Damm and Harel, 2001) for creating override

rules. In SBM, individual system behaviors are mod-

eled as independent scenarios, and are then automati-

cally interwoven when the model is executed in order

to produce cohesive system behavior. SBM has been

shown to afford several beneﬁts in system design and

automated maintenance, and is particularly suitable

for incremental development — which is a highly de-

sirable trait when dealing with override rules. We pro-

pose here a method for applying SBM to systems with

DNN components, in a way that allows to specify

override rules as SBM scenarios. We discuss the ben-

eﬁts of the approach (in particular, those afforded by

the amenability of SBM to automated analysis (Harel

et al., 2015c)), and demonstrate its applicability to a

few recently proposed systems. Although our focus

here is on systems with DNN components, our ap-

proach could be extended to systems with different

kinds of opaque components.

The rest of this paper is organized as follows. In

Section 2 we provide the necessary background on

SBM, DNNs and override rules. Next, in Section 3

we present our method for applying SBM to systems

with DNN components. In Section 4 we describe an

evaluation of our approach, followed by a discussion

of related work in Section 5. We conclude in Sec-

tion 6.

2 BACKGROUND

2.1 Deep Neural Networks and

Override Rules

Deep neural networks (DNNs) are directed graphs, in

which the nodes (neurons) are organized into layers.

The ﬁrst layer is the input layer, the last layer is the

output layer, and the multiple remaining layers are

the hidden layers. Each node in the network (except

for input nodes) is connected to nodes from the pre-

ceding layer, using predetermined weight values (an

illustration appears in Fig. 1). Selecting appropriate

weight values is key, and is performed during a train-

ing phase, which is beyond the scope of this paper (for

a survey, see, e.g., (Goodfellow et al., 2016)). A DNN

is evaluated by assigning values to its input neurons,

and then propagating these values forward through the

network, each time computing values for a given layer

from the values of its predecessor. Eventually, the

output values (i.e., the values of neurons in the out-

put layer) are computed, and are returned to the user.

Often, DNNs are used as controllers or classiﬁers, in

which case it is typical to return to the user the index

of the output neuron that received the highest value.

This neuron indicates the action, or classiﬁcation, de-

termined by the DNN.

For our purpose here, it is enough to regard a DNN

as a black box, that transforms an input into an out-

put. However, for completeness, we brieﬂy describe

how a DNN is evaluated. The value of each hid-

den node in the network is computed by calculating

a weighted sum of the node values from the previous

layer, according to the edge weights. Then, a non-

linear activation function is applied to this weighted

sum (Goodfellow et al., 2016), and its result becomes

the value of the node being computed. For simplicity

we focus here on the Rectiﬁed Linear Unit (ReLU)

activation function (Nair and Hinton, 2010), given by

ReLU(x) = max (0,x). Thus, when a node uses the

ReLU activation function, its value is calculated as the

maximum of the linear combination of nodes from the

previous layer and 0.

Guarded Deep Learning using Scenario-based Modeling

127

Input #1

Input #2

Input #3

Input #4

Input #5

Output #1

Output #2

Output #3

Output #4

Output #5

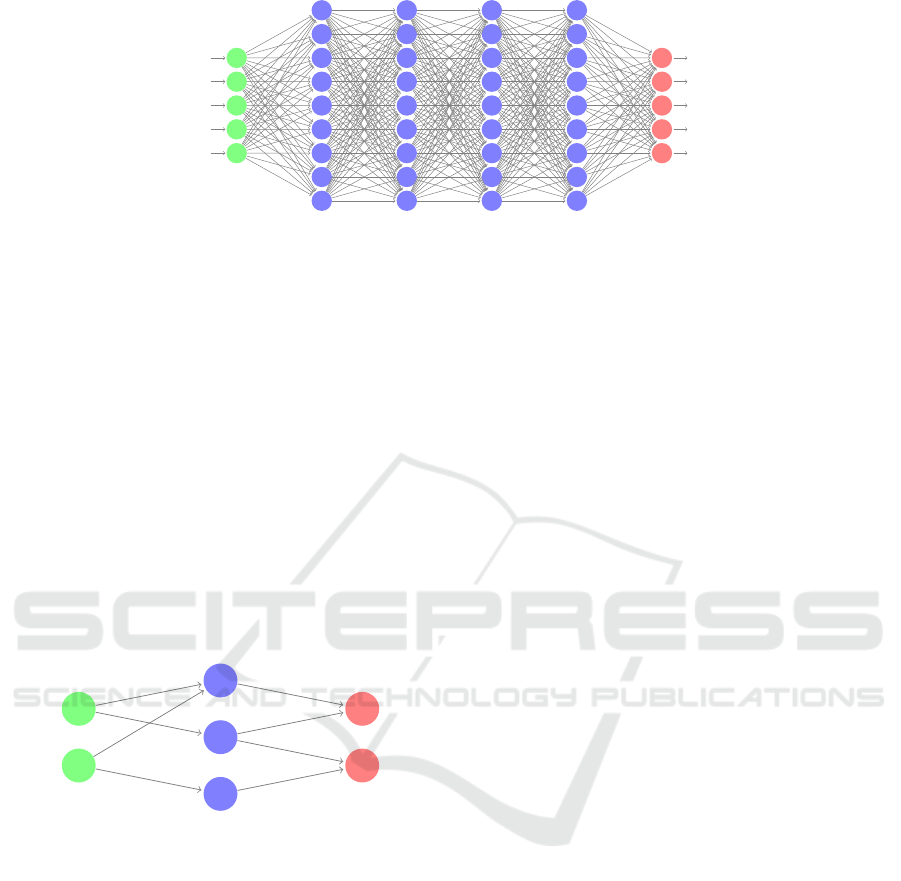

Figure 1: A fully connected DNN with 5 input nodes (in green), 5 output nodes (in red), and 4 hidden layers containing a total

of 36 hidden nodes (in blue).

Fig. 2 depicts a small DNN that will serve as a

running example. The network acts as a controller: it

has two inputs, x

and x

; three hidden neurons, v

, v

and v

, each with the ReLU activation functions; and

it selects one of two possible actions through its out-

put neurons, y

and y

. We slightly abuse notation,

and use y

and y

to denote both the neurons and the

actions/classes those neurons represent. The selected

action is the one assigned the highest score. We see,

for example, that assigning x

= 1, x

= 0 results in

output values y

= 1, y

= 0, i.e., action y

is selected;

whereas x

= 0, x

= 1 leads to y

= 0, y

= 3, i.e. ac-

tion y

is selected.

−2

−1

−2

Hidden layerInput layer Output layer

Figure 2: A small neural network with a single hidden layer.

An override rule is a triple hP, Q, αi, where P is

a predicate over the network’s inputs, Q is a predi-

cate over the network’s outputs, and α is an override

action. The semantics of these rules is that if P and

Q hold for a network’s evaluation, then output action

α should be selected — regardless of the network’s

output. For example, we might specify the rule

> 0 ∧ x

< x

,true, y

which would be triggered for inputs x

= 1,x

= 0. As

we saw previously, in this case the network outputs

; but with the override rule, this selection would be

changed to y

. By setting Q to true, we created an

override rule the only examines the DNN’s inputs. We

could, for example, set Q to y

> 10, in which case

the rule would not be triggered for x

= 1, x

= 0. By

adjusting P and Q, the aforementioned formulation

can express many common override rules, such as the

rule in the DeepRM example described in Section 1.

2.2 Scenario-based Modeling

Scenario-based modeling (Harel et al., 2012b) is an

approach for modeling complex reactive systems. At

the core of the approach lies the notion of a scenario

object: a description of a single behavior, whether de-

sirable or undesirable, of the system being modeled.

Each scenario object is created separately, and does

not directly interact with the other scenarios; instead,

it only interacts with a global execution mechanism.

This execution mechanism can execute a set of sce-

narios in a way that produces cohesive, global behav-

ior.

There are several ﬂavors of scenario-based mod-

eling, which may differ in the various idioms that

a scenario object uses to interact with the execution

mechanism and affect the overall execution of the sys-

tem. Here, we focus on the commonly used idioms

of requesting, waiting-for and blocking events (Harel

et al., 2012b). When executed, each scenario ob-

ject may declare it has reached a synchronization

point, in which the execution infrastructure must trig-

ger an event. The object then speciﬁes which events

it would like to have triggered (requested events);

which events it forbids from being triggered (blocked

events); and which events it does not actively request,

but should be notiﬁed in case they are triggered by the

execution mechanism (waited-for events). The execu-

tion infrastructure waits for all the scenario objects to

synchronize (or just for a subset thereof, depending

on the semantics used (Harel et al., 2013a)); selects

an event that is requested and not blocked for trigger-

ing; and informs any relevant scenario object that this

event has been triggered.

A toy example of a scenario-based model appears

in Fig. 3. The model depicted therein belongs to a

system that controls the water level in a tank with

hot and cold water taps. Each scenario object is de-

picted as a transition system, where the nodes repre-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

128

sent the predetermined synchronization points. The

scenario object ADDHOTWATER repeatedly waits for

WATERLOW events and requests three times the event

ADDHOT; and the scenario object ADDCOLDWATER

performs a symmetrical operation with cold water.

In a model that includes only the objects ADDHOT-

WATER and ADDCOLDWATER, the three ADDHOT

events and three ADDCOLD events may be triggered

in any order during execution. In order to maintain

the stability of the water temperature in the tank, the

scenario object STABILITY enforces the interleaving

of ADDHOT and ADDCOLD events by using event

blocking. The execution trace of the resulting model

is depicted in the event log.

wait for

WATERLOW

request

ADDHOT

request

ADDHOT

request

ADDHOT

ADDHOTWATER

wait for

WATERLOW

request

ADDCOLD

request

ADDCOLD

request

ADDCOLD

ADDCOLDWATER

wait for

ADDHOT

while

blocking

ADDCOLD

wait for

ADDCOLD

while

blocking

ADDHOT

STABILITY

·· ·

WATERLOW

ADDHOT

ADDCOLD

ADDHOT

ADDCOLD

ADDHOT

ADDCOLD

·· ·

EVENT LOG

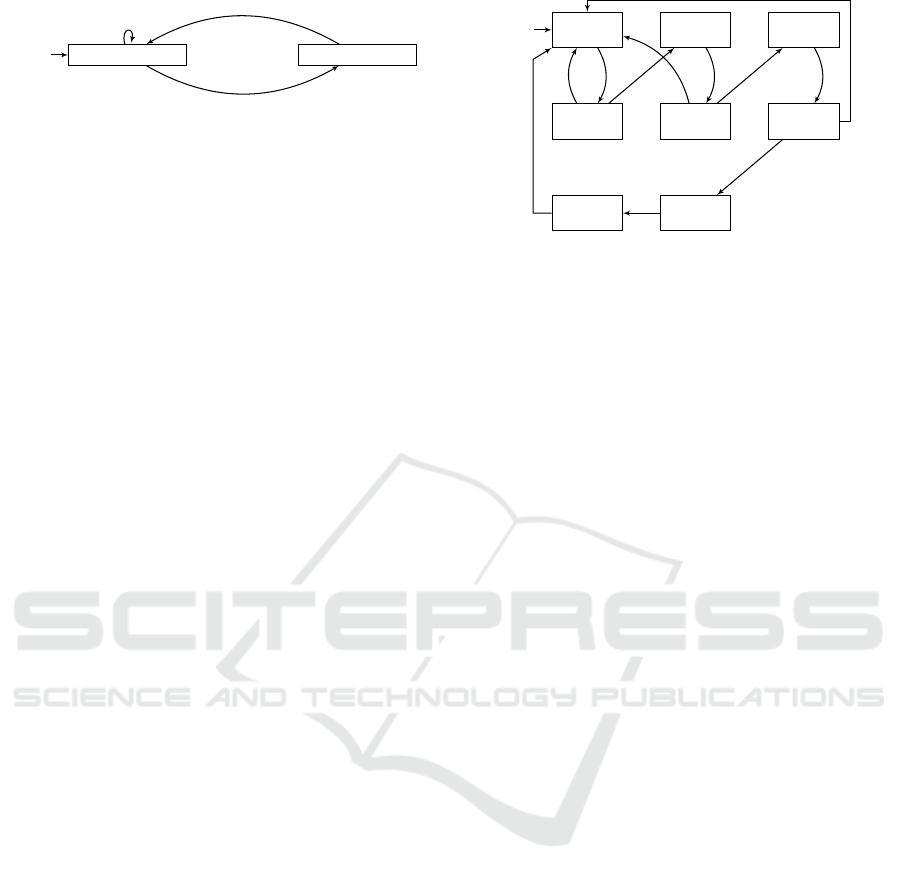

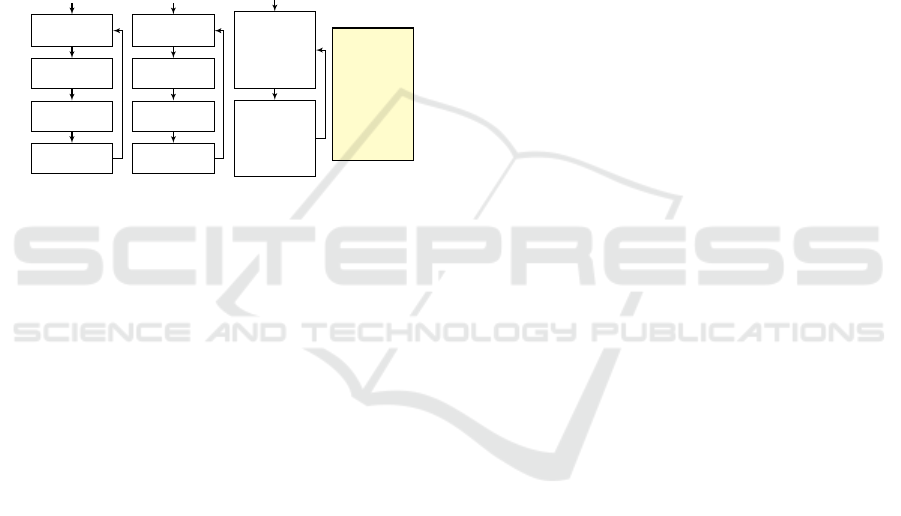

Figure 3: (From (Harel et al., 2014)) A scenario-based

model of a system that controls the water level in a tank

with hot and cold water taps.

SBM has been implemented in a variety of high-

level languages, such as Java (Harel et al., 2010),

C++ (Harel and Katz, 2014), JavsScript (Bar-Sinai

et al., 2018) and ScenarioTools (Greenyer et al.,

2017). The methodology has been successfully

used in modeling complex systems, such as web-

servers (Harel and Katz, 2014), cache coherence

protocols (Harel et al., 2016a) and robotic con-

trollers (Gritzner and Greenyer, 2018). For simplic-

ity and generality, in the remainder of this paper we

mostly describe scenario-based models in terms of

transitions systems.

Following the deﬁnitions in (Katz, 2013), we

formalize the SBM framework as follows. A sce-

nario object O over event set E is a tuple O =

hQ, δ, q

, R, Bi, where the components are interpreted

as follows:

• Q is a set of states, each representing one of the

predetermined synchronization points;

• q

is the initial state;

• R : Q → 2

and B : Q → 2

map states to the sets

of events requested and blocked at these states (re-

spectively); and

• δ : Q × E → 2

is a transition function, indicating

how the object reacts when an event is triggered.

Scenario objects can be composed into a sin-

gle, larger scenario object, as follows. For objects

= hQ

, δ

, q

, R

, B

i and O

= hQ

, δ

, q

, R

, B

over a common event set E, we deﬁne the com-

posite scenario object O

k O

as O

k O

= hQ

, δ, hq

, q

i, R

∪ R

, B

∪ B

i, where:

• h ˜q

, ˜q

i ∈ δ(hq

, q

i, e) if and only if ˜q

∈

, e) and ˜q

∈ δ

, e); and

• The union of the labeling functions is deﬁned in

the natural way; e.g. e ∈ (R

∪ R

)(hq

, q

i) if

and only if e ∈ R

) ∪ R

), and e ∈ (B

∪

)(hq

, q

i) if and only if e ∈ B

) ∪ B

A behavioral model M is deﬁned as a collection

of scenario objects O

, O

, . . . , O

, and the executions

of M are the executions of the composite object O =

k O

k . . . k O

. Each such execution starts from

the initial state of O, and in each state q along the run

an enabled event is chosen for triggering, if one exists

(i.e., an event e ∈ R(q) − B(q)). Then, the execution

moves to a state ˜q ∈ δ(q, e), and so on.

One extension of SBM, which will be useful in

our context, is to treat events as variables (Katz et al.,

2019b). For example, an event e can be declared to be

of type integer. Then, one scenario object might re-

quest e ≥ 5, while another object might block e ≥ 7.

The execution framework would then employ a con-

straint solver, such as an SMT solver (Barrett and

Tinelli, 2018), to resolve the constraints and trigger,

e.g., the event e = 6. We omit here the formal deﬁ-

nition of this extension, which is straightforward, and

refer the interested reader to (Katz et al., 2019b).

3 MODELING OVERRIDE

SCENARIOS

In the DeepRM case, override rules have been added

as unrestricted Python code within the module that in-

vokes the DNN and processes its result (Mao et al.,

2016b). Thus, while the DNN controller itself is

clearly structured and well deﬁned, override rules are

phrased as arbitrary pieces of code. This could lead to

several complications: (i) as the number of override

rules increases, they might become convoluted and

difﬁcult to comprehend, extend and maintain; (ii) the

semantics of override rules might be unclear. For ex-

ample, in the case of multiple rules that can all be ap-

plied, which one prevails? Is there a particular order

in which they should be checked? Can rules interact?

etc; and (iii) the conditions employed within these

override rules might become more complex, hiding

away some of the model’s logic where other develop-

ers might not expect to ﬁnd it.

Guarded Deep Learning using Scenario-based Modeling

129

Here, we propose to model override rules using

SBM, as a means for mitigating these difﬁculties.

SBM is geared towards incremental modeling, which

seems a particularly likely scenario when DNNs are

involved: due to the opacity of DNNs, some unde-

sirable behaviors are likely to be detected only after

deployment, requiring the addition of new override

rules. Further, SBM’s simple semantics would guar-

antee that interactions between the override rules are

well deﬁned. Finally, there is a substantial body of

work on automatically verifying, analyzing and opti-

mizing SBM models, which could prove useful in de-

tecting conﬂicts between override rules or simplifying

them when their number increases.

3.1 Modeling DNNs and Override Rules

in SBM

We propose the following method for creating SBM

models that combine scenario objects and a DNN

controller. The core idea is to represent the DNN

as a dedicated scenario object, O

DNN

, to be included

in the scenario-based model. This O

DNN

is a non-

deterministic scenario that models the DNN con-

troller, thus allowing it to interact with the other sce-

nario objects. Let us assume, for the sake of simplic-

ity (we relax this limitation later), that there is a ﬁnite

set of possible inputs to the DNN, denoted I; and let

O denote the set of possible actions among which the

DNN chooses. We introduce new events to our event

set E: an event e

for every i ∈ I, and an event e

for

every o ∈ O. We have our new scenario object O

DNN

repeatedly wait for all events e

, and then request all

events e

. This behavior represents the black-box na-

ture of the DNN, as far as the rest of the model is

concerned: we only know that after an input arrives,

one of the outputs will be selected, without knowing

which. However, when the model is executed, the ex-

ecution infrastructure resolves this non-determinism

by running the actual DNN and triggering the output

event that corresponds to its selection. For example,

assuming just two possible inputs, e.g. i

= h1, 0i and

= h0, 1i, the network depicted in Fig. 2 would be

represented by the scenario object described in Fig. 4.

hidden text hidden

wait for e

, e

hidden text hidden

start

request e

, e

and block all

other events

, e

Figure 4: A scenario O

DNN

for the neural network in Fig. 2.

Events e

and e

represent the inputs to the neural network,

and events e

and e

represent its outputs.

We introduce the convention that other scenario

objects in the systems may wait-for, but may not

block, the input events e

. A single dedicated sce-

nario, called a sensor, is responsible for requesting an

input event when the DNN needs to be evaluated (e.g.,

following a user action). By another convention, no

scenario object except O

DNN

may request any of the

output events e

; however, other scenario objects may

wait-for or block these events. During execution, if

the DNN assigns the highest score to an event that is

currently blocked, we resolve the non-determinism of

DNN

by selecting the event representing the output

with the next-to-highest score, and so on. If no events

are left unblocked, then the system is deadlocked and

the execution terminates.

The motivation underlying our deﬁnitions is to al-

low scenario objects to monitor the inputs and outputs

of the DNN controller, by waiting for their respective

events; and then to interfere with the recommenda-

tion of the DNN, by blocking certain output events

from being triggered, which is the main use-case of

override rules. Note that a scenario object may force

the DNN to produce a speciﬁc output, by blocking

all other possibilities; or it may interfere more sub-

tly, by blocking some events and allowing the DNN

to choose among the remaining events.

In practice, our assumption that the sets I of pos-

sible DNN inputs and the set O of possible DNN out-

puts are ﬁnite might be a limiting factor: for example,

in the override rule described in Section 2.1, the rel-

ative assignments to x

and x

affected whether the

rule could be triggered or not, and so it is important

to express in our model the exact assignments for x

and x

. Of course, there are inﬁnitely many possible

assignments. To waive this limitation we again turn

to the extension to SBM (Katz et al., 2019b) that al-

lows us to treat events as variables of certain types.

We change our formulation slightly: scenario objects

in the system may wait-for a single, composite event

that indicates that values have been assigned to (all

of) the DNN’s inputs or outputs, and may then act ac-

cording to those values.

Using this extension, the override rule from Sec-

tion 2.1 is expressed as a scenario object in Fig. 5.

The scenario enforces the override rule that whenever

> 0 and x

< x

, output event y

(and not y

) should

be triggered. Here, he

, e

i represents a single event

that indicates that values have been assigned to the

DNN’s inputs. This event contains two real values,

and x

, that the scenario can then access and use

to determine its transition. Event e

indicates, as be-

fore, that the scenario forbids the DNN from selecting

as its output action.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

130

wait for hx

, x

start

block e

> 0 ∧ x

< x

≤ 0 ∨ x

≥ x

Figure 5: A scenario object enforcing the override rule that

whenever x

> 0 and x

< x

, output event y

should be

triggered.

3.2 Liveness Properties

Override rules are typically used to enforce safety

properties (“bad things never happen”). However,

there is sometimes a need to enforce liveness proper-

ties (“good things eventually happen”). In particular,

this can happen in the context of online reinforcement

learning (Sutton and Barto, 1998) — where the DNN

controller might change over time, and we wish to en-

sure that it eventually tries out new actions. If these

actions turn out to be beneﬁcial, the RL mechanism

will ensure that the DNN repeats them in the future.

Liveness properties are also relevant when there are

fairness constraints; for example, if we wish to ensure

that in a resource allocation system, every pending job

eventually gets scheduled.

An example appears in (Kazak et al., 2019), where

the authors discuss the Custard system: a congestion

control system that uses a DNN to monitor the con-

ditions of a computer network and select a sending

bit rate, in order to minimize congestion (Jay et al.,

2018). In (Kazak et al., 2019), Custard is examined

to see if there are cases in which the DNN controller

chooses a sub-optimal sending rate that does not uti-

lize all available bandwidth, and never attempts to in-

crease this bit rate. This kind of behavior constitutes

a liveness violation, which we would like to prevent

using an override rule.

SBM can encode the fact that one or multiple

DNN output actions should eventually be blocked,

thus forcing the DNN controller to pick a different al-

ternative. This can be enforced by having a scenario

object wait for n consecutive rounds where a particu-

lar output is triggered, and then block it; an example

for n = 3 appears in Fig. 6, where a scenario looks for

3 consecutive DNN evaluations where y

is triggered,

after which it blocks y

once, forcing the DNN to se-

lect another action. An alternative is to have the over-

ride rule block the particular output event with a very

low probability (Harel et al., 2014), thus enforcing the

fact that it will eventually be blocked with probability

wait for

, e

start

wait for

, e

wait for

, e

wait for

block e

wait for e

∗

Figure 6: A scenario object that enforces a liveness property

for the network from Fig. 4.

3.3 Automated Analysis

Scenario-based modeling has been shown to facili-

tate automated formal analysis (Harel et al., 2015c).

Speciﬁcally, the simple synchronization constructs

that scenario objects in SBM models use render tasks

such as model checking (Katz et al., 2015), composi-

tional veriﬁcation (Harel et al., 2013b) and automated

repair (Katz, 2013) simpler than they would be for

less restricted models. We argue that these properties

add to the attractiveness of SBM as a formalism for

expressing override rules.

One particular use case that illustrates the afore-

mentioned claim is deadlock freedom. As additional

override rules are added, perhaps by different model-

ers, there is a risk that a certain sequence of inputs to

the DNN might cause a deadlock. As a simple illus-

trative example, consider the override rule expressed

in Fig. 5: whenever x

> 0 and x

< x

, output y

should be selected. Suppose now that another mod-

eler, concerned about the fact that the DNN might

always advise y

, adds the override rule depicted in

Fig. 6: after 3 consecutive y

events, a different event

must be selected. These two override rules together

might result in a deadlock: for example, if the DNN

receives the inputs x

= 2, x

= 1 three consecutive

times, both override rule would be triggered, simulta-

neously blocking both output events e

and e

Such situations can be avoided by running a ver-

iﬁcation query that ensures that the system is dead-

lock free. This query can be run, e.g., after the ad-

dition of each new override rule. Should a deadlock

be detected, the counter-example provided by the ver-

iﬁcation tool could guide the modeler in changing the

conﬂicting rules — after which veriﬁcation can be run

again, to ensure that the system is now indeed dead-

lock free. Of course, additional system-speciﬁc prop-

erties, beyond deadlock freedom, could also be veri-

ﬁed.

Guarded Deep Learning using Scenario-based Modeling

131

4 EVALUATION

For evaluation purposes, we implemented our ap-

proach on top of the BPC framework for scenario-

based modeling in C++ (Harel and Katz, 2014) (of

course, other SBM frameworks could also be used).

The BPC package allows modelers to leverage many

of the powerful constructs of C++, while forcing them

to adhere to the SBM principles: each scenario is

modeled as a separate object, and inter-scenario in-

teractions are performed through a global execution

mechanism that BPC provides. Here, we used BPC

to model override rules for the DeepRM system for

resource management, and for the Custard system for

congestion control.

4.1 Override Rules for DeepRM

The DeepRM system (Mao et al., 2016a) (discussed

in Section 1) performs resource allocation: it assigns

available resources to pending jobs, with the goal of

maximizing throughput. As part of our evaluation we

implemented an override rule that prevents the DNN

controller from attempting to assign resources to non-

existing jobs, which is an undesirable behavior that

occurs in practice (Mao et al., 2016b).

BPC code for our override rule, implemented as

a scenario object, appears in Fig. 7. We assume that

the queue of pending jobs is of size 5, and that the

DNN’s output actions are denoted y

, y

, . . . , y

. Ac-

tion y

for 1 ≤ i ≤ 5 means that the job in slot i of the

queue should be allocated resources, and the special

action y

is the “pass” action, indicating that no job

should be allocated resources at this time. We use x

to denote an event indicating that the DNN needs to

be evaluated on certain input values, available as pa-

rameters of x. The state of the job queue is part of the

input to the DNN controller. Speciﬁcally, we use x[i]

for 1 ≤ i ≤ 5 to denote a Boolean value that indicates

whether or not there is currently a pending job in slot

i of the queue.

The override scenario object is implemented as a

class that inherits from BPC’s special BThread class.

The scenario object can then use the special bSync()

method to initialize a synchronization point with the

other scenarios in the model (including O

DNN

, the

scenario object that models the DNN controller). This

method takes as input three Event vectors — the ﬁrst

containing the set of requested events, the second

containing the set of waited-for events, and the third

containing the set of blocked events. The bSync()

call suspends the object’s execution until the BPC

mechanism selects and triggers an event; then, if the

triggered event was requested or waited-for by the

scenario object, the scenario resumes execution and

can retrieve the triggered event using the lastEvent()

method.

Our scenario object runs in an inﬁnite loop, each

time waiting for the input event x to be triggered.

When that happens, it examines x to determine which

slots of the job queue are occupied; and then synchro-

nizes again to block event y

for any unoccupied slots.

Note that this scenario object can never cause a dead-

lock, because it never blocks event y

class EnsureJobExists : public BThread {

void entryPoint () {

Vector<Event> emptySet = {};

Vector<Event> allInputs = { x };

Vector<Event> allOutputs = { y

, . . . , y

};

while ( true ) {

bSync ( e mptySet , allInputs , emptySet );

lastInput = lastEvent ();

Vector<Event> blocked = {};

for ( int i = 1; i <= 5; ++ i ) {

if ( ! lastInput[ i] )

blocked .append ( y

)

}

bSync ( e mptySet , allOutputs , blocked )

}

Figure 7: A scenario object for preventing the DeepRM

DNN controller from assigning resources to non-existing

jobs.

4.2 Override Rules for Custard

As brieﬂy discussed in Section 3.2, Custard is a DNN-

based congestion control system. The DNN controller

takes as input various readings about the current and

previous state of the computer network (e.g., through-

puts, loss rates, and latency), and selects the next

sending bit rate. Custard is a reactive system, de-

signed to be run continuously and use the results of

its past decisions (as reﬂected in past network read-

ings) when making its next choice of bit rate.

Due to the opacity of the DNN controller, one

concern when using Custard is that it might be too

conservative. Speciﬁcally, we may wish to avoid a

situation where the state of the computer network is

completely steady, and yet the DNN controller never

tries to increase the sending bit rate — and thus never

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

132

ﬁnds out whether there is additional, currently unused

bandwidth.

A scenario object that prevents this case is de-

picted in Fig. 8. The scenario looks for a situation

where the DNN’s inputs and outputs have been iden-

tical for the last n = 10 rounds, and when this is de-

tected it blocks the previous output action. Event

x represents here an input assignment (comprised of

multiple input values) on which the DNN has been

evaluated, and event y represents the DNN’s output

selection. Here, for simplicity, we do not examine the

actual values of x, and only look for repeating assign-

ments (in practice, we may want to apply this override

rule only if the physical network’s conditions are both

steady and good, indicating that there may be unused

bandwidth).

5 RELATED WORK

Override rules, sometimes also referred to as

shields, have been applied ad-hoc in multiple DNN-

enabled systems, such as DeepRM (Mao et al., 2016a)

and Pensieve (Mao et al., 2017). Such rules, and

related forms of runtime monitors, are also found

in control systems for robots (Phan et al., 2017),

drones (Desai et al., 2018), and in various other for-

malisms which are not directed particularly at deep

learning (Hamlen et al., 2006; Falcone et al., 2011;

Schierman et al., 2015; Ji and Lafortune, 2017; Wu

et al., 2018). The formal methods community has re-

cently taken an interest in override rules for systems

with DNNs: for example, by proposing techniques to

synthesize rules that affect the controller as little as

possible (Avni et al., 2019; Wu et al., 2019).

Various aspects of the SBM formalism, especially

those pertaining to the formal analysis of scenario-

based models, have been studied over the years.

These aspects include the automatic repair (Harel

et al., 2012a), veriﬁcation (Harel et al., 2015b),

synthesis (Greenyer et al., 2016a) and optimiza-

tion (Harel et al., 2015a; Greenyer et al., 2016b;

Steinberg et al., 2017; Steinberg et al., 2018; Harel

et al., 2020) of models. SBM is also a key component

of the Wise Computing initiative (Marron et al., 2016;

Harel et al., 2016b; Harel et al., 2018), which seeks to

transform the computer into a proactive team mem-

ber, capable of developing complex models alongside

human engineers.

In this paper we focused on scenario-based mod-

eling as a possible formalism for expressing override

rules. There are other, related modeling schemes,

which could also be used in similar contexts. For ex-

ample, publish-subscribe is a related framework for

const int n = 10;

class PreventSteadyState : public BThread {

void entryPoint () {

Vector<Event> empty ;

Vector<Event> allInputs = { x };

Vector<Event> allOutputs = { y };

Event lastInput ;

Event lastOutput ;

while ( true ) {

bSync ( empty , allInputs , empty );

lastInput = lastEvent ();

bSync ( empty , allOutputs , empty );

lastOutput = lastOutput ();

bool steadyState = true ;

int i = 1;

while ( i < n && steadyState ) {

bSync ( empty , allInputs , empty );

if ( lastInput != lastEvent () )

steadyState = false;

bSync ( empty , allOutputs , empty );

if ( lastOutput != lastEvent () )

steadyState = false;

++i;

}

if ( steadyState ) {

bSync ( empty , allInputs , empty );

bSync ( empty , allOutputs , lastOuptut );

}

Figure 8: A scenario object for enforcing the Custard DNN

to choose a different action if the state has been steady for

n = 10 iterations.

parallel composition, which shares many traits with

SBM (Eugster et al., 2003). Aspect oriented program-

ming (Kiczales et al., 1997) is another formalism that

allows to specify and execute cross-cutting program

instructions on top of a base application. Both of these

approaches, however, do not directly support speci-

fying forbidden behavior, which appears quite useful

for specifying override rules. Additional behavior-

and scenario-based models, such as Brooks’s sub-

sumption architecture (Brooks, 1986), Branicky’s be-

Guarded Deep Learning using Scenario-based Modeling

133

havioral programming (Branicky, 1999), and LEGO

Mindstorms leJOS (see (Arkin, 1998)), all call for

constructing systems from individual behaviors. One

advantage that SBM affords compared to these for-

malisms is that it is language-independent, has been

implemented on top of multiple platforms, and can

extend in a variety of ways the coordination and arbi-

tration mechanisms used by these architectures.

The BIP formalism (behavior, interaction, prior-

ity) uses the notion of glue for assembling compo-

nents into a cohesive system (Bliudze and Sifakis,

2008). The goals that it pursues are similar to those of

SBM, although BIP’s focuses mostly on correct-by-

construction systems — while SBM is more geared

towards executing intuitively speciﬁed scenarios, and

resolving the constraints that they pose at run-time.

6 DISCUSSION AND NEXT STEPS

With the increasing use of DNNs in various sys-

tems, there is an urgent need to ensure their safety,

speciﬁcally by using override rules. We argue here

that progress can be made towards this goal by us-

ing modeling schemes that model together the DNN

and its override rules. We propose to use scenario-

based modeling for this purpose, show how the basic

scenario-based scheme can be extended to incorpo-

rate DNNs, and demonstrate the approach on several

examples.

Moving towards a more structured methodology

for modeling override rules raises the following ques-

tion: as the number of override rules and their so-

phistication increases, could they fully capture the

model’s logic and render the DNN obsolete? We be-

lieve that the answer is negative, as override rules

often forbid some speciﬁc behavior, but still rely

on the DNN to prioritize among the remaining op-

tions. We believe that an optimal approach is to com-

bine a DNN component with appropriately modeled

override rules, while maintaining and enhancing both

components throughout the system’s lifetime.

Our work to date is but a ﬁrst step, which we plan

to extend. Speciﬁcally, we intend to work on (i) cus-

tomizing the idioms of SBM, or related techniques,

to better suit integration with DNNs and guard them

in more subtle ways; and (ii) leveraging the other ad-

vantages of SBM, speciﬁcally its amenability to veri-

ﬁcation and automated analysis, in proving the overall

correctness of DNN-enhanced models. In the longer

run, we believe that work in this direction will lead to

the creation of DNN-enabled systems that are more

robust and easier to maintain and extend.

ACKNOWLEDGEMENTS

We thank Yaﬁm (Fima) Kazak for his contributions

to this project, and the anonymous reviewers for their

insightful comments. The project was partially sup-

ported by grants from the Binational Science Foun-

dation (2017662) and the Israel Science Foundation

(683/18).

REFERENCES

Amodei, D., Olah, C., Steinhardt, J., Christiano, P.,

Schulman, J., and Man

e, D. (2016). Con-

crete Problems in AI Safety. Technical Report.

https://arxiv.org/abs/1606.06565.

Arkin, R. C. (1998). Behavior-Based Robotics. MIT Press.

Avni, G., Bloem, R., Chatterjee, K., Henzinger, T.,

onighofer, B., and Pranger, S. (2019). Run-Time

Optimization for Learned Controllers through Quan-

titative Games. In Proc. 31st Int. Conf. on Computer

Aided Veriﬁcation (CAV), pages 630–649.

Bar-Sinai, M., Weiss, G., and Shmuel, R. (2018). BPjs: An

Extensible, Open Infrastructure for Behavioral Pro-

gramming Research. In Proc. 21st ACM/IEEE Int.

Conf. on Model Driven Engineering Languages and

Systems (MODELS), pages 59–60.

Barrett, C. and Tinelli, C. (2018). Satisﬁability Modulo

Theories. In Clarke, E., Henzinger, T., Veith, H.,

and Bloem, R., editors, Handbook of Model Checking,

pages 305–343. Springer International Publishing.

Bliudze, S. and Sifakis, J. (2008). A Notion of Glue Ex-

pressiveness for Component-Based Systems. In Proc.

19th Int. Conf. on Concurrency Theory (CONCUR),

pages 508–522.

Bojarski, M., Del Testa, D., Dworakowski, D., Firner, B.,

Flepp, B., Goyal, P., Jackel, L., Monfort, M., Muller,

U., Zhang, J., Zhang, X., Zhao, J., and Zieba, K.

(2016). End to End Learning for Self-Driving Cars.

Technical Report. http://arxiv.org/abs/1604.07316.

Branicky, M. (1999). Behavioral Programming. In Work-

ing Notes AAAI Spring Symposium on Hybrid Systems

and AI.

Brooks, R. (1986). A Robust Layered Control System for a

Mobile Robot. Robotics and Automation, 2(1):14–23.

Chicco, D., Sadowski, P., and Baldi, P. (2014). Deep Au-

toencoder Neural Networks for Gene Ontology Anno-

tation Predictions. In Proc. 5th ACM Conf. on Bioin-

formatics, Computational Biology, and Health Infor-

matics (BCB), pages 533–540.

Collobert, R., Weston, J., Bottou, L., Karlen, M.,

Kavukcuoglu, K., and Kuksa, P. (2011). Natural Lan-

guage Processing (Almost) from Scratch. Journal of

Machine Learning Research (JMLR), 12:2493–2537.

Damm, W. and Harel, D. (2001). LSCs: Breathing Life

into Message Sequence Charts. Journal on Formal

Methods in System Design (FMSD), 19(1):45–80.

Desai, A., Ghosh, S., Seshia, S., Shankar, N., and Ti-

wari, A. (2018). SOTER: Programming Safe Robotics

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

134

System using Runtime Assurance. Technical Report.

https://arxiv.org/abs/1808.07921.

Elkahky, A., Song, Y., and He, X. (2015). A Multi-View

Deep Learning Approach for Cross Domain User

Modeling in Recommendation Systems. In Proc. 24th

Int. Conf. on World Wide Web (WWW), pages 278–

288.

Eugster, P., Felber, P., Guerraoui, R., and Kermarrec, A.

(2003). The Many Faces of Publish/Subscribe. ACM

Computing Surveys (CSUR), 35(2):114–131.

Falcone, Y., Mounier, L., Fernandez, J., and Richier, J.

(2011). Runtime Enforcement Monitors: Compo-

sition, Synthesis, and Enforcement Abilities. Jour-

nal on Formal Methods in System Design (FMSD),

38(3):223–262.

Gehr, T., Mirman, M., Drachsler-Cohen, D., Tsankov, E.,

Chaudhuri, S., and Vechev, M. (2018). AI2: Safety

and Robustness Certiﬁcation of Neural Networks with

Abstract Interpretation. In Proc. 39th IEEE Sympo-

sium on Security and Privacy (S&P).

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

Learning. MIT Press.

Gottschlich, J., Solar-Lezama, A., Tatbul, N., Carbin, M.,

Rinard, M., Barzilay, R., Amarasinghe, S., Tenen-

baum, J., and Mattson, T. (2018). The Three Pillars

of Machine Programming. In Proc. 2nd ACM SIG-

PLAN Int. Workshop on Machine Learning and Pro-

gramming Languages (MAPL), pages 69–80.

Greenyer, J., Gritzner, D., Gutjahr, T., K

onig, F., Glade,

N., Marron, A., and Katz, G. (2017). ScenarioTools

— A Tool Suite for the Scenario-based Modeling and

Analysis of Reactive Systems. Journal of Science of

Computer Programming (J. SCP), 149:15–27.

Greenyer, J., Gritzner, D., Katz, G., and Marron, A.

(2016a). Scenario-Based Modeling and Synthesis for

Reactive Systems with Dynamic System Structure in

ScenarioTools. In Proc. 19th ACM/IEEE Int. Conf.

on Model Driven Engineering Languages and Systems

(MODELS), pages 16–23.

Greenyer, J., Gritzner, D., Katz, G., Marron, A., Glade,

N., Gutjahr, T., and K

onig, F. (2016b). Distributed

Execution of Scenario-Based Speciﬁcations of Struc-

turally Dynamic Cyber-Physical Systems. In Proc.

3rd Int. Conf. on System-Integrated Intelligence: New

Challenges for Product and Production Engineering

(SYSINT), pages 552–559.

Gritzner, D. and Greenyer, J. (2018). Synthesizing Exe-

cutable PLC Code for Robots from Scenario-Based

GR(1) Speciﬁcations. In Proc. 4th Workshop of

Model-Driven Robot Software Engineering (MORSE),

pages 247–262.

Hamlen, K., Morrisett, G., and Schneider, F. (2006).

Computability Classes for Enforcement Mechanisms.

ACM Transactions on Programming Languages and

Systems (TOPLAS), 28(1):175–205.

Harel, D., Kantor, A., and Katz, G. (2013a). Relaxing Syn-

chronization Constraints in Behavioral Programs. In

Proc. 19th Int. Conf. on Logic for Programming, Arti-

ﬁcial Intelligence and Reasoning (LPAR), pages 355–

372.

Harel, D., Kantor, A., Katz, G., Marron, A., Mizrahi, L.,

and Weiss, G. (2013b). On Composing and Proving

the Correctness of Reactive Behavior. In Proc. 13th

Int. Conf. on Embedded Software (EMSOFT), pages

1–10.

Harel, D., Kantor, A., Katz, G., Marron, A., Weiss, G., and

Wiener, G. (2015a). Towards Behavioral Program-

ming in Distributed Architectures. Journal of Science

of Computer Programming (J. SCP), 98:233–267.

Harel, D. and Katz, G. (2014). Scaling-Up Behavioral Pro-

gramming: Steps from Basic Principles to Applica-

tion Architectures. In Proc. 4th SPLASH Workshop

on Programming based on Actors, Agents and Decen-

tralized Control (AGERE!), pages 95–108.

Harel, D., Katz, G., Lampert, R., Marron, A., and Weiss, G.

(2015b). On the Succinctness of Idioms for Concur-

rent Programming. In Proc. 26th Int. Conf. on Con-

currency Theory (CONCUR), pages 85–99.

Harel, D., Katz, G., Marelly, R., and Marron, A. (2016a).

An Initial Wise Development Environment for Behav-

ioral Models. In Proc. 4th Int. Conf. on Model-Driven

Engineering and Software Development (MODEL-

SWARD), pages 600–612.

Harel, D., Katz, G., Marelly, R., and Marron, A. (2016b).

First Steps Towards a Wise Development Environ-

ment for Behavioral Models. Int. Journal of Informa-

tion System Modeling and Design (IJISMD), 7(3):1–

22.

Harel, D., Katz, G., Marelly, R., and Marron, A. (2018).

Wise Computing: Towards Endowing System Devel-

opment with Proactive Wisdom. IEEE Computer,

51(2):14–26.

Harel, D., Katz, G., Marron, A., Sadon, A., and Weiss, G.

(2020). Executing Scenario-Based Speciﬁcation with

Dynamic Generation of Rich Events. Communica-

tions in Computer and Information Science (CCIS),

1161.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2012a).

Non-Intrusive Repair of Reactive Programs. In Proc.

17th IEEE Int. Conf. on Engineering of Complex Com-

puter Systems (ICECCS), pages 3–12.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2014). Non-

Intrusive Repair of Safety and Liveness Violations in

Reactive Programs. Transactions on Computational

Collective Intelligence (TCCI), 16:1–33.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2015c). The

Effect of Concurrent Programming Idioms on Veri-

ﬁcation. In Proc. 3rd Int. Conf. on Model-Driven

Engineering and Software Development (MODEL-

SWARD), pages 363–369.

Harel, D., Marron, A., and Weiss, G. (2010). Program-

ming Coordinated Scenarios in Java. In Proc. 24th

European Conf. on Object-Oriented Programming

(ECOOP), pages 250–274.

Harel, D., Marron, A., and Weiss, G. (2012b). Behavioral

Programming. Communications of the ACM (CACM),

55(7):90–100.

Huang, X., Kwiatkowska, M., Wang, S., and Wu, M.

(2017). Safety Veriﬁcation of Deep Neural Networks.

In Proc. 29th Int. Conf. on Computer Aided Veriﬁca-

tion (CAV), pages 3–29.

Jay, N., Rotman, N., Brighten Godfrey, P., Schapira, M.,

and Tamar, A. (2018). Internet Congestion Control via

Guarded Deep Learning using Scenario-based Modeling

135

Deep Reinforcement Learning. In Proc. 32nd Conf. on

Neural Information Processing Systems (NeurIPS).

Ji, Y. and Lafortune, S. (2017). Enforcing Opacity by Pub-

licly Known Edit Functions. In Proc. 56th IEEE An-

nual Conf. on Decision and Control (CDC), pages 12–

15.

Julian, K., Lopez, J., Brush, J., Owen, M., and Kochen-

derfer, M. (2016). Policy Compression for Aircraft

Collision Avoidance Systems. In Proc. 35th Digital

Avionics Systems Conf. (DASC), pages 1–10.

Katz, G. (2013). On Module-Based Abstraction and Re-

pair of Behavioral Programs. In Proc. 19th Int. Conf.

on Logic for Programming, Artiﬁcial Intelligence and

Reasoning (LPAR), pages 518–535.

Katz, G., Barrett, C., Dill, D., Julian, K., and Kochenderfer,

M. (2017). Reluplex: An Efﬁcient SMT Solver for

Verifying Deep Neural Networks. In Proc. 29th Int.

Conf. on Computer Aided Veriﬁcation (CAV), pages

97–117.

Katz, G., Barrett, C., and Harel, D. (2015). Theory-Aided

Model Checking of Concurrent Transition Systems. In

Proc. 15th Int. Conf. on Formal Methods in Computer-

Aided Design (FMCAD), pages 81–88.

Katz, G., Huang, D., Ibeling, D., Julian, K., Lazarus, C.,

Lim, R., Shah, P., Thakoor, S., Wu, H., Zelji

c, A., Dill,

D., Kochenderfer, M., and Barrett, C. (2019a). The

Marabou Framework for Veriﬁcation and Analysis of

Deep Neural Networks. In Proc. 31st Int. Conf. on

Computer Aided Veriﬁcation (CAV), pages 443–452.

Katz, G., Marron, A., Sadon, A., and Weiss, G. (2019b).

On-the-Fly Construction of Composite Events in

Scenario-Based Modeling Using Constraint Solvers.

In Proc. 7th Int. Conf. on Model-Driven Engineering

and Software Development (MODELSWARD), pages

143–156.

Kazak, Y., Barrett, C., Katz, G., and Schapira, M. (2019).

Verifying Deep-RL-Driven Systems. In Proc. 1st

ACM SIGCOMM Workshop on Network Meets AI &

ML (NetAI).

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J., and Irwin, J. (1997). Aspect-

Oriented Programming. In Proc. 11th European Conf.

on Object-Oriented Programming (ECOOP), pages

220–242.

Mao, H., Alizadeh, M., Menache, I., and Kandula, S.

(2016a). Resource Management with Deep Reinforce-

ment Learning. In Proc. 15th ACM Workshop on Hot

Topics in Networks (HotNets), pages 50–56.

Mao, H., Alizadeh, M., Menache, I., and Kan-

dula, S. (2016b). Resource Management with

Deep Reinforcement Learning: Implementation.

https://github.com/hongzimao/deeprm.

Mao, H., Netravali, R., and Alizadeh, M. (2017). Neural

Adaptive Video Streaming with Pensieve. In Proc.

Conf. of the ACM Special Interest Group on Data

Communication (SIGCOMM), pages 197–210.

Marron, A., Arnon, B., Elyasaf, A., Gordon, M.,

Katz, G., Lapid, H., Marelly, R., Sherman, D.,

Szekely, S., Weiss, G., and Harel, D. (2016). Six

(Im)possible Things before Breakfast: Building-

Blocks and Design-Principles for Wise Computing. In

Proc. 19th ACM/IEEE Int. Conf. on Model Driven En-

gineering Languages and Systems (MODELS), pages

94–100.

Nair, V. and Hinton, G. (2010). Rectiﬁed Linear Units Im-

prove Restricted Boltzmann Machines. In Proc. 27th

Int. Conf. on Machine Learning (ICML), pages 807–

814.

Phan, D., Yang, J., Grosu, R., Smolka, S., and Stoller, S.

(2017). Collision Avoidance for Mobile Robots with

Limited Sensing and Limited Information about Mov-

ing Obstacles. Journal on Formal Methods in System

Design (FMSD), 51(1):62–68.

Schierman, J., DeVore, M., Richards, N., Gandhi,

N., Cooper, J., Horneman, K., Stoller, S.,

and Smolka, S. (2015). Runtime Assurance

Framework Development for Highly Adap-

tive Flight Control Systems. Technical Report.

https://apps.dtic.mil/docs/citations/AD1010277.

Silver, D., Huang, A., Maddison, C., Guez, A., Sifre, L.,

Van Den Driessche, G., Schrittwieser, J., Antonoglou,

I., Panneershelvam, V., Lanctot, M., and Dieleman, S.

(2016). Mastering the Game of Go with Deep Neural

Networks and Tree Search. Nature, 529(7587):484–

489.

Simonyan, K. and Zisserman, A. (2014). Very

Deep Convolutional Networks for Large-

Scale Image Recognition. Technical Report.

http://arxiv.org/abs/1409.1556.

Steinberg, S., Greenyer, J., Gritzner, D., Harel, D., Katz,

G., and Marron, A. (2017). Distributing Scenario-

Based Models: A Replicate-and-Project Approach. In

Proc. 5th Int. Conf. on Model-Driven Engineering and

Software Development (MODELSWARD), pages 182–

195.

Steinberg, S., Greenyer, J., Gritzner, D., Harel, D., Katz,

G., and Marron, A. (2018). Efﬁcient Distributed Exe-

cution of Multi-Component Scenario-Based Models.

Communications in Computer and Information Sci-

ence (CCIS), 880:449–483.

Sutton, R. and Barto, A. (1998). Introduction to Reinforce-

ment Learning. MIT press Cambridge.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Erhan,

D., Goodfellow, I., and Fergus, R. (2013). Intrigu-

ing Properties of Neural Networks. Technical Report.

http://arxiv.org/abs/1312.6199.

Wang, S., Pei, K., Whitehouse, J., Yang, J., and Jana, S.

(2018). Formal Security Analysis of Neural Networks

using Symbolic Intervals. In Proc. 27th USENIX Se-

curity Symposium.

Wu, M., Wang, J., Deshmukh, J., and Wang, C.

(2019). Shield Synthesis for Real: Enforcing

Safety in Cyber-Physical Systems. Technical Report.

https://arxiv.org/abs/1908.05402.

Wu, Y., Raman, V., Rawlings, B., Lafortune, S., and Seshia,

S. (2018). Synthesis of Obfuscation Policies to Ensure

Privacy and Utility. Journal of Automated Reasoning,

60(1):107–131.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

136
