MAUI: Tele-assistance for Maintenance of Cyber-physical Systems

Philipp Fleck

, Fernando Reyes-Aviles

, Christian Pirchheim

Clemens Arth

1,2

and Dieter Schmalstieg

ICG, Graz University of Technology, Inffeldgasse 16/2, 8010 Graz, Austria

AR4 GmbH, Strauchergasse 13, 8020 Graz, Austria

Keywords:

Remote Collaboration, Telepresence, Augmented Reality.

Abstract:

In this paper, we present the maintenance assistance user interface (MAUI), a novel approach for providing

tele-assistance to a worker charged with maintenance of a cyber-physical system. Such a system comprises

both physical and digital interfaces, making it challenging for a worker to understand the required steps and

to assess work progress. A remote expert can access the digital interfaces and provide the worker with timely

information and advice in an augmented reality display. The remote expert has full control over the user

interface of the worker in a manner comparable to remote desktop systems. The worker needs to perform

all physical operations and retrieve physical information, such as reading physical labels or meters. Thus,

worker and remote expert collaborate not only via shared audio, video or pointing, but also share control of

the digital interface presented in the augmented reality space. We report results on two studies: The ﬁrst study

evaluates the beneﬁts of our system against a condition with the same cyber-physical interface, but without

tele-assistance. Results indicate signiﬁcant beneﬁts concerning speed, cognitive load and subjective comfort

of the worker. The second study explores how interface designers use our system, leading to initial design

guidelines for tele-presence interfaces like ours.

1 INTRODUCTION

Technical facilities increasingly incorporate cyber-

physical systems, which must be operated and main-

tained using a mixture of physical and digital inter-

faces. This evolution is not limited to industrial set-

tings: For example, many components of a mod-

ern car can no longer be repaired with physical tools

without access to diagnostic devices that access the

car’s software-controlled sensors and actuators. In

industrial environments, workers must learn to oper-

ate a mixture of conventional physical controls, such

as levers or buttons, and digital interfaces, such as

touch panels placed next to machines or desktop com-

puter interfaces in a control station. For maintenance

and repair, workers must access sensor telemetry data

through diagnostic interfaces, while cross-referencing

the telemetry with sources on paper. Mastering this

multitude of information sources can be difﬁcult. For

cases where the local worker’s competence is ex-

ceeded, equipment manufacturers operate call-centers

or send experts to customers at high traveling costs.

Consequently, tele-assistance has been proposed

as a relief for workers and experts. Most tele-

assistance solutions establish a shared presence of re-

mote expert and worker via some form of audio/video

link combined with tele-pointing and on-screen anno-

tation. One approach is to combine tele-presence with

augmented reality (AR) by letting the worker wear

a head-mounted display (HMD) with built-in camera

and microphone. The worker has their hands free and

does not have to switch attention to a stationary screen

in order to access digital data. The remote expert can

see what the worker sees, provide spoken instructions,

and point out relevant areas in the shared video.

These collaborations primarily target supporting

the mutual spatial understanding of worker and ex-

pert. They are sufﬁcient in situations where only

physical interfaces or facilities need to be manipu-

lated. However, in a cyber-physical system, digi-

tal interfaces must be manipulated as well, requiring

shared understanding of non-spatial aspects. Collab-

oration in digital space is common practice for of-

ﬁce workers, who combine video conferencing with

screen sharing and remote desktop interfaces. The ex-

pert will commonly operate the ofﬁce worker’s desk-

top computer remotely. In such a tele-assistance situ-

ation, the physical interface (e.g., , feeding paper into

800

Fleck, P., Reyes-Aviles, F., Pirchheim, C., Arth, C. and Schmalstieg, D.

MAUI: Tele-assistance for Maintenance of Cyber-physical Systems.

DOI: 10.5220/0009093708000812

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

800-812

ISBN: 978-989-758-402-2; ISSN: 2184-4321

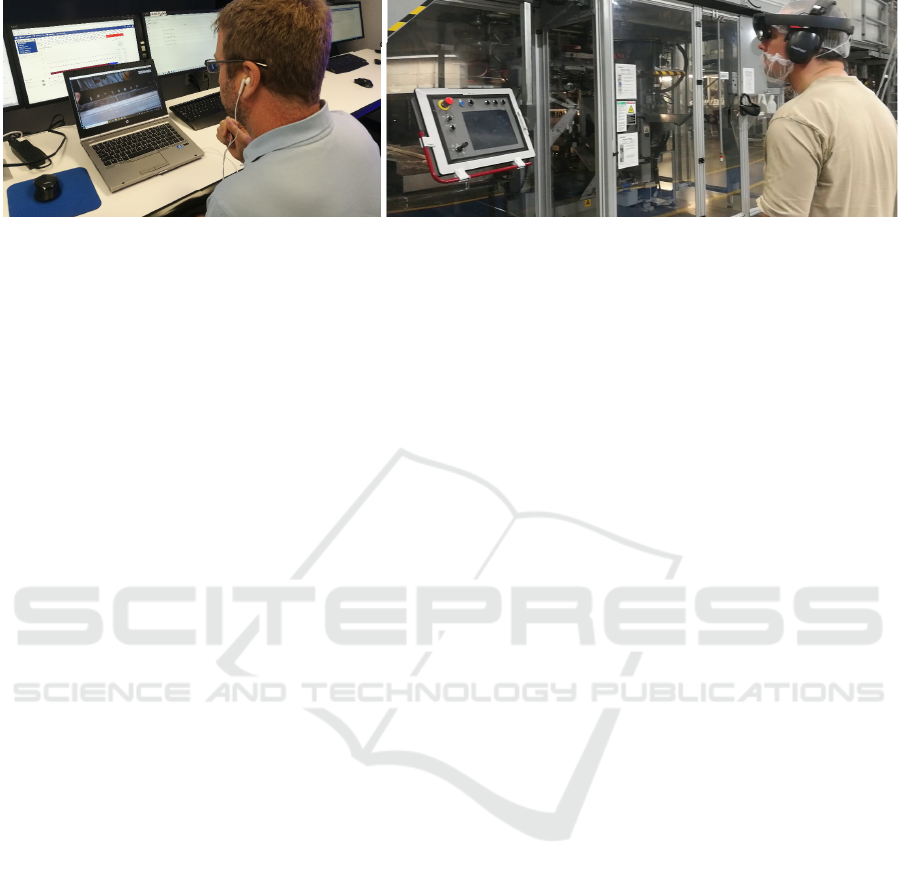

Figure 1: Facility for production. (left) An expert in the control center dispatching (right) a worker on the shop ﬂoor, wearing

a HoloLens, to ﬁx machine downtime problems.

a printer) must be operated by the worker, while the

digital interface is subject to mixed initiative (both

users take turns at operating the mouse). Oftentimes

the digital interface will almost exclusively be oper-

ated by the expert, in particular, if the worker lacks

technical understanding.

In this work, we combine AR tele-assistance with

shared operations via a remote desktop-like user inter-

face into a framework called maintenance assistance

user interface (MAUI). Our system is able to display

web-based interfaces as overlays in the HMD. These

digital interfaces can contain any mixture of teleme-

try information, instructions and interactive widgets

used to control the digital aspects of a cyber-physical

system. Since the worker is busy with the physical

tasks, may lack experience with the digital interface,

or is simply overwhelmed by the amount of informa-

tion displayed in the relatively small ﬁeld of view of

the HMD, the primary responsibility for conﬁguring

and operating the digital interface is deferred to the

remote expert. The expert helps the worker to inter-

act with the virtual and real world at the same time,

thus reducing the risk of possible failures or mistakes.

MAUI was designed with the intention of more efﬁ-

cient subdivision of work between expert and worker,

providing the following contributions:

• We analyze the requirements of AR tele-

assistance for industrial jobs, where remote op-

eration and conﬁguration of a user interface by a

remote expert is required.

• We present implementation details of MAUI,

which address the aforementioned requirements

with its robust abilities for sharing audio, video,

digital content and control state in harsh industrial

environments.

• We discuss results of a user study demonstrating

lower task completion times, reduced cognitive

load, and better subjective comfort on performing

a maintenance task.

• We discuss the results of an exploratory study,

orthogonal to the ﬁrst one, analyzing how web

developers perform when creating user interface

content in the MAUI framework.

2 RELATED WORK

AR can help a worker by purely displaying digi-

tal information. Henderson et al. (Henderson and

Feiner, 2011) have shown the beneﬁts of AR in the

maintenance and repair domain. However, such pre-

conﬁgured information sources are often unavailable.

In this case, a good alternative is to link the worker to

a remote expert providing live support. Dealing with

a cyber-physical system adds the dimension of a dig-

ital interface, which can be controlled locally by the

worker, or alternatively by the remote expert. Thus,

our work is at the nexus of remote collaboration, inter-

action with cyber-physical systems and remote desk-

top user interfaces. We provide background to each

of these topics in the remainder of this section.

2.1 Remote Collaboration

Video transmission has been the enabling technol-

ogy for tele-assistance, since the pioneering work of

Kruger (Krueger et al., 1985). Early work in this

space (Barakonyi et al., 2004; Wellner and Freemann,

1993) was mostly constrained to desktop computers,

due to technical limitations. Recent progress in mo-

bile and wearable computing has brought video con-

ferences abilities to the factory ﬂoor.

However, establishing a shared spatial presence

at the task location still proves challenging. Experts

need to visually experience the worker’s environment.

The video stream from a camera worn by the worker

will only show what the worker is seeing (Huang and

Alem, 2013; Bauer et al., 1999; Kim et al., 2013;

Chastine et al., 2008; Kurata et al., 2004). Giving the

remote expert independent control of a robotic cam-

era (Kuzuoka et al., 2000; Gurevich et al., 2012) is

usually not economically feasible.

MAUI: Tele-assistance for Maintenance of Cyber-physical Systems

801

Apart from spoken instructions, most tele-

assistance solutions let the expert provide visual-

spatial references, either via hand gestures (Oda

et al., 2013; Huang and Alem, 2013; Kirk and Stan-

ton Fraser, 2006), remote pointing (Bauer et al.,

1999; Fussell et al., 2004; Kim et al., 2013; Chas-

tine et al., 2008), or hand-drawn annotation on the

video (Fussell et al., 2004; Gurevich et al., 2012;

Chen et al., 2013; Kim et al., 2013; Ou et al., 2003).

Hand-drawing is either restricted to images from a

stationary camera viewpoint (Kim et al., 2013; Gure-

vich et al., 2012; Huang and Alem, 2013; Bauer et al.,

1999; Chen et al., 2013; Fussell et al., 2004; Kirk and

Stanton Fraser, 2006; Kurata et al., 2004) or requires

real-time 3D reconstruction and tracking (Chastine

et al., 2008; Lee and Hollerer, 2006; Gauglitz et al.,

2014b; Gauglitz et al., 2014a).

2.2 Cyber-physical System Interaction

None of the remote collaboration systems mentioned

in the last section takes into account the special re-

quirements of a task that must be performed on a

cyber-physical system. The dual nature of a cyber-

physical system implies that each task will commonly

consist of a physical task (e.g., physical part mounted

with screws) and a virtual task (e.g., re-initializing a

device after repair). It is crucial for the worker to re-

ceive support on both aspects of cyber-physical tasks.

Recent work in interaction design is starting to

consider such interactions with cyber-physical sys-

tems. Rambach et al. (Rambach et al., 2017) pro-

pose that every cyber-physical system serves its own

data (e.g., sensor information, control interface) to

enable new ways of interaction. Alce et al. (Alce

et al., 2017) experimentally verify different methods

of device interaction while increasing the number of

devices. A common design are device-speciﬁc con-

trols embedded in the AR user interface (Feiner et al.,

1993; Ens et al., 2014).

Other recent work investigates AR in production

and manufacturing industries. Kollatsch et al. (Kol-

latsch et al., 2017) show how to control an industrial

press simulator within an AR application by leverag-

ing its numerical interface, i.e., a device interface al-

lowing to run simulations which are partially executed

on the machine. Han et al. (Han et al., 2017) concen-

trate on automated situation detection and task gener-

ation to give better and more responsive instructions,

e.g., for ﬁxing paper jams in printers.

Cognitive conditions during task performance are

a key element to success in many industrial situations.

Maintenance workers must frequently perform mul-

tiple repair tasks during one shift, requiring a high

level of ﬂexibility and concentration. Therefore, re-

cent research has considered how reducing factors

like frustration, stress and mental load can improve

overall performance. For instance, Baumeister et

al. (Baumeister et al., 2017) investigate mental work-

load when using an AR HMD. Funk et al. (Funk

et al., 2016; Funk et al., 2017) compare instructions

delivered via HMD to tablet computers and plain pa-

per. Recently, Tzimas et al. (Tzimas et al., 2018) re-

ported ﬁndings on creating setup instructions in smart

factories.

2.3 Remote Desktop User Interfaces

Remote desktop tools, such as Skype

TeamViewer

, combine video conferencing with

remote operation. In theory, these tools have the

features required for worker-expert collaboration

and can be made to run on AR headsets such as the

HoloLens. However, a closer inspection reveals that

the similarities to the desired solution are shallow.

Desktop user interfaces are operated using mouse

and keyboard. They do not work very well when

one user has reduced resources (e.g., when using a

phone with a small screen) or when network connec-

tivity is unstable. Workers do not want to retrieve

ﬁles and navigate them manually, while they are

tending to a task. Moreover, shared spatial presence

between worker and expert is not considered at all

in desktop tools. Even re-using parts of desktop tool

implementation in an AR applications turns out to be

hard because of the differences between desktop and

mobile operating systems.

Perhaps closest to our approach in this respect

is the work of O’Neill et al. (O’Neill et al., 2011)

and Roulland et al. (Roulland et al., 2011). Like

us, they present a concept for remote assistance, fo-

cused on ofﬁce printer maintenance. However, un-

like ours, their work relies on schematic 3D rendering

of a printer device, delivered on the printer’s built-in

screen, and very few details are provided on the im-

plementation and extensibility of the system. In con-

trast, MAUI is a comprehensive tele-assistance frame-

work. We describe details about its implementation,

and evaluate the system’s development and use.

3 DESIGN GOALS

In this section, we discuss insights from discussions

with an industrial collaborator and give an overview

Skype: https://www.skype.com

TeamViewer: https://www.teamviewer.com

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

802

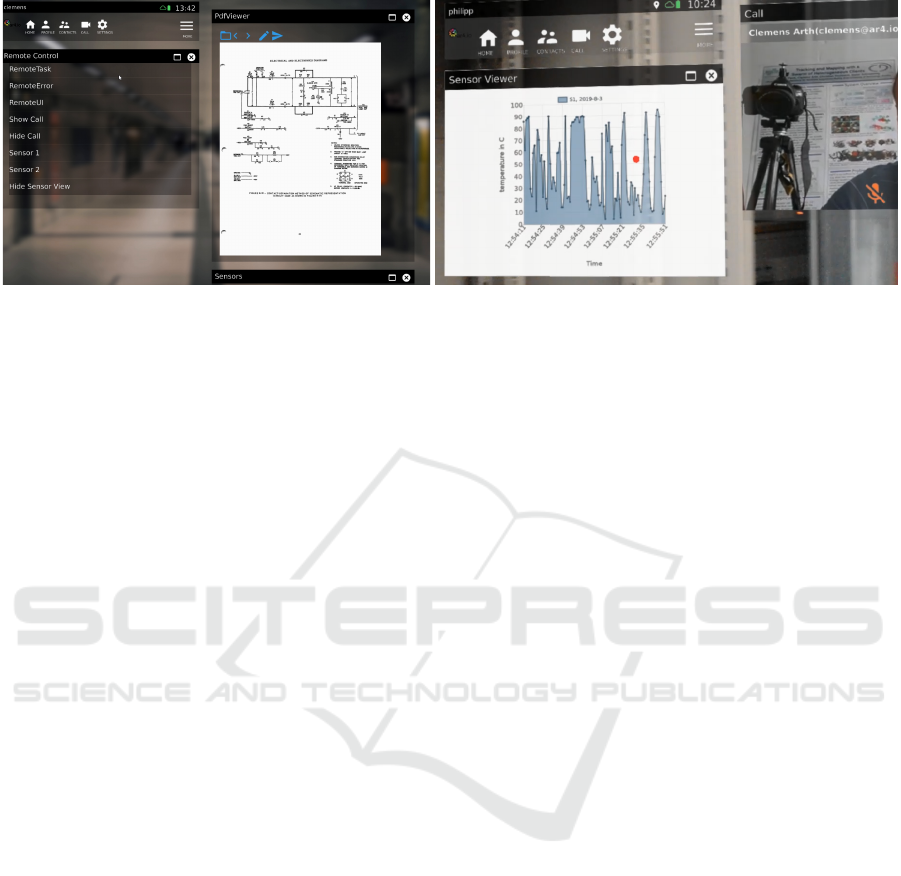

Figure 2: Example of a remote maintenance demo application. (left) Expert interface with an open document and shortcuts of

remote commands, (right) worker UI within a call (A/V, data, commands) and live view of telemetry data shown as a graph.

of our system design, including the user interface

components.

Our industrial collaborator operates manufactur-

ing facilities for mass-produced goods using large-

scale machines. Workers have to change parts, ﬁx

jams and adjust machinery. Most of the tasks involve

cyber-physical systems; e.g., in an adjustment task,

the worker needs to adjust a physical valve and then

restore a setting on a digital interface.

In the maintenance procedures we considered, we

found signiﬁcant motivation for using AR and tele-

assistance. In most cases, live readings of machine

telemetry are not accessible at the task location. A

common situation is that a second person has to keep

an eye on a physical display or analog gauges, while

the worker is performing a repair. Providing real-

time readings within a HMD drastically improves the

workﬂow. Furthermore, step-by-step instructions in-

crease the conﬁdence of the worker and create a clear

reference frame for the expert.

One recurring statement in the discussions was

that the pace of technology development is too high,

and workers tend to be overwhelmed, when new fea-

tures – in particular, digital ones – are introduced too

quickly. The workers have a wide range in terms of

age and come from a diverse educational background.

Not surprisingly, young ”digital natives” seem to have

an easier time adjusting to cyber-physical interfaces

than seasoned workers close to retirement. To cater

to all these user groups in a ﬂexible way, we adopted

a strategy of introducing levels of expertise into the

digital interfaces, supporting the progressive disclo-

sure of new interface features as workers are learning.

Interaction techniques found in the standard user

interface design of a device such as the HoloLens,

e.g., , a gaze-contingent cursor and a handheld Blue-

tooth ”clicker” device, are not easily accepted by the

workers. Our objective was to provide a very gentle

learning curve, so we limited our initial design ex-

plorations to presenting 2D windows in the HMD in

a style comparable to desktop interface, without any

use of 3D geometry. Often, a detailed illustration is

all it takes an experienced worker to solve a problem,

so rather straight-forward features can provide good

value and serve as motivating examples for workers

asked to adopt the new technology.

We also heard from workers who already felt suf-

ﬁciently comfortable with the AR system that regis-

tration of a CAD model with the real machine in 3D

could help them in locating sensors or other compo-

nents more quickly. However, we did not explore any

use of 3D registration in the work presented in this

paper.

In contrast to the workers, experts are gener-

ally well-trained specialists, such as construction en-

gineers. They often have extensive knowledge in

CAD models creation and a good understanding of

cyber-physical systems. Therefore, the expert can

be entrusted with more detailed control of the tele-

assistance system. The tele-presence system should

also give the expert the ability to judge the worker’s

abilities and decide on an appropriate course of ac-

tion.

The tele-assistance system described in this pa-

per was designed to provide remote expert support to

workers directly on the production ﬂoor. Using a see-

through HMD keeps the worker’s hands free, so all

visual elements must be embedded in the HMD view,

and the need for explicit interaction must be reduced

compared to a typical desktop interface in order to not

distract the worker from the physical task.

Consequently, we formulated concrete require-

ments concerning telepresence, multimedia and re-

mote control features, to address the requirements of

potential applications. Worker features include:

• Initiating audio/video connections with easy con-

MAUI: Tele-assistance for Maintenance of Cyber-physical Systems

803

nection management (phonebook, user discov-

ery).

• A 3D mesh transfer function enables the worker to

send a scanned 3D model of the current environ-

ment to the expert, including the worker’s current

position (Leveraging device capabilities e.g., ac-

cessing the HoloLens mesh, but also allowing to

plugin other 3D-reconstruction systems).

Expert features include:

• A screen capture module allows the expert

to share screenshots of running applications

(e.g., CAD model viewer showing a cross section

of a broken machinery part) with the worker.

• Multimedia content in a representation-agnostic

form (PDF, HTML, images, links) can be trans-

ferred and displayed.

• Multi-page documents, such as PDF ﬁles, af-

ford synchronized navigation between expert and

worker. Content can be enriched with shared an-

notations.

• The expert must be able to control the worker’s

UI, including web content, but also triggering na-

tive interfaces of the cyber-physical system.

The last feature, remote control, implies that a cus-

tom user interface must be dynamically embedded in

the tele-assistance application, alleviating the worker

from switching apps or conﬁguring the user experi-

ence. The ability to change the user interface without

touching the underlying application makes it also easy

to embed tutorial functions into the user interface it-

self, which can be step-by-step enabled, facilitating a

gentle learning curve for the worker. Once the worker

is sufﬁciently familiar with the user interface, more

features can be enabled, e.g., transitioning from 2D to

3D visualizations or enabling additional controls for

physical devices.

Finally, the industrial partners in this research

project also required to use established software tech-

nologies. We chose a web-centric approach, inspired

by Argon (MacIntyre et al., 2011), which leverages

existing developer skills and allows for run-time ex-

tensibility.

4 IMPLEMENTATION

MAUI uses Unity3D and runs on the Microsoft

HoloLens (for the worker) and Windows 10 (for the

expert). A native audio/video component component

enables real-time recording, playback, encoding and

decoding of audio/video streams. Audio/video sup-

port can produce a high system load in particular on

Peer Peer

Real-time priority

Normal priority

Communication

library

Platform

specific AV

native

App

Device

Commands

JavaScript interpreter

Framework

Content

Commands

HTML/JS

/CSS definitions

Figure 3: The application software stack of MAUI with sev-

eral native and interpreted software layers.

mobile platforms, so using hardware accelerated au-

dio/video features on each target system was essen-

tial. Therefore, we bypass the regular communication

structure of Unity3D in favor of calling device drivers

on the target platform directly.

The communication component builds on a modi-

ﬁed version of the RakNet

library for the lower lev-

els of the network stack. We chose RakNet over

alternatives provided in .NET, since it is relatively

lightweight and enables unrestricted cross-platform

support. To ensure high performance, these features

use a native, multi-threaded implementation with

static memory allocation. Furthermore, we can grad-

ually control data-ﬂow-rates and change the video

and audio compression accordingly to adapt for any

network-bandwidth.

We rely on the ability of Unity3D to load and reg-

ister third-party libraries as components to support

platform-speciﬁc features as well as dynamic user

interfaces. Asynchronous coordination is enabled

through event passing between components. Native

libraries are developed in C++, but can be scripted

using C# and Javascript.

The resulting framework has only minimal func-

tionality to call native device functions, while all ap-

plication code and user interface code is loaded dy-

namically. Such code is written in C#, Javascript

and HTML and therefore interpreted at runtime. This

allows arbitrary code changes at runtime, useful for

continuous delivery and, in particular, for remote con-

trol.

In the remainder of this section, we describe de-

tails of the individual system components, as shown

in Figure 3.

https://github.com/facebookarchive/RakNet

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

804

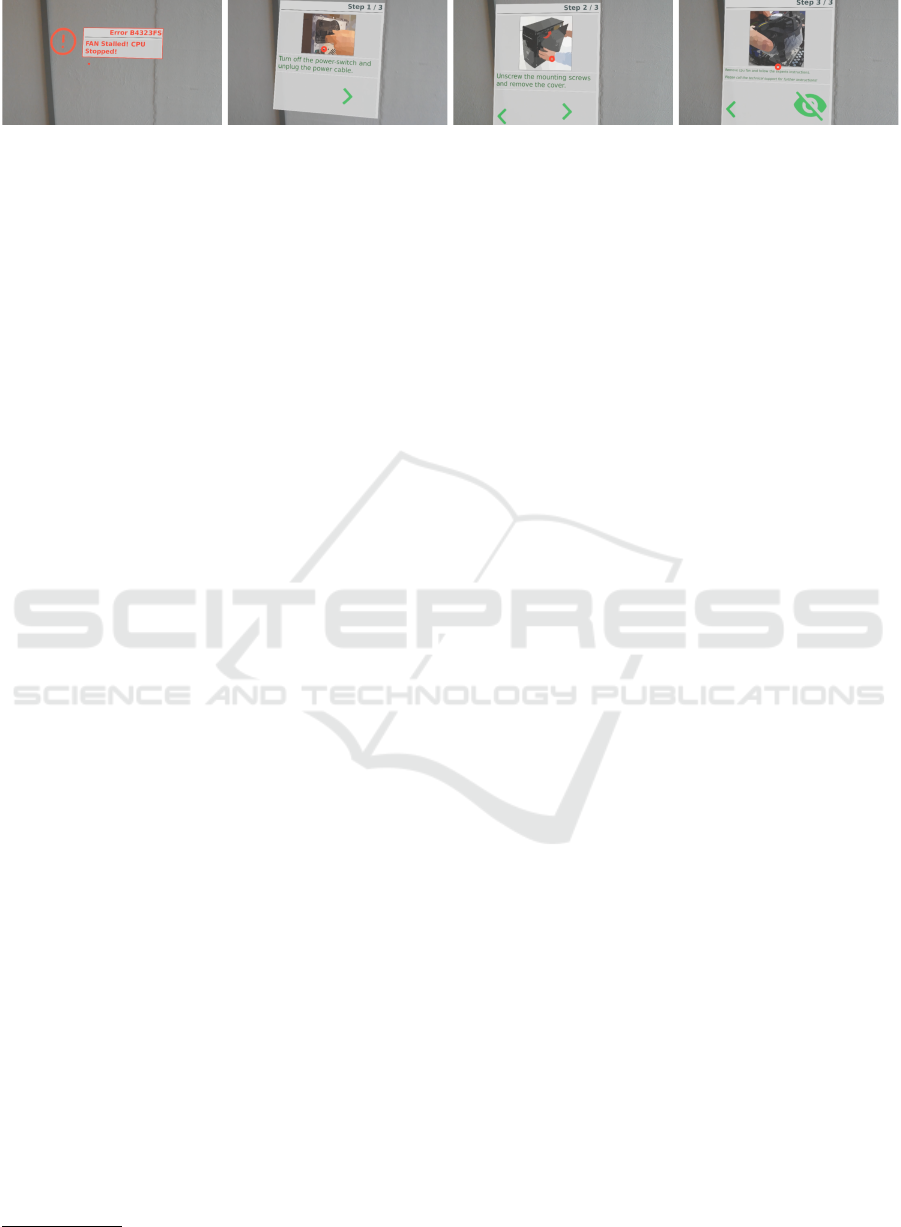

Figure 4: The worker’s view within the HoloLens: (leftmost image) An error is reported, (right images) repair instructions are

shown to the workers.

4.1 User Interface Component

MAUI uses a custom HTML engine with JavaScript

interpreter

to create user interfaces in HTML5, CSS

and JavaScript. User interfaces are rendered into tex-

ture maps and displayed on arbitrary polygonal sur-

faces inside the Unity3D view. Using web technolo-

gies lets a designer easily create responsive user inter-

faces and application layouts.

Even though, technically, the JavaScript engine is

just a plug-in to the Unity3D game engine, JavaScript

is promoted to the central facility for UI development.

However, both worlds are not separated: An impor-

tant property of the web-centric user interfaces is its

native integration into the Unity3D scene. Both the

document object model of the web content and regu-

lar game objects in Unity3D are exposed to Javascript.

Thus, 2D web content and 3D game objects can inter-

act. Apart from handling 2D and 3D events inside the

Unity3D process, JavaScript can also handle external

events. Such external events can be generated by web

services (e.g., REST) or cyber-physical systems.

4.2 Remote User Interface

Orchestration

The interpreted nature of MAUI facilitates remote or-

chestration of the user interface experienced by the

worker. All data transmitted between communicating

nodes in MAUI is either an audio/video stream or a

message in a JSON envelope. The JavaScript inter-

preter unwraps the envelope and interprets the mes-

sage. Since the message can contain JavaScript code,

MAUI does not have to enforce a distinction of data

and code. This implies that messages are directly ex-

ecutable. For instance, instead of just sending an im-

age, we can pack the image into a command to create

a new window on the recipient side and display the

sent image. Therefore, the recipient system does not

require an implementation of such functionality. If

the shipped command is given a unique name, it can

be stored as data and later invoked by that name to

extend the set of user interface features. Direct exe-

cution of messages allows the expert to quite literally

https://powerui.kulestar.com/

control the worker’s user interface. The expert can

invoke every function that that the worker could in-

voke, both inside Unity3D and outside (i.e., address-

ing the cyber-physical system). Note that this remote

control operates on the level of framework activities

and not on the level of user interface events: The ex-

pert does not have to remotely ”click a button” in the

worker’s user interface, but can invoke functions di-

rectly by name, or install new functions to extend the

command set.

UI Commands: let the expert manipulate the user in-

terface. This includes remotely opening, closing and

re-arranging windows, or modifying the user interface

widgets to assume an arbitrary state.

Device Commands: wrap native functions on the peer

device, such as activating a ﬂashlight or a sensor in

a (non-extensible) JavaScript library. Conﬁguration

options of the peer device, such as location or WiFi

SSID, can be queried dynamically to make the UI

adaptive and context-sensitive. For example, the ex-

pert may query the device for the current location, and

retrieve instructions for the facilities at the given lo-

cation from a building information system.

Content Commands: are used to transfer multime-

dia data (PDF, HTML, images, links etc.) in a

representation-agnostic binary form. Within an in-

dustrial scenario one would transmit part documen-

tations, repair guides, images of broken parts or CAD

drawings. Annotations and multi-page synchroniza-

tion are also supported.

5 EXAMPLE SCENARIO

In this section, we describe a repair process in order

to illustrate a possible workﬂow between worker and

expert, as could happen in MAUI.

The worker faces an issue with a personal com-

puter, which fails to boot. Therefore, the worker calls

the expert by selecting the expert’s id in the phone-

book.

MAUI: Tele-assistance for Maintenance of Cyber-physical Systems

805

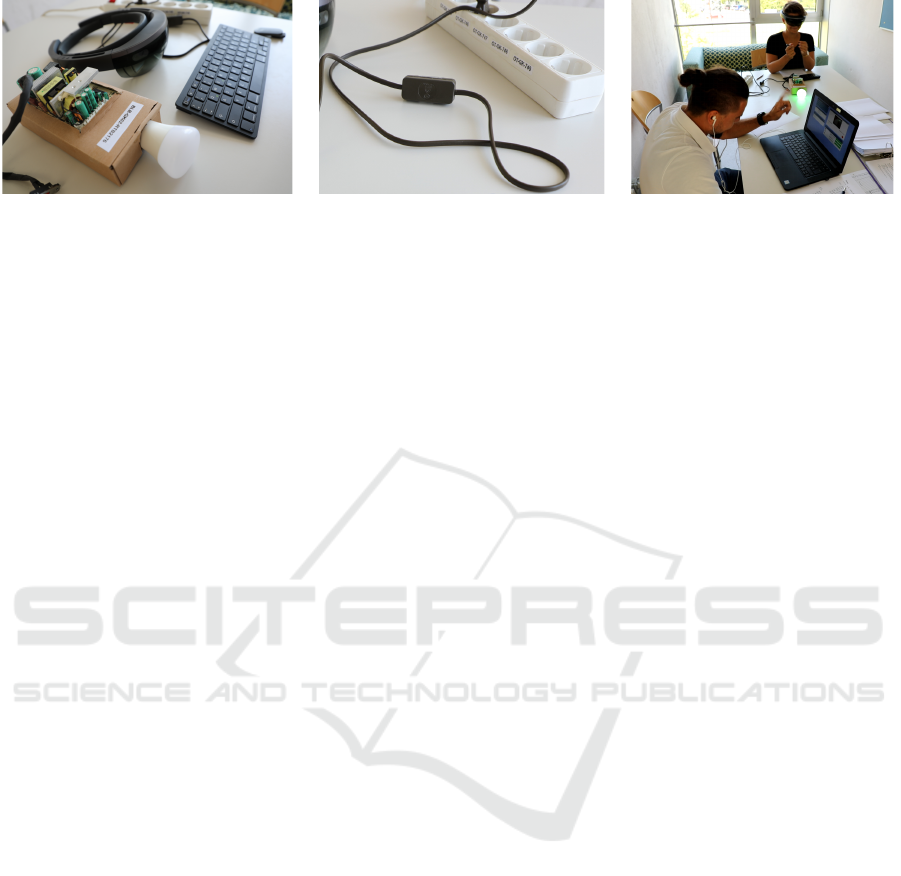

Figure 5: (left) User study equipment: faulty device (electronics box with light-bulb, with device id label on top, HoloLens

and Bluetooth keyboard), (center) Power cord with labeled outlets Labeled outlets, (right) The worker wearing the HoloLens

has completed the task, and the light-bulb turns green.

An audio-video call is established. The expert

sees the worker’s outfacing camera view, while the

worker sees a live image of the expert. After identify-

ing the malfunctioning PC, the expert is able to obtain

a diagnostic message from the PC over the network:

”the fan stalled”. The expert raises the error to the

worker by selecting the corresponding command in

the remote commands menu. The remote command

is shipped to the worker and displayed.

The worker is unfamiliar with this error and asks

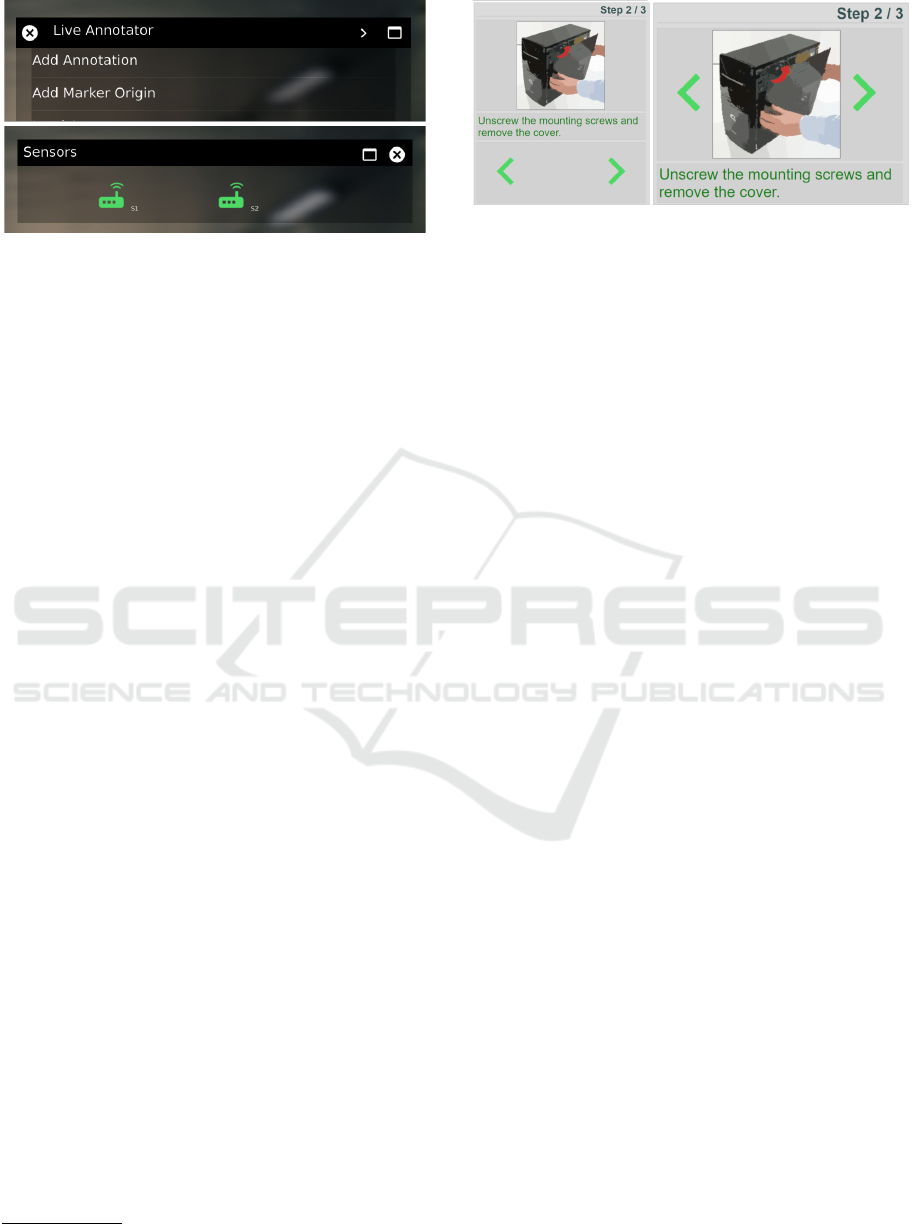

for help and further guidance. The expert replaces

the error message with step-by-step-instructions, de-

picted in Figure 4.

While going through the steps the worker requires

more detailed instructions. The expert decides to take

a screenshot of the worker’s view and annotate the

important areas where the fan-mounts are placed. By

pressing the Send button, the annotation is send and

displayed in the workers view.

6 USER STUDY

In the following, we describe a user study designed

to evaluate how well our system can support a worker

in a task of repairing a cyber-physical system. The

results of the study are given in subsection 6.4.

6.1 Conditions

We compared two conditions. In both conditions, the

worker experienced the same user interface as part

of a HoloLens application, but the availability of the

expert varied: In the ﬁrst condition, self-navigation

(SN), no expert was available. In the second con-

dition, expert help (EH) through the MAUI software

was available.

Self Navigation. In the SN scenario, the worker

controls and navigates the user interface alone. All

decisions need to be made without external support,

requiring to draw on one’s own knowledge and expe-

rience. SN allows the worker to have the full control

over the user interface with all its features, but the

user does not have the ability to add new elements or

exchange the UI with a different one. For instance,

a new control window for an additional device can-

not be added. Only the window layout can be altered

before starting the procedure.

Expert Help. In the EH scenario, the worker can

ask for expert help, and the expert can take care of

the user interface. After establishing the connection,

the expert begins supporting the worker via the fea-

tures offered by MAUI. Meta-information about the

worker’s system (e.g., OS-version, device-type, local

environment, etc.) is conveyed to the expert, guiding

the experts in providing support. During UI opera-

tion, the expert decides which content or windows are

shown or hidden, so that the worker can better focus

on the task at hand. This relieves the worker from

having to go through potentially deeply nested and

complex menu hierarchies to retrieve required infor-

mation.

We were especially interested in the preparation

time before the worker starts executing a particular

task. This time encompasses the effort needed to

get all necessary instructions and instruments ready

to successfully perform the task. Based on prelimi-

nary testing, we hypothesized that EH would cause

less mental workload, have a lower time to start (i.e.,

a reduced time between receiving instructions and the

ﬁrst step being carried out), and create higher comfort

for the worker.

6.2 Task Description

We designed our evaluation to investigate mental

workload and effort, while performing a machine

maintenance task. A module to control networked

home appliances was added to our base system. A

smart light-bulb (Philips Hue) was introduced as the

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

806

target device (Figure 5). Timing data as well as other

relevant statistical data inside the application was

captured with a user-study component added to our

framework. Finally, we created two distinct worker

apps, the SN app and the EH app.

The task itself consisted of a combination of phys-

ical and virtual procedures. The physical procedures

included unplugging and re-plugging a power cord,

pressing power buttons and typing on a physical key-

board. The virtual procedures included interactions

with the UI, reading of instruction reading and trig-

gering functions on the light-bulb.

The task had the following structure divided in

ﬁve steps within a step-by-step instruction list:

1. The faulty device lights up red.

2. In both conditions, the worker has to open the in-

structions within the UI (a list with nine step-by-

step instructions) for the task.

3. The worker has to open the ”light-bulb” widget

to control the smart light-bulb. In SN, the worker

must do this by searching through the menu. In

EH, the list is opened by the remote expert.

4. While following the instruction, the worker has to

perform a sequence of switching off power, un-

plugging, re-plugging, and switching power on

again. Power outlets are labeled by id, and the

instructions refer to particular outlet id for the re-

plugging step.

5. The worker has to press the start button in the

device-interface widget. The task ﬁnishes when

the device lights up green.

6.3 Experimental Procedure

We used a within-subjects design, where the condi-

tions were SN and EH. To balance the tasks, we al-

ternated the order of conditions between participants,

and we alternated the plug position on the power-

chord. Each participant had to perform a training

task ﬁrst, followed by either of the two methods. The

training task consisted of a subset of the main UI, but

widgets had different names and the training task in-

volved only the smart light-bulb, and not the power

cord. Between each task, a NASA TLX (Hart and

Staveland, 1988) questionnaire was administered.

Participants completed a pre- and a post-study

questionnaire to gather basic personal information,

experience with AR, preferred method, and subjective

difﬁculty. Before starting the user study, participant

were asked to put on the HoloLens and adjust it to

comfort. They were explained that they were workers

and had to complete a maintenance task. The study

began with the app starting and the faulty device light-

ing up red.

The setup is depicted in Figure 5, showing the

faulty device (light-bulb in box, with a non-working,

unconnected and disabled power-supply on top) with

the id on it, the labeled outlets and the HoloLens with

the Bluetooth keyboard. Furthermore, a participant

is shown successful completion the task with remote

expert support, as indicated by the smart light-bulb

lighting up in green.

The expert role was played by one of the authors,

since we were primarily interested in the performance

of the workers. Using a volunteer as expert would re-

quire training the volunteer to become an expert ﬁrst.

Interaction of volunteer expert and volunteer worker

would then depend on the training success, which we

wanted to rule out as a confounding factor.

The expert acted in a passive way, letting the par-

ticipant decide how much help was needed. In all

cases, the expert asked for the faulty device id to per-

form the search on behalf of the worker, and then

opened the light-bulb widget for the worker. The ex-

pert also pointed out to carefully read through the in-

structions and to ask for help if needed.

6.4 Results

We tested 32 participants (4f), aged 21-40 (avg 28.9,

median 28.5). The age distribution does not directly

match the current age distributions of workers in such

industries (Workforce Age Distribution, ∼10 years

higher), but is a good representation for the next and

further waves of workers. Half of the participants had

never used a HoloLens before, and all of the partic-

ipants had used step-by-step instructions before. All

participants use a computer on a regular basis; 12.5%

of the participants had never repaired, build or assem-

bled a computer before. All participants felt that the

training was enough to get familiar with the user in-

terface.

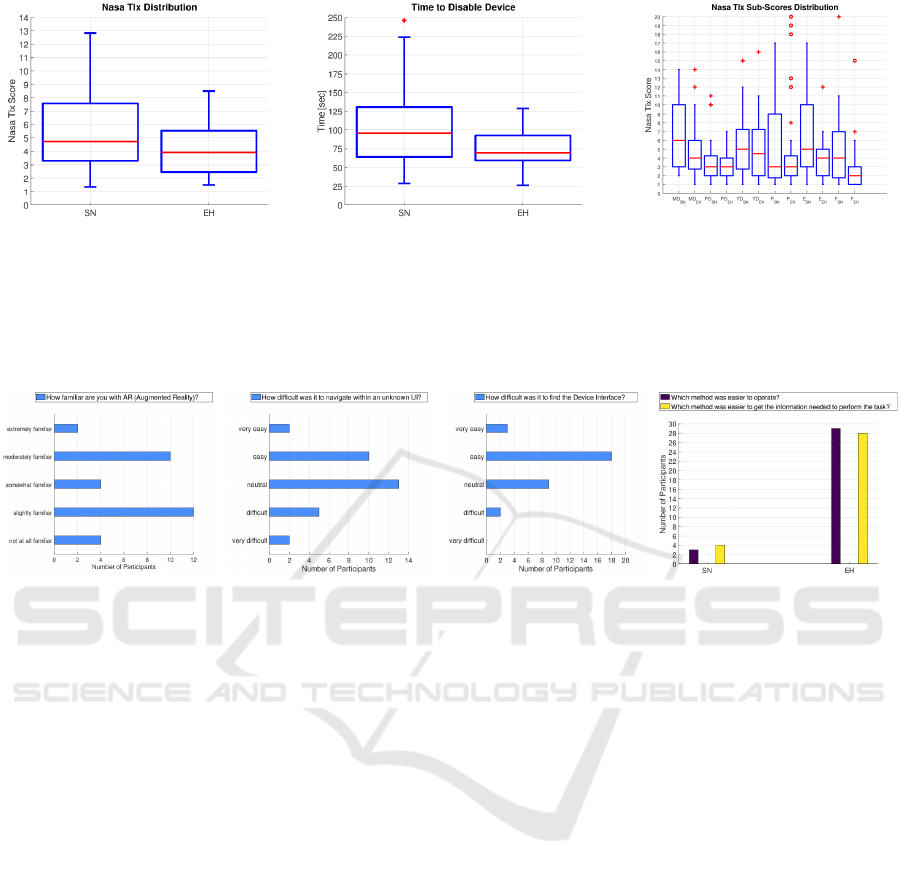

A one-way repeated measures ANOVA found

main effects on NASA TLX score supporting our

hypothesis (p < 0.05, F

1,62

, = 4.55) that the EH in-

teraction method causes less mental workload while

performing a task. Figure 6 shows the NASA TLX

score distribution side-by-side with the time-to-start

timings distribution. In both cases, EH has lower

scores, which supports our hypothesis. By compar-

ing the scores of each category with one-way re-

peated measures ANOVA, we found main effects

on mental demand (p < 0.05, F

1,62

, = 4.61), effort

(p < 0.05, F

1,62

, = 4.61) and frustration ((p < 0.05,

1,62

, = 4.61)), favoring EH over SN. No signiﬁcant

effects were found on physical demand, temporal de-

MAUI: Tele-assistance for Maintenance of Cyber-physical Systems

807

Figure 6: (left) Boxplot of NASA TLX scores SN vs EH, where EH reached lower scores with a p-value < 0.05 (F

1,62

, = 4.55)

showing a signiﬁcance towards less mental workload. (center) Boxplot of Timings until the device got disabled. Timing SN vs

EH, where EH reached shorter time with a p-value < 0.05 (F

1,44

= 5.84) showing a signiﬁcance towards EH needing less to

disable the device. (right) Scores for NASA TLX categories. From left to right: (MD) mental demand; (PD) physical demand;

(TD) temporal demand; (P) performance; (E) effort, (F) frustration. We found main effects on MD (p < 0.05, F

1,62

, = 4.61),

P (p < 0.05, F

1,62

, = 4.61) and F (p < 0.05, F

1,62

, = 4.61) preferring EH over SN, but no effects on categories related to the

sitting position of the task (PD), the high completion rate (P), and short time it took to perform the task (TD).

Figure 7: left-to-right; (i) Most of the participants were between moderately and slightly familiar with AR. (ii) The ease of

navigation within the UI was mainly easy to neutral. (iii) It was also easy for the participants to ﬁnd the device-interface. (iv)

Around 90% of the participants preferred the EH interaction method over SN and also found it easier to operate.

mand and performance. Reasons might be that phys-

ical demand is low in our scenario involving a seated

position and lightweight objects. Since the overall

task duration was short, temporal demand was low

overall. Concerning performance, we observed high

completion rates, which are later discussed in this sec-

tion. Figure 6 shows the NASA TLX category scores

and their pairwise distribution starting with mental

demand (MD) in alternating order SN, EH.

We measured time-to-start as the time until the

worker disabled the lightbulb. In case of SN, we

started measuring the time when the worker per-

formed the ﬁrst action, until the worker pressed the

disable device button. In case of EH, we started mea-

suring when the participant sees the expert (to avoid

hardware related delays from camera and microphone

initialization).

Note how the tasks differed depending on the con-

dition: In SN, the participant had to perform actions

like reading through menu entries to open the right

task, clicking, opening the lightbulb widget and en-

tering the device id into the search box. In EH, the

worker had to talk to the expert and read the device

id aloud. Afterwards, the expert would raise the light-

bulb widget in the worker’s display.

Figure 6 shows overall shorter timings of EH. A

one-way repeated measures ANOVA shows main ef-

fects on the time measurements, supporting our hy-

pothesis (p < 0.05, F

1,62

, = 4.55) that EH is faster

with high signiﬁcance. In real-life maintenance and

repair scenarios, conditions might deteriorate while

performing a task. Therefore, it can be very impor-

tant to start acting swiftly.

In SN, 25% of the participants made an error,

while, in EH, only 15% made an error. Overall, 8/32

missed the ﬁrst step, either in SN or EH. This gives us

85% task completion rate for EH and 75% task com-

pletion rate for SN.

Questionnaire Results. After the experiment, we

asked each participant which method was easier to

operate. An overwhelming 90.6% preferred EH over

SN. In response to the question which method was

easier to get the information needed to perform the

task, 87.5% preferred EH over SN. Figure 7 (d) sum-

marizes these numbers. Some of the participants pre-

ferred SN over EH, which seems to be related to a

possible low trust placed in the expert. We consider

this a problem that must be addressed in the human

resources structure of a company.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

808

Additionally participants had to answer questions

on a Likert scale concerning UI navigation. Most par-

ticipants found it easy to navigate the UI and ﬁnd spe-

ciﬁc widgets such as the one for the lightbulb. Inter-

estingly, some participants who answered that it was

easy to ﬁnd the lightbulb widget actually had troubles

ﬁnding it. One comment was oh, it is written right

there, i just have to read, implying that the partici-

pant did not read the window title. These contradict-

ing observations happened only in the SN condition

and show that at least some of the participants did not

spend full attention on the task. If a lack of concen-

tration is a common cause of problems, the cost of

expert support could be better justiﬁed.

The familiarity with AR across all participants

is bi-modal, split up between slightly familiar and

moderately familiar. Figure 7 shows the correspond-

ing Likert questions. Few participants answered they

were somewhat familiar with AR. We did not note

any speciﬁc correlation of AR experience and perfor-

mance.

User Feedback. The perceived behavior of the par-

ticipants while performing the tasks was very homo-

geneous. Half of the participants had never used a

HoloLens before. Users generally liked our UI de-

sign, but did not like the interactions prescribed by the

Microsoft HoloLens SDK, which uses a head-locked

crosshair and clicking via the ”air-tap” gesture. A

more sophisticated hand tracking (Xiao et al., 2018)

may provide a good alternative.

Some users mentioned that buttons were too small

and too closely spaced. We found that this criticism

is strongly correlated with one’s experience in using

the HoloLens. Our informal observation is that small

widgets are usable for seated users, but standing or

moving users require larger widgets. Given the lim-

ited display real estate of the HoloLens, this implies

the need for a radically uncluttered user interface. In

MAUI, the expert can take care of this requirement.

7 DEVELOPER STUDY

In addition to the previous study concentrating on

how the worker perceives the expert instructions, we

were also interested to assess the characteristics of

MAUI as a development platform. How easy or hard

is it to create user interfaces in MAUI? Easy develop-

ment would not only allow to quickly integrate new

use cases into MAUI, but would also potentially en-

able an expert to modify the user interface on the ﬂy.

Thus, we performed a qualitative user study

were we asked two developers (A and B) with a

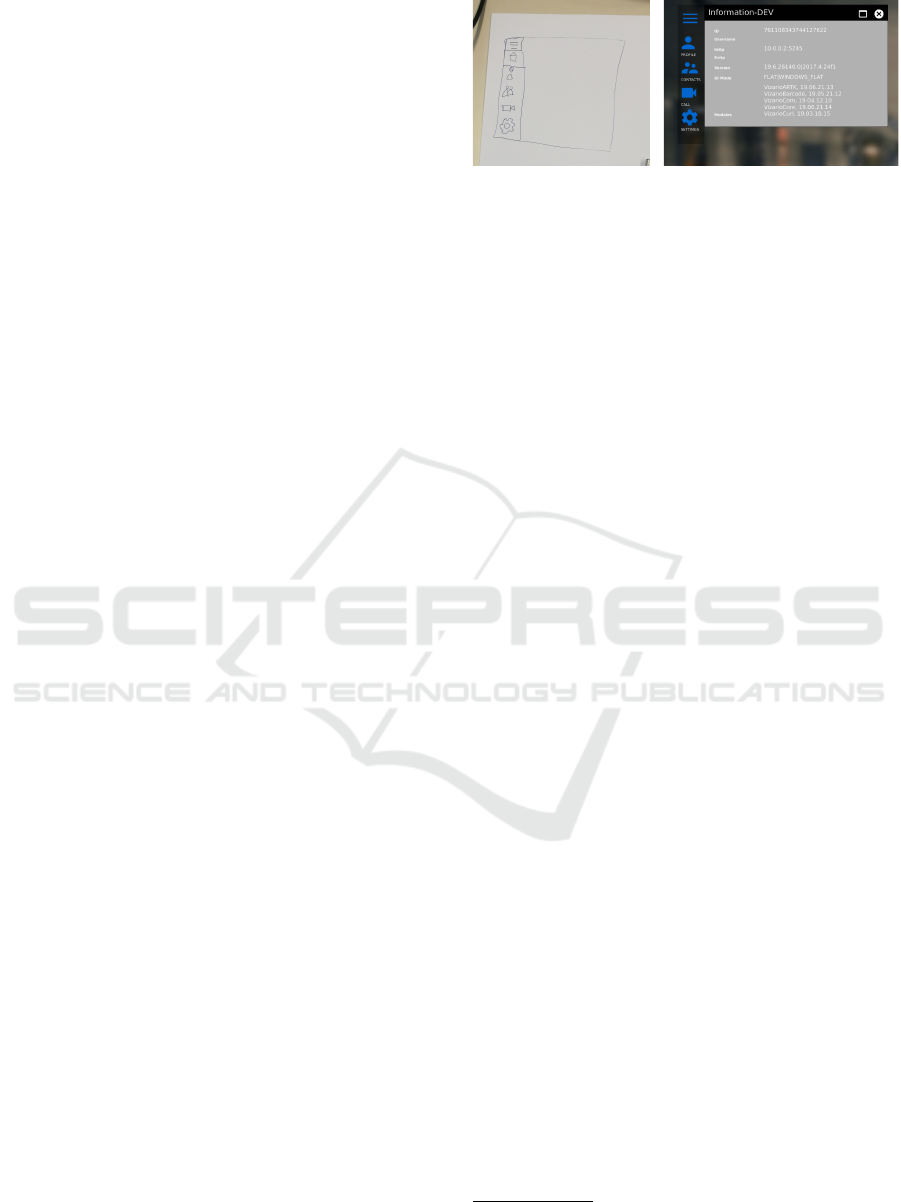

Figure 8: New layout of Developer A. (left) Draft on paper

of the attempted layout. (right) Functional result after 2.5h.

web-development background (knowledge of HTML,

CSS, JavaScript) to create exemplary applications

and user-interfaces based on MAUI. The developers

were instructed to apply workﬂows and leveraging the

strengths of the provided framework. They were free

to choose what features to implement and how to re-

alize it. Questions were encouraged at any time, and

thinking-aloud was encouraged. Each developer par-

ticipated in a workshop-style introduction and imme-

diately afterwards entered a design and implementa-

tion phase, while being accompanied and observed by

one of the authors.

7.1 Procedure

Participants took part in a one-hour face-to-face work-

shop provided as an introduction to the MAUI frame-

work. After the introduction, they ﬁlled in an in-

troductory questionnaire and started the design and

implementation phase (up to three hours). One au-

thor accompanied the developer and answered API

questions, since we do not have extensive written

documentation at this point. To conclude, a second

questionnaire was administered, followed by an semi-

structured interview. Finally a NASA-TLX assess-

ment was done.

7.2 Developers and Results

In this section we give details about our two partici-

pants, A and B, and discuss their experiences. A is a 36

years old male researcher at Graz University of Tech-

nology. He writes code daily, but uses HTML/CSS/JS

only occasionally. He is slightly familiar with Elec-

tron

, AngularJS

and other JS frameworks.

The basic idea of A was to improve the layout of

a UI example presented to him, giving the example a

style more akin to contemporary mobile apps. The

re-worked application, depicted in Figure 8, shows

the new layout, which offers more screen-space com-

pared to the original one. Since A has a strong C++

Electron: https://electronjs.org/

AngularJs: https://angularjs.org

MAUI: Tele-assistance for Maintenance of Cyber-physical Systems

809

Figure 9: Sample App Developer B. The improved version

with the close button on the left and the toggle and maximize

controls on the right in the top view. The original version

with the controls grouped together in the bottom view.

background, he was less skilled with the design proce-

dure, but highly productive with the provided frame-

work. Two bugs were found and immediately ﬁxed.

Most of the time was spent on getting the layout to

work appropriate. As he said, the provided functions

are very useful and helped with the implementation.

A felt neutral about how easy it was to create the

experience and that the presented way was slightly

different to the traditional ways of implementing web

content. Furthermore, he felt that it was easy to use

the given material. This developer also mentioned

that, with more time and more thoughts on the design,

better results where easily possible. He was happy

with the capabilities and how easily it was to integrate

web content with the existing Unity 3D application.

B is a 28 years old male researcher at Graz Uni-

versity of Technology. He writes code daily and often

uses HTML/CSS/JS. Furthermore, he is moderately

familiar with Electron and somewhat familiar with

AngularJS and similar frameworks. This developer

has a lot of experience with jQuery

Right after going through the provided examples,

B immediately pointed out usabilty issues. He made

small, but impactful layout changes. Having the

window-control buttons toggle, maximize and close

next to each other encourages mistakes to happen.

Pressing button in close proximity is easy for desktop

users with a mouse, whereas in AR (on the HoloLens)

selection is more brittle, especially if a mistake closes

the window (see Figure 9). Code changes were done

to the Javascript and JSON templates and therefore

integrated seamlessly with the application.

Another usability problem was identiﬁed within

the PC repair instructions sample. Having the con-

trols below the content always leads to an extended

head movement in AR. Placing the controls next to

the content allows for easier navigation without dis-

jQueryhttps://jquery.com/

Figure 10: Changes made by developer B to the PC repair

task. The green controls of the original version (left) moved

next to the center image (right) increasing usability, espe-

cially in AR.

traction (see Figure 10).

It was easy for B to modify and improve selected

samples. The developer stated that MAUI did not

diff much from conventional web development. Over-

all, both developers created presentable and work-

ing results, one tackling the display real estate and

one ﬁxing usability problems relevant for AR pre-

sentation. Within the short period of time, the de-

velopers were able to utilize the framework and per-

formed meaningful changes to selected samples. B

mentioned to not forget to check the implementation

within Unity3D-Application, to avoid incompatibility

with unsupported features e.g., css display: ﬂex.

Nasa TLX shows nothing unexpected. The men-

tal demand was higher than normal for A, because

of his limited use of web technologies. Both devel-

opers reported normal to good performance in self-

assessment, possibly being more critical than an av-

erage evaluator would. Frustration and effort where

near ”high” for A, whereas, for B, it was near ”low”.

7.3 Discussion

The developer study shows that developers with basic

web knowledge can perform meaningful changes to

existing applications and, given enough time, could

rather easily create whole applications themselves.

Within the industrial context, this aspect turns out to

be of key value. Today, an AR developer is expected

to have special knowledge, such as Unity 3D or C#

to write an application for a commercial AR device,

such as the HoloLens. Lowering the entry gap by re-

moving the requirement to have profound knowledge

in 3D and C++ out allows to tap into a larger pool of

possible developers, as also observed by MacIntyre et

al. (MacIntyre et al., 2011).

In a near future, where AR is commonly used, web

content can be generated easily, or it can be generated

automatially by web service portals to cyber-physical

systems and the internet of things.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

810

8 CONCLUSION

We have presented MAUI, a collaborative platform

that lets a worker wearing an AR headset call a re-

mote expert to help with operating a cyber-physical

system. MAUI combines spatial AR tele-presence

through shared audio/video with shared control of a

web-based user interface displayed in the AR headset.

The expert can take full control over the UI, relieving

the worker of handling the digital interface and let-

ting the worker concentrate on the physical interface

instead.

We performed a quantitative user study in order

to compare both interaction methods in terms of time

and comfort beneﬁts. The results show that expert

help was overwhelmingly preferred by participants

over working alone. Our user study results show that

support from an expert can reduce cognitive load and

increase performance. In particular, the time until the

ﬁrst physical action can be performed is decreased,

allowing a quick response in critical real-world sce-

narios (Huang et al., 2013; Huang and Alem, 2011).

Furthermore, two developers touching the pre-

sented work for the ﬁrst time were able to come up

with meaningful results in a short time-frame of up to

three hours. One improved the layout of the applica-

tion towards more screen-estate and one improved the

usability especially in AR (HMD).

A future study could also compare pure au-

dio/video help with remote UI help, but this study

would involve more complicated aspects. A study

comparing different feature sets of remote help for

AR would also include whether the remote expert

can observe all relevant physical activities around the

expert, if the expert can control IoT objects in the

worker’s environment, and so on.

In the future, we plan to extend our tests to real

workers in a production environment and improve the

aesthetics of the user interface to ﬁt modern design

standards

. Long-term evaluations will show the ef-

fectiveness on educating workers on problem solv-

ing. We plan to improve the widget placement system

over the standard solution

to reliably avoid situations

where the UI blocks the worker’s view of the physical

objects. Moreover, we plan a user interface manage-

ment system for delivering tailored user interfaces to

workers based on a formal task description.

Design Principles

Microsoft Mixed Reality Toolkit: Tag-along

ACKNOWLEDGEMENTS

The authors wish to thank Denis Kalkofen. This work

was supported by FFG grant 859208.

REFERENCES

Alce, G., Roszko, M., Edlund, H., Olsson, S., Svedberg,

J., and Wallerg

ard, M. (2017). [poster] ar as a user

interface for the internet of things - comparing three

interaction models. In ISMAR-adj., pages 81–86.

Barakonyi, I., Fahmy, T., and Schmalstieg, D. (2004). Re-

mote collaboration using augmented reality videocon-

ferencing. In Proc. of Graphics Interface (GI), pages

89–96. Canadian Human-Computer Comm. Society.

Bauer, M., Kortuem, G., and Segall, Z. (1999). ”where are

you pointing at?” a study of remote collab. in a wear-

able videoconf. system. In ISWC, pages 151–158.

Baumeister, J., Ssin, S. Y., ElSayed, N. A. M., Dorrian, J.,

Webb, D. P., Walsh, J. A., Simon, T. M., Irlitti, A.,

Smith, R. T., Kohler, M., and Thomas, B. H. (2017).

Cognitive cost of using augmented reality displays.

TVCG, 23(11):2378–2388.

Chastine, J. W., Nagel, K., Zhu, Y., and Hudachek-Buswell,

M. (2008). Studies on the effectiveness of virtual

pointers in collaborative augmented reality. 3DUI,

pages 117–124.

Chen, S., Chen, M., Kunz, A., Yantac¸, A. E., Bergmark, M.,

Sundin, A., and Fjeld, M. (2013). Semarbeta: mobile

sketch-gesture-video remote support for car drivers. In

Augmented Human International Conference (AH).

Ens, B., Hincapi

e-Ramos, J. D., and Irani, P. (2014). Ethe-

real planes: A design framework for 2d information

spaces in 3d mixed reality environm. In SUI. ACM.

Feiner, S., MacIntyre, B., Haupt, M., and Solomon, E.

(1993). Windows on the world: 2d windows for 3d

augmented reality. In UIST, pages 145–155. ACM.

Funk, M., B

achler, A., B

achler, L., Kosch, T., Heidenreich,

T., and Schmidt, A. (2017). Working with ar?: A long-

term analysis of in-situ instructions at the assembly

workplace. In PETRA, pages 222–229. ACM.

Funk, M., Kosch, T., and Schmidt, A. (2016). Interactive

worker assistance: Comparing the effects of in-situ

projection, head-mounted displays, tablet, and paper

instructions. In UBICOMP, pages 934–939. ACM.

Fussell, S. R., Setlock, L. D., Yang, J., Ou, J., Mauer, E.,

and Kramer, A. D. I. (2004). Gestures over video

streams to support remote collaboration on physical

tasks. Hum.-Comput. Interact., 19(3):273–309.

Gauglitz, S., Nuernberger, B., Turk, M., and H

ollerer, T.

(2014a). In touch with the remote world: Remote col-

laboration with augmented reality drawings and vir-

tual navigation. In VRST, pages 197–205. ACM.

Gauglitz, S., Nuernberger, B., Turk, M., and H

ollerer, T.

(2014b). World-stabilized annotations and virtual

scene navigation for remote collaboration. In UIST,

pages 449–459, New York, NY, USA. ACM.

MAUI: Tele-assistance for Maintenance of Cyber-physical Systems

811

Gurevich, P., Lanir, J., Cohen, B., and Stone, R. (2012).

Teleadvisor: A versatile augmented reality tool for re-

mote assistance. In CHI, pages 619–622. ACM.

Han, F., Liu, J., Hoff, W., and Zhang, H. (2017). [poster]

planning-based workﬂow modeling for ar-enabled au-

tomated task guidance. In ISMAR-adj., pages 58–62.

Hart, S. G. and Staveland, L. E. (1988). Development

of nasa-tlx (task load index): Results of empirical

and theoretical research. Human mental workload,

1(3):139–183.

Henderson, S. and Feiner, S. (2011). Exploring the beneﬁts

of augmented reality documentation for maintenance

and repair. TVCG, 17(10):1355–1368.

Huang, W. and Alem, L. (2011). Supporting hand gestures

in mobile remote collaboration: A usability evalua-

tion. In BCS Conference on Human-Computer Inter-

action (BCS-HCI), pages 211–216.

Huang, W. and Alem, L. (2013). Handsinair: A wearable

system for remote collaboration on physical tasks. In

CSCW, pages 153–156. ACM.

Huang, W., Alem, L., and Tecchia, F. (2013). Handsin3d:

Augmenting the shared 3d visual space with unmedi-

ated hand gestures. In SIGGRAPH Asia 2013 Emerg-

ing Technologies, SA ’13, pages 10:1–10:3. ACM.

Kim, S., Lee, G. A., and Sakata, N. (2013). Comparing

pointing and drawing for remote collaboration. In IS-

MAR, pages 1–6.

Kirk, D. and Stanton Fraser, D. (2006). Comparing re-

mote gesture technologies for supporting collabora-

tive physical tasks. In CHI, pages 1191–1200. ACM.

Kollatsch, C., Schumann, M., Klimant, P., and Lorenz, M.

(2017). [poster] industrial augmented reality: Trans-

ferring a numerical control connected augmented re-

alty system from marketing to maintenance. In

ISMAR-adj., pages 39–41.

Krueger, M. W., Gionfriddo, T., and Hinrichsen, K. (1985).

Videoplace - an artiﬁcial reality. In CHI, pages 35–40,

New York, NY, USA. ACM.

Kurata, T., Sakata, N., Kourogi, M., Kuzuoka, H., and

Billinghurst, M. (2004). Remote collaboration using

a shoulder-worn active camera/laser. In ISWC, vol-

ume 1, pages 62–69.

Kuzuoka, H., Oyama, S., Yamazaki, K., Suzuki, K., and

Mitsuishi, M. (2000). Gestureman: A mobile robot

that embodies a remote instructor’s actions. In CSCW,

pages 155–162, New York, NY, USA. ACM.

Lee, T. and Hollerer, T. (2006). Viewpoint stabilization

for live collaborative video augmentations. In ISMAR,

pages 241–242. IEEE Computer Society.

MacIntyre, B., Hill, A., Rouzati, H., Gandy, M., and

Davidson, B. (2011). The argon ar web browser and

standards-based ar application environment. In IS-

MAR, pages 65–74.

Oda, O., Sukan, M., Feiner, S., and Tversky, B. (2013).

Poster: 3d referencing for remote task assistance in

augmented reality. In 3DUI, pages 179–180.

O’Neill, J., Castellani, S., Roulland, F., Hairon, N., Juliano,

C., and Dai, L. (2011). From ethnographic study to

mixed reality: A remote collaborative troubleshooting

system. In CSCW, pages 225–234. ACM.

Ou, J., Fussell, S. R., Chen, X., Setlock, L. D., and Yang,

J. (2003). Gestural communication over video stream:

Supporting multimodal interaction for remote collab-

orative physical tasks. In ICMI, pages 242–249, New

York, NY, USA. ACM.

Rambach, J., Pagani, A., and Stricker, D. (2017). [poster]

augmented things: Enhancing ar applications leverag-

ing the internet of things and universal 3d object track-

ing. In ISMAR-adj., pages 103–108.

Roulland, F., Castellani, S., Valobra, P., Ciriza, V., O’Neill,

J., and Deng, Y. (2011). Mixed reality for supporting

ofﬁce devices troubleshooting. In VR, pages 175–178.

Tzimas, E., Vosniakos, G.-C., and Matsas, E. (2018). Ma-

chine tool setup instructions in the smart factory using

augmented reality: a system construction perspective.

IJIDeM.

Wellner, P. and Freemann, S. (1993). The Double Digi-

talDesk: Shared editing of paper documents. Techni-

cal Report EPC-93-108, Xerox Research.

Xiao, R., Schwarz, J., Throm, N., Wilson, A. D., and Benko,

H. (2018). Mrtouch: Adding touch input to head-

mounted mixed reality. TVCG, 24(4):1653–1660.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

812
