Distributed Defence of Service (DiDoS): A Network-layer

Reputation-based DDoS Mitigation Architecture

Andikan Otung

and Andrew Martin

Computer Science Department, University of Oxford, Parks Road, Oxford, U.K.

Keywords: DDoS, Defence, Mitigation, Security Architecture, Security Framework, Design Analysis, IoT, Reputation,

Internet, Accountability.

Abstract: The predominant strategy for DDoS mitigation involves resource enlargement so that victim services can

handle larger demands, however, with growing attack strengths, this approach alone is unsustainable. This

paper proposes DiDoS (Distributed Defence of Service), a collaborative DDoS defence architecture that

leverages victim feedback to build network-level sender reputations that are applied to identify and thwart

attack traffic – thus alleviating the need for resource enlargement. Since attack traffic is dropped at points of

contention in the Internet, (rather than rote blocking at source) DiDoS reduces the impact of false positives

and enables the traversal of legitimate traffic from said devices across the Internet. Through anti-spoofing

protection and preferential treatment of DiDoS-compliant devices, DiDoS offers adoption incentives that help

offset the Tragedy of the Commons effect of DDoS mitigation, which commonly sees non-victim

intermediary entities benefit little from DDoS defence expenditure. In this paper, the tenets and fundamentals

of the architecture are described, before being analysed against the presented threat model. Simulation results,

demonstrating the effectiveness of the reputation convergence of the scheme, in the use-case of a local access

network, are also presented and discussed.

1 INTRODUCTION

Denial of service (DoS) attacks are attempts by

attackers to prevent legitimate users from accessing

connected services through the disconnection,

corruption or malicious consumption of the resources

upon which the victim service depends. Distributed

denial of service attacks (DDoS) are a form of DoS

attacks that are executed by multiple distributed

agents. Since their first documentation more than two

decades ago (Michael Aaron Dennis, 2012; Raghavan

& Dawson, 2011), DDoS attacks have consistently

grown, year-on-year, in magnitude and prevalence to

become recognized by Internet service providers

(ISPs) as the top operational threat to customers

(Arbor Networks, 2015; Behal, Kumar, & Sachdeva,

2018; Cisco, 2018; Labovitz, 2010). This threat,

however, is compounded by the phenomenon of the

Internet of things (IoT), which has inadvertently

contributed to growing botnet sizes and resulting

attack strengths through an abundant supply of

connected yet unsecured devices.

https://orcid.org/0000-0001-7517-7159

https://orcid.org/0000-0002-8236-980X

Flood attacks, such as the notorious 1.2 Tbps

attack against DNS provider DYN (David Homes,

2016; Nicky Woolf, n.d.; Scott Hilton, 2016) in which

DoS was achieved through the scale of data sent, are

particularly challenging to deal with. This is because,

even if the victim server is able to process requests at

its Internet access line rate, the finite resources

(routers) along the attack-path eventually reach their

capacity to forward received data and, once that limit

is exceeded, are no longer able to forward all

incoming legitimate requests.

The state of the art in handling such attacks,

involves enlarging the victim resources (server and

router processing power and bandwidths) to increase

the capacity of the victim to serve clients. However,

the cost of doing so, combined with the rate of

increasing attack strengths, has led researchers to

conclude that bolstering victim resources as a means

to defending against DDoS attacks is not sustainable

(Osterweil, Stavrou, & Zhang, 2019; Zeijlemaker &

Rouwette, 2017).

Otung, A. and Martin, A.

Distributed Defence of Ser vice (DiDoS): A Network-layer Reputation-based DDoS Mitigation Architecture.

DOI: 10.5220/0009091206190630

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 619-630

ISBN: 978-989-758-399-5; ISSN: 2184-4356

619

If attack traffic were to be intercepted further away

from its destination, the victim would be far less

susceptible to DoS. However, earlier interception

requires the ability of intermediary network devices

(routers) to reliably identify and eliminate such

traffic. This is a challenge since the traditional

classification of traffic as malicious is difficult to

achieve outside the context of victim-centric

information (such as what constitutes “wanted” or

“normal” to the victim) and especially if the

malicious entity mimics legitimate traffic patterns.

Reputation-based defences address this by

associating traffic legitimacy with the past behaviour

of its sender. For the reputation-based defence to be

effective, the basis on which reputations are built and

destroyed must capture features that are intrinsic (and

predominantly exclusive) to an attacker’s observable

behaviour.

This paper describes one such defence, DiDoS

(Distributed Defence of Service – pronounced “Die-

DOS”): an anti-spoofing DDoS defence architecture

that applies collaboratively-maintained reputations to

discriminate between malicious and benign traffic

closer to its source.

Beginning with a brief review of notable pieces of

related work (section 2), a threat model is then

presented (section 3) before the DiDoS architecture is

articulated (section 4). Various design considerations

with respect to the threat model are discussed

throughout section 4, with a more focused analysis

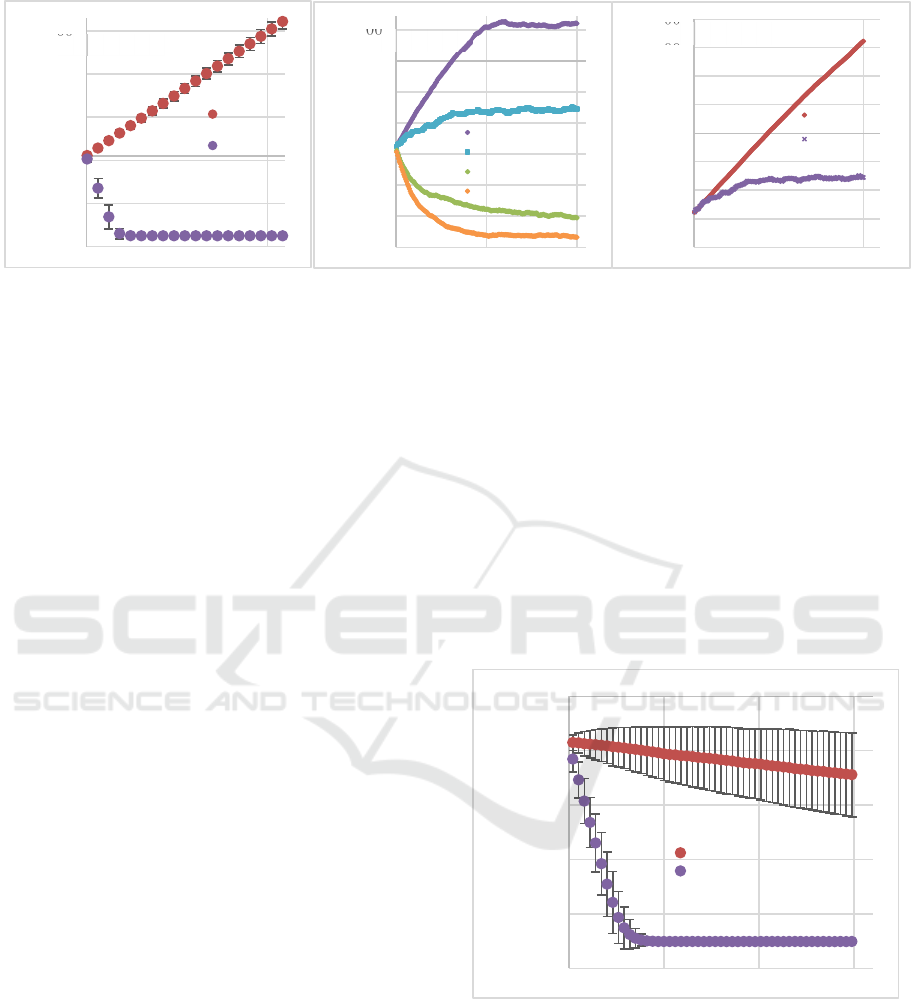

presented in section 5. Simulation results

demonstrating the viability of a reputation-based

approach and the effectiveness of the reputation

update algorithm under various DiDoS adoption

percentages and attacker strategies are also presented.

The paper concludes with a summary of key findings

(section 6) and a brief discussion of possible future

work in section 7.

2 RELATED WORK

Passport (Liu, Li, & Yang, 2008) is a DDoS defence

that mitigates attacks that use spoofed source

addresses. In Passport, source autonomous systems

(ASs) append lightweight message authentication

codes (MACs) to their sent packet that enable transit

and recipient ASs to verify their origin as from the

source AS. MAC’s are checked at the borders

between AS’s and packets with invalid MACs are

dropped. Packets are also dropped if they possess no

MACs yet originate from an AS that participates in

See section 4 for details of how the frequency of an

entity’s involvement in attacks is leveraged.

the scheme. AS’s are able to verify MACs using

symmetric shared secrets between them that are

obtained during a setup phase that piggybanks over

the BGP protocol and uses a Diffie Helman key

exchange. Passport is able to eliminate DDoS attacks

that attempt inter-AS source IP address spoofing,

however it cannot eliminate attacks that leverage

intra-AS source IP address spoofing, or those that do

not apply source IP address spoofing at all.

The Forwarding Accountability for Internet

Reputability (FAIR) architecture (Pappas, Reischuk,

& Perrig, 2015), like Passport, leverages lightweight

MACs, however, in FAIR, AS’s embed the

cryptographic markings to packets as they traverse

from source to destination. This allows recipient AS’s

to later prove (via feedback reports) to sending AS’s

that they did send the packet. Once the proof is

accepted by the AS that sent the packets, the recipient

AS deprioritizes traffic from that sender. FAIR

implements reputation-based accountability by

leveraging an evil bit to penalize AS’s that forward

traffic from misbehaving customers.

Operating at AS granularity, FAIR is prone to

false positives since legitimate packets originating

from AS’s deemed to have misbehaved are all

deprioritized and marked with a suspicious-bit.

Furthermore, FAIR uses policies that are shared

beforehand between AS’s as a metric of distinction to

determine misbehaviour. This metric however does

not closely correlate with denial of service attacks,

attackers or the denial of service effect, since AS’s

forwarding malicious traffic may simultaneously

comply with the pre-agreed committed information

rate (CIR) and committed burst size (CBS) policies,

and so would evade consequences under FAIR.

FR-WARD (Mergendahl, Sisodia, Li, & Cam,

2017) is a source network end defence based on D-

WARD (Mirkovic & Reiher, 2005) that targets IoT

environments. FR-WARD monitors the source

network to identify the egress of suspicious traffic.

Suspicious senders are challenged with TCP

congestion control signals that, if ignored, will result

in the throttling of traffic flow from the sender. In this

way legitimate traffic from compromised nodes is

still allowed to egress the network – albeit at a

reduced rate. However, attacks where attacking

agents comply with “normal” sender rates and

respond to TCP congestion control signals are

unstoppable for this defence.

A defence architecture that 1) provides granular

packet-spoofing protection, 2) leverages a metric

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

620

that is closely aligned with attacker behaviour, and 3)

incorporates verifiable victim feedback to hold

malicious senders to account, forms the main

contributions of this work.

3 THREAT MODEL AND

ASSUMPTIONS

The threat model considers an attacker as an entity

that has amassed a large botnet and leases out its use

for financial gain. As a result, fundamental

characteristics of said attacker involve attacking as

frequently and severely as possible. However,

underlying motivations for attack vary according to

the attacker’s clients and may include extortion,

hacktivism or sabotage – to name a few.

Clients of the commercial attacker consist of any

kind of organisation motivated by a plethora of

reasons, however, attacking objectives are considered

to be independent of individual motivations (such as

revenge, entertainment or financially motivated

sabotage) and include:

• Rendering a service inaccessible by flooding the

victim server with requests

• Degrading the quality of service experienced by

the victim server’s legitimate clients through the

same means

These attacker objectives are also independent of

the defence mechanism employed.

Since DiDoS is reputation based, in order to

anticipate emergent threats to a DiDoS adherent

Internet infrastructure, the following reputation-

based objectives – which apply to reputation systems,

in general – also form part of the threat model:

• Slander – attackers falsely diminish the

reputation of other entities

• Self-promotion – attackers falsely increase their

own reputation

• Evasion – attackers escape reputation penalties

for misbehaviour

• Self-destruction – an attacker works to

excessively diminish the reputation associated

with its own identifier in a system. This attack

makes sense when the attacking agent shares an

identifier with a victim entity.

• Flattery – attackers act to falsely inflate the

reputation of other entities

• Sabotage – an attacker takes steps to prevent the

reputation system from operating correctly; for

example, by preventing nodes from receiving or

disseminating reputation values.

However, it is assumed that the attack avenues

introduced by a reputation-based defence, such as

Sybil attacks, multiple identity attacks or spoofed

identity attacks, are used to achieve the original

general attacker objectives first listed and do not

create new attacker objectives.

The attacker capabilities describe the actions an

attacker can undertake in order to achieve its goals.

The DiDoS threat model considers not just the actions

an attacker can undertake on a compromised entity,

but also the kind of entity under the attacker’s control.

Each host under an attacker’s control is assumed

to have full control of the device to perform functions

such as: monitoring, processing, data manipulation,

data fabrication and device actuation.

The impact of these capabilities varies greatly

depending on the kind of entity compromised. Of the

three layers of compromise considered in the DiDoS

threat model – which include: host, private network

and autonomous system – the main focus is on

compromised hosts, which captures the conventional

threat of numerous compromised end devices that

form a large botnet.

The DiDoS threat model encapsulates the actions

an attacker can instigate in cyberspace to subvert

DiDoS and achieve any of its listed objectives. This

includes specific kinds of active attacks such as

replay, spoofing, reflection, collusion and slander

attacks. However, passive non-participation in the

DiDoS architecture is also a threat.

Despite the possibility of compromised devices

being able to effect changes in their environment

through actuation, the potential denial of service

attacks resulting from this lie outside the scope of this

research. Other explicit exclusions include duplicate

packets, Economic Denial of Service Attacks (EDoS)

(Naresh Kumar et al., 2012), application layer attacks

and attacks that exploit particular hardware, software

or protocol vulnerabilities.

We assume that DDoS attacks are detected with

low false-positives such that generated reports

correspond closely to attacks.

4 SYSTEM DESCRIPTION

4.1 Overview

This section describes the components of DiDoS –

including the roles, mechanisms and cryptographic

schemes used to achieve its goal of DDoS attack

mitigation.

Distributed Defence of Service (DiDoS): A Network-layer Reputation-based DDoS Mitigation Architecture

621

DiDoS introduces reputations to the network

layer under the principle that each entity is

responsible for the data it sends and is held to account

by the entities that forward its traffic. Hence routers

and routing networks store and maintain reputation

levels for each device or network directly connected

to them. These reputation-levels are embedded into

packets by the entities that forward them. Packets

with higher reputation are prioritized in transit,

whereas packets with lower reputations are

deprioritized and dropped at points of network

contention, such as that arising from DDoS attacks.

Reputations are maintained by a feedback process

in which victims send samples of attack packet

headers, via cryptographically verifiable reports, to

the entities that forwarded them.

DiDoS can be conceptualized as consisting of

three functional layers that work together to mitigate

attacks, with each layer being dependent on that

below it. These are:

• A Hierarchical Identification Scheme –

defines the way in which packet forwarding

accounting (PTA) is attained, including

specification of the identifiers against which

reputations from the second layer are bound.

• A Collaborative Reputation-management

System – encompasses the method by which

reputations are maintained,

• And a Distributed Mitigation Mechanism –

stipulates the method by which malicious traffic

is deprioritized and dropped in transit.

These three layers are outlined in subsequent

sections. Each functional layer of DiDoS consists of

networked entities playing different roles to fulfil said

functions; and the actions, undertaken by said entities

to fulfil said functions, varies according to the phase

of operation. Roles and phases are briefly described

in the next subsection (4.2), however the main

purpose of section 4 is to articulate DiDoS with

respect to its functional layers.

4.2 Hierarchical ID Scheme and Roles

Beginning with the hierarchical identification scheme,

which is the foundation of the functional layers of

DiDoS, this subsection shall describe its organisation

and how it relates to DiDoS roles. The hierarchical

identification scheme consists of three layers: the

autonomous system (AS) layer – at the top, followed

by the private network layer and then the host layer.

These are illustrated in Figure 1.

The goal of the identification scheme is to

persistently bind entities to identifiers, such that

entity actions can be linked to their identifiers and

previous actions.

DiDoS achieves this hierarchically through roles

played within and between layers, which include:

reputor, reputee and reputation domain manager.

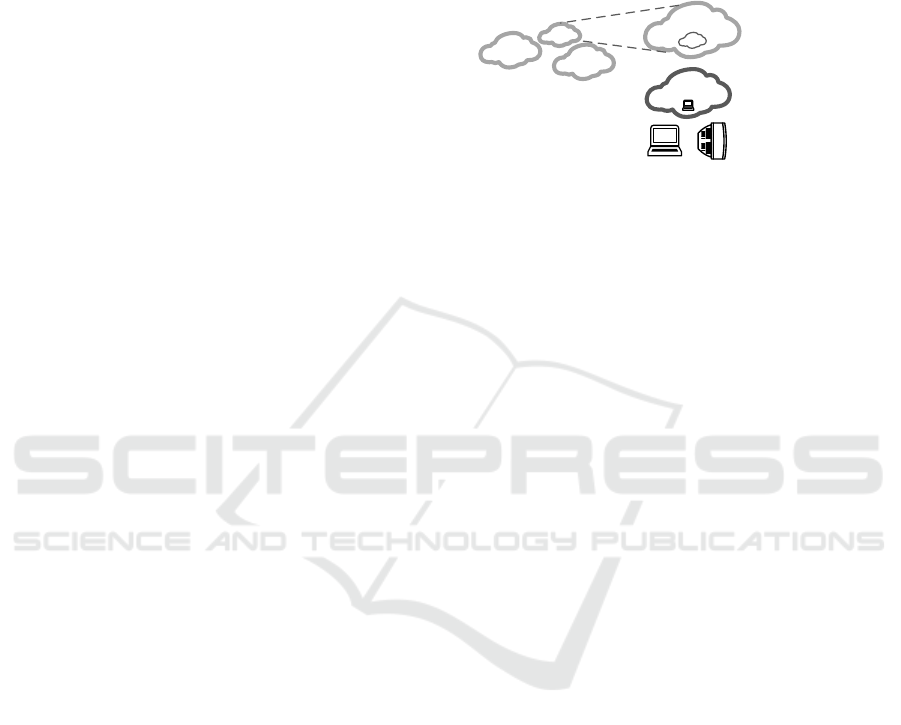

Figure 1: DiDoS hierarchical layer organisation.

The role of a reputor includes the functions

required to manage the reputations of connected

entities in the layer below said reputor. The reputee

role, on the other hand, consists of the functions that

facilitate the management of an entity’s own

reputation by a reputor, such as the self-assessment

and marking of the reputee’s own packets in order to

facilitate the acquisition of a better reputation, which

is described later in section 4.3. These reputor-reputee

relationships are defined by the devices that forward

traffic on behalf of other devices. For example, an

access router providing Internet access to desktops in

a private corporate network would be playing the

reputor role, to its reputee desktops. Autonomous

systems, that forward data on each other’s behalf,

play the roles of both reputor and reputee and are

considered peers. This is also the case for connected

private networks that have been appropriately

provisioned into separate reputation domains.

The last role in DiDoS is reputation domain

manager, which can be a centralized server that

manages the reputations of groups of entities within a

particular administrative domain, facilitating

functions such as the normalisation of reputations

projected out by domain members, and the receipt and

dissemination of attack-feedback reports.

The phases, mentioned in the previous section,

include setup, operational and post-attack feedback.

Setup occurs each time a reputor enlists a reputee and

results in shared secrets between the two entities. It is

assumed that reputees can be mutually authenticated

to reputors with identification mechanisms of

different strengths. These varying strengths of

authentication are leveraged in the collaborative

reputation management system to reflect the relative

certainty of the persistent binding between all of a

reputees actions (sent packets) and its identifier. As

shall be shown, reputees with stronger authentication

...

Internet

...

Autonomous System

Private Network

Host

Layer:

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

622

incur less reputational penalty when involved in an

attack.

The characteristics that distinguish between the

different levels of identification scheme strengths

include: 1) the thing to which an identity is bound, 2)

the presence of third party authentication and the cost

of acquiring said 3

party identity authentication

(such as a registration or manual enrolment process –

indicating a limited number of identities per entity),

and 3) non-repudiation of an entities actions.

As an example, an entity with an identity that is

1) bound to hardware via a platform such as a Trusted

Platform Module (TPM) (Martin & Others, 2008),

whose 2) endorsement key is authenticated by a

trusted certificate authority to which the TPM

manufacturer registered with in advance, and 3)

whose communications are protected by message

authentication codes – constructed with secrets

known only between that entity and its reputor, would

be considered at the top level of identification scheme

mechanisms.

4.3 Reputation Management System

At the centre of the DiDoS architecture is the

collaborative reputation management system. This

system consists of the methods and processes by which

reputors manage the reputation of reputees and

reputation domain managers (RDMs) coordinate the

reputation management of entities within

administrative domains.

Reputations are collaboratively maintained by a

feedback process in which reports, containing a

sample of the traffic (packet headers) to the victim at

the time of attack – are generated by the victim and

sent upwards for processing. In order to preserve the

reputations of known benign users, such as paying

customers, packets from said users are excluded from

attack feedback reports. Reports are sent from the

reputee to the reputor in the above layer, where, after

an exchange between that reputor and its reputation

domain manager, in which the reputation domain

manager agrees to receive the report, the report is

passed from the reputee to the reputation domain

manager via the reputor. At the reputation domain

manager, the report is verified by checking the

message authentication codes (MACs) of the

contained packets to confirm whether they were

indeed forwarded by the reputor. Following that,

packet provenance information – contained in each

packet sent by a DiDoS-compliant source – is

inspected and reputation scores ( 𝑅



) of reputees

sending the packets contained in the report are

adjusted according to 1) the strength of the reputee’s

identification 𝐼, 2) its volumetric contribution to the

attack 𝒱 , and 3) the appropriateness 𝒜 of the

reputation score marked on the packet by the reputee.

The equation combining these update variables is

shown below:

𝑅



[

𝑥

]

=𝑅



[

𝑥−1

]

−𝛽𝑎



+𝑎



𝒱

𝐼∙𝒜

+ (1)

β is the convergence factor that controls the rate

at which 𝑅



generalizes to a long-term value and x is

a discrete time event variable representing the points

at which 𝑅



is updated. The coefficients 𝑎



and 𝑎



provide weighting to the components of the update

amount and can be tailored according to the

preferences of the RDM. The reputation penalty

meted is proportional to the volumetric contribution

of that reputee to the attack. However, the reputations

of reputees with stronger identity authentication (as

described in section 4.2) receive less penalty as

shown. Insufficiently authenticated reputees share a

single channel reputation, such that penalties incurred

as a result of one of these grouped reputees are meted

out on all of them.

The reputation scores lie within a range governed

by: 𝑅



≤𝑅



<𝑅



; and, after calculation, the

reputation scores are converted into reputation levels

𝐿



by a process of quantisation: 𝐿



[

𝑥

]

=𝑄(𝑅



[

𝑥

]

This allows for the flexibility of a granular range

of reputation scores for grading reputees to be

combined with a small set of reputation levels for

faster in-transit packet processing.

The convergence factor β, could simply be set to

equal a fixed base penalty amount 𝑃



. However, since

low adoption is a threat to the DiDoS architecture, it

is essential, for the update algorithm to be resilient to

low rates of DiDoS adoption, which would be

reflected in lower numbers of attack feedback reports

sent. In such a case (fewer sent feedback reports), the

reputation penalty for an attack should automatically

increase to compensate for unreported attacks. Thus:

𝛽=𝑎[𝑥]×𝑃



(2)

Where,

𝑎

[

𝑥

]

𝑍



𝑁(

(

1−𝑚

)

+𝑘𝑚)

𝑍[𝑥]

(3)

The numerator represents an estimate of the

number of attack reports a reputor would expect to

receive during full DiDoS adoption, which is

calculated from: its estimate of the percentage of its

own reputees that are malicious 𝑚, the number of its

Distributed Defence of Service (DiDoS): A Network-layer Reputation-based DDoS Mitigation Architecture

623

reputees N, an acceptable

attack rate 𝑍



, and a factor

(k>1) representing how many more times a malicious

reputee is expected to attack than a benign reputee.

𝑍[𝑥] represents the actual number of attack reports

received by the reputor over a given recent period.

Once new reputations are calculated and updated,

the reputation domain manager creates new reports,

each consisting of a subset of the packet headers from

the original report, which are grouped according to

the reputees

from which they originated. These new

smaller reports are then disseminated to these

reputees, which then proceed to process the

reputations of their constituent reputees accordingly.

The observant reader may notice that the

reputation update equation (Equation 1) exclusively

permits negative adjustments to reputee reputations,

about which the inquisitive reader may question the

need for a process that allows the rebuilding of

tarnished reputations or a mechanism that prevents

the permanent flatlining of all reputations to a single

constant bottom value. These issues are addressed in

DiDoS through passive periodic accumulation.

In passive periodic accumulation, reputors

increment the reputations of all their reputees equally

by a small amount every fixed period of time (say

daily). This allows reputee reputations to be

strengthened over incident-free periods, which allows

benign entities that have been circumstantially

involved in an attack, and entities that have been

purged of their malicious components, to recover

their reputation.

In this way, reputees passively recover their

reputation, by not participating in DDoS attacks. This

mechanism, intentionally excludes the recovery of

reputation through active means, such as sending

benign data, because enabling legitimate entities to

improve their reputation through specific actions

would inherently also enable malicious entities to do

the same whilst participating in attacks, and, hence,

subvert the system. Granted, an attacker may elect to

improve the reputations of its botnet entities by

simply waiting, however, this strategy bears an

economic cost to the attacker that is proportional to

the waiting period.

4.4 Distributed Mitigation Mechanism

The DiDoS distributed mitigation mechanism

describes the way in which reputations, from the

The acceptable attack rate 𝑍



is defined as the rate of

attack that would see an attacker’s reputation remain

unchanged over the long term and is defined by the base

previous DiDoS layer, are leveraged in order to

alleviate the damage of DDoS flood attacks.

Senders (including routers and hosts) mark sent

packets with the reputation level of their reputees. In

the case of a router forwarding a packet, the reputee

is the host that sent the packet, and in the case of a

host, the reputee is the software originating the

packet. The process of marking and checking packets

does not occur on every device in the packet path, but

is reduced to occurring at the borders of

administrative and reputation domains in order to

reduce the number of operations on packets in transit

and hence added latency.

In order to satisfy the requirements of a large

range of reputation scores – needed for Equation 1 –

and a small number of reputation levels that are

marked on each packet for faster in-transit

processing, reputations scores, stored by reputors, are

converted into reputation levels, by a process of

quantisation, which are then marked on each packet.

These conversions need not be in real time but must

occur each time a reputee reputation is updated.

Packets marked with higher reputations are

forwarded in higher priority queues and packets with

lower reputation scores are forwarded in lower-

priority queues and are therefore more likely to be

dropped. By implementing a proportional

relationship, between a packet’s reputation and its

likelihood of being dropped, scaled against the

amount of network congestion, the following benefit

occurs. The impact of false negatives is reduced in

comparison to the automatic-dropping of packets

below a certain reputation since packets are given

opportunity to traverse if resources are available, and

are only dropped to serve packets of higher

reputation. This is pertinent in the case of

compromised devices with poor reputations, such as

compromised IP cameras, which may still send

legitimate packets – as part of their original design

specification – that should not be dropped in the

absence of attack or congestion. A consequence of

this approach is the possibility of attack packets still

reaching the victim, although not necessarily at the

expense of higher reputed packets.

Details of the header markings inscribed in DiDoS

packet headers are described in the next section.

attack penalty 𝑃



and the periodic accumulation amount

(see Equation 6).

The direct reputees of the reputor entity processing the

report

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

624

4.5 Header Specifications

The Internet header length (IHL) field of IPv4 packets

indicate the length of the IPv4 packet header in 32-bit

words. The minimum value of this 4-bit field is 5 –

indicating no packet options present – and its

maximum value is 15 (Tanenbaum, 2011). Therefore,

IPv4 offers ten 32-bit words of available header-space

to accommodate packet options. Through the

mechanism of extension headers, available header

space is even less of a constraint in IPv6, as IPv6

supports multiple extension headers on each packet

and a single extension header can be up to 256 octets

(or 64 32-bit words) long (Deering & Hinden, 1998).

DiDoS leverages this available option space in order

to ensure compatibility with existing Internet

infrastructure, as illustrated in Figure. By using

Internet options, “non-DiDoS-compliant” routers are

able to ignore DiDoS header options in received IP

packets whilst forwarding them intact.

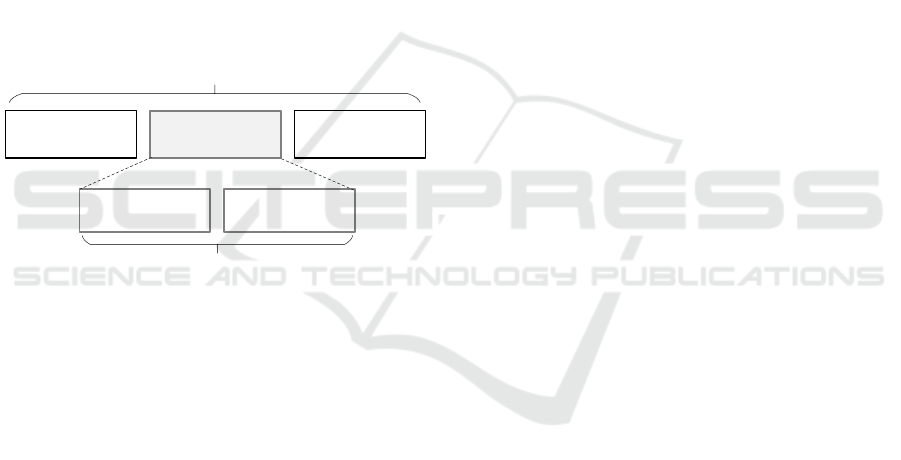

Figure 2: A DiDoS IP option in IP packet header.

As illustrated in Figure, the DiDoS packet option

consists of two authentication field sections:

provenance and transit. The provenance section

contains fields that allow a source autonomous

system to authenticate and process received feedback

reports and to identify its reputees to which it must

disseminate portions of said report. The transit

section contains information that enables a transit AS

to verify a packet as coming from a particular AS.

The cryptographic mechanism used to determine

packet integrity is Message Authentication Codes

(MACs), which are hashes created over various input

fields combined with a secret known only to select

entities. Each reputor in the DiDoS layer adds its own

identifier (that its reputor knows it by), a reputation

level for the packet, and two MACs. The first MAC

is created with a secret shared between itself and its

reputor, and the second MAC is created with a secret

known only to itself. The former allows the entity

reputor to verify the reputee against the identifier

provided, and the latter enables the reputee to verify,

during the feedback process, the validity of packet

headers contained in received reports.

Hosts may additionally include an identifier that,

upon receipt and analysis of feedback reports, enables

the identification of the particular piece of – software

running on the host – that generated the packet.

A sequence number is added by the first DiDoS

entity in the transit path and a timestamp is added by

the first Network Time Protocol-compliant DiDoS

entity on the path. These fields help to mitigate

against feedback report manipulation and repetition

attacks, since packets deviating beyond appropriate

thresholds from the current time at the receiving

entity are disregarded – in the case of reports – and

dropped – in the case of network traffic.

Additionally, the source AS also adds a MAC

with a secret shared between the destination AS,

which prevents the sources packets from being

spoofed and holds it accountable to the destination

AS.

It is assumed that enrolment processes (in the

setup phase) enable the sharing of identifiers and

secrets between reputor and reputees. These values

can be periodically changed (during the operational

phase) to preserve the privacy of reputees and

mitigate against cryptanalysis attacks.

5 RESULTS & EVALUATION

5.1 Design Analysis

This section analyzes the DiDoS design against the

specified threat model and extends the analysis

already included in section 4.

Self-promotion, where an attacker falsely boosts

its own reputation is avoided in DiDoS by having a

strong correlation between reputation score increases

and the ideal behaviour sought, which in this case is

not being involved in an attack over periods of time.

Flattery, where an attacker falsely boosts the

reputations of other senders, is possible for an

intermediary reputor forwarding the traffic of that

sender, since it has opportunity to embed its own

reputation level. However, during the post-attack

feedback phase, in which reports are disseminated to

reputees, entities that incorrectly rated their traffic

highly are penalized more than entities that accurately

rated the traffic they sent.

Slander attacks that cause a reputor to falsely rate

its reputee poorly are achievable if the attacker can

somehow get the slander target to send a lot of data,

during an attack, since attack feedback reports (the

IP Packet

DiDoS Header Payload

TransitProvenance

Authentication Fields

Distributed Defence of Service (DiDoS): A Network-layer Reputation-based DDoS Mitigation Architecture

625

input by which reputee reputations are diminished)

contain proofs that demonstrate a sender’s

contribution to an attack.

Non-participation in the DiDoS architecture can

be an attacker’s attempt at evasion to escape

repercussions for misbehaviour. However, since

reputors (routers) are responsible for the traffic they

forward and, as a result, penalize unauthenticated

traffic, little advantage is gained by non-participation.

Another attack avenue for evasion arises from the

adaptation mechanism of the reputation update

algorithm, in which the reputation attack-penalty is

reduced as the attack report rate increases (see section

4.3). An attacker, with multiple (reputee) agents

accountable to the same reputor, may attempt to

reduce the attack penalty meted by that reputor by

initiating extremely large numbers of attacks to solicit

similarly high numbers of feedback reports and thus

cause the attack penalty to be reduced. Theoretically,

if the attack reports are high enough by the attacker

sacrificing a small number of agents that are

accountable to the reputor in question, then the

remaining attacking agents could end up attacking

with impunity. However this attack is easily mitigated

by capping the amount a single reputee can contribute

to the total attack frequency number that is input to

the reputation penalty calculations (Equation 3).

The above attack can be described as evasion via

collusive self-destruction, since an agent destroys its

own reputation in order to execute the attack.

Opportunities for sabotage, where an attacker

hampers the operational ability or integrity of the

system, are mitigated by various design features, such

as the distributed nature of the architecture and the

cryptographic protections that facilitate packet

forwarding accounting. For example, a distributed

DDoS defence helps to avoid a single point of failure,

which, if attacked, could disrupt the entire system.

The practical adoption of DiDoS has associated

costs, such as time, equipment and human resources

costs. The architecture, however, does offer adoption

incentives, the value of which grows geometrically

with increasing adoption – via the network effect –

since an organization adopting DiDoS not only

benefits itself (via spoofing protection against DDoS

attacks and increased prioritization of its packets over

the internet), but also benefits other entities through

1) the provision of attack feedback reports that help

identify malicious actors, and 2) the granular marking

of its sent packets, that helps other entities filter

malicious traffic.

The number of times a reputee is involved in an attack in

a given period of time.

Another consideration of the architecture is the

processing overheads, which are of two types: in-

transit and background. In-transit processing occurs

as packets traverse the Internet and contributes to

transit latency. The addition and in-transit verification

of the message authentication codes that are added to

packet headers to facilitate anti-spoofing protection

and verifiable attack feedback, are examples of in-

transit processing.

However, it is important to highlight that such

processing (described in section 4) is not required at

every router in transit, but only at the boundaries of

reputation domains, such as between autonomous

systems. Despite the presence of tens of thousands of

autonomous systems (ASs) in the Internet, research

has shown that packets, on average, only traverse 3.9

autonomous systems (AS’s) for IPv4 and 3.5 AS’s for

IPv6 (Pappas et al., 2015). Additionally prior work

has demonstrated the feasibility of such in-transit

MAC processing (Liu et al., 2008).

5.2 Use-case Experiment Setup

An experiment to investigate the effectiveness of the

reputation convergence of the DiDoS architecture

was constructed in C++. The particular use-case

simulated was a local access network (LAN) in which

multiple devices access the Internet via a single

access router – illustrated in figure 3.

As such, each access device is considered as a

reputee to the reputor access router. A proportion of

said access devices were considered to be malicious

and the rest benign. This disposition was reflected by

the differing instance values of the (reputee-) class

attributes that determined the data rates that a reputee

exhibited during attacks and its attack involvement

frequency

(AIF), both of which were normally

distributed – with malicious devices generating

greater in-attack data rates and higher frequencies of

attack involvements.

The simulation process worked by iteration over

the set of reputees per specified period, to determine,

from the aforementioned attributes of each reputee,

the number and content of reports passed on to the

reputor access router. The number of attacks

incidental in each iteration of the simulation, did not

directly correspond to the number of attack reports

received by the reputor access router, but each

provisional report generated was passed through a

function incorporating DiDoS adoption rate as a

probability of whether said report would reach the

access router.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

626

LAN

Access Router

(Reputor)

Internet

...

End devices (Reputees)

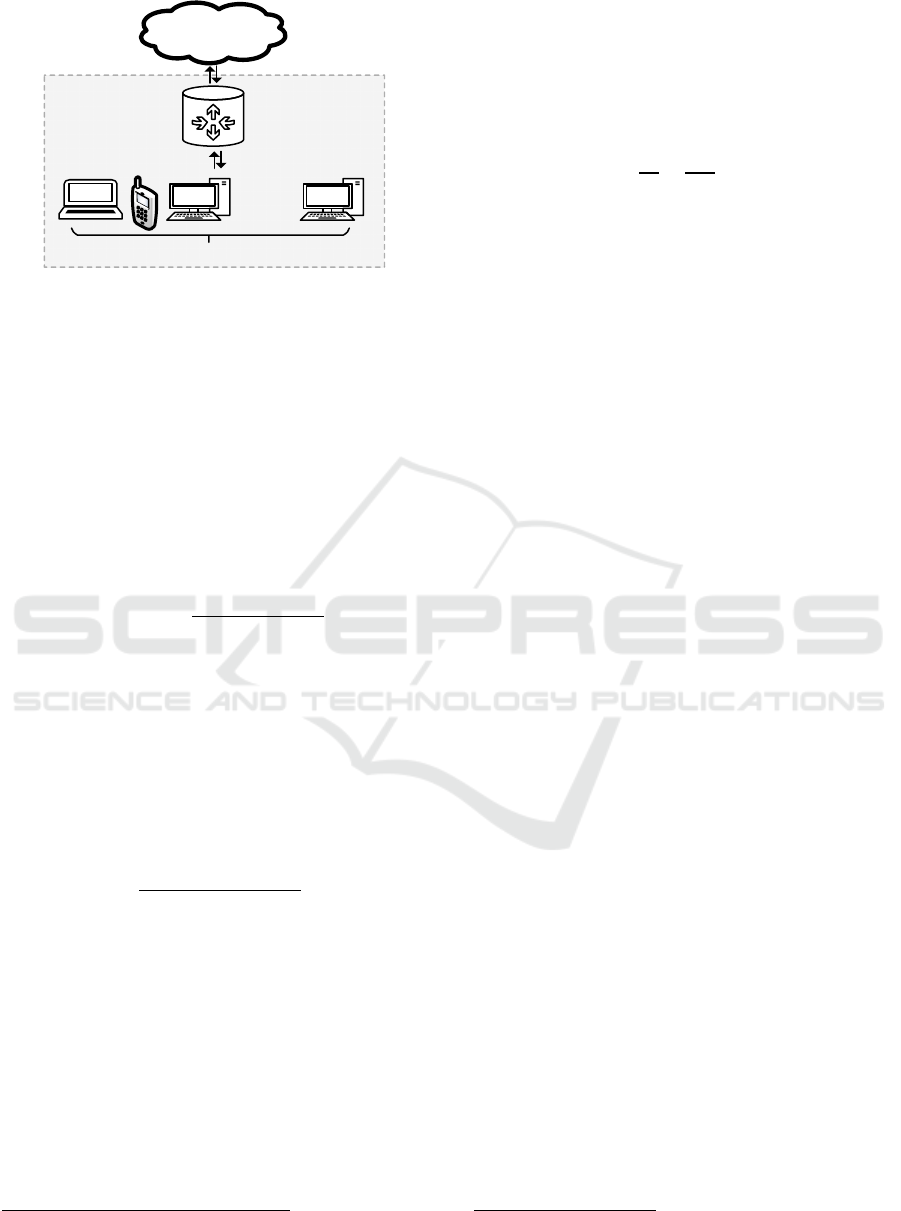

Figure 3: Illustration of use-case simulation scenario of

reputor and reputees in LAN.

For the simulation, the coefficients 𝑎



and 𝑎



from Equation 1, were set to 1 and 0 respectively,

causing the reputee identification strength 𝐼, the

volumetric attack contribution 𝒱 , and the

appropriateness 𝒜 to have no effect on the reputation

score penalty size, thus highlighting the effectiveness

of the fundamental characteristic of attack-

involvement as a means of reputation maintenance.

As such, the reputation score update was given by the

equation

𝑅



[

𝑥

]

=𝑅



[

𝑥−1

]

−

𝑍



𝑁

(

1−𝑚+𝑘𝑚

)

𝑍

[

𝑥

]

𝑃



(4)

Since, 𝑍

[

𝑥

]

was implemented by averaging the

number of attack reports received over the last 3

periodic accumulation increments, a method was

needed to prevent infinite reputation decrement

amounts, arising should 𝑍

[

𝑥

]

equal zero.

By choosing the maximum attack penalty to be

one third of half of the total range of reputation score

values, the minimum value allowed for the actual

attack report rate 𝑍

[

𝑥

]

was given by the equation

𝑍



2∙𝑍



∙𝑃



3∙

𝑅



+𝑅



)

(5)

Where the expected attack rate 𝑍



is the numerator

of equation (3).

Since the short data type was used to store the

reputation scores, the possible reputation score values

ranged from -32768 to 32767.

The variables of the rep update equation were

chosen to be as follows: The periodic accumulation

amount was chosen such that half of the entire range

of reputation scores could be traversed in 200

periodic increments.

All equation terms are previously defined in section 4.3

The value of k in equation (3) was chosen to be

10, and the expected malicious coefficient 𝑚 was

selected to be 0.5. Based on the period of time 𝑇



required for a reputee to recover from a single

reputation penalty decrement of 𝑃



, the allowed

attack rate 𝑍



was defined by:

𝑍



𝑇



𝛿



𝑃



(6)

Where 𝑇



, the “base-penalty recovery time”

, was

chosen to be 30 days and 𝛿



represents the periodic

accumulation amount, and was administered, in the

simulation environment, daily.

100 devices were considered in the LAN, with

half of them possessing the traits of malicious senders

and the other half possessing that of benign. The

reputee AIFs were random and normally distributed

and the simulations were repeated up to 100 times for

generalized inferences.

5.3 Results & Discussion

Figure 4(a) illustrates the progression of the

malicious and benign reputee reputation scores as the

simulation progressed. As expected, the reputations

of malicious senders quickly converge for a global

adoption of 100% to settle at bottom values within 30

days.

For malicious devices, the frequency of attack

involvement (AIF) averaged approximately 1.08 per

day and ranged between 0 and 3 attacks per day. For

benign devices, the average was approximately 0.027

attacks per day or approximately 1 attack every 37

days, ranging between 0 and one attack per day.

The reputations of the benign devices, on the other

hand, steadily increase to eventually reach top

reputation levels. The y-axis error-bars on the graph

represent the standard deviations of the sets of

reputation scores for the respective simulation

iteration (or day).

It should be noted that the starting value of the

reputation scores corresponded to a “Low” reputation

level. By penalizing fresh reputees, attacks in which

attackers leverage new reputee identifiers are

disincentivized.

The effectiveness of the reputation convergence

algorithm persists for global adoption percentages as

low as 5%. However, as illustrated in Figure 4(b),

between an adoption rate of between 3% and 4%, the

mean reputation scores of malicious reputees no

longer progress below their starting reputation scores.

The time taken for a reputee to recover its reputation after

a single reputation penalty of the base-penalty amount.

Distributed Defence of Service (DiDoS): A Network-layer Reputation-based DDoS Mitigation Architecture

627

-35000

-25000

-15000

-5000

5000

15000

0 200

Mean Reputation Score

Time / Days

Benign

Malicious

Figure 4: Mean reputation scores a) at 100% DiDoS adoption, b) [of malicious device reputations] at various adoption

percentages; c) at 3% DiDoS adoption.

This is because the number of attack feedback reports

received becomes insufficient to sustain diminishing

reputation scores, despite the low-report-rate penalty-

boosting coefficient introduced (equation 3).

The standard deviations of the reputation scores

of the malicious devices, increase significantly as

global adoption percentages traverse 5% to 3% - from

approximately 9,000 to 19,000 respectively. Thus we

can glean a critical global adoption threshold for

reasonably reliable convergence of malicious device

reputations of 5%.

Despite the mean reputation scores of malicious

devices increasing above their starting value, for a

global adoption percentage of 3%, the mean of

reputation scores stabilizes over time to a value below

that of the benign reputees, thus enabling, on average,

the reputations of the malicious devices to be

distinguishable from those attributed to the benign.

This is illustrated in figure 4 (c).

In order to more widely capture the performance

of the reputation update algorithm, the devices in the

LAN were divided into two equally sized groups (A

& B) and a set of simulations was carried out to

observe the effectiveness of the reputation update

algorithm with respect to different frequencies of

attack involvements.

The mean AIF of group B was held constant at

1.08 per day, whereas the mean AIF of group A was

varied (between simulations) ranging from 0.027 to

13 per day in 300 constant increments. We can gather

from the literature that such AIF’s are not

unreasonably high for DDoS botnets, since a study of

one such botnet discovered evidence of 300 attacks

being launched in just 12 days(Joven & Ananin,

2018). Another study monitoring a collection of

botnets was able to detect 406 DDoS attacks,

launched in a period of 151 days (Freiling, Holz, &

Wicherski, 2005).

For the lower AIFs of group A, the mean

reputation scores of group A trended upwards, whilst

those of group B trended downwards (see figure 4

(a)). However, as the AIF of group A approached and

crossed 0.24 per day, the mean reputation scores of

the group began to trend downwards (Figure 5),

whilst the mean AIF of group B continued to trend

downwards.

Further increases in the frequency of attack

involvement of group A devices saw the mean

reputation scores of the group (A) match the pace of

downward trend of group B when their AIF’s were

almost the same at ~1.08 per day (Figure 6).

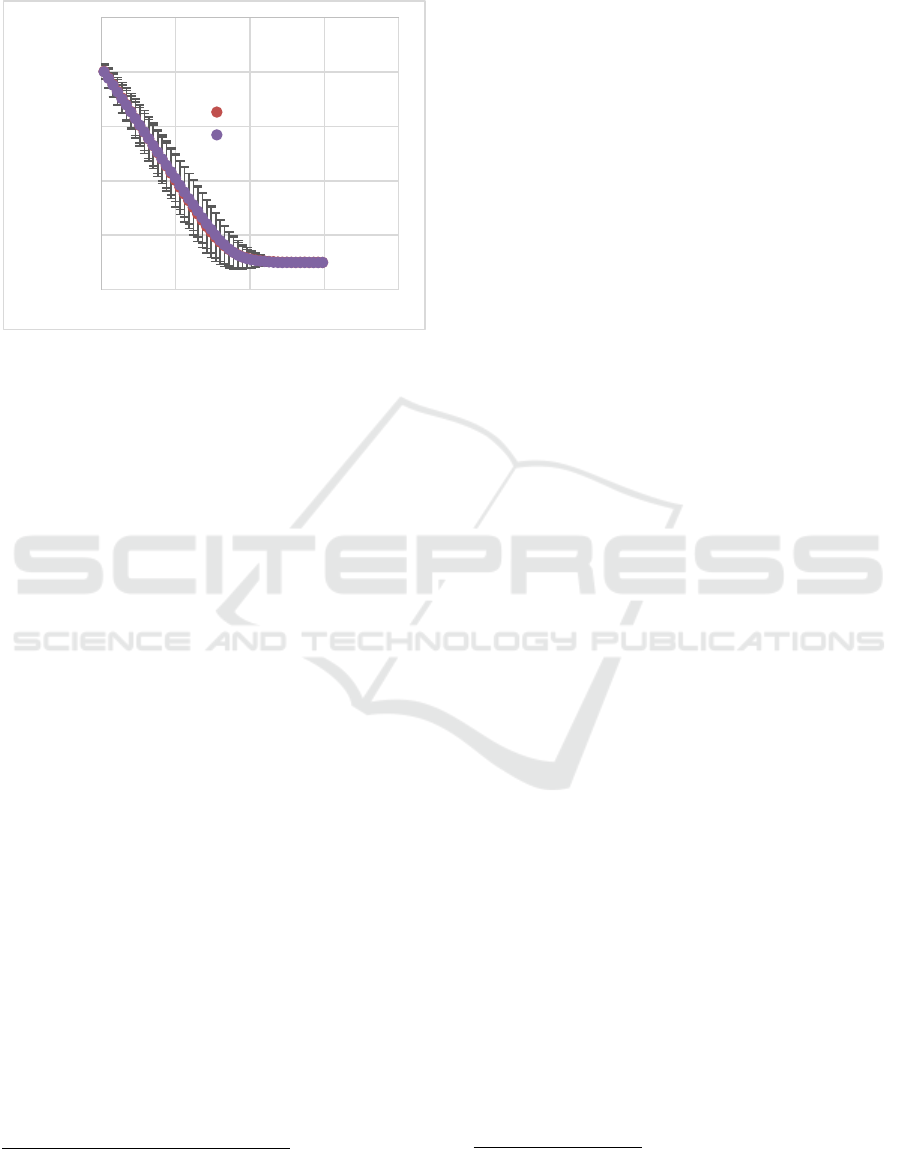

Figure 5: Group reputation scores of devices in a simulated

LAN with specified AIFs.

As the benign AIF increased further the mean

reputation score of group B devices began to decline

slower than that of group A until, the group A AIF

reached ~6.75, at which point the mean reputation

scores of group B devices began increasing, whilst

that of group A continued to decrease. This reversal

of the trending direction of the mean reputation score

-35000

-30000

-25000

-20000

-15000

-10000

0 50 100 150

Mean Reputation Score

Time / Days

Group A (AIF=0.24)

Group B (AIF=1.08)

(a)

-30000

-25000

-20000

-15000

-10000

-5000

5000

0 100 200

Mean Reputation Score

Time / Days

1% Adoption

3% Adoption

4% Adoption

5% Adoption

(b)

-20000

-15000

-10000

-5000

5000

10000

15000

20000

0 200

Mean Reputation Score

Time / Days

Benign

Malicious

(c)

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

628

of both groups persisted (becoming more

exaggerated) as the AIF of group A increased further.

Figure 6: Group reputation scores of devices in a simulated

LAN with almost matching AIFs.

This reversal is a significant aspect of the reputation

update algorithm as it demonstrates the ability of a

reputor employing said algorithm to adapt to the

environment of reputees in which it is situated. This

is important since, in reality, the AIF may vary

drastically across LANs in the Internet. However, the

aforementioned reversal shows that even if benign

devices have high AIF’s, the update algorithm is able

to distinguish them from malicious devices, provided

that the AIF of the malicious devices is sufficiently

greater.

6 CONCLUSIONS

During a DDoS attack, a victim receives competing

traffic from an increased number of sources that are

unknown to the victim, making it challenging to

prioritize legitimate requests. However, though the

sources are unknown to the victim, they need not

necessarily be unknown to the network. DiDoS

leverages this concept to address the challenge of

prioritizing legitimate requests, by the downstream

signalling of sender (reputee

) reputations by network

reputors. These reputation levels are embedded, by

reputors, into the headers of received reputee packets

before forwarding, in order to facilitate legitimate

packet prioritization at points of network contention.

Therefore, using the information embedded in packet

headers, DDoS victims are able to better identify and

Downstream indicates a flow towards a destination

address, whereas upstream indicates towards the source.

deprioritize malicious traffic, thus freeing resources

to sustain service to legitimate clients.

Since reputations are embedded in packet headers

and applied at points of network contention, DiDoS

minimizes the impact of false positives and enables

compromised devices to continue to send legitimate

traffic across the Internet. Furthermore, because

packets from entities that participate in the DiDoS

architecture are prioritized at points of network

contention, DiDoS provides incentives for its

adoption.

The DiDoS reputation update algorithm was

demonstrated to be able to distinguish between

malicious and benign devices over a flexible range of

attack involvement frequencies. Additionally,

simulation of the reputation update algorithm found a

minimum DiDoS adoption rate threshold for

reasonably reliable reputation convergence of

approximately 5%.

7 FUTURE WORK

Future work on DiDoS involves the detailed

specification of the architecture – to the number of

bytes for each field in the packet header. An important

next step would be to simulate the operation of the

DiDoS scheme against realistic traffic patterns and

network designs.

Future directions include investigating the

possibility of persistently binding pieces of software

to an operating system such that software running on

a device would be the reputee of the reputor host

operating system. In this way, using the post-attack

feedback, malware could potentially be discovered on

hosts. Another direction is the investigation of the

interactions of DiDoS with higher-layer defences and

the potential benefits of cooperation to thwart

application layer attacks such as Slow Loris attacks.

REFERENCES

Arbor Networks. (2015). Worldwide Infrastructure Securi-

ty Report. Retrieved from https://www.arbornetwor

ks.com/images/documents/WISR2016_EN_Web.pdf

Behal, S., Kumar, K., & Sachdeva, M. (2018). D-FACE:

An anomaly based distributed approach for early

detection of DDoS attacks and flash events. Journal of

Network and Computer Applications. https://doi.org/

10.1016/j.jnca.2018.03.024

Term defined in section 4.2

-35000

-30000

-25000

-20000

-15000

-10000

0 50 100 150 200

Mean Reputation Score

Time / Days

Group A (AIF=1.05)

Group B (AIF=1.08)

Distributed Defence of Service (DiDoS): A Network-layer Reputation-based DDoS Mitigation Architecture

629

Cisco, P. (2018). Cisco Visual Networking Index: Forecast

and Trends 2017-2022. Retrieved from https://www.

cisco.com/c/en/us/solutions/collateral/service-provider

/visual-networking-index-vni/white-paper-c11-741490

.pdf

David Homes, F. N. I. (2016). 2016 DDoS Attack Trends.

Retrieved from https://f5.com/Portals/1/PDF/securi

ty/2016_DDoS_Attack-Trends.pdf

Deering, S., & Hinden, R. (1998). RFC 2460: Internet

Protocol, Version 6 (IPv6) Specification. Request for

Comments (IETF). Retrieved from https://tools.

ietf.org/pdf/rfc2460.pdf

Freiling, F. C., Holz, T., & Wicherski, G. (2005). Botnet

tracking: Exploring a root-cause methodology to

prevent distributed denial-of-service attacks. In Lecture

Notes in Computer Science (including subseries

Lecture Notes in Artificial Intelligence and Lecture

Notes in Bioinformatics). https://doi.org/10.1007

/11555827_19

Joven, R., & Ananin, E. (2018). DDoS-for-Hire Service

2019, from https://www.fortinet.com/blog/threat-

research/ddos-for-hire-service-powered-by-bushido-

botnet-.html

Labovitz, C. (2010). The Internet Goes to War. Retrieved

December 11, 2018, from https://asert.arbornetworks.

com/the-internet-goes-to-war/

Liu, X., Li, A., & Yang, X. (2008). Passport : Secure and

Adoptable Source Authentication. Nsdi.

Martin, A., & Others. (2008). The Ten-Page Introduction to

Trusted Computing. Computing Laboratory, Oxford

University Oxford, 1–8.

Mergendahl, S., Sisodia, D., Li, J., & Cam, H. (2017).

Source-End DDoS Defense in IoT Environments, 63–

64. https://doi.org/10.1145/3139937.3139954

Michael Aaron Dennis. (2012). Denial of Service Attack

(DoS attack). Retrieved April 18, 2017, from https://

www.britannica.com/topic/denial-of-service-attack

Mirkovic, J., & Reiher, P. (2005). D-WARD: A source-end

defense against flooding denial-of-service attacks.

IEEE Transactions on Dependable and Secure

Computing, 2(3), 216–232. https://doi.org/10.1109/

TDSC.2005.35

Naresh Kumar, M., Sujatha, P., Kalva, V., Nagori, R.,

Katukojwala, A. K., & Kumar, M. (2012). Mitigating

Economic Denial of Sustainability (EDoS) in Cloud

Computing Using In-cloud Scrubber Service. In 2012

Fourth International Conference on Computational

Intelligence and Communication Networks (pp. 535–

539). IEEE. https://doi.org/10.1109/CICN.2012.149

Nicky Woolf, T. G. (n.d.). DDoS attack that disrupted

internet was largest of its kind in history, experts say.

Retrieved May 29, 2017, from https://www.

theguardian.com/technology/2016/oct/26/ddos-attack-

dyn-mirai-botnet

Osterweil, E., Stavrou, A., & Zhang, L. (2019). 20 Years of

DDoS : a Call to Action. Retrieved from https://arxiv

.org/pdf/1904.02739.pdf

Pappas, C., Reischuk, R. M., & Perrig, A. (2015). FAIR:

Forwarding Accountability for Internet Reputability. In

2015 IEEE 23rd International Conference on Network

Protocols (ICNP) (pp. 189–200). IEEE. https://doi.org/

10.1109/ICNP.2015.22

Raghavan, S. V., & Dawson, E. (Edward). (2011). An

investigation into the detection and mitigation of denial

of service (DoS) attacks

 : critical information

infrastructure protection. Springer India Pvt. Ltd.

Scott Hilton. (2016). Dyn Analysis Summary Of Friday

October 21 Attack. Retrieved May 29, 2017, from

https://dyn.com/blog/dyn-analysis-summary-of-friday-

october-21-attack/

Tanenbaum, A. S. (2011). Computer Networks (V).

Prentice Hall.

Zeijlemaker, S., & Rouwette, E. (2017). A financial

evaluation of DDOS defences dynamics from an

organisational perspective: how long will these

defences hold? In Proceedings of the 35th International

Conference of the System Dynamics Society. Retrieved

from https://www.systemdynamics.org/assets/conferen

ces/2017/proceed/papers/P1171.pdf

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

630
