Design of a Motion-based Evaluation Process in Any Unity 3D

Simulation for Human Learning

Djadja Jean Delest Djadja, Ludovic Hamon and S

ebastien George

LIUM - EA 4023, Le Mans Universit

e, 72085 Le Mans, Cedex 9, France

Keywords:

Virtual Learning Environment, Activity Evaluation, Motion Analysis, Unity.

Abstract:

This paper discusses the usability of a generic method for the evaluation of the user activity in Virtual Learning

Environments (VLE) and its implementation with Unity. In the context of motion-based tasks, the learning

process relies on the observation and imitation of the task demonstrated by the teacher. The learner task is

compared to the teacher one in terms of: (a) motions shape of the user and the manipulated artefacts and (b),

the sequential order of 3D checkpoints that the user must collide with. The integration of the evaluation system

into any existing VLE rises challenges regarding the system architecture and the Human Computer Interface

to set up the evaluation process. A usability test related to the design of this process is conducted for a pool

shooting, a dart throwing and a letter writing simulation. The preliminary results show that: (i) the integration

of an existing VLE into the evaluation system is feasible despite issues related to the interaction assets and

(ii), all participants are satisﬁed by their designed evaluation process for pool shooting and dart throwing, they

were unable to set up a satisfying evaluation for letter writing due to scale issues.

1 INTRODUCTION

Virtual Reality (VR) technologies has been used

to create effective Virtual Learning Environments

(VLEs) in various domains such as sports training

(Miles et al., 2012; Le Naour et al., 2019), education

(Mikropoulos and Natsis, 2011), surgery (Bric et al.,

2016; Roy et al., 2017), industry (Patle et al., 2019).

From the motion-based traces generated by the ﬁnal

user, to the given advice by the system, thanks to rele-

vant multimodal (e.g. visual, auditory, haptic), a com-

plete processing chain can be set to evaluate the user

activity.

Some VLEs evaluate the learner by detecting an

actions sequence/pattern each action being composed

of one or several gestures (Baudouin et al., 2007; Tou-

ssaint et al., 2015; Mahdi et al., 2019). However, their

analysis are mainly based on the discrete states of the

manipulated objects and not on the performed ges-

tures. Another strategy consists in demonstrating the

manual gestures to learn, by the expert (through an

animated 3D avatar) that can be manually or automat-

ically compared with those of the learner (Ng et al.,

2007; Miles et al., 2012; Morel et al., 2016; Kora

et al., 2015; Le Naour et al., 2019). An intuitive and

understandable evaluation process can be set up even

though this kind of system are mostly dedicated to the

learning of body motions. More accurate evaluation

systems studies kinematic, dynamic or geometric key

features (e.g. speed, acceleration, distance covered by

joints) of the motion (Yamaoka et al., 2013; Aristidou

et al., 2015; Senecal et al., 2018). The learner must

build her/his own motion respecting those features, in

an “ad-hoc” system requiring scientiﬁc knowledge to

interpret them.

Most of the existing evaluation systems are

merged within the VLE and do not consider the mo-

tions of all interactive artefacts (body and manipu-

lated objects) for the evaluation. This paper proposes

a method, its implementation and an usability test of a

simulation-independent and motion-based evaluation

system. The proposed system integrates an existing

VLE to offer to the teacher intuitive tools to set up an

evaluation process by: (i) choosing the virtual arte-

facts (body parts or scene objects) whose motions will

be analysed (ii), deﬁning task steps thanks to a set of

ordered 3D virtual checkpoints and (iii) recording a

demonstration of the task to learn that will be imitated

by the learner. An automatic shape-based and key-

features-based comparison is then realized between

the teacher and the learner motions. The next section

reviews the VLEs implying manual gestures and the

evaluation process in terms of motion analysis, usabil-

ity and task dependency. Section 3 presents a motion-

Djadja, D., Hamon, L. and George, S.

Design of a Motion-based Evaluation Process in Any Unity 3D Simulation for Human Learning.

DOI: 10.5220/0008989001370148

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 1: GRAPP, pages

137-148

ISBN: 978-989-758-402-2; ISSN: 2184-4321

137

based and generic evaluation model of the user activ-

ity relying on the task demonstration, as well as the

technical challenges related to its implementation in

any existing Unity simulation. Section 4 presents an

experiment where the user must set up an evolution

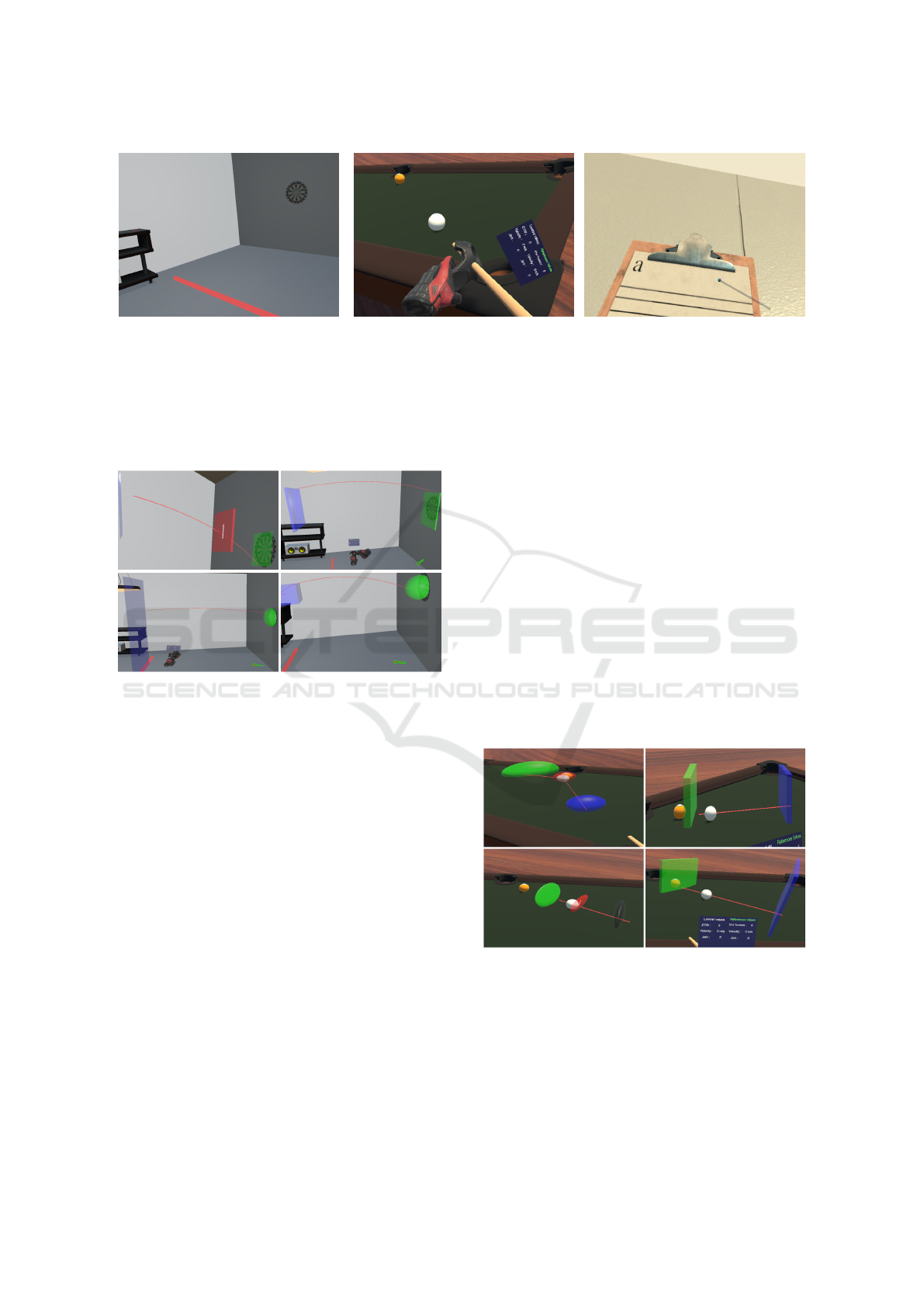

process for three different tasks to learn: shooting of

a pool ball, throwing a dart and writing a letter. The

results of the experiment are discussed in section 5.

Conclusion and perspectives ends this paper.

2 RELATED WORK

This section makes an non exhaustive review of

motion-based VLEs according to : (i) their capabil-

ities to create and evaluate new tasks (ii), the type

of analysed trace and (iii), the type of pedagogical

feedback. Some representative examples are detailed

to highlight the advantages and drawbacks of three

main and non-exclusive categories of VLE. Note: the

similarity studies of the motion shape or key features

using supervised learning algorithms are not in the

scope of this paper. Indeed, they requires a database

made of a great amount of demonstrations for each

considered task.

Procedures-based VLEs: A VLE is efﬁcient if the

observation needs of the ﬁnal user are taken into ac-

count (Buche et al., 2004; Baudouin et al., 2007).

Trace analysis models can consequently be designed

to: (a) formalize and operationalized these needs and

(b), monitor the evolution of the virtual artefact in

the VLE. For instance, Toussaint et al. (Toussaint

et al., 2015) analysed the learner activity, in terms of

action, during a simulated surgical operation. Het-

erogeneous traces made of some discrete positions

and orientations of a trocar and, gaze direction on

monitoring devices, were recorded to check if some

ordered sequences of parallel actions were correctly

performed. However, some generic properties must

be added to the trace analysis model to minimise an

heavy re-engineering process in case of task changing

or evolution of the observation needs (Buche et al.,

2004). Baudouin et al. (Baudouin et al., 2007) ana-

lyzed the user activity for physics learning by using

the MASCARET VLE. The monitoring function re-

garding the user activities is uncorrelated to the learn-

ing domain and the pedagogical strategy, thanks to

two meta-models for the respective description of the

environment and the activities. Thereby, a model to

reify the traces coming from every object, action and

event, can be easily built. The observation needs can

also be the entry point of the design of the pedagog-

ical scenario. Mahdi et al. (Mahdi et al., 2019) de-

veloped a VR editor allowing any teacher to set up

her/his learning scenario from existing VLEs. A sce-

nario was made of actions deﬁned by a set of prede-

ﬁned Virtual Behavioral interaction Primitives (VBP)

(i.e. observation, navigation, manipulation, commu-

nication) that must be performed by the learner. All

the previous cited work are based on the learning of

procedures as a set of actions ordered or not. An ac-

tion mainly consists in reaching some discreet states

of the manipulated objects. Despite the integration

of the application domain vocabulary through some

multi-layers semantic models for trace analysis, the

teacher cannot, alone, implement its own evaluation

scenario (except in the case of Mahdi et al., 2019)

or integrate new observation needs. In addition, the

underlying motions of the user leading to the object

manipulations are not evaluated leading to a loss of

information for professional gesture learning.

Observation and Imitation-based VLEs: The con-

tributions of IT environments in motion learning has

been effective for several decades. For example,

Le Naour et al. (Le Naour et al., 2019) made a re-

view on several studies based on the observation of

the expert demonstration through videos or VR en-

vironments for sports motions. According to Scully

and Newell (1985), “the observation of a model pro-

vides the learner with essential information, notably

regarding unfamiliar coordination patterns” (cited by

Le Naour et al., 2019). In addition, VR systems can

provide an accurate observation of the gestures thanks

to the control of an anthropomorphic 3D avatar, the

depth perception and the 3D navigation to observe

it from different view points. Consequently, numer-

ous VLEs were developed to capture and play the

motions of the teacher and learner in various ap-

plication domains such as violin (Ng et al., 2007),

ball sports (Miles et al., 2012), disk throwing (Ya-

maoka et al., 2013), Japanese archery (Yoshinaga and

Soga, 2015), golf (Kora et al., 2015), rugby throwing

(Le Naour et al., 2019), etc. If one puts aside the com-

plex processing chain of a motion capture session,

any teacher can potentially use an observation and

imitation-based system to record a motion to learn.

However, the concurrent visualisation of the learner

and teacher motions for comparison is confronted to

the challenge of spatial and temporal synchronisation

of the two motions. Morphology-independent repre-

sentation (Kulpa et al., 2005; Sie et al., 2014; Morel

et al., 2016) and some attempt to mix, “average” or

choose an adapted expert model (Yoshinaga and Soga,

2015; Morel et al., 2016) exists to the detriment of

keeping the bio-mechanical properties of the motion.

Scaling the learner skeleton according to the height of

the teacher and asking the former to temporally follow

the expert demonstration remain an acceptable solu-

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

138

tion (Le Naour et al., 2019). The use cases mainly

concern motions implying the body (or a sub-set of

its members and joints) and not the manipulated ob-

jects. The assumption of “learning by observation”, is

still a strong one without a feedback on their key fea-

tures, as their absence can be a serious impediment to

the learning.

Shape-based Systems: As an extension of observa-

tion and imitation-based VLEs, shapes-based VLEs

offer, in addition, an evaluation based on spatial and

temporal similarities of the motion shape (i.e. the

shape of the trajectory made by the body members

or joints in the 3D space). The motion shape is fre-

quently considered for assessing the learner perfor-

mances and progressions in sport through the Dy-

namic Time Warping algorithm (DTW) (Morel et al.,

2016; Le Naour et al., 2019). DTW aims to compare

the shape of two time series without considering the

temporal aspect (i.e. the signal duration or frequency)

by outputting: (a) a distance correlation matrix evalu-

ating the distance between each point of the two sig-

nals and (b), a score being the sum of the minimum

distances to pass from one signal to another (the lower

the score is, the more similar the signals are). For ex-

ample, Morel et al. (Morel et al., 2016) built an “aver-

age” motion from several demonstrations made by ex-

perts for tennis serve. They captured the motion vari-

ation by, ﬁrstly, using the DTW to temporally align

the motions on the longest one. A “DTW”-like algo-

rithm computes the distances (and their derivatives)

between the joint positions to extract an average one

by the accumulation of all the minimal distances. Two

ad hoc formula were then applied to compute a spatial

tolerance (i.e. based on the mean of the distances be-

tween the joints of every expert motion) and temporal

one (based on the similarities between two correla-

tion paths of two joints to the “average” correspond-

ing one) regarding a new learner motion. Despite their

interesting results for fault detection, the consistency

of the bio-mechanical properties of the “average” mo-

tion can be questioned. For ball throwing in rugby,

Le Naour et al. (Le Naour et al., 2019) worked on the

beneﬁts of the visualisation of the expert demonstra-

tion superimposed on the learner throw. The descrip-

tors to assess the performances were the ball distance

to a predeﬁned target, the spatial distance between the

expert movement and learner movement thanks to the

DTW sum of the minimal distances, and the regularity

around the mean of the spatial distances, to “express”

the regularity of the motion over time (Le Naour et al.,

2019). Their results showed the beneﬁts of the su-

perimposition modality to learn the movement pat-

tern but not for the throw accuracy. Nonetheless, the

ball motion were not analysed and the performance

descriptors were not given to the learner. In addi-

tion, the different phases of the throw were explained

by the expert but not formalized and operationalized

in the system. The effective but perfectible learning

providing by observation and imitation-based systems

encourages their use. In addition, they mainly re-

quires some demonstrations intuitively performed by

the teacher to be operational. Nonetheless, one can

ask the relevancy of using such DTW-based descrip-

tors as a pedagogical information given to the learner.

Key Features-based Systems: For a given learning

situation, there is usually not a unique and a perfect

motion to learn. The motion bio-mechanical features

(e.g., bring two feet together then push off upwards

for a pin-point serve in tennis, maintain the triangle

on the backswing in golf) are known and the learner

has to build his own gesture respecting those features.

The VLEs built on this principle can compute some

kinematic, dynamic and geometric descriptors from

the time series made of joint positions and orienta-

tions (Larboulette and Gibet, 2015). The main objec-

tive is to: (i) compare the values of the descriptors

with reference ones and (ii), give advice according to

those values. Therefore, each observation need must

be translated into one or several computable descrip-

tors. For example, Yamaoka et al. (Yamaoka et al.,

2013) built a VLE to learn disk throwing by giving

feedbacks on: (a) the take back amplitude (b), the

height of the right hand (c), the height transition of

the right hand (d), the angle of the right elbow and (e),

the twisting of the waist. The descriptors considered

by Ng et al. (Ng et al., 2007) for violin learning were:

bowing trajectories, bowing and joint angles, veloc-

ity, acceleration and distance traveled by arms joints.

For teaching dance, Aristidou et al. (Aristidou et al.,

2015) considered 27 morphological independent eval-

uation metrics (e.g. such as distance between limbs,

displacement, gait size, acceleration, velocity, jerk,

volume, body part height) to characterize motions in

terms of actions, emotions and intentions. Baldomi-

nos et al. (Baldominos et al., 2015) worked on med-

ical rehabilitation through a virtual goal keeper sim-

ulation, where they analysed the trunk (elbow, shoul-

der and arms must be straight and perpendicular to

the ground) and the arm (must be extended) to stop

the ball. The evaluation strategy requires, for the ﬁnal

users, to have well-established knowledge in math-

ematics, physics and bio-mechanics to correctly in-

terpret the descriptor values. To tackle this issue,

some trace analysis models can give an understand-

able meaning to the descriptors according to the ap-

plication domain vocabulary (Toussaint et al., 2015;

Baudouin et al., 2007). For instance, the well-known

Laban Movement Analysis (LMA) (Laban and Ull-

Design of a Motion-based Evaluation Process in Any Unity 3D Simulation for Human Learning

139

mann, 1988) was used by (Aristidou et al., 2015) to

describe the motion according to its four dimensions

(i.e. body, shape, effort and space) each characterized

by a subset of their descriptors. Sometimes, even if

the observation needs are taken into account, the eval-

uation system can fail. For example, Senecal et al.

(Senecal et al., 2018) tried to automatically charac-

terize the skills of SALSA dancers according to three

levels of expertise and ten speciﬁc descriptors (e.g.

velocity peaking for the feet, the main frequency at

which the people move their feet, the linear correla-

tion of leg motions). In a nutshell, two-thirds of the

descriptors allowed assessing the level of the dancers.

Even though the usability of key features-based sys-

tems can be enhanced by the integration of the expert

vocabulary, some low-level descriptors (Larboulette

and Gibet, 2015) must, in ﬁne be chosen for each eval-

uation concept. This task often makes the system task

dependent without a guarantee on its efﬁciency, even

if the expert was in the design loop (Senecal et al.,

2018). In addition, the teacher is used to his/her vo-

cabulary, to correct the motion and this vocabulary

is not necessarily linked to some bio-mechanical de-

scriptors.

The existing VLEs dedicated to professional man-

ual gestures suffer, at least, of four main lacks. First,

the motion is not systematically considered as a time

series made of geometrical data for the activity analy-

sis. The whole interactive virtual artefacts (i.e. user’s

body and virtual artefacts) are not all considered as

some potential objects of interest. There is a lack of

editing possibilities regarding, the choice of the ob-

ject of interest, the task requiring an evaluation and

the motion key features that must be interpreted. Fi-

nally, all the evaluation systems are merged with the

VLE. To counterbalance these issues, several techni-

cal and scientiﬁc challenges appear. Given an existing

VLE and its pedagogical scenario:

• How to build a generic and motion-based evalua-

tion model, applicable to a wide range of task?

• How to give an interaction paradigm allowing the

teacher to intuitively create its own evaluation

process and associated feedbacks?

• How to operationalize such a model and interac-

tion paradigm in any existing VLE ?

In the next sections, we try to tackle those chal-

lenges. The next section presents a motion-based

evaluation model, its correlated interaction paradigm

and its integration in any existing Unity 3D simula-

tion.

3 ACTIVITY EVALUATION

3.1 Main Principles

In our previous work, we proposed a method to eval-

uate the learner activity thanks to the analysis of the

motion generated by her/his activity (Djadja et al.,

2019). This method relies on a shape-based approach

as it allows any teacher to build an evaluation process

by making a demonstration of the task to learn (cf.

section 2, shape-based VLEs).

Suppose a toy problem made of a glass with a ball

inside, a deposit area and a container (ﬁg. 2). The

user has to learn to take the glass, put the ball into

the container, turn over the glass and put it on the de-

posit area. Three steps are necessary to set up the

evaluation process within the VLE. The teacher has

to choose an Object of Interest (OI) whose motions

will be analysed (ﬁg. 1(b)). In this case, the OI can

be the glass or the user’s hand. Then, the teacher has

to create and place 3D virtual CheckPoints (CP) (ﬁg.

1(c)). CPs are 3D geometrical shapes (i.e. 3D rect-

angle or sphere) that can be placed, rotated and sized

in the 3D space. The OI must collide with CPs for

a dual reason: (1) to decompose the task in several

steps if necessary (e.g. step 1: put the ball into the

container, step 2: put the glass on the deposit area)

and (2), automatically extract the Motion of the OI

(MOI) as a set of positions and orientations through

time. Consequently, three kinds of CP can be gener-

ated: the Starting CP (SCP), one or several Interme-

diate CP (ICP, optional) and Ending CP (ECP). When

an OI collides with an SCP the system starts saving

the motion . If the next CP, that the OI collides with,

is the SCP, then the previous data are removed and

the system starts recording a new motion. Finally, the

system stops recording when the OI collides with the

ECP. For the task example, the glass was chosen as

an OI, a rectangular SCP was sized according to the

height and placed close to the glass, a rectangular ICP

was sized according to the height and placed close to

the container and a rectangular ECP was sized accord-

ing to the width and length and placed above the de-

posit area (ﬁg. 2). Finally, once the CPs are placed,

the teacher makes a demonstration of the task, visu-

alises it, and repeat the demonstration until satisfac-

tion (ﬁg. 1(d)). The motion of the glass of the ﬁnal

demonstration is automatically stored.

The learner has to: visualise the teacher demon-

stration and reproduce it (ﬁg. 1(ii)). To evaluate

the quality of the performed motion, the DTW algo-

rithm is applied to compare the OI motion shape ma-

nipulated by the learner and the teacher. The DTW

score is given to the learner and must be under a

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

140

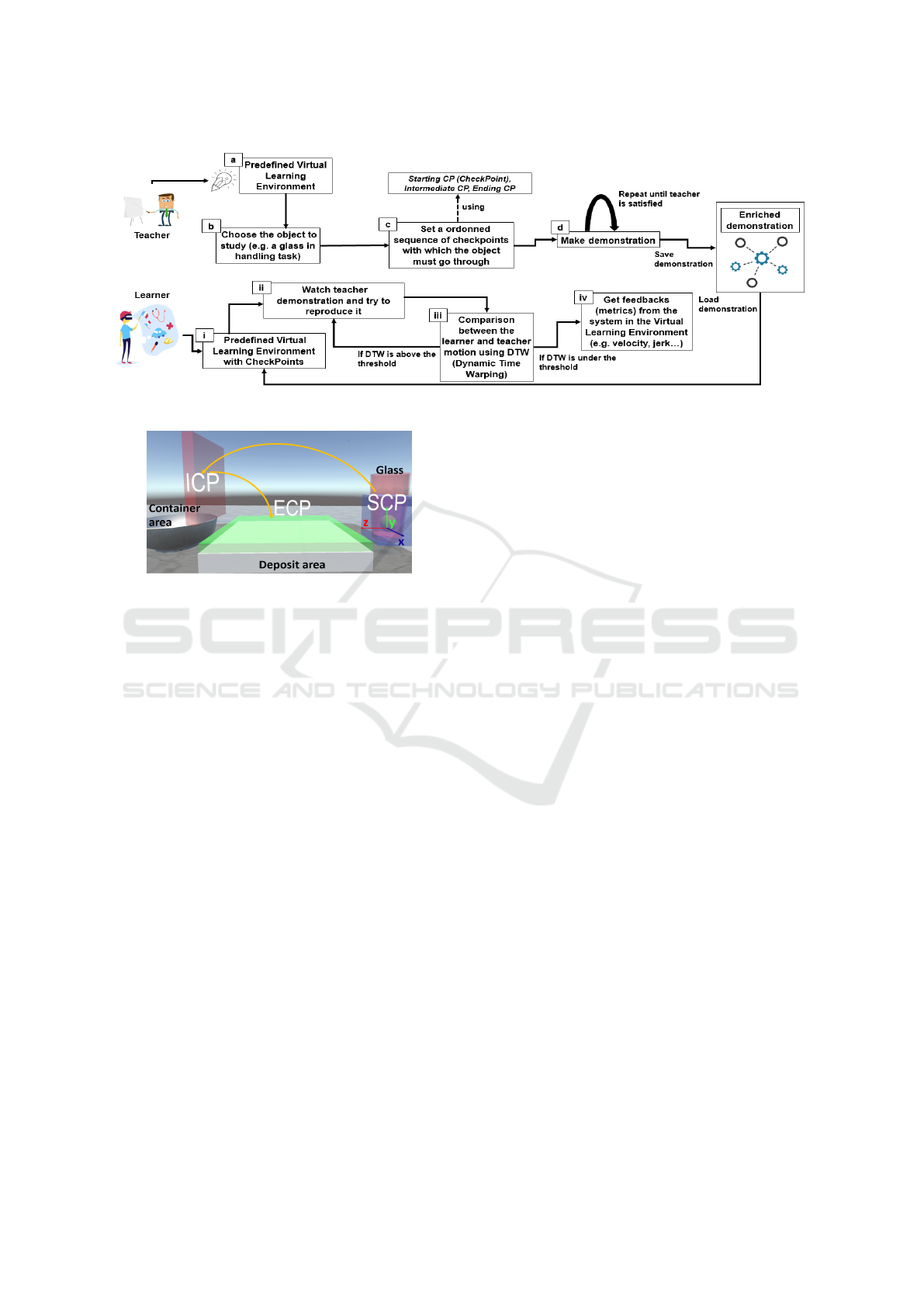

Figure 1: Motion-based evaluation method.

Figure 2: Manipulation task of glass.

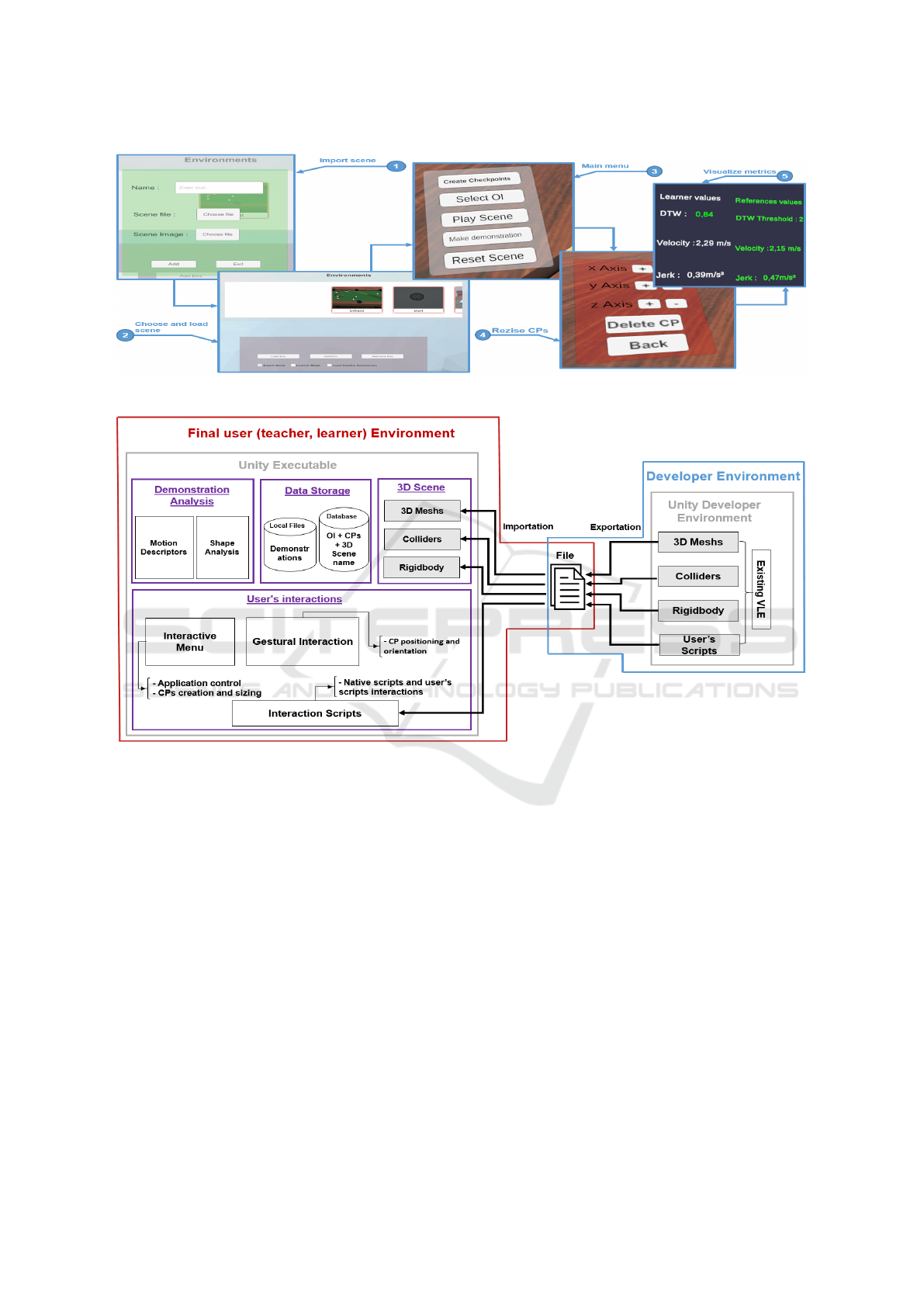

threshold deﬁned by the teacher (ﬁg. 1(iii) and ﬁg.

3(5)). If this is not the case, the learner has to re-

produce the demonstration again (ﬁg. 1(ii)). Once

the threshold is reached, some motion key features

are displayed to the learner such as kinematic descrip-

tors (e.g. speed and jerk in this example (Larboulette

and Gibet, 2015)) to have a more accurate analysis if

needed (ﬁg. 1(iv) and ﬁg. 3(5)). In terms of feed-

back, the user can view within the VLE: the previous

mentioned CPs (or not depending on the pedagogical

strategy) and descriptors, the DTW score as well as

the trajectory of the motion made by the expert and

the learner (ﬁg. 2 and 3(5)). Actually, if the trajectory

is well known as a motion descriptor for navigation

tasks (Terziman et al., 2011; Cirio et al., 2013), it can

also be considered as a relevant understandable infor-

mation for the evaluation of the current performance

of the manual gesture. This last hypothesis will be

studied in an experimental context.

3.2 Enhancements and HCI Design

Three toy problems (a manipulation task, a throw

task, and a navigation task) were implemented, by

using the Unity engine, to illustrate some examples

of evaluation conﬁgurations (i.e. chosen OI, place-

ment of CPs, trajectory display) (Djadja et al., 2019).

Despite this method was designed to allow teachers

to easily build and assess learner activities in any

VLE, the current evaluation system was merged with

the VR environments. In addition, the system took

into account only one ICP leading to the considera-

tion of two-step tasks at most. Finally, no interac-

tion paradigm was designed to create, size, rotate and

place the ICP. An IT designer has to conﬁgure every

CPs through the unity developer interface.

Therefore, our evaluation method was enhanced

by considering several ICPs and, thus, tasks with

more than two steps. Each ICP are numbered to make

an ordered sequence of CPs with which the OI must

go through (ﬁg. 1, left, (c)). An interaction paradigm

was also designed to: (a) choose the OI (b), create and

conﬁgure the CPs and (c), perform, play and record

the demonstration. The designed interface was made

in the context of “scale 1” VR environments where

the user is immersed with a VR helmet, two hand con-

trollers and a motion capture system. VLEs can bene-

ﬁt of advanced interaction paradigms and especially

those relying on gestures to offer more natural in-

terface with affordance properties (Emma-Ogbangwo

et al., 2014). Consequently, grasping a CP is realized

by touching it with the hand virtual avatar and hold-

ing a controller button. The CP placement, translation

and rotation are achieved by the placement, transla-

tion and rotation of the user hand holding the VR con-

troller. The OI is chosen thanks to an usual process

mixing a virtual ray for selection and a controller but-

ton for validation, leading to a color change of the se-

lected object. Every virtual artefact with a rigidbody

can be chosen as an OI as well as each body member

of the user (cf. section 3.3 for more details).

The ﬁgure 3 (3, 4 and 5) presents the teacher

virtual interface as a 2D menu regrouping the func-

tionalities linked to: (1) the application control (i.e.

OI choice mode, CPs creation mode, demonstration

mode) and set of useful functionalities to make the

demonstration (i.e. resetting the virtual scene, play/-

Design of a Motion-based Evaluation Process in Any Unity 3D Simulation for Human Learning

141

pause/slow down the current demonstration, etc.).

This menu is attached in position and rotation to the

user’s right hand, while the combination of a virtual

ray and a controller button of the left hand is used

to interact with the menu buttons. It can be noted

that the CP size can be set thanks to this 2D interface

(ﬁg. 3(4)) according to the 3D Cartesian axes, as the

preliminary test for sizing the CP through hand ges-

tures were not conclusive. Beforehand of the resizing

process, the CP must be selected with a similar inter-

action procedure to the OI selection procedure. Fur-

thermore, the choice of a body member is also made

thanks to the menu listing all the available body mem-

bers. Indeed, the set of virtual body members depends

of the motion capture interface and must be known in

advance.

With the presented method and interaction

paradigm, we hope to give the users the means to in-

tuitively select the OI, place and conﬁgure the CPs,

make their demonstrations/try to reproduce the activ-

ity, and receive relevant feedbacks by a combination

of a shape-based approach (i.e. observation and com-

parison of the demonstration and the motion trajec-

tory) and a key features approach (i.e. DTW score

and kinematic features display). Despite the choice

of the kinematic features must be discussed, the over-

all HCI and evaluation principles must be ﬁrst tested

(cf. section 4). Furthermore, if one wants to imple-

ment the evaluation method as a module adaptable to

any existing VLE, technical challenges rises regard-

ing the architecture of the used VR engine. The next

section focuses on those challenges and proposed an

implementation in the context of the Unity engine.

3.3 Implementation Details

Our goal is to implement an motion-based activ-

ity evaluation module which can be adapted to any

kind of VLE. Our evaluation module was made us-

ing Unity version 2019. Two main strategies can be

considered to build this module. The module can be

built as a Unity plugin, that could be added to any

kind of Unity VLE. The plugin will contain the func-

tions related to: the demonstration analysis, the user

interactions and as well as the data storage of the eval-

uation conﬁguration. The VLE could be then natively

modiﬁed. However using a plugin requires to have

minimum Unity skills that goes against the targeted

ﬁnal user of this study i.e. non IT teachers. Therefore,

an architecture of the evaluation tool that imports an

existing VLE is proposed in ﬁgure 4.

An existing VLE made with Unity is mainly com-

posed of 3d objects (meshs) and user interaction

scripts. Those 3d objects usually have a collider and

can have a rigidbody attached to them. The collider

allows the 3d object to detect collision with other ob-

jects, while the rigidbody allows Unity to control the

motion of this object using the physics engine. The ar-

chitecture main concept relies on the export the VLE

with its components in a ﬁle that can be imported and

operationalized by the evaluation tool. Following this

principle, the Unity developer must export its VLE

(ﬁg. 4, right side) to allow the teacher to import it

with our evaluation tool (ﬁg. 4, left side). The ex-

portation via the unity “save project” function cannot

be used as it needs the unity developer interface. In

addition, the “build executable” function can also not

be used as the executable ﬁle cannot be decomposed

in the previous mentioned components during the im-

portation.

The Unity engine proposes a method, called “as-

setbundle” to save an existing VLE in a single ﬁle.

Actually, an assetbundle is “an archive ﬁle that

contains platform-speciﬁc non-code Assets (such as

Models, Textures, Prefabs, Audio clips, and even en-

tire scenes) that Unity can load at runtime”

. This

method allows exporting a VLE and operationalized

it by importation in our evaluation system. How-

ever, three important issues appears: (a) an assetbun-

dle does not contain the user interaction scripts (un-

less they are pre-compiled), (b), the VLE, load at run-

time does not save any modiﬁcation applied in the 3D

scene structure (e.g. change in the position of 3D ob-

jects, creation of new objects, etc.) and (c) conﬂicts

can occurs if the VLE interactions used the same in-

puts as the evaluation tool interface.

For (a) and (c), the user interactions scripts were

manually imported and the interactions conﬂicts man-

ually resolved if existing. The section 5 proposes

some perspectives to automatically process them. Re-

garding (b), one must known that all the created ob-

jects during a simulation at runtime in Unity are de-

stroyed after the simulation stops. So the CPs cre-

ation and conﬁguration will destroyed after each sim-

ulation for example. The OI choice, the correlated

CPs and their conﬁguration as well as the demonstra-

tion must be saved for a given VLE. Consequently, a

SQL database is built in which the OI choice (through

a unique id), each CPs conﬁguration (shape, position

and orientation) and the name of ﬁle containing the

OI motion are saved. Indeed, a set of positions and

orientations each separated by a ﬁxed time-step, rep-

resenting the OI motion is save in an unique ﬁle. Note

that, each object, with a rigidbody, that collides the OI

has its motion also replayed.

https://docs.unity3d.com/Manual/AssetBundlesIntro.

html

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

142

Figure 3: 2D interface menu for teacher.

Figure 4: Architecture of the evaluation tool.

4 USABILITY STUDY

The evaluation method must be tested from the

teacher and the learner perspectives given several spe-

ciﬁc professional learning situations. The objective

is to have a positive effect on the learning process in

terms of: (i) motor-skills acquisition in accordance

with the given feedback and (ii), satisfaction degree

of the author of the evaluation. Beforehand, a ﬁrst

study must be conducted to have a qualitative feed-

back, from a teacher point of view, on the evaluation

method. This section studies the usability and rele-

vancy of the implemented interactions and evaluation

method with simple well-known tasks.

4.1 Protocol

First, each candidate received an oral explanation of

all concepts used in section 3 as well as the prin-

ciples of the HCI, the feedbacks and their role as a

teacher. In terms of feedback, a short explanation was

provided regarding the meaning of the DTW score

(i.e. the lower the score is, the more similar the mo-

tions are) and the jerk descriptor (i.e. representing the

smooth/tremor of the motion).

Three videos were shown to the candidates. These

videos present a user working as a teacher on three

tasks: the manipulation task described in section 3

(ﬁg. 1 right), a navigation task and a last one showing

a ball throw in a bin (Djadja et al., 2019). In each

video, the teacher in the VLE chose an OI, placed

the CPs, performed a demonstration of the task until

Design of a Motion-based Evaluation Process in Any Unity 3D Simulation for Human Learning

143

satisfaction

. After watching the three videos, the

participant were invited to put on the HTC Vive hel-

met, take the controllers and set up the evaluation

process for the manipulation task. The participant is

provided with all necessary assistance from technical

view points (i.e. how to perform the interaction), must

create and conﬁgure the CPs and make the demon-

stration according to what they watched on the corre-

sponding video. They were not advised to consider

the DTW score and the key features for building their

evaluation as they were not asked to play the role of

the learner for this ﬁrst experiment.

Only 3D rectangular shapes and spherical ones

were available for CPs. No qualitative or quantitative

data are recorded at this stage as the goal is to become

familiar with the system by practicing in the manipu-

lation scene. This ﬁrst step is necessary, as some peo-

ple were not used to VR. In addition, the non or semi

gestural based interactions (e.g. select mode or func-

tions with the virtual menu) must be apprehended.

Then, the participant was informed that he/she will

play the role of a teacher on three different tasks from

those observed for practise i.e. throwing dart on a tar-

get, pool shooting and letter writing. For each par-

ticipant and each task, the recorded data are: the time

from the beginning of the simulation to the creation of

a satisfactory demonstration, the evaluation conﬁgu-

ration (i.e. chosen OI, CPs placement, orientation and

size) and the performed demonstration. The duration

of this experiment was not timely limited and the user

is free to stop when he/she wants. The participant was

provided with all necessary assistance from technical

view points, but was free to choose the OI, conﬁg-

ure the CPs and make the demonstration according to

their will. The main goals of each task are explained

below.

Dart Throwing: the objective is to test our method in

a context of “throwing task” learning situation. The

dart is a sports activity that requires strength and ac-

curacy. The purpose of the simulation is to throw a

dart in the target center from a ﬁxed distance (ﬁg. 5,

left). The candidate OI can be the virtual dart or the

user’s hand.

Pool Shooting: the objective is to test our method in

a “manipulation task” learning situation. The purpose

of the simulation is to shoot the white ball with the

cue, the white ball must collide with the orange ball

placed near a hole (ﬁg. 5, middle). The orange ball

must fall into the hole. The position of the white and

the orange ball are the same for every participant. The

candidate OI can be the virtual white ball, orange ball,

cue or one of the virtual user’s hand.

https://drive.google.com/drive/folders/1u0DzKAkkK-

WsDiohsdGdeTlugQHQFH71?usp=sharing

Letter Writing: the objective is to test our method

to learn a “manipulation task” with small and more

accurate object that the previous simulation. The pur-

pose of the simulation is to write the “a” letter on pa-

per put on a desk (ﬁg. 5, right). Some horizontal lines

are drawn on the paper. The used interface for writing

is the Geomagic Touch haptic arm, its stylus control-

ling the virtual pen in the VLE. The HTC Vive hand

controllers are still used for setting the evaluation con-

ﬁguration and controlling the application. The candi-

date OI can be the virtual stylus or the user’s hand.

After the experiment, the candidate ﬁlls an anony-

mous questionnaire

regarding the perception of the

user on (non-exhaustive list): the use difﬁculty, the

time spent to achieve the tasks, the virtual menus

and its interactions, the functionalities, the informa-

tion given by the system, the appreciation of the per-

formed demonstration in each task, etc.

4.2 Results & Analysis

18 people, aged between 20 and 30 years old, from

different backgrounds (i.e. mainly students from IT,

commercial, biology schools, with a VR experience

or not) participated in this experiment. The training

sessions were correctly performed by all participants.

The dart throwing and the pool shooting were also

completed by all participants, except for the demon-

stration step of the dart simulation (see bellow). How-

ever, none of them succeeded in building an evalua-

tion process in the writing letter simulation (cf. sec-

tion 5). Some evaluation conﬁgurations made by the

participants are available by following this link

4.2.1 Evaluation Conﬁguration

Dart Throwing: 17 participants chose the dart as the

Object of Interest (OI) and one the left hand. The way

the CheckPoints (CPs) were placed varies from one

participant to another. The majority of participants

(15) give small shapes to the CPs. It seems that their

goals was to cover only the surface through which the

OI will pass. 3 participants chose large shapes. A pos-

sible explanation lies in the covering of the learner’s

body in order to consider the morphology of all the

learners. The Starting CP (SCP) was placed above the

line where the participants should throw the dart (ﬁg.

6). 5 participants used one Intermediate CP (ICPs)

and 4 used two ICPs. The other does not used ICPs.

They mainly used the cube shape (16) for the SCP.

However, they mainly used sphere for the Ending CP

https://docs.google.com/forms/d/1KFfjDL8vTFRiKFy

0aYlxYOyn0yKQaVUOf4MTEonZdJM/edit?usp=sharing

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

144

Figure 5: (left) Arrow and target in the dart simulation, (middle) White ball, orange ball, and cue in the pool simulation,

(right) Virtual stylus, paper and desk in the writing simulation.

(ECP) (10). The ECP was place just in front of the tar-

get. 7 participants were accurate with the ECPs and

tried to cover exactly the surface of the target while 11

overﬂow it, apparently to provide feedbacks to those

who missed the target.

Figure 6: Dart throwing: examples of the CPs positioning

and the OI trajectory.

Half of the participants failed to reach the dart tar-

get during the demonstration stage. Figure 6 shows

some examples of CPs positioning and the trajectory

generated by the dart.

Pool Shooting: 7 participants chose the orange ball

as the OI and 9 chose the white ball. One of them

chose the cue and another one chose the right hand as

OI. Several approaches were adopted.

For the one who chose the cue as OI, its seems that

he/she wanted to show to the learner where the head

of the cue should start and end in order to have an

effect when the white ball is smashed regardless the

force applied. He/she then placed the SCP close to

the border of the table and at the end of the cue when

the learner set his/her stance. The ECP was placed

just before and near the white ball, while the ICP was

placed between the SCP and ECP. All the CPs had

small shapes, probably to make the task more accu-

rate.

For those who chose the white ball as OI, appar-

ently they tried to give to the learner a very accu-

rate path to follow. The SCP was placed just after

the white ball with a small shape. They also toggled

between the cube and the sphere for the CPs shapes.

6 participants used ICPs. For those participants, the

ICP was placed after the SCP and the ECP was near

or merged with the orange ball. One of the partici-

pants gave a speciﬁc shape to the ICP i.e. a rectan-

gular shape going from the SCP to the ECP. Another

one merged the ICP with the orange ball, then placed

the ECP after the orange ball but not in the hole (ﬁg.

7, at the top left).

For those who chose the orange ball, the SCP

was placed just after this ball. One ICP was used by

only one participant. The ECP were placed inside the

hole in which the orange ball was supposed to fall.

They used alternatively the cube and the sphere for

the shape of all the CPs and they mainly gave a small

size to the CPs to apparently target the task accuracy.

All participants succeeded in realising a demon-

stration. Figure 7 shows some examples of CPs po-

sitioning and the trajectory generated by the chosen

OI.

Figure 7: Pool shooting: examples of the CPs positioning

and the OI trajectory.

4.2.2 Time to Perform a Satisfactory

Conﬁguration

Dart Throwing: The minimum time was 4,53 min-

utes and the maximum time was 16,56 minutes. The

average time per user is 7,7 minutes while the stan-

dard deviation is 3,75.

Design of a Motion-based Evaluation Process in Any Unity 3D Simulation for Human Learning

145

Pool Shooting: The minimum time was 4,36 minutes

and the maximum time 29,41. The average time per

user is 8,22 minutes while the standard deviation is

5,74.

The time to perform these two evaluation conﬁgu-

rations is reasonable, as only few minutes are required

to set up a proper conﬁguration for non professionals

of the two considered application domains. However,

these results are strongly dependant of the evaluation

HCI presented in this study and the VLE interactions.

4.2.3 Questionnaire

This questionnaire

is made of 7 questions based on

a 1-5 Likert scale adapted from the method described

by Lewis, 1995. Each answer for each question pro-

poses an appreciation of the evaluation method or the

HCI with textual qualifying adjectives. The answers

are shown in ﬁgure 8.

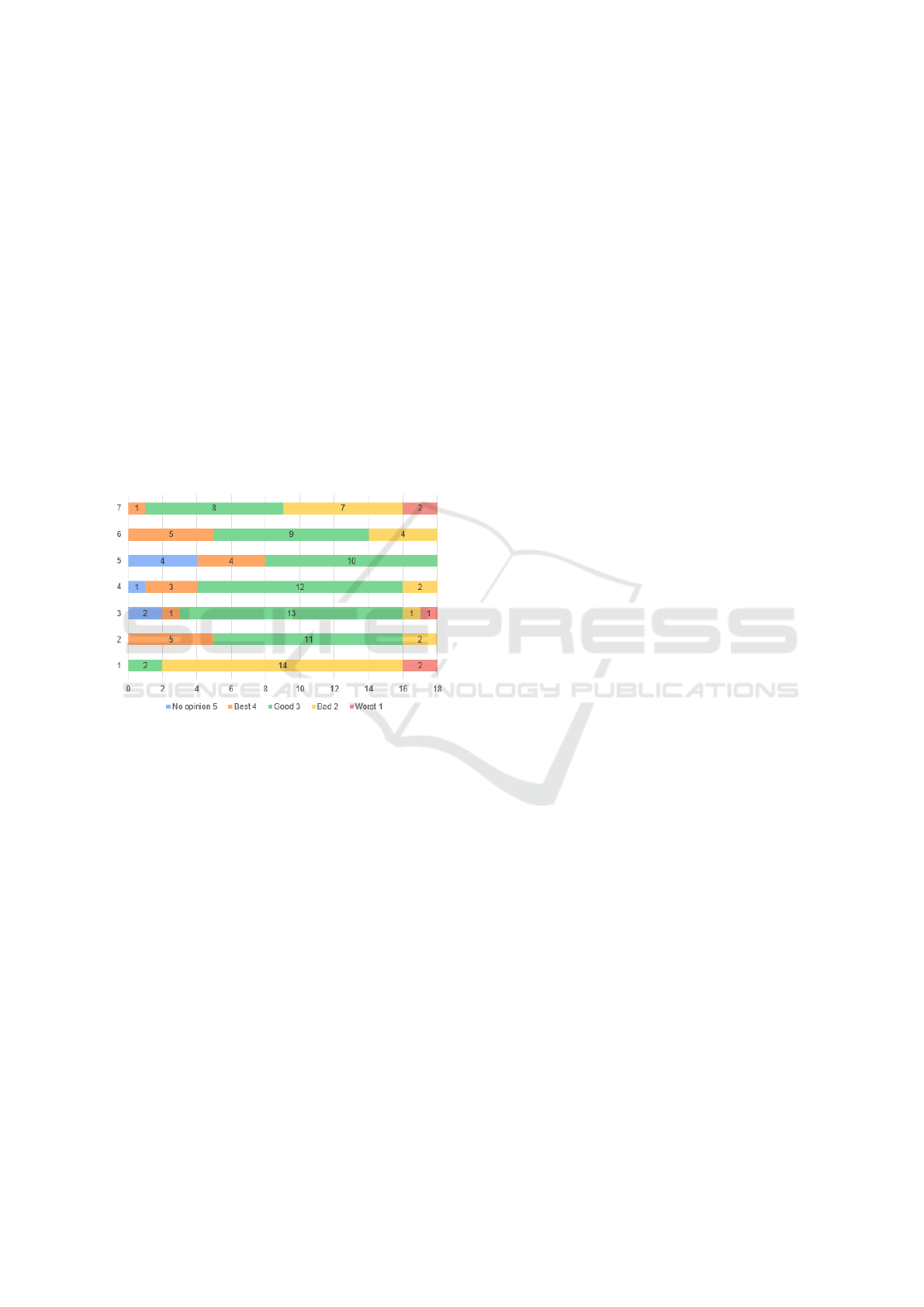

Figure 8: Questionnaire results - worst (1) to best (4) appre-

ciations, (5) without opinion.

For the clarity of the ﬁgure, the best appreciation

was encoded with 4, while the worst appreciation was

encoded with 1. “No opinion” is encoded with 5. 14

participants thought that they carried out their demon-

stration slowly (question 1). The difﬁculty experi-

enced for system control (question 2), the overall use

of the system (question 3) and on the appreciation of

the user interface (question 4 for the menu & 5 for the

information presentation) were at least satisfactory by

14 users. Nevertheless, a minority (6) suggested some

improvements, particularly in terms of the user inter-

face (cf. the end of this section) in the commentary

part of the questionnaire. 14 of the participants were

at least satisﬁed with their demonstration on the pool

simulation (question 6) and 9 participants on the dart

throwing task (question 7).

5 DISCUSSIONS

The aim of this experiment was to evaluate the usabil-

ity and the user experience with a motion-based eval-

uation tool of the learner activity in VE. The current

study was made according to the perspective of the

teacher building the evaluation process i.e. choosing

an OI whose motions will be analysed, positioning an

ordered sequence of 3D virtual CPs, demonstrating

the task by manipulating the OI through the CPs. A

menu and gesture-based HCI was designed to set up

the evaluation process that was tested through three

different examples: a dart, a pool and a writing VLE

simulation. The participants were unable to complete

the writing simulation as the issue winning unani-

mous support was the inability to accurately size, po-

sition and orientate very small CPs with the HTC Vive

controller and the current interactions.

Regarding the evaluation method, we found that

users chose a variety of OIs from one simulation to

another. While most of the users chose the dart in

the ﬁrst simulation, all dynamic objects were chosen

for the pool simulation with a majority dedicated to

the balls. Therefore, the object relevancy varies from

one participant to another, especially for simulations

with more than 2 dynamic objects (only the hand and

the dart can be a relevant choice in the ﬁrst simu-

lation). The CP conﬁguration strategy also strongly

varied even for the same OI. One participant seems

to be interested in the task accuracy by accurately po-

sitioning CPs while others apparently gave a strong

assistance by multiplying the ICPs. For the CP resiz-

ing, some users gave small shapes to the CPs while

others made shapes that almost encompass the user’s

body. With an acceptable amount of satisﬁed partic-

ipants by their demonstration on the two ﬁrst tasks

(14/18 for pool and 9/18 for dart) performed in a few

minutes, this tends to show the: (i) the usability of the

HCI for building an motion-based evaluation process

based on 3D CPs and demonstrations (ii), the effective

need to give to the teacher the means to set up his/her

own evaluation process, as their learning objectives

seems to be very different for each participant. These

results are ﬁrst insights that clearly encourages fu-

ture work and development regarding the presented

method. Nevertheless, with regard to the slowness felt

by the participants (question 1), an interview should

have been conducted to understand the problem ori-

gin. The bad appreciation of the dart demonstrations

(question 7) by half of the participants could be re-

lated to their performances (i.e. they fails to reach the

target) and to the usability of the dart simulation.

One can not forget that the learner point of view

was not considered as well as the expertise of profes-

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

146

sionals of the three considered tasks. For reminder,

section 3.3 discussed two issues regarding (a) the non

exportation of the VLE interaction scripts and (c) the

conﬂicts between these interactions and the evalua-

tion interface. For the issue (a), an alternative could

be a ﬁle that will contains an assetbundle and the user

interactions scripts, thanks to a custom exportation

and importation module. Imported scripts ﬁles could

respect a speciﬁc style in the ﬁle naming by consider-

ing at least the class name and the game object name.

Indeed, a process must be designed to keep the links

between the interaction scripts and the game objects

for Unity. For the issue (c), a synthesis interaction

module can be integrated to inventory the set of the

used controls and search conﬂicts in this set. A pos-

sible solution can be to automatically propose a ﬁrst

menu to switch between the native interaction inputs

and the evaluation interactions if there is at least one

conﬂict.

An additional 4-Likert scale question was asked

to the participant regarding the number of function-

alities. 11 participants though that there are enough

functionalities, while 7 want to have more functional-

ities. The participants suggest several improvement

ideas in the commentary part of the questionnaire,

such as a guiding system for the learner by adding

contextual information (e.g. texts, animations, pre-

deﬁned audio feedbacks) or a CP copy past system.

Finally, the recording time of the demonstration can

be extended to go beyond the collision of the ECP. In-

deed, up to now, once the OI touches the ECP, the

recording of the OI motion stops. Therefore, the

demonstration scene can not be fully recorded and

replayed. For instance, in the pool case, if the ECP

is closed to the orange ball, the demonstration replay

will never show the orange ball falling in the hole. To

counterbalance this issue, two CP categories can be

implemented: “scene CPs” will delimit the recording

of all dynamic objects while, “OI CP” will keep the

same role as the current CPs presented in this paper.

6 CONCLUSION

In this article, a motion-based evaluation method and

its HCI were presented for the evaluation of the user

activity in Virtual Learning Environments (VLE). The

main principles of this method relies on the choice of

a dynamic Object of Interest (OI) in the simulation

whose motions will be: (a) observed by the learner

following a learning based on the observation and im-

itation of the teacher demonstration (b), analysed in

terms of spatial similarities thanks to the DTW algo-

rithm and some kinematic key features available as

feedbacks in the VLE. To set up the evaluation pro-

cess, a gestural and menu-based HCI was designed to

allow the teacher to chose the OI among the available

VLE dynamic objects. Then, the teacher has to create

an ordered sequence of 3D virtual CheckPoints (CP),

with which the OI must collide with. An architecture

was designed to operationalize this method through a

module that can be associated to any VLE. An imple-

mentation was studied in the context of the Unity en-

gine. An experiment was carried out to assess the us-

ability and the user experience of the evaluation mod-

ule from the teacher perspective. Regarding the ar-

chitecture implementation, the creation of an environ-

ment allowing to import an existing VLE in order to

associate the evaluation module, seems to be the best

way, for a non IT user, despite some issues in terms

of the integration of the VLE user interactions. The

experiment showed several interesting results justify-

ing the relevancy of the proposed evaluation method.

In a nutshell, the diversity of the OI choice and the

CP conﬁguration, combined with the satisfaction of

the majority of the participant tends to show the rel-

evancy of the proposed method for its adaptation ca-

pabilities to different learning objectives, modeled by

the triplet “OI, CP, demonstration”. However, sev-

eral limitations appear and among them, one can note

the non adaptation of the HCI to accurately conﬁgure

small CPs. In addition, some participants expressed

the will to consider several OIs at once, as they felt

that using only one OI will not fully ﬁll their learning

objectives. According to the experiment analysis and

the participant feedbacks (cf. section 5), the future

work will focus on an multi-OI evaluation system. A

synthesis module allowing to better integrate the VLE

interaction while resolving conﬂicts with the evalua-

tion interactions will be developed. We also aims to

design an automatic tool for the creation, placement

and orientation of CPs once the OIs are chosen, to

assist the teacher in the evaluation conﬁguration. An

experiment will be conducted with biology professors

to validate our preliminary results in a real teaching

situation.

REFERENCES

Aristidou, A., Stavrakis, E., Charalambous, P., Chrysan-

thou, Y., and Himona, S. L. (2015). Folk dance evalu-

ation using laban movement analysis. J. Comput. Cult.

Herit., 8(4):20:1–20:19.

Baldominos, A., Saez, Y., and del Pozo, C. G. (2015). An

approach to physical rehabilitation using state-of-the-

art virtual reality and motion tracking technologies.

Procedia Computer Science, 64:10 – 16.

Baudouin, C., Beney, M., Chevailler, P., and LEPALLEC,

Design of a Motion-based Evaluation Process in Any Unity 3D Simulation for Human Learning

147

A. (2007). Recueil de traces pour le suivi de l’activit

d’apprenants en travaux pratiques dans un environ-

nement de r

ealit

e virtuelle. Revue STICEF, 14.

Bric, J. D., Lumbard, D. C., Frelich, M. J., and Gould,

J. C. (2016). Current state of virtual reality simula-

tion in robotic surgery training: a review. Surgical

Endoscopy, 30(6):2169–2178.

Buche, C., Querrec, R., De Loor, P., and Chevaillier, P.

(2004). Mascaret: Pedagogical multi-agents system

for virtual environment for training. Journal of Dis-

tance Education Technologies, 2(4):41–61.

Cirio, G., Marchal, M., Olivier, A.-H., and Pettre, J. (2013).

Kinematic evaluation of virtual walking trajectories.

IEEE Transactions on Visualization and Computer

Graphics, 19:671–80.

Djadja, D. J. D., Hamon, L., and George, S. (2019). Mod-

eling and Evaluating of Human 3d+t Activities in Vir-

tual Environment. In The 14th European Conference

on Technology Enhanced Learning, pages 696–700,

Delft, Netherlands. Springer.

Emma-Ogbangwo, C., Cope, N., Behringer, R., and Fabri,

M. (2014). Enhancing user immersion and virtual

presence in interactive multiuser virtual environments

through the development and integration of a gesture-

centric natural user interface developed from existing

virtual reality technologies. HCI International.

Kora, T., Soga, M., and Taki, H. (2015). Golf learning en-

vironment enabling overlaid display of expert’s model

motion and learner’s motion using kinect. In 19th An-

nual Conference of Knowledge-Based and Intelligent

Information & Engineering Systems , KES-2015, Sin-

gapore, September 2015 Proceedings.

Kulpa, R., Multon, F., and Arnaldi, B. (2005). Morphology-

independent representation of motions for interactive

human-like animation. Comput. Graph. Forum, pages

343–352.

Laban, R. V. and Ullmann, L. (1988). Mastery of Move-

ment. Princeton Book Co Pub.

Larboulette, C. and Gibet, S. (2015). A review of com-

putable expressive descriptors of human motion. In

2nd International Workshop on Movement and Com-

puting, pages 21–28.

Le Naour, T., Hamon, L., and Bresciani, J.-P. (2019). Super-

imposing 3d virtual self + expert modeling for motor

learning: Application to the throw in american foot-

ball. Frontiers in ICT, 6:16.

Lewis, J. R. (1995). Ibm computer usability satisfac-

tion questionnaires: Psychometric evaluation and in-

structions for use. International Journal of Hu-

man–Computer Interaction, 7(1):57–78.

Mahdi, O., Oubahssi, L., Piau-Toffolon, C., and Iksal, S.

(2019). Towards an editor for VR-oriented educa-

tional scenarios. In The 14th European Conference on

Technology Enhanced Learning, Delft, Netherlands.

Mikropoulos, T. A. and Natsis, A. (2011). Educational vir-

tual environments: A ten-year review of empirical re-

search (1999–2009). Computers & Education, pages

769 – 780.

Miles, H. C., Pop, S. R., Watt, S. J., Lawrence, G. P., and

John, N. W. (2012). A review of virtual environments

for training in ball sports. Computers & Graphics,

pages 714 – 726.

Morel, M., Kulpa, R., Sorel, A., Achard, C., and Dubuis-

son, S. (2016). Automatic and Generic Evaluation of

Spatial and Temporal Errors in Sport Motions. In 11th

International Conference on Computer Vision Theory

and Applications, pages 542–551.

Ng, K., Weyde, T., Larkin, O., Neubarth, K., Koerselman,

T., and Ong, B. (2007). 3d augmented mirror: A mul-

timodal interface for string instrument learning and

teaching with gesture support. In ICMI, pages 339–

345.

Patle, D. S., Manca, D., Nazir, S., and Sharma, S. (2019).

Operator training simulators in virtual reality environ-

ment for process operators: a review. Virtual Reality,

pages 293–311.

Roy, E., Bakr, M. M., and George, R. (2017). The need

for virtual reality simulators in dental education: A

review. The Saudi Dental Journal, 29(2):41 – 47.

Senecal, S., Nijdam, N. A., and Thalmann, N. M. (2018).

Motion analysis and classiﬁcation of salsa dance using

music-related motion features. In Proceedings of the

11th Annual International Conference on Motion, In-

teraction, and Games, pages 11:1–11:10, New York.

ACM.

Sie, M., Cheng, Y., and Chiang, C. (2014). Key motion

spotting in continuous motion sequences using motion

sensing devices. In 2014 IEEE International Con-

ference on Signal Processing, Communications and

Computing (ICSPCC), pages 326–331.

Terziman, L., Marchal, M., Multon, F., Arnaldi, B., and

ecuyer, A. (2011). Short paper: Comparing virtual

trajectories made in slalom using walking-in-place

and joystick techniques. In Proceedings in JVRC11:

Joint Virtual Reality Conference of EGVE-EuroVR,

pages 55–58.

Toussaint, B.-M., Luengo, V., Jambon, F., and Tonetti, J.

(2015). From heterogeneous multisource traces to

perceptual-gestural sequences: the petra treatment ap-

proach. In Conati, C., Heffernan, N., Mitrovic, A.,

and Verdejo, M. F., editors, Artiﬁcial Intelligence in

Education, pages 480–491, Cham.

Yamaoka, K., Uehara, M., Shima, T., and Tamura, Y.

(2013). Feedback of ﬂying disc throw with kinect and

its evaluation. Procedia Computer Science, 22:912 –

920.

Yoshinaga, T. and Soga, M. (2015). Development of a mo-

tion learning support system arranging and showing

several coaches’ motion data. Procedia Computer Sci-

ence, 60:1497 – 1505.

GRAPP 2020 - 15th International Conference on Computer Graphics Theory and Applications

148
