Adapting the Markov Chain based Algorithm M-DBScan to Detect

Opponents’ Strategy Changes in the Dynamic Scenario of a StarCraft

Player Agent

Eldane Vieira J

unior, Rita Maria Silva Julia and Elaine Ribeiro Faria

Computer Department, Federal University of Uberl

andia, Uberl

andia, Minas Gerais, Brazil

Keywords:

Novelty Detection, Markov Chain, StarCraft, M-DBScan Algorithm.

Abstract:

Digital games represent an appropriate test scenario to investigate the agents’ ability to detect changes in

the behavior of other agents trying to prevent them from fulﬁlling their objectives. Such ability allows the

agents to adapt their decision-making process to adequately deal with those changes. The Markov Chain

based algorithm M-DBScan is a successful tool conceived to detect novelties in data stream scenarios. Such

algorithm has been validated in artiﬁcially controlled situations in games in which a single set of features and a

single Markov Chain are sufﬁcient to represent the data and to detect the occurrence of novelties, which usually

is not enough to make the agents able to adequately perceive the environment changes in real game situations.

The main contribution of the present work is then to investigate how to improve the use of M-DBScan as a

tool for detecting behavior changes in the context of real and dynamic StarCraft games by using distinct sets

of features and Markov Chains to represent the peculiarities of relevant game stages. Further, distinctly from

the existing researches, here M-DBScan is validated in situations in which the timestamp, between successive

novelties, is not constant.

1 INTRODUCTION

Intelligent agents have been increasingly used to solve

a great variety of practical problems, such as dis-

ease diagnosis, medical image analysis, natural lan-

guage processing, robot navigation, games, Internet

of Things (IoT), etc (Gubbi et al., 2013; Norvig and

Intelligence, 2002).

In order to cope with such problems, frequently

the agents have to face opponents that try to prevent

them from succeeding in their tasks. In these situ-

ations, it becomes crucial that the agents map their

opponents’ behavior, being aware of eventual occur-

rence of strategic changes. In general, these changes

can be analyzed through the novelties that the oppo-

nents’ actions provoke in the environment.

The attempt to identify novelties in data streams

has to cope with difﬁculties such as the followings:

the data obtained from the data streams is potentially

inﬁnite; the lack of control in the data arrival order;

the data already processed must be discarded; the

data can arrive in very high frequency; the data can

go through changes (Krawczyk et al., 2017; Babcock

et al., 2002).

The learning process of an agent in a data stream

scenario must be incremental since it must reﬂect the

most recent changes observed. Then, the set of fea-

tures used to represent the data must be deﬁned to

allow the perception of the agent over any data alter-

ations.

In Real-time Strategy (RTS) games, for example,

the detection of the alterations in the opponent’s be-

havior is essential to adapt the agent decision-making

to such changes. In these cases, the alterations may be

perceived through the analysis of novelties detected in

the data stream(Yannakakis and Maragoudakis, 2005;

Vallim et al., 2013).

The Markov Chain based proceeding Micro-

Clustering DBScan (M-DBScan) has excelled in the

context of researches regarding the detection of nov-

elties in data stream scenarios (Vallim et al., 2013).

In such researches, M-DBScan has been validated us-

ing artiﬁcially controlled situations related to some

games, without compromising the accuracy of the al-

gorithm. The datum is represented by a unique set

of features and only one Markov Chain (MC) was

used to detect the occurrence of novelties (Vallim

et al., 2013; Vieira et al., 2019). Further, in the sit-

uations investigated by the existing researches with

M-DBScan, the timestamp between every successive

214

Vieira Júnior, E., Julia, R. and Faria, E.

Adapting the Markov Chain based Algorithm M-DBScan to Detect Opponents’ Strategy Changes in the Dynamic Scenario of a StarCraft Player Agent.

DOI: 10.5220/0008985802140223

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 2, pages 214-223

ISBN: 978-989-758-395-7; ISSN: 2184-433X

novelty is constant. However, in many practical prob-

lems treated by Artiﬁcial Intelligence (AI), the agents

deal with extremely dynamic environments, whose

intense changes require distinct sets of features to rep-

resent them over time. It happens, for example, in

many RTS games, in which there is a great variety

of game scenarios in the course of a real match. In

these cases, it is practically impossible that the agents

can adequately perceive the novelties occurred in the

environment through a unique set of features.

Considering the arguments aforementioned, the

main contribution of the present work is to investi-

gate how to use M-DBScan to detect novelties in data

stream scenarios in which the environment undergo

changes associated with the moment of the process,

requiring distinct sets of features to represent the pe-

culiarities of the data over time. The study here, using

the StarCraft RTS game as a case study, also differs

from other existing works for taking into considera-

tion situations in which the timestamp between suc-

cessive novelties is not constant. More speciﬁcally,

the purpose here is to use M-DBScan to capture nov-

elties in the successive game scenarios that appear

throughout a real match and, based on such novel-

ties, to investigate eventual changes in the opponents’

behavior. The hypothesis of this approach is the fol-

lowing: as the opponent’s decision-making directly

impacts the game scenario, its proﬁle can be investi-

gated through continuous analysis of the dynamic en-

vironment over the successive game stages.

To cope with such purpose, the authors deﬁned

the following game stages as being relevant to pursue

their objectives (based on the game characteristics):

the Beginning Stage of the Battle (BSB); the Middle

Stage of the Battle (MSB); ﬁnally, the Final Stage of

the Battle (FSB). Further, in order to represent the

game scenarios, the authors used sub-sets of features

extracted from a universe set of 16 features (related to

the units that compose the StarCraft armies), which is

able to appropriately represent the speciﬁcities of the

three stages, being such selection based on their own

experience with the game.

To evaluate the gains obtained from the approach

proposed herein, in which M-DBScan takes into ac-

count and ﬁts the speciﬁcities of every stage of the

environment, this work calculates and compares the

results produced by such algorithms through two dis-

tinct test scenarios: ﬁrst, MDBScan is used in real

game situations of StarCraft matches in the same way

as it had been tested in the related works, that is, in the

course of a complete StarCraft game, a unique set of

features is used to represent the game scenarios and a

unique MC is constructed to detect the changes in the

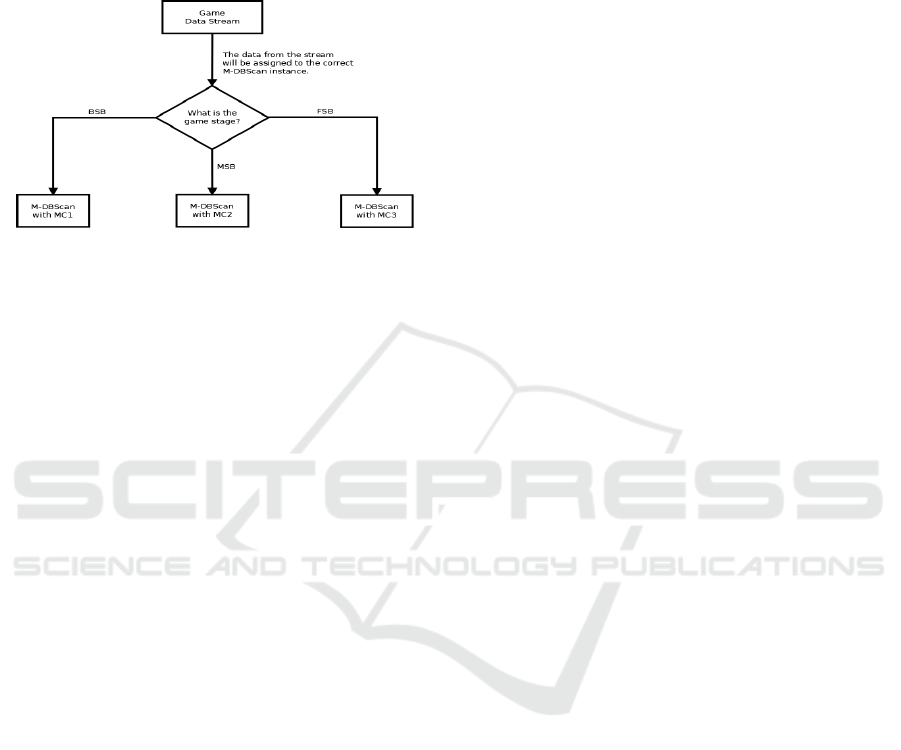

opponents’ behavior; second, MDBScan is used ac-

cording to the approach proposed herein, that is, over

real StarCraft contests, a distinct set of features and a

distinct MC are used to represent every game stage. In

this case, some set of features corresponds to a sub-set

of the 16 features aforementioned. The results con-

ﬁrm the advances produced by the approach proposed

in the present work.

The main motivations for choosing StarCraft as

a case study are the followings: 1) Game problems

frequently involve challenges that are very similar to

those found in real-world problems, including situ-

ations in which opponents try to minimize the suc-

cess of agents that try to cope with such problems

(Neto and Julia, 2018); 2) The StarCraft game sce-

narios are very dynamic over time, requiring distinct

sets of features to perceive their peculiarities in differ-

ent game stages (for example, the feature Dead enemy

unit, in spite of being essential to represent novelties

in endgame scenarios, FSB stage, it is irrelevant at the

beginning of the game, BSB stage); 3) In StarCraft

games, any novelty must be identiﬁed in a short pe-

riod of time, so as to allow that any action in response

to a detected novelty is taken within the time period

in which the current set of features is still adequate to

represent the game scenario.

This paper is organized as following: in section 2,

the theoretical foundations are presented; section 3 re-

sumes the related works; section 4 describes how the

M-DBScan based novelty detection process can be

used to cope with the dynamic environment of Star-

Craft; section 5 presents the experiments and the re-

sults; ﬁnally, section 6 summarizes the conclusion and

points out some possible future works.

2 THEORETICAL

FOUNDATIONS

This section presents a short description of some con-

cepts and techniques used in the development of the

work presented in this paper.

2.1 Player Modeling

Player modeling is deﬁned as the study of computa-

tional models of game players. It is focused on the

way that a player interacts with a game, which may in-

clude the detection and prediction of its features, and

also how to model and express these features (Yan-

nakakis et al., 2013).

Player modeling is used in human-computer inter-

action, and it has also been used in the context where

the player is an agent, and in this case, player model-

Adapting the Markov Chain based Algorithm M-DBScan to Detect Opponents’ Strategy Changes in the Dynamic Scenario of a StarCraft

Player Agent

215

ing can be used to improve these agents as described

in (Weber and Mateas, 2009).

The present paper aims at identifying changes in

the playing style of the adversary in different mo-

ments of the game. A model is created using the al-

gorithm M-DBScan and it will be adapted over time,

in order to reﬂect recent information. The algorithm

M-DBScan was improved in this study by the use of

different MCs for different moments of the game.

2.2 Novelty Detection in Data Stream

Novelty detection is an efﬁcient process to identify

an instance of data that differs in a signiﬁcant man-

ner from some already known concepts. This research

area has received a great deal of attention in machine

learning and data mining (Faria et al., 2016).

Novelty detection has been used in researches re-

lated to the context of a data stream, which can be

deﬁned as a sequence of data instances that arrives

continuously, with speciﬁc characteristics as the fol-

lowing (Gama and Gaber, 2007): the data arrives on-

line; the order that data arrives can not be controlled;

the size of a data stream is unlimited; a data already

processed is usually discarded, once there are limited

resources as memory.

2.3 M-DBScan

The algorithm M-DBScan is an approach to detect

changes in data streams in which the data is not la-

beled (Vallim et al., 2013). This algorithm has an

incremental clustering process, based on DenStream

(Cao et al., 2006), which is a clustering technique ap-

plied in a data stream. The clustering process is fol-

lowed by a mechanism to detect novelties, which can

be used to identify behavior change (Vallim, 2013).

The clustering step proposed by M-DBSCAN

is composed of two phases, online and ofﬂine.

While the online phase keeps a statistical sum-

mary of the dataset, based on micro-clusters, which

are used to maintain compact information as ra-

dius, center, and weight, considering the data that

arrives from the stream. The micro-clusters can

be classiﬁed as potential-micro-cluster (p-micro-

cluster), outlier-micro-cluster (o-micro-cluster) and

core-micro-cluster (c-micro-cluster), and each of

them has its own requirements, as described in (Cao

et al., 2006). The ofﬂine phase generates clusters

based on the result produced by the online phase, and

it uses the concepts of density and connectivity (Cao

et al., 2006).

Once the ofﬂine phase has been concluded, the

clusters generated in the ofﬂine phase are used in a

novelty detection module, that aided by a sliding win-

dow, is capable to indicate the occurrence of changes.

The novelty detection module uses MC, and in this

process, each state in the MC represents a group pro-

duced in the ofﬂine phase, and the transitions between

the states follow the dynamics observed in the arrivals

of new data and how the assignment of this data to a

micro-cluster occurred.

2.3.1 Novelty Detection Module

In order to detect novelties, the M-DBScan algorithm

uses two entropy measures, named spatial entropy and

temporal entropy. The dynamics of how to calculate

the entropies, and how to update them follows the

speciﬁcations presented in (Vieira et al., 2019; Vallim

et al., 2013).

Since the states in the MC are the representation

of groups produced in the ofﬂine clustering step of

M-DBScan, the probabilities in the MC transitions are

updated every time that a data arrives from the stream.

A weighting factor η

is used to control the intensity

of each probability update. The sum of probabilities

linked to transitions with the same origin state has 1

as its maximum value when a transition is no longer

activated, it will suffer a value deterioration.

In order to identify a novelty, at least one of the en-

tropies must surpass its pre-deﬁned threshold. The al-

gorithm M-DBScan requires that a minimum amount

of novelty must be identiﬁed in an interval of time

represented by a sliding window with size k, to char-

acterize a behavior or strategy change. Every novelty

occurrence is registered in the sliding window, where

it is necessary to verify if the amount of registered

novelties has reached the minimum amount necessary

to declare, decisively, a change. A novelty that oc-

curred in a certain moment can disappear from the

window if it has slided k times, considering as the ini-

tiation, the moment that this novelty was registered.

However, if a behavior change was detected, from this

point on every novelty will be ignored for a period of

time equal to k. This process is used to discard nov-

elties linked to the same change that has already been

identiﬁed (Vallim et al., 2013).

3 RELATED WORKS

Among the related works, some applied machine

learning techniques to RTS games, to optimize strate-

gic tasks, these are those tasks that carry an inﬂuence

throughout the game, such as the order of construc-

tions and what to construct. A study presented in

(Justesen and Risi, 2017), for example, describes a

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

216

way of dealing with the task that decides which struc-

tures must be constructed in the game StarCraft, using

the algorithm Continual Online Evolutionary Plan-

ning (COEP). There are related works that try to im-

prove battle skills of RTS automatic players, as in

the study presented in (Shao et al., 2017), which de-

scribes the development of a decision module for the

game StarCraft, based on a neural network with re-

inforcement learning, that can point out an action for

each living unit. In (Stanescu and

Certick

y, 2016) an-

other study is presented that tries to improve an au-

tomatic player specialized in battles, this study uses

a prediction method to indicate the most likely com-

bination of units produced by the enemy in an RTS

game like StarCraft. In the work described in (Niel

et al., 2018) has developed a simple custom RTS

game, in which the main goal of the players is to de-

fend their bases and destroy the enemy’s base. In this

work was used reinforcement learning (RL) combined

with a multi-layer perceptron (MLP) to determine

how the agent will perform the tasks in the game. The

Q-learning was tested against Monte Carlo learning as

reinforcement learning algorithms, and two different

methods for assigning rewards to agents were tested,

the individual and the sharing reward. The results

showed that the combination of Q-learning and indi-

vidual rewards presented the best win-rate. The works

presented in (Justesen and Risi, 2017; Shao et al.,

2017; Stanescu and

Certick

y, 2016; Niel et al., 2018)

do not deal with novelty identiﬁcation and there is no

attempt to represent different moments of the game

using appropriate features, to improve the strategy de-

tection, which are great differences to the present pa-

per.

The work in (

Alvarez Caballero et al., 2017) used

supervised learning techniques as MLP, Random For-

est and Logistic Regression, over a big amount of

data obtained from StarCraft replays. The objective

of this work is to predict the winner of a match in the

game StarCraft. This work proved that the use of ap-

propriate StarCraft features will increase the accuracy

of this prediction, which can occur at a very satisfy-

ing level after 10 minutes of gameplay. In (Synnaeve

et al., 2012), a method is presented for discovering

tactics and strategies in the game StarCraft. A cre-

ated dataset was analyzed by the technique Gaussian

Mixture Model, to identify every single cluster (army

formation) that will indicate the details of each army

composition, and these details go on to provide a way

of ﬁnding the best army formation. In (Weber and

Mateas, 2009), a study is put forward that tries to cre-

ate a model that represents a general enemy based on

several others, in order to be used in the prediction of

strategic action. In (Weber and Mateas, 2009) was

used techniques for classiﬁcation as K-Nearest Neigh-

bor, Non-Nested generalized exemplars and Additive

Logistic Regression. The works described in (

Alvarez

Caballero et al., 2017; Synnaeve et al., 2012; Weber

and Mateas, 2009) show signiﬁcant differences to the

present paper, since they do not select attributes for

a better representation of the game phases, and they

apply a supervised learning process, which is not the

case in the present paper.

In (Vallim, 2013), the authors use M-DBScan to

detect player behavior changes in RTS game, in ﬁrst

person shooter game and in artiﬁcial datasets, show-

ing the diversity and success in the usage of this

technique. However, such work differs from the ap-

proach presented herein for the following reasons: it

deals with artiﬁcially controlled situations in which

the timestamp between every pair of successive nov-

elties is constant; and it only copes with game sce-

narios for which the dynamics can be appropriately

represented by a unique set of features, using just

one MC to investigate eventual changes. In the study

presented in (Vieira et al., 2019) the algorithm M-

DBScan was used with data from the game StarCraft

to show that the technique works in controlled test

scenarios that, like (Vallim, 2013), just used one MC.

4 DYNAMIC NOVELTY

DETECTION IN StarCraft

The main contribution of the approach proposed in

this study is to adapt the use of the algorithm M-

DBScan to improve its capacity in detecting novelties

in the game StarCraft. Such novelties concern sig-

niﬁcant alterations on the game scenarios that even-

tually may point out an opponent’s strategic change.

As presented in this section, the basis of this approach

consists on using distinct and appropriate sets of fea-

tures to represent the game scenarios according to the

peculiarities of the following game stages: Beginning

Stage of the Battle (BSB), in which the adversaries

begin the conﬂict; MSB Middle Stage of the Battle

(MSB), in which deaths begin to occur in one of the

armies involved in the battle; and, ﬁnally, FSB Final

Stage of the Battle (FSB), which can be characterized

by the signiﬁcant reduction in the number of battle

units that compose the armies involved in the contest.

In order to represent the game scenarios, the authors

use sub-sets of features extracted from a universe set

of 16 features, being such selection based on their

own experience with the game. In this way, during

the process of detecting eventual changes in the op-

ponent’s strategy, the present approach has to build 3

distinct MCs, one for each game stage. This approach

Adapting the Markov Chain based Algorithm M-DBScan to Detect Opponents’ Strategy Changes in the Dynamic Scenario of a StarCraft

Player Agent

217

also differs from other existing works for taking into

consideration situations in which the timestamp be-

tween successive novelties is not constant.

The Figure 1 illustrates the process of assigning

the data to the correct MC.

Figure 1: Selecting the correct instance of MC.

4.1 StarCraft: General Description

StarCraft is an RTS game released by Blizzard Enter-

tainment in 1998 (Entertainment, 1998), being used

speciﬁcally the expansion StarCraft: BroodWar in

this work. This engine is based on rules that deﬁne

the dynamics in the game to assign tasks for units as

combat, locomotion and how to gather resources from

the environment. In the game, players can control one

of three races: Terran, Protons and Zerg. Each race

has its peculiarities related to the aspects of weak-

nesses and strengths. There are differences among

the units, some are appropriate on building structures

and collecting resources from the environment, others

are more appropriate for combat. However, the army

must be analyzed considering all the units that com-

pose it, which makes it possible to have an overview

concerning how good that army is, considering the ef-

fective level of damage that it can cause or its level of

defense.

In the game StarCraft, some challenges emphasize

it as a case study with characteristics of a data stream

scenario. For example, the data is obtained in a very

high frequency, and the uncertainty about how long

the game will last makes it impossible to guess how

much data can be obtained from the stream. The area

in the map that has not been explored is kept hidden,

making it impossible to know what exists in this un-

known area of the map, which makes applying strate-

gies to the game difﬁcult.

4.2 Feature Extraction

In this work, sub-sets of a set composed of 16 features

are used to describe the game stages. In particular, the

features used in the process of novelty detection can

make the process of identiﬁcation easier. As such, in

this work, features were empirically selected for dif-

ferent moments of the game, to better represent the

speciﬁcities of distinct game stages that are strategi-

cally relevant.

Each instance of the data set, created by the au-

thors, corresponds to an accumulated perception (rep-

resented by the aforementioned features) of the last 15

seconds of the game. These features can be summa-

rized as three groups: i) hit point (HP), which repre-

sents the amount of life of each unit. This group of

features is used to represent the intensiveness and ef-

fectiveness of the agent and opponent attack. ii) army

power, which represents the damage/defense that the

enemy army can cause; iii) amount of damage, rep-

resented by the number of dead units of the enemy

and score of damage to the structures. Concerning

the types of the units, we can consider that: i) Unit

1 has low attack power; ii) Unit 2 has medium attack

power; and iii) Unit 3 has high attack power. The 16

features are described as follows:

• Feature 1 (Dead enemy unit): provides the num-

ber of deaths in the enemy army.

• Feature 2 (Low HP Agent Unit 1): provides the

number of units type 1 in the agent army with low

hit points.

• Feature 3 (Low HP Agent Unit 2): provides the

number of units type 2 in the agent army with low

hit points.

• Feature 4 (Low HP Agent Unit 3): provides the

number of units type 3 in the agent army with low

hit points.

• Feature 5 (High HP Agent Unit 1): provides the

number of units type 1 in the agent army with high

hit points.

• Feature 6 (High HP Agent Unit 2): provides the

number of units type 2 in the agent army with high

hit points.

• Feature 7 (High HP Agent Unit 3): provides the

number of units type 3 in the agent army with high

hit points.

• Feature 8 (Attack power): represents the damage

that the enemy army can cause.

• Feature 9 (Defense power): represents the defense

power of the enemy army.

• Feature 10 (Damage in construction): provides a

score for the damage that the enemy caused to

structures.

• Feature 11 (Low HP Enemy Unit 1): provides the

number of units type 1 in the enemy army with

low hit points.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

218

• Feature 12 (Low HP Enemy Unit 2): provides the

number of units type 2 in the enemy army with

low hit points.

• Feature 13 (Low HP Enemy Unit 3): provides the

number of units type 3 in the enemy army with

low hit points.

• Feature 14 (High HP Enemy Unit 1): provides the

number of units type 1 in the enemy army with

high hit points.

• Feature 15 (High HP Enemy Unit 2): provides the

number of units type 2 in the enemy army with

high hit points.

• Feature 16 (High HP Enemy Unit 3): provides the

number of units type 3 in the enemy army with

high hit points.

The subset of features selected to represent the

BSB game stage, named as V

, is composed of the

following features: 5, 6, 7, 8, 9, 14, 15 and 16; the

MSB moment is represented by the universe set of

16 features, named as V ; and, ﬁnally, the FSB game

stage is represented by the subset whose elements are

the features 2, 3, 4, 5, 6, 7, 11, 12, 13, 14, 15 and

16, named as V

. All the features were empirically

selected considering what is reasonable at each mo-

ment, for example, units with low HP will not exist at

the beginning of the battles.

4.3 M-DBScan

The M-DBScan algorithm has been used to detect

changes in the opponent’s strategy in two distinct

manners: the game scenarios were represented by the

universe set V ; and subsets of V was used represent

different game stage.

The algorithm M-DBScan is illustrated in the

ﬂowchart presented in Figure 2 (Vieira et al., 2019).

Initially, the algorithm M-DBScan checks if there is

a data sample in the stream (arrow #1): if so, the al-

gorithm retrieves the datum (arrow #2) that will be

presented as an input to the online part of the algo-

rithm M-DBScan (arrow #3), which will recalculate

all the concerning parameters related to the assigned

micro-cluster for this datum. In sequence, a decay

factor is applied to all remaining micro-clusters (ar-

row #4). Step (arrow #5) checks if it is time to per-

form a rating veriﬁcation: if so, this veriﬁcation is ex-

ecuted (arrow #6), transforming into o-micro-clusters

all p-micro-clusters that do not satisfy anymore the p-

micro-cluster constraints (Cao et al., 2006) (due to the

use of the decay factor). In the same way, in this rating

veriﬁcation, all o-micro-clusters that do not present

anymore the requirement for an o-micro-cluster will

be deleted (arrow #7). Next, the ofﬂine part of M-

DBScan is run (arrow #8). Otherwise, if in step (ar-

row #5) it is not time to perform the rating veriﬁca-

tion, the ofﬂine part of M-DBScan will be directly

run (arrow #9). Then, the entropy value (temporal en-

tropy or spatial entropy) and its corresponding thresh-

old are calculated (arrow #10 and #11). If the entropy

exceeds its threshold, then a novelty is detected and

registered in the sliding window (arrow #13). Next,

a module for detecting change is used (arrow #14),

which veriﬁes if the minimum amount of novelties

has been reached. The module for detecting change

is also responsible for controlling the sliding window.

Next, upon detecting a novelty or not, the algorithm

tries to retrieve a new data sample from the stream (ar-

row #15 and #16). The execution of M-DBScan ends

when there is no more data from the stream (arrow

#17).

Figure 2: M-DBScan ﬂowchart.

5 EXPERIMENTS AND RESULTS

The conducted experiments aim to show the impact of

the use of a distinct set of features and distinct MCs to

represent every game stage in the M-DBSCAN algo-

rithm, in contrast to the use of a unique set of features

and unique MC.

Different datasets were created to represent differ-

ent game scenarios, and among them, there are those,

in which the interval of time between novelties are not

constant.

Adapting the Markov Chain based Algorithm M-DBScan to Detect Opponents’ Strategy Changes in the Dynamic Scenario of a StarCraft

Player Agent

219

Table 1: Description of Datasets.

Dataset Novelty ID Timestamp Game Moment Strategy

Dataset 1

1 500 BSB D1S1

2 1000 MSB D1S2

3 1500 FSB D1S3

Dataset 2

1 500 BSB D2S1

2 1000 MSB D2S2

3 1500 MSB D2S3

4 2000 MSB D2S4

5 2500 MSB D2S5

6 3000 MSB D2S6

7 3500 FSB D2S7

Dataset 3

1 149 BSB D3S1

2 468 MSB D3S2

3 528 MSB D3S3

4 626 MSB D3S4

5 1019 MSB D3S5

6 1196 MSB D3S6

7 1901 MSB D3S7

8 3413 FSB D3S8

Dataset 4

1 206 BSB D4S1

2 676 MSB D4S2

3 1546 MSB D4S3

4 1774 MSB D4S4

5 2734 MSB D4S5

6 5605 MSB D4S6

7 6067 MSB D4S7

8 7648 MSB D4S8

9 7772 FSB D4S9

5.1 Datasets

The tools used to generate the dataset are the engine

UAlbertaBot (Churchill and Buro, 2011; Churchill

et al., 2012), a playing bot that won the 2013 AI-

IDE StarCraft AI Competition, and the Brood War

Application Programming Interface (BWAPI), a way

for programmers to interact with and control the full

game StarCraft.

For the experiments, four datasets were gen-

erated

. These datasets were collected from real

matches in the game StarCraft. Each data instance

represents 15 seconds of the game playing and con-

tains 16 features. A novelty is characterized when a

change of opponent’s strategy occurs.

The datasets are described in Table 1. In this ta-

ble, the columns Novelty ID is a sequential number to

identify each novelty of the dataset; Timestamp indi-

cates how many data samples arrived from the begin-

ning of the stream until the novelty occurrence; Game

Moment indicates in which game moment the novelty

https://drive.google.com/open?

id=1nqndc7E3ru1sEb r3Q7NLmySCiepbOgu

occurred (BSB, MSB, or FSB); Strategy indicates the

code of a strategy used in the novelty. Each strategy

used is based on one of the following: the increase of

attack power; the increase of defense power; army im-

provement with stronger units; defensive endurance

for the endgame.

Although the datasets are composed of 16 fea-

tures, a subset containing 8 and 12 features, here

named V

and V

, are used in the BSB and FSB mo-

ments of the game, respectively. In the MSB moment,

the 16 features (V ) are used.

5.2 Settings

The parameters used in the experiments were selected

based on empirical tests. The parameters for the clus-

tering process are: µ, which is a minimum amount

of points in a micro-cluster, ε is a radius limit for

micro-cluster, β is an outlier threshold and λ is a de-

cay factor. The parameter used in the entropy process

are: the weighting factor η

, which is used to control

the intensity of each probability update; the weighting

factors γ and δ used in the process of threshold cal-

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

220

Table 2: Results of the experiments using 1 MC and 3 MCs.

Amount of MCs Dataset Temporal Entropy Spatial Entropy

TP FP FN F1 TP FP FN F1

1 MC

Dataset 1 (3 changes) 2 1 1 0.666 3 1 0 0.857

Dataset 2 (7 changes) 3 3 4 0.461 4 1 3 0.666

Dataset 3 (8 changes) 3 4 5 0.4 3 2 5 0.461

Dataset 4 (9 changes) 4 4 5 0.47 5 2 4 0.625

3 MCs

Dataset 1 (3 changes) 3 1 0 0.857 3 0 0 1

Dataset 2 (7 changes) 4 3 3 0.571 5 1 2 0.769

Dataset 3 (8 changes) 4 2 4 0.571 5 2 3 0.666

Dataset 4 (9 changes) 6 4 3 0.631 6 1 3 0.75

culation; and the constant parameter θ, which is the

number of standard deviations used to deﬁne a nor-

mal distribution for entropy values.

The experiments were run using the following val-

ues of parameters:

• The parameters used in the clustering process: µ

is 9; β is 0.1; ε is 20; λ is 0.03.

• The parameters used in the experiments for tem-

poral entropy: minimum amount of novelties is 2;

size of sliding window is 20; η

is 0.05; γ is 0.05;

δ is 0.03; θ is 3.

• The parameters used in the experiments for spatial

entropy: minimum amount of novelties is 2; size

of sliding window is 20; η

is 0.05; γ is 0.09;δ is

0.002; θ is 3.

The measures false positives (FP), false negatives

(FN), true positives (TP), and F1 are used to evaluate

the experiments. These measures are presented for

each entropy strategy (temporal and spatial).

Table 2 show the results of the proposed approach

in contrast to the original M-DBSCAN, considering

the four datasets and the temporal and spatial en-

tropies. Table 2 presents the results of the M-DBScan

using only 1 MC and the results of the M-DBScan us-

ing 3 different MCs, each one built from a different set

of attributes for a different moment of the game (V for

MSB, V

for BSB and V

for FSB). Based on the re-

sults, it is possible to notice that the best results for all

measures were achieved using the M-DBSCAN with

3 different MCs. Also, the spatial entropy achieved

the best results in both scenarios.

Every false positive detected in the experiments

occurred at the moment MSB. The MSB phase is a

moment of the game when the player can perform ac-

tions with some effect over the dynamics of the MC,

but not necessarily sufﬁcient to characterize a novelty

in the strategy.

Considering that the spatial entropy presented bet-

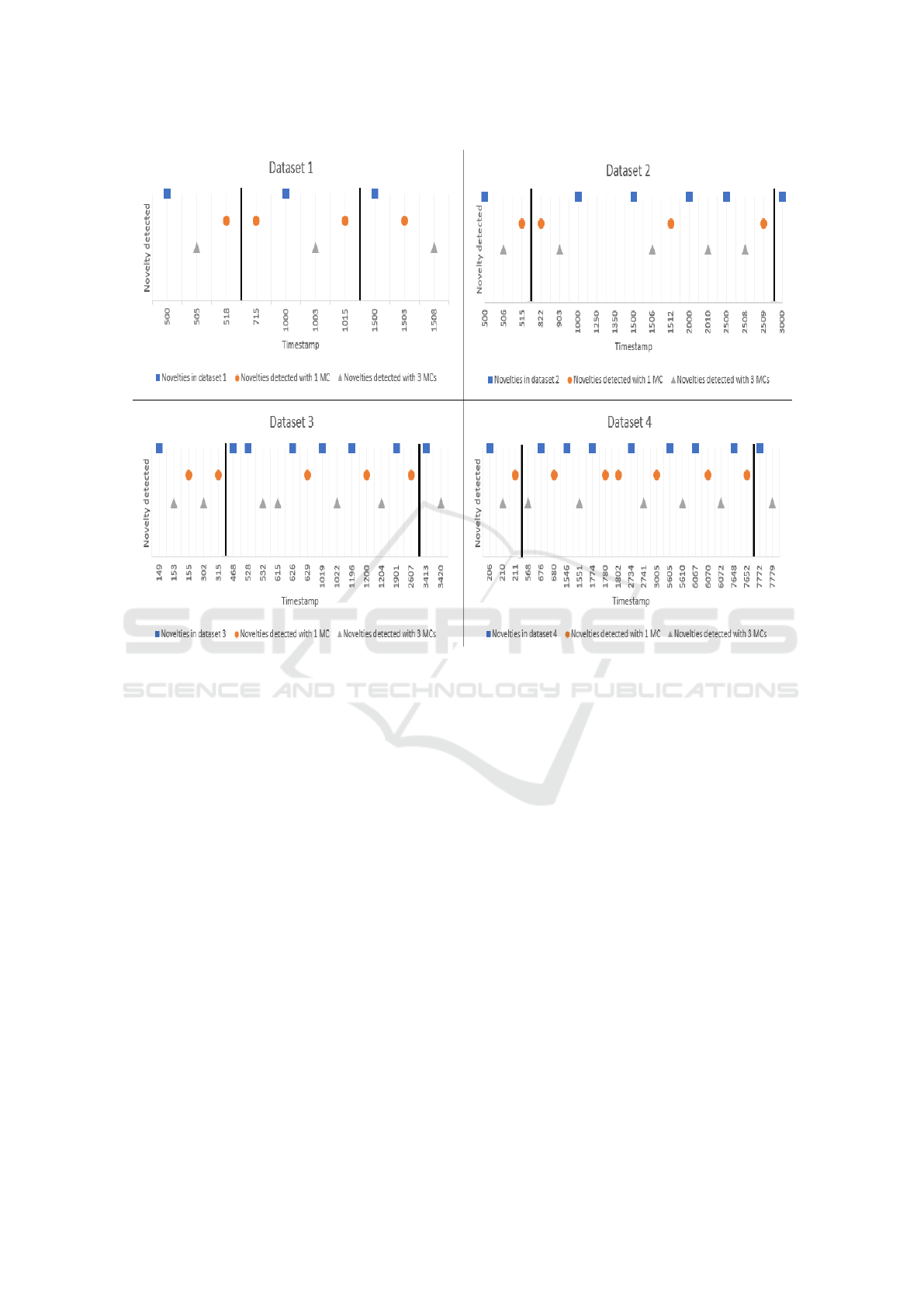

ter results than the temporal entropy, the Figure 3

presents a comparison between the real occurrence of

changes, and its corresponding detections by the al-

gorithms using the spatial entropy. In this ﬁgure, it

is pointed out the exact moment that a behavior nov-

elty occurred, and the moment that each approach of

M-DBScan identiﬁed the novelty or indicated a false

positive. In the graphs in this ﬁgure, there are high-

lighted lines indicating the separation of the BSB,

MSB and FSB phases, which always occur in this or-

der. It is possible to observe in Figure 3 that the false

positives occur when the detection of a novelty had

a considerable delay, and when a novelty is pointed

out by the algorithm in a moment that none novelty is

expected.

Analyzing the Figure 3, all three novelties in

dataset 1 were detected by our approach. However,

the third novelty, which occurs in the FSB phase,

was not detected by the M-DBSCAN with 1 MC.

For dataset 2, among seven novelties, four were de-

tected by our approach, and three were detected by

M-DBSCAn with 1 MC. Again, a novelty which oc-

curred in the FSB game moment was detected by M-

DBSCAN with 3 MCs, but not by M-DBSCAN with

1 MC. For dataset 3, among eight novelties, four of

them were identiﬁed by M-DBSCAN with 3 MCs and

three by M-DBSCAN with 1 MC. Over again, the dif-

ference between the approaches is in the detection of

novelties in the FSB game moment. Considering the

dataset 4 in which occurs nine novelties, six of them

were detected by our approach, and only four were

detected by M-DBSCAN with 1 MC. For this dataset,

the differences between the approaches occurred in

the FSB and MSB stages.

The Wilcoxon test was applied over the four

datasets, comparing the performance of the M-

DBscan using temporal and spatial entropies in both

scenarios, ﬁrst using only one MC to detect the

changes, and then, three MCs are used, each for a dif-

ferent moment of the game (BSB, MSB, and FSB).

The tool KEEL (Alcal

a-Fdez et al., 2011) was used to

perform the Wilcoxon test.

The results obtained by the Wilcoxon test for M-

Adapting the Markov Chain based Algorithm M-DBScan to Detect Opponents’ Strategy Changes in the Dynamic Scenario of a StarCraft

Player Agent

221

Figure 3: Graphics indicating the moment of a behavior novelty detection using Spatial Entropy.

DBScan with spatial entropy, comparing the approach

using three MCs to that using one MC, are R

equal

to 10 and R

−

equal to 0, with an asymptotic p-value

equal to 0.04461. For M-DBScan with temporal en-

tropy, also comparing the approach using three MCs

to that using one MC, the results obtained by the

Wilcoxon test are R

equal to 10 and R

−

equal to 0,

with an asymptotic p-value close to 0.04461. In both

situations the null hypothesis can be rejected.

6 CONCLUSION AND FUTURE

WORKS

This paper presents an approach to improve the abil-

ity of the MC based algorithm M-DBScan to detect

behavior changes in the dynamic StarCraft game en-

vironment. To cope with such objective, here dis-

tinct sets of features and MCs were used to capture

the game scenario peculiarities over time. Further,

this study also takes into consideration situations in

which the timestamp between successive novelties is

not constant.

The results conﬁrm the advances produced by the

approach proposed herein.

Noteworthy here is that both, spatial and temporal

entropy, produced satisfactory results, but the former

presented a superior performance.

In future works, the authors intend to use Genetic

Algorithms to automate the feature selection process,

and to incorporate the module for detecting changes

in the opponent’s strategy into the decision-making

module of StarCraft player agent, allowing this agent

to adapt their decision making to the opponent proﬁle.

REFERENCES

Alcal

a-Fdez, J., Fern

andez, A., Luengo, J., Derrac, J.,

Garc

ıa, S., S

anchez, L., and Herrera, F. (2011). Keel

data-mining software tool: data set repository, integra-

tion of algorithms and experimental analysis frame-

work. Journal of Multiple-Valued Logic & Soft Com-

puting, 17.

Babcock, B., Babu, S., Datar, M., Motwani, R., and

Widom, J. (2002). Models and issues in data stream

systems. In Proceedings of the twenty-ﬁrst ACM

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

222

SIGMOD-SIGACT-SIGART symposium on Principles

of database systems, pages 1–16. ACM.

Cao, F., Estert, M., Qian, W., and Zhou, A. (2006). Density-

based clustering over an evolving data stream with

noise. In Proceedings of the 2006 SIAM international

conference on data mining, pages 328–339. SIAM.

Churchill, D. and Buro, M. (2011). Build order optimiza-

tion in starcraft. In AIIDE, pages 14–19.

Churchill, D., Safﬁdine, A., and Buro, M. (2012). Fast

heuristic search for rts game combat scenarios. In AI-

IDE, pages 112–117.

Entertainment, B. (1998). Starcraft: Brood war. PC.

Level/area: Episode IV, mission, 2.

Faria, E. R., Gonc¸alves, I. J., de Carvalho, A. C., and Gama,

J. (2016). Novelty detection in data streams. Artiﬁcial

Intelligence Review, 45(2):235–269.

Gama, J. and Gaber, M. M. (2007). Learning from data

streams: processing techniques in sensor networks.

Springer.

Gubbi, J., Buyya, R., Marusic, S., and Palaniswami, M.

(2013). Internet of things (iot): A vision, architec-

tural elements, and future directions. Future genera-

tion computer systems, 29(7):1645–1660.

Justesen, N. and Risi, S. (2017). Continual online evolu-

tionary planning for in-game build order adaptation

in starcraft. In Proceedings of the Genetic and Evo-

lutionary Computation Conference, pages 187–194.

ACM.

Krawczyk, B., Minku, L. L., Gama, J., Stefanowski, J.,

and Wo

zniak, M. (2017). Ensemble learning for

data stream analysis: A survey. Information Fusion,

37:132–156.

Alvarez Caballero, A., Merelo, J. J., S

anchez, P. G.,

and Fern

andez-Ares, A. (2017). Early prediction

of the winner in starcraft matches. In Proceedings

of the 9th International Joint Conference on Com-

putational Intelligence - IJCCI,, pages 401–406. IN-

STICC, SciTePress.

Neto, H. C. and Julia, R. M. S. (2018). Ace-rl-checkers:

decision-making adaptability through integration of

automatic case elicitation, reinforcement learning, and

sequential pattern mining. Knowledge and Informa-

tion Systems, 57(3):603–634.

Niel, R., Krebbers, J., Drugan, M. M., and Wiering, M. A.

(2018). Hierarchical reinforcement learning for real-

time strategy games. In Proceedings of the 10th In-

ternational Conference on Agents and Artiﬁcial In-

telligence - Volume 2: ICAART,, pages 470–477. IN-

STICC, SciTePress.

Norvig, P. R. and Intelligence, S. A. (2002). A modern ap-

proach. Prentice Hall.

Shao, K., Zhu, Y., and Zhao, D. (2017). Cooperative rein-

forcement learning for multiple units combat in star-

craft. In Computational Intelligence (SSCI), 2017

IEEE Symposium Series on, pages 1–6. IEEE.

Stanescu, M. and

Certick

y, M. (2016). Predicting oppo-

nent’s production in real-time strategy games with an-

swer set programming. IEEE Transactions on Com-

putational Intelligence and AI in Games, 8(1):89–94.

Synnaeve, G., Bessiere, P., et al. (2012). A dataset for star-

craft ai & an example of armies clustering. In AIIDE

Workshop on AI in Adversarial Real-time games, vol-

ume 2012.

Vallim, R. M., Andrade Filho, J. A., De Mello, R. F., and

De Carvalho, A. C. (2013). Online behavior change

detection in computer games. Expert Systems with Ap-

plications, 40(16):6258–6265.

Vallim, R. M. M. (2013). Minerac¸

ao de ﬂuxos cont

ınuos de

dados para jogos de computador. PhD thesis, Univer-

sidade de S

ao Paulo.

Vieira, E., Julia, R. M. S., and de Faria, E. R. (2019). Min-

ing data stream to detect behavior change in a real-

time strategy game. In Proceedings of Machine Learn-

ing and Data Mining in Pattern Recognition. ibai pub-

lishing.

Weber, B. G. and Mateas, M. (2009). A data mining ap-

proach to strategy prediction. In Computational In-

telligence and Games, 2009. CIG 2009. IEEE Sympo-

sium on, pages 140–147. IEEE.

Yannakakis, G. N. and Maragoudakis, M. (2005). Player

modeling impact on player’s entertainment in com-

puter games. In International Conference on User

Modeling, pages 74–78. Springer.

Yannakakis, G. N., Spronck, P., Loiacono, D., and Andr

E. (2013). Player modeling. In Dagstuhl Follow-Ups,

volume 6. Schloss Dagstuhl-Leibniz-Zentrum fuer In-

formatik.

Adapting the Markov Chain based Algorithm M-DBScan to Detect Opponents’ Strategy Changes in the Dynamic Scenario of a StarCraft

Player Agent

223
