Multi-pooled Inception Features for No-reference Video Quality

Assessment

Domonkos Varga

Department of Networked Systems and Services, Budapest University of Technology, Hungary

Keywords:

No-reference Video Quality Assessment, Convolutional Neural Network.

Abstract:

Video quality assessment (VQA) is an important element of a broad spectrum of applications ranging from

automatic video streaming to surveillance systems. Furthermore, the measurement of video quality requires

an extensive investigation of image and video features. In this paper, we introduce a novel feature extraction

method for no-reference video quality assessment (NR-VQA) relying on visual features extracted from multi-

ple Inception modules of pretrained convolutional neural networks (CNN). Hence, we show a solution which

incorporates both intermediate- and high-level deep representations from a CNN to predict digital videos’ per-

ceptual quality. Second, we demonstrate that processing all frames of a video to be evaluated is unnecessary

and examining only the so-called intra-frames saves computational time and improves performance signiﬁ-

cantly. The proposed architecture was trained and tested on the recently published KoNViD-1k database.

1 INTRODUCTION

In the process of generation, transmission, compres-

sion, and storage, digital videos may be corrupted by

different distortion types resulting in the degradation

of human perceptual quality. Thus, the precise predic-

tion of digital videos’ perceived quality is a very hot

research topic in the image/video processing commu-

nity. Video quality assessment (VQA) methods can

be classiﬁed into two groups: subjective and objec-

tive VQA. In subjective VQA, the quality of digital

videos is evaluated by human observers. Although

subjective methods can achieve very high accuracy,

their application is impossible in real-time systems

because it is laborious and time-consuming to obtain

enough number of ratings. In contrast, objective VQA

algorithms make an attempt to create a model that is

able to evaluate the perceptual quality of videos re-

lying on our understanding of the human visual sys-

tem (HVS), different mathematical tools or machine

learning techniques. Furthermore objective VQA al-

gorithms can be classiﬁed into full-reference (FR),

reduced-reference (RR), and no-reference (NR) ones

according to the availability of the reference, pristine

digital video.

Recently, deep learning techniques have attracted

a lot of attention in the ﬁelds of image processing

(Szegedy et al., 2017), (Lu et al., 2018), (Habibzadeh

et al., 2018) and visual quality assessment (Bianco

et al., 2018), (Varga, 2019), (Dendi et al., 2019). Fur-

thermore, Zhang et al. (Zhang et al., 2018) demon-

strated that features extracted from pretrained convo-

lutional neural networks (CNN) are highly effective

for predicting perceptual quality. As a consequence,

some NR-VQA methods rely on features extracted

from pretrained CNNs (Ahn and Lee, 2018b), (Ahn

and Lee, 2018a), (Varga, 2019). However, applying

pretrained CNNs is not a straight-forward task be-

cause they require a ﬁxed input size. Furthermore,

previous methods (Ahn and Lee, 2018b), (Ahn and

Lee, 2018a), (Varga, 2019) analyze all video frames

one by one to predict perceptual video quality. To

overcome the ﬁxed input size constraint, previous

methods took patches from the input video frames or

resized and cropped them. In this paper, we make the

following contributions. First, a content-preserving

feature extraction method is introduced which relies

on the Inception modules of pretrained CNNs, such

as GoogLeNet (Szegedy et al., 2015) or Inception-v3

(Szegedy et al., 2016). Speciﬁcally, the frame-level

visual features are extracted from multiple Inception

modules of a pretrained CNN and pooled by a global

average pooling (GAP) module together. This way,

it is possible to obtain both intermediate- and high-

level deep representations from the CNN. Second, we

show that the number of frames from a video to be

evaluated can be signiﬁcantly reduced. Namely, pre-

vious works (Ahn and Lee, 2018b), (Ahn and Lee,

338

Varga, D.

Multi-pooled Inception Features for No-reference Video Quality Assessment.

DOI: 10.5220/0008978503380347

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages

338-347

ISBN: 978-989-758-402-2; ISSN: 2184-4321

2018a), (Varga, 2019) examine all frames. In contrast,

we demonstrate that processing all frames is unnec-

essary and examining only the so-called intra-frames

saves computational time and improves the perfor-

mance signiﬁcantly. Quality assessment of videos

with authentic distortions is a relatively new topic.

Most existing deep learning based NR-VQA methods

work only for compression artifacts. From the pub-

licly available VQA databases, we chose KoNViD-1k

(Hosu et al., 2017) to train and test our proposed ar-

chitecture. KoNViD-1k is the largest available col-

lection of videos with authentic distortions and corre-

sponding quality scores.

The rest of this paper is organized as follows. In

Section 3 related and previous works are reviewed.

Subsequently, we present our proposed method in

Section 3. Experimental results and analysis are

shown in Section 4. Finally, a conclusion is drawn

in Section 5.

2 RELATED WORKS

Early NR-VQA methods mainly dealt with speciﬁc

distortion types. For example, Zhang et al. (Zhang

et al., 2009) measured blocking artifacts in low bit

rate H.264/AVC videos by applying a speciﬁc tem-

poral approach. Similarly, Borer (Borer, 2010) mea-

sured jerkiness using the mean squared error of con-

secutive frames. In contrast, Xue et al. (Xue et al.,

2014) trained a neural network to predict the quality

scores of images with jerkiness. In (Pastrana-Vidal

et al., 2004), the authors detected freezing artifacts

by monitoring the mean squared error between sub-

sequent frames. In contrast, Yammine et al. (Yam-

mine et al., 2012) detected freezing frames by apply-

ing motion estimation considerations. Søgaard et al.

(Søgaard et al., 2015) applied quality-aware features

using the NR-IQA method BRISQUE (Mittal et al.,

2012a) together with temporal and spatial activity in-

dices and codec speciﬁc features to detect MPEG-2

and H.264/AVC artifacts. A comprehensive review

of early distortion speciﬁc methods can be found in

(Shahid et al., 2014).

Later, general-purpose NR-VQA algorithms have

also appeared. Saad et al. (Saad and Bovik, 2012) in-

troduced a feature extraction method in the DCT do-

main. Furthermore, temporal information was also

incorporated into their model by using motion co-

herency. Similarly in (Saad et al., 2014), the authors

also extracted features with DCT using a spatiotem-

poral model. Finally, a trained SVR mapped the ex-

tracted features onto quality scores. In contrast, Video

CORNIA (Xu et al., 2014) applied unsupervised fea-

ture learning to obtain frame-level feature vectors.

Furthermore, an SVR was also used to predict frame-

level quality scores based on the frame-level features.

Finally, the video’s quality was estimated by tempo-

rally pooling the frame-level scores. Unlike previous

methods, VIIDEO (Mittal et al., 2015) relies on a pre-

deﬁned naturalness model and perceptual quality is

predicted based on the deviation from this naturalness

model. Men et al. (Men et al., 2017) extracted video-

level feature vectors containing quality related mea-

sures, such as contrast or colorfulness. Subsequently,

a trained SVR was used to predict perceptual qual-

ity. Later, this model was developed further by incor-

porating spatiotemporal features (Men et al., 2018).

Korhonen (Korhonen, 2019) extracted low complex-

ity features (such as motion intensity, motion consis-

tency, jerkiness, etc.) from every second of a video

to be assessed in order to determine a representative

subset of video frames for computing high complex-

ity features (such as total size of dark regions, num-

ber of dark regions, noise density, etc.). Finally, low

and high complexity features are merged together and

mapped onto quality scores using SVR or random fo-

rest regression.

Nowadays, deep learning has gained enormo-

us popularity in video processing applications, es-

pecially convolutional neural networks (CNN) has

been proved effective in video classiﬁcation (Karpa-

thy et al., 2014), action recognition (Ji et al., 2012),

event detection (Xu et al., 2015), etc. Furthermore,

Zhang et al. (Zhang et al., 2018) pointed out that fea-

tures extracted from pretrained CNNs are highly ef-

fective for predicting digital images’ perceptual qual-

ity. Thus, deep learning based NR-VQA algorithms

have appeared also. Giannopoulos et al. (Giannopou-

los et al., 2018) created a 3D CNN architecture with

the common components, such as 3D convolutional

layers, max-pooling layers, and fully-connected lay-

ers. Furthermore, the trained 3D CNN was used for

video feature extraction. Subsequently, the extracted

features were fed into a 1D CNN to map them into

perceptual quality scores. Similarly, Liu et al. (Liu

et al., 2018) introduced the so-called Video Multi-task

End-to-end Optimized neural Network (V-MEON)

for compressed videos where a 3D CNN based fea-

ture extractor and a codec classiﬁer were applied to

predict quality scores. Zhang et al. proposed a deep

approach based on weakly supervised learning with

a CNN and a resampling strategy. Speciﬁcally, an

eight-layer CNN was trained ﬁrst by weakly supervis-

ed learning to establish a relationship between the dis-

tortions of the 3D discrete cosine transform of video

blocks and the corresponding weak labels judged by

a FR-VQA algorithm. As a result, effective, quality-

Multi-pooled Inception Features for No-reference Video Quality Assessment

339

aware features could be extracted from the trained

CNN which were mapped onto quality scores by anot-

her trained network. You and Korhonen (You and Ko-

rhonen, 2019) applied a 3D CNN to extract spatiotem-

poral features from small clips of a video. Subse-

quently, a long-short term memory (LSTM) network

was used to predict quality subscores for the small

clips. Finally, these subscores were pooled together

to produce quality scores for the entire video. In con-

trast, Varga (Varga, 2019) constructed a video-level

feature vector by pooling together frame-level fea-

tures obtained from resized and cropped video frames

using a ﬁne-tuned Inception-v3 (Szegedy et al., 2016)

CNN model. Similarly, Li et al. (Li et al., 2019) ex-

tracted features from pretrained convolutional neural

networks but these features were integrated into a net-

work with a gated recurrent unit and a temporal pool-

ing layer.

3 PROPOSED METHOD

The overview of the proposed method is depicted in

Figure 1. First, the so-called intra-frames are ex-

tracted from the input video sequence. In video com-

pression, only the changes are stored which measured

between one frame and the next. An intra-frame is by

deﬁnition a video frame which is completely stored.

As a consequence, more intra-frames are inserted into

a video sequence, the larger the video ﬁle size. Fur-

thermore, the intra-frame interval can considerably

inﬂuence the perceived quality of a video sequence

(Reinhardt, 2010). If the encoder generates too many

intra-frames for a given bit-rate, the perceived qual-

ity deteriorates. If the number of intra-frames is too

low, the transitions in the video will be less smooth

or accurate. As a consequence, the perceived quality

will also decline. Second, frame-level feature vec-

tors are extracted from the intra-frames with the help

of pretrained CNNs, such as GoogLeNet (Szegedy

et al., 2015) or Inception-v3 (Szegedy et al., 2016).

Unlike previous CNN models, not everything hap-

pens sequentially in GoogLeNet, pieces of the net-

work work in parallel. Inspired by a neuroscience

model (Serre et al., 2007) where for handling mul-

tiple scales a series of Gabor ﬁlters were used with a

two layer deep model. But contrary to the beforemen-

tioned model all layers are learned and not ﬁxed. In

GoogLeNet (Szegedy et al., 2015) architecture Incep-

tion layers are introduced and repeated many times.

Subsequent improvements of GoogLeNet have been

called Inception-vN where N refers to the version

number put out by Google.

Subsequently, the frame-level feature vectors are

temporally pooled to obtain the video-level feature

vector which is mapped with the help of a trained

SVR to a perceptual quality score.

3.1 Frame-level Feature Vectors

The pipeline of the frame-level feature extraction is

depicted in Figure 3. To extract frame-level fea-

ture vectors, GoogLeNet (Szegedy et al., 2015),

Inception-v2 (Szegedy et al., 2016), and Inception-

v3 (Szegedy et al., 2016) networks were considered

as base models in this study. Speciﬁcally, global av-

erage pooling (GAP) layers are attached to the output

of each Inception module. Similar to max- or min-

pooling layers, GAP layers are applied in CNNs to

reduce the spatial dimensions of convolutional lay-

ers. However, a GAP layer carries out a more ex-

treme type of dimensional reduction than a max- or

min-pooling layer. Namely, an h × w × d block is re-

duced to 1 × 1 × d. In other words, a GAP layer re-

duces a feature map to a single value by taking the

average of this feature map (Figure 2 illustrates GAP

layer). By adding GAP layers to each Inception mod-

ule, we are able to extract resolution independent fea-

tures at different levels of abstraction. Namely, the

feature maps produced by neuroscience models in-

spired Inception modules have been shown represen-

tative for object categories and correlate well with

human perceptual quality judgments (Szegedy et al.,

2015), (Szegedy et al., 2016). As already mentioned,

a vector is extracted over each Inception module us-

ing a GAP layer. Let f

denote the vector extracted

from the kth Inception module. The video frame’s

feature vector is obtained by concatenating the vec-

tors extracted over each Inception module. Formally,

we can write F = f

⊕f

⊕... ⊕f

where N denotes the

number of Inception modules in the base CNN and ⊕

stands for the concatenation operator.

3.2 Video-level Feature Vectors

The frame-level feature vectors of a video sequence

are temporally pooled to produce the video-level fea-

ture vector. Let N

denote the number of intra-frames

and let F

(i)

stand for the frame-level feature vector re-

lated to the ith intra-frame. In this paper, we adopted

average pooling which proved the best choice for vi-

sual quality assessment in many works (Varga, 2019),

(Bianco et al., 2018). Average pooling can be for-

mally expressed as:

avg

∑

j=1,...,N

( j)

, (1)

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

340

Figure 1: Architecture of the proposed NR-VQA method. First, the so-called intra-frames are extracted from a video se-

quence using the free and open-source FFmpeg. Second, frame-level feature vectors are extracted from the intra-frames via

a pretrained CNN. Third, video-level feature vectors are formed by temporally pooling the frame-level features. Finally, the

video-level feature vectors are mapped onto perceptual quality scores using a trained SVR.

Figure 2: Illustration of global average pooling (GAP) layer.

A GAP layer reduces the dimensions h × w × d to 1 ×1 ×d

by averaging across h ×w.

where F

( j)

denotes the ith entry of the jth frame-level

feature vector, and V

stands for the ith entry of the

video-level feature vector.

Subsequently, an SVR (Drucker et al., 1997) with

radial basis function (RBF) kernel is trained to learn

the mapping between video-level feature vectors and

corresponding perceptual quality scores.

3.3 Database Compilation and CNN

Fine-tuning

As already mentioned, KoNViD-1k (Hosu et al.,

2017) video quality database was utilized to train and

test the proposed architecture. Speciﬁcally, KoNViD-

1k consists of 1,200 videos with authentic distor-

tions sampled from YFCC100m (Thomee et al., 2015)

database. 840 sequences were randomly selected for

training, 120 sequences for validation, and 240 se-

quences for testing. The video sequences’ spatial res-

olution is 960 ×540 in KoNViD-1k and the frame rate

is 25, 27, or 30 fps. Moreover, the length of video

sequences ﬂuctuates between 7 and 8 seconds. The

MOS distribution is depicted in Figure 4.

The intra-frames were extracted from the train-

ing and validation videos. Furthermore, the ex-

tracted intra-frames inherited the quality scores of

their source videos. The ﬁne-tuning of base CNN

models were carried out on the extracted intra-frames

of the training and validation videos. Speciﬁcally,

the output softmax layers were replaced by linear, re-

gression layers with one neuron and mean squared

error (MSE) loss function. Moreover, we made ex-

periments to ﬁnd the optimal input resolution for our

model. To this end, we trained the CNN models us-

ing the original resolution of KoNViD-1k (960×540)

and two down-sampled resolutions (480 × 270 and

299 × 299).

4 EXPERIMENTAL RESULTS

AND ANALYSIS

In this section, experimental results and analysis

are shown. First, the evaluation metrics are pre-

sented. Second, the software packages and hardware

resources used in the implementation and testing pro-

cess are given. Subsequently, we present a detailed

parameter study related to the proposed architecture.

Finally, a performance comparison to the state-of-the-

art is shown.

4.1 Evaluation Metrics

The evaluation of objective VQA algorithms is based

on measuring the correlation between ground-truth

quality scores and predicted quality scores. Two

parameters: Pearson’s linear correlation coefﬁcient

(PLCC) and Spearman’s rank order correlation coefﬁ-

cient (SROCC) are widely used to this end in the liter-

ature. The PLCC between dataset A and B is deﬁned

PLCC(A, B) =

∑

i=1

− A)(B

− B)

∑

i=1

− A)

∑

i=1

− B)

(2)

where A and B denote the average of set A and B, A

and B

stand for the ith element of set A and B, re-

spectively. For two ranked sets A and B, SROCC is

calculated as

SROCC(A, B) =

∑

i=1

−

A)(B

−

∑

i=1

−

∑

i=1

−

(3)

Multi-pooled Inception Features for No-reference Video Quality Assessment

341

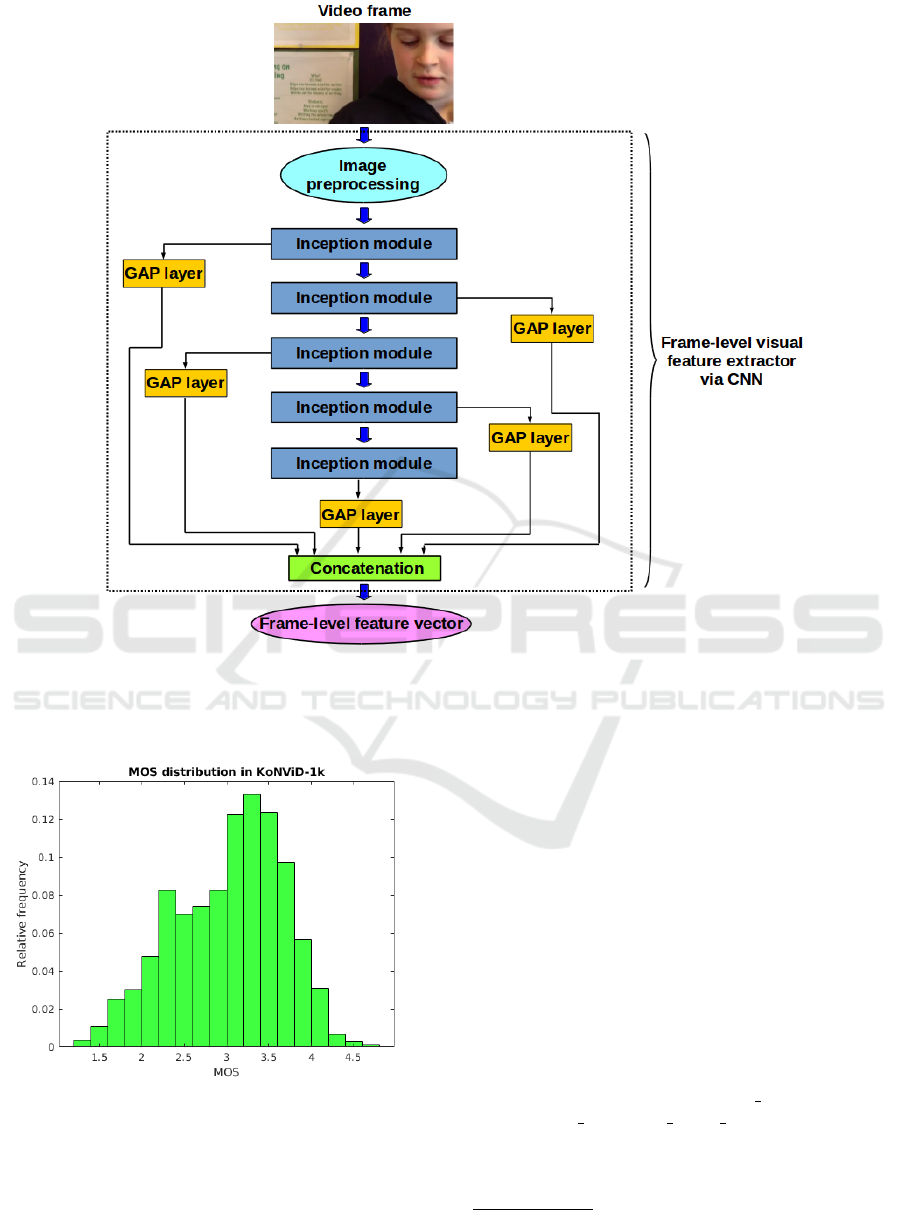

Figure 3: Frame-level feature extraction. A video frame is run through a pretrained CNN body containing Inception modules

(GoogLeNet (Szegedy et al., 2015), Inception-v2, and Inception-v3 are considered in this study). Furthermore, global average

pooling (GAP) layers are attached to each Inception module to extract resolution independent deep features at different

abstraction levels. The features obtained from the Inception modules are concatenated to create the frame-level feature vector.

Figure 4: MOS distribution in KoNViD-1k (Hosu et al.,

2017). In this database, MOS = 1 represents the lowest

video quality, while MOS = 5 stands for the highest video

quality.

where

A and

B denote the middle ranks of set A and

B, respectively. The range of values for PLCC and

SROCC is [−1; 1]. Furthermore, the closer the value

is to 1, the better the correlation between ground-truth

and predicted perceptual quality scores. More specif-

ically, PLCC is a number between −1 and +1 that in-

dicates the extent to which two variables are linearly

correlated, while SROCC is the non-parametric ver-

sion of the PLCC and measures the strength and di-

rection of association between two ranked variables.

4.2 Implementation Details

The proposed models were implemented with the

help of Keras

(Chollet et al., 2015) with a Ten-

sorFlow backend (Abadi et al., 2016). The intra-

frames were extracted using the free and open-source

FFmpeg

using ffmpeg -i ”$FILE NAME” -vf ”se-

lect=’eq(pict type,PICT TYPE I)’” command. Fur-

ther, the models were trained on a NVidia Geforce

GTX 1080 GPU.

https://keras.io/

https://www.ffmpeg.org/

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

342

As mentioned above, KoNViD-1k (Hosu et al.,

2017) database was used for training and testing.

Speciﬁcally, 840 videos were selected randomly for

the training set and 120 videos were selected ran-

domly for the validation set. The remaining 240

videos were reserved to test the proposed method.

Moreover, average PLCC and SROCC were measured

over 20 random train-validation-test splits.

In all experiments, Adam optimizer (Kingma and

Ba, 2014) was utilized for ﬁne-tuning base CNN ar-

chitectures with default parameters β

= 0.9 and β

0.999. Unlike stochastic gradient descent, Adam does

not maintain a single learning rate for all weight up-

dates. Instead, Adam adapts the learning rate by cal-

culating an exponential moving average of the gradi-

ent and the squared gradient, while β

and β

control

the decay rates of these moving averages. Speciﬁ-

cally, the learning rate was set to 10

−4

and divided by

10 when the validation error stopped improving. Fur-

thermore, early stopping was applied to avoid over-

ﬁtting. This means that training was stopped when

the validation error showed no improvement despite

the decimation of the learning rate. The proposed ar-

chitecture was trained and tested on a PC with 8-core

i7-7700K CPU and two NVidia TitanX GPUs.

4.3 Parameter Study

First, we conducted experiments to determine the op-

timal resolution of video frames for ﬁne-tuning base

CNN architectures. Because we trained the proposed

architecture with different resolution images, we were

not able to train all models with exactly the same

batch size because of the memory limitations of the

GPU. Hence, the largest available 2

batch size that

ﬁt on the GPU memory was used for each model.

First, the models were trained on the original res-

olution — 960 × 540 of KoNViD-1k

(Hosu et al.,

2017). Second, the models were trained on images

down-sampled by a factor of two using bilinear in-

terpolation (480 × 270). Finally, we trained the mod-

els on those down-sampled images that correspond to

the minimal input size of Inception-v3 — 299 × 299.

Furthermore, the we measured the performance if all

frames are used in the training and if only the so-

called keyframes are used.

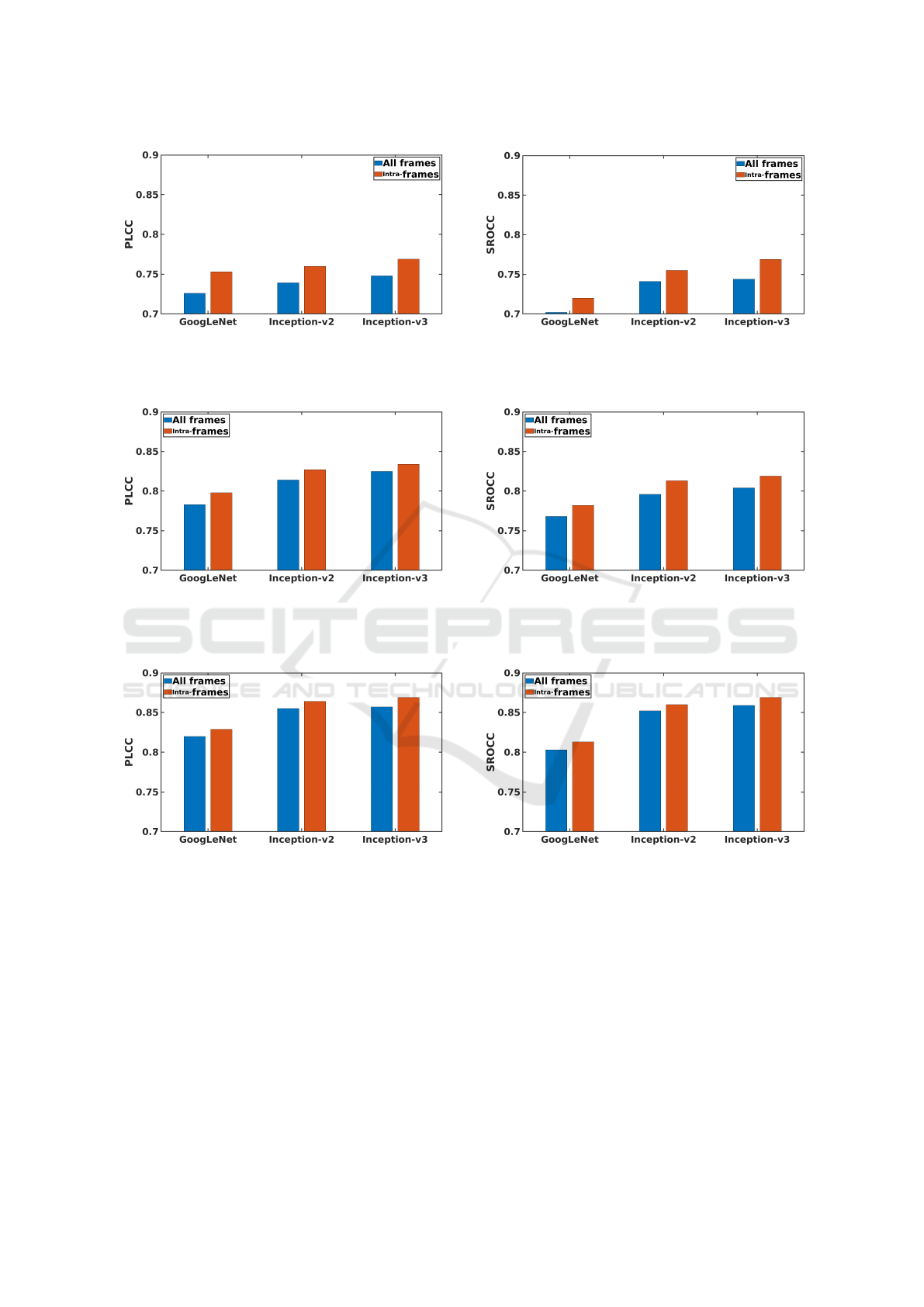

The results of the parameter study are summarized

in Figures 5, 6, 7, and 8. Surprisingly, we found

that models ﬁne-tuned on half-sized video frames

(480 × 270) achieved slightly better results than those

ﬁne-tuned on the original resolution video frames

(960 × 540) or on the video frames with 299 × 299

resolution. One reason for this result could be that

http://database.mmsp-kn.de/konvid-1k-database.html

the applied pretrained CNNs are optimized for im-

ages with resolutions smaller than 960 × 540. Fur-

thermore, we were only able to apply a batch size

of two when ﬁne-tuning on 960 × 540-sized images

because of GPU memory limitations. Moreover, the

deeper Inception-v3 base CNN yielded better results

than GoogLeNet or Inception-v2. Our analysis also

demonstrates that CNN ﬁne-tuning improves both

PLCC and SROCC signiﬁcantly. Figure 5 summa-

rizes the results without ﬁne-tuning. Figure 6, 7, and

8 depict those results when the base CNNs were ﬁne-

tuned on 299 × 299, 480 × 270, and 960 × 540 sized

video frames, respectively. As already mentioned, we

report on average PLCC and SROCC values obtained

by 5-fold cross-validation with 20 repetitions.

Our analysis demonstrated that models trained

only on the so-called intra-frames outperform mod-

els trained on all frames. More speciﬁcally, consider-

ing only the intra-frames in the training process im-

proves the performance by 0.05−0.1 both in terms of

PLCC and SROCC. Furthermore, the computational

time of a video-level feature vector lasts for approxi-

mately 185 secs if we consider all frames in a video

sequence for KoNViD-1k. In contrast, the computa-

tional time ﬂuctuates between 1.5 - 75 secs (videos

may contain different number of intra-frames) given

the experimental setup described in Section 4.2. As

a consequence, we have shown that processing all

frames is not necessary and a selection strategy is able

to improve performance and decrease computational

time.

On the whole, the best-performing architecture re-

lied on Inception-v3 ﬁne-tuned on half-sized (480 ×

270) video frames. Further, intra-frames are selected

in the training and testing procedure. In the next sub-

section, we refer to this model as MultiInception, and

it is compared with other state-of-the-art algorithms.

4.4 Comparison to the State-of-the-Art

We compared the proposed architecture to seven

state-of-the-art NR-VQA methods (V-CORNIA (Ye

et al., 2012), V-NIQE (Mittal et al., 2012b), V-

BLIINDS (Saad et al., 2014), VIIDEO (Mittal et al.,

2015), Inception-v3 + avg. pooling (Varga, 2019),

TLVQM (Korhonen, 2019), VSFA (Li et al., 2019))

whose source code available online. Furthermore, we

reimplemented FC Model (Men et al., 2017). All of

them were trained using those setup that we applied

to our proposed method, that is 960 videos (80%)

were used for training and validation purposes, while

the remaining 240 videos (20%) were utilized in the

testing process. Moreover, the average PLCC and

SROCC values were measured over 20 random train-

Multi-pooled Inception Features for No-reference Video Quality Assessment

343

(a) Avg. PLCC obtained by 5-fold cross-validation with

20 repetitions.

(b) Avg. SROCC obtained by 5-fold cross-validation with

20 repetitions.

Figure 5: CNN base architecture comparison without ﬁne-tuning.

(a) Avg. PLCC obtained by 5-fold cross-validation with

20 repetitions.

(b) Avg. SROCC obtained by 5-fold cross-validation with

20 repetitions.

Figure 6: CNN base architecture comparison with ﬁne-tuning on resolution 299 × 299.

(a) Avg. PLCC obtained by 5-fold cross-validation with

20 repetitions.

(b) Avg. SROCC obtained by 5-fold cross-validation with

20 repetitions.

Figure 7: CNN base architecture comparison with ﬁne-tuning on resolution 480 × 270.

validation-test splits. The results of the comparison

are summarized in Table 1.

From these results, it can be concluded that the

proposed model is able to outperform state-of-the-

art algorithms. Speciﬁcally, the proposed method

improves both PLCC and SROCC by approximately

0.05 compared to TLVQM (Korhonen, 2019), which

is currently one of the best and recent methods pro-

posed in the literature. Moreover, our method was

the only one that produced results over 0.8 of PLCC

and SROCC. We attribute this improvement to the fact

that our method extracts resolution independent fea-

tures from video frames at different levels of abstrac-

tion using powerful CNN architectures. This state-

ment is supported by the observation that the pro-

posed architecture achieves the state-of-the-art with-

out ﬁne-tuning as well. Namely, the application of

ﬁne-tuning (transfer learning) improves both PLCC

and SROCC by approximately 0.06. The overall 20-

run-results of our proposed method with ﬁne-tuning

are depicted in the form of box plots in Figure 9.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

344

(a) Avg. PLCC obtained by 5-fold cross-validation with

20 repetitions.

(b) Avg. SROCC obtained by 5-fold cross-validation with

20 repetitions.

Figure 8: CNN base architecture comparison with ﬁne-tuning on resolution 960 × 540.

Table 1: Comparison of state-of-the-art NR-VQA algorithms measured on KoNViD-1k (Hosu et al., 2017). Average PLCC

and SROCC values were measured over 20 random train-validation-test splits. Furthermore, the standard deviation values are

given in parentheses. The best average PLCC and SROCC results are typed by bold.

Method PLCC SROCC

V-CORNIA (Ye et al., 2012) 0.586 (0.037) 0.591 (0.040)

V-NIQE (Mittal et al., 2012b) 0.543 (0.041) 0.545 (0.043)

V-BLIINDS (Saad et al., 2014) 0.567 (0.044) 0.578 (0.046)

VIIDEO (Mittal et al., 2015) 0.300 (0.051) 0.284 (0.049)

FC Model (Men et al., 2017) 0.496 (0.015) 0.473 (0.015)

Inception-v3 + avg. pooling (Varga, 2019) 0.783 (0.023) 0.790 (0.022)

TLVQM (Korhonen, 2019) 0.776 (0.019) 0.783 (0.020)

VSFA (Li et al., 2019) 0.760 (0.030) 0.768 (0.030)

MultiInception (without ﬁnetuning) 0.769 (0.025) 0.769 (0.025)

MultiInception 0.828 (0.026) 0.829 (0.025)

Figure 9: The overall 20-run-results of our proposed met-

hod with ﬁne-tuning in the form of box plots. On each box,

the red line indicates the median, the star indicates the me-

an, and the bottom and top edges of the box stand for the

25th abd 75th percentiles, respectively. The whiskers ex-

tend to the most extreme data points.

5 CONCLUSIONS

In this paper, we introduced a framework for NR-

VQA relying on visual features extracted from pre-

trained CNNs. Speciﬁcally, we presented a content-

preserving feature extraction method which relies on

the Inception modules of pretrained CNNs, such as

GoogLeNet or Inception-v3. Unlike previous met-

hods, patches are not taken from the input video

frames but treated them as a whole. More speciﬁcally,

the frame-level visual features were extracted from

multiple Inception modules and pooled by a global

average pooling layer together. This way, we incor-

porated both intermediate- and high-level deep repre-

sentations to the frame-level feature vectors. Another

contribution of this study was that we showed it is un-

necessary to process all frames of a video to be eval-

uated. Unlike previous algorithms, we do not exam-

ine all frames. In contrast, only the so-called intra-

frames are considered. We demonstrated that con-

sidering only intra-frames saves computational time

and improves the performance signiﬁcantly both in

terms of PLCC and SROCC. Finally, we compared

our method to six state-of-the-art NR-VQA methods.

The proposed architecture surpassed the best state-of-

the-art method by approximately in terms of PLCC

and SROCC.

Multi-pooled Inception Features for No-reference Video Quality Assessment

345

ACKNOWLEDGEMENTS

The author would like to show his gratitude to Pro-

fessor Dietmar Saupe, Hanhe Lin, Vlad Hosu, Franz

Hahn, Hui Men, and Mohsen Jenadeleh for shar-

ing their knowledge in visual quality assessment and

helping to use KoNViD-1k. The author would like to

thank the anonymous reviewers for their helpful and

constructive comments that greatly contributed to im-

proving the ﬁnal version of the paper.

REFERENCES

Abadi, M., Barham, P., Chen, J., Chen, Z., Davis, A.,

Dean, J., Devin, M., Ghemawat, S., Irving, G., Isard,

M., et al. (2016). Tensorﬂow: A system for large-

scale machine learning. In 12th {USENIX} Sympo-

sium on Operating Systems Design and Implementa-

tion ({OSDI} 16), pages 265–283.

Ahn, S. and Lee, S. (2018a). Deep blind video quality as-

sessment based on temporal human perception. In

2018 25th IEEE International Conference on Image

Processing (ICIP), pages 619–623. IEEE.

Ahn, S. and Lee, S. (2018b). No-reference video quality as-

sessment based on convolutional neural network and

human temporal behavior. In 2018 Asia-Paciﬁc Signal

and Information Processing Association Annual Sum-

mit and Conference (APSIPA ASC), pages 1513–1517.

IEEE.

Bianco, S., Celona, L., Napoletano, P., and Schettini, R.

(2018). On the use of deep learning for blind image

quality assessment. Signal, Image and Video Process-

ing, 12(2):355–362.

Borer, S. (2010). A model of jerkiness for temporal impair-

ments in video transmission. In 2010 second interna-

tional workshop on quality of multimedia experience

(QoMEX), pages 218–223. IEEE.

Chollet, F. et al. (2015). Keras. https://keras.io.

Dendi, S. V. R., Krishnappa, G., and Channappayya, S. S.

(2019). Full-reference video quality assessment using

deep 3d convolutional neural networks. In 2019 Na-

tional Conference on Communications (NCC), pages

1–5. IEEE.

Drucker, H., Burges, C. J., Kaufman, L., Smola, A. J.,

and Vapnik, V. (1997). Support vector regression ma-

chines. In Advances in neural information processing

systems, pages 155–161.

Giannopoulos, M., Tsagkatakis, G., Blasi, S., Toutounchi,

F., Mouchtaris, A., Tsakalides, P., Mrak, M., and

Izquierdo, E. (2018). Convolutional neural net-

works for video quality assessment. arXiv preprint

arXiv:1809.10117.

Habibzadeh, M., Jannesari, M., Rezaei, Z., Baharvand, H.,

and Totonchi, M. (2018). Automatic white blood cell

classiﬁcation using pre-trained deep learning models:

Resnet and inception. In Tenth International Confer-

ence on Machine Vision (ICMV 2017), volume 10696,

page 1069612. International Society for Optics and

Photonics.

Hosu, V., Hahn, F., Jenadeleh, M., Lin, H., Men, H.,

Szir

anyi, T., Li, S., and Saupe, D. (2017). The kon-

stanz natural video database (konvid-1k). In 2017

Ninth international conference on quality of multime-

dia experience (QoMEX), pages 1–6. IEEE.

Ji, S., Xu, W., Yang, M., and Yu, K. (2012). 3d convolu-

tional neural networks for human action recognition.

IEEE transactions on pattern analysis and machine

intelligence, 35(1):221–231.

Karpathy, A., Toderici, G., Shetty, S., Leung, T., Suk-

thankar, R., and Fei-Fei, L. (2014). Large-scale video

classiﬁcation with convolutional neural networks. In

Proceedings of the IEEE conference on Computer Vi-

sion and Pattern Recognition, pages 1725–1732.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Korhonen, J. (2019). Two-level approach for no-reference

consumer video quality assessment. IEEE Transac-

tions on Image Processing, 28(12):5923–5938.

Li, D., Jiang, T., and Jiang, M. (2019). Quality assessment

of in-the-wild videos. In In Proceedings of the 27th

ACM International Conference on Multimedia. ACM.

Liu, W., Duanmu, Z., and Wang, Z. (2018). End-to-end

blind quality assessment of compressed videos using

deep neural networks. In ACM Multimedia, pages

546–554.

Lu, Z., Jiang, X., and Kot, A. (2018). Deep coupled resnet

for low-resolution face recognition. IEEE Signal Pro-

cessing Letters, 25(4):526–530.

Men, H., Lin, H., and Saupe, D. (2017). Empirical evalu-

ation of no-reference vqa methods on a natural video

quality database. In 2017 Ninth international confer-

ence on quality of multimedia experience (QoMEX),

pages 1–3. IEEE.

Men, H., Lin, H., and Saupe, D. (2018). Spatiotemporal fea-

ture combination model for no-reference video quality

assessment. In 2018 Tenth international conference

on quality of multimedia experience (QoMEX), pages

1–3. IEEE.

Mittal, A., Moorthy, A. K., and Bovik, A. C. (2012a).

No-reference image quality assessment in the spatial

domain. IEEE Transactions on image processing,

21(12):4695–4708.

Mittal, A., Saad, M. A., and Bovik, A. C. (2015). A com-

pletely blind video integrity oracle. IEEE Transac-

tions on Image Processing, 25(1):289–300.

Mittal, A., Soundararajan, R., and Bovik, A. C. (2012b).

Making a “completely blind” image quality analyzer.

IEEE Signal Processing Letters, 20(3):209–212.

Pastrana-Vidal, R. R., Gicquel, J. C., Colomes, C., and

Cheriﬁ, H. (2004). Sporadic frame dropping impact

on quality perception. In Human Vision and Elec-

tronic Imaging IX, volume 5292, pages 182–193. In-

ternational Society for Optics and Photonics.

Reinhardt, R. (2010). Video with Adobe Flash CS4 Profes-

sional Studio Techniques. Adobe Press.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

346

Saad, M. A. and Bovik, A. C. (2012). Blind quality as-

sessment of videos using a model of natural scene

statistics and motion coherency. In 2012 Conference

Record of the Forty Sixth Asilomar Conference on

Signals, Systems and Computers (ASILOMAR), pages

332–336. IEEE.

Saad, M. A., Bovik, A. C., and Charrier, C. (2014). Blind

prediction of natural video quality. IEEE Transactions

on Image Processing, 23(3):1352–1365.

Serre, T., Wolf, L., Bileschi, S., Riesenhuber, M., and Pog-

gio, T. (2007). Robust object recognition with cortex-

like mechanisms. IEEE Transactions on Pattern Anal-

ysis & Machine Intelligence, (3):411–426.

Shahid, M., Rossholm, A., L

ovstr

om, B., and Zepernick,

H.-J. (2014). No-reference image and video quality

assessment: a classiﬁcation and review of recent ap-

proaches. EURASIP Journal on image and Video Pro-

cessing, 2014(1):40.

Søgaard, J., Forchhammer, S., and Korhonen, J. (2015). No-

reference video quality assessment using codec anal-

ysis. IEEE Transactions on Circuits and Systems for

Video Technology, 25(10):1637–1650.

Szegedy, C., Ioffe, S., Vanhoucke, V., and Alemi, A. A.

(2017). Inception-v4, inception-resnet and the impact

of residual connections on learning. In Thirty-First

AAAI Conference on Artiﬁcial Intelligence.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going deeper with convolutions.

In Proceedings of the IEEE conference on computer

vision and pattern recognition, pages 1–9.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wo-

jna, Z. (2016). Rethinking the inception architecture

for computer vision. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2818–2826.

Thomee, B., Shamma, D. A., Friedland, G., Elizalde, B.,

Ni, K., Poland, D., Borth, D., and Li, L.-J. (2015).

Yfcc100m: The new data in multimedia research.

arXiv preprint arXiv:1503.01817.

Varga, D. (2019). No-reference video quality assessment

based on the temporal pooling of deep features. Neu-

ral Processing Letters, pages 1–14.

Xu, J., Ye, P., Liu, Y., and Doermann, D. (2014). No-

reference video quality assessment via feature learn-

ing. In 2014 IEEE international conference on image

processing (ICIP), pages 491–495. IEEE.

Xu, Z., Yang, Y., and Hauptmann, A. G. (2015). A discrim-

inative cnn video representation for event detection.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 1798–1807.

Xue, Y., Erkin, B., and Wang, Y. (2014). A novel no-

reference video quality metric for evaluating temporal

jerkiness due to frame freezing. IEEE Transactions on

Multimedia, 17(1):134–139.

Yammine, G., Wige, E., Simmet, F., Niederkorn, D., and

Kaup, A. (2012). Blind frame freeze detection in

coded videos. In 2012 Picture Coding Symposium,

pages 341–344. IEEE.

Ye, P., Kumar, J., Kang, L., and Doermann, D. (2012).

Unsupervised feature learning framework for no-

reference image quality assessment. In 2012 IEEE

conference on computer vision and pattern recogni-

tion, pages 1098–1105. IEEE.

You, J. and Korhonen, J. (2019). Deep neural networks

for no-reference video quality assessment. In 2019

IEEE International Conference on Image Processing

(ICIP), pages 2349–2353. IEEE.

Zhang, R., Isola, P., Efros, A. A., Shechtman, E., and Wang,

O. (2018). The unreasonable effectiveness of deep

features as a perceptual metric. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 586–595.

Zhang, Z., Shi, H., and Wan, S. (2009). A novel blind mea-

surement of blocking artifacts for h. 264/avc video.

In 2009 Fifth International Conference on Image and

Graphics, pages 262–265. IEEE.

Multi-pooled Inception Features for No-reference Video Quality Assessment

347
