Improving Multi-domain Stakeholder Communication of Embedded

Safety-critical Development using Agile Practices: Expert Review

Surafel Demissie

, Frank Keenan, R

ois

ın Loughran

and Fergal McCaffery

Regulated Software Research Centre, Dundalk Institute of Technology and Lero, Dundalk, Ireland

Keywords:

Agile Software Development, Embedded Medical Software, Safety-critical, Communication Challenges,

Software Process Improvement.

Abstract:

The development of embedded safety critical software is different from ordinary software development as such

development needs to be coordinated with the hardware development. A typical embedded system project

involves multi-domain experts such as business unit, software developers, hardware engineers and ﬁrmware

developers. Agile methods have been successfully adopted in software engineering in general, and more

recently in embedded safety critical development. A previous systematic literature review (SLR), conducted

as part of this research, reported that one of the challenges of embedded safety-critical software development

is multi-domain stakeholder communication. Additionally, suitable agile practices which have been used

in embedded safety critical domains have been investigated. This earlier work proposed a process using

a combination of suitable agile practices to support multi-domain stakeholder communication. In order to

validate this proposed process, an expert review has been conducted. This paper outlines the proposed process

and the ﬁndings of the expert validation.

1 INTRODUCTION

An embedded system is a special-purpose computer

that is designed to perform a speciﬁc task. Today such

systems are everywhere in our day to day life from

household items such as a digital camera, refrigerator

and TVs, to complex and critical devices like pace-

makers and smart grid control units (Vahid and Gi-

vargis, 2000). A typical embedded system consists of

hardware and software components. The hardware in-

cludes a microprocessor or microcontroller, memory,

input-output (I/O) and additional components such as

sensors and actuators which enable interaction with

the environment. The embedded software is appli-

cation speciﬁc as it is dedicated to performing pre-

designed speciﬁc tasks repeatedly, thereby controlling

the functionality of the hardware device.

Due to its proximity to the hardware, the devel-

opment of embedded software depends on the cor-

responding hardware development process as it must

provide correct functionality. Such a parallel devel-

opment process of hardware and software is known as

https://orcid.org/0000-0001-6475-2402

https://orcid.org/0000-0002-0974-7106

https://orcid.org/0000-0002-0839-8362

Co-design (Wolf, 1994) (Berger, 2002) (Teich, 2012).

The hardware and software development activities re-

quire diverse stakeholders such as hardware, ﬁrmware

and software developers that must have close interac-

tion and knowledge sharing (Rong et al., 2014).

Agile Methods (AMs) (Highsmith and Cockburn,

2001) are an umbrella of software engineering meth-

ods that are based on iterative, incremental and evo-

lutionary software development process. Numerous

AMs exist with Scrum (Schwaber and Beedle, 2001)

and eXtreme Programming (XP) (Beck, 2007) being

the most popular. AMs recommend a high degree of

expert customer involvement, ability to incorporate

changing requirements and short development cycles

producing working software. Previous studies of agile

implementation in safety-critical embedded domains

report both beneﬁts and challenges due to the hard-

ware and software dependency.

The SLR conducted as part of this research in-

vestigated the challenges related to agile implementa-

tion and suitable agile practices in embedded safety-

critical domains (Demissie et al., 2018). The re-

view was conducted following a review protocol that

deﬁned research questions, selected digital libraries,

search strings, inclusion and exclusion criteria and

data extraction procedure. The result of the study re-

Demissie, S., Keenan, F., Loughran, R. and McCaffery, F.

Improving Multi-domain Stakeholder Communication of Embedded Safety-critical Development using Agile Practices: Expert Review.

DOI: 10.5220/0008977900490056

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 49-56

ISBN: 978-989-758-400-8; ISSN: 2184-4348

vealed that one of the challenges reported in most of

the studies was multi-domain stakeholder communi-

cation that occurred due to the diversity between par-

ticipating members.

Most of agile practices identiﬁed are from Scrum

and XP methods. The latest report from (Ver-

sionOne.Inc, 2018), the largest and longest-running

survey on agile, states that Scrum and XP are con-

tinuing to be the most common AMs that constitute

about 70% of agile usage. Agile software develop-

ment (ASD) encourages team-based communication

through practices such as Cross-Functional Teams,

Pair Programming (PP) and Daily Stand-up Meetings.

The present paper attempts to answer the follow-

ing research question:

How can we improve Multi-Domain stakeholder

communication within embedded safety critical

domains using a combination of suitable agile

practices?

In order to address this research question, a pro-

cess has been proposed. Table 1 shows the list of agile

practices selected for the proposed process.

Table 1: Suitable Agile Practices.

Method Agile Practice

Scrum

Daily Scrum (Stand-up)

Sprint Retrospective

Scrum

User Stories

On-Site Customer

The Planning Game

Pair Programming (PP)

Continuous Integration

Refactoring

Test-Driven Development (TDD)

Acceptance

Testing (AT)

& Acceptance-

Test Driven

Development

(ATDD)

To validate the proposed process, expert reviews

have been conducted. The purpose of this paper is to

present the proposed process and the expert reviews

conducted. The next section presents the description

of the proposed process. Next, the expert review is

presented and the results discussed. Finally, some

conclusions and possibilities for future work are out-

lined.

2 PROPOSED PROCESS

The Sync-Up process has been proposed to support

multi-domain stakeholder communication within em-

bedded safety-critical software development. The ini-

tial version of the proposed process has been validated

through expert review. In the following sub-sections,

we present the latest version of the proposed process.

2.1 The Sync-Up Process

The Sync-Up process is developed by combining the

agile practices identiﬁed as most suitable through the

SLR.The overall approach is proposed based on the

foundation of Acceptance-Test Driven Development

(ATDD).In standard ATDD, a group consisting of

a software developer, a customer and a tester, will

gather to discuss and distill on user stories and de-

velop acceptance tests (ATs) and examples for each

user stories (Pugh, 2010; G

artner, 2012). Addition-

ally, they will also collaborate on the development

and demo phases.In order to support multiple stake-

holder communication in an embedded safety criti-

cal domain, the standard ATDD will be extended to

involve hardware, ﬁrmware and embedded develop-

ers. We called the combined team the Embedded Sys-

tem Design (ESD) team.The ESD team will sync up

through the whole project.Figure 1 shows the latest

version of the proposed process. The detailed steps of

the process are presented below.

Step:1: Deﬁne User Stories, Prioritise, Estimate

User Stories & Develop Acceptance Tests (ATs)

In Step 1, user stories will be written for the feature

that is under consideration. When writing User Sto-

ries, having a combination of engineers from each do-

main, such as the ESD team, will help the team write

the User Stories with a complete understanding of the

system from embedded hardware and software per-

spective. For each User Stories, the team also writes

acceptance tests (ATs). ATs are conditions of satis-

faction that are conducted to “determine whether a

system satisﬁes its acceptance criteria (i.e., initial re-

quirements and current needs of its user) and to en-

able the customer to determine whether to accept the

system.” (IEEE Standard 610, 1998).

After deﬁning the User Stories and ATs, the team

will prioritise the User Stories based on features with

more business values and dependencies. After priori-

tisation, the team will estimate the User Stories. Es-

timation is a process of deciding the amount of time

it takes to complete the implementation of the User

Stories. Having diverse members to collaborate on

estimation helps the team to achieve better estimates.

The ﬁnal activity of Step 1 is the release plan. The

release plan describes which feature will be delivered

in the upcoming release. In release planning, a list

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

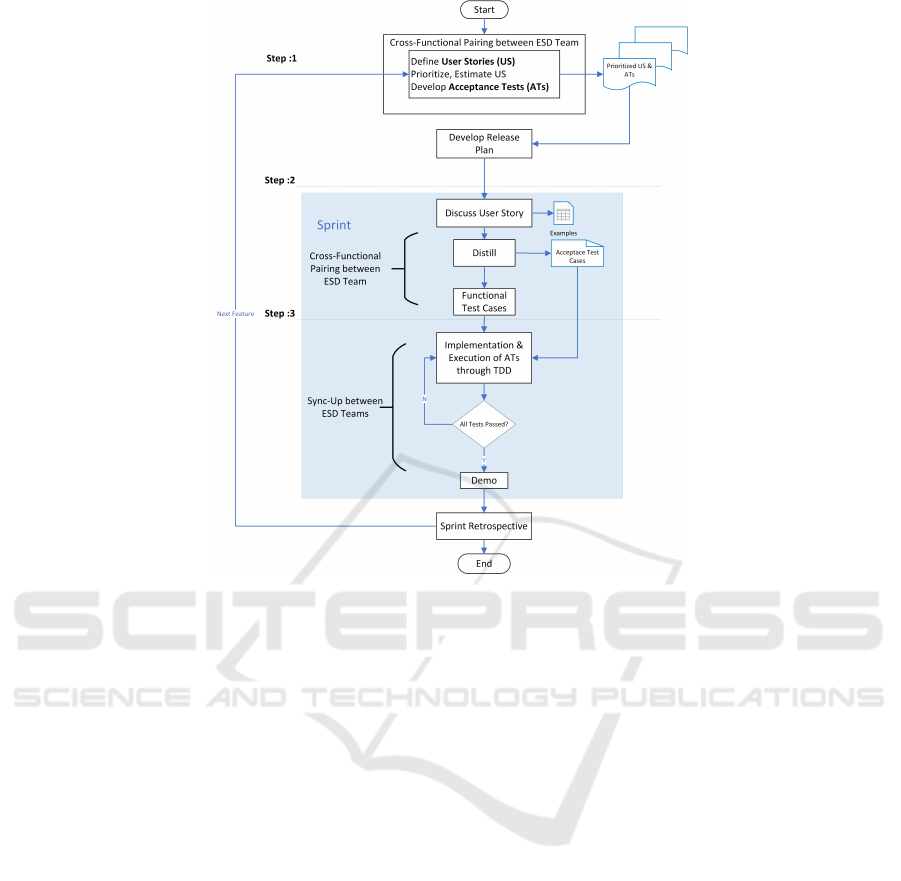

Figure 1: The Sync-Up Process.

of User Stories being considered in the coming Sprint

will be decided and the team will decide to commit on

the completion of the selected user stories.

Step: 2: Sprint, Discuss & Distill User Stories

Step 2 is composed of sprint activities such as Sprint

Planning, Daily Scrums and Sprint Review. Before

the implementation of the User Stories, the ESD team

will implement the ATDD steps, discuss and distill.

During the discuss stage, the ESD team members

will collaborate and develop examples. The examples

developed will help to clarify technical constraints

and feasibility from the embedded hardware and soft-

ware aspects of the feature under consideration. After

deﬁning the examples, members of the ESD team will

implement the distill stage. In this stage, the team will

capture the examples in a format that works with the

test automation framework. These test cases will be

written using cross functional pairing involving tech-

nical experts of the ESD team. As a result of pairing

between the technical experts, the test cases written

will have a better structure and constraints.

After deﬁning acceptance test cases, the ESD

team will develop functional test cases. These test

cases are written from user perspective to ensure that

each part of the system is tested against the functional

speciﬁcations.

Step 3: Implementation and Execution of ATs

In this step, members of the ESD team will execute

the ATs collaboratively. Using a Cross-functional

Pairing, the engineers will collaborate during the ex-

ecution of the test cases. This stage is executed un-

til all ATs for the current iteration are passed. The

implementation of ATs is conducted following the

principles of TDD. In TDD, developers ﬁrst write a

failing test. This is followed by writing the mini-

mum amount of code that is required to get the ATs

passed (Green). Once the ATs are green, members

of the ESD team will conduct Exploratory Testing

through cross-functional pairing. For example, the

tester and developer can pair to test the edge com-

putations. Additionally, the embedded engineer and

the software developer can pair to test the behavioural

and performance-related parameters from the embed-

ded perspective.

The ESD team will ﬁx any defects throughout

the development phase through the Sync-Up process.

Once all tests are passed, the User Stories will be

marked as done and the ESD team will move to the

demo stage to demo the feature to the product owner

(PO).

Improving Multi-domain Stakeholder Communication of Embedded Safety-critical Development using Agile Practices: Expert Review

The ﬁnal activity of Step 3 is the implementation

of Sprint retrospective. It is a continuous improve-

ment activity that is held prior to the next Sprint.

The objective of this activity is to inspect the previ-

ous Sprint with regards to people, relationships, pro-

cess, and tools and plan for improvements on the next

Sprint. In order to validate the proposed process, we

have conducted an expert review. The result of the

review will be presented on the next section.

2.2 Expected Beneﬁt of the Sync-Up

Process

The proposed process will enable User Stories and

ATs to be written syncing with the technical experts

of the ESD team. The involvement of multi-domain

stakeholders earlier and capturing requirements in the

form of ATs can reduce the communication gap of

such diverse members. One of the main beneﬁt of

ATs is to have clear requirement and improve collab-

oration. The ATs written in collaboration with experts

of the ESD team should have clear technical speciﬁ-

cations that satisfy all stakeholders.

3 EXPERT VALIDATION

The expert reviews have been conducted to validate

the proposed process. Experts have been selected

based on their knowledge and experience on agile

practices and their implementation within embedded

safety critical domains. The main criteria that have

been used for selecting the experts were:

• Having many years of experience implement-

ing agile software development either as Product

Owner, Scrum Master, Developer or Consultant;

• Having experience in embedded safety critical do-

mains;

• Having experience in implementing or coach-

ing the implementation of speciﬁc agile practices

such as ATDD.

The search for experts was conducted through

LinkedIn, a social network for professionals. The re-

searcher contacted candidate experts that satisﬁed the

criteria and to date three experts that were willing to

evaluate the proposed process were selected as expert

reviewers.

Expert 1 is a speaker, consultant and author of

a dozen books on agile, Lean and managing high-

technology product development. The expert has

helped managers, teams and companies to move to

an agile approach.

Expert 2 has fourteen years of experience in soft-

ware testing of embedded Medical devices such as

injection devices and infusion pumps, smart lighting

embedded software and various embedded test au-

tomation tools projects. At the time of the review, the

expert was working on two projects. On one of the

projects, he is a Scrum Master that involves eight peo-

ple composed of software developers, software testing

and product owner. On the other project, he is work-

ing as delivery manager that involves hardware en-

gineers, ﬁrmware developers, mobile app developers

and quality assurance (QA).

Expert 3 has over twenty years of experience in

different industries where he worked in many differ-

ent roles including developer, tester, analyst, product

manager, test manager, and agile/lean coach. The ex-

pert had a well-known case study on the implementa-

tion of ATDD.

For each expert, the meetings were conducted us-

ing video conferencing tools Skype and Zoom. For

Expert 1 and Expert 2, two meetings have been con-

ducted. For Expert 3, one meeting was conducted as

a result of the availability of the expert and a walk-

through of the process was presented and the expert

was asked for his advice. For the ﬁrst two experts,

the ﬁrst meeting was an introductory session where

the researcher and the experts would get to know

each other. In this meeting, the experts were asked

questions related to their experience in agile soft-

ware development, embedded software development

and challenges faced by the experts. The researcher

then presented a walk-through of the proposed pro-

cess. Expert 2 was willing to see the proposed pro-

cess with a practical example, so the researcher pre-

sented an ideal example to demonstrate the expected

outcomes of the process.

On the second meeting, the experts were asked to

provide their advice on the proposed process. We

asked the experts to point out the deﬁciency ob-

served, beneﬁts, improvement and other suggestion

they would like to add. The list of presented ques-

tions is given in the accompanying appendix. With

the consent of the experts, the video conferences were

recorded and transcribed for reference. The summary

of the review conducted with each expert is presented

in the following sub-sections.

3.1 Challenges and Experience

Expert 1

This expert was initially asked about the experience

of implementing agile and the challenge of multi-

domain stakeholder communication. The expert re-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

sponded that from her experience working with em-

bedded clients, hardware teams have always been “al-

most separated from ﬁrmware teams”. The software

team, on the other hand, would have often been in

a third location. The expert also stated that even if

the teams were in the same location, they would have

been on “different forces”. The separation of such di-

verse teams was creating a number of long integration

groups. The expert noted that for embedded software,

most problems show up after the product is in the ﬁeld

and this would make it “really difﬁcult to tell where

the problem arises”. When asked to comment on the

beneﬁts of the syncing up, the expert stated that to

have a coherent User Stories that has important com-

ponents from the architecture, we need to sync up var-

ious layers such as the application program interface

(API), middle-ware and the platform which encom-

passes both ﬁrmware and hardware. The expert stated

that user stories should impact on the architecture, not

just the software side. Additionally, the expert noted

that ATs should also include the hardware acceptance,

the ﬁrmware and the mechanical aspects of the sys-

tem. The expert used an example of a client that im-

plemented User Stories for software and ﬁrmware and

design by contact for the hardware. The client used

separate Kanban for software and ﬁrmware User Sto-

ries, so the ﬁrmware was always veriﬁed in advance

of the software. The expert advised the client that the

ﬁrmware and software teams have to work together

otherwise they would run into problems because the

cycle time of the ﬁrmware Kanban and the software

will be different. The expert went on to state that

the client didn’t like the proposed advice because the

client was not looking at the story cycle time, merely

the software and ﬁrmware. The expert stated that

we might end up with big teams involving software,

ﬁrmware and hardware developers, but all stakehold-

ers should come together and create the User Stories.

Additionally, having the ﬁrmware and mechanical ex-

perts will help the team to consider the implications of

the ﬁrmware and mechanical components on the user

stories.

Expert 2

The expert stated that he has been working with di-

verse teams such as hardware, ﬁrmware, application

software and scientist teams. The expert noted that the

hardware development team were not following agile

and they will work at “their own pace”. The ﬁrmware

team on the other hand, would work based on the ini-

tial available hardware. Additionally, the application

software team will be completely relying on the em-

bedded software. The expert noted that such diverse

teams haven’t been integrating their tasks properly.

The expert has given an example of an endoscope

project from his previous experience. He stated that

on the project, the teams initially agreed to use an An-

droid operating system for displaying the real-time

image of the endoscope camera. The selection of

this operating system would have “some delays in mi-

crosecond” on the processing of the image. During

the requirement analysis and development phases, the

stakeholders had all agreed on the delay and the team

delivered ﬁrst build and went for a trial with doctors

and scientists. Once it went into the doctors and sci-

entists “they found that this delay was unacceptable”.

The expert stated that this change cost the team

around four months of delay because they needed

to completely change the operating system from An-

droid to Linux. The change in the operating system

required additional changes to the video connect and

the communication protocols. The expert stressed

that the involvement of some of stakeholders, such as

the scientist team, at the later stage created “huge de-

lay” and a clear example of the communication gap

and miss-collaboration of diverse members.

When asked to comment on the beneﬁts of the

syncing up, the expert stated that most of the time

failure occurs because stakeholders were not review-

ing and analysing requirements and test cases. The

expert referred to a project on which he was work-

ing. In this project, the teams initially agreed on a

test case and the developers started based on this test.

The expert stated that when about 40% of the devel-

opment was completed a reviewer team of stakehold-

ers started reviewing the test cases and found that the

test cases were “not something which they were ex-

pecting”. The expert went on to state that this change

has ended up wasting 40% of the time of the soft-

ware developer, ﬁrmware engineers and test protocol

designers because detailed test plan development was

already started. The expert stated that all members of

the stakeholders should sync up early and agree on the

user stories and test cases before development started,

to avoid the cost of rework

Expert 3

When asked to comment on the beneﬁts of the Sync-

Up process, the expert stated that he believes the pro-

cess can work and help the ESD team deliver faster.

He also noted that we will have problems in convinc-

ing organisations to change to this process. According

to the expert, problems will come mainly from man-

agement who will not understand that “pairing people

doesn’t mean we do less work”. The expert went on

to state that the main reason we pair people is because

“we want to inject quality” at the beginning rather

than detecting problems at the end. He noted that dur-

Improving Multi-domain Stakeholder Communication of Embedded Safety-critical Development using Agile Practices: Expert Review

ing the development phase, if we “ﬁnd issues late”,

there will be a lot of rework. By injecting some qual-

ity at the beginning of this phase as a result of pair-

ing, we can remove the rework. The expert noted that

the impression he got from leaders is, if people are

paired, then they will only get one thing done instead

of two things that they could work and “this could

be a problem”. To overcome this the expert empha-

sised the importance of “coaching managers”and ex-

plaining the concepts from Lean on limiting work in

progress (WIP). He stated that by limiting WIP we

can actually get more things done. According to the

expert, occupying the members of the team only for

about 70% of their time is more likely produce more

work than if we occupy them for 100%.

3.2 Comments on a Process

In the ﬁrst part of the review conducted with each

expert, we have explored the experience of the

experts and the challenge of multi-domain stake-

holder communication.The experts have reported ex-

amples projects where the communication gap be-

tween multi-domain stakeholders created project de-

lays and time-wasting of developers and engineers.

The experts also highlighted the importance of sync-

ing up between multi-domain stakeholders earlier be-

fore development is started to avoid the communica-

tion gap.The second section of the review includes

the researcher presenting the walk-through of the pro-

posed process and each expert was asked to give their

comments on the proposed process.The summary of

the comments given by each expert will be presented

in the following subsections.

3.2.1 Expert 1

A walk-through of the proposed process was pre-

sented to the expert and the expert was asked to pro-

vide the deﬁciency and recommendations observed.

She stated that if the hardware, software and ﬁrmware

teams in their own silos, separately sync up their

activities after some period of time, “that’s not an

agile”.The expert suggested that the activities in

Step 1,deﬁne User Stories and ATs should include

all members of stakeholders in one cross-functional

team.The expert stated that in this stage syncing up

is “non-existence” as we’re part of a cross functional

team with representative of all layers of architec-

ture.The expert also noted that the discussions about

the features such as the discuss and distill stages in

Step 2, should also include the entire team.The ex-

pert went on to state that in the implementation phase,

Step 3, we might need “little sync ups” frequently.In

her experience the hardware and ﬁrmware teams it-

erate on the design and create tooling for simula-

tions.The expert stated that as long as simulations are

available, the hardware and ﬁrmware teams can have

something to share with other members such software

developers and syncing up possible.

3.2.2 Expert 2

The expert stated that Step 1 can be implemented in

two ways.The ﬁrst way suggested by the expert was

that members of stakeholders all comes together and

discuss and create their requirements.The expert went

on to state that the best scenario he could suggest

would be if the product owner (PO), Scrum Master,

technical expert from each domain like the hardware

lead, the ﬁrmware lead, application lead and testing

member all involved and sync up to create User Sto-

ries and ATs.The expert went on to state that hardware

teams usually work in multiple activities and depends

on tools, labs and also their work is usually depend

on vendors.The expert stated that to incorporate the

changes in line with other members such as ﬁrmware

and software teams, sync up is important.

The second way suggested by the expert was if

multi-domain stakeholders create a cross-functional

team and write the User Stories and ATs. The ex-

pert noted that from his experience, creating a cross-

functional team in embedded domain is difﬁcult. The

expert went on to state that the hardware team dy-

namics are different than software and their work-

ing pattern is also different. According to the expert,

the hardware team generally work in a pure water-

fall model. Software team on the other hand follows

the design of hardware team and adopt the changes

proposed by hardware team. Despite the difﬁculty

of creating a cross functional team, the expert sug-

gested that the activities in Step 1, deﬁne User Stories

and ATs, can be implemented using cross-functional

teams composed of each domain.

For Step 2, the expert stated that functional test

cases should be included on the proposed process.

The expert stated that after the discuss and distill on

the User Stories, the functional test case will be cre-

ated and at the same time the developer would be de-

veloping the code. The expert stated that functional

test cases are elaborated test cases that are used to test

detailed functional requirement.

3.3 Expert 3

This expert was asked to give his advice on the stages

of ATDD. In his experience, he preferred to do the

examples with the discuss and distill practices after

starting the Sprint. The expert noted that the discuss

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

and distill practices are very focused and demanding

activities and we cannot expect people to do them for

more than an hour or more. Based upon his expe-

rience, he found that it’s “more effective” to discuss

and distill on the User Story bases. The expert went

on to state that when we start our Sprint, we can take

a User Story and get the stakeholders together and de-

sign the examples. Once each of the stakeholders are

happy with the examples, developers will start writing

the functional tests cases and implement the code for

those speciﬁc User Story.

The expert also suggested that the discuss and dis-

till activities could result in the splitting of the User

Stories. The expert went on to state that when we de-

ﬁne User Stories, and get people to write examples,

we will ﬁnd out very soon weather the User Stories

is too big and needs to be spilt. According to the ex-

pert, if there are three or more examples in a User

Story, the expert suggested that the User Story is “al-

ready too big”. The expert suggested at that point, the

team can identify a set of examples and by looking at

the examples, the team can ﬁnd a way of splitting the

User Story in two or three. And then we will add the

User Story to the current Sprint or to the next Sprint

depending on how priorities are stored.

All three experts were presented with the walk-

through of the proposed process and the experts were

asked to give their advice on any deﬁciency they ob-

served, and any improvements they may suggest. The

improvements and suggestions made by each expert

were taken into consideration and applied to the initial

proposed process. The improvements suggested by

the experts is presented in the following sub-sections.

4 DISCUSSIONS

The expert review was conducted with three experts

to validate the proposed process. Initially, the experts

were asked about their experiences and the challenge

of multi-domain stakeholder communication. The ex-

perts stated that multi-domain stakeholder communi-

cation challenges have affected their projects. The ex-

perts discussed some example projects where the in-

volvement of some members of the stakeholders late

in development led to signiﬁcant delays. Addition-

ally, from the experience of the experts, the diverse

teams involved in embedded projects had several in-

tegration points. All three experts stated that multi-

domain stakeholders have to sync up earlier when

analysing requirements and should have a common

understanding.

Improvement 1

According to Expert 1, the way diverse teams sync

up in different stages has to be clariﬁed. She sug-

gested that the initial stages of deﬁning the User Story

and ATs should be conducted using a cross-functional

team. On the other hand, the expert stated that dur-

ing the development stages, Step 3, we will need lit-

tle sync ups as separate silos with simulations on the

hardware and continuous integration with the soft-

ware. Expert 2 on the other hand stated that Step 2

activities can be implemented using cross functional

team. This expert noted the difﬁculty of creating

cross functional teams in embedded projects. Expert

2 suggested that he prefers if the hardware lead, the

ﬁrmware lead, application lead, the PO and SM all

comes together and create the User Story and ATs.

This expert highlighted the importance of syncing up

during the development phase.

• On the initial version of the proposed process, the

Sync-Up process was designed to involve only the

embedded engineer to sync up with development

teams in all phases. The changes to the initial pro-

cess made as part of feedback from the two ex-

perts, attempt to resolve this issue i.e. The ESD

team constitute a cross functional team and write

the User Story and ATs using cross-functional

pairing.

• Both experts stated that syncing up is important in

development phase, i.e. Step 3. For this phase we

have kept syncing up between ESD teams.

Improvement 2

Expert 2 stated that functional test cases should be

discussed after starting the Sprint. The expert stated

that these test cases are different from acceptance test

cases and focus on if the system is functioning as ex-

pected by the users.

On the initial version of the proposed process,

functional test cases were implemented when de-

veloping ATs. On the latest version of the pro-

posed process, the implementation of functional

test cases, have been placed after the discuss, dis-

till activities.

All three experts stated that multi-domain stake-

holders need to sync up during development fre-

quently in their separate silos. The experts stated that

the frequency of syncing up during development will

depend on the availability of simulations and the cost

of prototyping. The experts stated that when the hard-

ware is not ready, the simulation and prototyping of

hardware can be used by software and ﬁrmware teams

Improving Multi-domain Stakeholder Communication of Embedded Safety-critical Development using Agile Practices: Expert Review

in advance and development can be started. As stated

by Expert 1, for a big machine, prototyping can be

very expensive. On the other hand, for small devices

such as wearable items, prototyping can be done us-

ing board prototypes.

5 CONCLUSIONS

In this paper, we discussed the challenges within

multi-domain stakeholder communication in embed-

ded safety critical domains. In order to deal with these

challenges, this paper has proposed a Sync-Up pro-

cess using a combination of suitable agile practices.

The validation of the Sync-Up process was conducted

through expert reviews. The experts involved have

shared their experiences on the challenges of multi-

domain stakeholder communication and the impor-

tance of involving all stakeholders when we deﬁne the

user story and ATs. The improvements and sugges-

tions made by each expert have been taken into ac-

count and changes have applied to the initial process.

In the future, we plan to conduct the second validation

of the updated Sync-Up process through case studies.

ACKNOWLEDGEMENTS

This work was supported with the ﬁnancial support

of the Science Foundation Ire-land grant 13/RC/2094

and co-funded under the European Regional Develop-

ment Fund through the Southern & Eastern Regional

Operational Programme to Lero - the Irish Software

Research Centre (www.lero.ie).

REFERENCES

Beck, K. (2007). Embracing Change with Extreme Pro-

gramming. Archives of disease in childhood. Fetal and

neonatal edition, 92(October 2008):F83–F88.

Berger, A. (2002). Embedded Systems Design—An Intro-

duction to Processes, Tools, and Techniques s, vol-

ume 2002. CMP Books, CMP Media LLC, Lawrence,

Kansas 66046.

Demissie, S., Keenan, F.,

Ozcan-Top,

O., and McCaffery,

F. (2018). Agile Usage in Embedded Software De-

velopment in Safety Critical Domain–A Systematic

Review. In International Conference on Software

Process Improvement and Capability Determination,

pages 316–326. Springer.

artner, M. (2012). ATDD by example: a practical guide to

acceptance test-driven development. Addison-Wesley.

Highsmith, J. and Cockburn, A. (2001). Agile software

development: the business of innovation. Computer,

34(9):120–122.

IEEE Standard 610 (1998). IEEE Standard Glossary of

Software Engineering Terminology. Standard, Insti-

tute of Electronical and Electronics Engineers, Wash-

ington, DC.

Pugh, K. (2010). Lean-Agile Acceptance Test-Driven-

Development: Better Software Through Collabora-

tion. Pearson Education.

Rong, G., Liu, T., Xie, M., Chen, J., Ma, C., and Shao, D.

(2014). Processes for Embedded Systems Develop-

ment: Preliminary Results from a Systematic Review.

Proceedings of the 2014 International Conference on

Software and System Process, pages 94–98.

Schwaber, K. and Beedle, M. (2001). Agile Software De-

velopment with Scrum, volume 18.

Teich, J. (2012). Hardware/software codesign: The past, the

present, and predicting the future. Proceedings of the

IEEE, 100(SPL CONTENT):1411–1430.

Vahid, F. and Givargis, T. (2000). Embedded Systems

Design: A Uniﬁed Hardware/Software Introduction.

John Wiley & Sons, Inc., New York, NY, USA, 1st

edition.

VersionOne.Inc (2018). 12th annual state of agile report.

Technical report.

Wolf, W. H. (1994). Hardware-software co-design of em-

bedded systems. Proceedings of the IEEE, 82(7):967–

989.

APPENDIX

Background and Experience

1. What’s your experience with agile software devel-

opment?

2. Tell me about your experience with embedded

system development?

3. What’s your experience with agile in embedded

system development (where you have the hard-

ware, software development teams working in

parallel)?

4. From your experience, have you experienced with

communication challenge between diverse mem-

bers?

The Sync-Up Process

1. Can you name and explain the major beneﬁts you

have observed in the Sync-Up Process?

2. Can you name and explain brieﬂy any deﬁciency

you have observed in the Sync-Up Process?

3. Do you have any suggestions to improve the Sync-

Up Process?

4. Is there anything else you would like to mention

about this process?

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development
