Deep Learning Approach to Diabetic Retinopathy Detection

Borys Tymchenko

1 a

, Philip Marchenko

2 b

and Dmitry Spodarets

3 c

Institute of Computer Systems, Odessa National Polytechnic University, Shevchenko av. 1, Odessa, Ukraine

Department of Optimal Control and Economical Cybernetics, Faculty of Mathematics, Physics and Information

Technology, Odessa I.I. Mechnikov National University, Dvoryanskaya str. 2, Odessa, Ukraine

VITech Lab, Rishelevska St, 33, Odessa, Ukraine

Keywords:

Deep Learning, Diabetic Retinopathy, Deep Convolutional Neural Network, Multi-target Learning, Ordinal

Regression, Classiﬁcation, SHAP, Kaggle, APTOS.

Abstract:

Diabetic retinopathy is one of the most threatening complications of diabetes that leads to permanent blindness

if left untreated. One of the essential challenges is early detection, which is very important for treatment

success. Unfortunately, the exact identiﬁcation of the diabetic retinopathy stage is notoriously tricky and

requires expert human interpretation of fundus images. Simpliﬁcation of the detection step is crucial and

can help millions of people. Convolutional neural networks (CNN) have been successfully applied in many

adjacent subjects, and for diagnosis of diabetic retinopathy itself. However, the high cost of big labeled

datasets, as well as inconsistency between different doctors, impede the performance of these methods. In

this paper, we propose an automatic deep-learning-based method for stage detection of diabetic retinopathy

by single photography of the human fundus. Additionally, we propose the multistage approach to transfer

learning, which makes use of similar datasets with different labeling. The presented method can be used

as a screening method for early detection of diabetic retinopathy with sensitivity and speciﬁcity of 0.99 and

is ranked 54 of 2943 competing methods (quadratic weighted kappa score of 0.925466) on APTOS 2019

Blindness Detection Dataset (13000 images).

1 INTRODUCTION

Diabetic retinopathy (DR) is one of the most threat-

ening complications of diabetes in which damage oc-

curs to the retina and causes blindness. It damages the

blood vessels within the retinal tissue, causing them

to leak ﬂuid and distort vision. Along with diseases

leading to blindness, such as cataracts and glaucoma,

DR is one of the most frequent ailments, according to

the US, UK, and Singapore statistics (NCHS, 2019;

NCBI, 2018; SNEC, 2019).

DR progresses with four stages:

• Mild non-proliferative retinopathy, the earliest

stage, where only microaneurysms can occur;

• Moderate non-proliferative retinopathy, a stage

which can be described by losing the blood ves-

sels’ ability of blood transportation due to their

distortion and swelling with the progress of the

https://orcid.org/0000-0002-2678-7556

https://orcid.org/0000-0001-9995-9454

https://orcid.org/0000-0001-6499-4575

disease;

• Severe non-proliferative retinopathy results in de-

prived blood supply to the retina due to the in-

creased blockage of more blood vessels, hence

signaling the retina for the growing of fresh blood

vessels;

• Proliferative diabetic retinopathy is the advanced

stage, where the growth features secreted by the

retina activate proliferation of the new blood ves-

sels, growing along inside covering of retina in

some vitreous gel, ﬁlling the eye.

Each stage has its characteristics and particular

properties, so doctors possibly could not take some

of them into account, and thus make an incorrect di-

agnosis. So this leads to the idea of creation of an

automatic solution for DR detection.

At least 56% of new cases of this disease could be

reduced with proper and timely treatment and mon-

itoring of the eyes (Rohan T, 1989). However, the

initial stage of this ailment has no warning signs, and

it becomes a real challenge to detect it on the early

start. Moreover, well-trained clinicians sometimes

Tymchenko, B., Marchenko, P. and Spodarets, D.

Deep Learning Approach to Diabetic Retinopathy Detection.

DOI: 10.5220/0008970805010509

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 501-509

ISBN: 978-989-758-397-1; ISSN: 2184-4313

501

could not manually examine and evaluate the stage

from diagnostic images of a patient’s fundus (accord-

ing to Google’s research (Krause et al., 2017), see

Figure 1). At the same time, doctors will most of-

ten agree when lesions are apparent. Furthermore,

existing ways of diagnosing are quite inefﬁcient due

to their duration time, and the number of ophthalmol-

ogists included in patient’s problem solution. Such

sources of disagreement cause wrong diagnoses and

unstable ground-truth for automatic solutions, which

were provided to help in the research stage.

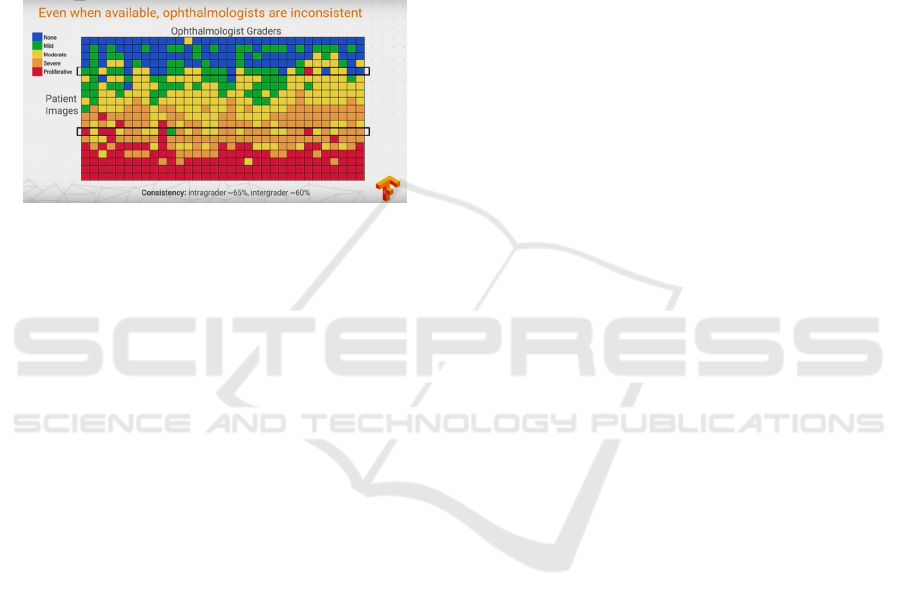

Figure 1: Google showed that ophtalmologists’ diagnoses

differ for same fundus image. Best viewed in color.

Thus, algorithms for DR detection began to ap-

pear. The ﬁrst algorithms were based on different

classical algorithms from computer vision and set-

ting thresholds (Michael D. Abrmoff and Quellec,

2010; Christopher E.Hann, 2009; Nathan Silberman

and Subramanian, 2010). Nevertheless, in the past

few years, deep learning approaches have proved their

superiority over other algorithms in tasks of classiﬁ-

cation and object detection (Harry Pratt, 2016). In

particular, convolutional neural networks (CNN) have

been successfully applied in many adjacent subjects

and for diagnosis of diabetic retinopathy itself (Shao-

hua Wan, 2018; Harry Pratt, 2016).

In 2019, APTOS (Asia Paciﬁc Tele-

Ophthalmology Society) and competition ML

platform Kaggle challenged ML and DL researchers

to develop a ﬁve-class DR automatic diagnosing solu-

tion (APTOS 2019 Blindness Detection Dataset). In

this paper, we propose the transfer learning approach

and an automatic method for detection of the stage

of diabetic retinopathy by single photography of the

human fundus. This approach is able to learn useful

features even from a noisy and small dataset and

could be used as a DR stages screening method in

automatic solutions. Also, this method was ranked 54

of 2943 different methods on APTOS 2019 Blindness

Detection Competition and achieved the quadratic

weighted kappa score of 0.92546.

2 RELATED WORK

Many research efforts have been devoted to the prob-

lem of early diabetic retinopathy detection. First of

all, researchers were trying to use classical methods

of computer vision and machine learning to provide

a suitable solution to this problem. For instance,

Priya et al. (Priya and Aruna, 2012) proposed a

computer-vision-based approach for the detection of

diabetic retinopathy stages using color fundus images.

They tried to extract features from the raw image, us-

ing the image processing techniques, and fed them

to the SVM for binary classiﬁcation and achieved a

sensitivity of 98%, speciﬁcity 96%, and accuracy of

97.6% on a testing set of 250 images. Also, other re-

searchers tried to ﬁt other models for multiclass clas-

siﬁcation, e.g., applying PCA to images and ﬁtting

decision trees, naive Bayes, or k-NN (Conde et al.,

2012) with best results 73.4% of accuracy, and 68.4%

for F-measure while using a dataset of 151 images

with different resolutions.

With the growing popularity of deep learning-

based approaches, several methods that apply CNNs

to this problem appeared. Pratt et al. (Harry Pratt,

2016) developed a network with CNN architecture

and data augmentation, which can identify the intri-

cate features involved in the classiﬁcation task such

as micro-aneurysms, exudate, and hemorrhages in the

retina and consequently provide a diagnosis automat-

ically and without user input. They achieved a sen-

sitivity of 95% and an accuracy of 75% on 5,000

validation images. Also, there are other works on

CNNs from other researchers (Carson Lam and Lind-

sey, 2018; Yung-Hui Li and Chung, 2019). It is use-

ful to note that Asiri et al. reviewed a signiﬁcant

amount of methods and datasets available, highlight-

ing their pros and cons (Asiri et al., 2018). Besides,

they pointed out the challenges to be addressed in de-

signing and learning about efﬁcient and robust deep-

learning algorithms for various problems in DR diag-

nosis and drew attention to directions for future re-

search.

Other researchers also tried to make transfer learn-

ing with CNN architectures. Hagos et al. (Hagos

and Kant, 2019) tried to train InceptionNet V3 for 5-

class classiﬁcation with pretrain on ImageNet dataset

and achieved accuracy of 90.9%. Sarki et al. (Ru-

bina Sarki, 2019) tried to train ResNet50, Xception

Nets, DenseNets and VGG with ImageNet pretrain

and achieved best accuracy of 81.3%. Both teams

of researchers used datasets, which were provided by

APTOS and Kaggle.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

502

3 PROBLEM STATEMENT

3.1 Datasets

The image data used in this research was taken from

several datasets. We used an open dataset from Kag-

gle Diabetic Retinopathy Detection Challenge 2015

(EyePACs, 2015) for pretraining our CNNs. This

dataset is the largest available publicly. It consists

of 35126 fundus photographs for left and right eyes

of American citizens labeled with stages of diabetic

retinopathy:

• No diabetic retinopathy (label 0)

• Mild diabetic retinopathy (label 1)

• Moderate diabetic retinopathy (label 2)

• Severe diabetic retinopathy (label 3)

• Proliferative diabetic retinopathy (label 4)

In addition, we used other smaller datasets: In-

dian Diabetic Retinopathy Image Dataset (IDRiD)

(Sahasrabuddhe and Meriaudeau, 2018), from which

we used 413 photographs of the fundus, and MES-

SIDOR (Methods to Evaluate Segmentation and In-

dexing Techniques in the ﬁeld of Retinal Ophthal-

mology) (Decencire et al., 2014) dataset, from which

we used 1200 fundus photographs. As the origi-

nal MESSIDOR dataset has different grading from

other datasets, we used the version that was relabeled

to standard grading by a panel of ophthalmologists

(Google Brain, 2018).

As the evaluation was performed on Kaggle AP-

TOS 2019 Blindness Detection (APTOS2019) dataset

(APTOS, 2019), we had access only to the training

part of it. The full dataset consists of 18590 fundus

photographs, which are divided into 3662 training,

1928 validation, and 13000 testing images by organiz-

ers of Kaggle competition. All datasets have similar

distributions of classes; distribution for APTOS2019

is shown in Figure 2.

As different datasets have a similar distribution,

we considered it as a fundamental property of this

type of data. We did no modiﬁcations to the dataset

distribution (undersampling, oversampling, etc.).

The smallest native size among all of the datasets

is 640x480. Sample image from APTOS2019 is

shown in Figure 3.

3.2 Evaluation Metric

In this research, we used quadratic weighted Co-

hen’s kappa score as our main metric. Kappa score

measures the agreement between two ratings. The

quadratic weighted kappa is calculated between the

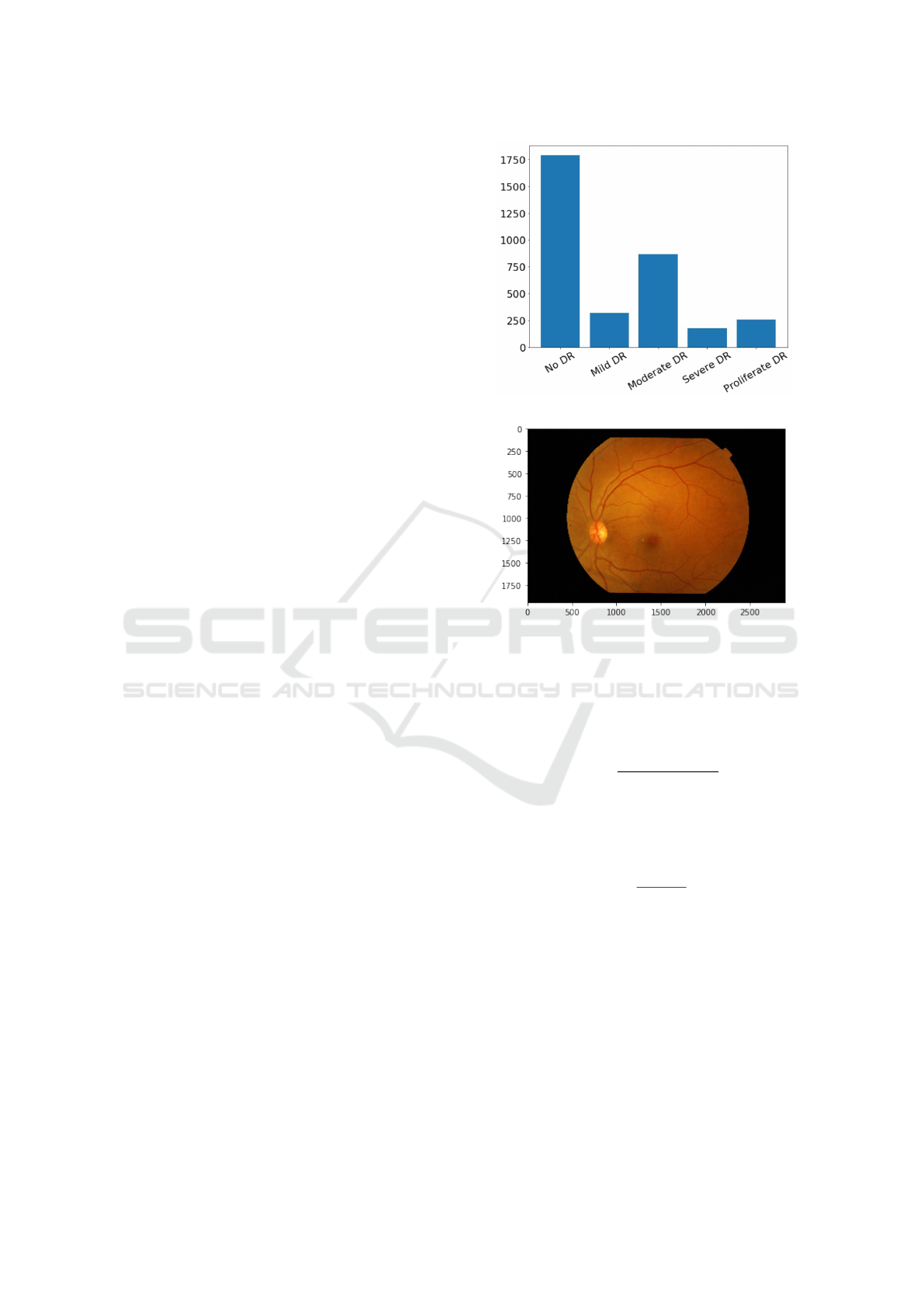

Figure 2: Classes distribution in APTOS2019 dataset.

Figure 3: Sample of fundus photo from the dataset.

scores assigned by the human rater and the predicted

scores. This metric varies from -1 (complete disagree-

ment between raters) to 1 (complete agreement be-

tween raters). The deﬁnition of κ is:

κ = 1 −

∑

i=1

∑

j=1

i j

∑

i=1

∑

j=1

i j

, (1)

where k is the number of categories, o

i j

, and e

i j

are elements in the observed, and expected matrices

respectively. w

i j

is calculated as following:

i j

(i − j)

(k − 1)

, (2)

Due to Cohens Kappa properties, researchers must

carefully interpret this ratio. For instance, if we con-

sider two pairs of raters with the same percentage of

an agreement, but different proportions of ratings, we

should know, that it will drastically affect the Kappa

ratio.

Another problem is the number of codes: as the

number of codes grows, Kappa becomes higher. Also,

Kappa may be low even though there are high levels

of agreement, and even though individual ratings are

accurate. All things mentioned above make Kappa a

volatile ratio to analyze.

Deep Learning Approach to Diabetic Retinopathy Detection

503

The main reason to use the Kappa ratio is that

we do not have access to labels of validation and test

datasets. Kappa value for these datasets is obtained by

submitting our model and runner’s code to the check-

ing system on the Kaggle site. Moreover, we do not

have explicit access to images from the test dataset.

Along with the Kappa score, we calculate macro

F1- score, accuracy, sensitivity, speciﬁcity on holdout

dataset of 736 images taken from APTOS2019 train-

ing data.

4 METHOD

The diabetic retinopathy detection problem can be

viewed from several angles: as a classiﬁcation prob-

lem, as a regression problem, and as an ordinal regres-

sion problem (Ananth and Kleinbaum, 1997). This is

possible because stages of the disease come sequen-

tially.

4.1 Preprocessing

Model training and validation were performed with

preprocessed versions of the original images. The

preprocessing consisted of image cropping followed

by resizing.

Due to the way APTOS2019 was collected, there

are spurious correlations between the disease stage

and several image meta-features, e.g., resolution, crop

type, zoom level, or overall brightness. Correlation

matrix is shown in Figure 4.

To make CNN be able not to overﬁt to these fea-

tures and to reduce correlations between image con-

tent and its meta-features, we used a high amount of

augmentations. Additionally, as we do not have ac-

cess to the test dataset both in the competition and in

real life, we decided to show as much data variance as

possible to models.

4.2 Data Augmentation

We used online augmentations, at least one augmenta-

tion was applied to the training image before inputting

to the CNN. We used following augmentations from

Albumentations (A. Buslaev and Kalinin, 2018) li-

brary: optical distortion, grid distortion, piecewise

afﬁne transform, horizontal ﬂip, vertical ﬂip, ran-

dom rotation, random shift, random scale, a shift of

RGB values, random brightness and contrast, additive

Gaussian noise, blur, sharpening, embossing, random

gamma, and cutout (Devries and Taylor, 2017).

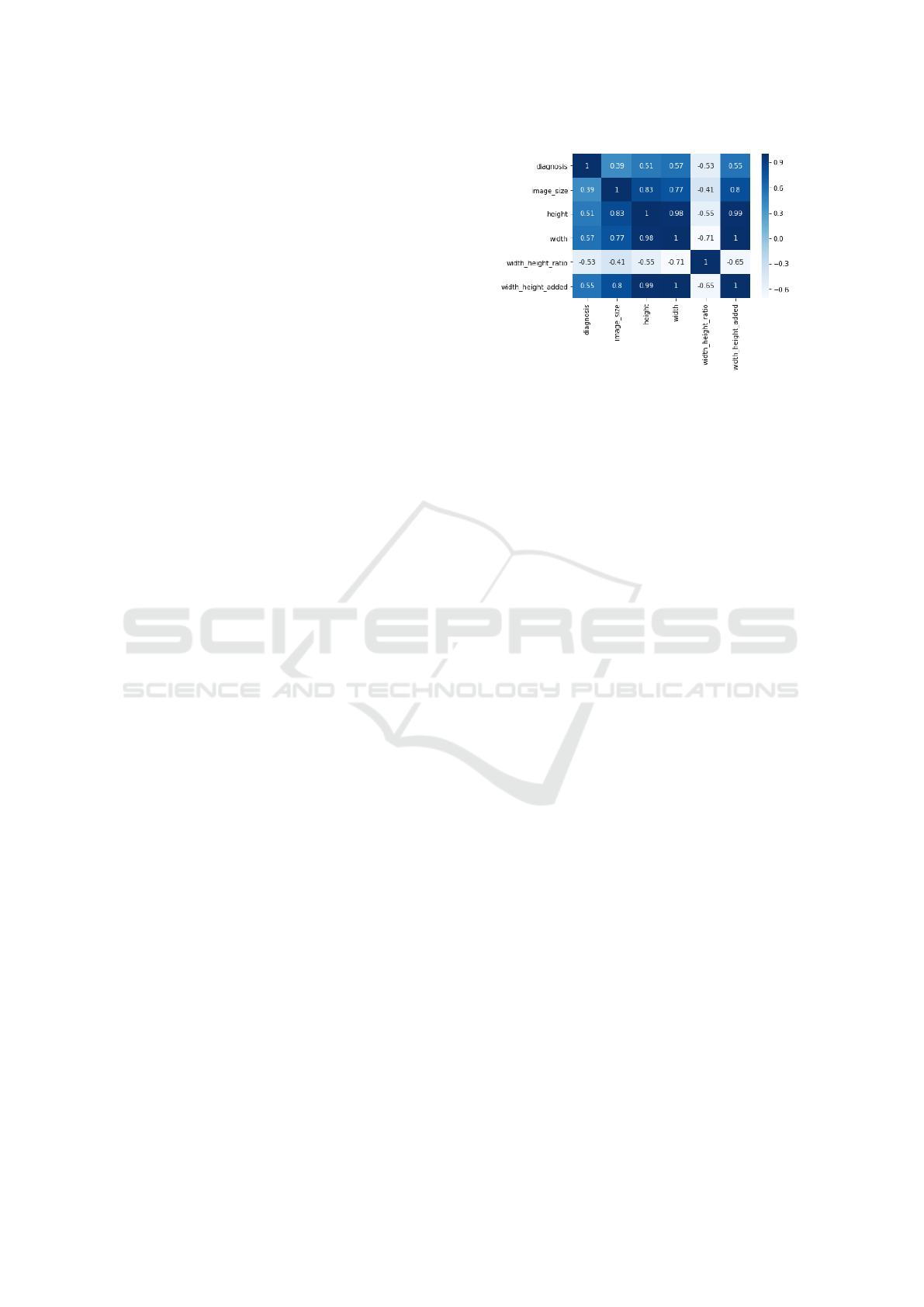

Figure 4: Spurious correlations between meta-features and

diagnosis.

4.3 Network Architecture

We aim to classify each fundus photograph accu-

rately. We build our neural networks using conven-

tional deep CNN architecture, which has a feature ex-

tractor and smaller decoder for a speciﬁc task (head).

However, training the encoder from scratch is dif-

ﬁcult, especially given the small amount of training

data. Thus, we use an Imagenet-pretrained CNNs

as initialization for encoder (Iglovikov and Shvets,

2018).

We propose the multi-task learning approach to

detect diabetic retinopathy. We use three decoders.

Each is trained to solve its task based on features ex-

tracted with CNN backbone:

• classiﬁcation head,

• regression head,

• ordinal regression head.

Here, classiﬁcation head outputs a one-hot en-

coded vector, where the presence of each stage is rep-

resented as 1. Regression head outputs real number

in the range [0, 4.5), which is then rounded to an in-

teger that represents the disease stage. For the ordi-

nal regression head, we use the approach described in

(Cheng, 2007). Brieﬂy, if the data point falls into cat-

egory k, it automatically falls into all categories from

0 to k − 1. So, this head aims to predict all categories

up to the target. The ﬁnal prediction is obtained by

ﬁtting a linear regression model to outputs of three

heads. Neural network structure is shown in Figure 5.

We train all heads and the feature extractor jointly

in order to reduce training time. We keep the linear

regression model frozen until the post-training stage.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

504

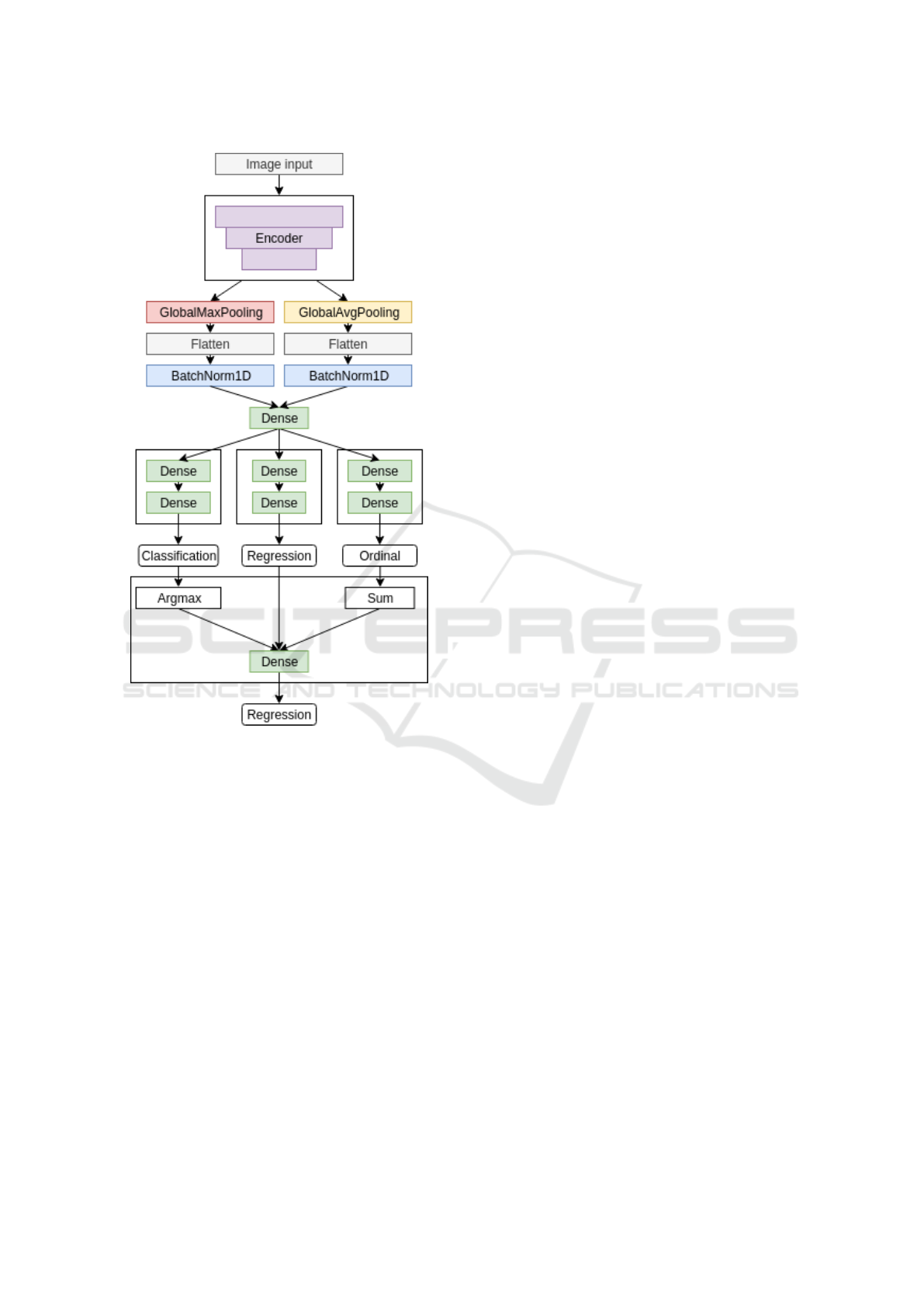

Figure 5: Three-head CNN structure.

4.4 Training Process

We use a multi-stage training process with different

settings and datasets in every stage.

4.4.1 Pretraining

We found out that labeling schemes are inconsistent

between datasets, so we decided to use the largest

one (2015 data) to pretrain our CNNs. Using trans-

fer learning is possible because the natural features of

the diabetic retinopathy are consistent between differ-

ent people and do not depend on the dataset.

In addition, different datasets are collected on dif-

ferent equipment. Incorporation of this knowledge

into the model increases its ability to generalize and

elevates the importance of natural features by reduc-

ing sensitivity to instrument noise.

We initialize feature extractor with weights from

Imagenet-pretrained CNN. Heads are initialized with

random weights (He et al., 2015). We train a model

for 20 epochs on 2015 data with minibatch-SGD and

cosine-annealing learning rate schedule (Loshchilov

and Hutter, 2016).

Every head is minimizing its loss function: cross-

entropy for classiﬁcation head, binary cross-entropy

for ordinal regression head, and mean absolute error

for regression head.

After pretraining, we use encoder weights as ini-

tialization for subsequent stages. In our experiments,

we observed the consistent improvement of metrics

when we substituted weights of heads with random

initialization before the main training, so we discard

trained heads.

4.4.2 Main Training

The main training is performed on 2019 data, IDRID,

and MESSIDOR combined. Starting with weights ob-

tained in the pretraining stage, we performed 5-fold

cross-validation and evaluated models on the holdout

set.

At this stage, we change loss functions for heads:

Focal Loss (Lin et al., 2017) for classiﬁcation head,

binary Focal Loss (Lin et al., 2017) for ordinal re-

gression head and mean-squared error for regression

head.

We trained each fold for 75 epochs using Recti-

ﬁed Adam optimizer (Liyuan Liu, 2019), with cosine

annealing learning rate schedule. To save pretrained

weights while new heads are in a random state, we

disabled training (froze) of the encoder for ﬁve epochs

while training heads only.

During the main training, we monitor separability

in feature space generated by the encoder. We gener-

ate 2-dimensional embeddings with T-SNE (van der

Maaten and Hinton, 2008) and visualize them in the

validation phase for manual control of training perfor-

mance. Figure 6 shows T-SNE of embeddings labeled

with ground truth data and predicted classes. From

the picture, it can be seen that images with no signs

of DR are separable with a large margin from other

images that have any sign of DR. Additionally, stages

of DR come sequentially in embedding space, which

corresponds to semantics in real diagnoses.

4.4.3 Post-training

In the post-training stage, we only ﬁt the linear regres-

sion model to outputs of different heads.

We found it essential to keep it from updating dur-

ing previous stages because otherwise, it converges

to the suboptimal local minima with weights of two

heads close to zero. These coefﬁcients prevent gra-

Deep Learning Approach to Diabetic Retinopathy Detection

505

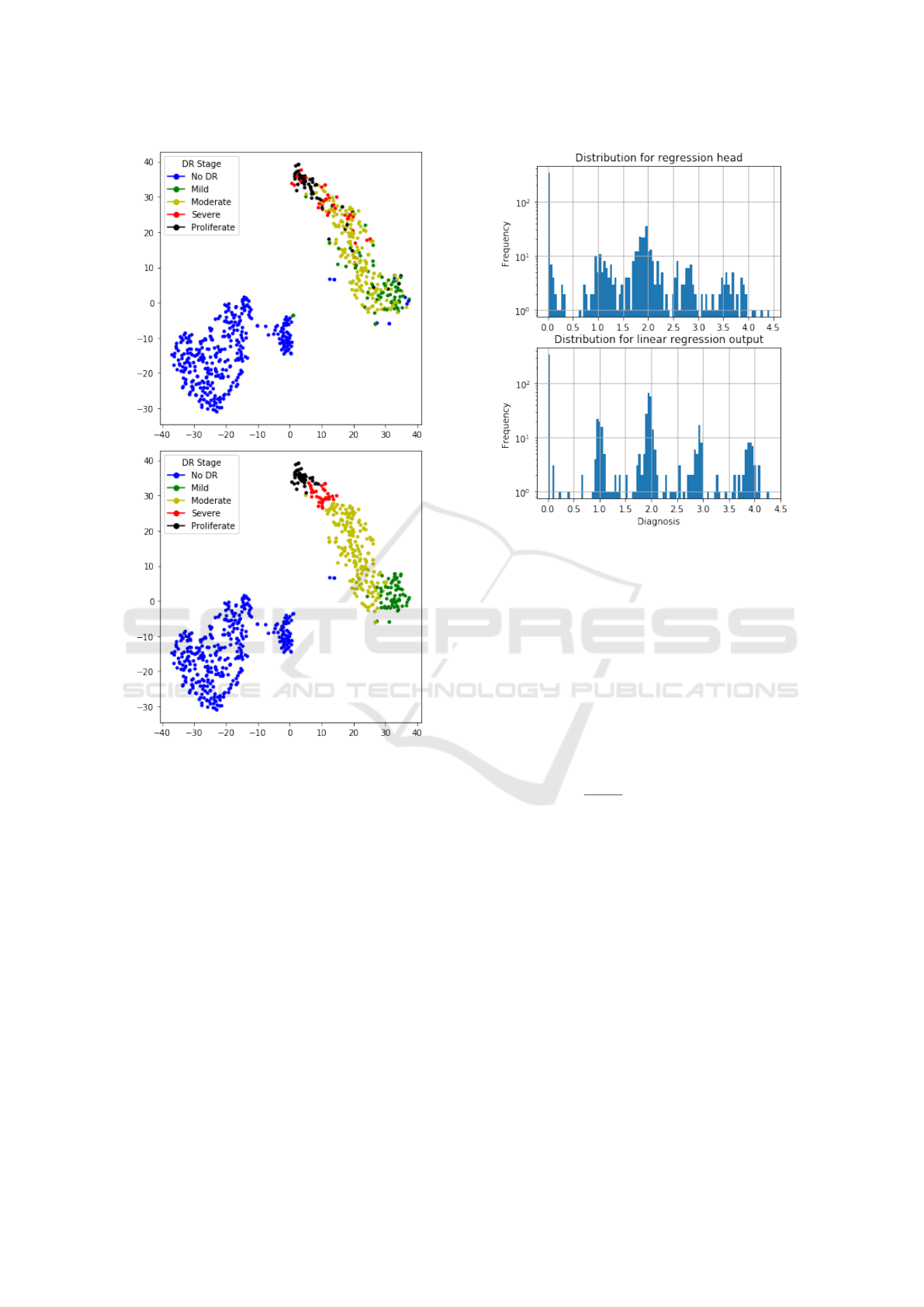

Figure 6: Feature embeddings with T-SNE. Ground truth

(top) and predicted (bottom) classes. Best viewed in color.

dients of updating corresponding heads’ weights and

further discourage network of converging.

Initial weights for every head were set to 1/3 and

then trained for ﬁve epochs to minimize mean squared

error function.

Difference between prediction distributions of re-

gression head and linear regression outputs is show

on Figure 7.

4.4.4 Regularization

At training time, we regularize our models for bet-

ter robustness. We use conventional methods, e.g.,

weight decay (Krogh and Hertz, 1992) and dropout.

Also, we penalize the network for overconﬁdent pre-

dictions by using label smoothing (Szegedy et al.,

2016).

Additionally to label smoothing for classiﬁca-

Figure 7: Output distributions for regression head and com-

bination of heads.

tion and ordinal regression heads, we propose label

smoothing scheme for linear regression head. It can

be used if it is known that underlying targets are dis-

crete. We add random uniform noise to discrete tar-

gets:

= T + ∆

∆ ∼ U(a,b)

Where T

is smoothed target label, T is the orig-

inal label, and U is the uniform distribution. In this

case, −a = b =

−T

i+1

and T

i+1

are neighbouring

discrete target labels.

Applying this smoothing scheme, we could reduce

the importance of wrong labeling.

4.4.5 Ensembling

For ﬁnal scoring, we ensembled models with 3

encoder architectures at different resolution that

scored best on the holdout dataset : EfﬁcientNet-B4

(380x380), EfﬁcientNet-B5 (456x456) (Tan and Le,

2019), SE-ResNeXt50 (380x380 and 512x512) (Hu

et al., 2017).

Our best performing solution is an ensemble of 20

models (4 architectures x 5 folds) with test-time aug-

mentations (horizontal ﬂip, vertical ﬂip, transpose,

rotate, zoom). Overall, this scheme generated 200

predictions per one fundus image. These predictions

were averaged with a 0.25-trimmed mean to eliminate

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

506

outliers from possibly overﬁtted models. A trimmed

mean is used to ﬁlter out outliers to reduce variance.

We used Catalyst framework (Kolesnikov, 2018)

based on PyTorch (Paszke et al., 2017) with GPU

support. Evaluation of the whole ensemble was per-

formed on Nvidia P100 GPU in 9 hours, processing

2.5 seconds per image.

5 RESULTS

As experimental results, we provide two tables with

metrics, which were mentioned in the Evaluation

paragraph. The ﬁrst table is about results that we have

got from local validation without TTA (Table 1), and

the second is with TTA (Table 2).

Our test stage was split into two parts: local test-

ing and Kaggle testing. As we found locally, the en-

sembling method is the best one, and we evaluated it

on Kaggle validation and test datasets.

On a local dataset of 736 images, ensembling

with TTA performed slightly worse than without it.

Ensemble with TTA performed better on the testing

dataset of 13000 images as it has a better ability to

generalize on unseen images.

Ensembles scored 0.818462/0.924746 valida-

tion/test QWK score for a trimmed mean ensemble

without TTA and 0.826567/0.925466 QWK score for

trimmed mean ensemble with TTA.

Additionally, we evaluated binary classiﬁcation

(DR/No DR) to check the best model’s quality as a

screening method (see Tables 1 and 2, last row)

The ensemble with TTA showed its stability in the

ﬁnal scoring, keeping consistent rank (58 and 54 of

2943) on validation and testing datasets, respectively.

6 INTERPRETATION

In medical applications, it is important to be able to

interpret models’ predictions. As a good performance

of the validation dataset can be a measure to select the

best-trained model for production, it is insufﬁcient for

real-life use of this model.

By using SHAP (Shapley Additive exPlanations)

(Lundberg and Lee, 2017), it is possible to visualize

features that contribute to the assessment of the dis-

ease stage. SHAP unites several previous methods

and represents the only possible consistent and locally

accurate additive feature attribution method based.

Using SHAP allows ensuring that the model learns

useful features during training, as well as uses correct

features at inference time. Furthermore, in uncertain

cases, visualization of salient features can assist the

physician to focus on regions of interest where fea-

tures are the most noticeable.

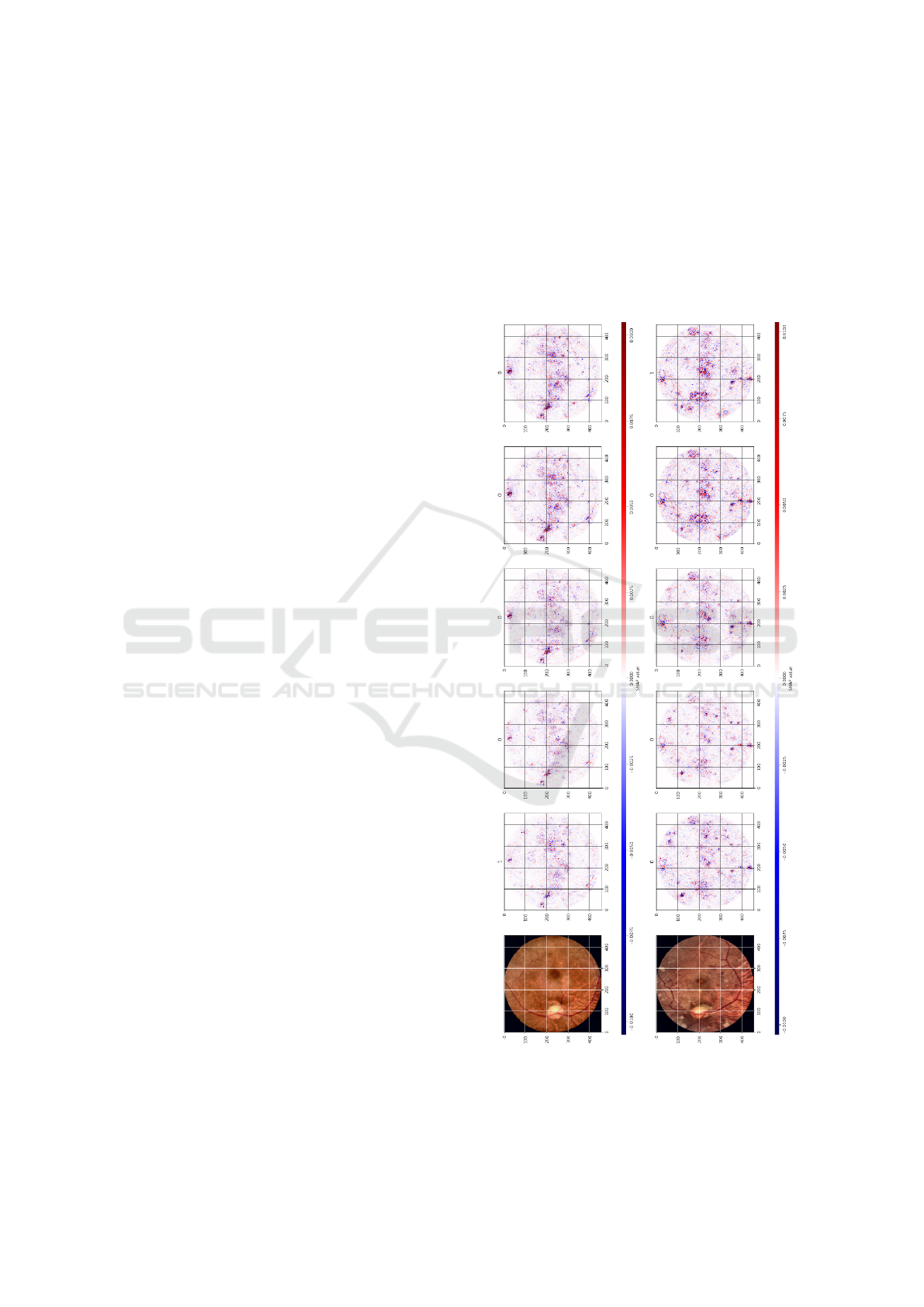

In Figure 8, we show an example visualization of

SHAP values for one of the models from the ensem-

ble. Red color denotes features that increase the out-

put value for a given class, and blue color denotes fea-

tures that decrease the output value for a given class.

Overall intensity of the features denotes the saliency

of the given region for the classiﬁcation process.

Figure 8: Shap analysis of sample images. Best viewed in

color.

Deep Learning Approach to Diabetic Retinopathy Detection

507

Table 1: Results of experiments and metrics tracked, without using TTA.

Model QWK Macro F1 Accuracy Sensitivity Speciﬁcity

EfﬁcientNet-B4 0.965 0.811 0.903 0.812 0.976

EfﬁcientNet-B5 0.963 0.815 0.907 0.807 0.977

SE-ResNeXt50 (512x512) 0.969 0.854 0.924 0.871 0.982

SE-ResNeXt50 (380x380) 0.960 0.788 0.892 0.785 0.974

Ensemble (mean) 0.968 0.840 0.921 0.8448 0.981

Ensemble (trimmed mean) 0.971 0.862 0.929 0.860 0.983

Ensemble (trimmed mean, binary classiﬁcation) 0.981 0.989 0.986 0.991 0.991

Table 2: Results of experiments and metrics tracked, with using TTA.

Model QWK Macro F1 Accuracy Sensitivity Speciﬁcity

EfﬁcientNet-B4 0.966 0.806 0.902 0.809 0.977

EfﬁcientNet-B5 0.963 0.812 0.902 0.807 0.976

SE-ResNeXt50 (512x512) 0.971 0.853 0.928 0.868 0.983

SE-ResNeXt50 (380x380) 0.962 0.799 0.899 0.798 0.976

Ensemble (mean) 0.968 0.827 0.917 0.828 0.980

Ensemble (trimmed mean) 0.969 0.840 0.919 0.840 0.981

Ensemble (trimmed mean, binary classiﬁcation) 0.986 0.993 0.993 0.993 0.993

7 CONCLUSION

In this paper, we proposed the multistage transfer

learning approach and an automatic method for de-

tection of the stage of diabetic retinopathy by single

photography of the human fundus. We have used an

ensemble of 3 CNN architectures (EfﬁcientNet-B4,

EfﬁcientNet-B5, SE- ResNeXt50) and made transfer

learning for our ﬁnal solution. The experimental re-

sults show that the proposed method achieves high

and stable results even with unstable metric. The main

advantage of this method is that it increases general-

ization and reduces variance by using an ensemble of

the networks, pretrained on a large dataset, and ﬁne-

tuned on the target dataset. The future work can ex-

tend this method with the calculation of SHAP for

the whole ensemble, not only for a particular net-

work, and with more accurate hyperparameter opti-

mization. Besides, we can do experiments using pre-

trained encoders on other connected to eye ailments

tasks. Also, it is possible to investigate meta-learning

(Nichol et al., 2018) with these models, but realized

that it requires the separate in-depth research.

REFERENCES

A. Buslaev, A. Parinov, E. K. V. I. I. and Kalinin, A. A.

(2018). Albumentations: fast and ﬂexible image aug-

mentations. ArXiv e-prints.

Ananth, C. V. and Kleinbaum, D. G. (1997). Regression

models for ordinal responses: a review of methods and

applications. International Journal of Epidemiology,

26(6):1323–1333.

APTOS (2019). APTOS 2019 blindness detection. Ac-

cessed: 2019-10-20.

Asiri, N., Hussain, M., and Aboalsamh, H. A. (2018).

Deep learning based computer-aided diagnosis sys-

tems for diabetic retinopathy: A survey. CoRR,

abs/1811.01238.

Carson Lam, Darvin Yi, M. G. and Lindsey, T. (2018). Au-

tomated detection of diabetic retinopathy using deep

learning.

Cheng, J. (2007). A neural network approach to ordinal

regression. CoRR, abs/0704.1028.

Christopher E.Hann, J. Geoffrey Chase, J. A. R. D. H. G.

M. S. (2009). Diabetic retinopathy screening using

computer vision.

Conde, P., de la Calleja, J., Medina, M., and Benitez Ruiz,

A. B. (2012). Application of machine learning to clas-

sify diabetic retinopathy.

Decencire, E., Zhang, X., Cazuguel, G., Lay, B., Coch-

ener, B., Trone, C., Gain, P., Ordonez, R., Massin,

P., Erginay, A., Charton, B., and Klein, J.-C. (2014).

Feedback on a publicly distributed database: the

messidor database. Image Analysis & Stereology,

33(3):231–234.

Devries, T. and Taylor, G. W. (2017). Improved regular-

ization of convolutional neural networks with cutout.

CoRR, abs/1708.04552.

EyePACs (2015). Diabetic retinopathy detection. Accessed:

2019-10-20.

Google Brain (2018). Messidor-2 diabetic retinopathy

grades. Accessed: 2019-10-20.

Hagos, M. T. and Kant, S. (2019). Transfer learning based

detection of diabetic retinopathy from small dataset.

CoRR, abs/1905.07203.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

508

Harry Pratt, Frans Coenen, D. M. B. S. P. H. Y. Z. (2016).

Convolutional neural networks for diabetic retinopa-

thy.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Delving deep

into rectiﬁers: Surpassing human-level performance

on imagenet classiﬁcation. CoRR, abs/1502.01852.

Hu, J., Shen, L., and Sun, G. (2017). Squeeze-and-

excitation networks. CoRR, abs/1709.01507.

Iglovikov, V. and Shvets, A. (2018). Ternausnet: U-net with

VGG11 encoder pre-trained on imagenet for image

segmentation. CoRR, abs/1801.05746.

Kolesnikov, S. (2018). Reproducible and fast dl and rl.

Krause, J., Gulshan, V., Rahimy, E., Karth, P., Widner, K.,

Corrado, G. S., Peng, L., and Webster, D. R. (2017).

Grader variability and the importance of reference

standards for evaluating machine learning models for

diabetic retinopathy. CoRR, abs/1710.01711.

Krogh, A. and Hertz, J. A. (1992). A simple weight decay

can improve generalization. In Moody, J. E., Hanson,

S. J., and Lippmann, R. P., editors, Advances in Neu-

ral Information Processing Systems 4, pages 950–957.

Morgan-Kaufmann.

Lin, T., Goyal, P., Girshick, R. B., He, K., and Doll

ar, P.

(2017). Focal loss for dense object detection. CoRR,

abs/1708.02002.

Liyuan Liu, Haoming Jiang, P. H. W. C. X. L. J. G. J. H.

(2019). On the variance of the adaptive learning rate

and beyond. CoRR, abs/1908.03265.

Loshchilov, I. and Hutter, F. (2016). SGDR: stochastic gra-

dient descent with restarts. CoRR, abs/1608.03983.

Lundberg, S. M. and Lee, S.-I. (2017). A uniﬁed ap-

proach to interpreting model predictions. In Guyon, I.,

Luxburg, U. V., Bengio, S., Wallach, H., Fergus, R.,

Vishwanathan, S., and Garnett, R., editors, Advances

in Neural Information Processing Systems 30, pages

4765–4774. Curran Associates, Inc.

Michael D. Abrmoff, Joseph M. Reinhardt, S. R. R. J. C. F.

V. B. M. M. N. and Quellec, G. (2010). Automated

early detection of diabetic retinopathy.

Nathan Silberman, Kristy Ahlrich, R. F. and Subramanian,

L. (2010). Case for automated detection of diabetic

retinopathy.

NCBI (2018). The economic impact of sight loss and blind-

ness in the uk adult population.

NCHS (2019). Eye disorders and vision loss among u.s.

adults aged 45 and over with diagnosed diabetes.

Nichol, A., Achiam, J., and Schulman, J. (2018).

On ﬁrst-order meta-learning algorithms. CoRR,

abs/1803.02999.

Paszke, A., Gross, S., Chintala, S., Chanan, G., Yang, E.,

DeVito, Z., Lin, Z., Desmaison, A., Antiga, L., and

Lerer, A. (2017). Automatic differentiation in Py-

Torch. In NIPS Autodiff Workshop.

Priya, R. and Aruna, P. (2012). Svm and neural network

based diagnosis of diabetic retinopathy.

Rohan T, Frost C, W. N. (1989). Prevention of blindness

by screening for diabetic retinopathy: a quantitative

assessment.

Rubina Sarki, Sandra Michalska, K. A. H. W. Y. Z.

(2019). Convolutional neural networks for mild di-

abetic retinopathy detection: an experimental study.

bioRxiv.

Sahasrabuddhe, P. P. S. P. R. K. M. K. G. D. V. and Meri-

audeau, F. (2018). Indian diabetic retinopathy image

dataset (idrid).

Shaohua Wan, Yan Liang, Y. Z. (2018). Deep convolutional

neural networks for diabetic retinopathy detection by

image classiﬁcation.

SNEC (2019). Singapore’s eye health.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wojna,

Z. (2016). Rethinking the inception architecture for

computer vision. In Proceedings of IEEE Conference

on Computer Vision and Pattern Recognition,.

Tan, M. and Le, Q. V. (2019). Efﬁcientnet: Rethink-

ing model scaling for convolutional neural networks.

cite arxiv:1905.11946Comment: Published in ICML

2019.

van der Maaten, L. and Hinton, G. (2008). Visualizing data

using t-SNE. Journal of Machine Learning Research,

9:2579–2605.

Yung-Hui Li, Nai-Ning Yeh, S.-J. C. and Chung, Y.-C.

(2019). Computer-assisted diagnosis for diabetic

retinopathy based on fundus images using deep con-

volutional neural network.

Deep Learning Approach to Diabetic Retinopathy Detection

509
