Controlling Image-stylization Techniques using Eye Tracking

Maximilian S

ochting and Matthias Trapp

Hasso Plattner Institute, Faculty of Digital Engineering, University of Potsdam, Germany

Keywords:

Eye-tracking, Image Abstraction, Image Processing, Artistic Image Stylization, Interactive Media.

Abstract:

With the spread of smart phones capable of taking high-resolution photos and the development of high-speed

mobile data infrastructure, digital visual media is becoming one of the most important forms of modern com-

munication. With this development, however, also comes a devaluation of images as a media form with the

focus becoming the frequency at which visual content is generated instead of the quality of the content. In this

work, an interactive system using image-abstraction techniques and an eye tracking sensor is presented, which

allows users to experience diverting and dynamic artworks that react to their eye movement. The underlying

modular architecture enables a variety of different interaction techniques that share common design principles,

making the interface as intuitive as possible. The resulting experience allows users to experience a game-like

interaction in which they aim for a reward, the artwork, while being held under constraints, e.g., not blinking.

The conscious eye movements that are required by some interaction techniques hint an interesting, possible

future extension for this work into the ﬁeld of relaxation exercises and concentration training.

1 INTRODUCTION

Motivation. The idea of an interactive system that

provides users with a sensation of a temporary visual

and aesthetic experience is not unprecedented. How-

ever, the proposed approach combines eye-tracking

technology and image-abstraction techniques with a

novel interaction paradigm (Figure 1). Instead of hav-

ing the users be in charge of the system, this ap-

proach aims to increase the value of the visual content

through instability and volatility. It aims at reversing

the power dynamic that usually exists between a user

and a technical device, in which the user can do al-

most everything with the tools he is provided with.

In the presented approach, the interactive system

takes charge and prompts the user to follow a certain

behavior and, if not successful, circumvent the result

“reward” by nudging the user into the pre-determined

behavior. Another use case of such volatile visual

content is the appreciation for an evolving artwork.

In contrast to still images, the interaction allows the

art to become more intriguing and provide more en-

joyment to observers.

Objective and Challenges. The main objective of

the presented approach is to create a unique interac-

tion experience between a user and the system, which

https://orcid.org/0000-0003-3861-5759

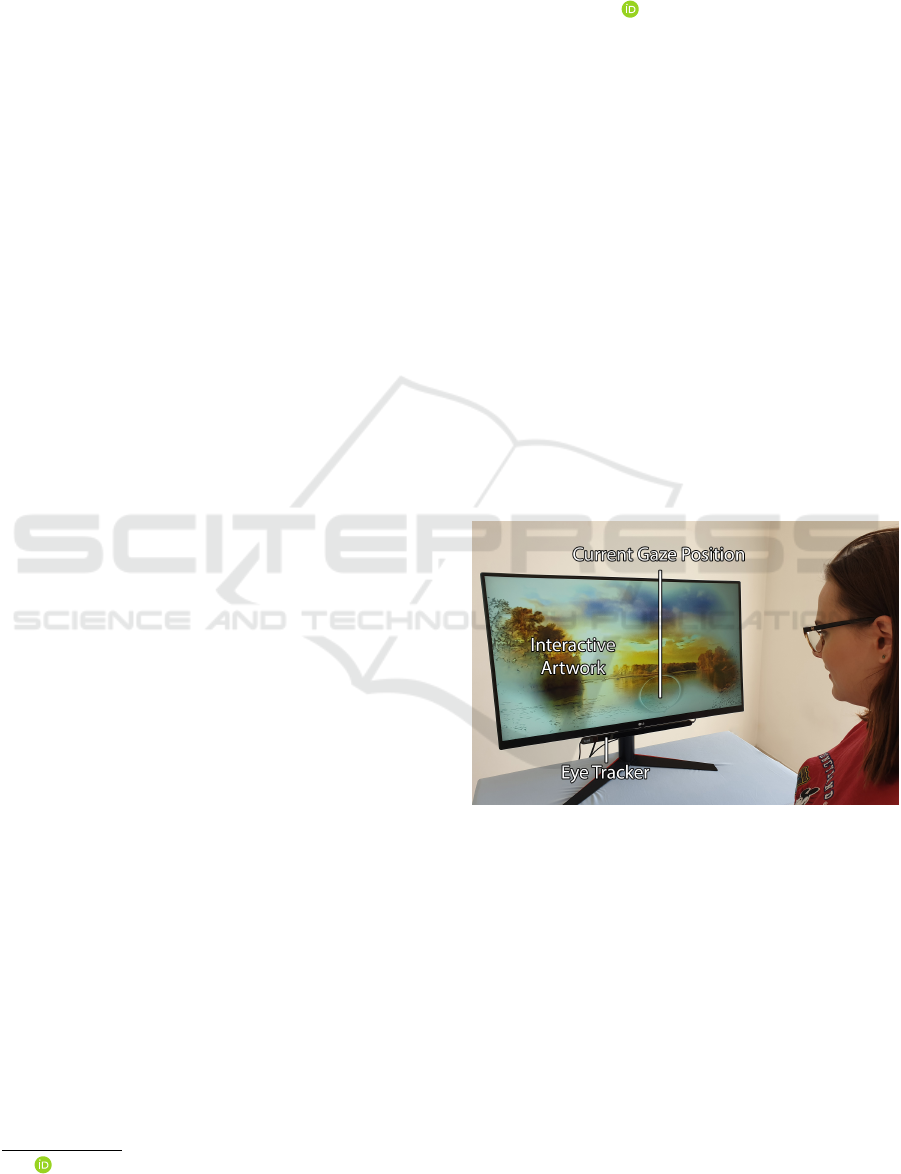

Figure 1: A user interacting with the system. The eye

tracker, mounted at the bottom-side of the monitor, records

the eye movement of the user. On the connected computer,

the application displays the computer-generated artwork,

which is inﬂuenced by the processed sensor inputs.

allows the user to participate in the creation of the pre-

sented, computer-transformed visual content. It aims

to create volatile artwork that is unique to each situa-

tion. Through the use of real-time sensors, i.e., espe-

cially eye tracking, the interaction tries to be as “fric-

tionless” and immersive as possible while also having

the option to constrain the user to a certain behavior,

e.g., not blinking for a certain amount of time, as a

game-like mechanic – in case it is desired by the cho-

sen interaction technique.

As part of this work, image processing for the pur-

Söchting, M. and Trapp, M.

Controlling Image-Stylization Techniques using Eye Tracking.

DOI: 10.5220/0008964500250034

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 2: HUCAPP, pages

25-34

ISBN: 978-989-758-402-2; ISSN: 2184-4321

pose of artistic stylization is used to give the system a

medium to interact with the user. Using the input from

the user, the system allows for aesthetically changes

in the artwork through global and local changes of

abstraction parameters, technique choice, and image

choice. This requires a high degree of customizabil-

ity of the image-abstraction techniques to allow for

the proposed interaction modes. For this work, a set

of different image-abstraction techniques that imitate

real mediums such as cartoon or watercolor ﬁltering

(Kyprianidis et al., 2013) have been implemented.

Contrary to the popular usage of eye trackers

for statistical purposes in ﬁelds such as market re-

search, the usage as a direct input device is not com-

mon. In a fundamental work (Zhai et al., 1999), Zhai

et al. observed that using a solely eye tracking-based

input method puts considerable strain on the user and

should be combined with other input methods to allow

for convenient interaction. However, since the goal of

the presented work is not convenient interaction but

an intensive, game-like environment with constraints

on user behavior, using only eye-tracker input and the

resulting user strain beneﬁts this basic paradigm of

the system by having the user “work” for his rewards.

Using real-time sensor data feeds to control the

choice of image-abstraction techniques and its respec-

tive parameter values or preset poses unique chal-

lenges. Capturing, managing and provisioning mul-

tiple sensor data streams in a real-time application re-

quires great care in the way the necessary concurrency

is handled, as it is a fundamental problem of computer

science. Furthermore, mapping the provided sensor

data to system behavior (interaction techniques) in

a dynamic and exchangeable manner necessitates a

ﬂexible data model and system that can provide these

changes during application run-time.

Approach and Contributions. The utilized image-

abstraction techniques used in this approach are based

on earlier works surrounding the topic of a platform-

independent format for image processing effects with

parametrization on multiple levels (D

urschmid et al.,

2017). Based on these approaches, a system for cap-

turing and processing sensor data and allowing inter-

action techniques to be implemented as an interface

between sensor data and image-abstraction was devel-

oped. Additionally, different interaction techniques

have been developed and tested. To summarize, this

paper makes the following contributions to the reader:

1. A concept for an interactive system that allows

users to collaborate with the system in order

to manipulate art work based on Graphics Pro-

cessing Unit (GPU)-accelerated, aesthetic image-

abstraction techniques.

2. A data format for interaction techniques and an

accommodating system architecture that allows to

process real time sensor data with exchangeable

interaction techniques in the presented system.

3. A set of interaction techniques, their concepts, im-

plementations and effects on users.

The remainder of this paper is structured as follows.

Section 2 reviews and discusses related work with

respect to interactive image processing and funda-

mentals of eye tracking-based interaction techniques.

Section 3 presents the concept of mapping sensor

data to interactions for image-abstraction, the interac-

tion techniques, and the technical conditions required.

Section 4 describes the parameterization of image

and video abstraction techniques (Section 4.1) and in

which way they are mapped to react to sensory inputs.

Section 5 describes implementation aspects regard-

ing the prototypical system and the image-abstraction

techniques. Section 6 discusses application and re-

sults of the presented approach. Finally, Section 7

concludes this paper and presents ideas for future re-

search.

2 RELATED WORK

Interactive Image-abstraction Techniques. As

part of this work, image processing for the purpose

of artistic stylization is used to give the system a

medium to interact with the user (Schwarz et al.,

2007). Through the input of the user, the system

allows for aesthetic changes in the artwork through

global and mask-based changes of effect parameters,

effect choice and image choice (Isenberg, 2016). This

requires a high degree of customization of the image-

abstraction effects in order to allow for the proposed

interaction.

Furthermore, the nature of the proposed system,

including the high-frequency eye tracking device be-

ing used to manipulate the image-abstraction tech-

niques, requires the system to be highly interactive

to prevent user frustration and hold up the immersion

of a ﬂuid interaction (Vandoren et al., 2008). In order

to use the described complex image stylization tech-

niques in a real-time system, different caching and

pre-loading mechanism are implemented. For this

work, a set of different, complex image-abstraction

techniques that imitate real mediums such as cartoon

or watercolor ﬁltering (DiVerdi et al., 2013) have been

implemented in the combination with multiple inter-

action techniques (Section 4). Other use cases for im-

age processing include business applications or med-

ical analysis.

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

Eye Tracking Interaction. Eye tracking has a long

history in medical and psychological research as a

tool for recording and studying human visual behav-

ior (Majaranta and Bulling, 2014). Eye tracking de-

vices have been previously used in experimental and

productive environments in various domains. One

prominent example is the ﬁeld of human-computer-

interaction, in which the usage of eye trackers serves

mainly two different purposes: immediate user inter-

action and statistical analysis.

In immediate user interaction, human-computer-

interaction projects strive to utilize the gaze of the

user as the only or one of multiple input components

of an interactive system (Kiili et al., 2014). One such

example for this mode is the work of Alonso et al. in

the ﬁeld of air trafﬁc controllers (Alonso et al.,

2013), in which the authors show that even the

highly complex use of case of air trafﬁc control

can be improved upon with eye tracking technol-

ogy. Still, for workloads that requires precise and

quick reactions, Kasprowski et al. has shown that

mouse or touchpad input is still superior in reaction

speed and accuracy (Kasprowski et al., 2016). The

more widespread purpose of eye tracking in human-

computer-interaction projects is the statistical analy-

sis. In that case, users and their gaze are observed

while the user is prompted with a task, e.g., using a

web site. Then, the gathered gaze data is analyzed

and different conclusions can be made, e.g., which ar-

eas of the web site attract the most attention or which

parts of the web site the user did not see at all. This

application of eye tracking has the goal of understand-

ing human behavior and eye movements in particular,

such as in the work by Kiefer et al. (Kiefer et al.,

2017) in which statistical eye tracking helps the re-

searchers understand how their maps are visually pro-

cessed by the test persons.

Eye Tracking in Understanding Art. In the do-

main of digital art creation, eye tracking has already

found applications. For instance, there have been

multiple art exhibitions that utilize eye tracking as an

interaction technique to take control of or inﬂuence

the artwork. One of these works is “Molecular In-

formatics” by Mikami (Mikami, 1996). In this work,

users explore a Virtual Reality (VR) environment in

which 3D molecule structures are automatically gen-

erated based on the gaze of the user.

Furthermore, the method of using eye tracking

for statistical analysis has been used for understand-

ing on how humans perceive and process art. One

example for this is the work of Quiroga and Pe-

dreira(Quian Quiroga and Pedreira, 2011), in which it

is shown that the attention and the eye gaze of the hu-

man observers can be easily manipulated with small

changes to the observed pictures.

3 TRACKING & STYLIZATION

Starting with the hardware system setup (Section 3.1),

this section further describes the software system

(Section 3.2), required low-level sensor data acqui-

sition (Section 3.3), and its mapping to the differ-

ent levels-of-control for image-abstraction techniques

(Section 4.3).

3.1 Hardware and System Setup

In order to create a natural interaction with the sys-

tem, a glasses-free consumer eye tracker (Tobii Gam-

ing Eye Tracker 4C

) is utilized. It allows the user to

inﬂuence the system as the currently chosen interac-

tion technique intends to. The required setting for the

eye tracker to work in a stable manner is described in

the following (cf. Figure 1).

The eye tracker requires a well-lit environment

with a single user, since the eye tracker can only track

one pair of eyes at the same time. The manufacturer of

the eye tracker furthermore recommends using mon-

itors with a maximum diagonal length of 27 inches

with a display ratio of 16:9 and 30 inches with a dis-

play ratio of 21:9. In addition, the distance from the

sensor is advised to be kept between 50 cm to 95 cm

in order to deliver consistent results. However, in the

presented approach, a 43 inches 16:9 display (Sam-

sung The Frame) was used with a sensor distance of

approx. 1 m and found precise and stable enough for

the presented system. Extension cords for the Univer-

sal Serial Bus (USB) connection of the eye tracker are

advised against while the native cable has a length of

80 cm, therefore constraining the arrangement of the

components in the build of the proposed system.

The eye tracker furthermore requires a calibration

that tracks the head position, rotation and distance in

order to produce more precise gaze tracking results.

This calibration should be done on a per-user basis for

long-term use, while a more casual use with multiple,

quickly switching users requires a calibration-less set-

up for a frictionless interaction. In the latter case, a

standard calibration for a certain average user position

should be used. After this calibration, a guarantee for

the position for the user could be achieved by suggest-

ing such a position through ground markers or other

physical constraints. Furthermore, visual feedback on

whether eye detection was successful could guide the

user to the right position.

https://gaming.tobii.com/product/tobii-eye-tracker-4c/

Controlling Image-Stylization Techniques using Eye Tracking

Sensor Data

Acquisition

Sensor Data

Mapping

Rendering

Sensor Data

Image Abstraction

State

Application

State


Figure 2: Overview of the software system’s processing stages and control ﬂow (red) as well as data ﬂow (blue).

3.2 Software System Components

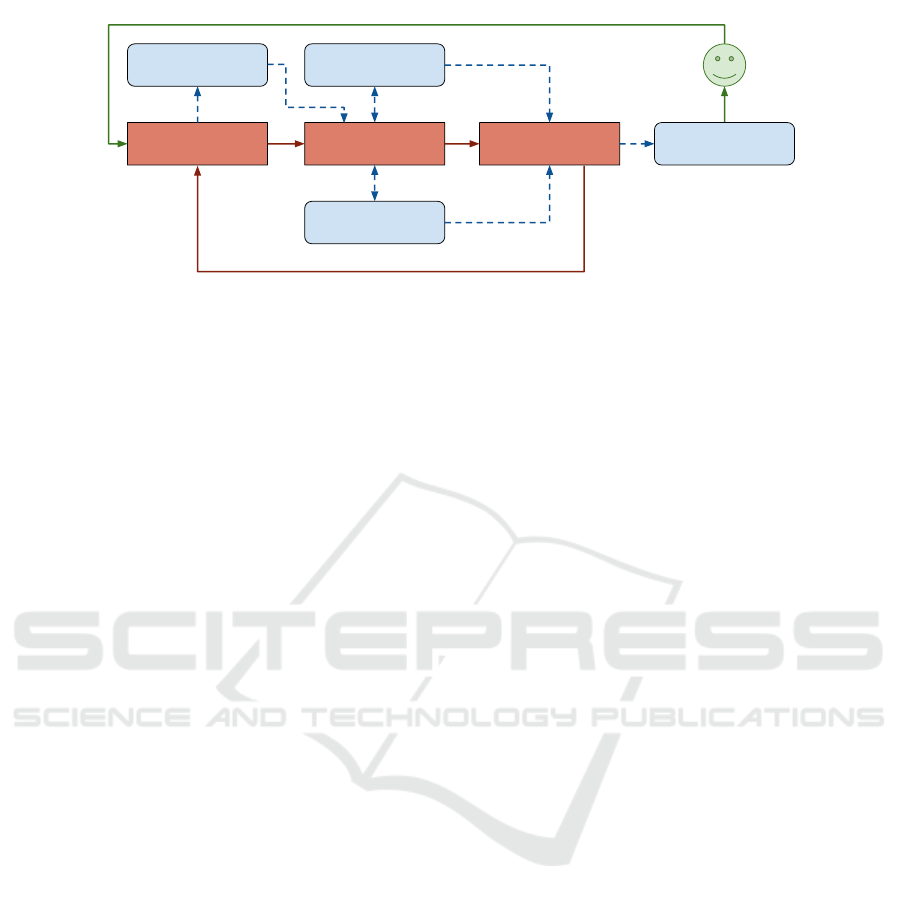

Figure 2 shows a conceptual overview of the software

system used for our approach. Basically, it comprises

three major processing stages:

Sensor Data Acquisition: This stage acquires, ﬁl-

ters, and manages the respective sensor data from

the eye tracking device and possibly other real-

time sensors (Section 3.3). Its main functionality

is the conversion of low-level hardware events to

high-level software events required by the subse-

quent stages.

Sensor Data Mapping: Using the derived high-level

events, this stage manipulates the respective

image-abstraction state and global application

state according to the different interaction map-

pings and modes.

Rendering: In this stage, the behavior of the active

interaction modes is executed and the respective

rendering and composition steps are executed to

generate the complete image that is then displayed

to the user.

3.3 Sensor Data Processing

The used Tobii Gaming 4C Eye Tracker provides dif-

ferent Software Development Kits (SDKs), such as

Stream Engine, a low-level C++ binding, Core SDK,

a high-level C# binding, and a Universal Windows

Platform (UWP) preview of the Core SDK. Since this

work is integrated into a set of related projects writ-

ten in C++ and the low-level binding offers a high de-

gree of freedom, the Stream Engine SDK was deemed

most appropriate. After connecting with a linked eye

tracker device, it is possible to register different call-

backs, each corresponding to one data point. Every

11 ms, a sensor capture of almost every data point is

generated and every corresponding callback handler

registered by the developer is called. The frequency

of 11 ms can not be changed programmatically, there-

fore the only option to reduce this, is to skip a certain

amount of callbacks or synthesize callbacks together,

resulting in an effective tick rate of 22 ms, 33 ms, etc.

Also, it appears that even the low-level Stream

Engine Application Programming Interface (API) ap-

plies interpolation to the passed values. This can be

observed when the user blinks: around 5 % of blinks

done by the user do not trigger the “invalid” ﬂag on

the gaze point data point, suggesting that there may

be software interpolation.

4 INTERACTION TECHNIQUES

This section describes how the parameterization of

image and video abstraction techniques (Section 4.1)

can be mapped, controlled, and inﬂuenced by the sen-

sor inputs. It describes details w.r.t. the context of the

proposed interaction techniques (Section 4.2) and the

techniques itself (Section 4.3).

4.1 Mapping Level-of-Controls

Prior to mapping high-level sensor data events to state

changes of abstraction techniques and the applica-

tion itself, we brieﬂy review the different Level-of-

Controls (LOCs) offered by modern, real-time imple-

mentation of image and video abstraction techniques

(Semmo et al., 2016). In particular, these are:

Pipeline Manipulation: Since an image-abstraction

pipeline consists of one or more image-

abstraction effects that each have global and

local parameters and presets for controlling

these, it is possible to deﬁne pipeline presets and

pipeline parameters. However, in this work, only

single effects are used, therefore eliminating the

necessity of pipeline manipulation.

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

Cache Textures

Gaze Point Texture

Mask

Processing Effect

Eye Tracking Pre-

Processing

User Blink Pre-Process Images

Paint to User Interface

Filtered Callbacks

User Gaze Movement

Filtered Callbacks

Eye Tracking Device

Raw Callbacks

utilizes

provides

Application Loop

Called when appropriate Called when appropriate

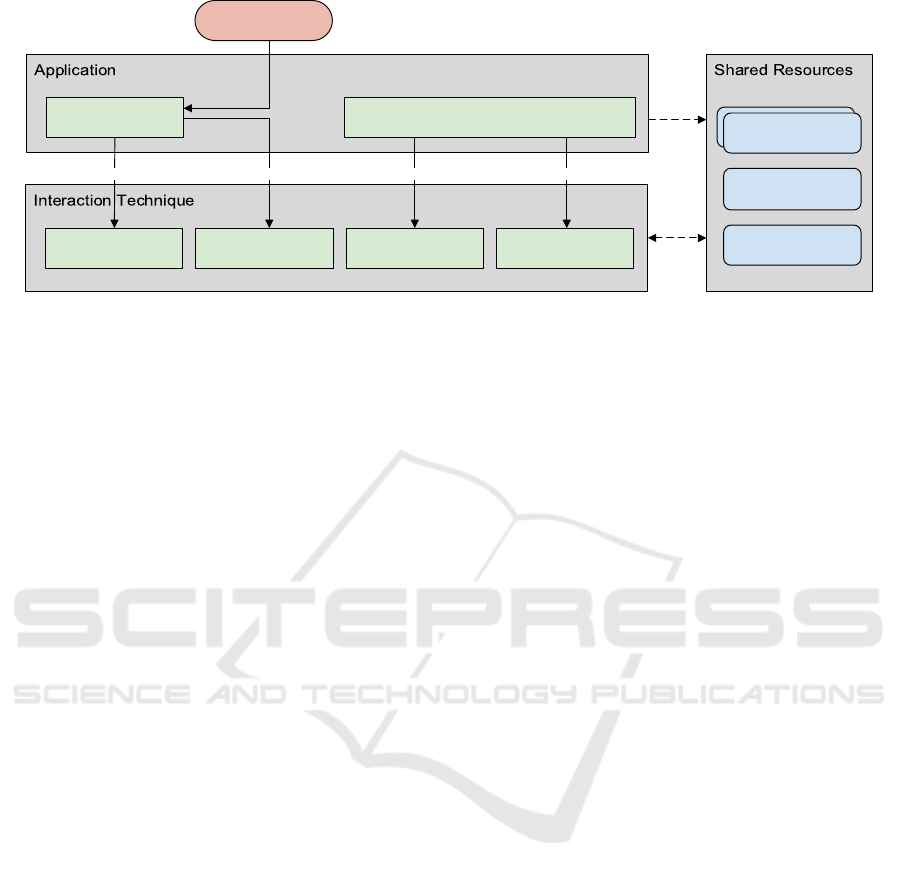

Figure 3: Overview diagram of the interaction between the application and the interaction technique (Section 4.2).

Effect Selection: Different effects are available that

apply different aesthetic changes to the processed

image. The selection of which effect is used can

be either static (always the same effect), sequen-

tial selection (e.g., on every blink or periodically)

or random selection.

Preset Selection: Each effect offers different presets

for their individual set of parameters. These cor-

respond to speciﬁc parameter value conﬁgura-

tions that resemble a certain style and are dis-

tinctly unique between each other. The selection

of which preset is used is analogous to the ef-

fect selection: ﬁxed selection, sequential selec-

tion, random selection or no selection at all. In

the last case, the default preset will be automati-

cally selected for each effect.

Adjusting Global and Local Parameters: Effects

possess parameters which are used during pro-

cessing to adjust the behavior of the effect. They

can be numerical, ﬂoating point, natural numbers,

or an enumeration values. These parameters can

be changed globally, i.e., for every pixel in the

image, or locally, i.e., for only a subset of the

pixels within the image, usually adjusted with

mask painting (Semmo et al., 2016).

4.2 Interaction Context

Given an input image and an image-abstraction tech-

nique which parameter values can be locally con-

trolled using masks (value encoded in grey-scale, and

direction as 2D vector). The abstraction technique

generates the artwork. An eye tracker mounted on the

display is used to capture the (1) the eye position p,

(2) the gaze movement d(p) and (3) blinks over time.

Based on these values, the active abstraction tech-

nique can achieve its desired behavior (Section 4.3)

through executing custom behavior in four different

points of time (Figure 3). Given their nature, inter-

action techniques are implemented as a Strategy pat-

tern (Gamma et al., 1995).

Gaze Movement: As an abstraction to the raw call-

backs provided by the eye tracker API (Sec-

tion 3.3), the abstraction technique is provided

with an interpolated, to the application window

adjusted gaze position every time a batch of these

is processed (2 to 4 times of the sensor interval,

i.e., 22 ms to 44 ms). This position is by default

used to paint a circle shape onto the Gaze Move-

ment Texture at the detected gaze point. However,

this default behavior can be extended with custom

processing, which utilizes the gaze position.

Blink: The Blink event is provided by the applica-

tion whenever the user blinks. This is determined

through a conﬁdence model that analyzes the raw

gaze movement callbacks and their respective va-

lidity (Section 5.3). The default behavior, which

can be extended analogously to the other events,

causes the Gaze Movement Texture to be reset.

This is a behavior common to the design of many

of the implemented interaction techniques, which

in turn provides a common fundamental under-

standing of the behavior of the system to the user

(“blink = advance, loss”, Section 6).

Image Preprocessing: This stage prepares for the

painting to the user interface by rendering the

required abstract image(s) into the two provided

Cache Textures. Pre-processing these images

eliminates the need to render these multiple times

or even in real-time, which would impede the ap-

plication performance signiﬁcantly. In order to

execute the desired behavior (Section 4.3), the in-

teraction technique accesses the Processing Effect

and applies changes to the effect conﬁguration on

Controlling Image-Stylization Techniques using Eye Tracking

(a) Spotlight mode. (b) Shift mode. (c) Coloring mode.

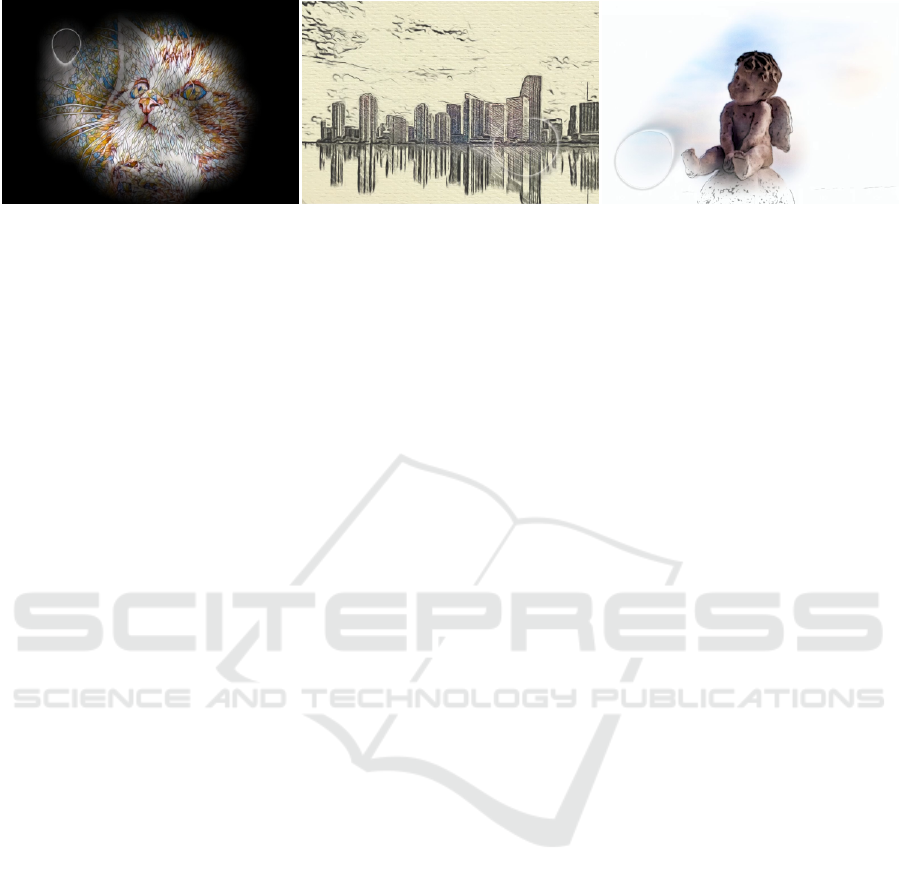

Figure 4: Overview of different interaction modes. The current tracked gaze location is depicted by a circular shape.

different levels (Section 4.1), e.g., applies param-

eter presets or changes the active effect or image,

followed by rendering the effect image(s) to the

Cache Texture(s).

Rendering to User Interface: The last stage, Paint

to User Interface, is called once the main win-

dow is prompted for redrawing, i.e., the user in-

terface and the user-side representation of the art-

work have to be redrawn. Typically, the two

Caching Textures and/or the Gaze Movement Tex-

ture are being drawn in a speciﬁc order with spe-

ciﬁc composition modes to achieve the desired ef-

fect. However, this stage can also be as simple as

just drawing one of the Cache Textures.

In order to keep state information between the differ-

ent events and follow the designated program logic,

the following global resource slots are provided to

each callback:

Cache Textures: In order to pre-process and cache

the abstracted images, two textures are provided

by the program. They are automatically resized

to the current rendering resolution and stored on

the GPU in order to reduce transfer between GPU

and Central Processing Unit (CPU) during the

Paint to User Interface phase. Having two in-

stead of one texture allows for interesting abstrac-

tion techniques that utilize blending between pre-

sets within the same effect or between different

effects. Extension to more than two textures is

trivial, but was not necessary for the implemented

abstraction techniques.

Gaze-movement Texture: The Gaze Movement

Texture is by default managed by the applica-

tion (see previous paragraph) and contains a

gray-scale mask of the previous gaze movement

of the user since the last time he blinked. It

is automatically reset once the user blinks and

utilized during the image preprocessing phase

to generate compositions with the abstracted

images.

Processing Effect: The Processing Effect is the in-

terface to the rendering core. It allows to change

the currently active effect, the currently active pre-

set and single parameters. In theory, it also also

allows the combination of effects in a pipeline,

however, this functionality was not used within

the scope of this work.

4.3 Operations Modes

In the following, a selection of interaction modes are

presented that follow similar design principles but

represent unique experiences (cf. Figure 4).

Spotlight-mode. Starting with a solid color (black)

or with an extremely blurred input photo, the artwork

is revealed successively using gaze movement (Fig-

ure 4a). Therefore, an alpha mask, which blends the

abstracted image with the canvas, is manipulated by

in-painting a circle or similar shape at the position

where the user’s eye is centered. If the user blinks

(e.g., a certain number in a certain period of time),

the mask is cleared and the revelation process must

be performed from the beginning.

Shift-mode. Using the functionality of the

Spotlight-Mode, the alpha-mask blends between

different level-of-abstractions, ﬁltering presets

(Figure 4b). Given different level-of-abstractions

or different parameter combinations represented

by presets (predeﬁned parameter values), the mask

follows the eye movement yielding – for example –

low abstraction (or the original image) at the gaze

focus area and high abstraction in the remaining

area of the image. This implies two aspects: (1) the

artwork becomes dynamic and unique and (2) a user

never sees the complete image. As an extension, the

system can record the mask values and generate a

video for sharing.

Coloring-mode. Starting with a light outline or

pencil sketch of the original image, gaze movement

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

will blend to a colored version of the same image

at the gaze location (Figure 4c). Implementation-

wise, the Coloring-Mode is a special case of the Shift-

Mode, in which two presets of an image-processing

technique that imitates watercolor painting are cho-

sen. One of these presets produces color-less pen-

cil sketches while the other produces softly colored

watercolor paintings of the original image. Blend-

ing these two presets results in the desired effect of

“coloring-in” the image.

5 IMPLEMENTATION ASPECTS

In this chapter, the implementation of the preceding

concept is discussed. First, on overview of the sys-

tem architecture is given (Section 5.1) and the imple-

mentation of the image-abstraction techniques is pre-

sented (Section 5.2). Finally, the analysis and pro-

cessing of the eye tracking data is explained (Sec-

tion 5.3).

5.1 Overview of System Architecture

In Figure 5, an overview of the system architecture

is shown. The MainWindow utilizes an User Inter-

face (UI) Toolkit and relying on respective widgets

and rendering management. CanvasWidget imple-

ments most of the application logic as it described

in the previous chapters. It manages the creation

and handling of the Interaction Technique by provid-

ing it with the respective events and resources (Fig-

ure 3). As part of that, it collaborates with the Ef-

fect Processor and handles the Processing Effect ob-

ject that is mainly accessed by the Interaction Tech-

nique. The EyeTracking module takes care of the

batching, analysis and processing of the eye tracking

sensor data (Section 5.3) and communicates with the

connected Tobii eye tracker through the Tobii Stream

Engine library.

5.2 Image-abstraction Techniques

The image-abstraction techniques are implemented

using a platform independent effect format, which

allows parametrization on local and global lev-

els that has been developed in previous works by

urschmid et al . (D

urschmid et al., 2017). Another

goal of the format is the separation of the platform-

dependent and platform-independent parts, separated

into four different categories.

Effect Deﬁnition: The effect deﬁnition describes the

parameters and the parameter values of the presets

of the effect. It also links to an implementation set

that implements this effect.

Implementation Set: The implementation set de-

scribes how an effect is executed on different plat-

forms by linking multiple implementations that

each correspond to an operating system or graph-

ics API requirement.

Implementation: The implementation describes

how the effect is executed in a speciﬁc envi-

ronment, e.g., following an operating system or

graphics API constraint. It describes the shader

programs and references the speciﬁc shader ﬁles,

which should be executed.

Common Assets: These include preset icons, canvas

textures and shader ﬁles.

For the execution of these effects, a C++ processor

that supports this format is utilized as a library for this

project.

5.3 Analysis of Eye Tracking Data

We distinguish between processing of high-level and

low-level events as follows.

Low-level Eye-tracking Events. The received,

low-level eye tracking data is analyzed before being

used to control the image-abstraction technique. First,

the raw callbacks of the Stream Engine API are col-

lected and saved in batches. Then, these batches are

processed collectively after a certain time frame. For

every valid gaze point, a circle shape is, by default,

painted onto the provided Gaze Movement Texture at

the detected gaze point (Section 4.2). The gaze point

can also be used for custom processing, if the interac-

tion technique has implemented such behavior. The

mask is provided to each interaction technique, which

utilize it in different ways, e.g., as a clipping mask,

however all of them reset the texture mask once the

user blinks.

High-level Eye-tracking Events. In order to derive

whether the user has blinked or not, a basic conﬁ-

dence model is used. This model analyzes the amount

of gaze point callbacks that deemed their respective

measurement as invalid, therefore hinting the absence

of a valid pair of eyes. This improves the stability

of the blink detection signiﬁcantly, since even during

stable measurement periods, occasional invalid call-

backs may occur, which would in turn produce erro-

neous blink events.

Fixations, i.e., sustained gazes of the same point,

are derived during gaze point processing. For this, the

Controlling Image-Stylization Techniques using Eye Tracking

MainWindow

CanvasWidget

EyeTracking

Eect Processor GPU

Eyetracker Engine Eye Tracker

UI Framework

Libraries Hardware

User Blink

Pre-Process Images

Paint to User Interface

User Gaze Movement

U�liza�on

Communica�on

Figure 5: Overview of the system architecture and external dependencies. The three components of the application collaborate

with external libraries and, transitively, with the respective hardware, to implement the presented concept.

Manhattan distance between the last n gaze points is

computed. If it does not exceed a certain threshold,

a ﬁxation is assumed. Once the current gaze point

moves a sufﬁcient amount and exceeds the distance

threshold, the ﬁxation is ﬁnished and regular gaze

point processing commences.

6 RESULTS AND DISCUSSION

This section describes an examplary prototypical ap-

plication of the proposed system, discusses concep-

tual and technical challenges, and present future re-

search ideas.

6.1 Application Scenario

With the advent of the digital age and the emergence

of smart phones equipped with photo sensors, acqui-

sition, provisioning, and consumption of digital vi-

sual media such as images or videos has become in-

credibly frictionless. Together with the development

of low-cost, highly accessible mobile data infrastruc-

tures in the majority of western countries, sharing im-

ages and videos has become one of the most dominant

components of global bandwidth usage. In this mo-

bile age, social networking apps such as Instagram or

Snapchat are centered around communication using

images and short videos – such digital visual content

has become a major part of modern digital life.

However, with this development, the consumption

of visual media has become arbitrary. The acquisi-

tion and sharing of such media has turned so common

and casual that it has become an almost mandatory

task to express oneself in this social age frequently

while older content is rarely looked at. This yields

the hypothesis that the frequency in which visual me-

dia content is created seems more important than the

represented content itself.

From this loss of appreciation for the media, the

idea of an interactive system that provides users with

a sensation of a temporary visual and aesthetic expe-

rience arose. Instead of having the users be in charge

of the system, this approach aims to increase the value

of the visual content through instability and volatility.

It aims at reversing the power dynamic that usually

exists between a user and a technical device, in which

the user can do almost everything with the tools he

is provided with. However, in this approach, the in-

teractive system takes charge and prompts the user to

follow a certain behavior and, if not successful, takes

away from the “reward” for the user, nudging the user

into the pre-determined behavior. Another use case

of the volatile visual content is the appreciation for

an evolving artwork. In contrast to still images, the

interaction allows the art to become more intriguing

and provide more enjoyment to observers.

The main objective of the presented approach is to

create a unique interaction experience between a user

and the system that allows the user to participate in

the creation of the presented, computer-transformed

visual content. It aims to create a volatile artwork,

which is unique to each situation. Through the use of

sensors, such as eye tracking, the interaction tries to

be as “frictionless” and immersive as possible while

also having the option to constrain the user to a certain

behavior, e.g., not blinking for a set amount of time,

as a game-like mechanic – in case it is desired by the

chosen interaction technique.

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications

6.2 Discussion

With the proposed system architecture, it was pos-

sible to implement the presented concept. Together

with the introduced system components, i.e., the Tobii

4C Eye Tracker and the Samsung “The Frame” TV, it

is possible to execute the presented interaction tech-

niques with an interactive frame/response rate. Dur-

ing application run-time, minor lag (<2 s) occasion-

ally occurs during blink events since in that point of

time, images may be pre-loaded from the hard drive

and the effect pipeline may be rebuilt to contain a dif-

ferent effect. However, since the user is blinking at

that time, this lag is less noticeable, especially when

using resource-light interaction techniques.

An interesting observation that occurred dur-

ing the development of the Revelation-Mode (Sec-

tion 4.3) is the necessity of highly conscious eye

movements. Usually, the gaze point of eyes is de-

termined by visual interest (interesting objects or pat-

terns) while much information can already gathered

from peripheral vision. However, the proposed inter-

action technique Revelation-Mode requires users to

repeatedly look at large regions of blackness, going

strongly against the normal behavior of human eye

movement. Even after the user has learned how the

system works, the expectation of the system to react

based on that does not make the eye movements feel

more “natural”. The repeated conscious movements

may be perceived as exhausting when interacting with

this technique for longer amounts of time because of

the unfamiliarity. Interestingly, conscious eye move-

ments like these are also used in relaxation exercises

and even have been trialed for the therapy of mental

health conditions (Vaughan et al., 1994).

For all the other interaction techniques, the expe-

rienced discomfort is signiﬁcantly smaller since there

is no necessity to look at seemingly “nothing”. How-

ever, the notion of using eye-tracker as an input device

and triggering direct effects in the presented inter-

face still feels unfamiliar. Most likely, this is because

everyday digital devices such as consumer Personal

Computers (PCs) and mobile devices operate with

touch or mouse/keyboard input, allowing the eyes to

look at arbitrary points in the interface without trig-

gering any side effects.

Through the reuse of certain interaction patterns in

most interaction techniques, a common understand-

ing of the interaction principles of the system is be-

ing formed. With time, the user picks up the inter-

action sequences and starts to associate these with

their respective meaning. Such an example would be

that blinking usually causes a reset in progress and

a change in the style of the displayed artwork. Also

the fundamental interaction of causing a certain inﬂu-

ence onto the displayed picture by directing the gaze

of their eyes is quickly learned and highly intuitive,

while also infuriating in some parts, since nothing in

the artwork can be ﬁxated without it transforming into

something else.

6.3 Future Research Directions

For future work, it is possible to complement the cur-

rent sensor inputs with additional sensors to facilitate

interaction techniques utilizing various inputs. Ex-

amples for such complementing sensors can be mi-

crophones measuring acoustic pressure or reacting to

voice commands, an ambient light sensor that inﬂu-

ences the colors in the artwork, and wearables such as

smart watches that could transmit the heart rate of the

user.

Furthermore, an extension of the interaction tech-

niques to allow for more dynamic shared resources

could be implemented to enable more complex inter-

action modes that may even use 3

-party APIs or li-

braries for additional sensor or miscellaneous data.

Also, productive use-cases in the medical domain,

such as relaxation exercises and concentration train-

ing, could be approached by extensions of the pre-

sented approach. Speciﬁc interaction techniques that

make the user follow certain patterns with their eyes

could imitate existing exercises and vision therapies.

7 CONCLUSIONS

This paper presents a novel approach for interactively

controlling image-abstraction techniques at different

Level-of-Control (LOC) using eye tracking sensor

data. By mapping of eye movement and blinking to

global and local LOC, the presented system enables

different interaction techniques based on similar de-

sign principles, allowing the user to learn the princi-

ples of the interaction with the system.

REFERENCES

Alonso, R., Causse, M., Vachon, F., Parise, R., Dehais, F.,

and Terrier, P. (2013). Evaluation of head-free eye

tracking as an input device for air trafﬁc control. Er-

gonomics, 56:246–255.

DiVerdi, S., Krishnaswamy, A., Mech, R., and Ito, D.

(2013). Painting with polygons: A procedural water-

color engine. IEEE Transactions on Visualization and

Computer Graphics, 19:723–735.

Controlling Image-Stylization Techniques using Eye Tracking

urschmid, T., S

ochting, M., Semmo, A., Trapp, M., and

ollner, J. (2017). Prosumerfx: Mobile design of im-

age stylization components. In SIGGRAPH Asia 2017

Mobile Graphics & Interactive Applications, SA ’17,

pages 1:1–1:8, New York, NY, USA. ACM.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design Patterns: Elements of Reusable

Object-oriented Software. Addison-Wesley Longman

Publishing Co., Inc., Boston, MA, USA.

Isenberg, T. (2016). Interactive npar: What type of tools

should we create? In Proceedings of the Joint Sympo-

sium on Computational Aesthetics and Sketch Based

Interfaces and Modeling and Non-Photorealistic An-

imation and Rendering, Expresive ’16, pages 89–96,

Aire-la-Ville, Switzerland, Switzerland. Eurographics

Association.

Kasprowski, P., Harezlak, K., and Niezabitowski, M.

(2016). Eye movement tracking as a new promis-

ing modality for human computer interaction. In

2016 17th International Carpathian Control Confer-

ence (ICCC), pages 314–318.

Kiefer, P., Giannopoulos, I., Raubal, M., and Duchowski,

A. (2017). Eye tracking for spatial research: Cogni-

tion, computation, challenges. Spatial Cognition &

Computation, 17(1-2):1–19.

Kiili, K., Ketamo, H., and Kickmeier-Rust, M. (2014).

Evaluating the usefulness of eye tracking in game-

based learning. International Journal of Serious

Games, 1(2).

Kyprianidis, J. E., Collomosse, J., Wang, T., and Isenberg,

T. (2013). State of the art: A taxonomy of artistic

stylization techniques for images and video. IEEE

Transactions on Visualization and Computer Graph-

ics, 19(5):866–885.

Majaranta, P. and Bulling, A. (2014). Eye Tracking and

Eye-Based Human–Computer Interaction, pages 39–

65. Springer London, London.

Mikami, S. (1996). Molecular informatics. morphogenic

substance via eye tracking. https://bit.ly/

2oezCZv.

Quian Quiroga, R. and Pedreira, C. (2011). How do we

see art: An eye-tracker study. Frontiers in Human

Neuroscience, 5:98.

Schwarz, M., Isenberg, T., Mason, K., and Carpendale,

S. (2007). Modeling with rendering primitives: An

interactive non-photorealistic canvas. In Proceed-

ings of the 5th International Symposium on Non-

photorealistic Animation and Rendering, NPAR ’07,

pages 15–22, New York, NY, USA. ACM.

Semmo, A., D

urschmid, T., Trapp, M., Klingbeil, M.,

ollner, J., and Pasewaldt, S. (2016). Interactive im-

age ﬁltering with multiple levels-of-control on mo-

bile devices. In Proceedings SIGGRAPH ASIA Mobile

Graphics and Interactive Applications (MGIA), pages

2:1–2:8, New York. ACM.

Vandoren, P., Van Laerhoven, T., Claesen, L., Taelman,

J., Raymaekers, C., and Van Reeth, F. (2008). Intu-

paint: Bridging the gap between physical and digital

painting. In 2008 3rd IEEE International Workshop

on Horizontal Interactive Human Computer Systems,

pages 65–72.

Vaughan, K., Armstrong, M. S., Gold, R., O’Connor, N.,

Jenneke, W., and Tarrier, N. (1994). A trial of eye

movement desensitization compared to image habitu-

ation training and applied muscle relaxation in post-

traumatic stress disorder. Journal of Behavior Ther-

apy and Experimental Psychiatry, 25(4):283 – 291.

Zhai, S., Morimoto, C., and Ihde, S. (1999). Manual and

gaze input cascaded (magic) pointing. In Proceedings

of the SIGCHI Conference on Human Factors in Com-

puting Systems, CHI ’99, pages 246–253, New York,

NY, USA. ACM.

HUCAPP 2020 - 4th International Conference on Human Computer Interaction Theory and Applications
