Privacy-preserving Measures in Smart City Video Surveillance

Systems

Shizra Sultan

and Christian D. Jensen

Department of Mathematics and Computer Science, Technical University of Denmark, DK-2800 Kgs. Lyngby, Denmark

Keywords: Mass-scale Video Surveillance Systems, Smart City, Privacy, Information Security.

Abstract: Smart city video surveillance systems collect data from all around the city, and this aggregated data is used

by several entities for achieving different city administrative tasks such as ensuring public safety and traffic

management, to provide citizens with better services. This data, when combined with other smart city data

sources, can reveal sensitive information about individuals, which if not used carefully can spawn grave

privacy breach. In order to extract useful information from surveillance data without causing privacy invasion,

it is important to see how, where and what information is collected about individuals, and how it is further

used for said purposes.

1 INTRODUCTION

Smart cities (SC) signify the concept of information

convergence from diverse data sources to provide

well-informed services for both city administration

and citizens. One of the key SC data contributors is

mass-scale Video Surveillance Systems (VSS), which

record public activities via video cameras, deployed

all over the city. Major countries around the globe are

investing heavily in SC video surveillance systems

for accomplishing several administrative tasks such

as ensuring public safety, traffic and infrastructure

management, weather monitoring, etc. (Thom, 2018).

During the past two decades, VSS has evolved

from simple video acquisition and display systems

into intelligent (semi)autonomous systems. The

development of digital video CCTV cameras and

recorders have led to the latest generation of

sophisticated video surveillance systems, with wide-

area surveillance, reliable network-centric

transmission, and enriched data analysis (Banu,

2017). Traditionally, humans (designated observers)

viewed this data to observe events of interest,

however, in past few years, due to the drastic increase

in surveillance data; it has become a challenging and

cumbersome job. Modern VSS can integrate some of

the most sophisticated image and video analysis

https://orcid.org/0000-0003-4201-9503

https://orcid.org/0000-0002-0921-7148

algorithms to investigate the recorded data. These

systems can perform various tasks such as object

detection and tracking, face recognition, event

detection, and prediction, behavior recognition, video

summarization, etc., effectively. This is helpful in

understanding the content of the surveillance data so

that observers can take appropriate actions.

SC-VSS can process huge volumes of data, and

retrieve the finest and meticulous information from it.

The point of concern is the nature of the information

that can be derived from it. On the one hand, it can

provide valuable information in performing different

administrative tasks of local authorities with greater

efficiency and less response time. On the other hand,

personal information about citizens can be obtained

from it, which can be used to hurt them, personally

and socially, by invading their privacy. The extracted

information not being used for the purpose it is

collected for is a privacy breach. The right to privacy

is protected by different legislations in several parts

of the world. According to recent European

legislation, the General Data Protection Regulation

(GDPR), surveillance data should be used for targeted

purposes thus minimizing the collection and analysis

of irrelevant personal data. It also states that poorly

designed VSS not only portray a false sense of

security but also violates the fundamental privacy

right of individuals (GDPR, 2016). If smart cities fail

506

Sultan, S. and Jensen, C.

Privacy-preserving Measures in Smart City Video Surveillance Systems.

DOI: 10.5220/0008964205060514

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 506-514

ISBN: 978-989-758-399-5; ISSN: 2184-4356

to preserve the privacy of their citizens then it will

become a smart Panopticon rather than a (technology-

equipped) user-centric city.

Smart cities require an efficient but privacy-aware

VSS, which allows access to essential information for

authorized observers without violating the privacy of

individuals. Therefore, it is important to know who

collects and owns the VSS data, what kind of

information can be extracted from it, who has the

authority to designate its access rights, and how it will

be used. In order to achieve that, we will look at

different aspects and modules of SC-VSS with the

help of a general model in the first section, and the

next section will discuss the privacy-preserving

measures to implement a secure and privacy-aware

VSS.

2 VIDEO SURVEILLANCE

SYSTEM MODEL

In this section, we use a general model to represent

the different functional units that make up a

traditional VSS. This model has four basic modules:

Capture, Transport, Monitoring, and Storage, as

shown in Figure 1. In the first module, depending

upon the purpose of surveillance, one or multiple

cameras are deployed at different locations to cover

the desired area. Each camera is assigned a unique

identity in order to be recognized and generates a

recording (video stream/file) of activities in a

designated location. In the transport module, these

recordings are transported to the monitoring room, or

directly sent to the storage servers for archiving. In

the monitoring module, humans or (semi)automated

systems observe the live recordings/streams for

events of interest. The storage module manages long-

term storage of all the recorded video files. Each

recording is of a particular duration and is archived so

it can be retrieved later. The archived files and live

streams can be requested from the monitoring room,

where designated observers (human or systems) can

view them. Monitoring room can be either a specific

place where different stream/recordings can be

viewed or it can be distributed to different

rooms/observation-points (including hand-held

devices) (Zhang, 2013). The recordings captured by

VSS are called surveillance data and a lot of

information can be extracted from its content, such as

different types of objects, activities, physical location,

time of the day, nearby objects and landmarks, etc.

Generally, the surveillance data is accessible to the

VSS owners, and they can further assign access rights

to different observers. These recordings can also be

given as input to an intelligent system for automatic

alert generation based on pre-defined events.

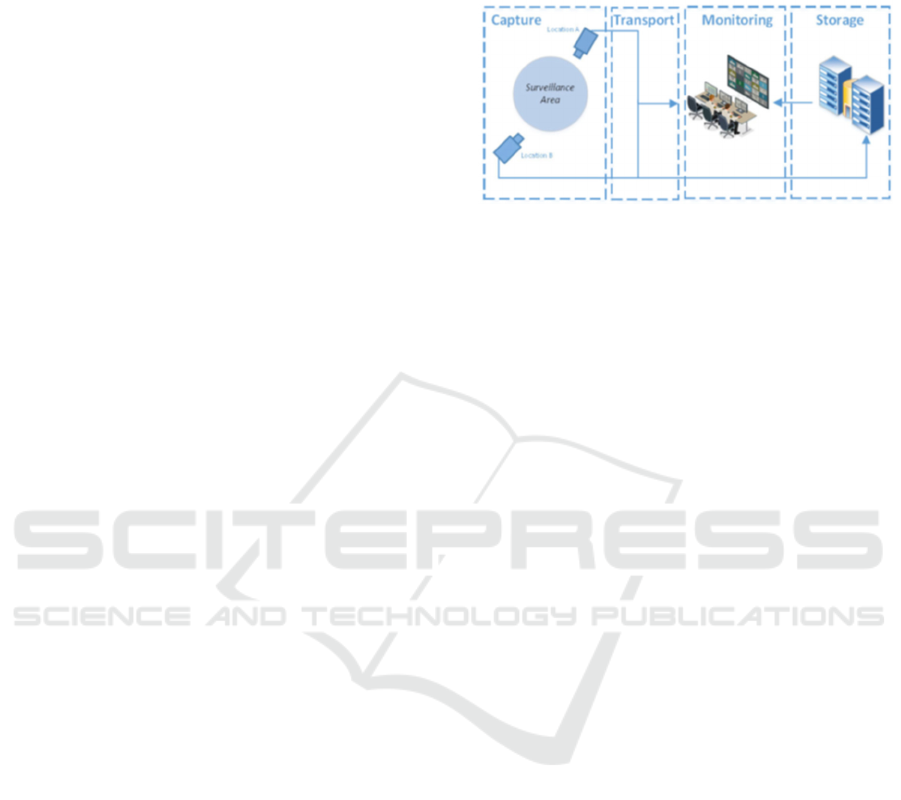

Figure 1: Video Surveillance System Model.

The model described above can be extended to

any scale given the right hardware and software

infrastructure. Conventionally, the VSS is

centralized, and data from all the cameras is analyzed

at a central processing and storage server. However,

in mass-scale and real-time environments, many VSS

are now deployed as a distributed network

architecture, i.e. different functional units perform

independent computational operations on

given/assigned data and either take a decision upon it

or forward it to the central node for further

processing.

A smart city VSS is built on the traditional model

and is deployed in a large environment, managed by

the local administration. Thousands of video cameras

may be deployed all around the city at various public

places roads, parks, stations, town squares, etc. for

several purposes. These cameras (Capture) are then

connected via different wired and wireless networks

(Transport) with several distributed storage and

computational servers (Storage), and different

observers can access any of the cameras live

(Monitoring) or an archived recording (via Storage),

from anywhere given they are connected to the

system network (Perera, 2014). The objective of this

paper is to understand how data is collected (Capture)

and used (Monitoring) in SC-VSS in order to preserve

the privacy of people recorded in data; therefore, we

will focus more on three relevant data aspects:

 Surveillance Data (What is it, and what type of

information it contain)

 Data Owners (Who (entities/systems) has the

authority to collect, access, and distribute data)

 Data Observers (Who can access this data, and

what are they supposed to do with it)

2.1 Surveillance Data

The most critical asset of any video surveillance sys-

Privacy-preserving Measures in Smart City Video Surveillance Systems

507

tem (irrespective of its scale) is its data, mostly

obtained from its primary data source i.e. video

camera. Surveillance video cameras have different

types such as unidirectional or omnidirectional field

of vision, low light vision, or high-definition vision,

infrared, etc. Choosing what type of cameras to be

used at any location is dependent upon the purpose of

surveillance (Limna, 2015). The surveillance data

may also include other auxiliary data, such as the

location of the camera, camera type, lens resolution,

timestamp, and data from other sensors (microphone,

GPS, etc.). Video data, combined with any other

supporting data, increase the validity of the combined

data with different contextual information and help

observers make informed decisions.

In SC-VSS, surveillance data coming from all

over the city is being collectively processed and

evaluated with data from various public information

systems that generate a lot of value. For example,

cameras deployed over a highway may record the

license plate of vehicles going too fast, which may

then be compared against the vehicle registration

database to issue a speeding fine to the vehicle owner.

Conversely, data aggregation at such a large scale will

also increase the privacy invasion threat as it contains

sensitive information about citizens and if not

managed properly raises serious concerns. For

example, video surveillance data of informal public

gatherings can be used to extract human faces, which

can then be recognized from the national citizen

database and can be used against the choice of the

individual i.e. for racial profiling, or illegal

surveillance, or spying on their personal life, etc. The

use of surveillance data containing personal

information in any way (without the consent of the

individual) is a privacy breach. Though mass-scale

VSS cannot obtain the explicit consent of every

person being recorded all the time, general

acceptance by the public must be ensured, i,e. that

recordings will be used for public safety and law

enforcement. In a real-world scenario, mass-scale

surveillance data is used for multiple purposes that

are often not explicitly consented by the public.

2.2 Data Owners

A data owner is an entity that has a legal authority to

collect data at a certain location, store it or delegate

its access to other observers (of choice). In city-scale

surveillance systems, many data owners are

collecting data, all around the city, for different

purposes. Most countries have laws that require data

owners to inform individuals that they are under

video surveillance (e.g. through a display sign).

Based on their contribution to city surveillance data,

VSS owners are categorized into four categories as

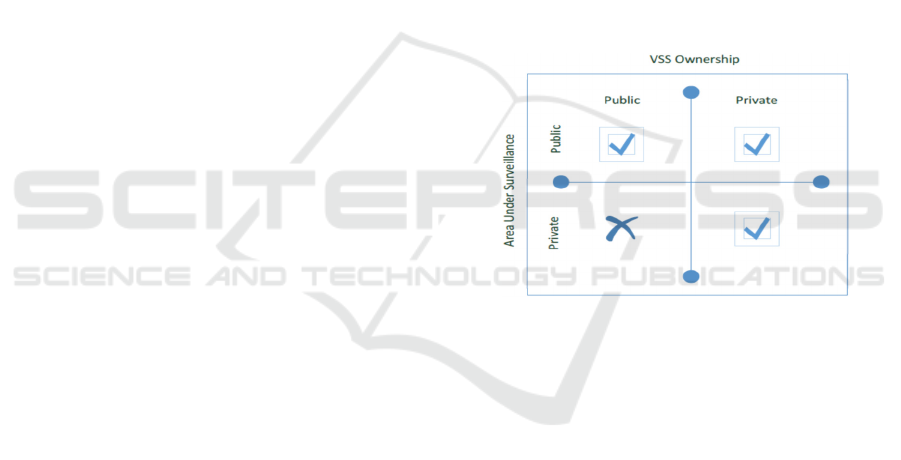

shown in the Surveillance Area v/s Ownership matrix

in Figure 2. There are several possibilities based on

the nature of the surveillance area (private or public)

and ownership of the surveillance area. Public owners

can only collect data from public areas, while private

owners can deploy VSS in private areas for property

protection, as well as privately owned areas that are

accessible to the public. VSS deployed in private

areas cannot have public ownership, because this

would be considered a violation of the citizen's

privacy. The main three categories are:

 Public-Public Ownership: public area

surveillance under public ownership

 Public-Private Ownership: public area

surveillance under private ownership

 Private-Private Ownership: private area

surveillance under private ownership

Figure 2: Surveillance Area v/s Ownership matrix.

1st Quadrant: Public area-Public Ownership

2nd Quadrant: Public area-Private Ownership

3rd Quadrant: Private area-Public Ownership

4th Quadrant: Private area-Private Ownership

2.2.1 Public-public Ownership

Public places such as parks, streets, bus stops, railway

stations, airports, public offices, hospitals, etc. are

generally under surveillance by public owners, i.e.

national or local governments, and the VSS is

managed in compliance with domestic surveillance

policies. This includes both large open-space VSS by

Law Enforcement Agencies (LEAs) and small-scale

indoor VSS managed by other local departments. The

main deployment purpose at these places is to

monitor suspicious people, objects and activities to

protect individuals, property and other personal or

public belongings at those locations, to avoid crimes,

harassment, vandalism, etc.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

508

2.2.2 Public-private Ownership

The second most common VSS ownership is semi-

public i.e. privately owned spaces concerning public

areas such as banks, hotels, shops, malls, etc. The

common purpose of surveillance here is property

protection and facility management. Every owner has

his own set of policies about cameras specifications,

access and storage devices, etc., which generally

complies with local surveillance guidelines, as they

are recording citizens at a semi-public place.

2.2.3 Private-private Ownership

Third VSS ownership is private; individuals have

deployed cameras inside their houses or private

offices/property, to have proof if there was an outside

intrusion. Footage from this surveillance is only of

interest to the private owner, as it does not concern

any other entity. Some of the privately-owned

cameras are deployed (in private premises) in a way

that records outside activities, e.g. public space, such

as a nearby alley or road. The video recording of these

places is owned by the owner/s of the property, but

should not be used for any other purpose or else it

would be voyeurism and against the law.

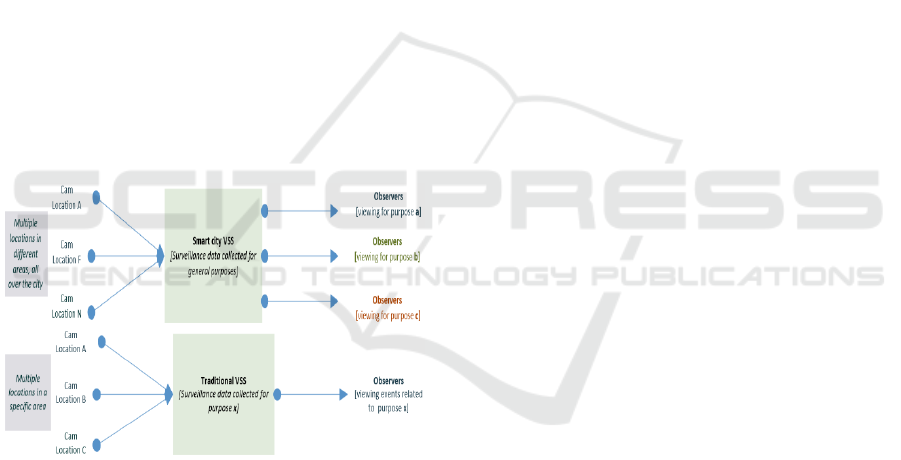

Figure 3: Traditional and SC-VSS model comparison.

Traditionally, each owner (public or private) uses

his own data for a particular purpose and does not

share or use data of any other owner. While in SC-

VSS the data is being contributed by different owners

(from different locations), which is aggregated and

processed together, and then it is made available for

all authorized applications and observers which can

retrieve information relevant to their purposes as

shown in figure 3. For example, earlier, the VSS

deployed for ensuring public safety used the data to

look for events that were related to human safety. In

SC-VSS, various owners can retrieve different

information from the same data, i.e. surveillance data

regarding human safety will be used by law

enforcement authorities, data regarding traffic

patterns by the traffic management department, and

data about occupancy may be used by street sweepers

and waste management services.

2.3 Data Observers

Once different owners record data at various places,

the next step is to use that (aggregated) data for

different purposes so they authorize usage rights to

different observers. Data observers are authorized to

extract information from surveillance data manually

or via some application, i.e. they can be human or

automated systems. Different local departments, such

as LEAs, various emergency services, infrastructure

& planning departments are interested in information

that is relevant or helpful to their business operations.

To achieve that, they designate skilled observers with

different roles/responsibilities that they need to

perform; based on the information they obtain from

this data. Once it is decided who the observer is, the

next step is to decide what type of information and

how much of that information should be made

available to them. In traditional and small-scale VSS,

observers are mostly humans (guards or other

employees) that monitor the real-time data to look for

unusual activities. In the SC-VSS, there are a large

number of observers, both humans, and semi-

automated systems to observe data for unusual events

as well as pre-defined activities (Khan, 2018). Data

observers have a legal, social, and moral

responsibility not to use data in any way that invades

the privacy of an individual.

Access to all the required information in a timely

manner help observers performs their duties in an

efficient manner. Long-term analysis of such data can

also prove to be very useful to make future decisions

about city resources. For example, if the traffic

management department is using the surveillance

data, it can obtain information about mobility

patterns, such as how many people travel from Point

A to Point B, at what time of the day, and how long

they spend on their commute. This information helps

to decide which routes are busiest, which areas are

visited most, but also the source and destination

location of different citizens, which allows them to

infer the location of their homes and work. The data

can be used with another perspective to know how

many people from a certain area visit certain places

such as a bar, rehabilitation center, church, etc., or

who are they going with (other humans), what are

they carrying (objects), etc. The surveillance data of

a rally in protest against a government can be used to

Privacy-preserving Measures in Smart City Video Surveillance Systems

509

link protestors with their other routine activities, in

order to intimidate them, or if the local authorities are

using personal information (color, ethnicity, religious

or gender bias) to stop them from certain activities.

From the above example, it is evident that every piece

of data, when seen with specific background

information, reveals certain information to an

observer (about an individual or a group of

individuals). Data observers with the right intentions

can use this information to provide better services,

while biased observers can use this to harm or profile

people. In order to preserve data privacy while

offering utility in SC-VSS, we use our model

presented to identify privacy requirements.

3 DATA PRIVACY

Video cameras capture everything happening in its

line of sight, without any bias or prejudice (usually).

It records the activities of the general public (passing

the road, entering a building, boarding a train, etc.),

objects associated with them (other people, vehicle,

and luggage) and all the visible information present

in the surroundings. Data collected at such a large-

scale contains substantial information about any

individual, so it is becoming critical to preserving an

individual’s privacy in mass-scale video surveillance,

where several data sources are gathering and using

surveillance data for multiple purposes (Farooq,

2015). Personal data needs to be protected from

unauthorized use and privacy-preserving measures

must be proactive instead of reactive, i.e. privacy

issues must be anticipated in advance before it affects

an individual.

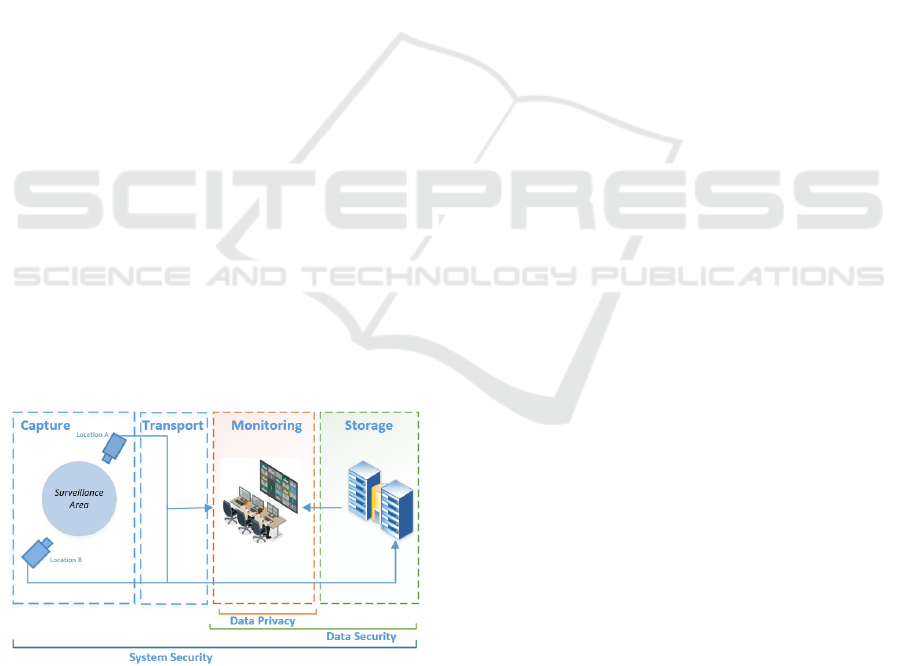

Figure 4: Security Aspects of SC-VSS.

When it comes to privacy-preserving measures, it

is not an independent concept, rather a specific notion

that involves (mostly) the personal information

extracted from data. Privacy is a subset of data

security, while data security is a subset of system

security (Kandah, 2013).

To explain it, let us look at Figure 4, as discussed

earlier, VSS has four basic modules. The first two

modules (Capture & Transport) do not process data

(at least to a large extent) and only capture and

transfer it, hence these have the least idea about the

content of the data. These modules focus more on

physical infrastructure rather than software

components, i.e. cameras, recorders, wires, networks,

monitoring and storage devices, etc. Therefore, the

outermost layer to ensure data privacy is system

security, which deals with ways to protect the basic

infrastructure and operations/processes of the system

irrespective of the nature of the data.

The central module of VSS is Storage with all the

archived (processed) data. Different external and

internal attacks (due to system and protocols

vulnerabilities) tend to compromise the CIA triad

(Confidentiality, Integrity, and Availability) of data.

Hence, the middle layer to data privacy is data

security, which refers to the preservation of received

data (from Transport module) and should only be

allowed to authorized observers (via Monitoring

module) so the CIA of data is not compromised.

The module specifically related to data privacy is

Monitoring. It deals with what can be made available

to the observers. Here observers have the choice to

search for a particular recording as information

(content) from either directly from Transport or from

Storage. Data privacy measures ensure that

information or content available to authorized

observers complies with access control policies,

which should be in accordance with the legal data

protection regulations.

3.1 Privacy-preserving Measures

Any system or service that involves personal data

should have built-in essential privacy features and not

be left as an add-on. In the smart city VSS, privacy by

design refers to the implementation of all the required

system security, data security and privacy-preserving

measures at applicable modules. Every process such

as data collection, aggregation, distribution, access,

should be carefully checked for vulnerabilities and

leakage. All system and data requirements must be

transparent and documented, observable and

independently verifiable i.e. what data is being

recorded, where and how it is stored, for which

purposes will it be used and how will it be presented

to observers (Hynes, 2010). If all the information

about the individuals is kept private then it defies the

purpose of surveillance, and if all is made public, it

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

510

will be a privacy invasion catastrophe. For example,

in case a camera captured a violent attack and the

identity of the perpetrator is not being revealed (to

preserve his privacy), then it negates the purpose of

surveillance i.e. public safety. Alternatively, if the

employees (working for local authorities) are

accessing the surveillance data to view the personal

activities of individuals, which has nothing to do with

the said purpose, then it is a privacy breach. The

owners collecting all this data and designating access

rights to different observers are responsible for

preserving data privacy and keeping it out of harm’s

way. Some of the important privacy-preserving

measures in SC-VSS are:

3.1.1 Privacy and Utility Trade-off

The balance between utility and privacy is key to an

efficient and secure SC-VSS. Observers need to

access different types of information from the

aggregated surveillance data to perform their duties.

Often the information they require contains personal

data (location or identity of people involved in an

event, or present around an event, etc.), and it is

important for a system to evaluate their requirements

suitably such as whether an observer really needs to

access that part of data or not. Does the required

observer need all the information that may be

extracted from the data? Does revealing personal

information to the observer conform to the

requirements of the observer’s responsibilities? If the

information is not provided, will it cause any

inconvenience for the observers in completing their

assigned task etc? Answers to these questions for a

data access request will help to maintain a balance

between utility and privacy (Jensen, 2014). For

example, if strict privacy measures do not let

emergency services obtain surveillance data of a

person who needs medical attention, then it is an

interruption in service provision. On the other hand,

if anyone with slight knowledge about SC-VSS can

create a scenario in which personal information is

made accessible to them, then it is not so good either.

There should be a balance between privacy and utility

based on careful situation evaluation.

3.1.2 Public Consensus and Information

Disclosure

Public consensus about disclosing personal

information (in given scenarios) should be ensured

before access to resources (recordings) is authorized.

The public should be notified in detail about all the

possible use cases in which surveillance data will be

observed by any application or observer, either

independently or in collaboration with other data

sources. There should be a feedback platform to

case of a privacy breach when the data is being used

for other than the mentioned use-cases. For example,

in case a speeding violation is caught on camera; this

and similar type of events are categorized as a ‘traffic

violation’ by the system and will be shared with

traffic management observers (a system in this

particular case). The traffic observer can detect the

vehicle’s license plate (particular information about

an object) and via that information, it can know about

the vehicle owner and issue a ticket to that individual.

This is often acceptable to the public, but if the same

system tries to extract information about individuals

for profiling and advertisement purposes, then it is a

privacy breach, as the system is obtaining information

from surveillance data that is not used for predefined

purposes or use-cases (Ambrosin, 2018). There may

be authorized observers that have permission to

access a part of personal data, but how they use that

data is important.

3.1.3 Situation-aware Access Control

Privacy requirements vary dynamically with the

observer’s demands and situational changes in the

data content (Wagner, 2015). Ideally, SC-VSS should

adequately control information flow based on the

requirements of the observer and the situation of the

individuals. For example, in case of an emergency, if

an individual’s situation requires a particular service

(say a fire engine), and observers (of the fire

department) request access to the data at the location

where the event happened. The data will have

personal information that is related to that event

(number of affected people, gender and estimated age

of the people, the extent of the injuries of each

individual, etc.) and should be made available to the

observers so they can evaluate the situation clearly. In

ordinary scenarios, it will be preferred that an

observer does not have access to any data that has

personal information about any individual (S.Oni,

2019).

An access control mechanism is a necessary tool

for SC-VSS applications. Any observer should only

be allowed to obtain personal information in case of

precise conditions or events, which are defined in

terms of quantifiable attributes of observers,

recordings and real-time situations. Once all

(observer’s, recording’s and situational) attributes are

satisfied, only then can the observer access the data

(Rajpoot, 2015). Each owner/stakeholder must

clearly state all the potential observers who will have

Privacy-preserving Measures in Smart City Video Surveillance Systems

511

access to their information and in what role. Different

levels of privacy should be available for different

roles i.e. personal information (faces, identities,

associated information such as vehicles, current

location, residential area, and work area) should not

be made visible to the observer if it is not required by

the offered SC-VSS service, specifically related to his

role. Data transformations like sanitization,

generalization, anonymization, etc. must be properly

assessed and observers should be allowed to access

personal information at a minimum level of

requirement. Situation-aware access control

mechanisms will provide robust yet flexible control

in information flow to the observers.

3.1.4 Metadata and Digital Rights

Management

The large-scale systems have huge data volume and

variety (content and supporting data), which is

categorized under different labels and is called

metadata. Metadata describes data; it categorizes

information (extracted from data) into different

classifications, by arranging them in a structured and

organized manner, which makes it easier to index and

search for observers (Eckhoff, 2011). VSS metadata

management enables to store semantic information

(data content) with its related non-semantic

information (device and network data) such as the

location of the camera, timestamp of the recording,

assigned observer, etc. In many cases, observers do

not have access to the whole data but a certain part of

it, i.e. auxiliary data or less-sensitive metadata, can

still infer useful information without looking at the

actual content (data that is not available). For

example, an observer can deduce the location of the

camera, by looking at the less-sensitive region

(background of an image/recording) or by knowing

the location and timestamp of a past event. Thus,

metadata needs to be managed with the same care as

the surveillance data is, otherwise, it can cause a

privacy breach.

3.1.5 Forward and Backward Privacy

Forward secrecy or privacy refers to the concept that

if a certain observer or service had access to certain

data in certain situations (in the past) and now that

those conditions are not available, then they should

not be able to access them. Backward secrecy or

privacy means that if an observer accesses a recording

in the present time, then he should not be able to

access previous information when he did not have the

present situation (

Hoang,2019). For example, if a

police officer was given access to surveillance

footage that detected an accident, then he should only

be allowed to access the footage during the time of

the accident (within a reasonable and sufficient time

window), and not before the accident and not after the

situation is resolved. If the observer needs to access

more information, regarding a particular incident then

the request should be evaluated with additional

conclusive attributes.

3.1.6 Modular Privacy Framework

If several entities are contributing and accessing data

via central SC-VSS, then there can be many

differences in terms of physical infrastructure,

systems and security requirements, data capturing and

storage formats, metadata characteristics, access

control policies, privacy requirements and many more

(Simion, 2015). In this scenario, as all the services are

offered based on aggregated data, the security and

privacy needs of different departments (observers)

may overlap with each other. As data is collected

from different locations with different purposes, and

privacy requirements of locations, individuals,

assigned observers could be different. Utility (based

on information from data) of one observer might

surpass the need for the privacy of another observer,

which poses grave privacy risks. Modular and central

security concept both needs to be implemented here,

in modular architecture, all observers ( departments

offering services) should implement privacy

measures according to their specific needs (at their

end) and centralized VSS should have an integrated

privacy-aware approach, keeping in mind the privacy

needs of the general public. This will provide two-tier

security; if anything is missed in the modular

architecture then the central architecture will manage

it. For example, in case a surveillance camera

registers a traffic violation, it requests the vehicle

registration database to reveal the information about

the specific vehicle that performed a violation and

share this with another system that will issue the fine.

No involved entities will share data in any other

scenario unless the specified conditions are met. All

systems have their own security measures that will

not allow unauthorized observers to access the private

information of any user, though in specific conditions

they may share the private information of an

individual.

3.1.7 Legislation

There are different data protection legislations

followed around the world, which standardize how

personal information should be collected and

processed, so the privacy of an individual is not

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

512

compromised (Cranor, 2002). These standards reduce

the trust issues between individuals and different

applications. Systematic auditing and accountability

by regulatory authorities will provide checks and

balances for observers as well as for individuals.

When it comes to SC-VSS, privacy-preserving

measures should show compliance with these

legislations especially the ones they are obligated to

legally (regional, federal or international law). Some

countries have fewer restrictions on surveillance

systems when LEAs are using them, sometimes there

is privacy intrusion, but they are not considered

illegal. Other countries have strict surveillance

regulations, for instance, Canada and Denmark do not

allow obtaining personal information from

surveillance data, unless it is legally authorized for a

specific purpose, and even then, the authorization has

a short time window (Rajpoot, 2014). In the USA,

surveillance systems must abide by both national and

federal laws while obtaining personal information for

any purpose.

4 CONCLUSION

Due to the unceasing data gathering in smart city

video surveillance systems, citizens expect local

administrations to offer real-time and informed

services in different areas such as public safety and

traffic management, without violating their privacy.

This paper analyses an SC-VSS model, and inspects

its different modules and data aspects to look for

privacy concerns, and suggests essential privacy-

preserving measures. It concludes that the flow of

information to observers should be looked upon

critically as most of the privacy breaches happens at

their end i.e. how they use it for different purposes.

Therefore, it is essential to know how surveillance

data is collected and distributed, who has access to

this data, and whether they pose any threat to the

privacy of individuals whose information is part of

the data. To preserve privacy, it is important to limit

observers' access to information for authorized

purposes with situation-aware access control

mechanisms made in accordance with applicable

legislation.

REFERENCES

L. Cranor, M. Langheinrich, M. Marchiori, M. Presler-

Marshall, and J. Reagle. The Platform for Privacy

Preferences 1.0 (P3P1.0) Specification. W3C, April

2002

GDPR and Video Surveillance, 2016.

https://edps.europa.eu/data-protection/data

protection/reference-library/video-surveillance_en

Rajpoot Q.M., Jensen C.D. 2014. Security and Privacy in

Video Surveillance: Requirements and Challenges. In

ICT Systems Security and Privacy Protection. SEC

2014. Springer, Berlin, Heidelberg

B. Simion, D. N. Ilha, S. Ray, L. Barron, A. Demke Brown,

and R. Johnson, "Slingshot: A modular framework for

designing data processing systems," 2015 IEEE

International Conference on Big Data (Big Data), Santa

Clara, CA, 2015

S. Oni, Z. Chen, A. Crainiceanu, K. Joshi and D. Needham,

2019, "Situation-Aware Access Control in Federated

Data-as-a-Service for Maritime Search and

Rescue," 2019 IEEE International Conference on

Services Computing (SCC), Milan, Italy.

T. Hoang, A. A. Yavuz and J. Guajardo Merchan, 2019. "A

Secure Searchable Encryption Framework for Privacy-

Critical Cloud Storage Services," in IEEE Transactions

on Services Computing.

Rajpoot, Qasim & Jensen, Christian Damsgaard &

Krishnan, Ram. (2015). Integrating Attributes into

Role-Based Access Control.

M.Ambrosin, P.Braca, Mauro Conti, and Riccardo

Lazzaretti. 2018. ODIN: Obfuscation-based privacy

preserving consensus algorithm for Decentralized

Information fusion in smart device Networks. 1, 1,

Article 1 (July 2018)

Jensen, Christian D., 2014, The importance of trust in

computer security. In Proceedings of the 8th IFIP WG

11.11 International Conference on Trust Management

(IFIPTM 2014).

F. Kandah Y. Singh W. Zhang C. Wang "Mitigating

colluding injected attack using monitoring verification

in mobile ad-hoc networks" Security and

Communication Networks pp. 1939-0122 2013.

M.U. Farooq M. Waseem A. Khairi S. Mazhar "A Critical

Analysis on the Security Concerns of Internet of Things

(IoT)" International Journal of Computer Applications

(0975 8887) vol. 111 no. 7 February 2015.

Atrey, P.K., Yan, W., Kankanhalli, M.S.: A Scalable

Signature Scheme for Video Authentication. Journal of

Multimedia Tools and Applications 34, 107–135 (2007)

Liu, F., Hartmut, K.: A Survey of Video Encryption

Algorithms. Journal of computers & security 29, 3–15

(2010)

Z.Khan, Z.Pervez, A.G.Abbasi, “Towards a secure service

provisioning framework in a Smart city environment”,

Future Generation Computer Systems, Volume 77,

2017, Pages 112-135

G. Hynes, V. Reynolds, and M. Hauswirth, “A context

lifecycle for web-based context management services,”

in Smart Sensing and Context, ser. Lecture Notes in

Computer Science. Springer Berlin/ Heidelberg, 2009,

vol. 5741, pp. 51–65.

C. Perera, A. Zaslavsky, P. Christen and D.

Georgakopoulos, "Context-Aware Computing for The

Internet of Things: A Survey," in IEEE

Privacy-preserving Measures in Smart City Video Surveillance Systems

513

Communications Surveys & Tutorials, vol. 16, no. 1,

pp. 414-454, First Quarter 2014

Shanhong Liu, 2018, BIS Research,

https://www.statista.com/statistics/864838/video-

surveillance-market-size-worldwide/

Thom, 2017, https://www.get-licensed.co.uk/get-

daily/eight-places-youll-always-be-on-cctv-cameras-

in-2018/

V. C. Banu, I. M. Costea, F. C. Nemtanu, I. Bădescu,

"Intelligent video surveillance system," 2017 IEEE

23rd International Symposium for Design Technology

in Electronic Packaging (SIITME), Constanta, 2017,

pp. 208

S. Zhang, Y. Lin and Q. Liu, "Secure and Efficient Video

Surveillance in Cloud Computing," 2014 IEEE 11th

International Conference on Mobile Ad Hoc and Sensor

Systems, Philadelphia, PA, 2014, pp. 222-226

T. Limna and P. Tandayya, "Video surveillance as a service

cost estimation and pricing model," 2015 12th

International Joint Conference on Computer Science

and Software Engineering (JCSSE), Songkhla, 2015,

pp. 174-179.

Wagner, Isabel, and David Eckhoff. “Technical Privacy

Metrics.” ACM Computing Surveys 51.3 (2015): 1–38.

D. Eckhoff C. Sommer F. Dressler R. German T. Gansen

"SlotSwap: Strong and affordable location privacy in

intelligent transportation systems" IEEE Commun.

Mag. vol. 49 no. 11 pp. 126-133 Nov. 2011.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

514
