Lightweight Authentication and Secure Communication Suitable for

IoT Devices

Simona Buchovecká, Róbert Lórencz, Jiří Buček and Filip Kodýtek

Department of Information Security, Faculty of Information Technology,

Czech Technical University in Prague, Czech Republic

Keywords: Authentication, Secure Communication, PUF, TRNG, Key Generation, Key Management, IoT Security.

Abstract: In this paper we present the protocols for lightweight authentication and secure communication for IoT and

embedded devices. The protocols are using a PUF/TRNG combined circuit as a basic building block. The

goal is to show the possibilities of securing communication and authentication of the embedded systems,

using PUF and TRNG for secure key generation, without requirement to store secrets on the device itself, thus

allowing to significantly simplify the problem of key management on the simple hardware devices and

microcontrollers, while allowing secure communication.

1 INTRODUCTION

Implementation of proper methods for authentication

and secure communication, including secure

management of key material in lightweight devices,

is of significant importance, especially with rise of

IoT devices. The use of cryptography and

corresponding keys in proper manner is one of the

leading problems, when talking about devices with

limited computing resources and low power

consumption.

Variety of communication protocols were

proposed for secure authentication and

commuunication in IoT world, such as machine-to-

machine/Internet of Things connectivity protocol

(MQTT), Constrained Application Protocol (CoAP),

or Datagram Transport Layer Security (DTLS) that

can be integrated with CoAP. However, those are still

rather heavy-weight and computationally quite

expensive protocols when considering simple and

constrained devices and thus their variants are

constantly being present, for instance Lithe (Raza et

al., 2013) or E-Lithe (Haroon et al., 2007) as a

lightweight variant of DTLS (Tschofenig et al.,

2016). Moreover, these protocols do not deal with

secure generation and storage of cryptographic keys,

which is rather prerequisity for their usage.

Before introducing the principles of Physically

Unclonable Functions (PUFs), we shall summarize

the currently most widely used methods for key

generation and storage. Nowadays, Random Number

Generators (RNGs) are mostly used for key

generation that are further used in cryptographic

protocols for authentication and secure

communication. For lightweight and embedded

devices, the True Random Number Generators

(TRNGs) are usually implemented, utilizing non-

deterministic effects in analogue or digital circuits,

since this is resource and power efficient way.

Therefore, the quality of TRNG has a significant

influence on security of whole system. Improperly

implemented TRNG often leads to compromise of the

whole system or reduces the complexity of the attack.

Moreover, once the key is generated, it needs to

be stored securely in the device (Handschuh et al.,

2010), e.g. utilizing storage with tamper-resistance

techniques implemented. However, to implement

such measures is a complex and cost-ineffective task,

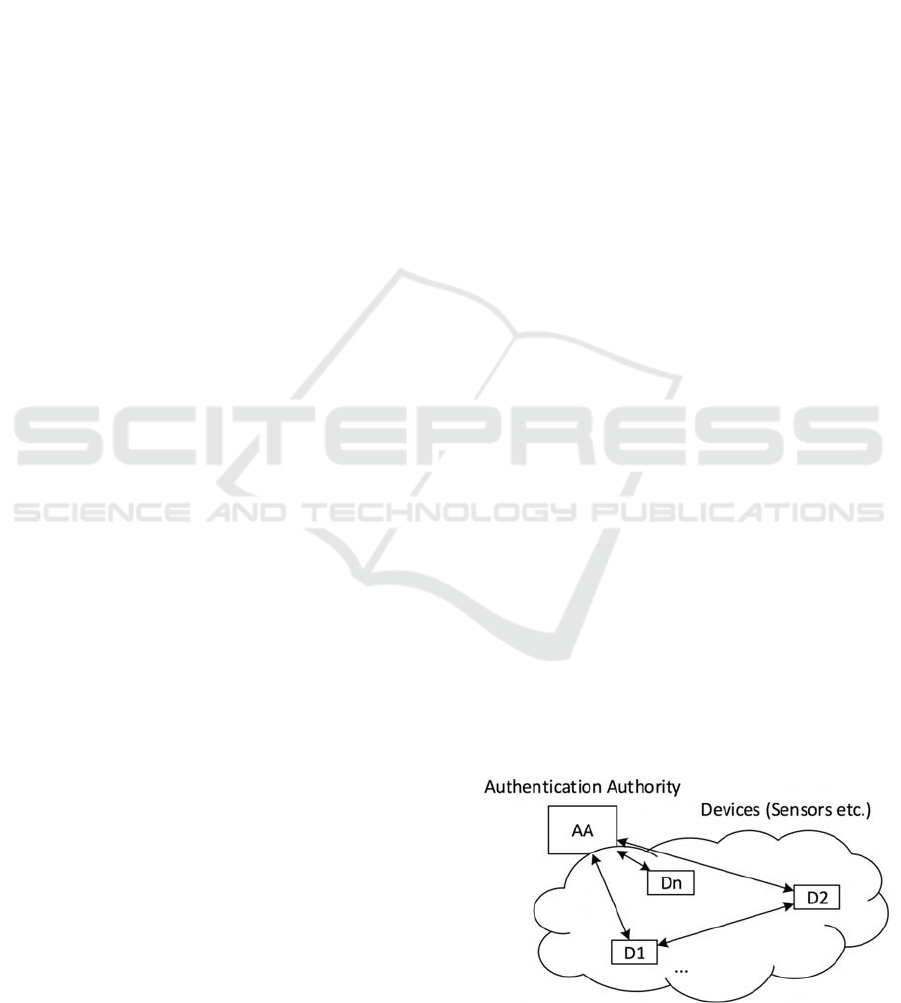

Figure 1: Interconnected systems with an Authentication

Authority.

Buchovecká, S., Lórencz, R., Bu

cek, J. and Kodýtek, F.

Lightweight Authentication and Secure Communication Suitable for IoT Devices.

DOI: 10.5220/0008959600750083

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 75-83

ISBN: 978-989-758-399-5; ISSN: 2184-4356

therefore often neglected in practical applications.

Thus, properly defined and implemented key

management, including proper key generation, key

storage and key usage for various applications

(authentication, access control, encryption) in

interconnected IoT and embedded systems, as

depicted in Figure 1 is still a challenging task (Roman

et al., 2013, Malina et al., 2016). A consistent way of

handling various cryptographic keys, possibilities of

reusing traditional security mechanisms and ensuring

end-to-end integrity verification mechanisms is

needed (Sicari et al., 2015). All security protocols

require credentials, thus optimal key management

systems must be implemented to store and distribute

these credentials (Roman et al., 2013).

The systematic and formalized approach to key

management in IoT devices and embedded systems

with properly defined requirements, as well as

efficient light-weight modules for key generation,

storage and secure usage are missing. However, the

need for proper key management in particular

applications of embedded systems and IoT started to

be raised in some research papers with regards to

specific areas such as automotive context (Schleiffer

et al., 2013), distributed sensor networks (Chan et al.,

2005), or embedded systems in general (Sklavos et

al., 2016).

Though TRNGs are mostly used nowadays for

cryptographic key generation, in recent years,

numerous works dealing with Physical Unclonable

Functions (PUFs) for key generation had been

published, proposing PUFs as another possible

approach for key generation. The concept of PUF was

originally introduced in (Pappu, 2002), showing that

instead of relying on number theory, the mesoscopic

physics of coherent transport through a disordered

medium can be used to allocate and authenticate

unique identifiers by physically reducing the

medium’s microstructure to a fixed-length string of

binary digits. These physical one-way functions are

inexpensive to fabricate, prohibitively difficult to

duplicate, admit no compact mathematical

representation, and are intrinsically tamper-resistant.

This makes PUF as ideal candidate for providing

tamper resistant design for cryptographic key

generation and storage.

Therefore, PUFs usage is promising to solve the

issue of secure storage of cryptographic keys. Instead

of storing the key in memory, the key is generated at

the time it is needed. A combined PUF/TRNG circuit

used in our paper is therefore a suitable alternative for

the purpose of key generation and authentication in

lightweight cryptographic applications, such as IoT

devices and other embedded platforms.

The structure of this paper is as follows. In Section

2, related work is summarized. In Section 3, our

proposed approach to lightweight authentication and

secure communication is presented. Section 4

presents a case study with a specific PUF/TRNG

circuit. Section 5 concludes this paper.

2 RELATED WORK

Every protocol for authentication and secure

communication requires cryptographic keys. The

minimum common requirements for key generation

and storage are summarized by Maes et al. (Maes et

al, 2012): A source of true randomness that ensures

unpredictable and unique fresh keys; and a protected

memory which reliably stores the keys information

while shielding it completely from unauthorized

parties. As further discussed in (Fischer, 2012), the

security of cryptographic systems is mainly linked to

the protection of confidential keys. In high-end

information security systems, when used in an

uncontrolled environment, cryptographic keys should

never be generated outside the system and they

should never leave the system in clear. For the same

reason, if the security system is implemented in a

single chip (cryptographic system- on-chip), the keys

should be generated inside the same chip.

As mentioned above, for secure key generation a

source of true randomness is needed, and the

generated keys should be unpredictable. Thus, for

proper generation of cryptographic keys random bit

stream is required. Therefore, traditional methods of

generating cryptographic keys in hardware and

embedded systems are mainly based on true random

number generators (TRNGs). As stated by Schindler

(Schindler, 2009), ideal random number generators

are characterized by the property that the generated

random numbers are independent and uniformly

distributed on a finite range. Various TRNG designs

suitable for cryptographic key generation include

purely digital designs (Epstein et al. 2003, Fairfield et

al. 1984), Phase-Locked Loops in designs targeting

FPGAs (Fischer and Drutarovsky 2012, Deak et al.

2015), Random access memories (Gyorfi et al. 2009)

or multiple designs (Kohlbrenner and Gaj, 2004,

Bucci et al., 2003, Golic, 2006, Tkacik, 2003) based

on Ring Oscillators as a source of entropy.

As discussed in (Maes et al, 2012), PUF-based

key generators try to fulfill two requirements on

secure key generation and storage at once. The

randomness of the PUF response comes from the

manufacturing process variation, and it is intrinsically

present in the device. There is no need for a protected

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

non-volatile memory since the randomness is

measured only when needed. However, the PUF

output may slightly vary in different measurements,

and it is still challenging to get static PUF output as

required by cryptographic schemes. Existing PUF

designs proposed for cryptographic applications

include PUFKY based on a ring oscillator PUF (Maes

et al, 2012) providing low-failure rate, generation of

read-once keys (Kirkpatrick et al. 2010), single-chip

secure processor for embedded systems (Suh et al.,

2007), arbiter PUF for device authentication and

secret key generation (Suh and Devadas, 2007) and

others.

Our goal is to propose a secure communication

and authentication method using a combined

PUF/TRNG circuit that will allow secure generation

of keys using both PUF and TRNG at the same time,

maximizing benefits of each one. There have been

several similar works published recently, however,

the first attempts in using PUF for the device

authentication were rather simple. In (Suh and

Devadas, 2007) simple authentication against

authentication authority was discussed, using pre-

generated challenge-response pairs stored centrally.

At the authentication time, the challenge is sent to the

device and response then compared with the output.

Same challenge cannot be reused again due to

possible replay attacks.

More sophisticated PUF-based authentication

protocols were reviewed in (Delvaux et al., 2014).

The work of (Ozturk et al., 2008) using

reprogrammable non-volatile memory; Hammouri et

al. (Hammouri et al. , 2008) using two arbiter PUFs;

protocol based on logically reconfigurable PUFs

(Katzenbeisser et al. 2011) which allows to recycle

the challenge tokens; Reverse Fuzzy Extractor (Van

Herrewege et al., 2012) allowing mutual

authentication; Slender PUF protocol (Majzoobi et

al., 2012) that does not expose the full PUF responses,

only the random subset instead; and Converse

authentication Protocol (Kocabas et al., 2012) which

provides one-way authentication of the server.

All of the protocols discussed above deal with

authentication only, leaving the need for key

establishment and secure communication open,

which is also one of the main conclusions of the PUF

authentication usage review (Delvaux et al., 2014),

discussing the caveats of the PUF responses being not

perfectly reproducible, small output space of strong

PUFs or need of secure TRNG, that is substantial for

most of the protocols.

Another concern is privacy of the authenticated

devices. As discussed in (Bolotnyy and Robins,

2007), an algorithm is privacy preserving if an

adversary cannot distinguish between any pair of

devices, and thus, the PUF must be able to generate

long chains of unique IDs (i.e., without repetitions).

Possible approach to privacy preserving

authentication protocol is presented in (Aysu et al.,

2015), based on fuzzy extractor with helper-data

construction technique based on TRNG.

In this paper we discuss protocols for

authentication and secure communication utilizing

PUF and TRNG. We show, it is advantageous to have

single module that will allow generation of both

TRNG and PUF at the same time, since it minimizes

implementation requirements and operational

resource consumption. The aim is not to require

storing secrets on the IoT or embedded system itself

to simplify key management on the simple hardware

devices and microcontrollers.

3 PROPOSED APPROACH

When designing the embedded module for secure

authentication and communication, the main goal is

to simplify the key management on the endpoint

embedded device itself. Thus, we propose to utilize

the single circuit for key generation using PUF and

TRNG as a basic building block of the module so that

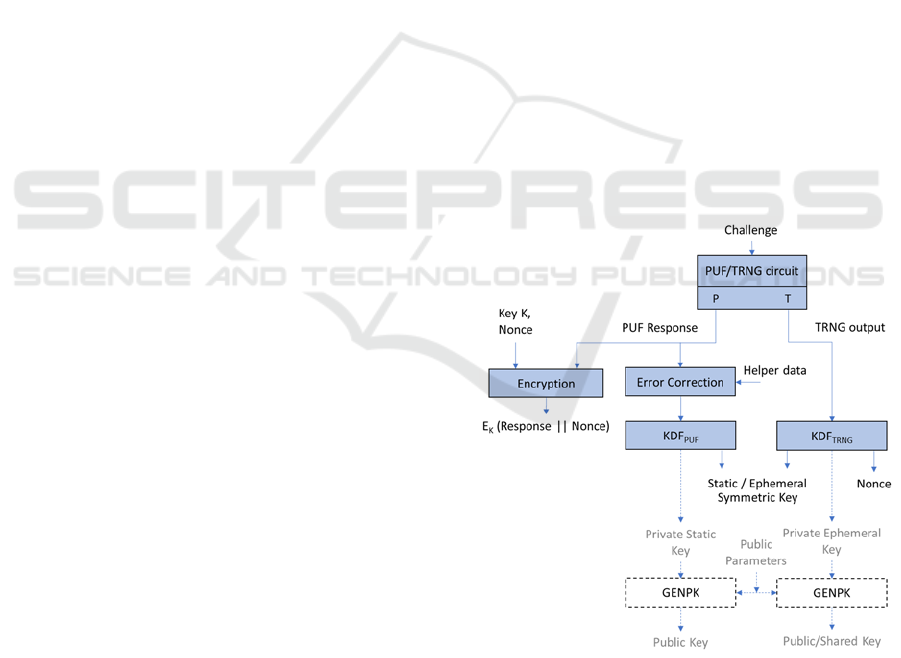

Figure 2: Embedded module for secure authentication and

communication. KDF is a Key Derivation Function,

GENPK generates a public key from a private key and

public parameters. Error Correction is used to obtain a

stable key material from the PUF Response (see Section

3.1). Functions covered in this paper are coloured in blue.

Lightweight Authentication and Secure Communication Suitable for IoT Devices

there is no need to store secrets on the hardware

device.

The overall module depicted in Figure 2 provides

PUF authentication and PUF/TRNG based key

generation. For the authentication, the PUF is used,

since it provides randomness intrinsically present in

the device and utilizes the fact that the generated

response is unique per device. Since there is a need

for both static key, as well as ephemeral keys,

combination of PUF and TRNG is used in this case –

the PUF is used for generation of static (private) key

that never leaves the device, thus utilizing all the

advantages of PUF, while TRNG is used for

generation of ephemeral, one-time keys, that are

shared with other communicating parties.

Asymmetric schemes are suitable if the private

key is easily generated from random sequence by a

Key Derivation Function (KDF), such as PBKDF2

(RSA Laboratories, 2012). For example, ElGamal

encryption (ElGamal, 1985) and DSA/ECDSA

signature schemes can be used, if good quality public

parameters are chosen (generation of the public key

from a private key si denoted as GENPK in Figure 2).

On the contrary, an RSA key requires more complex

processing including secure prime generation. TRNG

output is also used to generate random nonce and

padding data. In this paper, we will focus only on

symmetric schemes (with the exception of

Algorithm 1).

The proposed protocols for authentication against

a central authentication authority, and also mutual

device-device authentication, are further discussed in

detail in following sections.

3.1 Authentication against Central

Authentication Authority

Before any communication is allowed the connected

device must be properly authenticated. Since the PUF

responses are unique per each device, and are

intrinsically random, i makes PUF the ideal

cryptographic primitive for device authentication. We

propose simple and straightforward authentication

protocol using pre-generated challenge-response

pairs that can be easily implemented in hardware

devices. This protocol does not require the PUF to

have a large space of challenge-response pairs (it can

be used even for one challenge-response pair). The

authentication protocol consists of two phases –

secure enrolment phase and authentication phase

itself and is depicted in Algorithm 1.

The Enrolment phase is critical for the security of

all protocols based on PUFs, and (analogous to

biometric authentication methods) must be performed

in a secure environment. We assume that a suitable

environment can be created (for example, by separate

physical access to the devices), but specific means are

not elaborated in this paper.

During the Enrolment phase of Algorithm 1, the

challenge/response pair(s) (C, R) are measured from

the targeted device and securely stored at the central

authenticating authority (AA), that can be either

integrated into the gateway or be represented by

separate device that the gateway is querying during

authentication process. A database DB

of the pairs

(C, R) is created for each device D

. Furthermore, the

public key (PK

) of the authenticating authority is

pre-set on the device, so as the authentication data can

be securely transferred. For this purpose, an

asymmetric scheme (ElGamal) can be used, as

proposed in the section above. We assume that PK

is protected against unauthorized changes (by the

tamper-evidence property of the PUF).

The first 4 steps of the Enrolment phase are

common for all 3 algorithms presented in this paper.

The database DB

is used also in the Authentication

phases of Algorithms 2 – 3.

Enrolment phase (Secure environment)

Common for Algorithms 1 – 3:

1. AA → D1: Challenges (C

, C

, ...)

2. D1: R

= PUF(C

), R

= PUF(C

) ...

3. D1 → AA: Responses (R

, R

, ...)

4. AA: Store (C

, R

) to DB

Specific only for Algorithm 1:

5. AA → D1: Public key PK

6. D1: Store(PK

)

Authentication phase for D1

1. AA: Choose (C, R) from DB

2. AA → D1: Challenge C, Nonce N

3. D1: R’ = PUF(C)

4. D1 → AA: CR = E

PK_AA

(R’ || N)

5. AA: (R’, N’) = D

SK_AA

(CR)

Compare(≅′), Compare(N = N’)

Algorithm 1: Enrolment and Authentication against central

Authentication Authority.

The Authentication phase of Algorithm 1 is

executed every time the device is connected to the

network and needs to be authenticated. AA randomly

chooses one of the challenges C and sends it together

with the nonce value N to the device to be

authenticated. The nonce value is used to prevent

simple replay attacks and allows each challenge-

response pair to be used repeatedly. On the device

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

that is being authenticated the appropriate PUF

response is generated, concatenated with nonce value

and encrypted with public key of the Authenticating

Authority. Authenticating Authority then compares

(strictly) if the decrypted nonce value N’ = N. Since

the PUF response may slightly vary across various

measurements, a predetermined number of faulty bits

in R’ is tolerated. If both match, the device is

successfully authenticated. The disadvantage of

Algorithm 1 is that it only performs authentication

and does not provide a cryptographic context for

future communication.

Authentication of a single device (D1) to the AA

without asymmetric cryptography is depicted in

Algorithm 2. (The Enrolment phase is the same as in

Algorithm 1, steps 1. – 4.) This method includes

generating a shared symmetric key K, which requires

a stable error-free PUF output. This is achieved by

using an error-correcting code (ECC), denoted in the

algorithm by its functions Encode and Decode. This

code must have enough redundancy and structure to

correct the maximum amount of errors assumed in the

PUF when operated under various conditions

(voltage, temperature etc.).

Choosing a suitable ECC depends on the bit error

rate and length of PUF response while meeting the

required corrected output length. The computational

power of the device is also a limiting factor. In the

case of “lightweight” devices, simple codes (such as

a repetition code) are preferable.

Authentication phase – using symmetric cipher

1. D1 → AA: Call(D1)

2. AA: r = TRNG()

3. Choose (C, R) from DB

4. H = R  Encode(r)

5. K = KDF(r)

6. AA → D1: Challenge C, Helper string H

7. D1: R’ = PUF(C)

8. r = Decode(R’  H)

9. K = KDF(r)

10. D1 ↔ AA: Authentication + Encryption with K

Algorithm 2: Authentication of a device D1 to the AA.

The helper string H is a distance from the raw

PUF response R to the random codeword Encode(r).

It is computed by the AA (step 4 of Algorithm 2). The

device then uses it to recover the key material (step

8), and subsequently derive the key K.

The shared key K can be used for authentication

and encrypted communication, as opposed to

Algorithm 1, which covers only authentication,

limiting its usefulness. On the other hand, Algorithm

1 does not require the generation of a helper string,

nor does it need any error correction codes.

3.2 Mutual Device Authentication

Not only the device needs to be authenticated to

central authority when connected to the network, the

devices must be mutually authenticated before they

start to communicate, as well. Similarly, as in the

previous case, central authenticating authority stores

the pre-generated challenge-response pair(s), and acts

as trusted 3rd party. This time though, a shared

symmetric key is established between the two

devices, and a conventional symmetric authenticated

and encrypted session can follow afterwards. The

goal is to use the PUFs in both devices D1 and D2,

but not transmit any PUF response over the network.

By using the one-wayness of the hash functions used,

no device gets to know other device’s PUF response,

even if it monitors all communication. An error

correcting code is used to ensure stable PUF outputs.

The codewords are selected randomly from the code

space by the AA. The overall process is described in

Algorithm 3.

Mutual authentication of D1 and D2 using AA

1. D1 → AA: Call(D1, D2)

2. AA: r

= TRNG()

3. r

= TRNG()

4. Choose (C

, R

) from DB

5. Choose (C

, R

) from DB

6. H

= R

 Encode(r

)

7. H

= R

 Encode(r

)

8. r = Hash(r

)  Hash(r

)

9. AA → D1: (C

, H

, r)

10. AA → D2: Call(D1, D2) , (C

, H

, r)

11. D1: R’

= PUF(C

)

12. r

= Decode(R’

 H

)

13. Hash(r

) = Hash(r

)  r

14. K = KDF(Hash(r

) || Hash(r

))

15. D2: R’

= PUF(C

)

16. r

= Decode(R’

 H

)

17. Hash(r

) = Hash(r

)  r

18. K = KDF(Hash(r

) || Hash(r

))

19. D1 ↔ D2: Authentication + Encryption with K

Algorithm 3: Mutual device authentication and secure

communication.

Lightweight Authentication and Secure Communication Suitable for IoT Devices

Let us assume that D1 wants to authenticate with

D2 and set up a secure communication channel. D1

initiates the process by calling the AA with the

identification of D1 and D2 (CALL(D1, D2)). AA

contains the complete table of challenges and

responses (C

, R

etc.). An error correcting code is

chosen that can correct enough errors to make the

PUF response stable, with the corresponding

functions Encode and Decode. AA generates two

random components r

, r

from the set of

preimages, and encodes them, thereby forming

randomly chosen codewords. The code length should

correspond to the PUF response length. Helper strings

and H

are created by XORing the expected

PUF response (R

, R

) to the corresponding

codeword. The two random components are hashed

and the hashes XORed to form r.

To each of the devices, a triplet (C

, H

, r) with

the challenge, helper string, and r is sent. Also, in step

10, AA relays the request for communication from D1

to D2. Each of the devices challenges its own PUF to

get the response (R’

, R’

). By XORing the

response with the corresponding helper string (H

), resulting with a codeword with errors, which is

then corrected by the Decode function. This way,

each device recovers its component (r

, r

). D1

recovers the value Hash(r

) by XORing r with the

hash of its r

, and vice versa. Moreover, both devices

know the hashes of r

and r

, and can derive the

shared key K by applying a key derivation function

KDF on the concatenation of the hashes.

The hashing of r

, r

is done to hide the PUF

responses from the other device. If D1 monitors the

communication, it will know (C

, C

, H

, r).

It can recover r

, and if the hashing were not done,

and r would be equal to r

 r

directly, D1 would

compute r

, and using the helper string H

, it could

discover the PUF response R

. We would have to

either trust all devices in the network or use all

challenges only once and discard them. In our case,

because we do use hashing of r

, r

, D1 only gets

Hash(r

), and the one-wayness of the hash function

prevents it from discovering R

. Thus, we can reuse

the challenges for future authentications.

PUF response correction code choice depends on

the number of bit flips inherent in the PUF operation.

The code length and codeword distance determine the

number of information bits, thus the length of r

, r

and limit the entropy contained in r. By using the

same challenge with multiple random r

, we can

extract more bits of entropy from the PUF. The

entropy of the resulting shared key K is determined

by the properties of used hash functions and KDF,

and the inputs. If chosen correctly, it is as high as the

entropies of r

, r

. The key K is always derived from

randomly chosen codewords, and therefore for the

same PUF challenges (C

, C

), a different K is

obtained.

3.3 Secure Communication

After the authentication process described in the

previous section, a shared key is established. At this

point, a conventional symmetric authentication and

session key derivation process can be performed

using block ciphers such as AES. Several lightweight

block ciphers suitable for embedded systems or

sensor networks has been proposed, such as

PRESENT (Bogdanov et al., 2007, McKay, 2017)

with an 80-bit key. This allows generating the key in

a single run of PUF circuit for most of the PUF

designs and implementations, with no further

stretching needed.

All presented algorithms in this Section utilized

only PUF on the side of the devices and TRNG was

used on AA. TRNG functionality on the devices is

used after the secure channel establishment (steps 10

and 19) in dependence on the communication

protocols. Random numbers are needed in many

classical authentication protocols (Menezes et al.,

1996, chapter 12), as well as modern internet

standards such as DTLS (Tschofenig et al., 2016).

4 CASE STUDY

As arises from previous section, both TRNGs and

PUFs have different characteristics that are

advantageous in different applications. Thus, various

implementations of cryptographic systems can take

an advantage from a universal circuit for generation

of PUF and TRNG at the same time, that allows

secure generation of symmetric (session) keys (and

potentially also asymmetric (private) keys). Such

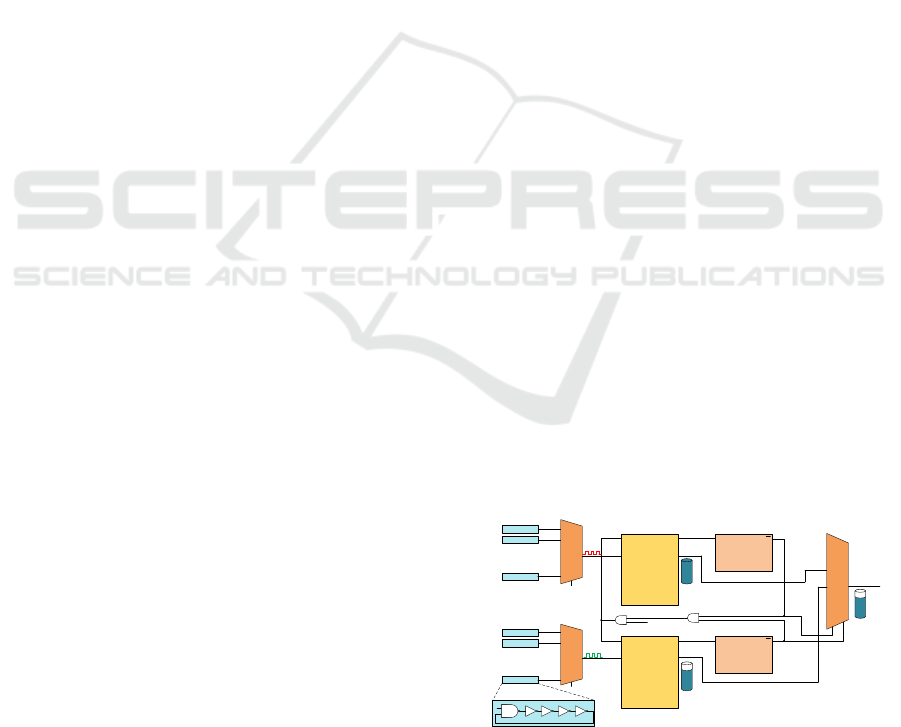

Figure 3: PUF/TRNG circuit based on Ring Oscillators,

serving as basic building block for proposed authentication

and secure communication scheme (Kodýtek et al., 2015,

Buchovecká et al., 2017).

Counter

Flip-flop

enable

multiplexer

result

res0

res1

multiplexer

sel0

sel1

CLR

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

PUF/TRNG based on Ring Oscillators – ROPUF

circuit was presented in our previous work (Kodýtek

et al., 2015, Kodýtek et al., 2016, Buchovecká et al.

2016, Buchovecká et al., 2017), so the idea of the

single RO circuit can be used both for PUF and

TRNG generation was validated. This circuit is

depicted in Figure 3.

In order to validate the proposed authentication

process outlined in Section 3, we performed an

experiment on one device containing the ROPUF

design (Kodýtek et al., 2015, Buchovecká et al.,

2017). For this purpose, we used a ROPUF design

that consisted of 2 groups of ring oscillators (ROs),

each group contained 150 ROs. Only ROs from

different groups were selected to form a pair, which

was then used to generate part of the PUF response.

We extracted 3 bits from each RO pair and enhanced

the stability of the PUF output by applying Gray code

on these bits (Kodýtek et al., 2016). Finally, to create

the PUF response, the selected bits from all of the RO

pairs are concatenated.

In the first case, we generated the PUF responses

from 150 pairs of ROs (each RO from each group was

used only once), in the other, each RO was used five

times (one RO from the first group is paired with 5

ROs from the other group) resulting in 750 RO pairs.

These two setups achieved 450 and 2250 bits of PUF

response respectively. In both cases, we performed

1000 measurements, from which we obtained a

majority PUF response - R

(we determined the

majority for each position of the PUF output).

In our experiment, the block length of 9 bits

proved to be sufficient for the repetition code. In

order to create the helper string H

Di,

we need to

generate 50 or 250 random bits (r

) that are then

encoded by the repetition code and XORed with the

major PUF output, forming the helper string H

. This

process is related to steps 2 and 4 in Algorithm 2.

The example using a simple repetition code with

5-bit block length is depicted on Figure 4. On the

device, the PUF generates a response R’

that is

corrected by the helper string H

, corresponding to

steps 7 and 8 in Algorithm 2. After correction, we

obtained 50 and 250 bits respectively. These bits can

be used to create a cryptographic key. For

Algorithm 2, we can simply represent KDF as the

selection of the first 128 bits (from r

) for symmetric

cipher AES.

The same can be applied for Algorithm 3, where

two devices are authenticating each other. However,

this algorithm is more complex, since it requires

implementation of suitable hash function. In case of

Algorithm 1, no KDF is needed, since the AA’s

Figure 4: Example of a simple repetition code with 5-bit

groups.

public key is stored on the device and PUF is not used

to derive any cryptographic key.

To increase the number of bits after correction, we

can either use a more efficient error correcting code

or we can reuse the same challenge multiple times

with a new random codeword each time. The

experiment showed and confirmed that it is possible

to generate key material for the proposed protocols,

using the state of the art PUF/TRNG designs, in

sufficient length and quality.

5 CONCLUSIONS

In the paper, we discussed the need for the proper key

management of cryptographic keys on the embedded

devices and further proposed the design of the module

for secure authentication and communication that

fulfills the requirements for the secure generation and

storage of the cryptographic keys, including proposal

of basic authentication and secure communication

protocols.

For the authentication, several protocols based on

pre-generated PUF challenge/response values are

proposed. Since the PUF responses are unique per

each device and are intrinsically random, PUF is ideal

cryptographic primitive for this purpose. Three

variants of the protocol are discussed – authentication

against central authority using PUF challenge and

encrypted response, and two variants of

authentication that use the PUF for key generation –

single device authentication, and mutual device

authentication.

After the authentication process, a shared key

between the devices is established. At this point, a

conventional symmetric authentication and session

key derivation process can be performed using

conventional or lightweight block ciphers as needed.

Further, we discussed the case study and

suggested possible implementation of the module for

secure communication and authentication, using

Major PUF output R

: 10110|01100|…|01011

Encoded random (r

= 10...1): 11111|00000|…|11111

= R

Encode(R

): 01001|01100|…|10100

Correcting string

creation H

PUF output R‘

: 11110|00000|…|01010

Correcting string H

: 01001|01100|…|10100

Result of (R‘

): 10111|01100|…|11110

PUF output

correction and

key generation

Key

= Decode (R‘

majority majoritymajority

…

Lightweight Authentication and Secure Communication Suitable for IoT Devices

ROPUF/TRNG circuit. As it was presented and

validated in previous work (Kodýtek et al., 2015,

Kodýtek et al., 2016, Buchovecká et al., 2016,

Buchovecká et al., 2017) a pair of RO circuits can be

used both for PUF and TRNG generation, thus serve

as basic building block for the module. Moreover, it

is possible to generate the sequence long enough for

the key generation in one run of ROPUF/TRNG

circuit.

In the paper we have shown the possibilities of

securing communication and authentication of the

embedded systems, using PUF and TRNG for secure

key generation, without requirement to store secrets

on the device itself, thus allowing to significantly

simplify the problem of key management on the

simple hardware devices and microcontrollers.

Future work will be devoted to secure

communication with a suitable asymmetric

encryption scheme, using both PUF for generation of

private key, as well as TRNG for generation of

ephemeral keys, making use of the randomness

already intrinsically present in the device. Thanks to

PUF, the private key is generated when needed, thus

there is no need for storing secrets on the device itself.

ACKNOWLEDGEMENTS

The authors acknowledge the support of the OP VVV

MEYS funded project CZ.02.1.01/0.0/0.0/16_019/

0000765 “Research Center for Informatics”.

REFERENCES

Aysu, A., Gulcan, E., Moriyama, D., Schaumont, P., &

Yung, M. (2015). End-to-end design of a PUF-based

privacy preserving authentication protocol.

International Workshop on Cryptographic Hardware

and Embedded Systems. Springer, Berlin, Heidelberg.

Bogdanov, A., Knudsen, L. R., Leander, G., Paar, C.,

Poschmann, A., Robshaw, M. J., Seurin, Y., &

Vikkelsoe, C. (2007). PRESENT: An ultra-lightweight

block cipher. International workshop on cryptographic

hardware and embedded systems (pp. 450-466).

Springer, Berlin, Heidelberg.

Bolotnyy L., Robins G. (2007). Physically unclonable

function-based security and privacy in RFID systems.

Pervasive Computing and Communications, 2007.

PerCom'07. Fifth Annual IEEE International

Conference on. IEEE.

Bucci, M., Germani, L., Luzzi, R., Trifiletti, A., &

Varanonuovo, M. (2003). A high-speed oscillator-

based truly random number source for cryptographic

applications on a smart card IC. Computers, IEEE

Transactions on 52.4 (2003): 403-409.

Buchovecká, S., Kodýtek, F., Lórencz, R., Buček J. (2016)

True Random Number Generator Based on ROPUF

Circuit. Digital System Design (DSD), 2016 Euromicro

Conference on. IEEE.

Buchovecká, S., Kodýtek, F., Lórencz, R., Buček J. (2017).

True random number generator based on ring oscillator

PUF circuit. Microprocessors and Microsystems 53

(2017): 33-41.

Chan H., Gligor V. D., Perrig A., Muralidharan G. (2005).

On the distribution and revocation of cryptographic

keys in sensor networks. IEEE Transactions on

Dependable and Secure Computing, 2(3):233–247.

Deak N., Gyorfi T., Marton K., Vacariu L., Cret O. (2015).

Highly efficcient true random number generator in

FPGA devices using phase-locked loops. 20th

International Conference on Control Systems and

Computer Science, pages 453–458. IEEE.

Delvaux, J., Gu, D., Schellekens, D., & Verbauwhede, I.

(2014). Secure lightweight entity authentication with

strong PUFs: Mission impossible? In: International

Workshop on Cryptographic Hardware and Embedded

Systems. Springer, Berlin, Heidelberg. p. 451-475.

ElGamal T. (1985). A public-key cryptosystem and a

signature scheme based on discrete logarithms. IEEE

Transactions on Information Theory, IT-31(4):469–

472.

Epstein M., Hars L., Krasinski R., Rosner M., and Zheng

H. (2003). Design and implementation of a true random

number generator based on digital circuit artifacts. In

International Workshop on Cryptographic Hardware

and Embedded Systems, pages 152–165. Springer.

Fairfield R. C., Mortenson R. L., and Coulthart K. B.

(1984). An LSI random number generator (rng).

Workshop on the Theory and Application of

Cryptographic Techniques, pages 203–230. Springer.

Fischer V. (2012). A closer look at security in random

number generators design. International Workshop on

Constructive Side-Channel Analysis and Secure

Design, pages 167–182. Springer.

Fischer V., Drutarovský M. (2002). True random number

generator embedded in reconfigurable hardware.

International Workshop on Cryptographic Hardware

and Embedded Systems, pages 415–430. Springer.

Golic J. D. J. (2006), New Methods for Digital Generation

and Postprocessing of Random Data, IEEE

Transactions on Computers, vol. 55, no. 10, pp. 1217-

1229.

Gyorfi T., Cret O., and Suciu A. (2009). High performance

true random number generator based on fpga block

rams. Parallel & Distributed Processing, 2009. IPDPS

2009. IEEE International Symposium on, pages 1–8.

IEEE.

Hammouri, G., Öztürk, E., Sunar, B. (2008). A tamper-

proof and lightweight authentication scheme. Journal

Pervasive and Mobile Computing 6(4).

Handschuh H., Schrijen G.-J., and Tuyls P. (2010).

Hardware intrinsic security from physically unclonable

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

functions. Towards Hardware-Intrinsic Security, pages

39–53. Springer.

Haroon, A., Akram, S., Shah, M. A., & Wahid, A. (2017).

E-lithe: A lightweight secure dtls for iot. In 2017 IEEE

86th Vehicular Technology Conference (VTC-Fall) (pp.

1-5). IEEE.

Katzenbeisser, S., Kocabaş, Ü., Van Der Leest, V., Sadeghi,

A. R., Schrijen, G. J., & Wachsmann, C. (2011).

Recyclable PUFs: Logically reconfigurable PUFs.

Journal of Cryptographic Engineering, 1(3), pp. 177–

186.

Kirkpatrick M. S., Bertino E., and Kerr S. (2010). PUF

ROKs: generating read-once keys from physically

unclonable functions. Proceedings of the Sixth Annual

Workshop on Cyber Security and Information

Intelligence Research. ACM.

Kocabaş, Ü., Peter, A., Katzenbeisser, S., Sadeghi, A.-R.

(2012). Converse PUF-Based Authentication. In:

Katzenbeisser, S., Weippl, E., Camp, L.J., Volkamer,

M., Reiter, M., Zhang, X. (eds.) Trust 2012. LNCS, vol.

7344, pp. 142–158. Springer, Heidelberg.

Kodýtek, F., Lórencz, R. (2015). A design of ring oscillator

based PUF on FPGA. In Design and Diagnostics of

Electronic Circuits & Systems (DDECS), 2015 IEEE

18th International Symposium on. IEEE.

Kodýtek, F., Lórencz, R., Buček J. (2016) Improved ring

oscillator PUF on FPGA and its properties.

Microprocessors and Microsystems.

Kohlbrenner P., Gaj K. (2004). An embedded true random

number generator for FPGAs. Proceedings of the 2004

ACM/SIGDA 12th international symposium on Field

programmable gate arrays. ACM.

McKay K. A. (2017). Report on Lightweight Cryptography

– NIST publication, available online https://doi.org/

10.6028/NIST.IR.8114

Maes R., Van Herrewege A., and Verbauwhede I. (2012).

PUFKY: a fully functional PUF-based cryptographic

key generator. In International Workshop on

Cryptographic Hardware and Embedded Systems,

pages 302–319. Springer.

Majzoobi, M., Rostami, M., Koushanfar, F., Wallach, D.S.,

Devadas, S. (2012). Slender PUF Protocol: A

Lightweight, Robust, and Secure Authentication by

Substring Matching. In: IEEE Symposium on Security

and Privacy (SP), pp. 33–44.

Malina L., Hajny J., Fujdiak R., and Hosek J. (2016). On

perspective of security and privacy-preserving

solutions in the internet of things. Computer Networks,

102:83– 95.

Menezes, A. J., Van Oorschot, P. C., & Vanstone, S. A.

(1996). Handbook of applied cryptography. CRC press.

Öztürk, E., Hammouri, G., Sunar, B. (2008). Towards

Robust Low-Cost Authentication for Pervasive

Devices. In: IEEE Conference on Pervasive Computing

and Communications, PerCom.

Pappu, R., Recht, B., Taylor, J., and Gershenfeld, N.

(2002). Physical one-way functions. Science,

297(5589):2026–2030.

Raza, S., Shafagh, H., Hewage, K., Hummen, R., & Voigt,

T. (2013). Lithe: Lightweight secure CoAP for the

internet of things. IEEE Sensors Journal, 13(10), 3711-

3720.

Roman R., Zhou J., and Lopez J. (2013). On the features

and challenges of security and privacy in distributed

internet of things. Computer Networks, 57(10):2266–

2279.

RSA Laboratories: PKCS #5 V2.1: Password Based

Cryptography Standard (2012)

Schindler W. (2009). Random number generators for

cryptographic applications. In Cryptographic

Engineering, pages 5–23. Springer.

Schleiffer Ch., Wolf M., Weimerskirch A., and

Wolleschensky L. (2013). Secure key management-a

key feature for modern vehicle electronics. Technical

report, SAE Technical Paper.

Sicari S., Rizzardi A., Grieco L. A., Coen-Porisini A.

(2015). Security, privacy and trust in internet of things:

The road ahead. Computer Networks, 76:146–164.

Sklavos, N, Zaharakis I. D. (2016). Cryptography and

Security in Internet of Things (IoTs): Models, Schemes,

and Implementations, In IEEE proceedings of the 8th

IFIP International Conference on New Technologies,

Mobility and Security (NTMS’16), Larnaca, Cyprus

Suh E. G., Devadas S. (2007). Physical unclonable

functions for device authentication and secret key

generation. In Proceedings of the 44th annual Design

Automation Conference, pages 9–14. ACM.

Suh E. G., O'Donnell Ch. W., and Devadas S. (2007).

Aegis: A single-chip secure processor. IEEE Design &

Test of Computers 24.6.

Tkacik T. E. (2003), A hardware random number generator,

in Proceedings of the Cryptographic Hardware and

Embedded Systems (CHES '02), B. S. Kaliski Jr., Ç. K.

Koç, and C. Paar, Eds., vol. 2523 of Lecture Notes in

Computer Science, pp. 450–453, Springer, Redwood

Shores, Calif, USA.

Tschofenig, H. and T. Fossati," Transport Layer Security

(TLS)/Datagram Transport Layer Security (DTLS)

Profiles for the Internet of Things. RFC 7925, July

2016.

Van Herrewege, A., Katzenbeisser, S., Maes, R., Peeters,

R., Sadeghi, A.-R., Verbauwhede, I., Wachsmann, C.

(2012). Reverse Fuzzy Extractors: Enabling

Lightweight Mutual Authentication for PUF-Enabled

RFIDs. In: Keromytis, A.D. (ed.) FC 2012. LNCS, vol.

7397, pp. 374–389. Springer, Heidelberg.

Lightweight Authentication and Secure Communication Suitable for IoT Devices
