A UML Proﬁle for Automatic Code Generation of Optimistic Graceful

Degradation Features at the Application Level

Lars Huning, Padma Iyenghar and Elke Pulvermueller

Institute of Computer Science, University of Osnabrück, Wachsbleiche 27, 49090 Osnabrück, Germany

Keywords:

Adaptive Systems, Code Generation, Embedded Software Engineering, Embedded Systems, Functional

Safety, Graceful Degradation, Model-Driven Development.

Abstract:

Safety standards such as ISO26262 or IEC61508 recommend a variety of safety mechanisms for the devel-

opment of safety-critical systems. One of these mechanisms is graceful degradation, which aims to provide

a degraded service of an application after an error has occurred. While several safety standards recommend

graceful degradation, they do not provide any concrete development or implementation assistance. This paper

employs model-driven development to realize such an automated approach for optimistic graceful degrada-

tion, which is a speciﬁc variant of the graceful degradation safety mechanism. We introduce a UML proﬁle

that may be used to model optimistic graceful degradation at the application level within a UML class dia-

gram. We leverage this model representation to automatically generate productive source code that is capable

of optimistic graceful degradation. This source code is generated without requiring any additional developer

actions.

1 INTRODUCTION

The size and complexity of software in safety-critical

embedded systems is growing increasingly (Trindade

et al., 2014; Penha et al., 2015). Safety stan-

dards, such as IEC61508 (IEC61508, 2010) or

ISO26262 (ISO26262, 2018), recommend develop-

ment practices and safety mechanisms to realize such

systems. They propose model-driven development

(MDD) as one alternative to deal with the rising com-

plexity, an idea that is increasingly adopted by the in-

dustry (Laplante and DeFranco, 2017; Trindade et al.,

2014; Penha et al., 2015). While safety standards of-

fer guidelines on the use of safety mechanisms, they

do not provide any concrete development assistance

for their realization. This paper aims to ﬁll this gap,

by providing a model representation and automatic

code generation for one speciﬁc safety mechanism:

graceful degradation.

In order to apply graceful degradation to a sys-

tem, it has to be composed of multiple states. In

case an error occurs, a graceful degradation mecha-

nism ensures that the system switches to a safe state.

In contrast to approaches that rely on redundancy, the

newly assumed state is often degraded, i.e., it provides

a service of lower quality than the original state (Sari-

dakis, 2005). On one hand, this may result in stop-

ping a service in a system that provides several ser-

vices, e.g., dropping error logging functionality in or-

der to use the underlying hardware to assume system

control functionality in case the original system con-

trol hardware failed (IEC61508, 2010). On the other

hand, the erroneous service may be replaced by an-

other with lower quality. As an example, we consider

the position sensor of an elevator, which measures the

distance to the next ﬂoor. If this sensor fails, another

module may continuously inform the elevator control

software to always use the slowest speed (Shelton and

Koopman, 2004).

Previous research on graceful degradation (cf.

section 5) has not only investigated how to select the

most useful degraded state given some optimization

criteria, but also provided design patterns (Saridakis,

2009) and a meta-model (Penha et al., 2015). How-

ever, there remains an open research challenge. It

concerns the automatic generation of productive code

for graceful degradation, that includes automatic state

transitions in case of an error (Penha et al., 2015).

In this paper, we propose a solution for this research

challenge based on the Uniﬁed Modeling Language

(UML) (OMG UML, 2017) by introducing the fol-

lowing novel ideas:

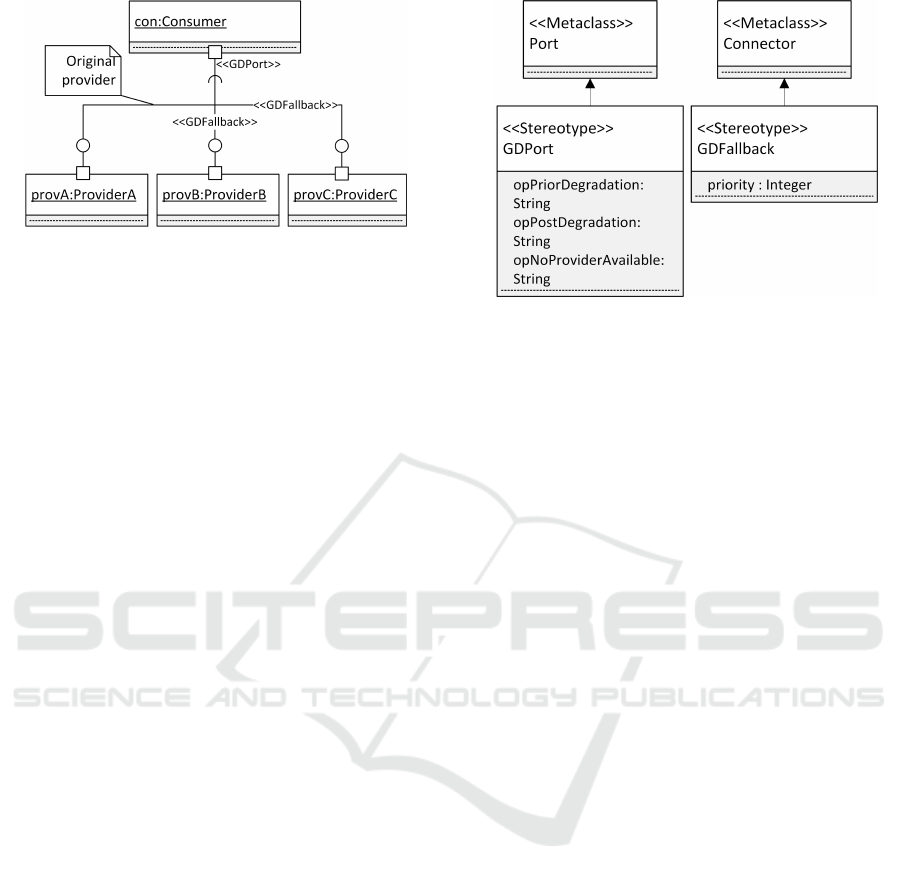

a) a model representation based on UML stereotypes

for specifying which classes inside a UML class

336

Huning, L., Iyenghar, P. and Pulvermueller, E.

A UML Proﬁle for Automatic Code Generation of Optimistic Graceful Degradation Features at the Application Level.

DOI: 10.5220/0008949803360343

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 336-343

ISBN: 978-989-758-400-8; ISSN: 2184-4348

diagram are capable of graceful degradation.

b) a model representation based on UML stereotypes

to specify which objects may be used to provide

degraded services in case of an error.

c) a proof of concept code generation based on the

novel model representations of contribution a) and

b).

The remainder of this paper is organized as fol-

lows: Section 2 presents our system model and an

existing design pattern for graceful degradation that

serves as the basis for our solution. Section 3 in-

troduces our model representation to specify graceful

degradation at the UML class level, while section 4

provides a proof of concept code generation for the

developed proﬁle. In Section 5 we present related

work, before we conclude the paper in section 6.

2 BACKGROUND

This section presents background knowledge on

graceful degradation and how this concept may be

applied to our system model (cf. section 2.1). Fur-

thermore, we summarize a speciﬁc design pattern for

graceful degradation (cf. section 2.2). This design

pattern is the basis for our approach at the code-level.

2.1 Graceful Degradation and System

Model

This section describes the concept of graceful degra-

dation and shows how it may be applied to the system

model used in this paper. We start with the following

deﬁnition of graceful degradation: “a smooth change

of some distinct system feature to a lower state as a

response to errors” (Saridakis, 2009, p. 69). Lower-

ing the state may be achieved by either removing an

erroneous component from the system or replacing

it with a pre-existing spare component that provides

lower quality (Saridakis, 2005).

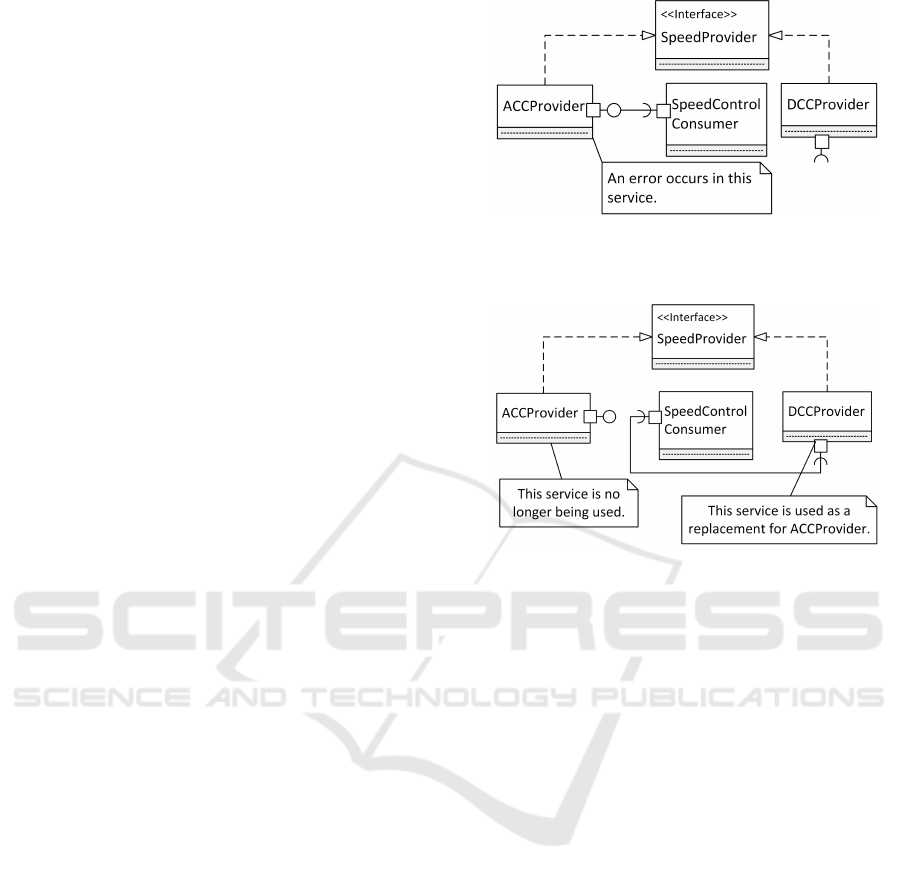

Figure 1 shows an example of graceful degra-

dation by employing a speed control system of an

automobile as an application example (Penha et al.,

2015). In this example, an automobile has two differ-

ent driving modes: Dynamic Cruise Control (DCC)

and Adaptive Cruise Control (ACC). In DCC, the sys-

tem automatically controls the throttle and brake of

the vehicle in order to maintain a steady speed set by

the driver. In ACC (cf. ﬁgure 1(a)), the system con-

trols the throttle and brake of the vehicle in order to

maintain a steady speed while also maintaining a safe

distance to the vehicle in front. The ACC system de-

pends on a radar to measure the distance to the vehicle

(a) Original system state, where the speed control con-

sumer gets its data from the ACC provider. (UML 2.5

class diagram).

(b) Degraded system state, in which the ACC provider

has been replaced by the DCC provider (UML 2.5 class

diagram).

Figure 1: Basic concept of graceful degradation exempliﬁed

by a speed control system example.

in front. In case there is an error in the radar, the ACC

functionality needs to be disabled and the system has

to switch gracefully to DCC (cf. ﬁgure 1(b)).

The concept of graceful degradation may be re-

alized at different levels of the system. For exam-

ple, the job of an erroneous, safety-critical hardware

module may be taken up by another suitable hard-

ware module that performs non safety-critical op-

erations (IEC61508, 2010). Another example may

consider rescheduling the tasks to be performed

on the CPU in case computing resources are ex-

hausted (Gonzalez et al., 1997). In this scenario,

safety-critical tasks gain priority during scheduling at

the cost of other, non safety-critical tasks.

The two previous examples either concern the

hardware of the application or may be applied with-

out speciﬁc application knowledge. In contrast to

this, our approach focuses on graceful degradation

at the software application level. It assumes that the

application consists of several software components

that interact with each other to fulﬁll the application’s

speciﬁcation.

In the context of this paper, we use the following

system model: the (software) application runs on a

A UML Proﬁle for Automatic Code Generation of Optimistic Graceful Degradation Features at the Application Level

337

single machine, i.e., we do not consider distributed

systems. Additionally, in the context of this paper,

a component consists of one or more object-oriented

classes. A single class in each component is responsi-

ble for communication with other components. This

class is often referred to as an “interface” in the lit-

erature (Avizienis et al., 2004). However, the ap-

proach presented in this paper heavily uses the object-

oriented programming concept of an interface. In or-

der to differentiate between these two terms, we re-

fer to the class that is responsible for communication

with other components as the boundary class of each

component, while the term interface will be used to

refer to the object-oriented programming concept.

In this paper, we use two categories of compo-

nents. Providers are components that provide some

sort of functionality or service that may be used

by other components. At the implementation level,

providers implement one or more interfaces. Con-

sumers, on the other hand, require and utilize the ser-

vices made available by the providers. At the im-

plementation level, consumers make use of the in-

terfaces implemented by the providers. Consumers

and providers communicate through virtual channels

called bindings (Saridakis, 2005). In this paper, we

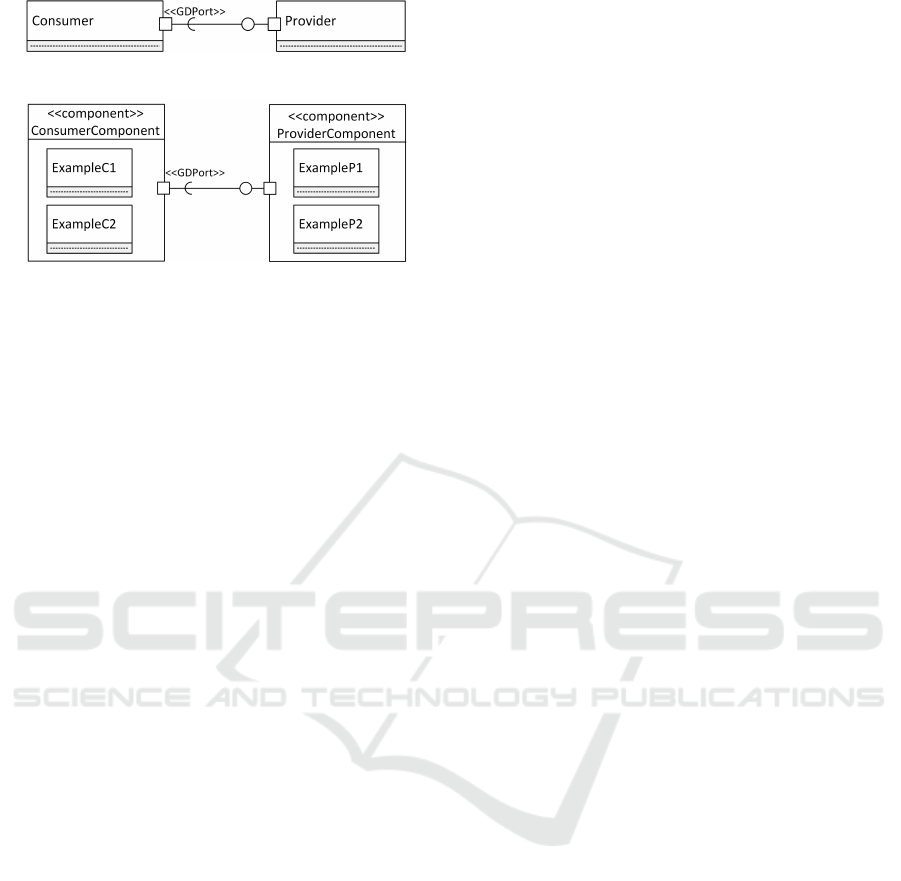

represent a binding at the model level via UML ports

(cf. section 3) and at the code-level via reference vari-

ables (cf. section 4). Then, in the context of this sys-

tem model, graceful degradation may be achieved as

follows: if a (runtime) error in a provider has been

detected, the consumers may either interchange this

provider with another provider that implements the

same interface (albeit at a lower quality) (Shelton and

Koopman, 2004) or stop using any services offered by

this provider (Saridakis, 2005).

2.2 A Design Pattern for Optimistic

Graceful Degradation

This section brieﬂy summarizes a speciﬁc design pat-

tern for graceful degradation (Saridakis, 2009). This

pattern is the basis of our software architecture used

for automatic code generation of graceful degradation

presented in section 4. Besides the components that

make up the application, the pattern consists of three

notable software entities:

• A notiﬁer is responsible for signaling that an error

has occurred inside a component. There may exist

many notiﬁers inside the system. For example,

each component may contain its own notiﬁer in

case it detects an error. Another approach may

use concurrent notiﬁers that observe a component

independently.

• An assessor is responsible for determining which

components, other than the erroneous component,

may be affected by the error. Notiﬁers signal the

occurrence of an error to the assessor.

• One or more loaders are employed to actually de-

grade the affected components to a lower state.

The loaders gain their information which compo-

nents are affected from the assessor. In this paper,

the loaders are located inside the boundary class

of each component.

In (Saridakis, 2009), this pattern is further reﬁned into

an optimistic, pessimistic and causal variant. They

describe different strategies for the assessor to decide

which components should be removed. The purpose

of the pessimistic and causal variant is to reduce the

runtime overhead of executing the loaders multiple

times in case an error propagates through the system.

In our approach, the runtime overhead for the loaders

amounts to changing the value of a reference variable

(cf. section 4) and is comparably small to other al-

ternatives. Thus, the runtime overhead of running the

loaders several times in a row is also small. Therefore,

we focus only on optimistic graceful degradation, in

which only the component directly affected by the er-

ror is replaced or removed. Future work may also in-

clude the other two variants, which may be achieved

by including an appropriate tagged value in the stereo-

types presented in section 3 and subsequently modi-

fying the code generation for the assessor.

3 MODELING OPTIMISTIC

GRACEFUL DEGRADATION

FOR CODE GENERATION

In order to model optimistic graceful degradation for

automatic code generation, two key challenges need

to be solved. The ﬁrst challenge concerns how a com-

ponent may be marked as intended for graceful degra-

dation. The second challenge concerns how the state

decrements may be modeled within the application

model.

3.1 Marking a Component as Capable

of Graceful Degradation

The ﬁrst part of a model representation for optimistic

graceful degradation is to specify how selected com-

ponents may be marked as capable of graceful degra-

dation. In this paper, we examine two alternatives

based on UML how this may be achieved: via UML

class diagrams or via UML component diagrams.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

338

(a) Model representation via UML class diagram.

(b) Model representation via UML component dia-

gram.

Figure 2: Alternative model representations for specifying

that graceful degradation should be added to a component

during automatic code generation.

3.1.1 Specifying Graceful Degradation via UML

Class Diagrams

This section describes an alternative to specify that

a component is capable of graceful degradation via

UML class diagrams. It marks the boundary class

of the component, in order to specify that the whole

component is capable of graceful degradation. We

choose the boundary class to represent the whole

component, because it is responsible for interacting

with other components, and graceful degradation in

this paper entails modifying these interactions (cf.

section 4).

An instance of a boundary class may have multi-

ple bindings to other components. In order to mini-

mize the effect of errors on the system, each binding

should be treated separately by the degradation mech-

anism. This prevents the removal or replacement of

bindings that are unaffected by the error (Saridakis,

2005). In UML, the metaclass “Port” is one viable al-

ternative for specifying the bindings between objects.

A port which is applied to a class may specify an in-

terface that this port either requires or fulﬁlls. This is

analogous to the concept of consumer and producer

components (cf. section 2.1). In general, a single

UML port may be used to represent more than one

binding and more than one interface. In our solution,

we assume that only a single binding and interface is

speciﬁed per port. This does not inﬂuence the gen-

erality of our solution, as additional bindings may be

speciﬁed by adding additional ports to the boundary

class.

In order to mark a port as being capable of grace-

ful degradation, we employ UML stereotypes. Stereo-

types are an inbuilt feature of UML and may be

used to extend any metaclass in the UML meta-

model (OMG UML, 2017). We introduce the novel

stereotype «GDPort», which extends the UML meta-

class “Port”. Applying this stereotype to a port rep-

resents that the class to which the port is applied is

capable of graceful degradation. Additionally, the

«GDPort» stereotype also contains speciﬁc tagged

values related to graceful degradation that are further

described in section 3.3.

Figure 2(a) shows how the model representation

based on the «GDPort» stereotype looks like in a

UML class diagram. The boundary class Consumer

requires an interface that is provided by the class

Provider. The «GDPort» stereotype is applied to the

port of the boundary class of the consumer. We mark

consumers as capable of graceful degradation instead

of provider components, because a provider may al-

ready be in an erroneous state when degradation is

required. Thus, from a safety perspective, degrada-

tion should be performed by consumers instead of

providers.

3.1.2 Specifying Graceful Degradation via UML

Component Diagrams

This section describes an approach for marking a

component as capable of graceful degradation based

on UML component diagrams. Similar to class di-

agrams, components in a component diagram are

shown as rectangles and may contain ports that con-

nect a component to another component. Classes that

a component contains are shown within the rectan-

gle that represents the component. Besides classes,

ports may also be applied to components, thus the

«GDPort» stereotype introduced in section 3.1.1 may

be reused in this scenario. This is shown in ﬁg-

ure 2(b). Two components, (ConsumerComponent

and ProviderComponent), are connected via their re-

spective ports. The «GDPort» stereotype is applied

to the port of ConsumerComponent. As a component

encompasses all its classes, there is no need to specif-

ically mark the boundary class.

3.2 Specifying Degradation Fallbacks

for State Decrement

Besides specifying that a component is used for

graceful degradation (cf. section 3.1), it is also nec-

essary to specify which providers may be used as po-

tential fallbacks for a consumer component in case of

an error. These fallbacks may not be speciﬁed within

the «GDPort» stereotype, as the potential providers of

a consumer may be different for each instance of the

consumer. Thus, the fallbacks have to be speciﬁed at

the instance level, where the bindings between indi-

A UML Proﬁle for Automatic Code Generation of Optimistic Graceful Degradation Features at the Application Level

339

Figure 3: Model representation for specifying degradation

fallbacks (UML 2.5 object diagram). The «GDPort» stereo-

type in this object diagram only serves an illustrative pur-

pose, signifying that the class Consumer has been marked

with the «GDPort» stereotype. All instances of Consumer

share the same values for the tagged values of «GDPort».

vidual instances may be visualized within a UML ob-

ject diagram. Such binding between ports are called

UML connectors. They link one port to another, spec-

ifying which provider a speciﬁc consumer should use.

In order to specify degradation fallbacks, we intro-

duce the novel «GDFallback» stereotype. It extends

the UML metaclass “Connector” and thus offers a vi-

sual representation of the fallbacks that is directly vis-

ible in the model. This approach is shown in ﬁgure 3.

The instances provB and provC are connected to the

port of the instance con via their respective port. The

connection link between these ports is marked with

the «GDFallback» stereotype.

In order to determine the order in which the fall-

backs are used, a tagged value may be included in the

«GDFallback» stereotype that indicates the priority of

the fallback (cf. section 3.3). Ties may either be bro-

ken arbitrarily, or detected and removed by a simple

model validation check prior to code generation.

A drawback of this approach is its potential am-

biguity during automatic code generation. In general,

a port should contain only a single connector to an-

other port. Multiple connectors provide ambiguity as

to which connector should actually be used at the start

of the program. This drawback is easily solved by

parsing the information from any connectors with the

«GDFallback» stereotype and removing them prior to

code generation.

3.3 UML Proﬁle for Automatic Code

Generation of Optimistic Graceful

Degradation

This section formalizes the results for modeling

application-level graceful degradation described in

section 3.1 and section 3.2 inside a UML proﬁle rep-

resentation. A UML proﬁle is used to group stereo-

Figure 4: UML 2.5. proﬁle diagram for representing grace-

ful degradation in UML models.

types which are deﬁned for a speciﬁc purpose. The

proﬁle is shown in ﬁgure 4 and consists of two stereo-

types: «GDPort» and «GDFallback».

The «GDPort» stereotype may be applied to the

metaclass “Port” and is intended to be applied to the

boundary class of a consumer component. As ports

may be applied to classes, as well as components, this

enables the use of both alternatives presented in sec-

tion 3.1. The tagged values of the «GDPort» stereo-

type allow to execute custom actions during certain

points of time within a state decrement, as proposed

by (Penha et al., 2015). The actions may be executed

at the following points in time: 1) prior to degrada-

tion, 2) after degradation and 3) in case an opera-

tion from an interface is called when no functioning

provider is available any more. Case three may oc-

cur when the original provider, as well as every fall-

back provider, have been identiﬁed as erroneous. In

this case, a default operation may be speciﬁed, e.g.,

to stop the service. Note that the tagged values only

specify the names of operations within the boundary

class to which the port is applied. The actual source

code for these methods has to be added manually by

the developer within the boundary class.

The stereotype «GDFallback» may be applied to

the metaclass “Connector”, which is the metaclass

of the link connecting two ports. It speciﬁes the

fallbacks to be used by the port marked with the

«GDPort» stereotype. As it is only intended for this

speciﬁc purpose, it should only be applied to connec-

tors of which a single end connects to a port that is

marked with the «GDPort stereotype». This may be

enforced by a simple model validation check prior to

code generation. The tagged value of «GDFallback»

indicates in which order the fallbacks are used in case

of degradation (cf. section 3.2).

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

340

4 PROOF OF CONCEPT: CODE

GENERATION FROM THE

PROFILE

This section brieﬂy examines how actual, produc-

tive source code may be generated from the proﬁle

shown in section 3.3. While code generation for self-

adaptive systems has already been covered by sev-

eral approaches (e.g., Morin et al. (2009); Fleurey

et al. (2009)), these approaches largely rely on the

use of virtual machines to achieve adaption via re-

ﬂection mechanisms. Embedded systems, in con-

trast, are typically written in C or C++ which do

not offer these features. An alternative employs

v-table mappings to reconﬁgure method call bind-

ings during runtime (Saridakis, 2004). However,

as noted by the authors, this approach may result

in runtime exceptions in case there remain no non-

erroneous fallback providers. Catching these ex-

ceptions requires manual implementation changes in

the application model. Our approach, in contrast,

enables developers to specify a speciﬁc operation

that is executed in case there exists no more non-

erroneous fallback provider (via the tagged value

opNoMoreProvidersAvailable shown in ﬁgure 4).

Thus, we choose to present yet another alternative,

which is based on the reassignment of reference vari-

ables. For this, we employ the following mappings of

model elements to source code:

• A port tagged with the «GDPort» stereotype in the

application model is realized as its own class X.

This class is instantiated by the consumer of the

port.

• Within the class X, there is a reference

variable y pointing to the correspond-

ing interface that is offered by the port.

• The reference variable y may be set to any other

provider via a speciﬁc setter, as long as the

provider fulﬁlls the interface of the corresponding

port.

• The class x also contains an array of references

to the alternative providers that have been marked

with the «GDFallback» stereotype in the applica-

tion model.

In the pattern described in section 2.2, the assessor

is responsible for triggering the degradation step. It

may be realized as a global singleton class that con-

tains references to every boundary class in order to

trigger the degradation of each respective boundary

class. For this, the assessor needs a reference to each

boundary class. This is realized by introducing the

interface GDConsumer that each boundary class of a

consumer has to implement. The interface contains

an error(uintptr_t) method, that triggers the boundary

class to check whether it has been affected by an error

and to degrade gracefully in case it has been affected.

As we only consider graceful degradation on a sin-

gle machine in this paper, this check may be realized

by comparing the machine address of an erroneous

provider with the current provider of a consumer. In

distributed systems, the providers would have to be

distinguishable by some other kind of unique identi-

ﬁer.

Notiﬁers, which are responsible for informing the

assessor of an error within the application, are able

to access the assessor due to its global nature. The

notiﬁers itself may be generated by approaches such

as described in (Trindade et al., 2014; Huning et al.,

2019).

The last entity of the pattern presented in sec-

tion 2.2 are the loaders, which are responsible for per-

forming the actual degradation step. If the port classes

are generated as described above, they take the role of

a loader by invoking the setter method to assign one

of the alternative providers as the current provider. In

case the boundary class contains any methods whose

names match the value of one of the tagged values in

the «GDPort» stereotype, these methods are executed

at the relevant point in time of the degradation step.

Listing 1 shows the generated code for the load-

ers. Lines 4-15 contain the code for the generated

port, along with the current provider (line 9) and the

fallbacks (line 10), as well as the respective setters

(line 12-14). The port is instantiated by the surround-

ing boundary class (line 17).

1 c l a s s X : GDConsumer{

2 c l a s s P or t Y : I n t e r f a c e Y {

3 v oi d e r r o r ( u i n t p t r _ t a d r ) {

4 / / ch eck p o r t i n s t a n c e

5 / / i f a f f e c t e d by f a i l u r e

6 }

7 I n t e r f a c e Y ∗ c u r r e n t ;

8 I n t e r f a c e Y ∗ f a l l b a c k s [ 1 ] ;

9 s e t C u r r e n t ( I n t e r f a c e Y v a l ) ;

10 s e t F a l l b a c k ( I n t e r f a c e Y v al ,

11 i n t po s ) ;

12 } ;

13 Por t Y po r tY ;

14 / / User− d e f i n e d v a r i a b l e s

15 / / and m e th o d s

16 } ;

Listing 1: Excerpt of a consumer’s boundary class, show-

ing the code level realization of a port.

A UML Proﬁle for Automatic Code Generation of Optimistic Graceful Degradation Features at the Application Level

341

5 RELATED WORK

Related work on graceful degradation includes ap-

proaches that study the optimal distribution of pro-

grams on available hardware platforms (Becker and

Voss, 2015; Nace and Koopman, 2001), as well as

approaches that aim at optimizing the use of com-

puting resources in resource-limited situations (Glass

et al., 2009; Gonzalez et al., 1997). Furthermore,

graceful degradation at the system level of an individ-

ual hardware platform has been studied (Schirmeier

et al., 2011). None of these approaches consider

graceful degradation at the application-level which

is targeted by our approach. Approaches that con-

sider graceful degradation at the application level

include (Saridakis, 2009, 2005, 2004; Shelton and

Koopman, 2004). However, they do not consider

MDD or automatic code generation for their graceful

degradation features. Nonetheless, we build upon the

design pattern presented in (Saridakis, 2009) in this

paper (cf. section 2.2).

A group of graceful degradation approaches for

fail-operational systems in automobiles has been pre-

sented in (Penha et al., 2015; Hussein et al., 2017).

In contrast to the previous approaches they consider

model-driven development and provide partial code

generation. However, they exclude the code gener-

ation of the actual degradation step and classify this

as a further research challenge. Our paper provides a

solution to this research challenge.

The approach presented in this paper only con-

siders error handling and omits the automatic genera-

tion of error detection mechanisms via MDD. This re-

search topic has been partially covered by (Trindade

et al., 2014; Huning et al., 2019) and these approaches

may be used in conjunction with the approach pre-

sented in this paper.

The automatic generation of graceful degradation

has also been studied from a theoretical point of

view (Lin et al., 2019). However, they note that their

approach is limited to small and medium scale appli-

cations.

Graceful degradation itself belongs to the ﬁeld of

self-adaption. Using MDD to enable self-adaption

has been studied by several authors, e.g., (Morin

et al., 2009; Fleurey et al., 2009). However, their

approaches assume that the hardware is capable of

running a Java Virtual Machine in order to use re-

ﬂection mechanisms for self-adaption (Fouquet et al.,

2012). Embedded systems typically do not provide

the required computing resources for this. Addition-

ally, safety standards only allow static memory alloca-

tion in safety-critical applications (IEC61508, 2010),

which is also not considered by these approaches.

The general idea of extending application mod-

els with additional features by invoking MDD has

also been explored in other domains. For exam-

ple, a model-based framework for the validation of

timing requirements in embedded systems has been

proposed in (Noyer et al., 2016). Other approaches

provide model-based tool support for energy-aware

scheduling (Iyenghar et al., 2016; Iyenghar and Pul-

vermueller, 2018).

6 CONCLUSION

This paper proposes an MDD-based approach to au-

tomatically add the safety mechanism graceful degra-

dation to software applications. Graceful degradation

aims at providing continued service of the application

in the presence of errors. It is highly recommended

for several safety integrity levels by safety standards

such as ISO26262 and IEC61508. Our approach in-

troduces new UML stereotypes that may be applied

to a UML application model. By parsing the informa-

tion of these stereotypes, our approach may automati-

cally transform the input model to include (optimistic)

graceful degradation features. Then, automatic code

generation of common MDD tools may be used to ob-

tain productive source code from this model. This

source code is capable of automatically performing

optimistic graceful degradation once an error has been

detected. Our approach does not require any manual

developer interactions besides applying the newly in-

troduced stereotypes and conﬁguring their tagged val-

ues to the application’s requirements.

Future work may extend our approach to dis-

tributed systems. Additionally, we only cover grace-

ful degradation at the software level. (Semi-) au-

tomating hardware graceful degradation may be an-

other area for future work, as well as the inclusion of

other non-functional requirements, such as real-time

requirements.

ACKNOWLEDGMENTS

This work was partially funded by the German Fed-

eral Ministry of Economics and Technology (Bun-

desministeriums fuer Wirtschaft und Technologie-

BMWi) within the project “Holistic model-driven de-

velopment for embedded systems in consideration of

diverse hardware architectures” (HolMES).

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

342

REFERENCES

Avizienis, A., Laprie, J. C., Randell, B., and Landwehr, C.

(2004). Basic concepts and taxonomy of dependable

and secure computing. IEEE Transactions on Depend-

able and Secure Computing, 1(1):11–33.

Becker, K. and Voss, S. (2015). Analyzing graceful degra-

dation for mixed critical fault-tolerant real-time sys-

tems. In 2015 IEEE 18th International Symposium on

Real-Time Distributed Computing, pages 110–118.

Fleurey, F., Dehlen, V., Bencomo, N., Morin, B., and

Jézéquel, J.-M. (2009). Models in software engineer-

ing. chapter Modeling and Validating Dynamic Adap-

tation, pages 97–108. Springer-Verlag, Berlin, Heidel-

berg.

Fouquet, F., Morin, B., Fleurey, F., Barais, O., Plouzeau,

N., and Jézéquel, J.-M. (2012). A dynamic component

model for cyber physical systems.

Glass, M., Lukasiewycz, M., Haubelt, C., and Teich, J.

(2009). Incorporating graceful degradation into em-

bedded system design. In Design, Automation and

Test in Europe Conference Exhibition, pages 320–323.

Gonzalez, O., Shrikumar, H., Stankovic, J. A., and Ramam-

ritham, K. (1997). Adaptive fault tolerance and grace-

ful degradation under dynamic hard real-time schedul-

ing. In IEEE 32nd Real-Time Systems Symposium,

pages 79–89.

Huning, L., Iyenghar, P., and Pulvermueller, E. (2019).

UML speciﬁcation and transformation of safety fea-

tures for memory protection. In Proceedings of

the 14th International Conference on Evaluation of

Novel Approaches to Software Engineering, Herak-

lion, Crete, Greece. INSTICC, SciTePress.

Hussein, M., Nouacer, R., and Radermacher, A. (2017).

Safe adaptation of vehicle software systems. Micro-

processors and Microsystems, 52.

IEC61508 (2010). IEC 61508 Edition 2.0. Functional

safety for electrical/electronic/programmable elec-

tronic safety-related systems.

ISO26262 (2018). ISO 26262 Road vehicles – Functional

safety. Second Edition.

Iyenghar, P. and Pulvermueller, E. (2018). A model-

driven workﬂow for energy-aware scheduling analy-

sis of IoT-enabled use cases. IEEE Internet of Things

Journal.

Iyenghar, P., Wessels, S., Noyer, A., and Pulvermueller, E.

(2016). Model-based tool support for energy-aware

scheduling. In Forum on Speciﬁcation and Design

Languages, Bremen, Germany.

Laplante, P. A. and DeFranco, J. F. (2017). Software

engineering of safety-critical systems: Themes from

practitioners. IEEE Transactions on Reliability,

66(3):825–836.

Lin, Y., Kulkarni, S., and Jhumka, A. (2019). Automation of

fault-tolerant graceful degradation. Distributed Com-

puting, 32(1):1–25.

Morin, B., Barais, O., Nain, G., and Jezequel, J.-M. (2009).

Taming dynamically adaptive systems using models

and aspects. In Proceedings of the 31st International

Conference on Software Engineering, ICSE ’09, pages

122–132, Washington, DC, USA. IEEE Computer So-

ciety.

Nace, W. and Koopman, P. (2001). A Product Family

Approach to Graceful Degradation, pages 131–140.

Springer US, Boston, MA.

Noyer, A., Iyenghar, P., Engelhardt, J., Pulvermueller, E.,

and Bikker, G. (2016). A model-based framework en-

compassing a complete workﬂow from speciﬁcation

until validation of timing requirements in embedded

software systems. Software Quality Journal.

OMG UML (2017). OMG Uniﬁed Modeling Language

Version 2.5.1. Technical report, Object Management

Group.

Penha, D., Weiss, G., and Stante, A. (2015). Pattern-based

approach for designing fail-operational safety-critical

embedded systems. In 2015 IEEE 13th International

Conference on Embedded and Ubiquitous Computing,

pages 52–59.

Saridakis, T. (2004). Towards the integration of fault, re-

source, and power management. In 23rd International

Conference on Computer Safety, Reliability and Secu-

rity, pages 72–86, Potsdam, Germany.

Saridakis, T. (2005). Surviving errors in component-based

software. In 31st EUROMICRO Conference on Soft-

ware Engineering and Advanced Applications, pages

114–123.

Saridakis, T. (2009). Design Patterns for Graceful Degra-

dation, pages 67–93. Springer Berlin Heidelberg,

Berlin, Heidelberg.

Schirmeier, H., Neuhalfen, J., Korb, I., Spinczyk, O., and

Engel, M. (2011). RAMpage: graceful degradation

management for memory errors in commodity linux

servers. In 2011 IEEE 17th Paciﬁc Rim International

Symposium on Dependable Computing, pages 89–98.

Shelton, C. P. and Koopman, P. (2004). Improving system

dependability with functional alternatives. In Inter-

national Conference on Dependable Systems and Net-

works, pages 295–304.

Trindade, R., Bulwahn, L., and Ainhauser, C. (2014).

Automatically generated safety mechanisms from

semi-formal software safety requirements. In Bon-

davalli, A. and Di Giandomenico, F., editors, Com-

puter Safety, Reliability, and Security, pages 278–293,

Cham. Springer International Publishing.

A UML Proﬁle for Automatic Code Generation of Optimistic Graceful Degradation Features at the Application Level

343
