Image Time Series Classiﬁcation based on a Planar

Spatio-temporal Data Representation

Mohamed Chelali

, Camille Kurtz

, Anne Puissant

and Nicole Vincent

LIPADE, Universit

e de Paris, Paris, France

LIVE, Universit

e de Strasbourg, Strasbourg, France

Keywords:

Satellite Image Time Series, Spatio-temporal Features, Space-ﬁlling Curves, Convolutional Neural Networks.

Abstract:

Image time series such as MRI functional sequences or Satellite Image Time Series (SITS) provide valuable

information for the automatic analysis of complex patterns through time. A major issue when analyzing

such data is to consider at the same time their temporal and spatial dimensions. In this article we present a

novel data representation that makes image times series compatible with classical deep learning model, such

as Convolutional Neural Networks (CNN). The proposed approach is based on a novel planar representation

of image time series that converts 2D + t data as 2D images without loosing too much spatial or temporal

information. Doing so, CNN can learn at the same time the parameters of 2D ﬁlters involving temporal and

spatial knowledge. Preliminary results in the remote sensing domain highlight the ability of our approach to

discriminate complex agricultural land-cover classes from a SITS.

1 INTRODUCTION

Image time series are daily produced by various sen-

sors such as MRI (functional imaging), satellites,

drones or classical cameras observing particular land-

cover classes leading to a large amount of images

(2D + t). In the context of Earth observation, new

constellations of satellites acquire images with a high

spatial, spectral and temporal resolution around over

the world. For example, Sentinel-2 produces optical

Satellite Image Time Series (SITS) with a revisit time

of 5 days and a spatial resolution of 10 – 20 meters.

Among relevant applications of SITS, we can

mention the mapping of land cover (e.g. agricultural

zones, urban areas) and the identiﬁcation of land use

changes (e.g. urbanization, deforestation). The grow-

ing availability of such temporal data makes it possi-

ble to produce and update accurate land-cover maps

of a territory (Inglada et al., 2017). In order to efﬁ-

ciently handle the huge amount of data produced by

these new sensors, adapted methods for SITS analysis

have to be developed. Such methods should allow the

end-user to obtain satisfactory results, with minimal

time, and minimal effort.

A major issue when analyzing image time series is

to consider simultaneously the temporal and the spa-

tial dimensions of the 2D +t data-cube. Taking these

two aspects into account at the same time can, for ex-

ample, make it easier to discriminate between differ-

ent complex agricultural land cover classes (e.g. or-

chards, meadows) from SITS. This article focuses on

this speciﬁc problem. To deal with this issue, we de-

ﬁne a novel spatio-temporal representation of image

time series that makes it possible to consider classi-

cal deep learning framework (initially proposed for

2D images) for their analysis. Our main contribu-

tion is the proposal of a strategy to represent 2D + t

data as 2D images without loosing too much spatial

or temporal information. Doing so, deep Convolu-

tional Neural Networks (CNN) can learn 2D ﬁlters

involving at the same time temporal and spatial in-

formation. Here we do not aim to produce temporal

land-cover maps or to study land use changes but our

objective is to map complex land-cover classes prone

to confusions when a single image is used.

This article is organized as follows. Section 2 re-

calls some existing methods for SITS analysis. Sec-

tion 3 introduces our spatio-temporal representation

for CNN based SITS analysis. Section 4 describes

the experiments related to the classiﬁcation of agricul-

tural crops. Section 5 provides concluding remarks.

2 RELATED WORKS

SITS allow the observation and the analysis of land

phenomena with a broad range of applications such as

276

Chelali, M., Kurtz, C., Puissant, A. and Vincent, N.

Image Time Series Classiﬁcation based on a Planar Spatio-temporal Data Representation.

DOI: 10.5220/0008949202760283

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages

276-283

ISBN: 978-989-758-402-2; ISSN: 2184-4321

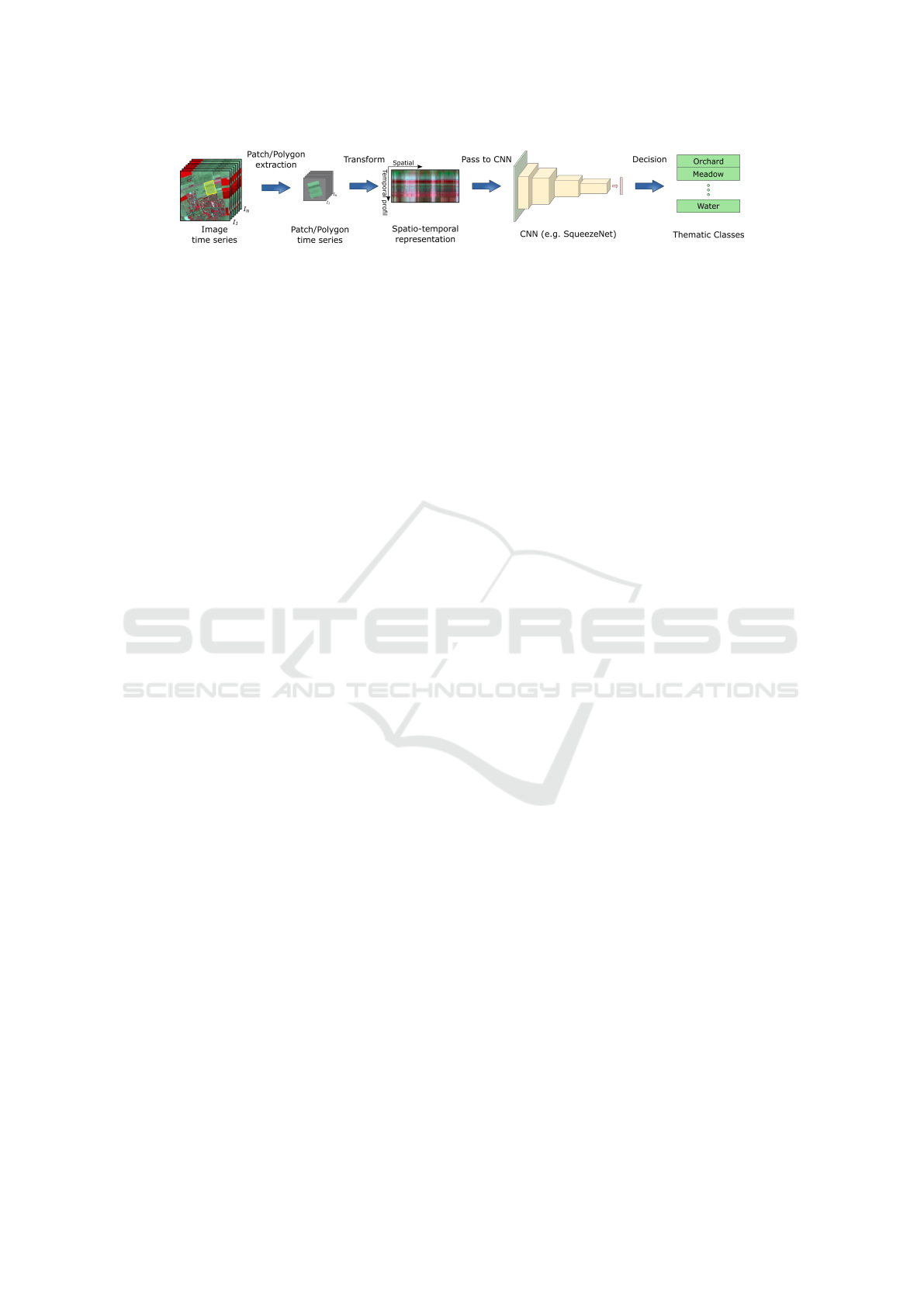

Figure 1: Flowchart of our method for SITS classiﬁcation based on a planar spatio-temporal data representation.

the study of land-cover or even the mapping of dam-

age following a disaster. These changes may be of

different types, origins and duration.

Pioneer methods for analyzing SITS operated on

single images or stacks of images. On each image,

the different measurements per pixel were considered

as independent features and involved in classical ma-

chine learning-based procedures. In such approaches,

the date of the measurements was ignored in the fea-

ture space. Bi-temporal analysis, can locate and study

changes occurring between two observations (Bruz-

zone and Prieto, 2000).

Another category of approaches were directly de-

signed to deal with image time series. Most of them

are based on multi-date classiﬁcation approaches such

as radiometric trajectory analysis (Verbesselt et al.,

2010). Such approaches exploit the notion that land

cover can vary through time (e.g. because of seasons,

vegetation evolution (Senf et al., 2015)), and they take

into account the order of measurements by using ded-

icated time series analysis methods (Bagnall et al.,

2017). Every pixel is viewed as a temporally or-

dered (and aligned) series of measurements, and the

changes of the measurements through time are ana-

lyzed to ﬁnd (temporal) patterns.

Concerning the type of features, “frequency-

domain” approaches include spectral analysis,

wavelet analysis (Andres et al., 1994) while “time-

domain” approaches involve auto-correlation and

cross-correlation analysis. Concerning the classi-

ﬁcation method, the classical way is to measure

similarity between any incoming sample and the

training set; and assign the label of the most similar

class using e.g. the Euclidean distance based on a

nearest neighbor algorithm or the Dynamic Time

Wrapping method (Petitjean et al., 2012a). Some

methods ﬁrst propose a new representation of the

SITS into a new space to extract more discriminative

“hand-crafted” features (Petitjean et al., 2012b;

Chelali et al., 2019) and the classiﬁcation is achieved

in this new enriched space.

More recently deep learning approaches have also

been considered to classify remote sensing images

and generate land-cover maps. In many works, convo-

lutional neural networks (CNN) are considered, gen-

erally dealing with the spatial domain of the data by

applying 2D convolutions (Huang et al., 2018). When

dealing with image time series, convolutions are often

applied in the temporal domain (Pelletier et al., 2019).

Another type of deep architecture that is designed

for temporal data is recurrent neural network (RNN)

like Long-Short Term Memory (LSTM), used suc-

cessfully in (Ienco et al., 2017). In this context, deep

learning approaches outperform traditional classiﬁca-

tions algorithm like Random Forest (Ismail Fawaz

et al., 2019), but as a limit, they do not directly take

into account the spatial dimension of the data as they

consider pixels in an independent way. Some attempts

have been realized to consider both the temporal and

the spatial dimensions of the 2D + t cube (Di Mauro

et al., 2017). A common strategy is to train two mod-

els (one for spatial dimension and one for temporal

dimension), and then to fuse their results at the deci-

sion level. In the domain of video analysis, spatio-

temporal features are learned using deep 3D CNN

(Tran et al., 2015) but such strategy requires the learn-

ing of an important number of parameters.

In this paper, our strategy is to classify a SITS us-

ing a classical 2D CNN model but we propose a new

representation of image time series that embed simul-

taneously the temporal and the spatial dimensions of

the data. We propose several representations based on

various strategies, the orderings of pixels being differ-

ent. The CNN learns with 2D convolutions temporal

and spatial information at the same time.

3 PROPOSED APPROACH

This section presents our method dedicated to the

classiﬁcation of image time series based on a planar

spatio-temporal data representation. After providing

an overview of the global process, we will detail the

different steps involved in the method.

3.1 Overview of the Process

The proposed method is based on the use of a classical

deep neural network architecture. But the input has

not a 3D structure (Tran et al., 2015) nor a 1D struc-

ture (Pelletier et al., 2019) as this is often the case for

the state-of-the-art methods studying the time series

associated with each pixel. In our case, we propose to

Image Time Series Classiﬁcation based on a Planar Spatio-temporal Data Representation

277

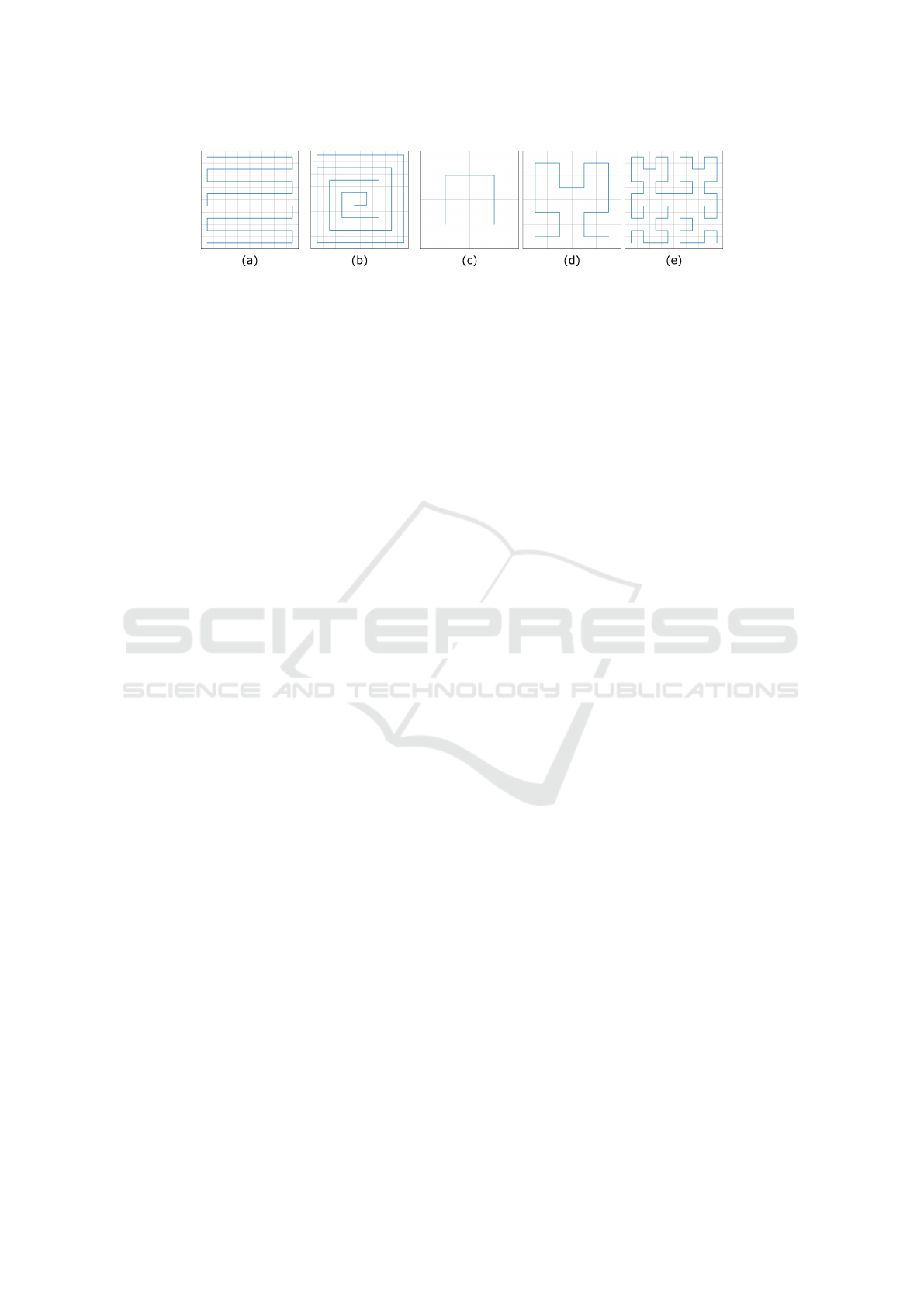

Figure 2: Illustrations of the different curves (in blue) covering a 2D space (in black, a grid of pixels); (a) Snake curve; (b)

Spiral curve; (c,d,e) The three ﬁrst orders of the Hilbert curve.

consider the pixels of a region of interest (e.g. an im-

age patch or a polygon) as a whole and ﬁrst to apply a

transformation of this 2D+t data providing a (planar)

2D structure containing all the spatio-temporal data.

This corresponds to the left part of the ﬂowchart pre-

sented in Figure 1. Such a structure is then transferred

as the input of a classical neural network to achieve

classiﬁcation. The network can be trained in order to

learn the labels from the spatial as well as temporal in-

formation contained in the data. The right part of the

ﬂowchart depicted in Figure 1 illustrates this process.

3.2 Planar Data Representation: From

2D +t to 2D

In order to decrease the complexity of the data struc-

ture, we propose to transform the spatial representa-

tion of the pixels in a 1D structure. Initially, a pixel

is deﬁned by its position (a couple of integers) in the

image with height H and width W. Now, it will be

deﬁned by only one integer given by an index speci-

fying the position of the pixel in a path (i.e. a string)

covering the region of interest. The function ℜ

ℜ : [1, W]× [1, H] → [1, W × H]

(x, y) 7→ i = ℜ(x, y)

associates to a pixel of coordinates (x, y) its position i

in a one-dimensional space.

What is important in the plan is the notion of

neighborhood. A pixel has usually 8 or 4 neighbors

according to the topology that is considered. In a

1D string each element has only 2 nearest neighbors.

Then, of course, by transforming a 2D space in a 1D

space the spatial information will be diminished, but

the objective is to keep the most representative infor-

mation during the transform.

When a particular transform is chosen (some ex-

amples will be proposed hereinafter), it will be ap-

plied in the same way to all the N images (or for a

particular region of interest) of the series. So, we get

N strings that will be considered as the rows of a new

image. The new image height is equal to the number

N of the images in the SITS and its width is equal to

the number of pixels of the region we want to repre-

sent. Such new image constitutes then a 2D spatio-

temporal representation of a 2D+t image time series.

In order to keep some signiﬁcant neighbors in this

novel representation, the problem is then to ﬁll a 2D

discrete space with a discrete curve. Following the

pixels along the curve, all the pixels of the region will

be numbered only once and, by construction, two ad-

jacent pixels in the curve are neighboring pixels in

the plan. In the literature, many methods were pro-

posed to achieve such a transformation but the aim is

to consider statistically representative neighbors with-

out any bias due to the path chosen in the plan. We

have compared experimentally several strategies:

• the ﬁrst representation is the most naive one

among the others, noted ℜ

snake

. The space is

ﬁlled by a simple curve which scans the image,

line by line, as a snake (Figure 2 (a)). Lines are

linked smartly so the spatial neighborhood infor-

mation are preserved: odd lines ends are linked

with heads of even ones, and vice versa. The pix-

els are ﬁnally numbered according to the curve.

• the second representation is based on

Archimedean spiral, noted ℜ

spiral

. The pixel grid

is associated with a spiral curve that ﬁlls a square

(Figure 2 (b)). The curve starts from a center

point (0, 0) of a square and its right neighbor

then it revolves around. The construction of

this curve is done by ﬁxing two variables that

indicate the next curve point, (x + dx, y + dy).

dx, dy are initialized to 0 and 1 respectively.

The angular points are those verifying x = y,

x = −y and y > 0, x − 1 = −y and x > 0. The

curve has to go to the right, to the left, to the

bottom or to the top according to the directions

of (dx, dy). The (dx, dy) values are successively

(0, 1), (−1, 0), (0, −1) and ﬁnally (1, 0).

• the third representation is based on space-ﬁlling

curves, noted ℜ

Hilbert

. Our choice is the Hilbert

curve which is a fractal space-ﬁlling curve (Butz,

1971) and it ﬁlls a square (2D space). To deﬁne

this curve, a recurrent process is applied starting

from a square domain, the domain being divided

into four equal squares. The four small squares

are linked in such a way that “two parts with

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

278

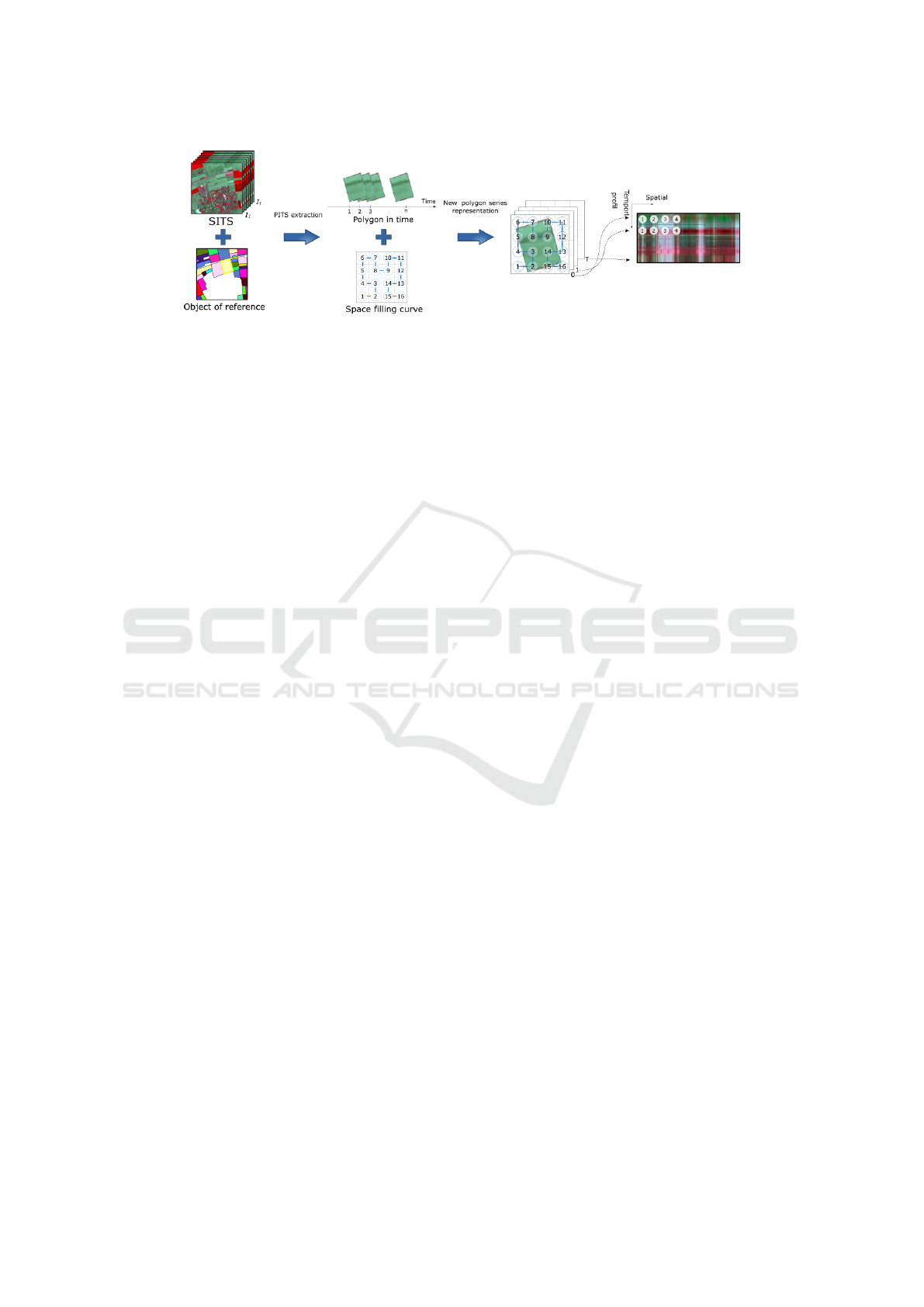

Figure 3: Polygon Image Time Series (PITS) representation based on the Hilbert curve.

a common edge have two consecutive indexes”.

This rule is applied recursively on squares with a

width being a power of 2. The order of pixels is

ﬁnally given by the Hilbert curve. The main inter-

est of this kind of curve is the preservation of the

spatial neighborhood relation of successive points

on the curve. Figure 2 (c–e) illustrates the three

ﬁrst orders of Hilbert curves.

By applying the process to the N images (or to

a speciﬁc region of interest) of the SITS, we obtain

N rows of length equals to the number N

of pixels

in the region. These rows are used to ﬁll a matrix

and a new SITS image representation is obtained with

N rows and N

columns. Now this new image can

also be interpreted in terms of columns. Each column

is associated with a pixel and its time series in the

SITS, a temporal pixel p = {< p

(x, y) > |t = 1 . . .N}

is contained in the column of the new image. Figure 3

illustrates how the new representation is built.

3.3 CNN Model (Architecture)

Convolutional Neural Networks are used in most

methods belonging to the family of deep learning al-

gorithms. CNN are composed, in the left part, of lay-

ers of neurons computing convolutions of the previ-

ous layer outputs. The neurons of each layer are ac-

tivated by non-linear functions which allow the ex-

traction of high order features of the input. There is

also max-pooling layers between convolutional layers

to reduce progressively the quantity of the inputs and

the number of the parameters to be computed to deﬁne

the network, and hence to also control over-ﬁtting. In

the ﬁnal right part of the network, to solve classiﬁ-

cation problems we generally ﬁnd a fully connected

layer that provides a probability vector, coupled to a

softmax function to predict a class label.

In our approach, we consider the SqueezeNet

model (Iandola et al., 2016). This model is a rather

small network and has few parameters to be ﬁxed.

In our case, this is an interesting model since it is

adapted to our applicative context and our dataset

(small size of training examples). This CNN leads

to the same accuracy level as AlexNet model, when

evaluated on the ImageNet dataset.

4 EXPERIMENTAL STUDY

The proposed approach has been evaluated in a re-

mote sensing application, namely the classiﬁcation of

agricultural crop ﬁelds from SITS. Our objective is to

separate some agricultural thematic classes (e.g. tradi-

tional vs. intensive orchards). The visual appearance

of these agricultural parcels is heterogeneous because

orchards are the subject of many agricultural prac-

tices, depending on the season, and their automatic

identiﬁcation remains a complex task. In order to dif-

ferentiate these two classes, spatio-temporal features

can carry useful information to better discriminate the

agricultural practices.

4.1 Data Presentation

The data used in experimental study are optical SITS,

sensed by the Sentinel-2 satellite (East of France).

The acquired data have been corrected and orthorec-

tiﬁed by the French Theia program to be radiomet-

rically comparable. The images are distributed with

their associated cloud masks. A pre-processing was

applied on the images with a linear interpolation on

masked pixels to guarantee same size for all images.

We dispose of a SITS of N = 50 images sensed in

2017 over the same geographical area. For each im-

age, only three bands are kept which are near-infrared

(Nir), red (R) and green (G). All these bands have a

spatial resolution of 10 meters.

In addition to the images, we dispose of reference

data which is composed of the reference agricultural

parcel delineations (in our context orchards) repre-

sented as vector polygons. These polygons are ex-

tracted from the French IGN RPG. In our case, poly-

gons have been rasterized according to the spatial res-

olution of each image, leading to a new Polygon Im-

age Time Series, noted PITS, that will be represented

with the strategies presented in Section 3.

Image Time Series Classiﬁcation based on a Planar Spatio-temporal Data Representation

279

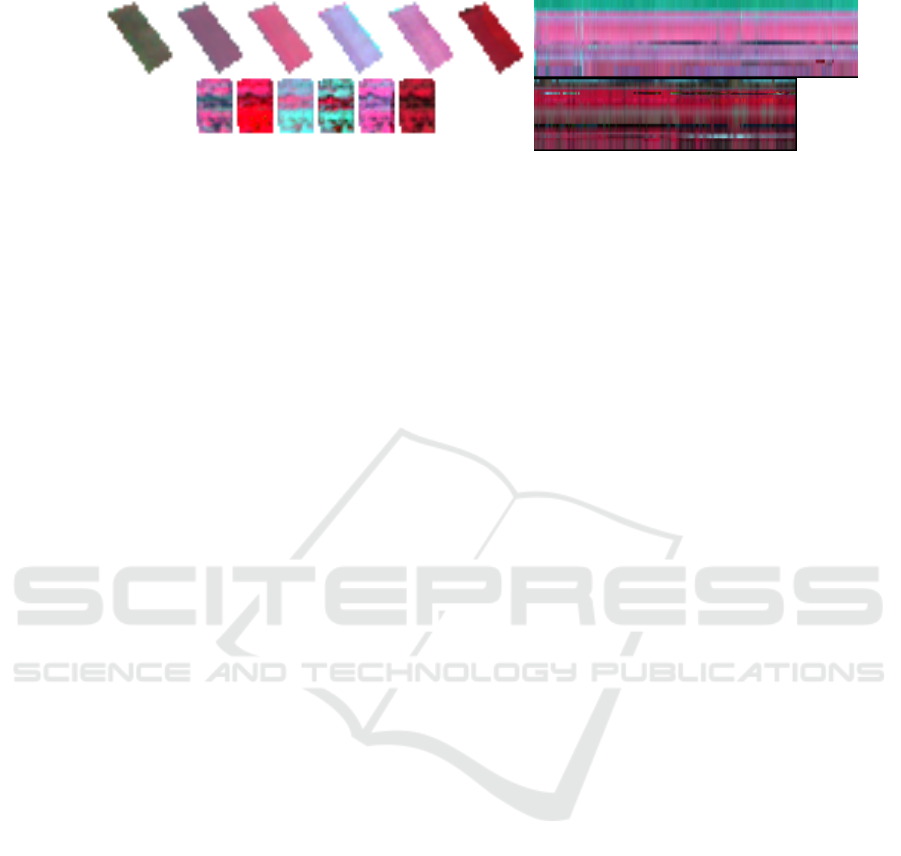

Class PITS Spatio-temporal representation

Trad.

orchard

Inten.

orchard

Figure 4: Example of PITS representing orchards; (left) Evolution of a traditional / intensive orchards; (right) Associated

spatio-temporal representations (Hilbert strategy ℜ

Hilbert

The reference data used in our experiment are the

semantic labels of these polygons (traditional or in-

tensive orchards). Figure 4 presents an example of the

temporal evolution of two orchards through the SITS.

Finally, we dispose of 100 polygon per class. In order

to get more annotated data, data augmentation (DA)

technique is used by applying rotations with the an-

gles: 45

◦

, 90

◦

, 135

◦

and 180

◦

4.2 Experimental Protocol

We applied the proposed method to classify the two

orchard classes (traditional vs. intensive). From an

intuitive point of view, intensive orchards should have

a more homogeneous texture in the spatial domain

since the fruit trees are generally aligned which is not

always the case in the traditional ones.

4.2.1 Data Preparation

Firstly, the input data are prepared thanks to the

proposed spatio-temporal representations of images.

This is operated at the polygon level. Each PITS

is processed in 3 different ways according to the

ℜ

snake,spiral,Hilbert

functions presented earlier. To

highlight the interest of considering the spatial rela-

tion between pixels, we added (as a naive baseline) a

random way to build the spatio-temporal representa-

tion of the PITS, noted ℜ

random

According to the CNN input size which is 224 ×

224, we adapt our generated images to ﬁt this size.

For the temporal dimension (Y axis), we propose two

strategies. The ﬁrst one is to center the original infor-

mation from the N input images vertically (N = 50).

The remaining top and bottom lines are ﬁxed to zero

value. For the second, we choose to process a 224

long time series, that is to ﬁll all the remaining ver-

tical space. In order to do this, we have applied a

linear interpolation on time information. We assume

that the temporal information between two consecu-

tive dates is monotonic and linear. The interpolation

is then done by considering that we only have 224

days in the year so that one day is done with about

39 hours. For the initial dates, we affect the temporal

information of the ﬁrst date in the SITS. For the last

dates, we affect the last temporal information in the

SITS. For the other unknown date values, we com-

pute them by applying a linear function that considers

two consecutive available dates (taken from the set

of N = 50 images of the SITS). Finally, we got 224

dates that complete the height of the image. These

two strategies (with original dates or with temporal

interpolation) will be evaluated separately.

For the spatial dimension (X axis), as the size of

the polygons is rarely equal to 224, we adopted the

following strategy. For polygons where pixel num-

ber is less than 224, we repeat the sequence. For

those composed of more than 224 pixels, we slice

the new representation into different images with 224

columns, leading potentially to a higher number of

data to be classiﬁed than the number of polygons.

The data images have been normalized based on

the maximum and the minimum values of the dataset.

In our case, we limited the values with 2% (or 98%)

percentile, as proposed in (Pelletier et al., 2019).

4.2.2 Learning and Validation Protocol

To validate these experiments, a 5-fold cross valida-

tion strategy is employed. In each case, the dataset is

randomly split into 3 sets, at the polygon level, and

we repeated 5 times the process. The size of these

sets is 60%, 20% and 20% of all available data rep-

resenting respectively the training, validation and test

sets. In each experiment, the same folds are consid-

ered in order to make the results more comparable.

The model is trained and evaluated 5 times according

to each split and for one split we consider the system

that gives the best result on the validation set. Note

that the decision from the classiﬁer output is taken

at the polygon level. We explained before that for

large polygons (which have more than 224 pixels), we

build several different images in our process (see Sec-

tion 4.2.1). Then several images are associated with

a single polygon. To take a decision in this case, the

model returns the probabilities of classes for each im-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

280

(a) (b) (c) (d)

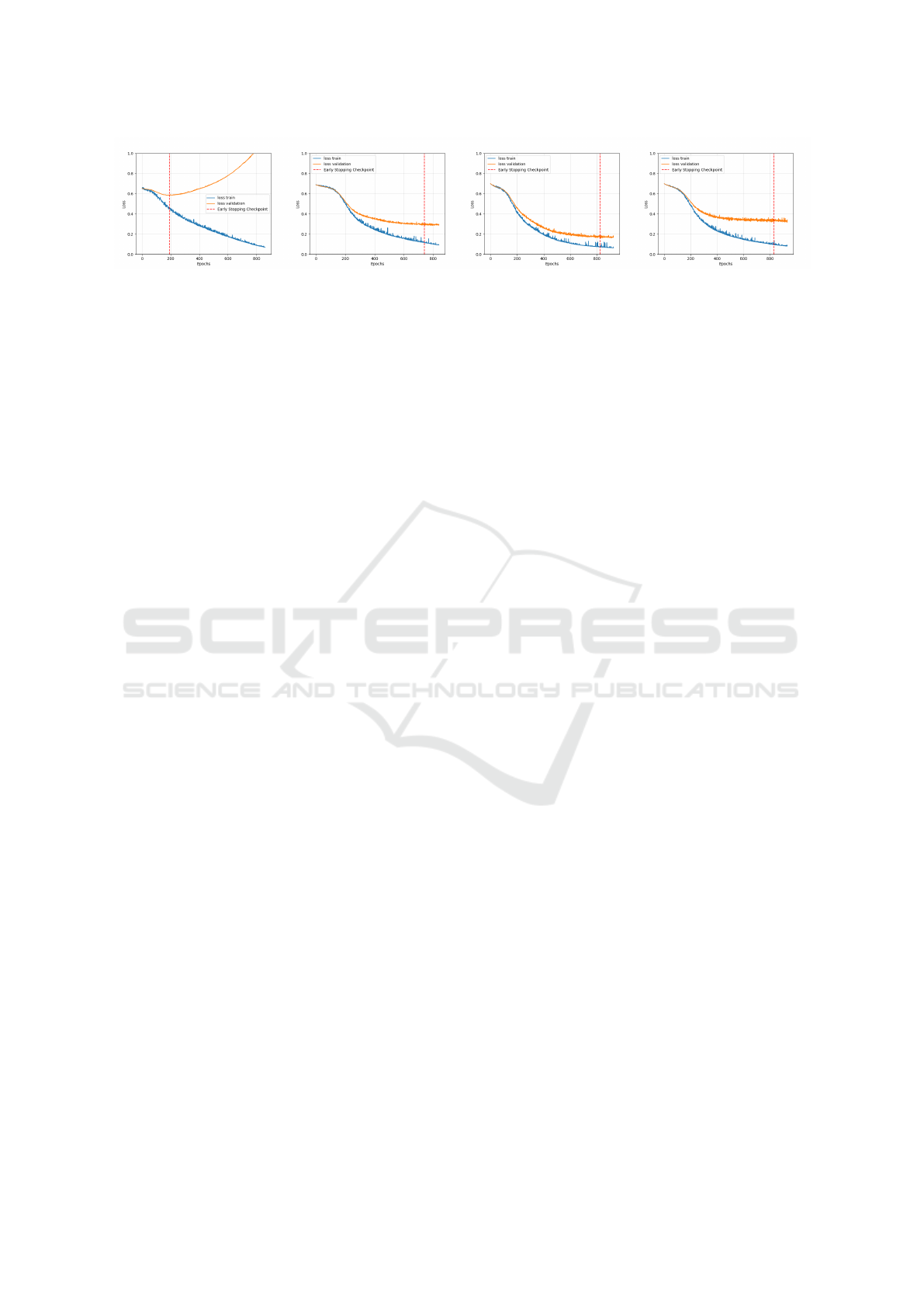

Figure 5: Loss curves related to the training of our model with the different spatio-temporal representations; (a) Random

strategy ℜ

random

; (b) Snake strategy ℜ

snake

; (c) Spiral strategy ℜ

spiral

; and (d) Hilbert strategy ℜ

Hilbert

age associated with the polygon. Then, we average

these probabilities with respect to each class and we

affect to the polygon the label of the class with the

highest probability. We report the overall accuracy

that is the average value of the results on the test sets

according to the 5 splits and the standard-deviation.

We train the model using Adam as optimizer with

a learning rate of 10

−6

and default values of the other

parameters (β

= 0.9, β

= 0.999 and ε = 10

−8

) with

batch size of 8. We limit the number of epochs to

2000, following an early stopping technique with a

patience number of 100. As the size of the avail-

able dataset is limited, we train the network using two

strategies: (1) from scratch and (2) with ﬁne-tuning

(the model was pre-trained on ImageNet). We have

also proceeded with data augmentation.

4.3 Results and Discussions

The proposed spatio-temporal representations of the

PITS have been used to feed the CNN. We also used

the random ℜ

random

ordering of pixels in order to

evaluate the importance of spatial information. Two

successive pixels in the 1D representation are neigh-

bors in the 2D space is a property of the different

space ﬁlling curves we have considered. For visu-

alization purpose, Figure 4 illustrates two PITS with

their resulting spatio-temporal representations, here

based on the ℜ

Hilbert

strategy.

The CNN model was trained accordingly to the

learning protocol, with and without ﬁne tuning. We

also evaluated the impact of considering the original

temporal dates or applying an interpolation to ﬁt the

224 × 224 image input size required by SqueezeNet.

Figure 5 illustrates the resulting loss curves when

SqueezeNet is trained from scratch (following an

early stopping technique) with images related respec-

tively to the ℜ

random

, ℜ

snake

, ℜ

spiral

and ℜ

Hilbert

strategies, here with original dates. From these

curves, we notice that the worst (highest) loss values

are obtained with the ℜ

random

strategy as expected.

Also the loss curve of the ℜ

random

strategy starts sta-

bilizing near 200 epochs compared to others which

start stabilizing from about 600 epochs. Intuitively,

this means that the ℜ

random

strategy does not provide

a good representation of PITS with a good ability to

generalize when training. Other representations allow

to make a rather good ﬁt. We can also see the best

learning curves are obtained in (c), using the ℜ

spiral

with the best results on the validation set. This rank-

ing is not preserved at the global test set level.

Table 1 reports the classiﬁcation results (over-

all accuracy) obtained with our spatio-temporal rep-

resentations (with original dates). We notice that

ℜ

random

always provides the lowest scores compared

to the other representations, with and without DA, or

with and without ﬁne tuning. This is quite expected as

the discrimination between traditional and intensive

orchards is relying on spatial information and this in-

formation is partly preserved with space ﬁlling curves

providing spatial information in addition to tempo-

ral information. From Table 1, we also notice that

with DA, all scores are slightly increased, and the best

scores have been obtained by combining DA and the

ﬁne tuning strategy. Finally, here the best representa-

tions oscillate between ℜ

snake

, ℜ

spiral

and ℜ

Hilbert

As comparative study, we compared our results to

the ones obtained with the TempCNN method dedi-

cated to the classiﬁcation of time series, proposed in

(Pelletier et al., 2019). This approach relies on the

use of a CNN classiﬁer, where convolutions are ap-

plied in the temporal domain (1D convolutions). The

ﬁlter sizes are ﬁxed following the criterion given in

(Pelletier et al., 2019): with a kernel size of 5 when

considering the original dates, and 11 when consider-

ing the interpolated dates. For comparison purpose,

we trained and validated the TempCNN model us-

ing the same validation protocol. Note that the Tem-

pCNN model is proposed with different architectures

(depths), leading to different number of ﬁlters.

Table 2 reports the TempCNN results. Best scores

were obtained with 256 ﬁlters. The obtained scores

suggest that the results obtained with TempCNN out-

perform the ones obtained with our method when we

train from scratch. However, when considering ﬁne-

tuning from the pre-trained model on ImageNet, we

Image Time Series Classiﬁcation based on a Planar Spatio-temporal Data Representation

281

obtain better scores. This highlights, for our applica-

tive context, the beneﬁt of considering a classical 2D

CNN model for classifying 2D +t images combined

with our spatio-temporal representations.

Table 1: Classiﬁcation results (overall accuracy – OA

and standard deviation – STD) obtained with our spatio-

temporal representations (with original date images);

(ﬁrst/second rows) Without/With data augmentation.

From scratch Fine tuning

Rep. OA STD OA STD

w/o DA

ℜ

random

71.50 7.17 81.00 8.15

ℜ

snake

78.00 4.30 90.50 7.96

ℜ

spiral

76.00 8.74 92.00 3.31

ℜ

Hilbert

79.00 5.61 91.00 2.00

with DA

ℜ

random

80.50 3.67 87.00 4.58

ℜ

snake

83.50 7.00 93.50 2.54

ℜ

spiral

84.50 5.33 93.00 1.87

ℜ

Hilbert

81.50 6.44 91.00 2.54

Table 2: Classiﬁcation results (overall accuracy – OA and

standard deviation – STD) with the TempCNN architectures

(with original dates and kernel size of 5).

Nb ﬁlters 16 32 64 128 256 512 1024

OA 78.81 77.38 81.66 78.45 85.37 81.73 84.80

STD 6.08 6.51 4.59 4.79 3.44 5.75 6.48

Table 3: Classiﬁcation results (overall accuracy – OA

and standard deviation – STD) obtained with our spatio-

temporal representations (with temporal interpolation);

(ﬁrst/second rows) Without/With data augmentation.

From scratch Fine tuning

Rep. OA STD OA STD

w/o DA

ℜ

random

84.00 9.02 87.00 4.30

ℜ

snake

85.00 4.18 92.50 3.16

ℜ

spiral

85.00 3.53 91.00 2.54

ℜ

Hilbert

89.00 3.39 91.00 2.54

with DA

ℜ

random

82.00 8.71 83.50 4.35

ℜ

snake

86.50 5.38 90.50 1.87

ℜ

spiral

86.50 3.00 91.50 3.74

ℜ

Hilbert

92.50 1.58 89.00 3.39

Table 4: Obtained results (overall accuracy – OA and stan-

dard deviation – STD) with the TempCNN architectures

(with temporal interpolation and kernel size of 11).

Nb ﬁlters 16 32 64 128 256 512 1024

OA 78.96 81.40 83.96 81.86 85.93 84.23 87.21

STD 7.34 6.32 7.14 5.18 8.03 6.23 8.28

Table 3 presents the classiﬁcation results when

considering the temporal interpolation strategy. We

notice that with more temporal information, the over-

all scores are increased compared to the case with less

temporal information (images with original dates) re-

ported in Table 1. This can be explained by the non-

regular distribution of the original dates. Whereas,

with the interpolation, we obtain a temporal infor-

mation with an equal regularity to obtain 224 dates

and also due to actual monotonous behavior between

the consecutive dates used for the interpolation. We

observe again that the ℜ

random

strategy leads to the

worst scores. This conﬁrms that spatial information

is important and not just temporal one. We see also

that DA increases slightly the scores in case of from

scratch learning but is not able to improve the re-

sults in case of ﬁne tuning. In this experiment, the

ℜ

Hilbert

strategy leads to the representation that pro-

vides the best scores when we train from scratch (with

and without DA). But when we ﬁne tune, the best rep-

resentations oscillate between ℜ

snake

and ℜ

spiral

The obtained results with TempCNN when con-

sidering the temporal interpolation strategy are listed

in Table 4. Initial scores range in the same interval as

our method when we train from scratch. But with DA

or/and ﬁne-tuning, our scores are higher.

5 CONCLUSION

In this paper we present a new strategy for transform-

ing an image time series to a planar spatio-temporal

representation, reducing the complexity of an image

time series structure (from 2D +t to 2D) while main-

taining (partially) the spatial and temporal relation-

ships of pixels. These representations are used to

feed a classical CNN in order to perform a classiﬁ-

cation. 2D convolutions can then lead to an extrac-

tion of spatio-temporal features. Compared to 1D ap-

proaches dedicated to time series, we have a lower

number of annotated data, but this is compensated by

data augmentation. By considering 2D convolutions,

we can also beneﬁt of a pre-trained model on Ima-

geNet. Such initialization of the weights of the CNN

is less tractable for 1D studies as no ImageNet like

dataset is available.

The proposed approach has been evaluated in re-

mote sensing for the classiﬁcation of agricultural crop

ﬁelds from SITS. In our experimentation, we study

the impact of the spatio-temporal transformation us-

ing different space ﬁlling curves. The obtained re-

sults reﬂect the usefulness and the impact of consider-

ing both spatial and temporal information. From our

thematical study, we observe that the classiﬁcation

scores are higher when considering spatio-temporal

representations with more temporal information (us-

ing the temporal interpolation) than those who have

less, even if built from the same initial data. It is then

more important to have many data along the temporal

domain than the way the 2D plan is ﬁlled with curves.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

282

In our comparative study, we notice that the Tem-

pCNN method (Pelletier et al., 2019) is applied at

the pixel level while our approach is applied at the

polygon level. This means that for TempCNN there

are more training samples compared to our method

where the pixels of a polygon are all summed up in

a spatio-temporal image. Despite the low number of

data available, the accuracy increase made possible by

our process is up to 8% based on the original data and

5% on the interpolated data.

In future works, the ordering of the pixels will

be more precisely studied, till now we have ordered

the pixels of a square region where the polygon is in-

cluded but we have to deﬁne an order adapted to the

geometry of the polygon itself. We will also increase

the number of instances of orchards and also apply the

same approach to problems involving a larger number

of classes in order to generate land-cover maps.

ACKNOWLEDGEMENTS

The French ANR supported this work under Grant

ANR-17-CE23-0015.

REFERENCES

Andres, L., Salas, W., and Skole, D. (1994). Fourier anal-

ysis of multi-temporal AVHRR data applied to a land

cover classiﬁcation. Int. J. Remote Sens., 15(5):1115–

1121.

Bagnall, A., Lines, J., Bostrom, A., Large, J., and Keogh,

E. (2017). The great time series classiﬁcation bake

off: a review and experimental evaluation of recent

algorithmic advances. DMKD, 31(3):606–660.

Bruzzone, L. and Prieto, D. (2000). Automatic analysis of

the difference image for unsupervised change detec-

tion. IEEE Transactions on Geoscience and Remote

Sens., 38(3):1171–1182.

Butz, A. (1971). Alternative algorithm for Hilbert’s space-

ﬁlling curve. IEEE Trans. on Computers, 20(4):424–

426.

Chelali, M., Kurtz, C., Puissant, A., and Vincent, N. (2019).

Urban land cover analysis from satellite image time

series based on temporal stability. In JURSE, Procs.,

pages 1–4.

Di Mauro, N., Vergari, A., Basile, T. M. A., Ventola,

F. G., and Esposito, F. (2017). End-to-end learning of

deep spatio-temporal representations for satellite im-

age time series classiﬁcation. In DC@PKDD/ECML,

Procs., pages 1–8.

Huang, B., Lu, K., Audebert, N., Khalel, A., Tarabalka, Y.,

Malof, J., and Boulch, A. (2018). Large-scale seman-

tic classiﬁcation: Outcome of the ﬁrst year of inria

aerial image labeling benchmark. In IGARSS, Procs.,

pages 6947–6950.

Iandola, F., Moskewicz, M., Ashraf, K., Han, S., Dally,

W., and Keutzer, K. (2016). Squeezenet: AlexNet-

level accuracy with 50x fewer parameters and <1MB

model size. CoRR, abs/1602.07360.

Ienco, D., Gaetano, R., Dupaquier, C., and Maurel, P.

(2017). Land cover classiﬁcation via multitemporal

spatial data by deep recurrent neural networks. IEEE

Geosci. Remote Sens. Lett., 14(10):1685–1689.

Inglada, J., Vincent, A., Arias, M., Tardy, B., Morin, D.,

and Rodes, I. (2017). Operational high resolution land

cover map production at the country scale using satel-

lite image time series. Remote Sens., 9(1):95–108.

Ismail Fawaz, H., Forestier, G., Weber, J., Idoumghar, L.,

and Muller, P. (2019). Deep learning for time series

classiﬁcation: A review. DMKD, 33(4):917–963.

Pelletier, C., Webb, G., and Petitjean, F. (2019). Temporal

convolutional neural network for the classiﬁcation of

satellite image time series. Remote Sens., 11(5):523–

534.

Petitjean, F., Inglada, J., and Ganc¸arski, P. (2012a). Satel-

lite image time series analysis under time warping.

IEEE Transactions on Geoscience and Remote Sens.,

50(8):3081–3095.

Petitjean, F., Kurtz, C., Passat, N., and Ganc¸arski, P.

(2012b). Spatio-temporal reasoning for the classiﬁca-

tion of satellite image time series. PRL, 33(13):1805–

1815.

Senf, C., Leitao, P., Pﬂugmacher, D., Van der Linden,

S., and Hostert, P. (2015). Mapping land cover

in complex mediterranean landscapes using landsat:

Improved classiﬁcation accuracies from integrating

multi-seasonal and synthetic imagery. Remote Sens.

Environ., 156:527–536.

Tran, D., Bourdev, L., Fergus, R., Torresani, L., and Paluri,

M. (2015). Learning spatiotemporal features with 3D

convolutional networks. In ICCV, Procs., pages 4489–

4497.

Verbesselt, J., Hyndman, R., Newnham, G., and Culvenor,

D. (2010). Detecting trend and seasonal changes in

satellite image time series. Remote Sens. Environ.,

114(1):106–115.

Image Time Series Classiﬁcation based on a Planar Spatio-temporal Data Representation

283
