Data Mining in Clinical Trial Text: Transformers for Classiﬁcation and

Question Answering Tasks

Lena Schmidt

1,2 a

, Julie Weeds

2 b

and Julian P. T. Higgins

1 c

University of Bristol, Bristol Medical School, 39 Whatley Road, BS82PS Bristol, U.K.

University of Sussex, Department of Informatics, BN19QJ Brighton, U.K.

Keywords:

BERT, Data mining, Evidence-based Medicine, PICO Element Detection, Natural Language Processing,

Question Answering, Sentence Classiﬁcation, Systematic Review Automation, Transformer Neural Network.

Abstract:

This research on data extraction methods applies recent advances in natural language processing to evidence

synthesis based on medical texts. Texts of interest include abstracts of clinical trials in English and in multilin-

gual contexts. The main focus is on information characterized via the Population, Intervention, Comparator,

and Outcome (PICO) framework, but data extraction is not limited to these ﬁelds. Recent neural network

architectures based on transformers show capacities for transfer learning and increased performance on down-

stream natural language processing tasks such as universal reading comprehension, brought forward by this

architecture’s use of contextualized word embeddings and self-attention mechanisms. This paper contributes

to solving problems related to ambiguity in PICO sentence prediction tasks, as well as highlighting how an-

notations for training named entity recognition systems are used to train a high-performing, but nevertheless

ﬂexible architecture for question answering in systematic review automation. Additionally, it demonstrates

how the problem of insufﬁcient amounts of training annotations for PICO entity extraction is tackled by aug-

mentation. All models in this paper were created with the aim to support systematic review (semi)automation.

They achieve high F1 scores, and demonstrate the feasibility of applying transformer-based classiﬁcation

methods to support data mining in the biomedical literature.

1 INTRODUCTION

Systematic reviews (SR) of randomized controlled tri-

als (RCTs) are regarded as the gold standard for pro-

viding information about the effects of interventions

to healthcare practitioners, policy makers and mem-

bers of the public. The quality of these reviews is

ensured through a strict methodology that seeks to

include all relevant information on the review topic

(Higgins et al., 2019).

A SR, as produced by the quality standards of

Cochrane, is conducted to appraise and synthesize

all research for a speciﬁc research question, there-

fore providing access to the best available medical

evidence where needed (Lasserson et al., 2019). The

research question is speciﬁed using the PICO (pop-

ulation; intervention; comparator; outcomes) frame-

work. The researchers conduct very broad literature

https://orcid.org/0000-0003-0709-8226

https://orcid.org/0000-0002-3831-4019

https://orcid.org/0000-0002-8323-2514

searches in order to retrieve every piece of clinical

evidence that meets their review’s inclusion criteria,

commonly all RCTs of a particular healthcare inter-

vention in a speciﬁc population. In a search, no piece

of relevant information should be missed. In other

words, the aim is to achieve a recall score of one. This

implies that the searches are broad (Lefebvre et al.,

2019), and authors are often left to screen a large

number of abstracts manually in order to identify a

small fraction of relevant publications for inclusion in

the SR (Borah et al., 2017).

The number of RCTs is increasing, and with it

increases the potential number of reviews and the

amount of workload that is implied for each. Re-

search on the basis of PubMed entries shows that both

the number of publications and the number of SRs in-

creased rapidly in the last ten years (Fontelo and Liu,

2018), which is why acceleration of the systematic

reviewing process is of interest in order to decrease

working hours of highly trained researchers and to

make the process more efﬁcient.

In this work, we focus on the detection and an-

Schmidt, L., Weeds, J. and Higgins, J.

Data Mining in Clinical Trial Text: Transformers for Classiﬁcation and Question Answering Tasks.

DOI: 10.5220/0008945700830094

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 5: HEALTHINF, pages 83-94

ISBN: 978-989-758-398-8; ISSN: 2184-4305

notation of information about the PICO elements of

RCTs described in English PubMed abstracts. In

practice, the comparators involved in the C of PICO

are just additional interventions, so we often refer

to PIO (populations; interventions; outcomes) rather

than PICO. Focus points for the investigation are the

problems of ambiguity in labelled PIO data, integra-

tion of training data from different tasks and sources

and assessing our model’s capacity for transfer learn-

ing and domain adaptation.

Recent advances in natural language processing

(NLP) offer the potential to be able to automate or

semi-automate the process of identifying information

to be included in a SR. For example, an automated

system might attempt to PICO-annotate large corpora

of abstracts, such as RCTs indexed on PubMed, or

assess the results retrieved in a literature search and

predict which abstract or full text article ﬁts the inclu-

sion criteria of a review. Such systems need to be able

to classify and extract data of interest. We show that

transformer models perform well on complex data-

extraction tasks. Language models are moving away

from the semantic, but static representation of words

as in Word2Vec (Mikolov et al., 2013), hence provid-

ing a richer and more ﬂexible contextualized repre-

sentation of input features within sentences or long

sequences of text.

The rest of this paper is organized as follows. The

remainder of this section introduces related work and

the contributions of our work. Section 2 describes the

process of preparing training data, and introduces ap-

proaches to ﬁne-tuning for sentence classiﬁcation and

question answering tasks. Results are presented in

section 3, and section 4 includes a critical evaluation

and implications for practice.

1.1 Tools for SR Automation and PICO

Classiﬁcation

The website systematicreviewtools.com (Marshall,

2019) lists 36 software tools for study selection to

date. Some tools are intended for organisational pur-

poses and do not employ PICO classiﬁcation, such

as Covidence (Covidence, 2019). The tool Rayyan

uses support vector machines (Ouzzani et al., 2016).

RobotReviewer uses neural networks, word embed-

dings and recently also a transformer for named en-

tity recognition (NER) (Marshall et al., 2017). Ques-

tion answering systems for PICO data extraction ex-

ist based on matching words from knowledge bases,

hand-crafted rules and na

ıve Bayes classiﬁcation,

both on entity and sentence level (Demner-Fushman

and Lin, 2005), (Niu et al., 2003), but commonly fo-

cus on providing information to practicing clinicians

rather than systematic reviewers (Vong and Then,

2015).

In the following we introduce models related to

our sentence and entity classiﬁcation tasks and the

data on which our experiments are based. We made

use of previously published training and testing data

in order to ensure comparability between models.

1.2 Sentence Classiﬁcation Data

In the context of systematic review (semi)automation,

sentence classiﬁcation can be used in the screen-

ing process, by highlighting relevant pieces of text.

A long short-term memory (LSTM) neural network

trained with sentences of structured abstracts from

PubMed was published in 2018 (Jin and Szolovits,

2018). It uses a pre-trained Word2Vec embedding

in order to represent each input word as a ﬁxed vec-

tor. Due to the costs associated with labelling, its

authors acquired sentence labels via automated anno-

tation. Seven classes were assigned on the basis of

structured headings within the text of each abstract.

Table 1 provides an overview of class abbreviations

and their meaning.

In the following we refer to it as

the PubMed data.

The LSTM itself yields impressive results with F1

scores for annotation of up to 0.85 for PIO elements,

it generalizes across domains and assigns one label

per sentence. We were able to conﬁrm these scores

by replicating a local version of this model.

Table 1: Classes for the sentence classiﬁcation task.

Class Abbreviation

P Population

I Intervention, Comparator

O Outcome

A Aim

M Method

R Result

C Conclusion

1.3 Question Answering Data

1.3.1 SQuAD

The Stanford Question Answering Dataset (SQuAD)

is a reading-comprehension dataset for machine

learning tasks. It contains question contexts, ques-

tions and answers and is available in two versions.

The older version contains only questions that can be

Intervention and comparator are commonly combined

in PICO annotation tasks, please see original publication for

more details (Jin and Szolovits, 2018)

HEALTHINF 2020 - 13th International Conference on Health Informatics

answered based on the given context. In its newer

version, the dataset also contains questions which can

not be answered on the basis of the given context.

The SQuAD creators provide an evaluation script, as

well as a public leader board to compare model per-

formances (Rajpurkar et al., 2016).

1.3.2 Ebm-nlp

In the PICO domain, the potential of NER was shown

by Nye and colleagues in using transformers, as well

as LSTM and conditional random ﬁelds. In the fol-

lowing, we refer to these data as the ebm-nlp corpus.

(Nye et al., 2018). The ebm-nlp corpus provided us

with 5000 tokenized and annotated RCT abstracts for

training, and 190 expert-annotated abstracts for test-

ing. Annotation in this corpus include PIO classes, as

well as more detailed information such as age, gen-

der or medical condition. We adapted the human-

annotated ebm-nlp corpus of abstracts for training our

QA-BERT question answering system.

1.4 Introduction to Transformers

In the following, the bidirectional encoder representa-

tions from transformers (BERT) architecture is intro-

duced (Devlin et al., 2018a). This architecture’s key

strengths are rooted in both feature representation and

training. A good feature representation is essential to

ensure any model’s performance, but often data spar-

sity in the unsupervised training of embedding mech-

anisms leads to losses in overall performance. By em-

ploying a word piece vocabulary, BERT eliminated

the problem of previously unseen words. Any word

that is not present in the initial vocabulary is split into

a sub-word vocabulary. Especially in the biomedical

domain this enables richer semantic representations

of words describing rare chemical compounds or con-

ditions. A relevant example is the phrase ’two drops

of ketorolac tromethamine’, where the initial three

words stay intact, while the last words are tokenized

to ’ket’, ’#oro’, ’#lac’, ’tro’, ’#meth’, ’#amine’, hence

enabling the following model to focus on relevant

parts of the input sequence, such as syllables that indi-

cate chemical compounds. When obtaining a numer-

ical representation for its inputs, transformers apply a

’self-attention’ mechanism, which leads to a contex-

tualized representation of each word with respect to

its surrounding words.

BERT’s weights are pre-trained in an unsuper-

vised manner, based on large corpora of unlabelled

text and two pre-training objectives. To achieve bidi-

rectionality, its ﬁrst pre-training objective includes

prediction of randomly masked words. Secondly, a

next-sentence prediction task trains the model to cap-

ture long-term dependencies. Pre-training is compu-

tationally expensive but needs to be carried out only

once before sharing the weights together with the vo-

cabulary. Fine-tuning to various downstream tasks

can be carried out on the basis of comparably small

amounts of labelled data, by changing the upper lay-

ers of the neural network to classiﬁcation layers for

different tasks.

SCIBERT is a model based on the BERT-base ar-

chitecture, with further pre-trained weights based on

texts from the Semantic Scholar search engine (Al-

lenAI, 2019). We used these weights as one of our

three starting points for ﬁne-tuning a sentence clas-

siﬁcation architecture (Beltagy et al., 2019). Fur-

thermore, BERT-base (uncased) and Bert multilingual

(cased, base architecture) were included in the com-

parison (Devlin et al., 2018a).

1.5 Weaknesses in the Previous

Sentence Classiﬁcation Approach

In the following, we discuss weaknesses in the

PubMed data, and LSTM models trained on this type

of labelled data. LSTM architectures commonly em-

ploy a trimmed version of Word2Vec embeddings as

embedding layer. In our case, this leads to 20% of the

input data being represented by generic ‘Unknown’

tokens. These words are missing because they oc-

cur so rarely that no embedding vector was trained

for them. Trimming means that the available embed-

ding vocabulary is then further reduced to the known

words of the training, development and testing data,

in order to save memory and increase speed. The per-

centage of unknown tokens is likely to increase when

predicting on previously unseen and unlabelled data.

We tested our locally trained LSTM on 5000 abstracts

from a study-based register (Shokraneh and Adams,

2019) and found that 36% of all unique input features

did not have a known representation.

In the case of the labelled training and testing data

itself, automatic annotation carries the risk of produc-

ing wrongly labelled data. But it also enables the

training of neural networks in the ﬁrst place because

manual gold standard annotations for a project on the

scale of a LSTM are expensive and time-consuming

to produce. As we show later, the automated annota-

tion technique causes noise in the evaluation because

as the network learns, it can assign correct tags to

wrongly labelled data. We also show that sentence

labels are often ambiguous, and that the assignment

of a single label limits the quality of the predictions

for their use in real-world reviewing tasks.

We acknowledge that the assignment of classes

Data Mining in Clinical Trial Text: Transformers for Classiﬁcation and Question Answering Tasks

such as ‘Results’ or ‘Conclusions’ to sentences is po-

tentially valuable for many use-cases. However, those

sentences can contain additional information related

to the PICO classes of interest. In the original LSTM-

based model the A, M, R, and C data classes in Table 1

are utilized for sequence optimization, which leads to

increased classiﬁcation scores. Their potential PICO

content is neglected, although it represents crucial in-

formation in real-world reviewing tasks.

A general weakness of predicting labels for whole

sentences is the practical usability of the predictions.

We will show sentence highlighting as a potential

use-case for focusing reader’s attention to passages

of interest. However, the data obtained through this

method are not ﬁne-grained enough for usage in data

extraction, or for the use in pipelines for automated

evidence synthesis. Therefore, we expand our exper-

iments to include QA-BERT, a question-answering

model that predicts the locations of PICO entities

within sentences.

1.6 Contributions of this Research

In this work we investigate state-of-the-art meth-

ods for language modelling and sentence classiﬁca-

tion. Our contributions are centred around devel-

oping transformer-based ﬁne-tuning approaches tai-

lored to SR tasks. We compare our sentence clas-

siﬁcation with the LSTM baseline and evaluate the

biggest set of PICO sentence data available at this

point (Jin and Szolovits, 2018). We demonstrate that

models based on the BERT architecture solve prob-

lems related to ambiguous sentence labels by learning

to predict multiple labels reliably. Further, we show

that the improved feature representation and contex-

tualization of embeddings lead to improved perfor-

mance in biomedical data extraction tasks. These

ﬁne-tuned models show promising results while pro-

viding a level of ﬂexibility to suit reviewing tasks,

such as the screening of studies for inclusion in re-

views. By predicting on multilingual and full text

contexts we showed that the model’s capabilities for

transfer learning can be useful when dealing with di-

verse, real-world data.

In the second ﬁne-tuning approach, we apply a

question answering architecture to the task of data ex-

traction. Previous models for PICO question answer-

ing relied on vast knowledge bases and hand-crafted

rules. Our ﬁne-tuning approach shows that an abstract

as context, together with a combination of annotated

PICO entities and SQuAD data can result in a system

that outperforms contemporary entity recognition sys-

tems, while retaining general reading comprehension

capabilities.

2 METHODOLOGY

2.1 Feature Representation and

Advantages of Contextualization

A language processing model’s performance is lim-

ited by its capability of representing linguistic con-

cepts numerically. In this preliminary experiment, we

used the PubMed corpus for sentence classiﬁcation to

show the quality of PICO sentence embeddings re-

trieved from BERT. We mapped a random selection

of 3000 population, intervention, and outcome sen-

tences from the PubMed corpus to BERT-base un-

cased and SCIBERT. This resulted in each sentence

being represented by a ﬁxed length vector of 768 di-

mensions in each layer respectively, as deﬁned by

the model architecture’s hidden size. These vectors

can be obtained for each of the network’s layers, and

multiple layers can be represented together by con-

catenation and pooling.

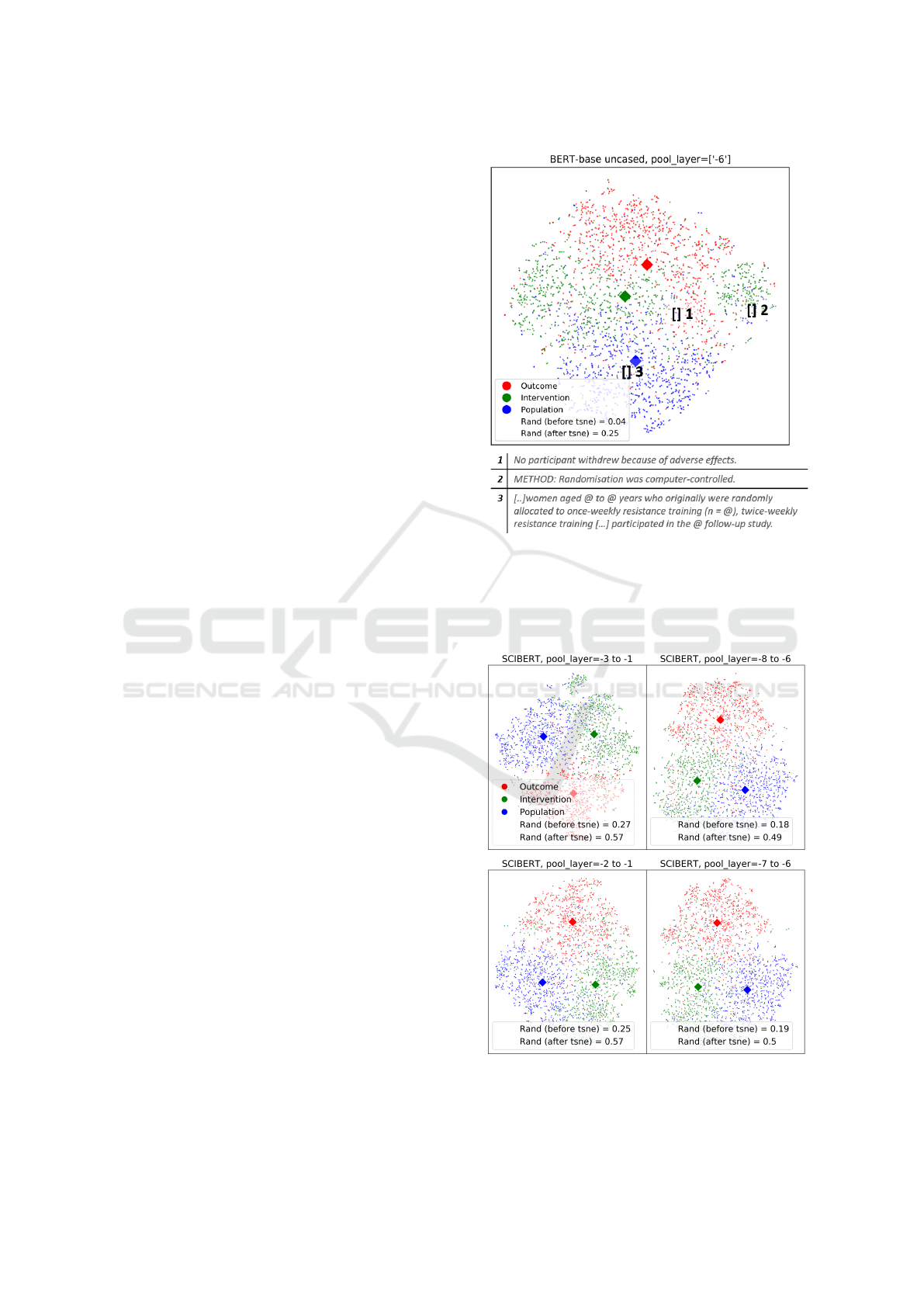

We used the t-distributed

Stochastic Neighbour Embedding (t-SNE) algorithm

to reduce each layer-embedding into two-dimensional

space, and plotted the resulting values. Additionally,

we computed adjusted rand scores in order to eval-

uate how well each layer (or concatenation thereof,

always using reduce mean pooling) represents our in-

put sequence. The rand scores quantify the extent to

which a na

ıve K-means (N=3) clustering algorithm in

different layers alone led to correct grouping of the

input sentences.

2.2 Sentence Classiﬁcation

2.2.1 Preparation of the Data

We used the PubMed corpus to ﬁne-tune a sen-

tence classiﬁcation architecture. Class names and

abbreviations are displayed in Table 1. The cor-

pus was supplied in pre-processed form, compris-

ing 24,668 abstracts. For more information about

the original dataset we refer to its original publi-

cation (Jin and Szolovits, 2018). Because of the

PICO framework, methods for systematic review

semi(automation) commonly focus on P, I, and O de-

tection. A, M, R, and C classes are an additional fea-

ture of this corpus. They were included in the follow-

ing experiment because they represent important in-

formation in abstracts and they occur in a vast major-

ity of published trial text. Their exclusion can lead to

false classiﬁcation of sentences in full abstracts. In a

A more detailed explanation is given by the BERT au-

thors in their paper on pre-training (Devlin et al., 2018b),

and in the Bert-as-service GitHub repository (Xiao, 2018).

HEALTHINF 2020 - 13th International Conference on Health Informatics

preliminary experiment we summarized A, M, R, and

C sentences as a generic class named ’Other’ in order

to shift the model’s focus to PIO classes. This resulted

in high class imbalance, inferior classiﬁcation scores

and a loss of ability to predict these classes when

supporting systematic reviewers during the screening

process.

In the following, abstracts that did not include a

P, I, and O label were excluded. This left a total of

129,095 sentences for training, and 14,344 for testing

(90:10 split).

2.2.2 Fine-tuning

We carried out ﬁne-tuning for sentence classiﬁcation

based on BERT-base (uncased), multilingual BERT

(cased), and on SCIBERT. We changed the classiﬁ-

cation layer on top of the original BERT model. It

remains as linear, fully connected layer but now em-

ploys the sigmoid cross-entropy loss with logits func-

tion for optimization. During training, this layer is

optimised for predicting probabilities over all seven

possible sentence labels. Therefore, this architecture

enables multi-class, multi-label predictions. In com-

parison, the original BERT ﬁne-tuning approach for

sentence classiﬁcation employed a softmax layer in

order to obtain multi-class, single-label predictions of

the most probable class only. During the training pro-

cess the model then predicts class labels from Table 1

for each sentence. After each training step, backprop-

agation then adjusts the model’s internal weights. To

save GPU resources, a maximal sequence length of

64, batch size 32, learning rate of 2 × 10

−5

, a warm-

up proportion of 0.1 and two epochs for training were

used.

2.2.3 Post-training Assignment of Classes

In the scope of the experiments for this paper, the

model returns probabilities for the assignment of each

class for every sentence. These probabilities were

used to show effects of different probability thresh-

olds (or simply assignment to the most probable class)

on recall, precision and F1 scores. The number of

classes was set to 7, thereby making use of the full

PubMed dataset.

2.3 Question Answering

2.3.1 Preparation of the Data

Both the training and testing subsets from the ebm-

nlp data were adapted to ﬁt the SQuAD format. We

merged both datasets in order to train a model which

ﬁrstly correctly answers PICO questions on the basis

of being trained with labelled ebm-nlp data, and sec-

ondly retains the ﬂexibility of general-purpose ques-

tion answering on the basis of SQuAD. We created

sets of general, differently phrased P, I, and O ques-

tions for the purpose of training a broad representa-

tion of each PICO element question.

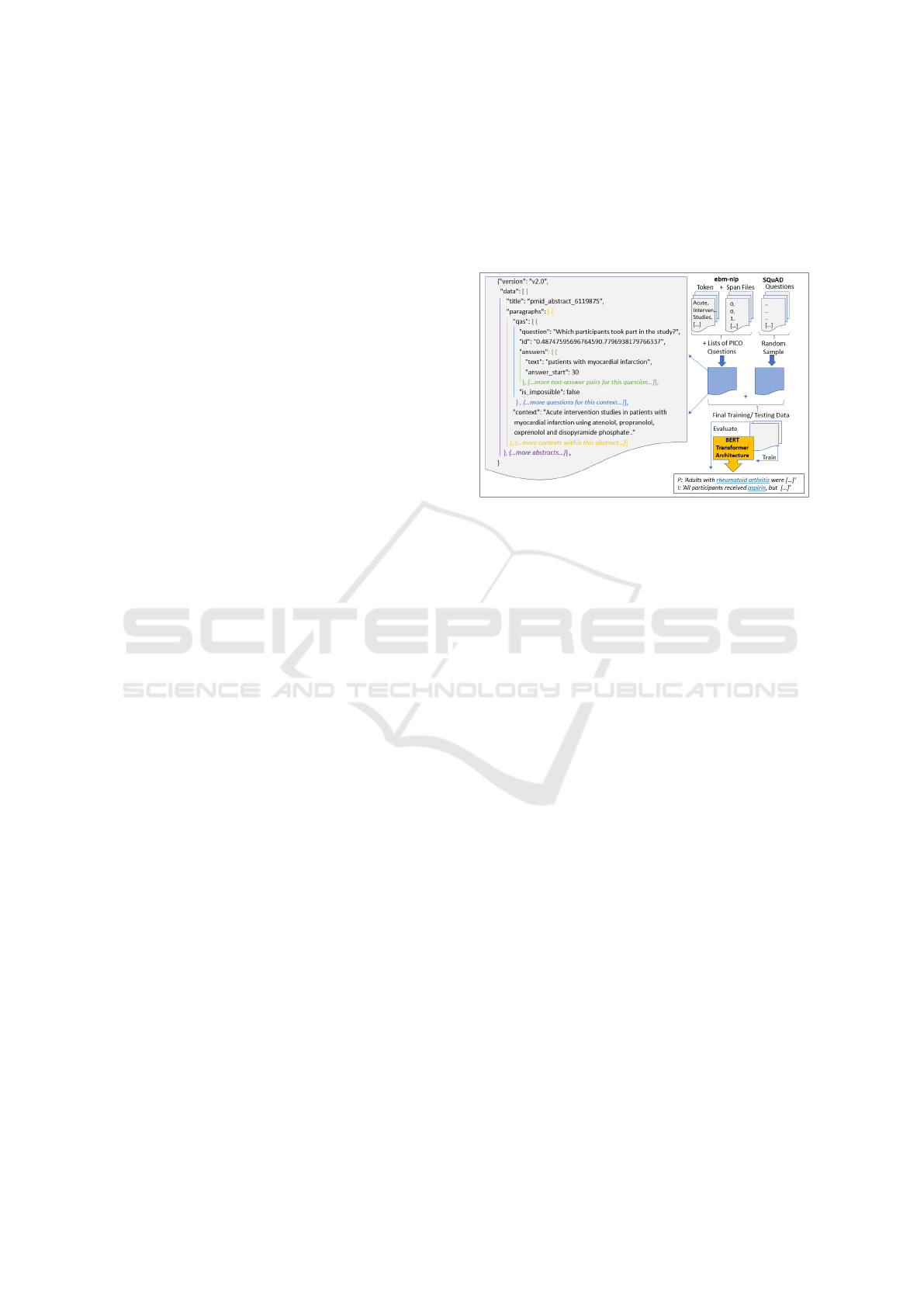

Figure 1: Colour coded example for a population entity an-

notation, converted to SQuAD v.2 format. Combined data

are used to train and evaluate the system.

In this section we describe the process of adapting

the ebm-nlp data to the second version of the SQuAD

format, and then augmenting the training data with

some of the original SQuAD data. Figure 1 shows an

example of the converted data, together with a high-

level software architecture description for our QA-

BERT model. We created a conversion script to au-

tomate this task. To reduce context length, it ﬁrst

split each ebm-nlp abstract into sentences. For each

P, I, and O class it checked the presence of anno-

tated entity spans in the ebm-nlp source ﬁles. Then, a

question was randomly drawn from our set of general

questions for this class, to complete a context and a

span-answer pair in forming a new SQuAD-like ques-

tion element. In cases where a sentence did not con-

tain a span, a question was still chosen, but the answer

was marked as impossible, with the plausible answer

span set to begin at character 0. In the absence of

impossible answers, the model would always return

some part of the context as answer, and hence be of

no use for rarer entities such as P, which only occurs

in only 30% of all context sentences.

For the training data, each context can contain

one possible answer, whereas for testing multiple

question-answer pairs are permitted. An abstract is

represented as a domain, subsuming its sentences

and question answer-text pairs. In this format, our

adapted data are compatible with the original SQuAD

v.2 dataset, so we chose varying numbers of origi-

nal SQuAD items and shufﬂed them into the training

data. This augmentation of the training data aims to

Data Mining in Clinical Trial Text: Transformers for Classiﬁcation and Question Answering Tasks

reduce the dependency on large labelled corpora for

PICO entity extraction. Testing data can optionally

be enriched in the same way, but for the presentation

of our results we aimed to be comparable with previ-

ously published models and therefore chose to eval-

uate only on the subset of expert-annotated ebm-nlp

testing data.

2.3.2 Fine-tuning

The python Huggingface Transformers library was

used for ﬁne-tuning the question-answering mod-

els. This classiﬁcation works by adding a span-

classiﬁcation head on top of a pre-trained transformer

model. The span-classiﬁcation mechanism learns to

predict the most probable start and end positions of

potential answers within a given context (Wolf et al.,

2019).

The Transformers library offers classes for to-

kenizers, BERT and other transformer models and

provides methods for feature representation and op-

timization. We used BertForQuestionAnswering.

Training was carried out on Google’s Colab, using the

GPU runtime option. We used a batch size of 18 per

GPU and a learning rate of 3

−5

. Training lasted for

2 epochs, context length was limited to 150. To re-

duce the time needed to train, we only used BERT-

base (uncased) weights as starting points, and used a

maximum of 200 out of the 442 SQuAD domains.

To date, the Transformers library includes several

BERT, XLM, XLNet, DistilBERT and ALBERT

question answering models that can be ﬁne-tuned

with the scripts and data that we describe in this paper.

3 RESULTS

3.1 Feature Representation and

Contextualization

Figure 2 shows the dimensionality-reduced vectors

for 3000 sentences in BERT-base, along with the po-

sitions of three exemplary sentences. All three exam-

ples were labelled as ’P’ in the gold standard. This vi-

sualization highlights overlaps between the sentence

data and ambiguity or noise in the labels.

Sentences 1 and 2 are labelled incorrectly, and

clearly appear far away from the population class cen-

troid. Sentence 3 is an example of an ambiguous case.

It appears very close to the population centroid, but

neither its label nor its position reﬂect the interven-

tion content. This supports a need for multiple tags

per sentence, and the ﬁne-tuning of weights within

the network.

Figure 2: Visualization of training sentences using BERT-

base. The x and y-axis represent the two most dominant

dimensions in the hidden state output, as selected by the

t-SNE algorithm. This visualization uses the sixth layer

from the top, and shows three examples of labelled P sen-

tences and their embedded positions.

Figure 3: Visualisation of training sentences using SCIB-

ERT. The x and y-axes represent the two most dominant

t-SNE reduced dimensions for each concatenation of lay-

ers.

HEALTHINF 2020 - 13th International Conference on Health Informatics

Table 2: Summary of results for the sentence classiﬁcation task.

Tag Model Precision, Recall, F1 Model Prec., Recall, F1 Model Prec., Recall, F1

Single-label case

P LSTM 0.89, 0.83, 0.86 BERT-base 0.92, 0.87, 0.89 SCIBERT 0.92, 0.88, 0.90

I 0.75, 0.82, 0.78 0.89, 0.88, 0.89 0.90, 0.88, 0.89

O 0.84, 0.83, 0.84 0.88, 0.93, 0.90 0.89, 0.94, 0.92

A 0.98, 0.98, 098 0.93, 0.94, 0.93 0.94, 0.95, 0.95

M 0.87, 0.84, 0.86 0.95, 0.93, 0.94 0.96, 0.93, 0.95

R 0.93, 0.96, 0.95 0.90, 0.94, 0.92 0.91, 0.94, 0.92

C 0.94, 0.91, 0.92 0.90, 0.83, 0.86 0.89, 0.83, 0.86

Multi-label case

P Multilingual 0.87, 0.90, 0.88 SCIBERT 0.81, 0.93, 0.87 SCIBERT 0.97, 0.78, 0.87

I Thresh.: 0.3 0.85, 0.90, 0.88 0.2 0.83, 0.92, 0.87 0.8 0.95, 0.75, 0.84

O 0.87, 0.93, 0.90 0.84, 0.95, 0.89 0.95, 0.83, 0.89

A 0.91, 0.94, 0.93 0.88, 0.96, 0.92 0.98, 0.91, 0.94

M 0.95, 0.94, 0.94 0.91, 0.95, 0.93 0.99, 0.90, 0.94

R 0.88, 0.96, 0.92 0.86, 0.97, 0.91 0.94, 0.85, 0.89

C 0.84, 0.87, 0.86 0.79, 0.90, 0.84 0.95, 0.70, 0.81

Effect of threshold on metrics

Figure 3 shows the same set of sentences, rep-

resented by concatenations of SCIBERT outputs.

SCIBERT was chosen as an additional baseline model

for ﬁne-tuning because it provided the best represen-

tation of embedded PICO sentences. When clustered,

its embeddings yielded an adjusted rand score of 0.57

for a concatenation of the two layers, compared with

0.25 for BERT-base.

3.2 Sentence Classiﬁcation

Precision, recall, and F1 scores, including a compari-

son with the LSTM, are summarized in Table 2. Un-

derlined scores represent the top score across all mod-

els, and scores in bold are the best results for single-

and multi-label cases respectively. The LSTM assigns

one label only and was outperformed in all classes of

main interest (P, I, and O).

A potential pitfall of turning this task into multi-

label classiﬁcation is an increase of false-positive pre-

dictions, as more labels are assigned than given in the

single-labelled testing data in the ﬁrst place. How-

ever, the ﬁne-tuned BERT models achieved high F1

scores, and large improvements in terms of recall and

precision. In its last row, Table 2 shows different

probability thresholds for class assignment when us-

ing the PubMed dataset and our ﬁne-tuned SCIBERT

model for multi-label prediction. After obtaining the

model’s predictions, a simple threshold parameter can

be used to obtain the ﬁnal class labels. On our la-

belled testing data, we tested 50 evenly spaced thresh-

olds between 0 and 1 in order to obtain these graphs.

Here, recall and precision scores in ranges between

0.92 and 0.97 are possible with F1 scores not drop-

ping below 0.84 for the main classes of interest. In

practice, the detachment between model predictions

and assignment of labels means that a reviewer who

wishes to switch between high recall and high preci-

sion results can do so very quickly, without obtaining

new predictions from the model itself.

More visualizations can be found in this project’s

GitHub repository

, including true class labels and a

detailed breakdown of true and false predictions for

each class. The highest proportion of false classi-

ﬁcation appears between the results and conclusion

classes.

The ﬁne-tuned multilingual model showed

https://github.com/L-ENA/HealthINF2020

Data Mining in Clinical Trial Text: Transformers for Classiﬁcation and Question Answering Tasks

Table 3: Predicting PICOs in Chinese and German. Classes were assigned based on foreign language inputs only. For

reference, translations were provided by native speakers.

Prediction Original sentences with English translations for reference

Chinese

Population ”方法:選擇2004-03/2005-03在惠州市第二人民醫院精神科精神分裂癥住院的患者60例,

簡明精神癥狀量表總分＞30分,陰性癥狀量表總分＞35分.”(Huang et al., 2005)

Translation: ”Methods: In the Huizhou No. 2 People’s hospital (Mar 2004 - Mar 2005), 60 patients

with psychiatric schizophrenia were selected. Total score of the Brief Psychiatric Rating Scale was

>30, and total score of the Negative Syndrome Scale was >35 in each patient.”

Intervention ”1 隨機分為2組,泰必利組與奎的平組,每組30例,患者家屬知情同意.

Translation: ”1. They were randomly divided into 2 groups, Tiapride group and Quetiapine group, with

30 cases in each group. Patients’ family was informed and their consent was obtained.”

初始劑量25 mg,早晚各1次,以后隔日增加50 mg,每日劑量范圍300～550 mg.”(Huang et al., 2005)

Translation: ”The initial dose was 25 mg, once in the morning and evening. The dose was increased by

50 mg every other day, reaching a daily dose in the range of 300 and 550 mg.”

Outcome ”3 效果評估:使用陰性癥狀量表評定用藥前后療效及陰性癥狀改善情況,使用副反應量表評價藥

物的安全性.”(Huang et al., 2005)

Translation: ”3 Evaluation: the Negative Symptom Scale was used to evaluate the efﬁcacy of the drug

before and after treatment and the improvement of the negative symptoms. The Treatment Emergent

Symptom Scale was used to evaluate the safety of the drug.”

Method ”實驗過程為雙盲.”(Huang et al., 2005)

Translation: ”The experimental process was double-blind.”

German

Aim ”Ziel: Untersuchung der Wirksamkeit ambulanten Heilfastens auf Schmerz, Beﬁndlichkeit und

Gelenkfunktion bei Patienten mit Arthrose.”(Schmidt et al., 2010)

Translation: ”Aim: to investigate outpatient therapeutic fasting and its effects on pain, wellbeing and

joint-function in patients with osteoarthritis.”

Method ”Patienten und Methoden: Prospektive, unkontrollierte Pilotstudie.”(Schmidt et al., 2010)

Translation: ”Patients and methods: prospective, uncontrolled pilot study”

Outcomes ”Anlauf-, Belastungs-, Ruheschmerz (VAS); Druckschmerzschwelle (DSS); [..] (Schmidt et al., 2010)

Translation: ”Pain was measured during warm-up, stress and resting (VAS); Onset of pain under

pressure (DSS);[..]”

Conclusion ”Schlussfolgerung: Heilfasten unter

Arztlicher Aufsicht kann die Symptomatik bei Patienten mit

moderater Arthrose positiv beeinﬂussen.” (Schmidt et al., 2010)

Translation: ”Conclusions: therapeutic fasting, under supervision of doctors, can have a positive

effect on the symptoms of patients with moderate osteoarthritis.”

marginally inferior classiﬁcation scores on the exclu-

sively English testing data. However, this model’s

contribution is not limited to the English language be-

cause its interior weights embed a shared vocabulary

of 100 languages, including German and Chinese

Our evaluation of the multilingual model’s capacity

for language transfer is of a qualitative nature, as

there were no labelled Chinese or German data

available. Table 3 shows examples of two abstracts,

as predicted by the model. Additionally, this table

demonstrates how a sentence prediction model can be

used to highlight text. With the current infrastructure

it is possible to highlight PICOs selectively, to

highlight all classes simultaneously, and to adjust

thresholds for class assignment in order to increase or

decrease the amount of highlighted sentences. When

applied to full texts of RCTs and cohort studies, we

For a full list see https://github.com/google-research/

bert/blob/master/multilingual.md

found that the model retained its ability to identify

and highlight key sentences correctly for each class.

We tested various report types, as well as recent

and old publications, but remain cautious that large

scale testing on labelled data is needed to draw solid

conclusions on these model’s abilities for transfer

learning. For further examples in the English lan-

guage, we refer to our GitHub repository.

3.3 Question Answering

We trained and evaluated a model for each P, I, and

O class. Table 4 shows our results, indicated as QA-

BERT, compared with the currently published leader

board for the ebm-nlp data (Nye et al., 2019) and re-

sults reported by the authors of SCIBERT (Beltagy

et al., 2019). For the P and I classes, our models out-

performed the results on this leader board. The index

in our model names indicates the amount of additional

SQuAD domains added to the training data. We never

HEALTHINF 2020 - 13th International Conference on Health Informatics

used the full SQuAD data in order to reduce time

for training but observed increased performance when

adding additional data. For classifying I entities, an

increase from 20 to 200 additional SQuAD domains

resulted in an increase of 8% for the F1 score, whereas

the increase for the O domain was less than 1%. Af-

ter training a model with 200 additional SQuAD do-

mains, we also evaluated it on the original SQuAD

development set and obtained a F1 score of 0.72 for

this general reading comprehension task.

In this evaluation, the F1 scores represent the over-

lap of labelled and predicted answer spans on token

level. We also obtained scores for the subgroups of

sentences that did not contain an answer versus the

ones that actually included PICO elements. These re-

sults are shown in Table 5.

For the P class, only 30% of all sentences included

an entity, whereas its sub-classes age, gender, condi-

tion and size averaged 10% each. In the remaining

classes, these percentages were higher. F1 scores for

correctly detecting that a sentence includes no PICO

element exceeded 0.92 in all classes. This indicates

that the addition of impossible answer elements was

successful, and that the model learned a representa-

tion of how to discriminate PICO contexts. The scores

for correctly predicting PICOs in positive scenarios

are lower. These results are presented in Table 5.

Here, two factors could inﬂuence this score in a neg-

ative way. First, labelled spans can be noisy. Train-

ing spans were annotated by crowd workers and the

authors of the original dataset noted inter-annotator

disagreement. Often, these spans include full stops,

other punctuation or different levels of detail describ-

ing a PICO. The F1 score decreases if the model pre-

dicts a PICO, but the predicted span includes marginal

differences that were not marked up by the experts

who annotated the testing set. Second, some spans

include multiple PICOs, sometimes across sentence

boundaries. Other spans mark up single PICOS in

succession. In these cases the model might ﬁnd mul-

tiple PICOs in a row, and annotate them as one or vice

versa.

4 DISCUSSION

In this work, we have shown possibilities for sentence

classiﬁcation and data extraction of PICO character-

istics from abstracts of RCTs.

For sentence classiﬁcation, models based on trans-

formers can predict multiple labels per sentence, even

if trained on a corpus that assigns a single label only.

Additionally, these architectures show a great level of

ﬂexibility with respect to adjusting precision and re-

Table 4: Question Answering versus entity recognition re-

sults.

Class Model F1 score

P lstm-crf

0.78

lstm-crf-BERT

0.68

QA-BERT

0.87

I lstm-crf-pattern

0.7

lstm-crf-BERT

0.57

QA-BERT

0.67

QA-BERT

200

0.75

O lstm-crf-BERT

0.78

QA-BERT

100

0.67

PIO SCIBERT mean 0.72

QA-BERT mean 0.75

P subclasses when annotated:

Age, Gender, Condition, Size

All lstm-crf

0.4

All QA-BERT

0.53

Performance in general SQuAD task

All QA-BERT

200

0.72

call scores. Recall is an important metric in SR tasks

and the architectures proposed in this paper enable

a post-classiﬁcation trade-off setting that can be ad-

justed in the process of supporting reviewers in real-

world reviewing tasks.

However, tagging whole sentences with respect

to populations, interventions and outcomes might not

be an ideal method to advance systematic review au-

tomation. Identifying a sentence’s tag could be help-

ful for highlighting abstracts from literature searches.

This focuses the reader’s attention on sentences, but

is less helpful for automatically determining whether

a speciﬁc entity (e.g. the drug aspirin) is mentioned.

Our implementation of the question answering

task has shown that a substantial amount of PICO en-

tities can be identiﬁed in abstracts on a token level.

This is an important step towards reliable system-

atic review automation. With our provided code and

data, the QA-BERT model can be switched with more

advanced transformer architectures, including XLM,

XLNet, DistilBERT and ALBERT pre-trained mod-

els. More detailed investigations into multilingual

predictions (Clef, 2018) pre-processing and predict-

ing more than one PICO per sentence are reserved for

future work.

4.1 Limitations

Limitations in the automatically annotated PubMed

training data mostly consist of incomplete detection

or noise P, I, and O entities due to the single la-

Data Mining in Clinical Trial Text: Transformers for Classiﬁcation and Question Answering Tasks

Table 5: Subgroups of possible sentences versus impossible sentences.

Class Model % F1 F1

Possible When Possible When Impossible

P QA-BERT

30% 0.74 0.92

I QA-BERT

200

53% 0.60 0.94

0 QA-BERT

100

60% 0.52 0.92

all

QA-BERT

10% 0.53 0.97

Table 6: This table shows two examples for intervention

span predictions in QA-BERT

200

. On the ofﬁcial SQuAD

development set, the same model achieved a good score, an

exemplary question and prediction for this is given in the

bottom row.

Which intervention did the participants receive?

Prediction Context

auditory

inte-

grative

training

To explore the short-term treatment

effect of the auditory integrative

training on autistic children and

provide them with clinical support

for rehabilitative treatment.

ketorolac

trometha-

mine 10

mg and

30 mg

supposi-

tories

The analgesia activity of ketorolac

tromethamine 10 mg and 30 mg

suppositories were evaluated after

single dose administration by as-

sessing pain intensity and pain re-

lief using a 4 point scale ( VRS ).

What do power station steam turbines use as a

cold sink in the absence of CHP?

surface

con-

densers

Where CHP is not used, steam tur-

bines in power stations use surface

condensers as a cold sink. The con-

densers are cooled by water ﬂow

from oceans, rivers, lakes, and of-

ten by cooling towers [. . . ]

belling. We did not have access to multilingual an-

notated PICO corpora for testing, and therefore tested

the model on German abstracts found on PubMed,

as well as Chinese data provided by the Cochrane

Schizophrenia Group.

For the question answering, we limited the use of

original SQuAD domains to enrich our data. This was

done in order to save computing resources, as an addi-

tion of 100 SQuAD domains resulted in training time

increases of two hours, depending on various other

parameter settings. Adjusted parameters include in-

creased batch size, and decreased maximal context

length in order to reduce training time.

5 CONCLUSION

With this paper we aimed to explore state-of-the-

art NLP methods to advance systematic review

(semi)automation. Both of the presented ﬁne-tuning

approaches for transformers demonstrated ﬂexibility

and high performance. We contributed an approach

to deal with ambiguity in whole-sentence predictions,

and proposed the usage of a completely different ap-

proach to entity recognition in settings where training

data are sparse.

In conclusion we wish to emphasize our argument

that for future applications, interoperability is impor-

tant. Instead of developing yet another stand-alone

organizational interface with a machine learning clas-

siﬁer that works on limited data only, the focus should

be to develop and train cross-domain and neural mod-

els that can be integrated into the backend of existing

platforms. The performance of these models should

be comparable on standardized datasets, evaluation

scripts and leader boards.

The logical next step, which remains less explored

in the current literature because of its complexity, is

the task of predicting an RCT’s included or excluded

status on the basis of PICOs identiﬁed in its text.

For this task, more complex architectures that include

drug or intervention ontologies could be integrated.

Additionally, information from already completed re-

views could be re-used as training data.

ACKNOWLEDGEMENTS

We would like to thank Clive Adams for provid-

ing testing data and feedback for this project. We

thank Vincent Cheng for the Chinese translation. Fur-

thermore, we thank the BERT team at Google Re-

search and Allenai for making their pre-trained model

weights available. Finally, we acknowledge the Hug-

gingface team and thank them for implementing the

SQuAD classes for Transformers.

HEALTHINF 2020 - 13th International Conference on Health Informatics

FUNDING

LS was funded by the National Institute for Health

Research (NIHR Systematic Review Fellowship,

RM-SR-2017-09-028). The views expressed in this

publication are those of the author(s) and not neces-

sarily those of the NHS, the NIHR or the Department

of Health and Social Care.

REFERENCES

AllenAI (2019). Semantic scholar. https://www.

semanticscholar.org/. [Last accessed 16. October

2019].

Beltagy, I., Cohan, A., and Lo, K. (2019). Scibert: Pre-

trained contextualized embeddings for scientiﬁc text.

ArXiv, abs/1903.10676.

Borah, R., Brown, A. W., Capers, P. L., and Kaiser, K. A.

(2017). Analysis of the time and workers needed to

conduct systematic reviews of medical interventions

using data from the prospero registry. BMJ Open,

7(2).

Clef (2018). Clef ehealth challenge multilingual informa-

tion extraction. http://clef-ehealth.org/.

Covidence (2019). Covidence systematic review software,

Veritas Health Innovation. Melbourne, Australia.

[Available at: www.covidence.org, Last accessed 07.

October 2019].

Demner-Fushman, D. and Lin, J. (2005). Knowledge ex-

traction for clinical question answering : Preliminary

results.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018a). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018b). Bert: Pre-training of deep bidirectional

transformers for language understanding.

Fontelo, P. and Liu, F. (2018). A review of recent publica-

tion trends from top publishing countries. Systematic

Reviews, 7(1).

Higgins, J. P. T., Thomas, J., Chandler, J., Cumpston, M.,

Li, T., Page, M. J., and Welch, V. A., editors (2019).

Cochrane Handbook for Systematic Reviews of Inter-

ventions. John Wiley & Sons, Chichester, UK, 2 edi-

tion.

Huang, Q.-m., Zhang, Z.-q., Luo, Q.-h., and CHEN, H.-h.

(2005). Emotion and social function of patients with

schizophrenia and the interventional effect of tiapride:

A double-blind randomized control study. Chinese

Journal of Clinical Rehabilitation, (24):30–32.

Jin, D. and Szolovits, P. (2018). PICO element detection in

medical text via long short-term memory neural net-

works. In Proceedings of the BioNLP 2018 workshop,

pages 67–75, Melbourne, Australia. Association for

Computational Linguistics.

Lasserson, T. J., Thomas, J., and Higgins, J. P. T. (2019).

Chapter 1: Starting a review. In Higgins, J. P. T.,

Thomas, J., Chandler, J., Cumpston, M., Li, T., Page,

M. J., and Welch, V. A., editors, Cochrane Handbook

for Systematic Reviews of Interventions. John Wiley &

Sons, Chichester, UK, 2 edition.

Lefebvre, C., Glanville, J., Briscoe, S., Littlewood, A., Mar-

shall, C., Metzendorf, M. I., Noel-Storr, A., Rader, T.,

Shokraneh, F., Thomas, J., and Wieland, L. S. (2019).

Chapter 4: Searching for and selecting studies. In

Higgins, J. P. T., Thomas, J., Chandler, J., Cump-

ston, M., Li, T., Page, M. J., and Welch, V. A., ed-

itors, Cochrane Handbook for Systematic Reviews of

Interventions. John Wiley & Sons, Chichester, UK, 2

edition.

Marshall, C. (2019). The systematic review toolbox. http://

systematicreviewtools.com/index.php. [Last accessed

26. May 2019].

Marshall, I. J., Kuiper, J., Banner, E., and Wallace, B. C.

(2017). Automating biomedical evidence synthesis:

RobotReviewer. Proceedings of the Conference of

the Association for Computational Linguistics (ACL),

2017:7–12.

Mikolov, T., Chen, K., Corrado, G., and Dean, J. (2013).

Efﬁcient estimation of word representations in vector

space.

Niu, Y., Hirst, G., Mcarthur, G., and Rodriguez-Gianolli, P.

(2003). Answering clinical questions with role iden-

tiﬁcation. Proceedings of the ACL 2003 workshop on

Natural language processing in biomedicine -.

Nye, B., Li, J. J., Patel, R., Yang, Y., Marshall, I., Nenkova,

A., and Wallace, B. (2018). A corpus with multi-level

annotations of patients, interventions and outcomes to

support language processing for medical literature. In

Proceedings of the 56th Annual Meeting of the Associ-

ation for Computational Linguistics (Volume 1: Long

Papers), pages 197–207, Melbourne, Australia. Asso-

ciation for Computational Linguistics.

Nye, B., Li, J. J., Patel, R., Yang, Y., Marshall, I., Nenkova,

A., and Wallace, B. (2019). Ebm-nlp leaderboard.

https://ebm-nlp.herokuapp.com/. [Last accessed 16.

October 2019].

Ouzzani, M., Hammady, H., Fedorowicz, Z., and Elma-

garmid, A. (2016). Rayyan—a web and mobile app

for systematic reviews. Systematic Reviews, 5(1).

Rajpurkar, P., Zhang, J., Lopyrev, K., and Liang, P. (2016).

Squad: 100,000+ questions for machine comprehen-

sion of text.

Schmidt, L., Shokraneh, F., Steinhausen, K., and Adams,

C. E. (2019). Introducing raptor: Revman parsing tool

for reviewers. Systematic Reviews, 8(1).

Schmidt, S., Stange, R., Lischka, E., Kiehntopf, M., Deufel,

T., Loth, D., and Uhlemann, C. (2010). Unkon-

trollierte klinische studie zur wirksamkeit ambulanten

heilfastens bei patienten mit arthrose. Forschende

Komplement

armedizin / Research in Complementary

Medicine, 17(2):87–94.

Shokraneh, F. and Adams, C. E. (2019). Study-based regis-

ters reduce waste in systematic reviewing: discussion

and case report. Systematic Reviews, 8(1):129.

Data Mining in Clinical Trial Text: Transformers for Classiﬁcation and Question Answering Tasks

Vong, W. and Then, P. H. H. (2015). Information seeking

features of a pico-based medical question-answering

system. In 2015 9th International Conference on IT

in Asia (CITA), pages 1–7.

Wolf, T., Debut, L., Sanh, V., Chaumond, J., Delangue, C.,

Moi, A., Cistac, P., Rault, T., Louf, R., Funtowicz,

M., and Brew, J. (2019). Huggingface’s transformers:

State-of-the-art natural language processing. ArXiv,

abs/1910.03771.

Xiao, H. (2018). bert-as-service. https://github.com/

hanxiao/bert-as-service.

APPENDIX

Availability of the Code and Data

Scripts and supplementary material, as well as fur-

ther illustrations are available from https://github.

com/L-ENA/HealthINF2020. Training data for sen-

tence classiﬁcation and question answering are freely

available from the cited sources.

Additionally, the Cochrane Schizophrenia Group

extracted, annotated and made available data from

studies included in over 200 systematic reviews. This

aims at supporting the development of methods for

reviewing tasks, and to increase the re-use of their

data. These data include risk-of-bias assessment, re-

sults including all clean and published outcome data

extracted by reviewers, data on PICOs, methods, and

identiﬁers such as PubMed ID and a link to their

study-based register. Additionally, a senior reviewer

recently carried out a manual analysis of all 33,000

outcome names in these reviews, parsed and allocated

to 15,000 unique outcomes in eight main categories

(Schmidt et al., 2019).

HEALTHINF 2020 - 13th International Conference on Health Informatics
