Host Fingerprinting for Web Servers Authentication

Ezio Lefons, Sebastiano Pizzutilo and Filippo Tangorra

Dipartmento di Informatica, Università degli Studi di Bari Aldo Moro, Via Orabona 4, 70125 Bari, Italy

Keywords: Authentication, Clock Skew, Database Security, Fingerprint.

Abstract: Fingerprinting is a biometric technique for computing a unique profile associated to a physical person for

authentication purpose. It has been successfully applied also to software entities by using hash functions for

integrity checking after downloading. In the paper, we propose a fingerprinting algorithm to identify a

machine during a client-server authentication process. In detail, this host identifier can be used for

connecting to a database server without using an account storing a plain-text password. After the

presentation of experimental results, we show some real scenarios where this solution can be applied.

1 INTRODUCTION

Authentication aims at checking the identity of an

individual, which may be a person or a software

agent, trying to access a system. The main

paradigms for authentication are: (a) something you

know, based on passwords or secret phrases; (b)

something you have, based on keys or badges, for

example; and (c) something you are, based on

biometrics techniques (Ben Natan, 2005; Bertino

and Sandhu, 2005; Gertz and Jajodia, 2007).

A biometrics technique consists in a

measurement of the physical and intrinsic

characteristics of an individual, such as his/her

fingerprints or iris and/or facial recognition, that

allow to create a unique profile of that individual

(Liu and Silverman, 2001; Jain et al., 2006; Tang,

2018; Sundararajan et al., 2019). A similar approach

is used for creating a unique profile of a software

entity on the basis of hash functions, such as MD5.

This digest is mainly used for verifying the integrity

of a software moving across a network (Deswarte et

al., 2004). However, the digest identifies a class of

software, and not a specific instance. Extending this

concept to hardware devices (Alaca and van

Oorschot, 2016), a host fingerprint involves a

strategy for identifying a single computer running a

set of applications (Veysset, 2002). In this case, we

are interested in the identification of a single host

that is part of a network.

A method for fingerprinting a hardware device is

based on clock skew, which is the variation of the

signals of the internal clock (Kohno et al., 2005). In

this paper, we propose an algorithm for computing

such fingerprint in order to identify a host in a

client-server communication. In this case, the host to

be identified is a computer running a web

application server that connects to database server.

The benefits of this approach is the possibility to

access a database server not by using a password

stored as a plain-text but by providing unique

identifier computed at run-time.

The method present in literature for computing

clock skews is discussed in Section 2, while in

Section 3 we explain our proposal, along with

experimental results. Section 4 shows some practical

applications of our proposal in web-based

environments. The final Section concludes the paper

with a summary and outlines future work.

2 RELATED WORK

In (Mills, 1992), Mills defines the offset of two

clocks as the time difference between them, while

defines the skew as the frequency difference

between them, computed as the first derivative of

offset with time. To this end, a synchronization of

the computer’s clock with a NTP (Network Time

Protocol) server is used for reducing, but not for

eliminating, this skew.

A method for exploiting this clock skew for

fingerprinting is explained in (Kohno et al., 2005).

The authors compute the clock skew of a remote

host by starting a network communication with it

and compare the timestamps contained in the TCP

Lefons, E., Pizzutilo, S. and Tangorra, F.

Host Fingerprinting for Web Ser vers Authentication.

DOI: 10.5220/0008942500450051

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 45-51

ISBN: 978-989-758-399-5; ISSN: 2184-4356

header with those of the observer. The correlation

between the TCP timestamps and the measured

machine’s time is based on a linear programming

technique, using the Graham’s convex hull

algorithm, for variable network delay renders simple

linear regression insufficient (Graham, 1972; Moon

et al., 1999). For the experiment, the authors tested

the algorithm using 69 machines in a campus

computer laboratory and ran the measurement for 38

days, computing clock skews on 12 and 24 hours

intervals. The experiment succeeded in

demonstrating the validity of this approach, for the

clock skew estimates for any given machine are

approximately constant over time and different

machines have detectably different clock skews.

The work of these authors has been commented

by Fink (Fink, 2007) who, conversely, treats the

problem as one of statistics and regression rather

than linear programming and optimization. Though

similar, the author proposes a solution for computing

the sample size required to produce a clock skew

that is within a fixed margin of the true population

clock skew. The sample size formula has been

further validated introducing network delays and

analysing correlations with hardware characteristics.

Also (Polčák and Franková, 2014) explores

remote computer identification based on the

estimation of clock skew computed from network

packets, but measurements were difficult to take, as

they needed to analyze network traffic, and required

an external reference time to compare with. Salo

(Salo, 2007) proposed a solution to this problem by

comparing two different clocks: the one used by the

CPU and the independent one used to maintain the

internal timer. The proposed methodology required a

long execution time to generate fingerprint. In

(Sanchez-Rola et al., 2018), authors look at code

execution time as a way to precisely identify

different devices, considering that the time that a

computer spends to execute an instruction depends

on how many clock cycles the instruction requires,

and on the duration of each cycle.

3 METHOD PROPOSAL

Our underlying idea is to observe timestamps taken

from the internal clock and computing the offset of a

timestamp in reference to the previous one. The

assumption is that, if the clock shows a constant

skew, then a regular pattern in clock signals is

present.

The main differences between this proposal and

that present in literature are:

 The skew is locally computed. That is, it is not

computed by a fingerprinter through a remote

observation of the fingerprint. Conversely, it is

computed by a server-side program, observing

the timestamps of the internal clock of the host

on which the program is running.

 The granularity of the timestamp is the

microsecond, in order to bring out the subtle

differences in clock signals. In our server-side

implementation, we adopted the microtime PHP

function (Sklar and Trachtenberg, 2003).

 The skew is quickly computed and does not

require a long-running observation of the

fingerprint. To do so, the algorithm uses a CPU-

intensive cycle, which takes few seconds to be

completed. The number of cycles is a parameter

that has been tuned in an empirical way. We

discuss about the number of CPU-cycles in the

next implementation sub-section.

 The skew is not computed by comparing the

timestamps with those derived from another

source (i.e., the observer or a NTP server) but it

is self-referential. Therefore, the fingerprint is

autonomously computed.

Let T

be the timestamp observed at the i-th CPU-

cycle, for i = 0,…, n

∈.

We define

offset

= T

T

i-1

, for i = 1,…, n, and

O = { offset

: i ∈ {1,…, n} where n ∈ }.

Here, an offset is the incremental step in clock

signals, that is, the difference between sequential

timestamps. Of course, this step can present different

values, for the observation process is strongly

affected by other processes that may slow down the

system and cause abnormal delays (i.e., outliers) in

observations. However, if we consider an arbitrarily

high value for n, the incremental steps converge to a

stable offset.

Let

D = {x

| x

∈O and x

≠ x

if i≠j, 1≤ i, j ≤ m, m ∈}

be the set of the distinct values of the observed

offsets. Of course, m ≤ n because the cardinality of

D is usually lower than that of O, for numerous

repeated offset can be observed.

So, let f(x

) be the frequency of x

or the number

of times that x

appears in O. Finally, given the host

H, the fingerprint of H is defined as

= k, such that k ∈D and f (k) = max(f (x

)).

For the sake of simplicity, the fingerprint of H is that

offset having the highest frequency.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

It is worth noting that this approach does not

preserve from typical attacks, such as spoofing for

example, that usually affect also traditional systems.

Our proposal is mainly devoted to avoid the attacks

aiming at taking possession of a password stored in a

plain-text. Indeed, using a fingerprint instead of a

text makes it possible to identify a host on the basis

of its own characteristic and use it as a run-time

computed information.

3.1 Implementation of the Method

As a proof of concept, the source code of the

algorithm is publicly available for testing, for it has

been released on a repository of open source projects

(see https://sourceforge.net/projects/webfingerprint).

The aim of the open source project is to launch a

large-scale experimentation for verifying a

fingerprint collision. In detail, we are interested in

discovering whether two hosts may present the same

fingerprint on a wide area network.

In the implementation solution, we introduced

two loops: an external loop made by n cycles and an

inner loop made by m rounds. This rationale is

simulating a human-based sampling of the

timestamps that takes a set of observations at regular

intervals of time. In our case, after the end of the

inner loop, we suspend the clock for s seconds. So,

the number of CPU-cycles is given by nm. After

several tries, we fixed n = 1000, m = 10, and s = 0.1

as a compromise between velocity and accuracy. We

stress that a low value for the total CPU-cycles

implies a large number of outliers. On the other

hand, a high value implies a high computation time

and a PHP timeout error. Indeed, a computation time

that takes more than 5 seconds is not suitable in

web-based environments.

3.2 Experiment

The aim of the experiment is twofold:

 verifying the collision probability, and

 verifying the fingerprint stability.

The collision probability is the probability that two

hosts of the same network present the same

fingerprint.

The fingerprint stability is the condition that a

given fingerprint remains quite stable over time.

For verifying the collision probability, the

experiment involved a small set of computers of a

local network. Each host presents different hardware

characteristics. In Figure 1, we report the result of

the measurement (relative to 10000 timestamp

observations that generate 9999 offsets) on the first

host.

The graph shows that only 5 distinct values of

offsets have been observed (outliers that do not

exceed the threshold frequency of 1% are not

considered). The most frequent value has almost the

73% frequency. Similarly, also the second host (see

Figure 2) shows the presence of a unique offset

having the highest frequency, almost equals to the

69%.

The offset with the highest frequency for the

third host is a unique value inside the network and

this value is almost equals to the 59% (see Figure 3).

At the end of this first part of the experimental

phase, we conclude that the computed fingerprints

are unique in the local network and, therefore, these

can be safely considered as host identifiers. This

measurement has been repeated several times for

each host, and the fingerprints have been confirmed,

though with slightly different frequencies for each

run. Furthermore, we note that the fingerprint is a

decimal number with precision 18 and scale 17.

However, only 14 of the 17 decimal digits are

significant. So, in absolutely theoretical sense, the

collision probability is 1E-14%. On the other hand,

in a wide environment, we expect that some values

are more frequent than others, for example in

systems having similar hardware characteristics. For

this reason, as a limit case, some values may never

be observed. Therefore, this line of research is

currently devoted to verify whether all the values are

equi-probable in the range [0.00000000000000000,

0.00099999999999999] over a wide area network.

LEGEND:

the x-axis indicates the distinct values of offsets

the y-axis reports the observed frequency of offsets.

Figure 1: Values frequency of offsets for host #1.

1000

2000

3000

4000

5000

6000

7000

8000

Host Fingerprinting for Web Servers Authentication

(LEGEND: see, Figure 1.)

Figure 2: Values frequency of offsets for host #2.

(LEGEND: see, Figure 1.)

Figure 3: Values frequency of offsets for host #3.

Figure 4: Correlation between number of offsets (x-axis)

and CPU-cycles (y-axis).

For further validating the experimentation of the

fingerprint stability, we modified the computation of

the offsets in order to obtain the distance of each

timestamp T

in reference to the initial value T

. The

graph in Figure 4 shows a linear increase of the

offsets as correlated to the CPU-cycles for all the

hosts. In detail, only the second host showed some

biases due to punctual increases of the growth pace.

Therefore, we conclude that each offset is

incremented each time by approximately the same

quantity and, in case of abnormal increments of the

offset, surely related to peaks of CPU usage by other

processes, this bias is localized and the trend of the

function remains constant.

4 APPLICATION

In this Section, we present two working scenarios

for the application of a fingerprint-based

authentication. The first scenario refers to a typical

three-layer web architecture. The second requires the

introduction of an Authentication Server acting as a

middleware during the login phase.

4.1 Three-layer Architecture

The working scenario does not require any change in

a traditional web architecture. We assume that each

software agent runs on different hosts (see Figure 5).

The first level is represented by Web Browsers,

acting as clients and starting connections towards a

Web Server. Here, a Web Application accepts HTTP

requests and sends back dynamically-generated web

pages. The content of these web pages is created by

interacting with a Database Server in order to

execute queries and retrieve data. To do so, the Web

Application is configured with a database user

account, used to connect to the Database Server.

This account, usually composed of a username and a

password, is stored as a plain-text (Di Tria et al.,

2016).

It follows an example of database account used

by PHP applications to connect to MySQL

databases.

<?php

$db["host"]="111.111.111.111";

$db["port"]="3306";

$db["name"]="DBname";

$db["username"]="root";

$db["password"]="qwerty";

1000

2000

3000

4000

5000

6000

7000

8000

1000

2000

3000

4000

5000

6000

7000

1112

2223

3334

4445

5556

6667

7778

8889

Host1

Host2

Host3

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

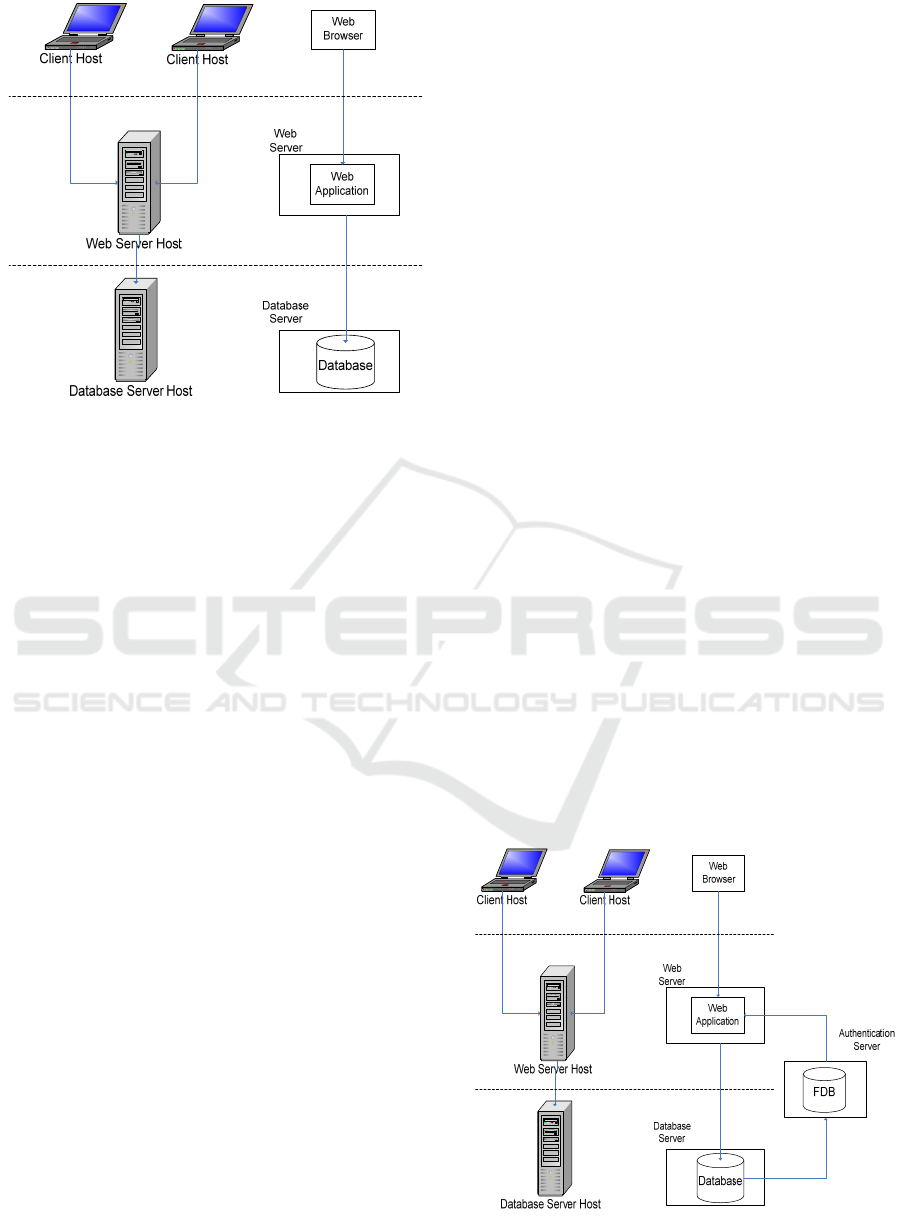

Figure 5: A three-layer web architecture.

This represents a severe security threat, because

the database user account is exposed not only to

those having a physical access to the host but also to

those who success in a brute force attack to the FTP

Server, if any.

It is worth noting that, in a simple architecture,

both the server processes can be deployed at the

same host (i.e., in this case, we can state that

$db[”host”]=”localhost”).

This does not affect our authentication strategy.

Accordingly, the use of a firewall to prevent the

exposition of the Database Server does not avoid an

authentication strategy.

The application of our proposal in this context

involves the use of the fingerprint, instead of the

traditional database account, for identifying the host

that is trying to connect to the Database Server. If

the connection originates from the Web Server

running on the legitimate host, then the connection is

established, otherwise it is rejected. If we wish to

use this approach on a traditional MySQL database,

we can use the fingerprint as a password. The main

benefit is that this fingerprint is not stored in the file

system, but it can be computed on the fly. So, we

use the following line of code

$db[”password”]= fingerprint();

where fingerprint() is the function that

computes the Web Server fingerprint.

For the sake of simplicity, the Web Application

computes the fingerprint of the host on which is

running and uses it as a password. This requires that

legitimate hosts have been previously identified and

reviewed, such that a database account for each

legitimate host exists in the Database Server.

4.2 Four-layer Architecture

In this working scenario, we introduce the

Authentication Server devoted to checking the

fingerprint in the authentication process (see Fig. 6).

As in the previous case, the Web Application

computes the fingerprint of the host on which it is

running, but now contacts the Authentication Server,

which checks the given fingerprint against those

stored in its own database (i.e., the Fingerprint

Database, FDB). If a match is found, then the host is

identified and the Authentication Server contacts the

Database Server for creating a temporary database

account that is returned to the Web Application.

For increasing the account security, both the

username and the password can be randomly-

generated. This is very similar to the concept of

session token.

At this point, the Web Application can safely use

this on-demand database account for the connection

to the Database Server. When closing connection,

this database account can be removed.

The complete sequence of actions of the different

systems is shown in Fig 7.

The Authentication Server introduces a further

security level, because, thanks to this responsibility

separation and anonymization, the Database Server

is unaware of the client identity. So, in case of

identity disclosure, due to a brute-force attack to the

Fingerprint Database for example, this information

leakage cannot be used for connecting to the

Database Server with the identity of another person,

as it happens in case of stolen or cracked passwords.

Figure 6: A four-layer web architecture.

Host Fingerprinting for Web Servers Authentication

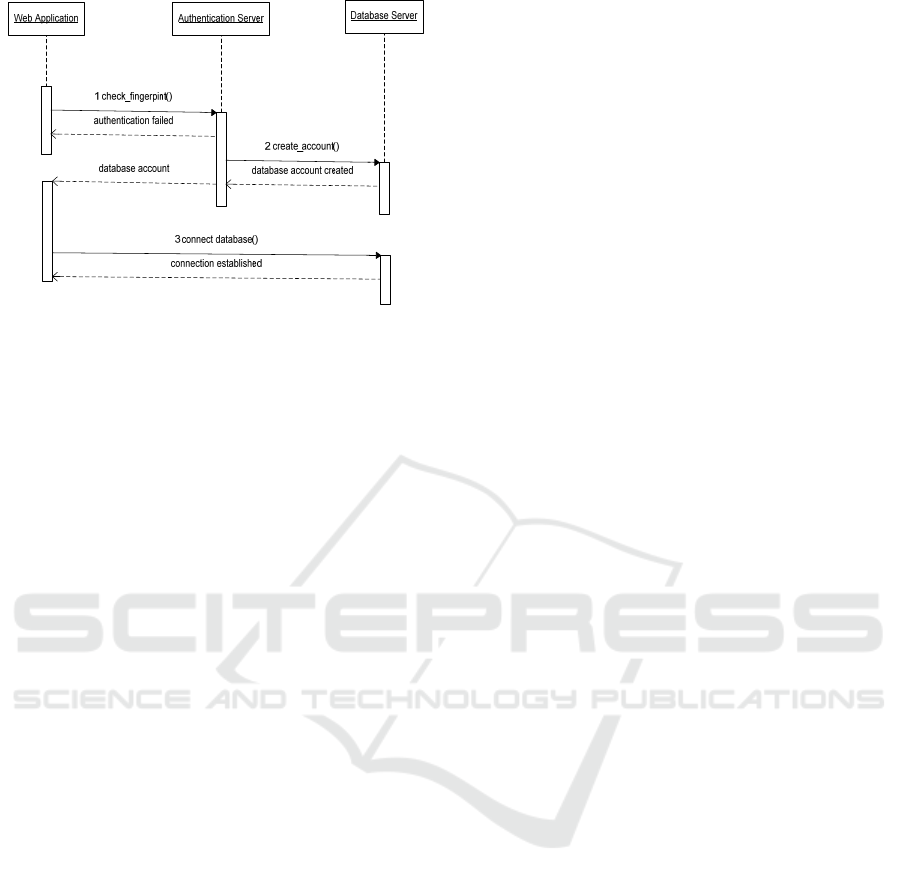

Figure 7: The sequence diagram of the authentication

process.

5 CONCLUSIONS AND FUTURE

WORK

In the paper, we discussed of a strategy for

computing the fingerprint of a host, i.e., a physical

device connected to the network.

The proposal is inspired by the method present in

literature that is based on clock skew. Analysing the

variations of clock signals, it is possible to obtain a

unique profile of a host. The works present in

literature demonstrated that clock skews are constant

for a given host. Our assumption is that this implies

a regular patterns in clock signals. So, a clock skew

can be quickly mined by analysing a single sequence

of timestamps and without any comparison against

external sources. This method increases the

computation of the fingerprint, by avoiding remote

long-time observations.

For concluding, we proposed a novel algorithm

for computing a hardware device’s fingerprint, in

order to use it for authentication purpose in a client-

server communication. The fingerprint is computed

at run-time in a short interval of time by discovering

regular patterns in the difference between

timestamps.

The actual Database Servers are based on the

something you know paradigm. For this reason, any

user or application that needs to interact with it has

to be equipped with an account –made by both a

username and a password− that, in case of

applications, must be stored in a configuration file as

a plain text. In order to strengthen the authentication

paradigm and adopt the biometrics techniques, a

Database Server has to completely revise its

authentication mechanism. A ready-to-use solution

is exploiting such fingerprints as passwords, which

may be computed on the fly.

However, the current real weakness of the

strategy proposed in this paper is that the client (i.e.,

the Web Server) computes its own fingerprint and

sends it to the Database Server. Therefore, this

strategy is exposed to fake fingerprinting and man-

in-the-middle attacks. To improve the connection

security, a solution of strong authentication could

consist in coupling the fingerprint with Mutual TLS.

Another improved solution consists in a

measurement of the Web Server’s fingerprint by the

Database Server.

So, future work will explore the possibility of a

design of a Database Server that is not passive in the

authentication process.

Similarly, this strategy can be extended also to

Web Browsers in order to identify the final users

that interact with a Web Application. This can be

done using a client-side computation of the

fingerprint on the basis of scripting languages as

JavaScript.

ACKNOWLEDGEMENT

A special thanks to Francesco Di Tria, for his

valuable technical support in the experiment

described in this paper.

REFERENCES

Alaca, F. and van Oorschot, P.C., 2016. Device

fingerprinting for augmenting web authentication:

classification and analysis of methods. In ACSAC, 32

ACM Annual Conference on Computer Security

Applications.

Ben Natan, R., 2005. Implementing Database Security and

Auditing, Elsevier Digital Press.

Bertino, E. and Sandhu, R., 2005. Database security -

Concepts, Approaches, and Challenges. IEEE

Transactions on Dependable and Secure Computing,

2(1).

Deswarte, Y., Quisquater, J.J., and Saïdane, A., 2004.

Remote integrity checking. In Integrity and internal

control in information systems VI. Springer US.

Di Tria, F., Lefons, E., and Tangorra, F., 2016. Improving

Database Security in Web-based Environments. In 2

International Conference on Information Systems

Security and Privacy.

Fink, R., 2007. A statistical approach to remote physical

device fingerprinting. Military Communications

Conference. IEEE.

Gertz, M., and Jajodia, S., 2007. Handbook of Database

Security: Applications and Trends. 1

edition 2007,

Springer.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

Graham, R.L., 1972. An efficient algorithm for

determining the convex hull of a finite planar set.

Information Processing Letters, 1(4).

Jain, A., Bolle, R., and Pankanti, S., (Eds.), 2006.

Biometrics: personal identification in networked

society, Vol. 479. Springer Science & Business Media.

Kohno, T., Broido, A., and Claffy, K.C., 2005. Remote

physical device fingerprinting. IEEE Transactions on

Dependable and Secure Computing, 2(2).

Liu, S., Silverman, M., 2001. A practical guide to

biometric security technology. IT Professional, 3(1).

Mills, D.L., 1992. Network Time Protocol (Version 3)

Specification. Implementation and Analysis, Network

Working Group, Request for Comments: 1305.

Moon, S.B., Skelly, P., and Towsley, D., 1999. Estimation

and removal of clock skew from network delay

measurements. In INFOCOM’99. Eighteenth Annual

Joint Conference of the IEEE Computer and

Communications Societies, Vol. 1. IEEE.

Polčák, L., and Franková, B., 2014. On reliability of

clock-skew-based remote computer identification. In

SECRYPT, 1

International Conference on Security

and Cryptography, IEEE.

Salo. T.J., 2007. Multi-Factor Fingerprints for Personal

Computer Hardware. In MILCOM, the Military

Communications Conference, IEEE.

Sanchez-Rola, I., Santos, I., and Balzarotti. D., 2018.

Clock Around the Clock: Time-Based Device

Fingerprinting. In CCS '18, ACM SIGSAC Conference

on Computer and Communications Security. ACM.

Sklar, D., and Trachtenberg, A., 2003. PHP cookbook.

O’Reilly Media, Inc.

Sundararajan, A., Sarwat, A.I., Pons, A., 2019. A Survey

on Modality Characteristics, Performance Evaluation

Metrics, and Security for Traditional and Wearable

Biometric Systems. ACM Comput. Surv. 52(2).

Tang, J., Xu, P., Nie, W., Zhang, Y., Liu, R., 2018. A

review of recent advances in identity identification

technology based on biological features. In 6

CCF

Academic Conference on Big Data, CCF Big Data.

Veysset, F., Courtay, O., and Heen, O., 2002. New tool

and technique for remote operating system

fingerprinting. Intranode Software Technologies, Vol

Host Fingerprinting for Web Servers Authentication
