Using Automatic Features for Text-image Classiﬁcation in Amharic

Documents

Birhanu Belay

1,2

, Tewodros Habtegebrial

, Gebeyehu Belay

and Didier Stricker

1,3

Technical University of Kaiserslautern, Kaiserslautern, Germany

Bahir Dar Institute of Technology, Bahir Dar, Ethiopia

DFKI, Augmented Vision Department, Kaiserslautern, Germany

Keywords:

Amharic Document Image, Automatic Feature, Binary SVM, CNN, Handwritten, Machine Printed, OCR,

Pattern Recognition.

Abstract:

In many documents, ranging from historical to modern archived documents, handwritten and machine printed

texts may coexist in the same document image, raising signiﬁcant issues within the recognition process and

affects the performance of OCR application. It is, therefore, necessary to discriminate the two types of texts

so that it becomes possible to apply the desired recognition techniques. Inspired by the recent successes CNN

based features on pattern recognition, in this paper, we propose a method that can discriminate handwritten

from machine printed text-lines in Amharic document image. In addition, we also demonstrate the effect of

replacing the last fully connected layer with a binary support vector machine which minimizes a margin-based

loss instead of the cross-entropy loss. Based on the results observed during experimentation, using Binary

SVM gives signiﬁcant discrimination performance compared to the fully connected layers.

1 INTRODUCTION

Nowadays, there are may documents that contain

mixed handwritten and machine printed texts in the

same page image. In most modern and historical

printed documents, writers may add handwritten texts

due to multiple reasons such as text correction, in-

clusion of notes and instruction while others may ex-

ist for the purpose of bank cheque processing, appli-

cation forms, questionnaire, examination correction,

mailing address and receipts (Sahare, 2018; Kaval-

lieratou et al., 2004).

In document image analysis and Optical character

recognition (OCR) applications, separation between

machine printed and handwritten texts is an impor-

tant task because recognition process are different in

both contexts (Mozaffari and Bahar, 2012; Peng et al.,

2009). In addition, we may be interested in either of

the text documents for further processing. For exam-

ple, in case of bank cheque processing and handwrit-

ten recognition system the handwritten parts are inter-

esting while the machine printed texts are important

for other document processing tasks.

Therefore, to facilitate and enhance the overall ef-

ﬁciency of document processing and OCR applica-

tion, separation between machine printed and hand-

written texts is necessary (Peng et al., 2009; Xiao-

Hui Li and Liu, 2018).

Multiple intensive works, for multiple scripts,

have been done in the area of document image pro-

cessing and several of them are available in the market

with a better recognition accuracy of both handwritten

and machine printed text images. However, there are

underprivileged scripts in the area of document anal-

ysis and Natural Language Processing (NLP), such as

Amharic, which are still untouched and open applica-

tion area for research.

In both historical and modern printed document

images, separation of handwritten from machine

printed texts can be at line, word (Mozaffari and Ba-

har, 2012; Guo and Ma, 2001) and character (Fan

et al., 1998) level.

Discrimination of handwritten and machine

printed texts has been done for most Non-Latin

(Mozaffari and Bahar, 2012; Echi et al., 2014) and

Latin (Peng et al., 2009; Medhat and et al., 2018)

scripts. Due to the complexity of structural layout in

various scripts, different researchers use different sta-

tistical methods to ﬁnd best representative features for

text separation and recognition (Sahare, 2018).

Several attempts have been done for Amharic

script recognition (Teferi, 1999; Meshesha, 2008;

440

Belay, B., Habtegebrial, T., Belay, G. and Stricker, D.

Using Automatic Features for Text-image Classiﬁcation in Amharic Documents.

DOI: 10.5220/0008940704400445

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 440-445

ISBN: 978-989-758-397-1; ISSN: 2184-4313

Assabie and Bigun, 2008; Belay et al., 2019b; Belay

et al., 2019a) considering different contexts including

handwritten, machine printed, character and text line

recognition. To the best of our knowledge, no attempt

has been done to discriminate handwritten from ma-

chine printed for Amharic documents.

In this regard, we propose two classiﬁers which

use the same feature. A fully connected network with

soft-max and binary SVM are the proposed classiﬁca-

tion algorithms for the discrimination of handwritten

texts from machine printed Amharic texts based on

automatic feature extracted by Convolutional Neural

Network (CNN) (Banerjee and Chaudhuri, 2012).

The remainder of the paper is organized as fol-

lows: In section 2 the review of related works. Our

proposed method and dataset preparation techniques

is presented in Section 3. Experimental results are

discussed in section 4. Finally, section 5, summarizes

the conclusions drawn from this study and presents

future work directions.

2 RELATED WORK

For discrimination of handwritten from machine

printed document, various methods have been pro-

posed and reported the discrimination accuracy for

different scripts including English (Kavallieratou

et al., 2004; Peng et al., 2013), Kannada (Pardeshi

et al., 2016), Devnagari and Bangael (Pal and Chaud-

huri, 2001), Faris/Arabic (Mozaffari and Bahar,

2012), Hindi (Srivastava et al., 2015; Shalini Puri,

2019) and Bangla (Banerjee and Chaudhuri, 2012).

Since there are multiple effective OCR application for

most Latin and non-Latin scripts, many researchers

think as OCR is a solved research area. However, still

there are multiple indigenous scripts, like Amharic,

that needs better and workable OCR technologies.

Researchers attempted to address the problems of

Amharic script OCR including both machine printed

(Teferi, 1999; Meshesha, 2008) and handwritten

(Assabie and Bigun, 2008) character recognition and

tried to show how to improve the recognition accu-

racy and noted the challenges in developing the OCR

of Amharic Script.

A binary morphological ﬁltering algorithm was

proposed by (Teferi, 1999) for OCR of Amharic

typewritten Text and he recommended that adopting

recognition algorithms which are not very sensitive to

the features of the writing styles of characters helps

to enhance recognition rate of Amharic OCR. The

other work done by (Belay et al., 2019b), employed

a CNN based method called factored convolutional

neural network so as to recognize basic Amharic char-

acters in terms of rows and column arrangement in

”Fidel gebeta” and reported a state-of-the-art char-

acter recognition accuracy. An adaptive segmenta-

tion technique proposed by (Kassa and Hagras, 2018)

for ancient Ethiopian handwritten manuscripts called

Geez and reported a promising segmentation accu-

racy.

In a separate line of research works, attempts

are done to discriminate handwritten and machine

printed texts written with different scripts. Based

on textual appearance and geometrical features that

are extracted by wavelet transform has been proposed

(Sahare, 2018) for English documents discrimina-

tion in to three classes (handwritten, machine printed

and noise text) using Tobacco-800 and IFN-ENIT

datasets. Handwritten and machine printed text dis-

crimination has been also done using horizontal his-

togram on height distribution of characters in text-

line of English document images from IAM-DB and

GRUHD datasets (Kavallieratou et al., 2004).

A Markov Random Field (MRF) based method

(Medhat and et al., 2018) was presented to classify

texts in to machine printed, handwritten and noise.

Initially they use a modiﬁed K-means clustering al-

gorithm to cluster each class individually and then

those centers are used as hidden nodes of MRF. They

also done a transcription of handwritten and machine

printed text using different evaluation metrics based

on character and word level on IAM database and

achieved about 80% recognition accuracy. Finally,

they recommended that enhancing the preprocessing

stages of an input image and further optimization is

needed for the models which are going to be used for

machine printed and or handwritten text line image

recognition.

The same techniques were employed to classify

image documents in three class as handwritten, ma-

chine printed and noise using a dataset collected from

tobacco archive (Zheng et al., 2004). The other re-

searchers (Mozaffari and Bahar, 2012) proposed a

new feature, based on the properties of Arabic lan-

guage, called baseline proﬁle feature and separate

handwritten from machine printed Arabic document

at word block level.

The work of (Banerjee and Chaudhuri, 2012), pre-

sented an SVM based approach to separate hand-

written from machine printed Bangal texts. The re-

searchers noted that handwritten and machine printed

document discrimination is a useful application in

deleting unnecessary parts and cleaning the document

images as well. Similar work presented by (Pathak

and Tewari, 2015) using structural feature and thresh-

old value to discriminate handwritten from machine

printed Bangal text line images. An Other model pro-

Using Automatic Features for Text-image Classiﬁcation in Amharic Documents

441

posed by (Trieu and Lee, 2016) called bag of words,

that uses SURF for the identiﬁcation of Korean ma-

chine printed and handwritten texts that co-exist in

the same document image and achieved better results

compared with methods employed based on structural

features of Korean documents.

3 MATERIAL AND METHODS

Most document image analysis and pattern recogni-

tion systems start from dataset preparation, prepos-

sessing, model training and then followed by model

performance evaluation. The proposed system pro-

cesses an Amharic document image based on three

main stages. The ﬁrst stage is the preprocessing mod-

ule where, for a given document image, a set of text

areas are localized, segmented and resulting a series

of text-lines images. The second stage is the feature

extraction module where a vector of automatic char-

acteristics that represents the character and or text-

line image properties are assigned to each text-line

and ﬁnally the classiﬁcation module for separating the

handwritten from the machine printed Amharic text-

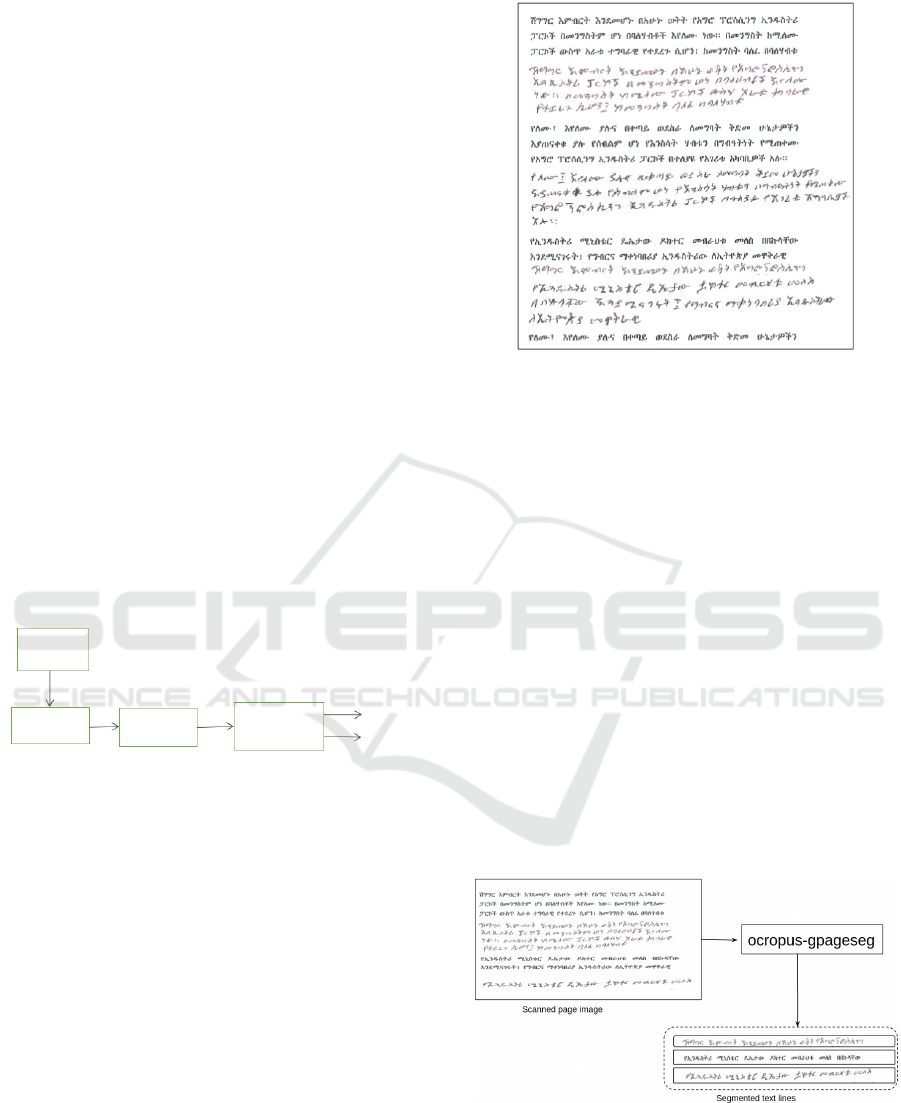

lines images. An overview of the system is shown in

Fig. 1.

Preprocessing

Feature

extraction

Classiﬁcation

Input


Handwritten

Machine Printed

Figure 1: An overview of the proposed system.

3.1 Dataset

This study is concerned to develop a model that can

separate a handwritten from machine printed Amharic

text-line image. Since there is no any ready-made

dataset for our experiment, we have also prepared

our own dataset which contains about 1150 pages

of Amharic document images. In each page of the

document, both the handwritten and machine printed

text-lines are co-exist with a random distribution. A

sample scanned page of Amharic document from our

dataset is shown in Fig. 2.

During dataset preparation, we have collected

Amharic texts from different books, newspapers,

magazines and websites. We compile the collected

text documents by leaving some free space in be-

tween random lines of texts per each page. Then

we gave each page of the printed document for dif-

ferent groups of university students to rewrite each

Figure 2: Sample scanned page of Amharic document, that

contains a mixed handwritten and machine printed docu-

ments, from our data set.

printed text-line on the free space under it. Since

the documents are distributed randomly, the students

used pens with different level of color degradation and

type.

Finally, we collect the documents and scanned

each page of the document that contains both the

handwritten and machine printed texts together.

These scanned page documents are segmented into

lines using, OCRopus, the open source OCR frame-

work (Thomas, 2008).

Once line segmentation process is completed, we

labeled each segmented text-line image manually.

Since the images have not exactly the same size, con-

sidering the state-of-the-art works and the nature of

image, each segmented text-line images were resized

with the width of 128 and height of 64 pixel. A typical

diagram of OCRopus text-line segmentation engine is

shown in Fig. 3

Figure 3: A Typical diagram of OCRopus for text-line seg-

mentation. The scanned page of a mixed handwritten and

machine printed Amharic document image is feed to the

ocropus-gpageseg engine.The Engine is responsible for seg-

menting each page of the scanned document in to text-line

images.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

442

To develop and evaluate the effectiveness of the

model, we have prepared the training and testing

database which contains a total of 41,718 Amharic

text-line images. The training set included 33374

text-line images while the remaining text-line images

are the test set. The distribution of handwritten and

machine printed texts, in the whole data, are dis-

tributed about equally while the training, validation

and test datasets are randomly selected using Scikit-

learn library (Garreta and Moncecchi, 2013).

A sample segmented handwritten and machine

printed Amharic text-line images shown in Fig 4. All

these images are normalized and in binary format.

(a)

(b)

Figure 4: Sample segmented and normalized Amharic text-

line images. (a) handwritten and (b) machine printed.

3.2 The Proposed Method

After the preprocessing stage, already discussed in

section ”3.1”, completed; the feature extraction and

classiﬁcation stage were followed to extract struc-

tural characteristics of text lines and to distinguish

the handwritten from the machine printed text lines of

Amharic document image respectively. An overview

of the proposed system architecture is shown in (see

Fig. 5).

The proposed architecture has two classiﬁers. The

ﬁrst classiﬁer is Fully connected network (FCN) with

the soft-max and motivated with its success on binary

classiﬁcation we employee a binary Support Vector

Machine (SVM) as second classiﬁer. Both classiﬁers

use automatic feature extracted using CNN.

In the case of fully connected network based clas-

siﬁcation, we use seven convolutional layers with a

2 x 2 max-pooling at each two blocks of convolu-

tion with rectiﬁer linear unit as an activation function.

On top of the seventh single convolutional layer, after

applying a 2 × 2 max-pooling, we stacked two fully

connected layers followed by the soft-max function

(Zhao et al., 2017) and then we train the network end-

to-end.

During an end-to-end training, the dimension of

output features in each convolutional layer can be

computed by equation ”(1)”.

M = (

N − K + 2 ∗P

) + 1 (1)

where N is the dimension of input size, K is the kernel

size S is the stride in the convolution, P is padding,

and M refers the dimension of output size.

128x64

1x1024

Figure 5: A proposed model architecture. This method has

two classiﬁers. The ﬁrst classiﬁer is fully connected layer

with soft-max which is trained with an end-to-end scenario

while the second classiﬁer is a binary SVM classiﬁer which

is stacked on top by removing the last fully connected and

soft-max layer. The binary SVM classiﬁer uses the features

extracted by the CNN layers, once reshaped and passed

through the ﬁrst fully connected layer, as an input. There-

fore, classiﬁcation has been done using fully connected net-

work with a soft-max function ﬁrst and then SVM latter.

The number of learnable parameters is very im-

portant criteria to measure the complexity of network

architecture and also it can be used to make compari-

son between different network architectures. Parame-

ter at each subsuming layer is zero while the number

of parameters for a single convolutional layer is com-

puted using equation ”(2)”.

= (Kh × Kw × F

m-1

+ 1) × F

) (2)

where P

is the total number of parameters in the i

layer , Kh is the size of height kernel, Kw the size of

width kernel at i

convolutional layer, F

m-1

and F

are the number of feature maps at the previous layer

and current layer respectively. While the number of

parameters for each fully connected layer can is cal-

culated as ((n

i-l

+ 1) × n

) where n

i-1

and n

are the

number of neurons at the previous layer and current

layer respectively. The added value 1, here, is the bias

term for each ﬁlter.

Once, an end-to-end training completed, we just

remove the last fully connected network with the soft-

max layer and then the binary SVM becomes in place

to discriminate the features extracted by the Convo-

lutional layers into handwritten and machine printed

text-line.

The ﬁnal output of the network, in an end-to-end

training, is determined by a Soft-max function, which

Using Automatic Features for Text-image Classiﬁcation in Amharic Documents

443

tells the probability that either of the classes are true,

is computed using equation ”(3)”.

f (z

) =

∑

k=1

(3)

Where z is input vector for output layer, j is the in-

dexes which runs from 1 to k and k is the number of

outputs.

At training time, the fully connected network tried

to minimize the cross entropy loss while the support

vector machine minimizes margin-based loss.

Unlike the soft-max, which predicts the probabil-

ity of the class, the SVM classiﬁer will directly pre-

dicts classes by ﬁnding the best hyperplane, which

leaves the maximum margin between classes, to sep-

arate the two classes (Hastie et al., 2001). For a set

of training point x

along with the class y

and some

dimension d, in which x

∈ R

and y

=±1 then the hy-

perplane can be deﬁned by equation ”(4)”

f (x) = x

β + b = 0 (4)

where β ∈ R

and b is real number. Then the best

separating hyperplane is a boundary with the value of

β and b that minimize ||β|| such that all data points

, y

), y

f (x

) ≥ 1

4 EXPERIMENTAL RESULTS

Experiments are done following the network architec-

tures and classiﬁcation settings introduced in section

“3.2” and ﬁgure ”5” using an Amharic text-line im-

age database which are, our own dataset, annotated

manually. We develop a model using Keras applica-

tion program interface, an open source deep neural

network library, on a tensorﬂow backend with python

programming. To select a suitable parameters for both

the FCN and SVM model, different values of the pa-

rameters were considered and tuned during experi-

mentation.

We conduct two experiments. The ﬁrst experi-

ment was conducted using convolutional neural net-

work as feature extractor and fully connected network

with soft-max as a classiﬁer. Adam optimizer were

used during training and the network converges after

15 epochs. The second experiment was used a binary

SVM as classiﬁer. This experiment uses the output of

the late CNN layers, from the ﬁrst experimental setup,

as a feature and train a separate SVM. In case of bi-

nary SVM, the best result is recorded with the param-

eter; radial basis function kernel, 0.0001 gamma value

and penalty weight (C) value of 10 which were se-

lected using Grid search algorithm explained in (Gas-

par et al., 2012).

In both experimental setups, all text-line images

are resized to a width of 128 and height of 64 pix-

els. A CNN based features were used for model de-

velopment in both classiﬁers. For training and test-

ing the proposed model, we created our own database

of 41,718 text line images from 1150 page of mixed

handwritten and machine printed Amharic document

image.

The performance of the proposed model is mea-

sured using accuracy which is computed as the ra-

tio of correctly classiﬁed Amharic text-line images

and total number of Amharic text-line images. Ac-

cording to experimental result, 93.45% and 95.35%

discrimination performance were obtained using fully

connected with soft-max and support vector machine

respectively. The result shows that, our proposed

system can discriminate handwritten and machine

printed text-lines with an overall recognition accuracy

of 95.35% using binary SVM classiﬁer which outper-

forms the fully connected network.

In addition, the model requires enough mixed

handwritten and machine printed text-line image data

so as to perform better on a varieties of test data. In

general, the performance of the proposed method ob-

tained a promising results and this work will used as

benchmark for future works on Amharic document

image analysis.

5 CONCLUSION

Amharic is an ofﬁcial and working language of

Ethiopia that has it own indigenous script and rich in

a bulk of mixed historically printed and handwritten

documents dated back 12

century. However, it is

underprivileged group of scripts in Natural language

Processing due to lack of extensive research in the

area and lack of annotated dataset. Therefore, in this

paper, we present a method to discriminate handwrit-

ten from machine printed text-line images in Amharic

documents by employing a FCN with soft-max and

binary SVM. We evaluated our model with unseen

mixed, hand written and machine printed, Amharic

text-line images and achieved state-of-the-art results.

A better classiﬁcation accuracy were recorded with

the Binary SVM classiﬁer.

The proposed model can be used during handwrit-

ten dataset preparation from a mixed Amharic docu-

ment image and also used as preprocessing stage for

OCR application in the area of signature veriﬁcation,

application form and bill processing. As future work,

we plan to enhance the performance of the model and

integrate it with a system that can transcribe mixed

handwritten and machine printed document images.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

444

REFERENCES

Assabie, Y. and Bigun, J. (2008). Writer-independent of-

ﬂine recognition of handwritten ethiopic characters.

Proc. 11

ICFHR, pages 652–656.

Banerjee, P. and Chaudhuri, B. B. (2012). A system for

handwritten and machine-printed text separation in

bangla document images. In International Conference

on Frontiers in Handwriting Recognition (ICFHR),

pages 758–762. IEEE.

Belay, B., Habtegebrial, T., Liwicki, M., Belay, G., and

Stricker, D. (2019a). Amharic text image recognition:

Database, algorithm, and analysis. In International

Conference on Document Analysis and Recognition

(ICDAR). IEEE.

Belay, B., Habtegebrial, T., Liwicki, M., Belay, G., and

Stricker, D. (2019b). Factored convolutional neural

network for amharic character image recognition. In

IEEE International Conference on Image Processing

(ICIP), pages 2906–2910. IEEE.

Echi, A. K., Saidani, A., and Belaid, A. (2014). How to sep-

arate between machine-printed/handwritten and ara-

bic/latin words? ELCVIA: electronic letters on com-

puter vision and image analysis, 13(1):1–16.

Fan, K.-C., Wang, L.-S., and Tu, Y.-T. (1998). Classiﬁca-

tion of machine-printed and handwritten texts using

character block layout variance. Pattern Recognition,

31(9):1275–1284.

Garreta, R. and Moncecchi, G. (2013). Learning scikit-

learn: machine learning in python. Packt Publishing

Ltd.

Gaspar, P., Carbonell, J., and Oliveira, J. L. (2012). On the

parameter optimization of support vector machines for

binary classiﬁcation. Journal of integrative bioinfor-

matics, 9(3):33–43.

Guo, J. K. and Ma, M. Y. (2001). Separating handwrit-

ten material from machine printed text using hidden

markov models. In 6

International Conference on

Document Analysis and Recognition, pages 439–443.

IEEE.

Hastie, T., Tibshirani, r., and Friedman, J. (2001). The el-

ements of statistical learning. data mining, inference,

and prediction.

Kassa, D. and Hagras, H. (2018). An adaptive segmenta-

tion technique for the ancient ethiopian geez language

digital manuscripts. In 10th Computer Science and

Electronic Engineering (CEEC), pages 83–88. IEEE.

Kavallieratou, E., Stamatatos, S., and Antonopoulou, H.

(2004). Machine-printed from handwritten text dis-

crimination. In 9th International Workshop on Fron-

tiers in Handwriting Recognition, ICFHR-9, pages

312–316. IEEE.

Medhat and et al. (2018). Tmixt: A process ﬂow for tran-

scribing mixed handwritten and machine-printed text.

In IEEE International Conference on Big Data. New-

castle University.

Meshesha, M. (2008). Recognition and Retrieval from Doc-

ument Image Collections. PhD thesis, IIT, Hyderabad,

India.

Mozaffari, S. and Bahar, P. (2012). Farsi/arabic handwrit-

ten from machine-printed words discrimination. In In-

ternational Conference on Frontiers in Handwriting

Recognition (ICFHR), pages 698–703. IEEE.

Pal, U. and Chaudhuri, B. B. (2001). Machine-printed and

hand-written text lines identiﬁcation. Pattern Recog-

nition Letters, 22(3-4):431–441.

Pardeshi, R., Hangarge, M., Doddamani, S., and Santosh,

K. (2016). Handwritten and machine printed text sep-

aration from kannada document images. In 10

Inter-

national Conference on Intelligent Systems and Con-

trol (ISCO), pages 1–4. IEEE.

Pathak, R. and Tewari, R. K. (2015). Distinction between

machine printed text and handwritten text in a docu-

ment. International Journal of Scientiﬁc Engineering

and Research (IJSER), 3(7):13–17.

Peng, X., Setlur, S., Govindaraju, V., and Sitaram, R.

(2013). Handwritten text separation from annotated

machine printed documents using markov random

ﬁelds. International Journal on Document Analysis

and Recognition (IJDAR), 16(1):1–16.

Peng, X., Setlur, S., Govindaraju, V., Sitaram, R., and Bhu-

vanagiri, K. (2009). Markov random ﬁeld based text

identiﬁcation from annotated machine printed docu-

ments. In 10

International Conference on Document

Analysis and Recognition., pages 431–435. IEEE.

Sahare, P, D. S. (2018). Separation of machine-printed and

handwritten texts in noisy documents using wavelet

transform. IETE Technical Review, pages 1–21.

Shalini Puri, S. P. S. (2019). An efﬁcient devanagari char-

acter classiﬁcation in printed and handwritten docu-

ments using svm. In International Conference on Per-

vasive Computing Advances and Applications.

Srivastava, R., Tewari, R. K., and Kant, S. (2015). Separa-

tion of machine printed and handwritten text for hindi

documents. International Research Journal of Engi-

neering and Technology (IRJET), 2(2):704–708.

Teferi, D. (1999). Optical character recognition of type-

written amharic text. Master’s thesis, Addis Ababa

University, Addis Ababa.

Thomas, B. (2008). The ocropus open source ocr system.

In Document Recognition and Retrieval XV, volume

6815, page 68150. International Society for Optics

and Photonics.

Trieu, S. T. and Lee, G. S. (2016). Machine printed and

handwritten text discrimination in korean document

images. Smart Media Journal, 5:1–5.

Xiao-Hui Li, F. Y. and Liu, C. (2018). Printed/handwritten

texts and graphics separation in complex documents

using conditional random ﬁelds. In 13th IAPR In-

ternational Workshop on Document Analysis Systems

(DAS), pages 145–150. IEEE.

Zhao, H., Hu, Y., and Zhang, J. (2017). Character recogni-

tion via a compact convolutional neural network. In

International Conference on Digital Image Comput-

ing: Techniques and Applications, pages 1–6. IEEE.

Zheng, Y., Li, H., and Doermann, D. (2004). Machine

printed text and handwriting identiﬁcation in noisy

document images. IEEE transactions on pattern anal-

ysis and machine intelligence, 26(3):337–353.

Using Automatic Features for Text-image Classiﬁcation in Amharic Documents

445
