Snap & Hear: Comic Book Analyst for Children Having Literacy and
Visual Barriers
R. B. Dias Yapa
, T. L. Kahaduwa Arachchi
, V. S. Suriyarachchi
, U. D. Abegunasekara
and S. Thelijjagoda
Department of Software Engineering, Sri Lanka Institute of Information Technology, Malabe, Sri Lanka
Department of Information Technology, Sri Lanka Institute of Information Technology, Malabe, Sri Lanka
Department of Information Systems Engineering, Sri Lanka Institute of Information Technology, Malabe, Sri Lanka
Keywords: Comics, Visual and Literacy Barriers, Recognition, Association, Image Processing, Machine Learning, Audio
Abstract: Comic books are very popular across the world due to the unique experience they provide for all of us in the
society without any age limitation. Because of this attraction, which comic books have received, it has proved
that comic literature will be able to survive in the twenty first century, even with the existence of multi-
dimensional movie theatres as its competitors. While the biggest global filmmakers are busy with making
movies from comic books, many researchers have been investigating their time on digitizing the comic stories
as it is, expecting to create a new era in the comic world. But most of them have focused only on one or few
components of the story. This paper is based on a research which aims to give the full experience of enjoying
the comic books for everyone in the world despite of visual and literacy barriers people are having. Proposed
solution comes as a web application that translates input image of a comic story into a text format and delivers
it as an audio story to the user. The story will be created using extracted components such as characters,
objects, speech text and balloons and considering the association among them with the use of image
processing and deep learning technologies.
Comic is a unique category of entertainment which
was initially printed in papers. Later, with the
development of the technology combined with
immense trend towards reading comic books have
made it to the era of digital comic books where people
have started reading comics through digital devices,
instead of reading traditional ones.
Even today, storytelling is used as one of the best
methods on guiding and improving the minds of kids.
Out of all the story books, comic books have been
playing a contrasting role in this field. But, one needs
to have enough literacy to read and understand the
association of dialogues and the images contained in
these books in order to have the full experience of
enjoying comics. Therefore, some people, especially
the children who do not have enough literacy level
and those who are visually impaired, have always
been challenged and kept far away from obtaining
this wonderful experience that they deserve. They had
to be guided by an external party like parents or a
caretaker to make them understand these stories. But
unfortunately today everyone has become busy with
their own work. Even caretakers might reject on
storytelling repeatedly.
This paper is on the research that has been
conducted on implementing a prototype by aiming to
initiate with the process of giving the opportunity to
have this comic book experience by targeting an
extended audience by providing a user friendly web
application to generate audio story and make it listen
to the children through a guardian.
Going further, this research paper will provide
information on related work which explains the
current status of the related field, procedure and the
methodology that has been carried out in order to
make this into existence, results and discussion on the
work done and the references which guided
throughout this research process.
Yapa, R., Arachchi, T., Suriyarachchi, V., Abegunasekara, U. and Thelijjagoda, S.
Snap Hear: Comic Book Analyst for Children Having Literacy and Visual Barriers.
DOI: 10.5220/0008936402090215
In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 2, pages 209-215
ISBN: 978-989-758-417-6
2020 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
1.1 Proposed Solution
Throughout the literature survey conducted, it was
discovered that many researches have been conducted
related to this field of digitizing the comic books, but
almost all of them were focused only on one or few
components. Therefore as a solution for this problem,
this research bears the aim of implementing a
prototype of a web application which could generate
the audio story corresponding to an image which will
be uploading to this web site, which will make the
delivery of storytelling task easier an automated by
just one click.
It took a lot of image understanding and
processing works for the development and
improvement of digitizing and automating the manual
experience of comic books for us.
Following are the supported key areas in order to
come up with the final prototype solution:
Detection and identification of the comic
characters and objects that exist within the scope.
Speech text recognition and extraction from the
segmented speech balloons.
Speech balloon extraction and Story building
through relationship analysis.
Panel extraction and Text-to-speech conversion.

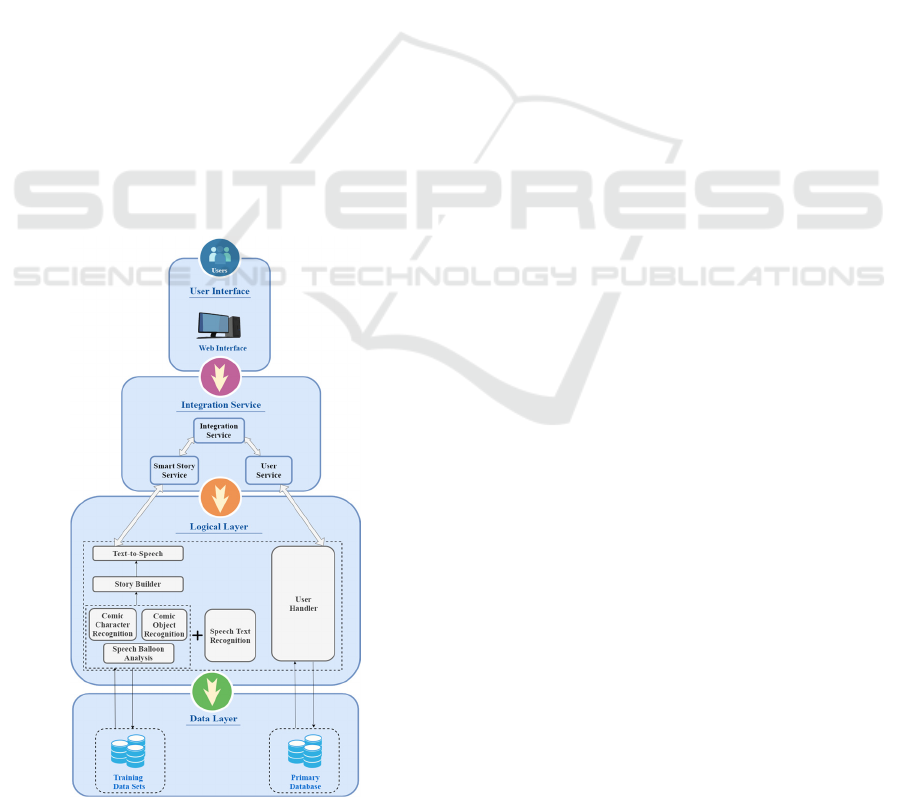

Following figure depicts the high level architecture of
the proposed solution:
Figure 1: High level diagram.
A literature survey was conducted for this project to
identify the existing work and solutions that have
been used in the process of creating an audio story out
of the comic images. There the unavailability of a
proper commercial product as a complete solution for
the proposed idea is observed. But most of the
research has been done as separate concerns of
extracting content of a comic book. None of the
existing applications have built to generate the story
by combining these extracted information from
panels in a given comic book. Some of the researches
which have conducted related to the comic story field
are briefly explained below.
2.1 Related Work in Product Level
2.1.1 Smart Teddy Bear A Vision-based
Story Teller
Smart Teddy Bear is a research conducted as an audio
book player concealed as a teddy bear equipped with
visual recognition capability Pham et al., 2013 . When
a page of a book of interest is opened before the smart
teddy bear, the system automatically analyze the
images captured by the teddy bear’s camera and
recognizes which book is interested and plays the
corresponding audio story. The proposed system is
based on the Bag-Of-Words model in learning and
recognizing visual object categories to identify the
book corresponding a selected page. Then the
corresponding audio story have been retrieved from a
2.1.2 Segmentation and Indexation of
Complex Objects in Comic Book
This research was conducted on different approaches
on comic books analysis. They had focused on three
such approaches which describes the image content.
This research was only conducted on segmenting and
indexing the comic images, but not on examining the
relationships between them Rigaud, 2016.
2.1.3 Enhancing the Accessibility for All of
Digital Comic Books
Main aim of this research was to implement a system
to make it possible for mobile users, motor-impaired
people, and low-sighted people to access comic books
(Ponsard and Fries, 2009). So, a system has been
improved in the aspect of providing more improved
CSEDU 2020 - 12th International Conference on Computer Supported Education
images in a way that targeted category can see the
contents in comic books clearly.
2.2 Related Work in Component Level
2.2.1 Panel Extraction
Panel contains a key moment of the comic story
which is depicted through speech balloons, speech
text, characters and other story specific objects.
Panel extraction and ordering processes have been
concerned in few researches based on X-Y recursive
cut algorithm (Sutheebanjard and Premchaiswadi,
2010). A robust panel extraction method has been
proposed to extract irregular panels but fails to
separate panels joined by some elements (Pang et al.,
2.2.2 Comic Object and Character
Comic characters and objects are important
components that are needed to focus on when
performing content enhancement of comic books.
Identification of comic characters is a challenging
task because of the unlimited freedom of comic
creators when drawing the comic characters, and also
they are not rich with a vast number of features as in
real human and other characters (Nguyen et al.,
Use of deep learning approaches along with
machine learning techniques has become popular
with the advancement of the technologies (Nguyen et
al., 2018b). Analyzing the bounding boxes of the
detected comic characters had been used in the
extraction of those elements (Nguyen et al., 2018b).
Convolutional Neural Networks is the latest
technology which has been found as the most
successful technique in character and object
recognition fields (Ogawa et al., 2018). Although
CNN performs good results with neuralistic images it
does not provide the same performance with the
comic book images (Ogawa et al., 2018).
Another approach had been used to identify the
comic characters by using predefined colour
thresholds for each character (Siddiqui, 2019). This
approach can be useful in identification of characters
with a specific costume where those dress codes
possessed with a particular colour combination.
2.2.3 Text Recognition
In the process of story building, dialogues of the
characters have been identified through speech text
Several researches have been conducted to
recognize and extract speech text using image
processing algorithms but only few researches have
been done on identifying text fonts. In those
researches adaptive thresholding, edge detection
operators and mathematical morphology technologies
(Shejwal Bharkad, 2017) had been used for text
detection and K-nearest classifier (Shejwal Bharkad,
2017) had been used for text classification and fonts
have been identified using a simple correlation- based
method (Bashir, 2013).
2.2.4 Balloon Segmentation and Speaker
Balloons contain most of the text and go pairwise
with comic characters. Association between speech
balloons and comic characters involved in
understanding the comic story. Literature survey was
carried out to identify the existing solutions and
technologies in balloon segmentation and association
Few work concerns balloon extraction and mainly
closed speech balloons have been studied. Only few
has been done on open balloon extraction because of
its partial outlines. These researches are based on
Connected component detection approaches (Tolle
and Arai, 2011,Ho et al., 2012,Rigaud et al., 2017)
and contour-based classification methods (Rigaud et
al., 2013). Anchor point selection approach has been
proposed to determine association (Rigaud et al.,
2.2.5 Story Building
Story building has been done through Visual
Captioning and Visual Storytelling. In past research
concrete content of image which is depicted through
sentences are retrieved from visual captioning and
summarize the idea and tell a story via visual
Novel Adversarial Reward Learning (AREL)
algorithm is proposed to generate more human-like
stories for a given image sequences (Wang et al.,
2018). Reinforcement learning, and adversarial
training approach is proposed in a sequence to
sequence modelling (Jing et al., 2018). Novel
Bidirectional Attention Recurrent Neural Networks
framework is proposed for visual storytelling (Liu et
al., 2017).
2.2.6 Text-to-Speech
Text to speech conversion can be challenging in
determining the real voice of comic characters.
Snap Hear: Comic Book Analyst for Children Having Literacy and Visual Barriers
Several researches have been done to convert text
to speech and few are based on Microsoft Win32
Speech API (SAPI) (Domale et al., 2012). Few
researches have been done to identify the real voice
of comic characters and those are based on Amazon
Mechanical Turk (Mishra et al., 2012).
There are three application components implemented
in our proposed solution.
1. End User Application - Angular
2. Integration Service - Node.js
3. Image Processing Service - Python
As the name implies, the Angular application acts
as the frontend component for application which is
visible for the end user to interact with. The Node.js
service is the middle component which is listening to
the requests made by the frontend and executes the
story building process using the Application
Programming Interfaces(APIs) exposed by the
Python service
As per the high level diagram, the logical layer
consists of several sub-components which have been
implemented and powered by a Python flask service.
Here are the main functionalities provided by this
3.1 Panel Extraction
When an image of a comic book, containing a set of
story panels, is provided to this function, it will
analyse the source and output the panel images that
the source image is created with. In this panel
extraction process, component labelling (CCL)
algorithm and N erosions followed by N dilations
performed on CCL, has been used to identify the
panel shapes and cut the connecting elements
between the panels.
Then, X-Y recursive cut algorithm has been used
to extract the panels and get the extracted panels as
separate panels and order the panels by top-down and
left-to-right approach.
3.2 Comic Characters and Objects
This is for Identifying comic objects and characters
along with their coordinates once a panel is provided
to the component.
In implementation point of view, initially data of
both comic characters and objects were gathered for
the preparation of data sets. Two separate classifiers
were implemented in python language to run
sequentially and to work on recognising multiple
classes of comic characters and objects from the panel
images. Once the targeted components are
recognised, those components were marked with the
bounding boxes.
As the next step, locations of the recognised
components have been extracted and passed along
with recognised classes as the input for the
association analysis and story building sections.
3.3 Speech Text Recognition
Images of the extracted speech balloons were taken as
the input for the text recognition process and
subjected to go through the Tesseract OCR model,
which was identified as the best text recognition
solution for this prototype. The recognized text will
be saved as a text file on the deployed environment
for further processing of the application.
3.4 Speech Balloon Segmentation and
Component Association
This will create the association of the characters,
objects and text contents recognized in the previous
steps. In order to achieve that, it is necessary to get to
know the association between the text and the
characters who speak that particular dialogue. That is
where the balloon segmentation comes to the play.
A model based on a deep convolutional neural
network has been used for balloon segmentation. In
this algorithm speech balloon detection is considered
as a pixel-wise classification task and fully
convolutional network approach has been used. Since
this approach lack in precision for a single panel in
preparation of the dataset, images were preprocessed
to fit into the required image ratio of the model.
An algorithm has been proposed to retrieve the
association link between speech balloon and speaker
using anchor point selection and euclidean distance
techniques with the assumption of character positions
have been extracted and comic characters and speech
balloons are relatively close. These associations are
used in the process of building the story.
3.5 Story Building
In Story building section story will be built through
connecting relationships between contents within the
panel. String Manipulation has been used to combine
the relationships of extracted character, objects and
the speaker association and generate sentences. Then
CSEDU 2020 - 12th International Conference on Computer Supported Education
the Sentences are combined to build the story. Built
story will be delivered in text format as the output of
this section.
3.6 Text-to-Speech
In this section Google Speech API has been used to
convert text into audio. Amazon Mechanical Turk
(MTurk) has been used to get the real voice of comic
characters by data driven approach and using Naive
Bayes classier, the relationship between the
character attributes and the voice has been modeled.
Results gained throughout the flow of the
implemented prototype have been briefed below. The
flow initiates with the upload of comic image. Once
the image is uploaded to the web application it goes
through the panel segmentation process and generates
the segmented panels as separated images. Then from
each of those images, desired comic characters,
objects and speech balloons will be recognized as the
results of the subjected character recognition, object
recognition and balloon recognition deep learning

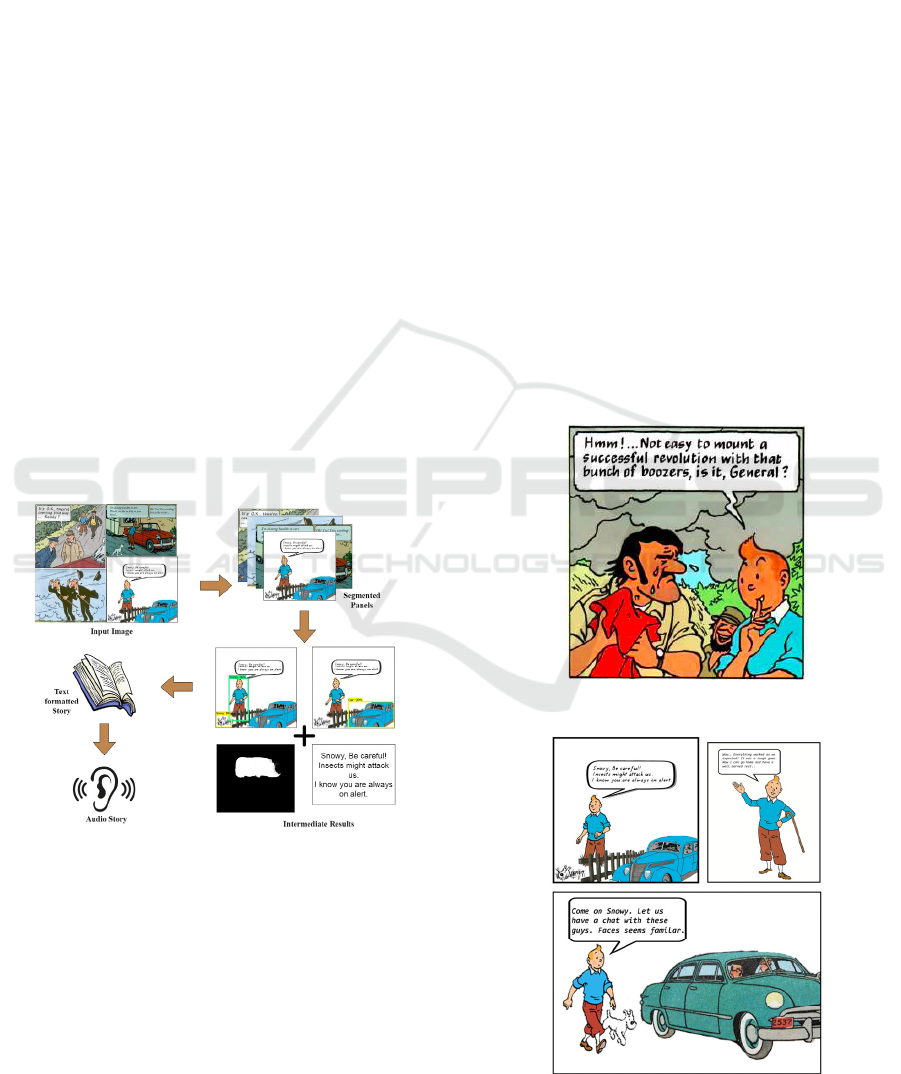

Figure 2: Resulted Product Flow.
Identification of comic characters and objects has
been carried out successfully and the accuracy up to
99% can be reached by comparing with the generated
inference graph when implementing the classifiers by
training data. It is possible to happen misrecognitions
due to the difficulties faced when gathering datasets
for both characters and objects (specially for the
objects). But in most cases, it is able to identify
characters and objects accurately even with the
challenges that were facing.
Output of the speech balloon extraction has also
been another critical element of research which leads
to the association of characters and the dialogues.
Isolation of speech balloons from the initial image is
merged with the original image again and provide the
resulted image to the OCR component in order to
extract the text of speech balloons from the given
As mentioned earlier, the text will be extracted
from the output of balloon segmentation component,
but not from the original image. Therefore the
accuracy of text recognition will depend on the
quality of the output of balloon segmentation
The extracted text will be saved in a text file in
order to provide for the next steps.
For a given input image (such as Fig 3), a story
will be generated using the results of intermediate
steps which are explained above and will be displayed
on the GUI as a plain text as shown in Fig. 4. Then
the final result of this prototype will be delivered as
an audio story to the user by generating an audio file
for the text output which was created at the end of
story building phase.
Figure 3: Input Image - in Panel Form.
Figure 4: Input Image - in Page Form.
Snap Hear: Comic Book Analyst for Children Having Literacy and Visual Barriers

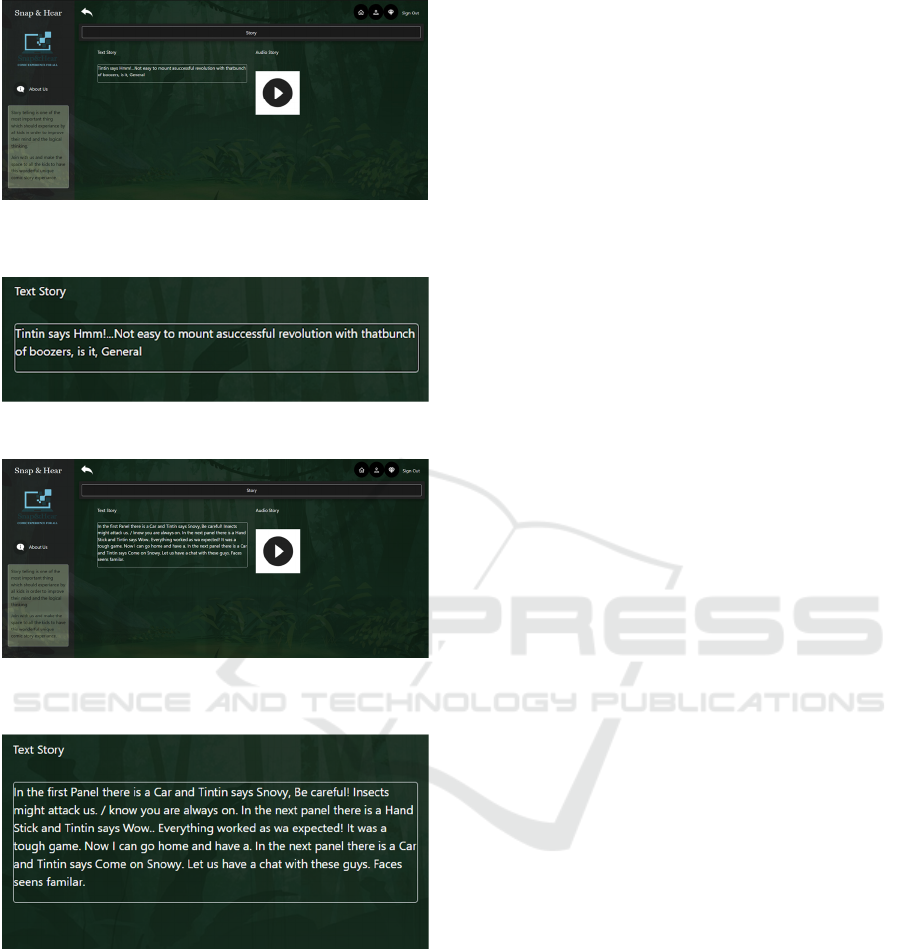

Figure 5: User Interface with Final Result Generated to the
Input Image in panel form.
Figure 6: Close up Image of Generated Text Story.
Figure 7: User Interface with Final Result Generated to the
Input Image in page form.
Figure 8: Close up Image of Generated Text Story.
Proposed approach can recognise specific classes of
comic characters and objects as planned in the scope.
Actions, speech tones and emotions of the comic
characters are not taken into account.
While the dialogues which are boarded by the
speech balloons are considered for the story, the
graphical text which often used to convey emotions
are not considered within our scope. The speech text
recognition is only guaranteed for the font styles
which has a fair equality to a clear font styles such as
Arial, Times New Roman and Calibri.
Out of the different scenarios with the placement
of speech balloons, tail and speaker within a panel,
unique scenario of all the content included in a single
panel, speech text is inside speech balloons, speech
balloons are nearby their speakers and related
speakers and speech balloons are within the same
place is chosen for this work.
Although speaker voice feeding has been taken
into consideration, it is limited to only a few
characters when building the audio story within our
5.1 Future Improvements
For the future improvements recognition of speech
tone and emotions of the characters, Extending
speech balloon extraction to extraction of balloons
with partial contours and Extending character and
object recognition models to identify more classes
can be taken into consideration.
Since the recognition of selected characters and
objects was able to do with a successful rate,
successful recognition for rest of the objects and
characters by training the algorithm with proper
expanded data sets can be assumed safely. Text
recognition also will be able to recognize for font
styles with the increased data sets and text to speech
component can be expanded with more comic voices
with the expanded audio training streams of more
comic characters.
There are two main problems that trying to address by
the prototype proposed by this novelty. Providing the
comic experience to children/adults who have literacy
level issues, and helping busy parents to narrate
stories to their children are those main problems
which have tried to solve here.
The proposed web application solution is
composed with content extraction processes of an
uploaded image and the integration of the
relationships between those contents to build a
storyline and deliver it as an audio story to the
audience. Through that, it was possible to address the
above mentioned problems and to let the targeted
audience to hear the generated audio and to have the
new experience of digitised comic books.
CSEDU 2020 - 12th International Conference on Computer Supported Education
It is possible to scale up the scope of Snap & Hear
project and consider the scenarios mentioned above
in the discussion to the analysis parts to give a better
experience to the end user by integrating those
missing inputs to the story as well.
Duc-Minh Pham, Trong-Nhan Dam-Nguyen, Phuc-Thinh
Nguyen-Vo and Minh-Triet Tran, "Smart Teddy Bear a
vision-based story teller", 2013 International
Conference on Control, Automation and Information
Sciences (ICCAIS), 2013. Available: 10.1109/iccais.
C. Rigaud, "Segmentation and indexation of complex
objects in comic book", ELCVIA Electronic Letters on
Computer Vision and Image Analysis, vol. 14, no. 3,
2016. Available: 10.5565/rev/elcvia.833
C. Ponsard and V. Fries, "Enhancing the Accessibility for
All of Digital Comic Books", vol. I, no. 5, 2009.
Phaisarn Sutheebanjard & Wichian Premchaiswadi, “A
Modified Recursive X-Y Cut Algorithm for Solving
Block Ordering Problems”, 2010 2nd International
Conference on Computer Engineering and Technology,
Available: v3-307.
Xufang Pang, Ying Cao, Rynson W.H. Lau, and Antoni B.
Chan, “A Robust Panel Extraction Method for Manga”,
N. Nguyen, C. Rigaud and J. Burie, "Multi-task Model for
Comic Book Image Analysis", MultiMedia Modeling,
pp. 637-649, 2018.
N. Nguyen, C. Rigaud and J. Burie, "Digital Comics Image
Indexing Based on Deep Learning", Journal of
Imaging, vol. 4, no. 7, p. 89, 2018.
T. Ogawa, A. Otsubo, R. Narita, Y. Matsui, T. Yamasaki
and K. Aizawa, "Object Detection for Comics using
Manga109 Annotations", Research Gate, 2018.
K. Ahmed Siddiqui, "Skin Detection Of Animation
Characters", International Journal on Soft Computing,
vol. 6, no. 1, pp. 37-52, 2015.
M. Shejwal and S. Bharkad, "Segmentation and extraction
of text from curved text lines using image processing
approach", 2017 International Conference on
Information, Communication, Instrumentation and
Control (ICICIC), 2017.
S. Muhammad Arsalan Bashir, "Font Acknowledgment and
Character Extraction of Digital and Scanned Images",
International Journal of Computer Applications, vol.
70, no. 8, pp. 1-5, 2013.
H. Tolle and K. Arai, “Method for Real Time Text
Extraction of Digital Manga Comic,” International
Journal of Image Processing (IJIP), vol. 4, no. 6, pp.
669–676, 2011.
A. K. N. Ho, J. C. Burie and J.M. Ogier, “Panel and Speech
Balloon Extraction from Comic Books,” presented at
Tenth IAPR International Workshop on Document
Analysis Systems, pp. 424-428, Mar. 2012.
C. Rigaud, J. C. Burie and J.M. Ogier, “Text-Independent
Speech Balloon Segmentation for Comics and Manga,”
2017, pp. 133-147.
C. Rigaud, J. C. Burie, J.M. Ogier, D. Karatzas and Jo, “An
Active Contour Model for Speech Balloon Detection in
Comics,” in Proceedings of the International
Conference on Document Analysis and Recognition,
ICDAR 2013
Rigaud, C., Thanh, N.L.; Burie, J.C.; Ogier, J.M.; Iwata,
M.; Imazu, E.; Kise, K. “Speech balloon and speaker
association for comics and manga understanding,” in
Proceedings of the 2015 13th International Conference
on Document Analysis and Recognition (ICDAR),
Tunis, Tunisia, Aug. 23–26, 2015; pp. 351–355.
Xin Wang, Wenhu Chen, Yuan-Fang Wang and William
Yang Wang, “No Metrics Are Perfect: Adversarial
Reward Learning for Visual Storytelling.” ACL 2018.
Wang, Jing, Jianlong Fu, Jinhui Tang, Zechao Li and Tao
Mei, “Show, Reward and Tell: Automatic Generation
of Narrative Paragraph From Photo Stream by
Adversarial Training,” AAAI 2018.
Y. Liu, J. Fu, C. W. Chen, “Let Your Photos Talk:
Generating Narrative Paragraph for Photo Stream via
Bidirectional Attention Recurrent Neural Networks,”
AAAI Conference on Artificial Intelligence.
Ajinkya Domale, Bhimsen Padalkar, Raj Parekh, M.A.
Joshi, “Printed book to audio book converter for
visually impaired”,2013 Texas Instruments India
Educators' Conference.
Mishra, Taniya & Greene, Erica & Conkie, Alistair. (2012).
Predicting Character-Appropriate Voices for a TTS-
based Storyteller System. 13th Annual Conference of
the International Speech Communication Association
2012, INTERSPEECH 2012. 3.
Snap Hear: Comic Book Analyst for Children Having Literacy and Visual Barriers
