Acquisition of Optimal Connection Patterns for Skeleton-based Action

Recognition with Graph Convolutional Networks

Katsutoshi Shiraki, Tsubasa Hirakawa, Takayoshi Yamashita and Hironobu Fujiyoshi

Chubu University, Kasugai, Aichi, Japan

{siraki, hirakawa}@mprg.cs.chubu.ac.jp, {takayoshi, fujiyoshi}@isc.chubu.ac.jp

Keywords:

Graph Convolutional Networks, Multitask Learning, Skeleton-based Action Recognition.

Abstract:

Action recognition from skeletons is gaining attention since skeleton data can be easily obtained from depth

sensors and highly accurate pose estimation methods such as OpenPose. A method using graph convolutional

networks (GCN) has been proposed for action recognition using skeletons as input. Among the action recog-

nition methods using GCN, spatial temporal GCN (ST-GCN) achieves a higher accuracy by capturing skeletal

data as spatial and temporal graphs. However, because ST-GCN deﬁnes human skeleton patterns in advance

and applies convolution processing, it is not possible to capture features that take into account the joint rela-

tionships speciﬁc to each action. The purpose of this work is to recognize actions considering the connection

patterns speciﬁc to action classes. The optimal connection pattern is obtained by acquiring features of each

action class by introducing multitask learning and selecting edges on the basis of the value of the weight matrix

indicating the importance of the edges. Experimental results show that the proposed method has a higher clas-

siﬁcation accuracy than the conventional method. Moreover, we visualize the obtained connection patterns by

the proposed method and show that our method can obtain speciﬁc connection patterns for each action class.

1 INTRODUCTION

Human action recognition has been actively stud-

ied due to its importance in video surveillance sys-

tems and sports analysis. Conventional human action

recognition methods use appearance, optical ﬂows,

and skeletons as inputs (Tran et al., 2015) (Simonyan

and Zisserman, 2014) (Limin et al., 2016) (Wu,

2012). The use of skeletons is attracting attention be-

cause their skeletal data can be captured using depth

sensors and high-precision pose estimation methods

such as OpenPose (Zhe et al., 2017) and they can

be easily adapted to changes in the environment and

viewpoint. As skeletal data contains the coordinates

of each joint for each frame, many action recog-

nition methods based on skeletons do not consider

the relationships between joints (Vemulapalli et al.,

2014) (Hongsong and Liang, 2017) (Liu et al., 2017).

To consider such a relationships, actions can poten-

tially be determined by expressing skeletons in a

graph composed of nodes and edges connecting them.

When skeletons are represented as a graph, nodes cor-

respond to joint coordinates and edges correspond to

the relationship between joints. Therefore, it is pos-

sible to consider the relationship between joints and

recognize complex actions. A method using graph

convolutional networks (GCN) has been proposed for

action recognition with graph skeletons as input (Si-

jie et al., 2018) (Li et al., 2018). A GCN is a convo-

lutional neural network that takes graph structures as

input, enabling it to extract features considering the

relationship of connected nodes. GCN are also used

in ﬁelds such as image classiﬁcation, document clas-

siﬁcation, and compound classiﬁcation (Joan et al.,

2014) (Defferrard et al., 2016) (Gilmer et al., 2017).

The spatial temporal GCN (ST-GCN) is an action

recognition method that achieved a high recognition

accuracy by introducing a spatial graph that considers

the relationship between joints and a temporal graph

that considers temporal movement. However, only a

human skeleton pattern is deﬁned in advance as the

connection pattern of the graph used in the spatial

graph. Therefore, since the convolution is performed

only with the human skeletal pattern, it is difﬁcult to

consider the relationship between distant joints. In the

case of performing action recognition, the relation-

ship between distant joints is important for many mo-

tions, such as the relationship between arms and legs

when throwing. In addition, the relationship between

important joints may be different for each action.

In this work, we propose an action recognition

method that considers the optimal connection pat-

tern for each action. By constructing a connection

pattern for each action, the optimal feature between

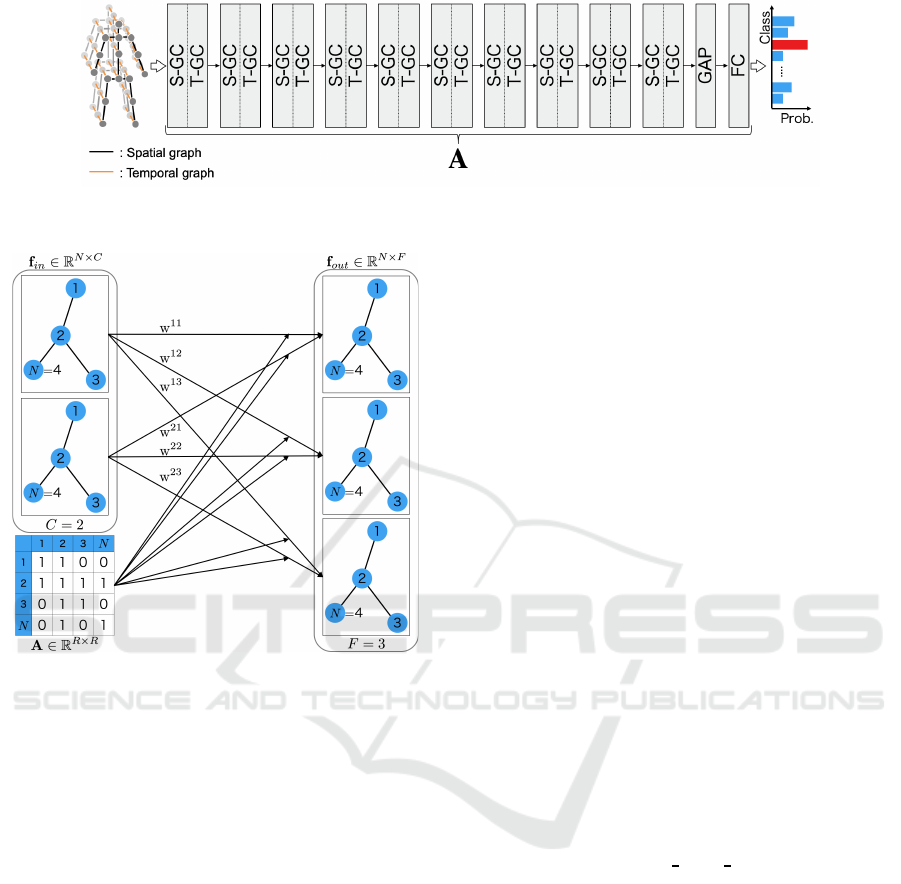

Figure 1: ST-GCN network architecture.

Figure 2: Graph convolution processing.

joints is extracted for each action. Also, instead of

using a pre-deﬁned optimal connection pattern, it is

possible to construct one automatically during learn-

ing. In the proposed method, we introduce multitask

learning framework and classify each action class as

binary classiﬁcation problem. This enables the pro-

posed method to deﬁne different connection patterns

for each task (i.e., each action class) and the optimal

pattern is obtained by updating the connection pat-

terns during learning. To update the connection pat-

tern, we focus on the weight matrix indicating edge

importance and select the more important edge on the

basis of weight value. We propose an action recogni-

tion method that obtains the optimal connection pat-

tern for each action by repeatedly updating the pattern

during learning.

2 RELATED WORKS

ST-GCN is an action recognition method that rep-

resents skeletons as graphs. This method achieves

a higher recognition accuracy than that of conven-

tional methods as skeletons are represented as spa-

tial and temporal graphs. A spatial graph considers

the relationship between joints by connecting joints

in the same frame, and a temporal graph considers the

temporal movement of joints by connecting the same

joints between frames. The ST-GCN network archi-

tecture is shown in Figure 1. Spatial graph convolu-

tion (S-GC) and temporal graph convolution (T-GC)

are used for the convolution processing of the spatial

and temporal graphs, respectively, followed by global

average pooling (Min et al., 2014).

ST-GCN recognizes action using a GCN to ob-

tain a feature map by convolution processing, similar

to a general convolutional neural network. However,

the general convolution process cannot be applied to

graphs because each node has a different number of

adjacent nodes. Therefore, the convolution process-

ing of graphs in ST-GCN has been achieved in the

literature (Kipf and Welling, 2017). An outline of the

graph convolution process is shown in Figure 2. For

a spatial graph with N nodes, we condider a graph

convolution process with C dimensional node feature

f

in

∈ R

N×C

. The output f

out

∈ R

N×F

of the number of

feature maps F is obtained by Equation (1) using the

adjacency matrix

ˆ

A ∈ R

N×N

and the weight matrix

W ∈ R

C×F

.

f

out

= Λ

−

1

2

ˆ

AΛ

−

1

2

f

in

W, (1)

where

ˆ

A is obtained by Equation (2) using the adja-

cency matrix A ∈ R

N×N

and the unit matrix I ∈ R

N×N

indicating the loop of the graph.

ˆ

A = A+ I (2)

The adjacency matrix A is a matrix indicating the con-

nection relation of nodes. Each element A

ij

of the

adjacency matrix A indicates the connection relation-

ship between the nodes i and j, and is obtained by

Equation (3).

A

ij

=

(

1 (node i, j is connected),

0 (node i, j is not connected).

(3)

Λ in Equation (1) is a diagonal matrix whose diagonal

component is the eigenvalue of the graph Laplacian,

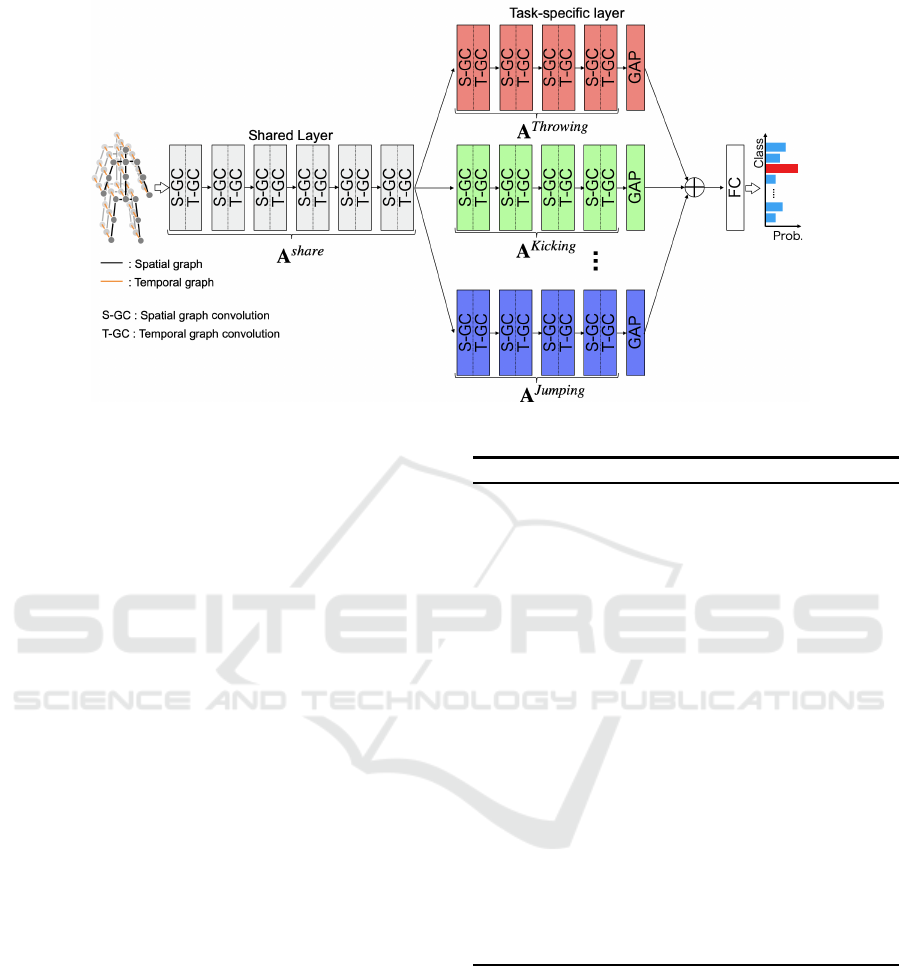

Figure 3: Network architecture of the proposed method.

and its diagonal component is Λ

ii

=

∑

j

(A

ij

+ I

ij

).

The output feature map can be expressed as a (C,V,T)

dimensional tensor with C dimensions, N nodes, and

T frames. Therefore, the convolution processing of

the temporal graph can be implemented by that of the

arbitrary kernel size 1 × Γ. In ST-GCN, a learning

weight matrix M ∈ R

N×N

is proposed to consider the

importance of edges in action recognition. The learn-

ing weight matrix M is added to the graph convolution

process as show in Equation (4).

f

out

= Λ

−

1

2

(

ˆ

A◦ M)Λ

−

1

2

f

in

W, (4)

where ◦ is the element-wise product. By taking the

element product of the adjacency matrix

ˆ

A and the

learning weight matrix M, a weight can be given

to each edge. Updating M increases the weight of

edges connected to important nodes. The classiﬁca-

tion accuracy of ST-GCN has been reported to have

improved by adding the learning weight matrix M to

the graph convolution process.

3 PROPOSED METHOD

The convolutionprocessing of the spatial graph in ST-

GCN is performed only with the connection pattern

of a human skeleton. Since convolution processing

is performed only between adjacent joints, the rela-

tionship between distant joints such as right and left

hands, and hands and feet is not considered. Also, the

relationship of important joints in action recognition

may differ depending on the action. For example, in

the throwing action, both the right leg and arm are

important because the right leg is the axis leg and the

object is thrown with the right arm. Moreover, since

the whole body moves in the jumping action, the rela-

tionship between the whole body is important for ac-

tion recognition. In this work, we propose an action

recognition method that automatically obtains the op-

timal connection pattern for each action class. The

network of the proposed method is shown in Figure

3. The details of the proposed method are described

below.

3.1 Extraction of Action Features by

Multitask Learning

We introduce multitask learning to extract features

speciﬁc to each action class. Multitask learning is a

method in which multiple tasks can be learned on one

neural network. Our proposed method performs two-

class classiﬁcation between speciﬁc classes and other

classes in each task of multitask learning. The shared

part of the network extracts common features from all

action classes, and each task extracts speciﬁc features

from each action class. Also, to obtain the connection

pattern of each action class, an independent adjacency

matrix is used in the shared layer and a speciﬁc task

layer of the network.

3.2 Obtaining the Optimal Connection

Pattern by Updating the Adjacency

Matrix

The adjacency matrix is updated during learning to

obtain connection patterns speciﬁc to each action

Figure 4: Network architecture with additional multi-class classﬁcation layer.

class. We focus on the learning weight matrix M pro-

posed in ST-GCN. M gives weights to each edge by

Equation (4), and updating M increases the weight of

edges connected to important nodes. Therefore, the

optimal connection pattern can be obtained by select-

ing important edges on the value of M. The initial

values of the adjacency matrix are all 1, that is, all

nodes are connected. The adjacency matrix is updated

by leaving only K edges with large weights from the

value of the learning weight matrix M. Edge weights

without connections are not considered. As such, the

reduced edge does not connect the nodes again. Also,

to maintain the loop in the graph, the diagonal com-

ponent of the adjacency matrix is always 1 regardless

of the weight value. The updated adjacency matrix

is then converted into a symmetric matrix to form an

undirected graph. That is,

ˆ

A

ji

= 1 when

ˆ

A

ij

= 1.

Let A

share

be the adjacency matrix of the shared

part and A

t

be that of task t. The learning weight

matrix M exists in each S-GC layer. Therefore, the

adjacency matrix A

t

of each task is updated with the

value M

t

obtained by adding all the learning weight

matrices of task t. The algorithm for updating the ad-

jacency matrix is shown in Algorithm 1. After updat-

ing, graph convolution processing is performed using

the obtained adjacency matrix. The number of edges

is gradually reduced by repeatedly updating the ad-

jacency matrix during learning. As a result, only an

edge with a large weight remains, so an optimum con-

nection pattern for action recognition can be obtained.

Algorithm 1: Adjacency matrix update algorithm.

Input: A

t

of size N × N : Adjacency matrix of task t

M

t

of size N× N : Learning weight matrix of

task t

K: Number of edges to leave

Output:

ˆ

A

t

of size N × N : Updated adjacency ma-

trix of task t

1:

ˆ

A

t

← N × N identity matrix

2: s = 0

3: while s < K do

4: (i, j) ← argmaxM

t

5: M

t

ij

← 0

6: M

t

ji

← 0

7: if i 6= j then

8: if A

t

ij

6= 0 then

9:

ˆ

A

t

ij

← 1

10:

ˆ

A

t

ji

← 1

11: s ← s+ 1

12: end if

13: end if

14: end while

3.3 Multi-class Classiﬁcation Layer

In the proposed method shown in Figure 3, each task

is classiﬁed into two classes. Therefore, when one

data is input, the classiﬁcation result is output for each

task. For this reason, there is a possibility that the in-

put data is classiﬁed into multiple classes. Our pro-

posed method solves this problem by introducing a

multi-class classiﬁcation layer. Figure 4 shows the

network structure when performing multi-class clas-

siﬁcation. The feature map obtained by GAP for

each task is the input to the additional fully connected

layer. To train the additional fully connected layer, we

ﬁx the network weights trained by only the additional

fully connected layer and the S-GC and T-GC layers.

4 EXPERIMENTS

To show that the reduction of edges leads to the

improvement of accuracy, an evaluation experiment

was performed in which the number of edges was

changed. The optimal number of edges was deter-

mined from the experimental results. To verify the

effectiveness of the proposed method, a second evalu-

ation experiment based on identiﬁcation accuracy was

performed. By visualizing the acquired adjacency

matrix, we conﬁrmed that connection patterns spe-

ciﬁc to each action class could be acquired. The de-

tails of the dataset, learning conditions, experimental

results, and visualization of the adjacency matrix are

described below.

4.1 Dataset

NTU-RGB+D dataset, a dataset for action recogni-

tion with skeletons, is was used for the experiments

(Shahroudy et al., 2016). The dataset has a total of

60 different action classes, including daily actions

such as walking and sitting, and sports actions such

as throwing and kicking. Data was taken from three

viewpoints simultaneously, the front and 45 degrees

to the left and right. A skeleton comprises 3D coordi-

nates (X, Y, Z) based on information from a Kinect v2

depth sensor and have 25 joints. In this work, we ex-

perimented with three action classes (throwing, kick-

ing, jumping). The number of input frames T was 80.

The NTU-RGB+D dataset recommends two eval-

uation methods: cross-subject and cross-view. Cross-

subject is a method that separates 40 subjects into a

learning data group and an evaluationdata group. Pre-

determined data for 20 subjects are used for learning.

The evaluation is based on data from subjects who

were not used for learning. The number of samples

for learning and evaluation is 2,010 and 830, respec-

tively. Cross-view is a method that separates the data

of the three viewpoints taken by learning and evalua-

tion. The learning uses data taken from the 45 degree

direction, and the evaluation uses that from the front.

The number of samples for learning and evaluation is

1,900 and 950, respectively.

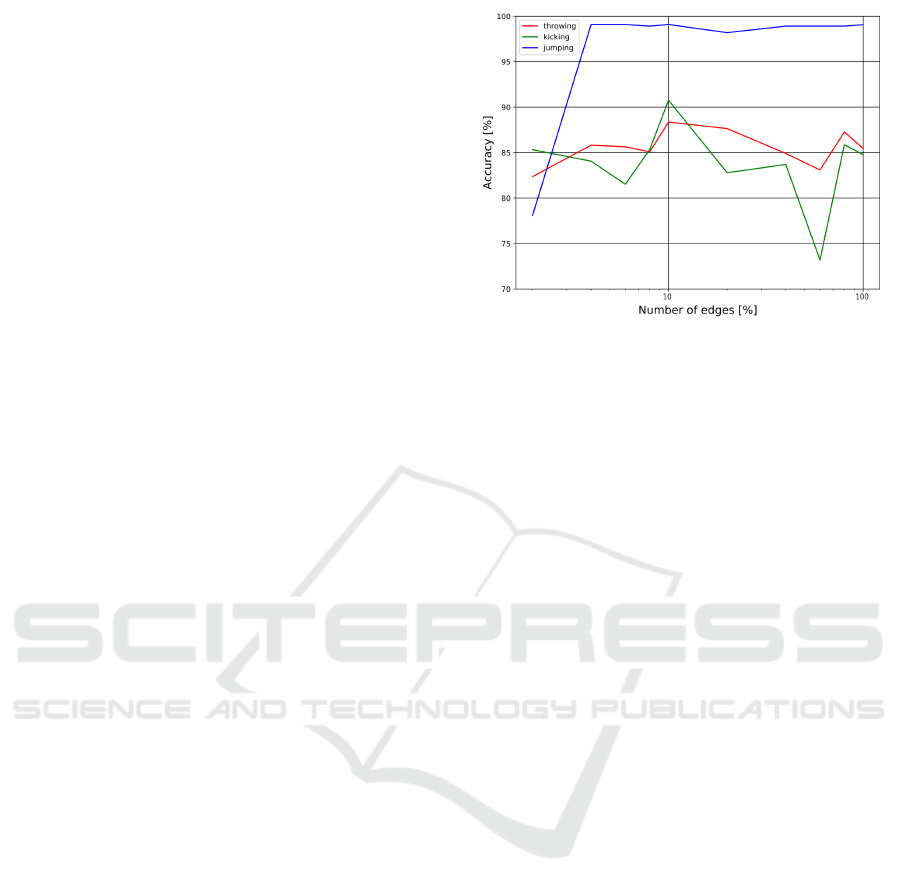

Figure 5: Accuracy per number of connected edges.

4.2 Network Architecture

The network of the proposed method consists of a

convolutional block of spatial and temporal graphs.

A block ﬁrst has a spatial GCN, followed by a batch

normalization layer, a ReLU layer, a temporal GCN,

a dropout layer, a batch normalization layer and a

ReLU layer. The kernel size Γ for temporal GCN is

set to 9, and the drop rate for the dropout layer is set

to 0.5. The shared part has six blocks. The ﬁrst four

blocks have 64 channels and the remaining blocks

have 128 channels for output. The task-speciﬁc part

consists of four blocks. There are 128 output channels

for the ﬁrst block and 256 channels for the following

three blocks. The output of the task-speciﬁc part is

input into the GAP layer and softmax classiﬁer for

classiﬁcation.

During training, we set the batch size as 16. We

use the SGD algorithm. The initial learning rate is 0.1

and decays by 0.1 every 20 epochs. In ﬁne tuning, the

learning rate is set to 0.0001 and the model is train for

20 epoch.

4.3 Experimenting using a Different

Number of Edges

To show that edge reduction affects recognition accu-

racy, we experimented by changing the number of re-

duced edges. Experiments were performed using two

classes, a speciﬁc class and one from other classes.

For the other-class one, data randomly selected from

action classes other than throwing, kicking, and jump-

ing were used. The model used was a network of ten

layers with convolution processing for the spatial and

temporal graphs. We set the number of learnings to

100 epochs. The adjacency matrix was updated at 40,

50, 60 and 70 epochs, and the edges were gradually

reduced. The recognition accuracy was evaluated by

Table 1: Accuracy of each action class in cross-subject [%].

Throwing Kicking Jumping

ST-GCN 86.91 90.94 99.63

Ind. Network 88.36 90.76 99.09

M.T. Network 96.86 96.98 99.74

Table 2: Accuracy of each action class in cross-view [%].

Throwing Kicking Jumping

ST-GCN 93.72 94.02 98.64

Ind. Network 93.23 93.98 99.01

M.T. Network 97.57 96.43 99.26

calculating the difference in the number of edges at

70 epochs. If all edges are connected, the number of

edges is 600, excluding loops.

The experimental results are shown in Figure

5. The results of the throwing, kicking, and jump-

ing classes showed the highest recognition accuracy

with 10% edges. The recognition accuracy at 10%

is 88.36% for throwing, 90.76% for kicking, and

99.09% for jumping. From the results, it can be seen

that a higher accuracy can be obtained by connect-

ing only joints that strongly affectaction than learning

with all edges connected. This indicates that reducing

the number of edges affects recognition accuracy.

4.4 Accuracy Comparison Experiment

4.4.1 Learning Conditions

For this experiment,the number of learning was set to

100 epochs, and the adjacency matrix was updated at

40, 50, 60, and 70 epochs. Each update of the ad-

jacency matrix reduces the number of edges by 20%

of the total number of edges in the initial state. That

is, the number of edges after the update at 70 epochs

is 60. The adjacency matrix was not updated in the

shared part. The initial value of the learning weight

matrix M was set to M

ij

= 1/N using the number of

nodes N of the graph.

4.4.2 Experimental Results

Tables 1 and 2 show the classiﬁcation accuracies of

each action class of the proposed method and ST-

GCN on the basis of cross-subject and cross-view, re-

spectively. There are two proposed methods, an in-

dependent network (Ind. Network) that learns each

class by two-class classiﬁcation, and a multitask net-

work (M.T. Network) that learns three classes with a

multitask structure. When comparing M.T. Network

with ST-GCN, cross-subject improved accuracy by an

average of 5.4 points and cross-view by an average of

2.4 points. Also, the accuracy of the throwing class

is particularly improved. The relationship between

Table 3: Tree-class classiﬁcation accuracy [%].

Cross-subject Cross-view

ST-GCN 92.38 94.68

M.T. Network

w/o class. layer

95.49 95.57

M.T. Network

w/ class. layer

96.61 97.05

(a) Shared (b) Throwing

(c) Kicking (d) Jumping

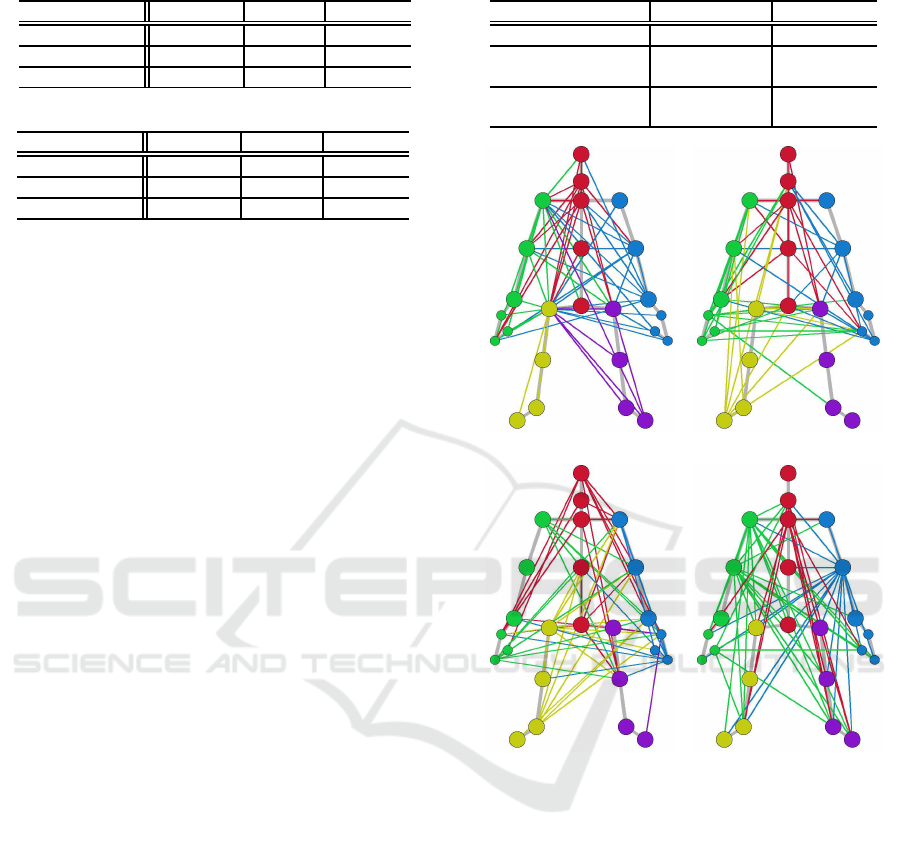

Figure 6: Visualization of the adjacency matrix at 70

epochs.

the arm and the leg is important for the throwing ac-

tion, and the relationship between the distant joints is

more important than that of other action. Therefore,

the recognition accuracy can be improved by consid-

ering the features between distant joints, not captured

by ST-GCN, by the proposed method.

Table 3 shows the results of classiﬁcation accu-

racy when three classes are classiﬁed. The M.T. Net-

work w/o class. layer is a model that does not include

a multi-class classiﬁcation layer. Classiﬁcation accu-

racy is based on the inference result of the class with

the highest class probability obtained from each task.

The M.T. Network w/ class. layer model includes a

multi-class classiﬁcation layer used to obtain the clas-

siﬁcation accuracy. The results show that the M.T.

Network w/ class. layer model improved classiﬁca-

(a) Throwing

(b) Kicking

(c) Jumping

Figure 7: Visualization examples of connection patterns. Top: ST-GCN. Bottom: Proposed method.

tion accuracy by 4.23 points in cross-subject and 2.37

points in cross-view. This shows the effectiveness of

the proposed method.

4.4.3 Visualization of Adjacency Matrix

Figure 6 shows the adjacency matrixes of the shared

part and the throwing, kicking, and jumping action

classes at 70 epochs. Since the adjacency matrix of

the shared part is not updated, all nodes are connected

after learning, but only the top 60 with the largest

edge weights are drawn. Out of the two-way edges

connecting the nodes, the edges are drawn in the same

color as the node to which the edge with the higher

weight is connected. The resultant drawing is the con-

nection pattern when learning with cross-subject. The

pattern of the shared part (Figure 6(a)) shows that the

whole body is considered because the edges are con-

nected to the whole body. In the throwing class pat-

tern (Figure 6(b)), many of the subjects performed the

throwing action with their right hand, so the edges

are concentrated on the right arm and the right leg,

which is the pivot foot. Similarly, in the the kicking

class pattern (Figure 6(c)), the edge concentrates on

the right leg because many subjects kicked with their

right leg. In addition, the edges are concentrated on

the head when kicking. This is because many sub-

jects face the throwing point of the throw instead of

the object, but kicking is done by facing the object. In

the jump class pattern (Figure 6(d)), the whole body

moves, so the edges are concentrated at the center of

the body and also concentrated on the right arm.

Figure 7 shows an example of rendering the ac-

quired connection pattern on the dataset videos. Fig-

ure 7(a) shows that in the throwing class, the right

arm greatly moves and the edges are concentrated on

the right arm. Similarly, in the kicking class (Fig-

ure 7(b)), the right leg greatly moves and the edges

are concentrated on the right leg. Also, when throw-

ing, the participant is looking at the target, and when

kicking, the participant is looking at the kicking ob-

ject. In the jump class (Figure 7(c)), the arm greatly

moves with the movement of the whole body, so the

edges are concentrated on the center of the body and

the right arm. From these results, it can be seen that

the edges are concentrated on nodes with large move-

ments for each operation class, and connection pat-

terns speciﬁc to operation classes were successfully

acquired.

5 CONCLUSIONS

In this work, we proposed an action recognition

method considering connection patterns that are spe-

ciﬁc to action classes. In the proposed method, fea-

tures unique to each action class were acquired by

introducing multitask learning, and the optimal con-

nection for each action class was obtained by updat-

ing the adjacency matrix on the basis of the learning

weight matrix indicating the importance of edges dur-

ing learning. Evaluation experiments demonstrated

that the proposed method improved classiﬁcation ac-

curacy in all action classes evaluated compared to ST-

GCN. Moreover, by visualizing the connection pat-

tern, we conﬁrmed that patterns speciﬁc to each action

class were generated. Future work includes learning

methods that can obtain the optimal number of edges

for each action class.

REFERENCES

Defferrard, M., Bresson, X., and Vandergheynst, P. (2016).

Convolutional neural networks on graphs with fast lo-

calized spectral ﬁltering. In Neural Information Pro-

cessing Systems.

Gilmer, J., Schoenholz, S. S., Riley, P. F., Vinyals, O., and

Dahl, G. E. (2017). Neural message passing for quan-

tum chemistry. In International Conference on Ma-

chine Learning.

Hongsong, W. and Liang, W. (2017). Modeling temporal

dynamics and spatial conﬁgurations of actions using

two-stream recurrent neural networks. In Computer

Vision and Pattern Recognition.

Joan, B., Wojciech, Z., Arthur, S., and Yann, L. (2014).

Spatial networks and locally connected networks on

graphs. In International Conference on Learning Rep-

resentations.

Kipf, T. N. and Welling, M. (2017). Semi-supervised clas-

siﬁcation with graph convolutional networks. In Inter-

national Conference on Learning Representations.

Li, C., Cui, Z., Zheng, W., Xu, C., Ji, R., and Yang,

J. (2018). Action-attending graphic neural network.

IEEE Transactions on Image Processing, 27(7):3657–

3670.

Limin, W., Yuanjun, X., Zhe, W., Yu, Q., Dahua, L., Xi-

aoou, T., and Luc, V. (2016). Temporal segment net-

works: Towards good practices for deep action recog-

nition. In European Conference on Computer Vision.

Liu, M., Liu, H., and Chen, C. (2017). Enhanced skeleton

visualization for view invariant human action recogni-

tion. Pattern Recogn, 68(C):346–362.

Min, L., Qiang, C., and Shuicheng, Y. (2014). Network in

network. In 2nd International Conference on Learn-

ing Representations.

Shahroudy, A., Liu, J., Ng, T.-T., and Wang, G. (2016). Ntu

rgb+d: A large scale dataset for 3d human activity

analysis. In Computer Vision and Pattern Recogni-

tion.

Sijie, Y., Yuanjun, X., and Dahua, L. (2018). Spatial tem-

poral graph convolutional networks for skeleton-based

action recognition. In Association for the Advance-

ment of Artiﬁcial Intelligence.

Simonyan, K. and Zisserman, A. (2014). Two-stream con-

volutional networks for action recognition in videos.

In Advances in Neural Information Processing Sys-

tems.

Tran, D., Bourdev, L., Fergus, R., Torresani, L., and Paluri,

M. (2015). Learning spatiotemporal features with 3d

convolutional networks. In International Conference

on Computer Vision.

Vemulapalli, R., Arrate, F., and Chellappa, R. (2014). Hu-

man action recognition by representing 3d skeletons

as points in a lie group. In Computer Vision and Pat-

tern Recognition.

Wu, Y. (2012). Mining actionlet ensemble for action recog-

nition with depth cameras. In Conference on Com-

puter Vision and Pattern Recognition.

Zhe, C., Tomas, S., Shih-En, W., and Yaser, S. (2017). Real-

time multi-person 2d pose estimation using part afﬁn-

ity ﬁelds. In Conference on Computer Vision and Pat-

tern Recognition.
