Threat Modeling and Attack Simulations of Smart Cities:

A Literature Review and Explorative Study

Robert Lagerström, Wenjun Xiong and Mathias Ekstedt

School of Electrical Engineering and Computer Science, KTH Royal Institute of Technology, Stockholm, Sweden

Keywords: Threat Modeling, Attack Graph, Smart City, Systematic Literature Review, Internet-of-Things, Cloud.

Abstract: Digitization has made enterprises and inter-enterprise organizations (e.g. smart cities) increasingly

vulnerable to cyber attacks. Malicious actors compromising computers can have potential damage and

disruptions. To mitigate cyber threats, the first thing is to identify vulnerabilities, which is difficult as it

requires (i) a detailed understanding of the inter-enterprise architecture, and (ii) significant security

expertise. Threat modeling supports (i) by documenting the design of the system architecture, and attack

simulation supports (ii) by automating the identification of vulnerabilities. This paper presents a systematic

literature review and provides a research outlook for threat modeling and attack simulations of smart cities.

The results show that little research has been done in this area, and promising approaches are being

developed.

1 INTRODUCTION

Smart cities are completely reliant on information

and communication technology (ICT) (Suciu et al.,

2013). Technical solutions like the Internet of

Things (IoT) and cloud computing are key concepts

driving the development (Jin et al., 2014), and a lot

of their focus is on functional ICT aspects, i.e.

providing new innovative solutions to problems in

e.g. energy, mobility, and infrastructure integration.

This focus together with the speed of development

and implementation causes issues when it comes to

non-functional aspects, and specifically security

(Elmaghraby and Losavio, 2014). For instance, a bi-

partisan group of American senators is sponsoring

legislation to secure IoT, and comparing it to

weapons of mass destruction

. Swedish radio

reported that over 7000 Swedish systems were found

with security flaws, including more than 1000

systems missing password authentication for

controlling e.g. sewage, heat, and fire alarms. Lists

of the worst hacks in IoT include large distributed

denial-of-service attacks, hackable cardiac devices,

http://denver.cbslocal.com/2017/09/12/internet-of-things-

cybersecurity/

http://sverigesradio.se/sida/artikel.aspx?programid=83&a

rtikel=6825512

baby heart monitors and cars, and spying webcams

which are just some examples taken from popular

media. Researchers are worried about this

phenomenon, and some emphasize the challenges

and opportunities (Holm et al., 2015), while others

focus more on possible solutions (Ning and Liu,

2012). They all seem to agree that the security

challenges for smart cities are massive, and must be

handled for all the possible benefits to reach their

full potential. Also, the issues are difficult to

address, and that there is a need for both detailed

solutions for specific attacks and holistic solutions to

consider the whole picture. There are significant

research and development efforts directed toward

specific defenses e.g. cryptography, anti-virus,

intrusion prevention, and firewalls, but less targeting

holistic approaches.

One such holistic solution is threat modeling and

attack simulation of ICT architectures (Ekstedt et al.,

2015; Johnson et al., 2016a; Johnson et al., 2016b).

However, the methods and tools available today are

generally focused on a comparatively small scope,

e.g. one connected car (Katsikeas et al., 2019).

In this paper, we conduct a systematic literature

review (SLR) for large-scaled ICT in smart cities,

https://www.iotforall.com/5-worst-iot-hacking-

vulnerabilities/

Lagerström, R., Xiong, W. and Ekstedt, M.

Threat Modeling and Attack Simulations of Smart Cities: A Literature Review and Explorative Study.

DOI: 10.5220/0008921903690376

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 369-376

ISBN: 978-989-758-399-5; ISSN: 2184-4356

369

and the 25 papers studied show that there is no

solution so far, where e.g. connected cars and power

systems are part of the same systems-of-systems.

Instead, our SLR had to focus on the few initiatives,

where the core aspects of smart cities e.g. IoT and

cloud are addressed.

To further investigate and discuss these issues,

we also arrange a workshop with ten participants

from a Swedish industry working in IT or IT-

security positions. The conclusions from the

workshop are that: (i) Since threat modeling is

promoted for single organizations to handle the

complexity of infrastructure and risks, it should also

be a good approach for larger systems-of-systems.

(ii) Many threats, attack types, and countermeasures

in smart cities are the same as for single

organizations but are integrated to form a larger

network, where each island is owned by different

legal entities. This would most likely mean that

every actor creates a detailed threat model of their

domain (their island) with outgoing and incoming

dependencies to other actors, and a systems-of-

systems-wide (e.g. city) actor is responsible for

collecting and integrating the models to get the

complete picture.

2 RELATED WORK

Popular threat modeling tools and methods for

application development include the Microsoft

Threat Modeling Tool

with the related STRIDE

(Spoofing, Tampering, Repudiation, Information

disclosure, Denial of service, Elevation of privilege)

and DREAD (Damage, Reproducibility,

Exploitability, Affected users, Discoverability)

models.

When it comes to holistic threat modeling in a

more system-wide perspective, one of the most well-

known initiatives would be UMLsec, an extension of

UML for secure systems development (Jürjens,

2002).

Modeling and doing security analysis in many

threat modeling approaches requires security

expertise. Also, the analysis is often complex and

time-consuming. To deal with these issues, attack

trees were proposed (Schneier, 1999).

In an attack graph, nodes represent attacks and

countermeasures, and edges represent how these

relate to each other. Depending on your interests, the

https://www.microsoft.com/en-

us/download/details.aspx?id=49168

values and algorithm implemented can analyze

different aspects, such as Time-To-Compromise

(TTC), attack success likelihood, loss of money,

business impact, CIA (Confidentiality, Integrity,

Availability), etc.

To decrease the manual efforts of creating attack

graphs and analyzing threat models, there are

initiatives combining the two. The Cyber Security

Modeling Language (CySeMoL) is a modeling

language for enterprise-level system architectures

coupled to a probabilistic inference engine (Holm et

al., 2015). pwnPr3d is an attacker-centric threat

modeling approach that allows for automated threat

identification and quantification based on a model of

the network under analysis, by combining a network

architecture modeling language and a probabilistic

inference engine. It allows probability distributions

over the Time-To-Compromise (TTC) for attack

steps by quantifying the attack step (conditional)

dependencies (Johnson et al., 2016a). There are a

few commercial tools for attack simulation threat

modeling e.g. securiCAD by foreseeti

(Ekstedt et

al., 2015). Recently, the Meta Attack Language

(MAL) was proposed for the design of domain-

specific attack languages (Johnson et al., 2018), e.g.

vehicleLang (Katsikeas et al., 2019).

We have only found one systematic literature

review on threat modeling, which focused on threat

modeling in general (Xiong and Lagerström, 2019).

However, so far there is no systematic literature

review on threat modeling for smart cities.

3 REVIEW METHODOLOGY

AND RESULTS

Following the guidelines of Booth et al. (2012), we

did a literature search on October 2

and 3

, 2018.

Google Scholar was used as the search engine for

academic work with titles on the chosen topic. Only

texts in English, and only articles in computer

science, software engineering or related fields were

collected. Keywords “smart city” and “viable city”,

combined with “threat modeling”, “attack graph”,

“attack tree”, and “attack simulation” gave a result

of 1 paper. Since the core of the smart city concept

includes the Internet of Things (IoT) and cloud, we

extended our search with these keywords, which

gave us an additional 27 papers, three of which were

manually discarded since these were versions of a

paper already present in the collected set (e.g.,

www.foreseeti.com

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

370

Aydin and Jacob, 2016). Thus, the final number of

included papers is 25. The search process used in

this work can be seen in Figure 1.

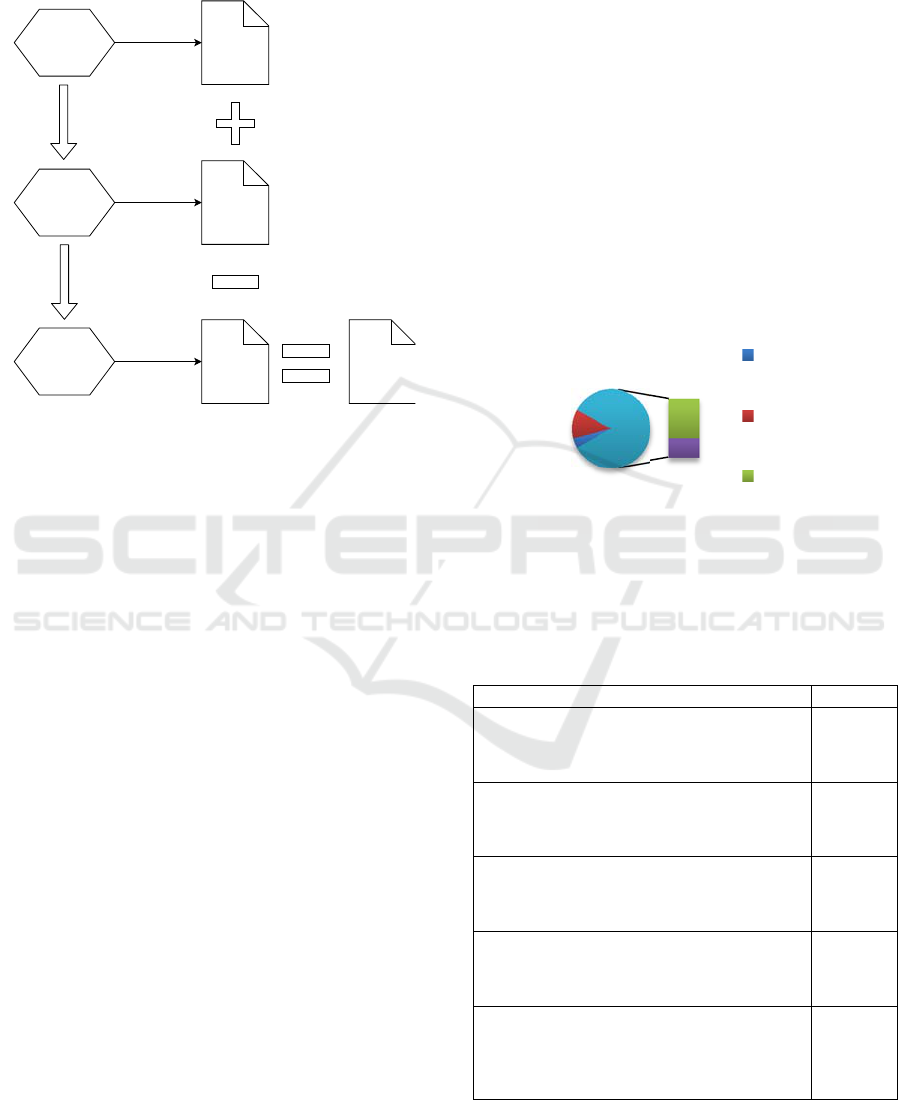

Figure 1: Search process for the systematic literature

review.

3.1 General Information

According to the review results, sixteen of the

collected papers focus on threat modeling and nine

on attack graphs (or attack trees). Only one has

smart cities as its domain. Three papers focus on

IoT, the plurality of papers (21 papers) focus on

cloud computing or cloud storage. In Figure 2, we

visualize the relationship between the approaches,

i.e. threat modeling (TM) or attack graphs (AG), and

the application domain, i.e. smart city (SC), IoT, or

Cloud.

The plurality (18 out of 25) of the papers are

published in conference proceedings and 7 in

journals. None of the papers are published in the

same outlet. The conferences range from general IT

conferences, e.g. Americas Conference on

Information Systems (AMCIS) and IEEE

International Conference on Computer &

Communications, to cloud or IoT specific ones e.g.

IEEE 4th World Forum on Internet of Things (WF-

IoT) and IEEE International Conference on Cloud

Engineering (IC2E). Also, general security

conferences e.g. International Symposium on

Foundations & Practice of Security, and most

importantly security conferences for smart cities

(cloud and IoT) e.g. International Conference on

Cyber Security of Smart cities, Industrial Control

System & Communications (SSIC) and International

Conference on Cloud Security Management are on

the list of outlets for this type of work. For the

journal publications, the papers found are mostly

published in general outlets such as Journal of

Applied Sciences, International Journal of

Intelligent Computing Research (IJICR), and IOSR

Journal of Computer Engineering (IOSR-JCE). Only

one is published in a security journal, which is

International Journal of Network Security & Its

Applications (IJNSA).

Two people have authored more than one paper

and both are co-authors of the same two papers,

where (Gholami et al., 2016) is an extension of

(Gholami and Laure, 2016).

The top five cited papers (8-30 citations) are all

published in conference proceedings by first authors

with North American or European affiliations (see in

Table 1 for more information).

Figure 2: Among the 25 studied papers, 21 are focused on

work related to the cloud, with 14 on threat modeling

(TM) and seven on attack graphs (AG). One paper is

focused on TM for smart cities, and three on AGs and IoT.

Table 1: Top five cited papers.

Author, Title, Outlet, Year. Citations

Ingalsbe, J. et al., “Threat Modeling the Cloud

Computing, Mobile Device Toting,

Consumerized Enterprise,” Americas Conference

on Information Systems (AMCIS), 2011

Wang, P. et al., “Data security and threat

modeling for smart city infrastructure,” Cyber

Security of Smart Cities, Industrial Control

System and Communications (SSIC), 2015.

Alhebaishi, N. et al., “Threat modeling for cloud

data center infrastructures,” International

Symposium on Foundations and Practice of

Security, 2016.

Kammüller, F. et al., “Attack tree analysis for

insider threats on the IoT using Isabelle,”

International Conference on Human Aspects of

Information Security, Privacy, and Trust, 2016.

Schilling, A. and Werners, B., “A quantitative

threat modeling approach to maximize the return

on security investment in cloud computing,”

International Conference on Cloud Security

Management, 2013.

Ten countries on four continents are represented

(counting the first author affiliation): eleven from

Search 1:

smart city +

threat model / attack

graph

Search 2:

IoT / cloud

Manual assessment 25

SC TM

IoT AG

Cloud

Threat Modeling and Attack Simulations of Smart Cities: A Literature Review and Explorative Study

371

Asia, nine in Europe, four from North America, and

one in Africa.

A few papers are fairly short (perhaps by some

defined as short papers), to be more specific,

fourteen papers have no more than 7 pages.

The oldest paper is from 2011 and each year

until 2018, one to four papers were published,

except for 2016 that nine papers were published.

3.2 Detailed Information

Among the found 25 papers, eleven presented

studies use an existing threat modeling (TM) or

attack graph (AG) - based method (cf. Table 2), and

14 propose a new (or improved) TM or AG to the

based method (cf. Table 3).

Table 2: Papers employing an existing threat modeling or

attack graph-based method.

Ref. Employ existing TM or AG method

Alhebaishi et

al. (2016)

Employs threat modeling of cloud data

center design.

De et al.

(2016)

Proposes re-classification of attacks on P2P

networks using goal-based threat modeling.

de Souza and

Tomlinson

(2014)

Investigates the no hypervisor architecture

using a threat model.

Ingalsbe et al.

(2011)

Uses the Enterprise Threat Modeling (ETM)

methodology to identify, assess, and mitigate

risk in cloud computing, mobile toting, and

consumerized enterprises.

Wen (2014) Employs an attack graph on a university

cloud infrastructure.

Nagaraju and

Parthiban

(2015)

Analyzes configurations of authentication

access points in cloud using attack graphs.

Sahay et al.

(2018)

Uses attack graphs for vulnerability

assessment of IoT.

Sharma

(2017)

Uses a threat model to recognize the most

insecure threats of security in cloud

computing.

Subasinghe et

al. (2014)

Analyzes social media network data using

attack trees.

Torkura et al.

(2018)

Uses a threat modeling approach for

measuring security threats in cloud storage

brokers.

Zimba et al.

(2016)

Employs attack trees to analyze man in the

cloud attacks.

Looking at what types of data and validation

methods the papers are based on we find that among

the 14 papers proposing a new or improved method,

five of them have no data or unclear data for

validating or testing their proposed approach, and

the other nine papers report data use - a case study

(Kazim and Evans, 2016), examples (Kammüller et

al., 2016; Schilling and Werners, 2013), and

experimental implementations (cloud environments,

virtual machines) (Gholami et al., 2016; Kamongi et

al., 2014; Ngenzi et al., 2016), with some also

including vulnerability data (Manzoor et al., 2018;

Mjihil et al., 2017; Wang et al., 2018).

Table 3: Papers making a methodology contribution to

threat modeling or attack graphs.

Ref. Proposing a new or improved TM or

AG method

Amini et al.

(2015)

Proposes a dynamic threat modeling method.

Aydin and

Jacob (2016)

Presents extensibility features to the threat

modeling tool Cloud-COVER.

Cheng et al.

(2012)

Proposes an approach of security evaluation

based on attack graphs in a cloud computing

environment.

Gholami and

Laure (2016)

Describes an extension of the Cloud Privacy

Threat Modeling (CPTM) methodology.

Gholami et al.

(2016)

Describes an extension of the Cloud Privacy

Threat Modeling (CPTM) methodology (and

tests it in a case study).

Kammüller et

al. (2016)

Presents an approach to characterizing

malicious and unintentional insider threats

on the IoT by attack vectors.

Kamongi et

al. (2014)

Proposes a novel automated architecture for

threat modeling and risk assessment for

cloud computing called NEMESIS.

Kazim and

Evans (2016)

Presents a threat modeling approach to

determine the threats for cloud services.

Manzoor et al.

(2018)

Proposes a threat modeling approach for

cloud ecosystems based on Petri nets and

Design Structure Matrices.

Mjihil et al.

(2017)

Proposes a framework for improving attack

graph scalability for the cloud.

Ngenzi et al.

(2016)

Proposes a threat modeling approach that

prevents attacks that may affect the virtual

machines on the cloud.

Schilling and

Werners

(2013)

Proposes a quantitative threat modeling

approach to evaluate and increase the

security of cloud-based systems.

Wang et al.

(2018)

Presents a vulnerability assessment

framework based on attack graphs.

Wang et al.

(2015)

Proposes an approach to analyze threats and

to improve data security of smart city

systems.

Among the 25 analyzed papers, some interesting

future work are outlined - extend the scale and scope

of existing efforts (Alhebaishi et al., 2016), deploy a

novel model to define new threats which are more

critical (Amini et al., 2015), build a prototype

(Gholami et al., 2016), graphically represent the risk

identified in threat models (Ingalsbe et al., 2011),

integrate with quantitative analysis (Kammüller et

al., 2016), dynamically assess any given cloud

environment and be able to detect and prevent new

zero-day type of weaknesses (Kamongi et al., 2014),

identify simulated attacks in multiple systems on the

cloud (Ngenzi et al., 2016), representation of

uncertainty (Schilling and Werners, 2013), develop a

fully automated risk management framework

(Subasinghe et al., 2014), implement automatic

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

372

security configuration methods (Torkura et al.,

2018), and improve the threat library to shorten the

threat assessment life cycle (Wang et al., 2015).

Noticeably, eight papers do not outline any future

work and six papers focus their future work entirely

on specifics of their approach.

4 WORKSHOP

To further investigate and discuss these issues in

large-scaled ICT in smart cities, a cyber security

workshop was arranged on November 20

, 2018

with the topic of security beyond enterprise

architecture (systems-of-systems in smart cities).

The workshop lasted for one hour and fifteen

minutes and was a part of a National executive

course in cyber security hosted by the University.

The ten participants have roles such as IT architect,

head of system management & IT, senior adviser IT,

IT responsible, chief of operative IT security, and

CEO. They come from organizations such as the

National Energy Agency, National Defense,

National department of traffic, a smaller power

utility company, and an investment management

company.

During the workshop, the participants first

discussed the risks and threats in smart cities, then

continued the discussion with what types of attacks

can be exploited for such threats, followed by what

countermeasures one can implement to prevent such

attacks.

Finally, the participants discussed the differences

between a single organization (enterprise

architecture) and an ecosystem of organizations

(incl. individuals) such as a smart city, and also how

these differences could affect threat modeling

approaches.

4.1 Threats, Attacks, and

Countermeasures in Smart Cities

Smart city threats that were discussed include

lacking personal integrity, disrupting societal

functions such as healthcare, energy, water, and

waste, manipulating data creating economic damage,

as well as terror attacks e.g. using vehicles, etc.

Typical attacks discussed regarding the

mentioned threats were denial-of-service, man-in-

the-middle, zero-day vulnerabilities, and known

vulnerabilities (due to not patched or none hardened

IoT products), etc.

According to the participants of the workshop,

countermeasures could be the usual suspects such as

hardening, patching, network segmentation and

isolation, SIEM, IDS, IPS systems, and active

monitoring using AI, etc.

4.2 Differences between Single

Organizations and the Smart City

Ecosystem

During the workshop discussions, the participants

talked a lot about the differences between one single

organization and the network of organizations and

technology as a part of a smart city and how this

influences approaches such as threat modeling and

attack simulations. Some findings are presented

below:

(i) For one organization, it is usually clear who

owns technology and data, as well as who is

responsible for the security and potential flaws. For

a smart city, there are plenty of scenarios where

ownership and responsibility are unclear.

(ii) The attack surface is already large and

complex in an organization but will become much

larger and more complex within smart cities,

opening up new avenues of potential attacks.

(iii) There are also large areas of unclear juridical

issues especially with having national state-owned

organizations in the ecosystem.

(iv) Simple bugs or vulnerabilities in peripheral

small IoT devices might have a huge impact on

completely different parts of the system, especially

since patching and hardening these might be

difficult.

(v) Trust between different parties in a smart city

is needed to share data and infrastructure. For

instance, with threat modeling, you might need to

share sensitive information about technology and

vulnerabilities with others.

4.3 Threat Modeling and Attack

Simulations for Smart Cities

Since threat modeling is promoted for single

organizations to handle the complexity of

infrastructure and risks, one could assume that it

would also be a good approach for larger systems-

of-systems. Looking at the threats, attack types, and

countermeasures discussed for smart cities, many are

the same as for single organizations, but are further

integrated to form a larger network, where each

island is owned by different legal entities.

Using threat modeling and attack simulation

approaches in systems-of-systems owned and

managed by different actors, would most likely

mean that, every actor creates a detailed threat

Threat Modeling and Attack Simulations of Smart Cities: A Literature Review and Explorative Study

373

model of their domain (their island) with outgoing

and incoming dependencies to other actors, and a

systems-of-systems-wide (e.g. city) actor is

responsible for collecting and integrating the models

to get the complete picture.

5 DISCUSSION

In this section, the results are discussed, and the

limitations of the work are addressed.

5.1 Results Discussion

It was a surprise to us to find that, only one paper

focuses on threat modeling or attack graphs for

smart cities. Both of them are up and coming fields

that can benefit greatly if combined. Security should

be a priority if the smart city dream is to come true,

and especially the use of proactive methods for

designing a secure smart city infrastructure from the

beginning.

21 out of the 25 papers found are focused on

securing cloud infrastructure. This is an indication

that cloud work is more mature when it comes to

proactive security, while IoT is still focused more on

functionality. This is also what we can see in the

media, where IoT products are being hacked all the

time. While the cloud providers have been fairly

spared, it is our true belief that we need to put more

focus on designing secure IoT products and that

threat modeling can be of great assistance here.

None of the papers in the SLR have been

published in the same outlet, and the majority have

been published in conferences (and according to our

expertise in the area, not the most prestigious ones).

This is another indicator that the field of threat

modeling is still fairly immature and has not found

its place in the academic community (there is no

Journal or Conference of Threat Modeling yet). The

lack of data used for validation makes it difficult for

new approaches to be published in high impact

journals.

The participants of the workshop concluded that,

for smart cities, it is expected that it will be the same

type of attacks and countermeasures as in single

organizations today, just on a larger scale, and with

some added issues regarding ownership and

responsibilities. Threat modeling will be of

assistance with some of these issues, but the same

problem of modeling responsibility and data

ownership (liability) will be present for these

approaches as well.

The context of smart cities (and other inter-

organizational scoped digital infrastructures) also

poses new demands for threat modeling, which has

largely grown from a single system development

perspective as discussed in the workshop. The

progression to meet this demand includes the

development of efficient methods for automatic

support for threat modeling, as well as the

development of ontologies and domain-specific

languages appropriate for the scope of the target

system environment. Such work is also ongoing.

Another, perhaps newer need, is to be able to share

threat models and results from analyzing them. This

topic is close to the domain of cyber threat

intelligence and its need for information sharing. A

natural evolution for threat modeling would be to

move into standardization and develop something

like the Structured Threat Information Expression

(STIX) and its accompanying communication

protocol the Trusted Automated Exchange of

Intelligence Information (TAXII)

. Combing the

topics of threat modeling and threat intelligence is

largely a natural evolution that would be beneficial

to both domains. Maybe we will see a future version

of STIX/TAXII covering also threat models and a

specific smart city STIX language.

5.2 Limitations

There are some limitations of our systematic

literature review. We tried to go broad by using

Google Scholar rather than a set of individual

databases, which is a more common way of doing it.

This would have given us a much smaller number of

papers to work with since many of the journals and

conferences are not indexed in the high-quality

databases. We chose quantity over quality this time.

Threat modeling and attack graphs might not be

the only approaches to do similar types of proactive

security work (using graphical models for security

analysis). Thus, we might have missed some work,

but it is still unclear to us what that would be.

Although plenty of sources list IoT and cloud

infrastructure as the main technologies for smart city

development there could be other technologies we

have not looked at.

The participants of the workshop were chosen in

a higher learning course in security and not based on

their skills and expertise for this purpose. However,

we still believe that they know necessary for the

The OASIS Cyber Threat Intelligence Technical

Committee, https://oasis-open.github.io/cti-

documentation/

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

374

types of discussions we had. We have to keep in

mind that their views on the issue represent a narrow

set and are most likely not statistically significant.

6 CONCLUSIONS

One can conclude from the systematic literature

review that, few of the approaches used or proposed

have taken the whole systems-of-systems into

account in their work, instead, most focus on

securing one single IoT device or the internals of a

specific cloud solution. How to deal with the

complexities of a smart city, and where there are

many different types of technologies, huge amounts

of assets (e.g. all the IoT devices are spread out)?

The technology, data, et cetera developed,

implemented, used, owned, and maintained by

different organizations have not been considered yet

in any found materials, which was also the main

point discussed in the workshop, and suggested to be

needed.

Future work includes proposing a smart city

threat modeling and attack simulation method based

on the Meta Attack Language (MAL) (Johnson et

al., 2018), and validate it with test cases that are

similar to (Xiong et al., 2019) and real-world case

studies (similar to Lagerström et al., 2010).

ACKNOWLEDGEMENTS

This work has received funding from the Swedish

Energy Agency in the Viable Cities program.

REFERENCES

Alhebaishi, N., Wang, L., Jajodia, S., and Singhal, A.

(2016). Threat modeling for cloud data center

infrastructures. International Symposium on

Foundations and Practice of Security. Springer.

Amini, A., A.R., N. Jamil., and Z`aba, M.R. (2015).

Threat modeling approaches for securing cloud

computing. Journal of Applied Sciences, 15(7).

Aydin, M., and Jacob, J. (2016). Providing Extensibility to

Threat Modelling in Cloud-COVER's Underlying

Analysis Model. 2016 European Intelligence and

Security Informatics Conference (EISIC), pages 45-

51.

Booth, A. A., Papaioannou, D., and Sutton, A. (2012).

Systematic approaches to a successful literature

review. Los Angeles: SAGE.

Cheng, Y., Du, Y., Xu, J., Yuan, C., and Xue, Z. (2012).

Research on security evaluation of cloud computing

based on attack graph. Cloud Computing and

Intelligent Systems (CCIS), IEEE 2nd International

Conference on Cloud Computing and Intelligence

Systems (CCIS). IEEE.

De, S., Barik, M. S., and Banerjee, I. (2016). Goal Based

Threat Modeling for Peer-to-Peer Cloud. Procedia

Computer Science, 89: 64-72.

de Souza, W. A. R., and Tomlinson, A. (2014). A Threat

Model for a Cloud Infrastructure with no Hypervisor.

International Journal of Intelligent Computing

Research (IJICR), 5(1): 391-397.

Ekstedt, M., Johnson, P., Lagerström, R., Gorton, D.,

Nydrén, J., and Shahzad, K. (2015). Securi cad by

foreseeti: A cad tool for enterprise cyber security

management. In 2015 IEEE 19th International

Enterprise Distributed Object Computing Workshop,

pages 152-155. IEEE.

Elmaghraby, A. S., and Losavio, M. M. (2014). Cyber

security challenges in Smart Cities: Safety, security

and privacy. Journal of advanced research, 5(4): 491-

497.

Gholami, A., and Laure, E. (2016). Advanced cloud

privacy threat modeling. In proc. of the sixth

International conference on Computer Science and

Information Technology (CCSIT).

Gholami, A., Lind, A., Reichel, J., Litton, J., Edlund, A.,

and Laure, E. (2016). Design and implementation of

the advanced cloud privacy threat modeling.

International Journal of Network Security and Its

Applications (IJNSA), 8(2): 103-122.

Holm, H., Shahzad, K., Buschle, M., and Ekstedt, M.

(2015). P2CySeMoL: Predictive, Probabilistic Cyber

Security Modeling Language. IEEE Transactions on

Dependable and Secure Computing, 12(6): 626-639.

Hwang, Y. H. (2015). Iot security and privacy: threats and

challenges. In Proceedings of the 1st ACM Workshop

on IoT Privacy, Trust, and Security, page 1. ACM.

Ingalsbe, J. A., Shoemaker, D., and Mead, N. R. (2011).

Threat Modeling the Cloud Computing, Mobile

Device Toting, Consumerized Enterprise - an

overview of considerations. Americas Conference on

Information Systems (AMCIS), page 359.

Jin, J., Gubbi, J., Marusic, S., and Palaniswami, M.

(2014). An information framework for creating a smart

city through internet of things. IEEE Internet of

Things journal, 1(2): 112-121.

Johnson, P., Vernotte, A., Ekstedt, M., and Lagerström, R.

(2016a). pwnpr3d: an attack-graph-driven probabilistic

threat-modeling approach. In 2016 11th International

Conference on Availability, Reliability and Security

(ARES), pages 278-283. IEEE.

Johnson, P., Vernotte, A., Gorton, D., Ekstedt, M., and

Lagerström, R. (2016b). Quantitative information

security risk estimation using probabilistic attack

graphs. In International Workshop on Risk

Assessment and Risk-driven Testing, pages 37-52.

Springer.

Johnson, P., Lagerström, R., and Ekstedt, M. (2018). A

Meta Language for Threat Modeling and Attack

Simulations. In Proceedings of the 13th International

Threat Modeling and Attack Simulations of Smart Cities: A Literature Review and Explorative Study

375

Conference on Availability, Reliability and Security,

page 38. ACM.

Jürjens, J. (2002). UMLsec: Extending UML for secure

systems development. In International Conference on

The Unified Modeling Language, pages 412-425.

Springer, Berlin, Heidelberg.

Kammüller, F. R., Nurse, J. W., and Probst, C. (2016).

Attack tree analysis for insider threats on the iot using

isabelle. International Conference on Human Aspects

of Information Security, Privacy, and Trust. Springer.

Kamongi, P., Gomathisankaran, M., and Kavi, K.M.

(2014). Nemesi: Automated Architecture for Threat

Modeling and Risk Assessment for Cloud Computing.

In Proceedings of the 6th ASE International

Conference on Privacy, Security, Risk and Trust

(PASSAT).

Katsikeas, S., Johnson, P., Hacks, S., and Lagerström, R.

(2019). Probabilistic Modeling and Simulation of

Vehicular Cyber Attacks: An Application of the Meta

Attack Language. In Proceedings of the 5th

International Conference on Information Systems

Security and Privacy (ICISSP).

Kazim, M. and Evans, D. (2016). Threat Modeling for

Services in Cloud. 2016 IEEE Symposium on Service-

Oriented System Engineering (SOSE), pages 66-72.

Lagerström, R., Johnson, P., and Ekstedt, M. (2010).

Architecture analysis of enterprise systems

modifiability: a metamodel for software change cost

estimation. Software quality journal, 18(4): 437-468.

Manzoor, S., Zhang, H., and Suri, N. (2018). Threat

Modeling and Analysis for the Cloud Ecosystem. 2018

IEEE International Conference on Cloud Engineering

(IC2E), pages 278-281.

Mjihil, O., Haqiq, A., and Huang, D. (2017). Improving

attack graph scalability for the cloud through SDN-

based decomposition and parallel processing.

International Symposium on Ubiquitous Networking.

Springer.

Nagaraju, S., and Parthiban, L. (2015). Analyzing

configurations of authentication access points in cloud

using attack graph. 2015 IEEE International

Conference on Computer Graphics, Vision and

Information Security (CGVIS), pages 72-76.

Ngenzi, A., Selvarani, R. and Suchithra. R. (2016). Threat

Modeling Based on Randomized Seeding Attacks in

Cloud Virtual Machines. IOSR Journal of Computer

Engineering (IOSR-JCE), 18(3): 53-60.

Ning, H., and Liu, H. (2012). Cyber-physical-social based

security architecture for future internet of things.

Advances in Internet of Things, 2(1): 1.

Sahay, R., Geethakumari, G., and Modugu, K. (2018).

Attack graph - Based vulnerability assessment of rank

property in RPL-6LOWPAN in IoT. 2018 IEEE 4th

World Forum on Internet of Things (WF-IoT), pages

308-313.

Schilling, A., and Werners, B. (2013). A quantitative

threat modeling approach to maximize the return on

security investment in cloud computing. Proceedings

of the 1st International Conference on Cloud Security

Management, pages 68-77.

Schneier, B. (1999). Attack trees. Dr. Dobb’s journal,

24(12): 21-29.

Sharma, A. (2017). Emerging Trends in Safety Issues in

Cloud - The Potentials of Threat Model. International

Journal on Future Revolution in Computer Science

and Communication Engineering, 3(10): 260-263.

Subasinghe, K. D. B. H., Kodithuwakku, S. R., and Perera,

H. S. C. (2014). A Risk Management Framework in

the Cloud using Big Data and Security Informatics-An

Application of Attack Tree for Analysis of Social

Media Networks. International Journal of Scientific

and Research Publications, 11(4): 1-5.

Suciu, G., Vulpe, A., Halunga, S., Fratu, O., Todoran, G.,

and Suciu, V. (2013). Smart cities built on resilient

cloud computing and secure internet of things. In 2013

19th international conference on control systems and

computer science, pages 513-518. IEEE.

Torkura, K. A., Sukmana, M. I. H., Meinig, M., Cheng, F.,

Meinel, C., and Graupner, H. (2018). A threat

modeling approach for cloud storage brokerage and

file sharing systems. NOMS IEEE/IFIP Network

Operations and Management Symposium. IEEE.

Vlacheas, P., Giaffreda, R., Stavroulaki, V., Kelaidonis,

D., Foteinos, V., Poulios, G., and Moessner, K.

(2013). Enabling smart cities through a cognitive

management framework for the internet of things.

IEEE communications magazine, 51(6): 102-111.

Wang, H., Chen, Z., Zhao, J., Di, X., and Liu, D. (2018).

A Vulnerability Assessment Method in Industrial

Internet of Things Based on Attack Graph and

Maximum Flow. IEEE Access, 6: 8599-8609.

Wang, P., Ali, A., and Kelly, W. (2015). Data security and

threat modeling for smart city infrastructure. Cyber

Security of Smart Cities, Industrial Control System

and Communications (SSIC). International Conference

on Cyber Security of Smart cities, Industrial Control

System and Communications (SSIC). IEEE.

Wen, L. (2014). Research on Multilayer Security Audit

Research Based on Attack Graph in Cloud Computing.

Applied Mechanics and Materials, 644: 3408-3411.

Xiong, W., Krantz, F., and Lagerström, R. (2019). Threat

modeling and attack simulations of connected

vehicles: a research outlook. In Proceedings of the 5th

International Conference on Information Systems

Security and Privacy (ICISSP).

Xiong, W. and Lagerström, R. (2019). Threat modeling –

a systematic literature review. Computers & Security,

84: 53-69.

Zimba, A., Chen, H., and Wang, Z. (2016). Attack tree

analysis of Man in the Cloud attacks on client device

synchronization in cloud computing. Computer and

Communications (ICCC), 2nd IEEE International

Conference on. IEEE.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

376
