Real-time 3D Object Detection from Point Clouds using an RGB-D

Camera

Ya Wang

, Shu Xu and Andreas Zell

Department of Cognitive Systems, University of Tuebingen, Sand 1, 72076 Tuebingen, Germany

Keywords:

Object Detection, 2D, 3D, Real-time, RGB-D Camera, Point Clouds.

Abstract:

This paper aims at real-time high-accuracy 3D object detection from point clouds for both indoor and outdoor

scenes using only a single RGB-D camera. We propose a new network system that combines both 2D and

3D object detection algorithms to achieve better real-time object detection results and has faster speed by

simplifying our networks on real robots. YOLOv3 is one of the state-of-the-art object detection methods based

on 2D images. Frustum PointNets is a real-time method using frustum constraints to predict a 3D bounding

box of an object. Combining these two approaches can be efﬁcient for real-time 2D-3D object detection, both

indoor and outdoor. We not only have the improved training and evaluation accuracy and lower mean loss on

the KITTI object detection benchmark, but also achieve better average precision (AP) on 3D detection of all

classes in three different levels of difﬁculty. In addition, we implement our system of on-board real-time 2D

and 3D object detection using only an RGB-D camera on three different hardware devices.

1 INTRODUCTION

Nowadays, there are many outstanding 2D and 3D

object detection approaches based on deep convolu-

tional neural networks (CNNs), and they can be real-

time with graphics processing unit (GPU) accelera-

tion, e.g. YOLO (Redmon and Farhadi, 2018; Red-

mon et al., 2016; Redmon et al., 2016), Faster R-CNN

(Ren et al., 2015), Mask R-CNN (He et al., 2017) and

PointNets (Qi et al., 2018; Qi et al., 2017a; Qi et al.,

2017b). Nevertheless, accurate and fast detection of

3D objects is a challenge and plays an important role

in robotics, especially for autonomous driving. Au-

tonomous robots are widely applied in different re-

search ﬁelds and can be equipped with different sen-

sors as well as powerful GPUs. RGB-D cameras are

broadly used and they are much cheaper and more

lightweight comparing with the Radar or Lidar sen-

sors, meanwhile offering rich scene information like

3D colorful point clouds. Speciﬁcally, an RGB image

offers us useful 2D information that can be used in

state-of-the-art 2D object detection approaches while

a depth map is useful for 3D information e.g. geo-

metric position of point clouds, which give more in-

formation on object geometry.

Some researchers work on methods that com-

https://orcid.org/0000-0002-8726-8151

bine both 2D and 3D object detection, e.g. Frus-

tum PointNets (Qi et al., 2018), MV3D (Chen et al.,

2017), PointFusion (Xu et al., 2018), and DenseFu-

sion (Wang et al., 2019). Similar to Frustum Point-

Nets, our method can easily and efﬁciently detect cars

and pedestrians for outdoor scenes, which is useful

for autonomous driving and street scene understand-

ing. Detecting cars, pedestrians, and cyclists precisely

and efﬁciently for outdoor scenes is useful for au-

tonomous driving and robot obstacle avoidance, while

person detection for both indoor and outdoor scenes

is also helpful and challenging for emergency rescue

and human-robot interaction.

We develop and analyze a modiﬁed Frustum

PointNet network, which mainly combines 2D and

3D object detection to achieve better pointwise ob-

ject detection accuracy, and has better performance

on real-time robot applications. We also compare our

proposed network system with the Frustum PointNets

algorithms, using existing benchmarks like the KITTI

object detection benchmark (Geiger et al., 2012).

Considering that our system has good real-time per-

formance and can be used for robotics, we also im-

plemented it on a Robotnik Summit XL mobile robot,

as well as a Jetson TX2 developer kit. All testing

experiments were performed and compared on three

different hardware devices. Furthermore, the perfor-

mance of object detection in practical indoor and out-

Wang, Y., Xu, S. and Zell, A.

Real-time 3D Object Detection from Point Clouds using an RGB-D Camera.

DOI: 10.5220/0008918904070414

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 407-414

ISBN: 978-989-758-397-1; ISSN: 2184-4313

407

door scenes has also been improved.

Our main contribution in this paper is that we pro-

pose a new strategy of combining the 2D and 3D ob-

ject detection approaches to achieve higher accuracy.

Another contribution is that we realize 2D and 3D

combined object detection with fast inference time in

our mobile robots instead of only training and testing

on KITTI benchmarks. Last but not least, our strategy

works well both for indoor and outdoor scenes.

2 RELATED WORK

2.1 2D Object Detection

There are many popular deep CNNs object detection

approaches based on 2D RGB images. 2D object de-

tection can be divided mainly on two parts: region-

based CNNs like Mask R-CNN (He et al., 2017) and

Faster R-CNN (Ren et al., 2015); one-shot CNNs like

YOLOv3 (Redmon and Farhadi, 2018) and SSD (Liu

et al., 2016).

Faster R-CNN (Ren et al., 2015) is an end-to-

end object detection method with region proposal net-

works (RPNs) that works in real-time. It is based on

the previous region-based work of Fast R-CNN (Gir-

shick, 2015), and the authors use RPNs to replace

selective search from fast R-CNN, and later merge

RPNs and fast R-CNN into a single network by shar-

ing the convolutional features. Mask R-CNN (He

et al., 2017) is based on Faster R-CNN, and extends

into image segmentation by adding a mask network

parallelly, therefore it can do both object detection

and segmentation. However, even with a powerful

GPU acceleration like an Nvidia GTX 1080Ti, it can

only reach 5 frames per second (fps).

On the contrary, YOLOv3 (Redmon and Farhadi,

2018) is much faster, and it is based on the previ-

ous work of YOLOv1 (Redmon et al., 2016) and

YOLOv2 (Redmon and Farhadi, 2017). YOLOv3 is

a real-time object detection method, which contains

Darknet-53 to extract features and feature pyramid

networks (FPN) to detect small objects. Therefore,

it achieves good performance for detection of objects

at different scales. It can reach around 25 fps with the

same type of single GPU acceleration. Its 2D bound-

ing boxes of object detection can not only improve

tracking accuracy by removing some outliers of fea-

ture matching (Wang and Zell, 2018), but also give

useful semantic information that might be used for 3D

object detection (Qi et al., 2018).

2.2 3D Object Detection

RGB-D cameras can give us rich information about

the objects in scenes. They offer not only 2D RGB

images but also depth maps and can get 3D point

clouds directly using stereo infrared sensors. In

(Wang and Zell, 2019a) and (Wang and Zell, 2019b),

the authors built an RGB-D map of colorful point

clouds using a forward-looking Microsoft Kinect v2

camera installed on a Metralabs Scitos G5 mobile

robots, and they showed that colorful point clouds are

useful compared with only geometric point clouds.

Most real-time state-of-the-art 3D object detec-

tion approaches are using expensive Lidar sensors

such as Vote3Deep (Engelcke et al., 2017), PointR-

CNN (Shi et al., 2019) and Fast PointRCNN (Chen

et al., 2019). Some state-of-the-art object detection

approaches based on images lack information about

3D geometry (Su et al., 2015; Kanezaki et al., 2018;

Johns et al., 2016). They need multi-view images

or projection methods e.g. triangulation, which will

cause additional drift error in the measurement.

2.3 Combination of 2D and 3D Object

Detection

There exist some state-of-the-art methods that com-

bine both 2D and 3D object detection. MV3D (Chen

et al., 2017) is a multi-view based 3D object detection

network mainly for autonomous driving. The appli-

cation is close to ours but we only use a single RGB-

D camera without Lidar sensors. The authors com-

bined bird-view point clouds, front-view point clouds

and RGB image information, and no speed was men-

tioned, so we guess there might be some space for

real-time autonomous driving tasks.

Frustum PointNets (Qi et al., 2018) is using a 2D

detector to get a 2D box and then project into a corre-

sponding frustum constraint to do 3D box regression.

PointNet and PointNet++ (Qi et al., 2017a; Qi et al.,

2017b) are used for instance segmentation inside each

frustum and also used for amodal 3D box estimation.

PointFusion (Xu et al., 2018) proposed a deep sen-

sor fusion method for 3D bounding box estimation. It

uses RGB images as input of ResNet to get 2D fea-

tures and uses the same 3D point cloud input from a

Lidar sensor before putting it into PointNet, and then

gets the 3D feature. Both dense fusion and global fu-

sion are done by comparing with the ﬁnal model and

the baseline model. But these above methods are all

needed to use 3D point clouds from Lidar sensors,

namely having a good performance within intensity

but not perform well without intensity. Besides, the

2D detector part has no open-source code, and they

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

408

use the ground-truth 2D detection results for training

in the KITTI benchmark.

DenseFusion (Wang et al., 2019) is using only

an RGB-D camera, and it is similar to PointFusion’s

dense fusion part, estimating 6DoF object pose by it-

eration. It is a pixel-wise dense fusion method that

concatenates color embeddings and PointNet geomet-

ric embeddings for matching points. Different from

PointNets, they use average pooling instead of max

pooling to get the global features. Later they use the

same way to combine local point features with the

global feature. The authors also demonstrated their

approach in a robot that can grasp and manipulate ob-

jects, and they announced that their method is approx-

imately 200x faster than PoseCNN+ICP. However, it-

erative closest points (ICP) is very slow and few re-

searchers would use it for real-time applications. The

authors also announced that they can reach 16 fps

with 5 objects in each frame for a Toyota Human Sup-

port Robot, but no hardware GPUs, CPUs, and mem-

ory information was mentioned. Therefore, it is not

possible to fairly compare the speed of our method

with theirs. Besides, the object classes are different

and the application is also different.

Brieﬂy speaking, the approaches of combining 2D

and 3D object detection can normally bring us more

precise detection results, but may slow down the sys-

tem speed. Therefore, fast and accurate real-time 2D

and 3D object detection is a big challenge. We want

to ﬁnd a novel and smart strategy for the combination

of 2D and 3D object detection, and ﬁnally realize both

accurate and fast detection for the indoor and outdoor

scenes.

3 SYSTEM ANALYSIS

3.1 Our Network Structure

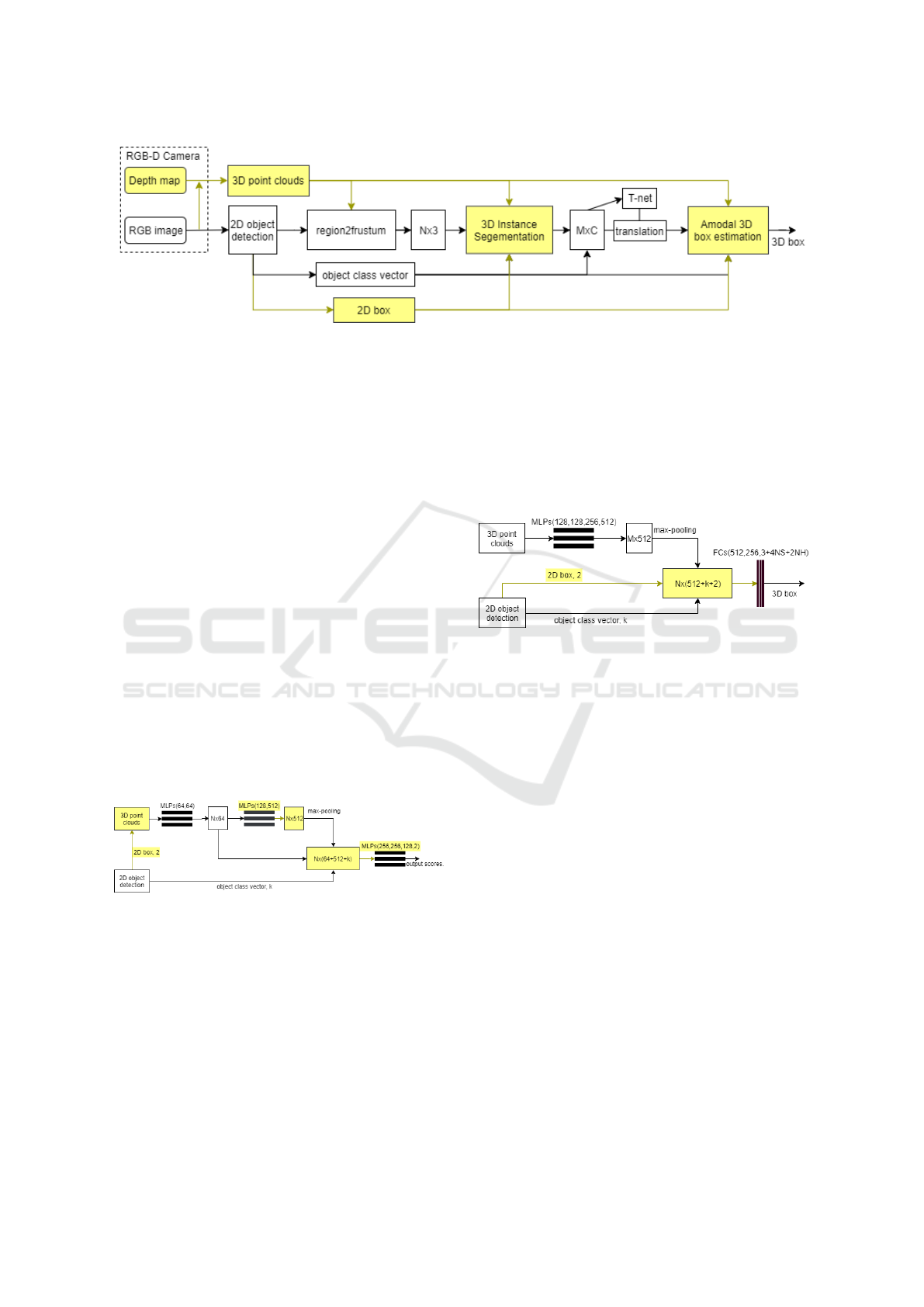

Figure 1 shows our proposed system workﬂow. The

yellow parts highlight our main differences from

Frustum PointNets (Qi et al., 2018). In detail, we

only use a single RGB-D camera, namely an Intel Re-

alsense D435, in our system to realize both 2D and

3D object detection. 2D object detection in Frustum

PointNets mainly works in the region to frustum pro-

cess, and later object class vector k is used. How-

ever, in our designed system, 2D information is fully

used as extra channels that CNNs can learn additional

features. Meanwhile, amodal 3D box estimation net-

works also use 2D information again.

3.2 Data Pre-processing

For benchmarks, we choose the KITTI object detec-

tion benchmark for both the training and evaluation

processes. The pre-processing of having pickle ﬁles

was the same as the Frustum PointNets authors did.

In KITTI (Geiger et al., 2012) the RGB images were

taken by a PointGrey Flea2 RGB camera and the 3D

information was from a Velodyne HDL-64E 3D Li-

dar sensor. The calibration ﬁles were also needed for

coordinates transformation and points projection.

For the real implementation in our robots, we

mainly use an Intel Realsense D435 RGB-D camera.

This RGB-D camera is lightweight, cheap, easy-to-

use, and has ofﬁcial documentation which is conve-

nient and efﬁcient for us to do data collections for

the real-world environment, both indoor and outdoor.

Since we choose the Intel Realsense D435 camera,

pyrealsense2 is used. There is no need to use all

point clouds from the RGB-D camera because of large

number points and some noise points, so we do frame-

by-frame random down-sampling into 2048 points for

each frustum. The principle is that we can not reduce

points too much and keep the main features from orig-

inal point clouds.

There are mainly three steps for data pre-

processing: 2D bounding box extraction, frustum ex-

traction, and data augmentation. The 2D box can be

either directly taken from the KITTI benchmark or re-

ceived by YOLOv3 2D detector from a D435 cam-

era. Then by using the region2frustum function we

can get an extracted frustum. In data augmentation,

the 2D box center is randomly shifted and the width

and height are randomly re-scaled from 0.9 to 1.1 for

our real implementation. The type of objects is rep-

resented as one-hot vectors. Finally, the whole data

is saved as pickle ﬁles and the pickle ﬁles contain the

information of ID, 2D box parameters (positions and

sizes), 3D box parameters (positions and sizes), point

clouds positions and intensities, labels, object types,

3D heading bins (yaw angle), and frustum angles. The

pickle ﬁles are mainly used for training.

3.3 2D and 3D Object Detection

One of our main contributions in this paper is that we

propose a new strategy of combining 2D and 3D in-

formation into the neural networks. Frustum Point-

Nets ﬁrst use 2D object methods to get 2D bounding

box, then use this information to get a 3D frustum and

feed into PointNets, do instance segmentation, ﬁnally

predict 3D bounding box of each object.

After several trials, we ﬁnally designed our system

as shown in Fig. 1.

Real-time 3D Object Detection from Point Clouds using an RGB-D Camera

409

Figure 1: OurFPN System Workﬂow: We only use a single RGB-D camera to get 3D point clouds, and yellow parts highlight

our main differences.

For the input, x,y,z of point clouds position as well

as width and height of box information from 2D ob-

ject detection offers useful prior information of ob-

jects. The problem is that we need to get 2D box in-

formation and ﬁnd a smart strategy to fuse both 2D

and 3D detections. The original Frustum PointNets

authors use ground truth 2D box of KITTI to train

their model, while we use YOLOv3 fast object detec-

tion method to get the 2D box. Even though YOLOv3

is fast, it is not as precise as Frustum PointNets au-

thors designed 2D encoder-decoder detector and they

do not open source this part code, but through their

paper description they used Fast R-CNN (Girshick,

2015) and reduced VGG (Simonyan and Zisserman,

2014) base network from SSD (Liu et al., 2016), also

added the feature pyramid layers (Lin et al., 2017).

Figure 2 shows our sub-system of 3D instance

segmentation and the yellow parts highlight our main

differences from Frustum PointNets (Qi et al., 2018).

Here MLPs denote multi-layer perceptrons, and the

number inside the circle means the number of convlu-

tional layers. Each layer has batch normalization with

ReLU.

Figure 2: OurFPN 3D Instance Segmentation: We add

not only the region2frustum output and one hot vector k as

object class vector, but also 2D bounding box information.

The yellow parts highlight our main differences.

Brieﬂy, for 3D instance segmentation, we can see

that 1024 feature vector is not a necessity. For 3D

instance segmentation, the precision is high (above

90%) comparing with 3D box prediction, and we

notice that even a decrease of the ﬁnal global fea-

ture vector number from 1024 into 512 elements is

still sufﬁcient. Therefore we changed the global fea-

ture vector, which saves both our training and infer-

ence time. Besides, some convolutional layers can be

safely removed with our many tests and the robust-

ness of the whole system will not be affected, which

also speeds up our whole system.

Figure 3 shows our sub-system of 3D instance

segmentation. The yellow parts highlight our main

differences from Frustum PointNets (Qi et al., 2018).

Figure 3: OurFPN 3D Box Estimation: We add not only

the transformed output from 3D instance segmentation, but

also combined 2D bounding box information again in this

sub-system. The yellow parts highlight our main differ-

ences.

Here NS denotes the number of size clusters (de-

fault value 8), and NH denotes the number of heading

bins (default value 12). FCs denote fully-connected

layers, and the number in the circle means the num-

ber of layers.

Our system is more robust and accurate than the

original Frustum PointNets system, but if we only add

more information inside our system it will be slow.

We have a real-time requirement, as a fast real-time

system is useful for robot applications. Therefore, we

need to do some speed improvements. Totally speak-

ing, our current system does well in a trade-off be-

tween accuracy and speed, shown in section 4.

4 EXPERIMENTS

Our experiments are divided into two parts: KITTI 3D

object detection benchmark and real-world robot im-

plementation. We mainly compare our methods with

two versions of Frustum PointNets (F-PNv1 and F-

PNv2) (Qi et al., 2018). F-PNv1 is based on PointNet

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

410

(Qi et al., 2017a) and F-PNv2 is based on PointNet++

(Qi et al., 2017b).

4.1 KITTI 3D Object Detection

Benchmark

The KITTI 3D object detection benchmark (Geiger

et al., 2012) consists of 7481 training images and

7518 test images, as well as the corresponding 3D

point clouds, comprising a total of 80256 labeled ob-

jects. There are three levels of difﬁculty (easy, moder-

ate and hard): Easy means that the minimum bound-

ing box height is 40 pixels, the maximum occlusion

level is fully visible, and the maximum truncation is

15%; Moderate means that the minimum bounding

box height is 25 pixels, the maximum occlusion level

is partly occluded, and the maximum truncation is

30%; Hard means that the minimum bounding box

height is 25 pixels, the maximum occlusion level is

difﬁcult to see, and the maximum truncation is up to

50%. Besides, for cars, a 3D bounding box overlap

of 70% is required, while for pedestrians and cyclists

only 50% is needed. The reason is that, in 3D space,

cars normally have constant geometric shapes while

pedestrians and cyclists are more ﬂexible in geome-

try.

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Pedestrian

Easy

Moderate

Hard

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Pedestrian

Easy

Moderate

Hard

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Pedestrian

Easy

Moderate

Hard

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Car

Easy

Moderate

Hard

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Car

Easy

Moderate

Hard

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Car

Easy

Moderate

Hard

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Cyclist

Easy

Moderate

Hard

(a) F-PNv1

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Cyclist

Easy

Moderate

Hard

(b) F-PNv2

0.2

0.4

0.6

0.8

0 0.2 0.4 0.6 0.8 1

Precision

Recall

Cyclist

Easy

Moderate

Hard

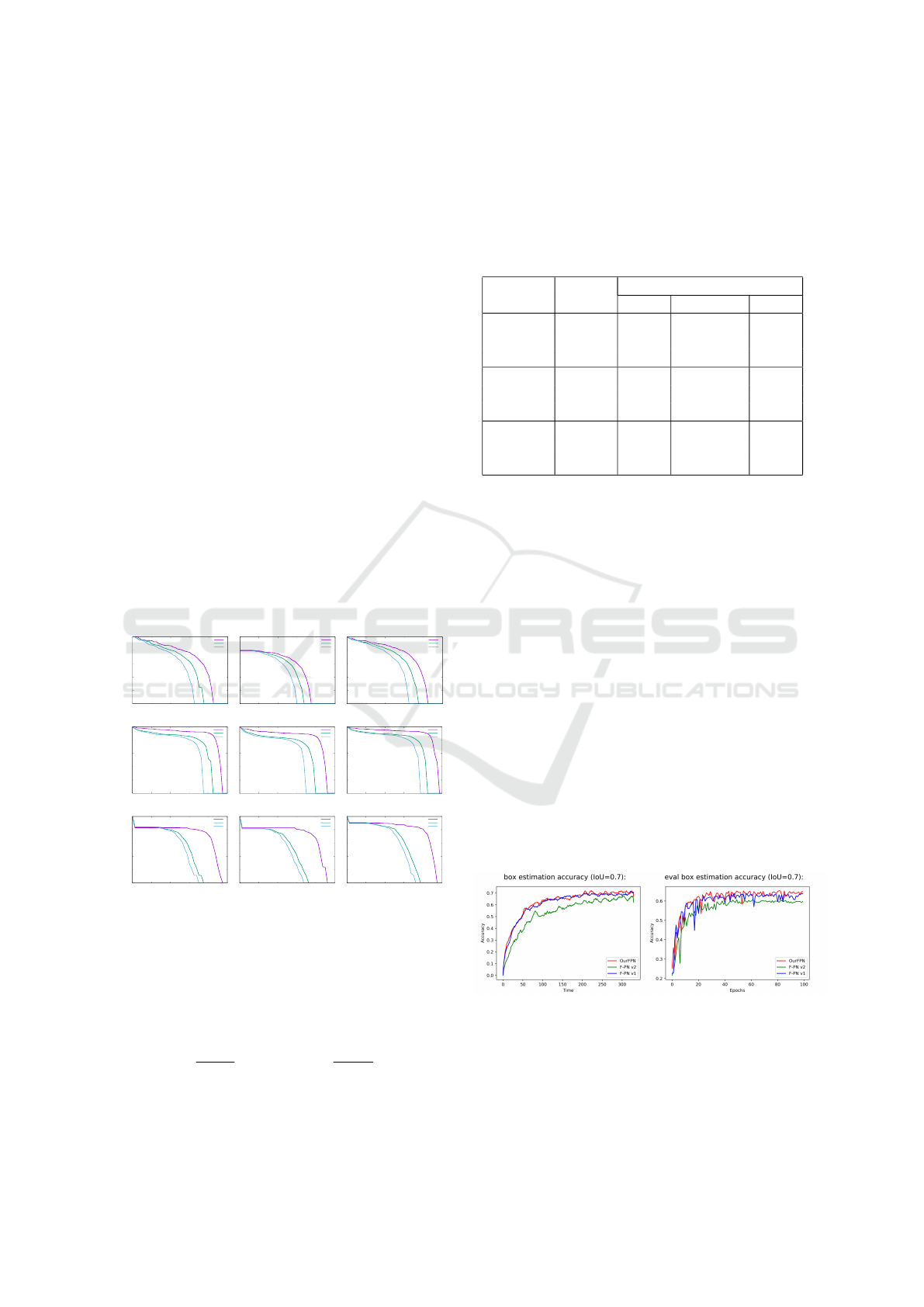

Figure 4: Quantitative results: The Precision-Recall

Curves for Pedestrian, Car, Cyclist 3D Detection. Our net-

work (c) is better than Frustum PointNets (a) and (b) in all

three different objects as well as difﬁculty.

The precision-recall (PR) curve is useful for mea-

suring if the method is good enough for all the posi-

tive and negative samples, and it can be calculated as:

Precision =

T P

T P+FP

and Recall =

T P

T P+FN

. Here T P

means true positive, FP means false positive, and FN

means false negative. Figure 4 shows the PR curves

for pedestrians, cars, and cyclists 3D detection in all

levels of difﬁculty. We can see that our RGB-D mod-

iﬁed Frustum PointNet named OurFPN (c) is always

the best when comparing with the other two Frustum

PointNets in (a) and (b), especially much better than

Frustum PointNet v2.

Table 1: AP Comparison on KITTI 3D Detection (%).

Network Class Difﬁculty

Easy Moderate Hard

Pedest. 66.49 55.71 49.23

F-PNv1 Car 84.00 69.88 62.74

Cyclist 70.16 51.61 47.52

Pedest. 50.60 44.48 45.66

F-PNv2 Car 79.09 62.16 54.24

Cyclist 69.48 48.87 45.66

Pedest. 66.84 57.69 50.95

OurFPN Car 85.17 71.86 64.10

Cyclist 76.81 56.94 53.37

Comparing our RGB-D modiﬁed Frustum Point-

Net (OurFPN) with two Frustum PointNets (F-PNv1

and F-PNv2), average precision (AP) is calculated in

Table 1. We can see that our modiﬁed Frustum Point-

Net outperforms in all classes (Pedestrian, Car, Cy-

clist) and difﬁculty (Easy, Moderate, Hard) for 3D

detection. Frustum PointNet v1 without intensity is

better than v2, but still not as well as ours. Since we

only use a single RGB-D camera, there is no need to

compare 3D point clouds with intensity, which is nor-

mally from expensive Lidar sensors.

The training and evaluation accuracy comparison

is shown in Fig. 5. Our modiﬁed Frustum PointNet

(OurFPN) achieves the highest accuracy in both train-

ing and evaluation processes, while Frustum PointNet

v2 is the worst using 3D point clouds without inten-

sity. It is easy to explain that the original Frustum

PointNet v2 uses the local regions by grouping and

sampling, which heavily depends on the sparsity of

points, and the intensity from Lidar sensors helps a

lot.

(a) Training accuracy (b) Evaluation accuracy

Figure 5: Quantitative results: Training and evaluation ac-

curacy of our modiﬁed Frustum PointNet and original Frus-

tum PointNets (v1 and v2) on KITTI.

Besides, we also compare the mean loss during

training and evaluation, shown in Fig. 6. OurFPN

Real-time 3D Object Detection from Point Clouds using an RGB-D Camera

411

achieves the lowest mean loss in both training and

evaluation processes especially for evaluation, while

Frustum PointNets are almost the same.

(a) Training accuracy (b) Evaluation accuracy

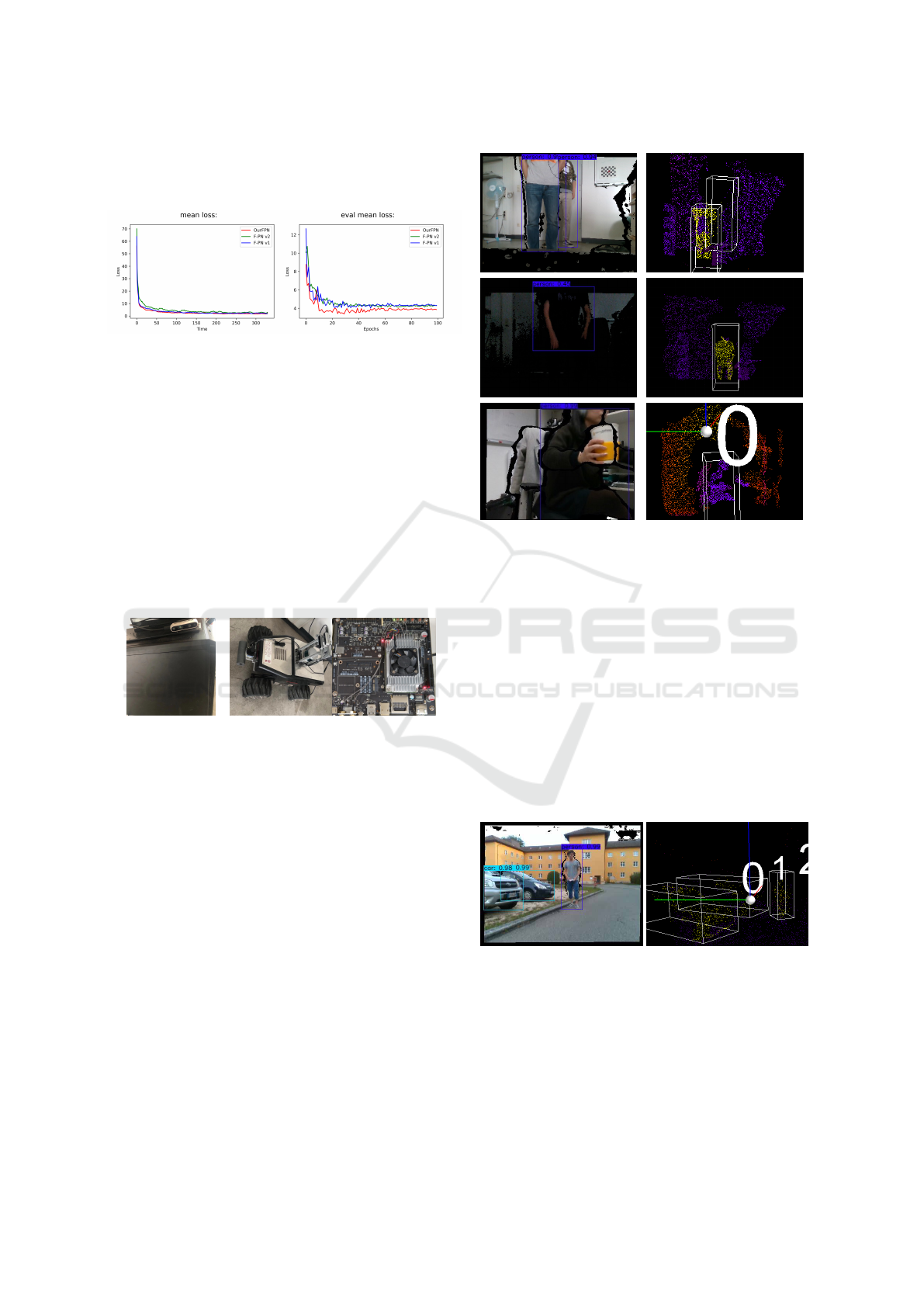

Figure 6: Quantitative results: Training and evaluation

mean loss of our modiﬁed Frustum PointNet and original

Frustum PointNets (v1 and v2) on KITTI.

4.2 Real-world Implementation

In order to perform real-world experiments, we used

the hardware and software in Fig. 7: 1. Intel Re-

alSense D435 RGB-D Camera; 2. GPU: Nvidia

GTX1080Ti for desktop PC in Fig. 7a, Nvidia

GTX1050Ti for Summit XL in Fig. 7b, and Nvidia

Jetson TX2 in Fig. 7c; 3. Ubuntu 16.04 LTS with

ROS kinetic; 4. Tensorﬂow 1.13 with Python 3.6.

(a) (b) (c)

Figure 7: Different Hardware Devices: (a) 1080Ti; (b)

1050Ti; (c) Jetson TX2 developer kit.

4.2.1 Indoor Experiments

The indoor person detection experiment was done us-

ing an RGB-D camera Intel Realsense D435. We

test both dark and bright scenes, both standing person

and sit-down person cases, occluded or not indoor to

check the robustness of our system to light. Figure 8

shows an example of 2D box visualization and 3D box

visualization of our system. No matter whether the

light is enough or not, we can still get good predicted

3D bounding boxes for humans. When a person is ei-

ther standing or sit-down, we can also get accepted

3D boxes, and the person who is sitting down can

also clearly separated from the chair. Besides, even

with quite a few point clouds, our method can still de-

tect the occluded person. The speed is 25-30 fps on

our mobile robot of Fig. 7b and around 90 fps on our

Desktop PC of Fig. 7a.

(a) 2D Box Visualization (b) 3D Box Visualization

Figure 8: Qualitative results: 2D and 3D predicted boxes

visualization of indoor pedestrian (person) detection.

4.2.2 Outdoor Experiments

We did experiments with our Robotnik Summit XL

mobile robot for the outdoor parking scene shown in

Fig. 7b. Notice that here we only use an installed

RGB-D sensor instead of using other sensors e.g. the

Velodyne Lidar sensor on top or the Sick Laser scan

in front. The speed is around 25-30 fps on our mobile

robot.

Figure 9 shows an example of 2D box visualiza-

tion and 3D box visualization in our system. In Fig. 9

(a) 2D Box Visualization (b) 3D Box Visualization

Figure 9: Qualitative results: 2D and 3D predicted boxes

visualization of outdoor car and pedestrian detection.

we can see that two cars and one pedestrian can be

correctly detected even for crowded occlusion case.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

412

4.3 Speed Comparison on Different

Hardware Devices

When measuring the speed of all the network systems,

we ran them on three different hardware devices with

Nvidia GPUs in Fig. 7. Detailed running speed com-

parison is shown in Table 2. Here MSG means multi-

scale grouping and SSG denotes single scale group-

ing (Qi et al., 2017b). From Table 2, we can see that

Table 2: Running speed comparison in frames per second

(fps) on different Nvidia GPUs.

Methods 1080Ti 1050Ti Jetson TX2

F-PNv1 70-100 20-30 5-15

F-PNv2 SSG 50-55 -- --

F-PNv2 MSG 15-20 -- --

OurFPN 80-105 25-30 10-15

our RGB-D modiﬁed Frustum PointNet is much faster

than Frustum PointNet v2, and almost the same as

Frustum PointNet v1 on different GPU devices. How-

ever, ours has better accuracy than Frustum PointNet

v1. Frustum PointNet v2 MSG and SSG are both slow

even in our desktop PC equipped with a single Nvidia

GTX 1080Ti GPU, therefore we did not transfer our

system on mobile robots and the Jetson TX2 devel-

oper kit equipped with less powerful GPUs.

5 CONCLUSIONS

In this paper, we designed a new network system that

combines both useful features of 2D and 3D for chal-

lenging object detection tasks. The original Frustum

PointNet was only trained and tested on the KITTI

benchmark and directly used 2D object detection re-

sults. The 3D PointNet sub-system did not re-use

2D information in their network. Our simpliﬁed net-

work system (OurFPN) has higher accuracy and faster

speed than most current state-of-the-art 3D object de-

tection networks on three different devices, as well as

on the KITTI benchmark.

In the near future, we will optimize OurFPN to

realize higher precision and faster speed. We also in-

tend to use Lidar sensors as addition since the efﬁcient

range of RGB-D cameras is limited, which is not suf-

ﬁcient for outdoor street scene understanding of au-

tonomous driving cars. Actually, we notice that Velo-

dyne can get quite far away points like 30m but quite

sparse and not well for close distance points like 3m.

On the contrary, RGB-D cameras can work quite well

for close objects while can not detect far-away points.

We believe that combining these two types of sensor

information together will be an efﬁcient way for better

object detection results. Besides, we will use the out-

come 3D bounding box information of object detec-

tion to help improve SLAM system for UAVs, while

the existing object-based SLAM system only uses 2D

image information.

REFERENCES

Chen, X., Ma, H., Wan, J., Li, B., and Xia, T. (2017). Multi-

view 3d object detection network for autonomous

driving. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition (CVPR),

pages 1907–1915. IEEE.

Chen, Y., Liu, S., Shen, X., and Jia, J. (2019). Fast point r-

cnn. In Proceedings of the IEEE International Confer-

ence on Computer Vision (ICCV), pages 9775–9784.

IEEE.

Engelcke, M., Rao, D., Wang, D. Z., Tong, C. H., and Pos-

ner, I. (2017). Vote3deep: fast object detection in 3d

point clouds using efﬁcient convolutional neural net-

works. In IEEE International Conference on Robotics

and Automation (ICRA), pages 1355–1361. IEEE.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for autonomous driving? the kitti vision benchmark

suite. In Proceedings of the IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

3354–3361. IEEE.

Girshick, R. (2015). Fast r-cnn. In Proceedings of the IEEE

International Conference on Computer Vision (ICCV),

pages 1440–1448. IEEE.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask r-cnn. In Proceedings of the IEEE International

Conference on Computer Vision (ICCV), pages 2961–

2969. IEEE.

Johns, E., Leutenegger, S., and Davison, A. J. (2016). Pair-

wise decomposition of image sequences for active

multi-view recognition. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), pages 3813–3822. IEEE.

Kanezaki, A., Matsushita, Y., and Nishida, Y. (2018). Ro-

tationnet: joint object categorization and pose estima-

tion using multiviews from unsupervised viewpoints.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 5010–

5019. IEEE.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017). Feature pyramid networks

for object detection. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 2117–2125. IEEE.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S., Fu,

C.-Y., and Berg, A. C. (2016). Ssd: single shot multi-

box detector. In European Conference on Computer

Vision (ECCV), pages 21–37. Springer.

Qi, C. R., Liu, W., Wu, C., Su, H., and Guibas, L. J. (2018).

Frustum pointnets for 3d object detection from rgb-d

Real-time 3D Object Detection from Point Clouds using an RGB-D Camera

413

data. In Proceedings of the IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

918–927. IEEE.

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2017a). Point-

net: deep learning on point sets for 3d classiﬁcation

and segmentation. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 652–660. IEEE.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017b). Point-

net++: deep hierarchical feature learning on point sets

in a metric space. In Advances in Neural Information

Processing Systems (NeurPIS), pages 5099–5108.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: uniﬁed, real-time ob-

ject detection. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 779–788. IEEE.

Redmon, J. and Farhadi, A. (2017). Yolo9000: better, faster,

stronger. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition (CVPR),

pages 7263–7271. IEEE.

Redmon, J. and Farhadi, A. (2018). Yolov3: an incremental

improvement. arXiv preprint arXiv:1804.02767.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: towards real-time object detection with region

proposal networks. In Advances in Neural Informa-

tion Processing Systems (NeurPIS), pages 91–99.

Shi, S., Wang, X., and Li, H. (2019). Pointrcnn: 3d object

proposal generation and detection from point cloud.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 770–

779. IEEE.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Su, H., Maji, S., Kalogerakis, E., and Learned-Miller, E.

(2015). Multi-view convolutional neural networks for

3d shape recognition. In Proceedings of the IEEE In-

ternational Conference on Computer Vision (ICCV),

pages 945–953. IEEE.

Wang, C., Xu, D., Zhu, Y., Mart

ın-Mart

ın, R., Lu, C., Fei-

Fei, L., and Savarese, S. (2019). Densefusion: 6d ob-

ject pose estimation by iterative dense fusion. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 3343–3352.

IEEE.

Wang, Y. and Zell, A. (2018). Improving feature-based vi-

sual slam by semantics. In IEEE International Confer-

ence on Image Processing, Applications and Systems

(IPAS), pages 7–12. IEEE.

Wang, Y. and Zell, A. (2019a). Semantic scene segmenta-

tion of unordered point clouds on autonomous robots.

In European Conference on Mobile Robot (ECMR),

pages 1–6. IEEE.

Wang, Y. and Zell, A. (2019b). Semantic segmentation net-

works of 3d point clouds for rgb-d indoor scenes. In

International Conference on Machine Vision (ICMV).

SPIE.

Xu, D., Anguelov, D., and Jain, A. (2018). Pointfusion:

deep sensor fusion for 3d bounding box estimation.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 244–

253. IEEE.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

414
