AMNESIA: A Technical Solution towards GDPR-compliant Machine

Learning

Christoph Stach

, Corinna Giebler

, Manuela Wagner

, Christian Weber

and Bernhard Mitschang

1,3

Institute for Parallel and Distributed Systems, University of Stuttgart, Universitätsstraße 38, 70569 Stuttgart, Germany

FZI Forschungszentrum Informatik, Haid-und-Neu-Straße 10–14, 76131 Karlsruhe, Germany

Graduate School advanced Manufacturing Engineering, University of Stuttgart, Nobelstraße 12, 70569 Stuttgart, Germany

Keywords:

Machine Learning, Data Protection, Privacy Zones, Access Control, Model Management, Provenance, GDPR.

Abstract:

Machine Learning (ML) applications are becoming increasingly valuable due to the rise of IoT technologies.

That is, sensors continuously gather data from different domains and make them available to ML for learning

its models. This provides profound insights into the data and enables predictions about future trends. While ML

has many advantages, it also represents an immense privacy risk. Data protection regulations such as the GDPR

address such privacy concerns, but practical solutions for the technical enforcement of these laws are also

required. Therefore, we introduce AMNESIA, a priv

cy-aware

achine learni

g mod

l provi

ion

ng pl

tform.

AMNESIA is a holistic approach covering all stages from data acquisition to model provisioning. This enables

to control which application may use which data for ML as well as to make models “forget” certain knowledge.

1 INTRODUCTION

Machine Learning (ML) and Artiﬁcial Intelligence (AI)

systems are on the rise. IDC predicts that the world-

wide spending on such systems almost doubles in 2019

(that is $ 35.8 billion). This trend is expected to con-

tinue until 2022, with the result of a compound annual

growth rate of 38.0 % (Shirer and D’Aquila, 2019).

This is due to the fact that ML is no longer a labo-

ratory curiosity, but a practical technology ready for

commercial use. The capability of ML applications is

virtually unlimited. Application areas in which ML is

successfully used today include Smart Health (e. g., for

autonomous and assistive diagnostic support), Smart

Trafﬁc (e. g., autonomous vehicle control and guid-

ance systems), and Computer Vision (e. g., for object

recognition).

These ML applications beneﬁt from the increasing

popularity of the Internet of Things (IoT). IoT-enabled

devices are able to gather various context data and

have Internet connectivity to share these data with ML

systems. With these, the data of all devices can be

analyzed and combined. This way, a comprehensive

knowledge base is created covering various aspects.

Supervised learning algorithms use this knowledge

base to train their models. To this end, the data are an-

alyzed to identify how certain attribute combinations

affect a particular feature. For instance, with classiﬁ-

cation algorithms, electronic medical records can be

analyzed to determine which symptoms most likely

result in which diagnosis. These models can then be

applied to new data to make predictions about the in-

vestigated feature. For instance, if a patient monitors

his or her health via medical IoT meters, an ML sys-

tem is able to provide a diagnosis based on these data.

However, particularly in Deep Learning, it is almost

impossible to explain, why a decision was made and

on what data it is based (LeCun et al., 2015).

While ML offers numerous beneﬁts to users, it also

causes a variety of problems, in particular concerning

privacy and trust. Although it does not seem so at

ﬁrst glance, this is an inherent contradiction. A patient

only trusts in privacy measures if s/he has total control

over his or her data. This includes that s/he can decide

which data contribute to an ML model and that s/he

can mask the data. Yet, s/he lacks the insight into the

effects this has on the utility of the data and thus on the

ML model. This impairs prediction quality whereby

the trust in the ML application is weakened (Holzinger

et al., 2018). Therefore, so-called usable security is

required, which takes into account both, security and

utility issues (Garﬁnkel and Lipford, 2014).

This need for novel privacy approaches is also

evident in the increasing number of privacy laws

such as the General Data Protection Regulation (EU)

2016/679 (GDPR). The GDPR addresses many of the

Stach, C., Giebler, C., Wagner, M., Weber, C. and Mitschang, B.

AMNESIA: A Technical Solution towards GDPR-compliant Machine Learning.

DOI: 10.5220/0008916700210032

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 21-32

ISBN: 978-989-758-399-5; ISSN: 2184-4356

privacy risks caused by ML. To this end, it creates gov-

erning principles for the processing of private data by

establishing privacy standards, e. g., informed consent,

notiﬁcation duties, and transparency (Wachter, 2018).

To meet this request for a Privacy by De-

sign solution, we introduce AMNESIA, a priv

cy-

aware

achine learni

g mod

l provi

ion

ng pl

tform.

AMNESIA “forgets” certain data when learning a

model, i. e., these data are subsequently not used, when

applying the model (e. g., to make an automatic deci-

sion). For this, we organize data in different zones,

similar to information in a brain. In each zone, dif-

ferent privacy techniques are applied to hide certain

private data. AMNESIA not only considers privacy

requirements of users, but also utility requirements

towards the ML model. In addition, users are able

to track which data have been used in an ML model

and whether an applied ML model complies with their

privacy requirements.

To this end, we make ﬁve contributions:

(1)

present our privacy-aware machine learning model

provisioning platform called AMNESIA. It enables

a GDPR-compliant learning and application of ML

models.

(2)

We introduce a privacy zone model in

AMNESIA. Each zone masks private data differently.

As a result, ML models can be learned that comply

with users’ privacy requirements and yet have a high

utility.

(3)

We outline an implementation strategy for

AMNESIA. This strategy adopts a Privacy by De-

sign approach.

(4)

We describe a model management

concept in AMNESIA to ﬁnd appropriate ML models

in terms of privacy and utility.

(5)

We depict a prove-

nance analysis in AMNESIA to verify which data were

used to learn an applied ML model and whether the

model complies with the privacy requirements. The

remainder of this paper is as follows: In Section 2, we

discuss both, technical and legal state of the art regard-

ing privacy in an ML environment. On this basis, we

derive requirements towards an ML privacy approach

in Section 3. Related work is reviewed in Section 4

with regard to these requirements. Then, we introduce

AMNESIA in Section 5 and evaluate our approach in

Section 6. Section 7 concludes this paper.

2 STATE OF THE ART

Vayena et al. (Vayena et al., 2018) investigate the atti-

tude of data subjects and data consumers towards ML.

Although the beneﬁts of ML are widely perceived,

nearly two-thirds of the data subjects are concerned

if their health data are used to learn and train a ML

model. This concern is exacerbated by the fact that

many models lack transparency, i. e., data subjects do

Data Producers

(e.g., Sensors, Users,

and Smart Devices)

Untrusted

Data

Processors

(e.g., Cloud

Services)

Data Consumers

(e.g., Services, Analyst,

and Actuators)

Raw Data

Masked Data

(a) Local Privacy.

Data Producers

(e.g., Sensors, Users,

and Smart Devices)

Data Consumers

(e.g., Services, Analyst,

and Actuators)

Trusted Curator

Raw Data

Query

Masked

Answer

(b) Global Privacy.

Figure 1: Comparison of Privacy Strategies for Machine

Learning Systems (cf. (Kairouz et al., 2016)).

not know how their data are reﬂected in the model and

whether their privacy requirements are respected.

To address these concerns, privacy concepts have

to cover all ML stages, starting with the handling of

data sources, followed by the implementation of ML

systems and the creation of models up to the provision-

ing and application of the models. Yet, legal standards

such as the GDPR are not sufﬁcient, in order to elim-

inate all ethical and regulatory concerns. In addition,

Privacy by Design approaches are required, i. e., ML

systems in which privacy options are integrated that

give data subjects full control over their personal data

and thus ensure these standards.

Next, we therefore discuss technical solutions en-

suring privacy in ML systems and study the legal situ-

ation with regard to privacy in the ML context.

Technical Perspective.

Basically, there are two strate-

gies to ensure privacy in ML systems: Local Privacy

and Global Privacy. Figure 1 shows these strategies.

The key difference is which components are trusted

(green box) and which are not (red box).

In Local Privacy (see Figure 1a), the user only

trusts his or her own devices since s/he does not know

which data protection measures are taken by an ML

system nor which data consumers have access to his

or her data. Before s/he submits any data to an ML

system, s/he masks them (e. g., by adding noise). Thus,

the ML system has only distorted data for learning its

models. Yet, if each user masks his or her data individ-

ually, the utility of the models decreases signiﬁcantly.

Moreover, a user does not know which data sources

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

are available to an ML system nor what knowledge

can be derived from them (Chamikara et al., 2018).

In Global Privacy (see Figure 1b), the user entrusts

his or her raw data to a Trusted Curator which provides

various privacy techniques for masking user data. By

managing all users’ data, the Trusted Curator is able

to apply more comprehensive privacy techniques than

an individual user could do (e. g., differential privacy).

Data consumers can only access data via deﬁned inter-

faces, e. g., the Trusted Curator can learn ML models

on the masked data and provide them to a service in-

stead of the actual data. However, blind trust in the

Trusted Curator is required. Moreover, global masking

policies are applied to all users’ data, whereas privacy

is an individual perception (Li et al., 2017).

Legal Perspective.

Since ML processes personal data

on a large scale, the GDPR must be adhered to. Thus,

a legal basis is required to process personal data. This

can be consent of the data subject (informed consent

Art.

6(1)(a)

or explicit consent in case of health data

Art.

9(2)(a)

). Further legal basis can provide a con-

tract with the data subject, a legal obligation, the pro-

tection of vital interests, a task carried out in the public

interest, or the pursuit of legitimate interests, provided

these are not overridden by the data subject’s con-

cerns (Art.

6(1)(b)

–

( f )

). Important to note is, that

health data belong to a special category of personal

data. Processing of those data is forbidden in the ﬁrst

step, yet Art.

9(2)

provides speciﬁc exemptions. Gen-

erally, prior to processing a purpose must be deter-

mined and any further processing is limited to that pur-

pose (Art.

5(1)(b)

). Moreover, it has to be ensured that

only a minimum amount of data is processed and stored

no longer than necessary (Art.

5(1)(c), (e)

). Neverthe-

less, these data must be sufﬁciently accurate to ensure

that the data subject is correctly represented in the

data (Art.

5(1)(d)

). Also, fair and transparent data

processing must be ensured (Art. 5(1)(a)).

Kamarinou et al. (Kamarinou et al., 2016) identify

transparency regarding data handling and to whom the

data are made available (Art.

–

) as key issues in

an ML context. Especially when ML is used for auto-

mated individual decision-making, full transparency

is crucial (Art.

). Also, the right to erasure (Art.

)

can be challenging in an ML context if data must be

forgotten which are part of an ML model.

All in all, the GDPR is well suited for the privacy

challenges that ML poses. Nevertheless, technical

tools are required to ensure the integrity and conﬁden-

tiality of the data (Art.

5(1)( f )

) and to verify that data

are processed in compliance with the GDPR (Kuner

et al., 2017). Such technical measures should be inte-

grated into ML systems (Art. 25) (Burri, 2016).

3 REQUIREMENTS

Based on this state-of-the-art review, we derive ten

requirements towards a privacy mechanism for ML.

] Control:

Probably the most important fea-

ture of a privacy mechanism in general is to give data

subjects full control over their data. That is, it has to en-

able users to specify who is permitted to access which

of their data. In the context of ML, however, this is not

sufﬁcient. Besides raw data on which ML learns its

models, the models themselves have to be considered

as well. If a data consumer is not allowed to access cer-

tain datasets, this must also apply to all models which

were heavily inﬂuenced by these datasets.

] Context:

It is not sufﬁcient to control who

gets access to the data, but also for what purpose s/he

does so. That is, it depends on the context in which

data are requested whether a consent or other legal

basis is valid. Therefore, a privacy mechanism has to

be able to identify not only data consumers but also the

circumstances regarding their request for data access.

] Necessity:

Even if a data subject has granted

data access for a speciﬁed purpose, a privacy mecha-

nism must still become active as it has to be ensured

that only a necessary minimum amount of data is

shared with the data consumers. This also applies

to the ML models. More speciﬁcally, the amount of

data used to learn the models must also be restricted.

] Acceptability:

Even though a privacy mech-

anism must ensure data protection matters of data sub-

jects, it also has to respect the rights of data consumers.

If, e. g., the processing of certain data is in the public in-

terest or obliged by law, these data must be accessible

even without the explicit consent of the data subject.

] Fair Data Processing:

Closely related to le-

gal compliance is that the processing of data must be

fair towards all parties involved. Therefore, a data

subject must not be able to use the privacy mechanism

to manipulate data in order to gain an advantage over

other users or the data consumer.

] Utility:

It is also important that a privacy

mechanism ensures that the utility of the data (and thus

of the models) is always preserved. An arbitrary data

manipulation by data subjects might impair the quality

of ML models to the point that they make inaccurate

predictions. A preferably high accuracy must therefore

be ensured by the privacy mechanism.

] Transparency:

To inform data subjects who

accessed which data when and for why, and to verify

that these accesses were legal, a corresponding logging

function must be supported by a privacy-mechanism.

In an ML context, this must also be applied to the

models, i. e., full transparency must be achieved with

regard to the data (sources) on which a model is based.

AMNESIA: A Technical Solution towards GDPR-compliant Machine Learning

] Erasure:

According to the right to be forgot-

ten, a privacy mechanism must also ensure that certain

data can be erased. For ML models, however, this

also means that they must be able to “forget” certain

aspects if they were learned on these erased data.

] Security:

In addition to privacy issues, a pri-

vacy mechanism must also cover security issues, i. e.,

data must be protected against unauthorized access.

To this end, raw data have to be isolated from data

consumers and any communication between these two

parties has to be secured. In addition, raw data must

be protected against manipulation.

] Data Protection by Design:

In order to min-

imize the organizational burden on users and still guar-

antee full data protection, a privacy mechanism should

adopt a Privacy by Design approach, i. e., it has to be

integrated seamlessly into the ML system.

It is evident that both, Global Privacy (a global view

on all available data sources is required for, e. g.,

]

, and

]

) and Local Privacy (individual privacy

rules deﬁned by the user are required for, e. g.,

]

and [R

]), are necessary to meet these requirements.

4 RELATED WORK

In ML systems, three task domains can be identiﬁed

that are relevant regarding privacy. In the following,

we discuss selected representatives for these domains.

Data Preparation.

The earliest stage in which an

ML privacy mechanism can be applied is during data

preparation. That is, similar to Local Privacy, data are

masked before being actually processed, in the case

of ML, the learning of models. AVARE (Alpers et al.,

2018) is a privacy system for smart devices. Various

privacy ﬁlters are applied to available data sources.

These ﬁlters enable users to specify which data are

available to an application. The ﬁlters are adapted to

the respective kind of data. For instance, the accuracy

of location data can be reduced, or certain details of

contact data can be hidden. However, AVARE consid-

ers each smart device separately. As a result, its privacy

settings are unnecessarily restrictive for ML, similar

to Local Privacy. PSSST! (Stach et al., 2019) there-

fore introduces a central control instance that knows

all available data sources and applies privacy mea-

sures according to the privacy requirements of the user.

PSSST! conceals privacy-relevant patterns, i. e., se-

quences in the data from which conﬁdential knowledge

can be derived. This pattern-based approach signiﬁ-

cantly reduces the amount of data masking. To this

end, PSSST! needs to know the intended use of the

data. In the ML context, however, it cannot be assumed

that the usage of the models is known in advance.

Model Management.

A privacy mechanism can also

come into play when dealing with the ML models

(i. e., during learning or provisioning). As in most use

cases where statistical information is shared with third

parties, differential privacy (Dwork, 2006) is often ap-

plied in ML. Abadi et al. (Abadi et al., 2016) apply

differential privacy to the ML database to ensure that

the models do not reveal any sensitive information.

As this excludes users, Shokri and Shmatikov (Shokri

and Shmatikov, 2015) enable users to select a subset

of data to be made available for learning. Data re-

main on the user’s system until they are needed for

learning. Bonawitz et al. (Bonawitz et al., 2017) ex-

tend this approach by enabling users to provide only

aggregated submodels to update a deep neural net-

work. This ensures that the ML system never has full

data access. However, the result can be biased if each

user provides only data that are best for him or her,

whereby certain aspects can be completely lost. More-

over, the models are then available to any application.

Hüffmeyer et al. (Hüffmeyer et al., 2018) introduce an

attribute-based authorization method for querying data

from a service platform. This way, applications can be

granted access to models only, if they have currently

the appropriate attributes (e. g., if they are hosted in

the right execution environment).

Explain Models.

Also, the explicability of models is

relevant for privacy. Alzantot et al. (Alzantot et al.,

2019) introduce a technique to explain ML models

for image recognition. They deﬁne masks to cover

image areas that are irrelevant for decision-making.

This enables users to comprehend why a decision

is made. Yet, this approach is restricted to image

recognition. Ribeiro et al. (Ribeiro et al., 2016)

introduce a framework which contains various

description techniques. Yet, for each ML algorithm a

dedicated plugin is required. Thus, it cannot be used

universally. Rudin (Rudin, 2019) therefore suggests

that instead of trying to describe ML models, rather

explainable types of models should be used. However,

users cannot choose the types of models freely as

they are restricted to the types supported by an ML

system. Powell et al. (Powell et al., 2019) propose to

combine ex ante (i. e., explain the model) with ex post

approaches (i. e., explain the decision). They only con-

sider the logic of a model, but not the input data that

lead to a particular decision when the model is applied.

In addition to all the identiﬁed shortcomings in related

work, there is also no holistic approach providing all

required privacy features. Therefore, we introduce our

own ML privacy approach called AMNESIA, next.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

Privacy

Zones

Sensors Central Data Storage

Machine Learning Model Store Applications

Raw Data

Zone

Figure 2: Overall Concept of AMNESIA Introducing its Main Components and Key Functionality.

5 AMNESIA

AMNESIA is a privacy-aware machine learning model

provisioning platform. In AMNESIA, certain data can

be “forgotten” both, temporarily (i. e., for learning or

provisioning a model) as well as permanently (i. e., in

the ML database and in all models). For this purpose,

we organize the data stock of an ML system in privacy

zones. Each zone masks its data in different ways

whereby different facets are concealed or revealed re-

spectively. Furthermore, AMNESIA enables users to

identify which data were used to learn an ML model

and to verify whether their privacy requirements have

been met when applying a certain model. AMNESIA

adopts a Privacy by Design approach in order to pro-

vide a technical implementation of the GDPR for ML

systems. It adheres to both, the privacy rights as well

as the data provision obligations of data subjects.

In the following, we describe the overall concept

of AMNESIA in Section 5.1. Then, in Section 5.2,

we discuss its privacy zones. Section 5.3 outlines an

implementation strategy for AMNESIA. The essential

model management concept is detailed in Section 5.4.

Finally, in Section 5.5, we describe how AMNESIA

veriﬁes which personal data have been processed.

5.1 Overall Concept

The overall concept of AMNESIA is shown in Fig-

ure 2. Here, we use a highly abstracted representation

in order to illustrate the basic functionalities in a very

accessible way ﬁrst. Technical details on these func-

tionalities follow in the subsequent subsections.

The data sources—in an IoT context these are

predominantly sensors (depicted as sensory organs)—

are highly heterogeneous. This heterogeneity affects,

among other things, data types, data formats, data

accuracy, and sample rate. Also, the value of the data

from these sources differs very much in terms of their

privacy relevance as well as their utility for ML mod-

els. Therefore, a privacy mechanism not only has to

be able to deal with this data heterogeneity, but also

has to reﬂect this in its data protection techniques.

The gathered data are forwarded to a central data

storage. For this transmission, the data are annotated

with metadata. These metadata include, for instance,

from which source the data originate, when the data

were gathered, the “owner” of the data, and the data

subject. These data and metadata have to be stored as

raw data for veriﬁcation purposes.

The central data storage resembles AMNESIA’s

“brain”. An ML system can only learn from data stored

there. We organize our central data storage into zones

that are dedicated to different privacy levels. In ad-

dition to the Raw Data Zone, in which the original

data are stored, AMNESIA offers four special privacy

zones. AMNESIA applies different privacy ﬁlters to

incoming data, which ﬁlter out certain privacy-relevant

information without compromising certain data quality

aspects, and stores the masked data in the respective

zone. In this way, a proper zone can be selected for

each use case (i. e., for given privacy requirements and

utility requirements). More details on these zones are

given in Section 5.2.

The central data storage is secured against unau-

thorized access. Only the ML component has access

to it. In it, any supervised learning algorithm can be

deployed. The learned ML models are then stored in

the model store. However, instead of learning a single

model, AMNESIA learns a model for each of the ﬁve

zones. These models are annotated with metadata. In

addition to information required for the management

and provisioning of the models (e. g., the applied ML

algorithm), also privacy-relevant information is stored

(e. g., from which zone the model stems).

Applications can then query these models. For this

purpose, however, they have to authenticate towards

the store ﬁrst. AMNESIA not only identiﬁes appli-

cations, but also their current attributes. That way,

AMNESIA is able to distinguish, for instance, whether

an application is hosted in Europe or in the USA. This

affects the applicable data protection laws. If an appli-

cation has been authenticated, the model store checks

AMNESIA: A Technical Solution towards GDPR-compliant Machine Learning

Data Stores

Documents

Sensors

Social Data

Central Data Store

Transient

Landing

Zone

Temporary

Storage of

Source Data

Distribution

Processing

Units

Raw Data

Zone

Original

Source Data

Long-term

Storage of

Historical

Data

Horizontal

Filter Zone

Vertical

Filter Zone

Dierential

Privacy Zone

Accuracy

Filter Zone

Selection

Entire Tuples are Filtered Out

Projection

Certain Attributes are Filtered Out

Data-dependent Filter Techniques

Data Accuracy is Reduced

Data Aggregation

Dierential Privacy is Ensured

Figure 3: The AMNESIA Privacy Zone Model (cf. (Sharma, 2018)).

which user-deﬁned privacy requirements apply to that

application and which utility requirements that applica-

tion imposes on a model. Based on these two metrics,

the model store then selects a matching model and

forwards it to the application. More details about the

store can be found in Section 5.4.

5.2 Privacy Zones

The central data store of AMNESIA has the same basic

premises as a big data system: Large amounts of het-

erogeneous data have to be stored efﬁciently and pre-

pared for various purposes. For this, big data systems

use data lakes. They often organize data into several

areas. For instance, there are areas in which incoming

data are stored fully unprocessed as raw data, whereas

in others only cleansed data or data tailored to a spe-

ciﬁc use case are stored. In the zone model, datasets are

maintained in different aggregation and pre-processing

stages concurrently in the zones (Giebler et al., 2019).

In AMNESIA, we adopt the zone model introduced

by Sharma (Sharma, 2018) and adapt it to our privacy

use case (see Figure 3). The model consists of two

vertical zones, which are the foundation for all other

zones. Additionally, there are four horizontal zones

that tailor the data to speciﬁc privacy requirements.

The data processed by AMNESIA are partly

volatile, e. g., sensor data. That is, they are sent as

a data stream to the central data store and must be

processed immediately. Therefore, AMNESIA needs

a temporary data buffer to be able to store such data

for a short time before forwarding it to all correspond-

ing zones. This is handled by the

Transient Landing

Zone

. This zone also annotates the data in order to be

able to retrace their origins as well as their chronolog-

ical order. All data arriving in the Transient Landing

Zone are forwarded to the

Raw Data Zone

. In this

zone, the data are kept in their original state in terms of

quality, accuracy, and completeness. It can thus also be

used as a backup if a user reduces his or her privacy re-

quirements, i. e., if more private data should be shared

in order to learn more sophisticated ML models. The

Transient Landing Zone also forwards the data to four

privacy plug-ins, which mask the data and then stores

them in the corresponding privacy zone. These privacy

zones are described in more detail in the following.

Horizontal Filter Zone.

Horizontal ﬁltering is equiva-

lent to a selection operator (

) as deﬁned in relational

algebra. A binary predicate expression determines

which data tuples of the Transient Landing Zone are

included in the Horizontal Filter Zone. That is, data

from a certain sensor or data within a given time frame

can be ﬁltered out. The included tuples are not masked.

Vertical Filter Zone.

Vertical ﬁltering is equivalent to

a projection operator (

) as deﬁned in relational alge-

bra. Selected attributes are removed from the original

set of attributes of the data in the Transient Landing

Zone when including them in the Vertical Filter Zone.

That is, certain metrics of a sensor (e. g., the blood glu-

cose level) can be ﬁltered out. Apart from that, the data

are not masked, and no tuples are entirely concealed.

Accuracy Filter Zone.

In the Accuracy Filter Zone,

the most versatile ﬁlter operators are applied. Depend-

ing on the kind of data and the privacy requirements

of the users, different ﬁlter operators are available to

reduce the accuracy of the Transient Landing Zone’s

data. This can be illustrated by a few simple examples.

Aggregation operators (e. g., mean or median) can

be applied to any kind of numerical data. Noise can

be added to time series data, such as data from a con-

tinuous glucose monitoring (CGM) sensor. This way,

the accuracy of the individual measurement values can

be arbitrarily reduced. Yet, characteristics in the value

progression can still be recognized. Outliers can also

be identiﬁed in time series data, i. e., data points with a

presumably higher information value, as they indicate

deviant behaviors. These data points can be deleted,

and the resulting gaps can then be ﬁlled by interpola-

tion to veil any signs of tampering. Discrete wavelet

transforms can be applied to time series data as well.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

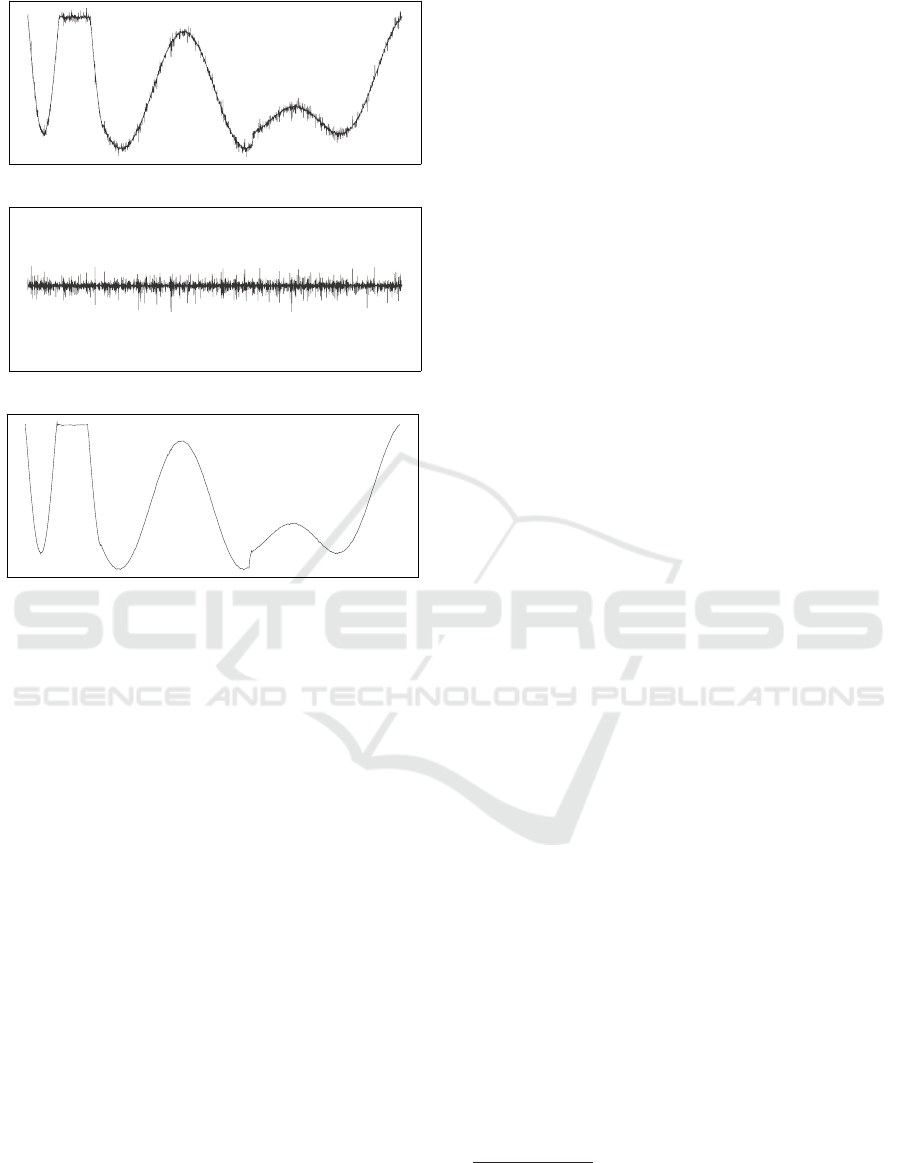

(a) Original Raw Time Series Data.

(b) Using DWT as a High-pass Filter (Details).

Figure 4: Application of a Discrete Wavelet Transform

(DWT) in AMNESIA as a High-pass and Low-pass Filter.

They operate as high-pass or low-pass ﬁlters. Thereby

speciﬁc frequencies can be damped to conceal either

characteristics in the value progression or details in

the measurement values. Figure 4 illustrates how these

high-pass and low-pass ﬁlters work as well as their

impact on the data. In addition, the high-pass and low-

pass ﬁlters reduce the number of data points, which

additionally decreases the accuracy of the data.

Lastly, here is an example of a ﬁlter for a speciﬁc

kind of data, namely location data. For location data

we initially choose a random angle

and a random

distance

. The target accuracy sets the maximum

value for

. The captured position is then shifted by

in the direction of

. For each subsequent position,

either a new angle is chosen and the distance is calcu-

lated so that the traveled distance is preserved, or a

new distance is chosen and the angle is calculated so

that the direction of movement is preserved.

Differential Privacy Zone.

While the aforemen-

tioned privacy zones are primarily tailored to the pri-

vacy requirements of individual users, the Differential

Privacy Zone exploits the fact that the central data store

contains data of many users. Noise, in terms of dummy

entries, is added to the database until the differential

privacy property is fulﬁlled. That is, the statistical

accuracy of the data in this zone is maintained without

being able to identify individual users.

There can be several instances of each privacy zone.

As a result, users are enabled to deﬁne distinct privacy

requirements for each application.

5.3 Implementation

For the implementation of AMNESIA, we use the

BRAID architecture (Giebler et al., 2018). BRAID is a

reﬁnement of the classic Lambda architecture (Marz

and Warren, 2015). The Lambda architecture en-

ables real-time processing and long-term storage of

large amounts of data. To this end, both batch and

stream processing engines are required. Contrary to

the Lambda architecture however, in BRAID these two

engines are not operated decoupled. That means in

particular that both, data and (intermediate) results can

be mutually exchanged between the engines. This is

crucial for AMNESIA as the ML models learned in a

batch processing system have to be applied to live data

in a stream processing system. The applied models

must be exchangeable at runtime if privacy or utility

requirements are changed. This is possible in BRAID.

Figure 5 shows our implementation strategy for

AMNESIA. The Transient Landing Zone is realized

by two components: Kafka

assigns incoming data to

a topic depending on their origin. Apache Hadoop

receives the data and executes the actual extract, trans-

form, load (ETL) process. That is, data are annotated

based on their topics, prepared for the AMNESIA

privacy zones, and forwarded to the respective zone.

The instances of the zones are implemented using the

Hadoop Distributed File System (HDFS).

Moreover, the data in each instance (i. e., the Raw

Data Zone and the four privacy zones) are encrypted.

Only AMNESIA has access to the keys. This pre-

vents unauthorized access on the one hand and enables

secure deletion on the other hand. By deleting the re-

spective key, the data are no longer readable and thus

“forgotten”. Waizenegger et al. (Waizenegger et al.,

2017) introduce a hierarchical key management sys-

tem that can be used for this purpose. In this way,

ﬁne-grained secure data deletion is achieved.

For the batch processing of these data, we use

Spark

. The Spark instance gets the required keys

from AMNESIA for this purpose. MLlib

can be used

See https://kafka.apache.org

See https://hadoop.apache.org

See https://spark.apache.org

See https://spark.apache.org/mllib/

AMNESIA: A Technical Solution towards GDPR-compliant Machine Learning

Health Record

Speech Data

Raw Data

Model Store

Data Marts

1 2 3 4 4

CGM Data

Location

Health App

Query

Prediction

Recommendation

Figure 5: Implementation Strategy for and Operational Flow of AMNESIA.

to learn the ML models. The learned models are then

added to our model store. The model store provides

data management and provisioning services (see Sec-

tion 5.4). To this end, the store annotates the models.

Via this annotation it is also possible to retrace on

which data a model was learned. If the underlying

data are deleted, the associated models can also be

deleted and re-learned on the remaining data stock.

In order to be compatible to every ML algorithm and

model type, a direct modiﬁcation of the models is not

possible. This is due to the fact that the modiﬁcation of

existing models would solely target models that origin

from incremental or transfer learning (Losing et al.,

2018). Instead, the models are encrypted, and we use

the abovementioned secure deletion method.

Spark Streaming

is used to apply a model. The

model that is provided to this component is selected

according to the privacy and utility requirements. It

receives only the key for this single model from

AMNESIA. This model is applied to real-time data.

The results are provided to authorized application.

Attribute-based approaches are very effective for

the ﬁne-grained identiﬁcation of applications. Thereby,

also the context in which an application wants to use

a model can be reﬂected. In addition to the purpose

for which the model can be accessed, the context also

includes, e. g., the actual location where the applica-

tion is hosted. However, this approach has two crucial

problems: On the one hand this requires a lot of compu-

tational power and on the other hand the disclosure of

these attributes also poses a privacy threat to the users

and providers of the application (Gritti et al., 2018).

However, Gritti et al. (Gritti et al., 2019) introduce a

lightweight and privacy-preserving attribute-based au-

thentication method that we can apply in AMNESIA.

The interaction of these components as well as the

operational ﬂow of AMNESIA can be illustrated by

means of a Smart Health example. For the treatment

See https://spark.apache.org/streaming/

of chronic diseases, such as diabetes, autonomous di-

agnostic support is particularly useful as a continuous

monitoring of health values (e. g., via a CGM sensor)

is required (Tamada et al., 2002). While such health

data should not be masked, there are other data which

are useful for diagnosis but also reveal a lot of private

insights. For instance, the location (e. g., via a GPS

sensor) affects the stress level of a patient (Knöll et al.,

2015) and his or her mood can be determined via a

speech analysis (e. g., via the microphone of a smart-

phone) (Mehta et al., 2012). Such data should not be

provided unﬁltered to an ML system.

Kafka pools and buffers these data

and forwards

them to Hadoop

. In addition to storing the raw data,

our privacy ﬁlters are applied here

. In order to re-

duce the accuracy of the location data, the aforemen-

tioned technique can be used, since the stress level can

also be determined via a coarse location. Yet, simply

adding noise to the speech data is not sufﬁcient, as

speech recognition is even possible on noisy data (Kr-

ishna et al., 2019). Our privacy ﬁlters are, however,

able to analyze the data. Thus, AMNESIA can deter-

mine the mood and store only the mood level and not

the captured audio data in the Accuracy Filter Zone.

Using Spark and MLlib, models are learned for each

zone and then stored in the model store Ã.

If a Smart Health application needs diagnostic sup-

port, it queries the Spark Streaming component

This request is signed with the attributes of the applica-

tion. Depending on these attributes, the users’ privacy

requirements and the request’ utility requirements, an

appropriate model is selected

(see Section 5.4).

Kafka provides the streaming component with real-

time data

. Depending on the privacy requirements

these data can also be ﬁltered. MLlib makes a predic-

tion

which leads to a treatment recommendation

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

Dene Privacy

Requirements

Dene Utility

Requirements

Select

Matching

Model

Update

Requirements

New

Query

Deploy Model

Result

Use Model

Monitor Model

Create Result

Sets

Changed Permissions

Privacy or Utility

not Achievable

Privacy and Utility not Compatible

Usage

Granted

Model

Fits

Figure 6: AMNESIA’s Process Model for the Management and Provisioning of ML Models (cf. (Weber et al., 2019)).

5.4 Model Management

To realize the AMNESIA model store, two key features

have to be considered in particular, namely model

management and provisioning. With this in mind, we

adapt and extend the process model for maintaining

ML models by Weber et al. (Weber et al., 2019).

There are basically two strategies to ensure that

a model store is compatible with as many ML tools

and algorithms as possible. To this end, the store can

operate with an interchangeable model format that

is supported by most ML systems. The Predictive

Model Markup Language (PMML)

is such an open

standard. PMML is supported by many ML systems

such as KNIME

. That is, the ML models learned in

KNIME can be exported to the PMML format and

PMML models created by other systems can be im-

ported in KNIME to visualize, analyze, and apply

them. A big advantage for AMNESIA is that PMML

models are already annotated with a lot of metadata

(e. g., which data are covered by the model) (Guazzelli

et al., 2009). We can extract this information from

the PMML ﬁle and use it in the model store (e. g., for

model selection or provenance analysis).

However, there is a large number of ML systems

that support exclusively a proprietary model format.

This is where the other strategy comes into play to

compensate this disadvantage. ML libraries such as

JPMML

provide converters for model formats of vari-

ous ML libraries and tools. That is, the models learned

in their native environments can be translated to a

multitude of other ML libraries and programming lan-

guages. In this way, we achieve independence from

proprietary model formats. However, each model for-

mat must ﬁrst be determined and an appropriate con-

verter selected from the JPMML library.

In AMNESIA, we therefore combine these strate-

gies, i. e., we provide converters for ML model formats

to a generic interchange format. We use PMML for

this interchange format due to its metadata support.

See http://dmg.org/pmml/v4-4/GeneralStructure.html

See https://www.knime.com

See https://github.com/jpmml

The model selection and provisioning process in-

troduced in AMNESIA is shown in Figure 6. When

AMNESIA receives a query from an application (given

that it has been successfully authenticated), the model

store ﬁrst looks up the relevant privacy requirements

depending on the attributes of the application

. Via

these privacy requirements, a user can specify which

application can access which data for which attributes

(e. g., for which purpose or in which context). To this

end, s/he describes which information (in terms of pri-

vate patterns, i. e., data sequences or combinations)

must not be included in the model.

To make the speciﬁcation of privacy requirements

as simple as possible for users, an approach such as

EPICUREAN (Stach and Steimle, 2019) can be ap-

plied. Experts identify which knowledge can be de-

rived from which data sources and map these coher-

ences to private patterns. Expressive keywords are as-

signed to these patterns. All this information is stored

in a knowledge base. Users query the knowledge base

in natural language, i. e., the natural language descrip-

tion of their privacy requirements are analyzed using

NLTK

. Afterwards, private patterns with keywords

matching to these requirements are recommended to

the user. In addition, collaborative ﬁltering is used

to ﬁnd further relevant private patterns, i. e., patterns

applied by other users who have a similar behavior

and sense of privacy. The selected patterns are mapped

to appropriate models, i. e., to models learned on data

concealing the private patterns in question.

Similarly, application developers deﬁne utility re-

quirements, i. e., the quality of the requested model

(e. g., in terms of precision and recall)

. Developers

are legally obligated to such considerations anyway,

as they must ensure data minimization when process-

ing private data. This leads to public patterns, i. e.,

information that has to be reﬂected in a model.

Subsequently, it must be checked whether the pri-

vate and public patterns are compatible. In addition, it

is necessary to verify whether the private patterns and

the public patterns are legit from a legal point of view,

See https://www.nltk.org

AMNESIA: A Technical Solution towards GDPR-compliant Machine Learning

Data Stores

Sensors

…

UserDecision

Machine

Learning

Model Store

Raw

Data

Privacy? Why?

Timestamp & Query

Model

Lookup

Zone

Identication

via Metadata

Source Data

Lookup

Source

Identication

Figure 7: Provenance Information Flow in AMNESIA.

based on the involved kinds of data and the nature of

the request

. If the patterns are not compatible (i. e.,

the user wants to hide a fact that the request explicitly

requires) or if there is no model that meets these re-

quirements, the requirements must be re-adjusted

. If

still no model can be found, the application is informed

that its request did not lead to a result Ñ.

If, however, a ﬁtting model is found, it is de-

ployed

. A deployed model can then be applied to

real-time data

. Concurrently, AMNESIA monitors

the model, i. e., it checks whether the users’ permis-

sions have changed in the meantime

. For instance,

a permission change occurs when a user enhances his

or her privacy requirements or adds new requirements.

Also, if a user exercises his right to erasure, this results

in a permission change and a different model has to

be selected (or a new model has to be learned based

on a different database)

. In this way, in

AMNESIA even already learned knowledge is imme-

diately “forgotten”. However, if the permissions have

not changed, AMNESIA provides the results to the

querying application Ñ.

5.5 Provenance Analysis

Lastly, we also describe the provenance analysis op-

tions, provided by AMNESIA. When an ML system,

for instance, makes a prediction or a recommendation,

two questions often arise for its users. On the one

hand, users need to know whether all of their privacy

requirements were respected when applying an ML

model. On the other hand, users want to know why the

decision was made that way. In accordance with the

GDPR, providers of ML applications should be able

to provide answers to both of these questions.

Figure 7 outlines how AMNESIA addresses these

issues. Users can request an explanation regarding an

automatic decision from AMNESIA. Based on the

timestamp of the query that led to the decision of the

ML application, AMNESIA checks which model was

applied at that point in time.

For this purpose, the AMNESIA model store has

a history management of the models. Over time, the

stored models can undergo changes. For instance, if a

data subject deletes some of his or her data between

the time a decision is made and the time a user requests

an explanation for that decision, then all models that

include these data have to be re-learned. Therefore, no

stored models are permanently deleted. From a data se-

curity point of view, this is not critical, since the store

is fully encrypted. Due to the attribute-based authenti-

cation and access control it is ensured that applications

only have access to the latest model versions. Only for

AMNESIA’s internal provenance analysis, the histo-

ries of the models are visible.

Once the right version of the model has been found,

i. e., the model the decision is based on, the stored

metadata is used to identify the data stock used for

learning. Some of these metadata are already embed-

ded in the model itself. PMML provides, e.g., infor-

mation about the model version, a timestamp, when

the model was created, and information about the data

used for learning. However, the descriptions given

in the PMML Data Dictionary

are only intended to

give an overview of the used data features in order to

remain independent of speciﬁc data sets.

Therefore, we have an additional metadata reposi-

tory for our model store. These metadata include links

between models and the privacy zone instances on

whose data they are based on. By combining these

links with the information about the features from the

PMML Data Dictionary, a comprehensive representa-

tion of the data covered by a model—and thus, respon-

sible for automatic ML decisions—is obtained. By

means of the privacy zone it can be veriﬁed whether the

privacy requirements of the user have been respected.

If a provenance analysis is carried out for a model

that has already been deleted, AMNESIA has also

deleted the keys for the underlying data. As a result,

these data have been irretrievably “forgotten”, i. e.,

See http://dmg.org/pmml/v4-4/DataDictionary.html

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

they are no longer readable. Nevertheless, AMNESIA

can still identify which privacy ﬁlters have been ap-

plied to the data, based on the privacy zone in which

the data were stored. This information is sufﬁcient to

verify that no privacy requirements have been violated.

For further analyses, the primary keys of the data

can be used to identify the underlying source data in

the Raw Data Zone. The Raw Data Zone’s metadata

also allow to trace the origin of the data.

6 ASSESSMENT

In the following, we evaluate whether AMNESIA ful-

ﬁlls the requirements towards a privacy mechanism for

ML and if it complies with applicable data protection

regulations, i. e., whether it is an appropriate technical

solution towards GDPR-compliant ML.

Due to the privacy requirements formulated as pri-

vate patterns, users have full control which ML models

are available for which applications. AMNESIA cre-

ates several versions of every model, each based on

a different state of the data stock. For this purpose,

various privacy ﬁlters are applied to the data. More-

over, a data subject can withdraw his or her consent

permanently via AMNESIA’s secure deletion. This

complies with [R

] and Art. 7(3) GDPR.

The attribute-based authentication enables to differ-

entiate application on a ﬁne-grained level. Besides gen-

eral information about the application, the attributes

used here also include information about the execution

context and the purpose of use. In this way, AMNESIA

can dynamically control which data an application may

receive for the given purpose. This complies with

]

and the principle of purpose limitation.

In public patterns, applications deﬁne which utility

requirements they pose towards a model (and thus

towards the underlying data stock). By harmonizing

the private patterns and public patterns, AMNESIA is

able to select a model that provides the least insights

into private data. This complies with

]

and supports

the principle of data minimization.

Since AMNESIA has a comprehensive overview

regarding which application has which utility require-

ments for what purpose as well as which privacy

requirements are deﬁned by a user, legal compliance

can be improved. If the request of an application is,

e. g., in the public interest, AMNESIA can therefore

reduce or ignore the privacy requirements. Fair

data processing can also be enhanced as AMNESIA

can prevent data concealing or obfuscation that

would wrongly beneﬁt a certain user. This complies

with [R

] & [R

Due to the privacy zones, AMNESIA is able to

select a ﬁltering technique that results in an ML model

with the highest utility. This complies with [R

AMNESIA’s provenance analysis enables to verify

that the users’ privacy requirements and rights have

been respected. They also create transparency regard-

ing the data on which a model (and thus indirectly a

decision) is based on. This complies with [R

Due to the secure deletion, AMNESIA can enforce

the right to be forgotten. Since all data of the data

stock is encrypted hierarchically, deleting the corre-

sponding keys ensures that selected data are no longer

readable. By means of AMNESIA’s hierarchical key

management system, data can be deleted on a ﬁne-

grained level. As soon as data are deleted from the

data stock, AMNESIA marks all models based on this

data as invalid. The model management and provi-

sioning process applied in AMNESIA ensures that no

invalid model is available to any application. The full

encryption of the data stock and the model store also

ensures integrity and conﬁdentiality of the data. This

complies with [R

] & [R

AMNESIA combines Local and Global Privacy

to meet

] –

]

. Due to our implementation strat-

egy, which seamlessly embeds AMNESIA into an ML

system, Privacy by Design is achieved [R

] –

]

were dominantly derived from le-

gal considerations, mainly the general data protection

principles (Art.

GDPR), AMNESIA signiﬁcantly im-

proves compliance with GDPR and enables innovative

ML models at the same time. In order to enforce pur-

pose control for the ML models as well, these models

can be tagged with their intended purpose to enable au-

dit trails about their usage (see (Petkovi

c et al., 2011)).

7 CONCLUSION

ML can be applied in many domains. This is lever-

aged by IoT devices permanently recording a large

amount of data about the users. With this comprehen-

sive data stock, ML systems are able to learn mod-

els. These models enable, e. g., autonomous decision-

making. Besides the undeniable beneﬁts of ML, there

are also severe privacy issues if personal data is used to

learn the models. While the GDPR provides a distinct

legal framework, there is a lack of effective technical

solutions towards GDPR-compliant ML.

To this end, we introduce AMNESIA, a privacy-

aware machine learning model provisioning platform.

With AMNESIA it is possible to “forget” private data.

This applies not only to the ML data stock, but also to

already learned models. Furthermore, it is possible to

verify to the user that his or her privacy requirements

AMNESIA: A Technical Solution towards GDPR-compliant Machine Learning

have been respected and which data have been used

for decision-making. To achieve this, we make ﬁve

contributions:

(1)

We introduce AMNESIA, enabling

GDPR-compliant ML.

(2)

We introduce a privacy

zone model for organizing AMNESIA’s data stock.

(3)

We introduce a Privacy by Design implementation

strategy for AMNESIA.

(4)

We introduce a novel

model management concept in AMNESIA.

(5)

introduce a data provenance analysis in AMNESIA.

Evaluation results prove that AMNESIA is a suitable

technical solution towards GDPR-compliant ML.

REFERENCES

Abadi, M. et al. (2016). Deep Learning with Differential

Privacy. In CCS ’16.

Alpers, S. et al. (2018). Citizen Empowerment by a

Technical Approach for Privacy Enforcement. In

CLOSER ’18.

Alzantot, M. et al. (2019). NeuroMask: Explaining Predic-

tions of Deep Neural Networks through Mask Learning.

In SMARTCOMP ’19.

Bonawitz, K. et al. (2017). Practical Secure Aggregation for

Privacy-Preserving Machine Learning. In CCS ’17.

Burri, T. (2016). Machine Learning and the Law: 5 Theses.

In NIPS ’16.

Chamikara, M. A. P. et al. (2018). Efﬁcient data perturbation

for privacy preserving and accurate data stream mining.

Pervasive and Mobile Computing, 48:1–19.

Dwork, C. (2006). Differential Privacy. In ICALP ’06.

Garﬁnkel, S. and Lipford, H. R. (2014). Usable security:

History, themes, and challenges. Synthesis Lectures on

Information Security, Privacy, and Trust, 5(2):1–124.

Giebler, C. et al. (2018). BRAID — A Hybrid Processing

Architecture for Big Data. In DATA ’18.

Giebler, C. et al. (2019). Leveraging the Data Lake — Cur-

rent State and Challenges. In DaWaK ’19.

Gritti, C. et al. (2018). Device Identiﬁcation and Personal

Data Attestation in Networks. Journal of Wireless

Mobile Networks, Ubiquitous Computing, and Depend-

able Applications, 9(4):1–25.

Gritti, C. et al. (2019). Privacy-preserving Delegable Au-

thentication in the Internet of Things. In SAC ’19.

Guazzelli, A. et al. (2009). PMML: An Open Standard for

Sharing Models. The R Journal, 1(1):60–65.

Holzinger, A. et al. (2018). Current Advances, Trends and

Challenges of Machine Learning and Knowledge Ex-

traction: From Machine Learning to Explainable AI.

In CD-MAKE ’18.

Hüffmeyer, M. et al. (2018). Authorization-aware HA-

TEOAS. In CLOSER ’18.

Kairouz, P. et al. (2016). Extremal Mechanisms for Local

Differential Privacy. Journal of Machine Learning

Research, 17(17):1–51.

Kamarinou, D. et al. (2016). Machine Learning with Per-

sonal Data: Proﬁling, Decisions and the EU General

Data Protection Regulation. In NIPS ’16.

Knöll, M. et al. (2015). Using space syntax to analyze stress

perception in open public space. In SSS

Krishna, G. et al. (2019). Speech Recognition with No

Speech or with Noisy Speech. In ICASSP ’19.

Kuner, C. et al. (2017). Machine learning with personal

data: is data protection law smart enough to meet the

challenge? International Data Privacy Law, 7(1):1–2.

LeCun, Y. et al. (2015). Deep learning. Nature, 521:436–

444.

Li, H. et al. (2017). Partitioning-Based Mechanisms Under

Personalized Differential Privacy. In PAKDD ’17.

Losing, V. et al. (2018). Incremental on-line learning: A

review and comparison of state of the art algorithms.

Neurocomputing, 275:1261–1274.

Marz, N. and Warren, J. (2015). Big Data - Principles

and best practices of scalable real-time data systems.

Manning Publications Co.

Mehta, D. D. et al. (2012). Mobile Voice Health Monitoring

Using a Wearable Accelerometer Sensor and a Smart-

phone Platform. IEEE Transactions on Biomedical

Engineering, 59(11):3090–3096.

Petkovi

c, M. et al. (2011). Purpose Control: Did You Process

the Data for the Intended Purpose? In SDM ’11.

Powell, A. et al. (2019). Understanding and Explaining

Automated Decisions. Technical report, SSRN.

Ribeiro, M. T. et al. (2016). "Why Should I Trust You?": Ex-

plaining the Predictions of Any Classiﬁer. In KDD ’16.

Rudin, C. (2019). Stop explaining black box machine learn-

ing models for high stakes decisions and use inter-

pretable models instead. Nature, 1:206–215.

Sharma, B. (2018). Architecting Data Lakes: Data Manage-

ment Architectures for Advanced Business Use Cases.

O’Reilly Media, Inc.

Shirer, M. and D’Aquila, M. (2019). Worldwide Spend-

ing on Artiﬁcial Intelligence Systems Will Grow to

Nearly $35.8 Billion in 2019, According to New IDC

Spending Guide. Press release, IDC.

Shokri, R. and Shmatikov, V. (2015). Privacy-Preserving

Deep Learning. In CCS ’15.

Stach, C. et al. (2019). PSSST! The Privacy System for

Smart Service Platforms: An Enabler for Conﬁdable

Smart Environments. In IoTBDS ’19.

Stach, C. and Steimle, F. (2019). Recommender-based Pri-

vacy Requirements Elicitation – EPICUREAN: An

Approach to Simplify Privacy Settings in IoT Applica-

tions with Respect to the GDPR. In SAC ’19.

Tamada, J. A. et al. (2002). Keeping watch on glucose. IEEE

Spectrum, 39(4):52–57.

Vayena, E. et al. (2018). Machine learning in medicine: Ad-

dressing ethical challenges. PLOS Medicine, 15(11):1–

Wachter, S. (2018). Normative challenges of identiﬁcation

in the Internet of Things: Privacy, proﬁling, discrim-

ination, and the GDPR. Computer Law & Security

Review, 34(3):436–449.

Waizenegger, T. et al. (2017). SDOS: Using Trusted Plat-

form Modules for Secure Cryptographic Deletion in

the Swift Object Store. In EDBT ’17.

Weber, C. et al. (2019). A New Process Model for the Com-

prehensive Management of Machine Learning Models.

In ICEIS ’19.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy
