FootAndBall: Integrated Player and Ball Detector

Jacek Komorowski

1,2

, Grzegorz Kurzejamski

1,2

and Grzegorz Sarwas

1,2

Warsaw University of Technology, Warsaw, Poland

Sport Algorithmics and Gaming Sp. z o.o., Warsaw, Poland

Keywords:

Object Detection, Player and Ball Detection, Soccer Video Analysis.

Abstract:

The paper describes a deep neural network-based detector dedicated for ball and players detection in high reso-

lution, long shot, video recordings of soccer matches. The detector, dubbed FootAndBall, has an efﬁcient fully

convolutional architecture and can operate on input video stream with an arbitrary resolution. It produces ball

conﬁdence map encoding the position of the detected ball, player conﬁdence map and player bounding boxes

tensor encoding players’ positions and bounding boxes. The network uses Feature Pyramid Network desing

pattern, where lower level features with higher spatial resolution are combined with higher level features with

bigger receptive ﬁeld. This improves discriminability of small objects (the ball) as larger visual context around

the object of interest is taken into account for the classiﬁcation. Due to its specialized design, the network has

two orders of magnitude less parameters than a generic deep neural network-based object detector, such as

SSD or YOLO. This allows real-time processing of high resolution input video stream.

1 INTRODUCTION

Accurate and efﬁcient ball and player detection is

a key element of any solution intended to automate

analysis of video recordings of soccer games. The

method proposed in this paper allows effective and ef-

ﬁcient ball and player detection in long shot, high def-

inition, video recordings. It’s intended as a key com-

ponent of the computer system developed for football

academies and clubs to automate analysis of soccer

video recordings.

Detecting the ball from long-shot video footage

of a soccer game is a challenging problem. (Ko-

morowski et al., 2019) lists the following factors that

make the problem of ball localization difﬁcult. First,

the ball is very small compared to other objects visi-

ble in the observer scene. Its size varies signiﬁcantly

depending on the position. In long shot recordings

of soccer games, the ball can appear as small as 8

pixels, when it’s on the far side of the pitch, oppo-

site from the camera; and as big as 20 pixels, when

it’s on the near side of the ﬁeld. At such small size,

the ball can appear indistinguishable from parts of the

players body (e.g. head or white socks) or the back-

ground clutter, such as small litter on the pitch or parts

of stadium advertisements. The shape of the ball can

vary. When it’s kicked and moves at high velocity,

it becomes blurry and elliptical rather then circular.

Perceived colour changes due to shadows and light-

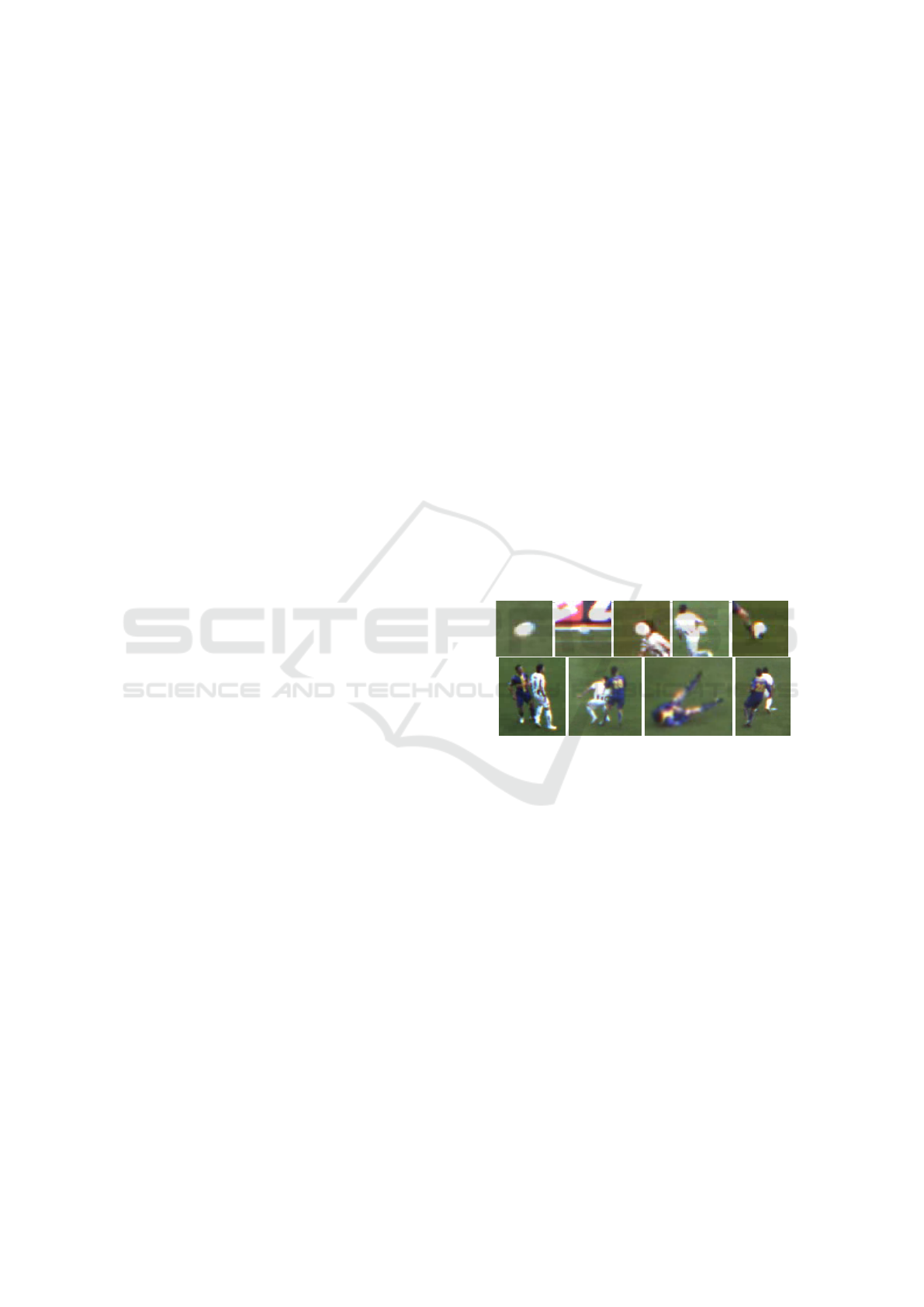

Figure 1: Exemplary patches illustrating difﬁculty of the

ball and players detection task. Images of the ball exhibit

high variance due to motion blur or can be occluded by a

player. Players can be in a close contact and occluded.

ing variation. Situations when the ball is in player’s

possession or partially occluded are especially difﬁ-

cult. Simple ball detection methods based on motion-

based background subtraction fail in such cases. Top

row of Fig. 1 shows exemplary image patches illus-

trating variance in the ball appearance and difﬁculty

of the ball detection task.

Players are larger than a ball and usually easier

to detect. But it some situations their detection can

be problematic. Players are sometimes in close con-

tact with each other and partially occluded. They can

have unusual pose due to stumbling and falling on the

pitch. See bottom row of Fig. 1 for exemplary images

showing difﬁculty of the player detection task.

In this paper we present a ball and players detec-

tion method inspired by recent progress in deep neural

network-based object detection methods. Our method

Komorowski, J., Kurzejamski, G. and Sarwas, G.

FootAndBall: Integrated Player and Ball Detector.

DOI: 10.5220/0008916000470056

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

47-56

ISBN: 978-989-758-402-2; ISSN: 2184-4321

operates on a single video frame and is intended as

the ﬁrst stage in the soccer video analysis pipeline.

The detection network is designed with performance

in mind to allow efﬁcient processing of high deﬁnition

video. Compared to the generic deep neural-network

based object detector it has two orders of magnitude

less parameters (e.g. 120 thousand parameters in our

model versus 24 million parameters in SSD300 (Liu

et al., 2016)). Evaluation results in Section 4 prove

that our method can efﬁciently process high deﬁnition

video input in a real time. It achieves 37 frames per

second throughput for high resolution (1920x1080)

videos using low-end GeForce GTX 1060 GPU. In

contrast, Faster-RCNN (Ren et al., 2015) generic ob-

ject detector runs with only 8 FPS on the same ma-

chine.

2 RELATED WORK

The ﬁrst step in traditional ball or player detec-

tion methods, is usually the background subtraction.

The most commonly used background subtraction ap-

proaches are based on chromatic features (Gong et al.,

1995; Yoon et al., 2002) or motion-based techniques

such as background subtraction (D’Orazio et al.,

2002; Mazzeo et al., 2012). Segmentation methods

based on chromatic features use domain knowledge

about the visible scene: football pitch is mostly green

and the ball mostly white. The colour of the pitch

is usually modelled using a Gaussian Mixture Model

and hardcoded in the system or learned. When the

video comes from the static camera, motion-based

segmentation is often used. For computational perfor-

mance reasons, a simple approach is usually applied

based on an absolute difference between consecutive

frames or the difference between the current frame

and the mean or median image obtained from a few

previously processed frames (Higham et al., 2016).

Traditional ball detection methods often use

heuristic criteria based on chromatic or morphologi-

cal features of connected components obtained from

background segmentation process. These criteria in-

clude blob size, colour and shape (circularity, eccen-

tricity). Variants of Circle Hough Transform, modi-

ﬁed to detect elliptical rather than circular objects, are

used to verify if a blob contains the ball (D’Orazio

et al., 2002; Poppe et al., 2010; Halbinger and Met-

zler, 2015). To achieve real-time performance and

high detection accuracy, a two-stage approach may be

employed (D’Orazio et al., 2002). First, regions that

probably contain the ball are found (ball candidates

extraction), then candidates are validated (ball candi-

date validation).

Ball detection methods using morphological fea-

tures to analyze shape of blobs produced by back-

ground segmentation, fail if a ball is touching a player.

See three rightmost examples in the top row of Fig. 1

for situations where these methods are likely to fail.

Earlier player detection methods are based on

connected component analysis (Yoon et al., 2002;

D’Orazio et al., 2007) or use techniques such as

variants of Viola and Jones detector with Haar fea-

tures (Lehuger et al., 2007; Liu et al., 2009). (Lehuger

et al., 2007) present a football player detection

method based on convolutional neural networks. The

network has relatively shallow architecture and pro-

duces feature maps indicating probable player posi-

tions. (Ma

ckowiak et al., 2010) uses a combination of

Histogram of Oriented Gradients (HOG) and Support

Vector Machines (SVM) for player detection. First

background segmentation, using a domain football

pitch colour, is performed. HOG descriptors are clas-

siﬁed by linear SVM algorithm trained on player tem-

plate database.

(Lu et al., 2013) uses Deformable Part Model

(DPM) (Felzenszwalb et al., 2013) to detect sport

players in video frames. The DPM consists of 6 parts

and 3 aspect ratios. The weakness of this method is

that it may fail to detect partially occluded players due

to non-maximum suppression operator applied after

detection.

A comprehensive review of player detection and

tracking methods in (Manaﬁfard et al., 2017) lists the

following weaknesses present in reviewed algorithms.

One of the most frequent is the problem with cor-

rectly detecting partially occluded players. Motion-

based techniques using background subtraction fail if

a player is standing still or moving very slowly for

a prolonged time. Discrimination of players wear-

ing white jerseys from the pitch white lines can be

challenging using colour cues. Pixel-based player de-

tection methods often fragment player into multiple

separated regions (e.g. parts of legs) due to varia-

tions in the colour of legs, jerseys, shorts and socks.

Template-based detectors have problems with han-

dling occlusions or situations when a players has an

unusual pose (e.g. due to stumbling and falling on

the pitch). See bottom row of Fig. 1 for exemplary

difﬁcult situations for the player detection task.

In recent years a spectacular progress was made

in the area of neural-network based object detection

methods. Deep neural-network based YOLO detec-

tor (Redmon et al., 2016) achieves 63% mean Aver-

age Precision (mAP) on PASCAL VOC 2007 dataset,

whereas traditional Deformable Parts Models (DPM)

detector (Felzenszwalb et al., 2010) scores only 30%.

Current state-of-the-art object detectors can be cate-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

gorized as one-stage or two-stage. In two-stage de-

tector, such as: Fast R-CNN (Girshick, 2015a) or

Faster R-CNN (Ren et al., 2015), the ﬁrst stage gen-

erates a sparse set of candidate object locations (re-

gion proposals). The second stage uses deep convo-

lutional neural network to classify each candidate lo-

cation as one of the foreground classes or as a back-

ground. One-stage detectors, SSD (Liu et al., 2016)

or YOLO (Redmon et al., 2016), do not include a

separate region-proposal generation step. A single

detector based on deep convolutional neural network

is applied instead. However general-purpose neu-

ral network-based object detectors are relatively large

scale networks with tens of millions of trainable pa-

rameters (e.g. 24 million parameters in SSD300 (Liu

et al., 2016) detector). Another drawback is their lim-

ited performance on on small object detection. Au-

thors of SSD method report signiﬁcant drop of perfor-

mance when detecting small objects. On COCOtest-

dev2015 dataset average precision drops from 41.9%

for large object to only 9.0% for small objects. This

restricts usage of generic object detectors to recognize

small objects, such as the ball.

Following the successful applications of convolu-

tional neural networks to solve many computer vision

problems, a few neural network-based ball and player

detection methods were recently proposed.

(Speck et al., 2017) uses convolutional neural net-

works (CNN) to localize the ball under varying en-

vironmental conditions. The ﬁrst part of the network

consists of multiple convolution and max-pooling lay-

ers which are trained on the standard object classiﬁ-

cation task. The output of this part is processed by

fully connected layers regressing the ball location as

probability distribution along x- and y-axis. The net-

work is trained on a large dataset of images with an-

notated ground truth ball position. The limitation of

this method is that it fails if more than one ball, or ob-

ject very similar to the ball, is present in the image.

(Reno et al., 2018) presents a deep neural network

classiﬁer, consisting of convolutional feature extrac-

tion layers followed by fully connected classiﬁcation

layer. It is trained to classify small, rectangular im-

age patches as ball or no-ball. The classiﬁer is used

in a sliding window manner to generate a probabil-

ity map of the ball occurrence. The method has two

drawbacks. First, the set of negative training exam-

ples (patches without the ball) must be carefully cho-

sen to include sufﬁciently hard examples. Also the

rectangular patch size must be manually selected to

take into account all the possible ways the ball ap-

pears on the scene: big or small due to the perspec-

tive, sharp or blurred due to its speed. The method

is also not optimal from the performance perspective.

Each rectangular image patch is separately processed

by the neural network using a sliding-window ap-

proach. Then, individual results are combined to pro-

duce a ﬁnal ball probability map. (Gabel et al., 2018)

uses off-the-shelf deep neural network-based classi-

ﬁer architectures (AlexNet and Inception) ﬁne tuned

to detect the ball in rectangular patches cropped from

the input image. Authors reported 99% ball detec-

tion accuracy on the custom dataset from RoboCup

competition. However, their dataset contains much

closer, zoomed, views of the pitch, with the ball size

considerably larger than in a long shot videos used

as an input to our method. Also off-the-shelf archi-

tectures, such as Inception, are powerful but require

much more computational resources for training and

inference . (Kamble et al., 2019) describes deep learn-

ing approach for 2D ball and player detection and

tracking in soccer videos. First, median ﬁltering-

based background subtraction is used to detect mov-

ing objects. Then, extracted patches are classiﬁed into

three categories: ball, player and background using

VGG-based classiﬁer. Such approach fails if ball is

touching or partially occluded by the player. (S¸ah and

Direko

glu, 2018) uses a similar approach for player

detection, where ﬁxed-size images patches are ex-

tracted from an input image using a sliding window

approach. The patches are initially ﬁltered using hand

crafted rules and then fed into a classiﬁcation CNN

with a relatively shallow, feed forward architecture.

In contract to above patch-based methods, our

solution requires a single pass of an entire image

through the network. It can be efﬁciently imple-

mented using modern deep learning frameworks and

use the full capabilities of GPUs hardware. It does not

require extraction, resizing and processing of multiple

separate patches.

(Lu et al., 2017) presents a cascaded convolutional

neural network (CNN) for player detection. The net-

work is lightweight and thanks to cascaded architec-

ture the inference is efﬁcient. The training consists

of two phases: branch-level training and whole net-

work training and cascade thresholds are found using

the grid search. Our method is end-to-end trainable in

a single phase and requires less hyper-parameters as

multiple cascade thresholds are not needed. Training

is also more efﬁcient as our network processes entire

images in a single pass, without the need to extract

multiple patches.

(Zhang et al., 2018) is a player detection method

based on SSD (Liu et al., 2016) object detector. Au-

thors highlight the importance of integrating low level

and high level (semantic) features to improve detec-

tion accuracy. To this end, they introduce reverse con-

nected modules which integrate features derived from

FootAndBall: Integrated Player and Ball Detector

multiple layers into multi-scale features. In princi-

ple, the presented design modiﬁcation is similar to

Feature Pyramid Network (Lin et al., 2017) concept,

where higher level, semantically richer features are

integrated with lower level features.

DeepBall (Komorowski et al., 2019) method is an

efﬁcient ball detection method based on fully convo-

lutional architecture. It takes an input image and pro-

duces a ball conﬁdence map indicating the most prob-

able ball locations.

The method presented in this paper proposes a

uniﬁed solution to efﬁciently detect both players and

the ball in input images. It’s architectured to effec-

tively detect objects of different scales such as the ball

and players by using Feature Pyramid Network (Lin

et al., 2017) design pattern.

3 PLAYER AND BALL

DETECTION METHOD

The method presented in this paper, dubbed FootAnd-

Ball, is inspired by recent developments of neu-

ral network-based generic object detectors, such as

SSD (Liu et al., 2016) and DeepBall (Komorowski

et al., 2019) ball detection method. Typical archi-

tecture of a single-stage, neural network-based, ob-

ject detector is modiﬁed, to make it more appropri-

ate for player and ball detection in long shot soccer

videos. Modiﬁcations aim at improving the process-

ing frame rate by reducing the complexity of the un-

derlying feature extraction network. For comparison,

SSD300 (Liu et al., 2016) model has about 24 million

parameters, while our model only 199 thousand, more

than 200 times less Multiple anchor boxes, with dif-

ferent sizes and aspect ratios, are not needed as we de-

tect objects from two classes with a limited shape and

size variance. The feature extraction network is archi-

tectured to improve detection accuracy of object with

different scales: small objects such as the ball and

larger players. It’s achieved by using Feature Pyramid

Network (Lin et al., 2017) design pattern which efﬁ-

ciently combines higher resolution, low level feature

maps with lower resolution maps encoding higher-

level features and having larger receptive ﬁeld. This

allows both precise ball localization and improved de-

tection accuracy in difﬁcult situations as larger visual

context allows differentiating the ball from parts of

player body and background clutter (e.g. parts of sta-

dium advertisement).

Generic single-shot object detection methods usu-

ally divide an image into the relatively coarse size grid

(e.g. 7x7 grid in YOLO (Redmon et al., 2016)) and

detect no more than one object of interest with par-

ticular aspect ratio in each grid cell. This prevents

correct detections when two objects, such as play-

ers, are close to each other. Our methods uses denser

grids. For input image of 1920x1080 pixels we use

480x270 grid (input image size scaled down by 4)

for ball detection and 120x68 grid (input image size

scaled down by 16) for player detection. This allows

detecting two near players as two separate objects.

Our method takes an input video frame and pro-

duces three outputs: ball conﬁdence map encoding

probability of ball presence at each grid cell, player

conﬁdence map encoding probability of player pres-

ence at each grid cell and player bounding box ten-

sor encoding coordinates of a player bounding box at

each cell of the player conﬁdence map. See Fig. 4 for

visualization of network outputs.

For the input image with w × h resolution, the size

of the output ball conﬁdence map is w/k

× h/k

where k

is the scaling factor (k

= 4 in our im-

plementation). Position in the ball conﬁdence map

with coordinates (i, j) corresponds to the position

(bk

(i − 0.5)c, bk

( j − 0.5)c in the input image. The

ball is located by ﬁnding the location in the ball conﬁ-

dence map with the highest conﬁdence. If the highest

conﬁdence is lower than a threshold Θ

, no balls are

detected. This can happen when a ball is occluded by

a player or outside the pitch. The pixel coordinates of

the ball in the input frame are computed using the fol-

lowing formula: (x,y) = (bk

(i−0.5)c,bk

( j −0.5)c,

where (i, j) are coordinates in the ball conﬁdence

map.

The size of the player conﬁdence map is w/k

h/k

, where k

is the scaling factor (k

= 16 in our

implementation). The size of the player bounding

box tensor is w/k

× h/k

× 4. The tensor encodes

four bounding box coordinates for each location in

the player conﬁdence map where the player is de-

tected. Position in the player conﬁdence map with

coordinates (i, j) corresponds to the position (bk

(i −

0.5)c,bk

( j − 0.5)c in the input image. Player po-

sitions are found by ﬁrst ﬁnding ﬁnding local max-

ima in the player conﬁdence map with the conﬁdence

above the threshold Θ

. This is achieved by applying

non maximum suppression to the player conﬁdence

map and taking all locations with the conﬁdence

above the threshold Θ

. Let P =

{

(i, j)

}

be the set

of such local maxima. For each identiﬁed player lo-

cation (i, j) in the player conﬁdence map, we retrieve

bounding box coordinates from the bounding box ten-

sor. Similar to SSD (Liu et al., 2016), player bounding

boxes are encoded as (x

bbox

) ∈ R

vectors, where (x

bbox

) is a relative position of

the centre of the bounding box with respect to the

center of the corresponding grid cell in the player

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

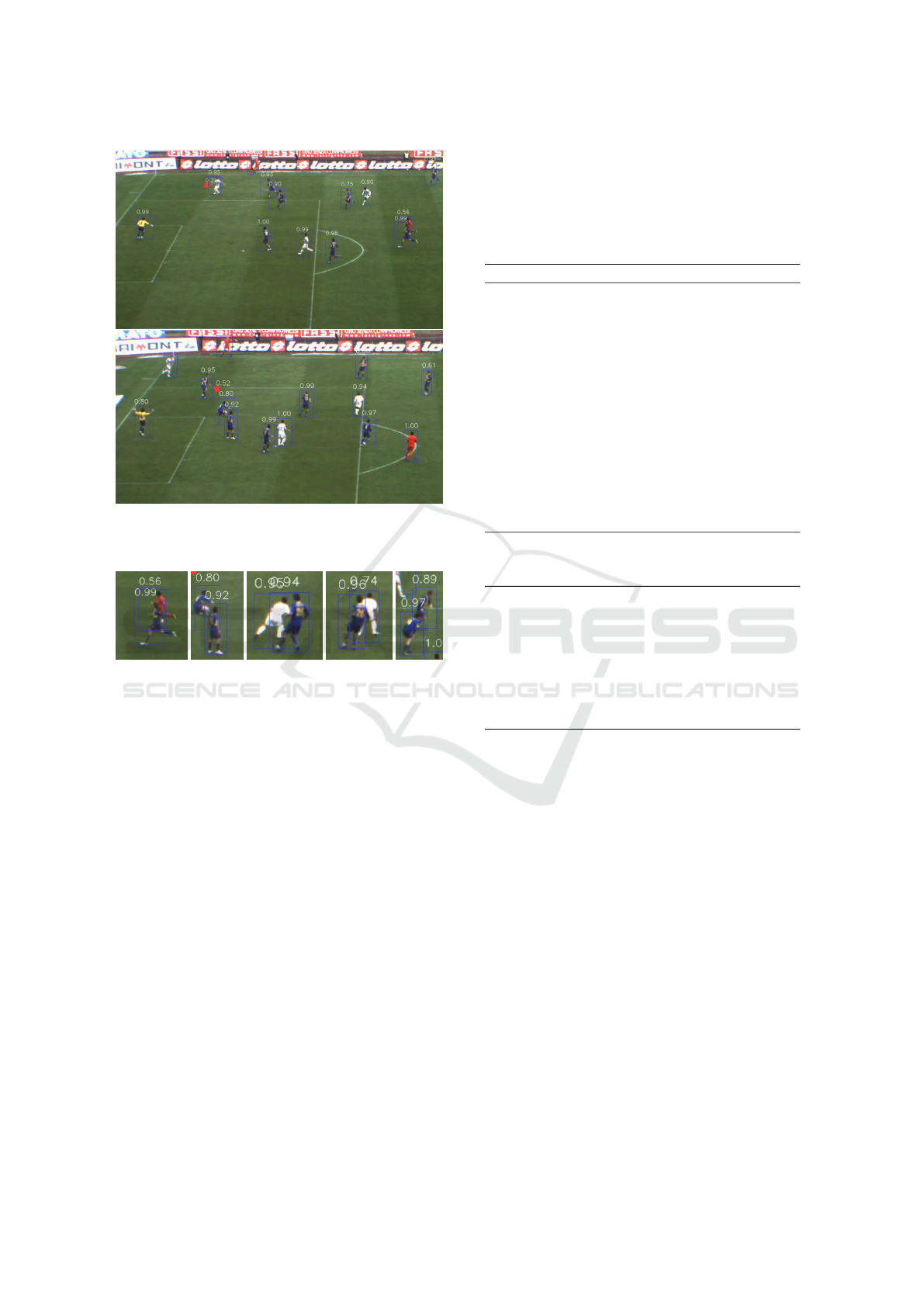

Figure 2: Player and ball detection results. Numbers above

bounding boxes show detection conﬁdence from the player

classiﬁer.

Figure 3: Detection results in difﬁcult situations (player oc-

clussion).

conﬁdence map and w

bbox

, h

bbox

are its width and

height. The coordinates are normalized to be in 0..1

scale. The bounding box centre in pixel coordi-

nates is calculated as: (x

bbox

) = (bk

(i − 0.5) +

bbox

wc,bk

( j −0.5)+ y

bbox

hc), where (w, h) is an in-

put image resolution. It’s height and width in pixel

coordinates is (bw

bbox

wc,bh

bbox

hc).

Detection results are visualized in Fig. 2. Num-

bers above the player bounding boxes show detection

conﬁdence. Detected ball position is indicated by the

red circle. Fig. 3 show player detection performance

in difﬁcult situations, when players’ are touching each

other or occluded.

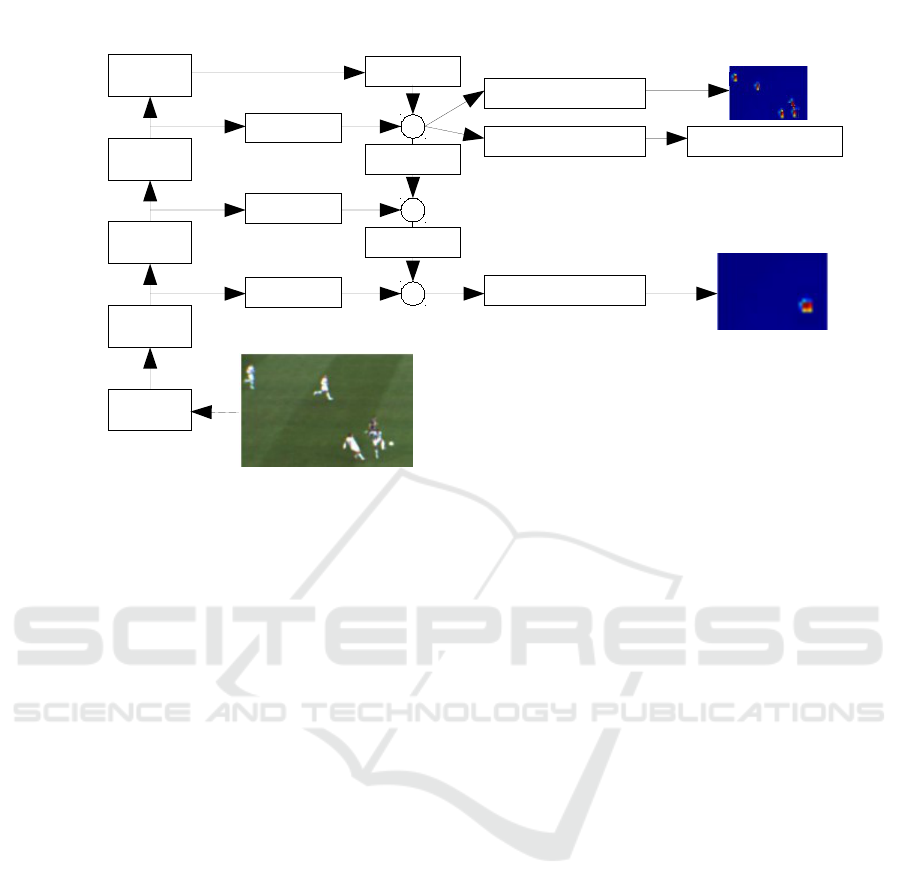

Network Architecture. Figure 4 shows high level

architecture of our FootAndBall network. It’s based

on Feature Pyramid Network (Lin et al., 2017) design

pattern. The input image is processed in the bottom-

up direction by ﬁve convolutional blocks (Conv1,

Conv2, Conv3, Conv4, Conv5) producing feature

maps with decreasing spatial resolution and increas-

ing number of channels. Numbers in brackets denote

Table 1: Details of FootAndBall detector architecture. Third

column lists size of the output from each block as (width,

height, number of channels) for an input image with w × h

resolution. All convolutional layers, except for 1x1 con-

volutions, are followed by BatchNorm and ReLU non-

linearity (not listed in the table for brevity). All convolu-

tions use ’same’ padding and stride one.

Block Layers Output size

Conv1 16 ﬁlters 3x3

Max pool 2x2 (w/2,h/2, 16)

Conv2 32 ﬁlters 3x3

32 ﬁlters 3x3

Max pool 2x2 (w/4,h/4, 32)

Conv3 32 ﬁlters 3x3

32 ﬁlters 3x3

Max pool: 2x2 (w/8,h/8, 32)

Conv4 64 ﬁlters 3x3

64 ﬁlters 3x3

Max pool: 2x2 (w/16,h/16, 64)

Conv5 64 ﬁlters 3x3

64 ﬁlters 3x3

Max pool 2x2 (w/32,h/32, 32)

1x1Conv1 32 ﬁlters 1x1 (w/4,h/4, 32)

1x1Conv2 32 ﬁlters 1x1 (w/8,h/8, 32)

1x1Conv3 32 ﬁlters 1x1 (w/16,h/16, 32)

Ball 32 ﬁlters 3x3

classiﬁer 2 ﬁlters 3x3

Sigmoid (w/4,h/4, 1)

Player 32 ﬁlters 3x3

classiﬁer 2 ﬁlters 3x3

Sigmoid (w/16,h/16, 1)

BBox 32 ﬁlters 3x3

regressor 4 ﬁlters 3x3 (w/16,h/16, 4)

the width, height and number of channels (w, h,c)

of feature maps produced by each block. The fea-

ture maps are then processed in the top-down direc-

tion. Upsampled feature maps from the higher pyra-

mid level are added to feature maps from the lower

level. 1x1 convolution blocks decrease the number

of channels to the same value (16 in our implementa-

tion), so two feature maps can be summed up. Re-

sultant feature maps are processed by three heads:

ball classiﬁcation head, player classiﬁcation head and

player bounding box regression head. Ball classiﬁ-

cation head takes a feature map with spatial resolu-

tion w/4 × h/4 as an input and produces one chan-

nel w/4 × h/4 ball conﬁdence map denoting prob-

able ball locations. Each location in the ball conﬁ-

dence map corresponds to 4 × 4 pixel block in the in-

put image. Player classiﬁcation head takes a feature

map with spatial resolution w/16 × h/16 as an input

and produces one channel w/16 × h/16 player conﬁ-

dence map denoting detected player locations. Each

location in the player conﬁdence map corresponds to

FootAndBall: Integrated Player and Ball Detector

Conv5

Conv4

Ball confidence map

(w/4, h/4, 1)

Player bounding

boxes

Conv3

Conv2

Conv1

1x1Conv2

1x1Conv1

1x1Conv3

2x up

(w/2, h/2, 8)

Player classifier

Bbox regressor

Player confidence map

(w/16, h/16, 1)

(w/8, h/8, 32)

(w/16, h/16, 64)

(w/32, h/32, 16)

(w/4, h/4, 16)

Input image: (w, h, 3)

(w/16, h/16, 4)

Ball classifier

Bbox regressor

Figure 4: High-level architecture of FootAndBall detector. The input image is processed bottom-up by ﬁve convolutional

blocks (Conv1, Conv2, Conv3, Conv4 and Conv5) producing feature maps with decreasing spatial resolution and increasing

number of channels. The feature maps are then processed in the top-down direction. Upsampled feature map from the higher

pyramid level is added to the feature map from the lower level. 1x1 convolution blocks decrease the number of channels to the

same value (32 in our implementation). Resultant feature maps are processed by three heads: ball classiﬁcation head, player

classiﬁcation head and player bounding box regression head. Numbers in brackets denote size of feature maps (width, height,

number of channels) produced by each block, where w, h is the input image width and height.

16 × 16 pixel block in the input image. Player bound-

ing box regression head takes the same input as the

player classiﬁcation head. It produces produces four

channel w/16 × h/16 × 4 player bounding box ten-

sor encoding coordinates of a player bounding box at

each location of the player conﬁdence map. Details of

each block are listed in Table 1. The network has fully

convolutional architecture and can operate on images

of any size.

Using Feature Pyramid Network (Lin et al., 2017)

architecture allows using both low-level features from

the ﬁrst convolutional layers and high-level features

computed by higher convolutional layers. Informa-

tion from ﬁrst convolutional layers is necessary for a

precise spatial location of the object of interest. Fur-

ther convolutional layers operate on feature maps with

lower spatial resolution, thus they cannot provide ex-

act spatial location. But they have bigger receptive

ﬁelds and their output provides additional context to

improve classiﬁcation accuracy. This is especially im-

portant for the ball detection tasks. The ball is very

small and other objects, such as parts of players’ body

or stadium advertisement, may have similar appear-

ance. Using larger receptive ﬁeld and higher level

features can improve discriminability of the ball de-

tector.

Loss Function. is a modiﬁed version of the loss

used in SSD (Liu et al., 2016) detector. The loss

minimized during the neural network training consists

of three components: ball classiﬁcation loss, player

classiﬁcation loss and player bounding box loss. Pro-

posed network does not regress ball bounding box.

Ball classiﬁcation loss (L

) is a binary cross-entropy

loss over predicted ball conﬁdence and the ground

truth:

= −

∑

(i, j)∈Pos

logc

i j

−

∑

(i, j)∈Neg

log



1 − c

i j



, (1)

where c

i j

is the value of the ball conﬁdence map at

the spatial location (i, j). Pos

is a set of positive ball

examples, that is the set of locations in the ball con-

ﬁdence map corresponding to the ground truth ball

position (usually for one input image it’s only one lo-

cation). Neg

is a set of negative examples, that is the

set of locations that does not correspond to the ground

truth ball position (all locations do not containing the

ball). Player classiﬁcation loss (L

) is a binary cross-

entropy loss over predicted conﬁdence in each cell in

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

the player conﬁdence map and the ground truth.

= −

∑

(i, j)∈Pos

logc

i j

−

∑

(i, j)∈Neg

log



1 − c

i j



, (2)

where c

i j

is the value of the player conﬁdence map

at the spatial location (i, j). Pos

is a set of posi-

tive player examples, that is the set of locations in the

player conﬁdence map corresponding to the ground

truth player position. Neg

is a set of negative ex-

amples, that is the set of locations that does not cor-

respond to any ground truth player position. Player

bounding box loss (L

bbox

) is Smooth L1 loss (Gir-

shick, 2015b) between the predicted and ground truth

bounding boxes. As in SSD (Liu et al., 2016) detector

we regress the offset of the bounding box with respect

to the cell center and its width and height.

bbox

∑

(i, j)∈Pos

smooth



(i, j)

− g

(i, j)



, (3)

where l

(i, j)

∈ R

denotes a predicted bounding box

coordinates in the location (i, j) and g(i, j) ∈ R

are a

ground truth bounding box coordinates in the location

(i, j).

Similar to SSD, we regress relative position of the

center (cx, cy) of the bounding box with respect to the

location centre and its relative width (w) and height

(w) with respect to the location/cell height and width.

The total loss is the sum of the three above com-

ponents, averaged by the number of training examples

L =

(α

+ α

+ L

bbox

), (4)

where α

and β

are weights for the L

and L

cho-

sen experimentally.

Sets of positive ball Pos

and player Pos

ex-

amples are constructed as follows. If (x, y) is a

ground true ball position in pixel coordinates, then

the corresponding conﬁdence map location (i, j) =

(bx/k

,y/k

c) and all neighbourhood locations are

added to Pos

. If (x,y) is a ground truth position

of the player’s bounding box center in pixel coordi-

nates, then the corresponding conﬁdence map loca-

tion (i, j) = (bx/k

,y/k

c) is added to Pos

. Due to

smaller size of players conﬁdence map, we mark only

a single cell as a positive example.

Sets of negative ball Neg

and negative player

Neg

examples correspond to locations in the conﬁ-

dence map, where the objects are not present. The

number of negative examples is orders of magnitude

higher than a number of positive examples and this

would create highly imbalanced training set. To mit-

igate this, we employ hard negative mining strategy

as in (Liu et al., 2016). For both ball and players

we chose a limited number of negative examples with

the highest conﬁdence loss, so the ratio of negative to

positive examples is at most 3:1.

Network Training. The network is trained us-

ing combination of two datasets: ISSIA-CNR Soc-

cer (D’Orazio et al., 2009) and Soccer Player Detec-

tion (Lu et al., 2017) datasets. ISSIA-CNR Soccer

dataset contains six synchronized, long shot views of

the football pitch acquired by six Full-HD DALSA

25-2M30 cameras. Three cameras are designated

for each side of the playing-ﬁeld, recording at 25

fps. Videos are acquired during matches of the Ital-

ian ’serie A’. There’re 20,000 annotated frames in the

dataset annotated with ball position and player bound-

ing boxes. Fig. 2 shows exemplary frames from the

ISSIA-CNR Soccer Dataset. Soccer Player Detec-

tion dataset is created from two professional football

matches. Each match was recorded by three broad-

cast cameras at 30 FPS with 1280x720 resolution. It

contains 2019 images with 22,586 annotated player

locations. However, ball position is not annotated.

For training we select 80% of images and use re-

maining 20% for evaluation. We use data augmen-

tation to increase the variety of training examples

and reduce overﬁtting. The following transformations

are randomly applied to the training images: random

scaling (with scale factor between 0.8 and 1.2), ran-

dom cropping, horizontal ﬂip and random photomet-

ric distortions (random change of brightness, contrast,

saturation or hue). The ground truth ball position and

player bounding boxes are modiﬁed accordingly to

align with the transformed image.

The network is trained using a standard gradient

descent approach with Adam (Kingma and Ba, 2014)

optimizer. The initial learning rate is set to 0.001 and

decreased by 10 after 75 epochs. The training runs for

100 epochs in total. Batch size is set to 16.

4 EXPERIMENTAL RESULTS

Evaluation Dataset. We evaluate our method on

publicly available ISSIA-CNR Soccer (D’Orazio

et al., 2009) and Soccer Player Detection (Lu et al.,

2017) datasets. For evaluation we select 20% of im-

ages, whereas remaining 80% are used for training.

Both datasets are quite challenging, there’s noticeable

motion blur, many occlusions, cluttered background

and varying player’s size. In ISSIA-CNR dataset the

height of players is between 63 and 144 pixels. In

Soccer Player Detection dataset, it varies even more,

from 20 to 250 pixels. In ISSIA-CNR dataset one

team wears white jerseys which makes difﬁcult to dis-

tinguish the ball when it’s close to the player.

FootAndBall: Integrated Player and Ball Detector

Evaluation Metrics. We evaluate Average Preci-

sion (AP), a standard metric used in assessment of

object detection methods. We follow Average Pre-

cision deﬁnition from Pascal 2007 VOC Challenge

(Everingham et al., 2010). The precision/recall curve

is computed from a methods ranked output. For the

ball detection task, the set of positive detections is

the set of ball detections (locations in the ball con-

ﬁdence map with the conﬁdence above the threshold

) corresponding to the ground truth ball position.

Our method does not regress bounding boxes for the

ball. For the player detection task, the set of positive

detections is the set of player detections (estimated

player bounding boxes) with Intersection over Union

(IOU) with the ground truth players’ bounding boxes

above 0.5. Recall is deﬁned as a proportion of all pos-

itive detections with conﬁdence above a given thresh-

old to all positive examples in the ground truth. Pre-

cision is a proportion of all positive detections with

conﬁdence above that threshold to all examples. Av-

erage Precision (AP) summarizes the shape of the pre-

cision/recall curve, and is deﬁned as the mean preci-

sion at a set of eleven equally spaced recall levels:

AP =

∑

r∈

{

0,0.1,...1

}

p(r) , (5)

where p(r) is a precision at recall level r.

Evaluation Results. Evaluation results are summa-

rized in Table 2. The results show Average Preci-

sion (AP) for ball and player detection as deﬁned

in the previous section. The table also lists a num-

ber of parameters of each evaluated model and in-

ference time, expressed in frames per second (FPS)

achieved when processing Full HD (1920x1080 res-

olution) video. All methods are implemented in Py-

Torch (Paszke et al., 2017) 1.2 and run on low-end

nVidia GeForce GTX 1060 GPU.

Our method yields the best results on the ball

detection task on ISSIA-CNR dataset. It achieves

0.909 Average Precision. For comparison we eval-

uated three recent, neural network-based, detection

methods. Two are dedicated ball detection methods

trained and evaluated on the same datasets: (Reno

et al., 2018) scores 0.834 and (Komorowski et al.,

2019) 0.877 Average Precision. The other is general

purpose Faster R-CNN (Girshick, 2015a) object de-

tector ﬁne-tuned for ball and player detection using

our training datasets. Despite having almost two or-

der of magnitude more parameters is has lower ball

detection average precision (0.866).

On the player detection task we compared our

model to general purpose Faster R-CNN (Girshick,

Figure 5: Visualization of incorrect ball detection results.

Top row show image patches where the ball is not detected

(false negatives). The bottom row shows patches with in-

correctly detected ball (false positives).

2015a) object detector. Comparison with other re-

cently published player detection method was not

made due to reasons such as unavailability of the

source code, usage of proprietary datasets, lack de-

tails on train/test split or different evaluation met-

rics than used in our paper. On ISSIA CNR dataset

our method achieves higher ball and player detec-

tion average accuracy (0.909 and 0.921 respectively)

than Faster R-CNN (0.866 and 0.774) despite having

two orders of magnitude less parameters. On Soccer

Player Dataset Faster R-CNN gets higher score (0.928

as compared to 0.885 scored by our method). On av-

erage these two methods have similar accuracy. But

due to the specialized design our method can process

high deﬁnition video (1920 x 1080 frames) in a real

time at 37 FPS. Faster R-CNN throughput on the same

video is only 8 FPS (Faster-RCNN implementation

based on ResNet-50 backbone, included in PyTorch

1.2 distribution https://pytorch.org). DeepBall

network has the highest performance (87 FPS) but it’s

a tiny network built for ball detection only.

Using Feature Pyramid Network design pattern,

where higher level features with larger receptive ﬁeld

are combined with lower level features with higher

spatial resolution, is an important element of our de-

sign. Evaluation of a similar network but without

top-down connections and without combining multi-

ple feature maps with different receptive ﬁelds, pro-

duces worse results. Such architecture (FootAnd-

Ball – no top-down) achieves 4-5% percentage points

lower Average Precision in all categories.

Fig. 5 show examples of incorrect ball detections.

Two top rows show image patches where our method

fails to detect the ball (false negatives). It can be no-

ticed, that misclassiﬁcation is caused by severe occlu-

sion, where only small part of the ball is visible, or

due to blending of the ball image with white parts of

the player wear or white background objects outside

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

Table 2: Average precision (AP) of ball and player detection methods on ISSIA-CNR and Soccer Player datasets. Two last

columns show the number of trainable parameters and inference time in frame per seconds for high resolution (1920, 1080)

video.

Dataset ISSIA-CNR Soccer Player

Ball AP Player AP mAP Player AP #params FPS

(Reno et al., 2018) 0.834 - - - 313k 32

DeepBall 0.877 - - - 49k 87

Faster R-CNN 0.866 0.874 0.870 0.928 25 600k 8

FootAndBall (no top-down) 0.853 0.889 0.872 0.834 137k 39

FootAndBall 0.909 0.921 0.915 0.885 199k 37

the play ﬁeld, such as stadium advertisement. The

bottom row shows examples of patches where a ball

is incorrectly detected (false positives). The detector

is sometimes confused by players’ white socks or by

the background clutter outside the play ﬁeld.

5 CONCLUSIONS

The article proposes an efﬁcient deep neural network-

based player and ball detection method. The pro-

posed network has a fully convolutional architecture

processing entire image in a single pass through the

network. This is much more computationally ef-

fective than a sliding window approach proposed in

other methods, such as (Reno et al., 2018). Addi-

tionally, the network can operate on images of any

size that can differ from size of images used dur-

ing the training. It outputs ball locations and player

bounding boxes. The method performs very well on

a challenging ISSIA-CNR Soccer (D’Orazio et al.,

2009) and Soccer Player Detection (Lu et al., 2017)

datasets (0.915 and 0.885 mean Average Precision).

In ball detection task it outperforms two other, re-

cently proposed, neural network-based ball detections

methods: (Reno et al., 2018) and (Komorowski et al.,

2019). In player detection task it’s on par with ﬁne-

tuned general-purpose Faster R-CNN object detector,

but due to specialized design it’s almost ﬁve times

faster (37 versus 8 FPS for high-deﬁnition 1920x1080

video). This allows real time processing of high-

deﬁnition video recordings.

In the future we plan to use temporal information

to increase the accuracy. Combining convolutional

feature maps from subsequent frames may help to dis-

criminate between object of interest and static distrac-

tors (e.g. parts of stadium advertisement or circular

marks on the pitch).

Another research direction is to investigate model

compression techniques, such as using half-precision

arithmetic, to improve the computational efﬁciency.

The proposed method can process high deﬁnition

videos in real time on relatively low-end GPU plat-

form. However, real time processing of recordings

from multiple cameras poses a challenging problem.

ACKNOWLEDGEMENTS

This work was co-ﬁnanced by the European Union

within the European Regional Development Fund

REFERENCES

D’Orazio, T., Ancona, N., Cicirelli, G., and Nitti, M.

(2002). A ball detection algorithm for real soc-

cer image sequences. In Pattern Recognition, 2002.

Proceedings. 16th International Conference on, vol-

ume 1, pages 210–213. IEEE.

D’Orazio, T., Leo, M., Mosca, N., Spagnolo, P., and

Mazzeo, P. (2009). A semi-automatic system for

ground truth generation of soccer video sequences. In

2009 Advanced Video and Signal Based Surveillance,

pages 559–564. IEEE.

D’Orazio, T., Leo, M., Spagnolo, P., Mazzeo, P. L., Mosca,

N., and Nitti, M. (2007). A visual tracking algorithm

for real time people detection. In Eighth International

Workshop on Image Analysis for Multimedia Interac-

tive Services (WIAMIS’07), pages 34–34. IEEE.

Everingham, M., Van Gool, L., Williams, C. K., Winn, J.,

and Zisserman, A. (2010). The pascal visual object

classes (voc) challenge. International journal of com-

puter vision, 88(2):303–338.

Felzenszwalb, P., Girshick, R., McAllester, D., and Ra-

manan, D. (2013). Visual object detection with de-

formable part models. Communications of the ACM,

56(9):97–105.

Felzenszwalb, P. F., Girshick, R. B., McAllester, D., and

Ramanan, D. (2010). Object detection with discrim-

inatively trained part-based models. IEEE transac-

tions on pattern analysis and machine intelligence,

32(9):1627–1645.

Gabel, A., Heuer, T., Schiering, I., and Gerndt, R. (2018).

Jetson, where is the ball? using neural networks for

ball detection at robocup 2017. In Robot World Cup,

pages 181–192. Springer.

FootAndBall: Integrated Player and Ball Detector

Girshick, R. (2015a). Fast r-cnn. In Proceedings of the

IEEE international conference on computer vision,

pages 1440–1448.

Girshick, R. (2015b). Fast r-cnn. In Proceedings of the

IEEE international conference on computer vision,

pages 1440–1448.

Gong, Y., Sin, L. T., Chuan, C. H., Zhang, H., and Sakauchi,

M. (1995). Automatic parsing of tv soccer programs.

In Proceedings of the International Conference on

Multimedia Computing and Systems, pages 167–174.

Halbinger, J. and Metzler, J. (2015). Video-based soc-

cer ball detection in difﬁcult situations. In Cabri, J.,

Pezarat Correia, P., and Barreiros, J., editors, Sports

Science Research and Technology Support, pages 17–

24, Cham. Springer International Publishing.

Higham, D., Kelley, J., Hudson, C., and Goodwill, S. R.

(2016). Finding the optimal background subtraction

algorithm for eurohockey 2015 video. Procedia Engi-

neering, 147:637 – 642. The Engineering of SPORT

11.

Kamble, P., Keskar, A., and Bhurchandi, K. (2019). A deep

learning ball tracking system in soccer videos. Opto-

Electronics Review, 27(1):58–69.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Komorowski, J., Kurzejamski, G., and Sarwas, G. (2019).

Deepball: Deep neural-network ball detector. In Pro-

ceedings of the 14th International Joint Conference

on Computer Vision, Imaging and Computer Graphics

Theory and Applications - Volume 5: VISAPP, pages

297–304. INSTICC, SciTePress.

Lehuger, A., Duffner, S., and Garcia, C. (2007). A robust

method for automatic player detection in sport videos.

Orange Labs, 4.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017). Feature pyramid networks

for object detection. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2117–2125.

Liu, J., Tong, X., Li, W., Wang, T., Zhang, Y., and Wang,

H. (2009). Automatic player detection, labeling and

tracking in broadcast soccer video. Pattern Recogni-

tion Letters, 30(2):103–113.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In European conference on com-

puter vision, pages 21–37. Springer.

Lu, K., Chen, J., Little, J. J., and He, H. (2017). Light

cascaded convolutional neural networks for accurate

player detection. In British Machine Vision Confer-

ence 2017, BMVC 2017, London, UK, September 4-7,

2017.

Lu, W.-L., Ting, J.-A., Little, J. J., and Murphy, K. P.

(2013). Learning to track and identify players from

broadcast sports videos. IEEE transactions on pattern

analysis and machine intelligence, 35(7):1704–1716.

ckowiak, S., Kurc, M., Konieczny, J., and Ma

ckowiak,

P. (2010). A complex system for football player de-

tection in broadcasted video. In ICSES 2010 Interna-

tional Conference on Signals and Electronic Circuits,

pages 119–122. IEEE.

Manaﬁfard, M., Ebadi, H., and Moghaddam, H. A. (2017).

A survey on player tracking in soccer videos. Com-

puter Vision and Image Understanding, 159:19–46.

Mazzeo, P. L., Leo, M., Spagnolo, P., and Nitti, M. (2012).

Soccer ball detection by comparing different feature

extraction methodologies. Advances in Artiﬁcial In-

telligence, 2012:6.

Paszke, A., Gross, S., Chintala, S., Chanan, G., Yang, E.,

DeVito, Z., Lin, Z., Desmaison, A., Antiga, L., and

Lerer, A. (2017). Automatic differentiation in pytorch.

In NIPS-W.

Poppe, C., De Bruyne, S., Verstockt, S., and Van de Walle,

R. (2010). Multi-camera analysis of soccer sequences.

In Advanced Video and Signal Based Surveillance

(AVSS), 2010 Seventh IEEE International Conference

on, pages 26–31. IEEE.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time object

detection. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 779–

788.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. In Advances in neural information

processing systems, pages 91–99.

Reno, V., Mosca, N., Marani, R., Nitti, M., DOrazio, T.,

and Stella, E. (2018). Convolutional neural networks

based ball detection in tennis games. In Proceedings

of the IEEE Conference on Computer Vision and Pat-

tern Recognition Workshops, pages 1758–1764.

S¸ah, M. and Direko

glu, C. (2018). Evaluation of image rep-

resentations for player detection in ﬁeld sports using

convolutional neural networks. In International Con-

ference on Theory and Applications of Fuzzy Systems

and Soft Computing, pages 107–115. Springer.

Speck, D., Barros, P., Weber, C., and Wermter, S. (2017).

Ball localization for robocup soccer using convolu-

tional neural networks. In Behnke, S., Sheh, R., Sarıel,

S., and Lee, D. D., editors, RoboCup 2016: Robot

World Cup XX, pages 19–30, Cham. Springer Inter-

national Publishing.

Yoon, H.-S., Bae, Y.-l. J., and Yang, Y.-k. (2002). A soc-

cer image sequence mosaicking and analysis method

using line and advertisement board detection. ETRI

journal, 24(6):443–454.

Zhang, L., Lu, Y., Song, G., and Zheng, H. (2018). Rc-cnn:

Reverse connected convolutional neural network for

accurate player detection. In Paciﬁc Rim International

Conference on Artiﬁcial Intelligence, pages 438–446.

Springer.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications
