Winventor: A Machine-driven Approach for the Development of

Winograd Schemas

Nicos Isaak

1 a

and Loizos Michael

1,2

Open University of Cyprus, Cyprus

Research Center on Interactive Media, Smart Systems, and Emerging Technologies, Cyprus

Keywords:

Winograd Schema Challenge, Pronoun Resolution, Natural Language Processing.

Abstract:

The Winograd Schema Challenge — the task of resolving pronouns in certain carefully-constructed sentences

— has recently been proposed as a basis for a novel form of CAPTCHAs. Such uses of the task necessitate the

availability of a large, and presumably continuously-replenished, collection of available Winograd Schemas,

which goes beyond what human experts can reasonably develop by themselves. Towards tackling this issue,

we introduce Winventor, the ﬁrst, to our knowledge, system that attempts to fully automate the development

of Winograd Schemas, or at least to considerably help humans in this development task. Beyond describing

the system, the paper presents a series of three studies that demonstrate, respectively, Winventor’s ability to

replicate existing Winograd Schemas from the literature, automatically develop reasonable Winograd Schemas

from scratch, and aid humans in developing Winograd Schemas by post-processing the system’s suggestions.

1 INTRODUCTION

A number of challenges have been proposed in the lit-

erature towards encouraging the development of sys-

tems that will automate or enhance basic human abil-

ities and increase the extent to which humans can

relate and interact with them. Among those, the

Winograd Schema Challenge (WSC) (Levesque et al.,

2012) is concerned with the ability to resolve a deﬁ-

nite pronoun to one of its possible co-referents in cer-

tain carefully-constructed sentences, which in certain

cases could be argued to require the use of common-

sense knowledge. Although humans can easily solve

this type of task, the performance of automated ap-

proaches is still signiﬁcantly lacking (Sharma et al.,

2015).

This disparity in the performance of humans and

machines on the WSC suggests, on the one hand, the

need for more research in identifying ways to endow

machines with the necessary knowledge (common-

sense or otherwise (Michael, 2013)) that would allow

machines to perform better. The importance of this

suggestion becomes even more clear when one con-

siders that the general problem of anaphora resolution

remains a signiﬁcant task for many natural language

understanding applications (Deepa and Deisy, 2017).

https://orcid.org/0000-0003-2353-2192

On the other hand, this disparity presents an opportu-

nity for the use of WSC as the basis for developing

CAPTCHAs (automated tests that aim to distinguish

humans from computers), as proposed in recent work

(Isaak and Michael, 2018).

In either case above, a large collection of available

Winograd Schemas would seem to be a prerequisite,

or at least a facilitator, for further work and progress.

This collection could be used in the former case, for

example, to develop data-driven approaches to the

knowledge acquisition task. In the latter case of de-

veloping CAPTCHAs, one could argue that even the

availability a large collection is insufﬁcient, and one

could further expect that this collection would be re-

plenished in an ongoing manner, to prevent machines

that simply memorize the answers to previously seen

Winograd Schemas to pass the test.

Motivated by the difﬁculty of having human ex-

perts develop Winograd Schemas from scratch, this

work introduces Winventor (see Figure 1), a sys-

tem that can facilitate the continuous development of

Winograd Schemas, either as a fully-automated pro-

cess, or as a tool to be used by human experts. In

the sections that follow, we ﬁrst present some aspects

of the architecture of Winventor, and we then proceed

to present the results from three studies that we under-

took to evaluate the system’s performance on replicat-

ing existing Winograd Schemas from a well-known

Isaak, N. and Michael, L.

Winventor: A Machine-driven Approach for the Development of Winograd Schemas.

DOI: 10.5220/0008902600260035

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 2, pages 26-35

ISBN: 978-989-758-395-7; ISSN: 2184-433X

WSC dataset (Rahman and Ng, 2012), on develop-

ing new Winograd Schemas, and on helping humans

develop new Winograd Schemas. To the best of our

knowledge, this is the ﬁrst published work to report

results on the feasibility of this approach.

2 BACKGROUND ON THE WSC

The Winograd Schema Challenge (WSC) was pro-

posed as an alternative to the Turing Test. Rather than

basing the test on the sort of short free-form conversa-

tion suggested by the Turing Test, a machine claiming

to pass the WSC should be able to demonstrate that

it is thinking without having to pretend to be some-

body (Levesque et al., 2012; Levesque, 2014). Dur-

ing the ﬁrst, and only one so far, competition that

was held for the WSC (Morgenstern et al., 2016), the

challenge was found to be extremely difﬁcult for ma-

chines (Isaak and Michael, 2016), since machines that

perform well would presumably need to be capable of

supporting a wide range of commonsense reasoning

that would span many AI application domains. Ac-

cording to Levesque (2014), the AI community need

to return to their roots in Knowledge Representation

and Reasoning for language and from language be-

cause when humans are at their best behaviour they

undertake knowledge-intensive activities such as re-

sponding to WSC questions.

Winograd Schemas comprise two Winograd

Halves, with each Winograd Half consisting of a sen-

tence, a deﬁnite pronoun (or a question), two pos-

sible pronoun targets, and the correct pronoun tar-

get. The task is to identify the correct pronoun tar-

get given the rest of the information in a Winograd

Half. The challenging nature of the task derives from

several constraints that each schema obeys: the two

pronoun targets belong to the same gender, and both

are either singular or plural; additionally, the differ-

ence between a pair of halves is a special word or a

small phrase, which when replaced by another word

causes the correct answer to ﬂip from one pronoun

target to the other. Pairs of halves that do not obey all

the constraints are known as “Winograd Schemas in

the broad sense” (Levesque et al., 2012).

The following WSC schema illustrates the na-

ture of the challenge: i) sentence: “The cat caught

the mouse because it was clever.” / Pronoun: “it”

/ Pronoun-Targets: “cat, mouse” / Special-Word:

“clever” ii) sentence: “The cat caught the mouse be-

cause it was careless.” / Pronoun: “it” / Pronoun-

Targets: “cat, mouse” / Special-Word: “careless”.

In some cases, one could consider a Winograd Half

without identifying a special word, and without mak-

ing provisions for the existence of the other half, and

this task has been referred to as a PDP, or a pronoun

disambiguation problem (Morgenstern et al., 2016).

Although the AI community has sought to pro-

mote the WSC through specialized competitions, con-

structing a WSC corpus is a laborious job, requir-

ing creativity, motivation, and inspiration (Morgen-

stern et al., 2016). Perhaps unsurprisingly, then, there

seem to exist only two WSC datasets that have been

widely used: Rahman & Ng’s dataset (Rahman and

Ng, 2012) consisting of 942 schemas, and Levesque

et al.’s dataset (Levesque et al., 2012) consisting of

150 schemas. It would seem that the automated devel-

opment of schemas would help overcome the limita-

tions of the manual construction of schemas, support-

ing regularly-held competitions and promoting more

research on the WSC.

3 SYSTEM ARCHITECTURE

In this section, we brieﬂy discuss the main elements

of our approach by presenting how the engine works,

and how it handles its semantics to develop schemas

(see Figure 1).

3.1 Deﬁnitions and Conventions

We follow the constrained deﬁnition of the WSC

which requires that the ambiguous word is a pronoun

and that the two referents are noun phrases that oc-

cur in the sentence. If Winventor cannot develop a

schema, it only develops a schema half (PDP). For

each half Winventor has to develop the sentence, the

deﬁnite pronoun, the question that indirectly refers to

the deﬁnite pronoun, and the two pronoun targets (the

correct pronoun target has to be selected by humans).

To build Winventor, we created a framework that al-

lows access to a broad collection of nearly 88 Millions

of sentences from the English Wikipedia (Isaak and

Michael, 2016). The system runs on Wikipedia sen-

tences non-stop, and outputs its schemas in an online

database.

3.2 Spelling & Grammar Correction

Since our sentences come from the English

Wikipedia, it is possible that we might ﬁnd sen-

tences with spelling errors; abbreviations and

misspellings of words are common examples of the

informal nature of some Wikipedia texts. For this

reason, Winventor parses each examined sentence

through a double check. At ﬁrst, it uses the Google

language detection library to check the language of

Winventor: A Machine-driven Approach for the Development of Winograd Schemas

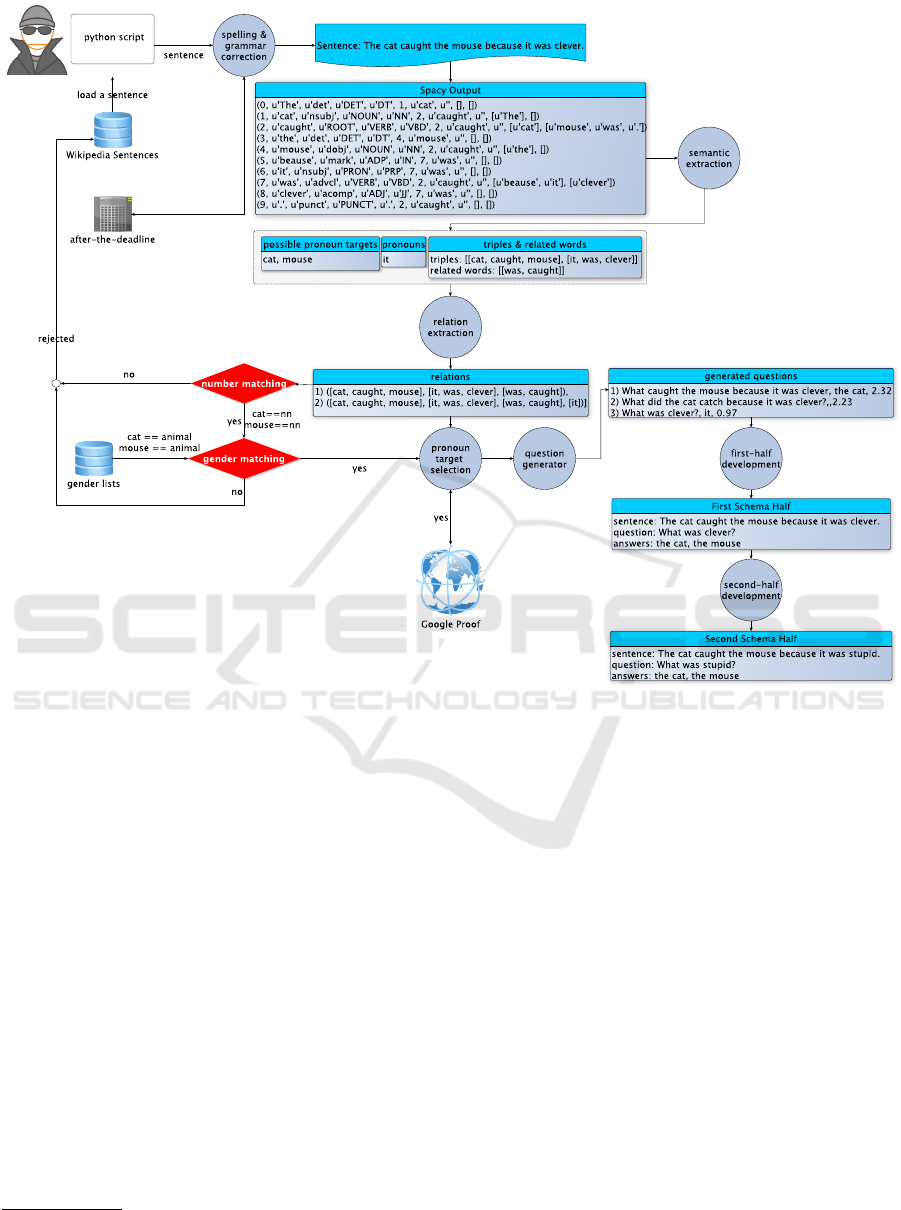

Figure 1: A Schema Development from Winventor for the Sentence The cat caught the mouse because it was clever.

the text. Next, it uses language-checker tools like

after-the-deadline

to correct grammar and spelling

errors.

3.3 Semantic Relations

According to Sharma et al. (2015), a semantic rep-

resentation of text is considered good if it can ex-

press the structure of the text, can differentiate be-

tween the events and their context in the text, and

uses a set of relations between the events and their

participants. In anaphora resolution, among others,

grammatical role, number, gender and syntactic struc-

ture play a role (Amsili and Seminck, 2017). Win-

ventor utilizes a dependency parser (spaCy) to turn

raw text into semantic relations. We use spaCy

parse the sentence, to locate the candidate pronoun

targets, and to develop triples and related words (see

spaCy-Output in Figure 1). The triples are seman-

tic scenes that are created through the sentence’s sub-

https://afterthedeadline.com

https://spacy.io

jects and objects (Isaak and Michael, 2016). For in-

stance, in our example sentence (see triples in Fig-

ure 1) the triple [cat, catch, mouse] is created by

the nsubj & dobj relations (abbreviations of “nominal

subject” and “direct object”). Also, prior the schema

building, it is important to search for pronoun-noun

relations & pronoun-proper-noun relations; these are

the relations where nouns are related to other nouns

via pronouns and/or other words (see relations in Fig-

ure 1). If at least one pronoun exists, and two nouns

or two proper nouns exist (possible pronoun targets),

we proceed to the next step, otherwise we proceed to

the next sentence. To illustrate, for the sentence ”The

cat caught the mouse because it was clever”, Winven-

tor will return two relations; these relations show that

the nouns cat, mouse are related to the pronoun it, the

verb caught, and the adjective clever (see relations in

Figure 1).

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

3.4 Selecting the Pronoun Targets

Each sentence’s pronoun targets will be either two

proper-nouns or two nouns. Also, the two pronoun

targets have to belong to the same gender, and both

have to be either singular or plural.

3.4.1 Gender & Number Factor

For the proper-nouns we are using the spaCy’s entity

recognition system. SpaCy’s default model identiﬁes

a variety of named and numeric entities, including

locations, organizations, products and persons. Via

spaCy, Winventor locates and classiﬁes named enti-

ties into predeﬁned categories; in case of persons,

each pair has to consist of two males or two females.

On the other hand, we know that gender represents

an axis along which a word class that of nouns can

be classiﬁed into different types. While grammati-

cal gender was an essential category in Old English,

Modern English is mostly based on natural gender

that is reﬂected mainly in pronouns (Huddleston and

Pullum, 2005). It appears that it lacks a system of

gender consensus within the noun phrase where the

choice of pronoun is determined based on semantics

rather than on any formal assignments.

Recognized that there is not always a gender

agreement in English between nouns and their modi-

ﬁers, we developed Winventor to work in two differ-

ent modes (austere/not). If the austere mode is dis-

abled, Winventor can develop schemas that its pro-

noun targets may not agree e.g., in gender, although it

keeps a track of the genderAgreement, pronounGen-

derAgreement and numberAgreement ﬂags. Alterna-

tively, the pronoun targets have to strictly follow the

WSC rules. For the numberAgreement we check if the

two nouns agree in number through the dependency

parser. Next, for the genderAgreement we search

some pre-downloaded gender lists to see if the two

nouns have the same gender; these are lists that were

downloaded from several online-sources where nouns

are classiﬁed according to their gender (e.g., mascu-

line, feminine, neutral). If we are unable to locate

the two nouns in our lists, we can either search our

lists with the synonym or the similarity factor. For the

pronounGenderAgreement we consider the following:

The third-person singular personal pronouns are gen-

der speciﬁc where he/him/his refer to the masculine

gender, and she/her(s) to the feminine gender. Fur-

thermore, the singular pronouns they/them/their(s) re-

fer to the neutral gender (e.g., people, animals). Addi-

tionally, the pronouns it/its refer to the neuter gender

(e.g., objects, animals); in the case of companion an-

imals, the gendered pronouns he/she may be used, as

they would be for a human.

3.4.2 Selecting Pronoun Targets

For each schema, Winventor has to select the best

pair of the pronoun targets. Therefore, for every pair

of nouns or proper-nouns, it stores the boolean val-

ues of genderAgreement, pronounGenderAgreement

and numberAgreement. Additionally, it stores if the

pronoun targets participate in triple relations. Fi-

nally, we use an aggregation mechanism to give to

each target a score (Mitkov, 1998). According to

Mitkov (1998), noun preferences play a deﬁnitive role

in hunting down the pronoun targets from a set of pos-

sible candidates when we have limited background

knowledge. From his work, we used ﬁve indicators

that are related to salience: 1) Deﬁniteness: where

noun phrases are regarded as deﬁnite if the head noun

is modiﬁed by a deﬁnite article. 2) Indicating Verbs:

if a verb is a member of a speciﬁc Verb set (e.g., dis-

cuss), we consider the ﬁrst NP following it as the pre-

ferred antecedent. 3) Lexical Reiteration: repeated

synonymous noun phrases are likely candidates for

the antecedent. 4) nonPrepositional: a pure, non-

prepositional noun phrase is given a higher prefer-

ence. 5) Collocation & ImmediateReference: This

preference is given to candidates which have an iden-

tical collocation pattern with a pronoun. According

to Mitkov, in a sentence with multiple pronoun tar-

gets (candidates) the pair with the highest aggregate

score can be rated as the best pair.

3.5 Question Generator

According to Levesque et al. (2012), the most prob-

lematic aspect of the WSC is to come up with a list

of appropriate questions. In the ﬁeld of Automatic

Question Generation, most systems focus on the text-

to-question task, where a set of content-related ques-

tions are generated based on a given text. For the

question development, we use the Heilman and Smith

(2009) system, which generates factual questions with

an overgenerating and ranking strategy, such as Name

Entity Recognizer and Wh-movement Rules. It is a

tool that is freely available, and it generates weighted

questions based on a given text. Winventor uses the

question generator with the “–keep-pro & –just-wh”

ﬂags enabled. Keep-pro keeps questions with unre-

solved pronouns and Just-wh excludes boolean ques-

tions from the output (questions that can be answered

with a simple yes/no). In case of generated ques-

tions, Winventor leaves only the questions that have

as answers unresolved pronouns. In the end, it se-

lects the best pronoun target pair that relate to the

pronoun which is the answer of the most signiﬁcant

question (the question with the bigger-weight). If

Winventor: A Machine-driven Approach for the Development of Winograd Schemas

more pairs can be selected, then it develops more

schemas/halves.

3.6 Schema Development

Winograd schemas are constructed so that there is a

special word that can be substituted, causing the other

candidate pronoun referent to be correct (Morgenstern

et al., 2016). The existence of the special word is

one way to ensure that test creators do not unwit-

tingly construct a set of problems in which ordering

of words can be used to help the disambiguation pro-

cess. According to Levesque with a bit of care on the

selection of the special word it is possible to come up

with Winograd schema questions that exercise differ-

ent kinds of expertise (Levesque, 2014).

To ﬁnd the special word we use a simple heuris-

tic approach which is similar to the work of Budukh

(2013). Speciﬁcally, we parse the question of the ﬁrst

half to ﬁnd the verb that participates in the triple rela-

tion (e.g., the word fear in the triple feared (who, vi-

olence), of the question “Who feared violence?”). If

we have an auxiliary verb, we take the rightmost word

of the triple, which is the dobj (e.g., the word clever in

the triple was (it, clever), of the question “Who is the

clever?”). Next, we ﬁnd the best antonym of the re-

turned word via the similarity factor, and modify it to

match the tense of the ﬁrst half’s question. To end up

with the schema, we modify the ﬁrst half’s sentence

and question to develop the second half.

3.7 Schema Categorization

Via the schema categorization, Winventor classiﬁes

the developed schemas into predeﬁned categories, re-

garding the pronoun targets (e.g., names of organiza-

tions, locations). It also gathers information about the

schema subject, the gender, the number of the pro-

noun targets, and the Mitkov scores. With this cate-

gorization challenge organizers can get new ideas, for

the development of new schemas.

4 EVALUATION

In this section, we present the results that were ob-

tained by applying the methodology described in this

paper. We describe the results from three studies that

we undertook to evaluate the system’s performance on

replicating existing Winograd Schemas from a well-

known WSC dataset (Rahman and Ng, 2012), on de-

veloping new Winograd Schemas, and on helping hu-

mans develop new Winograd Schemas.

4.1 Automated Evaluation

In the ﬁrst experiment, we tested Winventor on a well-

known WSC dataset (Rahman and Ng, 2012); this is

a challenging dataset of 943 schemas where each half

consists of a sentence, a deﬁnite pronoun, and two

pronoun targets. Our goal is to feed Winventor with

the sentences of the ﬁrst half of each schema, to evalu-

ate if it can produce the same, or similar results. Also,

for the purposes of this experiment the austere mode

is disabled.

4.1.1 Results and Discussion

According to our results Winventor was able to de-

velop 990 halves, where 416 were based on unique

sentences; 848 of the 990 were schemas. At the

same time, it rejected 527 sentences, More than two

hundred halves (254/416 halves –61%), of which

214 are schemas, match with schemas/halves of the

WSC dataset meaning that they have the same deﬁ-

nite pronoun and the same pronoun targets. Thirty-

three percent of the returned halves that were identi-

ﬁed as proper-noun problems (122 halves), have more

than two proper nouns in each sentence (we can say

that, on average, each sentence contains three proper-

nouns). Also, 70% of the halves that were identiﬁed

as noun problems (132 halves), have more than two

nouns in each sentence (on average, each sentence

contains four nouns). The results show that it is more

complicated to ﬁnd the correct target pronouns in the

case of proper-nouns than in the case of nouns. This

is in line with other works which consider the resolv-

ing of proper nouns more difﬁcult and more challeng-

ing (Isaak and Michael, 2016; Budukh, 2013). On

the other hand, in the halves where Winventor was

able to identify the correct pronoun but not the cor-

rect pronoun targets, we found the following: 95% of

the noun problems have more than two nouns in each

sentence (665 sentences), and all of the proper-noun

problems (33 sentences) have more than two proper-

nouns. On average, each sentence that was identi-

ﬁed as a proper-noun problem contains four proper-

nouns, and each sentence that was identiﬁed as a noun

problem contains ﬁve nouns; the increased number of

nouns and proper-nouns might be one of the reasons

why Winventor failed to identify the correct pronoun

targets. Another reason is the average sentence length

in words; here, the average sentence length is thir-

teen words for the proper-noun problems and nine-

teen words for the noun problems. In the correctly

identiﬁed halves, the average length is twelve words

for the proper-noun problems, and fourteen words for

the noun problems.

The number of the produced schemas does not

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

mean that the developed halves that did not end up

being schemas are not useful. We have to keep in

mind that generating of schemas is difﬁcult and trou-

blesome even for humans. Furthermore, although the

original dataset did not include questions, Winven-

tor produced schemas with valid questions (e.g., see

the ﬁrst two schemas in Table 1). Additionally, this

library was developed under the broad sense which

means that schemas do not differ only in one word,

hence it is difﬁcult to match them (e.g., see the last

two schemas in Table 1 that differ only in one word,

but have the same meaning). Regarding the big num-

ber of rejected sentences, it shows that further gains

could be achieved via more accurate semantic analy-

sis of each sentence. For instance, 53% of 943 sen-

tences were rejected because Winventor was not able

to develop relations between pronouns and pronoun-

targets.

We further analyzed the relationship between de-

veloped halves and different factors (e.g., gender,

triple, Mitkov-score). The main purpose was to ﬁnd

the impact of these factors on the selection process of

the halves that were developed with the correct pair

of pronoun targets (e.g., 254 halves from a database

of 990 halves). The results showed interesting ﬁnd-

ings: If for each half we select the pronoun targets

that agree in gender, number, have a pronoun-gender

agreement, and they participate in triples, we have an

89% success rate. On the other hand, if we remove

the triple factor the success rate drops to 85%; this

might show the important role of the semantic scenes

(triple factor) for the tackle of the challenge. Regard-

ing the Mitkov-score, if we select the pronoun targets

that have bigger Mitkov-score we have an 82% suc-

cess rate; it seems that the results are in line with

Mitkov’s work, meaning that its theory works when

we have limited background knowledge.

4.2 Evaluation by Humans

In this section we investigate whether this a priori ap-

propriateness of this approach as a tool to develop

new Winograd schemas can be justiﬁed in terms of

its qualiﬁcation by humans. For these experiments,

we used freshly developed schemas from Winventor.

The schemas were developed with the austere ﬂag

enabled, meaning that answers that did not match in

gender, number, and pronoun-gender agreement were

rejected. At the time of the experiment Winventor had

already searched 20000 sentences and developed 500

schemas.

4.2.1 Platform & Participants

The Microworkers (MW) platform

was launched in

May, 2009 and can be considered as a viable platform

for across a range of experimental tasks. From an

employers perspective the MW platform offers fea-

tures which can inﬂuence the completion time of a

campaign. MW uses gold question automatically to

track the performance of workers and rate their an-

swers with a trust score.

A single experiment was performed online –in

May 2019– using MW, where one hundred people

participated. Participants were adult residents of

the United States, United Kingdom, Canada, New

Zealand who speak English ﬂuently (aged between 18

and 65). Participants were also screened by means of

a qualiﬁcation task from the Microworkers platform,

for their ﬂuency. Out of 100 participants everyone

managed to attempt and ﬁnish the task. The partici-

pants were paid $2.50 each.

4.2.2 Training Task

To maximize the quality of our results, we gave all

participants a training task. This preliminary task fa-

miliarized them with the experiment by asking them

to answer a few Winograd schemas/halves. Partici-

pants were required to correctly answer all the ques-

tions before proceeding to the questionnaire. Imme-

diate feedback (correct or incorrect) was given after

each trial. All participants had to pass the same num-

ber of training examples, to continue on to the testing

task; none was discarded.

4.2.3 Design & Procedure

The participation was anonymous, and it lasted about

16 minutes. Although we could not monitor the pro-

cess we asked them to take their time and answer hon-

estly. Participants were given instructions explain-

ing the task and directing them to answer each ques-

tion without sacriﬁcing accuracy. They also read an

informed consent form and agreed to participate in

the study. Also, they were told that once they an-

swered a schema they could not go back to change

their answer. We divided our questionnaire into two

sections: For the ﬁrst section, we randomly selected

twenty Winograd halves from our database, and for

the second ten Winograd schemas (schema halves that

were selected in the ﬁrst section were not included

in the second one). The questionnaire started with

the half section and continued with the schema sec-

tion. Each half/schema was displayed on a single

www.microworkers.com

Winventor: A Machine-driven Approach for the Development of Winograd Schemas

Table 1: A snapshot of Winventor’s Developed Schemas on the Rahman & Ng Dataset. The ﬁrst two match 100% with the

Dataset while the last two have slight differences.

System Sentence Pronoun Question Answers

1 Rahman & Ng

Caroline quickly defeated Sue because she regained her conﬁdence.

Caroline quickly defeated Sue because she lost her conﬁdence.

she - Caroline, Sue

1 Winventor

Caroline quickly defeated Sue because she regained her conﬁdence.

Caroline quickly defeated Sue because she lost her conﬁdence

she

Who regained her conﬁdence?

Who lost her conﬁdence?

Caroline, Sue

2 Rahman & Ng

Saudi Arabians do not respect the Bangladeshis because they are poor.

Saudi Arabians do not respect the Bangladeshis because they are rich.

they - Saudi Arabians, Bangladeshis

2 Winventor

Saudi Arabians do not respect the Bangladeshis because they are poor.

Saudi Arabians do not respect the Bangladeshis because they are rich

they

Who are rich?

Who are poor?

Saudi Arabians, Bangladeshis

1 Rahman & Ng

The cat caught the mouse because it was clever.

The cat caught the mouse because it was careless.

it - cat, mouse

1 Winventor

The cat caught the mouse because it was clever.

The cat caught the mouse because it was stupid.

Who is the clever?

Who is the stupid?

cat, mouse

2 Rahman & Ng

Apple defeated Microsoft in the war because they were creative.

Apple defeated Microsoft in the war because they lack creativity.

they - Apple, Microsoft

2 Winventor

Apple defeated Microsoft in the war because they were creative.

Apple defeated Microsoft in the war because they were untalent

they

Who were creative?

Who were untalented?

Apple, Microsoft

screen, followed by the question where three choices

were displayed side-by-side i) Valid Schema - Easy to

Solve ii) Valid Schema - Hard to Solve iii) Non-Valid

Schema.

4.2.4 Results and Discussion

Based on the results, the participants characterized the

Winograd halves as valid with a mean of 69% (σ =

0.15) . Moreover they marked the Winograd schemas

as valid with a mean of 73% (σ = 0.17) . In the

ﬁrst section, the Winograd halves were characterized

as valid - easy to solve by 46% of the participants

and as valid - hard to solve by 23% of the partici-

pants. In the second section, the Winograd schemas

were characterized as valid - easy to solve by 55%

of the participants and as valid - hard to solve by

18% of the participants. The positive difference in

favor of the schemas might have happened because

the participants were able to see the two halves at

the same time and not because of the quality of the

schemas, which are harder to develop (it seems that it

helped them to understand the meaning of the schema

halves). According to Levesque et al. (2012), it is

clear enough that to build quality Winograd schemas

we need to have the following: i) The ﬁrst pitfall con-

cerns questions whose answers are in a certain sense

too obvious. ii) The second and more troubling pit-

fall concerns questions whose answers are not obvi-

ous enough. It seems that our developed schemas are

in line with the WSC rules, meaning that they cannot

be considered as easy or hard schemas (see a) Ex-

amples of Valid Schema-Halves in Table 2). On the

other hand, we are not claiming that this system can

be used to develop schema/halves without the need of

reviewing (see b) Examples of Valid Schema-Halves

(after some minor modiﬁcations) in Table 2); the fact

that sentences are taken from Wikipedia pages for the

schema development process might yield pronomi-

nal coreferences that appear unbound (Antunes et al.,

2018).

4.3 Winventor as a Co-worker

To get feedback regarding Winventor’s usefulness as

a co-worker, we asked ten colleagues that have par-

ticipated in earlier WSC-related experiments of ours,

and have prior experience in developing Winograd

Schemas. The participants were asked to develop

halves/PDPs with and without Winventor’s help (see

Table 3). For this experiment we gave them an assign-

ment which consists of two sections. In the ﬁrst sec-

tion we asked them to develop as many PDPs as they

can in 10 minutes without any help from Winventor

(called non-guided PDPs). In the second section we

gave them access to 15 randomly selected Winventor

PDPs and asked them to develop as many PDPs as

they can in the same time (called guided PDPs).

4.3.1 Results and Discussion

Based on the results, Winventor helped the partic-

ipants develop 20 PDPs in 10 minutes on average.

Without Winventor they had developed an average

of 7 PDPs. Based on the remarks submitted by the

participants in our study, Winventor helped them de-

velop PDPs that are based on different sentence pat-

terns/types. To analyze the guided PDPs and com-

pare them to non-guided PDPs we used a tool that

we designed in another work (Isaak and Michael,

2019) which is based on the English Grammar (Seely,

2013). This is a tool that refers to the sentence-

pattern of each designed PDP. It can take as in-

put any English sentence and output its pattern/type

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

Table 2: A snapshot of Winventor’s Developed Halves (PDPs) on the Wikipedia Sentences. The ﬁrst six examples show valid

halves that were developed automatically by Winventor, without human reviewing. The last two are examples that required

some reviewing.

Sentence Pronoun Question Answers

a) Examples of Valid Schema-Halves

Your governors are unjustiﬁably killing people and they only write the crime

of the killed person to inform you.

they

Who only write the crime of

the killed person to inform you?

The governors,

The people

The Greeks hiding inside the Trojan Horse were relieved that the Trojans

had stopped Cassandra from destroying it, but they were surprised by how well

she had known of their plan to defeat Troy.

they

Who were surprised

by how well she had known

of their plan to defeat Troy?

Greeks, Trojans

Captain Cardenas subsequently told reporters that the cars and their escort had been ﬁred on by

a group, as they neared the penitentiary.

they Who neared the penitentiary?

The reporters,

The cars

Some do not eat grains, believing it is unnatural to do so, and some fruitarians

feel that it is improper for humans to eat seeds as they contain future

plants, or nuts and seeds, or any foods besides juicy fruits.

they What contain future plants?

The grains,

The nuts

His mother Sara told Franklin that if he divorced his wife, it would bring scandal upon

the family, and she would not give him another dollar.

she

Who would not

give him

another dollar?

Mother,

Wife

Initially, Lovett could not as he was under contract at a local inn; consequently, Ford

bought the property rights to the inn.

Who was under contract

at a local inn?

Ford, Lovett

b) Examples of Valid Schema-Halves (after some minor modiﬁcations)

If the back side of the stick is used, it is a penalty and the other team will get the ball back. it What is a penalty?

the stick,

the ball

the same the same What causes a penalty? the same

As Frederick was rather distant to his family, Eleanor had a great inﬂuence on the raising and

education of Frederick’s children, and she therefore played an important role in the House

of Hapsburg’s rise to prominence.

she

Who therefore played

an important role

in the House of Hapsburg’s

rise to prominence?

Frederick,

Eleanor

As Frederick was rather distant to his family, John had a great inﬂuence on the raising and,

education of Frederick’s children, and he therefore played an important role in the House,

of Hapsburg’s rise to prominence.

he the same

Frederick,

John

which can be either a simple, a compound, a com-

plex, or a compound-complex sentence. Simple sen-

tences have only one Independent clause (SV; where

S=Subject and V=Verb) and compound sentences can

have two or more independent clauses (e.g., “SV, and

SV”, “SV; however, SV”). Additionally, complex

sentences can have one independent clause plus one

or more dependent clauses (e.g., “SV because SV”,

“Because SV, SV”). On the other hand, compound-

complex sentences can have two or more independent

clauses plus one or more dependent clauses (e.g., “SV,

and SV because SV”, “Because SV, SV, but SV”).

The last three patterns/types can be arranged in dif-

ferent ways regarding their subjects, verbs and con-

nectors. Moreover, the connector of each complex

sentence shows how the dependent clause is related

to the independent clause. This is a list of six dif-

ferent types of relationships along with the connec-

tors they use: 1) Cause/Effect: because, since, so

that 2) Comparison/Contrast: although, even though,

though, whereas, while 3) Place/Manner: where,

wherever, how, however 4) Possibility/Condition: if,

whether, unless 5) Relation: that, which, who, whom

6) Time: after, as, before, since, when, whenever,

while, until.

The results yielded some interesting ﬁndings.

Twenty-nine percent of the guided PDPs are based

on compound sentences, 44% on complex sentences,

26% on compound-complex sentences, and 1% on

simple sentences (see (a) of guided PDPs in Table

3). On the other hand, 33% of the non-guided PDPs

are based on compound sentences, 63% on complex

sentences, and 4% on compound-complex sentences

(see (a) of non-guided PDPs in Table 3). With-

out any help from Winventor the participants mostly

developed PDPs that follow the pattern “A DID X

TO Y BECAUSE HE/SHE WAS Q” which is ex-

tremely overused (91% of the complex and 50% of the

compound-complex sentences); these are the PDPs

that follow the “Cause/Effect” relationship. Speciﬁ-

cally, the PDPs that were designed with complex sen-

tences had 91% “Cause/Effect”, and 9% “Time” rela-

tionship (see (b) of non-guided PDPs in Table 3). The

non guided PDPs that were designed with compound-

complex sentences had 50% “Cause/Effect” relation-

ship and 50% “Time” relationship (see (c) of non-

guided PDPs in Table 3). On the contrary, the guided

PDPs that were designed with complex sentences had

9% “Cause/Effect”, 11% “Comparison/Contrast”, 2%

“Place/Manner”, 2% “Possibility/Condition”, 36%

“Relation”, and 40% “Time” relationship (see (b) of

guided PDPs in Table 3). The guided PDPs that were

developed based on the compound-complex pattern

showed the following results: 3% “Cause/Effect”,

12% “Comparison/Contrast”, 10% “Place/Manner”,

13% “Possibility/Condition”, 42% “Relation”, and

Winventor: A Machine-driven Approach for the Development of Winograd Schemas

Table 3: Sentence patterns of PDPs that were developed

based on guided-PDPs —designed with Winventor’s help—

and non-guided PDPs. In the ﬁrst example (a) we see

the developed number of simple, compound, complex,

and compound-complex sentences, of the guided and non-

guided PDPs. In the second (b) and third (c) example we see

the number of complex and compound-complex sentences,

regarding their sentence type.

Guided PDPs Non-Guided PDPs

a) Sentence Pattern

simple sentences 1% -

compound sentences 29% 33%

complex sentences 44% 63%

compound-complex 26% 4%

b) Complex Sentence Type

cause/effect 9% 91%

comparison/contrast 11% -

place/manner 2% -

possibility/condition 2% -

relation 36% -

time 40% 9%

c) Compound-Complex Sentence Type

cause/effect 3% 50%

comparison/contrast 12% -

place/manner 10% -

possibility/condition 13% -

relation 42% -

time 20% 50%

20% “Time” relationship (see (c) of guided PDPs in

Table 3). Regarding the compound sentences, 19%

of the guided PDPs are arranged as “SV, and SV”,

37% as “SV, but SV”, 14% as “SV, or SV”, 12% as

“SV, so SV” and 18% as “SV; but, SV”. At the same

time, 5% of the non-guided PDPs are arranged as “SV,

for SV”, 37% as “SV, and SV” and 58% as “SV, but

SV”. The results provide convincing evidence that

with Winventor’s help the participants were able to

develop PDPs that are based on a variety of sentence

patterns/types; the complete opposite happened with-

out Winventor’s help (non-guided PDPs). It seems

that Winventor can motivate and inspire researchers

for faster development of new PDPs. At the same

time Winventor leads to the development of richer and

more diverse set of PDPs by the experts. The same

thing happened with previous works were the crowd

was able to develop schemas that are based on a va-

riety of sentence patterns compared to schemas that

were developed by a small group of experts (Isaak and

Michael, 2019).

5 RELATED WORK

Recent work (Isaak and Michael, 2019) has argued

that crowdsourcing could be used to construct Wino-

grad Schemas, and has compared the performance of

crowdworkers to that of experts for this task, show-

ing that under several reasonable metrics the perfor-

mance of the two approaches is analogous. In con-

trast to our work, the crowd is able to produce a low

number of schemas but with higher quality. In this

work, we are constructing high number of Winograd

Schemas without the sole involvement of experts, by

examining whether Winograd Schemas (or draft ver-

sions thereof) can be automatically generated by ma-

chines, with a potential post-processing step to be un-

dertaken either by crowdworkers or by experts to turn

the draft machine-generated versions of the Winograd

Schemas into their ﬁnal form.

The issue that our work raises on whether an

automated development of schemas will be helpful

and handful to the research community, is not unre-

lated to a work presented in a recent pre-print (Ko-

cijan et al., 2019) which showed that a signiﬁcant

improvement for tackling the WSC can be achieved

by ﬁne-tuning a pre-trained masked BERT language

model on an amount of a WSC labeled data. BERT,

which stands for Bidirectional Encoder Representa-

tions from Transformers, randomly masks words in a

particular context, and predicts them. In their work

they introduce a method for generating large-scale

WSC-like examples —not exactly WSC schemas,

like in our work— for ﬁne-tuning the pre-trained

BERT Language model. More speciﬁcally, their pro-

cedure searches a large text corpus for sentences that

contain (at least) two occurrences of the same noun

to mask the second occurrence of this noun with a

[mask-labeled] token, which is necessary to ﬁne-tune

the pretrained masked BERT language model. Addi-

tionally, several possible replacements for the masked

token are given for each noun in the sentence different

from the replaced noun. According to the authors, in

contrast to our work, these are examples that cannot

fulﬁll the WSC requirements.

6 CONCLUSION AND FUTURE

WORK

We have shown Winventor, a system that was built

to help with the development of Winograd Schemas.

Given an English sentence Winventor searches for se-

mantic relations to build a Winograd schema. At the

same time, it stores all the developed schemas on an

online database, organized by their characteristics that

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

were found upon building. Although we achieved to

built valid schemas, a lot more remains to be done,

meaning that Winventor still has a lot of room for im-

provement. In particular, our analysis indicates that

further gains could be achieved via more accurate se-

mantic analysis of each sentence. Additionally, the

use of other techniques like viewing the an anaphora

resolution problem as a pointing problem might help

to the selection of better pronoun targets for every de-

veloped schema (Lee et al., 2017).

Future studies will have to identify mechanisms

through which we can develop large amounts of high

quality schemas. Among possible directions we have

the automation of the schema validation process with

the use of crowdworkers for further processing. An

updated version of Winventor that will act as the col-

laboration platform for the crowd, on one side, and

experts, on the other side, might drive us to a more

efﬁcient way to produce large amounts of fruitful

schemas in the shortest time possible.

ACKNOWLEDGMENTS

This work was supported by funding from the EU’s

Horizon 2020 Research and Innovation Programme

under grant agreements no. 739578 and no. 823783,

and from the Government of the Republic of Cyprus

through the Directorate General for European Pro-

grammes, Coordination, and Development. The au-

thors would like to thank Ernest Davis for sharing his

thoughts and suggestions on this line of research.

REFERENCES

Amsili, P. and Seminck, O. (2017). A Google-Proof Collec-

tion of French Winograd Schemas. In Proceedings of

the 2nd Workshop on Coreference Resolution Beyond

OntoNotes (CORBON 2017), pages 24–29.

Antunes, J., Lins, R. D., Lima, R., Oliveira, H., Riss,

M., and Simske, S. J. (2018). Automatic Cohesive

Summarization with Pronominal Anaphora Resolu-

tion. Computer Speech & Language, 52:141–164.

Budukh, T. U. (2013). An Intelligent Co-reference Resolver

for Winograd Schema Sentences Containing Resolved

Semantic Entities. Master’s thesis, Arizona State Uni-

versity.

Deepa, K. A. and Deisy, C. (2017). Statistical Pair Pruning

Towards Target Class in Learning-Based Anaphora

Resolution for Tamil. International Journal of Ad-

vanced Intelligence Paradigms, 9(5-6):437–463.

Heilman, M. and Smith, N. A. (2009). Question Gener-

ation via Overgenerating Transformations and Rank-

ing. Technical report, Carnegie-Mellon Univ Pitts-

burgh Pa Language Technologies Inst.

Huddleston, R. and Pullum, G. (2005). The Cambridge

Grammar of the English Language. Zeitschrift f

ur An-

glistik und Amerikanistik, 53(2):193–194.

Isaak, N. and Michael, L. (2016). Tackling the Winograd

Schema Challenge Through Machine Logical Infer-

ences. In Pearce, D. and Pinto, H. S., editors, STAIRS,

volume 284 of Frontiers in Artiﬁcial Intelligence and

Applications, pages 75–86. IOS Press.

Isaak, N. and Michael, L. (2018). Using the Winograd

Schema Challenge as a CAPTCHA. In Lee, D., Steen,

A., and Walsh, T., editors, GCAI-2018. 4th Global

Conference on Artiﬁcial Intelligence, volume 55 of

EPiC Series in Computing, pages 93–106. EasyChair.

Isaak, N. and Michael, L. (2019). WinoFlexi: A Crowd-

sourcing Platform for the Development of Winograd

Schemas. In Liu, J. and Bailey, J., editors, AI 2019:

Advances in Artiﬁcial Intelligence, pages 289–302,

Cham. Springer International Publishing.

Kocijan, V., Cretu, A.-M., Camburu, O.-M., Yordanov, Y.,

and Lukasiewicz, T. (2019). A Surprisingly Robust

Trick for Winograd Schema Challenge. arXiv preprint

arXiv:1905.06290.

Lee, C., Jung, S., and Park, C.-E. (2017). Anaphora Res-

olution with Pointer Networks. Pattern Recognition

Letters, 95:1–7.

Levesque, H., Davis, E., and Morgenstern, L. (2012). The

Winograd Schema Challenge. In Thirteenth Inter-

national Conference on the Principles of Knowledge

Representation and Reasoning.

Levesque, H. J. (2014). On Our Best behaviour. Artiﬁcial

Intelligence, 212:27–35.

Michael, L. (2013). Machines with Websense. In Proc. of

11th International Symposium on Logical Formaliza-

tions of Commonsense Reasoning (Commonsense 13).

Mitkov, R. (1998). Robust Pronoun Resolution with Lim-

ited Knowledge . In Proceedings of the 17th in-

ternational conference on Computational linguistics-

Volume 2, pages 869–875. Association for Computa-

tional Linguistics.

Morgenstern, L., Davis, E., and Ortiz, C. L. (2016).

Planning, Executing, and Evaluating the Winograd

Schema Challenge. AI Magazine, 37(1):50–54.

Rahman, A. and Ng, V. (2012). Resolving Complex Cases

of Deﬁnite Pronouns: The Winograd Schema Chal-

lenge. In Proceedings of the 2012 Joint Conference

on Empirical Methods in Natural Language Process-

ing and Computational Natural Language Learning,

EMNLP-CoNLL ’12, pages 777–789, Stroudsburg,

PA, USA. Association for Computational Linguistics.

Seely, J. (2013). Oxford Guide to Effective Writing and

Speaking: How to Communicate Clearly. OUP Ox-

ford.

Sharma, A., Vo, N. H., Aditya, S., and Baral, C. (2015). To-

wards Addressing the Winograd Schema Challenge -

Building and Using a Semantic Parser and a Knowl-

edge Hunting Module. In Proceedings of the Twenty-

Fourth International Joint Conference on Artiﬁcial In-

telligence, IJCAI, pages 25–31.

Winventor: A Machine-driven Approach for the Development of Winograd Schemas
