Semantic Scene Completion from a

Single 360-Degree Image and Depth Map

Aloisio Dourado

1 a

, Hansung Kim

2 b

, Teoﬁlo E. de Campos

1 c

and Adrian Hilton

2 d

University of Brasilia, Brasilia, Brazil

CVSSP, University of Surrey, Surrey, U.K.

Keywords:

Semantic Scene Completion, 360-Degree Scene Reconstruction, Scene Understanding, 360-Degree Stereo

Images.

Abstract:

We present a method for Semantic Scene Completion (SSC) of complete indoor scenes from a single 360

◦

RGB image and corresponding depth map using a Deep Convolution Neural Network that takes advantage

of existing datasets of synthetic and real RGB-D images for training. Recent works on SSC only perform

occupancy prediction of small regions of the room covered by the ﬁeld-of-view of the sensor in use, which

implies the need of multiple images to cover the whole scene, being an inappropriate method for dynamic

scenes. Our approach uses only a single 360

◦

image with its corresponding depth map to infer the occupancy

and semantic labels of the whole room. Using one single image is important to allow predictions with no

previous knowledge of the scene and enable extension to dynamic scene applications. We evaluated our

method on two 360

◦

image datasets: a high-quality 360

◦

RGB-D dataset gathered with a Matterport sensor

and low-quality 360

◦

RGB-D images generated with a pair of commercial 360

◦

cameras and stereo matching.

The experiments showed that the proposed pipeline performs SSC not only with Matterport cameras but also

with more affordable 360

◦

cameras, which adds a great number of potential applications, including immersive

spatial audio reproduction, augmented reality, assistive computing and robotics.

1 INTRODUCTION

Automatic understanding of the complete 3D geome-

try of a indoor scene and the semantics of each occu-

pied 3D voxel is one of essential problems for many

applications, such as robotics, surveillance, assistive

computing, augmented reality, immersive spatial au-

dio reproduction and others. After years as an active

research ﬁeld, this still remains a formidable chal-

lenge in computer vision. Great advances in scene un-

derstanding have been observed in the past few years

due to the large scale production of inexpensive depth

sensors, such as Microsoft Kinect. Public RGB-D

datasets have been created and widely used for many

3D tasks, including prediction of unobserved voxels

(Firman et al., 2016), segmentation of visible sur-

face (Silberman and Fergus, 2011; Ren et al., 2012;

Qi et al., 2017b; Gupta et al., 2013), object detec-

tion (Shrivastava and Mulam, 2013) and single object

https://orcid.org/0000-0002-5037-7178

https://orcid.org/0000-0003-4907-0491

https://orcid.org/0000-0001-6172-0229

https://orcid.org/0000-0003-4223-238X

completion (Nguyen et al., 2016).

In 2017, a new line of work was introduced, focus-

ing on the complete understanding of the scene: Se-

mantic Scene Completion (SSC) (Song et al., 2017).

SSC is the joint prediction of occupation and seman-

tic labels of visible and occluded regions of the scene.

The works in this area are mostly based on the use

of Convolution Neural Networks (CNNs) trained on

both synthetic and real RGB-D data (Garbade et al.,

2018; Guedes et al., 2017; Zhang et al., 2018a; Zhang

et al., 2018b; Liu et al., 2018). However, due to the

limited ﬁeld-of-view (FOV) of RGB-D sensors, those

methods only predict semantic labels for a small part

of the room and at least four images are required to

understand the whole scene.

This scenario recently started to change with the

use of more advanced technology for large-scale 3D

scanning, such as Light Detection and Ranging (LI-

DAR) sensor and Matterport cameras. LIDAR is one

of the most accurate depth ranging devices using a

light pulse signal but it acquires only a point cloud

set without colour or connectivity. Some recent LI-

DAR devices provide coloured 3D structure by map-

Dourado, A., Kim, H., E. de Campos, T. and Hilton, A.

Semantic Scene Completion from a Single 360-Degree Image and Depth Map.

DOI: 10.5220/0008877700360046

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

36-46

ISBN: 978-989-758-402-2; ISSN: 2184-4321

3DCNN

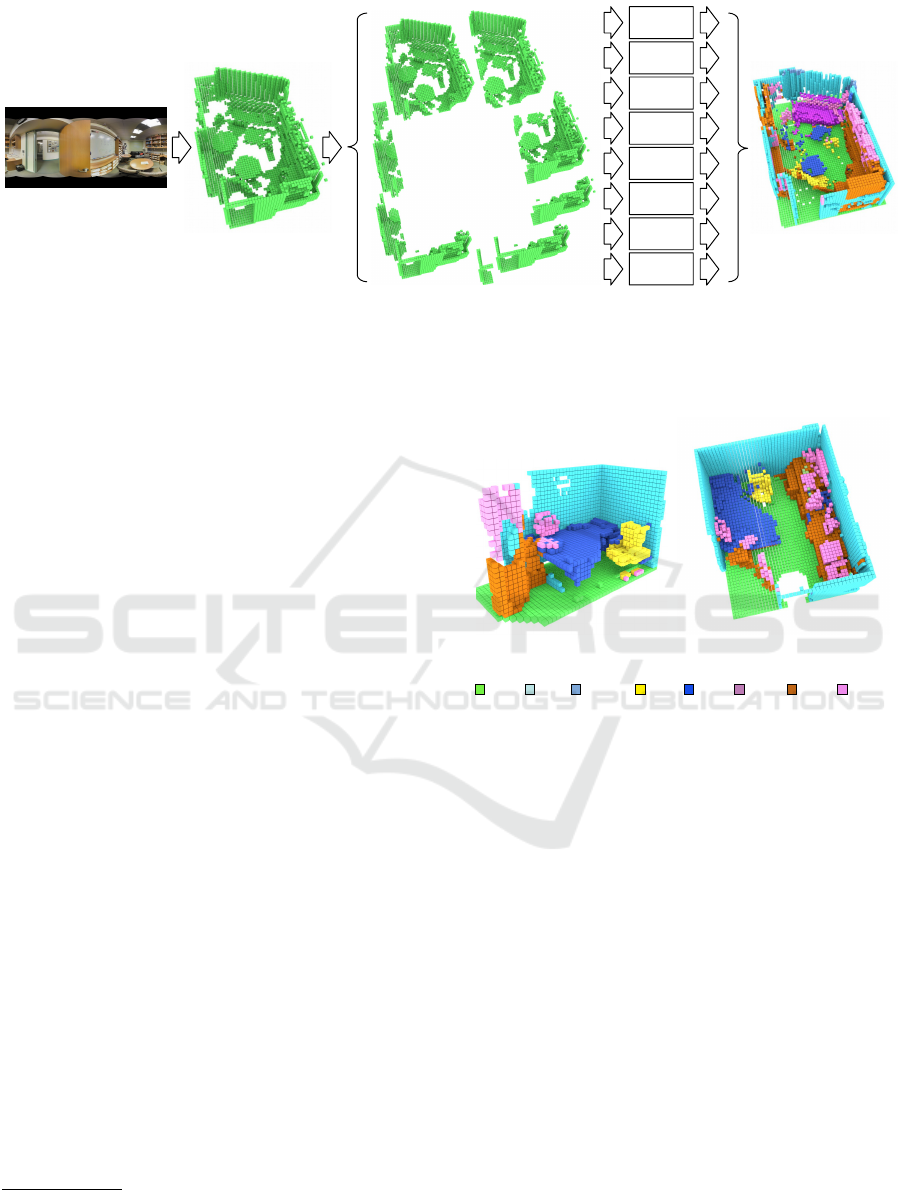

Figure 1: Overview of our proposed approach. The incomplete voxel grid generated from input panoramic depth map is

automatically partitioned in 8 overlapping views that are individually submitted to our 3D CNN. The resulting prediction

is generated from an automatic ensemble of the 8 individual predictions. The result is a complete 3D voxel volume with

corresponding semantic labels for occluded surfaces and objects interior.

ping photos taken during the scan

, but it does not

provide full texture maps. The Matterport camera

using structured light sensors allows 3D datasets that

comprise high-quality panoramic RGB images and its

corresponding depth maps of indoor scenes (Armeni

et al., 2017; Chang et al., 2017) for a whole room.

Figure 2 depicts the difference on SSC results from

normal RGB-D and 360

◦

RGB-D image.

Alongside the advanced sensors like Matterport,

there are currently many low cost consumer-level

spherical cameras available with stereoscopic sup-

port, allowing high-resolution 360

◦

RGB image cap-

ture, that made widely possible the generation of 360

◦

images and corresponding depth maps through stereo

matching. A system created to perform SSC for high-

quality 360

◦

images should be also able to work on

images generated from low cost cameras, widening

the possibilities of applications.

Despite the interesting features of the new large

scale 3D datasets, the lack of variety in the type of the

scenes is an important drawback. For instance, while

NYU v2 regular RGB-D dataset (Silberman et al.,

2012) comprises a wide range of commercial and res-

idential buildings in three different cities across 26

scene classes, Stanford 2D-3D-Semantics large-scale

dataset (Armeni et al., 2016) only comprises 6 aca-

demic buildings and Matterport 3D (Chang et al.,

2017) dataset covers only 90 private homes. As most

of the SSC solutions are data-driven and CNN-based,

a dataset containing a large variety of scene types and

object compositions is important to train generalized

models. Another limitation of recent scene comple-

tion or segmentation methods that use large scans is

FARO LiDAR, https://www.faro.com/products/

construction-bim-cim/faro-focus/

Matterport, https://matterport.com/pro2-3d-camera/

(a) Standard RGB-D (b) 360

◦


walloor furn. objectswindow chair table sofa

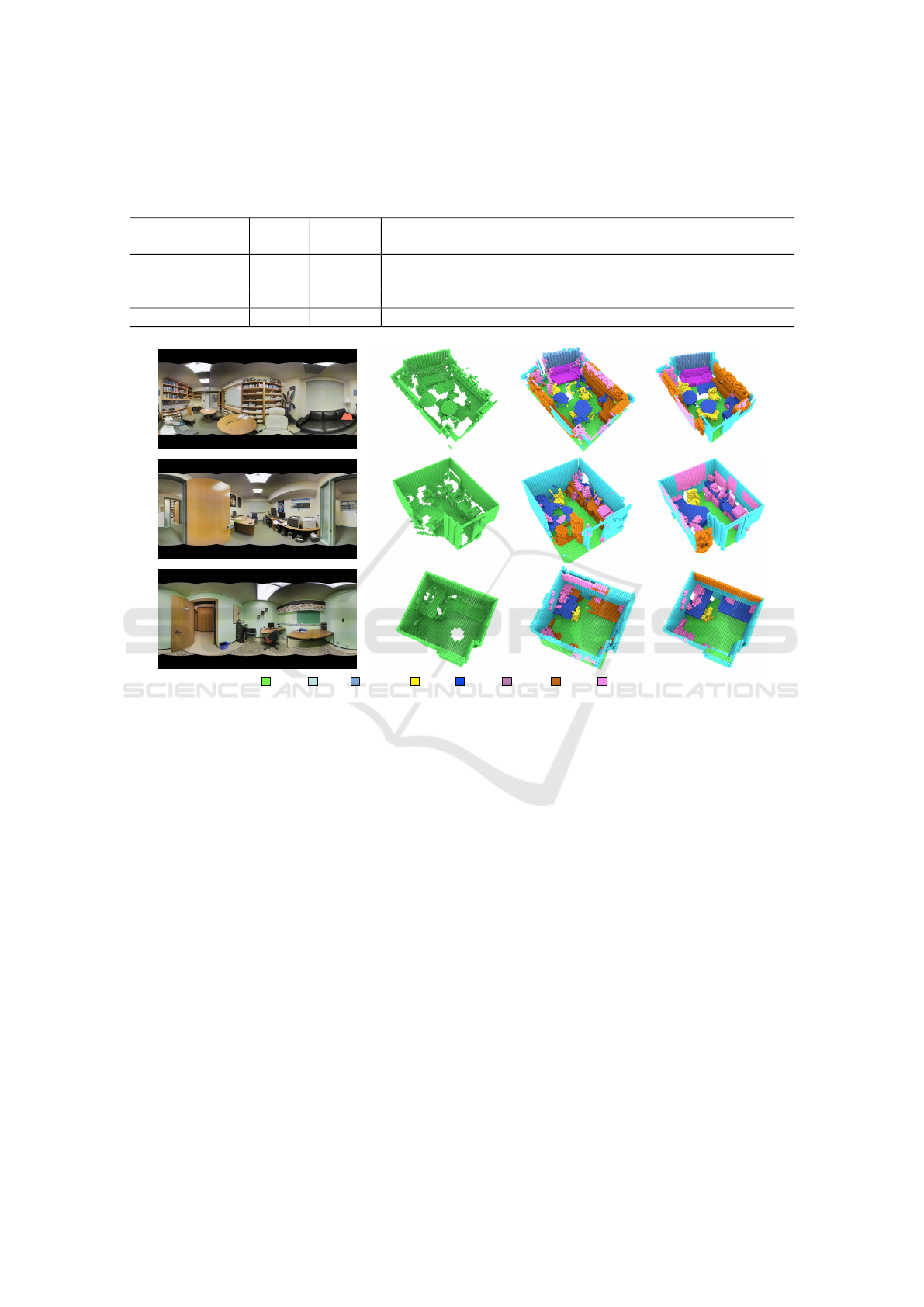

Figure 2: SSC prediction from a regular RGB-D image in

(a) covers only a small part of the Scene, while the result

from panoramic RGB-D images in (b) covers the whole

scene.

that they usually take, as input, a point cloud gen-

erated from multiple points of view, implying pre-

processing and some level of prior knowledge of the

scene.

To overcome these limitations of both previous ap-

proaches, we propose a SSC method for a single 360

◦

RGB image and its corresponding depth map image

that uses 3D CNN trained on standard synthetic RGB-

D data and ﬁne tuned on real RGB-D scenes. The

overview of our proposed approach is presented in

Figure 1. The proposed method decomposes a single

360

◦

scene into several overlapping partitions so that

each one simulates a single view of a regular RGB-D

sensor, and submits to our pre-trained network. The

ﬁnal result is obtained aligning and ensembling the

partial inferences.

We evaluated our method on the Stanford 2D-3D-

Semantics Dataset (2D-3D-S) (Armeni et al., 2017)

gathered with the Matterport sensor and stereo 360

◦

Semantic Scene Completion from a Single 360-Degree Image and Depth Map

images captured by a pair of low cost 360

◦

cameras.

For the experiments with low-cost cameras, we pro-

pose a pre-processing method to enhance noisy 360

◦

depth maps before submitting the images to the net-

work for prediction. Our qualitative analysis show

that the proposed method achieves reliable results

with the low-cost 360

◦

cameras.

Here are our main contributions:

• We are the ﬁrst to extend the SSC task to complete

scene understanding using 360

◦

imaging sensors

or stereoscopic spherical cameras;

• We propose a novel approach to perform SSC for

360

◦

images taking advantage of existing standard

RGB-D datasets for network training;

• We propose a pre-processing method to enhance

depth maps estimated from a stereo pair of low-

cost 360

◦

cameras.

2 RELATED WORK

This paper relates to three ﬁelds of computer vision,

discussed below.

2.1 RGB-D Semantic Scene Completion

3D SSC from standard RGB-D images is a problem

that was established quite recently (Song et al., 2017),

and consist of, given a single RGB-D image, clas-

sifying the semantic labels of all the voxels within

the voxel space of the ﬁeld-of-view, including oc-

cluded and non surface regions. The authors used a

large synthetic dataset (SUNCG) to generate approx-

imately 140 thousand depth maps that were used to

train a typical contracting fully convolutional neural

network with 3D dilated convolutions. They showed

that jointly training for segmentation and completion

leads to better results, as both tasks are inherently in-

terlinked. To deal with data sparsity after projecting

depth maps from 2D to 3D, the authors used a vari-

ation of Truncated Signed Distance Function (TSDF)

that they called Flipped TSDF (F-TSDF). After train-

ing on SUNCG, the network was ﬁne-tuned on the

NYU depth v2 dataset (Silberman et al., 2012), which

was acquired using the ﬁrst version of MS Kinect.

After this initial work, some authors explored dif-

ferent approaches and architectures achieving good

improvements on SSC results, still using the F-TSDF

encoded depth map projected to 3D (Guo and Tong,

2018; Zhang et al., 2018a). Another line of work tried

to aggregate information from the RGB channels to

the SSC network (Guedes et al., 2017), however, bet-

ter results were observed using a two step training

protocol, where a 2D semantic segmentation CNN is

ﬁrst trained and then it is used to generate input to a

3D semantic scene completion CNN (Garbade et al.,

2018; Liu et al., 2018).

In order to avoid the need for a two-step training

process, we follow a line of work to combine grey-

level information with depth maps(Dourado et al.,

2019). This is done by using edges detected on the

RGB images to highlight ﬂat objects on ﬂat surfaces.

Such regions have no depth discontinuity and there-

fore cannot be captured as boundaries between ob-

jects on depth maps. In this approach, the detected

edges are projected to 3D and then F-TSDF is applied.

The authors observed better results without the need

of two training processes.

The main advantage of the regular RGB-D ap-

proaches is the abundance and variety of available

datasets with densely annotated ground truth which

favours the training of deep CNNs. On the other hand,

their main drawback is the limited FOV of the sensor,

as depicted in Figure 2. Our proposed approach ben-

eﬁts from existing RGB-D datasets for training and

presents a way to overcome the limited FOV draw-

back using 360

◦

images to achieve complete scene

coverage.

2.2 Scene Understanding from Large

Scale Scans

The Scene Understanding research ﬁeld observed a

boost after the public availability of high quality

datasets like Stanford 2D-3D-Semantics Dataset (Ar-

meni et al., 2017) and Matterport3D (Chang et al.,

2017), acquired with the Matterport camera, which

comprises point cloud ground truth of the whole

buildings, 360

◦

RGB panoramas and corresponding

depth maps and other features. The scanning process

uses a tripod-mounted sensor that comprises three

color and three depth cameras pointing slightly up,

horizontal, and slightly down. It rotates and acquires

RGB photos and depth data. Resulting 360

◦

RGB-

D panoramas are software-generated from this data

(Chang et al., 2017). These datasets allowed the

development of several scene understanding works

(Charles et al., 2017; Liu et al., 2017; Qi et al.,

2017a). Most of these works focus only on the vis-

ible surfaces, rather than on the full understanding of

the scene including occluded regions and inner parts

of the objects.

In a different line of work, Im2Pano3D (Song

et al., 2018) uses data from large scale scans to train a

CNN that generates a dense prediction of a full 360

◦

view of an indoor scene from a given partial view of

the scene corresponding to a regular RGB-D image.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

The work that is most related to our proposal is

ScanComplete (Dai et al., 2018). Using data from

synthetic or real large scale datasets and a generative

3D CNN, it tries to complete the scene and classify all

surface points. However, unlike our proposal, it takes

inputs from multiple viewpoints.

Although large-scale scans provide a workaround

to surpass the FOV limitations of popular RGB-D

sensors, they have the signiﬁcant drawback that multi-

ple captures of the scene are required to cover a com-

plete scene layout. In addition, each acquisition is a

slow scanning process that can only work if the scene

remains static for the duration of all captures. There-

fore it may be unfeasible to apply them for dynamic

scene understanding.

2.3 Scene Understanding using 360

◦

Stereo Images

Spherical imaging provides a solution to overcome

the drawbacks inherent to large scale scans. Schoen-

bein et al. proposed a high-quality omnidirectional

3D reconstruction from catadioptric stereo video

cameras (Schoenbein and Geiger, 2014). However,

these catadioptric omnidirectional cameras have a

large number of systematic parameters including the

camera and mirror calibration. In order to get high

resolution spherical images with accurate calibration

and matching, Spheron developed a line-scan cam-

era, Spheron VR

, with a ﬁsh-eye lens to capture the

full environment as an accurate high resolution / high

dynamic range image. Li (Li, 2006) has proposed a

spherical image acquisition method using two video

cameras with ﬁsh-eye lenses pointing in opposite di-

rections. Various inexpensive off-the-shelf 360

◦

cam-

eras with two ﬁsh-eye lenses have recently become

popular

4,5,6

. However, 360

◦

RGB-D cameras which

automatically generate depth maps are not yet avail-

able. Kim and Hilton proposed depth estimation and

scene reconstruction methods using a pair of 360

◦

im-

ages from various types of 360

◦

cameras (Kim and

Hilton, 2013; Kim et al., 2019). We applied this stereo

based method to acquire depth maps for image cap-

tured with 360

◦

cameras in the experiments.

Spheron, https://www.spheron.com/products.html

Insta360, https://www.insta360.com

GoPro Fusion, https://shop.gopro.com/EMEA/

cameras/fusion/CHDHZ-103-master.html

Ricoh Theta, https://theta360.com/en/

3 DATASETS

We take advantage of existing diverse RGB-D train-

ing datasets to train our networks for general semantic

scene completion. After training, we evaluate the per-

formance of our model on datasets never seen before

by the networks. This section describes the datasets

used for training and evaluation.

3.1 Training Datasets

We train our 3D CNN on RGB-D depth maps from

the training set of SUNCG (Song et al., 2017)

and ﬁne-tuned the networks on train set of NYUv2

dataset(Silberman et al., 2012). SUNCG dataset con-

sists of about 45K synthetic scenes from which were

extracted more than 130K 3D snapshots with corre-

sponding depth maps and ground truth divided in train

and test datasets. As the provided training data did not

include RGB images, we generated images as speci-

ﬁed in (Dourado et al., 2019).

NYU v2 dataset includes depth and RGB images

captured by the Kinect depth sensor gathered from

commercial and residential buildings, comprising 464

different indoor scenes. We generated ground truth by

voxelizing the 3D mesh annotations from (Guo et al.,

2015) and mapped object categories based on (Handa

et al., 2015) to label occupied voxels with semantic

classes.

3.2 Evaluation Datasets

Two distinct datasets are used for evaluation: Stanford

2D-3D-Semantics (Armeni et al., 2017) and a dataset

created by off-the-shelf 360

◦

cameras.

Stanford 2D-3D-Semantics is large-scale scan

dataset gathered with a Materpport camera in aca-

demic indoor spaces. The dataset covers over 6,000

from 7 distinct buildings areas. For each room

of the building areas, two or more 360

◦

scans con-

taining several RGB-D images are taken. The im-

ages from the scans are aligned, combined, and post-

processed to generate one large scale point cloud ﬁle

for each building area. The point cloud is then an-

notated with 13 class labels, to be used as ground

truth. Each point of the point cloud is also annotated

with the room which it belongs to. The dataset also

provides a complete RGB 360

◦

panorama, with cor-

responding depths for each room scan, camera rota-

tion/translation information, and other features useful

for 3D understanding tasks. Depth maps are provided

as 16 bits png images, with a sensibility of 1/512 m.

The value 2

− 1 is used for pixels without a valid

depth measurement.

Semantic Scene Completion from a Single 360-Degree Image and Depth Map

In order to show general applications of the pro-

posed pipeline, we also used three general 360

◦

im-

age sets captured by various 360

◦

cameras: Meet-

ing Room, Usability Lab and Kitchen. The Meet-

ing Room is similar to a normal living room envi-

ronment in our daily lives including various objects

such as sofas, tables, bookcases, etc. The Usability

Lab is similar to the Meeting Room in its size but

includes more challenging objects for scene under-

standing such as large windows and a big mirror on

the walls. The Kitchen is a small and narrow room

with various kitchen utensils. The scenes are captured

as a vertical stereo image pair and dense stereo match-

ing with spherical stereo geometry (Kim and Hilton,

2015) is used to recover depth information.

4 PROPOSED APPROACH

Our proposed approach, illustrated in Figure 1, is de-

scribed in details in the next subsections. All source

code and pretrained models required to reproduce

our experiments is publicly available in https://gitlab.

com/UnBVision/edgenet360.

4.1 Input Partitioning

From the 360

◦

panoramic depth map, we generate a

voxel grid of all the visible surfaces from the cam-

era position, resulting in an incomplete and sparse 3D

volume (480×144×480 voxels). The preferred voxel

size throughout this work is 0.02m which gives an

coverage of 9.6 × 2.8 × 9.6 m, but this value can be

set to a higher value to reach larger areas, with little

impact in prediction accuracy. The resulting volume

is then automatically partitioned into 8 views using a

◦

step, each of them emulating the ﬁeld of view of

one standard RGB-D sensor. The emulated sensor is

positioned 1.7m back from the original position of the

360

◦

sensor, in order to get a better overlapped cover-

age, especially when the camera is placed near a wall,

as is the case of scene from Figure 1 (in that scene,

the camera is placed in the bottom left corner of the

room). The reason for taking overlapping partitions

is to improve the ﬁnal prediction in the borders of the

emulated sensors FOV, by ensembling multiple SSC

estimates. Voxels behind the original sensor position

are not included in the partition. Each partition size is

240 × 144 × 240 voxels.

4.2 Semantic Scene Completion

Network

The resulting partitions are individually submitted to

the SSC network for prediction. In our experiments,

we used EdgeNet (Dourado et al., 2019), which is a

3D CNN inspired by the U-Net design (Ronneberger

et al., 2015) that, uses a surface volume together with

a volume generated from the edges present in the

RGB image in order to enhance the predictions of ob-

jects that are hard to see in depth maps. Its archi-

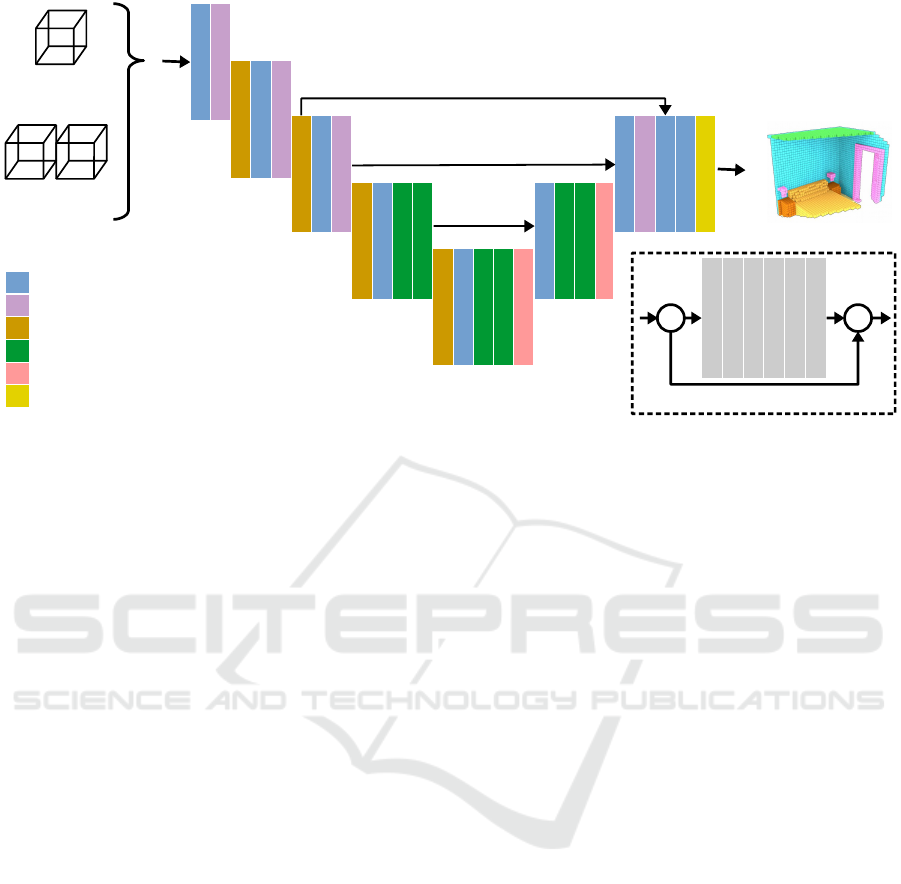

tecture is presented in Figure 3. Both input volumes

are encoded using F-TSDF (Song et al., 2018) and

the network can be optionally trained to work with-

out the edges volume, as depicted in Figure 1. In our

case, the edge volume was generated from the edges

present in the RGB panorama projected to 3D using

the depth information of corresponding pixels. The

partition scheme for the edge volume is the same as

that used for the surface volume. For edge detection

we used the standard Canny edge detector (Canny,

1986). The ﬁnal activation function of EdgeNet is a

Softmax, each voxel of the output volume contains

the predicted probabilities of the 12 classes used for

training. The output resolution for each partition is

60 × 36 × 60 voxels.

We trained EdgeNet on standard RGB-D images

extracted from the SUNCG training set and ﬁne-tuned

on NYU v2 (these datasets are described in Sec-

tion 3). For the training phase, we used the One Cycle

Learning policy (Smith, 2018), which is a combina-

tion of Curriculum Learning (Bengio et al., 2009) and

Simulated Annealing (Aarts and Korst, 1989), using

the same hyperparameters as (Dourado et al., 2019).

For ﬁne tuning, we initialized the network with pa-

rameters trained on SUNCG and used standard train-

ing with SGD with a ﬁxed learning rate of 0.01 and

0.0005 of weight decay. Using the training pipeline

described in (Dourado et al., 2019), with ofﬂine F-

TSDF pre-processing, our training time was 4 days

on SUNCG and 6 hours on NYU, using a Nvidia GTX

1080 Ti GPU.

4.3 Prediction Ensemble

Each partition of the input data is processed by our

CNN, generating 8 predicted 3D volumes. There are

signiﬁcant overlaps between the FOV of each CNN

(some voxels are even captured from 3 different view-

points), and their predictions need to be combined.

We use a simple yet effective strategy of summing the

a posteriori probability for each class over all clas-

siﬁer outputs, i.e., we apply the “sum rule”, demon-

strated by Kittler et al. (Kittler et al., 1998). Firstly,

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

Conv3D(8,3,1)

Input

ResNet(8,3,1)

MaxPooling3D(2,2)

240x144x200

MaxPooling3D(2,2)

120x72x120

Conv3D(32,3,1)

MaxPooling3D(2,2)

60x36x60

ResNet(64,3,1)

MaxPooling3D(2,2)

30x18x30

Dilated3D(128,3,1)

UpConv3D(64,2,2)

15x9x15

30x18x30

Conv3D(64,3,1)

UpConv3D(32,2,2)

Concat.

60x36x60

Conv3D(32,3,1)

Concat.

Conv3D(16,1,1)

Conv3D(12,1,1)

60x36x60

Conv3D(16,1,1)

Concat.

Output

Depth

F-TSDFT

240x144x200

Depth

F-TSDFT

Edges

F-TSDFT

BatchNormalization

ReLU

Conv3D(ch,sz,st,dil)

BatchNormalization

ReLU

input output

ResNet module with optional dilation

ResNet module (channels, size, strides, dilation=1)

Maxpooling3D(size, strides)

Dilated ResNet module (channels, size, strides,dilation=2)

Conv3DTranspose(channels, size, strides)

Conv3D(channels, size, strides) + Softmax + Categorical Cross Entropy Loss

Conv3D(channels, size, strides)

ResNet(16,3,1)

ResNet(32,3,1)

Conv3D(16,3,1)

Conv3D(64,3,1)

Conv3D(128,3,1)

ResNet(64,3,1)

ResNet(32,3,1)

Figure 3: The U-shaped architecture of EdgeNet, with two possible sets of input channels: depth only or depth plus edges

(best viewed in colour).

the prediction of each partition is aligned according

its position in the ﬁnal voxel volume. If a given voxel

is not covered by a given partition, then the corre-

sponding classiﬁer a posteriori probabilities for all

classes for that voxel and that partition will be 0, i.e.,

the softmax result is overruled in voxels outside the

ﬁeld of view of a given partition. Otherwise, the sum

of the a posteriori probabilities for all classes for that

voxel and that classiﬁer will be 1. Given that, for any

arbitrary voxel, being n the number of partitions and

i j

the a posteriori probability of the class i predicted

by the classiﬁer j, then, the sum of the probabilities

for class i over all classiﬁers is given by

∑

j=1

i j

(1)

and the winning class C for that voxel is

C = argmax

) . (2)

4.4 Depth Map Enhancement

Stereo capture using commercial 360

◦

cameras is one

of realistic approaches as a 360

◦

RGB-D system is not

available in the market. However, depth estimation

from stereoscopic images is subject to errors due to

occlusions between two camera views and correspon-

dence matching errors. These depth errors would lead

to noisy and incomplete predictions in SSC. We pro-

pose a pre-processing step to enhance this erroneous

depth map by taking into account two characteristics

of most of the indoor scenes: 1) the majority of indoor

scenes can be aligned to the Cartesian axis, following

the Manhattan principle (Gupta et al., 2010); 2) the

edges present in the RGB images are usually distin-

guishing features for stereo matching, providing good

depth estimates on their neighbourhood.

The Canny Edge detector (Canny, 1986), with low

and high thresholds of 30 and 70, is applied to the im-

age and the edges are dilated to 3 pixels width. We

observed that those parameters works well for a wide

range of RGB images. Using the dilated edges as a

mask, we extract the most reliable depth estimations

from the original depth map. Vertical edges are re-

moved from the mask as they do not contribute to the

stereo matching procedure in the given vertical stereo

camera set up. Using the thin edges as a border de-

limitation, coherent regions with similar colours are

searched by a ﬂood ﬁll approach in the RGB im-

age. With this procedure, we expect to get feature-

less planar surfaces like single colored walls and ta-

ble tops whose depth surfaces are hard to be estimated

by stereo matching. RANSAC (Fischler and Bolles,

1981) is used to ﬁt a plane over those regions elimi-

nating outliers from false stereo matching. If the nor-

mal vector of the ﬁtted plane is close to one of the

principal axes, we replace the original depth informa-

tion of the region with the back-projected depths es-

timated from the plane. Discarding non-orthogonal

planes is important to avoid planes estimated from

non-planar regions, like wall corners, where the con-

trast in not enough to produce an edge between two

walls. We keep the original depth estimations from

the regions where we were not able to ﬁt good planes.

We also re-estimate the depths of the south and north

poles of the image, as they usually have bad depth es-

Semantic Scene Completion from a Single 360-Degree Image and Depth Map

timations as proved in (Kim and Hilton, 2013). Good

depth estimations from the outer neighborhood of the

poles are used as a source for the RANSAC plane ﬁt-

ting.

5 EVALUATION

We quantitatively evaluated our approach on the Stan-

ford 2D-3D-Semantics dataset. We also provide

a qualitative evaluation on that dataset and on our

stereoscopic images. In this section we describe the

experiments and discuss the results.

5.1 Evaluation Metric

As previous works on SSC, we evaluate our proposed

approach using Intersection Over Union (IOU) for

each class, over visible occupied and occluded vox-

els inside the room. However, unlike RGB-D works

that only evaluate voxels inside the ﬁeld of view of

the sensor, we evaluate over the whole scene. Un-

fortunately, Stanford 2D-3D does not provide ground

truth for the interior of the objects nor for areas that

are not visible from at least one of the scanning points,

so, we limit our quantitative evaluation to the areas to

which ground is provided. We kept the predictions not

covered by the ground truth for qualitative evaluation

purposes.

5.2 Experiments on Stanford

2D-3D-Semantics Dataset

In order to feed our SSC network with aligned vol-

umes, we rotated the provided 360

◦

RGB panora-

mas and depth maps using the camera rotation matrix

before generating a corresponding input point cloud.

Using the room dimensions provided by the dataset,

we discarded depth estimations outside room and gen-

erated the voxel volume placing camera in the center

of the X and Z axis and keeping the capture height so

that the ﬂoor level is at the voxel plane y=0.

For quantitative evaluation, we extracted only

the points belonging to the room from the provided

ground-truth (GT) point cloud and translated them to

the camera position. In order to align the GT to our

input volumes, we voxelized the point cloud using the

same voxel size as our input volumes.

Stanford 2D-3D-Semantics dataset classiﬁes each

point in 13 classes, while the ground truth extracted

from the datasets used to train our network (SUNCG

and NYU) classiﬁes the voxels in 12 classes. We

mapped the classes board and bookcase from Stan-

ford 2D-3D-Semantics dataset to classes ob jects

and f urniture; and both classes beam and door to

wall. Predictions of the classes bed and tv from

SUNCG that have no correspondence in Stanford 2D-

3D-Semantics dataset were remapped to table and

ob jects, respectively. We evaluated all the panora-

mas from all rooms of types ofﬁce, conference room,

pantry, copy room, and storage. We discarded room

types open space, lounge, hallway and WC. We eval-

uated 669 pairs of 360

◦

RGB images and depth maps

from Stanford 2D-3D-Semantics dataset.

Quantitative results for the Stanford 2D-3D-

Semantics dataset are provided in table 1. As a base-

line, we compare our results to previous works on

SSC evaluated on the NYU v2 dataset. It is worth

mentioning that, as those results are from different

datasets and tasks(our work is the only one that cov-

ers the whole scene), they cannot be taken as a direct

comparison of models performance.

Our 360

◦

EdgeNet-based ensemble achieved very

good overall results and a high level of semantic seg-

mentation accuracy was observed on structural ele-

ments ﬂoor and wall. Good results were also observed

on common scene objects like chairs, sofas, tables and

furniture, as well. On the other hand, the same level

of performance was not observed on the ceiling, due

to domain shift (Csurka, 2017) between training and

evaluation datasets. Ceiling in the Stanford dataset is

in average higher than that in the NYU dataset where

the network was trained. Even so, given that our

model had no previous knowledge of the dataset be-

ing evaluated, results shows that the proposed model

generalizes the scenes well.

Qualitative results presented in Figure 4 depicts

the high level of completion achieved by our ap-

proach, as seen by comparing the input volume

(green) to the prediction. The level of completion is

even higher than the the ground truth models, which

was manually composed and labelled by the authors

using the surface gathered from multiple viewpoints.

Note that the missing and occluded regions in the

ground truth of scenes were completed in their cor-

respondent predicted volumes. For instance, observe

that the ﬂoor and wall surrounding the chair in the

second scene that are missing in GT was completed

by our solution. Semantic labelling results also show

high accuracy. In the ﬁrst scene, the majority of the

objects are correctly labelled, even when partially oc-

cluded. Hard to detect objects where also correctly

labeled. The window behind the sofa, for instance,

which is invisible on the depth map, is correctly iden-

tiﬁed by the proposed approach.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

Table 1: Quantitative results. We compare our 360

◦

semantic scene completion results on Stanford 2D-3D dataset to partial

view state-of-the-art approaches in a normal RGB-D dataset (NYU). Our network had no previous knowledge of the evaluation

dataset and predicts result for the whole scene. Previous approaches where ﬁne tuned on the target dataset and only gives a

partial prediction. Even so, our proposed solution achieved better overall results.

evaluation

model

scene semantic scene completion (IoU, in percentages)

dataset coverage ceil. ﬂoor wall win. chair bed sofa table tvs furn. objs. avg.

NYU v2 RGB-D

SSCNet

partial

15.1 94.6 24.7 10.8 17.3 53.2 45.9 15.9 13.9 31.1 12.6 30.5

SGC 17.5 75.4 25.8 6.7 15.3 53.8 42.4 11.2 0.0 33.4 11.8 26.7

EdgeNet 23.6 95.0 28.6 12.6 13.1 57.7 51.1 16.4 9.6 37.5 13.4 32.6

Stanford 2D-3D-S Ours full (360

◦

) 15.6 92.8 50.6 6.6 26.7 - 35.4 33.6 - 32.2 15.4 34.3

walloor furn. objectswindow chair table sofa

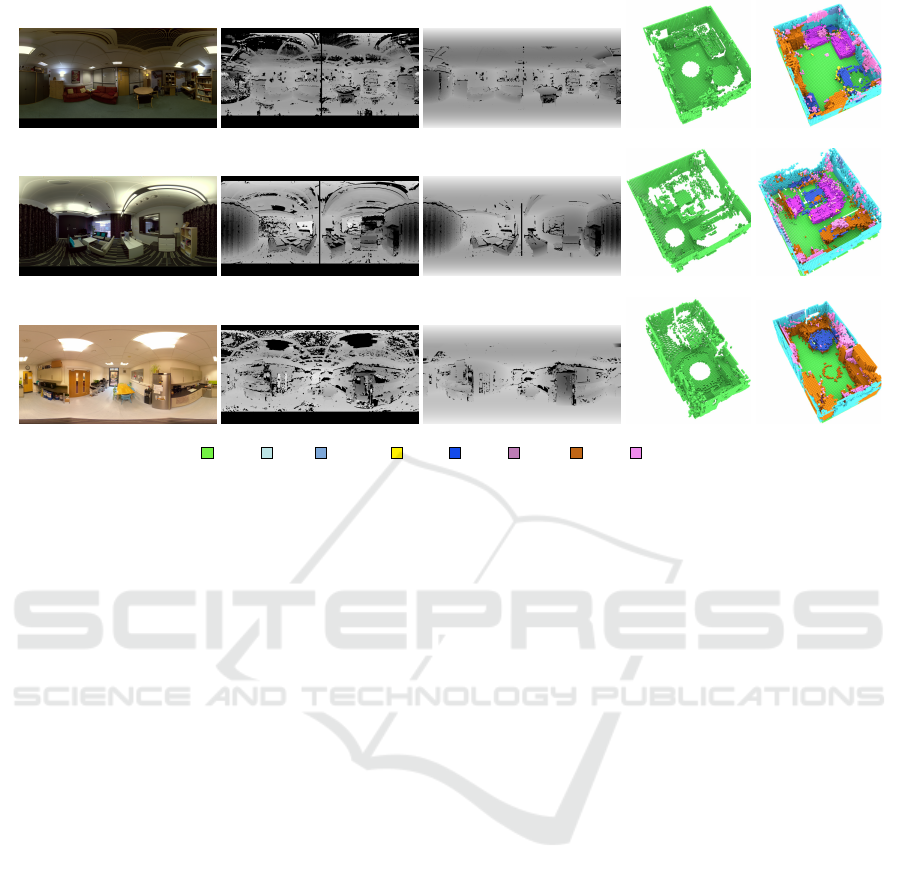

Figure 4: Stanford 2D-3D-Semantics qualitative results. From left to right: RGB image; incomplete input volume; seman-

tically completed prediction output; ground truth (best viewed in colour).

5.3 Experiments on Spherical Stereo

Images

For spherical stereo images, we ﬁrst rotated them to

align to the Cartesian axis, and applied the enhance-

ment procedure described in Section 4.4. From the

resulting images we generated a point cloud and vox-

elized the surface and edges with a voxel size of

0.02m, before encoding the volumes with F-TSDF

and submitting them to the networks. Room dimen-

sions are inferred from the point clouds.

The qualitative results are shown in Figure 5.

Most of the stereo matching errors of the estimated

depth maps are ﬁxed by our enhancement approach.

The cabinet in the extreme left part of the Meeting

Room (ﬁrst scene) originally had several depth es-

timation errors due to the vertical stripped patterns,

but most errors were eliminated by the enhancement

step, though some errors still remained in dark re-

gions where borders are not clear. The lower border of

the leftmost sofa in the second scene (Usability Lab)

was not detected, and some part of its original depth

was replaced by the depth of the ﬂoor. However, the

proposed depth enhancement step improved the erro-

neous depth maps estimated by stereo matching over

the entire regions.

The SSC results with the enhanced depth maps

were also satisfactory. As in the large-scale dataset,

the levels of scene completion and semantic labelling

were high. Although the input images still carries

some depth errors, the ﬁnal predictions were gener-

ally clear enough. Comparing the ﬁnal predictions

from the stereo 360

◦

dataset to the ones from Stan-

ford 2D-3D-Semantics dataset, the results of spheri-

cal stereo ones are noisier than those of the scanned

counter parts, but they are still accurate. Results

demonstrate that the use of a pair of 360

◦

images gives

an inexpensive alternative to perform 360

◦

SSC for

dynamic scenes, where large-scale depth scans are not

applicable.

Semantic Scene Completion from a Single 360-Degree Image and Depth Map

walloor furn. objectswindow chair table sofa

Figure 5: 360

◦

stereoscopic qualitative results. From left to right: RGB image; estimated depth map; enhanced depth map;

incomplete input volume; semantically completed output. From top to bottom: Meeting Room; Usability Lab; Kitchen. Black

regions in the estimated disparity maps are unknown regions due to ambiguous matching or stereo occlusion. Most of the

failed stereo matching are ﬁxed after enhancement. Predicted volumes present a high level of accuracy (best viewed in colour).

6 CONCLUSION

This paper introduced the task of Semantic Scene

Completion from a pair of 360

◦

image and depth map.

Our proposed method to predict 3D voxel occupancy

and its semantic labels for a whole scene from a single

point of view can be applied to various range of im-

ages acquired from high-end sensors like Matterport

to off-the-shelf 360

◦

cameras. The proposed method

is based on a CNN which relies on existing diverse

RGB-D datasets for training. For images from spher-

ical cameras, we also presented an effective method

to enhance stereoscopic 360

◦

depth maps to be used

prior to submit the images to the SSC network.

Our method was evaluated on two distinct

datasets: the publicly available Stanford 2D-3D-

Semantics high quality large-scale scan dataset and a

collection of 360

◦

stereo images gathered with off-

the-shelf spherical cameras. Our SSC network re-

quires no previous knowledge of the datasets to per-

form the evaluation. Even so, when we compare our

results to previous approaches using RGB-D images

that only give results for part of the scene and were

trained on the target datasets, the proposed method

achieved better overall results with full coverage.

Qualitative analysis shows high levels of completion

of occluded regions on both Matteport and spherical

images. On the large-scale scan dataset, completion

levels achieved from a single point of view were su-

perior to the ones of the ground truth obtained from

multiple points of view.

The results show that our approach can be ex-

tended to applications that requires a complete un-

derstanding of dynamic scenes from images gathered

from off-the-shelf stereo cameras.

ACKNOWLEDGEMENTS

The authors would like to thank FAPDF

(fap.df.gov.br), CNPq grant PQ 314154/2018-3

(cnpq.br) and EPSRC Audio-Visual Media Platform

Grant EP/P022529/1 for the ﬁnancial support to this

work. Mr. Dourado also would like to thank to TCU

(tcu.gov.br) for supporting his PhD studies.

REFERENCES

Aarts, E. and Korst, J. (1989). Simulated Annealing and

Boltzmann Machines: A Stochastic Approach to Com-

binatorial Optimization and Neural Computing. John

Wiley & Sons, Inc., New York, NY, USA.

Armeni, I., Sax, S., Zamir, A. R., and Savarese, S.

(2017). Joint2D-3D-semantic data for indoor scene

understanding. Technical Report arXiv:1702.01105,

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

Cornell University Library. http://arxiv.org/abs/1702.

01105.

Armeni, I., Sener, O., Zamir, A. R., Jiang, H., Brilakis, I.,

Fischer, M., and Savarese, S. (2016). 3D semantic

parsing of large-scale indoor spaces. In Proceedings

of IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), Las Vegas, NV, June 26 - July 1,

pages 1534–1543, Piscataway, NJ. IEEE.

Bengio, Y., Louradour, J., Collobert, R., and Weston, J.

(2009). Curriculum learning. In Proceedings of the

26th Annual International Conference on Machine

Learning, ICML, pages 41–48, New York, NY, USA.

ACM.

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Transactions on Pattern Analysis and

Machine Intelligence (PAMI), 8(6):679–698.

Chang, A. X., Dai, A., Funkhouser, T. A., Halber, M.,

Nießner, M., Savva, M., Song, S., Zeng, A., and

Zhang, Y. (2017). Matterport3D: Learning from RGB-

D data in indoor environments. Technical Report

arXiv:1709.06158, Cornell University Library. http:

//arxiv.org/abs/1709.06158.

Charles, R. Q., Su, H., Kaichun, M., and Guibas, L. J.

(2017). PointNet: Deep learning on point sets for

3D classiﬁcation and segmentation. In Proceedings

of IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), Honolulu, Hawaii, July 21-26,

pages 77–85, Piscataway, NJ. IEEE.

Csurka, G. (2017). A comprehensive survey on domain

adaptation for visual applications. In Csurka, G., ed-

itor, Domain Adaptation in Computer Vision Applica-

tions, pages 1–35. Springer International Publishing,

Cham.

Dai, A., Ritchie, D., Bokeloh, M., Reed, S., Sturm, J.,

and Niessner, M. (2018). ScanComplete: Large-Scale

Scene Completion and Semantic Segmentation for 3D

Scans. In Proceedings of IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), Salt

Lake City, UT, June 18-22, pages 4578–4587, Piscat-

away, NJ. IEEE.

Dourado, A., de Campos, T. E., Kim, H., and Hilton, A.

(2019). EdgeNet: Semantic scene completion from

RGB-D images. Technical Report arXiv:1908.02893,

Cornell University Library. http://arxiv.org/abs/1908.

02893.

Firman, M., Aodha, O. M., Julier, S., and Brostow, G. J.

(2016). Structured prediction of unobserved voxels

from a single depth image. In Proceedings of IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), Las Vegas, NV, June 26 - July 1, pages

5431–5440, Piscataway, NJ. IEEE.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: A paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Commun. ACM, 24(6):381–395.

Garbade, M., Sawatzky, J., Richard, A., and Gall, J. (2018).

Two stream 3D semantic scene completion. Technical

Report arXiv:1804.03550, Cornell University Library.

http://arxiv.org/abs/1804.03550.

Guedes, A. B. S., de Campos, T. E., and Hilton, A. (2017).

Semantic scene completion combining colour and

depth: preliminary experiments. In ICCV workshop

on 3D Reconstruction Meets Semantics (3DRMS),

Venice, Italy. Event webpage: http://trimbot2020.

webhosting.rug.nl/events/events-2017/3drms/. Also

published at arXiv:1802.04735.

Guo, R., Zou, C., and Hoiem, D. (2015). Predicting com-

plete 3D models of indoor scenes. Technical Report

arXiv:1504.02437, Cornell University Library. http:

//arxiv.org/abs/1504.02437.

Guo, Y. and Tong, X. (2018). View-Volume Network for

Semantic Scene Completion from a Single Depth Im-

age. In Proceedings of the Twenty-Seventh Inter-

national Joint Conference on Artiﬁcial Intelligence,

pages 726–732, Stockholm, Sweden. International

Joint Conferences on Artiﬁcial Intelligence Organiza-

tion.

Gupta, A., Efros, A. A., and Hebert, M. (2010). Blocks

world revisited: Image understanding using qual-

itative geometry and mechanics. In Proceedings

of 11th European Conference on Computer Vision

(ECCV), Crete, Greece, September 5-11, pages 482–

496, Berlin, Heidelberg. Springer Berlin Heidelberg.

Gupta, S., Arbel

aez, P., and Malik, J. (2013). Perceptual

organization and recognition of indoor scenes from

rgb-d images. In Proceedings of IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

Portland, OR, June 23-28, pages 564–571, Piscat-

away, NJ. IEEE.

Handa, A., Patraucean, V., Badrinarayanan, V., Stent, S.,

and Cipolla, R. (2015). SceneNet: Understanding real

world indoor scenes with synthetic data. Technical

Report arXiv:1511.07041, Cornell University Library.

http://arxiv.org/abs/1511.07041.

Kim, H. and Hilton, A. (2013). 3D scene reconstruction

from multiple spherical stereo pairs. Int Journal of

Computer Vision (IJCV), 104(1):94–116.

Kim, H. and Hilton, A. (2015). Block world reconstruction

from spherical stereo image pairs. Computer Vision

and Image Understanding (CVIU), 139(C):104–121.

Kim, H., Remaggi, L., Jackson, P. J., and Hilton, A. (2019).

Immersive spatial audio reproduction for VR/AR us-

ing room acoustic modelling from 360 images. In Pro-

ceedings of 26th IEEE Conference on Virtual Real-

ity and 3D User Interfaces, Osaka Japan, Piscataway,

NJ. IEEE.

Kittler, J., Hatef, M., Duin, R. P. W., and Matas, J. (1998).

On combining classiﬁers. IEEE Transactions on

Pattern Analysis and Machine Intelligence (PAMI),

20(3):226–239.

Li, S. (2006). Real-time spherical stereo. In Proceedings

of International Conference on Pattern Recognition

(ICPR), pages 1046–1049, Piscataway, NJ. IEEE.

Liu, F., Li, S., Zhang, L., Zhou, C., Ye, R., Wang, Y.,

and Lu, J. (2017). 3DCNN-DQN-RNN: A deep re-

inforcement learning framework for semantic pars-

ing of large-scale 3D point clouds. In Proceedings

of 16th International Conference on Computer Vision

(ICCV), Venice, Italy, pages 5679–5688, Piscataway,

NJ. IEEE.

Liu, S., HU, Y., Zeng, Y., Tang, Q., Jin, B., Han, Y.,

and Li, X. (2018). See and think: Disentangling se-

mantic scene completion. In Bengio, S., Wallach,

H., Larochelle, H., Grauman, K., Cesa-Bianchi, N.,

Semantic Scene Completion from a Single 360-Degree Image and Depth Map

and Garnett, R., editors, Procedings of Conference

on Neural Information Processing Systems 31 (NIPS),

pages 263–274, Reed Hook, NY. Curran Associates,

Inc.

Nguyen, D. T., Hua, B., Tran, M., Pham, Q., and Yeung,

S. (2016). A ﬁeld model for repairing 3D shapes. In

Proceedings of IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), Las Vegas, NV, June

26 - July 1, pages 5676–5684, Piscataway, NJ. IEEE.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017a). Point-

Net++: Deep hierarchical feature learning on point

sets in a metric space. In Guyon, I., Luxburg, U. V.,

Bengio, S., Wallach, H., Fergus, R., Vishwanathan,

S., and Garnett, R., editors, Procedings of Confer-

ence on Neural Information Processing Systems 30

(NIPS), pages 5099–5108. Curran Associates, Inc.,

Reed Hook, NY.

Qi, X., Liao, R., Jia, J., Fidler, S., and Urtasun, R. (2017b).

3D graph neural networks for RGBD semantic seg-

mentation. In Proceedings of 16th International Con-

ference on Computer Vision (ICCV), Venice, Italy,

pages 5209–5218, Piscataway, NJ. IEEE.

Ren, X., Bo, L., and Fox, D. (2012). RGB-(D) scene label-

ing: Features and algorithms. In Proceedings of IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), Providence, RI, June 16-21, pages 2759–

2766, Piscataway, NJ. IEEE.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-Net:

Convolutional networks for biomedical image seg-

mentation. In Navab, N., Hornegger, J., Wells, W. M.,

and Frangi, A. F., editors, Medical Image Computing

and Computer-Assisted Intervention (MICCAI), pages

234–241, Cham. Springer International Publishing.

Schoenbein, M. and Geiger, A. (2014). Omnidirectional

3D reconstruction in augmented manhattan worlds. In

Proceedings of IEEE/RSJ Conference on Intelligent

Robots and Systems IROS, pages 716 – 723, Piscat-

away, NJ. IEEE.

Shrivastava, A. and Mulam, H. (2013). Building part-based

object detectors via 3D geometry. In Proceedings

of IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), Portland, OR, June 23-28, pages

1745–1752, Piscataway, NJ. IEEE.

Silberman, N. and Fergus, R. (2011). Indoor scene segmen-

tation using a structured light sensor. In IEEE Inter-

national Conference on Computer Vision Workshops

(ICCV Workshops), pages 601–608, Piscataway, NJ.

IEEE.

Silberman, N., Hoiem, D., Kohli, P., and Fergus, R.

(2012). Indoor segmentation and support inference

from RGBD images. In Fitzgibbon, A., Lazebnik,

S., Perona, P., Sato, Y., and Schmid, C., editors, Pro-

ceedings of 12th European Conference on Computer

Vision (ECCV), Florence, Italy, October 7-13, pages

746–760, Berlin, Heidelberg. Springer Berlin Heidel-

berg.

Smith, L. N. (2018). A disciplined approach to neural net-

work hyper-parameters: Part 1 - learning rate, batch

size, momentum, and weight decay. Technical Re-

port arXiv:1803.09820, Cornell University Library.

http://arxiv.org/abs/1803.09820.

Song, S., Yu, F., Zeng, A., Chang, A. X., Savva, M., and

Funkhouser, T. (2017). Semantic Scene Completion

from a Single Depth Image. In Proceedings of IEEE

Conference on Computer Vision and Pattern Recog-

nition (CVPR), Honolulu, Hawaii, July 21-26, pages

190–198, Piscataway, NJ. IEEE.

Song, S., Zeng, A., Chang, A. X., Savva, M., Savarese, S.,

and Funkhouser, T. (2018). Im2Pano3D: Extrapolat-

ing 360

◦

structure and semantics beyond the ﬁeld of

view. In Proceedings of IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), Salt

Lake City, UT, June 18-22, pages 3847–3856, Piscat-

away, NJ. IEEE.

Zhang, J., Zhao, H., Yao, A., Chen, Y., Zhang, L., and

Liao, H. (2018a). Efﬁcient semantic scene comple-

tion network with spatial group convolution. In Pro-

ceedings of 15th European Conference on Computer

Vision (ECCV), Munich, Germany, September 8-14,

pages 749–765, Cham. Springer International Pub-

lishing.

Zhang, L., Wang, L., Zhang, X., Shen, P., Bennamoun, M.,

Zhu, G., Shah, S. A. A., and Song, J. (2018b). Seman-

tic scene completion with dense CRF from a single

depth image. Neurocomputing, 318:182–195.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications
