Audio-guided Video Interpolation via Human Pose Features

Takayuki Nakatsuka

1,2 a

, Masatoshi Hamanaka

and Shigeo Morishima

Waseda University, Japan

RIKEN, Japan

Waseda Research Institute for Science and Engineering, Japan

Keywords:

Video Interpolation, Pose Estimation, Signal Processing, Generative Adversarial Network, Gated Recurrent

Unit.

Abstract:

This paper describes a method that generates in-between frames of two videos of a musical instrument being

played. While image generation achieves a successful outcome in recent years, there is ample scope for

improvement in video generation. The keys to improving the quality of video generation are the high resolution

and temporal coherence of videos. We solved these requirements by using not only visual information but also

aural information. The critical point of our method is using two-dimensional pose features to generate high-

resolution in-between frames from the input audio. We constructed a deep neural network with a recurrent

structure for inferring pose features from the input audio and an encoder-decoder network for padding and

generating video frames using pose features. Our method, moreover, adopted a fusion approach of generating,

padding, and retrieving video frames to improve the output video. Pose features played an essential role in

both end-to-end training with a differentiable property and combining a generating, padding, and retrieving

approach. We conducted a user study and conﬁrmed that the proposed method is effective in generating

interpolated videos.

1 INTRODUCTION

Composing music, like any creative work, is a con-

tinuous process of trial and error to pursue the de-

sired music. Like Wolfgang Amadeus Mozart, who

is a famous composer, said that “Music should never

be painful to the ear but should ﬂatter and charm

it, and thereby always remain music,” crafted mu-

sic should be well-thought-out and enticing. We

have expanded the Generative Theory of Tonal Mu-

sic (GTTM) (Lerdahl and Jackendoff, 1996) to deep-

GTTM (Hamanaka et al., 2016) (Hamanaka et al.,

2017) that enabled a time-span tree of a melody to be

automatically acquired based on the GTTM. Besides,

we developed an interactive music system called the

“Melody Slot Machine (Hamanaka et al., 2019),”

which is an interactive music system that provides

an experience of manipulating and controlling a mu-

sic performance to musical novices. The melodies

used in the system are divided into multiple segments,

and each segment has multiple variations of melodies,

from intense ones with many notes to calm ones with

few notes, so that users can explore the melody they

https://orcid.org/0000-0003-3181-4894

Figure 1: Interpolated Video as the result of the interpola-

tion between Video A and Video B. To ﬁll in the gaps be-

tween the two videos, we replace the end frames of the ﬁrst

video and the start frames of the second video with inter-

polated frames. The length of interpolation is changed by

pose similarity between the two videos.

want. We prepared an AR display showing a per-

former so that the result of the operation can be vi-

sually understood as well as aurally.

While the strong background of the music the-

ory and the adequate quality of generated music, the

video, which is accompanied to the music, lowers the

satisfaction of playing the system. This is because

merely joining an audio recording with a video does

not produce a pleasant result. In the case of a dis-

continuous audio signal, to remove some noises (e.g.,

Nakatsuka, T., Hamanaka, M. and Morishima, S.

Audio-guided Video Interpolation via Human Pose Features.

DOI: 10.5220/0008876600270035

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 5: VISAPP, pages

27-35

ISBN: 978-989-758-402-2; ISSN: 2184-4321

clip noises, crackle noise) will improve the quality of

sounds reasonably. Editing the joint parts of videos,

however, is still challenging. The main problems lie

in video resolution and temporal coherence. To im-

prove the experience of the interaction, we addressed

these problems by generating frames and interpolat-

ing videos using aural information via human pose

features.

In this study, we propose an audio-guided video

interpolation method for videos of a musical instru-

ment being played. We adopted two-dimensional

pose features as the intermediate representation that

bridges aural and visual information in our work-

ﬂow for efﬁcient and effective video interpolation.

The subjective evaluation shows that our interpolated

videos appear as natural as an original video and sat-

isfy the participants. Our primary contributions are

the following:

• A new method of using audio to generate an inter-

polated video.

• A novel algorithm that adopts two-dimensional

pose features to make in-between frames natural

from the viewpoint of resolution and temporal co-

herence of videos.

2 RELATED WORK

2.1 Audio-driven Animation

Facial Animation. Several studies succeeded in in-

ferring facial animation from speech audio. Suwa-

janakorn et al. synthesized lip synchronized videos

using a recurrent neural network that learns the mouth

shapes from raw audio features (Suwajanakorn et al.,

2017). Karras et al. proposed a deep neural net-

work that learns 3D vertex coordinates of a face

model with its expression from raw audio (Karras

et al., 2017). They applied the formant analysis to

input speech audio to extract audio features. Visemes

are also useful to estimate the facial animation from

speech (Zhou et al., 2018). Cudeiro et al. used re-

vised DeepSpeech (Hannun et al., 2014) features and

implemented animator controls that preserve identity-

dependent facial shape and pose (Cudeiro et al.,

2019).

Motion Synthesis. Synthesizing motion from in-

put audio has been the subject of various research.

Fan et al. and Oﬂi et al. synthesized dance motion

from music using a statistical and example-based ap-

proach (Fan et al., 2012) (Oﬂi et al., 2012). Shliz-

erman et al. generated the motion of playing an in-

strument using a Long Short-Term Memory (LSTM)

network (Shlizerman et al., 2018).

2.2 Video and Image Processing

Video Interpolation. Recently, interpolation for a

short interval between two subsequent frames in high

resolution has been successfully performed using

deep learning (Niklaus et al., 2017) (Niklaus and Liu,

2018) (Meyer et al., 2018) (Jiang et al., 2018). These

methods help create high frame rate videos from ordi-

nary ones. However, they are not useful in interpolat-

ing a long interval of frames because of the low corre-

spondence between the frames that often leads to low-

ﬁdelity of generated videos. Chen et al. and Xu et

al. introduced a bidirectional predictive network for

generating in-between frames for an extended inter-

val (Chen et al., 2017) (Xu et al., 2018). Bidi-

rectional constraint propagation, which ensures the

spatial-temporal coherence between frames, succeeds

in generating plausible videos. Denton et al. pro-

posed a video generation model with a learned prior

that represents the latent variable of the future video

frames (Denton and Fergus, 2018). Li et al. suggested

a deep neural network with three-dimensional convo-

lutions, which guarantee the spatial-temporal coher-

ence among frames, for generating in-between frames

directly in the pixel domain (Li et al., 2019). Wang et

al. presented a skip-frame training strategy that en-

hances the inference model to learn the time counter

implicitly (Wang et al., 2019). These methods, how-

ever, still lacked in terms of video resolution (the gen-

erated video resolution was 64 [px] × 64 [px]).

Conditional Image Generation. Conditional im-

age generation is the task of generating new images

from a dataset by setting speciﬁc conditions. In this

task, a generative adversarial network (GAN) can im-

prove the ﬁdelity of the generated images. Wang et

al. and Brock et al. proposed GANs that gener-

ated high-ﬁdelity images from sparse labels and an-

notations (Wang et al., 2018b) (Brock et al., 2019).

Wang et al. expanded an image-to-image synthe-

sis approach to video-to-video one using the gener-

ative adversarial learning framework with a Spatio-

temporal adversarial objective function (Wang et al.,

2018a). Pumarola et al. implemented facial anima-

tion from a single image-conditioning scheme based

on action-units annotations (Pumarola et al., 2018).

We propose a fusion approach of video frame

generation, padding, and retrieval to achieve long-

interval interpolation and produce in-between frames

with high resolution.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

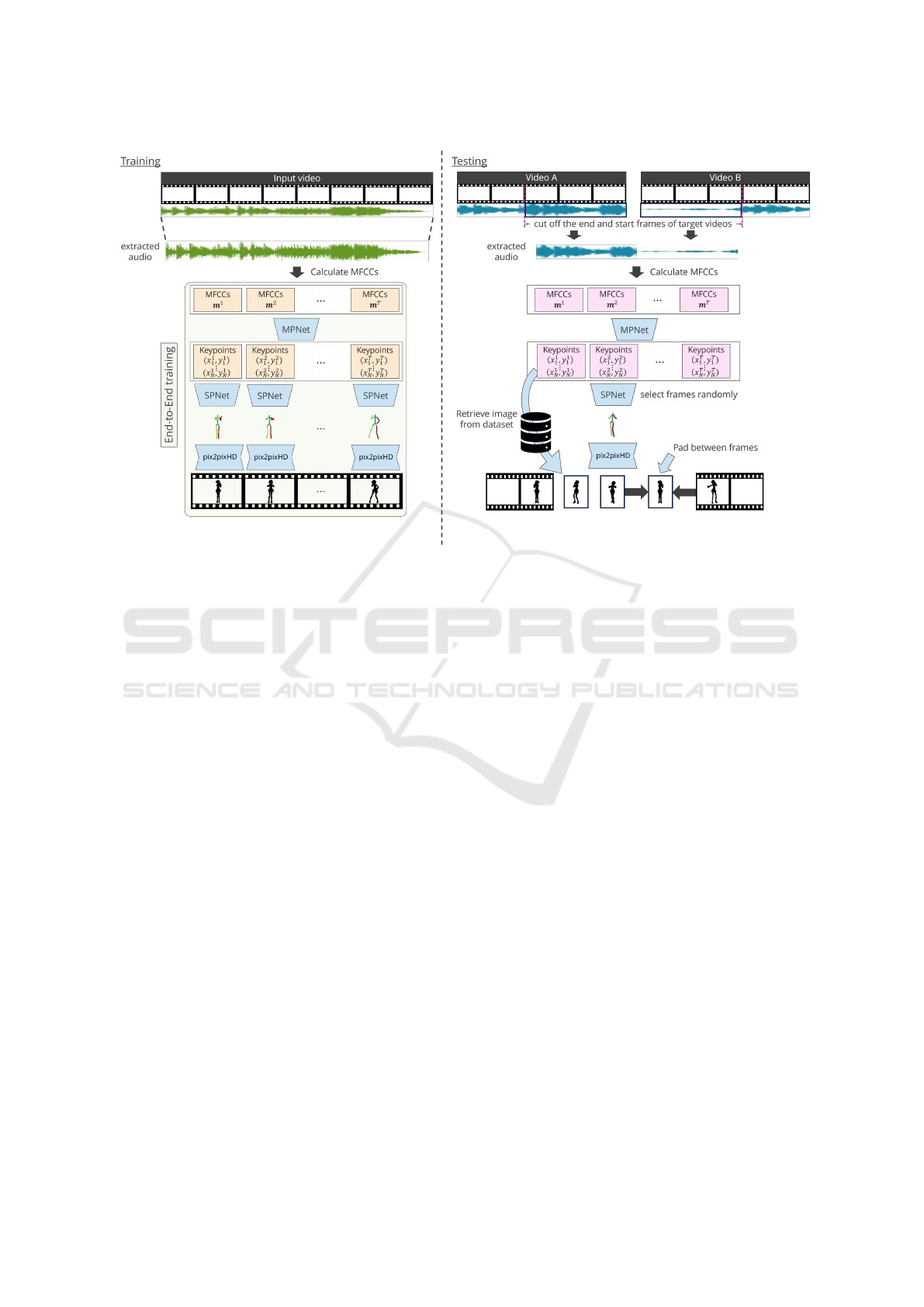

Figure 2: Overview of our proposal. (left) Training: Our model estimates pose features from the input audio and generates a

video from pose stick ﬁgures. To ﬁll in the gap between the pose features and the pose stick ﬁgures, we propose a differentiable

line drawing from the points. This technique enables a deep neural network to train the model by end-to-end learning. (right)

Testing: We adopt a combined approach to generate an interpolated video. The trained model is used for the pose features

estimation from the audio and video frame generation from the pose stick ﬁgure in the interpolation section.

3 METHOD

Our goal is to interpolate two target performance

videos using audio features. To tackle this challenge,

we divided our workﬂow into three stages for the

training: (i) audio feature extraction from the input

audio, (ii) pose estimation from the audio feature,

and (iii) video interpolation between the target videos

by generating in-between frames. Our framework is

trained in an end-to-end manner. Using the trained

model, we introduce a novel algorithm that interpo-

lates the two target videos with high resolution. The

signiﬁcant point is that our method combines gener-

ating, retrieving, and padding methods to produce a

seamless and natural video.

3.1 Mel Frequency Cepstral

Coefﬁcients

Mel Frequency Cepstral Coefﬁcient (MFCC) is one

of the most popular methods to extract audio features

from a signal waveform. MFCC is widely used for not

only speech analysis but also music analysis (Foote,

1997) (Logan and Chu, 2000) (Logan et al., 2000). In

this paper, we used 20-dimensions of MFCC calcu-

lated from the input audio. The parameters to calcu-

late MFCCs are: the sampling rate is 44.1 [kHz], the

window size is 2,048, the hop size (window overlaps)

is 512, and the type of a window is the hann window.

The hann window is described by the following equa-

tion:

w(x) = 0.5 − 0.5cos2πx, if 0 ≤ x ≤ 1. (1)

To ﬁt the number of elements to frame per second

of videos, a linear interpolation (Lerp) is applied

to MFCCs. Finally, we obtained 20-dimensions of

MFCC per video frame.

3.2 Pose Features from MFCCs

Let MP : m → z be the function that learns a map-

ping from MFCCs m ∈ R

T×20

to pose features z ∈

T×25×2

, where the T is the length of the input

MFCCs, and the pose features z were described as 25

joint positions (50 dimensions) on each video frame.

For the sequence-to-sequence transfer, we developed

a deep neural network with a recurrent structure using

three layers of the bidirectional Gated Recurrent Unit

(BiGRU) (Chung et al., 2014) to learn pose features z

from the MFCCs m. We also added two weights shar-

ing fully connected layers to all BiGRU outputs. Fig.

Audio-guided Video Interpolation via Human Pose Features

Figure 3: The architecture of our network for pose estima-

tion from MFCCs. The m

is the i-th frame of MFCCs (in-

put) and the z

is the i-th frame of estimated pose features

(output).

3 shows the schematic architecture of our network.

The objective function L

pose

to train our network is

following:

pose

∑

− MP(m

)

(2)

The network parameters that we used were the fol-

lowings: the input length of MFCCs T was set at 50,

and the hidden state dimension of BiGRU was set at

512. Fully connected layers consisted of two layers,

in which hidden states of layers were 1024 and 512

dimensions, respectively. We used the Adam opti-

mizer (Kingma and Ba, 2014) to train the network.

The learning rate was 2.5e-4, β

was 0.9, β

was

0.999, and ε was 1.0e-8.

3.3 Stick Figure from Pose Features

To apply an image-to-image transfer method, which

enables a deep neural network to generate a natural

image from a sparse annotation, pose features have to

be rendered to an image. Let SP : z → s be the func-

tion that maps from pose features z to stick ﬁgure s.

We introduced a differentiable line drawing to realize

end-to-end learning from audio to images. Let A and

B be joint positions. Problem setting involves draw-

ing line segment AB between points A and B. Let I

the image matrix where all pixels have the value one.

To draw a line, we calculated the distance d between

any point P and line AB using the following:

d =

|(B −A) × (P − A)|

kB − Ak

. (3)

We then obtain line AB using the following:

AB = I



1 +



(

−

ν+1

)

. (4)

In this paper, we used ν = 1. To cut off line AB at

points A and B, we calculated the angle θ between line

segments AB and AQ for any point Q, and the angle θ

between line segments BA and BQ

for any point Q

using the followings:

cosθ =

(B − A) · (Q − A)

kB − AkkQ − Ak

, (5)

cosθ

(A − B) · (Q

− B)

kA − BkkQ

− Bk

. (6)

We ﬁnally obtained line segment AB, which is ren-

dered on image I

with differentiable properties, using

the following:

= AB ×



1 + e

−αcosθ



−1



1 + e

−αcosθ



−1

. (7)

Fig. 4 shows a concrete example of Eq. (7). We used

α = 5 to make line segment AB sharp. A differentiable

line drawing with colors was used to render the stick

ﬁgure s from pose features z, as shown in Fig. 5.

3.4 Video Generation

We employed (Wang et al., 2018b) for the image-to-

image transfer. In this study, the input image was the

stick ﬁgure s ∈ R

3×H×W

, which was rendered from

pose features z (Section 3.3), and the output was a nat-

ural image of a person x ∈ R

3×H×W

, where the H,W

are the height and width of an image, respectively. Let

G : s → x be the generator, and D be the discrimina-

tor. The objective functions for training the network

are followings:


= min

max

∑

k=1

GAN

(G,D

) + λ

∑

k=1

(G,D

)

(8)

GAN

(G,D)

= E

(s,x)

[logD(s, x)] + E

[log(1 − D(s,G(s))], (9)

(G,D

)

= E

(s,x)

∑

i=1

[kD

(i)

(s,x) − D

(i)

(s,G(s))k

], (10)

where λ is the weight, D

(i)

is the i-th layer feature

extractor of multi-scale discriminator D

, L is the to-

tal number of layers, and E

indicates the number of

elements in each layer. The network was ﬁne-tuned

with the target videos of a musical instrument being

played. We used the Adam optimizer (Kingma and

Ba, 2014) to ﬁne-tune the network. The learning rate

was 2.0e-4, β

was 0.9, β

was 0.999, and ε was 1.0e-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

Figure 4: An example of a differentiable line drawing. Let A = (50, 50) and B = (150,150) be points. (a) shows line segment

AB which we want to calculate. (b) shows line AB calculated by Eq. (4). (c) and (d) indicate endpoints of line AB calculated

by the second and third term on the right hand of the Eq. (7), respectively.

Figure 5: (right) An original image. (left) An example of

the stick ﬁgure. We used these images as the pair data to

train the network which learns the image-to-image transfer.

3.5 Video Interpolation

We proposed a novel algorithm that combined ap-

proaches to generating, padding, and retrieving im-

ages for interpolating the target videos with high res-

olution while testing. Algorithm. 1 shows the order

of processing. Pose similarity S

between two target

videos is calculated using the Object Keypoint Simi-

larity (OKS) (Ruggero Ronchi and Perona, 2017) for

several end frames of the ﬁrst video and start frames

of the second video, and deﬁned as following:

∑

OKS



∑

1, (11)

where F is the window size, w is the weight. We

used F = 10 for the experiments, and w ∈ R

follows

the Gaussian distribution. The interpolation length

depends on pose similarity S

. The higher the

pose similarity is, the shorter the interpolation length

is. The interpolation length is empirically deﬁned in

three lengths (9, 13, and 17 frames) by sorting pose

similarity. Then, we connected the sequence of pose

features in the target videos and that of generated ones

by Lerp.

To generate natural images, we adopted both the

frame padding method (Niklaus et al., 2017) and

the image-to-image transfer method (Wang et al.,

2018b). We retrieved images from personal perfor-

mance videos, where the sequence of original pose

features was highly matched to that of generated ones.

On the other hand, we used the image-to-image trans-

fer method (Wang et al., 2018b), where the sequence

of generated pose features was not included in the per-

formance videos. To ﬁll the gaps in the original and

retrieved/generated images, we applied video frame

padding method (Niklaus et al., 2017) to them, and

connected the frames seamlessly.

Algorithm 1: Pseudo code for video interpolation (Fig. 2:

bottom). While testing, Original Pose features Z

pose

∈

DATA×25×2

, Original Images X ∈ R

DATA×3×H×W

, which

were used in the training, were utilized for video interpola-

tion. DATA denotes the size of a dataset.

Input: Audio segment A

Output: in-between frames X

∈ R

F×C×H×W

Calculate MFCCs m ∈ R

F×20

from Audio segment

A (Section 3.1)

Calculate pose features R

F×25×2

3 z ⇐ MP(m)

(Section 3.2)

Calculate pose similarity S

(Section 3.5)

Determine the length of the interpolation length L

(Section 3.5)

Calculate Lerp of pose features z (Section 3.5)

Randomly sample pose features z

⊂ z (Section 3.5)

if |Z

pose

3 z

pose

− z

∈ z

| < threshold then

Retrieve frame X

3 x

⇐ X(z

pose

) (Section 3.5)

else

Generate frame X

3 x

⇐ G(SP(z)) (Wang et al.,

2018b) (Section 3.3, 3.4)

end if

for z

⊂ z \ z

Pad frames X

3 x

⇐ Padding(X,X

) (Niklaus

et al., 2017) (Section 3.5)

end for

in-between frames X

Audio-guided Video Interpolation via Human Pose Features

4 DATA PREPROCESSING

For the experiments, we prepared personal perfor-

mance videos (audio sampling rate: 44100 [Hz],

video deﬁnition: full HD, frame rate: 30 [frames/s]).

The scores played by the performer were generated by

the melody morphing (Hamanaka et al., 2017) of two

different scores (Horn Concerto No. 1/Mozart and

La Gioconda: Dance of the Hours/Ponchielli). We

prepared eleven scores, including two original scores

and nine morphed scores, for the experiments. Fig. 6

shows a part of scores that we used in the experiments.

Videos are trimmed around the target performer and

re-sized to 480 [px] × 480 [px]. The length of the

videos was 374 [sec] in total. We then calculated 20

dimensions of MFCCs from the audio corresponding

to each video frame. To obtain pose features from the

recorded videos, we applied 2D pose estimation (Cao

et al., 2019) to all frames and removed noisy estima-

tions by the following equation:

∑

(u−1)/2

i=−(u−1)/2

t+i

∑

(u−1)/2

i=−(u−1)/2

t+i

, (12)

where Z is the pose feature, C is the conﬁdence of the

CNN (Cao et al., 2019) output, t is the t-th frame of

the video and u is the window size.

5 EVALUATION

We evaluated whether the change in the melody and

the video were seamless in the Melody Slot Ma-

chine (Hamanaka et al., 2019). We asked the partici-

pants to answer three questions after watching a video

using a seven-point Likert scale (1: strongly disagree;

7: strongly agree) as follows.

Q1: “Did you feel that the melody was as natural as

the original melody?”

Q2: “Did you feel that the video was matched to the

melody?”

Q3: “Did you feel that the video was as natural as

the original video?”

The participants were twelve young adults (age: 21–

25), and four of them had experienced playing an

instrument. We compared two conditions for the

melody (original melody and the melody with the

transition of melody morphing level (Hamanaka et al.,

2017)) and ﬁve conditions for the video (original

video, our method, merely combined video, (Niklaus

et al., 2017), and (Wang et al., 2018b)) using a

Wilcoxon signed-rank test (Wilcoxon, 1992) with 1%

and 5% levels of signiﬁcance. Tests 1–4 were selected

from videos that had a difference in pose similarity

(Test 1 was a video that interpolated two videos with

a high degree of pose similarity, and Test 4 interpo-

lated two videos with a low one). Fig. 7 shows that

all of the melodies in the four tests were natural re-

gardless of the difference conditions. Fig. 8 shows

that the quality of the video depended on the joint

parts of the videos. There was a mismatch between

melody and video when the video was interpolated

or combined. Fig. 8 indicates that improving video

interpolation, which is matched to the melody, is im-

portant for user experience. Our method is superior to

any other method in most cases. Fig. 9 shows that our

method makes the produced a video appear more nat-

ural compared to those produced using other methods.

Our method was effective in Test 2 and Test 3 because

there are signiﬁcant differences between our method

and the others. In particular, in Test 2, the original

video and the one produced with our method show no

signiﬁcant differences.

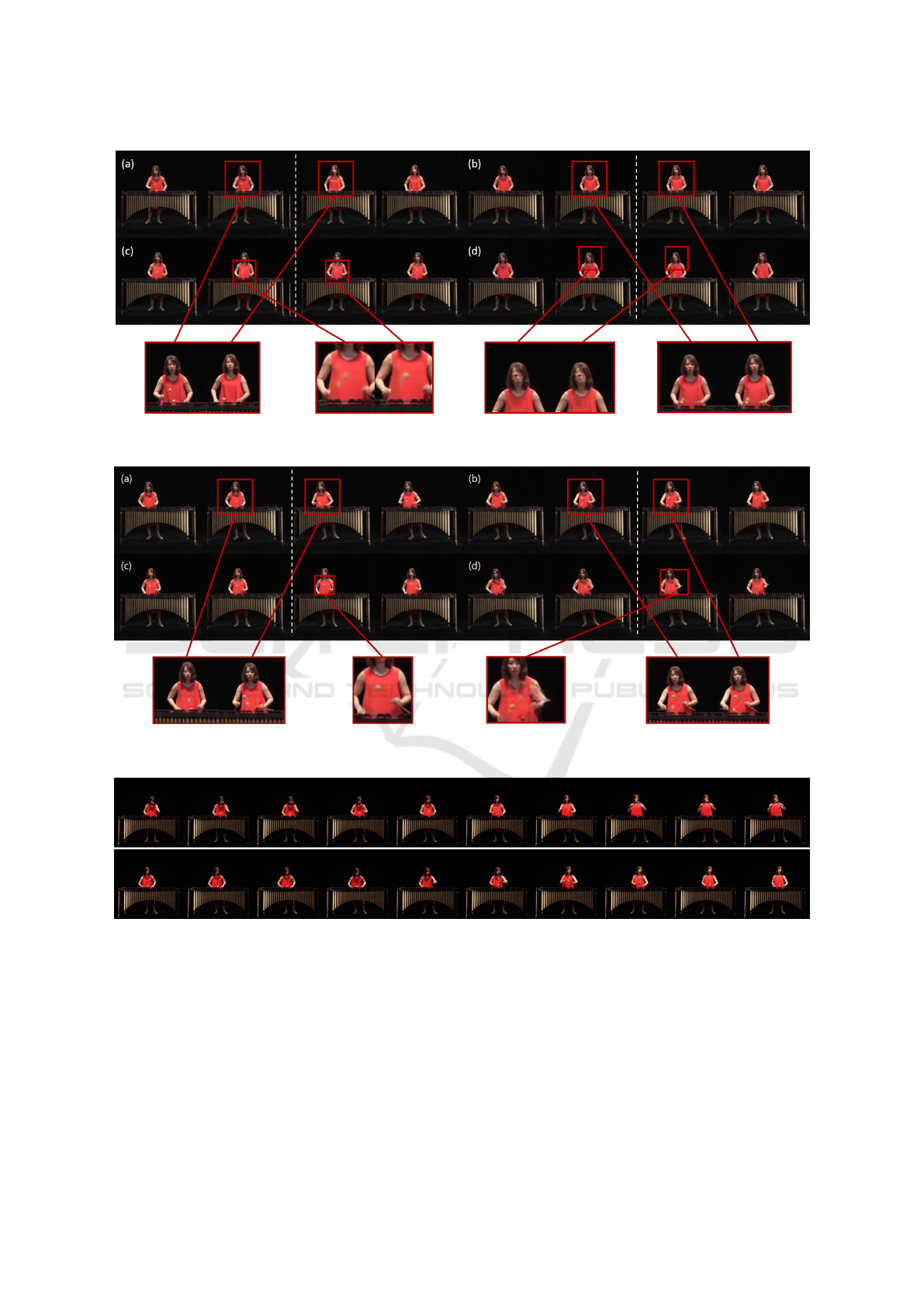

Fig. 10 and Fig. 11 show a comparison of (a)

two target videos, (b) our method, (c) (Wang et al.,

2018b) and (d) (Niklaus et al., 2017). In Fig. 10

blurred on the mallet. The blur is caused by the lack

of annotations. To avoid this problem, speciﬁc anno-

tations on the instruments will be required. In Fig.

10 (d), the generated faces are corrupted, and in Fig.

11 (d), the generated bodies are corrupted because the

method (Niklaus et al., 2017) was not adequate for

interpolating the target videos with signiﬁcant differ-

ence in the frames. This stems from the limitations of

the short-interval interpolation method. On the other

hand, our method, which uses a fusion approach of

generating, padding and retrieving images, as shown

in Fig. 10 (b) and Fig. 11 (b), generates a seamless

and series of natural video frames. We show some

results in Fig. 12.

6 METHOD LIMITATION

Our method is suitable for videos that include a clear

target with a high correspondence to audio. Then, it is

not adequate to apply our method to the videos with-

out any target. Moreover, it is challenging to gener-

ate in-between frames in the case of mute, constant

sounds, and repeated sounds, which are the audio

without any character. In addition, the quality of the

interpolation is low when the pose similarity is quite

different between the two videos. By the request of

the “Melody Slot Machine (Hamanaka et al., 2019),”

the interpolation length was restricted up to 20 frames

because the switching process of the videos will not

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

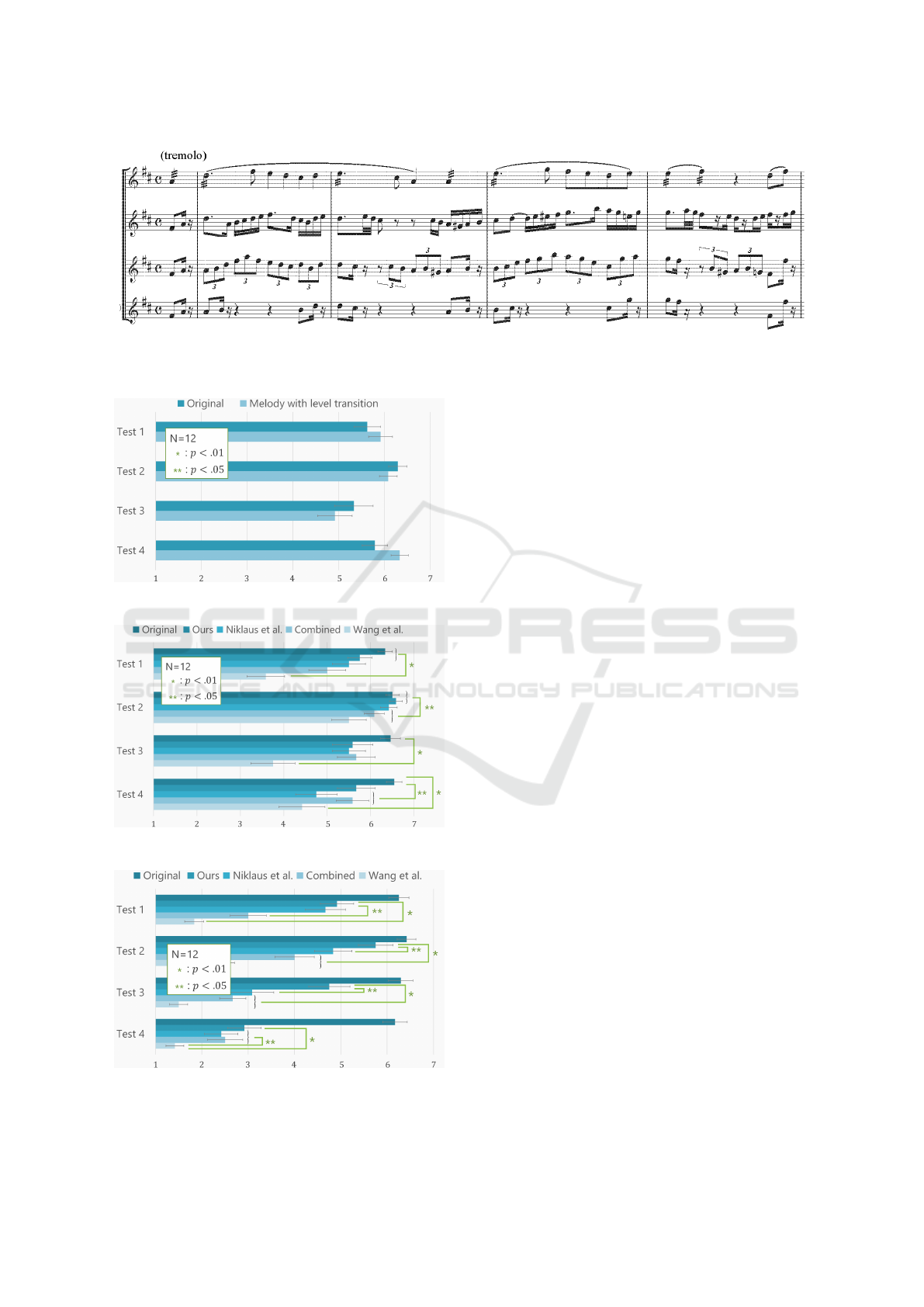

Figure 6: A part of the scores prepared for the experiments. The top score is the beginning part of the melody of Horn

Concerto No. 1/Mozart, and the bottom score is the one of La Gioconda: Dance of the Hours/Ponchielli. The middle scores

are the ones of morphed melodies of them generated by (Hamanaka et al., 2017).

Figure 7: The subjective evaluation score for Q1.

Figure 8: The subjective evaluation score for Q2.

Figure 9: The subjective evaluation score for Q3.

make it in time. It is possible to generate in-between

frames when the pose similarity is low, but the inter-

polated video appears strange.

7 CONCLUSION

We proposed a novel framework of video frame inter-

polation using audio to improve the interaction expe-

rience in the “Melody Slot Machine (Hamanaka et al.,

2019),” which enables the enjoyment of manipulating

music. Our method could produce the interpolating

video with a long interval of frames and high resolu-

tion. We conﬁrmed that our interpolated videos ap-

pear as seamless and natural as an original video, and

satisfy the participants. We are planning to improve

the quality of the interpolation when pose similarity

is quite different between the two videos.

ACKNOWLEDGEMENTS

This work was supported by the Program for Lead-

ing Graduate Schools, “Graduate Program for Em-

bodiment Informatics (No. A13722300)” of the

Ministry of Education, Culture, Sports, Science and

Technology (MEXT) of Japan, JST ACCEL Grant

Number JPMJAC1602, and JSPS KAKENHI Grant

Numbers JP16H01744, JP17H01847, JP17H06101,

JP19H01129 and JP19H04137.

Audio-guided Video Interpolation via Human Pose Features

Figure 10: Comparison of (a) two target videos, (b) our method, (c) Wang et al. (Wang et al., 2018b) and (d) Niklaus et al.

(Niklaus et al., 2017). The broken line denotes the boundary of between the two target videos.

Figure 11: Another comparison of (a) two target videos, (b) our method, (c) Wang et al. (Wang et al., 2018b) and (d)

Niklaus et al. (Niklaus et al., 2017). The broken line denotes the boundary of between the two target videos.

Figure 12: Results of our method. Our method succeeded in generating in-between frames with audio-guide.

REFERENCES

Brock, A., Donahue, J., and Simonyan, K. (2019). Large

scale GAN training for high ﬁdelity natural image

synthesis. In International Conference on Learning

Representations (ICLR).

Cao, Z., Hidalgo Martinez, G., Simon, T., Wei, S., and

Sheikh, Y. A. (2019). Openpose: Realtime multi-

person 2d pose estimation using part afﬁnity ﬁelds.

IEEE Trans. Pattern Analysis and Machine Intelli-

gence (TPAMI), pages 1–1.

Chen, X., Wang, W., and Wang, J. (2017). Long-term video

interpolation with bidirectional predictive network. In

IEEE Visual Communications and Image Processing

(VCIP), pages 1–4. IEEE.

Chung, J., Gulcehre, C., Cho, K., and Bengio, Y. (2014).

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

Empirical evaluation of gated recurrent neural net-

works on sequence modeling. In Advances in Neural

Information Processing Systems (NeurIPS).

Cudeiro, D., Bolkart, T., Laidlaw, C., Ranjan, A., and

Black, M. (2019). Capture, learning, and synthesis

of 3D speaking styles. In IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

10101–10111.

Denton, E. L. and Fergus, R. (2018). Stochastic video gen-

eration with a learned prior. In International Confer-

ence on Machine Learning (ICML).

Fan, R., Xu, S., and Geng, W. (2012). Example-based

automatic music-driven conventional dance motion

synthesis. IEEE Trans. Visualization and Computer

Graphics (TVCG), 18(3):501–515.

Foote, J. T. (1997). Content-based retrieval of music and

audio. In Multimedia Storage and Archiving Systems

II, volume 3229, pages 138–147. International Society

for Optics and Photonics.

Hamanaka, M., Hirata, K., and Tojo, S. (2016). deepgttm-

i&ii: Local boundary and metrical structure analyzer

based on deep learning technique. In International

Symposium on Computer Music Multidisciplinary Re-

search, pages 3–21. Springer.

Hamanaka, M., Hirata, K., and Tojo, S. (2017). deepgttm-

iii: Multi-task learning with grouping and metrical

structures. In International Symposium on Computer

Music Multidisciplinary Research, pages 238–251.

Springer.

Hamanaka, M., Nakatsuka, T., and Morishima, S. (2019).

Melody slot machine. In ACM SIGGRAPH Emerging

Technologies, page 19. ACM.

Hannun, A., Case, C., Casper, J., Catanzaro, B., Diamos,

G., Elsen, E., Prenger, R., Satheesh, S., Sengupta,

S., Coates, A., et al. (2014). Deep speech: Scal-

ing up end-to-end speech recognition. arXiv preprint

arXiv:1412.5567.

Jiang, H., Sun, D., Jampani, V., Yang, M.-H., Learned-

Miller, E., and Kautz, J. (2018). Super slomo: High

quality estimation of multiple intermediate frames for

video interpolation. In IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 9000–

9008.

Karras, T., Aila, T., Laine, S., Herva, A., and Lehtinen, J.

(2017). Audio-driven facial animation by joint end-to-

end learning of pose and emotion. ACM Trans. Graph-

ics (TOG), 36(4):94.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Lerdahl, F. and Jackendoff, R. S. (1996). A generative the-

ory of tonal music. MIT press.

Li, Y., Roblek, D., and Tagliasacchi, M. (2019). From here

to there: Video inbetweening using direct 3d convolu-

tions. arXiv preprint arXiv:1905.10240.

Logan, B. and Chu, S. (2000). Music summarization us-

ing key phrases. In IEEE International Conference on

Acoustics, Speech, and Signal Processing (ICASSP),

volume 2, pages II749–II752. IEEE.

Logan, B. et al. (2000). Mel frequency cepstral coefﬁcients

for music modeling. In International Symposium on

Music Information Retrieval (ISMIR).

Meyer, S., Djelouah, A., McWilliams, B., Sorkine-

Hornung, A., Gross, M., and Schroers, C. (2018).

Phasenet for video frame interpolation. In IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 498–507.

Niklaus, S. and Liu, F. (2018). Context-aware synthesis for

video frame interpolation. IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

1701–1710.

Niklaus, S., Mai, L., and Liu, F. (2017). Video frame inter-

polation via adaptive separable convolution. In IEEE

International Conference on Computer Vision (ICCV).

Oﬂi, F., Erzin, E., Yemez, Y., and Tekalp, A. M. (2012).

Learn2dance: Learning statistical music-to-dance

mappings for choreography synthesis. IEEE Trans.

Multimedia (TOM), 14(3-2):747–759.

Pumarola, A., Agudo, A., Martinez, A. M., Sanfeliu,

A., and Moreno-Noguer, F. (2018). Ganimation:

Anatomically-aware facial animation from a single

image. In European Conference on Computer Vision

(ECCV), pages 818–833.

Ruggero Ronchi, M. and Perona, P. (2017). Benchmarking

and error diagnosis in multi-instance pose estimation.

In IEEE International Conference on Computer Vision

(ICCV), pages 369–378.

Shlizerman, E., Dery, L. M., Schoen, H., and Kemelmacher-

Shlizerman, I. (2018). Audio to body dynamics. In

IEEE Conference on Computer Vision and Pattern

Recognition (CVPR).

Suwajanakorn, S., Seitz, S. M., and Kemelmacher-

Shlizerman, I. (2017). Synthesizing obama: learning

lip sync from audio. ACM Trans. Graphics (TOG),

36(4):95.

Wang, T.-C., Liu, M.-Y., Zhu, J.-Y., Liu, G., Tao, A., Kautz,

J., and Catanzaro, B. (2018a). Video-to-video syn-

thesis. In Advances in Neural Information Processing

Systems (NeurIPS).

Wang, T.-C., Liu, M.-Y., Zhu, J.-Y., Tao, A., Kautz, J., and

Catanzaro, B. (2018b). High-resolution image synthe-

sis and semantic manipulation with conditional gans.

In IEEE Conference on Computer Vision and Pattern

Recognition (CVPR).

Wang, T.-H., Cheng, Y.-C., Hubert Lin, C., Chen, H.-T.,

and Sun, M. (2019). Point-to-point video generation.

In IEEE International Conference on Computer Vision

(ICCV).

Wilcoxon, F. (1992). Individual comparisons by ranking

methods. In Breakthroughs in statistics, pages 196–

202. Springer.

Xu, Q., Zhang, H., Wang, W., Belhumeur, P. N., and Neu-

mann, U. (2018). Stochastic dynamics for video in-

ﬁlling. arXiv preprint arXiv:1809.00263.

Zhou, Y., Xu, Z., Landreth, C., Kalogerakis, E., Maji,

S., and Singh, K. (2018). Visemenet: Audio-driven

animator-centric speech animation. ACM Trans.

Graphics (TOG), 37(4):161.

Audio-guided Video Interpolation via Human Pose Features
