The Classification of Ancient Sumerian Characters using

Convolutional Neural Network

Ahmed H. Y. Al-Noori

, Moahaimen Talib

and Jamila Harbi S.

Computer Engineering Department, Al-Nahrain University, Bagdad, Iraq

Computer Science Department, Al-Mustansiriyah University, Baghdad, Iraq

Keywords: Sumerian Characters, Convolutional Neural Networks, Deep Learning, Features Extraction.

Abstract: Recently, many sophisticated techniques have been used to classify ancient characters just like Phoenician,

Egyptian hieroglyphs, and Maya glyphs. This paper proposed a new technique based on Convolutional Neural

Network to classify (CNN) characters from Sumerian texts. The work was motivated by the challenges that

faced with the status of Sumerian tablets which some had been broken and distorted by erosion factors. This

technique includes taking the dataset of the Sumerian character's features and apply to these characters. Then,

after initializing the weights for the output neurons, the layers of the CNN are prepared. Finally, the

performance of this network is evaluated. This technique shows significant results and time-consuming.

1 INTRODUCTION

The Sumerians ancient, one of the greatest ancient of

Mesopotamia, had commonly known for inventing

the first civilizations in the world, building the first

cities, invented the wheel, and use time units.

Furthermore, they represent the first people that use

writing and inventing the writing system. This system

was used to organize their daily life to write a

contract, buying, selling, agricultures, and enacting

laws. This writing is known as Cuneiform writing.

Cuneiform writing was written on clay tablets and

seals by using a wood instrument. The Sumerian

written almost all their history and legends on these

clays. For instant, the legends of their gods and the

way the gods create a human being, the history of

their heroes, and the achievements of their

kings(Kramer, 1963). However, according to the

Archaeologists, the ages of these tablets are return to

30 centuries ago (4500 BC)(Kassian, 2014).

Throughout that history, these tablets are suffered

from too many damages and erosion factors. That

made most of these tablets are distorted and damage.

For decades, many techniques have been used to

extract and classified the characters and symbols in

these tablets. The extraction of these characters is

https://orcid.org/0000-0002-0540-6849

https://orcid.org/0000-0002-5106-849X

https://orcid.org/0000-0003-1872-160X

very important to recover the contents of these tablets

since they are vulnerable to destruction and stolen.

Deep learning including Convolutional Neural

Networks (CNN) represents one of the efficient

techniques used in pattern recognition fields to

recognize the data regularities and patterns. In the

previous work (Talib & Harbi, 2017) Sumerian

characters are extracted from these tablets and put

their texture features into a dataset by using Discrete

Wavelet Transform and Split Region Methods. In this

work, the extracted dataset of the characters features

to recognize these characters by applying CNN. This

process is done by setting and initializing the

parameters of the input characters then preparing

layers of the CNN (input, convolution, subsampling

layers) after initialize the weights for the output

neurons. The demand to extract and understand the

ancient texts (including cuneiform texts) gave

attention to lots of researchers. Edan (2013) design an

algorithm for recognizing cuneiform symbols. This

algorithm is based mainly on K-mean to cluster the

symbols. Then, multi-layer neural networks are

applied to classify the symbol within the same cluster.

Majeed, Beiji, Hiyam, and Jumana (2015) proposed a

method based on the wavelet algorithm to obtain the

text from the Sumerian clay tablet. Yang, Jin, Xie,

and Feng (2015) proposed an approach to enhance

Deep Convolutional Neural Network to recognize

handwritten Chinese characters. This enhancement

including deformation, non-linear normalization,

imaginary strokes, path signature, and 8-directional

features. SASAKI, HORIUCHI, and KATO (2015)

improve the system for recognizing ancient Japanese

characters in order to read ancient documents. They

CNN to extract the features and used a support vector

machine (SVM) to classify these features. On the

other hand,(Tsai, 2016) used a deep convolutional

neural network to classified the three different types

of scripts of handwritten Japanese. This work focuses

on the classification of the type of script, character

recognition within each type of script, and character

recognition across all three types of scripts.

2 WHAT IS DEEP LEARNING?

Deep Learning is a field of machine learning that is

used to learn computers to do what can humans able

to do in real life. Exactly just like, when a person

understand and learn from his/her expertise.

Conventional machine learning has algorithms that

use the computations to learn from data or

information directly without depending on predefined

equations to be used as a model. Machine learning

algorithms are widely used in pattern recognition

fields. For instant, face recognition, recognize texts

from audio or videos (speech recognition), and

recognize car numbers from its plates (O'Shea &

Nash, 2015). Furthermore, they are used in smart

technology such as auto-driving of the cars which

used to detecting lights and people crossing the street.

Deep Learning (DL) represents the most efficient

technique since it is providing better performance

than other machine learning algorithms based on the

experimental results. The main behind this is that DL

mimics brain functions. Furthermore, its methods

include multi-layer processing, which can give better

time consuming and high accuracy performance. Sub-

sampling layers give better results, by using CNN and

auto-encoders when their number increased then

better timing and clarity for the images are obtained

(Hijazi, Kumar, & Rowen, 2015). In general, there are

three important types of neural networks that form the

basis for most pre-trained models in deep learning:

Artificial Neural Networks (ANN), Recurrent Neural

Networks (RNN), and Convolution Neural Networks

(CNN). In the next section, CNN will be discussed in

detail, which is mainly used in this work.

3 CONVOLUTION NEURAL

NETWORKS (CNN)

A CNN is known as a special type of neural network

and a main branch of the DL. It represents the best

choice for pattern recognition and specifically in the

image processing area. . A CNN is comprised of one

or more convolutional layers, also sometimes it

contains a subsampling layer and after the

subsampling layer, there are one or more fully

connected layers just like the conventional neural

network (Patterson & Gibson, 2017). The Design of

CNN is based on the mechanism of the visual of the

human, i.e. the cortex of the visually in the brain of a

human. Many cells exist in the cortex of the visually,

these cells have the job of detecting light in sub-

regions that are small or overlapped in the visual area

for the human eye. These areas are known as

receptive areas and the cells on its work as local filters

for input space. Moreover, if the cells have higher

complexity then they will have larger receptive areas.

CNN’s convolution layer represented the function

that is implemented by the visual cortex’s cells

(Patterson & Gibson, 2017).

3.1 Advantage of CNN

Recently, CNN has taken the attention of many

researchers, especially in image processing fields

because of the advantages include within it. These

advantages can be summarized as follows(Hijazi et

al., 2015):

1. Ruggedness to Shifts and Distortion in the

Image: the detection with using CNN is rugged

to distortions for example change in shape due

to camera lens, different lighting conditions,

different poses, presence of partial occlusions,

horizontal and vertical shifts, etc.

2. Fewer Memory Requirements: Theoretically,

the fully connected layers can be used to have

all the features to be extracted, for example, If

an image of size 32×32 with a hidden that has

1000 features, then 106 coefficients order is

needed, with a very large memory needed.

However, these coefficients will be used in

several locations across space in the

convolutional layer, this will lead to reducing

the memory usage drastically.

3. Easier and Better Training: In CNN, the

number of parameters is reduced drastically.

Which make CNN better time consuming when

compared with the traditional neural network. In

addition, if a neural network is built and try to

make it equivalent to CNN, then the standard

neural network may have more noise while

training due it has parameters more than the

CNN, and its performance is less than the CNN.

3.2 CNN Architecture

In general, CNN consist of three different layer types.

These layers are convolution, pooling, and fully

connected layers. If the mentioned layers are stacked

together then the CNN architecture has been formed.

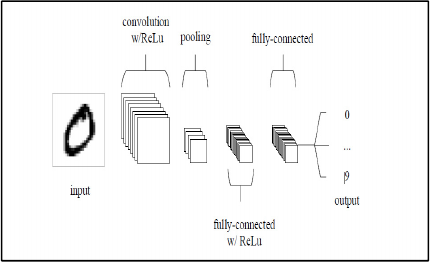

Figure 1 illustrates the main layers of simple CNN.

Figure 1: Layers of simple CNN architecture.

The basic functionality of this CNN can be classified

into the following areas:

1. As found in other forms of Neural Network,

the input layer will take the pixel values of

the image.

2. The convolutional layer will determine the

output of neurons of which are connected to

local regions of the input through the

calculation of the scalar product between

their weights and the region connected to the

input volume. The rectified linear unit

(ReLu) aims to apply an ’elementwise’

activation function such as sigmoid to the

output of the activation produced by the

previous layer.

3. The pooling layer will then simply perform

down sampling along the spatial

dimensionality of the given input.

Furthermore, the number of parameters

within that activation is reduced.

4. The fully-connected layers will then perform

the same duties found in standard Neural

Networks and attempt to produce class

scores from the activations, in order to be

used for classification. Also, it is suggested

that ReLu can be used between these layers

to improve performance.

4 SUMERIAN CHARACTERS

CLASSIFICATION USING CNN

As mention before, the CNN technique is very

efficient in pattern recognition fields in general and

especially what is concerned with image processing.

It can perform effective work for classifying the

extracted characters according to their features.

Furthermore, contrary to other machine learning,

CNN has the ability to extract the features from a

character without the requirement to feature

extraction pre-process. For that reason, and based on

their efficiency in classification, CNN has been

chosen in work.

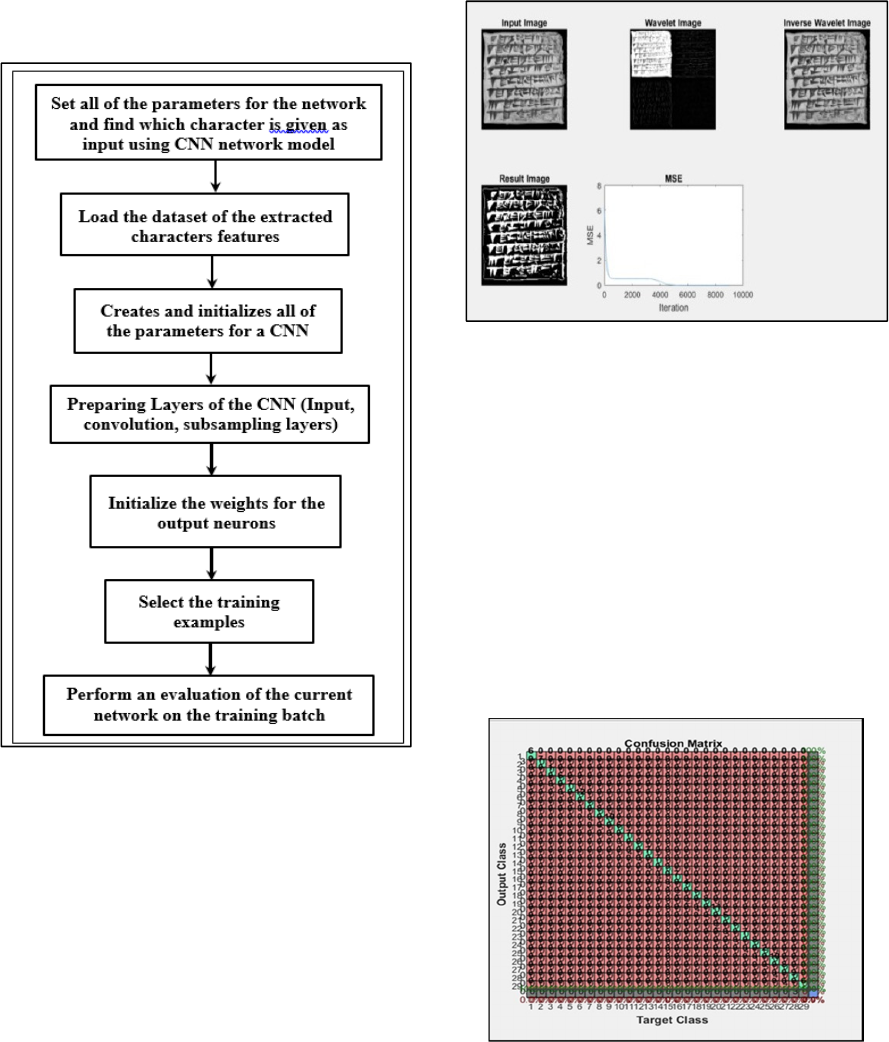

In order to help with classifying the extracted

Sumerian characters, the following algorithm is

presented:

1. Creates and Initializes All of the

Parameters for a CNN: The layers of the

CNN should be initialized and prepared. To

do that, the structure array containing three

layers (The Input layer, convolution layer,

and the subsampling layer0 must be

prepared for this purpose.

2. Perform an Evaluation of the Current

Network on the Training Batch: After

finishing the setting of the parameters, the

size of each character must be stored in a

matrix. Then, create a structure array that

includes variables that need to be used by the

layers of CNN.

3. Calculate Gradients using Back-

propagation: Creating some fields in the

array of the CNN. These fields will be used

in calculating the gradients. This is required

to define the outputs for each field and

consider that only the convolution layer will

have a sigma function value. Then, taking

the size of one field value of the structure of

the CNN, and multiplying it with later field

value. Finally rotating the output value to be

used in the next step.

4. Update the Parameters by Applying the

Gradients: Checking each convolutional

layer and update each field in it. Then, the

feed-forward field and backward fields are

updated.

Figure 2 illustrates the main steps of the proposed

algorithm:

Figure 2: The proposed algorithm for Sumerian characters

extractions.

5 EXPERIMENTAL RESULTS

5.1 Setup and Evaluation

The proposed algorithm was tested by using Matlab

2015b. The Sumerian characters are extracted from

images of 20 tablets. These images are collected from

the Cuneiform Digital Library Initiative (CDLI) at

Cornell University(cdli, 2017) as demonstrated in

Figure 3. According to this figure, the first image

represents the input image of the tablet. The second

and third represent the wavelet and inverse wavelet

images respectively. The fifth image represents the

output of the proposed algorithm using CNN

techniques. the sixth image represents the mean

square error(MSE) for the output.

Figure 3: The Input /Output of the proposed algorithm.

In order to evaluate the performance of the

classifier,

the confusion matrix has been used. The

Confusion matrix is a two by two table that contains

four outcomes (true positive TP, true negative TN,

false-positive FP, and false-negative FN) produced by

a classifier (Table 1). These outcomes represent

essential performance measures, which are accuracy,

specificity, and sensitivity. These performance

measures can be derived directly from the confusion

matrix. Figure (4) demonstrates a plot of the

confusion matrix, which has rows and columns and

diagonal cells for a confusion matrix. The rows stand

for the predicted class (the Output Class). While the

columns stand for the true class (The Target Class).

Figure 4: The plot of the confusion matrix.

In order to know how many or what is the

percentage that the trained network examples had

correctly estimated their classes by observing, the

diagonal cells should be observed. In this figure, it

shows performance with 100%. Table 1 shows the

results of the confusion matrix where:

• TN is the number of correct predictions that an

instance is negative,

• FN is the number of incorrect predictions that an

instance is positive,

• TP is the number of incorrect of predictions that

an instance negative,

• FP is the number of correct predictions that an

instance is positive.

Table 1: Confusion Matrix.

Confusion matrix Predicted

Negative Negative

Actual Negative TN=0 FP=0

Positive FN=0 TP=100%

Finally, the measurement of each sensitivity (the

probability that has a condition of the identification’s

test that the correct-characters are correct-characters),

specificity (the probability that has a condition of the

identification’s test for the not correct-characters

witch are not correct-characters), and accuracy are

100% for each. That means only the correct-

characters are classified and resulted from the system,

While e, not correct-characters are didn’t resulted

from the system. These measurements are checked by

visually comparing with the correct-charters dataset

in Figure 5 and the resulted correct-characters in

Figure 6.

Figure 5: The dataset of the images of the correct-

characters.

Figure 6: The correct resulted characters from the tablet

image.

5.2 Result and Discussion

In this section, a comparison has been made between

the proposed system(CNN based system) and the

Ancient Cuneiform Text Extraction based on

Automatic Wavelet Selection (ACTEBWS) (Majeed

et al., 2015). This comparison can be summarized in

the following point:

1. The proposed system takes 20 CDLI (cdli,

2017) images as input, while the ACTEBWS

only one image as an input has been taken.

2. In both systems, the Wavelet transform has

been applied.

3. The proposed system applies Region

Splitting to extract characters from each

tablet images, while the ACTEBWS extracts

the whole text from the tablet without the

ability to split each character separately.

4. The proposed system consume less time in

handling one image and extracts characters

from the tablet image. On the other hand,

ACTEBWS consumes more time for the

same image without the ability to extracting

characters from each image.

5. The proposed system builds its dataset based

on the correct Sumerian characters and the

incorrect characters at the same time.

6. The usage of deep learning-based CNN in

the proposed system gives the high

performance of classification. Furthermore,

CNN has the ability to extract features

directly from the image without the required

feature extraction pre-process.

7. The proposed system has achieved a 100%

recognition rate when compare with

ACTEBWS, which is not achieved this rate.

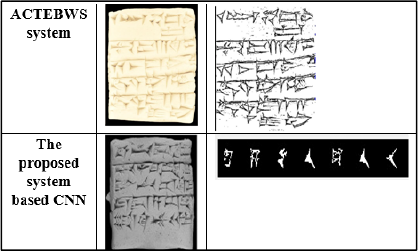

Figure 7 illustrates the difference between the

extraction processes of two systems, where the

images in the second column represent the input

images while images of the third column represent

the output of both systems.

Figure 7: The comparison between ACTEBWS and the

proposed system.

6 CONCLUSIONS AND FUTURE

WORKS

In this paper, a proposed system including a deep

learning-based convolutional neural network (CNN)

has been used to extract and classified cuneiform

characters from the Sumerian tablets. The proposed

system achieves high classification performance with

high accuracy recognition for each extracted

character, especially when compared with other

systems. Furthermore, the system shows high

accuracy for the extracted character when it is

matching with the reference of cuneiform corrected

characters. For future work, we suggest applying the

proposed system to other ancient and complex

characters just like Assyrian cuneiform or

hieroglyphics charters.

REFERENCES

cdli. (2017). Cuneiform Digital Library Initiative.

Edan, N. M. (2013). Cuneiform symbols recognition based

on k-means and neural network. AL-Rafidain Journal

of Computer Sciences and Mathematics, 10(1), 195-

202.

Hijazi, S., Kumar, R., & Rowen, C. (2015). Using

convolutional neural networks for image recognition.

Cadence Design Systems Inc.: San Jose, CA, USA, 1-

12.

Kassian, A. (2014). Lexical matches between Sumerian and

Hurro-Urartian: possible historical scenarios.

Cuneiform Digital Library Journal, 4, 1-23.

Kramer, S. N. (1963). Cuneiform Studies and the History

of Literature: The Sumerian Sacred Marriage Texts.

Proceedings of the American Philosophical Society,

107(6), 485-527.

Majeed, R., Beiji, B. Z., Hiyam, H., & Jumana, W. (2015).

Ancient Cuneiform Text Extraction Based on

Automatic Wavelet Selection. International Journal of

Multimedia and Ubiquitous Engineering, 10(6), 253-

264.

O'Shea, K., & Nash, R. (2015). An introduction to

convolutional neural networks. arXiv preprint

arXiv:1511.08458.

Patterson, J., & Gibson, A. (2017). Deep learning: A

practitioner's approach: " O'Reilly Media, Inc.".

Sasaki, H., Horiuchi, T., & Kato, S. (2015). Japanese

Historical Character Recognition using Convolutional

Neural Networks. ICIC express letters. Part B,

Applications: an international journal of research and

surveys, 6(12), 3159-3164.

Talib, M., & Harbi, J. (2017). Sumerian Character

Extraction by Using Discrete Wavelet Transform and

Split Region Methods. Kurdistan Journal of Applied

Research, 2(3), 62-65.

Tsai, C. (2016). Recognizing handwritten Japanese

characters using deep convolutional neural networks.

University of Stanford in Stanford, California, 405-410.

Yang, W., Jin, L., Xie, Z., & Feng, Z. (2015). Improved

deep convolutional neural network for online

handwritten Chinese character recognition using

domain-specific knowledge. Paper presented at the

2015 13th international conference on document

analysis and recognition (ICDAR).
