Generative Modeling of Synthetic Eye-tracking Data: NLP-based

Approach with Recurrent Neural Networks

Mahmoud Elbattah

, Jean-Luc Guérin

, Romuald Carette

1,2

, Federica Cilia

and Gilles Dequen

Laboratoire MIS, Université de Picardie Jules Verne, Amiens, France

Evolucare Technologies, Villers Bretonneux, France

Laboratoire CRP-CPO, Université de Picardie Jules Verne, Amiens, France

Keywords: Eye-tracking, Machine Learning, Recurrent Neural Networks, NLP.

Abstract: This study explores a Machine Learning-based approach for generating synthetic eye-tracking data. In this

respect, a novel application of Recurrent Neural Networks is experimented. Our approach is based on learning

the sequence patterns of eye-tracking data. The key idea is to represent eye-tracking records as textual strings,

which describe the sequences of fixations and saccades. The study therefore could borrow methods from the

Natural Language Processing (NLP) domain for transforming the raw eye-tracking data. The NLP-based

transformation is utilised to convert the high-dimensional eye-tracking data into an amenable representation

for learning. Furthermore, the generative modeling could be implemented as a task of text generation. Our

empirical experiments support further exploration and development of such NLP-driven approaches for the

purpose of producing synthetic eye-tracking datasets for a variety of potential applications.

1 INTRODUCTION

The human eyes represent a rich source of

information not only reflecting on the emotional or

mental conditions, but also for understanding the

functioning of our cognitive system. The eye gaze

serves as an appropriate proxy for learning the user’s

attention or focus on context (Zhai, 2003). In this

regard, the eye-tracking technology has come into

prominence to support the study and analysis of gaze

behaviour in many respects.

Eye-tracking refers to the process of capturing,

tracking and measuring the absolute point of gaze

(POG) and eye movement (Majaranta and Bulling,

2014). The eye-tracking field notably has a long

history that dates back to the 19th century. The early

development is credited to the French

ophthalmologist Louis Javal from the Sorbonne

University. In his seminal research that commenced

in 1878, Javal made the original observations of

fixations and saccades based on the gaze behaviour

during the reading process (Javal, 1878, 1879).

Subsequently, Edmund Huey built a primitive eye-

tracking tool for analyzing eye movements while

reading (Huey, 1908). More advanced

implementations of eye-tracking were developed by

(Buswell, 1922, 1935). Photographic films were

utilized to record the eye movements during looking

at a variety of paintings. The eye-tracking records

included both direction and duration of movements.

The technological advances continued to evolve

towards the nearly universal adoption of video-based

eye-tracking. Video-based techniques could be

classified into: 1) Video-based tracking using remote

or head-mounted cameras, and 2) Video-based

tracking using infrared pupil-corneal reflection (P-

CR) (Majaranta and Bulling, 2014). Further, recent

developments discussed the use of Virtual Reality-

based methods for eye-tracking (e.g. Meißner et al.,

2019). Eye-tracking has been utilized in a multitude

of commercial and research applications. Examples

include marketing (e.g. Khushaba et al., 2013),

psychology (e.g. Mele and Federici, 2012), product

design (Khalighy et al. 2015), and many others.

However, the scarce availability or difficulty of

acquiring eye-tracking datasets presents a key

challenge. While having access to image or time

series data, for example, has been largely facilitated

thanks to repositories such as ImageNet (Deng et al.,

2009) and UCR (Dau et al. 2019). The eye-tracking

literature still lacks such large-scale repositories.

Elbattah, M., Guérin, J., Carette, R., Cilia, F. and Dequen, G.

Generative Modeling of Synthetic Eye-tracking Data: NLP-based Approach with Recurrent Neural Networks.

DOI: 10.5220/0010177204790484

In Proceedings of the 12th International Joint Conference on Computational Intelligence (IJCCI 2020), pages 479-484

ISBN: 978-989-758-475-6

479

In this respect, this study explores the use of

Machine Learning (ML) for generating synthetic eye-

tracking data. Our approach attempts to borrow

methods from the Natural Language Processing

(NLP) domain to transform and model eye-tracking

sequences. As such, the eye-tracking records could be

represented as textual strings describing series of

fixations and saccades. A long short-term memory

(LSTM) model is employed for the generative

modeling task. In summary, this paper attempts to

present the following contributions:

 Compared to literature, the study explores a

different NLP-driven approach, which models

eye-tracking records as textual sequences.

Such approach for generating synthetic eye-

tracking data has not been proposed yet, to the

best of our knowledge.

 In a broader context, it is practically

demonstrated how NLP methods can be

utilized to transform high-dimensional eye-

tracking data into an amenable representation

for the development of ML models.

2 RELATED WORK

The literature is replete with contributions that

introduced methods to synthesize or simulate the

human eye movements. Those methods could be

broadly classified into two approaches. On one hand,

the larger part of efforts sought to craft algorithmic

models based on characteristics driven from the eye-

tracking research. On the other hand, ML-based

methods were developed to this end. Though the

present work falls under the latter category, we

provide representative studies from the both sides.

The review is unavoidably selective rather than

exhaustive due to the limitations of space.

2.1 Statistical Modeling for Generating

Synthetic Eye-tracking Data

In an interesting application, it was proposed to

synthesize the eye gaze from an input of head-motion

sequence (Ma and Deng, 2009). Their method was

based on statistically modeling the natural

conjugation of gaze and head movements. Likewise,

(Duchowski et al. 2016) developed a stochastic model

of gaze. The synthetic data could be parameterised by

a set of variables including sampling rate, micro-

saccadic jitter, and simulated measurement error.

In similar vein, there have been numerous

contributions for developing gaze models to generate

realistic eye movement in animations or virtual

environments. To name a few, statistical models of

eye-tracking data were implemented based on the

analysis of eye-tracking videos (Lee, Badler, and

Badler, 2002). The models were aimed to reflect the

dynamic characteristics of natural eye movements

(e.g. saccade amplitude, velocity).

Another framework was proposed to automate the

generation of realistic eye and head movements (Le,

Ma, and Deng, 2012). It was basically aimed to

separately learn inter-related statistical models for

each component of movement based on a pre-

recorded facial motion dataset. The framework also

considered the subtle eyelid movement and blinks.

Further contributions could be found in this regard

(e.g. Oyekoya, Steptoe, and Steed, 2009; Steptoe,

Oyekoya, and Steed, 2010; Trutoiu et al. 2011).

2.2 Machine Learning for Generating

Synthetic Eye-tracking Data

In contrast to the above-mentioned studies, recent

efforts experimented purely ML-based approaches.

Eye-trackers typically produce abundant amounts of

eye-gaze information. A few minutes of operating

time would output thousands of records regarding the

gaze position and eye movements. With such large

amounts of data, ML could be an ideal path to

extrapolate algorithms from data exclusively.

For instance, a fully Convolutional Neural

Network (CNN) was used for the semantic

segmentation of eye-tracking data (Fuhl, 2020). In

conjunction with a variational auto-encoder, the CNN

model was utilized further for the reconstruction and

generation of eye movement data. Using a

convolutional-recurrent architecture, (Assens et al.

2018) developed a framework named as ‘PathGAN’.

With an approach of adversarial training, the

PathGAN presented an end-to-end model for

predicting the visual scanpath.

In another application with Recurrent Neural

Networks (RNN), a real-time system for gaze

animation was developed (Klein et al., 2019). Both

motion and video data were used to train the RNN

model, which could predict the motion of the body

and the eyes. The data was captured by a head-

mounted camera. Likewise, a sequence-to-sequence

LSTM-based architecture was applied to generate

synthetic eye-tracking data (Zemblys, Niehorster, and

Holmqvist, 2019).

NCTA 2020 - 12th International Conference on Neural Computation Theory and Applications

480

3 DATA DESCRIPTION

The dataset under consideration was collected as part

of an autism-related study (Elbattah et al., 2019). Eye-

tracking methods have been widely utilised in the

Autism Spectrum Disorder (ASD) context, since

abnormalities of eye gaze are largely recognised as

the hallmark of autism (e.g. Guillon et al., 2014).

The eye-tracking experiments were based on a

group of 59 children. The age of participants ranged

from 3 to 12 years old. The participants were

organized into two groups as: i) Typically Developing

(TD), and ii) ASD. The participants were invited to

watch a set of photographs and videos, which

included scenarios to stimulate the viewer’s gaze. The

average duration of eye-tracking experiments was

about 5 minutes.

They used a SMI Red-M eye tracker with 60 Hz

sampling rate. The eye-tracking records contained

three categories of eye movements including fixation,

saccade, and blink. A fixation is the brief moment of

pausing the gaze on an object while the brain is

performing the perception process. The average

duration of fixation was estimated to be about 330

milliseconds (Henderson, 2003). While saccades

include a constant scanning with rapid and short eye

movements. Saccades include quick ballistic jumps of

or longer, which continue for about 30–120

milliseconds each (Jacob, 1995). The output sequence

of fixations and saccades is called a scanpath.

The original dataset was constructed over 25 eye-

tracking experiments, which produced more than 2M

records stored in CSV-structured files. Table 1

provides a simplified snapshot of the raw eye-

tracking records. The records describe the category of

movements and the POG coordinates over the

experiment runtime. Specifically, each row

represents a point in the experiment timeline. As it

appears, the eye-tracker’s timing was 20 ms roughly.

Due to limited space, many variables are not included

in the table (e.g. pupil size, pupil position).

Table1: A snapshot of eye-tracking records.

Timestamp

[ms]

Eye

Movement

POG-

(X,Y)

[px]

Pupil Diameter

(Right, Left)

[mm]

8005654.06 Fixation 1033.9,

834.09

4.3785,

4.5431

8005673.95 Fixation 1030.3,

826.08

4.4050,

4.5283

8005693.85 Saccade 1027.3,

826.31

4.4273,

4.6036

8005713.70 Saccade 1015.0,

849.21

4.3514,

4.5827

8005733.58 Saccade 613.76,

418.17

4.3538,

4.5399

4 DATA TRANSFORMATION

As alluded earlier, the fixation-saccade sequences of

eye-tracking records were basically considered as

strings of text. As such, a set of NLP methods were

applied in order to process and transform the raw eye-

tracking dataset. The following sections explain the

procedures of data transformation.

4.1 Extraction of Sequences

The raw dataset represented long-tailed sequences of

fixations and saccades. Each sequence represented

the output of an eye-tracking experiment for one of

the participants. The dataset originally included 712

sequences. Raw sequences were very high

dimensional including thousands or even hundreds of

thousands of fixation-saccade elements. For example,

considering an experiment of 5 minutes, with an eye-

tracker of 20 ms resolution, would produce about 15K

records (i.e. (5*60*1000)/20).

The initial procedure was to transform the raw

sequences into a representation that can reduce that

high dimensionality. To this end, the sequences were

intially divided into smaller sub-sequences of fixed

length (L). It was aimed to produce sequences of an

adequate length, such that the LSTM model training

could be more tractable. Eventually, the sequence

length (L) was set as 20. All sub-sequences were

labelled as the original full-length sequence.

4.2 Segmentation of Sequences

The extracted sequences can be merely viewed as text

strings based on a binary set of words (i.e. fixation or

saccade, and excluding blinks). To simplify the

representation and processing of sequences, they

were partitioned into fixed-size fragments. This can

be more efficient for the tokenisation and encoding of

sequences. The segmentation of sequences was partly

inspired by the K-mer representation widely used in

the Genomics domain (e.g. Chor et al., 2009). In

comparable analogy, very long DNA sequences are

broken down into smaller (k) sub-sequences to

simplify the modeling and analysis tasks.

As such, a (K) number of fixations and saccades

was grouped together to form fragments. For

example, considering a sequence where L=20 and

K=4, the sequence would be divided into 5 fragments

(i.e. 20/4). Each fragment represents a combination of

fixations and saccades occurring in a particular

sequence. The fragments could be conceived as

words as in a text sentence.

Generative Modeling of Synthetic Eye-tracking Data: NLP-based Approach with Recurrent Neural Networks

481

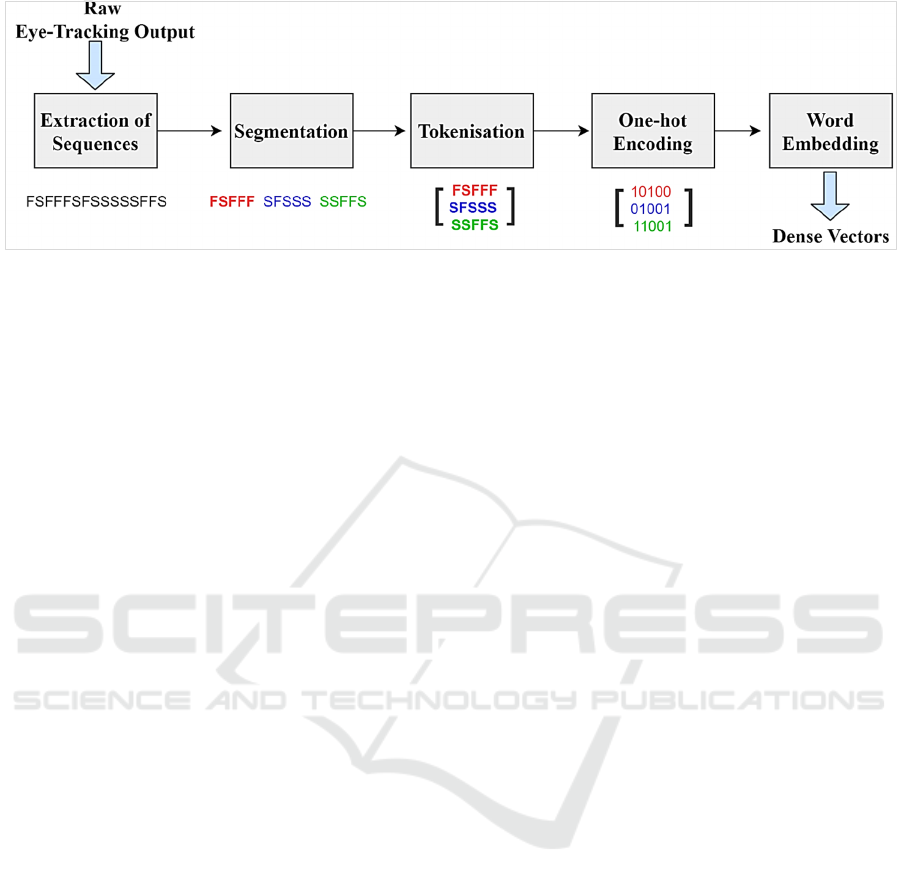

Figure 1: The pre-processing pipeline of raw eye-tracking data.

4.3 Tokenisation

The segmented sequences were in a suitable form for

tokenisation, as commonly applied in NLP. The

Keras library (Chollet, 2015) provides a convenient

method for tokenisation, which was used for pre-

processing the sequences.

Using the Tokenizer utility class, textual

sequences could be vectorised into a list of integer

values. Each integer was mapped to a value in a

dictionary that encoded the entire corpus. The

dictionary keys represented the vocabulary terms.

4.4 One-hot Encoding

Subsequently, tokens were represented as vectors by

applying the one-hot encoding. It is a simple process

that produces a vector of the length of the vocabulary

with an entry for each word in the corpus. In this way,

each word would be given a spot in the vocabulary,

where the corresponding index is set to one. Keras

also provides an easy-to-use APIs for applying the

one-hot encoding. As such, the sequences eventually

consisted of fragments of binary digits.

4.5 Word Embedding

The final step was to apply the word embedding

technique, which is a vital procedure for making the

sequences tractable for ML. The one-hot encoded

vectors usually suffer from high dimensionality and

sparsity, which makes the learning vulnerable to the

curse of dimensionality. In this regard, embeddings

were used to provide dense vectors of much lower

dimensions compared to the encoded representation.

Keras provides a special Neural Network layer for

the implementation of embeddings. The embedding

layer can be basically regarded as a dictionary that

maps integer indices into dense vectors. Based on

integer inputs, it looks up these values in an internal

dictionary, and returns the associated vectors. The

embedding layer was used as the top layer of the

generative model. Figure 1 illustrates the pipeline of

pre-processing procedures.

5 EXPERIMENTS

Using L=20 and K=4, the dataset consisted of about

44K sequences. However, the experimental dataset

included the ASD set only, which accounted for about

≈35% of the dataset. Ideally, the generative model

would be utilised to generate synthetic samples of the

minority class, which is the ASD in our case.

The LSTM approach was applied. LSTM models

provide a potent mechanism for predictive and

generative modeling as well. They learn data

sequences (e.g. time series, text), and new plausible

sequences can be synthetically generated. In our case,

the goal was to learn text-like sequences of fixations

and saccades, as explained before. Basically, the

model was trained to predict the next word based on

a sequence of preceding words.

The core component of the model was an LSTM

layer of 50 cells. The LSTM layer was followed by a

dense layer. The model architecture was decided

largely empirically. The model was implemented

using the CuDNNLSTM layer of Keras, which

includes optimised routines for GPU computation.

Figure 2 sketches the model architecture.

Figure 3 plots the model loss in training and

validation over 20 epochs with 20% of the dataset

used for validation. The Adam optimizer (Kingma

and Ba, 2015) was used with its default parameters.

As it appears, the model performance levelled off

nearly after 10 epochs. Using the test set, the model

could achieve about 75% accuracy of prediction. The

experiments were run on the Google Cloud platform

using a VM including a Nvidia Tesla P4 GPU, and

25GB RAM. The model was implemented using

Keras and TensorFlow backend (Abadi et al., 2016).

NCTA 2020 - 12th International Conference on Neural Computation Theory and Applications

482

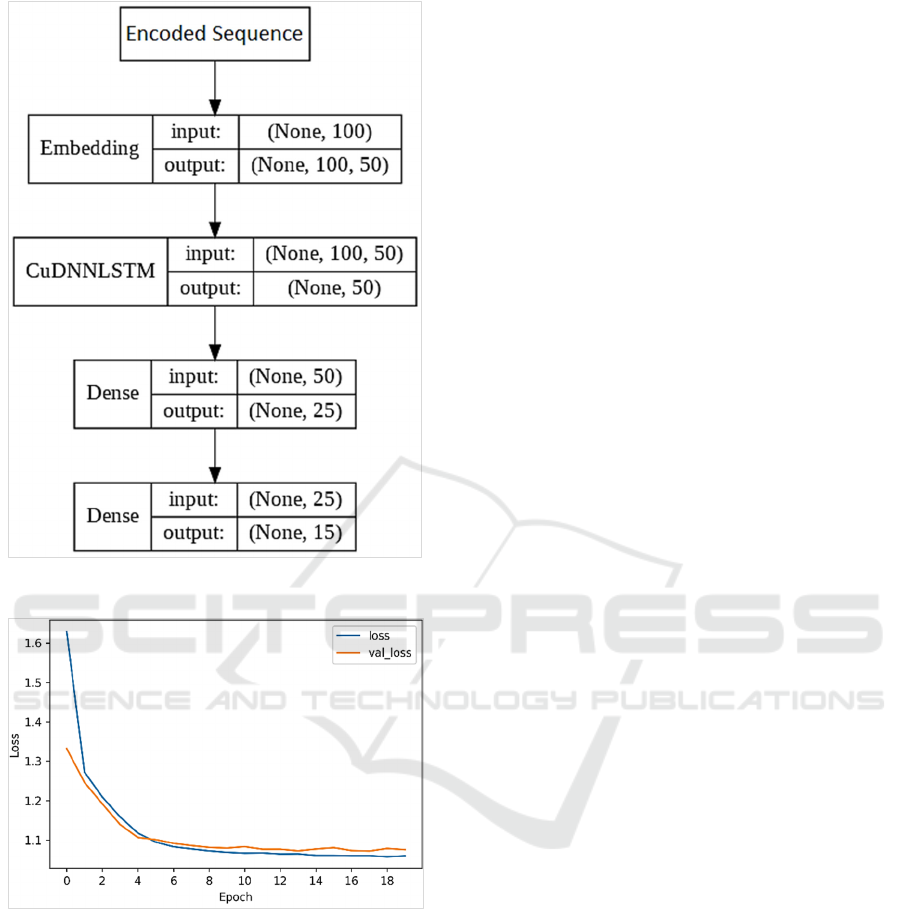

Figure 2: Model architecture.

Figure 3: Model loss in training and validation sets.

The generation of synthetic sequences was

experimented as follows. Initially, the trained LSTM

model was saved. Keras allows to save the model into

a binary HDF5 format. The saved model included the

architecture along with the set of weight values.

After loading the model, a set of words were used

as a seed input. The seed words were randomly

sampled from the test set. Based on the seed input, the

next word can be predicted. As such, the LSTM

model could be used as a generative model to produce

synthetic sequences. The process can be iteratively

applied according to the desired sequence length. The

experiments along with the model implementation are

shared on our GitHub repository (Elbattah, 2020).

6 CONCLUSIONS

This paper presented an NLP-based approach for the

generation of synthetic eye-tracking records. Using a

sequence-based representation of the saccadic eye

movement, eye-tracking records could be modelled as

textual strings with an LSTM model.

The approach applicability was empirically

demonstrated in our experiments, though using a

relatively small dataset. It is conceived that the lack

of open-access eye-tracking datasets could make our

approach attractive for further studies. For instance,

the generative model can serve as an alternative

method for data augmentation in a wide range of eye-

tracking applications.

REFERENCES

Abadi, M., Barham, P., Chen, J., Chen, Z., Davis, A., Dean,

J., ... & Kudlur, M. (2016). Tensorflow: A system for

large-scale machine learning. In Proceedings of the

12th {USENIX} Symposium on Operating Systems

Design and Implementation (pp. 265-283).

Assens, M., Giro-i-Nieto, X., McGuinness, K., &

O'Connor, N. E. (2018). PathGAN: visual scanpath

prediction with generative adversarial networks. In

Proceedings of the European Conference on Computer

Vision (ECCV).

Buswell, G.T. (1922). Fundamental reading habits: a study

of their development. American Psychological

Association: Worcester, MA, USA.

Buswell, G.T. (1935). How people look at pictures: a study

of the psychology and perception in art. University of

Chicago Press, Chicago, IL, USA.

Chollet, F. (2015). Keras. GitHub Repository:

https://github.com/fchollet/keras.

Chor, B., Horn, D., Goldman, N., Levy, Y., & Massingham,

T. (2009). Genomic DNA k-mer spectra: models and

modalities. Genome Biology, 10(10), R108.

Dau, H. A., Bagnall, A., Kamgar, K., Yeh, C. C. M., Zhu,

Y., Gharghabi, S., ... & Keogh, E. (2019). The UCR

time series archive. IEEE/CAA Journal of Automatica

Sinica, 6(6), 1293-1305.

Deng, J., Dong, W., Socher, R., Li, L. J., Li, K., & Fei-Fei,

L. (2009). ImageNet: A large-scale hierarchical image

database. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition (pp. 248-

255). IEEE.

Duchowski, A. T., Jörg, S., Allen, T. N., Giannopoulos, I.,

& Krejtz, K. (2016). Eye movement synthesis. In

Proceedings of the 9th Biennial ACM Symposium on

Eye Tracking Research & Applications (pp. 147-154).

Generative Modeling of Synthetic Eye-tracking Data: NLP-based Approach with Recurrent Neural Networks

483

Elbattah, M. (2020). GitHub Repository:

https://github.com/Mahmoud-Elbattah/NCTA2020

Elbattah, M., Carette, R., Dequen, G., Guérin, J.L., & Cilia,

F. (2019). Learning Clusters in Autism Spectrum

Disorder: Image-Based Clustering of Eye-Tracking

Scanpaths with Deep Autoencoder. In Proceedings of

the 41st Annual International Conference of the IEEE

Engineering in Medicine and Biology Society (EMBC),

(pp. 1417-1420). IEEE.

Fuhl, W. (2020). Fully Convolutional Neural Networks for

Raw Eye Tracking Data Segmentation, Generation, and

Reconstruction. arXiv preprint arXiv:2002.10905.

Guillon, Q., Hadjikhani, N., Baduel, S., & Rogé, B. (2014).

Visual social attention in autism spectrum disorder:

Insights from eye tracking studies. Neuroscience &

Biobehavioral Reviews, 42, 279-297.

Henderson, J. M. (2003). Human gaze control during real-

world scene perception. Trends in Cognitive Sciences,

7(11), 498-504.

Huey, E. B. (1908). The psychology and pedagogy of

reading. The Macmillan Company: New York, NY,

USA.

Jacob, R.J. (1995). Eye tracking in advanced interface

design. In W. Barfield W, T.A. Furness (eds). Virtual

Environments and Advanced Interface Design. pp.

258–288. New York: Oxford University Press.

Javal, L. (1878). Essai sur la physiologie de la lecture.

Annales d'Oculistique. 80:240–274.

Javal, L. (1879). Essai sur la physiologie de la lecture.

Annales d'Oculistique. 82:242–253.

Khalighy, S., Green, G., Scheepers, C., & Whittet, C.

(2015). Quantifying the qualities of aesthetics in

product design using eye-tracking technology.

International Journal of Industrial Ergonomics, 49, 31-

43.

Klein, A., Yumak, Z., Beij, A., & van der Stappen, A. F.

(2019). Data-driven gaze animation using recurrent

neural networks. In Proceedings of ACM SIGGRAPH

Conference on Motion, Interaction and Games (MIG)

(pp. 1-11). ACM.

Kingma, D.P., & Ba, J. (2015). Adam: a method for

stochastic optimization. In Proceedings of the 3rd

International Conference on Learning Representations

(ICLR).

Khushaba, R. N., Wise, C., Kodagoda, S., Louviere, J.,

Kahn, B. E., & Townsend, C. (2013). Consumer

neuroscience: Assessing the brain response to

marketing stimuli using electroencephalogram (EEG)

and eye tracking. Expert Systems with Applications,

40(9), 3803-3812.

Le, B.H., Ma, X., & Deng, Z. (2012). Live speech driven

head-and-eye motion generators. IEEE Transactions on

Visualization and Computer Graphics, 18(11), pp.

1902-1914.

Lee, S. P., Badlr, J. B., & Badler, N. I. (2002). Eyes alive.

In Proceedings of the 29th annual Conference on

Computer Graphics and Interactive Techniques (pp.

637-644).

Ma, X., & Deng, Z. (2009). Natural eye motion synthesis

by modeling gaze-head coupling. In Proceedings of the

IEEE Virtual Reality Conference (pp. 143-150). IEEE.

Majaranta P., Bulling A. (2014). Eye tracking and eye-

based human–computer interaction. In: Fairclough S.,

Gilleade K. (eds). Advances in Physiological

Computing. Human–Computer Interaction Series.

Springer, London.

Mele, M. L., & Federici, S. (2012). Gaze and eye-tracking

solutions for psychological research. Cognitive

Processing, 13(1), 261-265.

Meißner, M., Pfeiffer, J., Pfeiffer, T., & Oppewal, H.

(2019). Combining virtual reality and mobile eye

tracking to provide a naturalistic experimental

environment for shopper research. Journal of Business

Research, 100, 445-458.

Oyekoya, O., Steptoe, W., & Steed, A. (2009). A saliency-

based method of simulating visual attention in virtual

scenes. In Proceedings of the 16th ACM Symposium on

Virtual Reality Software and Technology (pp. 199-206).

Steptoe, W., Oyekoya, O., & Steed, A. (2010). Eyelid

kinematics for virtual characters. Computer Animation

and Virtual Worlds, 21(3-4), pp. 161-171.

Trutoiu, L. C., Carter, E. J., Matthews, I., & Hodgins, J. K.

(2011). Modeling and animating eye blinks. ACM

Transactions on Applied Perception (TAP), 8(3), 1-17.

Zemblys, R., Niehorster, D. C., & Holmqvist, K. (2019).

gazeNet: End-to-end eye-movement event detection

with deep neural networks. Behavior Research

Methods, 51(2), 840-864.

Zhai, S. (2003). What's in the eyes for attentive input.

Communications of the ACM, 46(3), 34-39.

NCTA 2020 - 12th International Conference on Neural Computation Theory and Applications

484
