Comparative Analysis between the k-means and Fuzzy c-means

Algorithms to Detect UDP Flood DDoS Attack on a SDN/NFV

Environment

ao Ribeiro de Almeida Neto

, Layse Santos Souza

and Admilson de Ribamar Lima Ribeiro

Department of Computing, Federal University of Sergipe (UFS), S

ao Crist

ao, Brazil

Keywords:

Attack Detection, DDoS Attack, UDP Flooding, SDN, NFV, Microservices, Machine Learning, Fuzzy

c-means, k-means.

Abstract:

Distributed Denial of Service (DDoS) attacks are a growing issue for computer networks security and have

become a serious network security problem. Environments based on Software Deﬁned Networking (SDN) and

Network Function Virtualization (NFV) offers the ability to program a network and allows dynamic creation of

ﬂow policies. Allied to that, clustering algorithms can be used to classify and detect DDoS. This paper presents

a study and an analysis of two unsupervised machine learning algorithms used to detect DDoS attacks in an

SDN/NFV simulated environment. The results obtained by the two algorithms include an accuracy rate of

99% and the k-means algorithm was 33% faster than fuzzy c-means, which demonstrates its effectiveness and

scalability.

1 INTRODUCTION

Distributed Denial-of-Service (DDoS) is a signiﬁcant

issue in Network Security for data centers (Patgiri

et al., 2018). Those attacks are capable of causing

massive disruption in any information communica-

tion technology (ICT) infrastructure (Bawany et al.,

2017). According to recent analysis, DDoS attacks

doubled in frequency in a period of just six months

(Newman, 2019).

DDoS is a specialized form of attack that takes

place into a widely distributed environment, through a

coordinated anonymous identiﬁcation of the attackers

and their infected malware. The ﬁrst step is to create

the bot army, either through malware injection or by

inﬁltration.

Once the army is inﬁltrated, an anonymous at-

tacker sends commands to a controller, which passes

on the information to the army. Such action even-

tually results in the army sending request packets to

the target system, thereby stealing its resources and

pulling them away from the active zone.

The features of software based trafﬁc analysis and

centralized control over the network of Software De-

https://orcid.org/0000-0002-7090-4756

https://orcid.org/0000-0002-9908-0949

https://orcid.org/0000-0003-2010-6024

ﬁned Networking (SDN), allows cloud administrators

detecting and reacting to the DDoS attacks more ef-

fectively (Bhushan and Gupta, 2019).

NFV has been proposed to innovate in service de-

livery by virtualizing functions previously performed

by speciﬁc hardware appliances. Virtualized network

functions, which compose the service chain, are the

basic elements to achieve the complete virtualization

of service delivery. Dynamic composition of services

make such task even harder than in legacy networks

but easier with SDN.

SDN and NFV (Network Function Virtualization)

concepts are considered complementary, sharing the

goal of accelerating innovation inside the network by

allowing programmability, and altogether changing

the network operational model through automation

and a real shift to software based platforms (Kreutz

et al., 2014).

Signature-based matching is a widely used tech-

nique that can be used for intrusion detection and has

high accuracy (Vigna et al., 2004). However, this

technique does not adapt to new scenarios in a satis-

factory way, since there is a need for frequent updat-

ing of signatures. In addition, developing and main-

taining an updated signature database can be costly

and impractical. For this reason, the use of anomaly-

based technique may be more interesting in dynamic

environments. It uses pattern recognition to clas-

Neto, J., Souza, L. and Ribeiro, A.

Comparative Analysis between the k-means and Fuzzy c-means Algorithms to Detect UDP Flood DDoS Attack on a SDN/NFV Environment.

DOI: 10.5220/0010176201050112

In Proceedings of the 16th International Conference on Web Information Systems and Technologies (WEBIST 2020), pages 105-112

ISBN: 978-989-758-478-7

105

sify data based on statistical information (Yuan et al.,

2010). In addition, it is possible to use machine

learning to develop applications that detect network

anomalies, especially unsupervised machine learning

techniques. They can be a viable alternative, since the

system itself separates network trafﬁc into different

categories without the need for a supervisor (Suresh

and Anitha, 2011).

In this context, this paper shows a technique to de-

tect DDoS attacks on a SDN/NFV environment with

the implementation of two different unsupervised ma-

chine learning algorithms to improve network secu-

rity. This is a preliminary study and the goal of such

an experiment is to effectively detect DDoS attacks

and compare the accuracy and efﬁciency of the de-

scribed algorithms.

This paper is divided and organized as follows.

Section II presents related work. Section III displays

the proposed architecture. Section IV describes the

experiments. Section V exposes the results. Finally,

Section VI brings out conclusions and future work.

2 RELATED WORKS

Duy et al. present a statistical mechanism based on

detecting DDoS attacks in the SDN environment us-

ing the entropy metric, considering the proﬁle differ-

ences of the host function to suspect the sub-attack

state and, as well, the time factor information gather-

ing activities (Duy et al., 2018) .

Mutu et al. demonstrate how SDN responsiveness

to UDP ﬂood attacks can be measured, by creating

switches at the switch level using the percentage of

trafﬁc and an ampliﬁcation rate (Mutu et al., 2015).

Preamthaisong et al. lecture the enhanced DDoS

detection using genetic algorithms combined with

SDN decision trees. The types of attacks generated

were TCP SYN ﬂood, UDP ﬂood, ICMP ﬂood and

TCPKill. They also evaluated the performance of the

algorithms to analyze network trafﬁc (Preamthaisong

et al., 2019).

Nugraha et al. demonstrate a new network based

approach to impact analysis for SDNs. To do that,

they adopted qualitative and quantitative approaches,

took three types of DDoS attacks (ICMP, UDP and

TCP Syn Flood) into consideration, calculated the im-

pact of those in the entire network and identiﬁed the

most impacted component (Nugraha et al., 2019).

Wei et al. exposed an UDP ﬂood DDoS attack,

demonstrated the proposal to successfully subvert the

attack to a SDN functionality and exhibited a defense

mechanism that can effectively reduce the damage

caused by UDP ﬂood attack (Wei et al., 2016).

Although Duy et al. paper had great contributions,

it did not use SDN to manage network resources ob-

serving the depletion of UDP bandwidth. Besides

that, NFV was not used to develop network func-

tions separating them in microservices and machine

learning to analyze the performance and accuracy of

the two algorithms used to detect DDoS attacks (Duy

et al., 2018).

Regardless Mutu et al. proposed a responsive

mechanism to UDP attacks in SDN using actuating

triggers at the switch level, they did not work with ma-

chine learning and the NFV environment (Mutu et al.,

2015).

While the study proposed by Nugraha et al. focus

on analyze the impact of DDos attacks, we use unsu-

pervised machine learning algorithms to detect UDP

Flood DDoS attack in a SDN/NFV environment with

a microservices architecture. Also, analyze the per-

formance and accuracy of these algorithms (Nugraha

et al., 2019).

Preamthaisong et al. and Wei et al. papers

had great contributions to detecting DDoS attacks in

SDN networks, but none of them worked with the

NVF environment or had a microservice architecture

(Preamthaisong et al., 2019) (Wei et al., 2016).

Considering those points, this work has a goal

to study and analyze the accuracy and efﬁciency of

unsupervised machine learning algorithms to detect

DDoS attacks in a SDN network and work with NFV

and microservices architecture.

3 PROPOSED ARCHITECTURE

Despite of their widespread adoption, current net-

works are complex and hard to manage, due to control

and data plans being bundled inside networking de-

vices to, vertically integrated, reducing ﬂexibility and

hindering innovation (Esch, 2014).

SDN is an emerging networking paradigm that

aims to change the limitations of current networks

(Esch, 2014). Its architecture is based on decoupling

data and a control plan, routing decisions are ﬂow-

based, control logic is moved to an external entity and

the network is programmable through software ap-

plications (eg, Firewall, IDS, Routers) (Kreutz et al.,

2014).

SDN architecture can be exploited to improve net-

work security by providing a system for monitoring

and analyzing trafﬁc or detecting anomalies. Appli-

cations can run on the controller and a new or updated

security policy can be propagated across the network

in the form of ﬂow rules (Scott-Hayward et al., 2013).

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

106

SDN offers a favorable environment for the imple-

mentation of network functions virtualization (ETSI,

2017). NFV allows the development of network func-

tions via software and they are executed on general

purpose hardware, previously they are implemented

on speciﬁc hardware. It is possible to develop and test

services on the same infrastructure, reducing devel-

opment costs and time to market availability (Bonﬁm

et al., 2019).

Microservices are small and autonomous services

that work together making application development,

integration and maintenance much easier (Newman,

2015). Such architecture allows the separation of

monolithic systems into smaller components that can

be deployed, updated and disposed of independently.

These small, independent services, work together and

can be integrated with SDN and NFV to break down

network functions from underlying hardware func-

tions (Newman, 2015) (Dragoni et al., 2017).

Based on that, we propose a NFV/SDN architec-

ture to allow the deployment of network services on

demand, showed in Figure 1. It comprises three lay-

ers: Application, Control and Infrastructure. Appli-

cation Layer consists of network services. Control

Layer has a global view of computer and network re-

sources. Infrastructure Layer is composed of various

networking equipment which forward network trafﬁc.

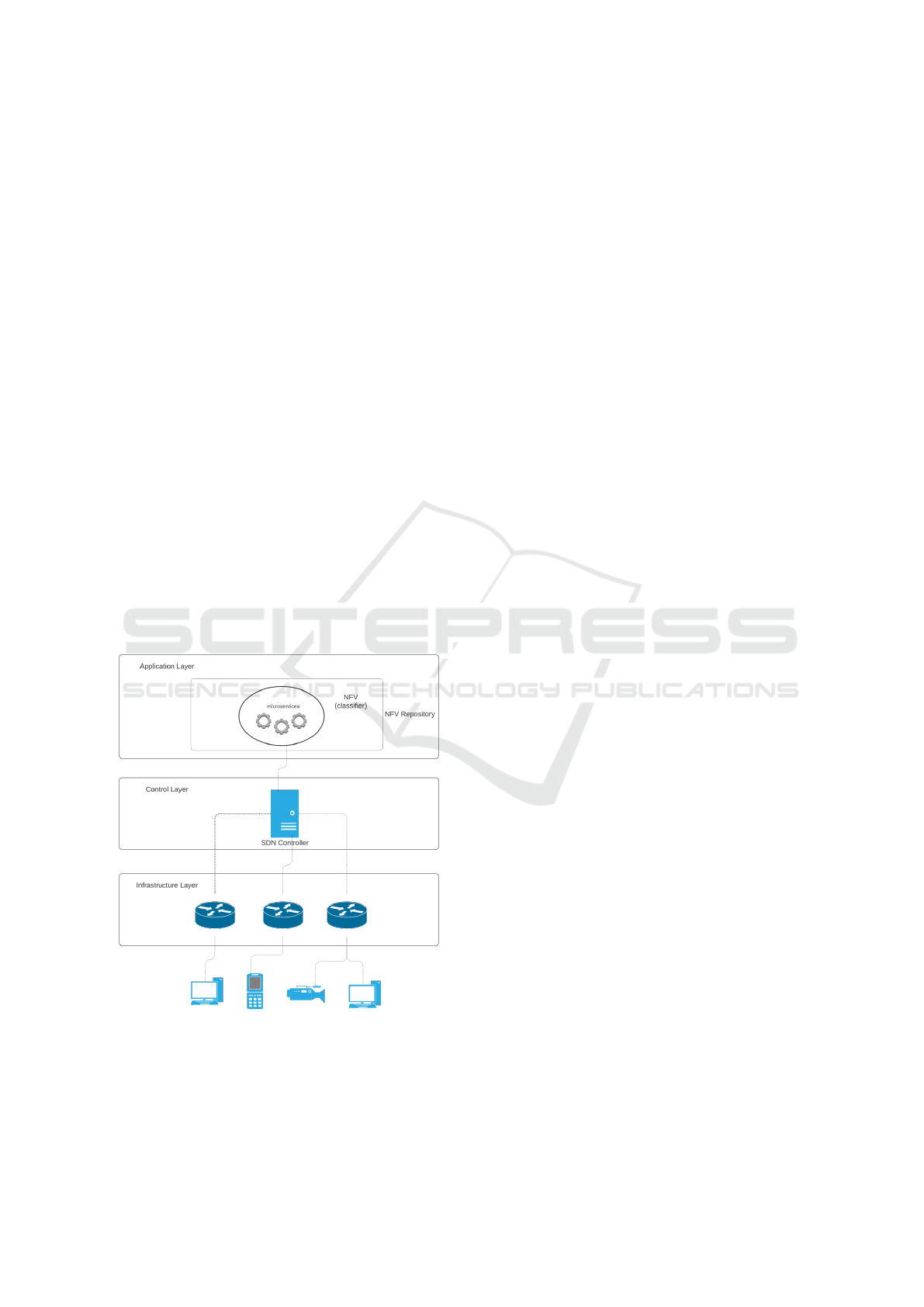

Figure 1: Proposed Architecture.

In general, a DDoS attack aims to prevent legit-

imate users from accessing a target system or ser-

vice by overloading the system’s resources (Mahjabin

et al., 2017). There are two types of DDoS attack de-

tection (L. Dali, 2015):

• Signature-based detection: this approach is gener-

ally used based on rules or ﬁlters to detect known

and stored attacks within the database, otherwise

limitation is a new undetected attack;

• Anomaly-based detection: this approach works

towards behavior, in other words, to detect a new

attack it is necessary to train the typical behavior

of the network.

Microservices integration with SDN and NFV at-

tests to an improvement in security, in particular, the

detection of anomaly-based DDoS attacks. Anomaly-

based detection uses the baseline concept of network

behavior and machine learning can be used to predict

behavior that leaves that baseline (Sahoo et al., 2018).

Basically, classiﬁcation systems are either super-

vised or unsupervised, depending on whether they as-

sign new inputs to one within a ﬁnite number of dis-

crete supervised classes or unsupervised categories,

respectively (Xu and Wunsch, 2005).

A supervised machine learning algorithm needs a

previous classiﬁcation of data for training the algo-

rithm. The unsupervised approach does not need pre-

vious classiﬁcation and data with similar characteris-

tics are grouped.

In unsupervised classiﬁcation, called clustering or

exploratory data analysis, no labeled data are avail-

able. The goal of clustering is to separate a ﬁnite un-

labeled dataset into a ﬁnite and discrete set of “nat-

ural,” hidden data structures, rather than provide an

accurate characterization of unobserved samples gen-

erated from the same probability distribution (Xu and

Wunsch, 2005).

4 EXPERIMENTS

For the conduction of the proposed experiments, a

physical host, running Windows 10 operating sys-

tem, equipped with an Intel Core i7-4500U proces-

sor, 8GB of RAM and a 240GB SSD was used. Vir-

tual machines were created with VirtualBox hypervi-

sor in version 6.0. VM01, a virtual machine running

Ubuntu 16.04 operating system, conﬁgured with 3GB

of RAM, 1 CPU and 20GB of HD was used in all

three experiments.

The SDN controller chosen was POX, is an open

source controller for developing SDN applications.

POX Controller provides an efﬁcient way to im-

plement the OpenFlow protocol which is the com-

munication protocol between the controllers and the

switches (Kaur et al., 2014). The OpenFlow protocol

Comparative Analysis between the k-means and Fuzzy c-means Algorithms to Detect UDP Flood DDoS Attack on a SDN/NFV

Environment

107

was proposed to standardize the communication be-

tween the switches and the software-based controller

in an SDN architecture (McKeown et al., 2008). The

Flow Table characterizes the ﬂows received and six

information in it were chosen as features to elaborated

dataset, packet count, byte count, duration sec, dura-

tion nsec, tp src and tp dst. The description of each

of them can be seen in Table 1.

Table 1: Chosen Features.

Feature Description

packet count Number of packets in a ﬂow

byte count Number of bytes in a stream

duration sec Time the ﬂow was active in sec-

onds

duration nsec Time the ﬂow was active in

nanoseconds

tp src TCP Source Port

tp dst TCP Destination Port

The experiments were simulated on Mininet, a

standard network emulation tool for SDN environ-

ment. It allows the creation of a virtual hosts network,

a simple system with switches, controller and links.

We used a topology in Mininet with one switch and

10 hosts and created a synthetic dataset for the experi-

ments. For that, we developed two scripts, one to gen-

erate random normal TCP, UDP, and ICMP trafﬁc and

another to generate the UDP Flood attack. We used

the Scapy to create the scripts, a powerful tool for

generating, scanning, snifﬁng, attacking, and forging

packages, allowing programmers to create and send

customized packages to meet their requirements. Be-

sides that, we developed a component for the POX

Controller that stores the statistics of Flow Table for

a current data stream in a .csv ﬁle. Then, both scripts

were executed separately and the component created

two ﬁles including normal and attack trafﬁc samples.

The samples were marked correctly with the nor-

mal and anomalous labels and merged. The dataset

contains 8,820 samples, 6,282 of normal trafﬁc, and

2,538 of malicious trafﬁc.

We used Docker Container for experiments. It is

a container virtualization platform that facilitates the

creation and administration of isolated environments.

Docker makes it possible to package an application

or even an environment inside a container, thus mak-

ing it portable for any other host that has Docker in-

stalled. It has advantages such as speed, boot time,

resources saving, the understanding of how container

processes are carried out within the host and the possi-

bility of uploading several containers simultaneously

while consuming fewer resources of virtual or physi-

cal hardware (Mouat, 2015).

Besides Docker, Containernet (Peuster et al.,

2016) was also used. It enables the use of the NFV

concept and allows adding and removing containers

from an emulated network at runtime, which is not

possible in Mininet (Peuster et al., 2016). There is

the possibility of on demand installation, without the

need to install new equipment, develop and test ser-

vices on the same infrastructure, cutting down devel-

opment costs and time to market availability (Bonﬁm

et al., 2019).

We studied and analyzed two machine learning

unsupervised clustering algorithms, fuzzy c-means

and k-means, working in anomaly-based detection of

UDP Flood DDoS attack.

Fuzzy c-means have been used very successfully

in many applications, such as pattern recognition

(Ming-Chuan and Don-Lin, 2001). It is used to ana-

lyze several input data points based on distance, thus,

its structure allows data to belong to two or more clus-

ters, which are formed according to the distance be-

tween data points and the cluster centers (Velmurugan

and Santhanam, 2010).

K-means clustering is the well-known technique

of unsupervised learning (Kumari et al., 2016). It is

used to classify a given set of data through a certain

number of clusters. A cluster refers to a collection

of data points aggregated due to certain similarities

(Velmurugan and Santhanam, 2010).

Three experiments were carried out: making the

model and do tests using test dataset, detection in an

SDN environment and detection in an SDN/NFV en-

vironment oriented to microservices. In the last two

experiments, network monitoring and management

was made based on the assumption that it would be

compromised, that is, the botnet would have already

been formed and hosts would already have been in-

fected.

4.1 Experiment A

The purpose of this experiment is to create a model

of both algorithms and test it. To support them, the

scikit-learn library was used, a simple and efﬁcient

tool for predictive data analysis. K-means algorithm

is natively present on it but, in order to use fuzzy c-

means, it was necessary to install a pip package pro-

viding it (Dias, 2019). The dataset cited in section

4 was divided in two, one half was used for train-

ing and the other half for testing. The mass of data

used for training had 4,410 samples divided in 3,141

samples with normal trafﬁc and 1,269 samples with

malicious trafﬁc. To prove the effectiveness of the

algorithms, the other half of the original dataset was

used, which was called as test dataset. Data was pre-

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

108

processed using the sklearn.preprocessing package,

because, in general, machine learning algorithms ben-

eﬁt from data standardization. MinMax scaler was the

pre-processing method used in this experiment. It is a

method that transforms resources by scaling each one

to a speciﬁc interval. In addition, it scales and trans-

lates each resource individually, so that belongs to the

speciﬁed interval in the training set, for example, be-

tween zero and one.

4.2 Experiment B

In this experiment we only focus on the SDN environ-

ment. We created a star topology with one switch and

four hosts (h1, h2, h3 and h4) in Mininet. The host

h4 was the victim and we used a script to generate

random trafﬁc (ICMP, TCP and UDP) and another to

generate the UDP ﬂood attack trafﬁc. Besides that, we

created a component for the POX Controller for per-

forming ﬂow classiﬁcation, as illustrated in Figure 2.

Through the statistics monitor of the component, the

ﬂow features are extracted and then the ﬂow classiﬁer

will arrange the ﬂow as normal or anomalous. If the

ﬂow is normal, it is installed and will run normally, if

not, an anomalous ﬂow alert is triggered.

Figure 2: POX Component Proposed.

4.3 Experiment C

In this experiment the SDN/NFV environment was

used, implementing microservices. Figure 3 presents

a component diagram which is a static view of how

the system was implemented and which components

are used in proposed architecture to detect UDP ﬂood

DDoS attacks. The environment consists of a VM

host, a POX Controller that runs directly on the VM

host and a containerized environment, where vir-

tual network services will be executed. For that, it

was necessary to install the Containernet tool, which

includes the Docker Container and Mininet tools.

Within the Docker Container, the following virtual

network microservices were created: ﬂow classiﬁer, a

network host with normal trafﬁc generator and a net-

work host with anomalous trafﬁc generator. For this

experiment, we created four network hosts. Host h1,

which generated normal network trafﬁc between all

hosts. Host h2 that was the victim and received the

DDoS attacks and hosts h3 and h4, which generated

trafﬁc attack for h2. In addition, there was also a ﬂow

classiﬁer.

Figure 3: Component Diagram.

5 RESULTS

The metrics used to analyze fuzzy c-means and k-

means algorithms in the experiments were: preci-

sion, recall, f1-score and support, which are present

in the package sklearn.metrics.precision recall fs-

core support. Each of the metrics is described in Ta-

ble 2.

Table 2: Metrics chosen.

Metric Description

Precision tp / (tp + fp), tp is the number

of true positives and fp the num-

ber of false positives. The preci-

sion is intuitively the ability of

the classiﬁer not to label as pos-

itive a sample that is negative

Recall tp / (tp + fn), tp is the number of

true positives and fn the number

of false negatives. The recall is

intuitively the ability of the clas-

siﬁer to ﬁnd all the positive sam-

ples

F1-score Harmonic average of the preci-

sion and recall

Support Number of occurrences of each

class in y true

In addition, the following metrics were used: ac-

curacy and execution time of the algorithm. Accu-

racy is a statistical value that determines the algo-

rithm’s proximity to its ideal. If its value is 1, it means

that the algorithm has no error and classiﬁes data per-

fectly. Below is the accuracy formula (1). To calcu-

Comparative Analysis between the k-means and Fuzzy c-means Algorithms to Detect UDP Flood DDoS Attack on a SDN/NFV

Environment

109

late it, the accuracy score method, also present in the

sklearn.metrics package, was used. To measure exe-

cution time, the time module in Python was used.

Accuracy =

CorrectClassi f ications

TotalSamples

(1)

5.1 Experiment A

For Experiment A, pre-processing to the test dataset

was performed using the MinMaxScaler scaler. Af-

ter using the created model, fuzzy c-means and k-

means algorithms obtained precision, recall, f1-score

and support values, as shown in Table 3.

Table 3: Metrics for fuzzy c-means.

Precision Recall F1-score Support

0 1.00 1.00 1.00 3141

1 1.00 1.00 1.00 1269

Avg/

Total

1.00 1.00 1.00 4410

As can be seen in Figure 4, both algorithms had

a 99.98% accuracy rate, that is, it revealed that both

of them have a satisfactory accuracy in detecting such

type of attack.

Figure 4: Accuracy in experiment A.

In this scenario, fuzzy c-means algorithm had 0.61

seconds of execution time. K-means algorithm, took

0.44 seconds to be completed, as it can be seen in Fig-

ure 5. K-means algorithm proved to be 0.17 seconds,

or 27.86% faster than fuzzy c-means.

5.2 Experiment B

All metrics, except execution time, were the same in

Experiments A and B. For Experiment B, fuzzy c-

means algorithm execution time was 1.25 seconds.

As for the k-means algorithm, it was 1.09 seconds, as

can be seen in Figure 6. K-means algorithm proved

to be 0.16 seconds faster, or 12.8% faster. The execu-

tion time is the simples arithmetic mean of the time of

Figure 5: Time to process in experiment A.

1,000 predictions. This scenario might have increased

due to the execution of the classiﬁcation method had

competed for processing resources on the machine

with the POX Controller process, since the classiﬁ-

cation took place in the controller.

Figure 6: Time to process in experiment B.

5.3 Experiment C

All metrics, except execution time, were the same in

Experiments A, B and C. For Exercise C, the execu-

tion time for fuzzy c-means algorithm was 0.03 sec-

onds. As for k-means algorithm, it was 0.02 seconds,

as can be seen in Figure 7. K-means algorithm turned

out to be 0.01 seconds faster, which makes its execu-

tion 33.33% faster. The execution time is the simples

arithmetic mean of the time of 1,000 predictions. This

scenario may have been greatly reduced by the fact

that the execution of the classiﬁcation method was

performed in a speciﬁc container.

6 CONCLUSION

During the experiment we encountered some chal-

lenges and among them we noticed the impossibil-

ity of classifying all ﬂows sequentially in the envi-

ronment of Experiment C, which used the concept of

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

110

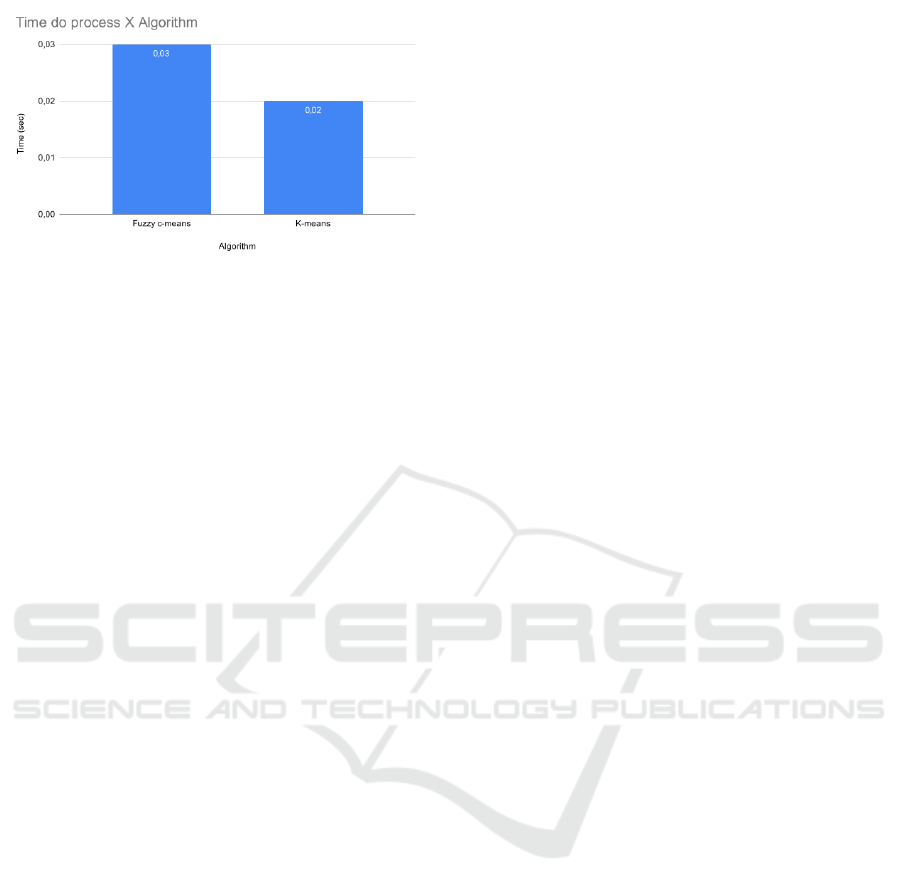

Figure 7: Time to process in experiment C.

NFV and microservices. That was due to the fact that

the call to the classiﬁer occurs through POST/HTTP.

For that, we used a Python library called requests, to

make the request, while on the server side we used

FLask, which is a web framework written in Python

and based on the WSGI library. When making calls to

the classiﬁer endpoint in an uninterrupted sequential

manner with each ﬂow that reaches the controller, the

API requests collapses and stops working. That is, it

is as if the DDoS attack was also affecting requests

library. Thus, in order to carry out the experiment, it

was necessary to classify only a few samples of ﬂows.

The experiments have proved to be effective in de-

tecting UDP Flood DDoS attacks, using booth fuzzy

c-means and k-means algorithms. We obtained sat-

isfactory results for all the metrics studied: precision,

recall, f1-score, support, accuracy and execution time.

As future work, we intend to research datasets cre-

ated from SDN/NFV environments and use them for

cross-validation of the proposed approach, since in

this work we use synthetic dataset and trafﬁc. Also,

we intend to research how to use real trafﬁc in a sim-

ulated network or to use a real controlled network for

validation and testing. As also, research on different

machine learning libraries to compare them. Besides

that, use another strategy of extracting statistics to be

compared with the one explored in this work, in order

to analyze its overall performances in architecture. As

a chosen strategy, the POX component web.webcore

could be used together with the webservice module

from openﬂow.webservice, which exposes some in-

formation between them and the ﬂow statistics. In

addition, there is the possibility of using some cache

solution that stores the ﬂows that reach the POX Con-

troller, in order to solve the problem found in the re-

quests library. Furthermore, it could be analyzed the

advantages and disadvantages of this scenario with

caching, since trafﬁc analysis will not take place on-

line.

REFERENCES

Bawany, N. Z., Shamsi, J. A., and Salah, K. (2017). Ddos

attack detection and mitigation using sdn: methods,

practices, and solutions. Arabian Journal for Science

and Engineering, 42(2):425–441.

Bhushan, K. and Gupta, B. B. (2019). Distributed denial

of service (ddos) attack mitigation in software deﬁned

network (sdn)-based cloud computing environment.

Journal of Ambient Intelligence and Humanized Com-

puting, 10(5):1985–1997.

Bonﬁm, M. S., Dias, K. L., and Fernandes, S. F. (2019). In-

tegrated nfv/sdn architectures: A systematic literature

review. ACM Computing Surveys (CSUR), 51(6):1–

39.

Dias, M. L. D. (2019). fuzzy-c-means: An implementation

of fuzzy c-means clustering algorithm.

Dragoni, N., Giallorenzo, S., Lafuente, A. L., Mazzara,

M., Montesi, F., Mustaﬁn, R., and Saﬁna, L. (2017).

Microservices: yesterday, today, and tomorrow. In

Present and ulterior software engineering, pages 195–

216. Springer.

Duy, P. T., Pham, V.-H., et al. (2018). A role-based statisti-

cal mechanism for ddos attack detection in sdn. pages

177–182.

Esch, J. (2014). Prolog to,” software-deﬁned networking:

a comprehensive survey”. Proceedings of the IEEE,

103(1):10–13.

ETSI, N. (2017). Network functions virtualisation (nfv);

network operator perspectives on nfv priorities for 5g.

Kaur, S., Singh, J., and Ghumman, N. S. (2014). Net-

work programmability using pox controller. In Inter-

national Conference on Communication, Computing

& Systems (ICCCN’2014), pages 134–138.

Kreutz, D., Ramos, F. M., Verissimo, P. E., Rothen-

berg, C. E., Azodolmolky, S., and Uhlig, S. (2014).

Software-deﬁned networking: A comprehensive sur-

vey. Proceedings of the IEEE, 103(1):14–76.

Kumari, R., Singh, M., Jha, R., Singh, N., et al. (2016).

Anomaly detection in network trafﬁc using k-mean

clustering. In 2016 3rd International Conference on

Recent Advances in Information Technology (RAIT),

pages 387–393. IEEE.

L. Dali, A. Bentajer, E. A. K. A. H. E. E. F. B. A.

(2015). A survey of intrusion detection system. In

2nd world symposium on web applications and net-

working (WSWAN), pages 1–6.

Mahjabin, T., Xiao, Y., Sun, G., and Jiang, W. (2017). A

survey of distributed denial-of-service attack, preven-

tion, and mitigation techniques. International Journal

of Distributed Sensor Networks, 13(12).

McKeown, N., Anderson, T., Balakrishnan, H., Parulkar,

G., Peterson, L., Rexford, J., Shenker, S., and Turner,

J. (2008). Openﬂow: enabling innovation in campus

networks. ACM SIGCOMM Computer Communica-

tion Review, 38(2):69–74.

Ming-Chuan, H. and Don-Lin, Y. (2001). An efﬁcient

fuzzy c-means clustering algorithm. In Proceedings

of IEEE International Conference on Data Mining,

ICDM-2001, pages 225–232.

Comparative Analysis between the k-means and Fuzzy c-means Algorithms to Detect UDP Flood DDoS Attack on a SDN/NFV

Environment

111

Mouat, A. (2015). Using Docker: Developing and Deploy-

ing Software with Containers. ” O’Reilly Media, Inc.”.

Mutu, L., Saleh, R., and Matrawy, A. (2015). Improved

sdn responsiveness to udp ﬂood attacks. In 2015 IEEE

Conference on Communications and Network Security

(CNS), pages 715–716.

Newman, S. (2015). Building microservices: designing

ﬁne-grained systems. ” O’Reilly Media, Inc.”.

Newman, S. (2019). Under the radar: the danger of stealthy

ddos attacks. Network Security, 2019(2):18–19.

Nugraha, B., Hajizadeh, M., Phan, T. V., and Bauschert,

T. (2019). A novel impact analysis approach for sdn-

based networks. In 2019 IEEE Conference on Net-

work Softwarization (NetSoft), pages 10–18.

Patgiri, R., Nayak, S., and Borgohain, S. K. (2018). Pre-

venting ddos using bloom ﬁlter: A survey. arXiv

preprint arXiv:1810.06689.

Peuster, M., Karl, H., and van Rossem, S. (2016). Medicine:

Rapid prototyping of production-ready network ser-

vices in multi-pop environments. In 2016 IEEE Con-

ference on Network Function Virtualization and Soft-

ware Deﬁned Networks (NFV-SDN), pages 148–153.

Preamthaisong, P., Auyporntrakool, A., Aimtongkham, P.,

Sriwuttisap, T., and So-In, C. (2019). Enhanced ddos

detection using hybrid genetic algorithm and decision

tree for sdn. In 2019 16th International Joint Confer-

ence on Computer Science and Software Engineering

(JCSSE), pages 152–157.

Sahoo, K. S., Iqbal, A., Maiti, P., and Sahoo, B. (2018). A

machine learning approach for predicting ddos trafﬁc

in software deﬁned networks. In 2018 International

Conference on Information Technology (ICIT), pages

199–203.

Scott-Hayward, S., O’Callaghan, G., and Sezer, S. (2013).

Sdn security: A survey. In 2013 IEEE SDN For Future

Networks and Services (SDN4FNS), pages 1–7. IEEE.

Suresh, M. and Anitha, R. (2011). Evaluating machine

learning algorithms for detecting ddos attacks. In In-

ternational Conference on Network Security and Ap-

plications, pages 441–452. Springer.

Velmurugan, T. and Santhanam, T. (2010). Performance

evaluation of k-means and fuzzy c-means clustering

algorithms for statistical distributions of input data

points. European Journal of Scientiﬁc Research,

46(3):320–330.

Vigna, G., Robertson, W., and Balzarotti, D. (2004). Test-

ing network-based intrusion detection signatures us-

ing mutant exploits. In Proceedings of the 11th ACM

conference on Computer and communications secu-

rity, pages 21–30.

Wei, H.-C., Tung, Y.-H., and Yu, C.-M. (2016). Counteract-

ing udp ﬂooding attacks in sdn. In 2016 IEEE NetSoft

Conference and Workshops (NetSoft), pages 367–371.

Xu, R. and Wunsch, D. (2005). Survey of clustering al-

gorithms. IEEE Transactions on neural networks,

16(3):645–678.

Yuan, R., Li, Z., Guan, X., and Xu, L. (2010). An svm-

based machine learning method for accurate internet

trafﬁc classiﬁcation. Information Systems Frontiers,

12(2):149–156.

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

112
