On the Fly SPARQL Execution for Structured Non-RDF Web APIs

Torsten Spieldenner

German Research Center for Artiﬁcial Intelligence (DFKI), Saarland Informatics Campus D 3 2,

Saarbrucken Graduate School of Computer Science, 66123 Saarbrucken, Germany

Keywords:

Linked Data, Semantic Web, Resource Description Framework, RDF, SPARQL, Web API, Structured Data.

Abstract:

The concept of the Semantic Web, built around the idea of semantically described Linked Data and the data

model of the Resource Description Framework (RDF), has become a prominent idea of seamless access to,

and integration of, data. The number of tools to translate from non-RDF to RDF-representation of data has

since then been ever increasing. However, to this day, numerous Web APIs do offer time critical data only

in non-RDF-formats. Examples for this are trafﬁc and public transport live data. Due to its nature, an ofﬂine

data dump, as mostly generated by RDF lifting translation tools, is not practical, as it becomes inconsistent

with the original data quickly. In this paper, we for this present an approach, that, published as a micro-

service, allows to send semantic queries against the legacy Web interfaces directly, and return the result in

RDF. The service API follows the SPARQL 1.1 Query API speciﬁcation, and also supports federated queries

over distributed endpoints, allowing an easy and accessible way for semantically enriched data integration

over legacy endpoints.

1 INTRODUCTION

In the last years, the concept of the Semantic

Web (Berners-Lee et al., 2001) has developed to a

prominent idea of seamless integration of, and ac-

cess to, data between different providers and appli-

cations. Among others, Verborgh (Verborgh et al.,

2011) and Mayer (Mayer et al., 2016) emphasize

the importance of sufﬁciently semantically described

server APIs (along with their data). The Semantic

Web is based on the idea of Linked Data (Bizer et al.,

2011), a set of best practices for publishing struc-

tured data on the Web. Linked Data is usually pub-

lished in terms of RDF (Resource Description Frame-

work) graphs

to establish links between all kinds of

addressable Web resources. However, to this day,

there is still a tremendous number of resources being

published as structured data that does not yet follow

Linked Data principles. For many text-based struc-

tured resource representations like XML, JSON or

CSV, generic approaches have been developed to map

them to RDF (Das et al., 2012; Scharffe et al., 2012;

Dimou et al., 2013; Michel et al., 2017). These ap-

proaches, however, are commonly used to create a

copy of the original data as Linked Data data dump.

RDF 1.1 Primer document (Jul. 2020): https://www.

w3.org/TR/rdf11-primer/

This is not practical for data that is changing fast, such

as live feeds or streams. For these, data dumps may

soon become inconsistent with the original live data

when freshness of the data would be crucial.

An example for this is live trafﬁc and public trans-

port connection data. For this kind of data, the JSON-

based General Transport Feed Speciﬁcation (GTFS),

along with extensions like the Google Proto Buffer

based GTFS-Realtime,

has become a de-facto stan-

dard. For an emerging number of bicycle sharing sta-

tions, the comparable General Bikeshare Feed Speci-

ﬁcation (GBFS)

is gaining momentum in acceptance

worldwide. Some work already motivates the use

available open data for route planning (Nallur et al.,

2015). Efforts have also been made to model trafﬁc

data in terms of Linked Data vocabularies (Colpaert

et al., 2017; Colpaert et al., 2019), also tackling the

problem of integrating both static datasets, and dy-

namic Linked Data feeds (Harth et al., 2013).

These approaches, however, often consider

GTFS Static Speciﬁcation (Jul. 2020): https://

developers.google.com/transit/gtfs/

Google Protocol Buffer (Jul. 2020): https://developers.

google.com/protocol-buffers

GTFS Realtime Speciﬁcation (Jul. 2020): https://

developers.google.com/transit/gtfs-realtime

GBFS Speciﬁcation (Jul. 2020): https://developers.

google.com/transit/gtfs-realtime

Spieldenner, T.

On the Fly SPARQL Execution for Structured Non-RDF Web APIs.

DOI: 10.5220/0010142102430252

In Proceedings of the 16th International Conference on Web Information Systems and Technologies (WEBIST 2020), pages 243-252

ISBN: 978-989-758-478-7

243

Linked Data and traditional data services as two sep-

arate worlds. Either they do not consider Linked Data

as suitable representation at all (as in the work by Nal-

lur et al. (Nallur et al., 2015)), or in the case of Col-

paert (Colpaert et al., 2017), or Harth (Harth et al.,

2013), they assume readily available Linked Data rep-

resentations of the data of interest, and may suggest

translation steps to lift existing data to the required

Linked Data representation. The problem of integrat-

ing live data that is not yet provided in a semantic

Linked Data representation into a Linked Data appli-

cation is mostly untackled. In fact, a lack of usable

tools to make the transition between the traditional

world of data, and the Linked Data world, has re-

cently been identiﬁed as a main bottle neck that hin-

ders the uptake of concepts from Semantic Web in ap-

plication in industry and public sectors (Verborgh and

Vander Sande, 2020).

As a remedy, we present in this paper a sys-

tem, implemented as microservice, that provides a

SPARQL 1.1 Query

service behind an API that is

fully compliant to the SPARQL 1.1 protocol inter-

face.

It allows to specify remote sources, perform

a provided query against them, and return as result a

SPARQL query result in RDF representation.

The remainder of this paper is structured as fol-

lows: In Section 2, we provide an overview of ex-

isting non-RDF to RDF lifting approaches, as well

as approaches that allow to query structured data as

Linked Data. We revisit the most relevant notions of

the RDF data model and the SPARQL query language

in Section 3. From these, we derive a formal deﬁni-

tion of our SPARQL query service in Section 4, pro-

vide a thorough description of the resulting service

implementation in Section 5, and give detailed exam-

ples of its usability in a selected use-case from the

transportation domain in section 6. We ﬁnally con-

clude the paper and give an outlook over future work

in Section 7.

2 RELATED WORK

From the beginning of the Semantic Web, the map-

ping of existing structural data to RDF is an active

research area. The so called lifting and lowering of

data is required to access and modify any non RDF

datasource from Linked Data applications (Sect. 2.1).

W3C SPARQL 1.1 Query Language Recommen-

dation (Jul. 2020): https://www.w3.org/TR/2013/

REC-sparql11-query-20130321/

W3C SPARQL 1.1 Protocol Recommenda-

tion (Jul. 2020): https://www.w3.org/TR/2013/

REC-sparql11-protocol-20130321/

In addition to lifting non-RDF data to an RDF rep-

resentation, research has also carried out on how to

generate RDF data from evaluation semantic queries

on non-semantic data sources directly (Sect. 2.2).

2.1 RDF-lifting Approaches

A prominent example for lifting relational databases

to RDF is R2RML (Das et al., 2012). R2RML speci-

ﬁes mappings from database schemas to RDF graphs

in RDF turtle syntax. A respective mapping ﬁle de-

scribes table structure and content, and where to inject

the data from these tables into a target RDF graph.

Several extensions to R2RML have been pre-

sented: The tool Karma by Gupta et al. (Gupta et al.,

2012) is a visual tool to deﬁne R2RML mappings by

annotating relational data. Karma supports the user

by inference of suitable target mappings from pre-

viously annotated data. The resulting mappings can

be published as service with REST API for online

data conversion. Dimou et al. extended R2RML to

RML (Dimou et al., 2013; Dimou et al., 2014a; Di-

mou et al., 2014b), a superset of the R2RML mapping

language, that also allows for mapping of structural

datasources that are not stored in relational databases.

Source formats for RML include CSV, TSV, XML,

and JSON.

Slepicka et al. present KR2RML (Slepicka et al.,

2015), a different approach to extending R2RML to

support heterogeneous sources, that keeps in mind

extendability and scalability with respect to changes

in the source data; aspects in which Slepicka et al.

see shortcomings in RML. Finally, the implementa-

tion CARML,

an extension to RML, allows dynamic

input streams as input to an RML mapping, instead

of specifying to the to be mapped source directly in

the mapping ﬁle. This is a crucial feature for re-using

mappings for a variety of different structurally equiv-

alent source ﬁles.

2.2 SPARQL Query Interfaces to

Non-RDF Datasources

A different approach to make non-semantic datasets

accessible for Linked Data applications is to provide

a SPARQL query endpoint to clients, and transpar-

ently lift the queried non-RDF source upon receiving

a query by a client.

In 2004, Bizer et al. presented D2RQ (Bizer and

Seaborne, 2004). D2RQ provides a mapping lan-

guage from relational database schemata to RDF, sim-

CARML GitHub Repository:

https://github.com/carml/carml

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

244

ilar to R2RML. Clients may send requests to the plat-

form to perform SPARQL queries against a database,

or explore a database as Linked Data, while the D2RQ

platform performs the lifting of the database to RDF

transparently, based on a previously deﬁned mapping.

Similar approaches realize SPARQL-to-SQL

mappings by employing R2RML based lift-

ings (Rodr

ıguez-Muro and Rezk, 2015; Priyatna

et al., 2014; Calvanese et al., 2017). For non-

relational datasources, Michel et al. present an

approach to query the document-based MongoDB

by employing xR2RML (Michel et al., 2017;

Michel et al., 2016), an extension for R2RML for

non-relational sources.

SPARQL-Generate (Lefranc¸ois et al., 2017) inte-

grates RDF generation from non-RDF datasources di-

rectly into the SPARQL-query itself. This removes

the need of separately provided mapping ﬁles, how-

ever, it requires that the target SPARQL processor

implemenents SPARQL-generate on top of SPARQL

1.1.

Finally, SPARQL-Microservice (Michel et al.,

2018a; Michel et al., 2018b) provides a SPARQL

query interface to wrap existing, JSON-based Web

APIs.

The presented approaches in 2.1 cover the transla-

tion of legacy data to Linked Data data dumps. Most

of them take ofﬂine approaches to lift data to RDF, a

way we found impractical for live data.

From the approaches in 2.2, many target rela-

tional databases rather than Web APIs, with D2RQ

as one chosen example. Our approach compares

best to SPARQL Generate and SPARQL Microser-

vice, which create the Linked Data representation

from structured legacy data transparently as query re-

sponse. However, SPARQL Generate requires an ex-

tended SPARQL implementation beyond the gener-

ally used speciﬁcation. SPARQL Microservice re-

quires cumbersome conﬁguration during deploy time.

It is moreover limited to JSON-LD as lifting result,

which makes it difﬁcult to impossible to use it in sce-

narios where the source data are not JSON, or when

another result representation is needed.

Our approach overcomes these shortcomings by

complying fully to the SPARQL 1.1 protocol speciﬁ-

cation. It uses RML as underlying mapping and thus

supports a wide range of source- and target formats,

making it more ﬂexible and versatile than existing ap-

proaches. Lifting of target data is done transparently

in an online step during query execution. A client can

therefore use the service to directly query non-RDF

legacy data, as if the queried source was a Linked

Data source.

3 PRELIMINARIES

This section will handle in brief the basics of the RDF

graph model and the SPARQL Query language. The

RDF graph model will be described according to the

contents of the RDF Primer document (see Footnote

). The basics established in this section will in the

following be used to deﬁne our service.

3.1 RDF Graph Model

The Resource Description Framework (RDF) is the

standard data model for the Semantic Web.

Let in the following I, L and B be pairwise disjoint

inﬁnite sets of IRIs (Internationalized Resource Iden-

tiﬁers), literals and blank nodes, respectively. We will

refer to elements in the union set in I ∪ B ∪ L as RDF

terms. The subset T = I ∪ L of RDF terms denotes

resources in some universe of discourse.

Blank nodes in B are to be understood that they

indicate the existence of a resource, the content of

which is described directly in the blank node itself,

but they do not use an IRI to identify a particular re-

source.

The inﬁnite set of all RDF triples is T = (I ∪ B)×

I × (T∪ B). Asserting an RDF triple (s, p, o) says that

some resource, denoted by p, establishes a binary re-

lationship between the resources denoted by s and o.

An RDF graph G ⊂ T is thrn a ﬁnite set of RDF

triples of the form (s, p, o).

3.2 SPARQL Query Language

The SPARQL Query Language (SPARQL) is the

W3C recommended query language for RDF datasets

(see footnote

). SPARQL queries are built around

a graph pattern matching facility, i.e. triple patterns,

which form the core of the language. In the follow-

ing, we brieﬂy present the syntax and semantics of

SPARQL graph patterns.

Following the formal evaluation algebra as pro-

posed by Perez et al. (P

erez et al., 2006), we use V

to denote the inﬁnite set of variables that is disjoint

from I ∪ B ∪ L. The set of variables occurring in a

syntax expression E is given by var(E).

A tuple from (T ∪ V) × (I ∪ V) × (T ∪ V) is called

a triple pattern. Triple pattern components may be

bound, i.e. from set T, or unbound, i.e. from set V.

The semantics of SPARQL graph patterns is de-

ﬁned in terms of an evaluation function J·K

that eval-

uates a SPARQL graph pattern P over a dataset D

with an active RDF graph G. The result of this eval-

uation is a set of mappings var(E) → T in case of a

On the Fly SPARQL Execution for Structured Non-RDF Web APIs

245

SPARQL SELECT query, or an RDF Graph g ⊂ T in

case of a SPARQL CONSTRUCT query.

4 SERVICE DEFINITION

From the notions of the previous section, we will now

derive a formal deﬁnition of the service in terms of

RDF liftings and SPARQL query execution. We ﬁrst

deﬁne the query execution as function on a (mapped)

data source. Second, we deﬁne a SPARQL 1.1 query

interface with the notions of the deﬁned formal query

approach.

4.1 Formal Deﬁnition

With the notions from Sect.3, we deﬁne moreover the

following concepts:

We deﬁne

Q = (T ∪ V) × (I ∪ V) × (T ∪ V) (1)

as a shortcut for the set of all Triple Patterns.

Let Σ denote a machine readable alphabet, Σ

∗

the

set of all words over alphabet Σ, and Γ ⊂ Σ

∗

a set of

datagrams in a given structured data format encoded

in alphabet Σ. Such structured data formats could for

example be comma separated value (CSV), JSON, or

XML documents, as emitted by a Web resource, but

also binary streams following a deterministic struc-

ture or protocol.

A datagram γ ∈ Γ is then a valid structured piece

of data that is encoded in a machine readable alphabet

Σ.

We then deﬁne a mapping function

m : (Γ ⊂ Σ

∗

) → (G ⊂ T ), T = (I ∪ B) × I × (T ∪ B)

(2)

as a function that translates a given structured

datagram γ into an RDF Graph g ∈ G.

Let Ω

denote the set of result mappings of a

triple pattern P ∈ Q according to (Buil-Aranda et al.,

2013). A service call s is then a function s with the

following properties:

s : (Γ × Q ) → Ω

(3)

s(γ, P) = JPK

m(γ)

, m : (Γ ⊂ Σ

∗

) → (G ⊂ T ) (4)

Means, a service accepts as call parameters a tuple

that consists of a datagram γ from a datagram syntax

Γ, and a triple Pattern P ∈ Q in some SPARQL syn-

tax.

The result of the service call is an evaluation of the

triple pattern P against the result of a lifting operation

m on datagram γ.

4.2 Service SPARQL Query API

Following, we deﬁne the API to the SPARQL Wrap-

ping Service as superset on the W3C SPARQL 1.1

Protocol

speciﬁcation. We deﬁne parameters to

specify a SPARQL query that is to be evaluated, as

well as structured legacy data on which to evaluate

the query, or URIs that point to endpoints from where

to retrieve the data respectively. The subset of pa-

rameters that provides necessary information for the

execution of the SPARQL query should completely

comply with the SPARQL 1.1 Protocol speciﬁcation.

4.2.1 Requests

The SPARQL 1.1 Protocol Recommendation speci-

ﬁes three modes of query requests: Query by HTTP

GET request with Query String parameters, by query

via HTTP POST request, either with message body

included as URL encoded query parameters, or as

direct POST operation with all information contained

in the message payload. Accordingly, a service call s

is performed by an HTTP request with the following

methods and parameters (see also Table 1):

Query via GET: The request is sent by the client

via HTTP GET request to the service endpoint with no

Content-Type header set, as request body is empty.

The endpoint accepts as parameters query and source,

with query being the properly serialized and URL en-

coded triple pattern P according to SPARQL 1.1. pro-

tocol speciﬁcation, and source a reference to a re-

source from which the datagram γ can be retrieved,

or a datagram γ as url-encoded string respectively.

Query via POST with URL Encoded Parameters:

The request is sent by clients via HTTP POST to the

service endpoint with Content-Type header set to

application/x-www-form-urlencoded. The ser-

vice accepts as parameters query and source. Pa-

rameters are URL-encoded and ampersand-separated.

query contains the SPARQL triple pattern P, and

source the datagram γ (or an URI from which γ can

be retrieved).

Query via Direct POST: Clients send HTTP

POST requests with Content-Type header set to

application/sparql-query. The source datagram

γ is provided as encoded URL parameter, either in-

line, or as URI from which γ can be retrieved. The

SPARQL query P is provided as unescaped string

within the message payload.

Obviously, the above deﬁnition satisﬁes the

SPARQL 1.1 protocol speciﬁcation with respect to

https://www.w3.org/TR/2013/REC-sparql11-protocol-

20130321/

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

246

Table 1: Expected parameters for a SPARQL 1.1 Query service call, based on the original SPARQL 1.1 query protocol

speciﬁcation. The structured datagram γ takes the role of both Dataset D and (default) graph G.

Method Query Parameters Content-Type Message Body

GET

query=P (exactly 1),

source=γ (ex. 1)

None None

POST

(URL enc.

Parameters)

None

application/

x-www-form-urlencoded

URL-enc., &-separated:

query=P (exactly 1),

source=γ (exactly 1)

POST

(direct)

source=γ (ex. 1)

application/

sparql-query

Unencoded SPARQL

query string

necessary parameters. Our API does not yet con-

sider speciﬁcation of an RDF dataset D against

which the query should be executed in terms of

default-graph-uri or named-graph-uri. How-

ever, according to the SPARQL 1.1 protocol recom-

mendation, these parameters are optional, and the

speciﬁcation states that, ”if an RDF Dataset is not

speciﬁed in either the protocol request or the SPARQL

query string, then implementations may execute the

query against an implementation-deﬁned default RDF

dataset”.

This default dataset is in our case the re-

sult of the mapping operation m(γ).

4.2.2 Responses

Following the SPARQL 1.1 protocol speciﬁcation, a

query request to a service s returns the SPARQL query

result with a success status code (2xx).

The service moreover returns codes 400 (Bad Re-

quest) and 500 (Internal Server Error) in case of a

malformed query, or a failure to execute the query re-

spectively, in accordance with the SPARQL 1.1 Proto-

col speciﬁcation. The service moreover returns a 400

error code if the supplied datagram γ is syntactically

incorrect. The service may moreover return:

422 (Unprocessable Entity), if γ, either provided

directly via HTTP POST, or as URI reference for

download, is syntactically correct, but the mapping

m returns an error for some reason, or any parameter

specifying γ is missing.

502 (Bad Gateway), if γ is provided by URI ref-

erence, and the service under source-uri returns an

error.

https://www.w3.org/TR/2013/

REC-sparql11-protocol-20130321/#dataset

5 IMPLEMENTATION

This section will describe in detail the actual imple-

mentation of the previously deﬁned service as a mi-

croservice. The overall architecture, and the compo-

nents it is composed from, is provided in Section 5.1.

5.2 details out the service API beyond the SPARQL

interface. We will give an overview of employed

frameworks and libraries in our prototype implemen-

tation in Section 5.3.

5.1 Service Architecture

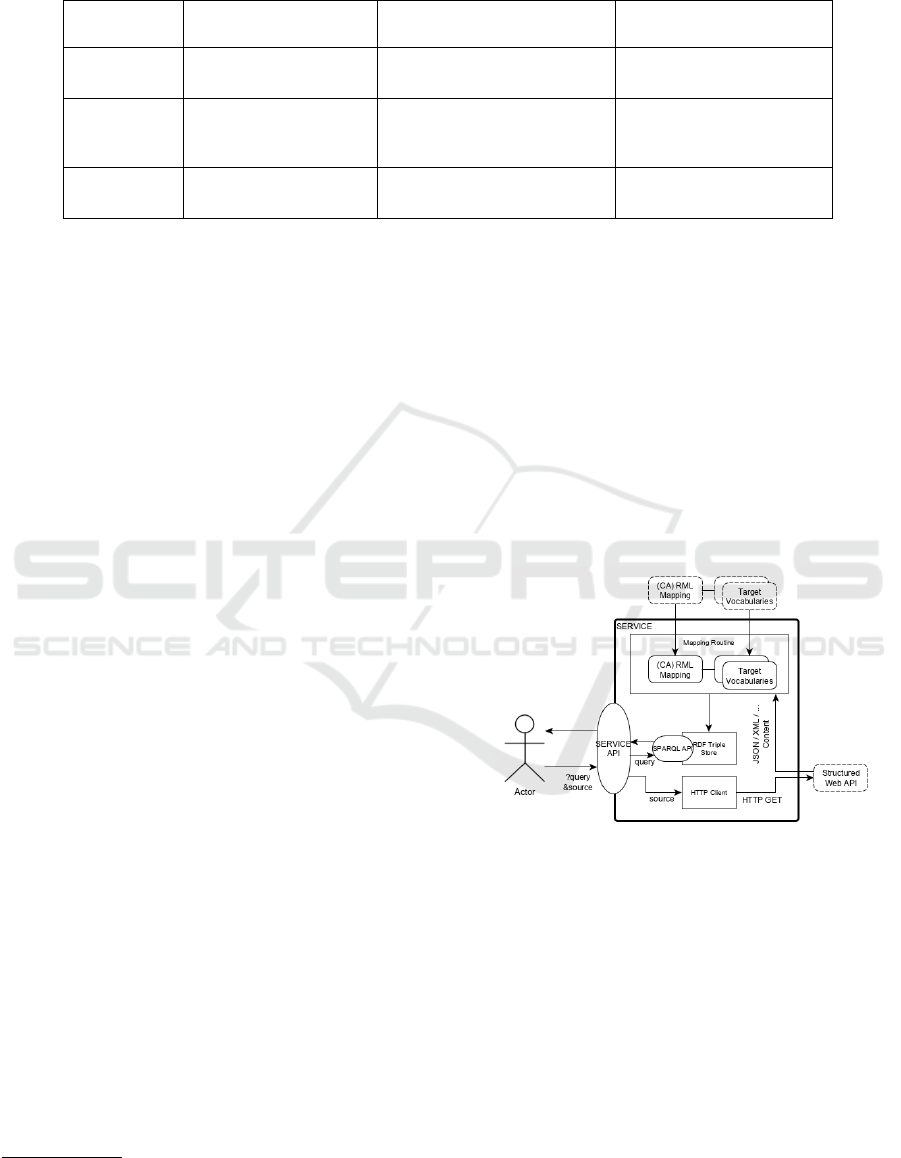

Figure 1: Architecture of the SPARQL API service.

We build the query service around the components as

shown in Figure 1. Client requests are received by an

HTTP API endpoint. This API accepts HTTP GET

and POST Requests with parameters for query and

source according to the speciﬁcation in Section 4.2.

Upon receiving a client request, an HTTP Client com-

ponent sends HTTP GET request to the endpoint as

speciﬁed by the source parameter. If this request re-

turns an error, this error is forwarded to the request-

ing client according to the error handling routine as

described in Section 4.2.

In case the remote source returns valid data, it is

used as input for an RML Mapping component. The

respective mapping is provided (for example in terms

On the Fly SPARQL Execution for Structured Non-RDF Web APIs

247

of an RML mapping ﬁle) by the service itself, and can

be inspected by clients via an HTTP GET request to

the respective resource according to Section 5.2.

The result of the mapping is stored in an in-

memory RDF Triple Store that provides a SPARQL

query API to the service application. If the mapping

was successful, the query as provided by the client

as parameter is executed against the triple store that

contains the mapping result. Otherwise, an error ac-

cording to Sec. 4.2 is returned.

Finally, the result of the query is returned to the

client as result of its request (or an error, if execution

of the query was not successful).

5.2 Service Self Information

1 { " defi n iti o ns ": {

2 " B ik e ": {

3 " t yp e ": [" ob j ec t "] ,

4 " p r ope r ti e s ": {

5 " b ike _id ": {" ty pe ": " s tri ng "} ,

6 " lat ": {" t yp e ": " nu mb er "} ,

7 " lon ": {" t yp e ": " nu mb er "} ,

8 " i s _re s erv e d ": {" typ e ": " in te g er "} ,

9 " i s _di s abl e d ": {" typ e ": " in te g er "}

10 }} ,

12 " B i ke D at a ": {

13 " t yp e ": " obje ct ",

14 " p r ope r ti e s ": {

15 " b ik es " : {

16 " t yp e ": " arr ay " ,

17 " i te ms " : {" $ref ":

18 "#/ de fi n i ti o ns / Bik e "}

19 }}} # e nd o f B i ke D at a

21 } , # en d of de f i ni t ion s

23 " t yp e ": " obje ct ",

24 " p r ope r ti e s ": {

25 " d at a ": {" $ref ":

26 "#/ de f i ni t ion s / Bik eDa t a "}

27 },

28 " r e qu i re d ": [" da ta "]

29 }

Listing 1: Example of a JSON-Schema description

of information conveyed by a free bike status.json

datagram according to NABSA/GBFS General Bike Feed

Speciﬁcation.

In the current version, the service provides, listed as

result of an HTTP OPTIONS request, routes to the fol-

lowing resources:

Under the route /sourceformat/, clients may

retrieve the expected structure of source data. The

source format is speciﬁed in JSON- or XML-Schema

format, depending on the format that the service maps

(see also Listing 1). The provided description may be

used by clients to validate whether the service is ca-

pable of querying the intended legacy API according

to JSON-/XML-Schema documentation.

Moreover, the employed RML mapping ﬁle is pro-

vided under the route /mapping/ for reasons of doc-

umentation. From the mapping ﬁle, client developers

may learn employed ontologies or vocabularies in the

resulting RDF SPARQL response, as returned by the

service.

For future versions, we moreover plan to provide

a deﬁnition of the output RDF format, for example in

SHACL

, to help clients to validate their local RDF

representation automatically against the output that is

generated by the service.

5.3 Prototype Implementation

Our prototype implementation is based on the Java

Spring Framework

for the Web Service HTTP in-

terface (”SERVICE API” in Fig. 1). RDF fea-

tures are provided by the RDF4j

RDF library, using

the RDF4j Repository API

for SPARQL Queries.

The RDF4j Sail API

serves as temporal in-memory

triple store to contain RDF mapping results against

which the SPARQL Queries are executed (”SPARQL

API” and ”RDF Triple Store” in Fig. 1 respectively).

The mappings are performed by the CARML

map-

ping framework. CARML extends RML mapping

routines by the capability of deﬁning a dynamic in-

put stream as input the mapping, unlike RML, which

expects a route to a ﬁxed source.

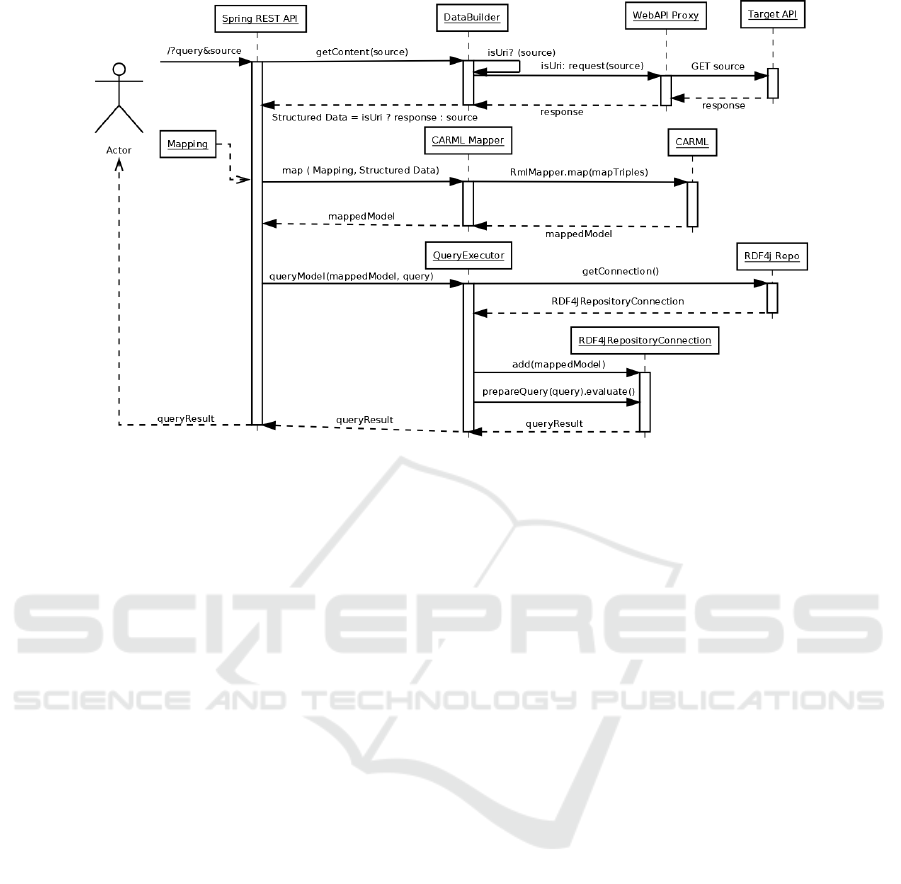

Figure 2 shows the function call sequence between

components of the service as chosen for our imple-

mentation: The HTTP interface provided by the Java

Spring application server API receives a client request

that speciﬁes parameters source and query as either

URL parameters or payload of a HTTP POST query.

A DataBuilder class checks whether the supplied

source argument is an URI, or already the datagram γ

itself. In case of a it being an URI, a WebAPIProxy is

used to retrieve γ from the provided API. γ then serves

as Structured Data input for the mapping process.

https://json-schema.org/, https://www.w3.org/XML/

Schema

https://www.w3.org/TR/shacl/

Spring Framework Website (Feb. 2020): ttps://spring.

io/

RDF4j Website (Feb. 2020): https://rdf4j.org/

RDF4j Repo. API (Feb. 2020): https://rdf4j.org/

documentation/programming/repository/

RDF4jSailAPI(Jul.2020):https://rdf4j.org/

documentation/sail/

CARML GitHub Repository: https://github.com/

carml/carml

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

248

Figure 2: Call sequence between the different service components upon a client request to the API as deﬁned in Sect. 4.2.

The (CA)RML Mapping ﬁle is provided by the

service itself. It is fed to a CARML Mapper class that,

after some preprocessing steps, uses the CARML map-

ping library to translate γ to a mappedModel, which

will be in RDF Graph form.

The mappedModel, and the query as provided by

the client, are used as input for an QueryExecutor.

The QueryExecutor ﬁrst opens a connection to a

temporary RDF4j Repo, loads the mappedModel into

it, and executes the query via the RDF4j Sail API.

The queryResult of this operation is ﬁnally re-

turned to the client as result of the client’s initial query

request.

6 IN-USE EXAMPLES

Following, we demonstrate the usage of the service

using examples from public transport and bike rental

domain, the main application domain of the funding

project SmartMaaS.

Second, we show how the presented service can

be used to infer additional information from dis-

tributed data sets by employing distributed SPARQL

queries over several SPARQL Wrapper services with

the SERVICE keyword.

6.1 SELECT Query on JSON Data

1 SE L E C T ? name ? lat ? lon W H E R E {

2 ? stati o n a gbfs : St a ti o n ;

3 g b f s : name ? name ;

4 wgs 8 4_ p os : lat ? lat ;

5 wgs 8 4_ p os : long ? lon .

6 }

Listing 2: A SPARQL SELECT query that reads location

information for bike sharing station from a GBFS service

endpoint.

The following example demonstrates a simple SE-

LECT query against a JSON data endpoint. The query

as shown in Listing 2 is sent as query parameter to

the service endpoint, using the JSON data as shown

in Listing 3 as input. The RDF result is shown in

Listing 4.

The overall execution time of the query in the ex-

ample was about 180ms (milliseconds) for a dataset of

63 bike sharing station items. Of these 180ms, 30ms

were spent on the CARML lifting process, and 10ms

on the SPARQL query execution (measured on a In-

tel Core i7-4770k, 3.5GHz). The remaining time was

spent to retrieve the source data from the provided

URI as source parameter.

6.2 Federated Queries

The design of the Service API over parameterized,

SPARQL 1.1 compliant request URLs also allows for

federated SPARQL queries using the SERVICE key-

word, as described in the respective W3C recommen-

On the Fly SPARQL Execution for Structured Non-RDF Web APIs

249

1 {" las t _u pd at ed ": 15 9 5 8 3 5 393 ,

2 " ttl ": 60 ,

3 " da t a ": {

4 " stati o n s ": [

5 {

6 " sta t io n _i d ": "100442 7 9 " ,

7 " na m e ": " B a hn h of B e u e l " ,

8 " sho r t_ n am e ": "47 4 1" ,

9 " lat ": 50.7 3 9 2 1 1 ,

10 " lon ": 7.126598 ,

11 " reg i o n_ id ": "547"

12 },

13 {

14 " sta t io n _i d ": "100442 8 7 " ,

15 " na m e ": " H al te pu n kt Bonn - West ",

16 " sho r t_ n am e ": "47 4 2" ,

17 " lat ": 50 . 7 3 6 7 67 5 ,

18 " lon ": 7.08 0 9 5 6 7 ,

19 " reg i o n_ id ": "547"

20 }, ... ]

21 }}

Listing 3: Input provided as example for a simple SELECT

query (excerpt; source: https://gbfs.nextbike.net/maps/gbfs/

v1/nextbike bf/de/station information.json).

dation document.

In the formal W3C SPARQL 1.1 Grammar Rec-

ommendation,

a ServiceGraphPattern (entry 59

in the respective grammar document

) is deﬁned as

ServiceGraphPattern := ’SERVICE’

’SILENT’? VarOrIri GroupGraphPattern

Accordingly, a federated query against a SPARQL

Wrapper Service endpoint can be performed by

employing as VarOrIri a valid URI against the

SPARQL Wrapper Service API according to Section

4.2, and as ServiceGraphPattern the query that is to

be executed against the dataset γ that is referred to

as source (acc. to API deﬁnition in Section 4.2),

employing the mapping m(γ) that is provided by the

service under the URI that is provided as VarOrIri

element in the query. The parameter query can be

omitted in this case, as the Triple Pattern P that de-

scribes the query is already provided in terms of the

GroupGraphPattern that follows the VarOrIri ele-

ment of the federated query.

Listing 5 shows an example of a federated query.

For brevity, the complete route to the service end-

point, as well source datagram γ are omitted, and

given as #srvpath and #srcpath respectively.

W3C SPARQL 1.1 Federated Query recommendation:

https://www.w3.org/TR/sparql11-federated-query/.

SPARQL 1.1 Grammar: https://www.w3.org/TR/2013/

REC-sparql11-query-20130321/#grammar

As at current date, June 2020

The complete URI used for the given example was http:

//sparql-wrapper.service/?source=https://gbfs.nextbike.net/

1 < r esults >

2 < result >

3 < binding n ame = ’ name ’ >

4 < l i teral > B a h nh o f Beuel </ li t eral >

5 </ binding >

6 < bindi n g n a m e = ’ lon ’ >

7 < literal d at a ty pe = ’xsd : double ’ >

8 7.1 2 6 59 8

9 </ literal >

10 </ bindi ng >

11 < bindi n g n a m e = ’ lat ’ >

12 < literal d at a ty pe = ’xsd : double ’ >

13 5 0. 7 39 2 11

14 </ literal >

15 </ bindi ng >

16 </ res ult >

17 < result >

18 . . . .

19 </ results >

Listing 4: Query result of the Query in Listing 2 against the

data in Listing 3.

In our evaluation, the query given in Listing 5

was performed against an endpoint that emits in-

formation about the location of rentable bikes in

GBFS JSON format. The GraphGroupPattern in the

SERVICE clause merges that information with infor-

mation about the location of rental bike stations of

the same provider. The respective query response is

shown in Listing 6. Note that the displayed infor-

mation (Which bike is currently parked at which sta-

tion?), is originally not provided by how the GBFS

datamodel is deﬁned. Deriving this information via

semantic queries over the originally not semantically

enriched GBFS data is a direct beneﬁt from lifting

queries against the GBFS data to a semantic repre-

sentation.

The total execution time of the construct query

was 560ms for a dataset of 63 bike station entries,

and 649 items for free bikes respectively. Of these

560ms, approx. 10ms each were spent for the lifting

process of both the datasets, and another 30ms to per-

form the query against the station information data in

the SERVICE clause. The remaining times were spent

to retrieve the source data from the provided URIs.

7 CONCLUSION AND FUTURE

WORK

In this paper, we have presented a novel service that

allows to perform SPARQL queries against non-RDF

datasets. Unlike existing solutions, the presented ser-

vice is not limited to a certain source format, as long

maps/gbfs/v1/nextbike bf/de/station information.json

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

250

1 C O NS T RU CT {

2 ? stati o n a gbfs : St a ti o n ,

3 wgs 8 4_ p os : S p at ia lT hing ;

4 gbfs : name ? s t at io n_ na me ;

5 w gs 8 4_ p os : l a t _l o n ? la t _l o n_ po s .

7 ? bike_ i d a gbfs : Bike ;

8 w gs 8 4_ p os : l o ca t io n ? stati o n .

9 }

10 WHERE {

11 ? bi k e w gs 84 _ po s : lat ? lat ;

12 wgs 8 4_ p os : long ? lon .

14 SERVI C E <# s r vp a t h /? s o u r ce =# srcpat h

> {

15 ? st a ti o n gbfs : n a m e ? name ;

16 w gs 8 4_ p os : lat ? s t at io n_ la t ;

17 w gs 8 4_ p os : long ? st a ti on _l on .

18 }

19 FILTER (

20 ABS (? lat -? sta t io n_ la t ) < 0.001 &&

21 ABS (? lon -? sta t io n_ lo n ) <0 . 001)

22 B I N D

23 ( CO N C AT ( str (? lat ) ," ," , str (? lon ))

24 as ? l a t_ lo n_ po s )

25 }

Listing 5: Example of federated SPARQL query.

as the source to be queried is structured. The service

offers a SPARQL 1.1 protocol HTTP query API, that

is also suitable to be used as endpoint for federated

SPARQL queries.

Based on the original SPARQL 1.1 Protocol, we

have derived a formal query API, and provided a for-

mal design of the presented solution. We have more-

over presented a proposal for an actual service ar-

chitecture, based on the CARML non-RDF-to-RDF

mapping engine.

Finally, we outlined our protocol implementation,

and concluded with an evaluation of the prototype

implementation. We moreover demonstrated the ap-

plicability of the service in the scope of federated

SPARQL queries.

The presented implementation is published

on Github under https://github.com/SmartMaaS/

sparql-api-wrapper.

The current design and implementation so far ne-

glect named graphs. How to include this concept in

the presented service design is subject to future work.

So far, the service supports SPARQL SELECT,

ASK and CONSTRUCT queries. As future work,

we also plan to investigate how SPARQL UPDATE

queries against a non-RDF endpoint may be used to

modify a remote non-RDF dataset, given that the re-

mote endpoint allows data modiﬁcation.

We have discussed our solution with respect to

use-cases from the domain of trafﬁc and public trans-

port. We see however, and plan to evaluate, a clear

1 < h t t p :// foo . bar / st at i on s /10044 5 4 0 >

2 a gbfs : S t ation ,

3 w gs 8 4_ p os : S pa ti al Th in g ;

4 g b f s : name " J u ri di c um ";

5 wgs 8 4_ p os : l a t _ lo n

"50 . 73 0 09 23 28 9 94 85 ,

7. 1 08 277 6 78 48 968 5 " .

7 < h t t p :// foo . bar / bikes /4 4 608 > a g b f s :

Bike ;

8 wgs 8 4_ p os : l o c at i on

9 < http :// foo . bar / st at i on s

/10044540 > .

11 < h t t p :// foo . bar / bikes /4 5 448 > a g b f s :

Bike ;

12 wgs 8 4_ p os : l o c at i on

13 < http :// foo . bar / st at i on s

/10044540 > .

15 < h t t p :// foo . bar / bikes /4 5 337 > a g b f s :

Bike ;

16 wgs 8 4_ p os : l o c at i on

17 < http :// foo . bar / st at i on s

/10044540 > .

Listing 6: Query result (excerpt) as returned by the

federated SPARQL query example.

applicability in use-cases from industrial domains, as

well as Smart City, Smart Grid, and Smart Living sce-

narios.

ACKNOWLEDGEMENTS

This work has been supported by the German Federal

Ministry for Economic Affairs and Energy (BMWi)

(FZK 01MD18014 C) as part of the project Smart

MaaS, and by the German Federal Ministry of Ed-

ucation and Research through the MOSAIK project

(grant no. 01IS18070-C). The project Smart MaaS is

part of the technology program “Smart Service Welt

II”, which is funded by the German Federal Ministry

for Economic Affairs and Energy (BMWi).

REFERENCES

Berners-Lee, T., Hendler, J., Lassila, O., et al. (2001). The

semantic web. Scientiﬁc american, 284(5):28–37.

Bizer, C., Heath, T., and Berners-Lee, T. (2011). Linked

data: The story so far. In Semantic services, inter-

operability and web applications: emerging concepts,

pages 205–227. IGI Global.

Bizer, C. and Seaborne, A. (2004). D2RQ-treating non-

RDF databases as virtual RDF graphs. In Pro-

ceedings of the 3rd international semantic web con-

On the Fly SPARQL Execution for Structured Non-RDF Web APIs

251

ference (ISWC2004), volume 2004. Proceedings of

ISWC2004.

Buil-Aranda, C., Arenas, M., Corcho, O., and Polleres, A.

(2013). Federating queries in SPARQL 1.1: Syntax,

semantics and evaluation. Web Semantics: Science,

Services and Agents on the World Wide Web, 18(1):1

– 17. Special Section on the Semantic and Social Web.

Calvanese, D., Cogrel, B., Komla-Ebri, S., Kontchakov, R.,

Lanti, D., Rezk, M., Rodriguez-Muro, M., and Xiao,

G. (2017). Ontop: Answering sparql queries over re-

lational databases. Semantic Web, 8(3):471–487.

Colpaert, P., Abelshausen, B., Andr

es, J., Mel

endez, R., and

Delva, H. (2019). Republishing Open Street Map’s

roads as Linked Routable Tiles. In European Semantic

Web Conference, pages 13—-17.

Colpaert, P., Verborgh, R., and Mannens, E. (2017). Pub-

lic transit route planning through lightweight linked

data interfaces. In Lecture Notes in Computer Science

(including subseries Lecture Notes in Artiﬁcial Intel-

ligence and Lecture Notes in Bioinformatics), volume

10360 LNCS, pages 403–411.

Das, S., Sundara, S., and Cyganiak, R. (2012). R2RML:

RDB to RDF Mapping Language. W3C Recommen-

dation, (September 2012):1–34.

Dimou, A., Sande, M. V., Colpaert, P., Verborgh, R., Man-

nens, E., and Van De Walle, R. (2014a). RML: A

generic language for integrated RDF mappings of het-

erogeneous data. In CEUR Workshop Proceedings,

volume 1184.

Dimou, A., Sande, M. V., Slepicka, J., Szekely, P., Man-

nens, E., Knoblock, C., and Van De Walle, R. (2014b).

Mapping Hierarchical Sources into RDF using the

RML Mapping Language.

Dimou, A., Vander Sande, M., Colpaert, P., Mannens, E.,

and Van De Walle, R. (2013). Extending R2RML

to a source-independent mapping language for RDF.

In CEUR Workshop Proceedings, volume 1035, pages

237–240.

Gupta, S., Szekely, P., Knoblock, C. A., Goel, A.,

Taheriyan, M., and Muslea, M. (2012). Karma: A sys-

tem for mapping structured sources into the semantic

web. In Extended Semantic Web Conference, volume

7540, pages 430–434. Springer, Berlin, Heidelberg.

Harth, A., Knoblock, C. A., Stadtm

uller, S., Studer, R., and

Szekely, P. (2013). On-the-ﬂy integration of static and

dynamic linked data. In CEUR Workshop Proceed-

ings, volume 1034.

Lefranc¸ois, M., Zimmermann, A., and Bakerally, N. (2017).

A SPARQL extension for generating RDF from het-

erogeneous formats. In Lecture Notes in Computer

Science (including subseries Lecture Notes in Artiﬁ-

cial Intelligence and Lecture Notes in Bioinformatics),

volume 10249 LNCS, pages 35–50.

Mayer, S., Verborgh, R., Kovatsch, M., and Mattern, F.

(2016). Smart conﬁguration of smart environments.

IEEE Transactions on Automation Science and Engi-

neering, 13(3):1247–1255.

Michel, F., Djimenou, L., Zucker, C. F., and Montagnat,

J. (2017). xR2RML: Relational and non-relational

databases to RDF mapping language. PhD thesis,

CNRS.

Michel, F., Faron-Zucker, C., and Montagnat, J. (2016).

A mapping-based method to query mongodb docu-

ments with sparql. In International Conference on

Database and Expert Systems Applications, pages 52–

67. Springer.

Michel, F., Zucker, C. F., Gandon, F., Fabien, G., and Faron-

Zucker, C. (2018a). Bridging Web APIs and Linked

Data with SPARQL Micro-Services. pages 187–191.

Michel, F., Zucker, C. F., Gandon, F., Fabien, G., and

Faron-Zucker, C. (2018b). SPARQL Micro-Services:

Lightweight Integration of Web APIs and Linked

Data. Technical report.

Nallur, V., Elgammal, A., and Clarke, S. (2015). Smart

Route Planning Using Open Data and Participatory

Sensing. In IFIP Advances in Information and Com-

munication Technology, volume 451, pages 91–100.

Springer New York LLC.

erez, J., Arenas, M., and Gutierrez, C. (2006). Semantics

and complexity of sparql. In International semantic

web conference, pages 30–43. Springer.

Priyatna, F., Corcho, O., and Sequeda, J. (2014). Formali-

sation and experiences of R2RML-based SPARQL to

SQL query translation using morph. In WWW 2014 -

Proceedings of the 23rd International Conference on

World Wide Web, pages 479–489.

Rodr

ıguez-Muro, M. and Rezk, M. (2015). Efﬁcient

SPARQL-to-SQL with R2RML mappings. Journal of

Web Semantics, 33:141–169.

Scharffe, F., Bihanic, L., K

eklian, G., and Atemezing

(2012). Enabling Linked Data Publication with the

Datalift Platform. Workshops at the Twenty-Sixth

AAAI Conference on Artiﬁcial Intelligence.

Slepicka, J., Yin, C., Szekely, P., and Knoblock, C. A.

(2015). KR2RML: An alternative interpretation of

R2RML for heterogeneous sources. In CEUR Work-

shop Proceedings, volume 1426.

Verborgh, R., Steiner, T., Van Deursen, D., Van de Walle,

R., and Vall

es, J. G. (2011). Efﬁcient runtime service

discovery and consumption with hyperlinked restdesc.

In 2011 7th International Conference on Next Gener-

ation Web Services Practices, pages 373–379. IEEE.

Verborgh, R. and Vander Sande, M. (2020). The seman-

tic web identity crisis: in search of the trivialities that

never were. Semantic Web, (Preprint):1–9.

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

252
