Randomised Controlled Trial of the Usability of Major Search

Engines (Google, Yahoo! and Bing) When using Ambiguous Search

Queries

Wynand Nel

, Lizette de Wet

and Robert Schall

Department of Computer Science and Informatics, University of the Free State, Nelson Mandela Drive, Bloemfontein,

South Africa

Department of Mathematical Statistics and Actuarial Science, University of the Free State, Bloemfontein, South Africa

Keywords: Ambiguous Search Query, Bing, Google, Graeco-Latin Square Design, Randomised Controlled Trial, System

Usability Scale, Usability, User Experience, World Wide Web, Yahoo!.

Abstract: Performing digital searches, like searching the World Wide Web (WWW), is part of everyday life with the

Internet being the primary source of information. The enormous size of the WWW led to the development of

search engines, and many researchers use search engines to find specific information. Users generally prefer

short queries, potentially causing ambiguity so that the search engine returns a surfeit of results. In this study,

the current usability state of the major search engines (Google, Yahoo! and Bing) when ambiguous search

queries are used was investigated. Participants completed pre and post-test questionnaires, including a System

Usability Scale (SUS) questionnaire during a usability test. Each participant also performed different searches

om three different occasions using three ambiguous search terms (shoot, divide and seal) in a randomised

order according to a Graeco-Latin Square design. The study results suggest that the participants perceived the

usability of Google to be the highest, followed by Yahoo! and Bing. Tasks that involved navigating more web

pages in search of an answer were more difficult, and the order in which the tasks was completed did not have

an impact on the results.

1 INTRODUCTION

In today’s information age, people search daily for

information. These searches/information retrieval (IR)

can be non-electronic (using printed material), or

electronic (digital searches). IR can be defined as the

process of searching, retrieving and understanding of

information stored in a computer system, catalogue or

file (Dictionary.com, 2018; Merriam-Webster, 2018;

TheFreeDictionary by Farlex, 2015).

For many people, the Internet is the primary

source of information. Thus, digital searches using

the World Wide Web (WWW) are part of daily life.

In the current study, the usability of major search

engines (Google, Yahoo! and Bing), when ambiguous

search queries (shoot, divide and seal) are used, was

evaluated.

https://orcid.org/0000-0001-5579-6411

https://orcid.org/0000-0001-6819-6984

https://orcid.org/0000-0002-4145-3685

2 BACKGROUND

The Internet links millions of computers worldwide

through telephone cables, local and wide area networks,

undersea cables and satellites. Through this

interconnectivity, computers communicate and

exchange information (Mouton, 2001).

“How big is the WWW?” is a question asked by

many; however, there is no single answer. The size of

the WWW can be measured in various ways, like

counting the number of registered domains, counting

the number of websites being used or trying to estimate

the number of individual web pages (Fowler, 2018).

The first Google size index in 1999, only counting

unique Uniform Resource Locators (URLs), consisted

of 26 million pages but has reached the 1 trillion mark

already in 2008 (Alpert & Hajaj, 2008). The index

152

Nel, W., de Wet, L. and Schall, R.

Randomised Controlled Trial of the Usability of Major Search Engines (Google, Yahoo! and Bing) When using Ambiguous Search Queries.

DOI: 10.5220/0010133601520161

In Proceedings of the 4th International Conference on Computer-Human Interaction Research and Applications (CHIRA 2020), pages 152-161

ISBN: 978-989-758-480-0

grew to 30 trillion pages in 2013 (Koetsier, 2013) and

further increased to 130 trillion in 2016 (Schwartz,

2016a,b). Currently, the estimated minimum size of the

indexed WWW is 4.42 billion pages, measured across

the number of non-overlapping unique pages as

indexed by Google, Yahoo! and Bing (de Kunder,

2018).

Google has the highest market share (Figure 1), and

by the second quarter of 2020, it had a global market

share of 92.12%, followed by Bing (2.56%) and

Yahoo! (1.70%) (“Search Engine Market Share

Worldwide”, 2020).

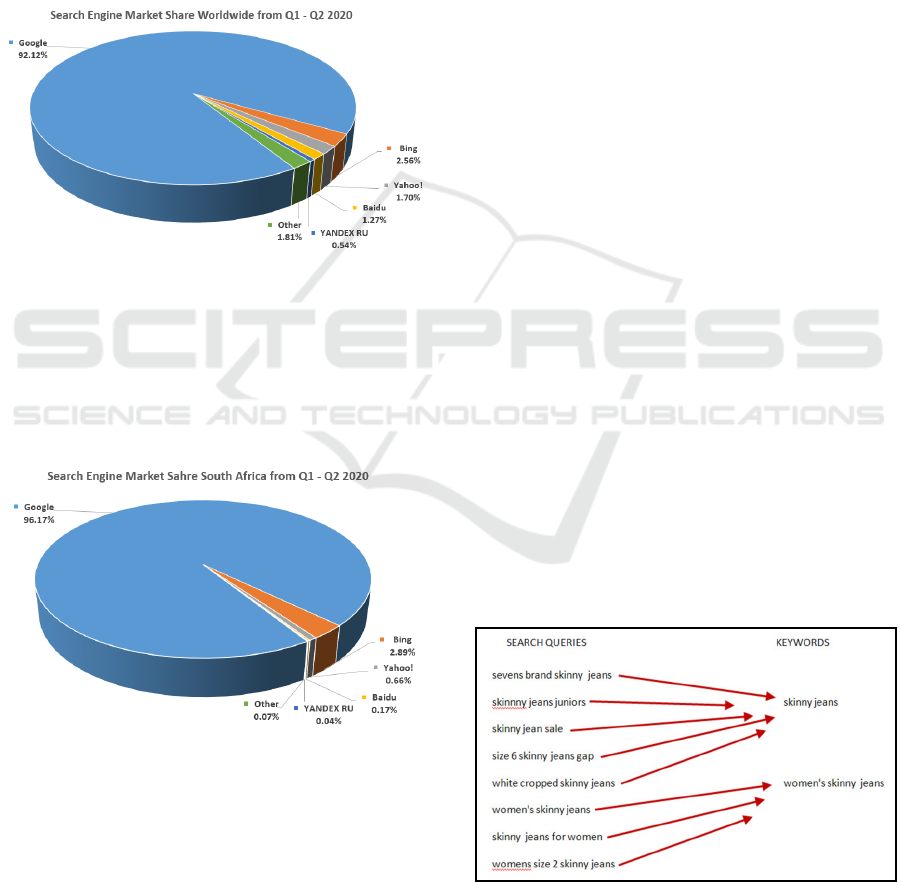

Figure 1: Search Engine Market Share Worldwide: Q1-Q2

2020 (“Search Engine Market Share Worldwide”, 2020).

Furthermore, Google was also ranked the top

search engine in South Africa (Figure 2) with a score

of 96.17%, followed by Bing and Yahoo! scoring

2.89% and 0.66%, respectively (“Search Engine

Market Share South Africa”, 2020).

Figure 2: Search Engine Market Share South Africa: Q1-Q2

2020 (“Search Engine Market Share South Africa”, 2020).

Edosomwan and Edosomwan (2010) state that the

ultimate goal of a website is to share information, but

the sheer size of the WWW poses a challenge for IR.

A user, searching for specific information on the

WWW, needs to know the relevant address (URL) of

that information on the WWW. The problem originates

from the fact that the user usually does not know this

web address beforehand. Thus, using search engines

has become the only practical way to search the WWW

(Goodman & Cramer, 2010).

Search engines are among the most accessed web

sites (Edosomwan & Edosomwan, 2010; Oberoi &

Chopra, 2010); according to a study by Breytenbach

and McDonald (2010), 84% of Internet users use

search engines to find information from various

spheres of life such as travel, literature, food, science

and music. The user supplies the search engine with

either a single or multiple words (often referred to as

search terms, keywords, search queries or search

strings), and the search engine then returns a list of

documents or web pages which match the word(s).

The words search terms, keywords, search queries

and search strings are often used synonymously, but

for search professionals, it is important to distinguish

between them. The Oxford English Dictionary (2010)

defines a query as “to put a question or questions to

someone”. A search term, on the other hand, is defined

as a specific word, phrase or term that is used

electronically to retrieve information from files or

databases (Gabbert, 2017; “Search term”, n.d.;

“Search term”, n.d.).

Gabbert (2017) and Patel (2015) explain that the

term keywords is the exact term that a person or

company target in a paid search or organic search

campaign. The Cambridge Dictionary (“Meaning of

‘search query’ in the English Dictionary”, 2018)

defines a search query as the “words that are typed

into a search engine in order to get information from

the Internet” and is usually what users enter into a

search engine (Patel, 2015). The crucial difference

between search queries (what users type) and

keywords (what companies are targeting) is depicted

in Figure 3. Note that the spelling errors in Figure 3

were made deliberately. Different search queries,

entered by users, can all point to the same keyword.

Figure 3: Difference between Search Queries and

Keywords (Gabbert, 2017).

Randomised Controlled Trial of the Usability of Major Search Engines (Google, Yahoo! and Bing) When using Ambiguous Search Queries

153

A search string is defined similarly to a search

query, namely as the combination of characters,

numbers and symbols (words) entered into a search

engine that makes up the search being conducted

(Rouse, 2016; “Search string”, 2017). This paper will

use the notions of search term (a specific word or

phrase entered into a search engine) and search query

(all the words entered into a search engine when a

search is performed).

Often search engines return thousands of results.

The user then must inspect these results until the

required information is found. A potential cause of the

excessive amount of search results is the type of search

query that might have been used. According to Teevan,

Dumais and Horvitz (2007), users favour short queries,

possibly ambiguous, so that the search engine returns

more results than needed. The reason for the excess

results is the search engine’s inability to determine

exactly what the user is searching for. For example, if

the user enters “bat” as a search query, this could refer

to an interest in animals, but the search engine might

return results on the device used for playing sports.

Large numbers of irrelevant results can cause user

frustration as many irrelevant results need to be looked

at. However, search engines are constantly developing

new methods to interpret and respond to user intent

(Goodman & Cramer, 2010), trying to make the search

results more useful for finding what the user is looking

for, faster (Linden, 2007).

3 SEARCH QUERIES

WWW search queries can be categorised into

informational, transactional and navigational queries

(Breytenbach & McDonald, 2010; Krug, 2006). With

informational queries, the user tries to obtain

information about a specific topic, whereas, with a

transactional query, a user would shop for a product or

download information from a website or interact with

the result of a website. With navigational queries, the

goal is to navigate a user to a specific URL, like the

homepage of an organisation.

Search queries can also be described as

ambiguous (it has more than one meaning, for

example, bat); broad (it has many sub-categories, for

example, religion); proper nouns (it can be locations

or names, for example, Abrahams); or clear (it is

specific with a narrow topic, for example, University

of Oslo) (Azzopardi, 2007; Dou, Song & Wen, 2007;

Elbassuoni, Luxenburger & Weikum, 2007;

Sanderson, 2008; Song, Luo, Wen, Yu & Hon, 2007).

The focus of this paper is on ambiguous search

queries.

3.1 Ambiguous Search Queries

Ying, Scheuermann, Li, and Zhu (2007) argue that

ambiguity is a severe problem in keyword-based

search methods. Sanderson (2008) and Song, Luo, Nie,

Yu, and Hon (2009) report that approximately 7% –

23% of search queries are ambiguous, with the median

length of queries being one word. Search engines

struggle to provide pertinent results from short queries

which might not offer sufficient information. This

causes the search engine to provide a diverse set of

results (Luo, Liu, Zhang & Ma, 2014).

An example of an ambiguous search term is the

word java. What is a person searching for when the

search term java is entered into a search engine?

Should the search engine return information on Java

coffee or instead on the Java computer programming

language? If the search is in fact for the Java

programming language, precisely what is being

searched for? Is the person looking for Java

documentation explaining the syntax or rather a brief

explanation of what Java is?

Search engines use various methods to mitigate the

effect of ambiguous queries. As this paper’s focus is

not on mitigating ambiguous queries, these methods

will only be mentioned briefly:

 Word sense disambiguation is the process of

identifying the sense of a word in a query to

assist the search engine in returning relevant

results (Gale, Church & Yarowsky, 1992;

Voorhees, 1993; Ying et al., 2007).

 Personalisation, specifically of web pages, is

defined by “E-Business Solutions” (2011) and

Linden (2007) as modified web pages that use

a dynamically customised content delivery

system in respect of the needs of the viewer. In

other words, different search results are

displayed to different users based on a user’s

unique identifier, such as a user ID,

membership number or subscription service

(“E-business solutions”, 2011).

 Query expansion is a method employed by

some search engines where suggestions are

made to the user by adding new query terms to

the users’ query. This can happen automatically

or interactively (Carpineto, de Mori, Romano

& Bigi, 2001; Mitra, Singhal & Buckley,

1998). Google, Yahoo! and Bing assist the user

further by suggesting corrections to misspelt

search queries and by noting what the user does

in response (Loukides, 2010).

 Click-through data are captured by the search

engine when a user clicks on a specific result in

the result set. This can be used to personalise

CHIRA 2020 - 4th International Conference on Computer-Human Interaction Research and Applications

154

web searches for a user (Leung, Ng & Lee,

2008).

 Clustering is the term used when related

queries (documents) are organised into groups

based on their overall similarity to one another.

These clusters can be used by search engines to

improve themselves in several aspects (Baeza-

Yates, Hurtado & Mendoza, 2007).

4 USABILITY

There are many different definitions of usability, and

many researchers/professionals in the field might have

their own (Tullis & Albert, 2013). This section

attempts to clarify this concept.

A broad definition of usability, as given by Tullis

and Albert (2013), is the user’s ability to use something

to complete a task successfully. Rogers, Sharp and

Preece (2011) agree with this definition and further

describe it as an attribute of an interactive product that

is easy to learn and effective and enjoyable to use.

The International Standards Organisation

(International Standards Organization - ISO 9241-11,

1998) emphasises that people will be reluctant to use a

software program if the usability of the program is poor.

Furthermore, their definition identifies three goals of

usability, namely effectiveness (the ability of a user to

achieve specified objectives by using a system),

efficiency (the resources which are exhausted to

complete a task), and satisfaction (a user’s attitude,

positive or negative, towards a system and the lack of

any discomfort).

Nielsen (2012) and Preece, Rogers and Sharp

(2015) confirm these goals and add safety (protecting

the user from undesirable situations), utility (the extent

to which the product provides the right kind of

functionality to achieve certain goals), learnability

(how easy the system is to use), memorability (how

easy it is to remember how to use the program, once

learned), and errors (how many errors do users make,

how severe are these errors, and how easily can users

recover from the errors), as additional goals. Usability

is measured to the extent to which a user can use a

product to achieve these goals in a specified context of

use (Rogers et al., 2011).

Krug’s (2006 p. 5) definition of usability is the

following, “… making sure that something works

well: that a person of average (or even below

average) ability and experience can use the thing—

whether it’s a Web site, a fighter jet, or a revolving

door—for its intended purpose without getting

hopelessly frustrated” and this is the definition that is

used for the purpose of this paper.

5 METHODOLOGY

The focus of this research paper is to determine the

usability of Google, Yahoo! and Bing, when

ambiguous search queries (shoot, divide and seal) are

presented as input. This was the first step towards a

larger research study where the objective was to

determine the value of Brain-Computer Interface

(BCI) measurements (user emotions) in computer

usability testing, specifically measuring user

experience (UX) when performing ambiguous search

queries.

The following research question was asked: “What

is the current usability state of the major search engines

(Google, Yahoo! and Bing) when ambiguous search

queries are used?”. To answer the research question, 36

participants were recruited. All participants were first-

year students enrolled in the computer literacy course

at the University of the Free State main campus. The

participants were almost equally split between male

(19) and female (17), with the majority less than 21

years old (24). Eleven students were between 21 and

25 years of age, with one falling in the range of 26 to

30.

5.1 Pre-test Questionnaire

Participants completed a pre-test questionnaire

eliciting their personal details, computer, Internet, and

search engine experience. The purpose of these

questions was to determine the participants’ biographic

information, as well as their self-rated experience for

each of the categories.

The participants were grouped as follows:

Novice/First-Time Users, Knowledgeable Intermitted

Users and Expert Frequent Users (Shneiderman,

1998). Each participant had to answer three sets of

similar questions for each category (Computer, World

Wide Web/Internet and Search Engine Experience).

The first question, “For how many years have you

been using a computer?” presented the participant

with the following options of which he/she had to

pick one: Never used a computer; Less than 1 year;

1-3 years; More than 3 years but less than 5 years;

and More than 5 years. A follow-up question asked

the participant, “How often do you use a computer?”

The participant had to select one of the following

options: Daily; Weekly; Once every two weeks; Once

a month; and Less than once a month. Each option

was awarded a numerical value: from 0 to 4 for the

first question and 4 to 0 for the second question,

which was then multiplied in order to calculate a final

computer experience value. A participant with a score

of 0 to 4 was classified as a Novice/First Time User.

Randomised Controlled Trial of the Usability of Major Search Engines (Google, Yahoo! and Bing) When using Ambiguous Search Queries

155

Knowledge Intermittent Users had to score between 5

and 9, whereas an Expert Frequent User’s score had

to be between 10 and 16.

5.2 Randomised Controlled Trial

We conducted a randomised controlled trial of the

usability of major search engines when using

ambiguous search queries. Each participant completed

three tasks, namely searches for information, using

three pre-selected ambiguous search terms (shoot,

divide and seal) when entered into three search engines

(Google, Yahoo! and Bing). The participants carried

out their tasks on three different occasions (first,

second and third), using unique combinations of the

three search engines and of the three search terms in a

randomised order according to a Graeco-Latin Square

design (Kempthorne, 1983 p. 187). The Graeco-Latin

Square is a balanced design which allows one to

investigate simultaneously the effect of three factors

(here search term, search engine and occasion) in a

cross-over study. As such it is eminently suited for

usability experiments where multiple factors are of

interest and within-subject comparisons are much

more powerful than between-subject comparisons. The

study adopted the binary measure of task success

(Tullis & Albert, 2013), as a participant either

succeeded or failed at the task.

The search terms selected for the usability test

needed to show the same characteristics when

submitted to the three search engines. Since the user

was not allowed to change the search string via the

keyboard, it was crucial that the “Searches related to

[original search string]” in Google (“Google Search

Engine”, 2018), “Also Try” in Yahoo! (“Yahoo!

Search Engine”, 2018), and “Related searches” in

Bing (“Bing search engine”, 2018) yielded the same

results for the three search engines. These suggestions

are usually provided by search engines to assist users

in finding more relevant search queries. Google and

Yahoo! display these suggestions at the bottom of the

web page while Bing displays them both at the bottom

and at the top right of the web page.

The trial was conducted in the usability laboratory

of the Department of Computer Science and

Informatics. The laboratory made it possible to control

the lighting conditions, ambient temperature,

interruptions, noise, and seating position of the

participants.

Each of the ambiguous search terms (shoot, divide

and seal) was linked to a specific question. The user

completed the task successfully once he/she answered

the question correctly. The questions were as follows:

 How many shooting games are listed in the

section: “Popular Shooting Games” on the

Armor Games website (hint: Shooting

Games/Armor Games)?

 How do you insert a division symbol (÷) in

Microsoft Word? List the steps. (hint: eHow)

 Find the image of seal and his ex-wife, Heidi

Klum, holding hands with two boys and a girl.

[The image which they had to find, was

provided below the question.]

Three steps were needed to complete the tasks with

the search terms shoot and seal, while four were

needed with the search term divide.

5.3 Post-test Questionnaire

Each of the 36 participants completed a post-test

questionnaire, including a System Usability Scale

(SUS) questionnaire for each search. The SUS

questionnaire consisted of 10 statements, half of which

were worded positively and the other half negatively.

Since the introduction of the SUS questionnaire by

Brooke (1996), it has been assumed that the ten

statements of the SUS questionnaire were

unidimensional, intended to measure only perceived

ease-of-use. It was, however, proved that the SUS

questionnaire has two factors measuring global system

satisfaction as well as sub-scales of usability (8

statements) and learnability (2 statements, statements 4

and 10, respectively) (Lewis & Sauro, 2009; Sauro,

2011).

A five-point Likert scale was used to record the

participants’ level of agreement with each statement.

The SUS score was then calculated as specified by

Brooke (1996) and averaged for each participant to

calculate the overall usability score of the search

engine in question (Tullis & Albert, 2013). The final

score indicated the participant’s opinion of the

usability of a specific search engine. Thus three SUS

scores were available for each participant, recorded

after the three occasions when a WWW search was

done using the particular search engine/search term

combinations allocated to each participant.

6 STATISTICAL ANALYSIS

The objective of the study was to characterise and

compare the usability of the three search engines

(Google, Yahoo! and Bing) when short, ambiguous

search terms were used. Thus it was of primary interest

to determine whether there were significant differences

in mean SUS scores between the three Search Engines

(Google, Yahoo! and Bing); additionally, the effects of

CHIRA 2020 - 4th International Conference on Computer-Human Interaction Research and Applications

156

Search Term (shoot, divide and seal) and of Occasion

(first, second and third) on mean SUS scores were

investigated. Task success and the number of web

pages needed to complete the task were also studied,

but fall outside the scope of this paper.

To assess statistically the effect of Search Engine,

Search Term and Occasion, respectively, on mean SUS

scores, the following null hypotheses were formulated:

 H

0,1

: There are no differences between the

mean SUS scores of the three Search Engines

(Google, Yahoo! and Bing).

 H

0,2

: There are no differences between the

mean SUS scores of the three Search Terms

(shoot, divide and seal).

 H

0,3

: There are no differences between the

mean SUS scores of the three Occasions (first,

second and third).

The SUS scores were analysed using Analysis of

Variance (ANOVA) fitting the factors Participant,

Occasion, Search Term and Search Engine. From this

ANOVA, F-statistics and P-values associated with the

overall tests of the significance of the factors Occasion,

Search Term and Search Engine are reported. The

mean SUS scores for each level of the factors Occasion,

Search Term and Search Engine are also reported.

Furthermore, the three Search Engines were

compared by calculating point estimates for the three

pairwise differences in mean SUS score between

Search Engines, as well as 95% confidence intervals

for the mean differences and the associated P-values.

The three Search Terms and three Occasions were

compared similarly.

The statistical analysis was carried out using the

MIXED procedure of the SAS/STAT 13.1 software

(SAS Institute Inc, 2013).

6.1 Overall Tests

The overall F-tests for the effect of Search Engine,

Search Term and Occasion on the SUS score are

reported in Table 1, together with the mean SUS score

for each level of the factors Occasion, Search Term and

Search Engine. To improve readability, the significant

P-values (P < 0.05) are underlined.

The results depicted in Table 1 show that the effect

of Search Engine is statistically significant

(P < 0.0001). The estimate (mean) SUS scores for

Google, Yahoo! and Bing are 81.11, 65.42 and 55.56,

respectively. The null hypothesis, H

0,1

, can thus be

rejected. There is a statistically significant difference

between the mean SUS scores of the three search

engines (Google, Yahoo! and Bing)

Table 1: Effect of Search Engine, Search Term and

Occasion on SUS Score: Mean Values and Overall F-tests.

Effect

Level

Mean

F-

statistic

P-

value

Engine

Bing 55.56 32.42 <0.0001

Google 81.11

Yahoo! 65.42

Term

shoot 70.00 6.17 0.0035

divide 60.90

seal 71.18

Occasion

first 65.14 1.06 0.3514

second 67.15

third 69.79

F-test for null-hypothesis of no effect of Occasion, from

ANOVA with Participant, Search Engine, Search Term

and Occasion as fixed effects; F-statistic has 2 and 66

degrees of freedom.

Similarly, Table 1 shows that the effect of Search

Term is significant (P < 0.0035). The estimate (mean)

SUS scores for shoot, divide and seal are 70.00, 60.90

and 71.18, respectively. The null hypothesis, H

0,2

, can

thus also be rejected. There is a statistically significant

difference between the mean SUS scores of the three

search terms (shoot, divide and seal).

Finally, Table 1 shows that the effect of Occasion

is not significant (p < 0.3514). The estimate (mean)

SUS scores for the occasions first, second and third are

65.14, 67.15 and 69.79, respectively. The null

hypothesis, H

0,3

, can thus not be rejected. There is no

statistically significant difference between the mean

SUS scores of the three occasions (first, second and

third).

In summary, the statistical analysis showed that

there are statistically significant differences in the

usability of the three Search Engines, as measured by

the SUS questionnaire; similarly, Search Term had a

significant effect on mean SUS score, but Occasion did

not.

6.2 Pairwise Comparisons

Pairwise comparisons were done in order to determine

any significant differences between the effects of pairs

of Search Engines, Search Terms and Occasions. The

following secondary hypotheses were formulated:

 H

0,1a

: There is no significant difference

between the mean SUS score of Google and

Yahoo!.

 H

0,1b

: There is no significant difference

between the mean SUS score of Google and

Bing.

Randomised Controlled Trial of the Usability of Major Search Engines (Google, Yahoo! and Bing) When using Ambiguous Search Queries

157

 H

0,1c

: There is no significant difference

between the mean SUS score of Yahoo! and

Bing.

 H

0,2a

: There is no significant difference

between the mean SUS score of shoot and

divide.

 H

0,2b

: There is no significant difference

between the mean SUS score of shoot and seal.

 H

0,2c

: There is no significant difference

between the mean SUS score of divide and seal.

The results of the pairwise comparisons are

summarised in Table 2. Again, significant P-values (P

< 0.05) are underlined. The results show that all three

pairwise differences in mean SUS score between

search engines are statistically significant. All three

hypothesis H

0,1a

, H

0,1b

and H

0,1c

can thus be rejected.

There is a statistically significant difference between

the mean SUS scores of the three search engines.

Similarly, Table 2 shows that two of the three

pairwise differences in mean SUS score between

search terms, namely shoot versus divide and between

divide versus seal, are statistically significant. The

hypotheses H

0,2a

and H

0,2c

can thus be rejected. There

is a statistically significant difference between the

mean SUS scores of shoot and divide and between

divide and seal.

Finally, none of the pairwise differences between

the different occasions (first, second and third) is

statistically significant, indicating that the order in

which the participants used the three search engines

and three search terms did not affect the SUS score.

7 DISCUSSION

The answer to the research question, “What is the

current usability state of the major search engines

(Google, Yahoo! and Bing) when ambiguous search

queries are used?” can be summarised as follows.

There were statistically significant differences

between the three search engines (Google vs Yahoo!,

Google vs Bing and Yahoo! vs Bing) with respect to

mean SUS score. Specifically, with regard to mean

SUS score, Google was ranked the highest, with a

mean SUS score of 81.11, followed by Yahoo! and

then Bing with mean SUS scores of 65.42 and 55.56,

respectively (Table 1). In other words, the participants

experienced Google to be the easiest to use, followed

by Yahoo! and Bing.

Regarding search terms, there were statistically

significant differences between shoot versus divide and

divide versus seal. These differences could have been

caused by the fact that the search term divide was the

only search term where the minimum number of web

pages to view in order to find the answer was four,

whereas the minimum number of web pages to view

for search terms shoot and seal was three. In other

words, using the search term divide, the participants

experienced the task as being more difficult than when

using the terms shoot or seal.

It was interesting to note that there were no

significant differences in mean SUS score between the

occasions.

Thus, the order in which the participants used the

three search engines and three search terms did not

affect on the SUS score. This suggests the absence of

learning or tiring effects on the SUS scores.

8 CONCLUSION

The data reported here were obtained through a

traditional data collection method, namely the SUS

questionnaire. The data represented the participants’

perceived usability of each Search Engine (Google,

Yahoo! and Bing), Search Term (shoot, divide and seal)

and Occasion (first, second and third) while using

ambiguous search terms.

Table 2: Comparison of Search Engine, Search Term and Occasion with Respect to SUS Score.

Effect Contrast Difference of means 95% CI for difference

P-value

Engine

Google vs Bing 25.56 19.16 to 31.95 < 0.0001

Yahoo! vs Bing 9.86 3.47 to 16.25 0.0030

Google vs Yahoo! 15.69 9.30 to 22.09 < 0.0001

Term

shoot vs divide 9.10 2.71 to 15.49 0.0060

shoot vs seal -1.18 -7.57 to 5.21 0.7135

divide vs seal -10.28 -16.67 to -3.89 0.0020

Occasion

first vs second -2.01 -8.41 to 4.38 0.5315

first vs third -4.65 -11.04 to 1.74 0.1509

second vs third -2.64 -9.03 to 3.75 0.4127

ANOVA with Participant, Search Engine, Search Term and Occasion as fixed effects.

CHIRA 2020 - 4th International Conference on Computer-Human Interaction Research and Applications

158

The statistical analysis showed that with respect to

mean SUS score, the participants found Google to be

the most usable, followed by Yahoo! and Bing. The

results corresponded with the participants’ self-

reported confidence level where the majority reported

that they were confident using Google and less so

Yahoo!, followed by Bing. The pre-test questionnaire

also revealed that Google was the preferred

searchengine for all participants. This fact was further

confirmed when 13 and 15 participants indicated that

they had never before used Yahoo! or Bing,

respectively. Furthermore, the pre-test questionnaire

revealed that approximately half of the participants’

browser homepages were set to Google. Fourteen

participants stated that they were used to how Google

worked and that it returned results almost instantly.

The results from the post-test questionnaire showed

that most participants preferred Google, followed by

Yahoo! and Bing. These findings contribute to existing

literature indicating that good usability could be one of

the contributors to Google having the highest market

share, followed by Yahoo! and Bing, worldwide as well

as in South Africa.

With regard to the search terms, the statistical

analysis showed that the task associated with the search

term divide was more difficult than the tasks involving

the terms shoot and seal. This finding could be

attributed to the fact that divide was the only search

term that required the participants to navigate to four

web pages in order to find the answer, compared to the

search terms shoot and seal, which only required three.

Therefore, the fewer web pages a participant has to

navigate, the more positive they find the experience.

Interestingly there were no statistically significant

differences in mean SUS scores between the occasions,

which suggests that learning and tiring effects did not

significantly affect perceived usability. The post-test

questionnaire confirmed this finding, as the majority of

the participants indicated that their energy levels were

unchanged after completing the testing session versus

before starting the testing session. Some even indicated

that they felt more energetic after completing the

testing session.

In the light of the above, the participants

perceived the usability of Google to be the highest,

followed by Yahoo! and then Bing. Furthermore,

tasks that involved navigating more web pages

(Search Term) were more difficult. The order in

which the tasks were completed (Occasion) did not

affect the results.

9 CONTRIBUTION

With the ever-increasing size of the WWW and users’

tendency to use short, ambiguous search queries

resulting in incorrect or unexpected results being

returned, users may frequently experience feelings of

frustration or negativity – all indications of problems

with usability.

This research paper succeeded in determining the

usability of Google, Yahoo! and Bing when ambiguous

search terms were presented as the input. It makes both

a practical and methodological contribution to the body

of knowledge.

In terms of the practical contribution, the results

indicated that the usability aspects tested by the SUS

questionnaire, namely measuring global system

satisfaction as well as sub-scales of usability and

learnability (Lewis & Sauro, 2009; Sauro, 2011), have

an effect on the usability of a search engine in terms of

users entering ambiguous search queries. The results

further indicated the importance of keeping the number

of webpages that the user has to navigate, as small as

possible since the number of page visits seems to affect

the users’ perception of the usability of a search

engine’s handling of ambiguous search queries.

Regarding the methodological contribution of the

paper, the use of the Graeco‐Latin Square design

(Kempthorne, 1983 p. 187) proved to be beneficial.

This design allowed the researchers to simultaneously

investigate and adjust for the orthogonal factors Search

Engine, Search Term and Occasion while removing

the typically very large between‐subject variability

from the statistical comparisons. Thus, in the present

application, the Graeco‐Latin Square (Kempthorne,

1983 p. 187) was an efficient design for the estimation

of contrasts between search engines, search terms, and

occasions with high precision (high power). Therefore,

its use in a future study of the same or similar type is

recommended.

10 FUTURE RESEARCH

The research presented in this paper paved the way for

a follow-up paper focussing on the effect of Search

Engine, Search Term and Occasion on Brain-

Computer Interface metrics for emotions, when

ambiguous search queries are used (Nel, De Wet &

Schall, 2019).

This paper presented the differences in the mean

SUS scores to determine the usability of Google,

Yahoo! and Bing when ambiguous search queries were

used; follow-up papers will report on the:

Randomised Controlled Trial of the Usability of Major Search Engines (Google, Yahoo! and Bing) When using Ambiguous Search Queries

159

 The effect of Search Engine, Search Term and

Occasion on the participants’ probability of

task success when ambiguous search queries

are used.

 The effect of Search Engine, Search Term and

Occasion on the number of web pages visited

to complete a task when ambiguous search

queries are used.

REFERENCES

Alpert, J. & Hajaj, N. 2008. We knew the web was big….

[Online], Available: http://googleblog.blogspot.com/

2008/07/we-knew-web-was-big.html [2018, November

26].

Azzopardi, L. 2007. Position paper: Towards evaluating the

user experience of interactive information access

systems. Proceedings of SIGIR 2007 Workshop: Web

Information Seeking and Interaction. 60–64.

Baeza-Yates, R., Hurtado, C. & Mendoza, M. 2007.

Improving search engines by query clustering. Journal

of the American Society for Information Science and

Technology. 58(12).

Bing search engine. 2018. [Online], Available:

www.bing.com [2018, November 26].

Breytenbach, J. & McDonald, T. 2010. Soekenjindekking

van Suid-Afrikaanse en Afrikaanse webruimtes. Suid-

Afrikaanse Tydskrif vir Natuurwetenskap en

Tegnologie. 29(3).

Brooke, J. 1996. SUS: A Quick and Dirty Usability Scale.

Usability Evaluation in Industry. P. Jordan, B. Thomas,

B. Weerdmeester, & I. McCellelland (eds.). London:

Taylor & Francis.

Carpineto, C., de Mori, R., Romano, G. & Bigi, B. 2001.

An information-theoretic approach to automatic query

expansion. In Vol. 19. ACM Transactions on

Information Systems ACM Transactions on

Information Systems (TOIS). 1–27. [Online], Available:

http://www.accessmylibrary.com/coms2/summary_02

86-10728134_ITM.

Dictionary.com. 2018. Information retrieval. [Online],

Available:

http://dictionary.reference.com/browse/information+re

trieval [2018, November 21].

Dou, Z., Song, R. & Wen, J. 2007. A large-scale evaluation

and analysis of personalized search strategies.

Proceedings of the 16th international conference on

World Wide Web - WWW ’07. 581.

E-business solutions. 2011. [Online], Available:

http://www.it-architects.co.uk/a_-

_z_glossary_index/E-Business_Solutions_Glossary/e-

business_solutions_glossary.html [2011, March 08].

Edosomwan, O.J. & Edosomwan, T. 2010. Comparative

analysis of some search engines. South African Journal

of Science. 106(11/12). [Online], Available:

http://www.sajs.co.za/index.php/SAJS/article/view/16

9/439.

Elbassuoni, S., Luxenburger, J. & Weikum, G. 2007.

Adaptive personalization of web search. Proceedings of

SIGIR 2007 Workshop: Web Information Seeking and

Interaction. 1–4.

Fowler, D.S. 2018. How many websites are there in the

world? [Online], Available: https://tekeye.uk/

computing/how-many-websites-are-there [2018,

October 22].

Gabbert, E. 2017. Keywords vs. search queries: What’s the

difference? [Online], Available: http://www.

wordstream.com/blog/ws/2011/05/25/keywords-vs-

search-queries [2018, November 26].

Gale, W.A., Church, K.W. & Yarowsky, D. 1992. Using

bilingual materials to develop word sense

disambiguation methods. In Montréal, Canada Fourth

International Conference on Theoretical and

Methodological Issues in Machine Translation. 101–

112.

Goodman, E. & Cramer, M. 2010. [Online], Available:

http://www.comscore.com/Press_Events/Presentations

_Whitepapers/

2010/The_Future_of_Search_The_Emerging_Power_

of_Real-time_Personalized_Search.

Google Search Engine. 2018. [Online], Available:

www.google.co.za [2018, November 26].

International Standards Organization - ISO 9241-11. 1998.

Ergonomic requirements for office work with visual

display terminals (VDTs) - Part 11: Guidance on

usability.

Kempthorne, O. 1983. Design and Analysis of Experiments.

Revised ed. Florida: Robert E Krieger Publishing

Company.

Koetsier, J. 2013. How Google searches 30 trillion web

pages, 100 billion times a month. [Online], Available:

https://venturebeat.com/2013/03/01/how-google-

searches-30-trillion-web-pages-100-billion-times-a-

month/ [2017, October 11].

Krug, S. 2006. Don’t Make Me Think! A Common Sense

Approach to Web Usability. 2nd ed. Vol. 277. Berkeley,

California USA: New Riders Publishing.

de Kunder, M. 2018. The size of the World Wide Web (The

Internet). [Online], Available: http://www.worldwide

websize.com/ [2018, October 22].

Leung, K.W., Ng, W. & Lee, D.L. 2008. Personalized

concept-based clustering of search engine queries.

IEEE Transactions on Knowledge and Data

Engineering. 20(11):1505–1518.

Lewis, J.R. & Sauro, J. 2009. The factor structure of the

system usability scale. Lecture Notes in Computer

Science (including subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics). 5619

LNCS:94–103.

Linden, G. 2007. Personalized search primer and Google’s

approach. [Online], Available: http://www.readwrite

web.com/archives/personalized_search_primer.php

[2011, March 08].

Loukides, M. 2010. What is data science? Analysis: The

future belongs to the companies and people that turn

data into products. [Online], Available:

CHIRA 2020 - 4th International Conference on Computer-Human Interaction Research and Applications

160

http://radar.oreilly.com/2010/06/what is data

science.html [2010, July 01].

Luo, C., Liu, Y., Zhang, M. & Ma, S. 2014. Query

ambiguity identification based on user behavior

information. Information Retrieval Technology.

(863):36–47.

Meaning of “search query” in the English Dictionary.

2018. [Online], Available: http://dictionary.cambridge.

org/dictionary/english/search-query [2018, November

12].

Merriam-Webster, I. 2018. Dictionary: Information

retrieval. [Online], Available: http://www.merriam-

webster.com/dictionary/information retrieval [2018,

March 17].

Mitra, M., Singhal, A. & Buckley, C. 1998. Improving

automatic query expansion. In New York: ACM New

York SIGIR ’98 Proceedings of the 21st Annual

International ACM SIGIR Conference on Research and

Development in Information Retrieval.

Mouton, J. 2001. How to succeed in your Master’s and

Doctoral Studies. A South African guide and resource

book. Van Schaik publishers.

Nel, W., De Wet, L. & Schall, R. 2019. The effect of search

engine, search term and occasion on brain-computer

interface metrics for emotions when ambiguous search

queries are used. CHIRA 2019 - Proceedings of the 3rd

International Conference on Computer-Human

Interaction Research and Applications. (Chira):28–39.

Nielsen, J. 2012. Usability 101: Introduction to usability.

[Online], Available: http://www.nngroup.com/articles/

usability-101-introduction-to-usability/ [2018, March

12].

Oberoi, I.S. & Chopra, M. 2010. Web Search Engines – A

Comparative Study. [Online], Available: http://www.

idt.mdh.se/kurser/ct3340/ht09/ADMINISTRATION/I

RCSE09-submissions/ircse09_submission_14.pdf.

Oxford English Dictionary. 2010. 2nd ed. Oxford

University Press.

Patel, N. 2015. Understanding the difference between

queries and keywords and what to do about it. SEJ

Summit in Santa Monica: SearchEngine Journal.

[Online], Available: https://www.searchenginejournal.

com/understanding-difference-queries-keywords/1264

21/.

Preece, J., Rogers, Y. & Sharp, H. 2015. Interaction Design

- Beyond Human-Computer Interaction. 4th ed. West

Sussex, United Kingdom: John Wiley & Sons Ltd.

Rogers, Y., Sharp, H. & Preece, J. 2011. Interaction Design

- Beyond Human-Computer Interaction. 3rd ed. West

Sussex, United Kingdom: John Wiley & Sons Ltd.

Rouse, M. 2016. Search string. [Online], Available:

http://whatis.techtarget.com/definition/search-string

[2017, October 12].

Sanderson, M. 2008. Ambiguous queries: Test collections

need more sense. Proceedings of the 31st Annual

International ACM SIGIR Conference on Research and

Development in Information Retrieval. 499–506.

SAS Institute Inc. 2013.

SAS/STAT 13.1 User’s Guide.

Cary, NC: SAS Institute Inc.

Sauro, J. 2011. Measuring Usability With The System

Usability Scale (SUS). [Online], Available:

https://measuringu.com/sus/ [2020, May 07].

Schwartz, B. 2016a. Google’s search knows about over 130

trillion pages. [Online], Available: https://searchengine

land.com/googles-search-indexes-hits-130-trillion-

pages-documents-263378 [2017, October 11].

Schwartz, B. 2016b. Google knows of 130 trillion pages on

the web - 100 trillion more in 4 years. [Online],

Available: https://www.seroundtable.com/google-130-

trillion-pages-22985.html [2017, October 11].

Search Engine Market Share South Africa. 2020. [Online],

Available: https://gs.statcounter.com/search-engine-

market-share/all/south-africa/#quarterly-202001-

202002-bar [2020, May 07].

Search Engine Market Share Worldwide. 2020. [Online],

Available: https://gs.statcounter.com/search-engine-

market-share#quarterly-202001-202002-bar [2020,

May 07].

Search string. 2017. [Online], Available:

https://www.computerhope.com/jargon/s/searstri.htm

[2017, October 12].

Search term. n.d. [Online], Available:

http://www.dictionary.com/browse/search-term

[2017a, October 12].

Search term. n.d. [Online], Available: http://www.business

dictionary.com/definition/search-term.html [2017b,

October 17].

Shneiderman, B. 1998. Designing the User Interface.

Strategies for Effective Human- Computer Interaction.

3rd ed. USA: Addison Wesley Longman, Inc.

Song, R., Luo, Z., Wen, J., Yu, Y. & Hon, H. 2007.

Identifying ambiguous queries in web search.

Proceedings of the 16th international conference on

World Wide Web - WWW ’07. 1169.

Song, R., Luo, Z., Nie, J.Y., Yu, Y. & Hon, H.W. 2009.

Identification of ambiguous queries in web search.

Information Processing and Management. 45(2):216–

229.

Teevan, J., Dumais, S.T. & Horvitz, E. 2007.

Characterizing the value of personalizing search.

SIGIR’07.

TheFreeDictionary by Farlex. 2015. Information retrieval.

[Online], Available: http://encyclopedia2.thefree

dictionary.com/Information+Retrieval [2015, March

17].

Tullis, T. & Albert, B. 2013. Measuring the User

Experience - Collecting, Analyzing, and Presenting

Usability Metrics. 2nd ed. Amsterdam:

Elsevier/Morgan Kaufmann.

Voorhees, E. 1993. Using WordNet to disambiguate word

senses for text retrieval. In Pitsburgh, PA, USA ACM-

SIGIR ’93. 171–180.

Yahoo! Search Engine. 2018. [Online], Available:

https://za.yahoo.com/ [2018, November 26].

Ying, L., Scheuermann, P., Li, X. & Zhu, X. 2007. Using

WordNet to disambiguate word senses for text

classification. In Vol. Part III. Berlin Heidelberg:

Springer-Verlag ICCS. 781–789.

Randomised Controlled Trial of the Usability of Major Search Engines (Google, Yahoo! and Bing) When using Ambiguous Search Queries

161
