Converting Web Pages Mockups to HTML using Machine Learning

Tiago Bouc¸as and Ant

onio Esteves

Centro ALGORITMI, School of Engineering, University of Minho, Campus de Gualtar, Braga, Portugal

Keywords:

Deep Learning, Convolutional Neural Network, Recurrent Neural Network, YOLO, Web Page Mockup.

Abstract:

Converting Web pages mockups to code is a task that developers typically perform. Due to the time required

to accomplish this task, the time available to devote to application logic is reduced. So, the main goal of the

present work was to develop deep learning models to automatically convert mockups of Web graphical inter-

faces into HTML, CSS and Bootstrap code. The trained model must be deployed as a Web application. Two

deep learning models were built, resulting from two different approaches to integrate in the Web application.

The ﬁrst approach uses a hybrid architecture with a convolutional neuronal network (CNN) and two recurrent

networks (RNNs), following the encoder-decoder architecture commonly adopted in image captioning. The

second approach is focused on the spatial component of the problem being addressed, and includes the YOLO

network and a layout algorithm. Testing with the same dataset, the prediction’s correction achieved with the

ﬁrst approach was 71.30%, while the second approach reached 88.28%. The ﬁrst contribution of the present

paper is the development of a rich dataset with Web pages GUI sketches and their captions. There was no

dataset with sufﬁciently complex GUI sketches before we start this work. A second contribution was applying

YOLO to detect and localize HTML elements, and the development of a layout algorithm that allows us to

convert the YOLO result into code. It is a completely different approach from what is found in the related

work. Finally, we achieved with YOLO-based architecture a prediction’s correction higher than reported in

the literature.

1 INTRODUCTION

For many years, machines only replaced the human

being in tasks that involved force. With the use of

mechanized force many jobs were lost, but others

more linked to cognitive ability were gained. Today,

artiﬁcial intelligence has reached an impressive devel-

opment, which is mainly due to the recent computa-

tional development. Huge complexity tasks are now

performed faster and more efﬁciently by machines.

Professions that involve repetitive tasks risk disap-

pearing, while others will be completely remodeled.

This paper presents the development and deploy-

ment of deep learning models to convert graphical

user interface (GUI) sketches, elaborated with the

Balsamiq Mockups application, into HTML, CSS and

bootstrap code. Converting GUI sketches to code is a

task commonly performed by programmers. Due to

the time consumed by this task, it becomes impossi-

ble to devote more time to application logic. On the

other hand, it also becomes a repetitive and tedious

task. The developed models will make it easier and

https://orcid.org/0000-0003-3694-820X

faster for programmers to work, as they automatically

generate code from an outline of the application inter-

face made with Balsamiq Mockups. After receiving

the code, the user just needs to add JavaScript code,

replace the default text and customize the appearance

of the generated page.

The ﬁrst contribution of the present work is the

development of a rich dataset with Web pages GUI

sketches and their captions. Due to the lack of

datasets with sufﬁciently complex GUI sketches, we

decided to construct our own dataset. A second con-

tribution was applying YOLO to detect and localize

HTML elements, and the development of a layout al-

gorithm that allows us to convert the YOLO result into

code. It is a completely different approach from what

is found in the related work.

After presenting the related work in section 2, it

is described the followed methodology. Section 3.1

summarizes the dataset used to train and test the DL

models. The next two sections present two distinct

approaches to address the mockups conversion prob-

lem. The hybrid approach, described in section 3.2,

follows an encoder-decoder architecture. The second

approach is presented in section 3.3 and uses YOLO.

Bouças, T. and Esteves, A.

Converting Web Pages Mockups to HTML using Machine Learning.

DOI: 10.5220/0010116302170224

In Proceedings of the 16th International Conference on Web Information Systems and Technologies (WEBIST 2020), pages 217-224

ISBN: 978-989-758-478-7

217

Section 3.4 brieﬂy describes the deployment of the

models through a web application. In section 4 we

present the realized experiments and the achieved re-

sults. This section allows us to understand which one

is the best combination of neural networks in the hy-

brid approach and the best accuracy achieved by the

YOLO approach. Two prediction examples are pre-

sented next. The paper ends with the conclusions and

future work (section 5).

2 RELATED WORK

Image captioning is much more than image recogni-

tion or classiﬁcation. Captioning has additional chal-

lenges such as recognizing dependencies between ob-

jects that are part of the same image and creating se-

quential text. (Hossain et al., 2018), (Mullachery and

Motwani, 2016), and (Srinivasan et al., 2018) are ex-

amples of works that allow automatic captioning, ap-

plied to photographs taken in everyday life, through

the combination of convolutional and RNNs.

In (Balog et al., 2017), authors have shown that it

is possible to train a deep neuronal network (DNN) to

predict program properties from inputs and outputs.

In (Mou et al., 2015), it is presented a study showing

that it is possible to convert an intention, described

textually, to C code. Through recurrent networks, it

is possible to understand the user’s intent and to gen-

erate part of the code. Their model does not always

generate completely correct code.

Work in (Deng et al., 2017) demonstrates that

DNNs, including CNNs and RNNs (Tan and Wang,

2018), achieve better results when compared to clas-

sical techniques, such as OCR, even in handwritten

data. This project allows us to generate LaTeX code

for an equation given its image. They follow an

attention-based approach to highlight important fea-

tures present in the provided image, something that

human being does very well. Their goal is to avoid

losing relevant information (Xu et al., 2015).

Currently there is a great curiosity about what can

be achieved with automatic code generation. The au-

thor of (Beltramelli, 2017) showed that it is possible

to generate HTML and CSS code from Web pages

GUI sketches. Given a dataset with images and the

associated code, a CNN makes it is possible to ex-

tract the characteristics of the images and an RNN

allows him to obtain the image description. The de-

coder RNN was trained with supervised data, includ-

ing images and the respective code. The output from

the RNN is compiled in order to get functional HTML

code. This work is only focused on the layout and ig-

nores the textual part.

The system developed in (Capece et al., 2016) im-

plements a deep learning (DL) currency recognizer,

based on a client-server architecture. They show that

we can obtain a good CNN accuracy in currency

recognition. However, it requires a relatively large

dataset, since CNNs do not perform well with little

data. Users can photograph a coin and send the image

to the server. The provided image is then classiﬁed

with the trained model.

3 METHODOLOGY

This section presents the development and deploy-

ment of deep learning models to convert graphical

user interface sketches, elaborated with the Balsamiq

Mockups application, into code.

3.1 Dataset

The lack of datasets with sufﬁciently complex GUI

sketches led us to create one from scratch. The Web

pages GUI sketches were designed with the aid of

the Balsamiq Mockups tool. The developed dataset

includes the most commonly used Bootstrap com-

ponents, such as images, videos, buttons, navigation

bars, and tables. It consists of 1100 images, 1000 for

training and 100 for testing. Covering only a subset

of the Bootstrap components is due to the amount of

sketches that would be necessary to create in order to

support all the components. The elements contained

within the upper navigation bar are recognized as in-

dependent elements by the DL model. The same does

not happen with the side navigation bar, where the

recognition of internal elements is not performed for

the sake of keeping the dataset smaller.

The inputs for the DL models developed on the

two approaches reported in this paper are different.

So, while in the hybrid approach it was necessary to

caption the images with DSL code, in the YOLO ap-

proach XML annotations were created.

3.2 The Hybrid Approach

The hybrid approach follows a encoder-decoder ar-

chitecture, similar to the common architecture used

in image captioning with DNNs (Vinyals et al.,

2015)(Vinyals et al., 2017). The encoder consists of

two neural networks: a CNN that receives an image as

input and a RNN that receives text as input. The de-

coder neuronal network, which is not necessarily the

same as the encoder, plays the exact opposite role of

the encoder: receives the concatenated feature vector

as input and outputs the closest match based on the

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

218

input. Encoder and decoder are trained together and

work to reduce the cost function.

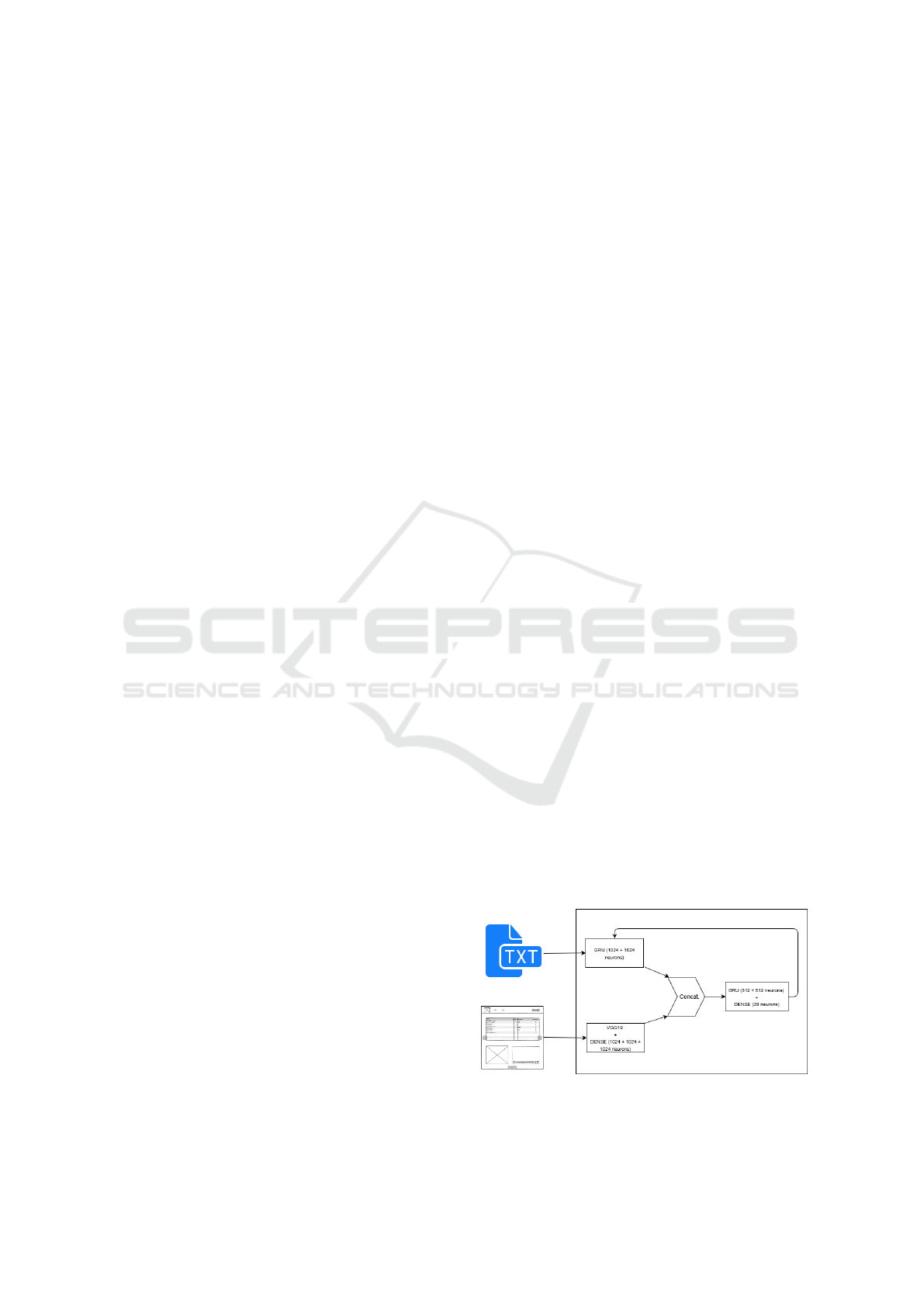

The hybrid approach architecture combines a

CNN with two RNNs to receive an image as input and

to generate the caption for that image. In this case, the

captioning of sketches is done with DSL code, instead

of the usual textual description in a natural language

such as Portuguese or English. Given the complexity

and size of HTML and CSS code, it was necessary to

create a DSL to turn automatic code generation easier.

3.2.1 Domain Speciﬁc Language

Domain speciﬁc languages (DSL) (Kosar et al., 2015)

are programming languages with limited expressive-

ness, focused on a particular application domain.

Limited expressiveness means that the language only

serves the minimum requirements for the application

domain it was designed. The opposite is a general

purpose language, such as Java, C or Python. The

fact that a programming language is built speciﬁcally

to solve problems in a given domain facilitates its in-

terpretation, since it is composed of elements and re-

lations that directly represent the logic of that domain.

Using a DSL in the hybrid approach was essential,

as it would be difﬁcult a model to learn generating

HTML and CSS code correctly, due to its complex-

ity. The DSL simpliﬁes the code generation and facil-

itates the task of the DL model (LeCun et al., 2015).

Listing 1 contains the DSL code for a simple sketch

consisting of an image and two text blocks.

c o n t e n t {

row {

c o l {


}

c o l {

}

row {

}

Listing 1: An example of DSL code.

3.2.2 Compiler

A compiler translates high level code to lower level

code. For the most popular languages, such as C or

Java, the compiler translates a high level language that

is understood by the user into a lower level language

that the machine can execute. Tools like ANTLR4 let

us create our own programming language. The de-

veloped compiler was used to convert the described

DSL code into HTML and CSS code. The grammar,

created to solve the problem of converting sketches

to HTML, consists of a set of terminal symbols, in-

cluding Bootstrap elements such as images, videos,

links or tables. These symbols cannot be divided into

smaller units, hence the ”terminal” designation. The

top navigation bar consists of a set of elements, such

as buttons, images, or titles. It is divided into smaller

units and is therefore called a non-terminal symbol.

Non-terminal symbols consist of combinations of ter-

minal and non-terminal symbols.

3.2.3 Model Architecture

The converter follows a different architecture during

training and inference. In the training phase, the DL

model receives as input a vector that results from con-

catenating the image features with the correspondent

DSL code, while in the inference phase the input vec-

tor contains only the image and the <start> tag. The

DL model follows an encoder-decoder architecture,

inspired by the machine translation and image cap-

tioning literature. During the encoding step, the in-

put, i.e. an image and the associated DSL code, is

transformed into a ﬁxed-length vector. In the decod-

ing step, the encoded vector is interpreted. The de-

coding task is different during training and inference.

During the training phase, the decoder receives as

input the concatenated vector, which is used to learn

the relationship between the image and the associated

DSL code (ﬁgure 1).

During the inference phase, the DL model re-

ceives as inputs the image vector and the <start>

tag. The remaining DSL code will be generated by the

model. While the model is generating DSL code for

the image, the output sequence grows until it reaches

an established maximum number of iterations, or until

it generates the <stop> tag that terminates the conver-

sion (ﬁgure 2).

Figure 1: Hybrid approach architecture during training.

Converting Web Pages Mockups to HTML using Machine Learning

219

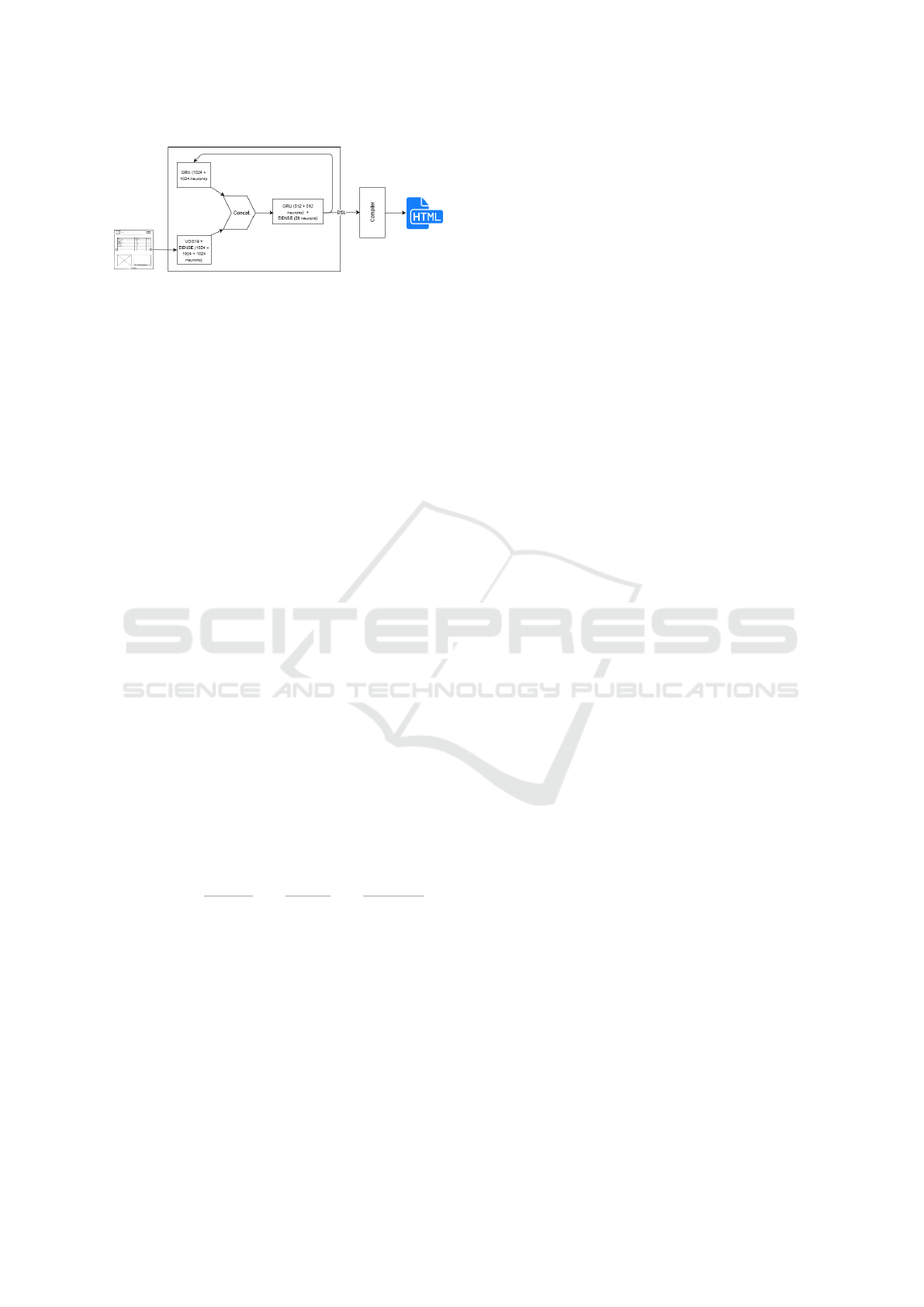

Figure 2: Hybrid approach architecture during inference.

3.2.4 Metrics

A metric was developed speciﬁcally to evaluate the

code generated by the DL model. BLEU score is the

most commonly used metric in machine translation,

but it compares only the generated code with the ex-

pected one, word by word (Papineni et al., 2002). In

our case, this would neglect the most important as-

pect, i.e., the number of elements correctly identiﬁed.

The success of the developed metric is measured

by the percentage of elements correctly identiﬁed, the

placement of the elements on the correct row and

column (with a smaller weight), and a penalty as-

sociated with the incorrect correspondence between

curly braces. Since the metric focus on these points,

it produces values closer to reality in our automatic

code generation problem. To make the results even

more realistic, different weights are assigned to each

mentioned component. Due to the low probability

of the model generating incorrect curly braces, there

is a weight that reduces the result by 5% when the

curly braces are in wrong place. The binary variable

correctCBraces indicates whether there is a correct

curly braces matching or not (equation 1).

weightCBraces = 0.95 + 0.05 ∗ correctCBraces (1)

Equation 2 allows us to evaluate the model output,

based on a given weight that penalizes failures in the

generation of braces, the number of correctly gener-

ated elements, and the correct placement of elements

on the generated Web page.

weightCBraces ∗ (0.8 ∗

truePositives

occurrences

+ 0.1 ∗

corretRows

occurrences

+ 0.1 ∗

correctColumns

occurrences

)

(2)

The weightCBraces is computed with equation 1,

occurrences is the number of elements generated

by the model, truePositives is the number of ele-

ments that are generated correctly, corretRows and

correctColumns are the number of elements placed

in the correct row and column, respectively.

3.3 The YOLO Approach

The second approach adopted for converting GUI

sketches to code resulted from the fact that the hy-

brid approach lacked an adequate treatment of the

spatial component of sketches, which made it difﬁ-

cult to generate correct layouts. The main tool that al-

lowed us to tackle this challenge was YOLO, a DNN

that presents good results in the detection and local-

ization of objects. In this way, we intended to ﬁnd out

which objects are present in the user-provided image.

It is also important to know the location of the ob-

jects, so that the ﬁnal layout is as close as possible to

the input sketch. Based on the information obtained

by YOLO, a layout algorithm has been developed to

map the objects detected in the provided image into

HTML and CSS code. The layout algorithm takes

advantage of CSS’s placement and size properties to

place elements on the Web page. This allows us to

place each object in a position very close to the cor-

rect one. The points provided by YOLO allow us to

deduce the width and height of the detected objects

and thus get HTML pages with a visual layout very

close to the input sketch.

3.3.1 YOLO Model

YOLO is a deep learning model for real-time ob-

ject detection and localization, that has evolved

through four versions (Redmon et al., 2016) (Red-

mon and Farhadi, 2016) (Redmon and Farhadi, 2018)

(Bochkovskiy et al., 2020). Training accurate ob-

ject detection models requires many GPUs and us-

ing a large batch size. The most updated version

of YOLO avoids these inconvenient requirements by

making an object detector which can be trained on

a single GPU with a smaller batch size. It combines

features such as weighted residual connections, cross-

stage partial connections, cross mini-batch normal-

ization, self-adversarial training and Mish activation,

mosaic data augmentation, DropBlock regularization,

and Complete-IoU loss. YOLO generates a list of ob-

jects and the correspondent bounding boxes.

3.3.2 Layout Algorithm

The CSS properties allow us to position elements on

the desired position of a Web page. This makes it

relatively easy to map the objects recognized by the

model into HTML code. For each detected object,

YOLO returns two points that deﬁne its bounding

box: (x

min

, y

min

) and (x

max

, y

max

). In the absence of

more accurate information, the bounding box is used

to set the location and size of the object to place on

the Web page. The top-left corner of the object’s posi-

tion, can be speciﬁed by the CSS top and left prop-

erties, and assumes the y

min

and x

min

values returned

by YOLO, respectively. In the same way, the CSS

width and height properties allow us to specify the

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

220

size of the object on the Web page, and are assigned

max

−x

min

and y

max

−y

min

values, respectively. These

CSS properties allow us to generate Web pages visu-

ally similar to the input sketches.

The viewport is the area where the browser

draws the Web page content. We implemented a

function to ensure that the size of the Web page el-

ements ﬁt our display. Through simple calculations,

this function turns the generated Web pages respon-

sive. For example, given sketches with a ﬁxed-size of

256 × 256 pixels, equations 3 to 6 convert the coordi-

nates of the detected objects to a variable size view-

port, which ﬁts the size of our display.

le f t = (x

min

∗ 100vw) ÷ 256 (3)

top = (y

min

∗ 100vh) ÷ 256 (4)

width = (width ∗ 100vw) ÷ 256 (5)

height = (height ∗ 100vh) ÷ 256 (6)

Where vh, or viewport height, is based on the

height of the viewport. A value of 100vh is equal to

100% of the viewport height. vw is the viewport width

and it is based on the width of the viewport.

For each HTML element, a template with HTML

and CSS code was deﬁned. The template has tags to

delimit the places to be replaced by the values gener-

ated by YOLO. As explained before, the CSS prop-

erties that deﬁne the position and size of HTML ele-

ments can be replaced by values obtained by YOLO.

3.3.3 Model Architecture

Like in the hybrid approach, the developed model

follows a different architecture during training and

inference. During training, YOLO receives a ﬁle

with the identiﬁcation of the images, the objects in-

cluded in each image and their bounding boxes. In

addition to the image identiﬁcation, the model re-

ceives the following information for each object:

min

, y

min

, x

max

, y

max

, and the object class. Each image

contains one or more objects (ﬁgure 3).

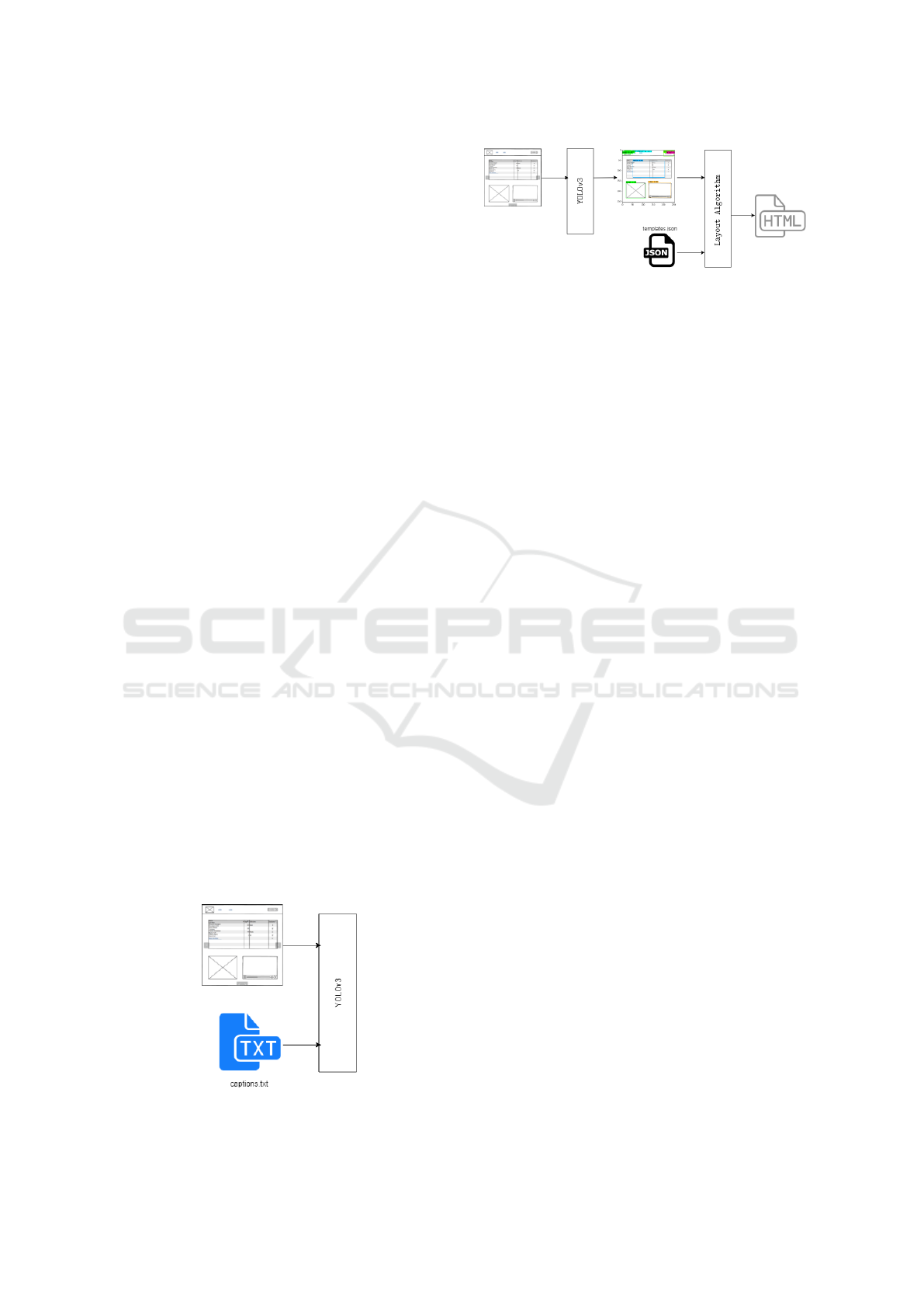

Figure 3: YOLO approach architecture during training.

Figure 4: YOLO approach architecture during inference.

During the inference phase, the model is only

fed with an image for which it must generate HTML

and CSS code. Since the model only predicts the

bounding box and the object’s class, it was nec-

essary to apply a layout algorithm to convert the

YOLO output to code. The layout algorithm re-

ceives the list of bounding boxes generated by YOLO,

which contains the location and the object’s class

min

, y

min

, x

max

, y

max

, class), and the ﬁle with the

HTML elements templates. The algorithm converts

the information about objects to HTML and CSS

code. We always get a ﬁle with functional code. To

simplify the task of handling the end result by users,

the HTML, CSS and Bootstrap codes are placed in a

single HTML ﬁle (ﬁgure 4).

3.3.4 Metrics

Two metrics were developed for the YOLO approach,

allowing us to evaluate the quality of the generated

HTML code. Quality refers to the match between the

image provided as input and the HTML and CSS page

generated by the model as output. The ﬁrst metric

measures the accuracy, i.e., the number of elements

correctly detected divided by the number of identiﬁed

elements. The second metric measures precision, and

counts the number of elements correctly identiﬁed on

each class. Both metrics consider the intersection

between the predicted and the true bounding boxes.

Through the ratio between the interception and the

union of the bounding boxes (IoU), which measures

the percentage of coincidence between these regions,

the error in generating bounding boxes is penalized.

The IoU is also called Jaccard index and Jaccard sim-

ilarity coefﬁcient (Fletcher and Islam, 2018).

The metrics applied in both approaches were

sought to be similar. Thus, a weight of 80% was as-

signed to the number of elements correctly identiﬁed

and 20% was applied to the correct localization of ob-

jects. Including the IoU value in the global metric, en-

sures that when we minimize this metric we are mini-

mizing the size and position errors associated with the

identiﬁed elements.

Equation 7 calculates the mean IoU over the N

true objects. The algorithm compares each true

bounding box with the predicted one and realizes

Converting Web Pages Mockups to HTML using Machine Learning

221

which of the predicted regions correspond to the true

region. The comparison is based on the object cat-

egory and the IoU value. Equation 8 measures the

accuracy, through the number of correct predictions,

while equation 9 accounts for the precision of the C

classes of objects, with a weight of 80%, and for the

IoU mean, with a weight of 20%.

IoU =

∑

i=1

IoU

(7)

acc = 0.8

TruePositives

occurrences

+ 0.2 IoU (8)

p = 0.8

∑

i=1

TruePositives

+FalsePositives

+0.2 IoU (9)

3.4 Deep Learning Models Deployment

React is a declarative, efﬁcient, and ﬂexible

JavaScript library for building user interfaces. React

introduced the concept of component-based architec-

ture, where each component manages its own state.

The components can be seen as small independent

parts, which together constitute the user interface.

The developed DL models were deployed as a

Web application. The application interface was di-

vided into 4 components: the header, the frameview

that shows in real-time the code changes done on

the editor, the card describing the steps to be taken

when loading an image in the main page, and the

CodeMirror, an external component used as text ed-

itor. The application consists of only two pages, the

home page and the code editor. The home page con-

sists of the header and 3 card components, which

work as a tutorial on how to use the application.

The editor page contains the text editor, implemented

with a CodeMirror component, and the frameview.

The user can create, edit or remove content from

the text editor and automatically view changes in the

frameview. This feature saves users time, avoiding

having to open the HTML page to view its content.

4 EXPERIMENTS AND RESULTS

This section presents the experiments conducted dur-

ing the development of the mockup’s converter, as

well as their results. Experiments include evaluat-

ing different convolutional neural networks (VGG16,

VGG19, ResNet-50, etc.) on the task of feature ex-

traction, the difference between GRU- and LSTM-

based recurrent networks, assess the impact of RNNs

optimized with CUDA on the training time (via

CuDNN), and the comparison of the results obtained

with both presented approaches. Both approaches

were trained with the same images and tested in the

same scenarios, in order to allow an appropriate com-

parison. The image captions vary between a DSL

description (hybrid approach) and an XML descrip-

tion of the objects plus the respective bounding boxes

(YOLO approach). Although the languages are differ-

ent, the captions are equivalent, as they describe the

same image.

Table 1: Results from the hybrid approach experiments.

Encoder CNN Enc. RNN Dec. RNN Acc.(%)

InceptResNetV2 cudnngru cudnngru 12.73

InceptionV3 cudnngru cudnngru 32.66

ResNet-50 cudnngru cudnngru 34.75

vgg16 cudnngru cudnnlstm 60.36

vgg16 cudnnlstm cudnnlstm 61.9

vgg16 GRU GRU 66.73

vgg16 cudnngru cudnngru 67.35

vgg19 cudnngru cudnngru 71.30

Table 2: Results from hybrid approach after 20 iterations.

Encoder Encoder Decoder Time Acc.

CNN RNN RNN (min) (%)

inception3 cudnngru cudnngru 239 26.16

vgg16 cudnngru cudnngru 346 60.27

resnet-50 cudnngru cudnngru 373 20.43

vgg16 cudnnlstm cudnnlstm 373 26.21

vgg16 cudnngru cudnnlstm 374 56.15

vgg19 cudnngru cudnngru 423 63.12

vgg19 cudnngru cudnnlstm 429 59.09

vgg16 gru gru 565 63.26

4.1 Hybrid Approach Experiments

The experiments carried out aimed to select the best

combination of neural networks, based on the accu-

racy between the real sketches and those generated by

the model in the test dataset. The best combination

will be compared with the YOLO-based network.

The cudnnlstm and cudnngru are normal RNN

cells, optimized with CUDA, for faster training on

GPUs. CUDA provides an interface that makes it easy

to explore the parallelism available on GPUs. The

CuDNN library provides ML tools with an implemen-

tation of Nvidia’s GPU-optimized linear algebra oper-

ations. According to tables 1 and 2, and for the same

number of epochs, the CUDA version takes consider-

ably less time to train, maintaining a similar accuracy.

It is also veriﬁed that the ﬁnal precision is slightly

higher when using the RNN’s CUDA version.

GRU cells are relatively newer and simpler than

LSTMs. According to the results obtained with the

hybrid experiments (table 1), GRU-based RNNs train

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

222

faster and have better results than LSTMs. Table 2

also show that, with the same number of epochs, the

GRU-based RNNs present better results. Although

with more epochs, the CUDA version ends up show-

ing better results. LSTMs have the advantage of being

able to memorize information from longer sequences,

due to their more complex architecture.

After several attempts with different neuronal net-

works, with and without transfer learning, and with

different hyperparameters, 71.30% accuracy was the

best result obtained with the test set. This result was

obtained using transfer learning, model weights from

the Imagenet dataset, ﬁne-tuning, and freezing the

weights of the ﬁrst layers.

Due to a GPU memory limitation, 8GB on the

Nvidia GTX 1070, some networks could not be

tested without ﬁne-tuning. For example, when using

the 200-layers InceptionResNetV2 (Szegedy et al.,

2016), it was necessary to freeze more than half of

the layers to reduce the required memory. This ended

up limiting the experiments carried out and, conse-

quently, the results. Only the VGG16 and VGG19 net-

works allowed satisfactory results.

4.2 YOLO Approach Experiments

The YOLO approach aimed to verify whether an ar-

chitecture, known for having a high performance in

the detection and location of objects, would perform

better than our hybrid model. In each iteration of

training and validation, a value for the loss is ob-

tained. The loss quantiﬁes how well the model is

adapting to both training and test sets, and unlike pre-

cision, its value is not a percentage. As the loss func-

tion sums the errors, we must minimize its value. Fig-

ure 5 shows the training and validation loss along 100

epochs. The analysis of the ﬁgure reveals that the

curves start to diverge in epoch 78. Table 3 shows

the accuracy at 5 checkpoints during training.

YOLO and the layout algorithm achieved very

good results. The model reaches the best score at

epoch 78. After 254 minutes of training the gener-

ated sketches are 88.28% accurate. According to the

metric presented in equation 9, the best precision is

88.4%. The third version of YOLO architecture was

used. Tests were carried out with different learning

rates and optimizers. This approach achieved an ex-

cellent 88.28% accuracy in the test set. The HTML

code generated by the YOLO approach is much more

similar to the provided input than in the hybrid ap-

proach. YOLO ﬁnds the exact location of the bound-

ing region and the layout algorithm places elements

in the correct positions (ﬁgures 6 and 7). The same

is not true in the ﬁrst approach, which does not pre-

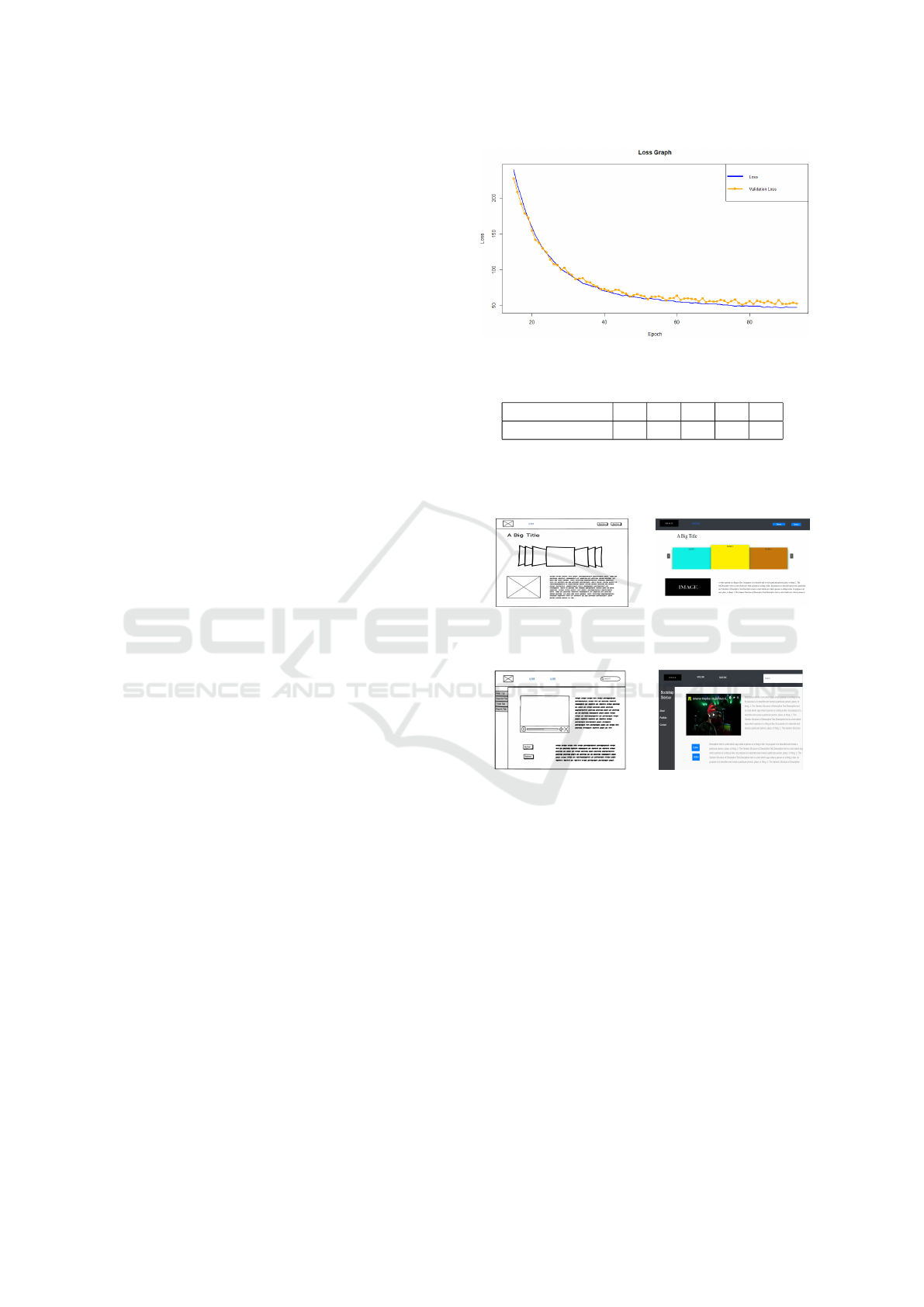

Figure 5: Training/validation loss in YOLO approach.

Table 3: Test accuracy of the YOLO approach.

Epoch 48 58 68 78 88

Accuracy (%) 60 74 83 88 83

serve the margins nor the size of the elements. In the

hybrid approach, the elements have size and position

assigned by default in a template ﬁle.

(a) input mockup (b) output page

Figure 6: First example of prediction with YOLO approach.

(a) input mockup (b) output page

Figure 7: 2

example of prediction with YOLO approach.

5 CONCLUSIONS

In the hybrid approach, the characteristics of the el-

ements to be inserted in the HTML code are stored

in a ﬁle, containing a template for each type of el-

ement commonly found in Web pages. So, the ele-

ments do not vary in size, and their position is deﬁned

only by a line-column pair, which conﬁnes the ﬁnal

appearance of the generated page. The ﬁnal result is

always different from the input mockup. YOLO han-

dles more appropriately the conversion of mockups to

code. The YOLO network identiﬁes the elements of a

mockup, as well as the respective location. The layout

algorithm maps each object recognized by YOLO into

HTML and CSS code, based on the coordinates of the

Converting Web Pages Mockups to HTML using Machine Learning

223

bounding box. This algorithm places the elements in

a HTML ﬁle, using CSS properties that allow placing

the elements given their coordinates.

The metrics developed for both approaches apply

the same weights: the number of elements generated

correctly is weighted 80% and the remaining 20% are

applied to the dimensions and positioning of the el-

ements. The hybrid approach achieved as best ac-

curacy 71.30%, while the YOLO approach achieved

88.28% of accuracy and 88.4% of precision. The sec-

ond approach generates HTML code that contains ob-

jects with the correct size and position, which natu-

rally results in Web pages much more similar to the

provided mockups. The YOLO approach covered a

wide variety of HTML elements and reached an accu-

racy that outperforms the related approaches.

As future work we propose to implement a layout

algorithm with division by line and column, as oc-

curs in the Bootstrap framework. Since the YOLO

approach provides the coordinates of the bounding re-

gions, the algorithm to be developed must be able to

ﬁnd the correct margins, in order to position the ele-

ments closer to the coordinate mapping that is being

used, thus making the generated code responsive. To

get around the biggest problem found in this work, the

lack of data, it is proposed to increase the size and di-

versity of the dataset. This measure aims to improve

the object’s detection accuracy, but fundamentally to

improve the accuracy of the coordinates of the bound-

ing box. It is also planned to increase the variety of

supported HTML elements. It is also intended to cre-

ate metrics for the assessment of precision and recall.

ACKNOWLEDGMENT

This work has been supported by FCT - Fundac¸

para a Ci

encia e Tecnologia within the R&D Units

Project Scope: UIDB/00319/2020.

REFERENCES

Balog, M., Gaunt, A., Brockschmidt, M., Nowozin, S., and

Tarlow, D. (2017). Deepcoder: Learning to write pro-

grams. ICLR 2017.

Beltramelli, T. (2017). pix2code: Generating code from a

graphical user interface screenshot.

Bochkovskiy, A., Wang, C.-Y., and Liao, H.-Y. (2020).

Yolov4: Optimal speed and accuracy of object detec-

tion.

Capece, N., Erra, U., and Ciliberto, A. (2016). Implemen-

tation of a coin recognition system for mobile devices

with deep learning. Conf. Signal-Image Technology &

Internet-Based Systems.

Deng, Y., Kanervisto, A., Ling, J., and Rush, A. M. (2017).

Image-to-markup generation with coarse-to-ﬁne at-

tention. Int. Conf. on ML.

Fletcher, S. and Islam, M. (2018). Comparing sets of pat-

terns with the jaccard index. Australasian Journal of

Information Systems, 22.

Hossain, M. Z., Sohel, F., Shiratuddin, M. F., and Laga, H.

(2018). A comprehensive survey of deep learning for

image captioning.

Kosar, T., Bohra, S., and Mernik, M. (2015). Domain-

speciﬁc languages: A systematic mapping study. In-

formation and Software Technology, 71.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep learn-

ing. Technical report.

Mou, L., Men, R., Li, G., Zhang, L., and Jin, Z. (2015). On

end-to-end program generation from user intention by

deep neural networks.

Mullachery, V. and Motwani, V. (2016). Image captioning.

arXiv, abs/1805.09137.

Papineni, K., Roukos, S., Ward, T., and Zhu, W.-J. (2002).

Bleu: a method for automatic evaluation of machine

translation. pages 311–318.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time ob-

ject detection. Conf. on Computer Vision and Pattern

Recognition (CVPR), pages 779–788.

Redmon, J. and Farhadi, A. (2016). Yolo9000: Better,

faster, stronger. Conf. on Computer Vision and Pat-

tern Recognition (CVPR).

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. ArXiv, abs/1804.02767.

Srinivasan, L., Sreekanthan, D., and A.L, A. (2018). Image

captioning - a deep learning approach. Int. Journal of

Applied Engineering Research, 13.

Szegedy, C., Ioffe, S., Vanhoucke, V., and Alemi, A. (2016).

Inception-v4, inception-resnet and the impact of resid-

ual connections on learning. AAAI Conference on Ar-

tiﬁcial Intelligence.

Tan, K. and Wang, D. (2018). A convolutional recurrent

neural network for real-time speech enhancement.

Vinyals, O., Toshev, A., Bengio, S., and Erhan, D. (2015).

Show and tell: A neural image caption generator. In

IEEE Conf. on Computer Vision and Pattern Recogni-

tion, pages 3156–3164.

Vinyals, O., Toshev, A., Bengio, S., and Erhan, D.

(2017). Show and tell: Lessons learned from the 2015

MSCOCO image captioning challenge. IEEE Trans.

Pattern Anal. Mach. Intell., 39(4):652–663.

Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhut-

dinov, R., Zemel, R., and Bengio, Y. (2015). Show,

attend and tell: Neural image caption generation with

visual attention.

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

224
