CODO: An Ontology for Collection and Analysis of Covid-19 Data

Biswanath Dutta

1,*

and Michael DeBellis



Indian Statistical Institute, Bangalore, India

Semantic Web Consultant, San Francisco, CA, U.S.A

Keywords: Domain Ontology, Ontology Engineering, COVID-19 Ontology, Novel Coronavirus Ontology, Disease,

Ontology Sharing and Reuse, Semantic Web.

Abstract: The COVID-19 Ontology for cases and patient information (CODO) provides a model for the collection and

analysis of data about the COVID-19 pandemic. The ontology provides a standards-based open source model

that facilitates the integration of data from heterogenous data sources. The ontology was designed by

analysing disparate COVID-19 data sources such as datasets, literature, services, etc. The ontology follows

the best practices for vocabularies by re-using concepts from other leading vocabularies and by using the

W3C standards RDF, OWL, SWRL, and SPARQL. The ontology already has one independent user and has

incorporated real world data from the government of India.

1 INTRODUCTION

The COVID-19 pandemic is a worldwide crisis

jeopardizing the health of everyone on the planet. One

of the tools to combat the pandemic is the collection

and analysis of data using FAIR principles.

Organizing data with technology based on FAIR

principles can provide open, federated data sources

that will provide healthcare workers with the critical

information required to track and eventually control

the growth of the pandemic. The COviD-19 Ontology

for cases and patient information (CODO) is a first

step at utilizing knowledge graph technology to help

combat the pandemic.

There are other initiatives that took a similar

approach (discussed in section 2.1). However, CODO

is unique in its scope and design approach. The main

goals of CODO are to:

1. Serve as an explicit ontology for use by data

and service providers to publish COVID-19

data using FAIR principles.

2. Develop and offer distributed, heterogenous,

semantic services and applications (e.g.,

decision support system, advanced

analytics).

https://sites.google.com/site/dutta2005/home



https://www.michaeldebellis.com/

https://www.go-fair.org/fair-principles/

3. Provide a standards-based reusable

vocabulary for the use of various

organizations (e.g., government agencies,

hospitals, academic researchers, data

publishers, news agencies, etc.) to annotate

and describe COVID-19 information.

The design of CODO has primarily been motivated

by the various COVID-19 data projection websites.

For example:

 https://covid19.who.int/

 https://www.isibang.ac.in/~athreya/incovid

19/

 https://www.mygov.in/covid-19/

 https://coronavirus.maryland.gov/

These sites show static presentations of COVID-19

cases, patient travel history, the relationships between

patients, etc. However, these kinds of static data and

visual representations need to be manually processed.

The search and visualization capabilities are typically

hard coded and impossible for users to customize

beyond the parameters defined in the software. More

importantly, the data is tightly coupled with specific

software to view it.

Dutta, B. and DeBellis, M.

CODO: An Ontology for Collection and Analysis of Covid-19 Data.

DOI: 10.5220/0010112500760085

In Proceedings of the 12th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2020) - Volume 2: KEOD, pages 76-85

ISBN: 978-989-758-474-9

With the development of the CODO ontology, we

aim at supporting the organization and representation

of COVID-19 case data on a daily basis, so that the

produced data can be queried and retrieved

semantically, and can also be taken as an input to

carry out advanced analytics (e.g., trend study,

growth projection). CODO also aims to facilitate the

representation of patient data, the relationships

between patients, between patient and locations,

changes over time, etc. This network data can support

the behaviour analysis of the disease, possible route

of disease spreading, various factors of disease

transmission, etc.

The CODO ontology will also help policymakers.

For example, in analysing how infrastructure was

utilized and where infrastructure could have been

utilized more effectively. Thus, CODO will help deal

with the current pandemic as well as provide a tool to

prepare for future potential crises.

The main contributions described in this paper are:

(i) Describe the CODO ontology. How it was

developed, how it relates to similar projects, how the

ontology can currently be leveraged to support

analysis of COVID-19 data and plans for future work.

(ii) Illustrate the process of automatic data integration

to the ontology.

(iii) Provide examples of how CODO has already

been utilized to analyse data about the pandemic.

The rest of the article is organized as follows:

section 2 describes the background that motivated

development of CODO. Specifically, a survey of

related work, an overview of FAIR principles and

how knowledge graphs can be utilized to provide

technology that implements these principles. Section

3 describes the methodology used to design the

CODO ontology. Section 4 describes the CODO

ontology highlighting some of the significant aspects

of it. Section 5 evaluates the CODO ontology by

automatically loading data on the pandemic and by

describing SPARQL queries that can analyse the data.

Finally, section 6 concludes the paper and discusses

next steps.

2 BACKGROUND

In this section we describe related work that we

surveyed before developing CODO. We also describe

https://bioportal.bioontology.org/ontologies/COVID19

https://github.com/oeg-upm/drugs4covid19-kg

http://covid19.squirrel.link/ontology/

the FAIR principles that were a driving rationale for

our decision to use knowledge graph technology.

2.1 Related Work

Dealing with a global pandemic is a knowledge

intensive process. As a result there have been several

ontologies developed related to the COVID-19

pandemic. Before developing CODO we did a survey

to determine if we could re-use an existing ontology.

We found nine relevant ontologies. However, none of

them were in the same space as what we needed: to

provide a semantic layer on top of case data from

India and the world. We briefly describe some of the

other COVID-19 ontologies in this section. Currently,

we have not found publications for any of them

except for the CIDO ontology (He et al., 2020).

The CIDO ontology (Ontology of Coronavirus

Infectious Disease) is part of the OBO Foundry

Ontology Library. CIDO is focused on analysing

Covid-19 from a medical standpoint. E.g., similarity

to other viruses, common symptoms, drugs that have

been attempted to treat the virus, etc.

COVID-19 Surveillance Ontology

is an

application ontology designed to support surveillance

in primary care. The main goal of this ontology is to

support COVID-19 cases and related respiratory

conditions using data from multiple brands of

computerized medical record systems. This work is

partially related to CODO. However, this ontology is

designed as a taxonomy consisting of classes such as

education for COVID-19, exposure to COVID-19,

definite and possible COVID-19, etc. This ontology

does not consist of any properties. This reduces the

semantic expressivity of the ontology.

DRUGS4COVID19

defines medications and

their relationships related to COVID-19. Some of the

key classes of the ontology are drug, effect, disease,

symptoms, disorder, chemical substance, etc. OVID-

is an ontology that consists of classes to enable

the description of COVID-19 datasets in RDF. Some

of the classes of this ontology are Dataset, Dataset of

the Johns Hopkins University, etc.

The World Health Organization’s (WHO)

COVIDCRFRAPID

ontology is a semantic data

model for the WHO's COVID-19 RAPID case record

form from 23 March 2020. This model provides

semantic references to the questions and answers of

the form.

https://bioportal.bioontology.org/ontologies/COVIDCRF

RAPID

CODO: An Ontology for Collection and Analysis of Covid-19 Data

The two ontologies that come closest to CODO

are Kg-COVID-19

(KG hub to produce a knowledge

graph for COVID-19 and SARS-COV-2.) and Linked

COVID-19 Data: Ontology

. However, both of these

ontologies have little semantic information in OWL

and are dependent on specific additional software to

utilize them.

CODO is an ontology that represents COVID-19

case data in a format based only on OWL and other

W3C standards which can be utilized by both other

ontologies and software systems. CODO provides

tracking of specific cases of the pandemic with details

such as how the patient is thought to have been

infected and potential additional contacts who may be

at risk due to their relationship to the infected

individual. CODO also provides tracking of clinical

tests, travel history, available resources, and actual

need (e.g., ICU bed, invasive ventilators), trend study

and growth projections.

2.2 FAIR Principles

The FAIR principles (Wilkinson 2016) are widely

seen as the best practice for scientific data. These

principles require that data be:

 Findable. Data must have rich metadata and

unique and persistent identifiers.

 Accessible. Metadata and data should be

understandable both to humans and machines.

 Interoperable. Data and metadata should use

standards based languages that facilitate the use

of automated reasoning and federated queries.

 Reusable. Data should leverage open industry

standard technology and domain vocabularies.

2.3 Knowledge Graphs

Knowledge graphs are widely recognized both by

industry and academia as the state of the market

technology for managing big data using FAIR

principles (Blumauer 2020).

Knowledge graphs are based on the following W3C

standards:

 International Resource Identifiers (IRI)

 Resource Description Framework

(RDF/RDFS)

 Web Ontology Language (OWL)

 Semantic Web Rule Language (SWRL)

 SPARQL Protocol and RDF Query Language

(SPARQL)

https://github.com/Knowledge-Graph-Hub/kg-covid-19

An IRI looks very much like a URL. The primary

difference is that URLs typically point to resources

that are meant to be displayed in a browser. IRI’s are

more general than URLs and can describe resources

to a finer level of granularity than an HTML page. An

IRI can be any resource such as a class, a property, an

individual, etc. (DuCharme, 2011)

RDF is the foundation language for describing IRI

data as a graph rather than in relational or other types

of formats (W3C 2014).

RDFS is layered on top of RDF and provides basic

concepts such as classes, properties, and collections

(W3C 2014a).

OWL is layered on top of RDFS and provides the

semantics for knowledge graphs. OWL is an

implementation of Description Logic which is a

decidable subset of First Order Logic (W3C 2012).

OWL enables the definition of reasoners which are

automated theorem provers. OWL reasoners first

ensure that an ontology model is consistent. If the

model is not consistent the reasoner will highlight the

probable source of the inconsistency. If the model is

consistent reasoners can then deduce additional

information based on concepts described below such

as transitivity, inverses, value restrictions, etc. OWL

reasoners originated with the KL-One family of

knowledge representation languages and successors

to KL-One such as Loom. (MacGregor, 1991).

SWRL is a rule-based language that extends OWL

reasoners with additional constructs beyond what can

be described with OWL’s Description Logic

language (W3C 2004).

Finally, SPARQL allows federated queries across

heterogeneous sources of data. A SPARQL query

defines a graph pattern that is matched against the

available data sources and returns the data that

matches the pattern (DuCharme, 2011).

3 METHDOLOGY

This section provides a description of the CODO

ontology design and development methodology.

For designing an ontology, there are several

methodologies available in the literature. Some of the

state-of-the-art popular approaches are

METHONTOLOGY (Fernandez et al., 1997), TOVE

(Gruninger and Fox, 1995), DILIGENT (Vrandecic et

al., 2005), NeOn (Suárez-Figueroa et al, 2012),

UPON (De Nicola et al., 2005), YAMO (Dutta et al.,

2015), etc. The design approach of CODO has been

primarily influenced by YAMO, a step-by-step

https://zenodo.org/record/3765375#.XraWJmgzbIU

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

approach for building a formally defined large-scale

faceted ontology. The YAMO methodology also

provides a set of ontology design guiding principles

which is quite unique. The steps of the CODO

ontology design process are displayed in Figure 1 and

described below.

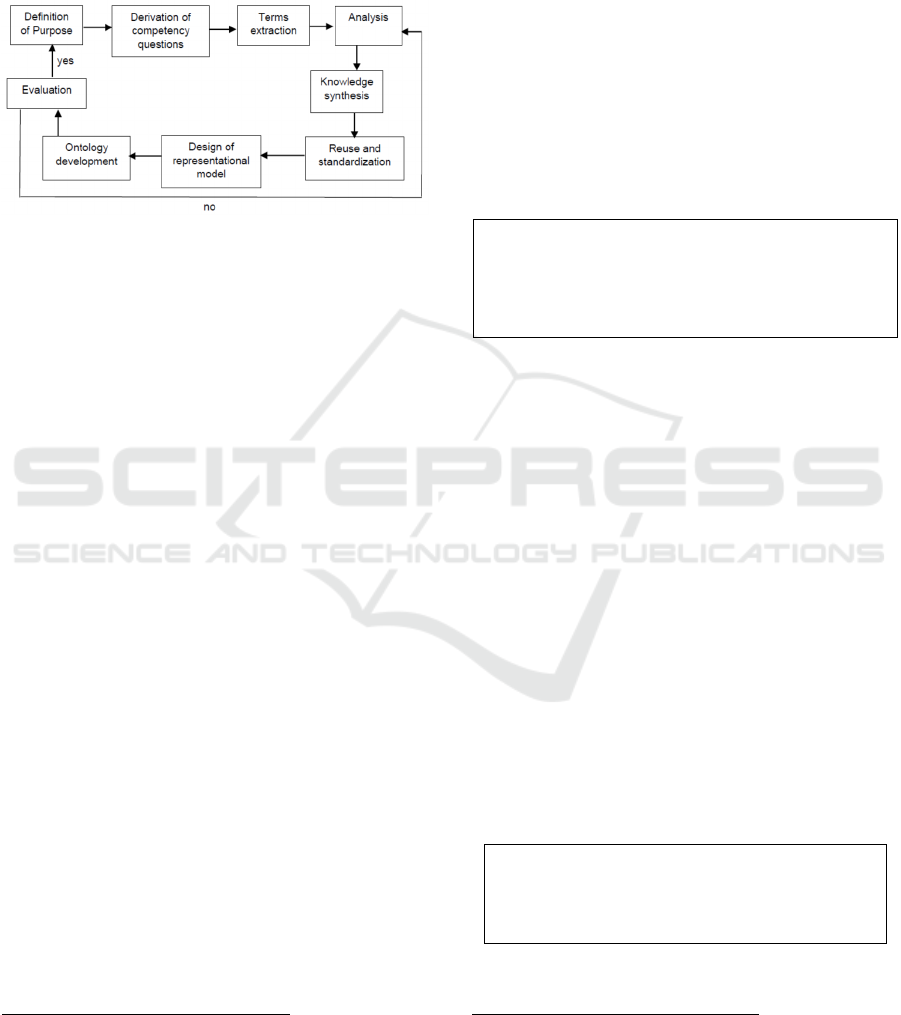

Figure 1: Steps of CODO ontology development process.

S1: Definition of purpose - this step describes the

purpose and application of the ontology. As discussed

above the purpose of the CODO ontology is to

facilitate publication of COVID-19 data as a

knowledge graph and to develop semantic services

and applications (e.g., decision support system,

advanced analytics) (Dutta, 2017). Also, to enable

various organizations (e.g., government agencies,

hospitals, researchers, data publishers, news

agencies, etc.) to annotate and describe COVID-19

information.

S2: Derivation of competency questions – Elaborate

the purpose defined in S1 into a set of competency

questions. Some of these competency questions are:

I. How many people recovered from COVId-

19 in place p until date t?

II. How many people died in country c?

III. Give me the travel history of patient p.

IV. Give me the COVID-19 patients p and their

relationship r, if any.

V. Give me the COVID-19 patients p who are

in family relationships f.

VI. Give me the primary reasons i for the

maximum number of COVID-19 patients p.

VII. Give me the most prevalent symptoms s of

Severe COVID-19 d.

VIII. Find all People p who are related to someone

r who has been diagnosed with Covid and

who has not yet been tested.

https://github.com/CSSEGISandData/COVID-19

https://www.isibang.ac.in/~athreya/incovid19/data.html

https://www.mohfw.gov.in/pdf/FinalGuidanceonMangae

mentofCovidcasesversion2.pdf

S3: Term extraction – in extracting the terms for the

ontology, we primarily referred to COVID-19

datasets on cases, patients, relations (e.g., family, co-

workers), geographic locations, and date-time

information. For this purpose, we referred to data

repositories, such as the COVID-19 Data Repository

by the Center for Systems Science and Engineering

(CSSE) at Johns Hopkins University

and the data

repository curated by Athreya et al.

We also used the

literature including government published documents

and guidelines. For example, guidance documents on

appropriate management of suspected/confirmed

cases of COVID-19

, WHO published literature

newspaper articles, etc. on CVID-19. Some of the

most significant extracted terms are:

patient, doctor, covid-19 dedicated facility, covid

care centre, dedicated covid health centre, covid-

19 clinical facility, mild and very mild covid-19,

severe covid-19, moderate covid-19, exposure to

civid-19, vital signs, test finding, symptom, SpO2,

cases, blood pressure, temperature

S4: Analysis - following the extraction of the terms,

this steps involves analysing the derived compound

and complex concepts and breaking them into their

elemental entities. The analysis is done based on the

definition and characteristic of each of the concepts

and then grouping them according to their similarity.

For example, analysing the terms covid care centre

(any facility, such as hotels/lodges/hostels/stadiums

for providing care to COVID-19 patients) and

dedicated health centre (hospitals that shall offer care

for all cases that have been clinically assigned as

moderate) based on their definition reveals that both

of them have a common point and can be grouped as

subclasses of the class for covid dedicated facility.

S5: Knowledge synthesis – this step involves

synthesizing and arranging the knowledge by

defining the relationships between the concepts. This

step lead to the discovery of concept hierarchies. For

example (the indention indicates the hierarchy)

Organization

COVID-19 dedicated facility

Covid care centre

Dedicated covid health centre

Dedicated covid hospital

https://www.who.int/news-room/q-a-detail/q-a-

coronaviruses

CODO: An Ontology for Collection and Analysis of Covid-19 Data

S6: Reuse and standardization – technology can only

go so far to enable integration and re-use. Ultimately,

what is required is to develop and re-use domain

vocabularies. We have followed this best practice in

the development of CODO. We have integrated

concepts from the following vocabularies into

CODO: Schema.org, Friend of a Friend (FOAF)

vocabulary

, SNOMED CT

and OBO.

Schema.org is used for modelling common

concepts such as gender and locations. FOAF is used

to model Agents, such as Person and Organization

classes and related properties. SNOMED CT and

OBO are used to model clinical findings and

symptoms.

S7: Design of representational model – involves

structuring and modelling the domain knowledge

produced in the previous step. The idea is to model

the domain knowledge showing its various

components, such as classes, properties and their

relationships. This is important as in one side it

ensures the aggregation, substitution, improvement,

sharing and reapplication of the ontology (Dutta et al,

2015, Giunchiglia & Dutta, 2011), and on the other

side it provides a consolidated view of the ontology

and its coverage. Figure 2 shows a high-level view of

the CODO model.

S8: Ontology development – this step involves

developing the formal model using a formal logic

language. For developing CODO, we used OWL-DL,

a Description Logic ontology language. CODO was

designed using the Protégé ontology editor (Musen

2015) developed at Stanford University. In addition

to the core editor we utilized the Pellet reasoner,

SWRLTab, Cellfie, and Snap SPARQL plugins. The

details of the ontology are provided in Section 4.

S9: Evaluation – this step involves evaluating how

closely the ontology meets the design goals. It gauges

the technical competence of the ontology. There is no

easy and automatic way of evaluating an ontology.

The reasoners can verify the syntactic structure and

consistency of the ontology but cannot evaluate the

domain knowledge and knowledge structure. The

manual evaluation by domain experts is one of the

most prevalent methods (Lozano-Tello and Gomez-

Perez, 2004, Dutta et al., 2015).

To verify that the CODO ontology serves the

purpose it was designed for, we imported data on the

pandemic from the government of India using the

http://xmlns.com/foaf/spec/

http://www.snomed.org/

Cellfie Protégé plugin (described in section 5.1). We

also wrote SPARQL queries based on the competency

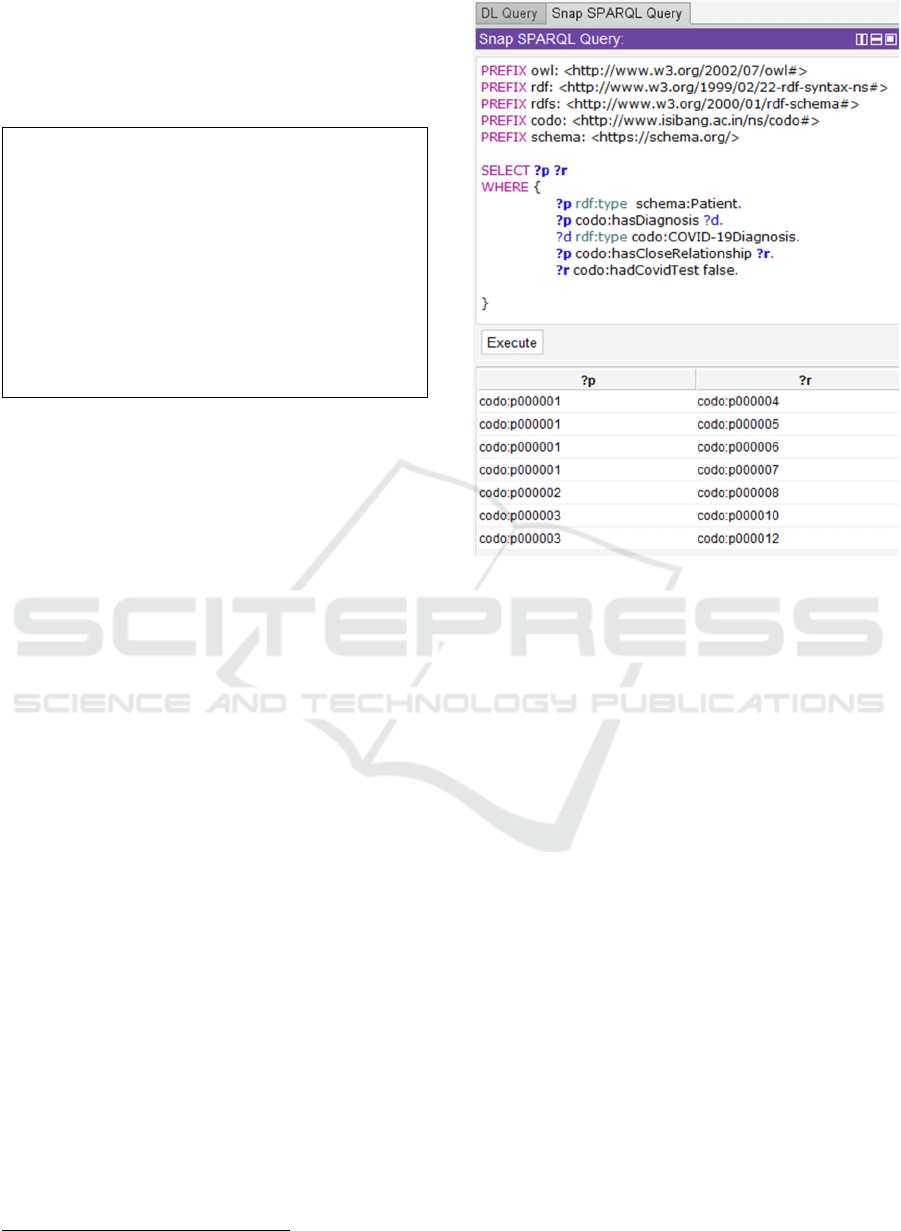

questions described in S2. An example SPARQL

query is illustrated in section 5.2.

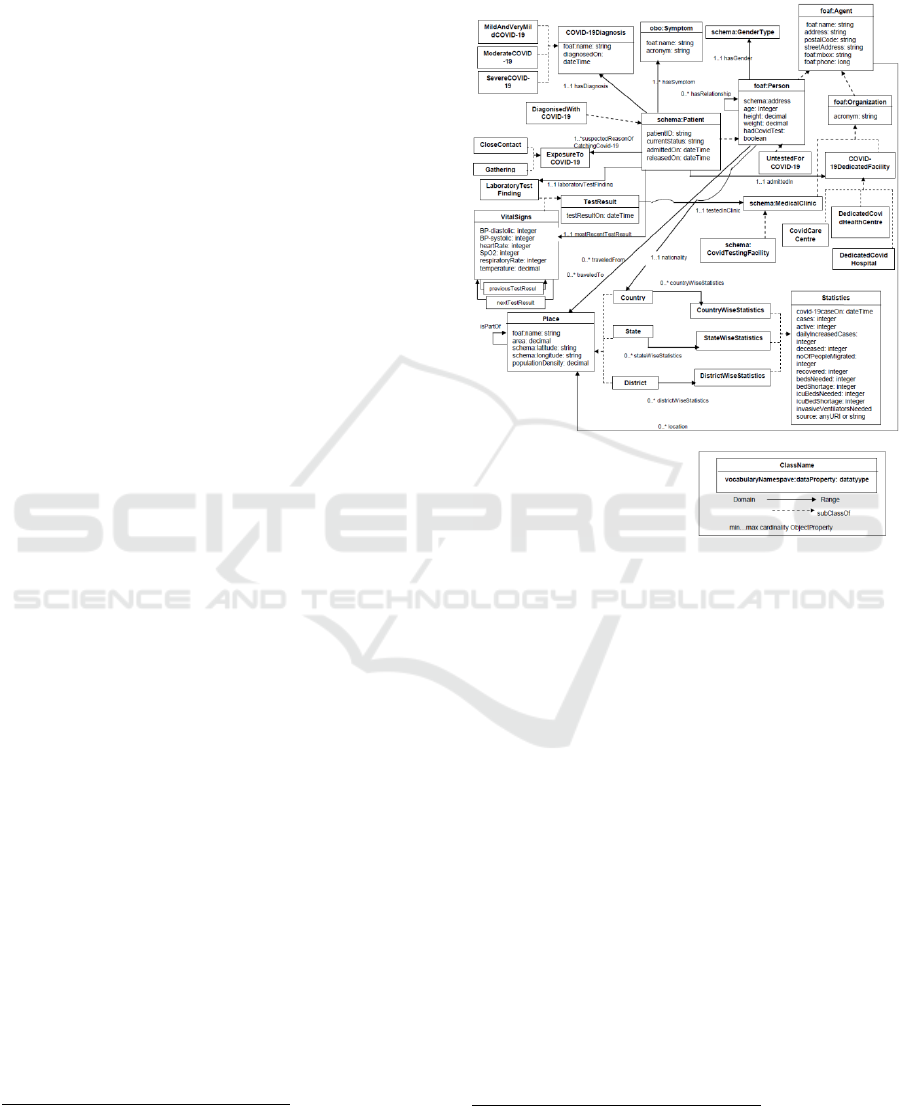

Figure 2: Overview of the CODO model.

4 THE CODO ONTOLOGY

In this section we describe some of the important

classes, properties, and some sample individuals that

we developed to give users of the ontology examples

of the types of reasoning that can be automated with

the ontology.

The current version CODO1.2 is available here:

https://github.com/biswanathdutta/CODO. Also, the

HTML specification documents of the ontology is

available here: https://isibang.ac.in/ns/codo.

CODO1.2 consists of 50 classes, 62 object properties

and 45 data properties. The basic ontology has a

handful of sample individuals for illustrative

purposes. The first application of CODO on actual

data from the government of India has over 23,000

individuals representing cases of the pandemic in

India (the data dump is available here:

https://github.com/biswanathdutta/CODO).

http://www.obofoundry.org/

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

4.1 Properties and Reasoning

One of the main differences between OWL and other

object-oriented models is that properties in OWL are

first class entities that are not bundled with a specific

class. In traditional Object-Oriented Programming

(OOP) a property is defined as part of a class

definition. If the class is deleted so is the property. In

OWL properties are independent entities (W3C

2006).

Properties in OWL are equivalent to binary

relations in First Order Logic (FOL). They also have

a number of capabilities that relations in FOL have

and that can be automatically enforced by an OWL

reasoner.

Two examples of such capabilities leveraged by

CODO are symmetric and inverse properties. A

symmetric property is such that if the tuple <a, b> is

in the property then the tuple <b, a> must be as well.

An example of a symmetric property in CODO is

hasSpouse. If a Person p000001 hasSpouse p000004

then the reasoner automatically infers that p000004

hasSpouse p000001.

Inverses are defined such that if <a, b> is in a

property then <b, a> is in its inverse property. An

example of this in CODO are the hasChild and

isChildOf properties. These are inverse properties and

one merely has to assert that one of the properties

holds for two individuals and the reasoner will infer

that the appropriate inverse holds for the two

individuals as well.

Since OWL properties are FOL relations they are

sets (of binary tuples). Thus, just as classes can have

subclasses where the subclass is a subset of the

superclass so properties can have sub-properties

where all the tuples in the super-property are in the

sub-property but not necessarily vice versa.

One way this is leveraged in CODO is in the

hasRelationship property hierarchy (see figure 3).

The hasRelationship property captures some of

the ways that people can have interactions with each

other. It also has sub-properties that differentiate

hasCloseRelationship relations from others. A close

relationship is one where the two people are likely to

regularly live or work together such as parents and

children, co-workers, and roommates. This is

distinguished from other types of relationships such

as aunts and uncles where it is less likely that the two

individuals are in regular close contact.

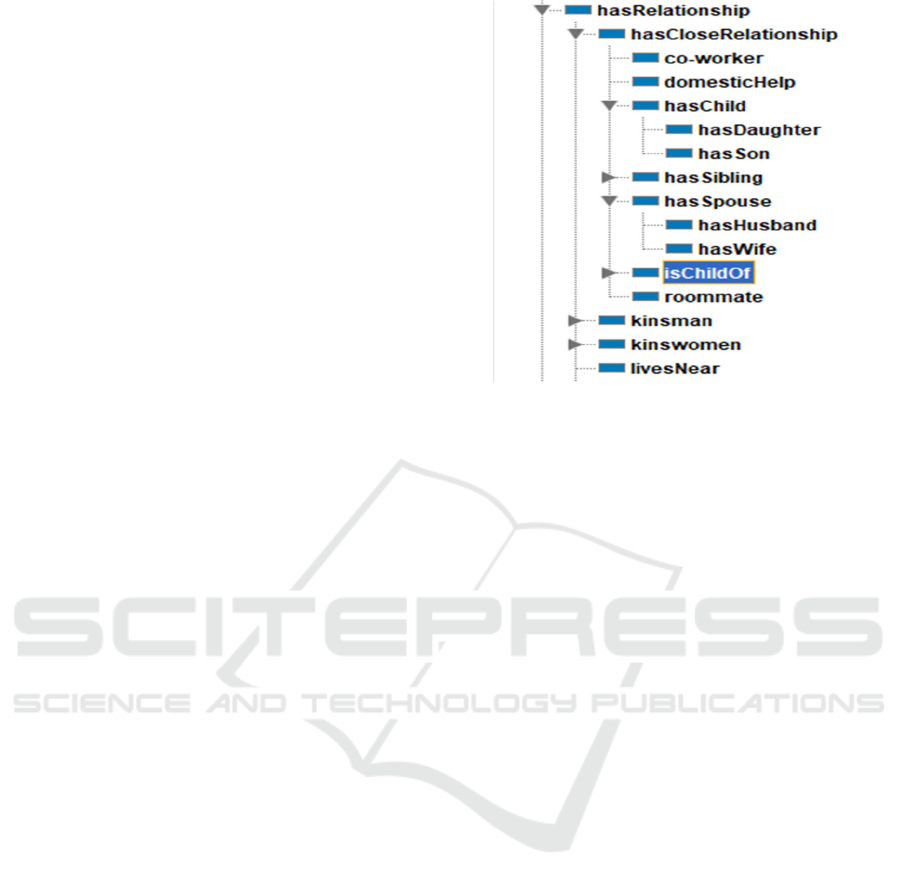

Figure 3: The hasRelationship Property Hierarchy.

For example, in the test data for CODO we

asserted that p000001 hasDaughter p000007. The

reasoner automatically inferred that p000001

hasChild p000007 (because hasDaughter is a sub-

property of hasChild) and that p000001

hasCloseRelationship p000007 (because hasChild is

a sub-property of hasCloseRelationship). This

property hierarchy will be leveraged further as we

combine it with the capability to define necessary and

sufficient axioms for classes in the next section.

4.2 Defined Classes

OWL can be used to define axioms that are necessary

and sufficient for an individual to be a member of a

class. The OWL reasoners can use these axioms to

automatically restructure the class hierarchy as well

as to do significant additional reasoning about

individuals.

If one defines axioms for a class in the

SubClassOf field in Protégé these are necessary

axioms for the class. I.e., they must be true for any

individual that is a member of that class but it may not

be the case that every individual that fulfils that axiom

is a member of that class. When axioms are defined

in the EquivalentTo field in Protégé these axioms are

both necessary and sufficient conditions for that class.

I.e., any individual that satisfies those axioms is

automatically inferred to be an instance of that class.

Classes with necessary and sufficient axioms are

known as defined classes in OWL. In CODO we have

combined sub-properties with a defined class to

create a defined subclass of Person called

UrgentlyNeedsCovidTest. The necessary and

sufficient axioms for this class are:

CODO: An Ontology for Collection and Analysis of Covid-19 Data

foaf:Person

and (hasCloseRelationship some

DiagnosedWithCovid) and (hadCovidTest value

false)

DiagnosedWithCovid is also a defined class with

necessary and sufficient conditions such that anyone

who has been diagnosed with the virus is a member

of that class. Thus, UrgentlyNeedsCovidTest defines

a class for anyone who has a close relationship that

has been diagnosed with Covid-19 and who has

themselves not yet had a Covid-19 test.

Figure 4 displays this defined class. The

individuals in the instances field are instances of the

Person class that the reasoner has inferred are also

instances of this defined class. Note: anything in

Protégé highlighted in yellow was not defined by

some input data but was inferred by the reasoner

based on the data and the axioms in the ontology.

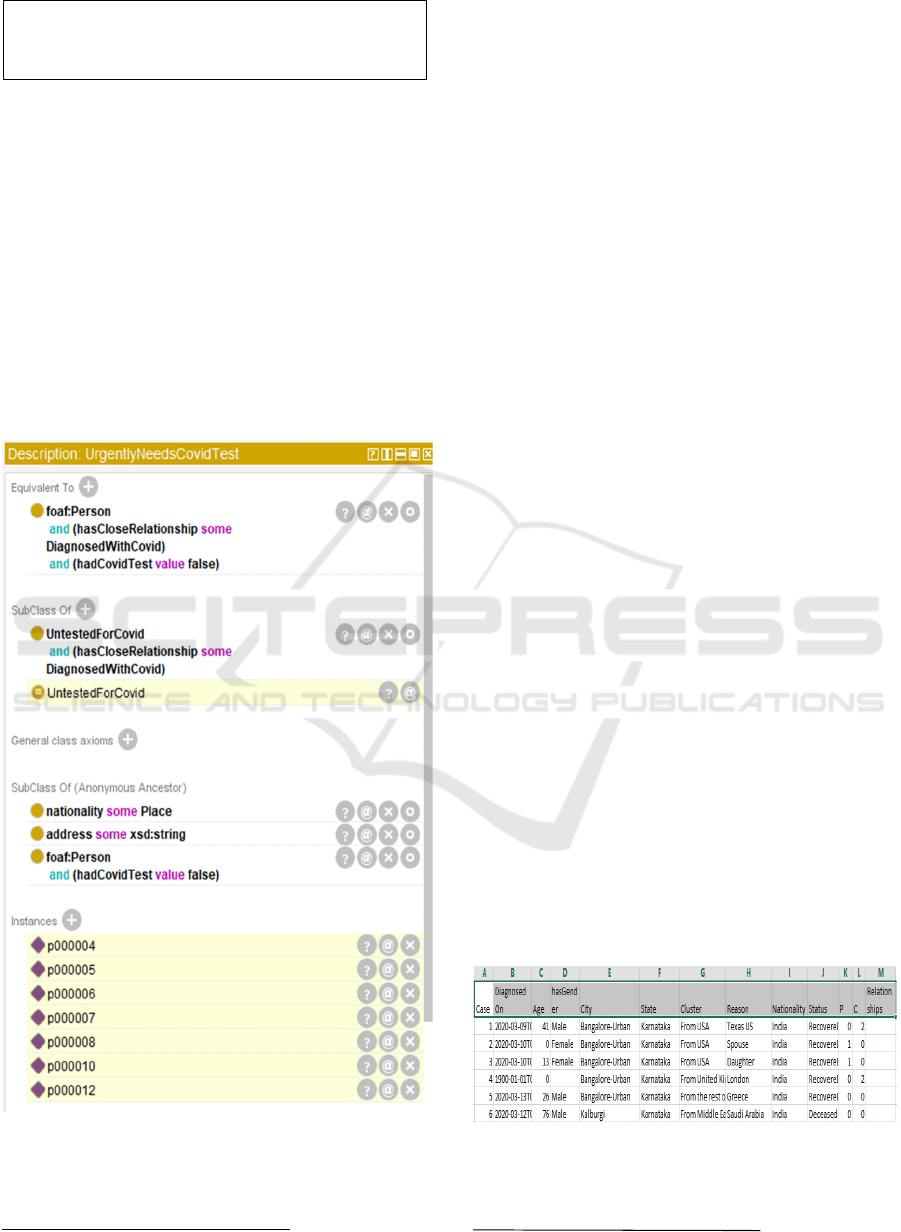

Figure 4: UrgentlyNeedsCovidTest Defined Class.

https://www.mohfw.gov.in/

5 CODO EVALUATION

In this section we describe how we have evaluated the

CODO ontology. This evaluation was done by:

 Populating the ontology with real world data

from the government of India.

 Making the ontology available as a vocabulary

for others to use which has already occurred with

one system on the Bioportal site.

 Developing SPARQL queries which implement

some of the use cases identified in our

development methodology.

 Exporting the ontology to a commercial

triplestore product which provides capabilities

for much larger datasets and additional

visualization.

5.1 Data Population

In this section we describe how we have populated

the ontology with data from the Indian Ministry of

Health and Family Welfare website.

This data has

been collected into spreadsheets by Siva Athreya and

other researchers at the Indian Statistical Institute.

A snapshot of a datasheet is shown in Figure 5.

To integrate this data into the ontology we used

the Cellfie Protégé plugin (O'Connor 2010). Cellfie

allows the user to define transformation rules to

convert rows in a spreadsheet into instances of a class

in an ontology and property values for that instance

(see Table 1 for an example of a transformation rule).

We utilized Cellfie to import data about the

pandemic from the Indian province of Karnataka. Each

row in the spreadsheet corresponded to a case where a

specific patient was diagnosed with Covid. In the

CODO ontology each row was transformed into an

individual of the Patient class and values in each row

such as the age, sex, date of diagnosis, etc. were

transformed into the appropriate property values for

each patient.

Figure 5: A glimpse of the dataset.

https://www.isibang.ac.in/~athreya/incovid19/data.html

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

The resulting ontology had over 23,000 individual

patients with data from March to the beginning of

July 2020.

Table 1: Example Transformation rule.

Individual: @A*(mm:hashEncode

rdfs:label=("patient", @A*))

Types: Patient

Facts: 'diagnosed on' @B*(xsd:dateTime),

age @C*(xsd:decimal),

'has gender' @D*,

'city' @E*,

'state' @F*,

'travelled from' @G*,

nationality @I*,

status @J*,

'has caused any secondary infections'

@L*(xsd:boolean)

5.2 SPARQL Queries

The SPARQL query engine is roughly analogous to

OWL as SQL is to relational databases. However,

since the underlying structure of OWL are graphs

rather than tables, SPARQL constructs graph patterns

and then searches knowledge graphs for any

individuals that match the graph pattern. Like SQL,

SPARQL can do more than query, it can also delete,

insert, and transform data (DuCharme, 2011).

SPARQL has many features that provide

additional value beyond the capabilities described so

far. For one thing, SPARQL can integrate data from

multiple heterogeneous data sources. The beginning

of each SPARQL query starts with a list of

namespaces and the IRI where these namespaces can

be found. Hence, SPARQL can do queries across

broad data sets from multiple sources enabling a truly

federated virtual knowledge base. Since different data

sources may have different formats SPARQL can use

pattern matching to transform data from various

sources.

Figure 6 displays a SPARQL query using the Snap

SPARQL query plugin in Protégé. The above shows

the SPARQL syntax for the query “Find all People

who have a close relation to someone who has been

diagnosed with Covid and who has not yet been

tested.”

http://bioportal.bioontology.org/projects/Ping

Figure 6: CODO SPARQL Query.

The Prefixes first define the various namespaces

that the query will utilize and their IRIs. In this case

the query performs the same logic as the defined class

described in section 4.2. One advantage of using the

SPAQRL query is that in addition to seeing the

specific individuals who match the query (the ?r

column) we can also see the closely related individual

that has been diagnosed with Covid-19 (the ?p

column).

5.3 Utilization of CODO Vocabulary

One of the primary design goals for CODO was that

it could serve as a reusable vocabulary for other

projects. Although we have only recently published

the ontology on Github and Bioportal, we already

have one user from the Bioportal site: the Ping

COVID-19 risk detection system.

5.4 Triplestores and Visualization

Protégé is a modelling tool not a persistent storage

tool. Although it is possible to persist knowledge

graphs designed in Protégé with small to medium sets

of test data, to achieve the true power of knowledge

graph technology a triplestore product is required. A

CODO: An Ontology for Collection and Analysis of Covid-19 Data

triplestore is a database designed to store data as

graphs rather than as relational tables (Blumauer

2020).

Although the current test data in CODO can be

stored in files from Protégé we have already begun to

hit the limits of Protégé with the data we have

imported from the Indian government. We have

begun to utilize a triplestore environment in

anticipation of scaling up CODO to having data for

up to a million patients rather than the thousands

currently in the ontology. We have imported CODO

into the free version of the Allegrograph triplestore

product from Franz Inc. The free version is still

capable of supporting 5 million triples and also

supports Allegro’s Gruff visualization tool. Figure 7

displays a small number of test data patients from the

current CODO ontology using Allegro’s Gruff tool.

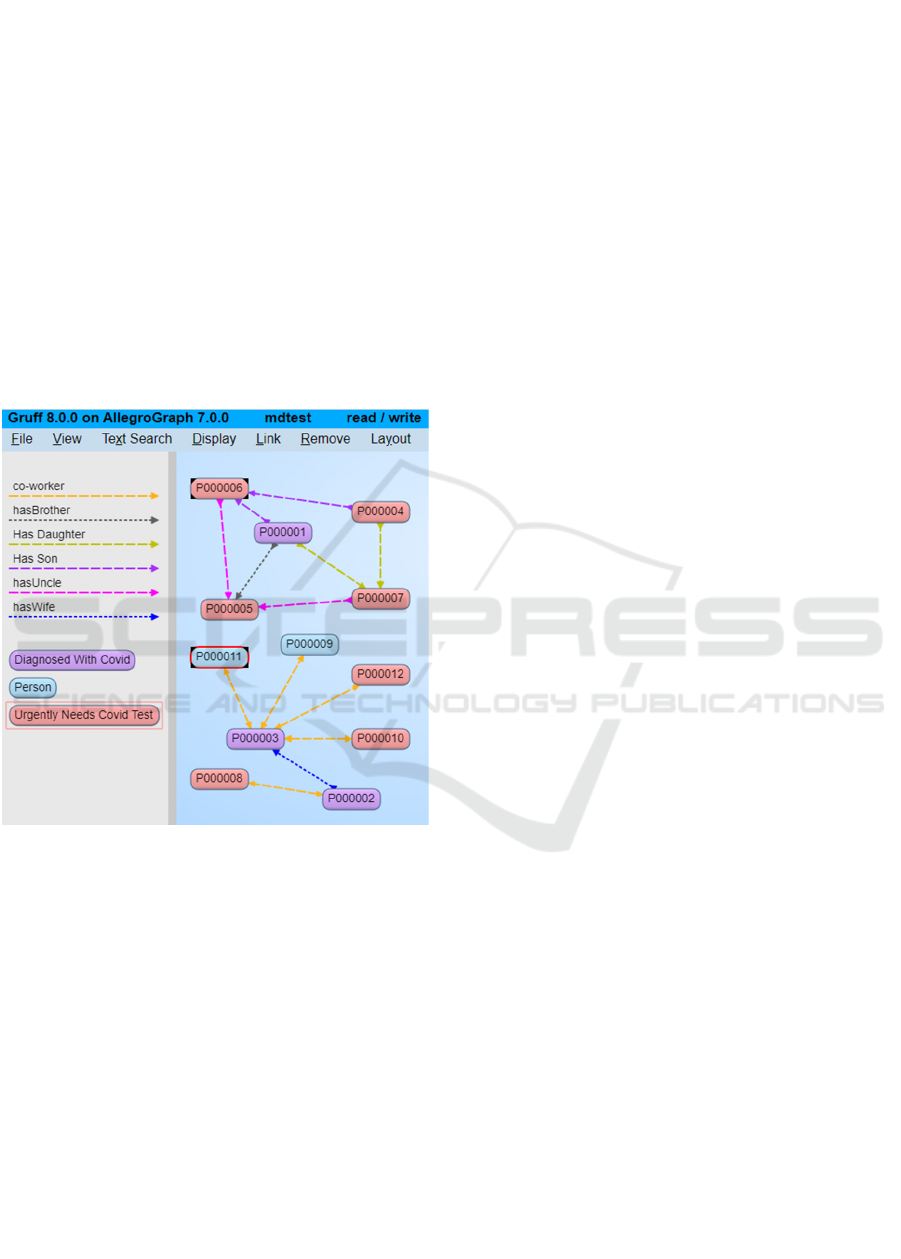

Figure 7: CODO in Allegro’s Gruff Visualization Tool.

6 CONCLUSIONS

The CODO ontology is only the first step in providing

a knowledge graph model for COVID-19 based on

FAIR data principles. The current CODO ontology

has already found its use in a real world project called

Ping and in uploading thousands of cases from data

collected by the government of India. The main

limitation of the current work is it lacks a truly

rigorous evaluation of the developed ontology. In our

future work, we aim to evaluate the ontology by

health domain experts and also by applying the

Information Retrieval system evaluation technique.

In addition, we plan to enhance the current CODO

ontology by integrating many more COVID-19

datasets available on the Web, both from India and

world-wide. Finally, we plan to publish CODO using

a triplestore database published as a SPARQL

endpoint. This will provide capabilities to handle

much larger datasets. It will also enable SPARQL

queries that can integrate CODO with other

complimentary ontologies such as CIDO.

ACKNOWLEDGEMENTS

This work was conducted using the Protégé resource,

which is supported by grant GM10331601 from the

National Institute of General Medical Sciences of the

United States National Institutes of Health. Thanks to

Franz Inc. (http://www.allegrograph.com) and its

help with AllegroGraph and Gruff.

REFERENCES

Blumauer, Andreas, Nagy, Helmut, 2020. The Knowledge

Graph Cookbook. Edition Mono.

DuCharme, Bob, 2011. Learning SPARQL. O’Reilly.

Dutta, B., Chatterjee, U. and Madalli, D. P., 2015. YAMO:

Yet Another Methodology for Large-scale Faceted

Ontology Construction. Journal of Knowledge

Management. 19 (1): 6 – 24.

Dutta, B. (2017). Examining the interrelatedness between

ontologies and Linked Data. Emerald Library Hi Tech,

Vol. 35, no. 2, pp. 312-331.

De Nicola, A., Missikoff, M., and Navigli, R. (2005). A

proposal for a unified process for ontology building:

UPON. In International Conference on Database and

Expert Systems Applications, Springer, Berlin,

Heidelberg, 655-664.

Fernandez, M. and Gomez-Perez, A., Juristo, N. (1997).

Methontology: from ontological art towards ontological

engineering. In Proceedings of the AAAI97 Spring

Symposium Series on Ontological Engineering.

Gruninger, M. and Fox, M. (1995). Methodology for the

design and evaluation of ontologies. Workshop on

Basic Ontological Issues in Knowledge Sharing,

Montreal, Canada.

Giunchiglia, F. and Dutta, B. (2011). DERA: a Faceted

Knowledge Organization Framework. Technical

Report, # DISI-11-457, 3-18.

http://eprints.biblio.unitn.it/archive/00002104/

He, Y., Yu, H., Ong, E. et al. (2020). CIDO, a community-

based ontology for coronavirus disease knowledge and

data integration, sharing, and analysis. Sci Data 7, 181

(2020). https://doi.org/10.1038/s41597-020-0523-6

Lozano-Tello, A. and Gomez-Perez, A. (2004).

Ontometric: A method to choose the appropriate

ontology. Journal of Database Management, 15(2):1–

18.

KEOD 2020 - 12th International Conference on Knowledge Engineering and Ontology Development

MacGregor, Robert, 1991. Using a description classifier to

enhance knowledge representation. IEEE Expert. 6 (3):

41–46. doi:10.1109/64.87683

Musen, Mark, 2015. The Protégé Project: A Look Back and

a Look Forward. A.I. Matters 1(4).

https://dl.acm.org/doi/10.1145/2757001.2757003

M.J. O'Connor, C. Halaschek-Wiener, M. A. Musen.

Mapping Master: A Flexible Approach for Mapping

Spreadsheets to OWL. 9th International Semantic Web

Conference (ISWC), Shanghai, China, 2010.

Suárez-Figueroa, M. C., Gómez-Pérez, A. and Fernández-

López, M. (2012). The NeOn Methodology for

Ontology Engineering, in Ontology Engineering in a

Networked World, M. C. Suárez-Figueroa, A. Gómez-

Pérez, E. Motta, and A. Gangemi, Eds., ed Berlin,

Heidelberg: Springer Berlin Heidelberg, 9-34.

Vrandecic, D. and Pinto, S., Tempich, C., Sure, Y. (2005).

The DELIGENT knowledge processes. In Journal of

Knowledge Management, 9(5): 85-96.

W3C, 2004. SWRL: A Semantic Web Rule Language

Combining OWL and RuleML. W3C Member

Submission. https://www.w3.org/Submission/SWRL/

W3C, 2006. A Semantic Web Primer for Object-Oriented

Software Developers. https://www.w3.org/TR/sw-

oosd-primer/

W3C, 2012. Web Ontology Language Document Overview

(Second Edition). W3C Recommendation.

https://www.w3.org/TR/owl2-overview/

W3C, 2014. RDF 1.1: Concepts and Abstract Syntax. W3C

Recommendation. https://www.w3.org/TR/rdf11-

concepts/

W3C, 2014a. RDF Schema 1.1. W3C Recommendation.

https://www.w3.org/TR/rdf-schema/

Wilkinson, M., Dumontier, M., Aalbersberg, I. et al., 2016.

The FAIR Guiding Principles for scientific data

management and stewardship. Sci Data 3, 160018

(2016). https://doi.org/10.1038/sdata. 2016.18.

CODO: An Ontology for Collection and Analysis of Covid-19 Data
