On the Robustness of Convolutional Neural Networks Regarding

Transformed Input Images

Frederik Timme, Jochen Kerdels and Gabriele Peters

Chair of Human-Computer Interaction, Faculty of Mathematics and Computer Science, University of Hagen,

Universit

atsstraße 47, 58097 Hagen, Germany

Keywords:

Convolutional Neural Networks, Performance Evaluation, Transformations, Data Augmentation.

Abstract:

Convolutional Neural Networks (CNNs) have become the dominant and arguably most successful approach

for the task of image classiﬁcation since the release of AlexNet in 2012. Despite their excellent performance,

CNNs continue to suffer from a still poorly understood lack of robustness when confronted with adversarial

attacks or particular forms of handcrafted datasets. Here we investigate how the recognition performance of

three widely used CNN architectures (AlexNet, VGG19 and ResNeXt) changes in response to certain input

data transformations. 10,000 images from the ILSVRC2012s validation dataset were systematically manipu-

lated by means of common transformations (translation, rotation, color change, background replacement) as

well as methods like image collages and jigsaw-like puzzles. Both the effect of single and combined transfor-

mations are investigated. Our results show that three of these input image manipulations (rotation, collage,

and puzzle) can cause a signiﬁcant drop in classiﬁcation accuracy in all evaluated architectures. In general, the

more recent VGG19 and ResNeXt displayed a higher robustness than AlexNet in our experiments indicating

that some progress has been made to harden the CNN approach against malicious or unforeseen input.

1 INTRODUCTION

In the last decade Convolutional Neural Networks

(CNNs) have successfully replaced traditional key-

point based detection methods like SIFT (Lowe,

2004) or SURF (Bay et al., 2006) as a standard ap-

proach for object recognition and image classiﬁca-

tion (Zheng et al., 2018). On the one hand, these

networks repeatedly set new records regarding clas-

siﬁcation accuracy and performance on well estab-

lished test sets while, on the other hand, they still

tend to show limited robustness when being exposed

to input data that differs from their original training

and test data (Hendrycks and Dietterich, 2019) (Recht

et al., 2019). Several techniques have been proposed

to overcome this drawback including techniques for,

e.g., data augmentation (Shorten and Khoshgoftaar,

2019) in order to generate a larger collection of more

diverse training data. However, it is an open question

to what extent these efforts can lead to an increased

robustness regarding unexpected input data.

In this work, we systematically evaluate the

performance of three popular CNN architectures

(AlexNet, VGG19 and ResNeXt) in regard to their ro-

bustness against a broad range of input data transfor-

mations. The transformations we use are comprised

of well known transformations traditionally used for

training data augmentation as well as a number of

novel, more complex transformations like collages or

jigsaw-like puzzles.

The main contribution of this work is the sys-

tematic analysis of established and newly introduced

transformation methods, which allows a clear com-

parison of their effect on the accuracy of three widely

used CNN architectures.

2 RELATED WORK

Research on the performance degradation of CNNs

due to altered input data can be broadly divided into

two areas. One area concerns the design of adver-

sarial attacks (Wiyatno et al., 2019). Here it was

shown that precise, minimal changes to input images

both globally (Goodfellow et al., 2014) and locally

(Su et al., 2019) allow to fully control the classi-

ﬁcation output of a CNN. The other area concerns

the exploration of datasets that are structurally dif-

ferent from the training dataset in subtle ways, us-

ing these datasets to investigate how they affect the

performance of CNNs. It was shown that speciﬁcally

crafted datasets (Barbu et al., 2019) as well as careful

396

Timme, F., Kerdels, J. and Peters, G.

On the Robustness of Convolutional Neural Networks Regarding Transformed Input Images.

DOI: 10.5220/0010107203960403

In Proceedings of the 12th International Joint Conference on Computational Intelligence (IJCCI 2020), pages 396-403

ISBN: 978-989-758-475-6

selections of existing images (Hendrycks et al., 2020)

can cause large drops in classiﬁcation accuracy.

One approach to mitigate this lack of robustness

consists in the augmentation of the training data by

a broad range of different image transformations.

These include simple (mostly afﬁne) transformations

like translation (Krizhevsky et al., 2012), rotation and

cropping (Taylor and Nitschke, 2017), or color and

brightness adjustments (Howard, 2013). More elab-

orated approaches use, e.g., Generative Adversarial

Networks to generate style transferred images or to

construct entirely new images (Mikołajczyk and Gro-

chowski, 2018).

Evaluation of such approaches with a focus on

different types of transformations and their effect on

model accuracy – mostly dealing with a single type of

transformation and a narrow parameter range – were

performed by, e.g., (Engstrom et al., 2018) and (Azu-

lay and Weiss, 2018).

3 MATERIALS AND METHODS

We evaluated three widely known CNNs regarding

their robustness against modiﬁed input data: AlexNet

(Krizhevsky et al., 2012), ResNeXt50 32x4d (Xie

et al., 2017), and VGG19 (Simonyan and Zisserman,

2015). In our experiments we modiﬁed the input data

by a set of both established and novel types of trans-

formations. Table 1 shows the transformations used

as well as their parameters and value ranges. The se-

lected value ranges are comparable to those found in

other publications, but have been extended in some

cases to be able to estimate the performance of the

CNNs with regard to heavily modiﬁed input data. The

more traditional transformations used include trans-

lation, rotation, color change, and background re-

placement. As more novel transformations we imple-

mented puzzle and collage transformations.

The translation transformation moves an input im-

age in vertical and/or horizontal directions and ﬁlls

the resulting empty sections of the image with zeros

(black). The rotation transformation rotates an input

image around its center and ﬁlls resulting empty sec-

tions with zeros. The color change transformation

alters the proportion of the green color channel of

an input image via an intensity parameter. For val-

ues less than 1 the intensity values of all pixels in

the green color channel are multiplied by this fac-

tor, for values greater than 1 the intensity values of

the pixels in the other two channels are divided by

this value. The background transformation replaces

the non-object part of an input image with a constant

color.

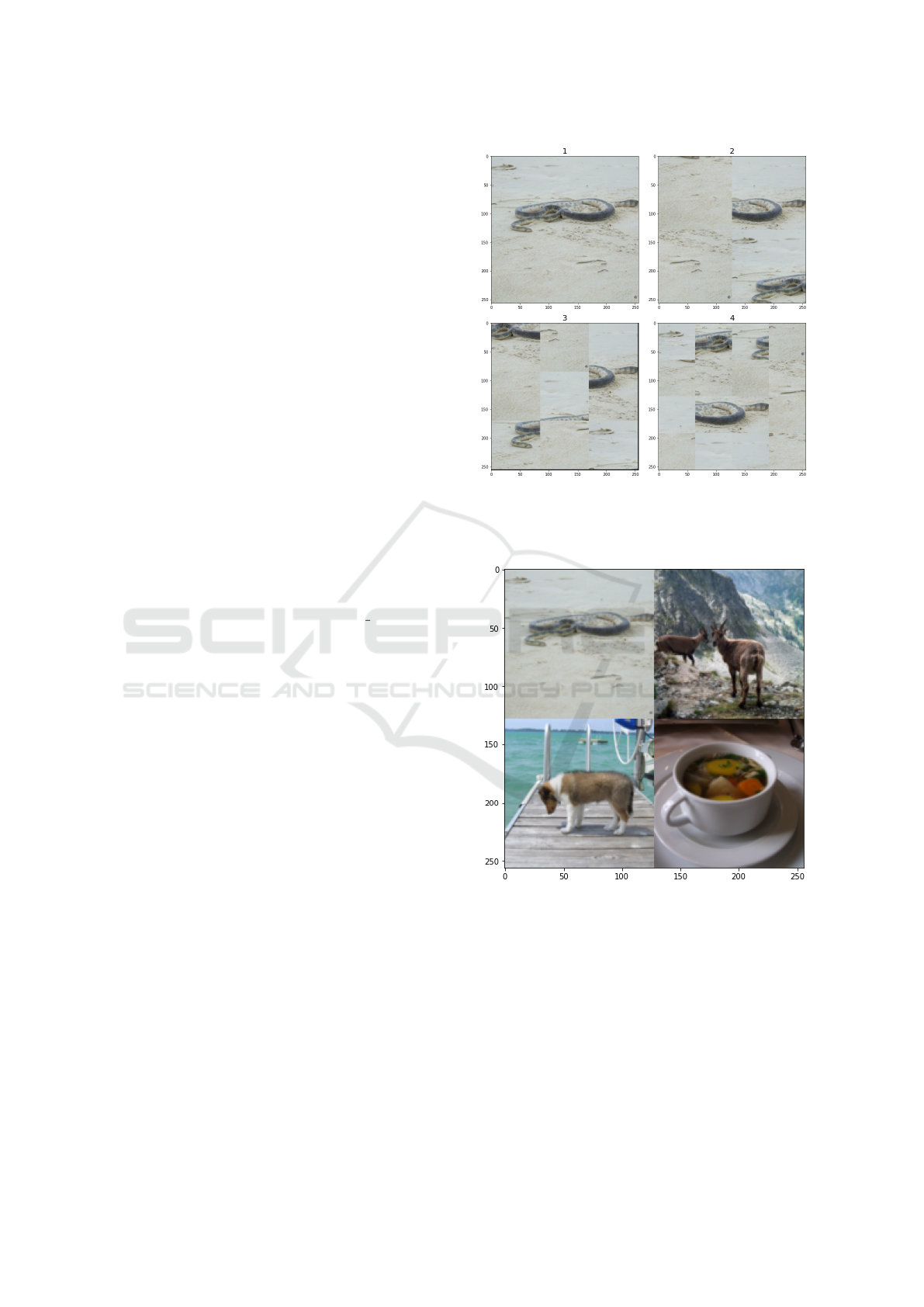

Figure 1: Puzzle transformations. The four images show

examples of the puzzle transformation applied to an input

image. 1: original image, 2: 2 × 2 puzzle, 3: 3 × 3 puzzle,

4: 4 × 4 puzzle. Tiles are shufﬂed randomly.

Figure 2: Collage transformation. The image shows a col-

lage build out of four source images each belonging to a

different image class.

The puzzle transformation (see Fig. 1) cuts an in-

put image into n × n rows or columns of equal height

or width. The resulting n

pieces are then randomly

rearranged. The collage transformation divides the

image area into 2 × 2 rows and columns of equal

height and width. Four input images, each from a dif-

ferent input class, are then inserted into one of the

four subareas (see Fig. 2). This way a collage with

four objects of different target classes is created al-

On the Robustness of Convolutional Neural Networks Regarding Transformed Input Images

397

Table 1: Transformations with parameters and values. The transformations applied include traditional transformations (trans-

lation, rotation, background replacement, color change) as well as novel ones (collage, puzzle). For each transformation, the

parameters and value ranges as well as the step size is shown.

Transformations Parameters Values Step size

Translation Distance x [0%, 40%] 20%

Distance y [0%, 40%] 20%

Rotation Rotation angle [−180

◦

, +180

◦

] 30

◦

Background replacement Fill color {original, black, gray, white, red} -

Color change Intensity [0.5, 1.5] 0.25

Collage Number of rows and columns 2 -

Puzzle Number of rows and columns [1, 4] 1

lowing to investigate a CNNs’ ability to recognize ob-

jects from several target classes at the same time.

All transformations were examined individually

as well as in combination. In the latter case, two

transformations were applied consecutively to an in-

put image. In these cases, background replacement

was applied with black background only to reduce the

number of possible combinations.

About 10,000 images of the ILSVRC2012 valida-

tion set (Russakovsky et al., 2015) and their corre-

sponding bounding boxes served as input data. These

covered 200 classes represented by 50 images each.

To ensure that all transformations were identity

preserving with respect to the input data, we applied

them on a sample of images. Rotation, color change,

background replacement and collage turned out to be

unproblematic. The translation, however, carried the

danger of shifting the main parts of the object(s) out

of the image area. Therefore, we evaluated the part

of the object that was still visible after applying the

translation. With a translation distance of 20% (si-

multaneously in x and y direction), for more than 90%

of the objects contained in the dataset, the amount of

pixels still visible exceeded 40%, which we assume

to be easily recognizable for humans. Whether the

puzzle transformation keeps the identity of the image

class and should still be recognized by a neural net-

work is a matter of discussion. However, this trans-

formation can give hints about whether a network rec-

ognizes objects based on their microstructure or their

macrostructure.

The analysis was performed on a Python envi-

ronment within the package manager software Ana-

conda. Apart from Python3, the packages numpy,

Pytorch, Torchvision, PIL, matplotlib and scimage

were used. The analysis was run on an Intel Core

i5-6400 CPU (2.7 GHz) with 8 Gigabyte RAM. From

Torchvision we took the pretrained CNN architectures

as well as the build-in transformations translation and

rotation. The remaining transformations were imple-

mented by the authors.

All pretrained CNN architectures from Torchvi-

sion had been trained on the same data, which is the

training subset from the ImageNet dataset. Similarly,

the same data augmentations had been applied to all

models during training: ﬁrst a crop of the input image

with random size (between 0.08 and 1.0 of the origi-

nal image size) and of random ratio (between 3/4 and

4/3) had been resized to a size of 224 pixel. After-

wards a horizontal ﬂip had been applied with a prob-

ability of 50%. Because of this similar training pro-

cedure we assume that differences in the accuracy re-

sults reported below are caused by the differences in

the model architectures only.

4 RESULTS

4.1 Traditional Transformations

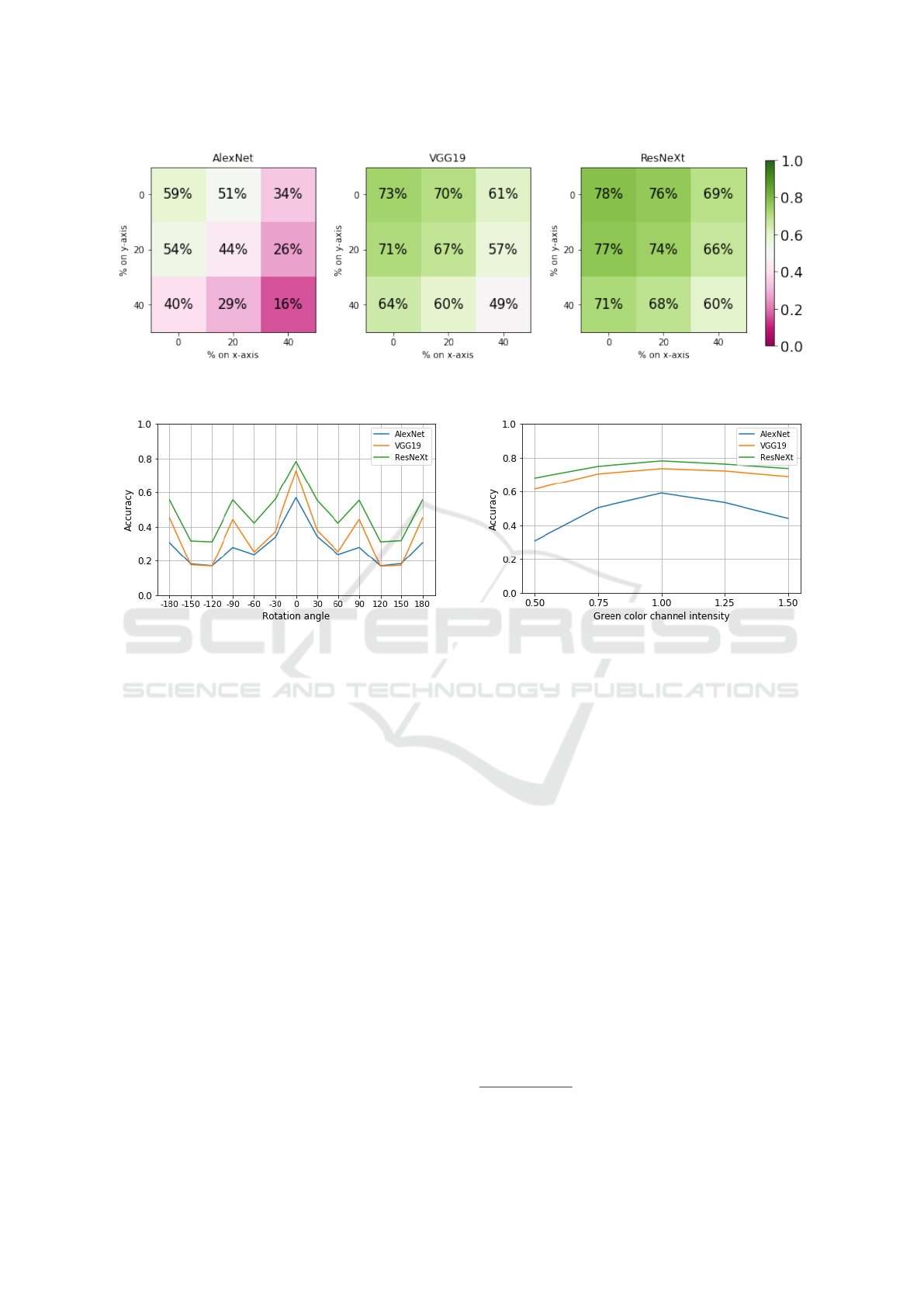

Figure 3 shows the results for the translation trans-

formation. All models show a stronger degradation of

classiﬁcation accuracy for translations in the horizon-

tal x-axis than in the vertical y-axis. This difference

is particularly noticeable for AlexNet, where a shift of

40% in the x-direction yields about six percent worse

results than in the y-direction. The combination of

both directions again signiﬁcantly reduces the perfor-

mance of all models: The decrease here ranges from

18 (ResNeXt) up to 43 percentage points (AlexNet).

The partial disappearance of objects due to translation

discussed above may explain the overall decrease to

some extend, but the differences between the archi-

tectures remain remarkable.

The results of the rotation transformation

are

shown in ﬁgure 4. Here, the rotation of the input data

leads to a similar pattern of performance degradation

in all three models. As expected, the classiﬁcation

accuracy has its global maximum at a rotation of 0

◦

while local maxima are noticeable at 90

◦

, −90

◦

and

180

◦

. Between these maxima there is a signiﬁcantly

reduced accuracy with minima at around −120

◦

and

The given angles refer to counterclockwise rotations.

NCTA 2020 - 12th International Conference on Neural Computation Theory and Applications

398

Figure 3: Change of accuracy when input images are translated. Each matrix shows the accuracy for one model in regard to

the translation distance in x- and y-direction as percentage of image size.

Figure 4: Change of accuracy when input images are ro-

tated. The plot shows the classiﬁcation accuracy of each

model regarding input images rotated by the given angle.

150

◦

respectively. The decrease in detection perfor-

mance ranges from 55% (VGG19) to 39% (AlexNet).

Figure 5 shows the results of modifying the in-

put images with a color change transformation. For

all evaluated models the classiﬁcation accuracy drops

with higher intensity values. Note that the perfor-

mance degradation is not uniform. A decrease in

the intensity of the green color channel – i.e., a red-

blueish tint of the images – affected the recognition

performance more than an increase of the green color

channel. The overall change in accuracy across inten-

sity values from 0.5 to 1.5 ranges from 8% (ResNeXt)

to 23% (AlexNet).

The changes in classiﬁcation accuracy due to a re-

placement of the input images’ background are shown

in ﬁgure 6. Here, VGG19 and ResNeXt appear to be

less affected by the background replacement transfor-

mation than AlexNet. The former are largely invariant

to the speciﬁc color used and show a ≈ 10% decrease

of accuracy across all cases. In contrast, the results for

AlexNet display clear differences in the degree of per-

formance degradation depending on the speciﬁc back-

ground color. Note the particularly strong degradation

in case of a red background color.

Figure 5: Change of accuracy when input images have al-

tered colors. The plot shows the classiﬁcation accuracy of

each model for input images with varying intensity values

of the green color channel. A value of 1 represents an unal-

tered image.

4.2 Novel Transformations

Figure 7 shows the recognition performance of all

three models with respect to the collage transforma-

tion. It shows how well each network was able to rec-

ognize one, two, three, or all four of the image classes

present in the collage images. For this purpose the k

classes with the highest probability values were con-

sidered as guesses of the network, with 1 ≤ k ≤ 9.

Comparing the top1-accuracy (k = 1) with that for un-

altered input images, the percentage of correctly clas-

siﬁed images

is signiﬁcantly lower for AlexNet and

VGG19 (from 59% and 73% to 9% and 42%, respec-

tively). In case of ResNeXt the percentage of cor-

rectly recognized class labels drops by 8% from 78%

to 70%. The collage transformation results also offer

some insight into the ability of each model to recog-

nize more than one object class at a time. Even with

increasing values of k AlexNet is not able to recognize

An image counts as correctly classiﬁed as soon as one

of the four classes in the collage is the top1.

On the Robustness of Convolutional Neural Networks Regarding Transformed Input Images

399

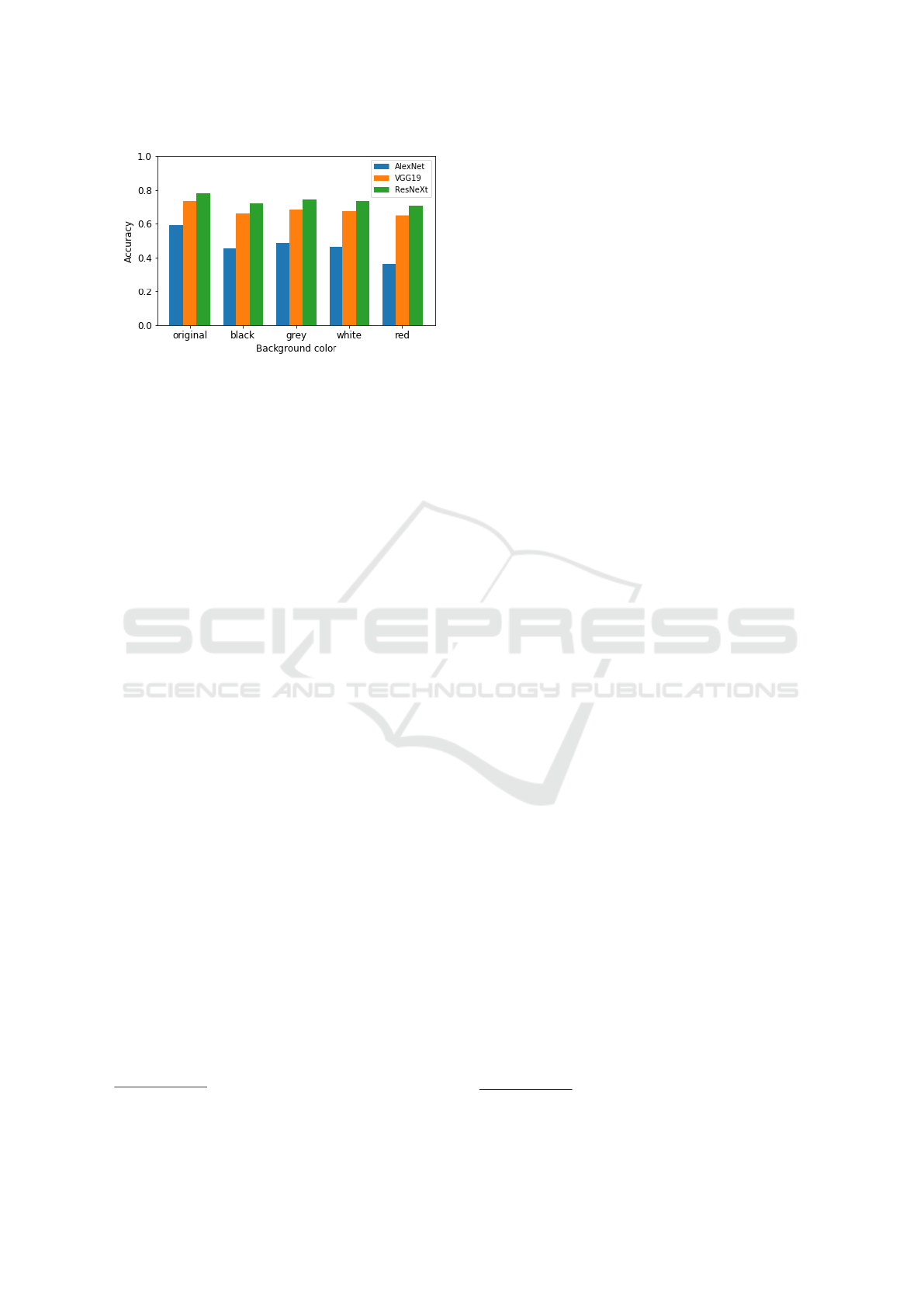

Figure 6: Change of accuracy when input images have an

altered background. The graph shows the accuracy of each

model for input images with replaced backgrounds. Unal-

tered input images are indicated by “original”. In all other

cases the non-object part of the image has been replaced by

the respective color.

more than one object class per collage image in most

cases. VGG19 appears to be limited to recognize two

out of the four object classes present in the collage. In

contrast, ResNeXt seems to have fewer difﬁculties to

recognize multiple object classes in a collage image.

In more than 20% of the input images two of the four

object classes are in the top2 predictions (k = 2). For

k > 3, ResNeXt manages to put all four image classes

among the predictions. For k = 10 ResNeXt detects

one or more of the four object classes in over 98% of

the images.

Figure 8 shows the accuracy of the evaluated net-

works with respect to the puzzle transformation. The

x-axis shows n, the number of rows and columns used

for constructing the puzzle, i.e., n = 1 refers to an

unchanged input image, n = 2 refers to a 2 × 2 puz-

zle, and so on. All three models show a decreas-

ing accuracy with an increase in image fragmentation.

Overall, AlexNet appears to be signiﬁcantly more af-

fected by the puzzle transformation than VGG19 and

ResNeXt.

4.3 Combined Transformations

Figure 9 shows the results of combining the rota-

tion transformation with a black color background re-

placement. In contrast to the sole application of ro-

tations evaluated above, in which areas of different

size have to be ﬁlled in with black due to different

rotation angles, the combination of rotation and back-

ground replacement results in the same ratio of useful

information (the object) and pixels ﬁlled in (the back-

ground) independent of the rotation angle

. The com-

bination of both transformations results in a similar

This does not hold true for the rare cases in which the

object to be recognized lies very close to the images edge

pattern as seen for the rotation transformation above.

The recognition performance continues to be signiﬁ-

cantly higher at multiples of ±90

◦

than for other ro-

tation angles, while the overall accuracy is further re-

duced compared to the sole application of the rotation

transformation.

Figure 10 shows the results of combining the puz-

zle and background replacement transformations. The

results display a high degree of consistency with the

sole application of the puzzle transformation (Fig. 8).

Adding the background replacement transformation

reduced the performance by 10% to 20% across the

parameter range.

5 DISCUSSION

The presented results reveal a clear trend regarding

the comparison of the three models: across almost

all of the evaluated transformations, the accuracy of

ResNeXt remains higher than that of the VGG19

network, which in turn has a higher accuracy than

AlexNet. There are some minor exceptions to this

observation. For instance, for some rotational trans-

formations VGG19’s accuracy drops below that of

AlexNet.

Overall, there is a clear gap between AlexNet’s

performance compared to the other two networks.

This gap manifests itself not only in terms of abso-

lute performance, but also regarding the robustness

against the degree with which the individual trans-

formations were applied. This difference is particu-

larly prominent in the background replacement and

color change transformations: even with heavily mod-

iﬁed input data, the more recent models VGG19 and

ResNeXt continue to show relatively high recogni-

tion rates that remain higher than the performance of

AlexNet for unaltered input material. Interestingly,

AlexNet’s robustness seems to fail especially with re-

gard to red color components, which is visible in both

the background replacement and color change trans-

formations.

In general, it appears that the increased network

complexity and the increased detection performance

of VGG19 and ResNeXt correlates with a higher ro-

bustness against different types of transformations.

This holds true especially in case of the color change,

background replacement, and translation transforma-

tions. Thus, it might be the case that VGG19 and

ResNeXt perform better than AlexNet in real-world

applications where backgrounds or object environ-

ments change a lot or objects are shifted in the im-

and its rotation results in parts of the object becoming invis-

ible.

NCTA 2020 - 12th International Conference on Neural Computation Theory and Applications

400

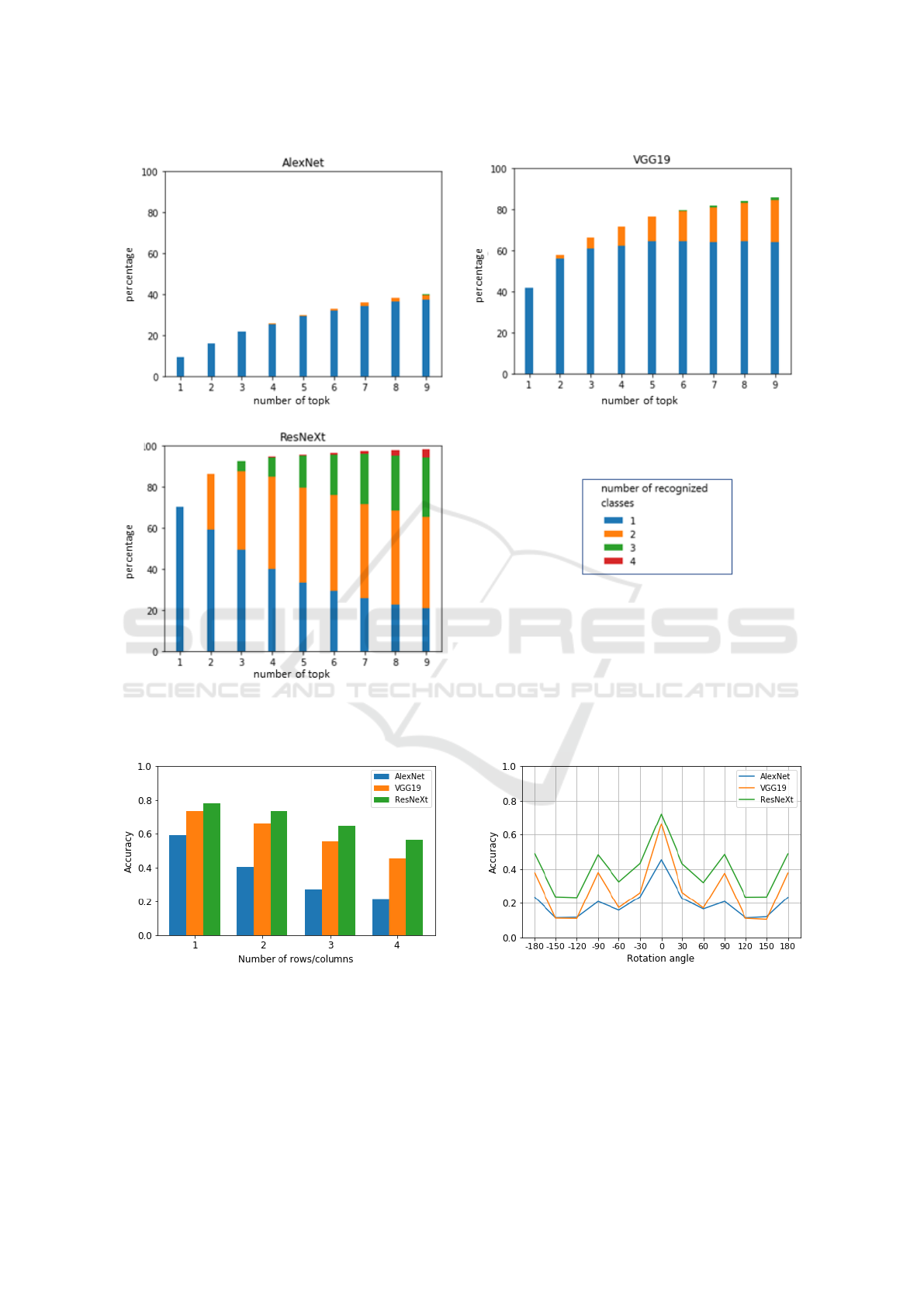

Figure 7: Change of accuracy when collage input images are used. Colors indicate the number of correctly recognized classes

per collage (one, two, three, or all four). A class is considered to be correctly classiﬁed if it is present in the k classes with

highest probability predicted by each model, with 1 ≤ k ≤ 9.

Figure 8: Change of accuracy when input images are trans-

formed by the puzzle transformation. The graph shows the

accuracy of each model for an increasing number of tiles. 1

represents the original image, whereas 4 represents a puzzle

with 4 × 4 = 16 tiles. The tiles are arranged randomly.

age plane. Future research based on real-world data

should be able to illuminate this aspect further.

Despite the progress shown by VGG19 and

Figure 9: Change of accuracy when input images are trans-

formed by background replacement and rotation. First the

non-object part of the images have been replaced by a black

color. Afterwards the rotation transformation has been ap-

plied with rotation angles ranging from -180 to 180 degrees.

ResNeXt, a simple rotation of the input data can

still cause a noticeable decrease in performance of all

evaluated models. This is particularly surprising since

On the Robustness of Convolutional Neural Networks Regarding Transformed Input Images

401

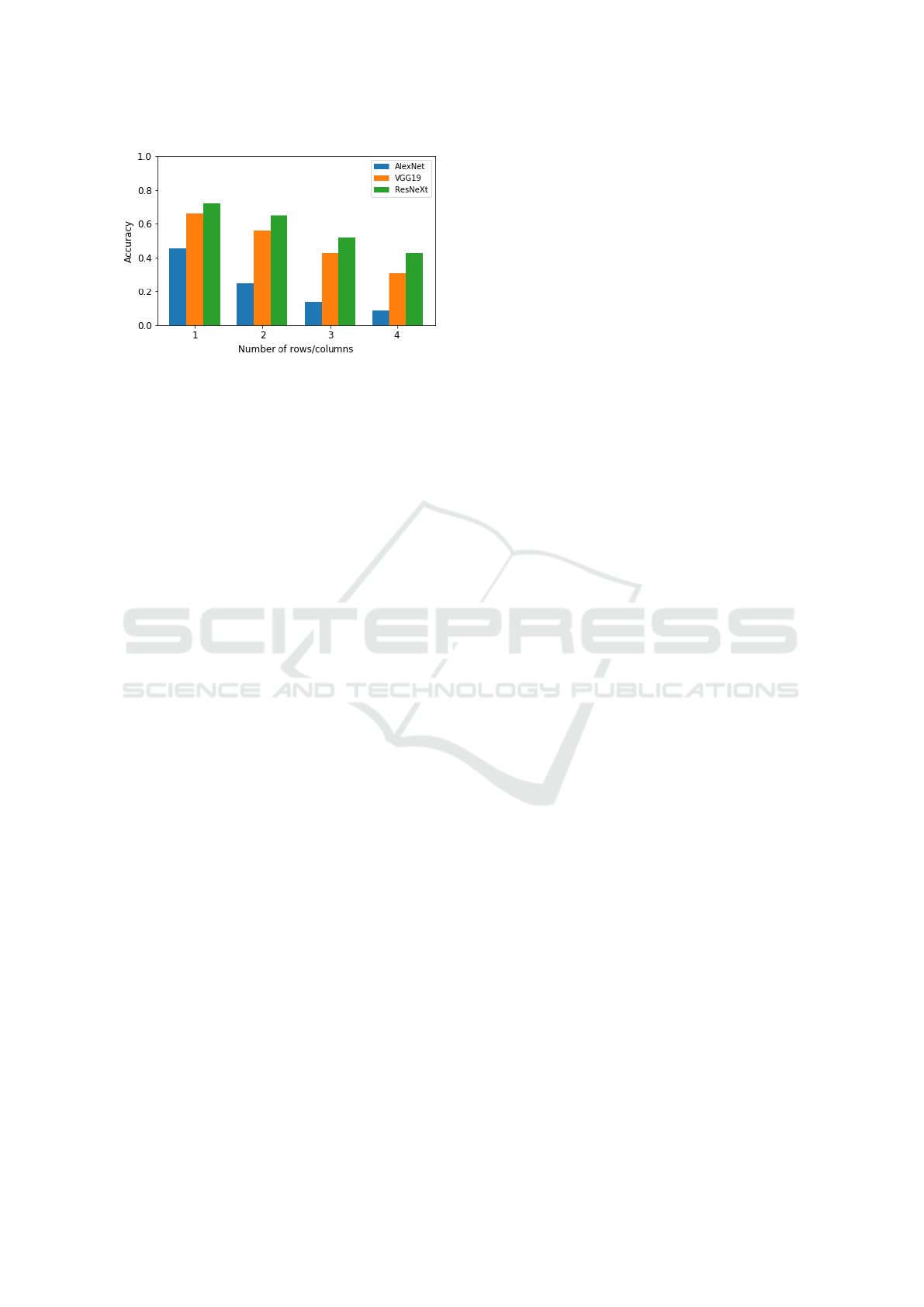

Figure 10: Change of accuracy when input images are trans-

formed by background replacement and puzzle. First the

non-object part of the images have been replaced by a black

color. Afterwards the puzzle transformation has been ap-

plied with puzzle resolutions ranging from 1 (original im-

age) to 4 (4 × 4 puzzle).

rotations are widely used as data augmentation meth-

ods. On the other hand, this observation is consistent

with the results of (Engstrom et al., 2018), although

they evaluated much smaller rotation angles. Given

the relatively good performance of the evaluated net-

works at multiples of ±90

◦

one might suspect that the

lack of blank image areas at these angles might be the

underlying cause for these irregularities. However,

the results obtained from the combination of rotation

and background replacement contradict this assump-

tion.

Regarding the results obtained by the collage

transformation experiment, ResNeXt’s high accuracy

suggests that this model has an improved ability to

recognize the patterns of an object independent of the

object’s environment or background. This is consis-

tent with the good performance of ResNeXt in the

background replacement experiment. AlexNet on the

other hand is hardly able to detect more than one ob-

ject class simultaneously. This might indicate that

AlexNet depends more heavily on patterns that are

present in the image background to perform a correct

classiﬁcation.

With regard to the puzzle transformation experi-

ment, the more recent models show a higher robust-

ness as well. This may be related to the fact that they

are already more robust against translations of objects

in the image plane and therefore have less problems

with a changed spatial arrangement of the image. Yet,

this could also be an indication for a detection behav-

ior that is more specialized in local patterns. For fur-

ther insights, puzzles with an even smaller fragmen-

tation of the input images could be constructed, while

simultaneously controlling the extend of fragmenta-

tion of the object itself.

Further, more extensive experiments may use re-

duced step sizes for the transformation parameters to

facilitate a more ﬁne grained comparison with previ-

ous publications. For instance, (Azulay and Weiss,

2018) have shown that translations of even a few pix-

els can lead to signiﬁcant performance drops in some

architectures. Therefore, using smaller step sizes on

the transformations evaluated in our work may facili-

tate a more detailed reasoning about the robustness of

the networks.

6 CONCLUSION

Our results show that the more recent architectures

VGG19 and ResNeXt appear to have an increased ro-

bustness against many kinds of image transformations

including color changes and background replacement.

However, invariance towards rotational transforma-

tions of the input appears to remain problematic as

these transformations cause a signiﬁcant decrease in

recognition performance of all evaluated models.

The collage and puzzle transformations intro-

duced here appear to be suitable benchmarks to

further investigate the strengths and weaknesses of

CNNs as they were able to reveal markedly different

abilities among the evaluated architectures.

REFERENCES

Azulay, A. and Weiss, Y. (2018). Why do deep convolu-

tional networks generalize so poorly to small image

transformations? arXiv preprint arXiv:1805.12177.

Barbu, A., Mayo, D., Alverio, J., Luo, W., Wang, C.,

Gutfreund, D., Tenenbaum, J., and Katz, B. (2019).

ObjectNet: A large-scale bias-controlled dataset for

pushing the limits of object recognition models. In

Wallach, H., Larochelle, H., Beygelzimer, A., Alch

Buc, F. d., Fox, E., and Garnett, R., editors, Advances

in Neural Information Processing Systems 32, pages

9448–9458. Curran Associates, Inc.

Bay, H., Tuytelaars, T., and Van Gool, L. (2006). Surf:

Speeded up robust features. In Leonardis, A., Bischof,

H., and Pinz, A., editors, Computer Vision – ECCV

2006, pages 404–417, Berlin, Heidelberg. Springer

Berlin Heidelberg.

Engstrom, L., Tran, B., Tsipras, D., Schmidt, L., and

Madry, A. (2018). A rotation and a translation sufﬁce:

Fooling CNNs with simple transformations. arXiv

preprint arXiv:1712.02779.

Goodfellow, I. J., Shlens, J., and Szegedy, C. (2014). Ex-

plaining and harnessing adversarial examples. arXiv

preprint arXiv:1412.6572.

Hendrycks, D. and Dietterich, T. (2019). Benchmarking

neural network robustness to common corruptions and

perturbations.

NCTA 2020 - 12th International Conference on Neural Computation Theory and Applications

402

Hendrycks, D., Zhao, K., Basart, S., Steinhardt, J., and

Song, D. (2020). Natural adversarial examples. arXiv

preprint arXiv:1907.07174.

Howard, A. G. (2013). Some improvements on deep con-

volutional neural network based image classiﬁcation.

arXiv:1312.5402.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

ageNet classiﬁcation with deep convolutional neural

networks. In Pereira, F., Burges, C. J. C., Bottou,

L., and Weinberger, K. Q., editors, Advances in Neu-

ral Information Processing Systems 25, pages 1097–

1105. Curran Associates, Inc.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision, 60(2):91–110.

Mikołajczyk, A. and Grochowski, M. (2018). Data augmen-

tation for improving deep learning in image classiﬁca-

tion problem. In 2018 International Interdisciplinary

PhD Workshop (IIPhDW), pages 117–122.

Recht, B., Roelofs, R., Schmidt, L., and Shankar, V. (2019).

Do ImageNet classiﬁers generalize to ImageNet? In

Chaudhuri, K. and Salakhutdinov, R., editors, Pro-

ceedings of the 36th International Conference on Ma-

chine Learning, volume 97 of Proceedings of Machine

Learning Research, pages 5389–5400, Long Beach,

California, USA. PMLR.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh,

S., Ma, S., Huang, Z., Karpathy, A., Khosla, A.,

Bernstein, M., Berg, A. C., and Fei-Fei, L. (2015).

ImageNet large scale visual recognition challenge.

arXiv:1409.0575.

Shorten, C. and Khoshgoftaar, T. M. (2019). A survey on

image data augmentation for deep learning. Journal

of Big Data, 6(1):60.

Simonyan, K. and Zisserman, A. (2015). Very deep con-

volutional networks for large-scale image recognition.

arXiv:1409.1556.

Su, J., Vargas, D. V., and Sakurai, K. (2019). One pixel at-

tack for fooling deep neural networks. IEEE Transac-

tions on Evolutionary Computation, 23(5):828–841.

Taylor, L. and Nitschke, G. (2017). Improving

deep learning using generic data augmentation.

arXiv:1708.06020.

Wiyatno, R. R., Xu, A., Dia, O., and de Berker, A. (2019).

Adversarial examples in modern machine learning: A

review. arXiv:1911.05268.

Xie, S., Girshick, R., Doll

ar, P., Tu, Z., and He, K. (2017).

Aggregated residual transformations for deep neural

networks. arXiv:1611.05431.

Zheng, L., Yang, Y., and Tian, Q. (2018). SIFT meets CNN:

A decade survey of instance retrieval. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

40(5):1224–1244.

On the Robustness of Convolutional Neural Networks Regarding Transformed Input Images

403
