Data-driven Summarization of Broadcasted Cycling Races

by Automatic Team and Rider Recognition

Steven Verstockt

, Alec Van den broeck

, Brecht Van Vooren,

Simon De Smul and Jelle De Bock

IDLab, Ghent University-imec, Belgium

Keywords: Data-driven Summarization, Rider Recognition, Storytelling.

Abstract: The number of spectators for cycling races broadcasted on television is decreasing each year. More dynamic

and personalized reporting formats are needed to keep the viewer interested. In this paper, we propose a

methodology for data-driven summarization, which allows end-users to query for personalized stories of a

race, tailored to their needs (such as the length of the clip and the riders and/or teams that they are interested

in). The automatic summarization uses a combination of skeleton-based rider pose detection and pose-based

recognition algorithms of the team jerseys and rider faces/numbers. Evaluation on both cyclocross and road

cycling races show that there is certainly potential in this novel methodology.

1 INTRODUCTION

Over the last few years, a weakening public interest

is noticed to almost all cycling races. The ‘traditional’

cycling broadcast concept in which races are shown

from start to finish is losing popularity, especially

among the younger generations. Other sports face

similar problems as young fans drop out (Lombardo,

2017). More personalized and interactive experiences

are needed to keep the end user happy and get back

the youngsters. The data-driven summarization

mechanism proposed in this paper is a first step in this

direction. It allows to automatically create summaries

of a particular length, focusing on the events, riders

and/or teams of choice. In order to achieve this, fine-

grained metadata is needed for each video shot in the

broadcasted stream. Available sensor data (e.g.

provided by Velon or Strava) and video-based

recognition techniques are used to generate the

required metadata. This more detailed metadata is

also an added value for archiving and querying

purposes.

By improving the metadata collection and

indexing strategies broadcasters will, over time, also

be able to offer new services to teams, such as auto-

generated team stories (e.g., a video with the

https://orcid.org/0000-0003-1094-2184

https://orcid.org/0000-0002-3593-7851

https://orcid.org/0000-0002-1676-9813

highlights of a team in a particular race which can be

easily integrated in the team’s fan pages or social

media account) or providing stats about how much

the team or a particular rider was present/shown in the

live stream. The latter could, for example, be very

interesting for teams to negotiate new sponsor deals

or to analyze how active a rider was in a particular

race. Figure 1 shows an example of such stats that

were generated with the proposed methodology. As

can be seen, two teams dominated the broadcasted

final of the last 40km of the Classica San Sebastian

race in 2019. Finally, the fine-grained metadata can

also be used for training/coaching purposes to

optimize rider performance, adapt race strategies or

scout opponents.

The remainder of this paper is organized as

follows. Section 2 presents the related work on data-

driven analysis and summarization of sport videos.

Section 3 explains our data-driven summarization

methodology. Results of a Tour de France test and a

cyclocross race in Leuven are shown in Section 4.

Finally, Section 5 concludes the paper and points out

directions for future work.

Verstockt, S., Van den broeck, A., Van Vooren, B., De Smul, S. and De Bock, J.

Data-driven Summarization of Broadcasted Cycling Races by Automatic Team and Rider Recognition.

DOI: 10.5220/0010016900130021

In Proceedings of the 8th International Conference on Sport Sciences Research and Technology Support (icSPORTS 2020), pages 13-21

ISBN: 978-989-758-481-7

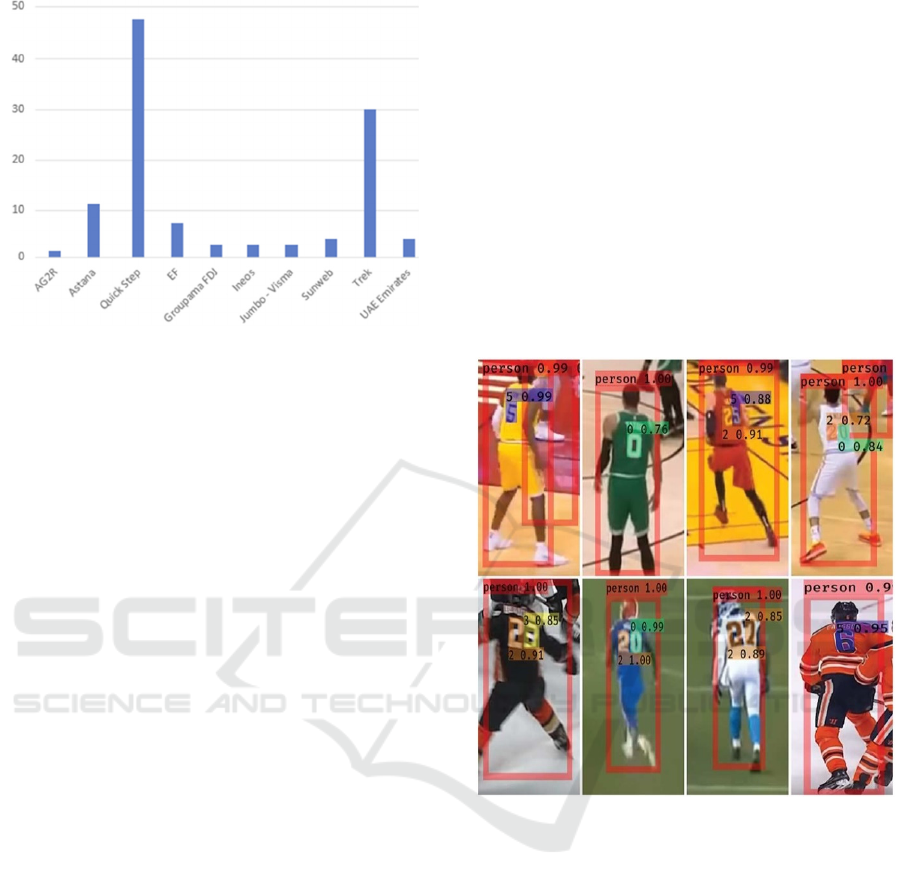

Figure 1: Classica San Sebastian 2019 - detected teams in

footage of last 40km.

2 RELATED WORK

The biggest problem that contemporary cycling races

are struggling with is that watching a race for multiple

hours can be boring and too time consuming. A

solution for this problem can possibly be found in the

area of highlight summarization, which has been an

active research topic over the last decade. Traditional

summarization methods (e.g. HMM based audio-

visual highlight detection as proposed by (Qian et al.,

2012) have been improved by recent deep learning-

based methods that, for example, focus on player

action related features to distinguish between

interesting/boring parts (Tejero-de-Pablos et al.,

2018). The accuracy of these techniques is still too

low (+- 75% f-score) and the metadata description is

at too high level to create summarizations targeted to

specific end-users/applications. Furthermore, these

solutions don’t tell us which rider is performing the

particular action, making it difficult to be used in the

proposed concept of personalized summaries.

Combining the player action data with rider

recognition and linking it to the available sensor data

will make it possible to generate the level of metadata

detail needed for this purpose.

2.1 Team and Rider Recognition

Related work on rider and team recognition in cycling

is rather scarce or not existing, i.e., we did not find

any hit in literature. However, in other sports like

basketball, soccer and football, several approaches

have been proposed over the last decade on how to

identify players.

The jersey number recognition proposed by (Liu and

Bhanu, 2019), for example, makes use of a Region-

based Convolutional Neural Network (R-CNN)

trained on persons/players and digits. Region

proposals are geometrically related and fed to an

additional classifier, ultimately generating jersey

number proposals. Some results of this approach are

shown in Figure 2. When a player is turned

backwards the recognition goes well, but in any other

orientation problems can occur, as shown in the last

two examples. Furthermore, for any frontal view this

approach will depend on the tracking of previous

detections. Tracking in sports videos, especially when

people are wearing similar sportswear and have a lot

of occlusions, is also error-prone.

Figure 2: Jersey number recognition results proposed in

(Liu and Bhanu, 2019).

In (Mahmood et al., 2015) an Adaboost based face

detection and recognition methodology, recognizing

baseball players in action, is presented. A

shortcoming of this algorithm is that it requires that

the detected players’ faces are frontal or near frontal.

Again, when the orientation of a player changes,

tracking issues can obfuscate the identification.

Broadcasted cycling videos continuously switch

between cameras and viewpoints, which makes

tracking even more difficult, i.e., none of the

previously mentioned solutions would give us

satisfying results. This is the main reason why we

decided to develop a pose-based methodology that

works on frontal, lateral and dorsal views, and tracks

riders within the same shot when no occlusions occur.

In case of occlusions, the tracking stops and the

icSPORTS 2020 - 8th International Conference on Sport Sciences Research and Technology Support

detection algorithm tries to resolve them. Based on

the pose and the type of shot, decisions between using

face recognition, jersey recognition and/or number

recognition are made, and available sensor data is

used to further filter or verify the set of possible

candidates, as explained in Section 3.

2.2 Cycling Sensor Data

Several third parties (such as Velon and Gracenote)

provide structured and very detailed live data of

sports events at a high frequency. Velon, for example,

provided location, heart rate, power, and speed of

each cyclist during several stages of Tirreno Adriatico

2019 and Gracenote provided exact location of each

group of riders during the Tour of Flanders 2019. If

such sensor data of the race is available, it is definitely

the most accurate and computationally most

interesting solution for geo-localization and event

detection. When there are multiple groups of riders,

however, an additional method (such as team or

cyclist recognition) is needed to know which

particular group is shown in the live video stream (as

is further discussed in Section 3).

If detailed sensor data were available, several

events can be detected in it, such as breakaways,

crashes, or difficult sectors (e.g. barriers and sandpits

in cyclocross or gravel segments in road cycling). For

the latter type of events, the approach of (Langer et al,

2020) for difficulty classification of mountainbike

downhill trails can, for example, be tailored to

cyclocross and road cycling segment classification.

The work of (Verstockt, 2014) also shows that this is

feasible. For breakaway/crash detection, experiments

revealed that simple spatio-temporal analysis across

all riders will already provide satisfying results.

 TEAM & RIDER DETECTION

3.1 Skeleton and Pose Detection

The proposed team and rider detection methodology

both start from the output of a skeleton recognition

algorithm (such as OpenPose

, tf-pose

and

AlphaPose

). Figure 3 shows an example of the

skeleton detection (front and side view) of these

algorithms – tested in our lab set-up. In order to

measure the accuracy of each of the available pose

estimation libraries, tests were performed in which

ground truth annotations of the rider joints are

https://github.com/CMU-Perceptual-Computing-Lab/openpose

https://github.com/ildoonet/tf-pose-estimation

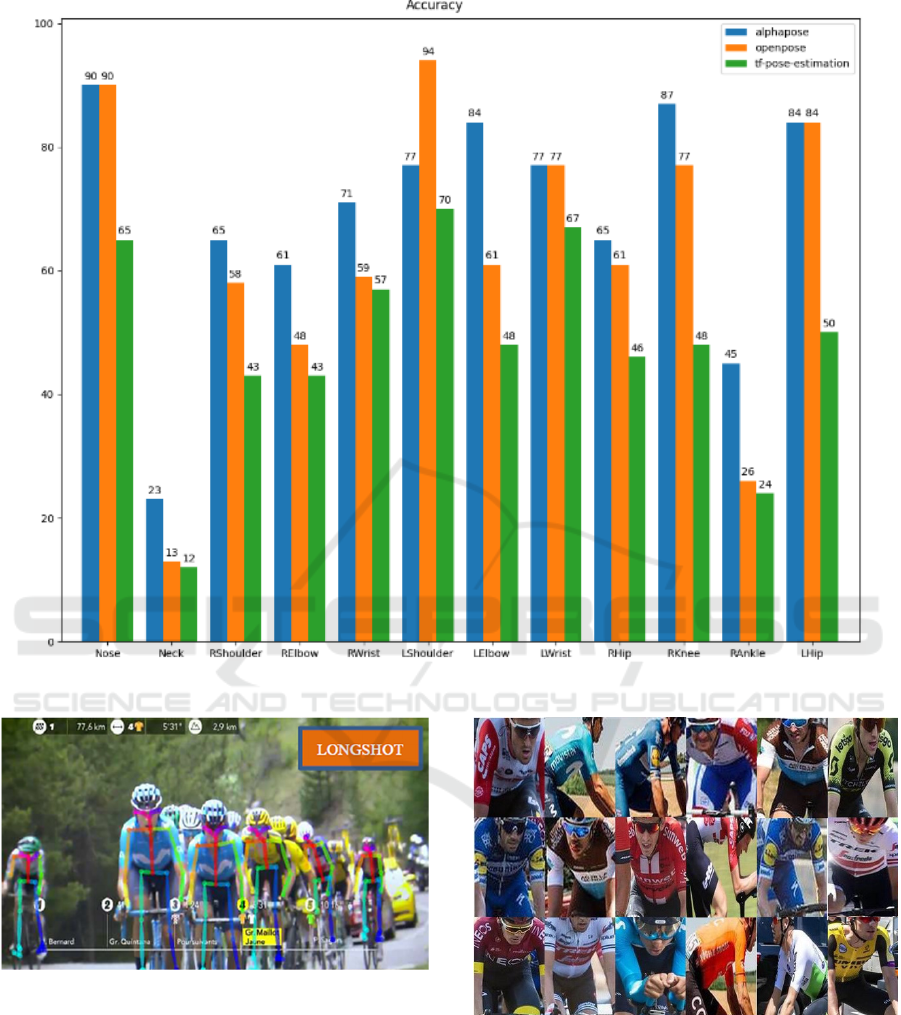

compared to the algorithms’ output. As can be seen in

the results shown in Figure 4, none of these skeleton

trackers is outperforming the others in all situations,

but AlphaPose and OpenPose are definitely

outperforming tf-pose. An evaluation on a dataset of

Tour de France footage with OpenPose also provided

satisfying results on the typical filming angles in

cycling live broadcasts.

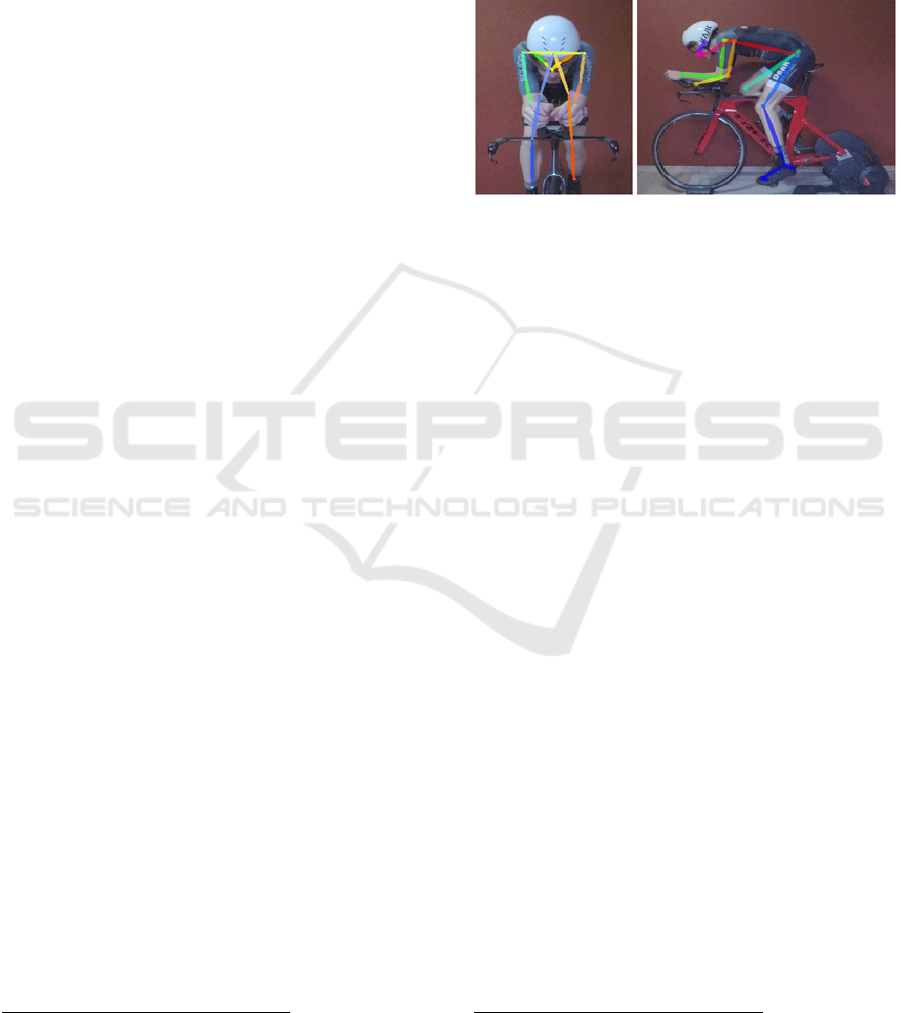

Figure 3: Rider skeleton detection (lab set-up).

The skeleton detection is providing the keypoints,

i.e., the main joints of the rider’s body. From the

keypoint locations (i.e., pixel coordinates) we can

detect the pose and orientation of the rider. If the left

shoulder is left of the right shoulder, then it is most

likely to be a frontal shot. If the left shoulder is on the

right of the right shoulder, then the frame was most

likely shot from a rear perspective. Based on this

information, different techniques can be selected for

further identification. For instance, if we see a rider

from the back, face detection will not work, but a

combination of number and team recognition will

make it possible to detect the rider from that side. If

we have a frontal view of the rider, the number will

of course not be visible, but now the face recognition

algorithm can take over. If available, sensor data can

help to limit the number of candidate riders that can

be expected in a particular shot or frame.

In addition to detection of the orientation of the

rider, skeleton detection can also be used for shot type

classification. Based on the number of detected

skeletons and their size/location in the video footage,

a close-up shot can easily be distinguished from a

longshot or landscape view, as is shown in Figure 5.

Furthermore, scene changes can also be detected by

analysing the skeleton size/location changes over

time. As a result, we know exactly when it is safe to

start and stop tracking (if needed) and we can also

easily further crop the video into logical story units.

Finally, we also use the skeleton output to crop out

the faces and upper body regions of the riders – results

of this step are shown in Figure 6. In this way the and

https://github.com/MVIG-SJTU/AlphaPose

Data-driven Summarization of Broadcasted Cycling Races by Automatic Team and Rider Recognition

Figure 4: Accuracy of skeleton trackers for each of the rider’s joints.

Figure 5: Results of pose detection and shot type estimation

on a Tour de France 2019 broadcast.

accuracy of the next steps (face, number and team

recognition) is improved a lot as background noise

non-rider information (e.g. numbers/text of other

objects) are limited to the bare minimum.

Since the skeleton detection output is used in

several of our building blocks, its higher

computational cost is spread across all these steps,

making it a very interesting building block that can

Figure 6: Results of skeleton-based upper-body extraction.

probably be even further reused in other types of

automatic sports analysis.

3.2 Team Recognition

The proposed team recognition algorithm is based on

a CNN-powered sequential model that is developed

icSPORTS 2020 - 8th International Conference on Sport Sciences Research and Technology Support

with KERAS/Tensorflow

and trained on a dataset of

rider images from 18 UCI World Tour teams. The

CNN outputs a collection of class probabilities for

with KERAS/Tensorflow

and trained on a dataset of

rider images from 18 UCI World Tour teams. The

CNN outputs a collection of class probabilities for

each rider upper body region, as shown in Figure 7 (in

this example the rider is recognized as being a

member of Team Jumbo-Visma with 94%). The

current accuracy of the model is approximately 80%,

however, the current dataset for training is still

limited. By extending the dataset (e.g. by data

augmentation or web scraping) and taking into

account additional information (e.g. text recognition

of team sponsors or jersey numbers) we should be

able to detect most team jerseys with high accuracy.

Furthermore, the current model does not take into

account the orientation of the rider. Future work will

also evaluate if a separate model for front, side and

rear views would further increase the accuracy of the

team recognition. Finally, based on the specific

accuracies for each team (shown in Figure 8) and the

confusion matrices that explain which teams are

swapped most frequently, we can further improve our

workflow in the future.

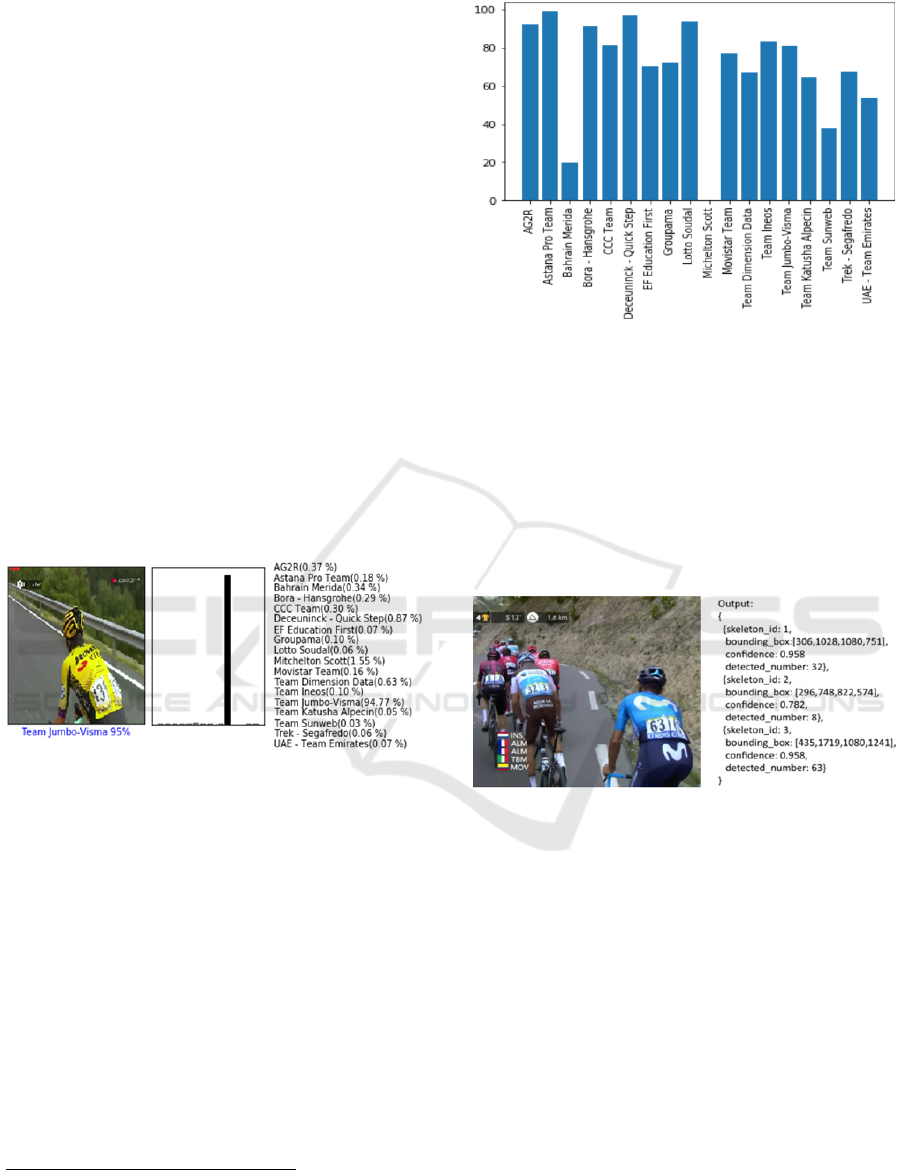

Figure 7: Results of team recognition algorithm.

3.3 Number Recognition

For both the dorsal and lateral view of riders we use

number recognition to identify the riders. Similar to

the team recognition, we start from the upper body

region of the rider, which is fed to the number

recognition module. Once a bib number is recognized

we can link it to the name of the rider using the race

contestant list. Important to mention is that this bib

recognition approach is immediately applicable to

other sports too.

The text extraction itself uses Microsoft Azure

which has state-of-the-art text detection and

recognition models. Azure offers an API that accepts

HTTP requests. For text extraction, two separate calls

https://www.tensorflow.org/api_docs/python/tf/keras

https://docs.microsoft.com/en-us/azure/cognitive-service

s/computer-vision/concept-recognizing-text

Figure 8: Accuracy of team recognition for each team.

are required: one that supplies the images to Azure

and another that retrieves the text recognition results.

It is important to note that multiple calls can be made

asynchronously, allowing this pipeline element to be

multi-threaded. An example of the information

extracted by the text extraction module is shown in

Figure 9. The JSON output contains the detected

number, its bounding box, skeleton ID and

confidence score.

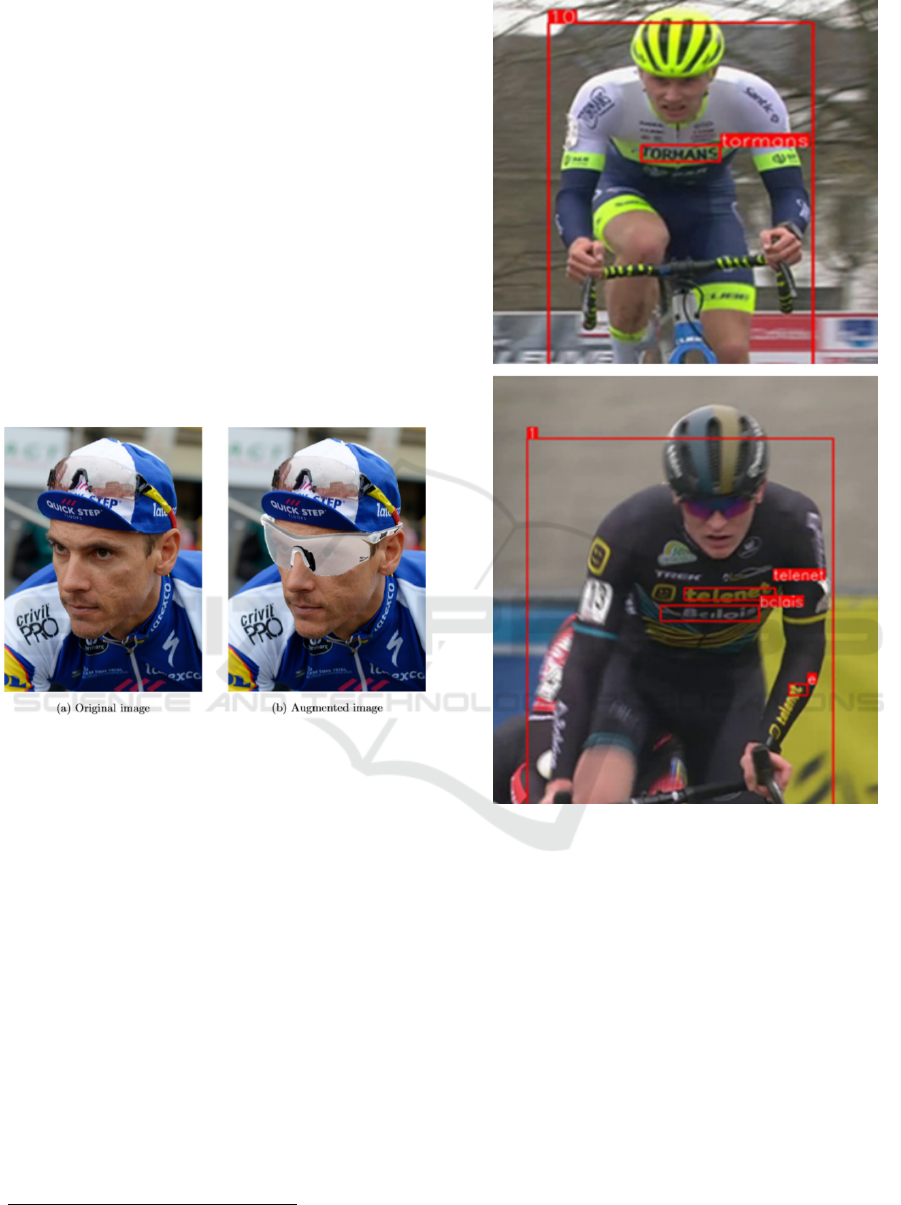

Figure 9: Results of number recognition algorithm.

The biggest downside of using Azure is the fact

that it is a pay-per-call service. The amount of calls to

the Azure servers per hour of video is 7200 times the

framerate of the video (if each frame should be

analysed). However, since subsequent frames are

correlated, we can limit the text analysis to a couple

of frames per second, which is still resulting in a lot

of calls to Azure’s services. As each call is billed

separately, the economical attractiveness of using

commercial text-recognition APIs is rather low.

Furthermore, Azure also produces better results the

higher the size of the text relative to the entire frame.

Accuracy would be at its highest, if we launch a call

for each upper body region instead of for each frame.

This, however, would even further increase the

amount of calls. Thus, a number of alternatives have

been explored.

Data-driven Summarization of Broadcasted Cycling Races by Automatic Team and Rider Recognition

A well-known text extraction alternative is

Tesseract Optical Character Recognition (OCR),

which is available as a Python library

. Tesseract,

however, was not able to detect the majority of the bib

numbers in our test sequences. Even after intensive

pre-processing/optimizing the images the library still

did not manage to extract the numbers. So it was

decided to abandon Tesseract as a candidate to

replace Azure.

Another promising OCR implementation, is that

of KerasOCR

which uses the CRAFT Character

Region Awareness model for Text Detection (Baek et

al., 2019) and the Keras CRNN model for text

recognition

. Some preliminary testing has already

shown that the KerasOCR model produces similar

results to those of Microsoft Azure, making it a viable

replacement option. The main limitation of

KerasOCR, however, is that it is even slower than

Azure. However, this could be solved by multi-

threading the text extraction module.

Once the text recognition module has detected the

bib numbers in the frame, they are mapped onto the

riders that were detected during the skeleton and pose

estimation. This mapping is done by verifying

whether the bib number is located on the back of a

skeleton. Once this mapping is completed, the bib

numbers are resolved based on the contestant info (as

discussed before). To keep track of the results

gathered by both the bib number resolver and face

recognition throughout a sequence, a shared

dictionary is used. This shared dictionary holds the

most likely label (the name of the rider in question)

and the confidence score of that label for each

skeleton ID. The main reason the dictionary is shared

is that the face recognition module and the bib

number resolver module share this data structure.

This means that when face recognition assigns a label

to a certain skeleton, this label can be corrected

afterwards by the bib number resolver. The shared

dictionary effectively allows both modules to correct

each other and work together rather than next to each

other.

3.4 Face Recognition

In order to recognize the riders in the live broadcasts

we first need to have a dataset with the faces of all

contestants. An automatic workflow was developed

to automatically create such a dataset based on the

https://pypi.org/project/pytesseract/

https://keras.io

https://github.com/kurapan/CRNN

https://github.com/ageitgey/face-recognition

Wikidata of the riders and their pictures on

Wikimedia Commons. To extract the faces from the

Wikimedia images (and from the broadcasted video

frames too) we use a face detection algorithm that

detects and encodes the faces and their facial features.

Based on these encodings, the recognition can then be

performed.

A number of different approaches to perform the

face detection exist. Histogram of Oriented Gradients

(HOG) based face detection (Cerna et al., 2013) is a

technique that remains popular due to its low

computational complexity. Although this detection

method performs quite well on perfectly frontal

images, it often fails when it is used to detect faces

shot in a non-frontal position. CNN-based face

detection is an alternative approach whose accuracy

has been shown to be less prone to skewed images

(Vikas, 2018). A Python version of the C++ library

dlib

contains such kind of face detector and is used

in our set-up. Furthermore, it also provides an

encoder for facial features in images and a face

landmark detection algorithm. The encodings can be

used to calculate distances between faces and thus

produce a metric to compare faces, while the

landmarks are useful to distinguish different face

expressions (e.g. suffering, nervousness or

concentration).

The face encoder from dlib is a CNN heavily

inspired by the ResNet34 architecture (He, 2016),

with a few layers removed and the number of filters

per layer halved. The model was trained on a

combination of several publicly available datasets

such as Facescrub and the VGG ones. A shortcoming

of the scraped images from WikiMedia Commons is

that some rider images also contain other people. To

resolve this problem and filter out faces that do not

belong to that specific rider, the pipeline applies face

clustering. Based on the assumption that the rider in

question will be represented more than any other

person, the largest cluster should correspond to the

rider’s encoded faces.

The recognition step compares the encoded faces

gathered during the initialization process with face

encodings extracted from the video frames. The

encoded face from the dataset with lowest distance is

selected as the detected rider. The used distance

metric is the norm of the difference of the 128 features

describing the face encodings. The documentation of

the face recognition library which produced the

encodings states that a distance lower than 0.6

indicates that the faces are belonging to the same

icSPORTS 2020 - 8th International Conference on Sport Sciences Research and Technology Support

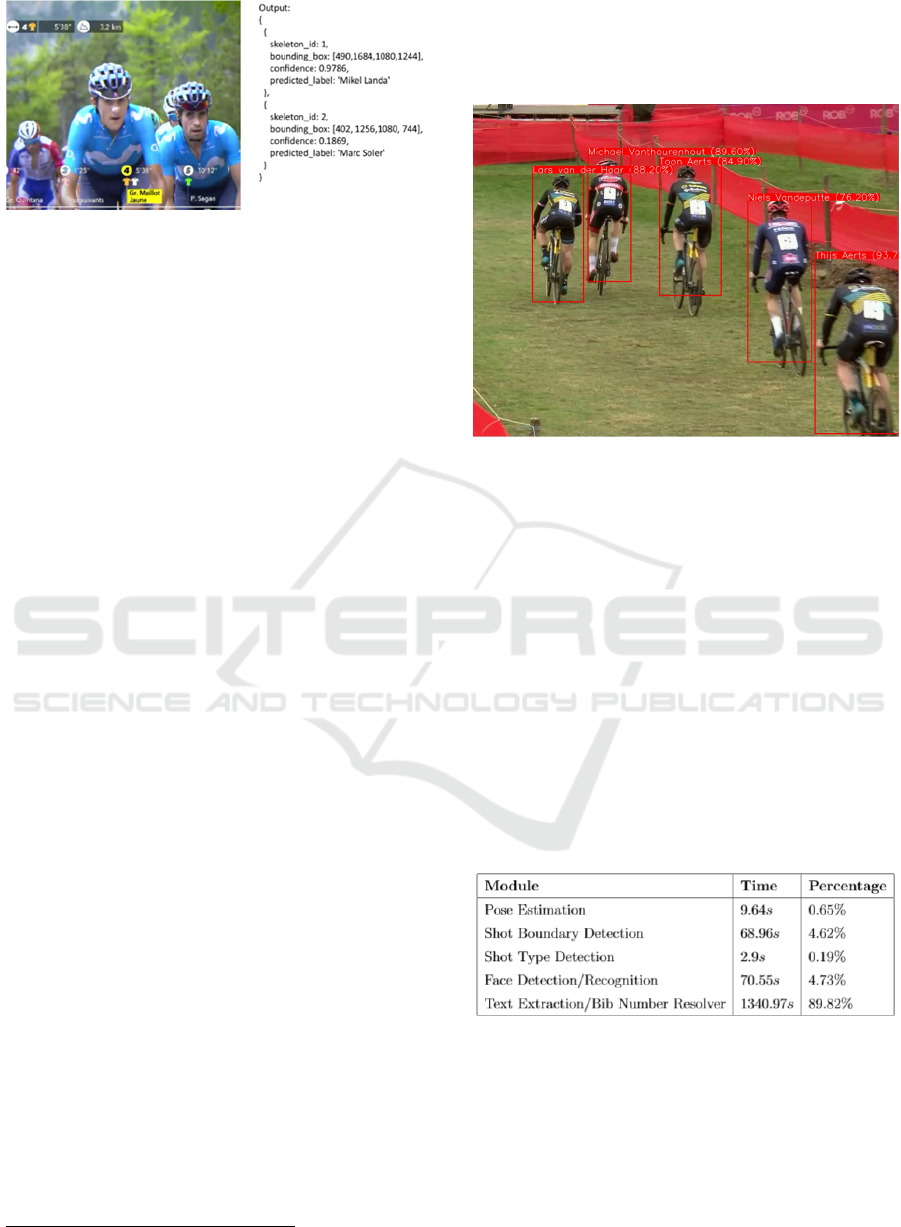

Figure 10: Results of face recognition algorithm.

individual. However, based on our experiments, we

found that a threshold of 0.4 resulted in better

matching. The JSON output of the recognition step is

shown in Figure 10. For each detected rider it

contains the skeleton ID, rider name, and confidence

score.

The proposed face recognition still has some

issues due to the specific circumstances in which the

recognition needs to be performed. First of all,

contestants always wear helmets and often sunglasses

- both covering a part of their face and thus limiting

the amount of ‘visible’ face features. Second, cyclists

have the tendency to look downward, rather than

straight forward, which has a negative impact on

performance as well. Finally, the video quality is

sometimes rather low, which impacts the face

recognition significantly. However, for professional

broadcasts this should not be an issue, as the pipeline

should ultimately run on their raw footage, which has

sufficiently high quality. Furthermore, additional data

streams (such as GraceNote

data) could be used to

improve the recognition. GraceNote produces data

streams which give detailed, real-time information of

the state of the race. This includes information about

the different groups. This means that if there is a

group of two riders and the system only manages to

identify one, then the other rider can still be labelled.

Similarly, if the system identifies two riders in the

same frame, which are in different groups, it could re-

adjust its predictions.

4 RESULTS

The entire pipeline has been tested on both cyclocross

and Tour de France race footage. An example of the

cyclocross results are shown in Figure 11. Once riders

are detected, they are tracked by skeleton matching

between consecutive frames. In this example, all 5

riders are detected correctly. However, this is not

https://www.gracenote.com/scores-and-statistics/

always the case – i.e., we still get some errors in more

challenging sequences. Future work, as discussed in

the conclusions section, will focus on resolving them

by improving/extending some building blocks.

Figure 11: Cyclocross rider recognition.

As illustrated in Table 1, the text extraction and

bib number resolver modules are the major

bottlenecks for the proposed pipeline. A deeper

analysis of the problem reveals that there is a large

waiting time between the moment when the image is

posted to Microsoft Azure and when the results from

text extraction are available. Due to its single-

threaded nature, the system currently has to wait for

the results from Azure, before it can start processing

a new frame. By multi-threading this piece of the

pipeline, the process could be speeded up by a factor

of five, as nearly 90% of the current total processing

time of the text recognition module is spent actively

polling the results from Azure.

Table 1: Processing time of the individual building blocks.

5 CONCLUSIONS

This paper proposes a video processing system that

can be used to automatically annotate cycling race

broadcasts. Skeleton-based rider pose detection is

used to extract rider regions and analyse them with

the team, number and/or face recognition building

blocks. Evaluation on both cyclocross and road

Data-driven Summarization of Broadcasted Cycling Races by Automatic Team and Rider Recognition

cycling races show that there is certainly potential in

this novel methodology, however, improvement is

still possible.

Data augmentation could offer a possible solution

to combat some of the current face recognition

problems. Data augmentation is a machine learning

technique in which a data sample is transformed into

several versions, which should all typically be

labelled the same. By augmenting images from

WikiMedia Commons, for example, into versions

with and without glasses, the face recognition

algorithm should be able to recognize riders more

easily, regardless of the fact if a racer is wearing

glasses or not. To determine the location of the

glasses onto the face of the contestant, pose

estimation could be used to extract the location of the

eyes and ears of the participant. This process is

illustrated with an example in Figure 12.

Figure 12: Augmenting the face of a cyclist with glasses.

Another improvement could be switching to a

more advanced face recognition algorithm, such as

DeepFace

or FaceNet

. However, as these

algorithms are slower than our current dlib approach

and they would require some adjustments for real-

time processing. A final suggestion which could

improve the accuracy of the face recognition module,

would be to use a spatio-temporal face detection

model. The current model uses a frame-by-frame

approach, meaning it does not fully exploit the

temporal correlation between subsequent frames.

Finally, OCR-based recognition of sponsor

names, as shown in Figure 13, could definitely help

to further improve the team recognition and will be

investigated in future work too.

https://github.com/serengil/deepface

https://github.com/davidsandberg/facenet

Figure 13: OCR-based recognition of sponsor names.

ACKNOWLEDGEMENTS

This research is funded by the imec ICON project

DAIQUIRI (Agentschap Innoveren en Ondernemen

project nr. HBC.2019.0053).

REFERENCES

Lombardo, J., Broughton, D., 2017, Going gray: Sports TV

viewers skew older, Sports Business Journal (June 5

Qian, X., Wang, H., Liu, G., Hou., X., 2012, HMM based

soccer video event detection using enhanced mid-level

semantic, Multimedia Tools Appl. 60(1), 233-255.

Tejero-de-Pablos, A., Nakashima, Y., Sato, T., Yokoya, N.,

Linna, M. and Rahtu, E., 2018, Summarization of User-

icSPORTS 2020 - 8th International Conference on Sport Sciences Research and Technology Support

Generated Sports Video by Using Deep Action

Recognition Features, IEEE Transactions on

Multimedia, 20(8), pp. 2000-2011.

Liu, H., Bhanu, B., 2019. Pose-Guided R-CNN for Jersey

Number Recognition in Sports. The IEEE Conference

on Computer Vision and Pattern Recognition (CVPR)

Workshops.

Mahmood, Z., Ali, T., Khattak, S., Hasan, L., Khan, S.,

2015. Automatic player detection and identification for

sports entertainment applications. Pattern Analysis and

Applications. 18. 10.1007/s10044-014-0416-4.

Langer, S., Müller, R., Schmid, K., Linnhoff-Popien, C.,

2020. Difficulty Classification of Mountainbike

Downhill Trails Utilizing Deep Neural Networks.

Machine Learning and Knowledge Discovery in

Databases. 10.1007/978-3-030-43887-6_21.

Verstockt, S., Slavkovikj, V., De Potter, P. and Van de

Walle, R., 2014, Collaborative Bike Sensing for

Automatic Geographic Enrichment: Geoannotation of

road and terrain type by multimodal bike sensing, IEEE

Signal Processing Magazine, vol. 31, no. 5, pp. 101-

111, 10.1109/MSP.2014.2329379.

Baek, Y., Lee, B., Han, D., Yun, S, Lee, H., 2019, Character

Region Awareness for Text Detection, IEEE

Conference on Computer Vision and Pattern

Recognition (CVPR).

Cerna, L., Camara-Chavez, G., Menotti, D., 2013. Face

detection: Histogram of oriented gradients and bag of

feature method, International Conference on Image

Processing, Computer Vision, and Pattern Recognition

(IPCV).

Vikas, G., 2018, Face Detection – OpenCV, Dlib and Deep

Learning (C++/Python)

https://www.learnopencv.com/face-detection-opencv-

dlib-and-deep-learning-c-python

He, K., Zhang, X., Ren, S., Sun, J., 2016, Deep Residual

Learning for Image Recognition, IEEE Conference on

Computer Vision and Pattern Recognition (CVPR), pp.

770-778, 10.1109/CVPR.2016.90.

Data-driven Summarization of Broadcasted Cycling Races by Automatic Team and Rider Recognition
