Using Topic Specific Features for Argument Stance Recognition

Tobias Eljasik-Swoboda

, Felix Engel

and Matthias Hemmje

Faculty of Mathematics and Computer Science, University of Hagen, Hagen, Germany

FTK e.v. Forschungsinstitut für Telekommunikation und Kooperation, Dortmund, Germany

Keywords: Argument Stance Detection, Explainability, Machine Learning, Trainer-athlete Pattern, Ontology Creation,

Support Vector Machines, Text Analytics, Architectural Concepts.

Abstract: Argument detection and its representation through ontologies are important parts of today’s attempt in

automated recognition and processing of useful information in the vast amount of constantly produced data.

However, due to the highly complex nature of an argument and its characteristics, its automated recognition

is hard to implement. Given this overall challenge, as part of the objectives of the RecomRatio project, we are

interested in the traceable, automated stance detection of arguments, to enable the construction of explainable

pro/con argument ontologies. In our research, we design and evaluate an explainable machine learning based

classifier, trained on two publicly available data sets. The evaluation results proved that explainable argument

stance recognition is possible with up to .96 F1 when working within the same set of topics and .6 F1 when

working with entirely different topics. This informed our hypothesis, that there are two sets of features in

argument stance recognition: General features and topic specific features.

1 INTRODUCTION

The RecomRatio project seeks to implement an

information system that supports medical

professionals by recommending treatment options

and supplying rational arguments why a specific

treatment is suggested. The recommendation will be

based on an argument ontology that compares pro and

contra arguments to given topics in medicine. Basis

for the ontology instantiation are specific information

units, extracted from publicly available data sets, as

e.g. provided by PubMed or other similar sources (US

National Library of Medicine, 2018). The necessity to

explain the recommendations is important because of

two reasons. Firstly, medical practitioners have more

trust in the system’s recommendations if they are

shown the reasons for the recommendation.

Secondly, the General Data Protection Regulation

(GDPR) contains a right to explanation, which

demands explanations for the results of machine

learning and artificial intelligence systems if they

impact an EU citizen (EU, 2016). This requirement is

relatively new and has not been an aspect of machine

https://orcid.org/0000-0003-2464-8461

https://orcid.org/0000-0002-3060-7052

https://orcid.org/0000-0001-8293-2802

learning and artificial intelligence research until

recently (Clos et al., 2017).

An essential task in generating explanations for

recommendations is to reliably detect the stance of an

argument, to correctly represent it in the ontology and

to provide further information to support the

traceability of reasons that led to the specific

classification. Hence, our work is in the area of

Argument Mining (AM). More specifically in the task

of determining whether a statement is a pro argument

supporting a given topic or a contra argument against

this topic. In order to explain why an argument was

classified in a specific way, one needs a classification

system that grants a high degree of insight into its

internal processes. To learn stance detection we

applied an adoption of the LibSVM classifier tool to

a set of arguments (see section 2.4). The main

hypothesis that we intend to analyze is:

There are two sets of terms that serve as argument

stance features:

1. The set of general argument stance feature G.

2. The set of topic specific argument stance features

F(t).

Eljasik-Swoboda, T., Engel, F. and Hemmje, M.

Using Topic Speciﬁc Features for Argument Stance Recognition.

DOI: 10.5220/0007769700130022

In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 13-22

ISBN: 978-989-758-377-3

If one has G and F(t) for topic t along with a machine

learned model for the combination of these features,

high effectiveness, explainable classification can be

achieved. If one works with another topic, F(t)

becomes noise decreasing overall effectiveness.

This contribution, supporting our hypothesis is

structured as follows. Firstly we introduce the

relevant state of the art in the fields of Argument

Mining, Neural-Symbolic Integration, Machine

Learning based Text Classification, Feature

Assessment and evaluation metrics. Secondly, we

introduce the experimental setup and applied

methodology. Thirdly, we document and analyze the

experimental results. Last but not least we discuss our

outcome and provide an overview of future work.

2 STATE OF THE ART

2.1 Argument Mining (AM)

Generally speaking, research in Argument Mining

aims to automate the process of detecting arguments

in large quantities of text. Essentially AM brings

together a quite broad set of different disciplines like

Artificial Intelligence, Natural Language Processing

and Computational Linguistics. Seeking for answers

to challenges related to “… natural language

processing and understanding, information

extraction, feature discovery and discourse analysis”

(Lippi and Torroni, 2015).

A specific challenge within AM is the detection of

the stance of an argument. Essentially meaning, the

detection if an argument is a pro or contra argument

given a specific topic. Various stance detection

approaches have been evaluated e.g. on the

Semeval16 conference (Mohammad et al., 2016).

2.2 Neural-Symbolic Integration

Neural-Symbolic Integration is the fundamental idea

to merge symbolic knowledge representation, for

example expressed in ontologies, with neural network

based supervised learning (Bader and Hitzler, 2016).

Reasons to adopt this approach are to utilize

benefits of both approaches: Symbolic, or semantic

systems are logic-based, declarative and explicitly

model how humans think. Neural networks on the

other hand are much more tolerant against noise and

more robust when working with previously unseen

data. Neural networks are trained on example data

and automatically generate their functionality during

training. This way they express the regularities of

their training set but not explicit human-generated

knowledge. Neural-Symbolic Integration attempts to

benefit from the strengths of both approaches.

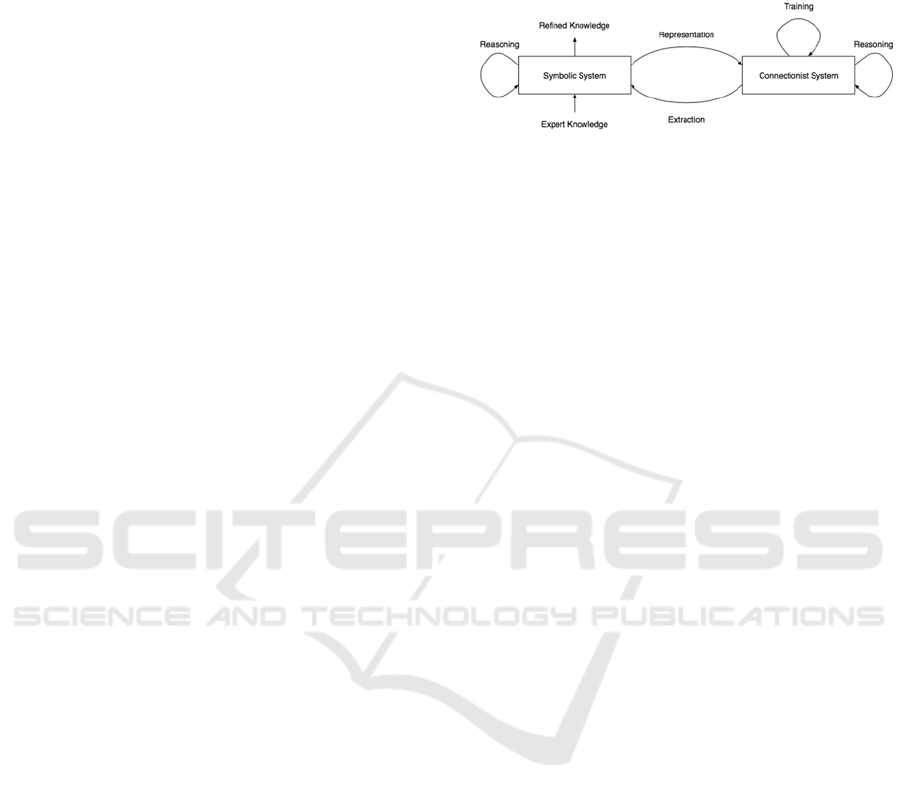

Figure 1: Neural-Symbolic Integration (Bader and Hitzler,

2016).

Even though the name implies neural networks,

Neural-Symbolic Integration is not necessarily

limited to neural networks but can be used with any

supervised machine learning approach one can easily

integrate with a symbolic, semantic application.

2.3 Cloud Classifier Committee

The Cloud Classifier Committee (C3) is a suite of

microservices that implement different machine

learning approaches making it feasible to combine

their results in a committee fashion. C3 implements a

modern and flexible microservice-oriented

architecture (Swoboda et al., 2016); (Wolf, 2017).

The goal of these microservices is to make Text

Categorization (TC) easily available for any type of

application, including explainable AM pro / contra

recognition. C3 exposes a number of endpoints on a

REST/JSON interface which any network capable

application can connect to. This makes integrating TC

techniques into arbitrary applications as difficult as

accessing an external database. C3 uniquely enables

neural-symbolic integration because it uses a

common API for any supervised learning TC

algorithm that a symbolic application can interface

with. We use Support Vector Machine (see next sub-

section) based microservices because their model is

easy to explain in comparison to more obscure

models such as neural networks. In TC, documents

can be of arbitrary length, ranging from a few words,

over sentences to lengthy texts. For us, a document is

a string of different words of arbitrary length.

To the best of our knowledge, there are no best

practices and design patterns to enable machine

learning based text categorization in microservice-

oriented architectures. We therefore developed the

trainer-athlete pattern, which is adopted by C3.

Within the trainer-athlete pattern there are two roles

of services: The trainer learns a model by applying

supervised learning algorithms to the available corpus

of documents, categories, and their assignments (the

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

target function). After the model is learned, it is made

available as JSON file using a specific endpoint of the

Trainer. The Athlete service needs such a model to

function and must be configured with it after starting

the service.

This pattern is loosely based on the Command

Query Responsibility Segregation (CQRS) pattern,

which dictates that different microservices are

responsible for reading or writing data (Wolff, 2017).

Trainer- as well as athlete microservices can write

data. The difference is, that the fundamental model

used by athletes must first be generated and written

by a trainer.

While using a model in a specific application can

be time critical, the computation of the model by the

trainer service can be much lengthier. As soon as the

model is computed, athlete services can be scaled out

as required by the application. Launching additional

containers running the athlete service and initializing

them with the same model can easily perform this

feat.

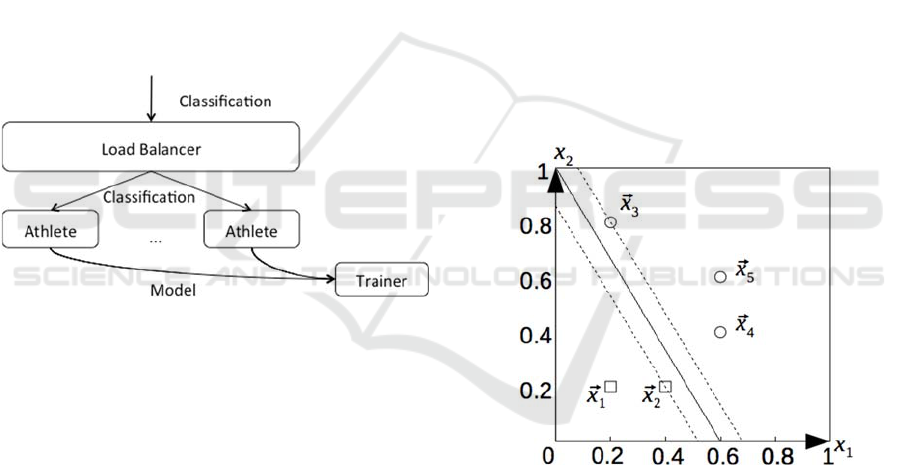

Figure 2: The trainer/athlete pattern for microservice-

oriented machine learning.

Microservices, especially when flexibly packed

e.g. using Docker, have advantages when compared

to legacy architectures in regards to the GDPR.

Implementing a machine learning based application

is a non-trivial task. Outsourcing this task to external

providers can be difficult for technical as well as

jurisdictional reasons. Simply adding microservices

to an environment already hosting sensitive data

eliminates such difficulties as well as lengthy data

transfer operations.

To do so, the C3 API uses common endpoints for

documents, categories, the relationships between

categories, the target function and categorization

results. The configuration of hyper-parameters as

well as generated (trainer) or utilized (athlete) models

are algorithm specific. Which algorithm /

microservice can use which model is controlled by

embedded metadata objects that are part of every

configuration and model JSON. Additionally, every

C3 service has a metadata endpoint which returns all

metadata about the service itself easing orchestration.

In addition to this API, every C3 service includes

a web-based graphical user interface. There is also a

scriptable command line interface utility further

enhancing the systems flexibility.

2.4 Machine Learning based Text

Categorization

Text Categorization (TC) is the task of automatically

assigning documents to predetermined categories.

The target function defines which document belongs

to which category. A classifier is any piece of

software, which approximates the target function as

effectively as possible (Sebastiani, 2002). There are

two fundamental approaches to tackle TC: Rule-

based or machine learning based. The first approach

requires expert knowledge and manual labor to

explicitly capture said experts experience. The second

one requires a target function to learn from and has

been reported to be more robust to noise and

previously unseen data. The C3 API supports

microservices implementing both approaches.

Figure 3: Support Vector Machine example.

Our work focuses on a Support Vector Machine

(SVM) based approach combined with an

automatically created controlled vocabulary

generating bag of words (BOW) based document

representations.

We chose SVMs because they are relatively easy

to explain. Like most machine learning based

classifiers, SVMs expect their document expressed as

a vector modeling the document. After having these

points representing the documents, SVMs use

optimization algorithms to find a hyperplane

bisecting the space occupied by the document

representing points so that the documents belonging

Using Topic Speciﬁc Features for Argument Stance Recognition

to one category are on one side of the hyperplanes,

while the others are on the other. It does so by

maximizing the margin between the closest vector

and the hyperplane (see figure 3).

LibSVM can work with different kernels. Kernels

essentially substitute the formula to compute the dot

product used in the computation of distances. This

means, that not only a linear hyperplane, but more

sophisticated functions, like the radial basis function

(RBF) can be used to tell categories from each other.

LibSVM is a standard library implementing

SVMs (Chang and Lin, 2011). We used it as core for

a C3 trainer and athlete. Generating feature vectors

from documents is referred to as feature extraction.

Selecting the most representative features for a

specific document is called feature selection.

Our classifier performs feature extraction and

selection, using the bag of words (BOW) model. In

the BOW model, a controlled vocabulary tells

relevant words from irrelevant word. How the

controlled vocabulary is generated and the actually

feature extraction and selection is performed is

subject of section 3.3.

This doesn’t mean, that the same BOW model

cannot be used for feature extraction and selection for

a neural network based or completely different

learner algorithm.

Besides this SVM approach, Clos et al. have

proposed the explainable, lexicon based ReLexNet

classifier (Clos et al., 2017). Lexicon based classifiers

are comparatively simple constructs, that are trained

by generating an association matrix between

individual terms and classes. The more terms of high

association exist, the more likely a document belongs

to a category. Besides these association terms

themselves, there are strength modifiers and negator

terms that are looked for in the words accompanying

the association terms. Negators multiply the term’s

association with -1 while strength modifiers like very

can boost a term’s association value by e.g. 1.3.

Besides computing the class, these association terms

can be used to explain, why a specific class was

chosen. There are three basic approaches to

generating the required lexica: Firstly, they can be

manually created. Secondly, one can base it on

ontologies by manually specifying class-indicating

terms and using ontologies to find terms equally as

specific. Thirdly, one can use the conditional

probability of a term occurring in a specific document

within the corpus to extrapolate to the probability of

the term specifying the category.

Even though being an intriguing, explainable TC

approach, we have not yet implemented lexicon based

classifiers in C3 because it requires manually

described modifiers. The primary goal of C3 is to

minimize manually provided requirements to use TC.

2.5 Feature Assessment and Evaluation

Metrics

Feature assessment, extraction, selection and rating of

classification approaches in this publication lean on

concepts from the Information Retrieval community.

The so-called Term Frequency Inverse Document

Frequency (TFIDF) is a statistic value that reflects the

importance of a term in a document, taking into

account its occurrence in the whole data set.

Essentially TFIDF rates the number of times a

specific term is contained in a document (normalized

by the frequency the term occurs in the text), in

proportion to the logarithm of the proportion between

the number of documents in the database to the

number of documents containing the term. TFIDF is

used e.g. as a weighting schema to detect words with

a high discriminative value (Salton and McGill,

1983).

To evaluate the ability of a retrieval system in a

specific retrieval task, the basic evaluation metrics are

precision and recall. Precision is the proportion

between the intersection of relevant and retrieved

documents to retrieved documents. Recall, in turn is

calculated as the proportion of the intersection

between relevant documents and retrieved documents

to relevant documents. On base of these core

measures several further metrics have been proposed.

E.g. the F1 score that measures the accuracy of a

retrieval system, by calculating the harmonic mean

between precision and recall.

Introduced for information retrieval, these

evaluation metrics have been widely applied in the

evaluation of other fields like text categorization,

natural language processing or argument detection.

There are different averaging methods for these

effectiveness measures (Sebastiani, 2002): In

macroaveraging, the results of individual categories

are averaged. In microaveraging, the individual true

positive, false positive, and false negative results of

all categories are summed up and then used to

calculate the effectiveness measures.

3 METHODOLOGY AND

EXPERIMENTAL SETUP

Having G and F(t) as controlled vocabulary, one can

automatically explain classification decisions with

sentences like: “The argument is considered contra,

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

because it contains multiple occurrences of the terms

tragedy, leaks, soldiers and blood. These terms have

been detected as contra indicators in the given data

set containing 27,538 arguments about the topic

policy”.

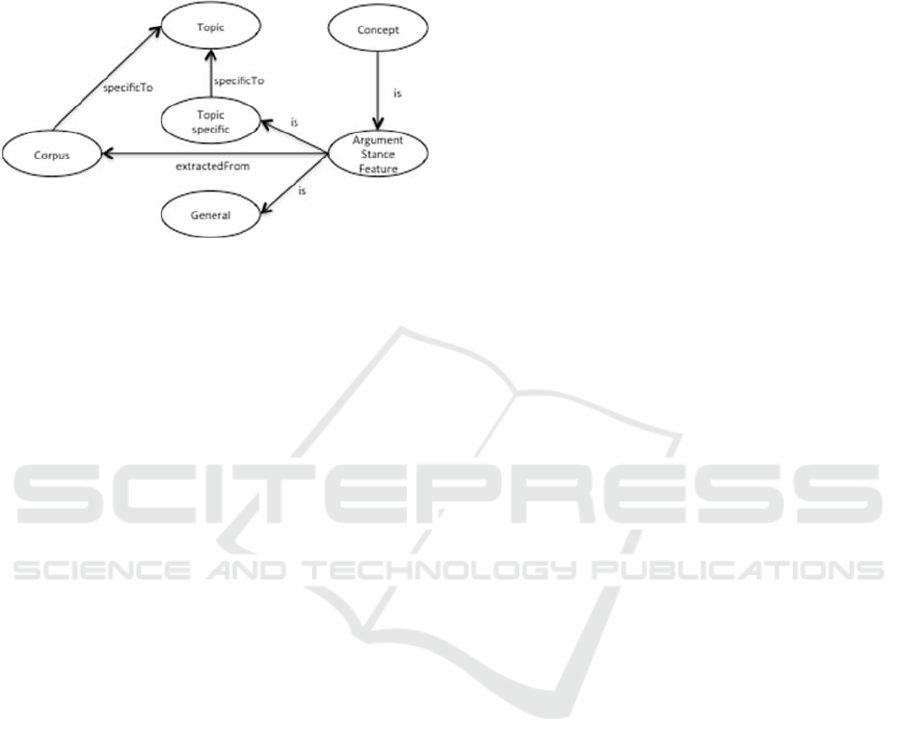

Figure 4: Structure of a topic specific argument stance

feature ontology.

The pro/contra argumentation ontology could

therefore decide how this argument relates to a contra

argument by referencing the terms of G and F(t) as

“argument stance features”. These terms are

potential existing concepts in topic specific

ontologies.

Further reasoning can be performed by the

relationships between the concepts that serve as

argument stance features. This is similar to a neural-

symbolic integrated application.

Therefore, our goal is to generate such a

controlled vocabulary as part of a machine-learned

model for argument stance recognition. A second

goal is to determine if the terms within the controlled

vocabulary are part of F(t) or G.

3.1 Argument Corpus

We evaluated our system using an annotated corpus

of argumentive microtexts (ACAM) (Peldszus, 2016).

In total, the corpus contains 25,351 argument pairs

from arguments about 795 different topics. However,

the corpus is a composition of two corpora. On the

one hand, a corpus that is composed of a set of

arguments collected during an experiment that

involves 23 subjects. Participants are discussing

controversial topics in German. The resulting

arguments have then been professionally translated to

English. On the other hand, a corpus that contains

arguments written by Andreas Peldszus mainly used

for teaching activities.

In order to additionally validate our classifier, we

used the UKP Sentential Argument Mining Corpus

(Stab et al., 2018). Stab et al. sourced this corpus by

querying Google to eight controversially discussed

topics. They then automatically collected sentences

from Google previews and had crowd workers

annotate them using three classes: No Argument,

Argument For, and Argument Against. For our

purpose, we filtered the No Argument values in order

to obtain pro arguments (Argument For) and contra

arguments (Argument Against). It is noteworthy, that

C3 can also be used to tell arguments from non-

arguments and also annotate these decisions with

explanations

3.2 Service Implementation

Two C3 classifier microservice implementations

have been used for our experiments: The first one is a

classifier committee service. Its actual purpose is to

combine the results of multiple classifiers. We use it

to externally and automatically evaluate the results of

other C3 classifiers, as it weights the effectiveness of

the external classifiers to determine its own model.

The other C3 classifier is built on LibSVM and uses

TFIDF for feature extraction (see previous sections).

We chose Support Vector Machines over Neural

Network based algorithms because they are

computationally lightweight and can be intuitively

explained: A document was categorized in a certain

way, because its features are above the hyperplane

defining the category. This is especially easy to

understand, when linear hyperplanes are used. We

chose this combination of techniques over Naïve

Bayes or Decision Rule classification, because

literature suggests results of higher effectiveness and

no manual labor to define decision rules are required

(Sebastiani, 2002)(Swoboda et al., 2016). This makes

our approach not strictly neural-symbolic

nevertheless providing the same benefits.

3.3 Training

In detail, the C3 TFIDF SVM classifier trainer works

as follows: In a first step, the TFIDF value for every

term (t

) existing in any available document (TS) is

computed. This requires counting every word

occurrence within every document. A principal goal

of C3 is to eliminate the need for additional resources,

such a stop word lists and key phrase concept

definitions. Therefore no such filtering of terms

within the documents takes place. A benefit of the

TFIDF equation is, that if a term t

occurs in all or

almost all documents of the training set, its log goes

towards zero. Therefore, stop words that occur in

most documents automatically have low TFIDF

values.

(

)=#(

)*lo

(

/#TS(

)) (1)

Using Topic Speciﬁc Features for Argument Stance Recognition

After computing all TFIDF values, the trainer

determines which terms are used for feature

extraction within the athlete services. To do so, the

trainer identifies a configurable number of terms with

the highest TFIDF values across all documents

belonging to a given category. We used the default

value of 20, which means that it identifies the 40

TFIDF values most representative for pro- and contra

arguments. In the next step, this list is augmented with

the single highest TFIDF term of every document.

These terms are only added to this automatically

created controlled vocabulary, if they are not already

in it. This scheme eliminates the necessity to

manually define a controlled vocabulary, is relevant

for any natural language and greatly accelerates the

adoption of this machine learning based TC technique

for argument stance detection. Additionally, the

identified feature terms serve as basis for the

construction of the argument ontology within the

RecomRatio project.

For training and subsequent productive

classification, feature vectors are passed to a LibSVM

based SVM. LibSVM requires its feature vectors to

be normalized per dimension. This means that for

example in all feature vectors the scalars representing

the term good need to have a combined length of 1.

For every document, a feature vector is generated

containing entries for all terms that are part of the

automatically generated controlled vocabulary.

LibSVM expects sparse vectors in the form of arrays,

which contain tupels consisting of the dimension and

value for every feature. The dimension is specified by

the term’s id within the controlled vocabulary. Its

value is its normalized TFIDF value. In order to

compute the normalized TFIDF value for previously

unseen documents, the document frequency of the

term within the training set (#TS(t

)) is stored

alongside the term in the model as well as the size of

the overall training set (|TS|). Additionally the model

contains the sum of the squares of all TFIDF values

for every term of the controlled vocabulary in the

training set. This is necessary to perform dimensional

normalization of the values when extracting features

from a new document.

Besides the ability to express a document as a

feature vector suited for LibSVM, the JSON based

model is human readable so that one can read which

terms are taken into consideration when performing

classification. This is a necessity to render the system

explainable and determine the sets G and F(t).

Another important step for working with LibSVM

is to perform weighting of the individual categories.

LibSVM weights the error for each category

differently in the training process. The results are

best, if the weights express the ratio of available

training samples for every category. Like the

controlled vocabulary, the weighing is automatically

determined by the C3 TFIDF SVM microservice, so

that no additional resources and configurations are

required.

3.4 Evaluation

After feature extraction, the trainer applies n-fold

cross-validation to find the best deciding hyperplanes

using a linear kernel. In n-fold cross-validation the

available documents (in this case arguments) are split

up into n subsets. In n different training sessions,

individual classifiers are generated using different n-

1 subsets of documents to learn from. After training,

the classifier is evaluated with the document subset

not used during training. Its performance is measured

in the before mentioned effectiveness values.

In previous experiments, we found that linear

kernels work better than RBF kernels when using our

feature extraction approach. During this training, we

used LibSVM’s default settings. As they are fine-

tunable, they can be parameterized in C3. Without

additional configuration, C3 uses the libraries

defaults, which we did in our experiments. It is

noteworthy, that the optimization of classifier hyper-

parameters is a problem in itself that can take

excessive experimentation in order to maximize

effectiveness. Aubakirov et al. implemented a

distributed genetic algorithm for that specific task

(Aubakirov, 2018). Albeit generating highly effective

classifiers for the dataset they are trained on, this

approach can lead to overfitting to the training data.

We therefore chose to commonly use the default

parameters.

The SVM hyperplanes that performed best during

cross validation are stored in the trainers’ model. The

trainer automatically logs the performance in terms of

precision, recall and F1 in microaverage,

macroaverage as well as for every category. As

default configuration, C3 selects the model with the

highest microaverage F1. This can also be

parameterized. As previously mentioned, we used a

classifier committee trainer service to evaluate the

effectiveness of one model on another set of

arguments by initializing an athlete service with said

model and performing the training of the committee

trainer which automatically called the TFIDF-SVM

athlete’s C3-API. It automatically logs the

performance of the utilized athletes in order to

ascertain their effectiveness for optimizing its

weighting function.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

4 RESULTS: GENERAL AND

TOPIC SPECIFIC FEATURES

FOR ARGUMENT STANCE

RECOGNITION

In our first experiment, we trained a model on 5

individual topics of the ACAM. These topics were

wildly mixed ranging from a discussion about record

stores vs. internet-bought, downloaded music

collections to the statement that the United States

policy on illegal immigration should focus on attrition

through enforcement rather than amnesty. Doing so,

the trainer achieved F1 values of up to .96. The F1 for

contra arguments was oftentimes at 1 meaning perfect

results. As expected, these models contained

primarily topic specific terms like cd, record, and

collection for the musical discussion or violence,

national, or supporters for immigration policy. The

next step was to train the classifier on larger sets of

topics using C3’s default 3-fold cross validation.

After training the microservice with arguments

from up to 40 topics, a drawback of the automatically

generated TFIDF feature extraction approach became

apparent: Its time requirements grow almost

quadratically. The amount of features grows only

slightly sub-linearly to the amount of arguments,

because the most representative term for a document

(in TFIDF) oftentimes is not already part of the

automatically generated controlled vocabulary. This

means that per new document (or argument), a new

term is added to the BOW model. This increases the

length of document representing vectors. As

obviously there is a new vector per document (or

argument), the size of the training set for the SVM

grows almost quadratically, drastically increasing

training time for larger datasets. As training a

classifier with all 795 topics was unfeasible on our

available hardware, we computed models for the first

10, 20 and 40 topics. Their size and evaluation results

are shown in table 1. The F1 values are promising

even though the almost quadratic growth in size is

apparent.

To see if this model generalizes well, we used the

already computed model generated from the first 40

topics to initialize an athlete service. We then used a

committee trainer service to evaluate the

effectiveness of the athlete by querying it with the

remaining topics. Besides enabling us to evaluate our

approach with the remaining topics, this also shows

that we can use a model generated from less than 5%

of all topics and generalize to all remaining topics of

the ACAM. As expected, we obtained less effective

results than in the previous experiments (see table 2).

Like in the previous experiments, the effectiveness to

recognize contra arguments was much better that that

to detect pro arguments.

It is noteworthy, that the SVM model doesn’t have

the information that both categories (pro and contra)

are mutually exclusive. As we know the models

effectiveness for identifying pro and contra

arguments, we can use this information in order to

boost the systems overall effectiveness. For instance,

only considering something a pro argument if it is

identified as pro argument and simultaneously not

identified as contra argument will boost the pro-

category’s precision to at least that of contra-category

(>.83 instead of >.15). This will also increase the

system’s overall F1 values.

Table 1: 3-Fold cross validation results when training from

the first topics.

Topic 1 to 10 1 to 20 1 to 40

Arguments 202 449 813

Terms: 84 157 260

F1: .88 .89 .85

Table 2: Effectiveness of a model trained on topics 1-40.

Topics: 41 to 120 41 to 200

41 to 795

(

all to

ics

)

F1 .6 .57 .57

Precision .6 .57 .57

Recall .6 .57 .57

Pro F1 .23 .21 .21

Pro Precision .17 .16 .15

Pro Recall .35 .34 .35

Contra F1 .73 .7 .71

Contra Precision .83 .82 .83

Contra Recall .64 .62 .62

Using this information in a symbolic system

forms a fundamental neural-symbolic integration

albeit no neural networks were used. Obviously,

neural network based C3 classifiers can be used in the

same fashion.

In all previous experiments, the trainer performed

3-fold cross-validation, which is C3’s default

configuration. An additional round of

experimentation was performed using 10-fold cross-

validation. Switching to 10-fold cross-validation

directly boosted effectiveness for the best model

during training (see table 3). On the other hand, the

effectiveness when applying this model to the

remaining topics was reduced in all effectiveness

measures for up to 9%. This indicates that the 10-fold

cross-validated models are over-fitted to the initial

topics when compared to the models generated by 3-

fold cross-validation.

Using Topic Speciﬁc Features for Argument Stance Recognition

We then performed multiple experiments,

creating a model based on the UKP corpus and

evaluating it with the ACAM and vice versa (see table

4). As expected, the effectiveness measures for

evaluating the UKP based model on the UKP corpus

(during 3-fold cross-validation) were better than

evaluating the UKP model on the ACAM corpus or

vice versa. Interestingly, whenever the ACAM corpus

is involved (either as source for the model or as

evaluation set) the detection of contra arguments is

more effective than that of pro arguments. It is

noteworthy, that the UKP corpus is inherently more

difficult than the ACAM. It contains shorter

arguments that are only single sentences, whereas the

ACAM contained longer debate points. Stab et al.

reported F1 values of .67 in their experiments using

an attention based neural network for the task (Stab et

al., 2018).

Even though our system is slightly less effective,

it can be adapted to different tasks in a rapid fashion.

It also allows for an easily understandable

explanation of its results. This easy explanation aids

us in the construction of the pro- and contra argument

ontology within the RecomRatio project. Therefore

we did not benchmark any other approaches used in

literature with our datasets.

For comparison: The winner of the Semeval 16

stance detection challenge produced .68 F1 results

while the average was .62 when working with

previously seen topics (Mohammad et al., 2016).

When detecting stance for a previously unseen topic,

the winner of the same challenge had .56 F1 with the

competition average at .37. Even though different

datasets were used, this means that our results are

comparable to those reported in literature.

Table 3: Effectiveness for 10-fold cross-validation.

ic 1 to 10 1 to 20 1 to 40

uments 202 449 813

Terms: 84 157 260

F1: .95 .91 .96

Table 4: Experiments with different corpora.

Experiment

UKP on

ACAM

UKP on

UKP

ACAM

on UKP

F1 .48 .6 .46

Precision .48 .6 .46

Recall .48 .6 .46

Pro F1 .25 .64 .25

Pro Precision .16 .62 .55

Pro Recall .52 .65 .16

Contra F1 .6 .56 .58

Contra Precision .83 .57 .44

Contra Recall .47 .55 .83

5 DISCUSSION

Between our experiments, we manually inspected the

model’s controlled vocabulary for every learned

topic. This was feasible for the first 40 topics of

ACAM containing up to 260 terms. The system

identified over 1000 terms per topic in the UKP

model, making manual inspection impracticable.

Besides the afore mentioned topic specific terms,

the model also contained more general terms such as

incredibly, uncomfortable, radical, death, stress,

knowledge, greedy, tragedy, concern, racist, cruel,

presents, reason, justice, pleasure, and punishment.

These more general terms often carry a specific

sentiment. Especially a negative sentiment is more

easily identifiable. We think that this is the reason

why the recognition of contra arguments tends to

outperform the recognition of pro arguments in

ACAM.

These terms and our experimental results support

our hypothesis of general and topic specific terms as

features. When evaluating the classifier with

arguments about the same topic or topic collection it

was trained on, high effectiveness results were

observed (>.85 F1 for ACAM, >.6 F1 for UKP).

When switching to different topics, effectiveness is

decreased (>.57 F1 for ACAM, >.46 F1 for UKP).

Argument specificity and therefore the

intersections of F(n) and F(m) for topics n and m can

be seen as flexible because certain terms can have

completely different meanings in other topics or the

topics have overlapping concerns. In any case, the

machine learned model, in our classifier the

hyperplanes, should compensate for this, e.g. by

being under or above most values for this dimension.

An example for this is the term drug. It is entirely

different in the context of medical treatment than in

the context of policies on drug abuse.

In order to further support our thesis, we

generated models on other topic blocks of ACAM

(41-80, 81-120, and 121-160). We then evaluated

these against the remaining topic blocks obtaining

similar results to those shown in table 2. Like before,

we manually assessed the controlled vocabularies

generated by these trainers to identify terms that

occur in more than one of them.

The set of terms that occur in the controlled

vocabularies of different topic mixes (e.g. terms

identified in topics 1-40, 41-80 and 81-120) contains

many more general terms like local, prisoners, test,

information, money, team, death, love, workers,

women, rights, knowledge, child, gifts, unhealthy,

exists, over, uncomfortable, power, students, and war.

It also contains some words indicating who is

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

referring to what like my, I, he, your, or she. Some of

the terms seem to be specific to more than one topic.

Like the afore mentioned drugs or the term marriage

which can be seen as literal or proverbial.

6 OUTLOOK

Our contribution is three-fold: We firstly developed a

classifier for argument-stance recognition, which is

explainable by the features it uses. As such, it serves

as basis for creating an ontology of argument stance

features that aids in the construction of the overall

argument ontology of the RecomRatio project. We

secondly proposed our thesis of general and topic

specific features, which is supported by our

experiments. These can be of further use to structure

the argument stance feature ontology and connect it

to topic specific ontologies. Such integrated topic

specific argument stance ontologies form the basis for

explainability in a non-semantic application.

Secondarily, the short development time needed

to generate these results proves the versatility of the

C3 microservices and its utilized trainer/athlete

pattern, which we see as our third contribution.

Neural-symbolic integrated applications are easy to

develop if one only has to focus on the symbolic part

as the machine learning based aspect is encapsulated

behind an easy to use API that does not require any

hyper-parameter tuning to produce useful results.

This is includes the design philosophy to

automatically generate model parameters, e.g. the

category weights and controlled vocabulary.

In future experiments, we are aiming to precisely

identify general and topic specific argument stance

features for the specific knowledge domains of our

research project. This means, that we aim to extend

existing medical ontologies with an explainability-

dimension that specifies, whether concepts are

features for certain classification algorithm concepts.

These algorithms are in turn linked to explanation

templates and the corpora from which their model

was generated. To the best of our knowledge, existing

medical ontologies lack this explainability angle,

which we identify as important extension.

Based on these ontologies, additional lexicon

based classifiers including modifier terms can be

created and put into a committee with the proposed

TFIDF-SVM classifier.

As the new lexicon-based system as well as our

existing system are explainable, the committee

decision can also be explained by referring to the

individual classifications and mentioning, how well

these classifiers performed in evaluations.

Additionally, evaluation results for the individual

mutually exclusive classes can be taken into account

when computing combined classification decisions.

We also intent to generalize our approach to

determine arguments from non-arguments as we

expect that there are also sets of general and topic

specific words for this task. Comparing them to those

identified in argument stance recognition can further

aid in developing a feature ontology, capable of not

only explaining why something is considered pro- or

contra but also why it is an argument at all.

ACKNOWLEDGEMENTS

This work has been funded by the Deutsche

Forschungsgemeinschaft (DFG) within the project

Empfehlungsrationalisierung, Grant Number 643018,

as part of the Priority Program "Robust

Argumentation Machines (RATIO)" (SPP-1999).

REFERENCES

Aubakirov, S., Trigo, P., Ahmed-Zaki, D., Distributed

Optimization of Classifier Committee

Hyperparameters, Proceedings of the 7th International

Conference on Data Science, Technology and

Applications (DATA 2018), pages 171-179, 2018.

Bader, S., Hitzler, P. (2005). Dimensions of neural-

symbolic integration-a structured survey. arXiv

preprint cs/0511042.

Chang, C., Lin, C., LIBSVM: A library for support vector

machines, ACM Transactions on Intelligent Systems

and Technology, volume 2, issue 3, pp 27:1 –27:27,

2011.

Clos, J., Wiratunga, N., Massie, S., Towards Explainable

Text Classification by Jointly Learning Lexicon and

Modifier Terms. In IJCAI-17 Workshop on Explainable

AI (XAI), 2017.

Regulation (EU) 2016/679 of the European Parliament and

of the Council of 27 April 2016 on the protection of

natural persons with regard to the processing of

personal data and on the free movement of such data,

and repealing Directive 95/46/EC (General Data

Protection Regulation) (Text with EEA relevance); OJ

L 119, 4.5.2016, p. 1–88.

Lippi, M., & Torroni, P. (2015, July). Argument mining: A

machine learning perspective. In International

Workshop on Theorie and Applications of Formal

Argumentation (pp. 163-176). Springer, Cham.

Mohammad, S., Kiritchenko, S., Sobhani, P., Zhu, X., &

Cherry, C. (2016). Semeval-2016 task 6: Detecting

stance in tweets. In Proceedings of the 10th

International Workshop on Semantic Evaluation

(SemEval-2016) (pp. 31-41).

Using Topic Speciﬁc Features for Argument Stance Recognition

Peldszus, A., An annotated corpus of argumentative

microtexts, https://githuzb.com/peldszus/arg-

microtexts, November 2016.

Salton, G., McGill, M., Introduction to Modern Information

Retrieval, McGraw-Hill, 1983

Sebastiani, F., Machine Learning in Automated Text

Categorization, ACM Computing Surveys, Vol 34, pp.

1-47, 2002

Stab, C., Moller, T., Schiller, B., Rai, P., Gurevych, I.,

Cross-topic argument mining from heterogeneous

sources, Proceedings of the Conference on Empirical

Methods in Natural Language Processing (EMNLP

2018), October 2018.

Swoboda, T., Kaufmann, M., Hemmje, M. L., Toward

Cloud-based Classification and Annotation Support,

Proceedings of the 6

International Conference on

Cloud Computing and Services Science (CLOSER

2016) – Volume 2, pp. 131-237, 2016.

US National Library of Medicine National Institutes of

Health pubmed.gov; https://www.ncbi.nlm.nih.gov/

pubmed/ accessed March 11, 2018.

Wolff, E., Microservices – Flexible Software Architecture,

Pearson Education, ISBN-13: 978-0-134-60241-7,

2017.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications
