A Meta Model for Interoperability of Secure Business Transactions

Using BlockChain and DEMO

ergio Guerreiro

1,2

, Wided Gu

edria

, Robert Lagerstr

and Steven van Kervel

Instituto Superior T

ecnico, University of Lisbon, Av. Rovisco Pais 1, 1049-001 Lisbon, Portugal

INESC-ID, Rua Alves Redol 9, 1000-029 Lisbon, Portugal

1ITIS, Luxembourg Institute of Science and Technology (LIST),

5 avenue des Hauts-Fourneaux, L-4362 Esch-sur-Alzette, Luxembourg

KTH Royal Institute of Technology, Sweden

Formetis BV, Netherlands

Keywords:

BlockChain, Business Transactions, Security, Interoperability, Risk.

Abstract:

Business transactions executed between organizations and individuals are largely operated on digital envi-

ronments, conducting to an industrial interoperability challenge demanding secure environments to cooperate

safely, therefore increasing credibility, and trust ability between end-users. This paper conceptualizes and

prescribes a ﬁne-grained control solution for the execution of business transactions involving critical assets,

and using a human-based coordination and interaction design to minimize the negative impacts of security

risks, the non-conformable operation and the coarse-grained control. This solution integrates the DEMO-

based Enterprise Operating System (EOS) with BlockChain as a way to redesign, and distribute globally, a

set of services that are founded in a human-oriented approach, and therefore, offering trust, authenticity, re-

silience, robustness against fraud and identiﬁcation and mitigation of risk. The impacts for organizations and

individuals are manifold: a security risk-based solution for end-users with budgetary constraints; educate on

cyber security issues; and augment the trust for digital business processes environments.

1 INTRODUCTION

Nowadays, the business activities between compa-

nies and individuals, and companies with compa-

nies, for the production of new products and/or new

services are often performed using electronic meth-

ods (Laudon et al., 2015), e.g., e-services, electronic

invoicing, e-payments, e-orders, etc. On the one

hand, the stakeholders involved in a digital business

transaction demand secure environments to interop-

erate safely, and therefore, increase the credibility

and trustability between them. This requirement can

also be substantiated by the multiple existing regula-

tions, e.g., Sarbanes-Oxley act (Act, 2002) or the EU

General Data Protection Regulation (GDPR, 2017).

On the other hand, there are many technological in-

dustrial solutions offering cyber security coverage at

different layer of software systems, e.g., access con-

trol model variants, encryption, tokens, ﬁrewalls, an-

tivirus tools, etc. However, the implementation of

these solutions are not easy accessible to Small and

Medium Enterprises (SMEs), individuals, and public

administration entities, due to technical complexity,

high costs, demanding maintenance issues, etc.

The importance of this subject is emphasized by

reports that (i) the cybercrime will cost businesses

$2 Trillion by 2019 (Security, 2015) and that (ii) the

biggest concern of ﬁnancial experts is a partial col-

lapse of the ﬁnancial system due to cybercrime activ-

ities. Some examples of industrial recognized prob-

lems are: (i) collusion between procurement and

suppliers - enables the duplicate invoice payments to

be made without the goods or services rendered to

justify the second payment. Kickbacks are collabo-

rative fraud example whereby a supplier submits an

invoice that is inﬂated by the amount to be sent to

the conspiring employee. Conﬂicts of interest can oc-

cur when an employee misuses their position to award

contracts to suppliers for personal gain; (ii) internal

fraud, are observed by phantom suppliers which is

a set up of a new supplier on the electronic systems,

and then, submitting false invoices for goods that are

never delivered or services that are never provided.

Check fraud, intercepting, or changing check on or-

Guerreiro S., GuÃl’dria W., LagerstrÃ ˝um R. and van Kervel S.

A Meta Model for Interoperability of Secure Business Transactions - Using BlockChain and DEMO.

DOI: 10.5220/0006517502530260

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KEOD 2017), pages 253-260

ISBN: 978-989-758-272-1

ganization’s bank account; and (iii) external fraud or

human error, involve phishing with fake invoice, or

claiming that invoice details have changed. Besides

other factors, human errors are due to highly time-

consuming and labor -intensive tasks required in the

business transactions.

Moreover, organizations and individuals need to

cooperate by the mean of communication and pro-

duction to produce products and services. For ex-

ample, the value chain upstream and downstream

need to interoperate in order to minimize the bull-

whip effect (Lee et al., 1997b) (Lee et al., 1997a).

The aforementioned electronic invoicing and pay-

ments between organizations are examples of interop-

erability; which encompass responsibilities, such as,

co-creation, co-production, contract, payments, etc.

These concerns, add a social dimension to the prob-

lem of how to support an increased interoperability

for secure business transactions between SMEs, local

public administration, and individual citizens. Offer-

ing secure business transactions is not only a techno-

logical challenge, but rather a combination between

social and technical dimensions.

Our position, is that it appears that world-

recognized solutions such as Bitcoin and BlockChain

are mainly devoted to the technological aspects (e.g.,

Ethereum, Open Chain, Infosys, etc.), but, they pay

little attention to the social dimension of humans

performing business transactions in electronic net-

works of business transactions. Embedding the social

dimension with the electronic business transactions

augments the capability to contextualize the operation

of organization in a business-oriented way. In fact,

social dimension is natively present in all the busi-

ness transactions executions: persons communicate,

negotiate, etc., to obtain their business intents. A digi-

tal business transaction solution cannot underestimate

the social dimension as an important factor to the suc-

cess of a technological implementation. Technology

without social compatibility risks end-users resistance

and abandonment.

This paper is organized as following. First, the

background is introduced in terms of DEMO theory

and methodology, interoperability and security. Then,

the background work is synthesized in our position

for future research. After that, the meta-model of the

solution is presented. In the end, the conclusions and

future work are discussed.

2 BACKGROUND

This section presents the key background concepts

that are used to ground the position of our solution.

2.1 DEMO Business Transactions

As proposed in Enterprise Engineering (EE) (Dietz

et al., 2013), a business transaction involves (1) actor

role deﬁnitions, in order to specify who is responsible

for each part of the transaction, who initiates it and

who executes it, (2) a transition space deﬁnition, and

(3) a state space deﬁnition. The state space is the set

of allowable states of a system. The transition space

is the set of allowable sequences of transitions of a

system. State transitions are not dependent on their

previous sequence or on the previous states but only

on the actual one. When we refer to run-time busi-

ness transactions, we are referring to the instances of

the business transactions model that are executing at

a precise and single instant in time. Many instances

of a business transaction model could be executed at

the same time in an organization. Following the Ψ-

theory (Dietz, 2006), two distinct actor roles are iden-

tiﬁed in the standard pattern of a transaction: the Cus-

tomer and the Producer. The goal of performing such

a transaction pattern is to obtain a new fact. The trans-

actional pattern, is performed by a sequence of coor-

dination and production acts that produces a new ser-

vice or product, encompassing three distinct phases:

(i) the order phase with coordination and production

acts of request (rq), promise (pm), decline (dc) and

quit (qt), (ii) execution phase that includes production

act of execution (ex) of the new fact itself and (iii) re-

sult phase that includes coordination and production

acts of state (st), reject (rj), stop (sp) and accept (ac).

To increase security, business transactions ontolo-

gies are now being researched to accomodate the

BlockChain (Gupta, 2017) concepts (de Kruijff and

Weigand, 2017). In the near future, these solutions

will be integrated with the operational environments

where BlockChain is used, e.g., private BlockChains.

2.2 Interoperability

Interoperability seems to be a straightforward con-

cept. However, there is no common deﬁnition or

shared comprehension of it. Each expert deﬁnes and

understands interoperability, according to his domain.

This led to the deﬁnition of the Ontology of Interop-

erability (OoI) (Naudet et al., 2010) formalizing the

interoperability domain concepts. The OoI is based

on the work of (Rosener et al., 2005), where a model

for deﬁning interoperability as a heterogeneous prob-

lem induced by a communication problem was pro-

posed, and the Framework for Enterprise Interoper-

ability (FEI) (Chen, 2006). The FEI was developed

within the frame of INTEROP European Network of

Excellence (NoE) (D. et al., 2007). The purpose of

this framework is to deﬁne the research context of the

interoperability and help identifying and structuring

the knowledge in this domain. FEI deﬁnes a clas-

siﬁcation scheme for interoperability knowledge ac-

cording to three dimensions: interoperability barriers,

interoperability approaches, and enterprise interoper-

ability concerns, also called enterprise levels. The

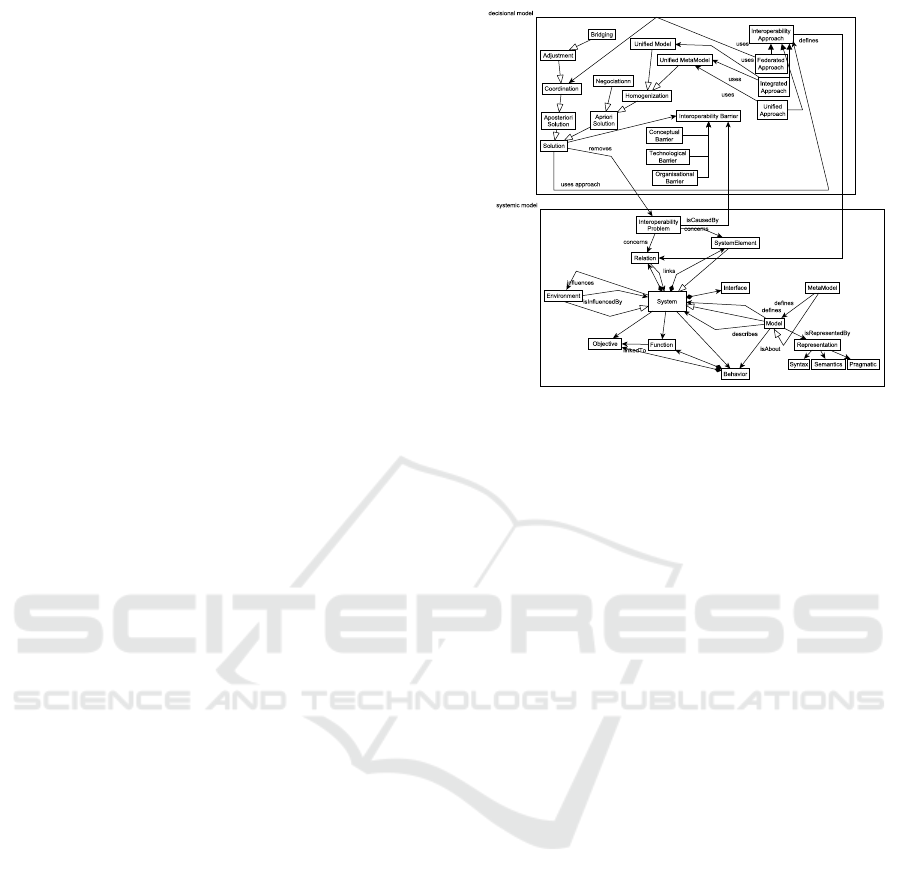

OoI is mainly based on two models namely, the sys-

temic meta-model which includes the resource com-

position model introduced by (Rosener et al., 2005)

and the problem-solving meta-model, also called de-

cisional meta-model. the systemic model describes

systems as interrelated subsystems. A System is com-

posed of SystemElement, which are systems them-

selves, and Relation. The Relation class formalizes

the existing relationships inside a system, which is

the source of the occurrence of interoperability prob-

lems. The problem-solving model is designed within

a problem-solving perspective. Interoperability is

implemented as a subclass of the Problem concept.

Problems of interoperability exist when there is a re-

lation, of any kind, between incompatible systems in

a super- system they belong to or system they will

form (i.e. a system to build). Incompatibility concept

is a subclass of a more generic InteroperabilityExis-

tenceCondition class aiming at explicitly formalizing

the fact that Incompatibility is the source of interop-

erability problems for systems of any nature, as soon

as they belong to the same super-system and there is

a relation of any kind between those systems. Three

kinds of interoperability problems are deﬁned in FEI

(Chen, 2006): conceptual (i.e. mainly concerned with

the syntactic and semantic incompatibilities), techno-

logical (i.e. refer to the use of computer or ICT) or

organizational (i.e. relate to the deﬁnition of respon-

sibilities and authorities). Solutions solve problems

and can in turn induce new problems. Two kinds

of solutions, namely a priori and a posteriori solu-

tions are deﬁned, with respect to the occurrence of

the problem. Solutions solving problems by antici-

pation are a priori solutions. A posteriori solution

can be used for solutions correcting problems after

they occurred. These solutions may follow one of the

following approaches, as deﬁned in the FEI: a) Inte-

grated approach (i.e. characterized by the existence

of a common format), b) Uniﬁed approach (i.e. char-

acterized by the existence of a common format but at

a meta-level), c) Federated approach (i.e. no common

format is deﬁned)

2.3 Security

The interconnected digital world brings enormous

beneﬁts, but it is also vulnerable. For commercial

Figure 1: Extract of the OoI metmodel.

entities that depend on the digital world for their ev-

eryday business activities, this means added uncer-

tainty. Antagonistic or non-antagonistic information

technology incidents could end up harming or de-

stroying the business. Also, the interplay between

technology and business operations in modern enter-

prises is becoming increasingly complex. Organiza-

tions need to utilize their assets in best possible ways

in order to fulﬁll their missions. The complexity and

security issues come hand in hand today. The more

complex the business and its technology is the more

vulnerable you are to attacks. As an enterprise you

need to make sure the whole attack surface is secured,

while the attacker only needs to ﬁnd one vulnerability

in order to get in. Unfortunately, today there are few

tools and approaches helping with this. Most avail-

able methods are reactive or very limited in scope.

In order to be proactive and cover the whole at-

tack surface a holistic approach that also include tech-

nical details is needed. The few tools available that

say they cover this area are however driven by man-

ual labor and require a high level of security exper-

tise, which is both expensive and hard to come by. A

research initiative from KTH Royal Institute of Tech-

nology however aims to cover this gap by develop-

ing pwnPr3d (Johnson et al., 2016a) (Johnson et al.,

2016b), an attacker-centric threat modeling technique

for automated threats identiﬁcation and quantiﬁcation

based on network modeling. Instead of relying on hu-

man expertise to analyze a model and decide whether

it is secure or not, and where the key ﬂaws in the

architecture are located, pwnPr3d automatically per-

forms this analysis. That is, the security expertise is

built into the model. In its analysis, pwnPr3d gener-

ates probability distributions over the Time To Com-

promise (TTC) for each asset in the system. An im-

portant aspect of pwnPr3d is that it has been designed

as a closed meta-modeling architecture, similarly to

MOF, with layers of increasingly concrete sub lan-

guages. It makes pwnPr3d highly ﬂexible in terms of

introducing new types of ICT assets and vulnerabili-

ties. Also, an object-oriented structure provides sup-

port for information, encapsulation and separation of

concerns, thereby reducing complexity for all stake-

holders, regardless of the level of detail they require.

It also promotes reusability of model elements us-

ing component libraries to store standard components

such as speciﬁc network stacks, ﬁrewalls or operating

systems.

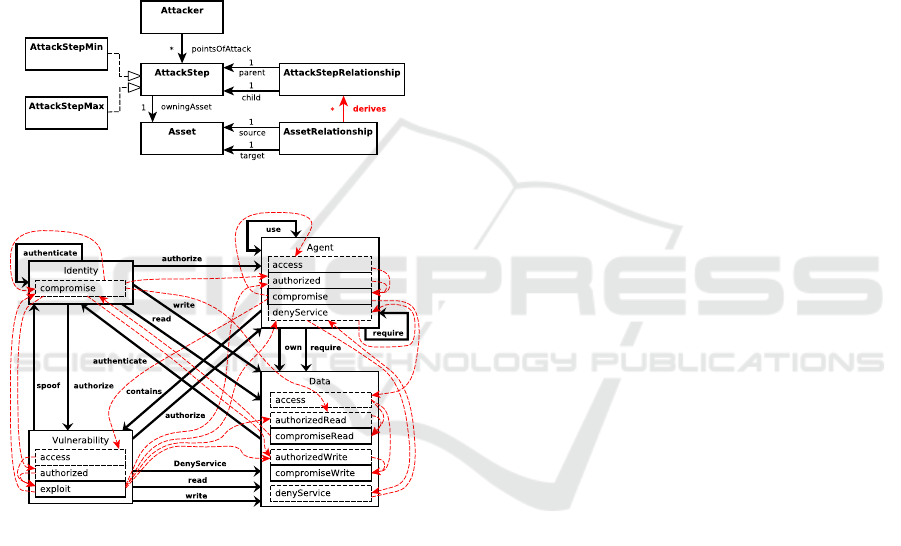

Figure 2: Layer-0 of the pwnPr3d metamodel.

Figure 3: Layer-1 of the pwnPr3d metamodel.

In Figure 2 we present what we call Layer-0 of the

pwnPr3d metamodel. The main purpose of Layer-0 is

to couple the components of an IT infrastructure and

the attack surface of the attacker. It deﬁnes the at-

tack graph theory, i.e. the possible progression of the

attacker through attack steps, as well as TTC calcu-

lation. In the ﬁgure 3, Layer-1 is presented. Layer-1

introduces the network and system-speciﬁc logic for

the attack graph generation, the various threat types

that can be identiﬁed in a network, and loss calcula-

tion from CIA breaches. It uses Layer-0 as a meta-

model and all the classes introduced in this layer are

instances of the Asset entity, and each Asset instance

contains its own set of attack steps.

Authorization and its enforcement (access con-

trol) have been a crucially important pillars of enter-

prise information technology security, both on a tech-

nical level (in computer systems, databases, networks,

etc.) and an organizational level (access policy and its

human enforcement). In parallel to their role in IT and

IT architectures, authorization and access control are

essential in physical premises such as airports and in-

dustrial facilities, thus it is easy to imagine the impor-

tance of authorization and access control being func-

tioning appropriately and being well-aligned with the

enterprise. However, as with security in general au-

thorization has also been poorly managed. In our ap-

proach, proposed in this paper, we aim to further de-

velop and make us of the threat modeling framework

of pwnPr3d and align it with current modeling and

analysis standards in authorization and access control

for complex systems (Korman et al., 2016).

2.4 Co-creation and Co-production in

Production Chains

Co-creation and Co-production in production chains

is the typical way of cooperation one observes in

many high value industrial production chains such

as ﬁnance, automotive, etc. Instead of well-deﬁned

products directly available from stock, companies -

contractors - that are part of virtual enterprise chains

propose to develop custom-made products within a

clearly deﬁned domain of their competences and well-

matching the speciﬁc needs of the customers - princi-

pals. Once the product and the matching price condi-

tions are well speciﬁed, parties may sign a contract.

During the life time of the contract parties order pro-

ductions and request matching payments.

In (Hunka et al., 2016) and (Hunka and van

Kervel, 2017) a generic DEMO model is proposed

for co-creation and co-production in industrial pro-

duction chains.

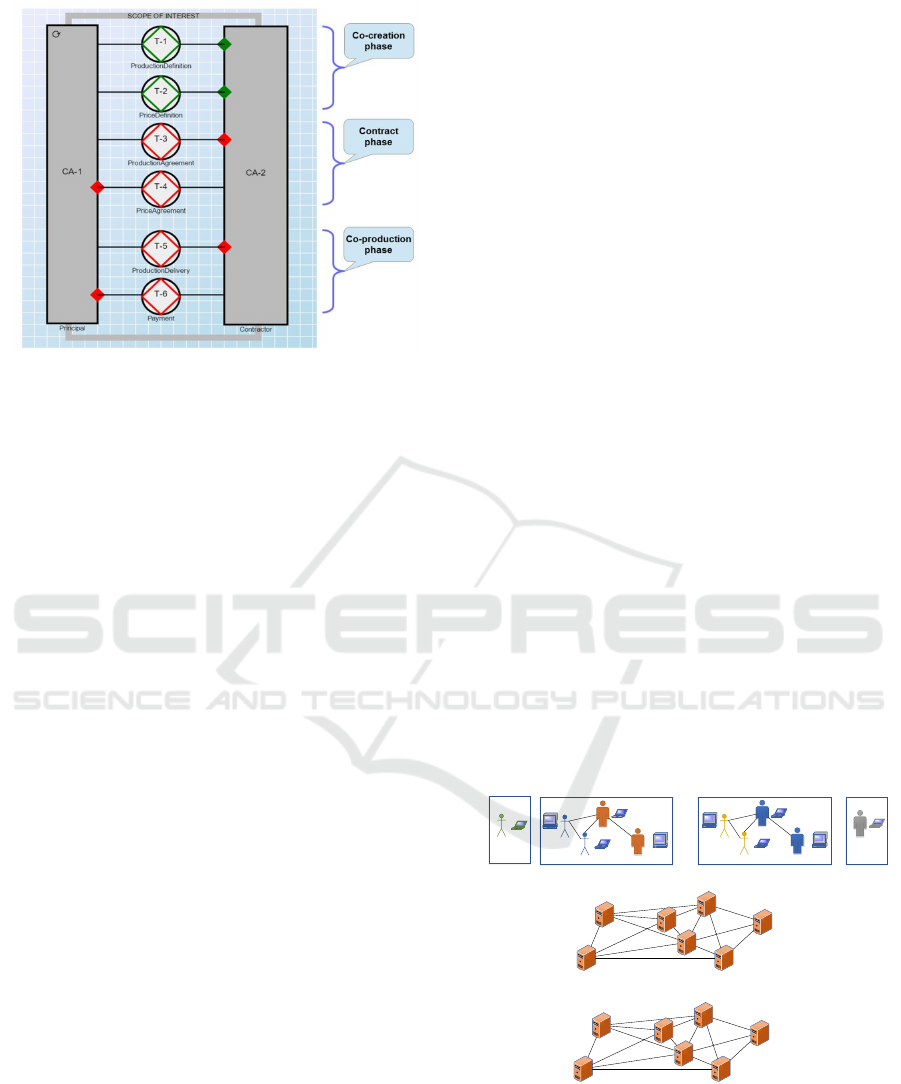

As depicted in Figure 4, the co-creation phase

where parties seek a shared understanding of the pro-

duction to be delivered, and the price that may have

to be paid is represented by transaction T1 and T2

(T1.accept and T2.accept). Note that this shared un-

derstanding is represented by two ’documents’ but

does not yet imply a legally binding contract to de-

liver products at the price speciﬁed. The two docu-

ments represent an unsigned contract. Parties may or

may not agree to sign this contract. They may decide

to re-exececute the co-creation phase, resulting in a

new product speciﬁcation and matching price condi-

tions. The signing of the contract is represented by

two DEMO transactions T3.promise and T4.promise.

In the co-production phase parties order the pro-

duction and request the matching payments, as stip-

ulted by the signed contract. Each delivery and pay-

Figure 4: CC-CP DEMO model.

ment is an instance of T5 and T6 (T5.accept and

T6.accept).

At the end of the life time of the contract parties

assess whether the contract has been fulﬁlled well by

both parties and the contract is terminated. This is

represented by T3.accept and T4.accept.

There exist many business rules, represented by

the DEMO PM and AM models. For example; ”pay

ﬁrst”, and ”deliver after receipt of payment”, or vice

versa. T1.accept and T2.accept is a condition that

must be met before T3.request and T4.request can be

issued. T5.request and T6.request can be issued only

after T3.promise and T4.promise. It is assumed - to

be validated by appropriate case studies - that the ex-

pressivity of the CC-CP model is ontologically com-

plete. Meaning that any imaginable business case is

well captured and executable.

The CC-CP modelis devised to meet the following

objectives and requirements: i) Governance, deﬁned

here being the system and ways by which companies

are directed and controlled. In virtual co-creation and

co-production enterprises this is mostly deﬁned by the

contract(s) devised and signed by the constituting en-

terprises. ii) Risk, the application of methodologies

through which parties identify, analyze, prioritize, de-

ﬁne and mitigate risks that affect the interests of stake-

holders. iii) Compliance, deﬁned being the overall ap-

proach through which an operation of the parties con-

form with stated requirements from outside the enter-

prise, such as legal regulations and moral rules. No-

tably the banking crisis resulted in extensive complex

regulations such as Sarbanes-Oxley Act (Act, 2002)

that must be implemented by banks. iv) Efﬁciency,

the careful use of precious resources to realize the de-

sired results. v) Effectiveness, the degree of how well

the requirements of the principal are met; a degree for

quality. vi) Agility, the capability to adapt the oper-

ation of an enterprise at any time, driven by unpre-

dictable changes in markets, imposed legislation and

strategy.

The CC-CP model is ontological, and

implementation-independent. For any real-world

implementation speciﬁc transactions and AM rules

must be modeled. The CC-CP model is considered -

to be proven empirically - the generic and appropriate

implementation-independent DEMO model for the

analysis of Risk and secure transactions.

3 POSITION PROPOSAL

Our proposal aims at increasing the trustability be-

tween the stakeholders and users of a business pro-

cesses execution environment. Where a business pro-

cesses execution is a complex interchanges of com-

munication and production acts. The referred pat-

tern of Co-creation and Co-production in production

chains is a classical example of such a complex in-

teraction. To reach that end, we propose to raise the

transparency of the running business processes using

a richer design (ontological based) concerning Secu-

rity, Interoperability and Control.

Enterprise Operating System (EOS) (Guerreiro

et al., 2013) is a Model-driven environment soft-

ware system that is founded in the Ψ-theory from the

DEMO theory and methodology (Dietz, 2006) (Di-

etz et al., 2013). EOS allows an agile implementation

of the software systems supporting the business pro-

cesses operation.

BlockChain

(keeping assets / communication acts traceability from above)

Enterprise Operating System

(keeping business transactions instances from above)

Enterpriseand individualsoperations

(Persons executing businesses through communication using EOS from below)

Workstation

Laptop

Workstation

Laptop

Workstation

Laptop

Workstation

Laptop

Individual

Citizen

Individual

Citizen

Enterprise YEnterprise X

Figure 5: Enterprise Operating System offering business

processes run-time execution to multiple stakeholders and

supported by a private BlockChain.

EOS integrated with BlockChain (Gupta, 2017),

cf. the free-hand schematics in Figure 5, will in-

crease the trust between end-users, and conversely

the cyber security awareness increases between them

allowing the operation of more business transac-

tions. In speciﬁc the integration allows the follow-

ing beneﬁts. Business transactions operation not con-

formable with prescriptions: end-users have an ac-

tive and independent role in the execution of business

transactions; therefore, it does not guarantee that the

security requirements of business transactions are met

properly on their daily routines. For example, if a

company’s recommendation to always obtain a writ-

ten record when contacts are made with clients, noth-

ing limits the ability of an end-user to contact a client

directly, by phone, without leaving any trace of the

communication made to the other actors the same or-

ganization. Fine grained access control, in oposition

to the usual coarse-grained control of critical assets or

establishing few control points during the execution

of business transactions drives to black holes where

the asset traceability is lost. This phenomenon is ob-

served in the ﬁnancial markets, with a huge adverse

impact potential to the organization and to its envi-

ronment.

4 META-MODEL DESIGN

Figure 6 deﬁnes a meta model for the interoperabil-

ity of Secure Business Transaction, using ArchiMate

speciﬁcation language (Group, 2017). Clear respon-

sibilities of initiating and executing business transac-

tions are assigned to the business actors of each com-

pany. Then, the run-time control of business transac-

tions execution is performed by the Enterprise Oper-

ating Systems at the application level. A meta model

is equivalent to the conceptual approaches concern-

ing security and business transactions, e.g., (Gaaloul

et al., 2014).

The concept of ArchiMate business service is real-

ized by the concept of business transaction. The busi-

ness roles are assigned to the business transaction.

And, the business actors are assigned to the business

roles. In practice, these associations represent the or-

ganizational model deﬁnitions using DEMO.

The application counterpart of the business trans-

action is served by the Enterprise Operating System

application service, which is able to execute directly

the DEMO organizational models. It is composed by

an application component. When a change in the state

of a business transaction is required, then pwnPr3d

application component is used. PwnPr3d is responsi-

ble to control the access to the business transactions

states data objects. The concepts grouped by the tag

”meta-model for interoperability of Secure Business

Transaction” (concepts in the middle of the Figure 6)

could be enforced by any of the participating compa-

nies or by any third party.

To guarantee the trust ability between all the

involved companies a private BlockChain is used.

All the changes performed by the Enterprise Op-

erating System, and that are cumulatative granted

by pwnPr3d, are immutably published in the private

BlockChain network, allowing all the involved busi-

ness actors to consult transparently all the business

transactions performed.

5 CONCLUSIONS AND FUTURE

WORK

This paper addresses the conceptual integration be-

tween three research areas: business transations

model and execution; security and interoperability.

The challenge is to ﬁnd a solution for the open prob-

lem of companies that are included in complex value

chains demanding co-operation to succed in their

business processes. It is commonly agreed that se-

curity is required to avoid unauthorized accesses risks

such as access to classiﬁed information and data. Se-

curity area offers many solutions to this problem. Yet,

the lack of trust between companies could be a barrier

for making new business. In this sense, BlockChain

seems a solution that allows a transparent way of op-

erating business processes. Any of the involved is

able to consult the chain and check the validity of

other’s actions. Moreover, business transactions are

not only mechanical actions performed by machines.

In reality, people are always communicating and pro-

ducing artifacts. Enterprise Operating System (based

on DEMO) is by nature a solution that deals with the

Human communication and that is able to orchestrate

the interactions while business transactions execute.

Social dimension is natively present in all the busi-

ness transactions executions: persons communicate,

negotiate, etc., to obtain their business intents. A digi-

tal business transaction solution cannot underestimate

the social dimension as an important factor to the suc-

cess of a technological implementation. Technology

without social compatibility risks end-users resistance

and abandonment.

Our position, is presented as a meta model using

ArchiMate speciﬁcation language, integrates the ar-

eas of business transations model and execution; se-

curity and interoperability. Future research in terms

of meta model validation and implementation is de-

rived.

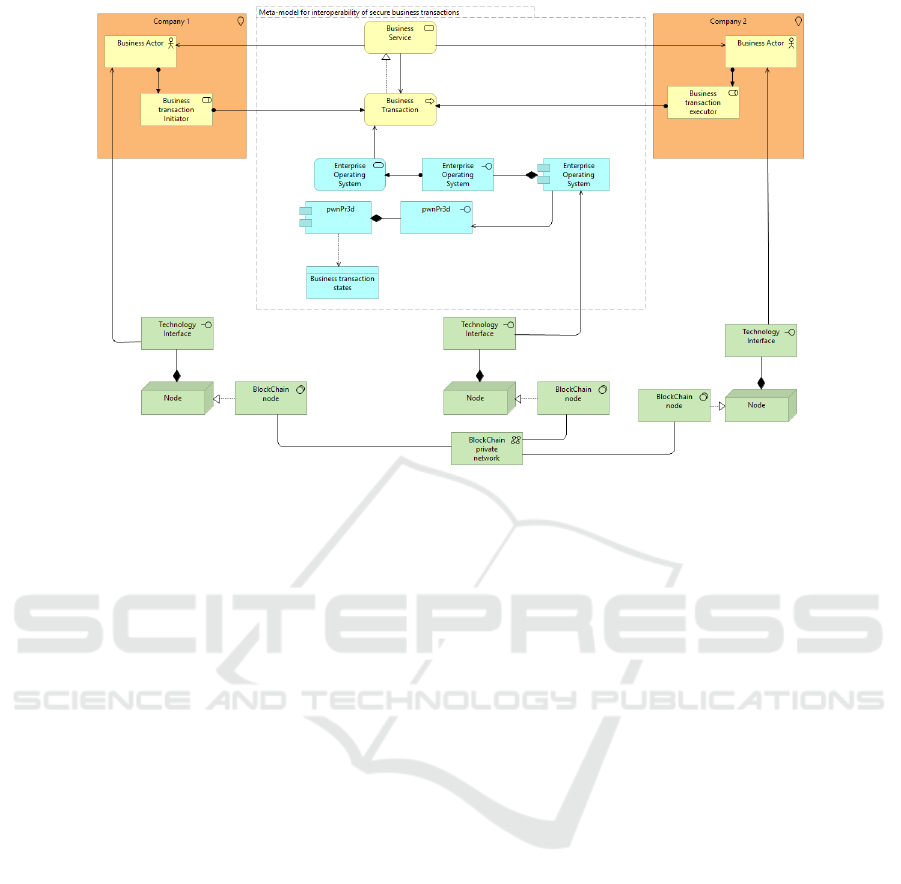

Figure 6: A Meta Model for interoperability of Secure Business Transaction.

ACKNOWLEDGEMENT

This is a collaboration work between different insti-

tutions. Part of this work is supported by national

funds through Fundac¸

ao para a Ci

encia e a Tecnolo-

gia (FCT) with reference UID/CEC/50021/2013; and

conducted in the context of the PLATINE project

(PLAnning Transformation Interoperability in Net-

worked Enterprises), ﬁnanced by the national fund of

research of the Grand Duchy of Luxembourg (FNR),

under the grant C14/IS/8329172.

REFERENCES

Act, S. (2002). Sarbanes-oxley act. pub.l. 107-204, 116

Stat. 745, enacted July 30.

Chen, D. (2006). Enterprise interoperability framework. In

EMOI-INTEROP.

D., C., M., D., and B., E. (2007). Interop noe deliver-

able di.3: Enterprise interoperability framework and

knowledge corpus - ﬁnal report. Technical report,

Interoperability Research for Networked Enterprises

Applications and Software (INTEROP Network of

Excellence), IST - Contract no.: IST-508 011.

de Kruijff, J. and Weigand, H. (2017). Understanding the

Blockchain Using Enterprise Ontology, pages 29–43.

Springer International Publishing, Cham.

Dietz, J. L., Hoogervorst, J. A., Albani, A., Aveiro, D.,

Babkin, E., Barjis, J., Caetano, A., Huysmans, P.,

Iijima, J., van Kervel, S., et al. (2013). The disci-

pline of enterprise engineering. International Journal

of Organisational Design and Engineering, 3(1):86–

114.

Dietz, J. L. G. (2006). Enterprise Ontology: Theory and

Methodology. Springer.

Gaaloul, K., Guerreiro, S., and Proper, H. A. (2014). Mod-

eling access control transactions in enterprise archi-

tecture. In Business Informatics (CBI), 2014 IEEE

16th Conference on, volume 1, pages 127–134. IEEE.

GDPR (2017). Eu general data protection regulation.

http://www.eugdpr.org/.

Group, O. (2017). Archimate



3.0 speciﬁca-

tion. Open Group Standard, http://pubs.open

group.org/architecture/archimate3-doc/.

Guerreiro, S., van Kervel, S., and Babkin, E. (2013). To-

wards devising an architectural framework for enter-

prise operating systems. In 8th International Con-

ference on Software Paradigm Trends (ICSOFT-PT

2013), pages 578–585. INSTICC.

Gupta, M. (2017). Blockchain For Dummies



, IBM Lim-

ited Edition. John Wiley & Sons, Inc.

Hunka, F. and van Kervel, S. J. (2017). The rea model ex-

pressed in a generic demo model for co-creation and

co-production. In Enterprise Engineering Working

Conference, pages 151–165. Springer.

Hunka, F., van Kervel, S. J., and Matula, J. (2016). To-

wards co-creation and co-production in production

chains modeled in demo with rea support. In Enter-

prise Engineering Working Conference, pages 54–68.

Springer.

Johnson, P., Vernotte, A., Ekstedt, M., and Lagerstr

om, R.

(2016a). pwnpr3d: an attack-graph-driven probabilis-

tic threat-modeling approach. In Availability, Relia-

bility and Security (ARES), 2016 11th International

Conference on, pages 278–283. IEEE.

Johnson, P., Vernotte, A., Gorton, D., Ekstedt, M., and

Lagerstr

om, R. (2016b). Quantitative information

security risk estimation using probabilistic attack

graphs. In International Workshop on Risk Assessment

and Risk-driven Testing, pages 37–52. Springer.

Korman, M., Lagerstr

om, R., and Ekstedt, M. (2016). Mod-

eling enterprise authorization: A uniﬁed metamodel

and initial validation. Complex Systems Informatics

and Modeling Quarterly, (7):1–24.

Laudon, K. C., Laudon, J. P., et al. (2015). Management

information systems. Pearson Upper Saddle River.

Lee, H. L., Padmanabhan, V., and Whang, S. (1997a). The

bullwhip effect in supply chains. Sloan management

review, 38(3):93.

Lee, H. L., Padmanabhan, V., and Whang, S. (1997b). In-

formation distortion in a supply chain: The bullwhip

effect. Management science, 43(4):546–558.

Naudet, Y., Latour, T., Guedria, W., and Chen, D. (2010).

Towards a systemic formalisation of interoperability.

Computers in Industry, 61(2):176–185.

Rosener, V., Naudet, Y., and Latour, T. (2005). A model

proposal of the interoperability problem. In EMOI-

INTEROP.

Security, M. (2015). Cybercrime will

cost businesses $2 trillion by 2019.

http://www.securitymagazine.com/articles/86352-

cybercrime-will-cost-businesses-2-trillion-by-2019

accessed in July 2017.
