Parallelization of Real-time Control Algorithms on Multi-core

Architectures using Ant Colony Optimization

Oliver Gerlach, Florian Frick, Armin Lechler and Alexander Verl

Institute for Control Engineering of Machine Tools and Manufacturing Units (ISW), University of Stuttgart,

Seidenstr. 36, 70174 Stuttgart, Germany

Keywords:

Ant Colony Optimization, Parallelization, Industrial Control System, Real-time System, Multi-core.

Abstract:

The emerging digitalization of production is accelerating the transformation of Industrial Control Systems

(ICSs) from simple logic controllers to sophisticated systems utilizing complex algorithms which are running

under strict real-time conditions. The required performance has now reached the limitations of single-core pro-

cessors, making a transition to multi-core systems necessary. The parallelization of the currently monolithic

and sequentially designed control algorithms is a complex problem that is further complicated by inherent

hardware dependencies and real-time requirements. A ﬁne-grained distribution of the algorithms on multi-

ple cores while maintaining deterministic behavior is required but cannot be achieved with state of the art

parallelization and scheduling algorithms. This paper presents a new parallelization approach for mapping

and scheduling of model-based designs of control algorithms onto ICSs. Since the mapping and scheduling

problem is N P -complete, an ACO algorithm is utilized and the solution is validated by experimental results.

1 INTRODUCTION

Industrial Control Systems (ICSs) used to be robust,

though rather simple devices regarding their compu-

tational complexity and algorithms. On the one hand,

open systems like Programmable Logic Controllers

(PLCs) enable users to implement logic operations or

control sequences easily. On the other hand, there are

highly specialized systems for speciﬁc tasks like con-

trollers for motion applications. In both cases, the

control algorithm itself is executed cyclically with a

ﬁxed frequency. Since ICSs are coupled with real

machines and processes, the computation of the con-

trol algorithm must be completed within the given

time. Violating these hard real-time requirements

could have severe consequences, such as degradation

of the products, damage to machines or even safety

issues for humans.

In the past, specialized embedded systems, includ-

ing custom processors, were used as hardware plat-

forms for ICSs. Advances in communication tech-

nologies and decreasing cost for standard IT hard-

ware led to the development of PC-based control sys-

tems that are performing the computation on a PC

while using inputs and outputs connected through a

ﬁeld bus to interact with the environment. The afore-

mentioned transition is a key driver of the dominant

trend in the ﬁeld of industrial control: the digitaliza-

tion of production. Various approaches are currently

being researched to add value to the production pro-

cess through digitalization, including big data, trace-

ability, machine learning and human machine interac-

tion. These approaches can be classiﬁed as either add-

ons or integral modiﬁcations of the control algorithm.

Add-ons have no direct feedback in the real-time loop

of the control systems. In contrast, integral modiﬁca-

tions have a direct feedback in the control algorithms

and therefore have to fulﬁll strict requirements regard-

ing the deterministic real-time behavior.

One example of such an integral modiﬁcation is an

innovative approach that is currently being researched

by our institute (Abel et al., 2014). This new method

for collision avoidance is motivated by the current

trend towards custom manufacturing, i.e. producing

batches down to lot size one. Hereby, a key cost factor

is the changeover time since the ﬁrst run of a program

after a modiﬁcation usually needs to be performed

slowly and with human supervision in order to avoid

collisions. In order to make these test runs obsolete,

a new method for online collision avoidance using

a multi-domain real-time simulation was developed.

It uses a parallel simulation of material removal and

collision detection, allowing not only a detection of

collisions between machine parts, but also collisions

with the material. All potential collision items are

protected by boundary boxes allowing for detection

Gerlach O., Frick F., Lechler A. and Verl A.

Parallelization of Real-time Control Algorithms on Multi-core Architectures using Ant Colony Optimization.

DOI: 10.5220/0006489701920199

In Proceedings of the 9th International Joint Conference on Computational Intelligence (IJCCI 2017), pages 192-199

ISBN: 978-989-758-274-5

CNC

Production Process

Control System

Field Bus

Kinematic

Simulation

Material

Removal

Simulation

Collistion

Detection

Emergency

Stop

Real-Time

Simulation

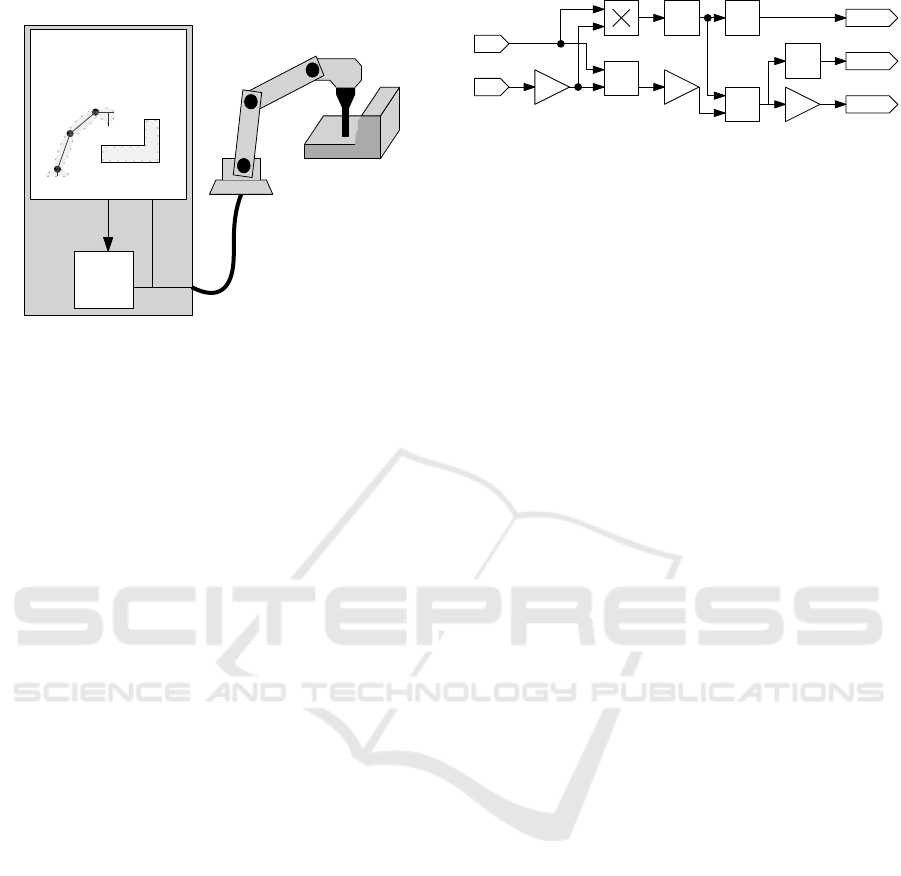

Figure 1: Concept of the real-time collision avoidance.

before a collision occurs. The simulation is tightly

coupled to a standard Computer Numerical Control

(CNC) which is responsible for the generation of the

motion. If an upcoming collision is detected in the

simulation, the real system is stopped to avoid dam-

age to the workpiece or the machine. To guarantee

this functionality, strict real-time requirements have

to be fulﬁlled during execution. Figure 1 depicts the

new approach.

The new collision avoidance method, as well as

many other advanced control algorithms, have sig-

niﬁcantly higher performance requirements than clas-

sic control systems, easily exceeding the performance

provided by a single-core CPU. Previously, this is-

sue was addressed by constantly increasing the clock

frequency. Since this is no longer possible, the per-

formance of standard IT applications is now being

improved by the integration of multiple processing

core into CPUs. Modern software systems usually

consist of a large number of independent tasks that

can be executed independently on multiple process-

ing resources and thereby beneﬁt from multiple cores.

The algorithms executed on ICSs are different re-

garding their structure. Usually they are rather se-

quential and data-dependent, making parallelization

more complex. As shown in (Graf, 2014), a straight-

forward parallelization strategy can easily result in a

degradation of the overall system performance rather

than an improvement. A further challenge is to main-

tain the determinism on a multi-core system.

2 SYSTEM ENVIRONMENT

ICSs differ from other system types in various as-

pects. An efﬁcient parallelization of the control al-

gorithms must consider the speciﬁc properties of the

algorithms as well as those of the ICSs. ICSs consist

In1

In2

Out1

Out2

Out3

Figure 2: Model-based description of a simple algorithm.

of a hardware platform and a software system.

Industrial Control Systems (ICSs) appear to be

rather heterogeneous; however, they all share a simi-

lar internal structure. They are connected to the phys-

ical environment, for example a machine, through in-

puts and outputs (IO). All types of ICSs run a control

software, which cyclically performs three main steps:

input sampling, computation of the control algorithm

and updating of the outputs. The frequency in which

this loop is executed depends on the system and usu-

ally ranges in between 100 Hz and 100 kHz.

2.1 Control Algorithm Design

There are different methodologies for the design of

control algorithms. Quite common and increasingly

popular are model-based design approaches in which

the function is deﬁned by a composition of building

blocks. New algorithms are composed of existing

building blocks.

This design approach is widespread for ICSs and

available for various applications. The types of blocks

and their capabilities can be very different. They

are often organized hierarchically so that the complex

blocks are composed of simpler ones. Models con-

sisting of many blocks with simpler functions are of-

ten referred to as ﬁne-grained models, while those de-

ﬁned by fewer but more powerful blocks are known as

coarse-grained. Analyzing typical control algorithms

reveals that many models are locally parallelizable but

globally rather sequential. Therefore, an efﬁcient par-

allelization method must be ﬁne-grained. An example

for a ﬁne-grained model is given in Figure 2.

There are two approaches to execute the model-

based algorithms on the target ICSs. They are either

compiled or executed in a run-time system. Com-

pilation might potentially have a better performance,

though it has signiﬁcant drawbacks regarding usabil-

ity and real-time behavior. Worst Case Execution

Time (WCET) guarantees for compiled algorithms

are challenging to provide. A run-time system is con-

ﬁgured by instantiating existing blocks. The blocks

are tested and their individual WCET is known so that

a WCET for the entire algorithm can be guaranteed.

Core 1

L1 Cache

L2 Cache

Shared L3 Cache

Memory Controller

IO Controller

Core 2

Core 3

Core 4

L1 Cache

L2 Cache

L1 Cache

L2 Cache

L1 Cache

L2 Cache

Core 2

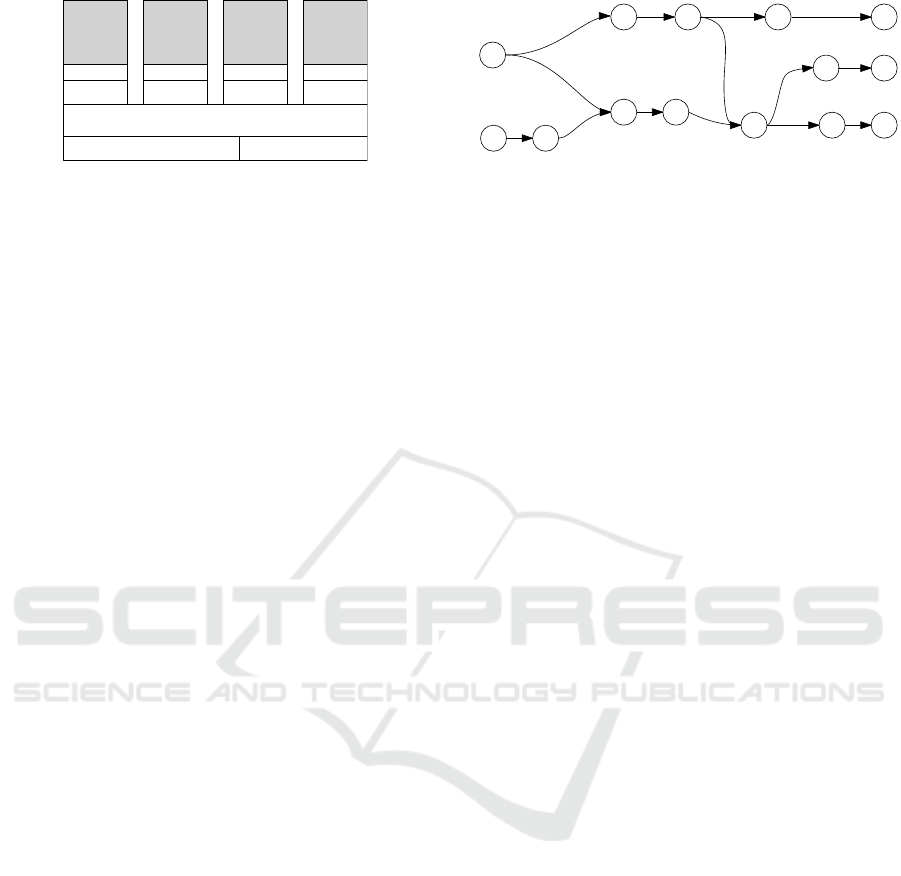

Figure 3: State-of-the-art CPU architecture.

2.2 Hardware

When using a coarse-grained parallelization ap-

proach, the CPUs of a multi-core system can be con-

sidered as independent units. Fine-grained paral-

lelization is more complex, particularly because the

hardware platform has a signiﬁcant impact.

A processor’s performance is limited by its data

access rate. Since quickly accessible memory is ex-

pensive and limited, current CPUs are equipped with

a multi-level cache architecture. Small but fast mem-

ories are located close to the processor (registers +

L1-Cache). Increasingly larger and slower caches (L2

and L3) are used before accessing the main memory

by the memory controller. The access times decrease

by magnitudes on each level. On multi-core architec-

tures, the link between the cores is usually the L3-

cache. A typical architecture is shown in Figure 3.

As depicted, there is no direct path to switch from

one to another processor. In consequence, paralleliza-

tion can suffer signiﬁcantly from delays introduced by

switching to another core. The effect is more signif-

icant when the ratio of switching to sequential com-

putation is higher, as it is the case for ﬁne-grained

algorithms.

3 APPROACH FOR MODELING

AND PARALLELIZATION

The parallelization approach described in this paper

is designed for algorithms using a model-based de-

scription. Parallelization of an algorithm for a target

platform is an optimization problem. The optimiza-

tion goal is to map and schedule all function blocks

of the algorithm model to resources of the target plat-

form so that the WCET does not exceed the maximum

allowed processing time whilst taking dependencies

between function blocks of the model into account.

This requirement can be solved by optimizing for the

lowest processing time and checking if the resulting

WCET is below the allowed maximum.

Multiply

Input

Gain

Sum

Gain

Integrator

Sum

Integrator

Out

Gain

Figure 4: Graph representing the algorithm of Figure 2.

3.1 Model Description

In an algorithmic perspective, the model-based de-

scription of the control algorithm can be seen as a

graph which, in general, is a directed cyclic graph

(DCG). For parallelization, it is required to transform

this graph into a directed acyclic graph (DAG). The

approach taken in this paper is to ensure that each

loop contains at least one delay. This delay is rep-

resented as an output and an delayed input in the re-

sulting DAG. Requiring delays in cyclic graphs is a

constraint generally accepted by practitioners (Ben-

veniste et al., 2003).

This DAG is the basis for our model of the algo-

rithm and is referred to as G. This type of graph is a

common subject of optimization (Kwok and Ahmad,

1998; Bautista and Pereira, 2007). The vertices of G

are called operations o

with O = {o

|1 ≤ i ≤ |O|}. A

function block is represented by one or more opera-

tions. Operations are selected from the set of all pos-

sible operations Ω. The edges of the DAG are called

transitions t

with T = {t

|1 ≤ i ≤ |T|}. Therefore, the

graph is described by G = (O, T). G represents the

algorithm to be scheduled. A graph for the algorithm

shown in Figure 2 is shown in Figure 4.

The target system for the algorithm has to be mod-

eled as well. It is called platform P and consists of

resources r

and channels c

. P is fully described by

P = (R, C) with R = {r

|1 ≤ i ≤ |R|} and C = {c

|1 ≤

i ≤ |C|}. Resources are processor cores or other de-

vices that can process operations. A resource can ei-

ther be able to process all possible operations or only a

subset ω

⊆ Ω. Resources can process one operation

at a time. After completion, resources are available

for other operations, i.e. they are renewable. Multi-

Core-Processors are homogenous. Every task can run

on every real-time core at equal costs. However, it

is quite common for ICSs to feature dedicated hard-

ware for certain tasks. This specialized hardware can

process a subset ω

only. An optimization model suit-

able for industrial control applications must be able to

handle such heterogeneous operation environments.

Therefore, a relation γ : R × Ω → N is deﬁned, spec-

ifying the execution time for each operation on this

resource, which is called cost in our model. If an op-

Local Mem

I/O Controller

CPU1

Local Mem

CPU0

System Bus

Operation

Cost

add

multiply

integral

gain

Operation

Cost

input

output

(a)

(b)

Cost = 5

Cost = 15

Operation

Cost

add

multiply

integral

gain

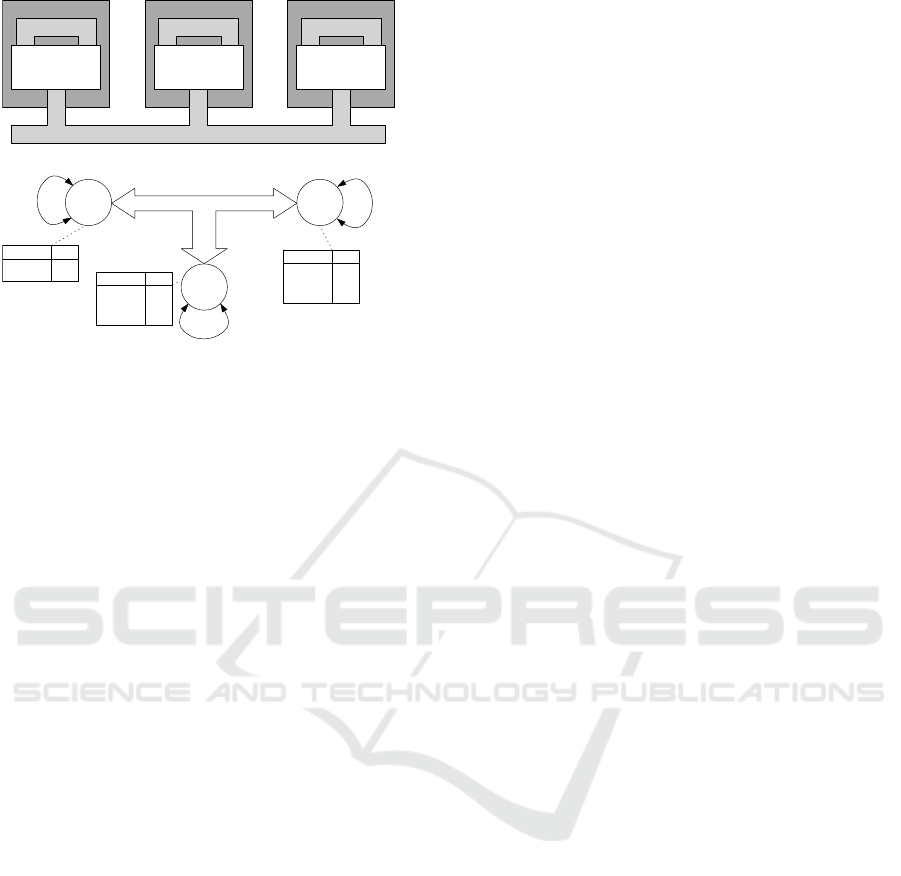

Figure 5: Example of a basic platform and its modeling.

eration cannot be processed by a resource, the cost is

∞.

Resources are connected by communication chan-

nels, which have to be modeled as well. Channels

can be bus systems, shared memory regions or a lo-

cal cache. Modeling local cache as a channel allows

the optimizer to assign every transition to a channel.

In our model, a channel is speciﬁed by the connected

resources and the costs for using this channel. Simi-

lar to a resource, a channel is renewable. Since it is

common for a run-time system to connect many re-

sources to a single channel, channels are a bottleneck

for optimization.

A model of a basic platform is depicted in Fig-

ure 5. It consists of two generic processor cores and

a specialized IO controller. While the cores can pro-

cess all except IO operations, the IO controller can

only host IO operations. All resources in the example

are connected via a bus system which is modeled as a

channel, as is the local memory of each resource.

3.2 Related Approaches

There are similar approaches in literature that also fo-

cus on optimizing a DAG. The Assembly Line Bal-

ancing Problem (ALBP) in particular has much in

common with the problem described above (Boysen

et al., 2008). A given set of tasks has to be performed

on a pool of workstations. Workstations are similar to

resources in our model described above. In ALBP, the

tasks have to be processed in a speciﬁc order given by

a precedence graph, which is a DAG (Boysen et al.,

2008). If there are parallel processing routes, an as-

sembly task will unite these routes, resulting in a DAG

with a single root. This is different from the problem

described in this paper, which can contain multiple in-

puts as well as multiple outputs. The most common

optimization criterion for ALBP is not the processing

time, but rather the production rate and the amount of

workstations used. Unlike the problem described in

this paper, the workstations in ALB can be reused for

the next product to be manufactured while the previ-

ous product is at another workstation. In our model,

resources will be reused for different operations of the

same algorithm. Other problems with similar prop-

erties like the ALBP exists, like Job Shop Schedul-

ing (Cheng et al., 1996).

An approach much closer to the problem de-

scribed in this paper was proposed by Ferrandi et

al (Ferrandi et al., 2010; Ferrandi et al., 2013). Their

work also deals with the problem of assigning op-

erations (or tasks) of a DAG to different compo-

nents of a heterogeneous embedded system. Unlike

the deﬁnition above, they consider processing ele-

ments to be different from resources. For them, re-

sources are memory regions or Field-Programmable

Gate Array (FPGA) logic units which are assigned to

the operation to be executed on the associated pro-

cessing element. As such, they might be renewable

or non-renewable. The system described in chap-

ter 2 combined with a model-based approach elim-

inates the requirement to consider this type of re-

source as each processing element already has a non-

changeable memory region assigned to it. The ap-

proach proposed by Ferrandi et al. assumes that the

amount of data transferred between tasks varies lead-

ing to task- and channel-dependent costs for channels.

The run-time model that is the target of our optimiza-

tion has a ﬁxed data package to be transferred be-

tween operations, thereby making channel costs ide-

pendent from tasks. Ferrandi et al. consider the im-

plementation of an application on a generic system,

while our problem targets a run-time system with pre-

existing elements for processing operations and tran-

sitions.

Although this work focuses on multi-core archi-

tectures which can be considered homogenous with

regard to the operations they can process, the em-

bedded nature of control systems requires a heteroge-

neous approach. If cores are distributed over multiple

processors, certain IOs might be restricted to certain

cores. Therefore, resources have constraints on which

tasks or operations can be performed. An advantage

of the optimization model described in this paper is

that its operations are directly derived from the func-

tion block diagram of the algorithm. Unlike in other

algorithms, tasks do not have to be identiﬁed by the

user or a solver. This advantage stems directly from

the model-based approach.

4 PARALLELIZATION

ALGORITHM

As noted by others, scheduling and mapping a DAG

to parallel processing units is an N P -complete prob-

lem (Bernstein et al., 1989). Thus, exact solutions

cannot be determined within a reasonable amount of

time. For problems with large graphs, bio-inspired

meta-heuristics like Simulated Annealing (SA), Ant

Colony Optimization (ACO), Particle Swarm Opti-

mization (PSO) and Genetic Algorithm (GA) have

been used successfully (Scholl and Becker, 2006;

Wang et al., 1997; Zheng et al., 2006; Clerc, 2004).

GA has been used to solve mapping and scheduling

problems for heterogeneous systems with consider-

able success (Wang et al., 1997). However, ACO

has been found superior to other approaches with re-

spect to computation time and quality of the solu-

tion (Ferrandi et al., 2010). Because of its superior

performance in solving similar problems, ACO is the

chosen algorithm to solve the optimization problem

of mapping and scheduling graph G to platform P,

namely the ACO variant Ant System (AS) (Dorigo

et al., 1996).

4.1 Ant System Description

AS is an optimization algorithm based on a set of

independent agents (called ants) cooperating through

indirect communication. Given m agents, each agent

k traverses the solution graph S to the given prob-

lem and generates a solution, which is called path ξ

A path is an ordered list of the vertices s

of S with

S = {s

, s

i, j

|1 ≤ i ≤ |S|, 1 ≤ j ≤ |S|} and s

i, j

being the

edges of S. The performance of ξ

is evaluated and is

used to modify the so called pheromone values which

are assigned to each edge of S. The update function

for the pheromone values is given by

i, j

← (1 − ρ)τ

i, j

∑

k=1

∆τ

i, j

(1)

with

∆τ

i, j

(

if ant k moved from s

to s

0, otherwise

(2)

Here τ

i, j

is the pheromone value on edge s

i, j

, ρ

is the pheromone decay value, ∆τ

i, j

the amount of

pheromone added by ant k, L

is the performance of

and Q is a weighting factor for L

(Dorigo et al.,

1996).

The pheromone value τ

i, j

is the communication

mechanism for the agents. Each agent evaluates

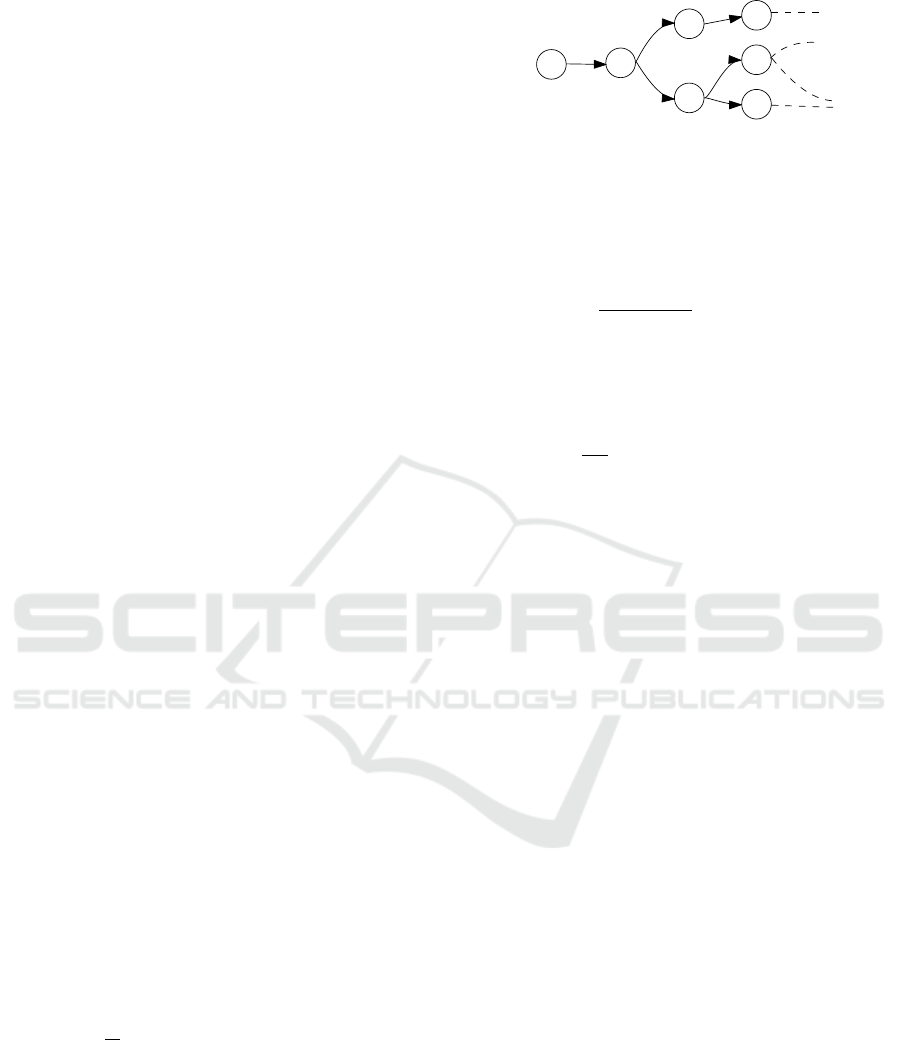

Figure 6: Beginning of the solution graph for Figure 4.

the pheromone values when building its solution ξ

Starting from a vertex s

of S, it selects any of the ver-

tices of S that are connected with s

via an edge s

i, j

using

i, j











i, j

·η

i, j

∑

∈N

i,a

·η

i,a

, if s

∈ N

0, otherwise

(3)

with

i, j

(4)

i, j

is the probability for agent k to choose s

i, j

for the next step, η

i, j

is the heuristic value for s

i, j

, α

and β are weighting factors for the pheromone value

and the heuristic value respectively, N

is the set of

valid edges to choose from, and d

i, j

is the cost value

for edge s

i, j

(Dorigo et al., 1996). Valid edges are

all edges connected with the current vertex excluding

those that lead to vertices visited before. The last con-

dition is fulﬁlled for all edges when S is a DAG.

4.2 Creation of the Solution Graph

To apply ACO to our problem, a solution graph S has

to be constructed from G and P that can be traversed

by the ants. To ﬁnd a solution to the problem given in

chapter 3, traversing S must provide a valid schedul-

ing of G as well as a mapping of all elements of G to P

while preserving the precedence of G. It also assigns

each element of O to an element of R and each ele-

ment of T to an element of C. One possible solution

graph starts with an element o

of O without prede-

cessors and adds it to S as s

. It then adds vertices

for each element of R that o

can be assigned to and

creates edges s

1, j

for each connection between each

of the resource vertices and s

. Another element of O

is then selected from a list of operations without un-

processed predecessors and the process repeats until

all elements of O are added as vertices into S and fol-

lowed by at least one vertex representing an element

of R. An example is given in Figure 6.

So far, transitions have not been considered when

building S. Transitions can be represented similarly

in S to the operations. While this approach allows for

a very simple and straightforward construction of S,

it also increases the risk of creating an invalid solu-

tion: An agent might select a channel for a transition

that could lead to the selection of a task for which

no resource is reachable from the selected channel.

While this can be detected, it results in many unsuc-

cessful iterations to create a solution. Additionally,

this approach further increases the solution space. To

avoid these problems, neither C nor T is represented

in S. Instead, for every t

, the fastest channel and the

time for the data transfer is used to calculate the per-

formance of ξ

. As a result, no pheromone value is

assigned to the selection of channels. They inﬂuence

the pheromone values of s

i, j

by their impact on the

performance of the solution.

To simplify the creation as well as the traversing

of S, two additional operations are added to O, which

are called Nest and Food. Transitions from the Nest

are added to T for all operations o

of O that do not

have a predecessor. Similarly, transitions are added to

T for all operations o

of O without a successor (Chi-

ang et al., 2006). To build S, an additional resource

is deﬁned that can process these new operations.

The resulting DAG now has a single start vertex and

a single end vertex.

The heuristic values η

i, j

of all edges of S have not

yet been considered. For problems like the Traveling

Salesman Problem (TSP), these values are constant

and do not change when building a solution (Dorigo

et al., 1996). However, for the problem described in

this paper, the heuristic values for each s

i, j

of S largely

depend on the path ξ. Since the heuristic values are

the costs for traversing a speciﬁc edge s

i, j

, they di-

rectly correlate with the time between the end of pro-

cessing s

and the beginning of processing s

. Ideally,

is processed one execution step after s

has been

processed. However, the channel execution time has

to be considered as well, if the s

is an operation and

one or more transitions are required for s

to be pro-

cessable. In this case, the heuristic values not only de-

pend on the static channel cost, but also on the avail-

ability of the resource used for s

and the availabil-

ity of the channel used. Both might be occupied by

parallel running operations or transitions, impacting

the overall performance of the solution. As a result,

edge s

i, j

, which led to a good performance for a previ-

ously found solution, might worsen another solution,

depending on ξ. This requires a reasonable balance

between the heuristic value and the pheromone value.

Model-Based

Algorithm

Parallelization Tool

Conf.

Algorithm Design

Hardware

Software

Platform Description

Industrial Control Platform

Importer

Exporter

ACO

Visualization

Windows + TwinCAT

Run-Time System

Task

Exporter

Description

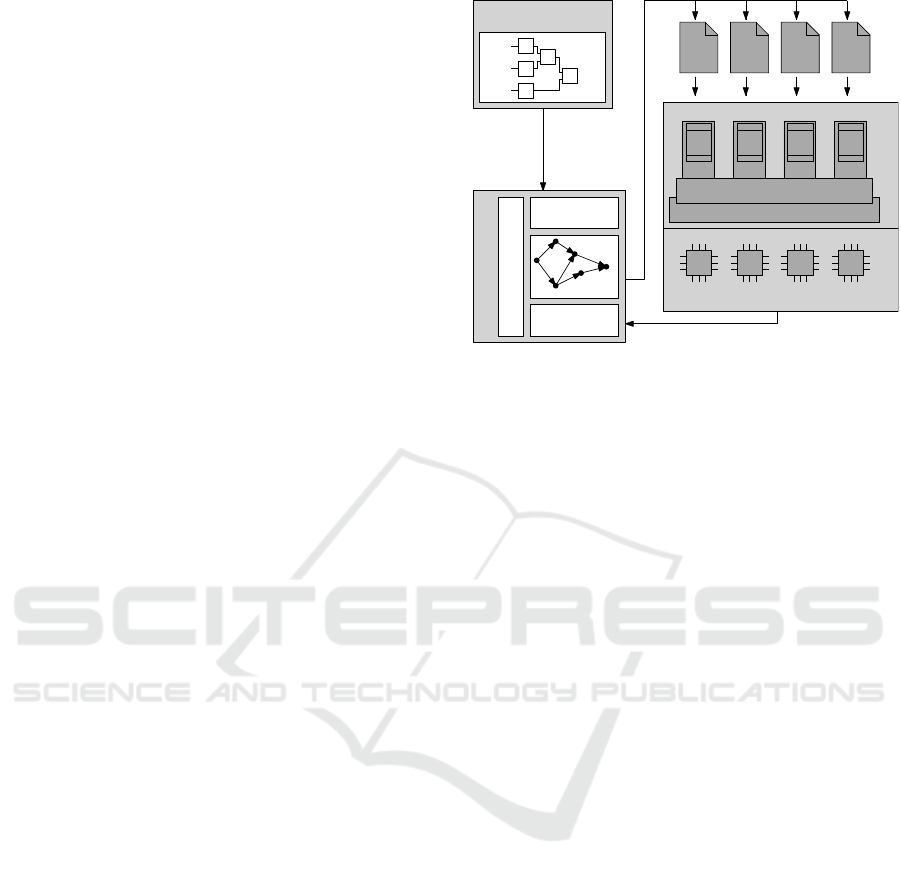

Figure 7: Overview of the sample implementation.

5 EXPERIMENTAL

IMPLEMENTATION

Testing and benchmarking the developed paralleliza-

tion algorithm under real conditions requires addi-

tional functions besides the implementation of the al-

gorithm itself. The overall structure is depicted in Fig-

ure 7.

A model-based description of the algorithm cre-

ated in Matlab Simulink and a description of the tar-

get platform is the input for the parallelization algo-

rithm. A dedicated parallelization tool translates the

imported model to a DAG as described in chapter 3

and then performs the optimization according to chap-

ter 4. It generates a conﬁguration for the run-time

system. The run-time system is located on a control

platform and executes the algorithm in real-time.

5.1 ICS Platform

The selected target platform for the test setup is an

IPC equipped with an Intel i5 quad-core processor.

Inputs and outputs are connected through a ﬁeld bus

interface. For the experimental setup, Windows and

the real-time control system TwinCAT are used. The

run-time system is implemented as a module of the

RTOS used and performs the actual computation of

the control algorithm. It is composed of run-time

tasks, one per core. Each run-time task must be con-

ﬁgured, deﬁning which operation is executed in which

order. In addition, there are channels between all of

the tasks, allowing for communication between the

cores. Ports are available to the RTOS to couple the

run-time system with the existing IOs and other mod-

ules, like PLCs or CNCs.

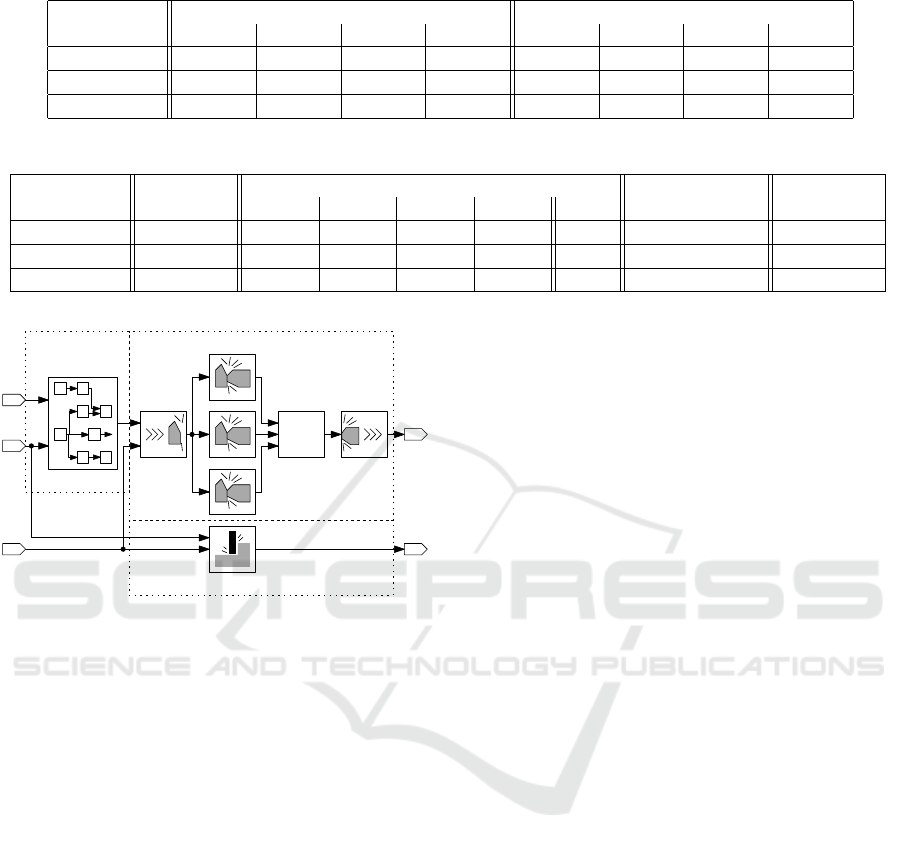

Table 1: Performance Gains for Example Algorithm in Figure 2.

Platform Costs [%] Coefﬁcient of variation [%]

β = 0.8 β = 1.1 β = 1.2 β = 1.6 β = 1.2 β = 0.8 β = 1.1 β = 1.6

Single-Core 100.0 100.0 100.0 100.0 0.0 0.0 0.0 0.0

Dual-Core 80.6 72.1 70.6 68.6 4.6 5.3 4.5 4.6

Quad-Core 60.4 60.8 58.2 59.2 6.7 5.3 5.9 6.2

Table 2: Performance Evaluation for Collision Avoidance Algorithm in Figure 8.

Platform Costs [%] CPU Time [us] CPU Time [%] Max f [Hz]

Core 1 Core 2 Core 3 Core 4 Total

Single-Core 100 3100 - - - 3100 100 322

Dual-Core 51.7 1650 1600 - - 3250 55 606

Quad-Core 27.6 850 870 790 930 3440 31 1075

Collision Detection

Kinematic

Model

Material Removal Simulation

Figure 8: Description of the collision avoidance algorithm.

5.2 Reference Algorithms

Various control algorithms were implemented and

parallelized. The algorithm shown in Figure 2 was

used as a simple test case for an highly parallelizable

algorithm. Additionally, small example systems were

used to test the optimizer. Finally, the collision avoid-

ance method described in the introduction was paral-

lelized. The model-based description of the algorithm

is depicted in Figure 8.

There are three sub-models included in the algo-

rithm. A kinematic model is used to trace the position

of all machine parts. Based on the actual position of

the tool and initial information about the work piece, a

material removal simulation is performed. The infor-

mation about the machine parts as well as the actual

shape of the work piece are used as inputs to the col-

lision detection algorithm. The algorithm consists of

multiple steps: First, possible collision pairs are iden-

tiﬁed. These pairs are then distributed over multiple

collision detection tasks. Finally, information about

potential collisions is collected.

5.3 Experimental Results

First, the quality of the parallelization of the algorithm

in Figure 2 was evaluated. The pheromone value scal-

ing factor α was set to 1.0 while the heuristic value

scaling factor β was varied. The algorithm was paral-

lelized to run on 1, 2 or 4 cores. For each solution the

highest costs of all cores were taken as the WCET.

Since the costs for single core execution are constant,

they are taken as reference and each other solution is

given in comparison to the single core solution.

The algorithm is dividable in two parallel paths

and therefore an improvement of approximately 45 %

can theoretically be achieved using two cores. How-

ever, adding additional cores should not further im-

prove the performance due to the algorithms structure

(theoretic value for 4 cores: 47 %). Table 1 shows the

resulting relative costs for the algorithm in Figure 2,

also including the coefﬁcient of variation based on a

representative number of test runs. Depending on the

value of β, performance improvements for two cores

vary between 19 % and 31 %. While not optimal, a

signiﬁcant performance gain can be achieved by au-

tomatic parallelization. Solutions for four cores are

much closer to the theoretical optimum, because the

larger solution space makes it more likely to not con-

verge into a local minimum. The necessity of avoid-

ing local minima also inﬂuenced the ﬁnal choice of β.

While higher values of β produce better results for the

example algorithm, they put a higher weight on the

heuristic value, making it more likely for the ants to

choose a locally optimal path, which might not lead to

a globally optimal path. Choosing β = 1.2 proved to

be a reasonable compromise for the algorithm evalu-

ated in Table 1 as well as other algorithms. This value

was therefore chosen for the parallelization of the col-

lision avoidance algorithm given in Figure 8.

Again, the algorithm was parallelized for 1, 2 or 4

cores. The run-time system was conﬁgured to run the

same number of task. Thereby, the system is behav-

ing as if single, dual or quad-core systems were used.

The remaining cores were not used by the run-time

system. The execution time on every core was mea-

sured. The results are shown in Table 2. The overall

performance deﬁned by the maximum possible con-

trol frequency increases with every additional core.

Looking at the total execution time reveals that a cer-

tain overhead is generated by the parallelization. This

was expected due to the necessary communication be-

tween the cores. Comparing the highest CPU Time

of all cores with the estimated costs reveals that the

cost estimate is only slightly optimistic. Most impor-

tantly, the generated solution allows real-time execu-

tion of the collision avoidance algorithm for complex

production processes.

6 CONCLUSION

In this paper, an approach for ﬁne-grain paralleliza-

tion of control algorithms using ACO-based optimiza-

tion is presented. The goal of this parallelization is to

enable ICSs to beneﬁt from increasing hardware per-

formance to be used for new algorithms. A collision-

avoidance-algorithm was used as a test case for par-

allelization of machine tooling algorithms. It was

shown that the approach successfully parallelizes the

algorithm and enables ICSs to beneﬁt from multi-core

CPUs.

While the presented research focuses on proving

the applicability of ACO for the parallelization prob-

lem, optimizing ACO for the speciﬁc problem will be

the focus in the future. Furthermore, the approach

will be extended for systems utilizing dedicated hard-

ware accelerators based on FPGAs. It is intended

to implement the parallelized collision avoidance al-

gorithm into an industrial real-time hardware-in-the-

loop simulation environment for ICSs development.

REFERENCES

Abel, M., Eger, U., Frick, F., Hoher, S., and Lechler, A.

(2014). Systemkonzept f

ur eine echtzeitf

ahige Kol-

lisions

uberwachung von Werkzeugmaschinen unter

Nutzung von Multicore-Architekturen. In Proceed-

ings of SPS IPC Drives 2014, pages S. 441–445–. Ap-

primus Verlag.

Bautista, J. and Pereira, J. (2007). Ant algorithms for a

time and space constrained assembly line balancing

problem. European Journal of Operational Research,

177(3):2016–2032.

Benveniste, A., Caspi, P., Edwards, S. A., Halbwachs, N.,

Le Guernic, P., and de Simone, R. (2003). The syn-

chronous languages 12 years later. Proceedings of the

IEEE, 91(1):64–83.

Bernstein, D., Rodeh, M., and Gertner, I. (1989). On

the complexity of scheduling problems for paral-

lel/pipelined machines. IEEE Transactions on Com-

puters, 38(9):1308–1313.

Boysen, N., Fliedner, M., and Scholl, A. (2008). Assembly

line balancing: Which model to use when? Interna-

tional Journal of Production Economics, 111(2):509–

528.

Cheng, R., Gen, M., and Tsujimura, Y. (1996). A tutorial

survey of job-shop scheduling problems using genetic

algorithms – I. representation. Computers & indus-

trial engineering, 30(4):983–997.

Chiang, C.-W., Lee, Y.-C., Lee, C.-N., and Chou, T.-Y.

(2006). Ant colony optimisation for task matching and

scheduling. IEE Proceedings - Computers and Digital

Techniques, 153(6):373.

Clerc, M. (2004). Discrete particle swarm optimization, il-

lustrated by the traveling salesman problem. In New

optimization techniques in engineering, pages 219–

239. Springer.

Dorigo, M., Maniezzo, V., and Colorni, A. (1996). Ant sys-

tem: optimization by a colony of cooperating agents.

IEEE Transactions on Systems, Man, and Cybernet-

ics, Part B (Cybernetics), 26(1):29–41.

Ferrandi, F., Lanzi, P. L., Pilato, C., Sciuto, D., and Tumeo,

A. (2010). Ant colony heuristic for mapping and

scheduling tasks and communications on heteroge-

neous embedded systems. IEEE Transactions on

Computer-Aided Design of Integrated Circuits and

Systems, 29(6):911–924.

Ferrandi, F., Lanzi, P. L., Pilato, C., Sciuto, D., and Tumeo,

A. (2013). Ant colony optimization for mapping,

scheduling and placing in reconﬁgurable systems. In

2013 NASA/ESA Conference on Adaptive Hardware

and Systems (AHS-2013), pages 47–54. IEEE.

Graf, R. (2014). Chancen und Risiken der neuen Prozessor-

Architekturen. Computer-Automation.

Kwok, Y.-K. and Ahmad, I. (1998). Benchmarking the task

graph scheduling algorithms. In Proceedings of the

First Merged International Parallel Processing Sym-

posium and Symposium on Parallel and Distributed

Processing, pages 531–537. IEEE Comput. Soc.

Scholl, A. and Becker, C. (2006). State-of-the-art exact

and heuristic solution procedures for simple assem-

bly line balancing. European Journal of Operational

Research, 168(3):666–693.

Wang, L., Siegel, H. J., Roychowdhury, V. P., and Ma-

ciejewski, A. A. (1997). Task matching and schedul-

ing in heterogeneous computing environments using a

genetic-algorithm-based approach. Journal of parallel

and distributed computing, 47(1):8–22.

Zheng, S., Shu, W., and Gao, L. (2006). Task scheduling

using parallel genetic simulated annealing algorithm.

In Service Operations and Logistics, and Informat-

ics, 2006. SOLI’06. IEEE International Conference

on, pages 46–50. IEEE.
