Table Interpretation and Extraction of Semantic Relationships to

Synthesize Digital Documents

Martha O. Perez-Arriaga

, Trilce Estrada

and Soraya Abad-Mota

Computer Science, University of New Mexico, 87131, Albuquerque, NM, U.S.A.

Electrical and Computer Engineering, University of New Mexico, 87131, Albuquerque, NM, U.S.A.

Keywords:

Table Understanding, Information Extraction, Information Integration, Semantic Analysis.

Abstract:

The large number of scientiﬁc publications produced today prevents researchers from analyzing them rapidly.

Automated analysis methods are needed to locate relevant facts in a large volume of information. Though

publishers establish standards for scientiﬁc documents, the variety of topics, layouts, and writing styles im-

pedes the prompt analysis of publications. A single standard across scientiﬁc ﬁelds is infeasible, but common

elements tables and text exist by which to analyze publications from any domain. Tables offer an additional

dimension describing direct or quantitative relationships among concepts. However, extracting tables infor-

mation, and unambiguously linking it to its corresponding text to form accurate semantic relationships are

non-trivial tasks. We present a comprehensive framework to conceptually represent a document by extracting

its semantic relationships and context. Given a document, our framework uses its text, and tables content

and structure to identify relevant concepts and relationships. Additionally, we use the Web and ontologies

to perform disambiguation, establish a context, annotate relationships, and preserve provenance. Finally, our

framework provides an augmented synthesis for each document in a domain-independent format. Our results

show that by using information from tables we are able to increase the number of highly ranked semantic

relationships by a whole order of magnitude.

1 INTRODUCTION

The rate at which scientiﬁc publications are produced

has been steadily increasing year after year. The es-

timated growth in scientiﬁc literature is 8 − 9% per

year in the past six decades (Bornmann and Mutz,

2015). This is equivalent to doubling the scientiﬁc lit-

erature every 9-10 years. Such massive production of

articles has enabled the rise of scientiﬁc text mining,

especially in the health sciences (Cohen and Hersh,

2005). The goal of this mining is to uncover non-

trivial facts that underlie the literature; however, these

facts emerge as correlations or patterns only after ana-

lyzing a large volume of documents. One of the most

famous works of literature-based mining led to dis-

cover that magnesium deﬁciency produces migraines

(Swanson, 1988). Some literature-based approaches

use word frequency and co-occurrence (Srinivasan,

2004), n-grams (Sekine, 2008), and semantic rela-

tionships between concepts using ﬁxed patterns (Hris-

tovski et al., 2006). These methods, although efﬁ-

cient, are lacking in three crucial aspects (1) they lead

to a large number of false conclusions, as they can-

not exploit context or disambiguate concepts; (2) they

rely on patterns and ignore structural and semantic re-

lationships, as their information extraction does not

consider relevant concepts with explicit relationships

expressed in tables; and (3) they represent their ﬁnd-

ings for a speciﬁc domain, which cannot be exten-

sively and repeatedly exploited. Thus, the next gen-

eration of deep text mining techniques needs more

sophisticated methods for information extraction and

representation.

Extracting information from the vast scientiﬁc lit-

erature is challenging because even though confer-

ences and journals establish guidelines to publish

work, articles within a ﬁeld are still reported with var-

ious formats (e.g., PDF, XML), layouts (e.g., one or

multi-column), and writing style. No uniﬁed vocab-

ulary exists. For instance, publications on healthcare

might use various names for the same concept (e.g.,

diabetes management and glycemic control). And the

practice of annotating articles with metadata and on-

tologies is far from widely adopted. Further, a unique

standard for publishing articles across scientiﬁc ﬁelds

is not feasible. Our work aims to ﬁll this gap by pro-

viding a comprehensive mechanism to (1) conceptu-

ally representing a document by extracting and anno-

Perez-Arriaga, M., Estrada, T. and Abad-Mota, S.

Table Interpretation and Extraction of Semantic Relationships to Synthesize Digital Documents.

DOI: 10.5220/0006436902230232

In Proceedings of the 6th International Conference on Data Science, Technology and Applications (DATA 2017), pages 223-232

ISBN: 978-989-758-255-4

223

tating its semantic relationships and context and (2)

preserving provenance of each and every relationship,

entity, and annotation included in the document’s syn-

thesis.

Our approach takes advantage of the structured

information presented in tables and the unstructured

text in scientiﬁc publications. Given a document,

our framework uses its tables’ content and structure

to identify relevant entities and an initial set of rela-

tionships. Additionally we use the document’s text to

identify metadata of the publication (e.g., Author, Ti-

tle, Keywords) and context. We use the publication’s

context, ontologies, and the Web to disambiguate the

conceptual framework of extracted entities, and we

reﬁne the set of relationships by further searching for

these entities within the text. Our approach uses an

unsupervised method to rank the relevance of rela-

tionships in the context of the publication. Finally,

our approach organizes the metadata, entities and se-

mantic relationships in a domain-independent format

to facilitate batch analysis. The resulting document

can be used as a synthesis of a publication and can

be easily searched, analyzed, and compared as it uses

a controlled vocabulary, Web-based annotations, and

general ontologies to represent entities and relation-

ships. Our results show that the entities and semantic

relationships extracted provide enough information to

analyze a publication promptly.

The reminder of this paper is organized as follows:

Section 2 describes related work. Section 3 contains

our approach to understanding tables and extracting

semantic relationships from publications. Section 4

contains a working example using our approach. Sec-

tion 5 contains a set of experiments, results and dis-

cussion of our ﬁndings. Finally, Section 6 contains

our conclusion and future directions.

2 RELATED WORK

We review brieﬂy work on table interpretation, an-

notation, disambiguation, semantic relationships and

summarization. Table interpretation is the process of

understanding a table’s content. There is work on in-

terpreting tables in digital documents with certain for-

mats (e.g., HTML, PDF) (Cafarella et al., 2008; Oro

and Ruffolo, 2008). Cafarella et al. present ‘webta-

bles’ to interpret tables from a large number of web

documents, enabling to query information from col-

lected tables (Cafarella et al., 2008).

Although tables and text contain relationships be-

tween concepts, external information sources to de-

scribe concepts in a publication are necessary. The

semantic web (Berners-Lee et al., 2001) contains en-

tities and relationships. DBpedia alone represents 4.7

billion relationships as triples (Bizer et al., 2009), in-

cluding the areas of people, books and scientiﬁc pub-

lications. Yet most triples from scientiﬁc publications

are missing in the semantic web, it can complement

scientiﬁc publications helping to explain concepts. To

understand tables, Mulwad et al. annotate entities

using the semantic web (Mulwad et al., 2010). Ex-

tracting tables from PDF documents poses more chal-

lenges because tables lack tags. Xonto (Oro and Ruf-

folo, 2008) is a system that extracts syntactic and se-

mantic information from PDF documents using the

DLP+ ontology representation language with descrip-

tors for objects and classes. Xonto uses lemmas and

part of speech tags to identify entities, but it lacks an

entity disambiguation process. Texus (Rastan et al.,

2015) is a method to identify, extract and understand

tables. Texus is evaluated with PDF documents con-

verted to XML. Their method performs functional and

structural analyses. However, it lacks disambiguation

and semantic analyses.

To disambiguate entities, some works (Abdal-

gader and Skabar, 2010) use a curated dictionary, such

as WordNet

. This sufﬁces if publications only con-

tain concepts from this source. Others, like (Ferragina

and Scaiella, 2012) use richer sources like Wikipedia.

However, Wikipedia contains a large variety of ad-

ditional information, much of it increases noise. Our

work differs from these approaches in that we use DB-

pedia (Bizer et al., 2009), which is a curated ontology

derived from Wikipedia. In this case DBpedia offers

the best of both worlds: it is as vast as Wikipedia,

but, similarly to WordNet, it provides information in

a structured and condensed form following the con-

ventions of the Semantic Web.

A graphical tool, PaperViz (Di Sciascio et al.,

2017), allows to summarize references, manage meta-

data and search relevant literature in collections of

documents. Also, Baralis et al. (Baralis et al., 2012)

summarize documents with relevant sentences using

frequent itemsets. Still, researchers need to identify

concrete information with descriptions pertaining to a

deﬁned context.

Regarding works on semantic relationships dis-

covery, Hristovski et al. ﬁnd relationships from text

based on ﬁxed patterns (Hristovski et al., 2006). The

open information extraction (IE) method has been

used successfully to ﬁnd new relationships with no

training data (Yates et al., 2007). However, Fader et

al. state that IE can ﬁnd incoherent and uninformative

extractions. To improve open IE, Reverb (Fader et al.,

2011) ﬁnds relationships and arguments using part of

speech tags, noun phrase sentences, and syntactic and

https://wordnet.princeton.edu/

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

224

lexical constrains. Reverb uses a corpus built ofﬂine

with 500 million Web sentences to match arguments

in a sentence heuristically. In addition, Reverb identi-

ﬁes a conﬁdence for each relationship using a logistic

regression classiﬁer with a training set of 1000 sen-

tences from the Web and Wikipedia. Reverb performs

better than the IE method Textrunner (Yates et al.,

2007). We use Reverb for our relationship extraction

from text because it ﬁnds new relationships and deter-

mines their importance with a conﬁdence measure.

Generally, methods that extract semantic relation-

ships lack a way to represent their provenance. To

facilitate researchers’ work, it is important not only

to ﬁnd important relationships from publications, but

also to systematically identify the speciﬁc sources

used for their extraction and annotation.

3 THE FRAMEWORK

We provide a comprehensive framework to interpret

the quantitative aspects of a document. Our approach

takes advantage of the rich source of information

found in tables, and their structure to identify concep-

tual entities and extract semantic relationships from

documents. The unstructured text provides a context,

to help in ﬁnding annotations of concepts, and meta-

data to characterize a publication. The entities and

relationships are used to annotate a scientiﬁc publica-

tion to facilitate its analysis (see Figure 1).

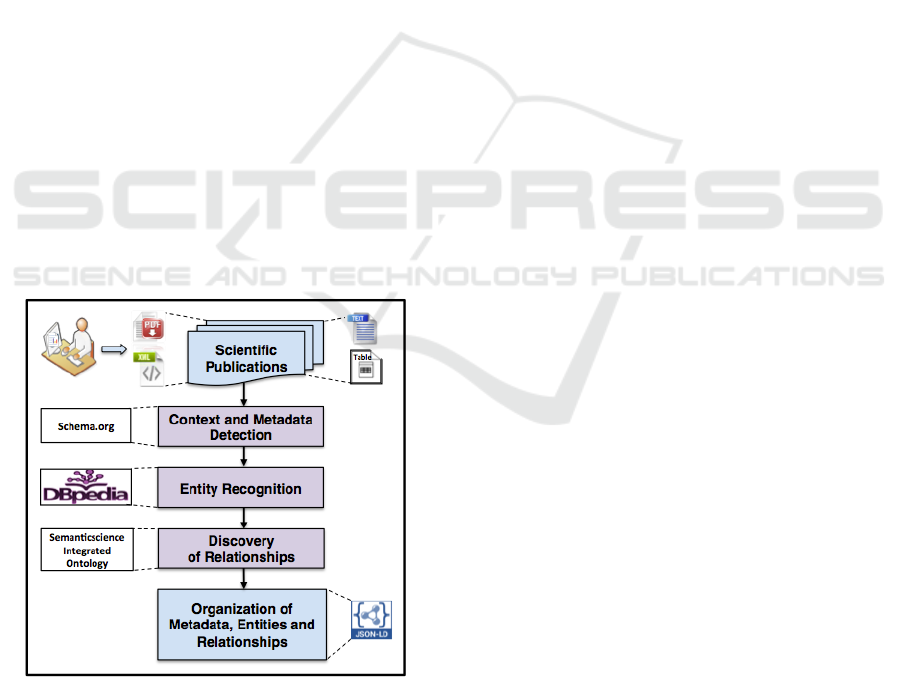

Figure 1: The framework for table interpretation and docu-

ment synthesis generation.

Our method receives as input digital publications

in PDF or XML formats. The publications undergo

processing to ﬁnd its context and metadata to charac-

terize each publication. Then, we automatically rec-

ognize and extract tables’ content from each publi-

cation. The structured and summarized information

from tables is used to identify conceptual entities,

and the general ontology DBpedia is used to anno-

tate them. If an entity is undeﬁned in the ontology,

we search the Web for a description of this entity.

Later, the entities are used to ﬁnd structural and se-

mantic relationships from tables and text. We use the

SemanticScience Ontology (SIO) (Dumontier et al.,

2014) to express these relationships in a standard rep-

resentation (e.g., is a, is related to, is input of). Fi-

nally, this process produces a ﬁle containing meta-

data, entities and a set of semantic relationships found

in the publication. The output is presented in a special

JavaScript Object Notation (JSON) format to allow

interoperability even when publications belong to dif-

ferent domains. Since the extracted entities and rela-

tionships primarily belong to tables, this information

can be used to synthesize a publication’s quantitative

content. Also, because we preserve the context of a

publication and explicitly list semantic relationships,

our framework facilitates querying of particular infor-

mation, contrasting and comparing the claims in var-

ious documents, batch analysis, and as appropriate,

discovery of scientiﬁc facts.

3.1 Context and Metadata Detection

The ﬁrst relevant pieces of information that one can

gather from a document are its metadata and con-

text. Metadata refers to the information that describes

the document itself, and includes data such as au-

thor, title, and keywords. Context refers to the par-

ticular ﬁeld and topic addressed in the document.

Metadata and context can be easily extracted from

some publications that provide tags and keywords.

For these cases we obtain information directly us-

ing tags such as <author>, <article-title> and

<keywords>. However, many documents do not pro-

vide annotated data, and the extraction of metadata

and context becomes non-trivial. For documents lack-

ing a straightforward mechanism to extract their infor-

mation, we convert them into text format and search

for the most relevant concepts within the text. First,

to recover textual information, we convert a PDF doc-

ument to text format using PDFMiner (Shinyama,

2010). Then, to ﬁnd the author and title of a publi-

cation, we perform pattern matching on the ﬁrst page.

To recover keywords that deﬁne the context of a sci-

entiﬁc publication, we process the text (i.e., erasing

long, small and stop words) and apply term-frequency

inverse-document-frequency (TF-IDF) as explained

in (Ramos, 2003). For each word in the document,

we assess its relevance with a weight– measuring the

Table Interpretation and Extraction of Semantic Relationships to Synthesize Digital Documents

225

relative frequency of that word in the document com-

pared to its frequency in a large, but otherwise ran-

dom, collection of documents. In this case we use

Wikipedia

as the canonical collection of documents

because of its wide and diverse range of topics. To

search each word in Wikipedia, we use the API for the

search engine Bing

; by using a search engine rather

than a static collection we are sure always to retrieve

an up-to-date deﬁnition of each word. Bing’s results

provide the frequencies with which to calculate the

weight of each word. The resulting ﬁve concepts with

the best weights are deﬁned as the keywords or con-

text of a publication.

Several standards exist to represent data to iden-

tify a publication (e.g., Dublin Core, Metadata Ob-

ject Description Schema). Though these standards

are useful to describe metadata for publications, we

require a broad and domain independent vocabulary.

Therefore we use the vocabulary schema.org

, which

was created to deﬁne and control general concepts by

important search engines (Ronallo, 2012) and con-

tains current concepts and categories commonly used

on the Internet. This vocabulary derived from the

Resource Description Framework (RDF) schema has

different hierarchical types, containing subclasses and

properties. This vocabulary is particularly useful for

our framework because it can represent publications’

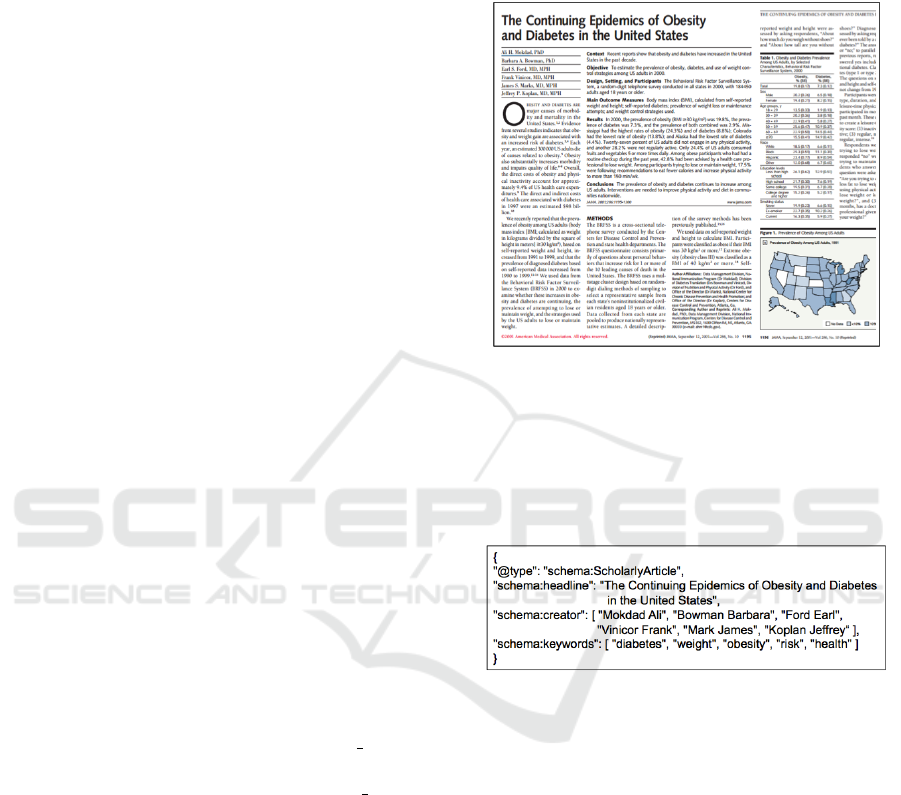

metadata from different domains. Speciﬁcally we use

the properties ‘keywords’, ‘creator’ and ‘headline’ to

characterize a publication’s context, author and title

respectively. These properties are under the Schol-

arlyArticle type that belongs to the categories Thing,

CreativeWork, and Article.

3.2 Entity Recognition, Annotation, and

Disambiguation

We argue that to perform a comprehensive seman-

tic analysis of a document, it is important to take

advantage of the rich content and relationships ex-

pressed in tables and not only in text. Tables con-

tain structured cells organized in columns and rows.

Tables are useful to display summarized information

and are favored by scientists and researchers across

disciplines to present key results in publications (Kim

et al., 2012). Tables can be abstracted as an explicit

structural organization between their cells’ content by

column and row (see Table 1). Generally, header cells

deﬁne concepts or entities that describe the type of

information in the body of the table, (e.g., Country,

https://www.wikipedia.org/

http://www.bing.com/toolbox/bingsearchapi

https://schema.org

GDP, Population). Cells in the body of the table store

values representing a particular instance of their asso-

ciated entity (e.g. Canada). To take advantage of a ta-

ble’s structure and content, it is necessary to perform

table interpretation. Quercini and Reynaud deﬁne ta-

ble interpretation as 1) classifying the column meta-

data, that is, identifying the data category in a par-

ticular column (e.g., Country); 2) detecting concep-

tual entities within the table’s cells (e.g., Argentina,

Canada, Italy); and 3) ﬁnding structural relationships

between columns of the table (e.g., Country has at-

tribute GDP) (Quercini and Reynaud, 2013). How-

ever, depending on the format of the scientiﬁc pub-

lications, identifying and extracting this information

might present challenges. For scientiﬁc documents in

PDF, this interpretation is difﬁcult due to the lack of

tags indicating even the existence of a table.

To identify and extract tables from PDF docu-

ments, we use TAO (Perez-Arriaga et al., 2016),

which identiﬁes tables embedded in documents with

different layouts, and extracts and organizes their con-

tent by row. TAO includes a page number where the

table was found, a table number and metadata for each

cell (i.e., content, column number, coordinates, font,

size, data type, header or data label). TAO yields an

annotated document in JSON format.

To identify and extract table content from

well-formed XML documents, we use the tags

<table-wrap> and <table> indicating the presence

of tables. These tags are useful, but we cannot access

them directly. Therefore, we use Xpath (Berglund

et al., 2003) to detect the path of tags and locate a

table within a section of a document. Once we ﬁnd

the tags, we organize its content by rows in JSON. To

determine if a cell is a header or data, we use the tags

<thead> and <tbody>. A regular expression detects

the datatype of a cell text. For simplicity, we detect

string and numeric data types. The table is enumer-

ated for organization purposes.

Entity Recognition. The organization of tables’ con-

tent by row supports our entity recognition process.

A header cell indicates that it groups other data cells.

Thus, it is more likely that it contains a concept. We

also focus our attention on data cells with type string

to perform entity recognition. Speciﬁcally, we use

Textblob (Loria, 2014), a semantic tool for Natural

Language Processing (NLP). Textblob receives text,

performs noun phrase analysis and returns the entity

or entities found. For example, for the text “Fig-

ure 2 shows the median curves for body mass in-

dex.”, Textblob recognizes the list of entities figure,

median curves, and body mass index.

Entity Annotation. After recognizing an entity,

we search the Web for a description to annotate

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

226

it. For this step, we use DBpedia (Bizer et al.,

2009). DBpedia is a knowledge source that con-

tains billions of structured relationships as triples,

and is available in 125 languages. The English

version contains 4.22 million entities organized as

an ontology with properties (e.g., name: Diabetes,

type:disease). DBpedia’s naming convention uses a

capital letter for the ﬁrst word, and underscore for

spaces between words. For consistency, we convert

an entity into this name convention. For instance,

we convert the entity “Diabetes Management” into

Diabetes_management. If an entity is found in

DBpedia, we use the DBpedia’s Universal Resource

Identiﬁer (URI) as the entity’s annotation and the

property abstract as the entity’s description. A URI

in DBpedia contains the description of an entity, a

classiﬁcation of its type (e.g., thing, person, country).

In addition, DBpedia allows us to ﬁnd synonyms.

For instance, if we search for Glycemic_control,

DBpedia returns the entity Diabetes_management.

Entity Disambiguation. If an entity contains in

its abstract the words may ∨ can ∧ (mean ∨ re f er ∨

stand), it indicates a need to disambiguate an en-

tity. When an entity needs disambiguation or when

it is not found in DBpedia, we use a variation of the

Latent Semantic Indexing (LSI) analysis (Deerwester

et al., 1990) to ﬁnd a Universal Resource Locator

(URL) with the closest meaning to the unresolved en-

tity. Price indicates that LSI works even on noisy

data to categorize documents using several hundred

dimensions (Price, 2003). For our framework we use

LSI + context. To set up a corpus for LSI, our frame-

work performs a Web search for documents related to

the unresolved entity and the context of its publication

(i.e., the publication’s keywords and entity to disam-

biguate). From this search, we: (1) select the top n

Web pages, with n = 100, and create a contextual-

ized document collection; (2) using the documents in

this collection, we build a matrix of term-document

frequencies v, where element v

i, j

represents the fre-

quency of the jth term in the ith document (or Web

page); (3) we eliminate stop words and normalize ∀v

vectors. We use this curated corpus along with LSI to

perform a search with respect to a vector q containing

sentences from the publication surrounding the unre-

solved entity to disambiguate. The URL whose corre-

sponding vector v

has the highest similarity to q is se-

lected as the entity annotation. The entity recognition

process enables us to identify concepts in headers,

entity instances, and structural relationships between

columns and rows from tables. As we explain in the

following section, entities are the building blocks of

semantic relationships and the key for their extraction.

3.3 Discovery of Relationships

Dahchour et al. deﬁne “Generic relationships”

as high-level templates for relating real-world enti-

ties. (Dahchour et al., 2005). More speciﬁcally, a

generic semantic relationship is a unidirectional bi-

nary relationship that represents static constraints and

rules, (i.e., classiﬁcation, generalization, grouping,

aggregation). A binary relationship (R) contains the

basic semantics between a generic relationship and

two arguments. The relationship (a,R,b) indicates that

the arguments a and b are related by a relation R.

The arguments (a,b) can be entities, properties, or

values. A semantic relationship can be domain in-

dependent and represent information from different

areas. Throughout this work we use binary relation-

ships to express entity associations in a document. To

search for relationships, we divide this process into

two parts:

• Relationships in tables: We extract structural re-

lationships from header cells within a table. Also,

we use the entity’s annotations to describe con-

cepts in cells, as explained in Section 3.2.

• Relationships in tables and text: To ﬁnd these re-

lationships, we use the entities found in a table

and relate them to its publication’s text.

The process for relationship identiﬁcation is as

follows: First, we use the open information extrac-

tion tool Reverb (Fader et al., 2011), an unsuper-

vised method to extract relationships with a conﬁ-

dence measure (see Section 2). We process a publi-

cation’s text with Reverb and select the relationships

with high conﬁdence (≥ 0.70). Reverb is efﬁcient, but

a relationship might be incomplete. For instance, it

ﬁnds, with 0.80 conﬁdence, the relationship (obesity

and weight gain, are associated, with). Therefore,

we only use its output as a preliminary guide in our

relationship extraction procedure. Second, the pub-

lication’s text undergoes segmentation, which is the

process to separate the different sentences within the

text. Third, we determine the relevance of high con-

ﬁdence relationships from Reverb by matching them

with the set of entities we deemed important. To en-

sure that the relationships are complete, we perform

pattern matching on the complete sentences surround-

ing the relationship text. For our previous example,

we get the relationship (obesity and weight gain, are

associated, with an increased risk of diabetes).

Finally, we use the Semanticscience Integration

Ontology (SIO) to formally represent relationships

in our framework. SIO deﬁnes relationships in the

Bioinformatics ﬁeld between entities, such as objects,

processes and attributes. However, several deﬁnitions

can represent relationships from any other area of

Table Interpretation and Extraction of Semantic Relationships to Synthesize Digital Documents

227

study. We select the deﬁnitions of the most general re-

lationships from SIO as the basis to ﬁnd relationships

in tables within publications regardless of their area.

To represent a relationship, we use pattern matching

to ﬁnd the deﬁnition of a relationship. If one is found,

we store the identiﬁer of the relationship’s deﬁnition

from SIO and the arguments composing a relation-

ship from a document. If a relationship is undeﬁned

in SIO, our method generates its representation using

the verb found by Reverb. We store the ad-hoc rela-

tionships and use them for different publications.

3.4 Organization of Metadata, Entities

and Relationships

As the ﬁnal phase, our approach organizes the meta-

data, entities, annotations and relationships into a

JSON ﬁle that synthesizes each publication in a stan-

dard and interoperable way.

The JSON - Linked Data (JSON-LD) format is

a representation of information with resources and

linked elements, and has been used to communicate

network messages (Lanthaler and G

utl, 2012). This

format was created to facilitate the use of linked

data. A document in JSON-LD can deﬁne a type

of information, a set of relationships, not limited to

triples, and the location of other documents. An-

other advantage of this format is that it includes a

context of a document. We should not confuse a

JSON-LD document’s context with the context of a

publication (i.e., keywords). A JSON-LD context

refers to the location of a resource. For instance, for

a document that represents relationships from SIO,

the context is http://semanticscience.org/resource/.

This context indicates the location of the re-

lationships’ formal deﬁnitions. If a relation-

ship has a deﬁnition with identiﬁer SIO 000001.

Then, the union of the context and the identi-

ﬁer http://semanticscience.org/resource/SIO 000001

gives access to a speciﬁc resource (e.g., a deﬁnition

of a relationship).

We use JSON-LD to generate multiple records

per document. The records include the publication’s

metadata, entities with annotations, and the extracted

semantic relationships. These records in turn contain

other links, such as the ones used to annotate enti-

ties and to deﬁne relationships. By using JSON-LD

records, it is easy to either store them in ﬁles or as

records in NoSQL databases for querying.

4 WORKING EXAMPLE

To better describe our approach, we focus on a typical

example of a multi-column publication containing ta-

bles (See Figure 2). We use The continuing epidemics

of obesity and diabetes in the United States (Mokdad

et al., 2001).

Figure 2: The continuing epidemics of obesity and diabetes

in the United States - Publication used as example.

Context and Metadata Detection. To represent the

metadata of a publication, we search for the proper-

ties: creator, headline, and keywords. Once we extract

this information, we store it in our synthesis using the

schema.org representation as shown in Figure 3.

Figure 3: Representation of metadata for a publication.

The annotation "schema" indicates that the

concepts are deﬁned from the schema.org vocabulary.

The property "@type" deﬁnes the category (i.e.,

Scholarly article); "creator" speciﬁes the authors

of a publication; "headline" speciﬁes the title; and

"keywords" deﬁnes its context. By using schema.org

we are able to build an explicit organization into

our data representation. This organization is easily

exploited for querying purposes.

Entity Recognition, Annotation, and Disambigua-

tion. The following example demonstrates the pro-

cess from table extraction to entity recognition and

annotation. We use partial data (see Table 1) from Ta-

ble 1: “Obesity and Diabetes Prevalence Among US

Adults, by Selected Characteristics, Behavioral Risk

Factor Surveillance System, 2000” in (Mokdad et al.,

2001).

The ﬁrst row contains concepts in headers (e.g.,

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

228

Table 1: Excerpt from “The continuing epidemics of obesity

and diabetes in the United States” (Mokdad et al., 2001).

Race Obesity, % (SE) Diabetes, % (SE)

Black 29.3(0.59) 11.1(0.39)

Hispanic 23.4(0.77) 8.9(0.59)

White 18.5(0.17) 6.6(0.11)

Other 12.0(0.68) 6.7(0.65)

Race, Obesity, Diabetes), and the other cells contain

particular values, which can also be an entity instance

or attribute. As mentioned earlier in Section 3.2, the

PDF publication undergoes a process for table recog-

nition using TAO. This process generates a JSON ﬁle

with the information of the table grouped by row. The

output for each cell includes column number, content,

coordinates of cell on a page, font, size, data type,

header or data labels. For didactic purposes we show

a fragment of TAO’s output in Figure 4.

Figure 4: TAO’s output for the ﬁrst row in Table 1.

Using each cell’s content with data type string

(e.g., “Obesity % (SE)”), Textblob recognizes the ta-

ble’s entities as Race, Obesity and Diabetes. Then,

our method ﬁnds the entities’ annotations from DB-

pedia. For the entity Diabetes, the annotation is the

URI http://dbpedia.org/page/Diabetes mellitus and its

description follows:

“ Diabetes mellitus (DM), commonly referred

to as diabetes, is a group of metabolic diseases

in which there are high blood sugar levels over

a prolonged period...”

Discovery of Relationships. To describe the pro-

cess of discovering relationships, we use Table

1, which contains the entities Race, Obesity and

Diabetes. The header cell “Race” groups the data

cells “Black”, “Hispanic”, “White”, and “Other” on

the ﬁrst column. From this column, we obtain four

instances for the entity race: Race ⇒ Black, Race

⇒ Hispanic, Race ⇒ White, Race ⇒ Other. These

four entity instances are used to ﬁnd semantic rela-

tionships in the document’s text. One of such relation-

ships found in the text is (Obesity and weight gain,

are associated, with an increased risk of diabetes).

As explained before, we aim at using a standard rep-

resentation for all of our relationships. In this case the

relationship “are associated” is deﬁned by SIO with

the label “is related to” and indexed by the SIO iden-

tiﬁer SIO_000001. Additionally, this deﬁnition

con-

tains the description “A is related to B iff there is some

relationship between A and B”, and other properties.

To build the document’s synthesis, we save the rela-

tionship as a quintuple including identiﬁer of the rela-

tionship, ﬁrst argument, relationship label, second ar-

gument, and a relationship’s deﬁnition identiﬁer. For

this example, the format is as follows:

id:1, argument A: “obesity and weight”, la-

bel: “is related to”, argument B: “with an in-

creased risk of diabetes”, sio id:SIO 000001.

Note that the identiﬁer of a relationship within a

publication (e.g., id:1) is different from a relation-

ship’s deﬁnition identiﬁer (e.g., sio id:SIO 000001).

Another example is the semantic relationship (the

prevalence of obesity and diabetes, has increased,

despite previous calls for action). In this case

SIO does not have a deﬁnition for the relationship

“has increased”. Still, we store the relationship for

further consultation and to enrich the entity ‘Obesity’.

Organization of Metadata, Entities and Relation-

ships. The ﬁrst record in our synthesis contains con-

textual information, as the metadata shown in Fig-

ure 3. Additionally, it contains entities’ annotations,

descriptions, and identiﬁers. The record with infor-

mation of extracted relationships contains a unique

identiﬁer and a context. Its context includes the loca-

tion of deﬁnitions of relationships from SIO and the

details of the extracted relationships from tables and

text (i.e., relationship identiﬁer, arguments, relation-

ship deﬁnition’s identiﬁer). For illustrative purposes,

we show a fragment of the records indicating annota-

tions for entities and relationships in Figure 5.

5 EVALUATION

We evaluated our approach quantitatively and quali-

tatively. To do so, we designed three sets of experi-

ments that evaluated our framework in terms of its (1)

accuracy to annotate and recognize entities, (2) abil-

ity to disambiguate entities, and (3) ability to identify

relevant semantic relationships between entities.

To assess our method, we use a dataset

that we call Pubmed. It comprises ﬁfty

publications downloaded from the Web site

ftp://ftp.ncbi.nlm.nih.gov/pub/pmc/oa bulk/. This

collection contains 449 text pages with 133 tables.

The dataset includes various table formats and

document layouts (one and two-column).

http://semanticscience.org/resource/SIO 000001

Table Interpretation and Extraction of Semantic Relationships to Synthesize Digital Documents

229

Figure 5: Fragment of our table interpretation and publica-

tion’s synthesis.

5.1 Evaluation of Entity Extraction and

Annotation

Our ﬁrst experiment evaluates our method’s ability to

recognize and annotate entities. First, we manually

extracted all the entities per table in our dataset as

the gold standard. The measures recall and precision

are used to obtain the average F1-measure for entity

recognition. Recall is the ratio between the correct

number of entities detected and the total number of

entities in a table. Precision is the ratio between the

correct number of entities detected and the total num-

ber of entities detected. We use the same measure-

ments for entities annotated and disambiguated.

To measure entity recognition, our gold standard

contains 2, 314 entities, which 1, 834 of them were

recognized. We obtained a recall of 79.2% and a pre-

cision of 94.3%, yielding a F1-measure of 86.1% for

recognition (see Table 2).

From the entities annotated, our method found

1, 262 (72.5%) of entities in DBpedia. From those,

785 (45.1%) obtained a direct annotation using DB-

pedia, and the rest (27.4%) needed disambiguation.

Then, our method used the LSI process described in

Section 3.2 to annotate a total of 955 entities. That is

54.9% of entities correctly recognized. From the total

1, 834 entities recognized, 1, 740 were correctly an-

Table 2: Experiment 1 to recognize and annotate entities.

Entity Recognition

Entities Recall Precision F1 measure

Recognized 0.79 0.94 0.86

Annotated 0.95 0.97 0.96

notated, yielding a recall of 94.8%, precision of 97%,

and F1-measure of 95.9% (see Table 2).

5.2 Evaluation of Entity

Disambiguation

For the second experiment, we evaluated the entity

disambiguation methods. In particular, we quantify

the effect of including information regarding the con-

text of the publication in the disambiguation process.

From the 1, 740 annotated entities, 955 needed disam-

biguation. From these, 838 correctly disambiguated

entities were discovered without context. The preci-

sion was 89% and recall 87%, yielding an F1-measure

of 88%. For the entities disambiguated using as con-

text the three more relevant keywords, there were 900.

The precision was 95% and the recall 94%, yielding

an F1-measure of 94.5%. Table 3 presents the results

of comparing disambiguation without and with con-

text.

Table 3: Experiment 2 to disambiguate entities.

Entity Disambiguation

Method Recall Prec. F1 NR urls

No context 0.87 0.89 0.88 12.3%

Context 0.94 0.95 0.94 5.8%

In addition, URLs were manually veriﬁed to de-

termine whether they were reliable or non-reliable

(See Table 3 column NR urls). The reliable URLs

include known organizations and domains. Non-

reliable URLs required further investigation. Al-

though this URL review does not ensure an exact de-

scription of an entity, it does ensure that a site or doc-

ument found is related to the entity, and consequently

to the publication. The non-reliable URLs found us-

ing no context were 117, that is 12.3% of the total dis-

ambiguated entities, while the number of non-reliable

URLs when including context were 55, that is 5.8%.

Therefore, the context reduced more than half of non-

reliable links.

Although the results with context are only

slightly better than non-context, the quality of the

URLs increased considerably using the context. For

example, for the entity Gain found in the work-

ing example from Section 4, the method with no

context found the URL http://gainworldwide.org/,

which is a site for global aid network. Us-

ing a context, our method found the URL

https://www.sciencedaily.com/releases/2010/02/100

222182137.htm, which is a site about weight gain

during pregnancy and increasing risk of gestational

diabetes. Although the ﬁrst link belongs to an

organization, it does not relate to the entity Gain

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

230

for this publication, while the second URL, explains

the risks of weight gain during pregnancy, which is

related to this speciﬁc publication.

Using context, we consistently found more reli-

able links, belonging to organizations, schools, gov-

ernment, clinics, dictionaries, and scientiﬁc and dig-

ital libraries, among others. In contrast, when con-

text was not included, we found commercial URLs

promoting services or products, unavailable sites, and

even some ill-intentioned links. To ensure reliability,

we could keep a second URL annotation for unavail-

able URLs.

5.3 Evaluation of Semantic

Relationships

The third experiment evaluated both quantitatively

and qualitatively the semantic relationships found by

our method. We report the total number of high rank-

ing (≥ 0.70) relationships derived either from tables

or text, and the average number of relationships per

article. In addition, a human judge evaluated qualita-

tively the relationships extracted from text and tables.

The judge detected complete versus incomplete rela-

tionships. A complete relationship indicates that the

components of a relationship show coherence, regard-

less of their accuracy. See results in Table 4.

Table 4: Experiment 3: ﬁnding semantic relationships.

Semantic Relationships

Method Rel. found Rel. complete

Text only 865 703

Tables 11,268 10,102

For this experiment, we found 11, 268 relationships

from tables and 865 from text. The average number

of relationships extracted per publication when using

table information is 225, while the average number of

relationships extracted using only text is 17 per pub-

lication.

A human judge analyzed the quality and com-

pleteness of relationships manually. From the total

of relationships extracted from text, 703 (81%) rela-

tionships were complete and the rest was labeled in-

complete. From the set of relationships derived from

tables, 10, 102 (89%) relationships were complete. To

further increase the number of relationships that we

can extract from a given article we could increase the

conﬁdence threshold. However, there is the risk of

extracting common or irrelevant relationships.

Analyzing the results qualitatively, relationships

extracted from tables produced more complete infor-

mation. This conﬁrms our initial intuition regarding

the relevance of structural information embedded in

tables. Even though our framework uses mostly con-

cepts from tables to extract relationships and generate

a synthesis, it can still be useful when a publication

lacks tables because it ﬁnds metadata and semantic

relationships from text. These relationships can be

found using a publication’s keywords. Regarding re-

lationships extracted from text only, our method im-

proved the completeness of relationships extracted by

Reverb.

6 CONCLUSION AND FUTURE

WORK

Because of their wide use and structured organiza-

tion, we propose using tables in digital publications

to recover summarized information and structural re-

lationships among conceptual entities in these docu-

ments. Additionally, we use text in publications to

ﬁnd valuable information, such as context and de-

scription of concepts as semantic relationships.

We developed an integrated framework to extract

semantic relationships from electronic documents.

Our method takes advantage primarily of informa-

tion in tables, such as their content and structure, to

ﬁnd relevant entities and relationships. Our frame-

work can seamlessly interpret documents in PDF and

XML format, which leverages multiple standards,

tools, Natural Language Processing, and unsuper-

vised learning to generate an end-to-end synthesized

analysis of a document. This synthesis contains rich

information organized in a standard, searchable, and

interoperable format that facilitates batch mining of

large document collections. In addition to interop-

erability and easiness of use, our output emphasizes

provenance, and it ensures that the user will be able

to trace back exactly the source of every extracted re-

lationship.

Our results demonstrate the importance of includ-

ing context to annotate and to identify semantic rela-

tionships of high quality. The results also support our

intuition regarding the usefulness of tables and show

that by using tables, it is possible to increase the num-

ber of highly ranked semantic relationships by one or-

der of magnitude.

In our future work, we plan to create a collection

of syntheses allowing users to consult them individu-

ally and globally; and to further evaluate data integra-

tion and interoperability. Our framework shall gener-

ate a network of the semantic relationships containing

context or entities of interest. Hence, it can extend ad-

ditional support to ﬁnd important relationships among

documents from any domain.

Table Interpretation and Extraction of Semantic Relationships to Synthesize Digital Documents

231

REFERENCES

Abdalgader, K. and Skabar, A. (2010). Short-text similarity

measurement using word sense disambiguation and

synonym expansion. In Australasian Joint Conference

on Artiﬁcial Intelligence, pages 435–444. Springer.

Baralis, E., Cagliero, L., Jabeen, S., and Fiori, A. (2012).

Multi-document summarization exploiting frequent

itemsets. In Proc. of the 27th Annual ACM Sympo-

sium on Applied Computing, pages 782–786. ACM.

Berglund, A., Boag, S., Chamberlin, D., Fernandez, M. F.,

Kay, M., Robie, J., and Sim

eon, J. (2003). Xml

path language (xpath). World Wide Web Consortium

(W3C).

Berners-Lee, T., Hendler, J., Lassila, O., et al. (2001). The

semantic web. Scientiﬁc american, 284(5):28–37.

Bizer, C., Lehmann, J., Kobilarov, G., Auer, S., Becker, C.,

Cyganiak, R., and Hellmann, S. (2009). Dbpedia-a

crystallization point for the web of data. Web Seman-

tics: science, services and agents on the world wide

web, 7(3):154–165.

Bornmann, L. and Mutz, R. (2015). Growth rates of modern

science: A bibliometric analysis based on the number

of publications and cited references. Journal of the

Association for Information Science and Technology,

66(11):2215–2222.

Cafarella, M. J., Halevy, A. Y., Zhang, Y., Wang, D. Z.,

and Wu, E. (2008). Uncovering the relational web. In

WebDB. Citeseer.

Cohen, A. M. and Hersh, W. R. (2005). A survey of current

work in biomedical text mining. Brieﬁngs in bioinfor-

matics, 6(1):57–71.

Dahchour, M., Pirotte, A., and Zim

anyi, E. (2005). Generic

relationships in information modeling. In Journal on

Data Semantics IV, pages 1–34. Springer.

Deerwester, S., Dumais, S. T., Furnas, G. W., Landauer,

T. K., and Harshman, R. (1990). Indexing by latent

semantic analysis. Journal of the American society

for information science, 41(6):391.

Di Sciascio, C., Mayr, L., and Veas, E. (2017). Exploring

and summarizing document collections with multiple

coordinated views. In Proc. of the 2017 ACM Work-

shop on Exploratory Search and Interactive Data An-

alytics, pages 41–48. ACM.

Dumontier, M., Baker, C. J., Baran, J., Callahan, A., Che-

pelev, L. L., Cruz-Toledo, J., Nicholas, R., Rio, D.,

Duck, G., Furlong, L. I., et al. (2014). The seman-

ticscience integrated ontology (sio) for biomedical re-

search and knowledge discovery. J. Biomedical Se-

mantics, 5:14.

Fader, A., Soderland, S., and Etzioni, O. (2011). Identifying

relations for open information extraction. In Proc. of

the Conference on Empirical Methods in Natural Lan-

guage Processing, pages 1535–1545. Association for

Computational Linguistics.

Ferragina, P. and Scaiella, U. (2012). Fast and accurate an-

notation of short texts with wikipedia pages. IEEE

software, 29(1):70–75.

Hristovski, D., Friedman, C., Rindﬂesch, T. C., and Pe-

terlin, B. (2006). Exploiting semantic relations for

literature-based discovery. In AMIA.

Kim, S., Han, K., Kim, S. Y., and Liu, Y. (2012). Scientiﬁc

table type classiﬁcation in digital library. In Proc. of

the 2012 ACM symposium on Document engineering,

pages 133–136. ACM.

Lanthaler, M. and G

utl, C. (2012). On using json-ld to cre-

ate evolvable restful services. In Proc. of the Third In-

ternational Workshop on RESTful Design, pages 25–

32. ACM.

Loria, S. (2014). Textblob: simpliﬁed text processing. Sec-

ondary TextBlob: Simpliﬁed Text Processing.

Mokdad, A. H., Bowman, B. A., Ford, E. S., Vinicor, F.,

Marks, J. S., and Koplan, J. P. (2001). The continuing

epidemics of obesity and diabetes in the united states.

Jama, 286(10):1195–1200.

Mulwad, V., Finin, T., Syed, Z., and Joshi, A. (2010). Using

linked data to interpret tables. COLD, 665.

Oro, E. and Ruffolo, M. (2008). Xonto: An ontology-based

system for semantic information extraction from pdf

documents. In Tools with Artiﬁcial Intelligence, 2008.

ICTAI’08. 20th IEEE International Conference on,

volume 1, pages 118–125. IEEE.

Perez-Arriaga, M., Estrada, T., and Abad-Mota, S. (2016).

Tao: System for table detection and extraction form

pdf documents. In The 29th Florida Artiﬁcial Intel-

ligence Research Society Conference, pages 591–596.

AAAI.

Price, A. Z. R. J. (2003). Document categorization using

latent semantic indexing. In Proc. 2003 Symposium on

Document Image Understanding Technology, page 87.

UMD.

Quercini, G. and Reynaud, C. (2013). Entity discovery

and annotation in tables. In Proc. of the 16th Inter-

national Conference on Extending Database Technol-

ogy, pages 693–704. ACM.

Ramos, J. (2003). Using tf-idf to determine word relevance

in document queries. In Proc. of the First Instructional

Conference on Machine Learning.

Rastan, R., Paik, H.-Y., and Shepherd, J. (2015). Texus:

A task-based approach for table extraction and under-

standing. In Proc. of the 2015 ACM Symposium on

Document Engineering, pages 25–34. ACM.

Ronallo, J. (2012). Html5 microdata and schema. org.

Code4Lib Journal, 16.

Sekine, S. (2008). A linguistic knowledge discovery tool:

Very large ngram database search with arbitrary wild-

cards. In 22nd International Conference on on Com-

putational Linguistics: Demonstration Papers, pages

181–184. Association for Computational Linguistics.

Shinyama, Y. (2010). Pdfminer: Python pdf parser and an-

alyzer.

Srinivasan, P. (2004). Text mining: generating hypotheses

from medline. Journal of the American Society for

Information Science and Technology, 55(5):396–413.

Swanson, D. R. (1988). Migraine and magnesium: eleven

neglected connections. Perspectives in biology and

medicine, 31(4):526–557.

Yates, A., Cafarella, M., Banko, M., Etzioni, O., Broad-

head, M., and Soderland, S. (2007). Textrunner: open

information extraction on the web. In Proc. of The

Annual Conference of the North American Chapter of

the Association for Computational Linguistics, pages

25–26. Association for Computational Linguistics.

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

232
