KYPO Cyber Range: Design and Use Cases

Jan Vykopal

, Radek Ošlejšek

, Pavel

Celeda

, Martin Vizváry

and Daniel Tovar

nák

Institute of Computer Science, Masaryk University, Brno, Czech Republic

Faculty of Informatics, Masaryk University, Brno, Czech Republic

Keywords:

KYPO, Cyber Range, Cyber Attack, System Design, Cloud Computing, Network Virtualization.

Abstract:

The physical and cyber worlds are increasingly intertwined and exposed to cyber attacks. The KYPO cyber

range provides complex cyber systems and networks in a virtualized, fully controlled and monitored environ-

ment. Time-efﬁcient and cost-effective deployment is feasible using cloud resources instead of a dedicated

hardware infrastructure. This paper describes the design decisions made during it’s development. We pre-

pared a set of use cases to evaluate the proposed design decisions and to demonstrate the key features of the

KYPO cyber range. It was especially cyber training sessions and exercises with hundreds of participants which

provided invaluable feedback for KYPO platform development.

1 INTRODUCTION

Operational cyber environments are not suitable for

building a systematic knowledge of new cyber threats

and to train responses to them. Therefore, cyber

ranges or testbeds are usually built to provide a re-

alistic environment suitable for training security and

operations teams. A cyber range provides a place

to practice correct and timely responses to cyber at-

tacks. The learners can practice skills such as network

defence, attack detection and mitigation, penetration

testing, and many others in a realistic environment.

Despite the increasing popularity of cyber exer-

cises (Welch et al., 2002; NATO CCDCOE, 2017),

there is very limited public information about plat-

forms used. Due to the speciﬁc use of cyber ranges

(government, military, industry), many technical de-

tails are regarded as sensitive. This paper shall pro-

vide an integrated view of the KYPO cyber range

(KYPO, 2017), which has been in development since

2013. KYPO was made for researching and develop-

ing new security methods, tools and for training se-

curity teams and students. It provides a virtualised

environment for performing complex cyber attacks

against simulated cyber environments.

Apart from the technical aspects, the transdisci-

plinary features of cyber exercises are equally im-

portant. Preparing and carrying out cyber exercise

requires substantial time, effort and ﬁnancial invest-

ments (Childers et al., 2010). The major workload is

carried out by the organizers, particularly in the exer-

cise preparation phase. The ultimate goal of a cyber

range developers is to minimize this workload and to

support all phases of an exercise’s life cycle. We have

designed and executed a cyber defence exercise to

validate the KYPO cyber range prototype. The tech-

nical part of the exercise relies on the built-in capa-

bilities of KYPO and was used in six runs of a cyber

defence exercise for 50 participants. Several lessons

were learned which provided important guidance for

further KYPO research and development.

This paper is divided into six sections. Section 2

shall provide background information about testbeds

and cyber ranges. Section 3 will describe KYPO’s

architecture design and list the main components of

the proposed architecture. Section 4 shall describe

the user interface and interactions in the KYPO cyber

range. Section 5 will show three selected use cases.

Finally, Section 6 will conclude the paper and outline

future work on KYPO.

2 RELATED WORK

In this section, we introduce generic testbeds which

can be used in cyber security. Then we focus on en-

vironments which have been specially developed for

cyber security training. While some of these evolved

from generic testbeds, others were designed with cy-

ber security in mind. The environments are costly,

but versatile large-scale infrastructures with state of

the art parameters and features as well as

310

Vykopal, J., Oslejsek, R., Celeda, P., Vizvary, M. and Tovarnak, D.

KYPO Cyber Range: Design and Use Cases.

DOI: 10.5220/0006428203100321

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 310-321

ISBN: 978-989-758-262-2

lightweight alternatives with limited scope, function-

ality and resources.

The Australian Department of Defence published

an extensive survey of state of the art cyber ranges

and testbeds (Davis and Magrath, 2013). The survey

lists more than 30 platforms which can be used for

cyber security education worldwide. This number is

based on publicly available, non-classiﬁed informa-

tion. Since the development and operation of some

cyber ranges is funded by the military and govern-

ments of various countries, there is likely to be other

classiﬁed cyber ranges. To cover recent advances and

innovations, we have done a systematic literature re-

view from 2013 to 2017.

2.1 Generic Testbeds

Emulab/Netbed (White et al., 2002) – this is a clus-

ter testbed providing basic functionality for deploy-

ing virtual appliances, conﬁguring ﬂexible network

topologies and the emulation of various network char-

acteristics. The network topology must be described

in detail by an extension of NS language. Emulab al-

locates computing resources for the speciﬁed network

and instantiates it in a dedicated HW infrastructure.

Emulab has been developed since 2000 and there

are currently about 30 of its instances or derivates in

use or under construction worldwide (Emulab, 2017).

It can be considered to be a prototype of an emulation

testbed for research into networking and distributed

systems. It provides accurate repeatable results in ex-

periments with moderate network load (Siaterlis et al.,

2013).

CyberVAN (Cyber Virtual Ad hoc Network, 2017)

– this is a cyber experimentation testbed funded by

the U.S. Army Research Laboratory and developed

by Vencore Labs. CyberVAN enables arbitrary ap-

plications to run on Xen-based virtual machines that

can be interconnected by arbitrary networks topolo-

gies. It employs network simulators such as OPNET,

QualNet, ns-2, or ns-3, so the network trafﬁc of emu-

lated hosts travels through the simulated network. As

a result, this hybrid emulation enables the simulation

of large strategic networks approximating a large ISP

network.

2.2 Cyber Ranges

DETER/DeterLab (Mirkovic et al., 2010) – the DE-

TER project was started in 2004 with the goal of ad-

vancing cyber security research and education. It is

based on Emulab software and has developed new ca-

pabilities, namely i) an integrated experiment man-

agement and control environment SEER (Schwab

et al., 2007) with a set of trafﬁc generators and mon-

itoring tools, ii) the ability to run a small set of risky

experiments in a tightly controlled environment that

maximizes research utility and minimizes risk (Wro-

clawski et al., 2008), and iii) the ability to run large-

scale experiments through a federation (Faber and

Wroclawski, 2009) with other testbeds that run Em-

ulab software, and with facilities that utilize other

classes of control software. Lessons learned through

the ﬁrst eight years of operating DETER and an out-

line of futher work are summarized in (Benzel, 2011).

DETER operates DeterLab which is an open fa-

cility funded by U.S. sponsors and hosted by the

University of Southern California and University

of California, Berkeley. It provides hundreds of

general-purpose computers and several specialized

hosts (e. g., FPGA-based reconﬁgurable hardware el-

ements) interconnected by a dynamically reconﬁg-

urable network. The testbed can be accessed from

any machine that runs a web browser and has an SSH

client. Experimental nodes are accessed through a

single portal node via SSH. Under normal circum-

stances, no trafﬁc is allowed to leave or enter an ex-

periment except via this SSH tunnel.

National Cyber Range (NCR) (NCR, 2017) –

the NCR is a military facility to emulate military

and adversary networks for the purposes of realistic

cyberspace security testing, supporting training and

mission rehearsal exercises (Ferguson et al., 2014).

Its development and operation have been funded by

the U.S. Department of Defense since 2009 and the

target user group are U.S. governmental organiza-

tions. The NCR enables operational networks to be

represented, and interconnected with military com-

mand and control systems, with the ability to restore

to a known checkpoint baseline to repeat the test with

different variables. The NCR is instrumented with

trafﬁc generators and sensors collecting network traf-

ﬁc and data from local and distributed nodes. The

NCR has demonstrated the ability to rapidly conﬁgure

a variety of complex network topologies and scale up

to 40,000 nodes including high-ﬁdelity realistic rep-

resentations of public Internet infrastructure.

Michigan Cyber Range (MCR) (MCR, 2017) –

this is an unclassiﬁed private cloud operated by Merit,

a non-proﬁt organization governed by Michigan’s

public universities in the USA. The MCR has offered

several services in cyber security education, testing

and research since 2012.

The MCR Secure Sandbox simulates a real-world

networked environment with virtual machines that act

as web servers, mail servers, and other types of hosts.

Users can add preconﬁgured virtual machines or build

their own virtual machines. Access to the Sandbox is

KYPO Cyber Range: Design and Use Cases

311

provided through a web browser or VMware client

from any location.

Alphaville is MCR’s virtual training environment

speciﬁcally designed to test teams’ cyber security

skills. Alphaville consists of information systems

and networks that are found in a typical information

ecosystem. Learners can develop and exercise their

skills in various hands-on formats such as defence and

offense exercises.

SimSpace Cyber Range (Lee Rossey, 2015) – a

U.S. private company runs this cyber range, which

enables the realistic presentation of networks, infras-

tructure, tools and threats. It is offered as a service

hosted in public clouds (Amazon Web Services or

Google), at the SimSpace datacenter, or deployed in

the customer’s infrastructure and premises.

The cyber range provides several types of pre-

conﬁgured networks containing from 15 to 280 hosts

which emulate various environments (generic, mili-

tary, ﬁnancial). It is possible to generate trafﬁc emu-

lating enterprise users with host-based agents and run

attack scenarios automatically by combining various

attacker tasks. All activities can be also monitored

at network and scenario level (network trafﬁc, attack-

ers’ and defenders’ actions, and activities of emulated

users at end hosts). The platform is controlled via

a web portal that also provides access to the results

of an analysis and assessment of monitored activities

within the cyber range.

EDURange (EDURange, 2017) – this is a cloud-

based framework for designing and instantiating in-

teractive cyber security exercises funded by the U.S.

National Science Foundation and developed by Ev-

ergreen State College, Olympia, Washington. EDU-

Range is intended for teaching ethical hacking and

cyber security analysis skills to undergraduate stu-

dents. It is an open-source software with a web fron-

tend based on Ruby and backend deploying virtual

machines and networks hosted at Amazon Web Ser-

vices. The exercises are deﬁned by a YAML-based

Scenario Description Language and can be instanti-

ated by the instructor for a selected group of students.

EDURange supports Linux machines which can be

accessed via SSH. It also has built-in analytics for

host-based actions, namely a history of commands ex-

ecuted by students during the exercise.

2.3 Lightweight Platforms

Avatao (Buttyán et al., 2016; Avatao, 2017) – this is

an e-learning platform offering IT security challenges

which are created by an open community of security

experts and universities. Avatao is developed by an

eponymous spin-off company of CrySyS Lab at Bu-

dapest University of Technology and Economics,

Hungary. It is a cloud-based platform using

lightweight containers (such as Docker) instead of

a full virtualization. This enables it to start a new

challenge in its virtual environment very quickly in

comparison with booting full-ﬂedged emulated hosts.

Learners and teachers access the challenges via web

browser. Hosts and services within the virtual envi-

ronment are accessed by common network tools and

protocols such as Telnet or SSH.

CTF365 (CTF365, 2017) – this is a Romanian

commercial security training platform with a focus

on security professionals, system administrators and

web developers. It is an IaaS where users (organized

in teams) can build their own hosts and mimic the

real Internet. CTF365 provides a web interface for

team management, instantiating virtual machines us-

ing predeﬁned images and providing credential to ac-

cess the machines using VPN and SSH. Each team

has to defend and attack the virtual infrastructure at

the same time. As a defender, a team has to set up

a host which runs common Internet services such as

mail, web, DB in 24/7 mode. As an attacker, the team

has to discover their competitor’s vulnerabilities and

submit them to the scoring system of the CTF365 por-

tal.

Hacking-Lab (Security Competence, 2017) – this

is an online platform for security training and com-

petitions run by a Swiss private company. It pro-

vides more than 300 security challenges and has about

40,000 users. The platform consists of a web por-

tal and a network with vulnerable servers emulated

using virtual machines or Docker containers. Each

team administers a set of vulnerable applications and

has to perform several tasks simultaneously, namely

attack the applications of their competitors, keep their

own applications secure, and up and running, ﬁnd and

patch vulnerabilities, keep applications up and run-

ning, and solve challenges. A Linux-based live CD is

provided to ease the use of Hacking-Lab. It contains

many hacking tools and is preconﬁgured for VPN ac-

cess.

iCTF and InCTF iCTF framework (Vigna et al.,

2014) was developed by the University of Califor-

nia, Santa Barbara for hosting their iCTF, the largest

capture the ﬂag competition in the world since 2002.

The goal of this open-source framework is to provide

customizable competitions. The framework creates

several virtual machines running vulnerable programs

that are accessible over the network. The players’ task

is to keep these programs functional at all times and

patch them so other teams cannot take advantage of

the incorporated vulnerabilities. The availability and

functionality of these services is constantly tested by

ICSOFT 2017 - 12th International Conference on Software Technologies

312

a scorebot. Each service contains a ﬂag, a unique

string that the competing teams have to steal so that

they can demonstrate the successful exploitation of a

service. This ﬂag is also updated from time to time by

the scorebot.

InCTF (Raj et al., 2016) is a modiﬁcation of

iCTF that uses Docker containers instead of vir-

tual machines. This enhances the overall game ex-

perience and simpliﬁes the organization of attack-

defence competitions for a larger number of partici-

pants. However, it is not possible to monitor network

trafﬁc, capture exploits and reverse engineer them to

identify new vulnerabilities used in the competition.

3 KYPO ARCHITECTURE

DESIGN

The KYPO cyber range is designed as a modular dis-

tributed system. In order to achieve high ﬂexibil-

ity, scalability, and cost-effectiveness, the KYPO plat-

form utilizes a cloud environment. Massive virtu-

alization allows us to repeatedly create fully opera-

tional virtualized networks with full-ﬂedged operat-

ing systems and network devices that closely mimic

real world systems. Thanks to its modular architec-

ture, the KYPO is able to run on various cloud com-

puting platforms, e. g., OpenNebula, or OpenStack.

A lot of development effort has been dedicated to

user interactions within KYPO since it is planned to

be offered as Platform as a Service. It is accessed

through web browser in every phase of the life cy-

cle of a virtualized network: from the preparation and

conﬁguration artifacts to the resulting deployment, in-

stantiation and operation. It allows the users to stay

focused on the desired task whilst not being distracted

with effort related to the infrastructure, virtualization,

networking, measurement and other important parts

of cyber research and cyber exercise activities.

3.1 Platform Requirements

At the beginning of the development of the KYPO

platform, many functional and non-functional re-

quirements were deﬁned both by the development

team and the project’s stakeholders. The requirements

were ﬁrst prioritized using the MSCW method (Must

have, Should have, Could have, and Would like, but

will not have). After the prioritization process, we

identiﬁed the must have requirements that were the

most likely to inﬂuence the high-level architecture

of the KYPO platform as a whole. The following

selected requirements have strongly inﬂuenced our

high-level design choices.

Flexibility – the platform should support the in-

stantiation of arbitrary network topologies, ranging

from single node networks to multiple connected net-

works. For the topology nodes, a wide range of op-

erating systems should be supported (including arbi-

trary software packages). The creation and conﬁg-

uration of such topologies should be as dynamic as

possible.

Scalability – the platform should scale well in

terms of the number of topology nodes, processing

power and other available resources of the individual

nodes, network size and bandwidth, the number of

sandboxes (isolated virtualized computer networks),

and the number of users.

Isolation vs. Interoperability – if required, differ-

ent topologies and platform users should be isolated

from the outside world and each other. On the other

hand, integration with (or connection to) external sys-

tems should be achieved with reasonable effort.

Cost-Effectiveness – the platform should support

deployment on commercial off-the-shelf hardware

without the need for a dedicated data center. The op-

erational and maintenance costs should be kept as low

as possible.

Built-In Monitoring – the platform should natively

provide both real-time and post-mortem access to de-

tailed monitoring data. These data should be related

to individual topologies, including ﬂow data and cap-

tured packets from the network links, as well as node

metrics and logs.

Easy Access – users with a wide range of expe-

rience should be able to use the platform. For less

experienced users, web-based access to its core func-

tions should be available, e. g., a web-based terminal.

Expert users, on the other hand, should be able to in-

teract with the platform via advanced means, e. g., us-

ing remote SSH access.

Service-Based Access – since the development ef-

fort and maintenance costs of a similar platform are

non-trivial for a typical security team or a group of

professionals, our goal is to provide transparent ac-

cess to the platform in the form of a service.

Open Source – the platform should reuse suitable

open source projects (if possible) and its release arti-

facts should be distributed under open source licenses.

3.2 High-Level Architecture

It can be seen that many of the requirements were al-

ready created with a cloud computing model in mind.

This naturally inﬂuenced the KYPO platform high

level architecture (Figure 1). The platform is com-

posed of ﬁve main components – infrastructure man-

agement driver, sandbox management, sandbox data

KYPO Cyber Range: Design and Use Cases

313

store, monitoring management, and the platform man-

agement portal serving as the main user interaction

point. These components interact together in order

to build and manage sandboxes residing in the un-

derlying cloud computing infrastructure. In the fol-

lowing paragraphs, we will individually describe each

component. Since the user interface (platform man-

agement portal) is very complex it is thoroughly de-

scribed in Section 4.

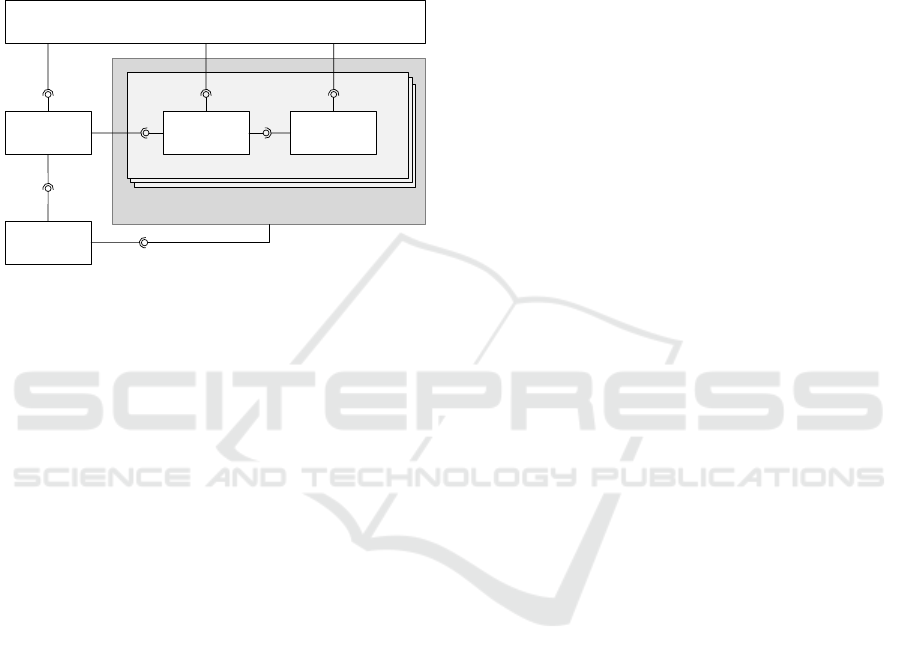

Computing Infrastructure

Sandbox

Management

Infrastructure

Management

Driver

Sandbox Data

Store

Monitoring

Management

Platform Management Portal

Figure 1: KYPO platform high-level architecture overview.

3.2.1 Infrastructure Management Driver

The infrastructure management driver is used to con-

trol the computing infrastructure. A computing in-

frastructure consists, in general, of housing facilities,

physical machines, network devices, and other hard-

ware and related conﬁguration artifacts. It forms the

raw computing resources such as storage, operating

memory, and processing power. KYPO is designed to

run on public cloud computing infrastructure so that

sandboxes can be built without the need of dedicated

infrastructure.

The infrastructure management driver is the only

component of the architecture which directly access

the low level computing infrastructure. Therefore, the

support of multiple cloud providers is isolated to this

single component. API provided by the driver offers

services which enable the management of virtual ma-

chines and networks in a uniﬁed way. At present, the

KYPO runs on OpenNebula cloud and the adaptation

to OpenStack is under development.

3.2.2 Sandbox Management Component

The sandbox management component is used to cre-

ate and control sandboxes in the underlying comput-

ing infrastructure. During the deployment of a sand-

box, it orchestrates the infrastructure via infrastruc-

ture management driver in order to conﬁgure virtual

machines and networking.

Advanced networking is one of the most important

features of the KYPO platform. KYPO uses cloud

networking as an overlay infrastructure. The underly-

ing cloud infrastructure uses IEEE 802.1Q, i.e. Vir-

tual LAN tagging, using Q-in-Q tunneling. Q-in-Q

tunneling allows KYPO to conﬁgure sandboxes net-

working dynamically. It also does not depend on the

L2 and L3 network addressing of the infrastructure,

using a separate networking conﬁguration. The sand-

box networking allows users to conﬁgure their own

L2/L3 addressing scheme in each LAN.

The networking in the sandboxes is done using

one or more Lan Management Nodes (LMN). Each

LAN network is managed by one LMN. LMN is a

standard Debian system with an Open vSwitch (OvS)

multilayer virtual switch (Linux Foundation, 2017).

It combines standard Linux routing and OvS packet

switching. The intra-LAN communication is done on

the L2 layer using OvS as a learning switch. The

inter-LAN communication is forwarded from switch

to standard Linux routing tables.

The notion of KYPO points is used to connect ex-

ternal devices, systems and networks to the KYPO en-

vironment. Since the KYPO platform is cloud-based,

there is a need for the mechanism to be able to connect

systems and devices that do not have a virtualized op-

erating system, i. e. they are hardware-dependent, or

location dependent.

We have developed a device which connects such

systems – based on a Raspberry Pi platform which

automatically connects after its boot via Virtual Pri-

vate Network (VPN) tunnel to the sandbox in KYPO.

This makes the point very easy to use since it has very

small proportions and it can be easily delivered and

connected anywhere. The connection is secured via

the properties of the VPN.

3.2.3 Sandbox Data Store

The sandbox data store manages information related

to the topology of a sandbox and provides its generic

abstraction. Since the KYPO is partially an overlay

environment, it is necessary to bridge the conﬁgura-

tion of nodes in the cloud infrastructure and the inner

conﬁguration of virtual machines.

Therefore, modules working with sandbox-related

data, e. g., the platform management portal or the

monitoring management component, do not retrieve

information directly from the cloud but utilize the

sandbox data store instead.

The store contains information about end nodes,

IP addresses, networks, routes, and network proper-

ties during the whole lifetime of the sandbox. They

are updated by the sandbox management component

whenever changes to the sandbox are made. For ex-

ample, when a user deploys a new node or deletes a

ICSOFT 2017 - 12th International Conference on Software Technologies

314

current node.

3.2.4 Monitoring Management Component

The monitoring management component provides

ﬁne-grained control over the conﬁguration of the

built-in monitoring and also provides an API that ex-

poses the acquired monitoring data to external con-

sumers (e. g., platform management portal). All the

necessary information about the sandbox’s topology

is read from the sandbox data store, i. e. information

about existing network links and nodes. Currently,

the platform supports simple network trafﬁc metrics

(e. g., packets, and error octets) and there is also sup-

port for ﬂow-based monitoring and full-packet cap-

ture.

In order to cope with the largely heterogeneous

monitoring data that is inherently generated within

sandboxes and the KYPO platform itself, we use the

normalizer design pattern and the notion of a monitor-

ing bus component implementing this pattern, as de-

scribed in detail by (Tovar

nák and Pitner, 2014). The

long-term objective of such a deployment is to render

the monitoring architecture within the platform fully

event-driven. This is motivated by the growing need

for advanced monitoring data corelations both in the

terms of real-time and post-mortem analysis.

During the development of the platform, we en-

countered a problem as to how to differentiate be-

tween the monitoring functionality that should be

built in, and the functionality that should be, concep-

tually, a part of a cyber exercise scenario and the re-

sulting sandbox topology. We have determined that

a reasonable decisive factor is the intended consumer

of the monitoring data and the desired intrusiveness

of the monitoring components on the scenario.

For example, in the case of host-based monitor-

ing, there is a need for various monitoring agents to

be installed and conﬁgured on the end-nodes. If the

intended consumer is not part of the scenario, e. g., the

monitoring data are used for the purposes of progress

tracking or scoring in cyber-exercises, the monitoring

agents must be protected from misconﬁguration and

other manipulation by the participants. This, how-

ever, breaks the fourth-wall, so to say, since the partic-

ipants need to be informed that such misconﬁguration

is prohibited, including network misconﬁguration and

so on. This can be sometimes seen as intrusive.

When the intended consumers are the partici-

pants themselves, the monitoring components and

their conﬁguration should be a part of the scenario.

This way it can be misconﬁgured or stopped alto-

gether. Yet in this case, the monitoring data can be

rendered unusable for external consumers, e. g., for

the purposes of ex-post analysis.

3.2.5 Platform Management Portal

The Platform Management Portal (PM Portal) medi-

ates access to the platform for the end users by pro-

viding them with interactive visual tools. In particu-

lar, the PM Portal is designed to cover the following

types of interactive services.

Management of cyber exercises – the preparation

of cyber exercises is very complex process which re-

quires us to deﬁne security scenarios, allocate hard-

ware resources, manage participants, and so on. The

PM Portal supports the automation of these tasks by

introducing a system of user roles and corresponding

interactions.

Collaboration – many security scenarios are based

on mutual collaboration where multiple participants

share a sandbox and jointly solve required tasks or,

on the contrary, compete against each other. The PM

Portal supports multiple ﬂexible collaboration modes

covering a wide range of scenarios.

Access to sandboxes – the PM Portal enables end

users to log into computers allocated in a sandbox

via remote desktop web client as an alternative user-

friendly access point to the portal-independent com-

mand line SSH access.

Interactive visualizations – regardless of whether

a user is analyzing a new malware or is learning new

defence techniques against attackers, it is always cru-

cial to understand and keep track of progress and cur-

rent developments inside the sandbox. The PM Por-

tal, therefore, provides specialized visualization and

interaction techniques which mediate data and events

measured in sandboxes.

4 USER INTERFACE AND

INTERACTIONS

The variability of security issues that the KYPO in-

frastructure is able to emulate places high demands

on the realization of the Platform Management Portal

and its interactive services. While traditional appli-

cations are usually based on clearly deﬁned require-

ments and use cases that delimit software architecture

as well as provided functionality, the design of the PM

Portal has to deal with the dynamic character of its us-

age. This is because the use cases are deﬁned at the

user level as part of security scenarios and then user

interfaces have to also be either deﬁnable or at least

highly conﬁgurable at the user level.

To assure high accessibility of the services for all

types of end users, the PM Portal is designed as a web

application where users are not bothered by the need

to install anything on their device (not even browser

KYPO Cyber Range: Design and Use Cases

315

plugins or extensions such as Java or Flash).

To deal with the dynamic character of the KYPO’s

use, the PM Portal complies with Java Enterprise Web

Portal standards, as deﬁned in JSR 168 and JSR 286.

Web portals are designed to aggregate and personal-

ize information through application-speciﬁc modules,

so-called portlets. Portlets are uniﬁed cross-platform

pluggable software components that visually appear

as windows located on a web page. Once developed,

a portlet can usually be reused in many security sce-

narios. Another key feature of enterprise web por-

tals is their support of inter-portlet communication,

synchronization and deployment into web pages and

sites. We utilized these features to create complex

scenario-speciﬁc user interfaces as preconﬁgured web

pages composed of mutually cooperating portlets.

4.1 Role-based Access Control

Preparation of a cyber exercise is very complex

task comprising scenario deﬁnition, allocation of re-

sources, user management, and so on. In order to au-

tomatize these processes by means of user interaction,

it is necessary to deﬁne user roles with clear access

rules and responsibilities.

Scenarist devises security scenarios with all nec-

essary details including sandbox deﬁnition and the de-

sign of web user interfaces for end users engaged in

the scenario. At this level, the interfaces are deﬁned as

generic templates used to generate per-user web pages

in further “scenario execution” phases. Besides the

scenario and UI management, scenarists also autho-

rize selected users to become organizers of exercises

with adequate responsibilities.

An organizer is a well-instructed technically

skilled person authorized by a scenarist to plan and

prepare cyber exercises or experiments of a particular

security scenario. Organizational activities consist of

the allocation of sandboxes in the cloud, adjusting in-

formation pages, conﬁguring a scoring subsystem and

other scenario-speciﬁc services, inviting participants,

etc. Organizers also delegate selected participants to

be supervisors of the exercise.

Participants represent end users engaged in a par-

ticular cyber exercise or experiment. They utilize

web UIs prepared by scenarists and perform tasks

prescribed by the security scenario. If the users are

involved in multiple experiments or exercises at the

same time, they have to choose a particular one at the

beginning of the interaction.

We distinguish between ordinary participants and

those having extended supervising privileges. Or-

dinary participants have just one scenario role as-

signed. Scenario roles limit particular participants’

access to particular hosts in the sandbox based sce-

nario deﬁnition. For instance, an exercise scenario

deﬁnes the roles of an attacker and a defender. The

attacker then has no direct access to the hosts con-

trolled by the defender and vice versa. In contrast,

participants with supervisor privileges have access to

all nodes in the network implicitly. Supervisors also

usually utilize speciﬁc web forms and visualizations

that reﬂect their speciﬁc needs. Another difference

can be found in a multi-sandbox collaboration mode.

While ordinary participants have access to only a sin-

gle sandbox, supervisors can access all the sandboxes

allocated for a given exercise.

Authentication of all users is based on federated

identities. Credentials of users attempting to log into

the PM Portal are redirected to a central system for

identity management, which integrates many existing

identity providers and authenticates users against their

external electronic identities. Besides well-known

identity providers (such as Facebook or Google) it is

easy to integrate other external accounts on demand

via a LDAP service. Participants of cyber exercises

can, therefore, use their Google or corporate user-

names and passwords to access the KYPO infrastruc-

ture.

Once authenticated, the authorization of a user is

managed directly in the KYPO infrastructure. The

PM Portal checks the user against his or her as-

signed roles and offers the appropriate web pages and

portlets for further interaction. The more roles the

user has assigned, the broader the user interfaces of

the PM Portal are available.

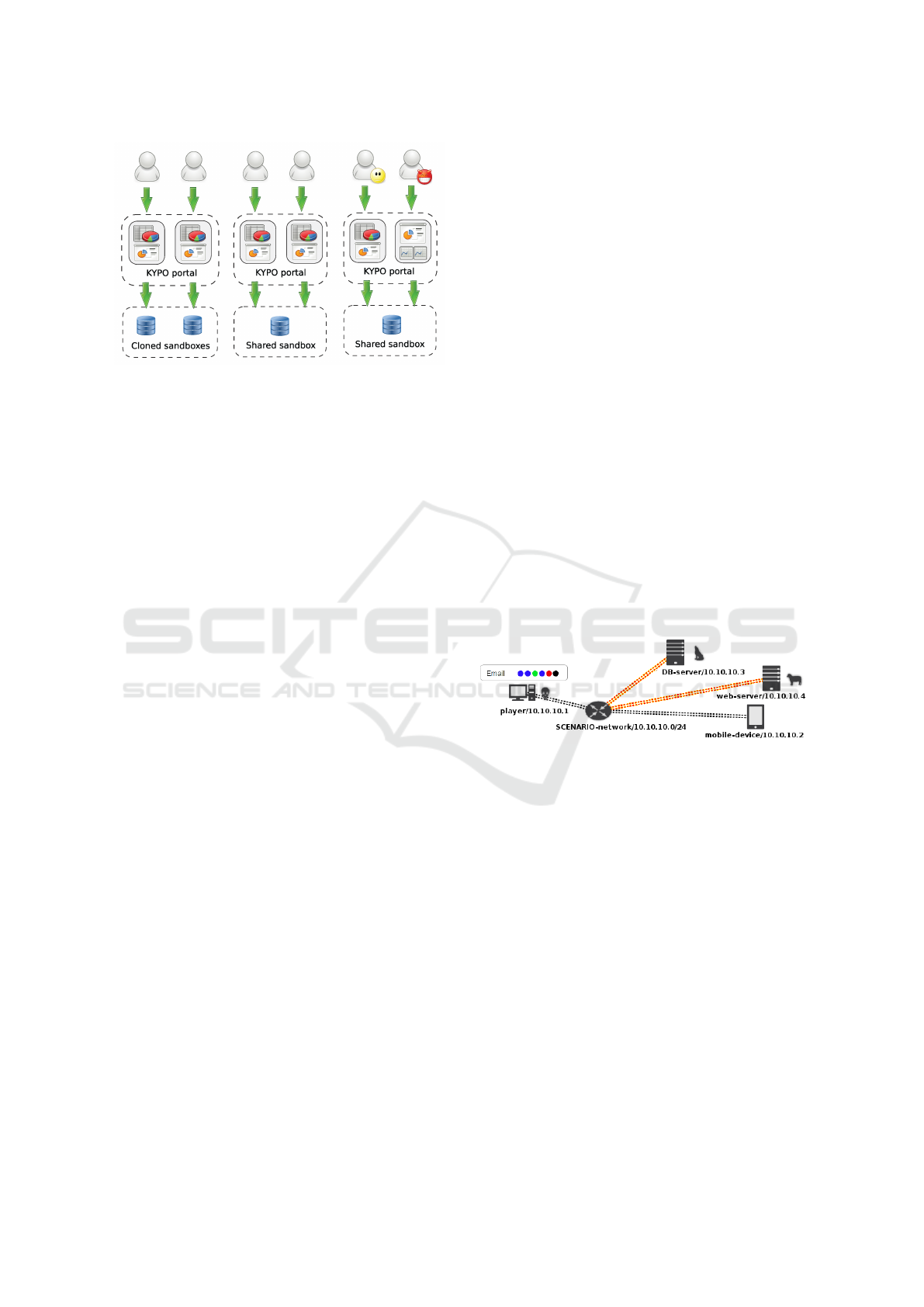

4.2 Collaboration Modes

The combination of ﬂexible web UIs (supported by

the PM Portal) and the loose coupling of individual

portlets (with sandboxes via remote access) enables

us to simulate various collaboration strategies (Eich-

ler et al., 2015). Three basic collaboration modes are

depicted in Figure 2. The combination of these modes

with other traditional web-browser features (such as

multiple browser tabs opened at the same time or

multi-display views) provide a very ﬂexible solution

covering a wide range of security scenarios.

Individual sandboxes – every participant has their

own private sandbox and web user interface. The web

UI is deﬁned by a scenarist only once in the form of a

template and then the participants have the same set of

interactive tools available. Thanks to its cloud-based

infrastructure, it is easy to allocate many identical

sandboxes for individual users on demand. Neverthe-

less, sandboxes do not depend on each other. There-

fore, participants can complete the same tasks via the

ICSOFT 2017 - 12th International Conference on Software Technologies

316

Figure 2: Collaboration modes: individual sandboxes, indi-

vidual views on shared data and role-based collaboration.

same user interface but the state of sandboxes may

differ depending on their activities. This collabora-

tion mode is useful mainly for individual training and

cyber security experiments.

Individual views on shared data – the participants,

each of them sitting at his or her own computer, share

a sandbox and the measured data are shared. Partici-

pants have the same web UI at their disposal but they

use them independently. They can focus on differ-

ent parts of the network, explore different aspects of

the security scenario, return back in time and so on,

but they never affect the views of other participants.

This collaboration mode is useful mainly for collec-

tive learning about security threats or for collaborative

forensic analyses.

Role-based collaboration – in this mixed ap-

proach, participants are divided into teams with pre-

scribed roles, such as attackers or defenders. Teams

have predeﬁned web user interfaces according to their

tasks. Teams can share a sandbox which plays the

role of a battleﬁeld. This collaboration mode is use-

ful for exercises where multiple teams either coop-

erate or compete against each other in a single shared

sandbox. However, this role-based approach extended

with multiple sandboxes enables us to go even further.

For example, we can create multiple defending teams,

each having its own isolated sandbox, and a single at-

tacking team ﬁghting against them simultaneously.

4.3 Web Front-end and Visualization

The web portal technology used for the implementa-

tion of the PM Portal enables us to develop special-

ized interactive user interfaces, which are narrowly

focused on speciﬁc goals, but also allow us to com-

bine them easily into complex systems of mutually

synchronized views supporting complex workﬂows.

There is no space to describe all the developed user

interfaces and interactive visualizations in detail, nor

to discuss their combinations leading to the support of

various security scenarios. Instead, we present only a

few selected portlets that were used most often during

various cyber exercises organized by the KYPO team

so far.

4.3.1 Capture the Flag Games

The PM Portal offers complete support for design-

ing and playing level-based games where users com-

plete cyber security tasks. The administrators’ inter-

face enables the game designer to deﬁne the network

topology, individual tasks, hints with penalties, time

limits and other necessary information. There is also

support for sandbox allocation and player enrollment.

The players’ interface guides them through the game

and is usually supplemented with an interactive net-

work topology view.

4.3.2 Network Topology

One key visualization of the PM Portal is a general

topological view, as shown in Figure 3. Versatility

was one of the key requirements for this visualization

since the network topology is present in all scenarios.

Routers, links, computers and servers are represented

in the visualization.

Figure 3: A simple network topology with highlighted

roles, network trafﬁc and incoming emails.

The topology visualization shows multiple dy-

namic data measured in the corresponding sandbox.

The small icons close to the nodes represent logical

roles, e. g., attacker or victim. Unusual trafﬁc on links

is visualized with colors and animations. Nodes can

be accompanied by the visualization of user-deﬁned

events such as incoming emails. Clicking on a node, a

user, if privileged, can access the node’s remote desk-

top via VNC or SPICE client. In this case, a new tab

is opened in the browser with the screen of the remote

host. This visualization is fully interactive, enabling

users to re-organize nodes, collapse, and reveal sub-

networks, zoom in and out, and so on.

4.3.3 Time Manager

Data measured in sandboxes and provided by the

monitoring management component have the form of

KYPO Cyber Range: Design and Use Cases

317

a time series. Therefore, many visualizations used

in the PM Portal have to cope with time-related data

queries in order to show the sandbox’s state either at

a particular point in time or within a given time span.

It would be impractical to deal with time constraints

in every particular portlet independently. Instead, we

developed a Time Manager portlet (Figure 4) which

enable users to visually deﬁne time restrictions that

are propagated to other portlets on the page.

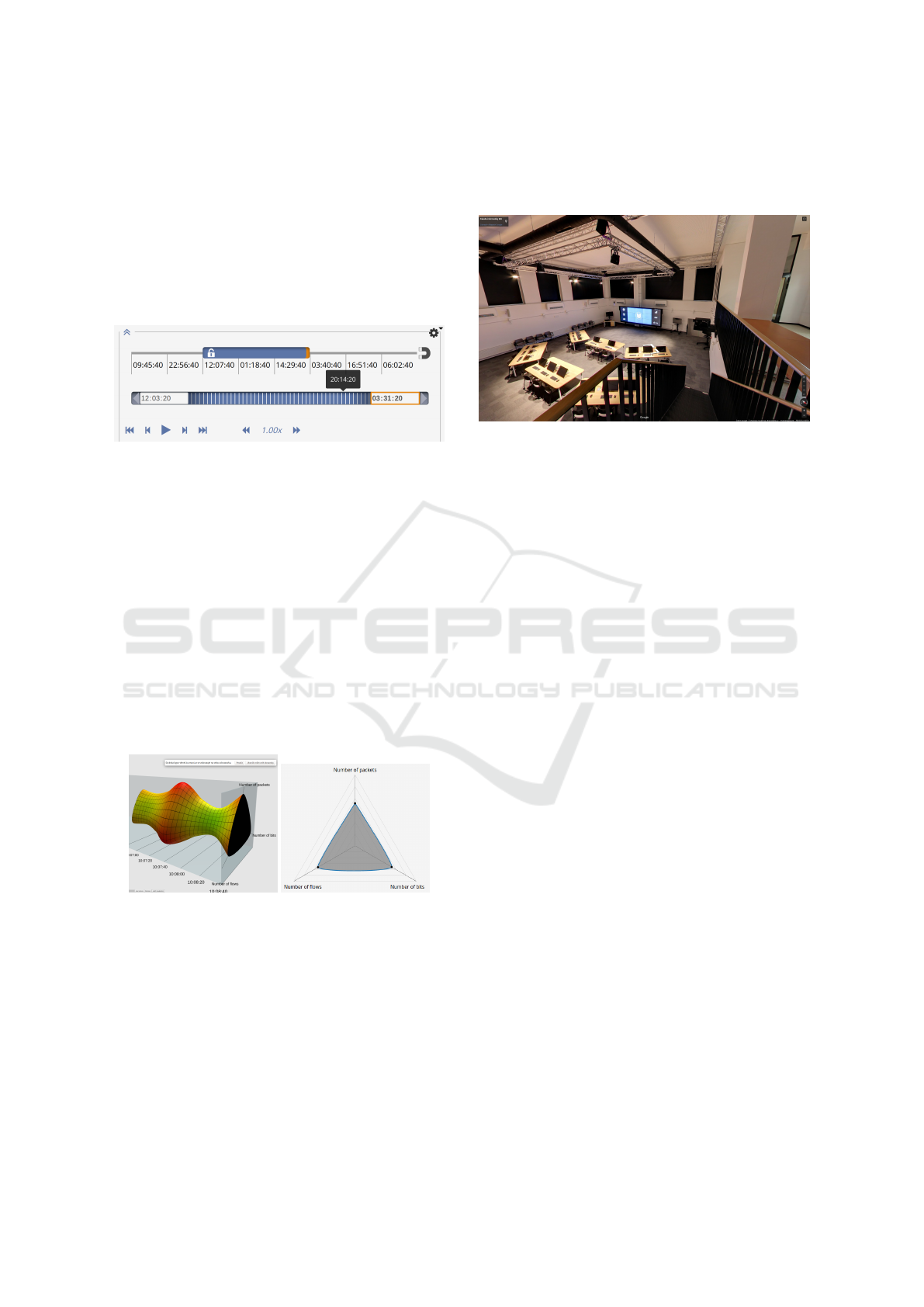

Figure 4: A generic timeline management visualization.

4.3.4 Analytic Graphs

KYPO provides several analytically oriented visu-

alizations and interactions. For instance, measured

sandbox data can be transformed into 2D line charts

and radar charts or they can be visualized in 3D, as

shown in Figure 5. These analytic graphs provide

alternative views on multivariate data measured in

the sandbox. To help users to identify anomalies,

the visualizations are fully interactive, support the re-

ordering of axises simply by their direct manipulation

and can switch between two 3D views smoothly by

means of animation so that the user keeps track of the

investigated part of the graph and never loses context.

Figure 5: Interconnected analytic graphs.

4.4 Physical Facility

Although the KYPO cyber range is accessible re-

motely via a web browser, many exercises are orga-

nized in a physical KYPO laboratory. Its hardware

equipment offers a high variability of display tech-

niques as well as a reconﬁgurability of inputs and out-

puts so that it is possible to support variable collabo-

ration strategies and to distribute relevant information

across several teams and roles.

The room consists of a training area over which a

multimedia control center and a visitors’ gallery are

located, as shown in Figure 6.

Figure 6: The KYPO laboratory is a versatile room. Its

setting can be adjusted to best ﬁt the needs of ongoing exer-

cises.

The training area is equipped with six mobile

audio-video tables, each for 3-4 learners. The ta-

bles integrate all-in-one touch computers providing

access to the KYPO infrastructure. The room is fur-

ther equipped with four mobile FullHD displays and

two UHD/4K displays. These displays can be ei-

ther connected to individual AV tables or used to dis-

play shared information. Nevertheless, the informa-

tion sharing is primarily managed by two wide central

display surfaces; a projection screen and display wall.

The projection screen is 5 meters wide and supports

FullHD 2D or 3D projection from up to 4 sources at

the same time, e. g., the supervisor’s screen and work-

ing spaces of 3 teams. The display wall consists of

a matrix of 5x3 Full HD displays and a multi-touch

frame supporting detection of up to 10 simultaneous

touches (i. e. true multi-touch).

The distribution of content into display outputs is

managed centrally by the coordinator sitting in the

control center. Some basic tasks can be also managed

directly by the supervisor, who has a table located to-

gether with the AV tables in the training area.

5 CYBER RANGE USE CASES

KYPO can be used for various different applications.

During its design and development, we focused on

these three main use cases: i) cyber research, devel-

opment, and testing, ii) digital forensic analysis, and

iii) cyber security education and training. All these

use cases have a similar set of requirements on the

cyber range, but they differ in scenario-speciﬁc tools,

the availability of pre-deﬁned content, user interac-

tions and expected knowledge, skills, and effort level

ICSOFT 2017 - 12th International Conference on Software Technologies

318

of the users. However, the concept of sandboxes and

the platform management portal helps us to cope with

this fact, i. e. various types of sandboxes with various

types of tools can be provided, from an empty sand-

box for researchers to a fully populated and conﬁg-

ured sandbox for a complex cyber security exercise.

In the following text, we describe the differences of

the three use cases in a detail, and provide references

to research papers employing or beneﬁting from an

application of the KYPO cyber range.

5.1 Cyber Research and Development

The ﬁrst use case presented here supports research,

development, and testing new methods or systems for

the detection and mitigation of cyber attacks in net-

work infrastructures of various types.

In this case, KYPO provides a sandbox and

optional monitoring infrastructure for experiments.

Users can provide their own virtual images for hosts

to be instantiated. Alternatively, they can start with

generic virtual hosts available in KYPO which run

common operating systems, services and applications

(e. g., Ubuntu Server, MS Windows Server 2013, De-

bian Server with conﬁgured DNS server) and install

applications used in the experiment.

Network trafﬁc and host based statistics can be

monitored and stored within KYPO’s infrastructure,

where they are immediately available for analysis.

Experiments can be evaluated via analytic tools that

researchers deploy into the KYPO infrastructure and

utilize according to their interests. Researchers can

also utilize interactive visualizations of the PM Por-

tal. The network topology visualization (with an indi-

cation of network trafﬁc and event-based activities to-

gether with 2D and 3D analytic graphs) is especially

valuable. The time manager helps to keep track of

real-time developments in the sandbox.

This use case is intended for security researchers

and experienced network administrators because it re-

quires an advanced level of knowledge in network-

ing, host conﬁguration and some knowledge of virtu-

alization technologies. Researchers need to be experi-

enced in order to assemble or adjust their experiment-

speciﬁc web UIs, to deﬁne their own topologies and

other scenario properties, and to properly design mul-

tiple sandboxes for comparison studies. Regarding

the KYPO user roles, researchers play the role of sce-

narist, organizer and supervisor.

There are several public papers using KYPO

for cyber security research and development rang-

ing from a simulation of a DDoS attack (Jirsík et al.,

2014) through to an evaluation of a network defence

strategy (Medková et al., 2017) and an analysis of

surveillance software (Špa

cek et al., 2017).

5.2 Digital Forensic Analysis

The second use case partially builds upon the previous

one and covers basic forensic analysis, which can be

partly automated by tools deployed in the sandbox.

In this use case, the users can deploy virtual images

of unknown or malicious machines in the predeﬁned

sandbox network and run a set of automated dynamic

analyses. The sandbox contains an analytic host that

provides pre-conﬁgured tools and an environment for

rudimentary forensic analysis.

This use case supports security incident handlers

and forensic analysts in focusing on the subject mat-

ter and removes the burden of spending their precious

time in the setup of an analytic environment. Since

the digital forensic analysis extends the previous use

case, the required KYPO user roles are also similar.

5.3 Education and Training

The last use case covers a diverse type of edu-

cational hands-on activities, such as security chal-

lenges, competitions, capture the ﬂag games, and at-

tack/defence cyber exercises; all of which closely fol-

low the learning-by-doing principle.

In our experience, the education and training use

case has proven to be the most challenging. On one

hand, the KYPO platform needs to provide many ad-

ditional features, mainly in the terms of user interac-

tions, in order to support both the learners and edu-

cators in their roles. On the other hand, there is a

considerable amount of customized content that must

be created in order to ﬁt a particular educational ac-

tivity, whilst remaining reusable (e. g., virtual hosts,

exercise data stored at hosts).

Some activities, e. g., capture the ﬂag games, are

designed to be held without much direct input from

the teacher. Instead, the assignments for the learn-

ers are implanted into the platform where the game

is deployed, including additional instructions and an

evaluation of the submitted solutions. The learners

typically choose individual tasks or follow the prede-

ﬁned path of the game. Once they ﬁnd a solution, they

submit the requested data to the game platform which

immediately provides a response whether the solution

is correct or not. If it is, they can proceed further.

In the other cases, it is desirable for the educators

to be able to control the ﬂow of the hands-on activ-

ity based on automatically acquired status informa-

tion about the simulated infrastructure in the sandbox

and also manually trigger tasks for learners, and eval-

uate their actions and reports.

KYPO Cyber Range: Design and Use Cases

319

Whatever the case, it is desirable to put mini-

mal requirements on the learners’ knowledge of the

KYPO infrastructure, virtualization technologies and

other advanced concepts. As a result, the learners can

focus only on the subject of the exercise or training,

such as a penetration testing tutorial or a cyber secu-

rity game.

With regard to KYPO’s user roles, learners fol-

low the scenario roles assigned to them, and interact

with predeﬁned web user interfaces. Instructors have

supervisor privileges to keep track on learners’ activi-

ties and to be able to interfere in their activities if nec-

essary. In contrast, substantial preparation effort and

technical skills are required from scenarists and or-

ganizers who create the content of exercises, allocate

resources and manage the preparation and execution

phase.

This use case motivates further research in active

learning of cyber security. We evaluated the bene-

ﬁts of design enhancements in generic capture the ﬂag

game scheme provided by KYPO platform (Vykopal

and Barták, 2016). Next, we introduced methods of

distributing learners into teams with respect to their

proﬁciency and the prerequisite skills required by a

cyber exercise (Vykopal and Cegan, 2017).

6 CONCLUSION

Today, KYPO is the largest academic cyber range

in the Czech Republic. The platform is fully cloud-

based and supports multiple use cases (research, edu-

cation and training). We organize national cyber exer-

cises and training sessions to validate proposed cyber

range components and to continually improve them.

We also use KYPO for hands-on security courses to

give students realistic experience in cyber security.

Our current work focuses on research into tools

for more realistic, economical, and time efﬁcient sim-

ulations of real cyber entities. We develop tools to

further automate the preparation and execution of cy-

ber experiments. We connect KYPO to other facilities

(e. g., ICS and LTE networks) to create a more real-

istic cyber-physical environment. We aim to execute

current and sophisticated cyber attacks in the KYPO

infrastructure to provide a research environment for

simulation, detection, and mitigation of cyber threats

against critical infrastructure.

In addition to the technology based contributions,

we would like to contribute to transdisciplinary learn-

ing in cyber security to cope with the ever-evolving

threat landscape. To make a desirable improvement

in the skills of the learners, technical skills must be

complemented by communication, strategy and other

skills for effective attack detection and response.

ACKNOWLEDGEMENTS

This research was supported by the Security Research

Programme of the Czech Republic 2015-2020 (BV

III/1 – VS) granted by the Ministry of the Interior

of the Czech Republic under No. VI20162019014 –

Simulation, detection, and mitigation of cyber threats

endangering critical infrastructure.

Access to the CERIT-SC computing and stor-

age facilities provided by the CERIT-SC Center,

provided under the programme “Projects of Large

Research, Development, and Innovations Infrastruc-

tures” (CERIT Scientiﬁc Cloud LM2015085), is

greatly appreciated.

REFERENCES

Avatao (Last accessed on Mar 22, 2017).

https://avatao.com/.

Benzel, T. (2011). The Science of Cyber Security Experi-

mentation: The DETER Project. In Proceedings of the

27th Annual Computer Security Applications Confer-

ence, pages 137–148. ACM.

Buttyán, L., Félegyházi, M., and Pék, G. (2016). Mentoring

talent in IT security–A case study. In 2016 USENIX

Workshop on Advances in Security Education (ASE

16).

Childers, N., Boe, B., Cavallaro, L., Cavedon, L., Cova,

M., Egele, M., and Vigna, G. (2010). Organizing

large scale hacking competitions. In Detection of In-

trusions and Malware, and Vulnerability Assessment,

pages 132–152. Springer.

CTF365 (Last accessed on Mar 22, 2017). Capture The Flag

365. https://ctf365.com/.

Cyber Virtual Ad hoc Network (Last

accessed on Mar 22, 2017).

http://www.appcomsci.com/research/tools/cybervan.

Davis, J. and Magrath, S. (2013). A survey of cyber ranges

and testbeds. Technical report, DTIC Document.

EDURange (Last accessed on Mar 22, 2017).

http://www.edurange.org/.

Eichler, Z., Ošlejšek, R., and Toth, D. (2015). KYPO: A Tool

for Collaborative Study of Cyberattacks in Safe Cloud

Environment, pages 190–199. Springer International

Publishing, Cham.

Emulab (Last accessed on Mar 22,

2017). A list of Emulab Testbeds.

http://wiki.emulab.net/Emulab/wiki/OtherEmulabs.

Faber, T. and Wroclawski, J. (2009). A federated experi-

ment environment for Emulab-based testbeds. In TRI-

DENTCOM, pages 1–10.

ICSOFT 2017 - 12th International Conference on Software Technologies

320

Ferguson, B., Tall, A., and Olsen, D. (2014). National cyber

range overview. In 2014 IEEE Military Communica-

tions Conference, pages 123–128.

Jirsík, T., Husák, M.,

Celeda, P., and Eichler, Z. (2014).

Cloud-based security research testbed: A DDoS use

case. In 2014 IEEE Network Operations and Man-

agement Symposium (NOMS).

KYPO (Last accessed on May 16, 2017). https://kypo.cz/.

Lee Rossey (2015). SimSpace Cyber Range. ACSAC 2015

Panel: Cyber Experimentation of the Future (CEF):

Catalyzing a New Generation of Experimental Cyber-

security Research.

Linux Foundation (Last accessed on Mar 22, 2017). Open

vSwitch. http://openvswitch.org/.

MCR (Last accessed on Mar 22, 2017). The Michigan Cy-

ber Range. https://www.merit.edu/cyberrange/.

Medková, J., Husák, M., Vizváry, M., and

Celeda, P.

(2017). Honeypot Testbed for Network Defence Strat-

egy Evaluation. In Proceedings of the 2017 IFIP/IEEE

International Symposium on Integrated Network Man-

agement, pages 887–888. IEEE Computer Society.

Mirkovic, J., Benzel, T. V., Faber, T., Braden, R., Wro-

clawski, J. T., and Schwab, S. (2010). The DETER

Project. In 2010 IEEE International Conference on

Technologies for Homeland Security (HST ’10).

NATO CCDCOE (Last accessed on May 16, 2017).

Locked Shields. http://ccdcoe.org/event/cyber-

defence-exercises.html.

NCR (Last accessed on Mar 22, 2017). The Na-

tional Cyber Range. http://www.acq.osd.mil/dte-

trmc/docs/Docs/NCR/2015_NCR

Špa

cek, S.,

Celeda, P., Drašar, M., and Vizváry, M. (2017).

Analyzing an Off-the-Shelf Surveillance Software:

Hacking Team Case Study. Security and Protection

of Information, (IX).

Raj, A. S., Alangot, B., Prabhu, S., and Achuthan, K.

(2016). Scalable and Lightweight CTF Infrastruc-

tures Using Application Containers. In 2016 USENIX

Workshop on Advances in Security Education (ASE

16), Austin, TX. USENIX Association.

Schwab, S., Wilson, B., Ko, C., and Hussain, A. (2007).

SEER: A security experimentation environment for

DETER. In Proceedings of the DETER Commu-

nity Workshop on Cyber Security Experimentation and

Test on DETER Community Workshop on Cyber Secu-

rity Experimentation and Test 2007. USENIX Associ-

ation.

Security Competence (Last accessed on Mar 22,

2017). Hacking-Lab. http://www.hacking-lab-

ctf.com/technical.html.

Siaterlis, C., Garcia, A. P., and Genge, B. (2013). On the

Use of Emulab Testbeds for Scientiﬁcally Rigorous

Experiments. IEEE Communications Surveys Tutori-

als, 15(2):929–942.

Tovar

nák, D. and Pitner, T. (2014). Continuous queries

over distributed streams of heterogeneous monitor-

ing data in cloud datacenters. In 2014 9th Interna-

tional Conference on Software Engineering and Ap-

plications (ICSOFT-EA), pages 470–481.

Vigna, G., Borgolte, K., Corbetta, J., Doupe, A., Fratanto-

nio, Y., Invernizzi, L., Kirat, D., and Shoshitaishvili,

Y. (2014). Ten Years of iCTF: The Good, The Bad,

and The Ugly. In 2014 USENIX Summit on Gam-

ing, Games, and Gamiﬁcation in Security Education

(3GSE 14).

Vykopal, J. and Barták, M. (2016). On the Design of Secu-

rity Games: From Frustrating to Engaging Learning.

In 2016 USENIX Workshop on Advances in Security

Education (ASE 16), Austin, TX. USENIX Associa-

tion.

Vykopal, J. and Cegan, J. (2017). Finding Exercise Equi-

librium: How to Support the Game Balance at the

Very Beginning? In Proceedings of the 2017 ACM

SIGCSE Technical Symposium on Computer Science

Education, SIGCSE ’17, pages 719–719, New York,

NY, USA. ACM.

Welch, D., Ragsdale, D., and Schepens, W. (2002). Training

for information assurance. Computer, 35(4):30–37.

White, B., Lepreau, J., Stoller, L., Ricci, R., Guruprasad, S.,

Newbold, M., Hibler, M., Barb, C., and Joglekar, A.

(2002). An Integrated Experimental Environment for

Distributed Systems and Networks. pages 255–270,

Boston, MA.

Wroclawski, J., Mirkovic, J., Faber, T., and Schwab, S.

(2008). A two-constraint approach to risky cybersecu-

rity experiment management. In Sarnoff Symposium.

Invited paper.

KYPO Cyber Range: Design and Use Cases

321
